. 2022 Dec 2;40(1):36. doi: 10.1007/s12032-022-01894-7

Engraftment syndrome following Hematopoietic stem cell transplantation: a systematic approach toward diagnosis and management

Shahzaib Maqbool 1, Muhammad Nadeem 2, Ahmad Shahroz 1, Kiran Naimat 3, Imran Khan 4, Hassaan Tahir 1, Abdur Rehman 1, Faiz Anwer 5, Raheel Iftikhar 6, Ka Yiu Lee 7,✉
PMCID: PMC9718873  PMID: 36460884

Abstract

Engraftment syndrome (ES) is a non-infectious complication seen both in autologous and allogeneic hematopoietic stem cell transplants and is characterized by the presence of non-infectious fever, diarrhea, skin rash, pulmonary infiltration, pulmonary edema, and deranged renal and liver function tests This review will be delineating the incidence of ES, important differential diagnoses to be considered and management options. The literature search was done through various databases like PubMed, Google scholar, Cochrane library, and EMBASE. The incidence of engraftment syndrome was ranging from 8 to 50% in patients undergoing Autologous stem cell transplantation while the incidence was 10–77% in patients undergoing Allogeneic stem cell transplantation. Fever was the most commonly observed symptom of ES in both Autologous and Allogeneic stem cell transplantation while the second most frequently reported symptom was non-infectious diarrhea in patients undergoing autologous stem cell transplantation and Skin rash in patients with Allogeneic stem cell transplantation. Pro-inflammatory cytokines and immune response dysregulation were highlighted as the mechanism behind ES development. The significant difference between ES and aGVHD was observed based on cytokines, with IL-12, IL-1β, IL-6, TNF-α, and IFN-γ levels in plasma being higher in patients with ES as compared to patients with aGVHD. Intravenous methylprednisolone was used as the treatment of choice in the majority of the studies. Overall the incidence of ES was high in patients undergoing allogeneic hematopoietic stem cells transplantation. The survival in patients developing ES was less compared to those who did not develop ES. Engraftment syndrome is one of the complications following hematopoietic stem cell transplantation that need early identification, differentiation from infectious complications, and aGVHD and timely initiation of corticosteroids therapy.

Keywords: Autologous stem cell transplantation, Allogeneic stem cell transplantation, Hematopoietic stem cells transplantation, Engraftment syndrome, Acute Graft-vs-Host disease

Introduction

Hematopoietic stem cell transplantation (HSCT) is a medical procedure that is commonly used as an excellent resort for the treatment of various malignancies by infusing stem cells following chemotherapy or radiotherapy [1]. E. Donnall Thomas carried out the first procedure of HSCT in 1957; this was regarded as a revolutionary step toward therapeutic advances in cancer management [2]. According to recent statistics in the year 2019 by World Health Organization (WHO), about 50,000 HSCT procedures are being performed annually [3]. Two types of HSCT have been described, one is autologous stem cell transplantation (Auto-SCT) which uses the recipient stem cells, and the other is allogeneic stem cell transplantation (Allo-SCT) which uses the stem cells from matched or unrelated human leukocyte antigen (HLA) compatible donors [4]. Though HSCT is not only paving the way toward advanced management of various malignant and benign diseases but also posing some significant adverse events and engraftment syndrome is one of the serious side effect profiles associated with HSCT.

Engraftment syndrome is a group of clinical signs and symptoms associated with the process of neutrophil recovery after HSCT [5]. Engraftment syndrome presented with symptoms like non-infectious fever, rash, pulmonary infiltration, or edema that are found to be in close association with HSCT outcome measures [6]. Though some patients developed limited featured ES it has also been associated with transplant-related mortalities [7]. A strong association between ES and acute graft vs host reaction (aGVHD) has been studied, but the cytokine profile is suitable enough to allow the differentiation between these two entities. So, hypothesizing that aGVHD and ES are two different disorders would be of great value to the literature and future perspectives related to ES [8].

We aim this review to summarize the ES incidence, pathogenesis, diagnostic and therapeutic profile of ES, along with aGVHD differentiation from ES in HSCT. This review will also aim to highlight the signs and symptoms variation of ES between Autologous and Allogeneic stem cell transplantation with various therapeutic approaches and benefits in ES.

Materials and methods

Search strategies

This study was conducted following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [9]. A comprehensive literature search was done from July 21, 2022, to September 22, 2022. The literature search for this systematic review was done through various databases like PubMed, Google scholar, Web of Science, EMBASE, and Cochrane database by using MeSH key terms of engraftment syndrome (ES), Autologous stem cell transplantation (ASCT), Allogeneic stem cell transplantation, and Hematopoietic stem cell transplantation (HSCT), Graft vs host disease (GVHD). After careful consideration of inclusion and exclusion criteria, a total of 12 studies were included to synthesize this systematic review, and studies involving the occurrence of ES in both Autologous stem cell transplantation or Allogeneic stem cell transplantation were included.

Inclusion and exclusion criteria

This study will include studies involving patients of both adult and pediatric age groups having different types of hematological and non-hematological malignancies undergoing Autologous stem cell transplantation (Auto-SCT) and Allogeneic stem cell transplantation (Allo-SCT) for any of the disease either hematological malignancies or non-hematological benign and malignant disorders. The studies related to ES from past twenty years were included. The studies in which patients were undergoing conventional chemotherapeutic treatment were excluded and those lacking follow-up after ASCT or allogeneic stem cell transplantation were also excluded.

Quality assessment of studies

The quality assessment of involved studies was done by two independent reviewers selected based on competency in the field of research. For quality assessment Newcastle–Ottawa scale (NOS) and Jadad five-item scale was used and studies like RCT, meta-analysis, systematic reviews, case–control, and cohort studies were included while short Communications, letter to the editor, commentaries, unpublished articles, and studies with language other than English were excluded. Studies with a score ≤ 4 (low quality) were excluded while studies with a score ≥ 6 (high quality) were included for the synthesis of this systematic review.

Data extraction

Data extraction was done independently by two investigators and studies showing the association or occurrence of ES after autologous and Allogeneic stem cell transplantation were selected. The data extraction regarding study name, year of study, type of study, country of origin, ES incidence, ES diagnosis, ES treatment, signs and symptoms of ES, and finally conditioning regimens and aGVHD prophylactic treatment used in Allogeneic stem cell transplantation were extracted and data was arranged in tabulated configuration (Fig. 1).

Fig. 1.

Fig. 1

Open in a new tab

PRISMA flow diagram of studies selection

Diagnostic criteria leading to engraftment syndrome diagnosis

To date, various diagnostic criteria have been proposed to simplify the correct definition of ES, however; Spitzer [5] and Maiolino [10] criteria are the most commonly used criteria to define ES in clinical settings. The presence of non-infectious fever (38 °C), non-infectious diarrhea having 2 or more episodes, and Maculo-papular exanthema rash involving over 25% of body surface area, were the common fractures of ES between Spitzer and Maiolino criteria. However, pulmonary edema of non-cardiogenic origin, weight gain of over 2.5% of the basal level, deranged liver function tests (bilirubin ≥ 2 mg/100 ml and ALT and AST 2 time of the normal), deranged Renal function tests (creatinine two times of the normal value), and Transient encephalopathy of unknown origin was solely described in Spitzer criteria as compared to Maiolino criteria. The flow sheet of Engraftment syndrome criteria is given in Fig. 2 below.

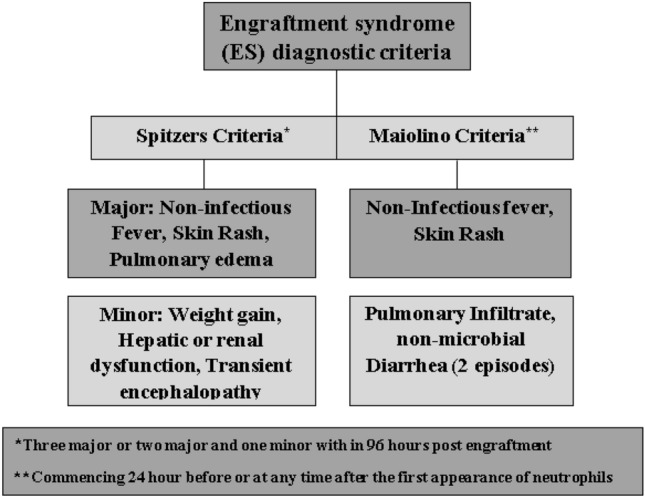

Fig. 2.

Fig. 2

Open in a new tab

Showing the diagnostic criteria of Engraftment Syndrome after Hematopoietic stem cell transplantation (Auto-SCT, Allo-SCT)

Results

Engraftment syndrome (ES) is a well-known complication that is found to be associated with Hematopoietic stem cell transplantation (Auto-HSCT and Allo-HSCT) that is manifested through a set of clinically significant signs and symptoms like non-infectious fever, non-infectious diarrhea, skin rash, pulmonary infiltration or edema, weight gain and deranged RFTs, and LFTs [11]. The exact pathophysiological mechanism leading to ES is still unclear however; studies have evaluated the association of various pro-inflammatory cytokines such as IL-2, IL-6, IL-8, INF, and TNF-alpha with the development of ES following hematopoietic stem cell transplantation [12]. ES is also characterized as a constellating set of symptoms occurring during the recovery of neutrophils following Autologous and Allogeneic stem cell transplantation. The commutative incidence of ES following hematopoietic stem cell transplantation has been reported as 5% to 75% as reported in various studies [13–15] (Figs. 3 and 4).

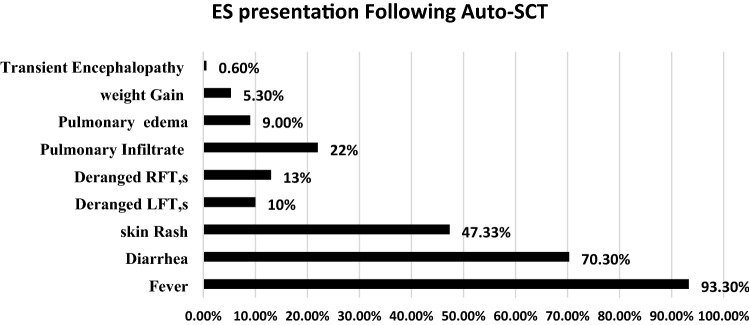

Fig. 3.

Fig. 3

Open in a new tab

Showing the sign and symptom of Engraftment syndrome following Auto-HSCT

Fig. 4.

Fig. 4

Open in a new tab

Showing the signs and symptoms of Engraftment syndrome following Auto-HSCT

Engraftment syndrome following autologous and allogeneic stem cell transplantation

See Tables 1, 2, 3, 4, 5.

Table 1.

Autologous hematopoietic stem cell transplantation indications and engraftment syndrome

Author/year of study Country Indications of Auto-SCT Transplant Type Total population Es/no ES
Katzel et al. (2006) [30] USA MM Autologous (Auto-SCT) 90 (100%) 9(10%)/80(90%)
Cornell et al. (2013) [21] USA MM/HL/NHL Autologous (Auto-SCT) 591 (100%) 131(22%)/460(78%)
Gonzalo et al. (2018) [31] Spain MM Autologous (Auto-SCT) 170 (100%) 73 (43%)/97(57%)
Irazabal et al. (2011) [32] USA Amyloidosis Autologous (Auto-SCT) 377 (100%) 29 (8%)/348(92%)
Crreras et al. (2010) [33] Spain Amyloidosis, MM, HL, NHL, POEMS, CLL, acute leukemia Autologous (Auto-SCT) 328 (100%) 42*(12.8%)/328 (87.2%)
Dispenzieri et al. (2008) [34] USA POEM syndrome Autologous (Auto-SCT) 30 (100%) 15 (50%)/15 (50%)
Open in a new tab

MM: Multiple Myeloma, HL: Hodgkin Lymphoma, NHL: Non-Hodgkin Lymphoma, CLL: Chronic Lymphoblastic Leukaemia, POEMS: Polyneuropathy, Organomegaly, Endocrinopathy, Monoclonal protein, Skin changes, ASCT: Autologous Stem Cell Transplantation, ES: Engraftment syndrome. (*) represent the exclusion of 1 patient who did not develop fever due to prior 48 h administration of steroids so, a total of 42 patients were included out of 43 (42/43)

Table 2.

Autologous hematopoietic stem cell transplantation indications and engraftment syndrome incidence, signs and symptoms and response to corticosteroid therapy

Author/year of study Country Indications of Auto-SCT ES signs and symptoms in diseased cohorts Incidence of ES Corticosteroid response
Katzel et al. (2006) [30] USA MM Fever (9/9,100%), Diarrhea (8/9, 89%), skin rash (4/9, 44.4%), Pulmonary infiltrated (6/9, 67%) 10% Responsive
Cornell et al. (2013) [21] USA MM/HL/NHL Fever (118/131, 90%), Diarrhea (89/131, 68%), skin rash (66/131, 50%), abnormal LFT’s (30/131, 23%), Pulmonary infiltrate (20/131, 15%) 22% Responsive
Gonzalo et al. (2018) [31] Spain MM Fever (73/73, 100%), Diarrhea (66/73, 90%), skin rash (24/73, 33%), Pulmonary infiltrate (24/73, 33%) 43% Responsive
Irazabal et al. (2011) [32] USA Amyloidosis Fever (24/29, 83%), Diarrhea (20/29, 69%), skin rash (14/29, 48.2%), Pulmonary edema (27/29, 93%), abnormal RFT’s (27/29, 93%) 8% NA
Crreras et al. (2010) [33] Spain Amyloidosis, MM, HL, NHL, POEMS, CLL, acute leukemia Fever (42/43, 98%), Diarrhea (17/43, 40%), skin rash (28/43, 65%), abnormal LFT’s (9/43, 21%), Pulmonary infiltrate (16/43, 37%), abnormal RFT’s (12/43, 26%), weight gain (8/43, 19%), TA (2/43, 3%) 12.8% Responsive
Dispenzieri et al. (2008) [34] USA POEM syndrome Fever (14/15, 93%), Diarrhea (11/15, 77%), skin rash (6/15, 43%), weight gain (8/15, 53%) 50% Responsive
Open in a new tab

MM: Multiple Myeloma, HL: Hodgkin Lymphoma, NHL: Non-Hodgkin Lymphoma, CLL: Chronic Lymphoblastic Leukaemia, POEMS: Polyneuropathy, Organomegaly, Endocrinopathy, Monoclonal protein, Skin changes, LFT, s: Liver Function Tests, RFT.s: Renal Function Tests

Table 3.

Allogenic hematopoietic stem cell transplantation (Allo-SCT) indications and engraftment syndrome incidence following Allo-SCT

Author/year of study Country Indications of Allo-SCT Transplant Type Total population Es/no ES Incidence of ES (%)
Lleri et al. (2016) [35] Turkey AML, ALL, MDS, Hemoglobinopathies, Aplastic anemia, HLH, Dyskeratosis congenita Allogenic (Allo-SCT) 169 (100%) 17 (10%)/152 (90%) 10
Omer et al. (2014) [36] USA AML, ALL, CML, CLL, MDS, NHL, HL, MM, Amyloidosis, MF Allogenic (Allo-SCT) 217 (100) 48 (22%)/169 (78%) 22
Chang et al. (2014) [37] USA AML, ALL, CML, CLL, MDS, NHL, HL, MM, Histiocytic sarcoma, MF, MPD, and non-malignant diseases* Allogenic (Allo-SCT) 927 (100%) 119 (12.8%)/808 (87.2%) 12.8
Park et al. (2013) [38] Korea AML, ALL, CML, MDS, Aplastic anemia, and other diseases Allogenic (Allo-SCT) 381 (100%) 102 (27%)/279 (73%) 27
Wang et al. (2012) [39] China AML, ALL, ABL, CML, MDS, NHL Allogenic (Allo-SCT) 81 (100%) 51 (63%)/30 (37%) 63
Kanda et al. (2013) [40] USA AML, ALL, MLAL, CML, MDS, NHL, malignant lymphoma Allogenic (All0-SCT) 57 (100%) 44 (77%)/ 57 (23%) 77
Open in a new tab

MM: Multiple Myeloma, HL: Hodgkin Lymphoma, NHL: Non-Hodgkin Lymphoma, CLL: Chronic Lymphoblastic Leukaemia, CML: Chronic Myeloid Leukaemia, AML: acute myeloid leukemia, ALL: acute lymphoblastic leukemia, MDS: Myelodysplastic syndrome, MF: Myelofibrosis, MPD: Myeloproliferative disorder

Table 4.

Allogenic hematopoietic stem cell transplantation and conditioning regimen following engraftment syndrome signs and symptoms along with acute graft vs host disease prophylaxis

Author/year of study Country ES signs and symptoms in diseased cohorts Conditioning regimen aGVHD prophylaxis Corticosteroid Treatment
Lleri et al. (2016) [35] Turkey Fever (17/17, 100%), pulmonary infiltrate (5/17, 29.4%), skin rash (13/17, 76.4%), weight gain (12/17, 70.5%), abnormal RFT, s (6/17, 35.2%), abnormal LFT, s (2/17, 11.7%)

MAC: 82%

NMAC: 18%

CsA40.8%

CsA + MTX:59.2%

 IV Methylprednisolone1-2 mg/kg every 12 h for 7–14 days given in (13/17, 76.5%) of the participants
Omer et al. (2014) [36] USA Fever (47/48, 97.9%), pulmonary infiltrate (25/48, 52.1%), skin rash (39/48, 81.3%), weight gain (35/48, 72.9%), abnormal RFT, s (13/48, 27.1%), abnormal LFT, s (10/48, 20.8%), TE (5/48, 10.4%)

MAC: 38.7%

NMAC: 61.3%

CsA39.6%

CsA + MTX:13.8%

CsA + MMF:15.7%

IV Methylprednisolone 1 mg/kg/day for 14 days given in

(34/48, 71%) of the participants
Chang et al. (2014) [37] USA Fever (119/119, 100%), pulmonary edema (64/119, 54%), skin rash (100/119, 84%), weight gain (91/119, 77%), abnormal RFT, s (9/119, 8%), abnormal LFT, s (29/119, 24%), TE (15/119, 13%)

MAC: 63.1%

RIC: 36.9%

Tac + MTX:59.6%

Tac + MMF:37.9%

 IV Methylprednisolone 1.1 mg/kg/day for 28 days given in (94/119, 79%) of the participants
Park et al. (2013) [38] Korea Fever (96/102, 94%), diarrhea (30/102, 29%), pulmonary edema (13/102, 13.3%), skin rash (84/102, 82%), weight gain (28/102, 27.3%)

MAC: 68.5%

RIC: 31.5%

MTX

STR, NOS

IV

Unspecified systemic steroid (1 mg/kg/day) for 7 days given in (74/102, 72.5%) of the participants
Wang et al. (2011) [39] China Fever (46/51, 85%), diarrhea (18/51, 35.3%), skin rash (46/51, 85%), weight gain (13/51, 25.5%), abnormal LFT, s (3/51, 6%), TE (1/51, 1.96%)

MAC: 89%

RIC: 11%

 CsA + MMF:100% IV Methylprednisolone 1 mg/kg/day for 7 days given in (47/51, 92%) of the participants
Kanda et al. (2013) [40] USA Fever (31/44, 70.4%), diarrhea (14/44, 31.8%), skin rash (41/44, 93.1%), weight gain (10/44, 23%), abnormal LFT, s (8/44, 18%), abnormal RFT, s (5/44, 11.36%), PE (11/44, 25%)

MAC: 100%

RIC: 0.0%

Tac + MMF:61%

CsA + MMF:39%

 IV Unspecified systemic steroid 1 mg/kg/day given in (24/44, 54.5%) of the participants
Open in a new tab

MM: Multiple Myeloma, HL: Hodgkin Lymphoma, NHL: Non-Hodgkin Lymphoma, CLL: Chronic Lymphoblastic Leukaemia, CML: Chronic Myeloid Leukaemia, AML: acute myeloid leukemia, ALL: acute lymphoblastic leukemia, MDS: Myelodysplastic syndrome, MF: Myelofibrosis, MPD: Myeloproliferative disorder, MAC: myeloablative conditioning, RIC: reduced-intensity conditioning, TE: Transient encephalopathy, PE: Pulmonary edema, LFT, s: Liver Function Tests, RFT.s: Renal Function Tests, Tac: Tacrolimus, CsA: Cyclosporine, MMF: mycophenolate mofetil, MTX: methotrexate, NMAC: non-myeloablative conditioning

Table 5.

Allogenic hematopoietic stem cell transplantation and engraftment syndrome, aGVHD incidence and description of conditioning regimen and aGVHD prophylaxis

Author/year of study Country Conditioning regimen Conditioning regimen detail aGVHD prophylaxis aGVHD
detail		 aGVHD incidence
Ileri et al. (2016) [35] Turkey

MAC: 82%

NMAC: 18%

 ATG-based conditioning regimen, BU-based conditioning regimen

CsA40.8%

CsA + MTX:59.2%

Cyclosporine alone

Cyclosporine: (3 mg/kg/day) on day -1 (PA) + 

Methotrexate: on day 1,3,6

 The cumulative incidence of aGVHD grade II-IV was 12.4% on the 30th-day post-post-transplantation
Omer et al. (2014) [36] USA

MAC: 38.7%

NMAC: 61.3%

MAC: TBI-based conditioning regimen + CY combined with high dose BU

Or

NMAC: High dose CY and fludarabine + low dose BU

CsA39.6%

CsA + MTX:13.8%

CsA + MMF:15.7%

Cyclosporine 2.5 mg/kg/day alone

Cyclosporine and methotrexate combined

Cyclosporine and mycophenolate mofetil combined

 The incidence of aGVHD grade II-IV was 31% in ES ( +) and 23% in non-ES patients at 180th days post-post-transplantation
Chang et al. (2014) [37] USA

MAC: 63.1%

RIC: 36.9%

MAC: TBI ≥ 1200 Gy, CY 200 mg/kg, BU 16 mg/kg

RIC: TBI reduced to 30% of MA and consisted mainly of FU + reduced doses of BU and Thiotepa

Tac + MTX:59.7%

Tac + MMF:40.3%

Calcineurin inhibitor plus Methotrexate (n = 71)

Calcineurin plus Mycophenolate mofetil (n = 48)

 The cumulative incidence of aGVHD grade II-IV was 74% on the 28th-day post-post-transplantation
Park et al. (2013) [38] Korea

MAC: 68.5%

RIC: 31.5%

MAC: TBI 13.2 Gy, CY 120 mg/kg, BU 16 mg/kg

RIC: low dose TBI, BU 9 mg/kg, MEL 150 mg/m2

MTX

STR

 Methotrexate and some non-specified steroids The cumulative incidence of aGVHD grade II-IV was 56% on the 100th day post-post-transplantation
Wang et al. (2011) [39] China

MAC: 89%

RIC: 11%

MAC: BU/CY, BU/CY + ATG, TBI + Ara-c + CY, Flu + BU + CY

RIC: Flu + BU + TBI + ATG, Flu + BU + CY + TBI

 CsA + MMF:100% IV cyclosporine 3 mg/kg/day at day 1 followed by oral CsA 200-400 ng/ml for 1 month + Mycophenolate mofetil 20-30 mg/kg on day + 1 The cumulative incidence of aGVHD grade II-IV was 35.5% on the 100th day post-post-transplantation
Kanda et al. (2013) [40] USA

MAC: 100%

RIC: 0.0%

MAC: FLU/TBI (n = 26), FLU/TBI/CY(n = 16), FLU/TBI/THIO (n = 7), FLU/TBI/MEL (n = 2), TBI/CY/ATG (n = 3), TBI/MEL/ATG (n = 3)

RIC: Not used in any patient

Tac + MMF:61%

CsA + MMF:39%

 IV Tacrolimus (n = 35) combined with mycophenolate mofetil and Cyclosporine (n = 22) in combination with mycophenolate mofetil Incidence of aGVHD grade II-IV was 61% in ES ( +), 36% for III-IV grade aGVHD at 100th-day post-post-transplantation
Open in a new tab

Tac: Tacrolimus, CsA: Cyclosporine, MMF: mycophenolate mofetil, MTX: methotrexate, NMAC: non-myeloablative conditioning, MAC: myeloablative conditioning, RIC: reduced-intensity conditioning, MEL: melphalan, BU: busulfan, ATG: anti-thymocyte globulin, TBI: total body irradiation, FLU: Fludarabine, STR: steroid

Discussion

Engraftment syndrome (ES) is a well-known complication that is found to be associated with Hematopoietic stem cell transplantation (Auto-HSCT and Allo-HSCT) that is manifested through a set of clinically significant signs and symptoms. Engraftment syndrome (ES) is a non-infectious complication seen both in autologous and allogeneic hematopoietic stem cell transplants and is characterized by the presence of non-infectious fever, diarrhea, skin rash, pulmonary infiltration, pulmonary edema, and deranged renal and liver function tests.

Pathophysiological mechanism of engraftment syndrome

Various animal model studies and human model studies have been performed to elaborate on the exact mechanism of ES, still very unclear to label the exact mechanism of ES. However, various human model studies have shown the role of the immune system in the development of ES even in Autologous stem cell transplantation or even in HLA-absent or minor histocompatibility mismatch cases [16]. Various studies have delineated the role of various pro-inflammatory cytokines like IL-1, TNFα, IFN-γ, and IL-12 along with immune system dysregulation [17]. However, studies have also evaluated the role of various other cytokines profiles that were found to be high in isolated ES as compared to aGVHD cytokine profiles including IL-1β, IL-6, IL-12, IL-4, and IL-13 [18]. The presence of higher levels of IL-1β in ES was a leading point toward the association of inflammasome-mediated inflammation and ES development. A proposed hypothetical model involving the exact pathophysiological Mechanism of ES was cytokine-mediated enhanced antigen presentation to T-cells with enhanced T-cells activation and graft rejection in allogeneic settings and reduced tolerance in the autologous setting. With reduced effects of regulatory T-cell (Treg) functions, the T-cells destined to recognize self-MHC and self-peptides become Cytotoxic T-cells with tissue destruction and ultimately graft rejection and ES [16]. There is still more work pending to elaborate the exact mechanism of ES while considering the hypothetical role of various cytokines and immune system dysregulation with reduced Treg functions.

Engraftment syndrome (ES) vs acute Graft-vs-Host disease (aGVHD) and differentiating role of cytokines

There have been a lot of discussions to differentiate between ES and aGVHD, and various studies have tried to explain this difference and got fruitful results, but how these two terms are different and which pathophysiological Mechanism is involved in both ES and aGVHD it’s still very unclear. However, with the progress in this field, studies have shown the difference in inflammatory and immunological responses between ES and aGVHD. A study by Khandelwal et al., involving the pediatric population has shown the difference of various pro-inflammatory cytokines in the development of isolated ES and isolated aGVHD, which was showing the significant difference of inflammatory response in terms of pro-inflammatory cytokines between aGVHD and isolated ES with higher plasma concentrations of IL-12, IL-1β, IL-6, TNFα, and IFN-γ in patients with ES as compared to aGVHD when measured at day zero to week 8 following Hematopoietic stem cell transplantation [19]. Similarly, a study by Konuma et al. was also showing higher plasma levels of IL-6, IL-12, TNFα, and IFN-γ in patients with engraftment syndrome validating the role of pro-inflammatory cytokines in the development of ES as compared to aGVHD which also shows higher levels of cytokines but not higher than ES [20].

Management profile of engraftment syndrome (ES) and acute graft-vs-host disease (aGVHD)

The management strategies of ES are mainly based on corticosteroid-based treatment, which is started based on a diagnosis of ES while ruling out the other potential causes of clinical symptomatology. A corticosteroid-based therapy is used widely in the effective treatment of ES either following Autologous hematopoietic stem cell transplantation or Allogeneic Hematopoietic stem cell transplantation. The initiation of methylprednisolone 1–1.5 mg/kg/day until the symptoms are resolving; which typically occurs within 2–3 days, followed by a reduction to 40–50 mg PO Prednisone/day for 2–3 days which typically occurs within 2–3 days is considered a good treatment strategy to mitigate the devastating effects of ES [21]. Similarly, studies have evaluated that early initiation of corticosteroid therapy is associated significantly with a reduction in disease progression and severity. According to Sheth et al., early initiation of methylprednisolone 1 mg/kg/day for 3 days while tapering the dose to 0.5 mg/kg/day over 5–7 days was significantly associated with a reduction in ES-related complications and early recovery [22].

In the same vein, the association of ES with aGVHD in patients undergoing Allogeneic Hematopoietic stem cell transplantation is also a factor leading to post-transplantation complications. The utilization of aGVHD prophylaxis is of paramount significance to prevent transplant-related rejections and mortalities. While knowing the role of immune response dysregulation involving effector T-cells, various prophylactic treatment options have revolutionized the prevention of ES/aGVHD [23]. Using T-cell suppression effect through Tacrolimus (Tac) and Cyclosporine (Cys) in combination with methotrexate (MTX) and mycophenolate mofetil (MMF) are the best-known regimens used to prevent aGVHD. According to two RCTs conducted in 1990, the combination of Tac/MTX was the most effective combination used for the treatment of grade II and grade III GVHD as compared to Cys/MTX combination [24, 25].

There are various other treatment strategies now become available for the effective management of GVHD grade II–IV. New advances in aGVHD include the utilization of post-transplant cyclophosphamide at doses of 50 mg/kg on days + 3 and + 4 following the infusion of haploidentical stem cells was associated with a reduction in aGVHD [26]. Similarly, anti-thymocyte globulin (ATG) [27], sirolimus (a mTOR inhibitor) [28], along with select and pan T-cells depletion strategies are now proving fruitful, however; using Tac/MTX/MFM and Cys/MTX/MFM are still considered standard regimens in the prophylaxis of aGVHD [29]. All these strategies help in preventing the hyperactivity of the innate immune system with a significant reduction in cases of ES and aGVHD with improved overall survival (OS) following hematopoietic stem cell transplantation.

Conclusion

Engraftment Syndrome and acute Graft-vs-Host disease are the commonly encountered complications after hematopoietic stem cell transplantation. The mechanism involving these complications is hyperactivity of the innate immune system and pro-inflammatory cytokines storm that predisposed the patients to develop ES/aGVHD following Hematopoietic stem cell transplantation. In this review synthesis, the most common presentation of ES was non-infectious fever, diarrhea, and skin rash following Autologous hematopoietic stem cell transplantation non-infectious fever, and skin rash followed by weight gain was most commonly observed ES presentation after Allogeneic stem cell transplantation. Variable values of ES incidence were observed in this review ranging from 8 to 77% while using the Spitzer and Maiolino criteria of ES. The therapeutic use of corticosteroids, particularly intravenous methylprednisolone at a higher starting dose and followed by tapering, was highly effective in combating ES. Similarly, the use of immunosuppressive therapy was also highly effective in combating aGVHD. The difference between ES and aGVHD was evaluated based on plasma concentrations of various pro-inflammatory cytokines, which were present in higher concentrations in patients with ES as compared to aGVHD patients.

Acknowledgements

None.

Abbreviations

MM

Multiple Myeloma

HL

Hodgkin Lymphoma

NHL

Non-Hodgkin Lymphoma

CLL

Chronic Lymphoblastic Leukaemia

POEMS

Polyneuropathy, Organomegaly, Endocrinopathy, Monoclonal protein, Skin changes

ASCT

Autologous Stem Cell Transplantation

ES

Engraftment syndrome

CML

Chronic Myeloid Leukaemia

AML

Acute myeloid leukemia

ALL

Acute lymphoblastic leukemia

MDS

Myelodysplastic syndrome

MF

Myelofibrosis

MPD

Myeloproliferative disorder

MAC

Myeloablative conditioning

RIC

Reduced-intensity conditioning

TE

Transient encephalopathy

PE

Pulmonary edema

LFTs

Liver Function Tests

RFTs

Renal Function Tests

Tac

Tacrolimus

CsA

Cyclosporine

MMF

Mycophenolate mofetil

MTX

Methotrexate

NMAC

Non-myeloablative conditioning

MEL

Melphalan

BU

Busulfan

ATG

Anti-thymocyte globulin

TBI

Total body irradiation

FLU

Fludarabine

STR

Steroid

Author contributions

SM: Conception, study design and literature search, MN: Conception, literature search and data extraction, AS: arrangement of literature and study design, KN, IK, AR, HT, KYL: Contributed in synthesis of systematic review, review and editing of the manuscript; RI, and FA: conception, design and supervision. All authors approved the manuscript.

Funding

Open access funding provided by Mid Sweden University. No funding was used from initiation till the completion of this project.

Data availability

All the data generated or analyzed during this study are included in this manuscript.

Declarations

Conflict of interest

The authors have declared that they have no competing interests.

Ethical approval

Not applicable.

Patients consent

Not Applicable.

Consent to participate

Not applicable.

Consent for publication

Not applicable.

Footnotes

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Shahzaib Maqbool, Email: Hasanshahzaib299@gmail.com.

Muhammad Nadeem, Email: nadeemlangoove@gmail.com.

Ahmad Shahroz, Email: Ahmadshahroz470@gmail.com.

Kiran Naimat, Email: Kiran.naimat@icloud.com.

Imran Khan, Email: Imrankhankakar@hotmail.com.

Hassaan Tahir, Email: Hassaantahir23@gmail.com.

Abdur Rehman, Email: Dr.malik.ar123@gmail.com.

Faiz Anwer, Email: anwerf@ccf.org.

Raheel Iftikhar, Email: drraheeliftikar@gmail.com.

Ka Yiu Lee, Email: Kyle.Lee@miun.se.

References

  • 1.Bazinet A, Popradi G. A general practitioner’s guide to hematopoietic stem-cell transplantation. Curr Oncol. 2019;26(3):187–191. doi: 10.3747/co.26.5033. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Thomas ED, Lochte HL, Jr, Lu WC, Ferrebee JW. Intravenous infusion of bone marrow in patients receiving radiation and chemotherapy. N Engl J Med. 1957;257(11):491–496. doi: 10.1056/NEJM195709122571102. [DOI] [PubMed] [Google Scholar]
  • 3.World Health Organization (WHO) Haematopoietic Stem Cell Transplantation HSCtx [Web page] Geneva, Switzerland: WHO; 2018. https://www.who.int/transplantation/hsctx/en.
  • 4.Kanakry CG, Fuchs EJ, Luznik L. Modern approaches to HLA-haploidentical blood or marrow transplantation. Nat Rev Clin Oncol. 2016;13(2):132. doi: 10.1038/nrclinonc.2015.234. [DOI] [PubMed] [Google Scholar]
  • 5.Spitzer TR. Engraftment syndrome following hematopoietic stem cell transplantation. Bone Marrow Transplant. 2001;27(9):893–898. doi: 10.1038/sj.bmt.1703015. [DOI] [PubMed] [Google Scholar]
  • 6.Spitzer TR. Engraftment syndrome: double-edged sword of hematopoietic cell transplants. Bone Marrow Transplant. 2015;50(4):469–475. doi: 10.1038/bmt.2014.296. [DOI] [PubMed] [Google Scholar]
  • 7.Ravoet C, Feremans W, Husson B, et al. Clinical evidence for an engraftment syndrome associated with early and steep neutrophil recovery after autologous blood stem cell transplantation. Bone Marrow Transplant. 1996;18(5):943–947. [PubMed] [Google Scholar]
  • 8.Schmid I, Stachel D, Pagel P, Albert MH. Incidence, predisposing factors, and outcome of engraftment syndrome in pediatric allogeneic stem cell transplant recipients. Biol Blood Marrow Transplant. 2008;14(4):438–444. doi: 10.1016/j.bbmt.2008.02.002. [DOI] [PubMed] [Google Scholar]
  • 9.Moher D, Liberati A, Tetzlaff J, Altman DG, PRISMA Group* Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. Ann Intern Med. 2009;151(4):264–9. doi: 10.7326/0003-4819-151-4-200908180-00135. [DOI] [PubMed] [Google Scholar]
  • 10.Maiolino A, Biasoli I, Lima J, Portugal AC, Pulcheri W, Nucci M. Engraftment syndrome following autologous hematopoietic stem cell transplantation: definition of diagnostic criteria. Bone Marrow Transplant. 2003;31(5):393–397. doi: 10.1038/sj.bmt.1703855. [DOI] [PubMed] [Google Scholar]
  • 11.Sheth V, Jain R, Gore A, Ghanekar A, Saikia T. Engraftment syndrome: clinical features and predictive factors in autologous stem cell transplant. Indian J Hematol Blood Transfus. 2018;34(3):448–53. doi: 10.1007/s12288-017-0899-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Rabinowitz J, Petros WP, Stuart AR, Peters WP. Characterization of endogenous cytokine concentrations after high-dose chemotherapy with autologous bone marrow support. Blood. 1993;81(9):2452–2459. doi: 10.1182/blood.V81.9.2452.2452. [DOI] [PubMed] [Google Scholar]
  • 13.Cahill RA, Spitzer TR, Mazumder A. Marrow engraftment and clinical manifestations of capillary leak syndrome. Bone Marrow Transplant. 1996;18(1):177–184. [PubMed] [Google Scholar]
  • 14.Madero L, Vicent MG, Sevilla J, Prudencio M, Rodríguez F, Díaz MA. Engraftment syndrome in children undergoing autologous peripheral blood progenitor cell transplantation. Bone Marrow Transplant. 2002;30(6):355–358. doi: 10.1038/sj.bmt.1703645. [DOI] [PubMed] [Google Scholar]
  • 15.Grant A, Chapman LRM, Mitchell R, O’Brien TA. Engraftment syndrome following hematopoietic stem cell transplant: a review of the literature. Clin Transplant. 2020;34(6):e13875. doi: 10.1111/ctr.13875. [DOI] [PubMed] [Google Scholar]
  • 16.Cornell RF, Hari P, Drobyski WR. Engraftment syndrome after autologous stem cell transplantation: an update unifying the definition and management approach. Biol Blood Marrow Transplant. 2015;21(12):2061–2068. doi: 10.1016/j.bbmt.2015.08.030. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Jadus MR, Wepsic HT. The role of cytokines in graft-versus-host reactions and disease. Bone Marrow Transplant. 1992;10(1):1–14. Erratum in: Bone Marrow Transplant 1993 Jan;11(1):89. [PubMed]
  • 18.Takatsuka H, Takemoto Y, Yamada S, Wada H, Tamura S, Fujimori Y, Okamoto T, Suehiro A, Kanamaru A, Kakishita E. Complications after bone marrow transplantation are manifestations of systemic inflammatory response syndrome. Bone Marrow Transplant. 2000;26(4):419–426. doi: 10.1038/sj.bmt.1702517. [DOI] [PubMed] [Google Scholar]
  • 19.Khandelwal P, Mellor-Heineke S, Rehman N, Lane A, Smiley K, Villanueva J, Marsh RA, Grimley MS, Davies SM, Filipovich AH. Cytokine profile of engraftment syndrome in pediatric hematopoietic stem cell transplant recipients. Biol Blood Marrow Transplant. 2016;22(4):690–697. doi: 10.1016/j.bbmt.2015.12.016. [DOI] [PubMed] [Google Scholar]
  • 20.Konuma T, Kohara C, Watanabe E, Mizukami M, Nagai E, Oiwa-Monna M, Tanoue S, Isobe M, Kato S, Tojo A, Takahashi S. Cytokine profiles of pre-engraftment syndrome after single-unit cord blood transplantation for adult patients. Biol Blood Marrow Transplant. 2017;23(11):1932–1938. doi: 10.1016/j.bbmt.2017.07.020. [DOI] [PubMed] [Google Scholar]
  • 21.Cornell RF, Hari P, Zhang MJ, Zhong X, Thompson J, Fenske TS, et al. Divergent effects of novel immunomodulatory agents and cyclophosphamide on the risk of engraftment syndrome after autologous peripheral blood stem cell transplantation for multiple myeloma. Biol Blood Marrow Transplant. 2013;19(9):1368–1373. doi: 10.1016/j.bbmt.2013.06.017;10.1016/j.bbmt.2013.06.017. [DOI] [PubMed] [Google Scholar]
  • 22.Sheth V, Jain R, Gore A, et al. Engraftment syndrome: clinical features and predictive factors in autologous stem cell transplant. Indian J Hematol Blood Transfus. 2018;34:448–453. doi: 10.1007/s12288-017-0899-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Krenger W, Ferrara JL. Graft-versus-host disease and the Th1/Th2 paradigm. Immunol Res. 1996;15(1):50–73. doi: 10.1007/BF02918284. [DOI] [PubMed] [Google Scholar]
  • 24.Nash RA, Antin JH, Karanes C, Fay JW, Avalos BR, Yeager AM, Przepiorka D, Davies S, Petersen FB, Bartels P, Buell D, Fitzsimmons W, Anasetti C, Storb R, Ratanatharathorn V. Phase 3 study comparing methotrexate and tacrolimus with methotrexate and cyclosporine for prophylaxis of acute graft-versus-host disease after marrow transplantation from unrelated donors. Blood. 2000;96(6):2062–2068. [PubMed] [Google Scholar]
  • 25.Ratanatharathorn V, Nash RA, Przepiorka D, Devine SM, Klein JL, Weisdorf D, Fay JW, Nademanee A, Antin JH, Christiansen NP, van der Jagt R, Herzig RH, Litzow MR, Wolff SN, Longo WL, Petersen FB, Karanes C, Avalos B, Storb R, Buell DN, Maher RM, Fitzsimmons WE, Wingard JR. Phase III study comparing methotrexate and tacrolimus (prograf, FK506) with methotrexate and cyclosporine for graft-versus-host disease prophylaxis after HLA-identical sibling bone marrow transplantation. Blood. 1998;92(7):2303–2314. [PubMed] [Google Scholar]
  • 26.Luznik L, O’Donnell PV, Symons HJ, Chen AR, Leffell MS, Zahurak M, Gooley TA, Piantadosi S, Kaup M, Ambinder RF, Huff CA, Matsui W, Bolaños-Meade J, Borrello I, Powell JD, Harrington E, Warnock S, Flowers M, Brodsky RA, Sandmaier BM, Storb RF, Jones RJ, Fuchs EJ. HLA-haploidentical bone marrow transplantation for hematologic malignancies using nonmyeloablative conditioning and high-dose, posttransplantation cyclophosphamide. Biol Blood Marrow Transplant. 2008;14(6):641–650. doi: 10.1016/j.bbmt.2008.03.005. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Bacigalupo A, Lamparelli T, Bruzzi P, Guidi S, Alessandrino PE, di Bartolomeo P, Oneto R, Bruno B, Barbanti M, Sacchi N, Van Lint MT, Bosi A. Antithymocyte globulin for graft-versus-host disease prophylaxis in transplants from unrelated donors: 2 randomized studies from Gruppo Italiano Trapianti Midollo Osseo (GITMO) Blood. 2001;98(10):2942–2947. doi: 10.1182/blood.v98.10.2942. [DOI] [PubMed] [Google Scholar]
  • 28.Cutler C, Logan B, Nakamura R, Johnston L, Choi S, Porter D, Hogan WJ, Pasquini M, MacMillan ML, Hsu JW, Waller EK, Grupp S, McCarthy P, Wu J, Hu ZH, Carter SL, Horowitz MM, Antin JH. Tacrolimus/sirolimus vs tacrolimus/methotrexate as GVHD prophylaxis after matched, related donor allogeneic HCT. Blood. 2014;124(8):1372–1377. doi: 10.1182/blood-2014-04-567164. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Gooptu M, Antin JH. GVHD Prophylaxis 2020. Front Immunol. 2021;7(12):605726. doi: 10.3389/fimmu.2021.605726. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Katzel JA, Mazumder A, Jagannath S, Vesole DH. Engraftment syndrome after hematopoietic stem cell transplantation in multiple myeloma. Clin Lymphoma Myeloma. 2006;7(2):151. doi: 10.1016/S1557-9190(11)70311-0. [DOI] [PubMed] [Google Scholar]
  • 31.Gutiérrez-García G, Rovira M, Magnano L, Rosiñol L, Bataller A, Suárez-Lledó M, Cibeira MT, de Larrea CF, Garrote M, Jorge S, Moreno A, Rodríguez-Lobato LG, Carreras E, Díaz-Ricart M, Palomo M, Martínez C, Urbano-Ispizua A, Bladé J, Fernández-Avilés F. Innovative strategies minimize engraftment syndrome in multiple myeloma patients with novel induction therapy following autologous hematopoietic stem cell transplantation. Bone Marrow Transplant. 2018;53(12):1541–1547. doi: 10.1038/s41409-018-0189-2. [DOI] [PubMed] [Google Scholar]
  • 32.Irazabal MV, Eirin A, Gertz MA, Dispenzieri A, Kumar S, Buadi FK, Lacy MQ, Hayman SR, Dingli D, Hogan WJ, Gastineau DA, Glavey SV, Amer H, Leung N. Acute kidney injury during leukocyte engraftment after autologous stem cell transplantation in patients with light-chain amyloidosis. Am J Hematol. 2012;87(1):51–54. doi: 10.1002/ajh.22202. [DOI] [PubMed] [Google Scholar]
  • 33.Carreras E, Fernández-Avilés F, Silva L, Guerrero M, de Fernández Larrea C, Martínez C, Rosiñol L, Lozano M, Marín P, Rovira M. Engraftment syndrome after auto-SCT: analysis of diagnostic criteria and risk factors in a large series from a single center. Bone Marrow Transplant. 2010;45(9):1417–22. doi: 10.1038/bmt.2009.363. [DOI] [PubMed] [Google Scholar]
  • 34.Dispenzieri A, Lacy MQ, Hayman SR, Kumar SK, Buadi F, Dingli D, et al. Peripheral blood stem cell transplant for POEMS syndrome is associated with high rates of engraftment syndrome. Eur J Haematol. 2008;80(5):397–406. doi: 10.1111/j.1600-0609.2008.01037.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Ileri T, Ünal Ince E, Çakmakli H, Uysal Z, Ertem M. Evaluation of engraftment syndrome in children following full matched related donor hematopoietic stem cell transplantations. Bone Marrow Transplant. 2016;51:S467–S468. doi: 10.1038/bmt.2016.49. [DOI] [PubMed] [Google Scholar]
  • 36.Omer AK, Kim HT, Yalamarti B, et al. Engraftment syndrome after allogeneic hematopoietic cell transplantation in adults. Am J Hematol. 2014;89(7):698–705. doi: 10.1002/Ajh.23716. [DOI] [PubMed] [Google Scholar]
  • 37.Chang L, Frame D, Braun T, et al. Engraftment syndrome after allogeneic hematopoietic cell transplantation predicts poor outcomes. Biol Blood Marrow Transplant. 2014;20(9):1407–1417. doi: 10.1016/j.bbmt.2014.05.022. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Park M, Lee SH, Lee YH, et al. Pre-engraftment syndrome after unrelated cord blood transplantation: a predictor of engraftment and acute graft-versus-host disease. Biol Blood Marrow Transplant. 2013;19(4):640–646. doi: 10.1016/j.bbmt.2013.01.014. [DOI] [PubMed] [Google Scholar]
  • 39.Wang X, Liu H, Li L, et al. Pre-engraftment syndrome after unrelated donor umbilical cord blood transplantation in patients with hematologic malignancies. Eur J Haematol. 2012;88(1):39–45. doi: 10.1111/j.1600-0609.2011.01709.x. [DOI] [PubMed] [Google Scholar]
  • 40.Kanda J, Kaynar L, Kanda Y, et al. Pre-engraftment syndrome after myeloablative dual umbilical cord blood transplantation: risk factors and response to treatment. Bone Marrow Transplant. 2013;48(7):926–931. doi: 10.1038/bmt.2012.279. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

All the data generated or analyzed during this study are included in this manuscript.

Articles from Medical Oncology (Northwood, London, England) are provided here courtesy of Springer

RESOURCES
