Ultrasonically-assisted synthesis of CeO₂ within WS₂ interlayers forming type II heterojunction for a VOC photocatalytic oxidation

Graphical abstract

Highlights

• •Utilisation of ultrasonically exfoliated 2D WS₂ as hard template for CeO₂ growth.
• •Simple hydrothermal approach for synthesising CeO₂@WS₂ heterojunction.
• •Formation of efficient type (II) heterojunction between WS₂ and CeO₂.
• •Proving the Ce-S bonding by XRD and density functional calculations.
• •Formic acid photocatalytic oxidation activity, producing 446.7 µmol g ⁻¹ CO₂.

Abstract

Here, we investigate the band structure, density of states, photocatalytic activity, and heterojunction mechanism of WS₂ with CeO₂ (CeO₂@WS₂) as a photoactive heterostructure. In this heterostructure, CeO₂′s growth within WS₂ layers is achieved through ultrasonicating WS₂ and intercalating CeO₂′s precursor within the WS₂ interlayers, followed by hydrothermal treatment. Through a set of density functional calculations, we demonstrate that CeO₂ and WS₂ form an interface through a covalent bonding that can be highly stable. The electrochemical impedance spectroscopy (EIS) found that the CeO₂@WS₂ heterostructure exhibits a remarkably higher conductivity (22.23 mS cm⁻²) compared to either WS₂ and CeO₂, assignable to the interface in CeO₂@WS₂. Furthermore, in a physically mixed CeO₂-WS₂ where the interaction between particles is noncovalent, the resistance was significantly higher (0.67 mS cm⁻²), confirming that the heterostructure in the interface is covalently bonded. In addition, Mott-Schottky and the bandgap measurements through Tauc plots demonstrate that the heterojunction in CeO₂ and WS₂ is type II. Eventually, the CeO₂@WS₂ heterostructure indicated 446.7 µmol g ⁻¹ CO₂ generation from photocatalytic oxidation of a volatile organic compound (VOC), formic acid, compared to WS₂ and CeO₂ alone.

1. Introduction

Solar-driven light in catalysis, i.e. photocatalysis, has a universal appeal for use as a free energy source, which can be incorporated into many applications such as fine chemicals production, energy carriers generation, and pollutants removal [1], [2], [3], [4]. Although many semiconductors have suitable energy band gaps that fall in the UV–vis range for photocatalysis, their photoactivity is often less efficient due to the improper band edge (valence band or conduction band) alignment against the potential redox energy level of the target reaction [5], [6]. Although there are several pathways for improving the photocatalytic performance in such semiconductors [7], [8], among them, a promising solution is a heterojunction within a suitable heterostructure to align the bandgap. Furthermore, the lifetimes of photogenerated electron-hole in most catalysts are short and suffer from fast recombination, which heterojunctions can further improve [9]. However, a heterostructure is only efficient if each of its semiconductor’s band edges is suitably aligned so it can eventually transfer the photogenerated electrons/holes pairs to the reacting species. Another point in a successful heterostructure is the crystalline structure at the interface of the junction [10]. The electron transfer in the boundary will be less efficient if there is no suitable junction due to mismatching, cracked or loose interface. So far, the 2D dichalcogenide WS₂ forms promising heterostructures with other photoactive oxides and semiconductors such as TiO₂ [11], MoS₂ [12], SnS [13], and CuO [14]. However, the heterostructure of CeO₂ with WS₂ in photocatalysis is rarely investigated [15]. Likewise, cerium oxide has attractive crystal and photocatalytic properties and has been found suitable for the heterostructure through materials nanoarchitecture [16], [17], [18].

Intercalation of (organo)metallic precursors in 2D layered materials’ interlayers is one of the pivotal approaches to synthesising heterostructures with oriented and uniform growth [19], [20]. For such cases, the exfoliation of bulk structures into few/multilayer structures is crucial to intercalate the heterostructure’s precursor. Among the several methods, ultrasound waves as a powerful tool for synthesis of nanomaterials [21], can be also utilised for exfoliating bulk layers are a popular and efficient pathway [22], [23], [24], [25]. Likewise, WS₂ is a 2D material that may act as a hard template while it can generate a heterojunction with the grown heterostructure [26]. However, in an efficient heterojunction, along with its well-synthesised architecture, the band edges and the energy bandgaps of the composing compounds must match one another to generate an enhanced photocatalytic activity [27], [28]. Therefore, investigating such parameters in parallel with the synthesis method is vital to reach an optimal photocatalysis result.

Here, we have found that the heterojunction of CeO₂ with the WS₂ nanosheets leads to a type II heterojunction which generates a remarkable enhancement in the photocatalytic activity of formic acid decomposition with respect to pure WS₂ and CeO₂. We also demonstrated that the heterostructure in the interface creates a chemical bonding that makes the heterostructure more efficient, stable, and uniform. The Raman spectroscopy and X-ray diffraction results showed the formation of Ce-S bonding in the CeO₂@WS₂. This heterostructure exhibits better photocatalytic activity, 1.8 times of WS₂ and 2.2 times of CeO₂. It also reveals sustainability in the UV range toward photooxidation of volatile organic compound (VOC)—formic acid.

2. Materials and methods

2.1. Synthesis of samples

The detailed synthesis procedure of the CeO₂@WS₂ catalyst is reported in our previous work [15]. In brief, the WS₂ nanoflakes were obtained by ultrasound-assisted exfoliation (Sonica ultrasound bath, 300 W, Italy) of bulk WS₂ (Sigma-Aldrich, 99 %) in DMF (Merck, >99 %) for 2 h. After centrifuging the sample, the supernatant was removed, washed with EtOH, and dried at room temperature overnight. For synthesising CeO₂@WS₂, 0.1 g of the synthesised WS₂ nanoflakes were added to 60 mL 0.1 mol/L Ce(NO₃).6H₂O (Merck, >99.99 %) in aqueous solution and sonicated for 3 h. After that, the mixture was added to a Na₃PO₄·12H₂O (Merck, >99.99 %) solution (0.005 mol/L, 20 mL) and was stirred for 30 min. The final mixture was poured into a 100 mL hydrothermal autoclave and kept at 220 °C for 12 h. After cooling the autoclave, the liquid was removed by centrifuge and the remaining was washed with EtOH and deionised water and dried at 60 °C. The synthesis route for pure CeO₂, used in this work, was similar to the mentioned approach without adding WS₂ nanoflakes.

2.2. Characterisation

Scanning electron microscopy (SEM) images were obtained using a TESCAN MIRA₃ microscope (TESCAN Ltd, Czech Republic). X-ray diffraction (XRD) patterns were recorded with a SmartLab X-ray diffractometer (Rigaku Co., Japan, via a Cu Kα radiation source). Raman spectroscopy was recorded by the ANDOR Kymera-328i apparatus (Andor Tech. Ltd., United Kingdom, at 532 nm excitation wavelength with 50 × objective, in the range of 100–2000 cm⁻¹). Transmission electron microscopy (TEM) and TEM-based elemental mapping and electron dispersive spectroscopy (TEM-EDS) were all recorded by a JEOL 2100 instrument coupled to an energy-dispersive X-ray analyser (EDX, JEOL Ltd, Japan).

2.3. (Photo)electrochemical measurements

Fluorine-doped tin oxide (FTO) glass with an area of 1.0 × 1.0 cm² was used as a substrate for the preparation of the working electrode. First, 20 mg of each catalyst sample was dispersed for 45 min in a solution including 1 mL of DI and 3 mL of isopropanol. Then, the FTO was washed and activated by diluted acid (HNO₃). 80 µL of stable dispersed catalyst was slowly drop-casted on the FTO and heated to 120 °C on a hotplate for 15 min.

An OrigaFlex-OGF01A Potentiostat/Galvanostat (France) was used to record the electrochemical analysis data. The electrochemical setup included a 0.5 mol/L Na₂SO₄ electrolyte, an FTO-based working electrode, a platinum plate with an area of 2.0 × 1.0 cm² as the counter electrode, and a reference electrode of saturated calomel electrode (SCE). Prior to each electrochemical test, the electrolyte solution was degassed by nitrogen bubbling for 20 min.

The electrochemical properties of samples were tested through the photocurrent test by cyclic chronoamperometry (CA) under both dark and light conditions, the EIS, and Mott-Schottky plots to determine the energy of flat band (E_fb). Mott-Schottky plots were recorded at a frequency of 1000 Hz and the voltage range of −1 ∼ +1 V vs SCE in dark. The EIS results were obtained using an AC voltage of ± 5 mV at open circuit potential (OCP) and 300 mV vs SCE in a frequency range from 100 kHz to 100 mHz. Photocurrent behaviours were tested under consecutive light on–off cycles (each cycle time: 100 s) for 600 s at 1000 mV vs SCE.

2.4. Computational settings

Spin polarised density functional calculations were performed using VASP code [29], [30] with the projector augmented wave method technique [31]. The electronic correlation-exchange energy was approximated with general gradient approximation within the Perdew-Burke-Ernzerhof formalism [32], [33]. The energy cutoff value and the fast Fourier transform mesh were generated by setting the precision key to Accurate. Ad hoc Hubbard terms, based on the Dudarev implementation [34], were added to Ce and W 5d electrons to account for the strong correlation. For Ce, U and J values were 4.20 eV and 0.00 eV, respectively. For W, U and J values were 2.87 eV and 0.00 eV, respectively. These values were reported to improve the electronic description of CeO₂ [35] and WS₂ [36], respectively. Van der Waals dispersion energy correction was applied based on the DFT-D3 method [37]. Only Γ point was used for the Brillouin zone sampling. For geometry optimisation, in addition to the atomic coordinates, the lateral lattice parameters, u and v, were also allowed to relax to forces smaller than 0.01 eV/Å. The Bader charge analysis code [38] was used to analyse charge localisations.

2.5. Formic acid photocatalytic oxidation

For formic acid photooxidation, 15 mg of the catalyst was initially dispersed and sonicated for 1 min in 5 mL of a formic acid aqueous solution (5 vol%, Merck, >98 %) in a Pyrex glass test tube (34 mL) and then bubbled with O₂ gas for 30 min. The glass tube was sealed with a rubber septum and photo-irradiated by a solar simulator (San-Ei Electric, λ > 300 nm, 1000 W m⁻²), stirring at 800 rpm. The amount of evolved CO₂ in the headspace of the sealed tube was determined by a Shimadzu GC-2010 plus gas chromatograph equipped with a barrier ionisation discharge (BID) detector.

3. Results and discussion

3.1. Materials characterisation

We present the synthesis of ceria by the hydrothermal growth through intercalating Ce⁴⁺ in the interlayer space of WS₂, exfoliated by sonication in an aqueous solution. According to the XRD pattern, shown in Fig. 1a, the synthesised material indicates a clear set of peaks corresponding to the CeO₂, WS₂ and CeS structures. Furthermore, given the non-equilibrium growth regime, intense nanostructuring and random growth of CeO₂ crystallites, the XRD pattern appears with strong background noise and some unidentified peaks, most likely belonging to the W-S-Ce-O alloys with nonstoichiometric compositions for which we do not have a reference structure for refinement. However, we attempted to refine the identified peaks using the Rietveld refinement Fullprof Suite [39] and the Match! package [40]. With acceptable quality parameters of Bragg factor of 20.3 and a Χ² of 7.5, the content was found to be 76.86 % (±0.03 %) CeO₂, 7.00 % (±0.02 %) WS₂, and 16.14 % (±0.02 %) CeS. The lattice parameters of these phases were found to be a = 5.414598 Å (±0.000527 Å) for the cubic CeO₂, a = 2.970194 Å (±0.005109 Å) and c = 7.579407 Å (±0.009297 Å) for the hexagonal WS₂, and a = 5.799615 Å (±0.004254 Å) for the cubic CeS. Also, the XRD pattern of physically mixed CeO₂ and WS₂ is shown in Fig. S1. We further investigated the changes in the vibrational modes originating from the heterojunction of CeO₂ and WS₂ using Raman spectroscopy (Fig. 1b). Accordingly, the peaks at 799, 801, 705, 317, 260, and 122 cm⁻¹ in WS₂′s spectra with a slight shift in some to lower wavenumbers and a decrease in the intensity have appeared again in the CeO₂@WS₂ heterostructure. The 456 cm⁻¹ peak in CeO₂′s spectra is characteristic of the CeO₂ structure, which was also shifted lower to 442 cm⁻¹ and decreased in intensity in the final CeO₂@WS₂ heterostructure. Eventually, a new peak appeared at 912 cm^−1, which is not originating from either WS₂ or CeO₂ and is assignable to the newly formed Ce-S bond [41]. Therefore, the Raman spectra prove that there can be a covalent bonding between Ce and S species in the interface of CeO₂ and WS₂.

Fig. 1.

(a) Observed and refined XRD patterns for the synthesised CeO₂@WS₂. (b) Raman spectra of CeO₂, WS₂ and CeO₂@WS₂ heterostructure. SEM images of (c) WS₂, (d) CeO₂, and (e) CeO₂@WS₂ heterostructure. (f) Low and high magnification TEM images of the CeO₂@WS₂. Insets are HRTEM images of the same material.

As shown in Fig. 1c-g, we studied morphology and the structure of the CeO₂-intercalated WS₂ (CeO₂@WS₂) through SEM and TEM. In TEM and SEM micrographs (Fig. 1d-h), we can see an agglomeration of uniform nanorods in each particle, hinting to the successful heterostructure formation of CeO₂ and WS₂ within each nanorod, as all these nanorods are approximately of the same size and shape. Phase separation would have probably caused different nano-shapes for WS₂ and CeO₂ as these phases have different crystal symmetry. The HRTEM in the inset of Fig. 1g shows two distinct lattice structures belonging to CeO₂ and WS₂ within the matrix, confirming the presence of the CeO₂@WS₂ heterostructure. The observed and specified d values in the HRTEM image can be assigned to the planes with Miller indices of CeO₂ (1 1 1) and WS₂ (1 0 0) [42], [43], [44], indicating the interface in the heterostructures is normal to these planes. TEM-EDS of a selected area under a TEM microscope (Fig. S2) further confirms the co-presence of the related elements in a single particle, showing that the heterostructures have successfully interconnected. TEM-based elemental mapping further proves the presence of the Ce, O, W, and S elements in one particle (Fig. S2).

3.2. (Photo)electrochemical results

Appropriate separation of photogenerated charge carriers at the surface of particles is one of the most critical factors in photocatalytic performance. Photoluminescence (PL) is a valuable method to investigate the charge separation efficiency in materials. As reported before [45], CeO₂ possesses a board emission band from 400 to 700 nm with the most intensity in the 470 ∼ 570 nm region. The charge transfer in the CeO₂ originated from the electron transfer between the Ce 4f energy level and O 2p orbitals [46]. Therefore, this board peak appears due to the existence of many defect energy levels between the mentioned orbitals [47]. According to our observation in the previous report [15], a remarkably diminished CeO₂ emission band appears after heterostructure formation with WS₂, converting into CeO₂@WS₂, attributable to the promoted charge separation, which is absent in CeO₂ alone. These good charge separation and adagio recombination rates between the photo-induced electron-hole pairs are the main origins of the boosted photocatalytic efficiency. Moreover, according to our previous study, the CeO₂@WS₂′s bandgap obtained from Tauc’s plots (2.9 eV) [15], [48] is narrower than CeO₂ (∼3.02 eV) and WS₂ (3.05 eV) [49]. Lastly, we ought to address the likely lack of contribution from the unintentional CeS phase toward the observed optical properties. CeS has a band gap of ∼ 3.6 eV [50] which is wider than both WS₂ and CeO₂′s band gaps [49], falling outside the visible range and, thus, is not likely to contribute to photocatalysis.

The charge transfer efficiencies of samples were measured by the EIS since it directly influences charge transfer resistance (R_ct). As shown in Fig. 2a, the Nyquist plot of WS₂ includes a wide semi-circle diameter, demonstrating its higher resistance to charge transfer than other samples. CeO₂ also has a greater diameter, showing a high charge transfer resistance. However, the CeO₂@WS₂ heterostructure revealed a significant reduction in the charge transfer resistance by looking at the diameter of semi-circles which decreases. The R_ct of WS₂ was found to be ∼ 35000 Ω cm⁻², and for CeO₂, the R_ct value was ∼ 4500 Ω cm⁻². Eventually, the CeO₂@WS₂ heterostructure’s R_ct was significantly lower (45 Ω cm⁻²) than both CeO₂ and WS₂ (inset of Fig. 2a). Interestingly, the physical mixture of WS₂ and CeO₂ showed an R_ct of 1500 Ω cm⁻², confirming that the chemically bonded interface of WS₂ and CeO₂ plays a substantial role in the electronic structure of the heterostructure. In other words, the charge transport conductivity of the chemically bonded heterostructure (22.23 mS cm⁻²) is by far higher than WS₂, CeO₂, and their physical mixture of CeO₂-WS₂ (0.67 mS cm⁻²), which confirms the importance of chemical bonding of these two structures at the interface.

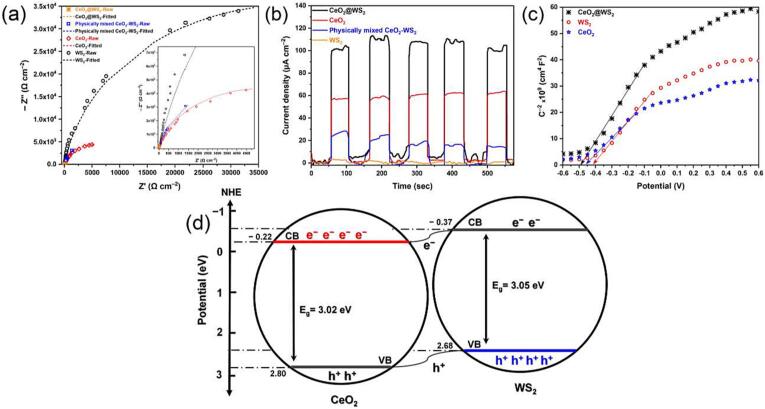

Fig. 2.

(a) The EIS plots (inset: the magnified form of EIS plots to see details), (b) Photocurrent response, (c) Mott-Schottky plots, and (d) the proposed type (II) heterojunction diagram.

The transient photocurrent response vs time was measured for each photocatalyst sample as an index of their charge separation and transfer efficiency, as shown in Fig. 2b. In this investigation, the lowest response was observed for WS₂ inefficient e⁻/h⁺ pairs separation. Albeit, a similar behaviour was obtained for CeO₂. As predicted, a higher response for CeO₂@WS₂ heterostructure was observed, which signifies the heterojunction efficiency in the photoelectrocatalytic performance. However, when WS₂ was physically mixed with CeO₂, the photocurrent response had a significantly lower response than even the bare CeO₂. This observation was further evidence highlighting the role of a stable interface between CeO₂ and WS₂ through chemical bonding between Ce and S species.

The Mott-Schottky method helps identify the type of semiconductors (p or n) and their flat-band energies (E_fb). The Mott-Schottky plots of WS₂, CeO₂, and CeO₂@WS₂, depicted in Fig. 2c, show all semiconductors are n-type due to the potential-C⁻² plots’ positive slope. Furthermore, the E_fb can be determined by interrupting the liner part of potential-C⁻² plots with the potential x-axis. The values of E_fbs and our previously reported bandgaps (E_g) [15] for these materials are listed in Table S1. In n-type semiconductors, E_fb can convert to the conduction band (CB) energy using the E_CB = E_fb – 0.2 V [51]. Thus, the E_CBs of −0.61, −0.46, and −0.69 V were obtained for WS₂, CeO₂, and CeO₂@WS₂, respectively. For calculating the valence band (VB) energy, at first, the E_CB values convert to the normal hydrogen electrode (NHE) values using E_NHE = E_SCE + 0.241 V [52]. Then, the E_VBs can be obtainable through the E_VB = E_CB + E_g. All described values are listed in Table S1. Considering the CB and VB levels as depicted in Fig. 2d, a plausible type (II) heterojunction can be proposed for the CeO₂@WS₂ heterostructure. In such a heterojunction, the photogenerated electrons in WS₂′s CB tend to migrate to the CeO₂′s CB and make it the main reactive CB site. In contrast, the photogenerated holes (h⁺) in CeO₂′s VB migrate to WS₂′s VB and make it a more reactive VB site [53], [54]. Furthermore, the bandgap narrowing in the CeO₂@WS₂ sample in type (II) heterojunction is also justifiable. It is worth noting that the experimentally-obtained bandgap for CeO₂@WS₂ through the Tauc equation (2.9 eV) equals a value from CeO₂′s E_CB to WS₂′s E_VB, which further confirms the type II heterojunction [15].

3.3. Theoretical insights

Here, we study the interface between CeO₂ and WS₂. In constructing our model, we considered the HRTEM image of the CeO₂@WS₂ heterostructure in Fig. 1h. We also restricted our models to high-symmetry and low lattice mismatch configurations. To construct the interface at the heterostructure, we first cleaved the WS₂ hexagonal structure (downloaded from Materials Project [55], compound id: mp-224) along the [0 0 1] direction. We then constructed a supercell with (2u ×√2v)R30° dimensions out of the cleaved surface. The resulting surface had an orthogonal cross-section suitable to be interfaced with cubic CeO₂ with u′ = 6.381 Å and v′= 5.527 Å. We then cleave the conventional CeO₂ structure (a = 5.415 Å) along the [0 0 1] direction. We then interfaced these two surfaces together by expanding WS₂ along the [0 0 1] direction to be three sheets deep and expanding CeO₂ along the [1 0 0] direction to be 12 atomic layers deep. Since we intended to have only one interface in the supercell, we added an ample vacuum slab of 20 Å to avoid artificial interactions at the non-interfacing facets in the supercell. To reduce the lattice mismatch, we allowed the lateral cell parameters to relax during the geometry optimisation. The lattice mismatch in the relaxed structures had an acceptable average value of ∼ 5.4 %.

Chemically there are two types of interfaces; either an oxygen-cleaved CeO₂ facet interfaces with WS₂, or a Ce-cleaved facet forms the interface with WS₂. The first case has only one high-symmetry configuration, shown in Fig. 3a. The second scenario has two configurations, shown in Fig. 3b and c, respectively. In Fig. 3b, each Ce ion at the interface is coordinated by 3 S ions, while in Fig. 3c, each Ce ion is coordinated by 4 S ions. The Ce-coordinating S ions are marked in the upper row of Fig. 3. Among these three possible interfaces, configuration C was the most stable with total DFT energy of −531.610 eV, while configurations A and B each had higher total energy of −531.209 and −531.178 eV, respectively. In configuration A, the negatively charged facets at the interface create a Coulombic repulsion that reduces stability—The partial charges borne on S and O ions at the interface are given in Fig. 3a-ii. For configuration B, Ce’s undercoordination may be the origin of instability compared to Configuration A, as Ce⁴⁺ in a compound is more stable when coordinated by eight anions instead of seven [56].

Fig. 3.

The top (upper rows) and side (lower rows) views of the CeO₂@WS₂ interface configurations are shown (a), (b), and (c). The interface in (c) was found to be the most stable. (d) The electronic localisation function (η) at the interface region in (c). (e) The η line profile of the Ce–S bond at the CeO₂@WS₂ interfaces. (f) The partial density of states of the interface shown at (c).

Further examination of the most stable interface of configuration C in Fig. 3c-ii shows that the interface separation between CeO₂ and WS₂ is 2.74 Å, and the Ce–S bond is 2.93 Å long. This bond length is very similar to the Ce–S bond length in CeS, which is 2.89 Å [57]. Furthermore, the electronic localisation function (η) along the Ce–S bond (Fig. 3d, e) indicates two peaks around both Ce and S centres. This η profile deviates from a perfect ionic bond where η approaches 1 near the anion while approaching 0 near the cation [58]. This profile, however, is not perfectly covalent either. In covalent bonding, η is maximum at the bond centre and tapers off at both ends [58]. Consequently, we conclude that the bonding nature at the CeO₂@WS₂ interface is only partially ionic (or partially covalent).

The partial density of states of the interfacing layers in Fig. 3f shows that the Ce 4f states are all empty and located above the Fermi level (marked with a green circle). However, some of the Ce 5d states are still occupied and located below the Fermi level (marked with a cyan arrow), explaining the less than + 4 oxidation state indicated by Bader charge analysis (Fig. 3c-ii). Similarly, some of W’s 5d states are also below the Fermi level, as marked by a blue arrow, indicating a deviation from the pure ionic + 4 oxidation state. This deviation is probably caused by the covalency between S and W. Partial oxidation of W and S, in turn, raises the Fermi level to the bottom of the conduction band, intercepting W’s 5d states and creating n-type carriers, facilitating the observed photocatalytic activity.

3.4. Photocatalytic experiments

We studied the impact of the heterostructure in the WS₂ intercalated CeO₂ layered materials for the photocatalytic formic acid decomposition. When the heterostructure of two or more different structures is constructive, the photocatalytic activity boosts due to their longer electron/hole lifetime and efficient charge separation. Consequently, the photocatalytic activity improves. The oxidation of formic acid into CO₂ under photocatalytic conditions is a benchmark reaction that can be useful to judge the photocatalytic capability of the semiconductors that are supposed to be photocatalysts. This photocatalytic test is also suitable for comparing the photocatalysts under identical conditions.

The photocatalytic activity of CeO₂@WS₂ was investigated under UV–vis range irradiation. The formic acid oxidation power of the CeO₂@WS₂ was first investigated in the absence and then the presence of light (Fig. 4a). We observed that, within 90 min,  the dispersion of CeO₂@WS₂ results in 6.7 µmol (or 446.7 µmol g^-1) CO₂ under UV–vis irradiation and 2.2 µmol (146.7 µmol g^-1) CO₂ in the dark, three fold higher CO₂ higher evolution rate originating from light irradiation. After 30 min, when there was no light irradiation, the reaction has minor progress and almost stops while in the presence of light; CO₂ continued to evolve, further proving that CeO₂@WS₂ is photo-catalytically active under UV–vis range irradiation. In the next step, we tried to understand the photoactivity of CeO₂@WS₂ under visible light irradiation. Formic acid photooxidation under the visible range is almost similar to dark conditions (Fig. 4a). This observation indicates that the photocatalytic activity is minimal under the visible range. Therefore, we can claim that the photocatalytic activity of CeO₂@WS₂ majorly originates from the UV range irradiation.

Fig. 4.

(a) Time-course formic acid decomposition in the presence and absence of light through the catalysis of CeO₂@WS₂ (15 wt%). (b) Comparing the photocatalytic activity of the CeO₂@WS₂ (15 wt%) with CeO₂ and WS₂ nanosheets. (c) Photocatalytic activity of the CeO₂@WS₂ with three different amounts of WS₂ loading, including 5, 10, and 15 wt%. All photocatalytic tests have been performed under the UV–vis range in the aqueous solution of formic acid (5 vol%) in the presence of a catalyst (15 mg) at room temperature.

Lastly, we compared the photocatalytic activity of CeO₂@WS₂ with CeO₂ and WS₂ on their own (Fig. 4b). We also studied the effect of different amounts of CeO₂ loading on WS₂ (Fig. 4c). We realised that CeO₂ loaded on WS₂ (15 wt%) causes more photocatalytic activity than the 5 wt% and 10 wt% loading amounts. Accordingly, the CO₂ production rates for CeO₂ and WS₂ were 2.9 µmol and 3.5 µmol in 90 min, respectively, which are significantly lower than the ceria-loaded WS₂. At last, the produced CO₂ in this work is comparable to the previous reports [59], [60], [61], e.g., anatase TiO₂, layered titanate, protonated layered titanate, and 2D layered titanate-based photocatalysts [59], [61]. In another example [60], a newly developed titania-based catalyst (namely, Ti@PMO-Bipy) reports the production of 5.5 µmol CO₂ in 90 min under optimal conditions while our developed catalyst produces a greater value (6.7 µmol) of CO₂ within 90 min.

4. Conclusions

WS₂, once exfoliated through ultrasonic waves, could efficiently form chemical bonds with CeO₂ during the hydrothermal synthesis, creating a promising heterostructure. The chemical bonding between Ce and S at the heterojunction was determined by Raman spectroscopy and XRD. Our density functional calculations could identify the most stable CeO₂/WS₂ interface configuration, further confirming the covalence bonding at the interface. Our simulation predicted a 2.74 Å interface separation between phases with a 2.93 Å Ce–S bond length. The density of states at the interface showed the formation of n-type carriers, matching with that of Mott-Schottky plot. This ultrasonically-synthesised CeO₂@WS₂ heterostructure emerged as a superior photocatalyst compared to WS₂, CeO₂, and their physical mixture. Using the Mott-Schottky plots and comparing the E_gs of the heterostructure with the pure phases through the Tauc plots, we showed that the CeO₂@WS₂ heterojunction was type (II). We speculate that several other transition metal oxides can be synthesised in the interlayers of WS₂, further building on the work presented here.
