Neuronal-epithelial cross-talk drives acinar specification via NRG1-ERBB3-mTORC2 signaling

Summary

Acinar cells are the principal secretory unit of multiple exocrine organs. A single cell layered, lumenized acinus forms from a large cohort of epithelial progenitors that must initiate and coordinate three cellular programs of acinar specification, namely, lineage progression, secretion, and polarization. Despite this well-known outcome, the mechanism(s) regulating these complex programs are unknown. Here, we demonstrate that neuronal-epithelial cross-talk drives acinar specification through neuregulin (NRG1)-ERBB3-mTORC2 signaling. Using single-cell and global RNA-sequencing of developing murine salivary glands, we identified NRG1-ERBB3 to precisely overlap with acinar specification during gland development. Genetic deletion of Erbb3 prevented cell lineage progression and the establishment of lumenized, secretory acini. Conversely, NRG1 treatment of isolated epithelia was sufficient to recapitulate the development of secretory acini. Mechanistically, we found NRG1-ERBB3 regulates each developmental program through an mTORC2 signaling pathway. Thus, we reveal a neuronal-epithelial (NRG1/ERBB3/mTORC2) mechanism to orchestrate the creation of functional acini.

Graphical Abstract

eTOC Blurb

May and Mattingly et al. demonstrate that nerve-derived NRG1 activates ERBB3 enriched on acinar progenitors to drive acinar specification during salivary gland development. Specifically, they show that NRG1-ERBB3 regulates acinar lineage progression, polarization and secretion via mTORC2 to orchestrate the creation of functional acini.

Introduction

Exocrine organs such as the pancreas, lacrimal, mammary and salivary glands, consist of a diverse range of cell types that are patterned to synthesize, secrete and transport a variety of essential proteins. These cells act in a multitude of functions, from protecting the host against foreign microbes to enabling food digestion and tissue maintenance¹. Acinar cells are one of the major cell types within most exocrine tissues and are a paradigmatic example of a polarized, secretory cell. Alignment of acinar cell architecture creates a highly organized single layered epithelium, enabling release of secretory products into a central lumen (Figure 1A). For acini to obtain this unique function and architecture, gene signatures that drive acinar cell lineage progression, secretory function and polarization programs must be established to guide a progenitor through the developmental stages of acinar differentiation and, ultimately, functional maturation.

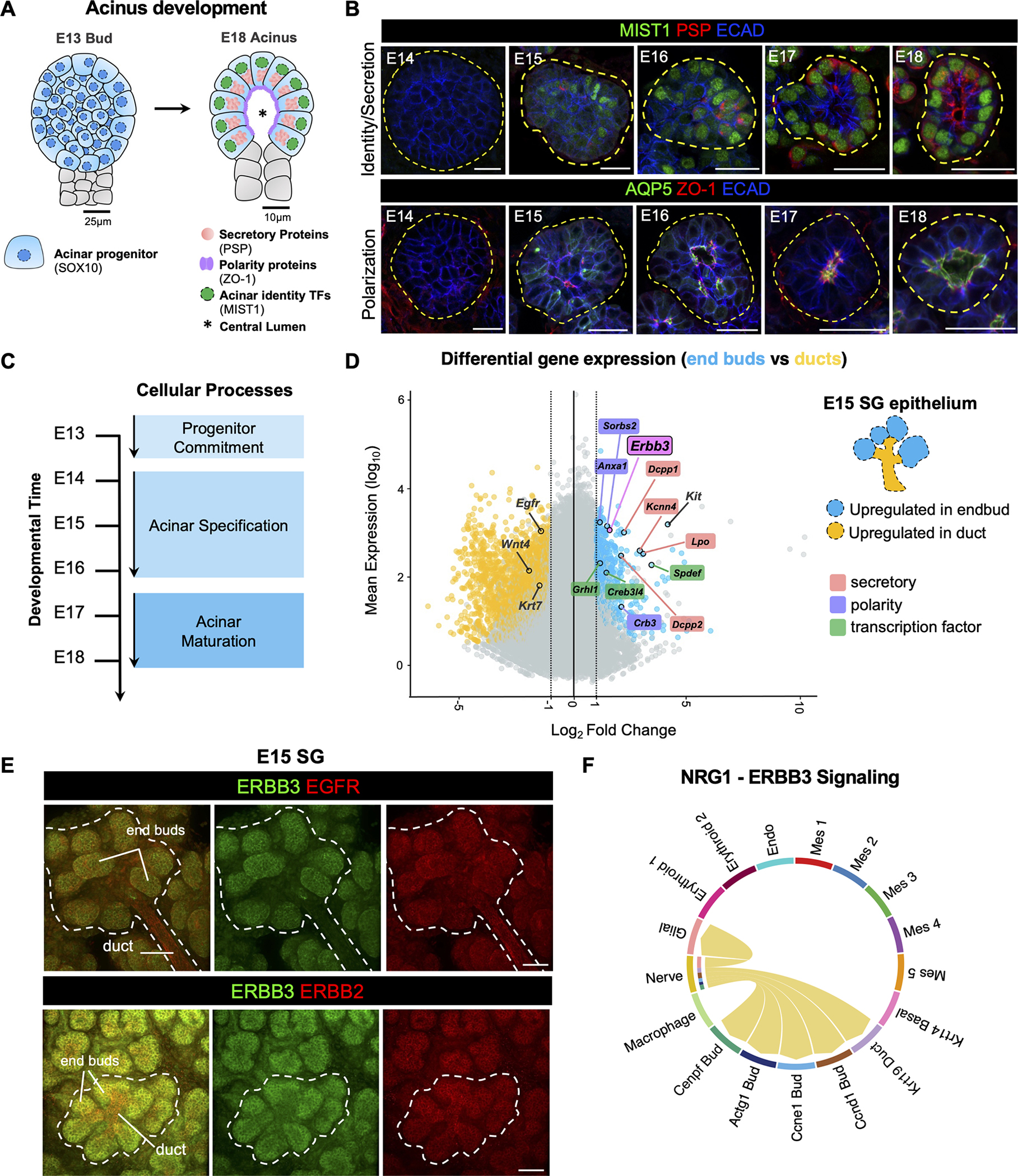

Figure 1. The spatiotemporal dynamics of ERBB3 expression correlates with acinar cell programming.

(A) Schematic of SG acinus during embryonic development. (B) Immunostaining of SG E14-E18 end buds for MIST1, PSP, ECAD, AQP5, and ZO1. End buds (E14) and acini (E15-E18) are outlined with dashed lines. Scale bar = 25μm. (C) Embryonic timeline of acinar cell processes as defined by expression of gene signatures and protein. (D) MA plot displaying relative gene expression of selected TFs (green), secretory (red), polarity (purple) genes and Kit (grey) enriched in KIT+ acinar end bud progenitors (blue points) vs. enrichment of duct genes (grey) in KIT− duct cells (gold points) in E15 SGs. (E) E15 SGs immunostained for ERBB3 (green) and EGFR (red, top) and ERBB2 (red, bottom). (F) Chord diagram showing Nrg1-Erbb3 ligand receptor interactions from nerves to epithelial cells and glial cells, determined by E14 SG scRNAseq.

In many secretory organs^2–4, acinar cells are formed during development from a distal pool of multipotent epithelial progenitors (termed end bud, tip or cap cells) expressing the transcription factor (TF) SOX10 (Figure 1A). Using the murine salivary gland (SG) as the model system, we previously showed that commitment of SOX10+ progenitors, often termed proacinar progenitors, to the acinar lineage starts several days after organ initiation (i.e. embryonic day (E)11.5)³, and proceeds with the expression of well-known acinar cell markers, such as Aqp5⁵ and Bhlha15/MIST1⁶ during later stages of embryonic development. By the end of the embryonic period, a compact acinus emerges with a well-defined lumen that is outlined by apically restricted proteins, such as tight junctions (e.g., zonula occludens 1 (ZO-1)) and mature secretory proteins (e.g., parotid secretory protein (PSP)) (Figure 1A)⁷. Although multiple genetic models and ex vivo assays utilizing exocrine organs have revealed relevant growth factor signaling pathways and TFs that regulate epithelial progenitor cell maintenance^8–11 and promote acinar cell lineage commitment^3,12,13, the signaling pathways that initiate and coordinate the genetic and cellular programs encompassing acinar specification have not been determined.

We addressed this question by first mapping the unique initiation time and progression of acinar secretory, polarity and lineage programs during development (defined as acinar specification). On the molecular level, we linked a neuronal-epithelial signaling pathway, neuregulin (NRG1)-ERBB3, to acinar progenitors that initiates the 3 developmental programs during their specification. Our analyses of conditional Erbb3 knock-out mice and ex vivo culture assays confirmed that the programmatic building of a fully developed acinus is dependent on NRG1 to activate ERBB3 via the downstream mTORC2 pathway and a core gene network regulating all 3 programs, thus, showcasing an important role for neuronal-epithelial crosstalk in acinus formation.

Results

Acinar specification gene signatures follow a spatiotemporal profile during early SG morphogenesis

The precise timing of program initiation and progression during acinus formation has not been resolved. We first mapped the unique spatiotemporal profile of the 3 specification programs during murine SG development through detection of major regulators of acinar cell lineage (TF and master regulator of secretory processes, MIST1/Bhlha15¹⁴), cell polarity (tight junction protein ZO1), and secretion (water channel AQP5) and function (secreted protein PSP¹⁵), (Figure 1A–B). As shown in Figure 1B, E14 end buds were devoid of all 4 protein types, however, by E15, cells expressing AQP5, ZO1 and MIST1 were visible, suggesting the E14-E15 transition is heavily associated with the initiation of all 3 programs. The next phase, E15 to E16, was tightly associated with cell lineage progression and acinus polarization, as shown by the increase in the number of end bud cells expressing MIST1, and both AQP5 and ZO1 transitioning from global membrane expression at E15, to apical expression at E16, followed by total restriction to the luminal surface by E17/E18 (Figure 1B). Although the secretory program was active by E15 (as noted by expression of MIST1 and AQP5), acinar progenitors did not begin producing the secreted protein PSP until E16, suggesting the E15 to E16 transition is associated with the initiation of secretory protein biosynthesis, which precedes final secretory cell maturation.

To further define gene signature cohorts encompassing the various programs of acinus formation, and the precise timing at which they initiate, we performed bulk RNA-sequencing of embryonic SGs in 24-hour intervals between E13 and E18 (Figure 1B,C, Data S1). Major transcriptional differences were identified between E14 and E18, as seen by principal component analysis (PCA) (Figure S1A), with the most extensively altered gene cohorts occurring between E14-E15 and E15-E16. Indeed, hierarchical gene clustering confirmed two main clusters of genes being upregulated at E14-E15 (Figure S1B, Cluster A, Data S1) and E16 (Figure S1B, Cluster B, Data S1). Gene Ontology (GO) analysis indicated genes upregulated at E14-E15 (Cluster A) to be involved with structural development and early acinar cell lineage, while genes increasing expression at E16 (Cluster B) were associated with transport processes (Figure S1C). Consistent with this notion, manual exploration of genes known for their involvement in cell polarity (Sorbs2, Cldn4/8/10, and Crb3) and acinar cell lineage (TFs: E2f1, Grhl1/2, Klf5, Ehf, and Hes1) were upregulated by E14, and very few secretory-related genes (Dccp1 and Kcnn4) were expressed at this time point (Figure S1D). Most acinar secretory protein genes (Aqp5, Ano1, Agr2, Bpifa2, Dcpp2, Tesc, Lpo, Smgc, Muc19, Muc5b), alongside secretory-related TFs (Bhlha15, Spdef, Creb3l1/4, Ascl3), and several polarity genes (Ocln and Cav1) were upregulated at E15. More developed secretory proteins (Pip and Prol1) and mature acinar lineage TFs (Xbp1, Caz1, Etv1) were upregulated later at E16 (Figure S1D). Thus, acinar specification initiates at E14, as indicated by upregulation of gene signatures of acinar cell lineage progression and polarity programs and continues throughout E15-E16 in conjunction with the secretory program (Figure 1C).

ERBB3 is enriched in end bud progenitors during acinar progenitor cell specification

To identify potential signaling regulators that drive acinar specification at our recently defined time-point, we re-evaluated our previously published RNAseq analysis of FACS sorted E15 end bud (KIT+) and duct (KIT−) cells (GSE89896)¹⁶. Differential gene expression analysis revealed 535 genes as significantly upregulated in end bud cells (Figure 1D, blue datapoints), whereas 1,807 genes were upregulated in ductal cells (Figure 1D, yellow datapoints, log2foldchange≥1; p adj<0.05, Data S1). Previously defined transcripts for genes of the secretory and polarity programs, as well as acinar progenitor-related TFs were confirmed as upregulated in the end bud population at this time point, in contrast to previously correlated ductal markers, Krt7¹⁷ and Wnt4¹⁸ (Figure 1D). Strikingly, the only additional growth factor receptor identified within end bud cells was Erbb3 (Figure 1D). Immunostaining indicated exclusive expression of ERBB3 protein in E15 end buds (Figure 1E), illustrating a unique temporal and spatial overlap with end bud progenitors during acinar specification. Due to the requirement for ERBB3 to heterodimerize with other ERBB3 family members for signal transduction, putative co-receptors were also evaluated. Similar to previous reports¹⁹, ERBB3 co-receptors EGFR and ERBB2 were expressed throughout the epithelium, confirming both receptors to be co-expressed with ERBB3 in the E15 end buds (Figure 1E)²⁰. Thus, these data illustrate end buds contain two types of ERBB3 co-receptors, ERBB2 and EGFR, which allow activation of ERBB3 targets and downstream signaling pathways.

Next, to define putative ERBB3 ligand-receptor interactions with progenitors during acinar specification, we applied an in silico bioinformatics approach. Using a recently published E14 SG single-cell RNA-sequencing (scRNAseq) dataset⁷, we compared gene expression profiles between the 4 end bud sub-populations (Actg1+, Ccne1+, Cenpf+, and Ccnd1+), the Krt14+ basal and Krt19+ differentiated duct population, various mesenchymal and erythroid cell groups, endothelial cells, macrophages, glial cells, and a Tubb3+ nerve population (Figure S1E). Surprisingly, rendering the R program CellChat²¹ to analyze cell-cell communication patterns, only one ligand for ERBB signaling, Nrg1, was identified (Nrg2 transcripts were not significantly expressed by any cell type) and was solely enriched in the SG nerve population (Figure S1F), a finding consistent with the known neuronal production of NRG1^22,23. Putative correlations between NRG1 and ERBB3 involved a well-recognized neuronal-glial relationship (ERBB3 is required for Schwann cell survival²⁴), as well as a neuronal-epithelial interaction (Figure 1F). Although Erbb3 transcripts were detected in Krt19 duct cells, little to no protein was observed in ducts (Figure 1E, Figure S1F), indicating that the neuronal NRG1-ERBB3 pathway is uniquely designated towards end bud progenitors.

Based on these data and our previous studies authenticating SG neurons as essential regulators of early epithelial morphogenesis, duct formation and stem cell expansion^12,25,26, we hypothesized that a unique NRG1-ERBB3-mediated neuronal-epithelial crosstalk specifically influences acinar specification in end bud progenitors.

ERBB3 is required for initiating and driving the specification of end bud progenitors to establish polarized, secretory acini

Considering the enrichment of ERBB3 in developing acini at this critical time point, we next investigated whether it acts as a regulator of acinar cell lineage progression, polarity and secretory programs through genetic deletion using the Cre/LoxP system. Erbb3 was specifically deleted in Keratin-14 (Krt14)-expressing epithelial cells (these give rise to end bud and duct cells^12,27) of Krt14^CreERT2/+;Erbb3^fl/fl mice at the initiation of SG development (E10.5 and E11.5), an outcome confirmed by the loss of acinar progenitor-related ERBB3 protein at E16 (Figure S2A). Henceforth, Krt14^CreERT2+/+;Erbb3^fl/fl embryos are referred to as wild-type (WT) and Krt14^CreERT2/+;Erbb3^fl/fl embryos as Erbb3 knockout (Erbb3 KO).

Analysis of WT and Erbb3 KO glands at the late stage of acinar specification (E16) clearly showed ERBB3 is essential for acinus formation. Although a branched network of end buds and ducts was observed in SG epithelia devoid of epithelial Erbb3, the morphology of the E16 Erbb3 KO glands mimicked that of immature ~E14 controls, as shown by the significant reduction in end bud number (>50%) and an increase in end bud size (>50%) (Figure 2A). Transcriptional profiling of E16 WT and Erbb3 KO tissue was performed to determine alterations in gene signatures of the 3 acinar specification programs. PCA analysis of RNA-Seq data revealed Erbb3 KO SGs to cluster separately from WT tissue (Figure S2B), indicative of significant changes in gene expression upon Erbb3 deletion. Of the 1,452 protein coding genes that were differentially expressed between both groups (log2foldchange≥0.5; p adj<0.05), 737 were decreased, while 715 were increased in Erbb3 KO compared to WT (Figure S2C, Data S2). Out of our defined cohort of genes regulating the acinar secretory program, the majority were dependent on Erbb3 signaling, with transcripts of Bpifa2/PSP, Pip, Smgc, Muc5b, Lpo, Agr2, Muc19, Tesc, and Dcpp2 being significantly reduced and all other genes trending towards lower expression (Figure 2B and Figure S2C–D). Similarly, expression of genes associated with cell polarity were reduced in Erbb3 KO glands, specifically Sorbs2, Cldn8, Cldn10, and Cav1 (Figure 2B and Figure S2C–D). In addition, a substantial number of TFs associated with acinar cell lineage progression were significantly downregulated upon Erbb3 deletion, including TFs modulating early-stages of specification (E14), such as Ehf and Grhl1 (Figure 2B and Figure S2C–D), and those regulating intermediate to late stages from E15 to E16, including Bhlha15/MIST1, Etv1, Creb3l4 and Casz1 (Figure 2B and Figure S2C–D). However, not all TFs were reduced in gene expression. The early-stage TFs E2f1⁷ and Sox10³, that are actively expressed before E14, were both significantly increased in the absence of Erbb3 (Figure 2B and Figure S2C–D). Given Sox10 also regulates acinar cell fate³, such an outcome implies that the role of ERBB3 during acinus development lies majorly in the regulation of acinar cell specification through the polarity and secretory program as opposed to the acquisition of the initial cell fate. Finally, we confirmed that there were no significant reductions in E16 ductal-specific genes⁷ (Figure S2E), indicating the ductal system develops independently of ERBB3.

Figure 2: ERBB3 is required for initiating and driving the specification of end bud progenitors to establish polarized, secretory acini.

(A) Brightfield images of wild-type (WT) and Erbb3 KO SGs at E16. Quantification of end bud diameter (left) and number of end buds per gland (right) (n = 3–5 mice per genotype; Mean ± SD; Student’s t test. *P<0.05, **P<0.01). (B) Heatmaps displaying differential expression of secretory and polarity genes and TFs. Levels of gene expression shown as relative z-score (red = upregulated, blue = downregulated). n=4 SMG+SLG/genotype n=4 mice/genotype. Asterisks indicate significantly differentially expressed genes (log2FoldChange ≥0.5, p adj<0.05). (C) WT and Erbb3 KO SGs immunostained for ECAD, MIST1, and PSP. Acini outlined with dashed lines. Scale bar = 50μm. Quantification of average MIST1+ and PSP+ cells as a percentage of acinar cells in E16 WT and Erbb3 KO SGs. n= 2 SMG+SLG/embryo, n=3–4 mouse embryos. Mean ± SD; Student’s t test. *P<0.05, ***P<0.001. (D) WT and Erbb3 KO SGs immunostained for ECAD, AQP5, and ZO-1. Acini outlined with dashed lines. Representative trace of measured intensity values across an acinus shown by yellow dashed line. Scale bar = 50μm. Graphs depict fluorescence intensity profiles of AQP5 and ZO-1 over trace for E16 WT and Erbb3 KO SGs. (E) WT and Erbb3 KO SGs immunostained for SOX10 and ECAD. Acini outlined with dashed lines. Scale bar = 50μm. Quantification of average SOX10+ cells as a percentage of all end bud cells in E16 WT and Erbb3 KO SGs. n=3–4 SGs per genotype. Mean ± SD; Student’s t test. *P<0.05.

We next confirmed alterations in gene expression at the protein level through immunofluorescent analysis. Consistent with the gene expression data, a dramatic reduction in the number of end bud cells expressing secretory program-related proteins was observed in Erbb3-deficient SGs. This included the intermediate stage TF and master regulator of acinar cell lineage and function Bhlha15/MIST1 (3±3.1% of Erbb3 KO cells compared to 39±6.4% of WT cells (p=0.0003)), and secreted protein Bpifa2/PSP (1±1% of Erbb3 KO end bud cells compared to 18±3.1% of WT end bud cells (p=0.0008)) (Figure 2C), thus indicating a failure in the acquisition of the secretory program. End bud polarization was also extensively disrupted through the ablation of Erbb3. In contrast to the strict deposition of water channel AQP5 and tight junction protein ZO-1 in the apical membrane of E16 WT end bud cells (Figure 2D, arrows in graph), both proteins were diffusely expressed throughout the Erbb3 KO end bud cell membranes (Figure 2D, * in graph), mirroring their cellular location at an earlier developmental time point (E15) (compare to Figure 1B). The immature state of the Erbb3 KO end buds was further supported by the striking increase in Sox10 transcripts (Figure 2B) and the expansion of SOX10+ cells in Erbb3 KO end buds (82±6.8%) compared to WT (65±1.2%, p=0.04, Figure 2E), indicating that end bud cells deficient in Erbb3 retain their initial acinar cell fate but do not enter the multiple programs of specification.

Overall, these results demonstrate that ERBB3 is essential for initiating and driving acinar specification of end bud progenitors to establish polarized, secretory acini.

NRG1 activation of ERBB3 ex vivo is sufficient to recapitulate the development of secretory, polarized acini

To demonstrate the direct involvement of NRG1-ERRB3 signaling in acinar specification, E13 SG epithelia were isolated and cultured in the sole presence of recombinant NRG1 over 4 days (Figure 3A), a timeframe chosen to mirror early to late stages of acinus formation (E13 to E17). Strikingly, NRG1-mediated activation of ERBB3 was sufficient to not only induce epithelial cell survival (as previously shown in the mammary gland²⁸ and intestine²⁹) but to also result in the formation of highly branched epithelia that are architecturally indistinguishable from freshly isolated E17 glands (Figure 3B, Figure S3A). Moreover, the kinetics of NRG1-stimulated specification matched in vivo gland development (Figure 3B). As with differentiating in vivo tissue, end bud expansion (E13+1 day, ~E14) was followed by the expression of secretory markers MIST1 and PSP at E13+2 days mimicking in vivo E15 SGs (Figure 3B). NRG1-mediated culture also induced progression through late acinar specification stages, as shown by enhanced MIST1 and PSP protein expression being similar to that found in vivo (E16–17, Figure 3B). Transcriptomic profiling on 48–96 hours cultures was performed to further investigate NRG1-induced molecular changes. PCA analysis showed each epithelial culture to cluster as separate entities, indicative of distinct gene expression profiles (Figure S3B). Secretory genes Dcpp1, Dcpp2 and Agr2 were the first to show heightened expression with NRG1 stimulation at 48 hours of culture (~E15), while most secretory markers (Kcnn4, Aqp5, Bpifa2, Tesc, Lpo, Smgc, Pip, Prol1) showed extensive upregulation by 72 hours (~E16) and maintained expression up to 96 hours (~E17, Figure 3C). In line with the progression of the acinar cell lineage, NRG1 increased expression of the early (E14) developmental TFs involved in cell specification, namely, Grhl2, Klf5, Ehf, Spdef, Creb3l1 and Crebl4 by 48 hours (Figure 3C). However, most TFs showed reduced expression by 96 hours, indicating early acinar cell lineage-related TFs are upregulated by ERBB3 but not necessarily maintained long-term (Figure 3C). Intermediate (E15) to late (E16) acinar lineage-related TFs Bhlha15, Ascl3, Xbp1, Casz1 and Etv1 were detected by 48 hours in culture, and progressively increased expression up to 96 hours (Figure 3C), confirming NRG1 activates both the acinar secretory and TF programs.

Figure 3. NRG1 activation of ERBB3 is sufficient to recapitulate the development of specified, secretory, polarized acini.

(A) Schematic of E13 SG epithelia dissection and in vitro culture with NRG1. (B) (Left) Schematic of a differentiated acinus showing secretory program proteins MIST1 and PSP. (Right) E13 SG epithelia cultured with NRG1 over 96 hours immunostained for ECAD, MIST1, and PSP. Images of each day in culture are shown with corresponding images of E14-E17 SGs. Scale bar = 50μm. (C) Heatmaps displaying differential expression of secretory genes and TFs in NRG1 epithelia cultures. Levels of gene expression shown as relative z-score (red = upregulated, blue = downregulated). (D) (Left) Schematic of an acinus showing polarity program proteins AQP5 and ZO-1. (Right) Immunostaining of E13 SG epithelia cultured with NRG1 for 96 hours. Images of each day in culture are shown with corresponding images of E14-E17 SGs. Scale bar = 50μm. (E) Immunostaining of E13 SG epithelia cultured with NRG1 for 120 hours and freshly isolated E18 SGs for ECAD, AQP5, ZO-1 and aPKC. Scale bar = 5μm. (F) Cluster map showing master TFs E2f1, Irf6 and Xbp1 and putative downstream genes in the 3 acinar programs. Acini outlined with dashed lines in B, D and E.

As with differentiating in vivo tissue, initiation of microlumen formation and expression of AQP5 and ZO-1 proteins occurred at 48 hours (~E15 in vivo; Figure 3D). This was followed by microlumen fusion at 72 hours (~E16) with the remodeling of epithelial cells to create a single layered acinus by 96 hours (~E17, Figure 3D). Polarity was further confirmed in a longer 120 hour/5 day culture by atypical protein kinase C (aPKC), a serine/threonine kinase essential to establish and maintain apical identity³⁰. aPKC was tightly localized to the apical membranes of NRG1-stimulated epithelial end buds at day 5, phenocopying the polarized architecture of an E18 acinus (Figure 3E). On the transcriptional level, NRG1 also progressively increased expression of all polarity signature genes over time, except for Cldn4 that increased as early as 48 hours (Figure 3C). Thus, NRG1-ERBB3 signaling is able to induce and progress the polarity program during the entire acinar specification stage. Together, these data confirm NRG1 activates the acinar polarity and secretory programs, as well as the TF cluster related to acinar lineage progression, and does so at a rate equivalent to in vivo development.

As ERBB3 is catalytically inactive and requires dimerization to EGFR to enable downstream signaling, we next tested if EGFR signaling alone could drive acinar specification. To do so, we cultured E13 SG epithelia in the presence of heparin binding EGF (HB-EGF), a ligand enriched in developing SG that specifically binds and activates EGFR but not ERBB3³¹. We found HB-EGF to induce epithelial growth and morphogenesis over a 96-hour period (Figure S3C). However, in contrast to NRG1, HB-EGF-treated epithelia underwent ductal elongation but not acinar cell specification, as revealed by unpolarized acini and absence of AQP5 and ZO1 at apical membranes (Figure S3C). Thus, activation of EGFR signaling alone is not sufficient to drive acinar specification.

To further predict what TFs regulate the NRG1-induced genes within the secretory, polarity and cell lineage progression programs, a bioinformatic (gProfiler) approach was taken wherein all upregulated genes (log2foldchange≥0.2) over the E13+4 day culture period were analyzed for TF regulatory binding motifs (Data S3). Three NRG1-mediated TFs, Irf6, E2f1 and Xbp1, were identified to regulate multiple genes in GO clusters related to cell migration, anatomical structure morphogenesis and organ development (Figure S3D). Analysis of genes within our defined acinar specification programs (Figure S1D) predicted the involvement of these 3 TFs in the regulation of acinar cell secretion (e.g. Pip, Dcpp1), polarity (e.g. Cldn10, Ocln) and lineage and function (e.g. Bhlha15, Etv1), as outlined by the mapped network (Figure 3F). Together, our findings suggest that NRG1-ERBB3 signaling is sufficient to drive acinar specification from end bud progenitors by establishing cell lineage progression, secretion, and polarity programs through a master regulatory network of IRF6, E2F1 and XBP1.

NRG1 rapidly upregulates a network of TFs involved in cell differentiation and genes related to mTOR signaling

To identify transcriptional regulators immediately downstream of NRG1-ERBB3 signaling at early stages of acinar cell development, we analyzed E13 and E14 end buds cultured with or without (control) NRG1 for 4 hours via RNAseq (Figure 4A). PCA showed extensive global transcriptome differences between control and NRG1-treated end buds at both time points, indicative of a large alteration in gene expression with NRG1 treatment (Figure S4A). Furthermore, hierarchical gene clustering across samples indicated greater similarity between E13 and E14 NRG1-treated end buds, suggestive of similar gene targets at these time points (Figure 4B, Data S4). However, compared to their individual stage-related control, E13 NRG1-treated glands upregulated 936 more genes than E14 NRG1-treated glands, suggesting ERBB3 signaling has a higher transcriptomic impact on E13 progenitor cells (Figure 4B, p adj<0.05). For further analysis, we extracted the 2,248 genes that were upregulated in both E13 and E14 NRG1-treated glands, as compared to their individual control (Figure 4C, Data S4), and subjected these to PANTHER³² and ChEA3³³. Through this analysis we identified all TFs within the NRG1-mediated upregulated gene cohort (Data S4) to be associated with Biological Processes of tissue development, cell differentiation and regulation of cell differentiation (Figure 4D). Specifically, TFs related to cell differentiation and regulation of cell differentiation were investigated for their predictive binding motifs (gProfiler). Twelve regulators (E2f1, E2f4, Irx1, Etv4, Etv5, Myc, Egr1, Egr2, Tfap2c, Xbp1, Hey1, and Yy1) generated a network of TFs that were upregulated at 4 hours by NRG1 in both E13 and E14 end buds (Figure 4E). All, except for Irx1 and Yy1, were significantly upregulated above the control (≥log2foldchange 0.5, p adj<0.05, green contour). Several of those master TFs have been linked to the induction of various epithelial cell lineages (E2F4³⁴, IRX1³⁵, EGR2³⁶, TFAP2C³⁷, HEY1³⁸, YY1³⁹), including acinar cells (E2F1⁴⁰, EGR2³⁶, XBP1^41,42) as well as epithelial cell fate (ETV4, ETV5)⁴³. Analysis of E14 SG single cell populations⁷ revealed widespread expression of these TFs across all clusters, however enrichment of most TFs was evident in the epithelial end bud populations (Figure S4B). Other highly upregulated and relevant downstream TF targets of the 12 NRG1-mediated regulators included Irf6, a factor we identified through our in silico analysis of long term cultures, as well as Etv1 and Id4, the latter of which is uniquely expressed in E14 end buds (Figure S4C) and has been shown to repress specific lineages to allow initiation of others^44,45. In addition to regulating a whole cluster of TFs, four of the 12 NRG1-mediated regulators (E2F1, E2F4, EGR1 and EGR2) also presented binding motifs in genes of the secretory (Aqp5, Kcnn4, Dcpp1/2) and polarity program (Cldn10 and Sorbs2) (Figure 4E), illustrating aspects of both acinar programs are rapidly initiated after NRG1 stimulation.

Figure 4. NRG1 rapidly upregulates a network of transcription factors involved in cell differentiation and genes related to mTOR signaling.

(A) Schematic of E13 and E14 SG epithelia dissection and in vitro culture with NRG1. (B) Hierarchical clustering of differentially expressed genes from E13 and E14 epithelial cultured for 4 hours with NRG1 or without (control = C). Plot highlights upregulated genes (green) and down-regulated genes (red) with NRG1 stimulation. (C) Venn diagram representing upregulated genes in E13 and E14 NRG1-stimulated end buds. (D) GO Biological Processes for all up-regulated TFs in E13 and E14 NRG1 stimulated epithelia. (E) (right) Cluster map of 12 master TFs (highlighted by the red box) with binding motifs in downstream TFs in the 4 hour NRG1 E13/14 cultures. (left) Subset of the master regulator TFs putatively regulating genes in the acinar secretory and polarity programs. (F) GO KEGG results of genes up regulated with NRG1 stimulation in both E13 and E14 epithelia. (G) Cluster map showing E2f1 and Irf6 with downstream targets involved in mTOR signaling. Green icons indicate log2FoldChange≥0.5, padj<0.05 in NRG1 E13/14 samples vs. WT (D-F).

Next, we analyzed the 2,248 genes that were upregulated in response to 4 hours of NRG1 treatment for potential downstream signaling pathways using gProfiler. The NRG1-mediated upregulated genes were primarily related to KEGG pathways of rna transport, cell cycle and metabolism (Figure 4F). Notably, many upregulated targets downstream of NRG1 were clustered to the mTOR pathway. Therefore, we further investigated which NRG1-mediated TFs regulated this network. Strikingly, enrichment analysis predicted both E2F1 and IRF6 to have binding motifs in genes related to the mTOR pathway, such as Deptor, Kras, Pik3r3 and Chuk (Figure 4G). Furthermore, fifty percent (17/34) of E2f1 and Irf6 predicted downstream gene targets were highly upregulated by NRG1 at 4 hours (≥log2foldchange 0.5, green contour, Figure 4B). Thus, based on these data, we conclude that NRG1 rapidly increases genes of a transcriptional master network, including Irf6, E2f1, and Xbp1, related to cell differentiation and that these may regulate specification programs via mTOR signaling.

ERBB3 activates the mTOR pathway during acinar specification

To determine whether ERBB3-mediated mTOR signaling was involved in regulating the secretory, polarity and acinar cell lineage programs, we utilized gene set enrichment analysis (GSEA⁴⁶) to investigate KEGG-enriched biological pathways related to Erbb3 loss. In E16 Erbb3 KO SGs, multiple pathways were downregulated compared to WT (Figure 5A), including those related to exocrine secretion (Mucin Type O-Glycan Biosynthesis, Salivary Secretion, Calcium Signaling) and polarization (Tight Junction, Regulation of Actin Cytoskeleton). We found a reduction in PI3K-AKT signaling, indicative of Erbb3’s known affinity to bind and recruit PI3K and activate downstream AKT phosphorylation⁴⁷. Furthermore, the reduction in expression of genes associated with the mTOR signaling pathway suggested that it is via this pathway that PI3K/AKT is signaling in Erbb3-enriched end buds⁴⁸. In addition, a GSEA enrichment score indicated multiple genes related to mTOR signaling to be downregulated in Erbb3 KO SGs (Figure 5A), including Pik3r3, Mtor and Rictor (Data S2).

Figure 5. ERBB3 activates the mTOR pathway during acinar specification.

(A) KEGG pathways down-regulated in E16 Erbb3 KO SG compared to WT. Data was generated from GSEA analysis from RNASeq data described (Figure 3B) and organized by normalized enrichment score. (B) E15 SG immunostained for pS6K or pAKT^Ser473 with ECAD. Scale bar = 25μm. (C) E16 WT and Erbb3 KO SG immunostained for ECAD, pAKT^Ser473, and SOX10. Scale bar = 50μm. Quantification of pAKT+ cells is shown as a percentage of total ECAD+ cells per field of view for each phenotype. n=3–4 SG per genotype. Mean ± SD; Student’s t test (unpaired, two-tailed), ***P<0.001. (D) Schematic representation of NRG1-stimulated E16 SGs. (E) Western blot analysis of ERBB3, 4E-BP1, and AKT, with each protein’s phosphorylated forms in NRG1-stimulated E16 SGs (0–60 minutes). Representative blots are shown. n=4–5 SG per time-point. (F) NRG1-stimulated E16 SGs (15 minutes) immunostained for SOX10 and pAKT^Ser473. Acini are outlined with dashed lines in B, C and F. Scale bar = 50μm.

As mTOR mediates its functions through the assembly of two structurally distinct multiprotein complexes, mTORC1 and mTORC2⁴⁹, we analyzed E15 end buds for spatial expression of downstream mTORC1 target pS6K⁵⁰, and mTORC2 activated pAKT (pAKT^Ser473)⁵¹. As shown in Figure 5B, pAKT^Ser473 was exclusively associated with end buds, whereas pS6K was distributed throughout the epithelium, suggesting that mTORC2 is uniquely activated in developing end buds. Considering this exclusive expression of pAKT^Ser473, we asked if mTORC2 signaling is downstream of ERBB3 by analyzing pAKT^Ser473 expression in the E16 Erbb3 KO. As predicted, the number of pAKT^Ser473-expressing cells in Erbb3 KO end buds decreased by ~80% compared to WT (Figure 5C), confirming the presence of an Erbb3-mediated mTOR pathway in acinar progenitors.

To evaluate ERBB3’s active role in stimulating mTOR, we cultured E16 glands with NRG1 for 0 to 60 minutes (Figure 5D), and quantified changes in the level of mTORC1 target p4E-BP1⁵² and mTORC2 target pAKT^Ser473. Successful stimulation of ERBB3, as noted by Tyr1289 phosphorylation, occurred within 5 minutes of NRG1 addition (Figure 5E and Supplementary Figure 5A). In addition, levels of both p4E-BP1 and pAKT^Ser473 significantly increased at 15 minutes and remained activated up to 60 minutes, indicating ERBB3 enables rapid activation of mTORC1 and mTORC2 pathways (Figure 5E–F and Figure S5A). EGFR was also significantly phosphorylated within 15 minutes of ERBB3 stimulation, which attests to an active downstream signaling after ERBB3-EGFR dimerization (Figure S5B).

Overall, these data reveal that NRG1-ERBB3 rapidly activates an mTOR pathway during the specification of acinar progenitors within the end buds.

ERBB3-mediated mTOR signaling is essential for acinar progenitor cell specification

Considering the mTOR pathways are directly activated by ERBB3 signaling, we investigated whether activation of mTOR is necessary for initiating acinar cell specification through chemical inhibition. E13 epithelia were cultured with NRG1 in the presence or absence of mTORC1/2 inhibitor Torin-1⁵³ for 2, 3, and 5 days (Figure 6A), and analyzed for changes in gene and protein expression. At 2 days of culture, we found a profound decrease in the number of MIST1+ cells in Torin-1-treated epithelia (>90% reduction) compared to DMSO controls (Figure 6B–C). End buds treated with Torin-1 also contained 50% more SOX10+ cells, suggesting inhibiting mTOR signaling downstream of NRG1 prevents end bud progenitors from initiating the acinar secretory program but they retain their acinar progenitor fate (Figure 6B–C).

Figure 6. ERBB3-mediated mTOR signaling is essential for acinar specification.

(A) Schematic of E13 SG epithelia isolation and culture mTOR inhibitor. (B) 48-hour control and Torin-1 E13 epithelia immunostained for MIST1, pAKT^Ser473, and SOX10. Acini are outlined with dashed lines. Scale bar = 50μm. (C) Quantification of MIST1+ and SOX10+ cells as a percentage of total epithelial cells per field of view for 48 hours control and Torin-1 epithelia. n=6 rudiments per treatment, averaged from three images. Data are shown as mean ± SD; Student’s t test. **P<0.01, ***P<0.001. (D) Brightfield images of control and Torin-1 E13 epithelia cultured with NRG1 for 120 hours (left, scale bar = 200μm). Cultures were immunostained for ECAD, AQP5, ZO-1, MIST1, and PSP. Scale bar = 50μm. (E) Heatmaps displaying differential expression of acinar secretory program, polarity program and cell lineage TF genes in control and Torin-1 cultured epithelia (72 hours). Levels of gene expression shown as relative z-score (red = upregulated, blue = downregulated). Asterisks indicate significantly differentially expressed genes (log2FoldChange≥0.5, padj<0.05).

Over the next 3 days, end bud formation, maturation of end bud architecture and the synthesis of polarity proteins were drastically reduced in tissue cultured with Torin-1 (Figure 6D). Furthermore, unlike control epithelia which displayed a single layer of acinar cells wrapped around a polarized lumen enriched in apical AQP5 and ZO-1, Torin-1-treated end buds were composed of multiple cell layers showing basolateral expression of AQP5, loss of ZO-1 and the absence of a single contiguous lumen, indicative of impaired morphogenesis (Figure 6D). Although a few MIST1+ cells were visible in Torin-1-treated end buds by 5 days, possibly due to a residual low level of mTOR, there was a severe disruption in secretory cell maturation as shown by the complete absence of PSP (Figure 6D).

RNAseq analysis of epithelia cultured for 3 days further revealed that inhibition of mTOR1/2 signaling by Torin-1 had a profound effect on global gene expression (Figure S6A). A total of 1,578 genes were differentially expressed between the two culture conditions (≥log2foldchange 0.5; p adj< 0.05), with 888 genes showing decreased expression and 690 increased with Torin-1 treatment compared to untreated controls (Figure S6B, Data S5). Moreover, signature genes in all 3 acinar programs were impacted. There was a significant reduction in genes related to secretory function, including Aqp5, Bpifa2, Tesc, Lpo, Smgc, Pip and Prol1 in Torin-1 treated tissue (Figure 6E). The major polarity program associated genes Cldn10 and Crb3 were significantly reduced, and other signature genes showed a trending reduction with Torin-1 compared to control (Figure 6E). Finally, Torin-1 significantly reduced the expression of TFs highly relevant to E15 to E16 acinar lineage progression (Bhlha15, Spdef, Creb3l4, Xbp1, Etv1) compared to controls (Figure 6E). Crucially, these outcomes recapitulate the deficiencies seen in Erbb3 KO SGs, further suggesting that the mTORC1/2 pathways are necessary for acinar cell specification in vivo.

Finally, given the enriched localization of pAKT^Ser473 in the end buds, and the reduction in pAKT^Ser473-expressing acinar progenitors in the Erbb3 KO, we next tested whether mTORC2, as opposed to mTORC1, was the primary driver of acinar specification in response to ERBB3 signaling. NRG1-treated epithelia were cultured with the specific mTORC1 inhibitor rapamycin and changes in cell lineage, polarization, and secretory programs were assessed after 5 days. While the overall growth of SG epithelia was reduced with mTORC1 inhibition, acinar specification of rapamycin-treated epithelial end buds resembled those of DMSO controls, with a single layer of MIST1+/PSP+ cells surrounding a polarized lumen enriched in AQP5 and ZO1 (Figure S6C). Thus, these outcomes further support mTORC2 as the downstream regulator of NRG1-ERBB3-mediated acinar specification.

Altogether, these data demonstrate that NRG1-ERBB3 signaling is essential for the development of secretory acini through the regulation of the 3 specification programs and mediates this, in part, through an mTORC2 signaling pathway.

Discussion

Many fundamental questions regarding the mechanisms driving specification of various epithelial cell types and organized tissue architecture are still unanswered, especially that of the secretory acinar cell. Neuronal-epithelial interactions regulate multiple processes including tissue function^54,55, stem cell maintenance^56,57 and organ regeneration^58–60. In the SG, we have previously defined a neuronal-epithelial signaling complex that is required to maintain and expand epithelial progenitors via acetylcholine/CHRM1/EGFR signaling²⁵ and to establish SG tubulogenesis via the VIP/VIPR/cAMP-PKA-dependent pathway²⁶. Here, we show a neuronal-driven mechanism that regulates tissue architecture during later stages of development, this time focused on the initiation and progression of acinar specification in end bud progenitors. Considering widespread NRG1 expression in neuronal populations²³ and ERBB3 expression in a variety of epithelial cell types^61–63, this nerve-derived signaling may also regulate secretory cell specification in other organs.

The ability of NRG1-ERBB3 signaling to promote the expansion and differentiation of progenitor cells is supported by previous studies showing NRG1 to drive stem cell fate and progenitor proliferation in developing and regenerating epithelial organs, such as the lung⁶⁴, eye⁶⁵, intestine^61,66 and mammary gland^28,67,68. Our study highlights multifunctional roles for NRG1-ERBB3 signaling alone is sufficient to (1) expand and differentiate progenitor cells and (2) promote the extensive reorganization and specification required for glandular function. Cell specific functions of the NRG1-ERBB3 cascade have been elucidated in adult epithelial organs, including the mammary glands where NRG1 activates luminal cell maturation during pregnancy⁶⁹ and the intestine where NRG1 maintains adult cell stemness in the intestine⁶⁶. Thus, NRG1-ERBB3 signaling in adult organs contributes to limited outcomes as compared to developing tissues. Furthermore, in these organs, NRG1 has been shown to be derived from non-neuronal cell types i.e., basal cells in the mammary gland⁶⁹ and mesenchymal cells in the intestine⁶⁶. This suggests non-neuronal NRG1 is capable of supporting a number of processes in adult organ systems, however highly innervated tissues may also rely on neuronal NRG1 to regulate development, homeostasis and/or regeneration. Further work is needed to understand the specific role of neuronal-derived NRG1 in tissue outcomes. Moreover, whether ERBB3 is limited to specific cell types during development or switches to alternative cell types in the adult needs to be determined.

Several studies report TF regulation downstream of NRG1 in adult organs in endocardium⁷⁰, ischemic stroke⁷¹, brain ischemia⁷², Schwann cells⁷³, and cancer cells⁷⁴. However, no studies to date have proposed a role for NRG1 in transcriptionally regulating acinar specification. We report that NRG1 significantly upregulates a cluster of 12 master regulators within 4 hours, all of which are known to be involved in cell differentiation and/or linked to the acinar lineage (e.g., EGR2, XBP1). While many of these may directly or indirectly be involved in initiating the acinar specification programs, 3 TFs (IRF6, E2F1, and XBP1) also aligned as master regulators during 96 hours of culture with NRG1, strengthening their relevance within NRG1-mediated acinar formation. Supporting evidence already indicates that E2f1^−/− mice produce less salivary volume, and SGs with fewer acini⁴⁰. XBP1 plays a crucial role in the development of mature secretory cells of many organs^41,75–78, and regulates Bhlha15/MIST1⁷⁹. Lastly, deletion of Irf6 in mice also leads to a significant reduction in SG and pancreas Bhlha15/MIST1 expression, implicating the need for IRF6 in acinar cell lineage commitment⁸⁰. It is noteworthy that none of those TFs are exclusively regulated by NRG1-ERBB3, but it is plausible that NRG1 enhances their gene expression to activate downstream gene clusters to guide progenitors towards acinar cell specification. It will be of future interest to evaluate whether each TF is essential to induce the acinar programs individually or as a cluster.

Lastly, our study establishes a link between ERBB3 and mTOR in a developmental setting. In disease settings, such as head and neck cancer⁸¹, lung adenocarcinomas⁸², gastric cancer⁸³ and meningiomas⁸⁴, ERBB3 has been linked to mTOR to induce proliferation. However, here we demonstrate a role for ERBB3-mTOR in driving cell specification and tissue architecture. Specifically, we show that mTOR signaling acts downstream of ERBB3 to orchestrate the specification of the epithelial end bud into a secretory acinus. Furthermore, our findings indicate that specification occurs via mTORC2, rather than mTORC1. mTORC1/2 regulate developmental processes in multiple epithelial organs including the skin^85,86, mammary gland⁸⁷ and prostate⁸⁸, however, similar to the outcomes shown here, mTORC1 and 2 can mediate distinct functions within the same organ^87,89. Whether NRG1-ERBB3 activates mTORC2 exclusively to drive acinar specification or if it pairs with other signaling cascades, remains to be determined.

Thus, altogether we propose an in-depth regulatory network for acinar specification directed by NRG1-ERBB3-mTORC2 that allows for the lineage progression of the epithelial end bud into a secretory acinus.

Limitations of Study

Various transcriptional regulators of the NRG1-ERBB3-mTOR pathway discovered in silico were based on bioinformatic analysis of sequencing data and require further investigation at the functional level. In addition, it is still undetermined whether NRG1-ERBB3 exclusively activates mTORC2 to drive acinar specification or whether other signaling pathways are involved. The in vitro epithelial culture approach used here depletes other potential regulators of acinus development that may act in parallel with NRG1. Future work will also be required to validate findings on the role of neuronal-derived NRG1 in secretory cell specification in other tissues.

STAR Methods section

Resource Availability

Lead Contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Sarah M. Knox (sarah.knox@ucsf.edu).

Materials Availability

This study did not generate new unique reagents.

Data and Code Availability

This paper does not report any original code. Additional information on code used to analyze data reported is available from the lead contact upon request. RNA-sequencing data has been deposited in the Gene Expression Omnibus (GEO) database (GSE214976).

Experimental Model and Subject Details

Animals and animal handling

All procedures were approved by the UCSF Institutional Animal Care and Use Committee (IACUC) and adhered to the NIH Guide for the Care and Use of Laboratory Animals. All animals were housed 5 per cage (where possible) in a barrier facility in standard ventilated cages with free access to water and food with a 12-hr light cycle (6 am-6pm). Animals were handled according to an approved institutional animal care and use committee (IACUC) protocol number [AN186940-01]. Breeding was carried out in duos or trios. The Erbb3-floxed (MGI: 3690340)⁹⁰ mouse line was a gift from Rebecca Cook, Vanderbilt University School of Medicine. The Krt14^CreERT2 (MGI: 2177426)⁹¹ mouse line was purchased from The Jackson Laboratory. Mouse lines were used as described previously^90,91. All transgenic mice were maintained on a C57BL/6 background. E13 to E18 embryos were obtained from outbred wild-type timed pregnant CD1 female mice purchased from Envigo. The embryonic stages used are discussed and detailed in each result description.

For generation of embryonic SG deficient in Erbb3, a Krt14^CreERT2fl/+; Erbb3^fl/fl male mice were crossed to Erbb3^fl/fl female mice and noon of the day when vaginal plugs were first recorded was determined as 0.5 days post coitum (E0.5). Timed pregnant females were administered 11.25 mg/30 g of tamoxifen (Sigma-Aldrich) by oral gavage at E10.5 and E11.5 and were euthanized by CO₂ inhalation at E16.

Method Details

Ex vivo SG epithelial rudiment culture

In all ex vivo epithelial rudiment culture experiments, SG were derived from CD1 timed pregnant mice at E13. E13 SG epithelia were freshly isolated as previously described^11,12. Briefly, the SG epithelium was separated from the mesenchyme using dispase II (Gibco) treatment followed by mechanical dissection and cultured in 15μl of laminin-1 (R&D Systems) on a nucleopore filter floating above 200 μL of serum-free media (DMEM/F12; Thermo Fisher Scientific) containing penicillin-streptomycin (Gibco), 50μg/ml holo-transferrin (HT), 150μg/ml ascorbic acid (AsA) and 200ng/ml human recombinant NRG1 isoform SMDF (R&D Systems), or 20ng/ml HB-EGF (R&D Systems) for up to 120 h. For inhibitor experiments, epithelia were cultured at 37°C in a humidified 5% CO₂/95% air atmosphere in complete media in the presence of 0.2% DMSO (Sigma-Alrdrich), 5μM of mTORC1 inhibitor rapamycin (Biotang Inc.), or 1μM mTORC1/2 inhibitor Torin-1 (Cell Signaling Technologies). In all experiments, media was refreshed daily.

Ex vivo SG organ culture

SG were dissected from E16 wild type (Krt14^CreERT2fl/+; Erbb3^fl/+) and Erbb3 deficient (Krt14^CreERT2fl/+; Erbb3^f/fl) embryos and placed directly on a nucleopore filter over serum-free media (DMEM/F12, HT, AsA), as described above. SG explants were left to equilibrate at 37°C in a humidified 5% CO₂/95% air atmosphere for 60 minutes before 400 ng/ml NRG1 was added to media. Explants were then cultured for 0–60 minutes at 37°C prior to fixation for immunofluorescent analysis.

Section immunostaining

Intact SG were fixed in 4% paraformaldehyde for 20 minutes, washed 3 times with PBS and then dehydrated by incubating with increasing concentrations of sucrose (12.5–25%) overnight at 4°C. Tissue was embedded in OCT (Tissue-Tek) and sectioned using a Leica cryostat. Cryosections were kept at −20°C until immunofluorescent analysis and OCT tissue blocks were kept at −80°C. For staining, tissue sections were left to equilibrate at room temperature for 10 min and underwent immunostaining as described below.

Whole mount immunostaining

Whole, freshly dissected E13-E18 SGs and cultured epithelia were fixed in 4% paraformaldehyde for 20–30 min followed by permeabilizing with 0.1% Triton X in PBS (Alfa Aesar) for 10 minutes. Tissue was blocked for a minimum of 2 hours or overnight at 4°C with 10% Donkey Serum (Jackson Laboratories), 1% BSA (Sigma-Aldrich), and MOM IgG-blocking reagent (Vector Laboratories) in 0.01% PBS–Tween 20 (Thermo Fisher Scientific). Tissue was incubated with primary antibodies overnight at 4°C (Table S1). The following day, samples were washed 3 times with PBS and subsequently incubated with species specific secondary antibodies (Cy2-, Cy3-, or Cy5-conjugated secondary Fab fragment, Jackson Laboratories) at 1:300 in PBS overnight at 4°C. The following day tissue was washed 3 times with PBS and nuclei stained using Hoechst 33342 (1:1,000, Sigma-Aldrich). Tissues were then mounted on slides using Vectashield (Vector Laboratories) for imaging.

Imaging

Images were captured on an inverted Zeiss LSM 700 or Zeiss LSM 900 confocal microscope. Confocal imaging of whole mount samples or tissue sections was performed using a 10, 40 or 63X oil lens, depending on application. For high magnification acquisitions, images were acquired with pinhole set to approximately 1μm and a 1μm step size was used for Z stack collection. Maximum intensity projections of substacks specifically containing each layer were made using ImageJ.

RNA Sequencing Analysis

For bulk RNA-sequencing experiments, embryonic SG were dissected from CD1 embryos at E13-E18 and from wild type and Krt14^CreERT2;Erbb3^fl/fl embryos at E16. SG epithelial rudiments were collected on 46, 72, and 96 hour timepoints of ex vivo culture. Each biological replicate consisted of RNA pooled from 10 (E13 sample) and 6 SGs (E14-E18 samples) for developmental time course studies and one SG for E16 Krt14^CreERT2;Erbb3^fl/fl analysis. Each biological replicate consisted of RNA pooled from 6 epithelial rudiments of ex vivo SG analysis. A minimum of 3 biological replicates for whole SG studies and 2 biological replicates of epithelial studies were included. RNA was purified using the Purelink RNA Mini Kit (Invitrogen) and quantification was performed on an Agilent 2100 Bioanalyzer. RNA was further processed for transcriptome sequencing by Novogene (UC Davis, USA). In short, a total amount of 1μg RNA per sample was used as input material for the RNA sample preparations. Sequencing libraries were generated using NEBNext Ultra RNA Library Prep Kit for Illumina (NEB, USA) following manufacturer’s recommendations and index codes were added to attribute sequences to each sample. PCR products were purified (AMPure XP system) and library quality was assessed on an Agilent 2100 Bioanalyzer. Clustering of samples was performed on a cBot Cluster Generation System using PE Cluster Kit cBot-HS (Illumina) and library preparations were sequenced on an Illumina platform and paired-end reads were generated. Sequencing data were processed, and downstream analysis performed as described below.

Quantification and Statistical Analysis

Statistical analyses were performed using Prism 9 (GraphPad), and statistical details related to tests performed and sample size are specified in the figure legends.

Morphometric analysis and cell counts

For acinar diameter measurements, whole E14 or E16 SGs were immunostained for E-Cadherin (ECAD) and imaged for confocal microscopy using 320μm², ≥50μm projections assembled from 5μm stacks. Using ImageJ software, a line was drawn across an acinus (determined by morphology) at its largest width perpendicular to its adjacent duct and expressed in micrometers. Two glands from the same embryo were averaged for each data point, with a minimum of 4 acini measured per gland (8 total). For total endbud quantification, whole glands were imaged on a Zeiss Axiovert 200 brightfield microscope and end buds quantified using ImageJ software (NIH).

For fluorescence intensity measurements, tissue sections of E16 SGs were labeled for AQP5, ZO-1, and ECAD and single 160μm² planes were imaged. Using ImageJ software, a line was drawn across the length of an individual acinus and fluorescence intensity plotted using the “Plot Profile” analysis tool. Intensity measurements of each marker were normalized against the highest intensity data point. Intensity plots were generated in Prism 9 (GraphPad).

For cell counts of SGs, MIST⁺, PSP⁺, SOX10⁺, and pAKT⁺ cells were quantified using ImageJ software from 320μm² (for Figure 2) or 101 μm² (for Figure 5 and 6) images taken from SG tissue sections or whole mounted epithelial rudiments, respectively. Cells were quantified from 6μm projections from combined 2μm stacks for Figure 2, and single slices were used for other quantifications. For Figure 2, ECAD⁺ cells that were positive for each marker were manually counted and divided by total ECAD⁺ cells in each field of view using the multi-point tool. For Figure 5 and 6, cells positive for each marker were divided by total number of nuclei in each field of view. At least three independent images were quantified and averaged for each data point.

Analysis of bulk RNA-Seq data

Raw data (raw reads) of FASTQ format were firstly processed through fastp⁹². In this step, clean data (clean reads) were obtained by removing reads containing adapter and poly-N sequences and reads with low quality from raw data. At the same time, Q20, Q30 and GC content of the clean data were calculated. All the downstream analyses were based on the clean data with high quality. Paired-end clean reads were aligned to the mm9 reference genome using Spliced Transcripts Alignment to a Reference (STAR) software⁹³. FeatureCounts⁹⁴ was used to count the read numbers mapped of each gene. For downstream analysis, scripts were adapted from Berry et al.⁹⁵ and Love et al.⁹⁶. Read counts were filtered and normalized using the R package edgeR⁹⁷. Hierarchical gene clustering and differential gene expression was analyzed using DESeq2⁹⁶ and limma⁹⁸. Genes with a defined log2FoldChange and an adjusted p-value<0.05 were determined to be differentially expressed. Panther³² was used to analyze genes within each cluster to identify transcription factors, secretory and polarity genes. Gene Ontology (GO) analysis for Biological Processes were determined by gProfiler⁹⁹. Heatmaps of differentially expressed gene clusters were visualized using ggplot2¹⁰⁰ and pheatmap¹⁰¹ and volcano plots created using EnhancedVolcano¹⁰². Gene set enrichment analysis (GSEA) was performed using v4.1.0 of the GSEA desktop application⁴⁶. Normalized Enrichment Scores (NES) were plotted using Prism 9 (GraphPad).

Transcription factor binding motif analysis

NRG1 upregulated gene lists (Figure 3I) or gProfiler-defined KEGG/GO clusters of genes (Figure 4E–F) were imported into the gProfiler program to identify predicted binding motifs of transcription factors (TFs). Predicted TFs were aligned with the NRG1 upregulated gene list to identify overlapping TFs. The predictive target genes of those NRG1-regulated TFs were then manually evaluated for log2FoldChange expression and/or overlap with genes in the defined acinar programs. In addition, transcription factors were enriched from gene lists (Figure 4E) through analysis of bioinformatical programs Panther, CheA3 and gProfiler. Connections between predictive TFs and their gene target were manually imported into Cytoscape¹⁰³ to create gene networks.

Analysis of single cell RNA-seq data

Analysis and R scripts used for E14 SG singe cell RNAseq data were adapted from Hauser et al.⁷. Briefly, filtered gene-barcode matrices were analyzed using the Seurat v4.0¹⁰⁴. Seurat objects were generated with CreateSeuratObject (min.cells = 3, min.features = 200) for E14 SG cells. Cells were filtered based on the distribution of number of genes (nFeature, >200,<2500) and percent mitochondrial genes (percent.mito, :>0.5,<5) per cell. Data were normalized for sequencing depth, log-transformed, and multiplied by a scale factor of 10000 using the default parameters of NormalizeData. The top 2000 variable genes within each dataset were selected based on a variance stabilizing transformation (FindVariableGenes, selection.method = ‘vst’) and used in downstream principal component analysis (PCA). Cell clusters were identified by construction of a shared nearest neighbor graph (FindNeighbors) and a modularity optimization-based clustering algorithm (FindClusters) using the PCs determined by PCA (dims = 1:10). Clustering was performed at multiple resolutions between 0.2 and 2, and optimal resolution was determined empirically based on the expression of known population markers and the FindMarkers function (resolution = 0.5). To investigate the SG cells, epithelial cell clusters were determined by expression of EpCAM and EpCAM-negative cell clusters were eliminated. Cells and clustering were visualized using Uniform Manifold Approximation and Projection (UMAP) dimensional reduction (RunUMAP). Markers for each cluster were identified with FindAllMarkers using default parameters, and cluster identity was determined based on the presence of known markers and populations previously described⁷. For cell-cell ligand-receptor interaction analysis, Seurat object for E14 SG single cell data was analyzed using CellChat²¹ using standard parameters.

Western Blotting and Analysis

E16 SGs dissected from CD1 timed pregnant female mice were lysed in radioimmunoprecipitation assay buffer (RIPA buffer) containing a cocktail of protease inhibitors. Protein concentration was measured by bicinchoninic acid (BCA) assay (Thermo Fisher Scientific). A quantity of 10μg of protein per samples was separated by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) on 4–12% Bis Tris gels (Invitrogen) and transferred to PVDF membranes. Membranes were blocked in 5% milk and incubated in primary antibodies overnight at 4 °C. After washing three times in TBST, the blots were incubated with appropriate horseradish-peroxidase-conjugated secondary antibodies and visualized with the Clarity Max Western ECL chemiluminescence detection system (Biorad). Densitometric quantification of bands was performed using ImageJ software and phospho-protein intensity was normalized by dividing by total non-phosphorylated protein intensity for each blot. Antibodies used can be found in Table S1.

Supplementary Material

1

Data S1. Enrichment in gene expression in developing SG from E13 to E18 and in epithelial end buds compared to ducts at E15, related to Figure 1

2

Data S2. Differential Gene Expression Analysis and Gene Set Enrichment Analysis of E16 Erbb3 KO and WT SGs, related to Figures 2 and 5

3

Data S3. gProfiler analysis of TF regulatory binding motifs of upregulated genes in E13 epithelia treated with NRG1 for 4 days, related to Figure 3

4

Data S4. Differential Gene Expression Analysis of NRG1 stimulated end buds vs control, related to Figure 4

5

Data S5. Differential Gene Expression Analysis of NRG1+Torin-1 vs NRG1+DMSO (control) E13 epithelia cultured for 72 hours, related to Figure 6

Key resources table.

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
Rat anti-ECADH	Thermo Fisher Scientific	Cat# 13-1900; RRID: AB_2533005
Rabbit anti-AQP5	Millipore	Cat# AB3559; RRID: AB_2141915
Mouse anti-ZO-1	Thermo Fisher Scientific	Cat# 339194; RRID: AB_2532188
Rabbit anti-MIST1	Sigma-Aldrich	Cat# HPA047834; RRID: AB_2680172
Mouse anti-MIST1	Thermo Fisher Scientific	Cat# MA1-517; RRID: AB_2259158
Guinea Pig anti-PSP	gift from Stefan Ruhl	N/A
Goat anti-MUC10	Abcore	Cat# AC21-2394
Sheep anti-ERBB3	R&D Systems	Cat# AF4518; RRID: AB_2099728
Rabbit anti-ERBB2	Cell Signaling Technology	Cat# 2165; RRID: AB_10692490
Rabbit anti-EGFR	Abcam	Cat# ab52894; RRID: AB_869579
Goat anti-KIT	Santa Cruz Biotechnology	Cat# SC-1494; RRID: AB_631032
Goat anti-SOX10	Santa Cruz Biotechnology	Cat# SC-17342; RRID: AB_2195374
Rabbit anti-Cleaved Caspase-3	Cell Signaling Technology	Cat# 9664; RRID: AB_2070042
Mouse anti-Ki67	BD Biosciences	Cat# 550609; RRID: AB_393778
Rabbit anti-PKCζ	Santa Cruz Biotechnology	Cat# SC-216; RRID: AB_632241
Mouse anti-AKT	Cell Signaling Technology	Cat# 2920; RRID: AB_1147620
Rabbit anti-Phospho-AKT (Ser473)	Cell Signaling Technology	Cat# 9271; RRID: AB_329825
Rabbit anti-Phospho-AKT (Thr308)	Cell Signaling Technology	Cat# 13038; RRID: AB_2629447
Rabbit anti-ERBB3	Cell Signaling Technology	Cat# 12708; RRID: AB_2721919
Rabbit anti-Phospho-ERBB3 (Tyr1289)	Cell Signaling Technology	Cat# 4791; RRID: AB_2099709
Rabbit anti-EGFR	Cell Signaling Technology	Cat# 4267; RRID: AB_2246311
Rabbit anti-Phospho-EGFR (Tyr1068)	Cell Signaling Technology	Cat# 2234; RRID: AB_331701
Rabbit anti-4E-BP1	Cell Signaling Technology	Cat# 9644; RRID: AB_2097841
Rabbit anti-Phospho-4E-BP1 (Thr37/46)	Cell Signaling Technology	Cat# 2855; RRID: AB_560835
Chemicals, peptides, and recombinant proteins
Tamoxifen	Sigma-Aldrich	Cat# T5648
Hoechst 33342	AnaSpec	Cat# AS83218
Paraformaldehyde	Thermo Fisher Scientific	Cat# AA47340-9M
OCT	Andwin Scientific Tissue-Tek	Cat# 14-373-65
Dispase II	Gibco	Cat# 17105041
Cultrex 3D Culture Matrix Laminin I	R&D Systems	Cat# 3446-005-01
DMSO	Sigma-Aldrich	Cat # D2650
DMEM/F12	Thermo Fisher Scientific	Cat# 11320082
Penicillin-Streptomycin	Gibco	Cat# 15140122
Holo-transferrin	Sigma-Aldrich	Cat# T1283
Ascorbic Acid	Sigma-Aldrich	Cat# A4544
Recombinant Human NRG1 Isoform SMDF	R&D Systems	Cat# 378-SM-025
Recombinant Human HB-EGF	R&D Systems	Cat# 259-HE-250
Rapamycin	Biotang Inc	Cat# 50-148-809
Torin-1	Cell Signaling Technologies	Cat# 14379
Critical commercial assays
Purelink RNA Mini Kit	Invitrogen	Cat# 12-183-018A
NEBNext® UltraTM RNA Library Prep Kit for Illumina ®	New England Lab inc.	Cat# E7530L
Deposited data
Raw RNA-seq data	This paper	GSE: 214976
Experimental models: Organisms/strains
Tg(KRT14-cre/ERT2)1Ipc	Li et al.91	MGI:2177426
Erbb3tm1.1Squ	Qu et al.90	MGI: 3690340
Software and algorithms
fastp	Chen et al.92	https://github.com/OpenGene/fastp
STAR	Dobin93	https://github.com/alexdobin/STAR
FeatureCounts	Liao et al.94
The R Project for Statistical Computing	CRAN	https://www.R-project.org/
R Studio	R Studio	https://www.rstudio.com/
DIY Transcriptomics	Berry et al.95	https://diytranscriptomics.com/
edgeR	Robinson et al.97	https://bioconductor.org/packages/release/bioc/html/edgeR
DeSeq2	Love et al.96	https://bioconductor.org/packages/release/bioc/html/DESeq2
limma	Ritchie et al.98	https://bioconductor.org/packages/release/bioc/html/limma
Panther	Mi et al.32	http://pantherdb.org/
gProfiler	Reiman et al.99	https://biit.cs.ut.ee/gprofiler/gost
ggplot2	Wickham100	https://ggplot2.tidyverse.org/
pheatmap	Kolde101	https://github.com/raivokolde/pheatmap
EnhancedVolcano	Blighe et al.102	https://github.com/kevinblighe/EnhancedVolcano
GSEA	Subramanian et al.46	https://www.gsea-msigdb.org/gsea/index.jsp
Seurat	Hao et al.104	https://satijalab.org/seurat/
CellChat	Jin et al.21	http://www.cellchat.org/
Cytoscape	Shannon et al.103	https://cytoscape.org/
Fiji ImageJ	NIH	https://imagej.net/software/fiji/
Graphpad Prism 9	Graphpad Software, Inc	https://www.graphpad.com

Highlights.

• Nerve-derived NRG1 signals via ERBB3 enriched in acinar progenitors

• Epithelial deletion of Erbb3 inhibits acinar specification

• NRG1 treatment of epithelia is sufficient to recapitulate in vivo acinus formation

• NRG1-ERBB3 signaling regulates acinar specification through mTORC2
