. 2022 Dec 6;27(23):8611. doi: 10.3390/molecules27238611

Development and Validation of a UPLC-MS/MS Method for the Quantification of Components in the Ancient Classical Chinese Medicine Formula of Guyinjian

Nan Ge 1, Zhineng Li 1, Le Yang 2, Guangli Yan 1, Aihua Zhang 1, Xiwu Zhang 1, Xiuhong Wu 1, Hui Sun 1, Dan Li 3, Xijun Wang 1,2,4,*
Editor: Evagelos Gikas
PMCID: PMC9738704  PMID: 36500703

Abstract

Guyinjian (GYJ) is an ancient classic formula of traditional Chinese medicine used for the treatment of liver and kidney yin deficiency; it was derived from the book “Jing Yue Quan Shu” in the Ming Dynasty. Modern clinical observation experiments have shown that GYJ has a definite therapeutic effect on the treatment of gynecological diseases such as kidney deficiency type oligomenorrhea, climacteric syndrome, intermenstrual bleeding, pubertal metrorrhagia, etc. However, the lack of GYJ quality control studies has greatly limited the development of its wider clinical application. In this study, a validated UPLC-MS/MS method was developed successfully for the first time and used to quantify fourteen compounds in GYJ samples with good specificity, linearity (r = 0.9960−0.9999), precision (RSD% ≤ 3.18%), stability (RSD% ≤ 2.22%) and accuracy (recovery test within 88.64–107.43%, RSD% at 2.82–6.22%). Simultaneously, the determination results of 15 batches of GYJ samples were analyzed by multivariate statistical methods, and it was found that the compounds have a greater influence on batch-to-batch stability, mainly Rehmannioside D, Loganin, Morroniside, Ginsenoside Re, and 3′,6-Disinapoylsucrose. The proposed new method has the advantages of high sensitivity, high selectivity, and rapid analysis, which provides a reference for the GYJ quality control study.

Keywords: Guyinjian, UPLC-MS/MS, quantitative analysis, multivariate statistical analysis, quality control

1. Introduction

Guyinjian (GYJ), a classical Chinese medicine formula, is derived from the book “Jing Yue Quan Shu”, Volume 51, written by Zhang Jingyue in the Ming Dynasty (1640 A.D.). The original book stated that “This recipe is composed of Ginseng Radix et Rhizoma, Rehmanniae Radix Praeparata, Dioscoreae Rhizoma, Corni Fructus, Polygalae Radix Praeparata, Glycyrrhizae Radix et Rhizoma Praeparata Cum Melle, Schisandrae Chinensis Fructus, and Cuscutae Semen, and it is effective in tonifying the liver and kidney, nourishing Yin and strengthening essence” [1]. In recent clinical observation experiments, it was found that addition and subtraction therapy of GYJ can increase ovarian blood supply, improve high ovarian reserve function, reduce Gn (gonadotropins) consumption, alleviate symptoms of kidney yin deficiency, and can ameliorate ovarian responsiveness and pregnancy outcome [2]. Furthermore, GYJ can also be used to treat polycystic ovary syndrome ovulation disorders [3], immuno-sterility [4], kidney deficiency type oligomenorrhea [5,6], climacteric syndrome [7], intermenstrual bleeding [8], pubertal metrorrhagia [9] and other gynecological diseases, all with good therapeutic effects. Simultaneously, GYJ has been presented in the Catalogue of Ancient Classical Formula (First Batch) promulgated by the National Administration of Traditional Chinese Medicine, which provides policy support for the further development of granules [10]. Although the clinical applications and pharmacological effects of GYJ have been well explored, the quality control studies are still scant. Therefore, it remains necessary to develop a set of comprehensive and rapid quality evaluation methods for qualitative and quantitative analysis of the major components in GYJ samples.

The index compounds were selected via a literature review, to find the main components of each medicine that exert pharmacological activities; these refer to the quality control components in the “Pharmacopoeia of the People’s Republic of China” (2020 edition). Those ultimately selected to be the index components of the GYJ samples were Ginsenoside Re, Ginsenoside Rg1, Ginsenoside Rb1 from Ginseng Radix et Rhizoma; Rehmannioside D and Verbascoside from Rehmanniae Radix Praeparata; Morroniside and Loganin from Corni Fructus; 3′,6-Disinapoylsucrose, Polygalaxanthone III and Tenuifolin from Polygalae Radix Praeparata; Hyperoside from Cuscutae Semen; Schisandrin from Schisandrae Chinensis Fructus; Liquiritin and Glycyrrhizic acid from Glycyrrhizae Radix et Rhizoma Praeparata Cum Melle. The structures of the fourteen constituents are shown in Figure 1.

Figure 1.

Figure 1

Open in a new tab

Structure information of the fourteen compounds analyzed in the GYJ samples.

The development and application of mass spectrometry provides a quick and convenient method for the identification and quantification of contents in complex natural medicine extracts, with its superior sensitivity and resolution [11]. Triple quadrupole mass spectrometry has been widely used in quantitative studies because of its higher accuracy [12]. The Selected Ion Recording (SIR) mode is a quantitative analysis mode for a selected ion, which allows simultaneous quantitative analysis of multiple components with only one quadrupole [13]. In this study, based on UPLC-MS/MS technology, a rapid, simplified and efficient method for the quantitative analysis of fourteen components of GYJ samples was successfully developed for the first time and methodologically validated. In addition, the determination results of 15 batches of GYJ samples were analyzed by multivariate statistical methods; it was found that the compounds with a greater influence on batch-to-batch stability were mainly Rehmannioside D, Loganin, Morroniside, Ginsenoside Re, and 3′,6-Disinapoylsucrose. This study will contribute to the quality control study for GYJ and its preparations.

2. Results and Discussion

2.1. Optimisation of Sample Extraction Conditions

To obtain the optimal quantitative extraction, the extraction methods including reflux extraction and ultrasonic extraction were investigated; it was found that there was no significant difference in extraction efficiency between the two methods, so the more convenient ultrasonic extraction method was selected. The preliminary experiment (simultaneous determination of six chemical components (Morroniside, Loganin, Hyperoside, 3′,6-Disinapoylsucrose, Glycyrrhizic acid, and Schisandrin) in GYJ based on HPLC (UV detector)) investigated pure water, 25% methanol, 50% methanol, 75% methanol, 100% methanol, 25% ethanol, 50% ethanol, 75% ethanol, and 100% ethanol, and found that 75% methanol was the best. Therefore, in the process of this experiment, only 50% methanol, 75% methanol, and 100% methanol were investigated when designing the extraction solvent. However, due to the increase of the determining components, the factors to determine the optimal conditions also increased. The results were analyzed comprehensively, and it was discovered that the content of most of the components does not have much variation under the conditions of 50% methanol and 75% methanol; however, Rehmangoside D has better water solubility and is an important index component of the monarch drug Rehmanniae Radix Praeparata. Therefore, the more suitable 50% methanol was selected as the best extraction solvent. The extraction time was investigated for 15 min, 30 min, 45 min, and 60 min, correspondingly, and the results have proven that 45 min of ultrasonic extraction could achieve full extraction. The solid–liquid ratio of 2 mg/mL, 4 mg/mL, 8 mg/mL, and 16 mg/mL was respectivel investigated, and the experimental results show that 8 mg/mL was more suitable. In summary, the final sample extraction conditions were a precise sampling of 0.4 g, precise addition of 50 mL of 50% methanol, and ultrasonic extraction for 45 min.

2.2. Optimisation of UPLC-MS/MS Condition

The sample solution was firstly subjected to full scan analysis in MS Scan mode. It was found that among the fourteen interest monitoring components, only Schisandrin did not respond in the negative ion mode, so Schisandrin was selected to be monitored in the positive ion mode, and the remaining thirteen compounds had good response values in the negative ion mode. The SIR parameters of the fourteen compounds were individually optimized to achieve the highest sensitivity and resolution. The optimum cone voltage was determined by comparing the peak areas of each compound at different cone voltages. Taking Schisandrin as an example, the cone voltages were set to 20 v, 25 v, 30 v, 35 v, 40 v, and 45 v, individually. It was found that the peak area of the compound first increased and then decreased with the increase of cone voltage, and when the cone voltage of Schisandrin was 30 v, the peak area was the largest. The summary results of the optimum cone voltages are shown in Table 1. In order to obtain a chromatogram with a good separation effect, the elution gradient of the chromatogram was in the first place. After optimization, Schisandrin appeared in 2.07 min in positive ion mode, and 13 components were successfully separated in 14 min in negative ion mode. Afterwards, the conditions of column temperature (30 °C, 35 °C, 40 °C), flow rate (0.3 mL/min, 0.4 mL/min), injection volume (5 µL, 2 µL, 1 µL) were investigated. It was found that the best separation results were obtained when the column temperature was 35 °C, the flow rate was 0.4 mL/min, and the injection volume was 1 µL. Representative chromatograms are shown in Figure 2.

Table 1.

Summary of UPLC-MS-SIR mode parameter information for 14 compounds.

SIR Mode Compound Name Mass (m/z) Dwell (s) Cone (V)
ES- Rehmannioside D 685.2 0.018 55
ES- Morroniside 451.1 0.018 30
ES- Loganin 435.1 0.018 35
ES- Polygalaxanthone III 567.1 0.018 75
ES- Liquiritin 417.1 0.018 45
ES- Hyperoside 463.0 0.018 60
ES- Verbascoside 623.1 0.018 70
ES- 3′,6-Disinapoylsucrose 753.2 0.018 75
ES- Ginsenoside Re 991.5 0.018 45
ES- Ginsenoside Rg1 845.4 0.018 60
ES- Ginsenoside Rb1 1107.5 0.018 90
ES- Tenuifolin 679.3 0.018 65
ES- Glycyrrhizic acid 821.3 0.018 90
ES+ Schisandrin 433.2 0.328 30
Open in a new tab

Figure 2.

Figure 2

Open in a new tab

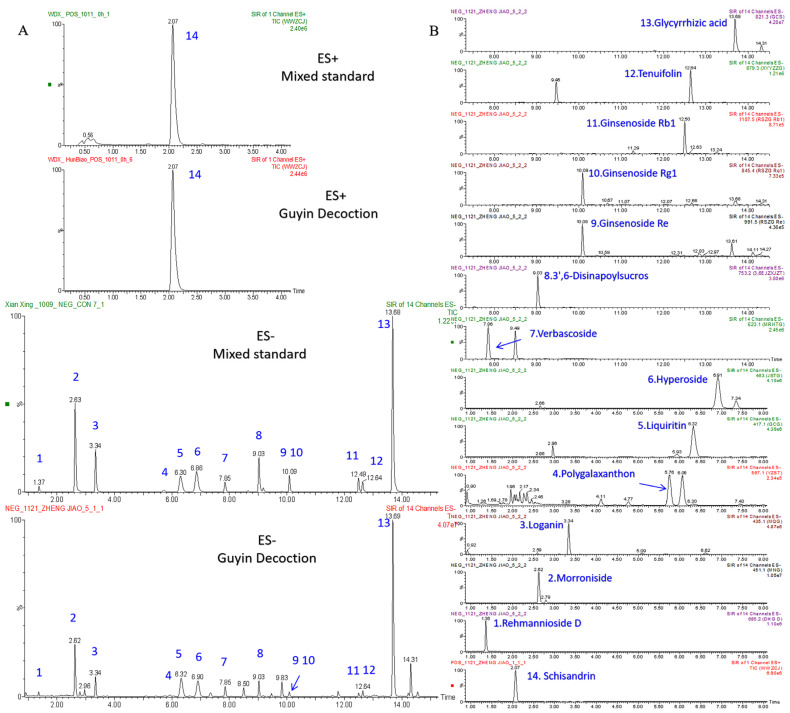

Representative chromatogram. (A) Total Ions Chromatograph (TIC) of the mixed standards compared with the GYJ samples. (B) Chromatograms of individual extracts of each compound in GYJ samples.

2.3. Validation of UPLC-MS Method

The results of the specificity experiment showed that the method used for the determination of the fourteen components had no interference from other compounds, and the specificity was excellent. All chromatogram comparison results are shown in Supplementary Material Figure S1. All calibration curves were constructed by plotting the peak area (y) versus the concentration (x: in µg/mL) by analyzing a set of standard solutions and they displayed good linear regression over the range (r = 0.9960–0.9999) (Table 2). The results of the instrumental precision investigation showed that the peak area RSD% of each component was less than or equal to 3.49% (Table 3), indicating that the precision of the instrument used in this study met the experimental requirements. Repeatability, intermediate precision, and their combined calculation showed the RSD% of each component was between 0.68% and 3.18% (Table 4 and Table 5), which proved that the method established above had better precision. The results of the stability investigation indicated that each compound was relatively stable within 12 h of storage in the sample chamber (RSD% ≤ 2.22%) (Table 6). The results of the average sample addition recovery of each component were 88.64–107.43%, RSD% at 2.82–6.22% (Table 7), which met the recovery limit requirements of the “Pharmacopoeia of the People’s Republic of China” (2020 edition) for simultaneous content determination of multiple components.

Table 2.

Calibration curve, linear ranges, and r study results of 14 analytes.

Compound Calibration Curve Linear Range (µg/mL) r
Rehmannioside D y = 1856.2x + 162.47 0.4082–10.205 0.9999
Morroniside y = 5663.3x + 9521 1.9690–49.225 0.9999
Loganin y = 5837.6x + 3430.9 1.0595–26.488 0.9994
Polygalaxanthone III y = 12,217x + 139.22 0.0393–0.9825 0.9999
Liquiritin y = 11,344x + 3901.7 0.4813–12.031 0.9988
Hyperoside y = 11,878x + 9390.3 0.5978–14.944 0.9960
Verbascoside y = 19,206x + 1084.2 0.0957–2.3925 0.9993
3′,6-Disinapoylsucrose y = 8154.2x + 2317.8 0.6715–16.788 0.9997
Ginsenoside Re y = 12,765x + 325.7 0.1074–2.6838 0.9998
Ginsenoside Rg1 y = 16,044x + 175.01 0.0597–1.4925 0.9998
Ginsenoside Rb1 y = 15,886x + 203.89 0.1340–3.3500 0.9999
Tenuifolin y = 24,931x + 1218.6 0.0708–1.7690 0.9988
Glycyrrhizic acid y = 41,117x + 28,611 0.7460–18.650 0.9986
Schisandrin y = 46,610x + 26,670 0.1792–4.4800 0.9966
Open in a new tab

Table 3.

Instrument precision study results of 14 analytes.

Compound/Peak Area 1 2 3 4 5 6 RSD%
Rehmannioside D 2180 2162 2209 2230 2203 2046 3.03%
Morroniside 61,535 65,585 63,218 63,679 62,487 62,082 2.28%
Loganin 48,573 48,489 49,183 48,403 48,524 47,962 0.81%
Polygalaxanthone III 3501 3571 3557 3582 3457 3513 1.36%
Liquiritin 26,480 26,432 26,897 26,020 26,957 27,222 1.64%
Hyperoside 55,821 55,830 56,865 57,164 56,190 55,221 1.29%
Verbascoside 9523 9000 9509 9411 9947 9430 3.19%
3′,6-Disinapoylsucrose 43,871 43,924 46,404 44,412 41,994 45,135 3.31%
Ginsenoside Re 5886 6024 5879 5482 5802 5832 3.11%
Ginsenoside Rg1 4332 4297 4277 4328 4380 4356 0.87%
Ginsenoside Rb1 10,382 10,507 10,317 10,209 10,759 10,218 2.00%
Tenuifolin 9168 9394 9121 9258 9409 8543 3.49%
Glycyrrhizic acid 156,563 144,796 153,694 152,024 155,010 151,450 2.70%
Schisandrin 395,285 393,048 381,008 377,984 383,494 386,626 1.76%
Open in a new tab

Table 4.

Repeatability study results of 14 analytes.

Compound Sample-1
(mg/g)		 Sample-2
(mg/g)		 Sample-3
(mg/g)		 Sample-4
(mg/g)		 Sample-5
(mg/g)		 Sample-6
(mg/g)		 RSD%
Rehmannioside D 0.32113 0.32023 0.31742 0.31218 0.3173 0.32077 1.06%
Morroniside 2.91215 2.79783 2.8683 2.81242 2.85547 2.81521 1.52%
Loganin 1.53599 1.52903 1.52081 1.54322 1.52763 1.49539 1.08%
Polygalaxanthone III 0.05384 0.05257 0.05304 0.0518 0.0514 0.0534 1.79%
Liquiritin 0.51878 0.5036 0.51041 0.51195 0.50372 0.49634 1.55%
Hyperoside 0.71191 0.68372 0.69032 0.68591 0.67053 0.67489 2.12%
Verbascoside 0.14832 0.1476 0.14251 0.14216 0.14661 0.14786 1.90%
3′,6-Disinapoylsucrose 0.66255 0.64514 0.64891 0.64284 0.64037 0.63542 1.45%
Ginsenoside Re 0.07898 0.07593 0.07665 0.07623 0.07946 0.07656 1.96%
Ginsenoside Rg1 0.0863 0.08291 0.08512 0.08054 0.08308 0.08227 2.47%
Ginsenoside Rb1 0.08673 0.0868 0.08363 0.08353 0.08191 0.08369 2.32%
Tenuifolin 0.02412 0.02398 0.02403 0.02402 0.02421 0.02373 0.68%
Glycyrrhizic acid 1.29249 1.25455 1.25168 1.24285 1.26755 1.24067 1.53%
Schisandrin 0.22103 0.22152 0.21533 0.22478 0.22385 0.21874 1.57%
Open in a new tab

Table 5.

Intermediate precision study results of 14 analytes.

Compound Sample-1
(mg/g)		 Sample-2
(mg/g)		 Sample-3
(mg/g)		 Sample-4
(mg/g)		 Sample-5
(mg/g)		 Sample-6
(mg/g)		 RSD% Combined Repeatability and Intermediate Precision (RSD%)
Rehmannioside D 0.31793 0.31807 0.31965 0.30476 0.29972 0.29848 3.18% 2.64%
Morroniside 2.84818 2.78914 2.81021 2.77910 2.81882 2.80366 0.86% 1.35%
Loganin 1.52682 1.53977 1.51064 1.52463 1.52649 1.49486 1.03% 1.02%
Polygalaxanthone III 0.05416 0.05272 0.05281 0.05269 0.05374 0.05289 1.17% 1.52%
Liquiritin 0.51802 0.51922 0.50072 0.50428 0.51141 0.51435 1.46% 1.49%
Hyperoside 0.69397 0.67495 0.67647 0.66746 0.66524 0.65313 2.03% 2.27%
Verbascoside 0.15130 0.14597 0.14822 0.14629 0.14771 0.14932 1.34% 1.76%
3′,6-Disinapoylsucrose 0.66602 0.66006 0.66075 0.65018 0.66738 0.66720 1.00% 1.74%
Ginsenoside Re 0.07692 0.07792 0.07820 0.07863 0.07875 0.07891 0.94% 1.58%
Ginsenoside Rg1 0.08542 0.08469 0.08397 0.08411 0.08526 0.08250 1.27% 1.96%
Ginsenoside Rb1 0.08749 0.08442 0.08543 0.08811 0.08529 0.08586 1.64% 2.18%
Tenuifolin 0.02405 0.02527 0.02446 0.02437 0.02381 0.02507 2.31% 1.95%
Glycyrrhizic acid 1.26006 1.28608 1.27006 1.25404 1.25920 1.25795 0.93% 1.24%
Schisandrin 0.22424 0.22423 0.23107 0.22125 0.22474 0.21432 2.45% 2.04%
Open in a new tab

Table 6.

Stability study results of 14 analytes.

Compound 0 h
(mg/g)		 2 h
(mg/g)		 4 h
(mg/g)		 6 h
(mg/g)		 8 h
(mg/g)		 10 h
(mg/g)		 12 h
(mg/g)		 RSD%
Rehmannioside D 0.28387 0.29758 0.28751 0.27986 0.28424 0.28517 0.28306 1.97%
Morroniside 2.73107 2.61553 2.63035 2.61832 2.67367 2.66227 2.64084 1.53%
Loganin 1.42990 1.43415 1.45469 1.43699 1.42918 1.40613 1.43684 1.01%
Polygalaxanthone III 0.04613 0.04684 0.04714 0.04891 0.04796 0.04685 0.04878 2.22%
Liquiritin 0.47113 0.46881 0.47472 0.46043 0.47498 0.46801 0.47534 1.14%
Hyperoside 0.58354 0.57778 0.56404 0.55416 0.56335 0.55998 0.56784 1.80%
Verbascoside 0.12900 0.13135 0.12806 0.12895 0.12647 0.13206 0.13151 1.60%
3′,6-Disinapoylsucrose 0.57402 0.56734 0.58351 0.59466 0.59594 0.58482 0.56461 2.15%
Ginsenoside Re 0.07292 0.07137 0.07278 0.07188 0.06977 0.0722 0.06956 1.90%
Ginsenoside Rg1 0.07888 0.07499 0.07763 0.07661 0.07514 0.07685 0.07432 2.12%
Ginsenoside Rb1 0.07890 0.07639 0.07756 0.07889 0.0775 0.07682 0.07864 1.30%
Tenuifolin 0.02164 0.02209 0.02203 0.02193 0.02174 0.02252 0.02193 1.29%
Glycyrrhizic acid 1.15635 1.15132 1.1506 1.14429 1.15882 1.15643 1.13918 0.62%
Schisandrin 0.21346 0.21495 0.21659 0.21666 0.21509 0.21144 0.21711 0.94%
Open in a new tab

Table 7.

Recovery results of 14 analytes.

Compound Number Original Amount
(mg)		 Spiked Amount
(mg) 		Detected Amount (mg) Recovery (%) Mean RSD/% (n = 6)
Rehmannioside D 1 0.04407 0.05016 0.09262 96.78% 93.49% 2.82%
2 0.04490 0.09072 91.34%
3 0.04493 0.09023 90.30%
4 0.04404 0.09129 94.22%
5 0.04493 0.09315 96.13%
6 0.04507 0.09131 92.19%
Morroniside 1 0.62622 0.54037 1.17592 101.73% 96.96% 4.52%
2 0.63802 1.17246 98.90%
3 0.63843 1.14833 94.36%
4 0.62568 1.17455 101.57%
5 0.63840 1.13166 91.28%
6 0.64038 1.14775 93.89%
Loganin 1 0.31094 0.31531 0.65369 108.71% 100.99% 4.78%
2 0.31679 0.63562 101.12%
3 0.31700 0.63492 100.83%
4 0.31067 0.63647 103.33%
5 0.31698 0.62244 96.87%
6 0.31796 0.61783 95.10%
Polygalaxanthone III 1 0.00828 0.01138 0.02072 109.37% 101.46% 6.22%
2 0.00844 0.01963 98.38%
3 0.00844 0.01944 96.67%
4 0.00827 0.02071 109.30%
5 0.00844 0.01981 99.91%
6 0.00847 0.01929 95.13%
Liquiritin 1 0.09114 0.10973 0.19988 99.10% 101.09% 4.30%
2 0.09286 0.20724 104.25%
3 0.09292 0.20754 104.46%
4 0.09106 0.20721 105.86%
5 0.09291 0.19734 95.17%
6 0.09320 0.20041 97.71%
Hyperoside 1 0.15628 0.18152 0.31016 84.77% 88.64% 3.87%
2 0.15923 0.32162 89.46%
3 0.15933 0.32849 93.19%
4 0.15615 0.32266 91.73%
5 0.15932 0.31400 85.21%
6 0.15982 0.31861 87.48%
Verbascoside 1 0.02123 0.02553 0.04767 103.57% 100.48% 3.29%
2 0.02163 0.04829 104.45%
3 0.02164 0.04648 97.31%
4 0.02121 0.04596 96.96%
5 0.02164 0.04676 98.41%
6 0.02171 0.04779 102.16%
3′,6-Disinapoylsucrose 1 0.10012 0.11174 0.21203 100.15% 100.42% 3.27%
2 0.10200 0.21945 105.10%
3 0.10207 0.21586 101.83%
4 0.10003 0.21002 98.43%
5 0.10206 0.20871 95.44%
6 0.10238 0.21584 101.53%
Ginsenoside Re 1 0.00994 0.01203 0.02259 105.12% 104.78% 4.49%
2 0.01013 0.02383 113.89%
3 0.01013 0.02236 101.64%
4 0.00993 0.02210 101.17%
5 0.01013 0.02266 104.13%
6 0.01017 0.02253 102.75%
Ginsenoside Rg1 1 0.01203 0.01103 0.02369 105.70% 107.43% 4.06%
2 0.01226 0.02481 113.77%
3 0.01227 0.02449 110.75%
4 0.01202 0.02335 102.66%
5 0.01227 0.02423 108.43%
6 0.01231 0.02370 103.27%
Ginsenoside Rb1 1 0.01126 0.01222 0.02396 103.93% 103.97% 4.11%
2 0.01147 0.02508 111.35%
3 0.01148 0.02415 103.72%
4 0.01125 0.02322 97.96%
5 0.01147 0.02413 103.56%
6 0.01151 0.02414 103.31%
Tenuifolin 1 0.00462 0.00519 0.00999 103.48% 99.15% 3.97%
2 0.00471 0.00975 97.23%
3 0.00471 0.00966 95.51%
4 0.00462 0.00981 100.21%
5 0.00471 0.00962 94.73%
6 0.00472 0.01010 103.73%
Glycyrrhizic acid 1 0.21756 0.24525 0.44908 94.40% 92.34% 2.87%
2 0.22166 0.45797 96.36%
3 0.22181 0.44341 90.36%
4 0.21738 0.43690 89.51%
5 0.22179 0.44419 90.68%
6 0.22248 0.44992 92.74%
Schisandrin 1 0.04957 0.04476 0.09123 93.09% 91.22% 2.97%
2 0.05050 0.09265 94.17%
3 0.05053 0.09110 90.64%
4 0.04952 0.08992 90.26%
5 0.05053 0.08928 86.58%
6 0.05069 0.09211 92.55%
Open in a new tab

2.4. Simultaneous Quantitation of Fourteen Compounds in 15 Batches of GYJ Samples

The newly established method was used to calculate the content of the above-mentioned fourteen key compounds in 15 batches of GYJ samples by the method of accompanying mixed standard products. Two parallel samples were prepared for each batch, and each sample was acquired twice and accompanied by two needles of the standard. The content results were calculated by applying the ratio of the peak area to the ratio of the concentration and are shown in Table 8. Through the analysis of the standard deviation (SD) values of 15 batches of GYJ samples, the most significant difference is the Liquiritin and Glycyrrhizic acid, which were 0.83916 and 0.36383, respectively, indicating that different batches and different producing areas of Glycyrrhizae Radix et Rhizoma Praeparata Cum Melle have great quality differences. Next, the SD values of Rehmannioside D from Rehmanniae Radix Praeparata, Morroniside and Loganin from Corni Fructus, and Hyperoside from Cuscutae Semen were between 0.1 and 0.3, and the degree of dispersion was also large. The SD values of the remaining components were all less than 0.1, including Polygalaxanthone III, 3′,6-Disinapoylsucrose, and Tenuifolin from Polygalae Radix Praeparata, Ginsenoside Re, Ginsenoside Rg1, Ginsenoside Rb1 from Ginseng Radix et Rhizoma, Schisandrin from Schisandrae Chinensis Fructus, and Verbascoside from Rehmanniae Radix Praeparata. The results show that the quality of the different origins of the medicinal materials of Polygalae Radix Praeparata, Ginseng Radix et Rhizoma, and Schisandrae Chinensis Fructus was relatively stable. Therefore, in order to ensure the stability of preparation production during the later stage, the content range of the key ingredients contained in each medicinal material should be set as an exact and reasonable standard, and the quality control of the source should be strengthened.

Table 8.

Content determination results of 14 analytes in fifteen batches of GYJ samples.

Content (mg/g, n = 2)
S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 SD
Rehmannioside D 0.26021 0.26517 0.30544 0.23689 0.18487 0.58298 0.83644 0.81856 0.87372 0.77825 0.79725 0.71777 0.74770 0.86893 0.67400 0.27359
Morroniside 2.62522 2.82448 2.69635 2.99392 2.46303 2.18398 2.64711 2.18389 2.30279 2.12395 2.38980 2.32503 2.26280 2.34720 2.44680 0.25363
Loganin 1.55306 1.43519 1.52310 1.54024 1.36209 1.29946 1.34021 1.19817 1.21662 1.36191 1.23902 1.31137 1.13805 1.24123 1.22655 0.13082
Polygalaxanthone III 0.04645 0.05232 0.04380 0.05116 0.04430 0.05436 0.06872 0.06084 0.07404 0.05811 0.03849 0.04437 0.03731 0.02709 0.02692 0.01355
Liquiritin 0.55860 0.47562 0.56533 0.46908 0.53224 0.99557 2.63008 2.60939 1.39165 2.40877 1.22428 2.15027 1.44371 0.48911 0.48426 0.83916
Hyperoside 0.65880 0.63195 0.81321 0.81044 0.65848 0.78963 0.94112 0.86762 1.06844 1.02875 0.79034 0.74206 0.73911 0.72920 0.71311 0.13016
Verbascoside 0.16081 0.15508 0.15121 0.10594 0.05612 0.09847 0.13244 0.14653 0.08705 0.12370 0.09823 0.09399 0.07120 0.15331 0.13059 0.03299
3′,6-Disinapoylsucrose 0.49389 0.51598 0.56075 0.50473 0.56824 0.49123 0.63219 0.58257 0.67184 0.49296 0.31598 0.50248 0.42314 0.38143 0.43481 0.09272
Ginsenoside Re 0.06604 0.06684 0.07950 0.05246 0.04317 0.04820 0.05148 0.04944 0.03211 0.03327 0.04824 0.03420 0.04461 0.03665 0.04658 0.01342
Ginsenoside Rg1 0.09848 0.07674 0.06300 0.06137 0.06128 0.07863 0.06219 0.08167 0.06305 0.05879 0.08731 0.04565 0.09070 0.08427 0.09229 0.01540
Ginsenoside Rb1 0.09314 0.08419 0.10099 0.06016 0.04954 0.04994 0.05074 0.05169 0.04190 0.03186 0.06376 0.03319 0.06085 0.04985 0.07120 0.02037
Tenuifolin 0.02034 0.02494 0.02309 0.02345 0.01945 0.02239 0.02627 0.02163 0.02878 0.02342 0.01925 0.02687 0.02902 0.02584 0.02678 0.00316
Glycyrrhizic acid 1.91695 1.52411 1.27045 1.17990 1.20443 0.97810 1.74063 1.75546 1.34449 1.96704 0.92250 1.51239 0.91537 0.98217 1.07492 0.36383
Schisandrin 0.21841 0.22412 0.17753 0.20762 0.19557 0.22222 0.19976 0.20067 0.21398 0.18160 0.24425 0.20641 0.25835 0.18588 0.24667 0.02402
Open in a new tab

2.5. Quality Evaluation by Cluster Analysis and Multivariate Statistical Analysis

The results of cluster heatmap analysis are shown in Figure 3A. The darker the color of the heat map indicates the higher the content of each component in the corresponding batch. The 15 batches of samples were divided into two categories, batches 1–5 as a group (S1–S5) and batches 6–15 (S6–S15) as a group. From the classification results, the differences in the content of the target chemical compounds were related to the quality variation of herbs from different origins. PCA was used to research the relationship or trend of similarity or differences among these samples, and the degree of clustering and dispersion of the samples could be observed from the score plot, as shown in Figure 3B; the results of PCA analysis were in accordance with the results of the clustering analysis. Due to the different origins of the formula’s herbs, there is a large difference in the content of some components, resulting in the poor stability of the GYJ samples, suggesting that control of the origins of the herbs or mixed batch inputting of herbs of different origins during the production of the preparation can be attempted. Further OPLS-DA analysis was performed to obtain the results of the VIP (Variable Importance for the Projection) ranking values of the components that have a high impact on the quality between different batches, as shown in Figure 3C,D, the top five compounds (VIP > 1) were Rehmannioside D, Loganin, Morroniside, Ginsenoside Re and 3′,6-Disinapoylsucrose. These five components originated from Radix Rehmanniae Praeparata, Cornus officinalis, Ginseng and Polygala Tenuifolia, which indicates that the quality stability of these four herbs has great influence on the stability of the GYJ preparation and are worth highlighting.

Figure 3.

Figure 3

Open in a new tab

Results of cluster analysis and multivariate statistical analysis for the content determination of 14 analytes of fifteen batches (S1–S15) of GYJ samples. (A) Heat map of cluster analysis; (B) Results of PCA analysis; (C) Results of OPLS-DA analysis; (D) VIP Score Graph.

2.6. Overview of the Pharmacological Activities of Each Component

Owing to the multi-component and multi-target action characteristics of TCM, quality control research has always been a bottleneck on the road to modernization, limiting the benefit to all mankind. The selection of the index components in this study was, as far as possible, made to determine the active compounds related to the formula’s clinical efficacy. In the study exploring the compatibility mechanism of ShengDiHuang Decoction (SDHD) based on the in situ single-pass intestinal perfusion model; by analysing the effects of different concentrations, different pH, intestinal segments, protein inhibitors, and tight junction regulators on SDHD absorption, it was found that Rehmannioside D may undergo active transport, and may be a substrate of BCRP (breast cancer resistance protein) and MRP2 (multidrug resistance-associated protein 2) [14]. Recently, a study highlighted the protective role of Morroniside against H2O2-induced damage; further studies suggested that treatment with Morroniside decreased apoptosis, autophagy, and oxidative stress in rat ovarian granulosa cells through the PI3K (phosphatidylinositol 3-kinase)/AKT (serine/threonine-specific protein kinase)/mTOR (mechanistic target of rapamycin) pathway [15]. According to reports, Loganin mitigates Ang II-induced cardiac hypertrophy, at least partially, through inhibiting the JAK2 (Janus Kinase 2)/STAT3 (signal transducers and activators of transduction-3) and NF-κB (Nuclear factor-κB) signaling pathways and might be a novel effective agent for the treatment of cardiac hypertrophy and heart failure [16]. A quantibody array analysis demonstrated that Polygalaxanthone III downregulates inflammation in lipopolysaccharide-stimulated RAW264.7 macrophages [17]. Liquiritin reduces lipopolysaccharide-aroused HaCaT cell inflammation damage via the regulation of microRNA-31/MyD88 [18]. Hyperoside attenuates non-alcoholic fatty liver disease in rats via cholesterol metabolism and bile acid metabolism [19]. Ginsenoside Re ameliorates inflammation by inhibiting the binding of lipopolysaccharide to TLR4 (Toll-likereceptor4) on macrophages [20]. Research shows that the Ginsenoside Rg1 improved pathological damage in the ovary and uterus by increasing anti-oxidant and anti-inflammatory abilities whilst reducing the expression of senescence signaling pathways in POI (premature ovarian insufficiency) mouse models. Meanwhile, Glycyrrhizin possesses anti-inflammatory activity; hence, it is mostly used in traditional herbal medicine for the treatment and management of chronic diseases [21]. To sum up, quality control research on ingredients that may exert medicinal effects can better ensure the effectiveness and stability of the preparation. The simultaneous quality control of multiple components is more convincing than a single component, and it also reflects the theoretical system of TCM coordination and synergy.

3. Conclusions

In this study, an analytical method for the simultaneous quantitative analysis of fourteen components in GYJ samples based on the UPLC-MS/MS technique was developed for the first time. The method has the advantages of high sensitivity, high selectivity, and rapid analysis, which provides a reference for the quality control study and the Ancient Classical Formula research of GYJ granules’ development. In the meantime, through multivariate statistical analysis of the content determination results of 15 batches of GYJ samples in the three production areas, it was found that due to differences in the origins and batches of some medicinal materials, the dispersion degree of each batch was large. Therefore, in order to ensure the stability of subsequent preparation production, quality control research concerning the source of medicinal materials should be strengthened, such as the origin of the medicinal materials, collection period, traits, and specifications. Furthermore, the range standards for the upper and lower limits of content determination for key components should be fixed. Moreover, in the actual production process, manufacturers can also try to design a reasonably mixed batch inputting, so as to make better use of the medicinal materials and ensure the safety and effectiveness of the preparations.

4. Materials and Methods

4.1. Reagents and Materials

Chemical standards of Loganin, Polygalaxanthone III, Liquiritin, Hyperoside, Ginsenoside Re, Ginsenoside Rg1, Ginsenoside Rb1, Tenuifolin, Schisandrin were purchased from the National Institutes for Food and Drug Control (Beijing, China); Morroniside, Verbascoside, 3′,6-Disinapoylsucrose were offered by Chengdu Refensi Biotechnology Co., Ltd. (Chengdu, China); Rehmannioside D was obtained from Chengdu Purfield Biotechnology Co., Ltd. (Chengdu, China); Glycyrrhizic acid was acquired from Sichuan Vikki Biotechnology Co., Ltd. (Chengdu, China). The purity and batch number refer to Table S1 of the Supplementary Materials. The purity of the above standards can be used for content determination. HPLC grade methanol and acetonitrile were provided by Fisher Scientific (Fair Lawn, NJ, USA), Chromatographic grade formic acid was acquired from Tianjin kemio Chemical Reagent Co., Ltd. (Tianjin, China). Water used throughout the experiments was prepared by Unique-R202 Multifunctional Ultrapure Water System (Xiamen, China). The other chemicals and solvents were all of analytical grade. The Chinese herbal medicines used in the preparation of the 15 batches of GYJ samples (S1–S15) were all sourced from authentic regions or main producing areas; the origin and batch number information is shown in Table 9. All medicine pieces are in compliance with the provisions of the “Pharmacopoeia of the People’s Republic of China” (2020 edition) section I of Chinese herbal medicine pieces, including properties, identification, inspection, content determination, processing, etc.

Table 9.

Origin and batch numbers of the Chinese herbal medicines in the fifteen batches of GYJ samples (S1–S15).

Chinese Herbal Medicine Ginseng Radix et Rhizoma Rehmanniae Radix Praeparata Dioscoreae Rhizoma Corni Fructus
Sample
Number 		Origin Batch Number Origin Batch Number Origin Batch Number Origin Batch Number
S1 Jingyu, Jilin Province 17112311 Xiangfen, Shanxi Province 17102711 Anguo, Hebei Province 18011611 Nanyang, Henan Province 1709061
S2 17112312 17102712 18011612 1709062
S3 17112313 17102713 18011613 1709063
S4 17112314 17102714 18011614 1709064
S5 17112315 17102715 18011615 1709065
S6 Xinbin, Liaoning Province 201001 Jiaozuo, Henan Province 20191201 Anyang, Henan Province 20201101 Danfeng, Shaanxi Province 180311
S7 201002 20191202 20201102 180312
S8 201003 20191203 20201103 180313
S9 201004 20191204 20201104 180314
S10 201005 20191205 20201105 180315
S11 Tonghua, Jilin Province 201006 Wenxi, Shanxi Province 20191201 Li xian, Hebei Province 20201101 Luoyang, Henan Province 180321
S12 201008 20191202 20201102 180322
S13 201009 20191203 20201103 180323
S14 201010 20191204 20201104 180324
S15 201101 20191205 20201105 180325
Chinese Herbal Medicine Polygalae Radix Glycyrrhizae Radix et Rhizoma Praeparata Cum Melle Schisandrae Chinensis Fructus Cuscutae Semen
Sample
Number 		Origin Batch Number Origin Batch Number Origin Batch Number Origin Batch Number
S1 Xintai, Shandong Province 18010311 Longxi, Gansu Province 17111411 Ji’an, Jilin Province 1710271 Pingluo, Ningxia Province 17120911
S2 18010312 17111412 1710272 17120912
S3 18010313 17111413 1710273 17120913
S4 18010314 17111414 1710274 17120914
S5 18010315 17111415 1710275 17120915
S6 Yulin, Shaanxi Province 20191001 Tongxin, Ningxia TX201101 Qinglong, Hebei Province 180311 Anguo, Hebei Province 20201101
S7 20191002 TX201102 180312 20201102
S8 20191003 TX201103 180313 20201103
S9 20191004 TX201104 180314 20201104
S10 20191005 TX201105 180315 20201105
S11 Wenxi,
Shanxi Province 		190372001 Hangjinqi, Inner Mongolia 201101 Jingyu, Jilin Province 180321 Pingluo, Ningxia Province 20201101
S12 190373001 201102 180322 20201102
S13 190374001 201103 180323 20201103
S14 190375001 201902 180324 20201104
S15 190376001 201904 180325 20201105
Open in a new tab

4.2. Preparation of Standard Solutions

A mixed standard stock solution (in 50% methanol) containing Rehmannioside D (1), Morroniside (2), Loganin (3), Polygalaxanthone III (4), Liquiritin (5), Hyperoside (6), Verbascoside (7), 3′,6-Disinapoylsucrose (8), Ginsenoside Re (9), Ginsenoside Rg1 (10), Ginsenoside Rb1 (11), Tenuifolin (12), Glycyrrhizic acid (13), Schisandrin (14) at concentrations of 20.410 µg/mL (1), 98.450 µg/mL (2), 52.975 µg/mL (3), 1.9650 µg/mL (4), 24.063 µg/mL (5), 29.888 µg/mL (6), 4.7850 µg/mL (7), 33.575 µg/mL (8), 5.3675 µg/mL (9), 2.9850 µg/mL (10), 6.7000 µg/mL (11), 3.5380 µg/mL (12), 37.300 µg/mL (13), and 8.9600 µg/mL (14) was prepared. The working standard solutions of different concentrations (0.4082–10.205 µg/mL (1); 1.9690–49.225 µg/mL (2); 1.0595–26.488 µg/mL (3); 0.0393–0.9825 µg/mL (4); 0.4813–12.031 µg/mL (5); 0.5978–14.944 µg/mL (6); 0.0957–2.3925 µg/mL (7); 0.6715–16.788 µg/mL (8); 0.1074–2.6838 µg/mL (9); 0.0597–1.4925 µg/mL (10); 0.1340–3.3500 µg/mL (11); 0.0708–1.7690 µg/mL (12); 0.7460–18.650 µg/mL (13); and 0.1792–4.4800 µg/mL (14)) were prepared by diluting the mixed standard solution with 50% methanol solution. All standard solutions were stored at 4 °C and filtered by a 0.22 µm membrane prior to injection.

4.3. Preparation of Sample Solutions

The daily dose of GYJ: 7.46 g of Ginseng Radix et Rhizoma, 14.92 g of Rehmanniae Radix Praeparata, 7.46 g of Dioscoreae Rhizoma, 5.60 g of Corni Fructus, 2.61 g of Polygalae Radix Praeparata (glycyrrhizae radix et rhizoma decoction processed), 5.60 g of Glycyrrhizae Radix et Rhizoma Praeparata Cum Melle, 2.00 g of Schisandrae Chinensis Fructus, 9.33 g of Cuscutae Semen (fried), was taken and placed in a Supor Decoction Casserole. A total of 400 mL of water was added, before soaking it for 60 min, then heating it using a Joyoung electric pottery stove, boiling on a strong fire for 10 min (1800 W), and then using a slow fire (400 W) for 75 min. The medicinal liquid was filtered while still warm (using a 120 mesh filter cloth) to obtain about 140 mL of decoction. Then, the decoction was frozen and rotated in a low-temperature absolute ethanol bath (−60 °C), so that the liquid evenly covered the inner wall of the freeze-dried bottle until it was completely solid. The freeze-dried bottle was stored at −80 °C for 24 h, and dried in a freeze dryer for 18 h to obtain the freeze-dried powder (yellow brown loose powder). Then, 0.4 g of freeze-dried powder was precisely weighed and placed in a 50 mL conical flask with a stopper. A total of 50 mL of 50% methanol solution was accurately added, the sample was then weighed and extracted ultrasonically for 45 min (250 W, 40 KHz). After ultrasonication, it was placed at room temperature, weighed again, and the lost weight was supplemented with 50% methanol solution. An appropriate amount of extract was then taken and passed through a 0.22 µm microporous membrane for UPLC-MS analysis.

4.4. Apparatus and Conditions

All samples were analyzed using UPLC (Waters AcquityTM UPLC, Milford, MA, USA) with a Triple Quadrupole Mass Spectrometry System (Waters SynaptTM TQD, Milford, MA, USA) (QQQ-MS). The separation was performed using the ACQUITY UPLC HSS T3 Column (2.1 × 100 mm, 1.8 µm) (Waters, Milford, MA, USA). The mobile phase was composed of acetonitrile + 0.1% formic acid (A) and water + 0.1% formic acid (B) at the flow rate of 0.4 mL/min. The column temperature was 35 °C, and the injection volume was 1 µL. The gradient elution of positive ion mode was as follows: 55–55% A at 0–3 min, 55–99% A at 3–5 min, and the re-equilibration time was 4 min; The gradient elution of negative ion mode was as follows: 5–15% A at 0–2 min, 15–15% A at 2–6 min, 15–50% A at 6–15 min, 50–99% A at 15–18 min, and the re-equilibration time was 5 min.

The ESI-MS spectra were acquired in the SIR mode under both positive and negative ion modes. The conditions for the ESI-MS analysis were set as follows: Capillary voltage: 3 kv/−3 kv; Cone voltage: 30 v/−30 v; Extractor voltage: 3 v/−3 v; Desolvation temperature: 350 °C; Desolvation gas flow: 650 L/h; Cone gas flow: 50 L/h; Source temperature: 150 °C; Data acquisition and processing were performed using Masslynx V4.2 software (Waters, USA). XSE105 Dual Range Analytical Balance (METTLER TOLEDO, Zurich, Switzerland); MODULYO freeze dryer (Thermo Fisher, Waltham, MA, USA); Pipettes (0.5 mL, 1 mL, 2 mL, 2.5 mL, 3 mL, 4 mL, 5 mL, BRAND Company, Wertheim, Germany); KQ-250DB Ultrasonic Cleaner (Kunshan Ultrasonic Instrument Co., Ltd., Kunshan, China); TB18A1 Supor Decoction Casserole (Zhejiang Supor Co., Ltd., Hangzhou, China); H22-X1 Joyoung electric ceramic stove (Joyoung Co., Ltd., Jinan, China).

4.5. Method Validation

Specificity, instrumental precision, linearity, repeatability, intermediate precision, stability, and accuracy were investigated during the method validation. Each negative control solution was prepared according to the method of preparation of the sample solutions for specificity investigation. After the instrument was acquired, they were compared and analyzed with the chromatogram of the standard and GYJ sample, which shows whether there were other chromatographic peaks and other interferences in the determination of the specific components in the sample using this method. The relative standard deviations (RSDs) were used to measure precision, stability, and repeatability. Instrument precision was calculated by collecting the mixed standard solution six times continuously and calculating the RSD% of the peak area of each component. For the calibration curves, six different concentrations of working standard solutions were analyzed in triplicate. The calibration curves were calculated by plotting the peak areas of each compound versus its concentration. To confirm the repeatability, six replicates of the same sample were extracted and analyzed. The operation of the intermediate precision experiment was the same as that of the repeatability, the operator and the operation date were changed. The intermediate precision experimental results and the repeatability results were combined to calculate the RSD%, indicating whether the precision of the method met the content determination requirements. For the stability test, the same sample was stored in the sample room and acquired by replicate analysis at 0, 2, 4, 6, 8, 10 and 12 h. The recovery test was performed to evaluate the accuracy of the method. One known amount (six samples in parallel) of standards was added into a certain number of samples and then these samples were extracted and analyzed using the established method. The recovery of each compound was calculated using the equation: Recovery = (Detected amount − Original amount)/Spiked amount × 100%.

4.6. Cluster Analysis and Multivariate Statistical Analysis

Cluster analysis is often used in the preliminary exploratory analysis of data, which can make data conclusions more concise and intuitive. Principal Component Analysis (PCA) is an algorithm for simplifying datasets and is often used to visualize similarities or differences in multivariate data, which is an unsupervised pattern recognition technique. Orthogonal Partial Least Squares-Discriminant Analysis (OPLS-DA) is a supervised mode, which reduces the dimensionality of the data and facilitates the screening of differential variables that contribute significantly to the grouping. The content results of fourteen key components in fifteen batches of GYJ samples (S1–S15) determined by the method established above were imported into Metware Cloud (One online data analysis platform, https://cloud.metware.cn/#/tools/tool-form?toolId=169 (accessed on 19 March 2022)) for advanced cluster analysis, advanced PCA, and OPLS-DA analysis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27238611/s1, Figure S1: Results of method specificity examination. Rehmannioside D (A), Morroniside (B), Loganin (C), Polygalaxanthone III (D), Liquiritin (E), Hyperoside (F), Verbascoside (G), 3′,6-Disinapoylsucrose (H), Ginsenoside Re (I), Ginsenoside Rg1 (J), Ginsenoside Rb1 (K), Tenuifolin (L), Glycyrrhizic acid (M), Schisandrin (N); Table S1: Information of standard products.

Click here for additional data file. (6.5MB, zip)

Author Contributions

Conceptualization, X.W. (Xijun Wang) and G.Y.; N.G. and Z.L. performed the experiments and analyzed the data; N.G. wrote the paper; supervision, L.Y., A.Z., X.Z. and X.W. (Xiuhong Wu); X.W. (Xijun Wang), H.S. and D.L. contributed reagents, materials and analysis tools; project administration, X.W. (Xijun Wang) and G.Y. All authors have read and agreed to the published version of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data can be found in this paper.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the GYJ are available from the authors.

Funding Statement

This research was funded by Natural Science Foundation of Hebei Province (H2022106061), Heilongjiang Province Key R&D Program Guidance Project (GZ 20210125), Shineway Pharmaceutical Group Limited development and research on the granules of the classic prescription “Guyinjian” (2017SW-KF058).

Footnotes

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  • 1.Zhang J. Jingyue Quanshu. China Traditional Chinese Medicine Press; Beijing, China: 1994. [Google Scholar]
  • 2.Liu Y., Zhou Y., Zhang X.C., Zeng X., Chen L.Y., Li X. Effect of Gu Yin Decoction plus reduction on ovarian reserve function in patients with ovarian hyporesponsiveness and kidney yin deficiency in the reproductive age. Chin. J. Exp. Formul. 2019;25:87–92. doi: 10.13422/j.cnki.syfjx.20191032. [DOI] [Google Scholar]
  • 3.Wan L., Huang J.M., Liu L., Yang Y.Z., Ding C.F. Treatment of ovulation disorders in polycystic ovary syndrome based on the theory of yin and yang by applying Gu Yin Decoction from Jing Yue Quan Shu. Zhejiang J. Integr. Chin. West. Med. 2020;30:336–337. doi: 10.3969/j.issn.1005-4561.2020.04.028. [DOI] [Google Scholar]
  • 4.Chen X., Chen D., Dong G. Guyin decoction in the treatment of immuno-sterility and its effect on humoral immunity. J. Tradit. Chin. Med. 1995;15:259–261. [PubMed] [Google Scholar]
  • 5.Hong L. Clinical effect analysis of Gouyin decoction plus reduction in the treatment of kidney deficiency type menorrhagia. Med. Theory Pract. 2019;32:1207–1209. doi: 10.19381/j.issn.1001-7585.2019.08.051. [DOI] [Google Scholar]
  • 6.Ji X. Clinical Observation on the Treatment of Oligomenorrhea Due to Kidney Deficiency with Modified Guyin Decoction. Changchun University of Traditional Chinese Medicine; Changchun, China: 2014. [(accessed on 19 March 2022)]. Available online: https://kns.cnki.net/KCMS/detail/detail.aspx?dbname=CMFD201501&filename=1015502116.nh. [Google Scholar]
  • 7.Zhu Y. Treatment of 38 cases of menopausal syndrome with Gouyin Decoction plus reduction. New Chin. Med. 2009;41:72–73. doi: 10.13457/j.cnki.jncm.2009.09.029. [DOI] [Google Scholar]
  • 8.Zhu W., Lv M. Treatment of 47 cases of intermenstrual bleeding with addition of guyin decoction. Shandong J. Tradit. Chin. Med. 2011;30:552. doi: 10.16295/j.cnki.0257-358x.2011.08.012. [DOI] [Google Scholar]
  • 9.Wang H., Zhu X.F., Zhu Z.B. Modified Guyin Decoction in the treatment of 30 cases of adolescent metrorrhagia. Tradit. Chin. Med. Inn. Mong. 2008;8:23–24. doi: 10.16040/j.cnki.cn15-1101.2008.08.012. [DOI] [Google Scholar]
  • 10.State Administration of Traditional Chinese Medicine Notice of the State Administration of Traditional Chinese Medicine on the release of the Catalogue of Ancient Classical Formula (First Batch) [(accessed on 9 September 2022)]; Available online: http://kjs.satcm.gov.cn/zhengcewenjian/2018-04-16/7107.html.
  • 11.Seo C.S., Shin H.K. Simultaneous Analysis for Quality Control of Traditional Herbal Medicine, Gungha-Tang, Using Liquid Chromatography-Tandem Mass Spectrometry. Molecules. 2022;27:1223. doi: 10.3390/molecules27041223. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Zhang B., Qi D., Deng X., Ma Z., Wu Y., Xue Z., Kebebe D., Lu P., Pi J., Guo P., et al. Quantification of Nineteen Bioactive Components in the Ancient Classical Chinese Medicine Formula of Wen-Dan Decoction and Its Commercial Preparations by UHPLC-QQQ-MS/MS. Molecules. 2019;24:2031. doi: 10.3390/molecules24112031. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Tan C.T., Croft N.P., Dudek N.L., Williamson N.A., Purcell A.W. Direct quantitation of MHC-bound peptide epitopes by selected reaction monitoring. Proteomics. 2011;11:2336–2340. doi: 10.1002/pmic.201000531. [DOI] [PubMed] [Google Scholar]
  • 14.Yang H., Hao Q., Cheng J., Wang M., Zou J., Zhang X., Guo D. Exploring the compatibility mechanism of ShengDiHuang Decoction based on the in situ single-pass intestinal perfusion model. Biopharm. Drug Dispos. 2020;41:44–53. doi: 10.1002/bdd.2211. [DOI] [PubMed] [Google Scholar]
  • 15.Deng D., Yan J., Wu Y., Wu K., Li W. Morroniside suppresses hydrogen peroxide-stimulated autophagy and apoptosis in rat ovarian granulosa cells through the PI3K/AKT/mTOR pathway. Hum. Exp. Toxicol. 2021;40:577–586. doi: 10.1177/0960327120960768. [DOI] [PubMed] [Google Scholar]
  • 16.Xu J.J., Li R.J., Zhang Z.H., Yang C., Liu S.X., Li Y.L., Chen M.W., Wang W.W., Zhang G.Y., Song G., et al. Loganin Inhibits Angiotensin II-Induced Cardiac Hypertrophy Through the JAK2/STAT3 and NF-κB Signaling Pathways. Front. Pharmacol. 2021;12:678886. doi: 10.3389/fphar.2021.678886. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Wu Y., Fu H., Yang X., Leng F., Huang Y., Deng H., Xiang Q., Zhang S. Polygalaxanthone III downregulates inflammation in the lipopolysaccharide-stimulated RAW264.7 macrophages: A quantibody array analysis. J. Pharmacol. Sci. 2021;147:184–191. doi: 10.1016/j.jphs.2021.06.010. [DOI] [PubMed] [Google Scholar]
  • 18.Yang X., Dang X., Zhang X., Zhao S. Liquiritin reduces lipopolysaccharide-aroused HaCaT cell inflammation damage via regulation of microRNA-31/MyD88. Int. Immunopharmacol. 2021;101:108283. doi: 10.1016/j.intimp.2021.108283. [DOI] [PubMed] [Google Scholar]
  • 19.Wang S., Sheng F., Zou L., Xiao J., Li P. Hyperoside attenuates non-alcoholic fatty liver disease in rats via cholesterol metabolism and bile acid metabolism. J. Adv. Res. 2021;34:109–122. doi: 10.1016/j.jare.2021.06.001. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Lee I.A., Hyam S.R., Jang S.E., Han M.J., Kim D.H. Ginsenoside Re ameliorates inflammation by inhibiting the binding of lipopolysaccharide to TLR4 on macrophages. J. Agric. Food Chem. 2012;60:9595–9602. doi: 10.1021/jf301372g. [DOI] [PubMed] [Google Scholar]
  • 21.Rehman M.U., Farooq A., Ali R., Bashir S., Bashir N., Majeed S., Taifa S., Ahmad S.B., Arafah A., Sameer A.S., et al. Preclinical Evidence for the Pharmacological Actions of Glycyrrhizic Acid: A Comprehensive Review. Curr. Drug Metab. 2020;21:436–465. doi: 10.2174/1389200221666200620204914. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Click here for additional data file. (6.5MB, zip)

Data Availability Statement

All data can be found in this paper.

Articles from Molecules are provided here courtesy of Multidisciplinary Digital Publishing Institute (MDPI)

RESOURCES
