A systematic and thematic analysis of the top 100 cited articles on mRNA vaccine indexed in Scopus database

ABSTRACT

The success of mRNA vaccines against SARS-CoV-2 implies that this technology can be applied to target any pathogen. However, the scientific production and research trends using the bibliometric method are still unknown. The top 100 most cited articles on mRNA vaccine research were obtained from the Scopus database from 1995 to 2021. Bibliometrix, an R-Package, and VOSviewer 1.6.11 were used for data analysis. There is a rapid growth in scientific outputs with a gradual increase in 2021. The United States produced 45 (45%) of the articles, followed by Germany with 15 (15%) and Israel with 10 (10%). The New England Journal of Medicine published the most papers in this field 13 (13%), followed by Nature 6(6%). Barney S. Graham was the most productive author among the top 100 most cited mRNA vaccine articles. University of Pennsylvania Perelman School of Medicine, US, was the top ranking institution, having 37 (37%). The visualization map clearly and spontaneously displayed the current state and research hot spots of mRNA research from a specific perspective. The most frequent keywords were COVID-19, vaccine, mRNA vaccine, mRNA, SARS-CoV-2, and immunogenicity, among others. A systematic review of the articles provided evidence that out of 100 articles, approximately 25 (25%) were focused on vaccine production and evaluation, followed by 26 (26%) in mRNA vaccine safety and efficacy, 23 (23%) were into mRNA vaccination, 23 (23%) considered risk factors associated with mRNA vaccination, while 8 (8%) of the articles covered the issue of mRNA vaccine delivery. In addition, 42% of the articles focused on COVID-19, 17% on cancer, 8% on influenza virus, 4% on COVID-19 and kidney disease, 3% COVID-19 and myocarditis, and 3% on rabies virus, among others. The findings of this systematic and thematic analysis provided the knowledge basis for further research on mRNA vaccines globally.

Introduction

Vaccines induce immune responses by simulating the infection process inside the human body and enabling it to develop lasting immunity. When the body is re-exposed to the target antigens, it can produce antibodies that neutralize the antigens and therefore prevent infection.¹ Research conducted by Louis Pasteur in the 19th century resulted in the discovery of attenuated pathogens that were inoculated into a subject, to prevent them from infection when exposed to the same pathogen.²

The mRNA vaccines represent a potentially disruptive technology for the vaccine industry.³ Messenger RNA is produced by in vitro reactions with recombinant enzymes, ribo-nucleotide triphosphates, and a DNA template; thus, it is rapid and relatively simple to produce compared with the others were vaccine production platforms.⁴ A co-formulation of the mRNA of the RNA is encapsulated in lipid nanoparticles that protect the RNA strands and help their absorption into the cells. Upon delivery, cells will take up the mRNA and translate it into protein in situ. The individual’s immune system will then mount a robust adaptive immune response against the target protein.⁵

Most works with mRNA vaccine were done with cancer,⁴ and infectious diseases caused by Zika virus, the dengue virus, the respiratory syncytial virus, HIV, influenza H7N9 and Flavivirus,⁶ and interestingly noninfectious diseases such as diabetes.³ The first mRNA vaccine against an infectious disease that was evaluated in humans targeted the rabies virus, and a clinical trial showed that it elicited functional antibodies.⁷ The success of mRNA vaccines against SARS-CoV-2 implies that this technology can target any pathogen for which a protein can be identified as an antigen that elicits protective immunity.⁸

Messenger RNA vaccines have several advantages over conventional vaccines since they do not integrate into the host genome.⁴ A single mRNA vaccine can encode multiple antigens, strengthening the immune response against resilient pathogens ⁹ and enabling the targeting of multiple microbes or viral variants with a single formulation.¹⁰ The simplicity of in vitro transcription of mRNA suggests the potential for fast, scalable, and low-cost manufacturing.¹¹

Many researchers in medical and other scientific fields have used the concept of bibliometrics. Thus, researchers have used both the Web of Sciences and Scopus databases, followed by a quantitative analysis based on mathematical statistics to quantitatively reflect the research hotspots and reveal the future trends of new theories.^1–12–25 So far, although there are many articles published on mRNA vaccines globally, no study on the top 100 most cited articles on mRNA vaccines has been conducted. Hence, this study aimed to provide a comprehensive analysis using a systematic and thematic analysis of the top 100 most cited articles published in mRNA vaccine research via analyzing the global publishing landscape, author, and country performance of publications related to mRNA vaccine research retrieved from the Scopus database. Based on developmental trend of mRNA vaccine trends, this paper proposed the aspects that need further study in the future, which may provide a reference for researchers in raising awareness of potential research gaps and research collaboration toward the development of mRNA vaccines to control infectious diseases.

Methods

Study design

A descriptive bibliometric study using a systematic and thematic analysis was performed to evaluate the top 100 most cited articles on global mRNA vaccines through a quantitative analysis.

Study participants

No human subjects were directly involved in this study. The metadata included in the study was searched and collected from the Scopus database (https://www.scopus.com/). Online databases provide an extensive, comprehensive, and multidisciplinary core journal citation index database. The comprehensive online bibliographic database reported in the study was accessed via the electronic library of Southeast University, Nanjing, China.

Publications’ timespan

The top 100 most cited articles in the mRNA vaccine were identified matching the search criteria and were published from 1995 to 2021.

Data sources and search strategy

The data used in this study were extracted from the Scopus database. The search was conducted on September 18, 2022, using the boolean operators such as “AND” or “NOT,” to ensures that we gather accurate information related to the top 100 most cited articles on mRNA vaccine indexed in the Scopus database:

The following search was conducted using the query search as (TITLE (mrna AND vaccine*) OR TITLE (mrna AND vaccination*) OR TITLE (mrna AND vaccine*)) AND (EXCLUDE (PUBYEAR, 2022) OR EXCLUDE (PUBYEAR, 1994)) AND (LIMIT-TO (DOCTYPE, “ar”)) AND (LIMIT-TO (LANGUAGE, “English”))

In total, 733 mRNA publications retrieved were within the Timespan: 1995 to December 31, 2021, and then the top 100 cited articles in mRNA were selected based on the citation times. The raw data was exported into BiB text, comma-separated value (csv) excel, or RIS file format for further in-depth statistical analysis. Finally, the top 100 cited articles on mRNA vaccine were comprehensively analyzed based on the bibliographical information (Figure 1). The retrieved mRNA data included citation information, bibliographical information, annual trend per year, author’s country or region, source publication, the collaboration between author and countries, institution, and keywords (author keyword, keyword Plus, and Abstract) were analyzed using bibliometric tools. The journal Impact factor (JIF) was determined by the Journal Citation Report 2021. The current study does not require ethical approval and, like other bibliometric analyses, used secondary data without any human participants.

Figure 1.

Prisma flow diagram of the publication on top 100 cited articles on mRNA vaccine.

Bibliometric analysis

Data were analyzed using the open-source R. Studio software (www.rstudio.com), version 4.0.5, and bibliometrix, an R-Package,²⁶ VOSviewer 1.6.11 software was used to create authorship co-occurrence network by units of authors and countries.²⁷ The thickness shown in the VOSviewer mapping, specifically the connecting lines between nodes represents the degree of connection between authors or countries. The thicker the line, the stronger the connection.^28,29 In addition, current approaches and directions for future research and main contributions to mRNA vaccine are summarized.

Results

Basic characteristics of the data

The annual number of the top 100 most cited articles in mRNA vaccine was published between 1995 and 2021 (Table 1). The scientific publications of the top 100 most cited mRNA vaccines have increased gradually after the year 2020 (Figure 2). Overall, the retrieved articles received a total of 309.7 average citations per documents, with an annual growth rate of 16.9%. The articles were published in 48 journal sources, contributed by 3107 authors, 37.3% coauthors per documents, and 40% international co-authorship. The other characteristics of current mRNA vaccine research outputs are summarized in Figure 3.

Table 1.

The top 100 cited articles on the mRNA vaccine.

SCR	First Authors, year	Title	Source title	Cited by	Ref
1	Polack F.P., et al. 2020	Safety and efficacy of the BNT162b2 mRNA Covid-19 vaccine	New England Journal of Medicine	5757	30
2	Baden L.R., et al. 2021	Efficacy and safety of the mRNA-1273 SARS-CoV-2 vaccine	New England Journal of Medicine	3758	31
3	Jackson L.A., et al. 2020	An mRNA vaccine against SARS-COV-2 — Preliminary report	New England Journal of Medicine	1611	32
4	Dagan N., 2021	BNT162B2 mRNA covid-19 vaccine in a nationwide mass vaccination setting	New England Journal of Medicine	1088	33
5	Anderson E.J., et al. 2020	Safety and immunogenicity of SARS-CoV-2 mRNA-1273 vaccine in older adults	New England Journal of Medicine	712	34
6	Wang Z., et al., 2021	mRNA vaccine-elicited antibodies to SARS-CoV-2 and circulating variants	Nature	636	35
7	Haas E.J., et al.2021	Impact and effectiveness of mRNA BNT162b2 vaccine against SARS-CoV-2 infections and COVID-19 cases, hospitalizations, and deaths following a nationwide vaccination campaign in Israel: an observational study using national surveillance data	The Lancet	609	36
8	Corbett K.S., et al. 2020	Evaluation of the mRNA-1273 vaccine against SARS-COV-2 in nonhuman primates	New England Journal of Medicine	566	37
9	Corbett K.S., et al. 2020	SARS-CoV-2 mRNA vaccine design enabled by prototype pathogen preparedness	Nature	531	38
10	Pardi N., et al. 2017	Zika virus protection by a single low-dose nucleoside-modified mRNA vaccination	Nature	493	39
11	Richner J.M., et al. 2017	Modified mRNA Vaccines Protect against Zika Virus Infection	Cell	427	40
12	Tartof S.Y., et al. 2021	Effectiveness of mRNA BNT162b2 COVID-19 vaccine up to 6 months in a large integrated health system in the USA: a retrospective cohort study	The Lancet	393	41
13	Collins P.L., et al. 1995	Production of infectious human respiratory syncytial virus from cloned cDNA confirms an essential role for the transcription elongation factor from the 5′ proximal open reading frame of the M2 mRNA in gene expression and provides a capability for vaccine development	Proceedings of the National Academy of Sciences of the United States of America	368	42
14	Collier D.A., et al. 2021	Sensitivity of SARS-CoV-2 B.1.1.7 to mRNA vaccine-elicited antibodies	Nature	367	43
15	Thomas SJ., et al 2021	Safety and efficacy of the BNT162B2 mRNA covid-19 vaccine through 6 months	New England Journal of Medicine	365	44
16	Shimabukuro T.T., et al. 2021	Preliminary findings of mRNA Covid-19 vaccine safety in pregnant persons	New England Journal of Medicine	334	45
17	Thompson M.G., et al. 2021	Interim Estimates of Vaccine Effectiveness of BNT162b2 and mRNA-1273 COVID-19 Vaccines in Preventing SARS-CoV-2 Infection Among Health Care Personnel, First Responders, and Other Essential and Frontline Workers — Eight U.S. Locations, December 2020–March 2021	MMWR Surveillance Summaries	328	46
18	Hall V.J., et al. 2021	COVID-19 vaccine coverage in health-care workers in England and effectiveness of BNT162b2 mRNA vaccine against infection (SIREN): a prospective, multicentre, cohort study	The Lancet	316	47
19	Bahl K., 2017	Preclinical and Clinical Demonstration of Immunogenicity by mRNA Vaccines against H10N8 and H7N9 Influenza Viruses	Molecular Therapy	316	48
20	Herishanu Y., et al. 2021	Efficacy of the BNT162b2 mRNA COVID-19 vaccine in patients with chronic lymphocytic leukemia	Blood	300	49
21	Barda N., et al. 2021	Safety of the BNT162b2 mRNA Covid-19 vaccine in a nationwide setting	New England Journal of Medicine	295	50
22	Petsch B., et al. 2012	Protective efficacy of in vitro synthesized, specific mRNA vaccines against influenza A virus infection	Nature Biotechnology	277	51
23	Barda N., et al. 2021	Effectiveness of a third dose of the BNT162b2 mRNA COVID-19 vaccine for preventing severe outcomes in Israel: an observational study	The Lancet	276	52
24	Ebinger J.E., et al. 2021	Antibody responses to the BNT162b2 mRNA vaccine in individuals previously infected with SARS-CoV-2	Nature Medicine	275	53
25	Zhang N.-N., et al. 2020	A Thermostable mRNA Vaccine against COVID-19	Cell	267	54
26	Reichmuth A.M., et al. 2016	mRNA vaccine delivery using lipid nanoparticles	Therapeutic Delivery	245	55
27	Goel R.R., et al. 2021	Distinct antibody and memory B cell responses in SARSCoV-2 naïve and recovered individuals following mRNA vaccination	Science Immunology	227	56
28	Weide B., et al. 2009	Direct injection of protamine-protected mRNA: Results of a phase 1/2 vaccination trial in metastatic melanoma patients	Journal of Immunotherapy	226	57
29	Alberer M., et al. 2017	Safety and immunogenicity of a mRNA rabies vaccine in healthy adults: an open-label, non-randomized, prospective, first-in-human phase 1 clinical trial	The Lancet	225	7
30	Turner J.S., et al. 2021	SARS-CoV-2 mRNA vaccines induce persistent human germinal center responses	Nature	218	58
31	Stamatatos L., et al. 2021	mRNA vaccination boosts cross-variant neutralizing antibodies elicited by SARS-CoV-2 infection	Science	212	59
32	Ryan M., et al. 2021	Myocarditis following immunization with mrna covid-19 vaccines in members of the us military	JAMA Cardiology	208	60
33	Pardi N., et al. 2018	Nucleoside-modified mRNA vaccines induce potent T follicular helper and germinal center B cell responses	Journal of Experimental Medicine	203	61
34	Furer V., et al. 2021	Immunogenicity and safety of the BNT162b2 mRNA COVID-19 vaccine in adult patients with autoimmune inflammatory rheumatic diseases and in the general population: A multicentre study	Annals of the Rheumatic Diseases	197	62
35	Hassett K.J., et al. 2019	Optimization of Lipid Nanoparticles for Intramuscular Administration of mRNA Vaccines	Molecular Therapy – Nucleic Acids	197	63
36	Miao L., et al. 2019	Delivery of mRNA vaccines with heterocyclic lipids increases anti-tumor efficacy by STING-mediated immune cell activation	Nature Biotechnology	192	64
37	Feldman R.A., et al. 2019	mRNA vaccines against H10N8 and H7N9 influenza viruses of pandemic potential are immunogenic and well tolerated in healthy adults in phase 1 randomized clinical trials	Vaccine	186	65
38	Vogel A.B., et al. 2018	Self-Amplifying RNA Vaccines Give Equivalent Protection against Influenza to mRNA Vaccines but at Much Lower Doses	Molecular Therapy	185	66
39	Geisen U.M., et al. 2021	Immunogenicity and safety of anti-SARS-CoV-2 mRNA vaccines in patients with chronic inflammatory conditions and immunosuppressive therapy in a monocentric cohort	Annals of the Rheumatic Diseases	179	67
40	Thompson M.G., et al. 2021	Prevention and Attenuation of Covid-19 with the BNT162b2 and mRNA-1273 Vaccines	New England Journal of Medicine	177	68
41	Mevorach D., et al. 2021	Myocarditis after BNT162b2 mRNA vaccine against covid-19 in Israel	New England Journal of Medicine	176	69
42	Vik-Mo E.O., et al.2013	Therapeutic vaccination against autologous cancer stem cells with mRNA-transfected dendritic cells in patients with glioblastoma	Cancer Immunology, Immunotherapy	176	70
43	Weide B., et al. 2008	Results of the first phase I/II clinical vaccination trial with direct injection of mRNA	Journal of Immunotherapy	173	71
44	Grupper A., et al. 2021	Reduced humoral response to mRNA SARS-CoV-2 BNT162b2 vaccine in kidney transplant recipients without prior exposure to the virus	American Journal of Transplantation	169	72
45	Klein N.P., et al. 2021	Surveillance for Adverse Events after COVID-19 mRNA Vaccination	JAMA – Journal of the American Medical Association	166	73
46	Liu X., et al. 2021	Safety and immunogenicity of heterologous versus homologous prime-boost schedules with an adenoviral vectored and mRNA COVID-19 vaccine (Com-COV): a single-blind, randomized, non-inferiority trial	The Lancet	165	74
47	Achiron A., et al. 2021	Humoral immune response to COVID-19 mRNA vaccine in patients with multiple sclerosis treated with high-efficacy disease-modifying therapies	Therapeutic Advances in Neurological Disorders	165	75
48	Goel R.R., et al. 2021	mRNA vaccines induce durable immune memory to SARS-CoV-2 and variants of concern	Science	164	76
49	Pegu A., et al. 2021	Durability of mRNA-1273 vaccine-induced antibodies against SARS-CoV-2 variants	Science	160	77
50	Liu L., et al. 2018	Combination Immunotherapy of MUC1 mRNA Nano-vaccine and CTLA-4 Blockade Effectively Inhibits Growth of Triple Negative Breast Cancer	Molecular Therapy	160	78
51	Apostolidis S.A., et al. 2021	Cellular and humoral immune responses following SARS-CoV-2 mRNA vaccination in patients with multiple sclerosis on anti-CD20 therapy	Nature Medicine	156	79
52	Collier A.-R.Y., et al. 2021	Immunogenicity of COVID-19 mRNA Vaccines in Pregnant and Lactating Women	JAMA – Journal of the American Medical Association	148	80
53	Pollard C., et al. 2013	Type I IFN counteracts the induction of antigen-specific immune responses by lipid-based delivery of mRNA vaccines	Molecular Therapy	146	81
54	Jabal K.A., et al. 2021	Impact of age, ethnicity, sex and prior infection status on immunogenicity following a single dose of the BNT162b2 MRNA COVID-19 vaccine: Real-world evidence from healthcare workers, Israel, December 2020 to January 2021	Eurosurveillance	141	82
55	Chemaitelly H., et al. 2021	mRNA-1273 COVID-19 vaccine effectiveness against the B.1.1.7 and B.1.351 variants and severe COVID-19 disease in Qatar	Nature Medicine	138	83
56	Kübler H., et al. 2015	Self-adjuvanted mRNA vaccination in advanced prostate cancer patients: A first-in-man phase I/IIa study	Journal for ImmunoTherapy of Cancer	138	84
57	Whitley R.J., et al. 2021	Efficacy of the mRNA-1273 SARS-CoV-2 vaccine at completion of blinded phase	New England Journal of Medicine	136	85
58	Watad A., et al. 2021	Immune-mediated disease flares or new-onset disease in 27 subjects following mrna/dna sars-cov-2 vaccination	Vaccines	136	86
59	Laczkó D., et al. 2020	A Single Immunization with Nucleoside-Modified mRNA Vaccines Elicits Strong Cellular and Humoral Immune Responses against SARS-CoV-2 in Mice	Immunity	130	87
60	Schmidt T., et al. 2021	Immunogenicity and reactogenicity of heterologous ChAdOx1 nCoV-19/mRNA vaccination	Nature Medicine	129	88
61	Liang F., et al. 2017	Efficient Targeting and Activation of Antigen-Presenting Cells In Vivo after Modified mRNA Vaccine Administration in Rhesus Macaques	Molecular Therapy	127	89
62	Bonehill A., et al. 2009	Single-step antigen loading and activation of dendritic cells by mRNA electroporation for the purpose of therapeutic vaccination in melanoma patients	Clinical Cancer Research	127	90
63	Lederer K., et al. 2020	SARS-CoV-2 mRNA Vaccines Foster Potent Antigen-Specific Germinal Center Responses Associated with Neutralizing Antibody Generation	Immunity	126	91
64	Tang P., et al. 2021	BNT162b2 and mRNA-1273 COVID-19 vaccine effectiveness against the SARS-CoV-2 Delta variant in Qatar	Nature Medicine	124	92
65	Choi A., et al. 2021	Safety and immunogenicity of SARS-CoV-2 variant mRNA vaccine boosters in healthy adults: an interim analysis	Nature Medicine	122	93
66	Jalkanen P., et al.2021	COVID-19 mRNA vaccine induced antibody responses against three SARS-CoV-2 variants	Nature Communications	121	94
67	Stumpf J., et al., 2021	Humoral and cellular immunity to SARS-CoV-2 vaccination in renal transplant versus dialysis patients: A prospective, multicenter observational study using mRNA-1273 or BNT162b2 mRNA vaccine	The Lancet Regional Health – Europe	117	95
68	Painter M.M., et al., 2021	Rapid induction of antigen-specific CD4+ T cells is associated with coordinated humoral and cellular immunity to SARS-CoV-2 mRNA vaccination	Immunity	117	96
69	Tenforde M.W., et al., 2021	Association between mRNA Vaccination and COVID-19 Hospitalization and Disease Severity	JAMA – Journal of the American Medical Association	116	97
70	Crommelin D.J.A., et al., 2021	Addressing the Cold Reality of mRNA Vaccine Stability	Journal of Pharmaceutical Sciences	115	98
71	Kim R.J., et al., 2021	Patients with acute myocarditis following mrna covid-19 vaccination	JAMA Cardiology	114	99
72	Wilgenhof S., et al., 2011.	Therapeutic vaccination with an autologous mRNA electroporated dendritic cell vaccine in patients with advanced melanoma	Journal of Immunotherapy	112	100
73	Cucchiari D., et al., 2021	Cellular and humoral response after MRNA-1273 SARS-CoV-2 vaccine in kidney transplant recipients	American Journal of Transplantation	111	101
74	Abu Mouch S., et al., 2021	Myocarditis following COVID-19 mRNA vaccination	Vaccine	111	102
75	Krienke C., et al., 2021	A noninflammatory mRNA vaccine for treatment of experimental autoimmune encephalomyelitis	Science	111	103
76	Maneikis K., et al., 2021	Immunogenicity of the BNT162b2 COVID-19 mRNA vaccine and early clinical outcomes in patients with hematological malignancies in Lithuania: a national prospective cohort study	The Lancet Haematology	108	104
77	Carralot J.-P., et al., 2004	Polarization of immunity induced by direct injection of naked sequence-stabilized mRNA vaccines	Cellular and Molecular Life Sciences	107	105
78	Verbeke R., et al., 2021	The dawn of mRNA vaccines: The COVID-19 case	Journal of Controlled Release	105	106
79	Mockey M., et al., 2007	mRNA-based cancer vaccine: Prevention of B16 melanoma progression and metastasis by systemic injection of MART1 mRNA histidylated lipopolyplexes	Cancer Gene Therapy	105	107
80	Lutz J., et al., 2017	Unmodified mRNA in LNPs constitutes a competitive technology for prophylactic vaccines	npj Vaccines	103	108
81	Haberman R.H., et al., 2020	Methotrexate hampers immunogenicity to BNT162B2 mRNA covid-19 vaccine in immune-mediated inflammatory disease	Annals of the Rheumatic Diseases	102	109
82	Deepak P., et al., 2021	Effect of immunosuppression on the immunogenicity of mrna vaccines to sars-cov-2 a prospective cohort study	Annals of Internal Medicine	101	110
83	Pascolo S.2008	Vaccination with messenger RNA (mRNA)	Handbook of Experimental Pharmacology	101	111
84	Kadali R.A.K., et al., 2021	Side effects of BNT162b2 mRNA COVID-19 vaccine: A randomized, cross-sectional study with detailed self-reported symptoms from healthcare workers	International Journal of Infectious Diseases	99	112
85	Ali K., 2021	Evaluation of mRNA-1273 SARS-CoV-2 vaccine in adolescents	New England Journal of Medicine	97	113
86	Rozen-Zvi B., 2021	Antibody response to SARS-CoV-2 mRNA vaccine among kidney transplant recipients: a prospective cohort study	Clinical Microbiology and Infection	97	114
87	Brazzoli M., et al., 2016	Induction of broad-based immunity and protective efficacy by self-amplifying mRNA vaccines encoding influenza virus hemagglutinin	Journal of Virology	97	115
88	Hobo W., et al., 2013	Improving dendritic cell vaccine immunogenicity by silencing PD-1 ligands using siRNA-lipid nanoparticles combined with antigen mRNA electroporation	Cancer Immunology, Immunotherapy	97	116
89	Li M., et al., 2016	Enhanced intranasal delivery of mRNA vaccine by overcoming the nasal epithelial barrier via intra- A nd paracellular pathways	Journal of Controlled Release	96	117
90	Schnee M., et al., 2016	An mRNA Vaccine Encoding Rabies Virus Glycoprotein Induces Protection against Lethal Infection in Mice and Correlates of Protection in Adult and Newborn Pigs	PLoS Neglected Tropical Diseases	94	118
91	Oberhardt V., et al., 2021	Rapid and stable mobilization of CD8+ T cells by SARS-CoV-2 mRNA vaccine	Nature	93	119
92	Chu L., et al.2021	A preliminary report of a randomized controlled phase 2 trial of the safety and immunogenicity of mRNA-1273 SARS-CoV-2 vaccine	Vaccine	92	120
93	Zhou W.-Z., et al., 1999	RNA melanoma vaccine: Induction of antitumor immunity by human glycoprotein 100 mRNA immunization	Human Gene Therapy	92	121
94	John S., et al., 2018	Multi-antigenic human cytomegalovirus mRNA vaccines that elicit potent humoral and cell-mediated immunity	Vaccine	90	122
95	Brito L.A., et al., 2015	Self-Amplifying mRNA Vaccines	Advances in Genetics	90	123
96	Chung H., et al., 2021	Effectiveness of BNT162b2 and mRNA-1273 covid-19 vaccines against symptomatic SARS-CoV-2 infection and severe covid-19 outcomes in Ontario, Canada: Test negative design study	The BMJ	89	124
97	Moor M.B., et al., 2021	Humoral and cellular responses to mRNA vaccines against SARS-CoV-2 in patients with a history of CD20 B-cell-depleting therapy (RituxiVac): an investigator-initiated, single-center, open-label study	The Lancet Rheumatology	85	125
98	Sormani M.P., et al., 2021	Effect of SARS-CoV-2 mRNA vaccination in MS patients treated with disease modifying therapies	Biomedicine	83	126
99	Amanat F., et al., 2021	SARS-CoV-2 mRNA vaccination induces functionally diverse antibodies to NTD, RBD, and S2	Cell	83	127
100	Shebl F.M., et al., 2010	Comparison of mRNA and protein measures of cytokines following vaccination with human papillomavirus-16 L1 virus-like particles	Cancer Epidemiology Biomarkers and Prevention	83	128

Re: Reference; SCR: Standard Competition Ranking.

Figure 2.

Annual number of articles and Mean of Total Citations per Year (Mean TCPY) of top 100 cited articles on mRNA indexed in Scopus database from 1995 to 2021.

Figure 3.

Basic characteristics of the top 100 most cited articles on mRNA vaccine.

The top 100 most cited articles

The top 100 cited articles on mRNA were published from 1995 to 2021, with citation range (83 to 5757) times.^{7–30–54–56–62–65–67–69–72–104–106–108–116–118–128} The article titled “Safety and efficacy of the BNT162b2 mRNA COVID-19 vaccine” by Polack F.P., et al. 2020 published in the New England Journal of Medicine was the top cited article cited 5757 times.³⁰ However, the article “Efficacy and safety of the mRNA-1273 SARS-CoV-2 vaccine” by Baden L.R., et al. 2021 published in the same journal was ranked second, receiving 3768 citations ³¹ as presented in (Table 1).

Authorship impact on mRNA vaccine research

Out of the 3107 authors who contributed to the top 100 most cited articles, only authors with ≥5 h_index (Table 2) and authors with over 6000 citation times of articles are presented in Table 3. The analysis of authors shows Barney S Graham from Vaccine Research Center, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Bethesda, USA, was the most productive author in this field with eight publications, followed by Hamilton Bennett from Moderna, Inc., Cambridge, United States, Cambridge, USA, with 7 articles, and Brett Leav from Brigham and Women’s Hospital, Boston, and Moderna, Cambridge, USA, with 7 articles (Table 2). Barney S. Graham was the most influential authors among the top 100 most cited mRNA vaccine research based on the number of classical citations with 7967 citations (Table 3).

Table 2.

The top most productive authors with ≥5 articles.

Most productive authors with 5 or more articles
SCR	Authors	Authors Institution	TNP	h_index	TNC	PY_start
1	Barney S Graham	Vaccine Research Center, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Bethesda, USA	8	8	7967	2017
2	Hamilton Bennett	Moderna, Inc., Cambridge, United States	7	7	6986	2020
3	Brett Leav	From Brigham and Women’s Hospital, Boston, and Moderna, Cambridge, United States	7	7	5077	2020
4	Paul Bates	Department of Microbiology, University of Pennsylvania Perelman School of Medicine, Philadelphia, PA, USA.	6	6	920	2020
5	Giuseppe Ciaramella	Valera LLC, a Moderna Venture, 500 Technology Square, Cambridge, MA, USA	6	6	1343	2017
6	Scott E Hensley	Kirby Institute, University of New South Wales, Sydney, NSW, Australia.	6	6	1360	2017
7	Kizzmekia S Corbett	From Kaiser Permanente Washington Health Research Institute and the Center for Global Infectious Disease Research, Seattle Children’s Research Institute	5	5	7967	2020
8	Nicole A Doria-Rose	From Kaiser Permanente Washington Health Research Institute and the Center for Global Infectious Disease Research, Seattle Children’s Research Institute	5	5	6986	2020
9	Ingmar Hoerr	Department of Dermatology, Institute for Cell Biology, University of Tübingen, Germany.	5	5	5077	2004
10	Florian Krammer	Department of Microbiology, Icahn School of Medicine at Mount Sinai, New York, USA.	5	5	920	2018

SCR: Standard Competition Ranking based on number of Publication & Number of Citations, TNP: Total Number of Publications, TNC: Total Number of Citations; h_index: Hirsch index.

Table 3.

The top most influence authors with over 6000 citation times.

Most cited Authors with over 6000 citations times
SCR	Authors	Authors Institution	TNP	h_index	TNC	PY_start
1	Barney S. Graham	Vaccine Research Center, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Bethesda, USA	8	8	7967	2017
2	Hamilton Bennett	Moderna, Inc., Cambridge, United States	7	7	6986	2020
3	Philip R. Dormitzer	From Fundacion INFANT and iTrials-Hospital Military Central, Buenos Aires; State University of New York, Upstate Medical University, Syracuse, and Vaccine Research and Development, Pfizer, Pearl River	3	3	6212	2015
4	Judith Absalon	From the State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
5	Ruth Bailey	From the State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
6	David Cooper	From the State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
7	William C. Gruber	The State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
8	Alejandra Gurtman	The State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
9	Laura L. Hammitt	The State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020
10	Kathrin K. Jansen	The State University of New York, Upstate Medical University, Syracuse and Vaccine Research and Development, Pfizer, Pearl River	2	2	6122	2020

SCR: Standard Competition Ranking based on number of Publication and Number of Citations, TNP: Total Number of Publications, TNC: Total Number of Citations; h_index: Hirsch index.

Authorship pattern analysis

Analysis of the authorship pattern on the top 100 most cited articles on mRNA vaccine based on the frequency of publication by authors was described using Lotka’s law (Figure 4a,b). From the figures, the proportion of all authors based on the number of documents written, 85.84% publish only one article, 10.43% publish two articles, 2.51% publish three articles, and so on a ccording to Lotka’s law.

Figure 4.

Frequency analysis of number of publications written by authors (a), and proportions of Authors in mRNA vaccine using Lotka’s law.

Analysis of the top productive Journals

According to quantitative analysis, a total of 48 journal sources were reported publishing the top 100 cited articles in mRNA vaccine. The New England Journal of Medicine published 13 articles and cited 15,072 times. The core journals with high recognition in this field can be determined by the researcher to publish their work or search for the articles relevant to mRNA vaccine (Table 4).

Table 4.

Source local impact with three or more than in mRNA vaccine.

Journal (n=48)	Country Origin	h_index	TNC	TNP	JIF (2021)
New England Journal of Medicine	USA	13	15072	13	176.079
Nature	England	6	2338	6	69.504
Nature Medicine	USA	6	944	6	87.241
The lancet	England	6	1984	6	202·731
Molecular Therapy	USA	5	934	5	12.91
Science	USA	4	647	4	63.714
Vaccine	England	4	479	4	4.169
Annals of the Rheumatic Diseases	England	3	478	3	27.973
Cell	USA	3	777	3	66.85
Immunity	USA	3	373	3	43.474
JAMA – Journal of the American Medical Association	USA	3	430	3	157.335
Journal of Immunotherapy	USA	3	511	3	4.912

TNC: Total Number of Citations; TNP: Total Number of Publications; JIF: Journal Citation Reports (https://jcr.clarivate.com/jcr-jp/journal) accessed on 20 September 2022; h-Index: Hirsch index.

Corresponding author’s country

Of 18 countries that contributed, only the authors with 2 or more articles were reported (Table 5). The United States is the top leading country in the top 100 most cited mRNA vaccine research with 45 articles, followed by Germany with 15 articles, and Israel with 10 articles. In addition, the USA, Germany, and Israel were also the most influential in mRNA research based on the number of classical citations reported globally.

Table 5.

Corresponding Author’s Country and its Citations.

Country (n=18)	Corresponding Author’s Country (CAC)					Cited Countries
	Articles	SCP	MCP	Freq	MCP_Ratio	TNC	AAC
USA	45	28	17	0.450	0.378	20591	457.58
Germany	15	10	5	0.150	0.333	2266	151.07
Israel	10	5	5	0.100	0.500	3307	330.70
Belgium	4	3	1	0.040	0.250	490	122.50
China	2	2	0	0.020	0.000	363	181.50
Italy	2	1	1	0.020	0.500	180	90.00
Netherlands	2	0	2	0.020	1.000	212	106.00
Qatar	2	0	2	0.020	1.000	262	131.00
Switzerland	2	1	1	0.020	0.500	452	226.00
UK	2	2	0	0.020	0.000	481	240.50

SCP: Single Country Publications (intra-country publications); MCP: Multiple Country Publications (inter-country publications) (MCP); Total Number of Citations (TNC), AAC: Average Article Citations; UK: United Kingdom; USA: United State of America.

Top productive institutions in mRNA vaccine

Studies on mRNA vaccines were contributed by 463 different authorship institutions listed in Table 5. The leading productive institutions are the University of Pennsylvania Perelman School of Medicine, with 37 articles, and followed by Washington University School of Medicine with, 15 articles, and Vanderbilt University Medical Center with 15 articles, among others (Table 6).

Table 6.

The top productive institutions in mRNA vaccine research with six or more articles.

Institution (n=493)	Country	TNP
University of Pennsylvania Perelman School of Medicine	United States	37
Washington University School of Medicine	United States	15
Vanderbilt University Medical Center	United States	15
Icahn School of Medicine at Mount Sinai, New York, US	United States	10
National Institute of Allergy and Infectious Diseases	Canada	10
Oslo University Hospital	Norway	10
Cornell University, New York State’s, US	United States	8
Harvard Medical School	England	8
Qatar University	Gater	8
University of Cambridge	England	8
University of Oxford	United Kingdom	8
University of Washington	United States	8
Bern University Hospital	Switzerland	7
University Medical Center Schleswig-Holstein Campus Kiel	Germany	7
Collegeville	USA	6
Duke University Medical Center	USA	6
Emory University	United States	6
Tel-Aviv University	Israel	6
University of North Carolina at Chapel Hill	United States	6
University of Toronto	United States	6

TNP: Total Number of Publications.

Research frontiers based on the keyword

The keywords used by the authors indicate the content of the articles. Visual representation of word frequency was carried out using R-studio, and Word clouds were used to analyze the underlying patterns in the text. From the mapping, we identified that the top Keywords Plus in mRNA vaccine were “Female” (133), “male” (102), “adult” (99), “article” (92), “human” (89), “vaccination” (85), “middle-aged” (80), “RNA” (79), “aged” (78), “messenger RNA” (78) as presented in Figure 5a. Additionally, the top-frequency Author’s Keywords were “COVID-19” (14), “Vaccine” (9), “mRNA vaccine” (7), “SARS-CoV-2” (7), “Immunogenicity” (5), “vaccination” (5), “lipid nanoparticle” (4), and “dendritic cell,” among others, as presented in Figure 5b.

Figure 5.

Visualization text analysis results with Word Clouds summarizing the top 100 most commonly mRNA Keywords plus provided by Journal (a), and Author’s Keywords (b).

Furthermore, to identify the relationships between topics, the verification was done through Multiple correspondence analysis (MCA) that used dimensionality reduction techniques to draw a conceptual structure map of the 75 Keywords in the mRNA field. This is shown as 5 clusters with the five different colors to show the association between the published topics having similar common concepts (Figure 6).

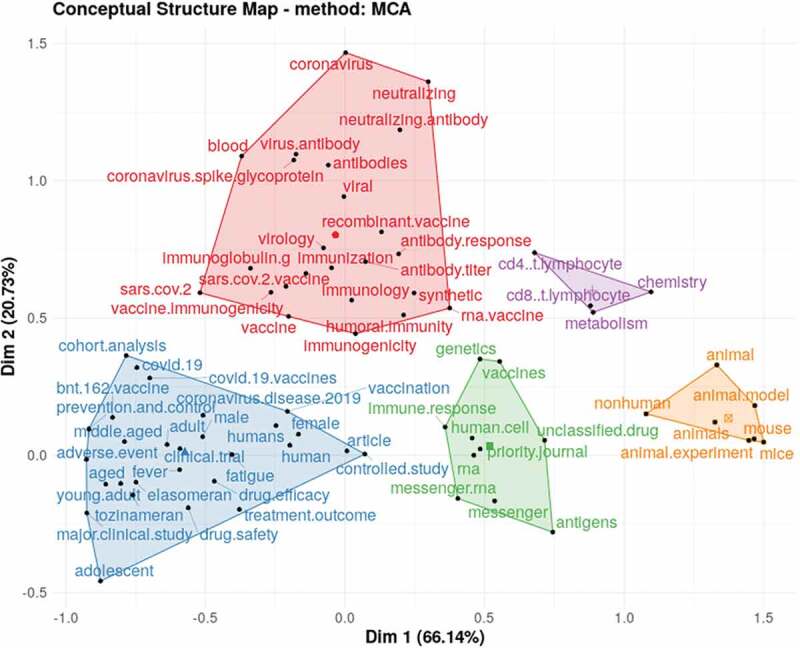

Figure 6.

Conceptual Structure Map-Multiple Correspondence Analysis (MCA) method of 75 Keywords Plus reported in top 100 most cited articles on mRNA vaccine.

Conceptual structure analysis

A variety of themes form the foundation of the mRNA vaccine research field. A comprehensive analysis of the themes of the mRNA was carried out using a thematic map. This strategy combines performance analysis and scientific mapping tools to detect and visualize conceptual subdomains. We used the Author’s Keywords (Figure 7a), keywords plus (Figure 7b), and Title (Figure 7c) to generate the thematic map and set three parameters to maintain the richness of information on m RNA vaccine without impairing map readability. The algorithm built the map from the 250 most frequent Author keywords, Keywords Plus, and Title considering only keywords with a minimum frequency of three occurrences per 1,000 documents, with a limit of three keywords for each cluster. The algorithm formed nine clusters in Authors Keywords, three clusters in Keywords Plus, and seven clusters in tiles dispersed in the thematic map.

Figure 7.

Thematic Analysis map develop by using Conceptual structure for Author’s Keywords (a), Keyword Plus (b), and Keywords extracted from title (c), clusters produced by Louvain clustering algorithm.

The figure shows the development of the topic into four quadrants comprising the following: first quadrant (top right): motor-themes, both important and well developed; the second quadrant (top left): Niche themes or highly development and isolated themes, which have developed well but the topic reported on the current mRNA vaccines; the third quadrant (bottom left): emerging topic or disappearing themes for mRNA vaccine research; and the fourth quadrant (bottom right): basic themes or basic and transversal Themes, which is important to the field mRNA vaccine research but not well-developed (Figures 7a–c).

Co-authorship relations among authors

We used the features of the VOSviewer software to create co-occurrence networks, which reported co-authorship by units of authors and countries (Figure 8a) of 3107 authors who contributed to the top 100 cited articles, and a minimum of 2 documents from each author were chosen, resulting in 98 meeting the threshold. Only 52 authors were distributed across five clusters highlighted in different colors, with links between authors (L = 193) and total link strength (TLS = 299). Additionally, in Figure 8b, 18 countries were reported and 2 minimum number of documents were chosen, resulting in 19 countries distributed across six clusters, with links between authors (L = 49) and total link strength (TLS = 110).

Figure 8.

Co-authorship by unit of authors (a), and countries (b) based on Links (L) Total Links Strength (TLS).

A systematic review of the top 100 most cited articles identified on mRNA vaccine

The objectives and the main findings of the top 100 cited articles on mRNA vaccine are summarized in Table 7. Among the top 100 most cited articles, 25% were related to vaccine production and evaluation,^{35–37–40–42,43–48–51–54–56–58–61–66–77–91–94–103–108–116–118,119-121–123} followed by 23% to safety and efficacy of the vaccine,^{7–30–34–41–44,45-49–50-65–67-69–74-83–85-87–89-92–93-113–115-120–124} 20% to vaccination,^{36–46–52,53-57–59-76–78-80–81-86–88-90–96-97–100-104–111-125–128} 16% to risk factors associated with vaccination,^{47,60,62,72,73,75,79,82,95,98,99,101,102,106,109,110,112,114} and 11% of the published articles were focused on the issue of vaccine delivery.^{55,63,64,68,71,105,107,117}

Table 7.

Systematic analysis of the top 100 cited articles on mRNA.

Classifications, References	Objectives	Main findings	Application of vaccine
Vaccine production and evaluation35–37–40–42,43–48–51–54–56–58–61–66–77–91–94–103–108–116–118,119-121–123	To evaluate the antibody and memory B cell responses to SARS-CoV-2. Engineered a lipid nanoparticle (LNP) encapsulated modified mRNA vaccine encoding wild-type or variant ZIKV structural genes and tested immunogenicity and protection in mice. Co-expression of the N, P, L, and M2(ORF1) proteins in the presence of cDNA-encoded anti-genomic RNA is sufficient to produce infectious RSV. mRNA vaccines induce balanced, long-lived and protective immunity to influenza A virus infection. Develop a lipid nanoparticle-encapsulated mRNA (mRNA-LNP) encoding the receptor binding domain (RBD) of SARS-CoV-2 as a vaccine candidate (called ARCoV). Compared synthetic mRNA and self-amplifying RNA expressing influenza virus hemagglutinin. Assess the impact of SARS-CoV-2 variants B.1.1.7 (Alpha), B.1.351 (Beta), P.1 (Gamma), B.1.429 (Epsilon), B.1.526 (Iota), and B.1.617.2 (Delta) on binding, neutralizing, and ACE2-competing antibodies elicited by the vaccine mRNA-1273 over seven months. Explore the generation of a clinical-grade applicable DC vaccine with improved immunogenic potential by combining PD-1 ligand siRNA and target antigen mRNA delivery. Optimized non-replicating rabies virus glycoprotein (RABV-G) encoding messenger RNA (mRNA) induce potent neutralizing antibodies (VN titers) in mice and domestic pigs. Immunization of mice and nonhuman primates (NHPs) with lipid nanoparticles (LNP) encapsulating modified mRNA encoding CMV glycoproteins gB and pentameric complex (PC) elicit potent and durable neutralizing antibody titers. Administration of novel self-amplifying mRNA (SAM1) vectors expressing influenza NP (SAM (NP)), M1 (SAM(M1)), and NP and M1 (SAM(M1-NP)) delivered with lipid nanoparticles (LNP) induced robust polyfunctional CD4 T helper 1 cells, while NP-containing SAM also induced cytotoxic CD8 T cells.	The monoclonal antibodies elicited by the vaccines potently neutralize SARS-CoV-2. Nucleoside-modified mRNA-LNPs elicit rapid and durable protective immunity against the Zika virus. Human respiratory syncytial virus RSV is a possible vector for protective antigens of another respiratory tract. An RSV vector also might have utility in transient gene therapy of the respiratory tract. LNP-formulated, modified mRNA vaccines can induce protective immunogenicity with acceptable tolerability profiles against Influenza virus. Self-amplifying RNA is a promising platform for vaccines against viral diseases. The treatment effect of Autoimmune encephalomyelitis is associated with a reduction of effector T cells and the development of regulatory T cell (Treg cell) populations. RNA tumor antigen vaccine strategy has potential application for human cancer treatment and prevention. The feasibility of a non-replicating mRNA rabies vaccine in small and large animals and highlights the promises of mRNA vaccines for the prevention of infectious diseases. mRNA/LNP is a versatile platform that enables the development of vaccination strategies that could prevent Cytomegalovirus CMV infection and consequent disease in different target populations.	Covid-19, cancer, Influenza virus, Rabies Virus, Cytomegalovirus, Human respiratory syncytial virus, Autoimmune encephalomyelitis and various viral surface antigens
Safety and Efficacy of the vaccine7–30–34–41–44,45-49–50-65–67-69–74-83–85-87–89-92–93-113–115-120–124	Efficacy of the vaccine against laboratory-confirmed Covid-19 and safety. Safety and immunogenicity of mRNA-1273, and the effectiveness of the BNT162b2 mRNA vaccine. Safety of (mRNA) Covid-19 vaccines in pregnancy from the v-safe surveillance system and pregnancy registry and the efficacy in patients with chronic lymphocytic leukemia. Clinical trial in healthy adults of a prophylactic mRNA-based vaccine encoding rabies virus glycoprotein (CV7201). Safety and immunogenicity of the first mRNA vaccines against potentially pandemic avian H10N8 and H7N9 influenza viruses. Safety and immunogenicity of CV9103 in patients with advanced castration-resistant prostate-cancer. Relationship between the vaccine and myocarditis. Develop 2 mRNA vaccines based on the EBOV envelope glycoprotein, which differed by the nature of signal peptide for improved glycoprotein post-translational translocation.	A two-dose regimen of BNT162b2 conferred 95% protection against Covid-19 in persons 16 years of age or older. The mRNA-1273 vaccine showed 94.1% efficacy at preventing Covid-19 illness, including severe disease. Women who are vaccinated at later times during early pregnancy have less time during which they are at risk for pregnancy loss. Antibody-mediated response to the BNT162b2 mRNA covid-19 vaccine in patients with CLL is markedly impaired and affected by disease activity and treatment. A prophylactic mRNA-based candidate vaccine can induce boostable functional antibodies against a viral antigen when administered with a needle-free device, the vaccine was generally safe with a reasonable tolerability profile. The first mRNA vaccines against H10N8 and H7N9 influenza viruses were well tolerated and elicited robust humoral immune responses. The self adjuvant RNActive® vaccine CV9103 was well tolerated and immunogenic. The incidence of myocarditis, increased after the receipt of the BNT162b2 vaccine, particularly after the second dose among young male recipients, and the clinical presentation of myocarditis after vaccination was usually mild. Vaccination of guinea pigs induced EBOV-specific IgG and neutralizing antibody responses and 100% survival after EBOV infection.	Covid-19, cancer, Influenza virus, Rabies Virus, Ebola Virus, Covid-19 and myocarditis
Vaccination36–46–52,53-57–59-76–78-80–81-86–88-90–96-97–100-104–111-125–128	Vaccines prevent asymptomatic and symptomatic SARS-CoV-2 infection, when administered in real-world conditions, is less well understood. Antibody and memory B cell responses following Vaccination. Utilize autologous DCs transfected with autologous Glioblastoma stem cells GSC-mRNA to induce an immune response against the patient’s own GSCs. The effectiveness of a third dose of the BNT162b2 mRNA vaccine for preventing severe COVID-19 outcomes. TriMix DCs can be co-electroporated with whole tumor-antigen – encoding mRNA. The immunogenicity of Covid-19 vaccine in pregnant and lactating women. Vaccination with dendritic cells (DCs) transfected with hTERT mRNA has the potential to induce strong immune responses to multiple hTERT epitopes and is therefore an attractive approach to more potent immunotherapy.	The authorized mRNA COVID-19 vaccines are effective for preventing SARS-CoV-2 infection, regardless of symptom status, among working-age adults in real-world conditions. The utility of defining cellular responses in addition to serologies and may inform SARS-CoV-2 vaccine distribution in a resource-limited setting. Establishment of autologous GSC cultures under good manufacturing procedures (GMP) is feasible, and the vaccination against GSCs is safe, well-tolerated, and may prolong recurrence-free survival. A third dose of the BNT162b2 mRNA vaccine is effective in protecting individuals against severe COVID-19-related outcomes, compared with receiving only two doses at least 5 months ago. Therapeutic vaccination with autologous TriMix-DC is feasible, safe, and immunogenic and can be combined with sequential IFN-a-2b. Covid-19 vaccine was immunogenic in pregnant women, and vaccine elicited antibodies were transported to infant cord blood and breast milk. The feasibility of vaccination with DCs loaded with mRNA encoding a defined antigen for the identification of immunogenic T-cell epitopes provides an opportunity for direct and fast discovery of novel T-cell epitopes from any tumor-specific or tumor-associated antigen.	Covid-19, cancer, human papillomavirus (HPV) and HIV-1
Risk factors associated with m RNA vaccination47,60,62,72,73,75,79,82,95,98,99,101,102,106,109,109,112,114	Factors associated with vaccine coverage for both vaccines and documented the vaccine effectiveness of the BNT162b2 mRNA vaccine in a cohort of health-care workers undergoing regular asymptomatic testing. Describe myocarditis presenting after Covid-19 vaccination. Characterize humoral immunity in mRNA-COVID-19 multiple sclerosis vaccines treated with high-efficacy disease-modifying therapies. Immunogenicity, efficacy, and safety of the BNT162b2 mRNA vaccine in patients with AIIRD compared with control subjects without rheumatic diseases or immunosuppressive therapies. Analyze the humoral response following full vaccination with the BNT162b2 (Pfizer-BioNTech) in 136 kidney transplant recipients. Monitor 23 serious outcomes weekly, using comprehensive health records on a diverse population. Study patients of a cute myocarditis vaccinated by Covid-19 vaccine. Investigate the humoral and cellular immune response to messenger RNA (mRNA) COVID-19 vaccines in patients with immune-mediated inflammatory diseases (IMIDs) on immunomodulatory treatment.	Vaccine lower coverage was associated with previous infection, gender, age, ethnicity, job role, and Index of Multiple Deprivation score. BNT162b2 vaccine can prevent both symptomatic and asymptomatic infection in working-age adults. Potential for rare vaccine related adverse events must be considered in the context of the well-established risk of morbidity, including cardiac injury, following Covid-19 infection. Cladribine treatment does not impair humoral response to COVID-19 vaccination. mRNA BNTb262 vaccine was immunogenic in the majority of patients with AIIRD, with an acceptable safety profile. Treatment with glucocorticoids, rituximab, MMF, and abatacept was associated with a significantly reduced BNT162b2-induced immunogenicity. The most kidney transplant recipients remain at high risk for COVID-19 despite vaccination. The incidence of serious outcomes, including acute myocardial infection, Bell palsy, cerebral venous sinus thrombosis, Guillain-Barre syndrome, myocarditis/pericarditis, pulmonary embolism, stroke and thrombosis with thrombocytopenia syndrome was not significantly higher 1 to 21 days post vaccination compared with 22 to 42 days post vaccination. Magnetic resonance imaging found to be consistent with acute myocarditis in covid-19 patients. Different strategies may need to be explored in patients with IMID taking methotrexate to increase the chances of immunization efficacy against SARS-CoV-2 as has been demonstrated for augmenting immunogenicity to other viral vaccines.	Covid-19, Covid-19 and multiple sclerosis, Covid-19 and autoimmune inflammatory rheumatic diseases (AIIRD), Covid-19 and kidney disease, Covid-19 and myocarditis, Covid-19 and hematological malignancies and Covid-19 and immune-mediated inflammatory diseases
MRNA vaccine delivery55,63,64,68,71,105,107,117	Efficient delivery of mRNA vaccines will be key for their success and translation to the clinic. Inject intradermally protamine-stabilized mRNAs coding for Melan-A, Tyrosinase, gp100, Mage-A1, Mage-A3, and Survivin in 21 metastatic melanoma patients. In mice intradermal application of naked mRNA results in protein expression and the development of an immune response. Test and studied globin-stabilized mRNA-based vaccination in mice.	Among potential non-viral vectors, lipid nanoparticles are particularly promising in cancer. Direct injection of protamine-protected mRNA is feasible and safe. Treatment with naked mRNA results in protein expression is feasible and safe (phase 1 criteria). Furthermore, an increase in antitumor humoral immune response was seen in some patients. Administration of globin UTR-stabilized mRNA is a versatile vaccination strategy that can be manipulated to fit the requirement of antiviral, antibacterial or antitumor immunity. The observed tumor immunity correlates with splenic antigen-specific CD81 T cells and is achieved only when mRNA is delivered in nanoparticle but not in naked format.	Cancer and HIV-1

The top 100 cited articles indicated that the monoclonal antibodies elicited by the mRNA-1273 vaccines potently neutralize SARS-CoV-2.^77,91 Nucleoside-modified mRNA-LNPs elicit rapid and durable protective immunity against the Zika virus.¹⁰³ The human respiratory syncytial virus is a possible vector for protective antigens in another respiratory tract and might have utility in transient gene therapy of the respiratory tract.³⁵ LNP-formulated, modified mRNA vaccines can induce protective immunogenicity with acceptable tolerability profiles against the influenza virus.¹¹⁸ Self-amplifying RNA is a promising platform for vaccines against viral diseases.⁷⁴ The treatment effect of autoimmune encephalomyelitis is associated with a reduction of effector T cells and the development of regulatory T cell (T_reg cell) populations.⁴³ RNA tumor antigen vaccine strategy has potential applications for human cancer treatment and prevention.⁴⁷ The feasibility of a non-replicating mRNA rabies vaccine in small and large animals highlights the promise of mRNA vaccines for the prevention of infectious diseases.⁹⁸ In addition, mRNA/LNP is a versatile platform that enables the development of vaccination strategies that could prevent cytomegalovirus infection and consequent disease in different target populations.¹⁰²

The safety and efficacy of the mRNA vaccine showed that a two-dose regimen of BNT162b2 conferred 95% protection against COVID-19 in persons 16 years of age or older.^54,66 While the mRNA-1273 vaccine showed 94.1% efficacy at preventing COVID-19 illness, including severe disease.⁵⁸ Women who are vaccinated with COVID-19 vaccine at later times during early pregnancy have less time during which they are at risk for pregnancy loss.¹²¹ The antibody-mediated response to the BNT162b2 mRNA covid-19 vaccine in patients with CLL is markedly impaired and affected by disease activity and treatment.³¹ A prophylactic mRNA-based candidate vaccine can induce functional antibodies against a viral antigen when administered with a needle-free device. The vaccine was generally safe with a reasonable tolerability profile.⁷ The first mRNA vaccines against H10N8 and H7N9 influenza viruses were well tolerated and elicited robust humoral immune responses.⁵⁰ The self adjuvant RNActive® vaccine CV9103 was well tolerated and immunogenic.⁹⁶ The self incidence of myocarditis, although low, increased after the receipt of the BNT162b2 vaccine, particularly after the second dose among young male recipients.⁸⁶ Vaccination of guinea pigs induced EBOV-specific IgG and neutralizing antibody responses and 100% survival after EBOV infection.¹²⁹

The authorized mRNA COVID-19 vaccines effectively prevented SARS-CoV-2 infection, regardless of symptom status, among working-age adults in real-world conditions.^49,94,119 The establishment of autologous glioblastoma stem cells (GSCs) cultures under reasonable manufacturing procedures (GMP) is feasible, and the vaccination against GSCs is safe, well-tolerated, and may prolong recurrence-free survival.⁶⁷ A third dose of the BNT162b2 mRNA vaccine effectively protects individuals against severe COVID-19-related outcomes, compared with receiving only two doses at least 5 months ago.⁸⁵ Therapeutic vaccination with autologous TriMix-DC is feasible, safe, and immunogenic and can be combined with sequential IFN-a-2b.^90,124 The COVID-19 vaccine was immunogenic in pregnant women, and the vaccine elicited antibodies that were transported to infant cord blood and breast milk.⁴⁴ The feasibility of vaccination with DCs loaded with mRNA encoding a defined antigen identified of immunogenic T-cell epitopes. This type of vaccination provides an opportunity for direct and fast discovery of novel T-cell epitopes from any tumor-specific or tumor-associated antigen.¹¹⁰

The risk factors associated with mRNA vaccination were significantly lower and associated with previous infection, gender, age, ethnicity, job role, and Index of Multiple Deprivation score. BNT162b2 vaccine can prevent symptomatic and asymptomatic infection in working-age adults.¹²³ The potential for rare vaccine-related adverse events must be considered in the context of the well-established risk of morbidity, including cardiac injury, following COVID-19 infection.^60,75,87 Cladribine treatment does not impair the humoral response to COVID-19 vaccination.^93,97 mRNA BNTb262 vaccine was immunogenic in the majority of patients with AIIRD, with an acceptable safety profile. Treatment with glucocorticoids, rituximab, MMF, and abatacept was associated with a significantly reduced BNT162b2-induced immunogenicity.¹¹³ Most kidney transplant recipients remain at high risk for COVID-19 despite vaccination.^68,72,79,115 The incidence of serious outcomes, including acute myocardial infection, Bell palsy, cerebral venous sinus thrombosis, Guillain-Barre syndrome, myocarditis/pericarditis, pulmonary embolism, stroke, and thrombosis with thrombocytopenia syndrome was not significantly higher at 1–21 days post-vaccination compared with 22–42 days post-vaccination.⁸⁸ Different strategies may need to be explored in patients with IMID taking methotrexate to increase the chances of immunization efficacy against SARS-CoV-2 as has been demonstrated for augmenting immunogenicity to other viral vaccines.¹⁰⁷

Among the potential non-viral vectors, lipid nanoparticles are particularly promising for vaccine delivery in cancer.³⁴ Direct injection of protamine-protected mRNA is feasible and safe.⁴¹ Treatment with naked mRNA results in protein expression is feasible and safe. Furthermore, an increase in antitumor humoral immune response was seen in some patients.⁸³ Administration of globin UTR-stabilized mRNA is a versatile vaccination strategy that can be manipulated to fit the requirement of antiviral, antibacterial, or antitumor immunity.⁴⁶ The observed tumor immunity correlates with splenic antigen-specific CD81 T cells and is achieved only when mRNA is delivered in nanoparticles but not in naked format.¹¹⁴

Discussion

The current study provided an overview of the top 100 cited articles on mRNA vaccine globally from documents indexed in the Scopus database for the first time. Scopus is one of the most appropriate online databases widely used for bibliometric analysis. The study revealed a clear interest in mRNA research productivity in the year 2021. This may be owed to the outbreak of COVID-19 pandemic. The study used R software to provide the researcher with mRNA vaccine author’s productivity by using Lotka’s Law as one of the classical laws of bibliometrics to examine the distribution of frequency of the researcher’s publications as well as reports in other scientific fields.¹³⁰ Thus, findings would be of interest to the scientific community to demonstrate the general applicability of this relation to authors in mRNA vaccine top cited articles and their author’s productivity in the subject.^70,131

The study highlights that the top-rank paper was Safety and efficacy of the BNT162b2 mRNA COVID-19 vaccine, published in 2020 in the New England Journal of Medicine. The article indicated that a two-dose regimen of BNT162b2 conferred 95% protection against COVID-19 in persons 16 years of age or older. Due to the COVID-19 pandemic, this article became the most influential with 5757 citations.⁵⁴ Graham BS and Bennett H were considered as the most influential authors reported in the top 100 most cited mRNA vaccine. According to Lotka’s law, only 0.3% percent of the authors in a given field produced more than 5 articles.

The New England Journal of Medicine published the most mRNA vaccine papers. This journal is the most pioneer journal in medical research, which publishes high-quality research. mRNA vaccine research was conducted by the developed countries because they own the most potential funding agencies that fund scientific research. As previously reported, funding is one of the potential mechanisms to encourage and increase productivity.¹⁸ Keyword analysis indicated that the top-cited articles on mRNA vaccine covered various key aspects, including COVID-19, vaccine, mRNA vaccine, mRNA, SARS-CoV-2, and immunogenicity, among others. Evidence from the network analysis reveals a significant level of collaboration among authors in the field, as shown in the clusters. The collaboration is vital as it enables the sharing of knowledge and findings of scientific research, such as genome sequences and the possible development of the mRNA vaccine.

The mRNA vaccine articles were classified into vaccine production and evaluation, safety and efficacy of the vaccine, vaccination, risk factors associated with vaccination and vaccine delivery system. Meanwhile, the most cited articles were focused on COVID-19, followed by cancer, influenza virus, COVID-19 and kidney diseases, COVID-19 and myocarditis, and rabies virus, among others.

This study has limitations that related to its theme’s diversity. The methodology always emphasizes the most statistically most relevant themes, but we do not represent all the themes of the research field, in addition the study only provides statistics based on the number of articles and highest citation, whereas the contribution of other excellence researchers in the field was not shown in the current analysis. We use only one database (Scopus); thus, there is the possibility of missing out on key top-cited articles that may be available in other databases such as Web of Sciences, PubMed, and Google Scholar. Therefore, the results of the current assessment might not be comprehensive. Furthermore, we only consider full research articles as inclusion criteria for the purpose of the analysis. Thus, with the inclusion of all documents in the research field, the results could be a little different. Future studies could discuss and improve the methodological strategy adopted and provide a comprehensive analysis to show the contribution of at least 100 most impact authors in the field. In addition, the presence of false-positive and false-negative results must be regarded as in any bibliometric study. Other limitations, were that we only included studies published in the English language and underestimated studies published in other languages, which may also have higher citation scores than the ones we extracted.

Above all these limitations, the results consolidate the recent knowledge on mRNA vaccines and will prove helpful for researchers to understand the top 100 most cited articles based on their themes and systematic analysis.

Conclusions

The study provides quantitative and qualitative analyses of the top 100 most cited articles on mRNA vaccine. The annual number of articles has steadily increased between 2020 and 2021. The comprehensive analysis also provides insights into scientific research productivity by authors, countries, and institutions, which will assist in generating evidence-based descriptions, comparisons, and mapping visualizations of research output in mRNA vaccines. In addition, the study provides a road map of the characteristics of the top 100 most cited articles and extensively describes their patterns of performance and the impact of mRNA vaccine research, core journals, and corresponding author’s countries, and other information that can be a useful and helpful tool for future studies.

Application and future research directions

The current analysis provides readers with applied evidence and gap maps on top 100 most cited articles on mRNA vaccine, providing a visual representation of the conceptual structure analysis of research based on the mapping analysis. Moreover, the study also provides a scientific relationship between researchers and countries toward research collaboration to enhance research on mRNA vaccines. Through a comprehensive analysis of co-authorships, our study provides an insight into partners in research endeavors and describes the scientific network. Furthermore, the qualitative analysis of the keywords helps to identify the current focus and future research direction within mRNA vaccine research. Through the thematic analysis, the current investigation was able to use conceptual structure analysis to describe patterns across qualitative data on the reported topic on specific themes (motor-themes, Niche themes, emerging topics or disappearing themes, and basic themes or basic and Transversal Themes) based on the Relevance Degree (Centrality) and Degree (Density) in the vertical and horizontal axis.

Data access

All data presented in this article can be retrieved from Scopus using keywords listed in the methodology.

Funding Statement

The study was funded by the Chinese Academy of Sciences Presidents International Fellowship Initiative (Grant No.2021VBA0008)

Disclosure statement

No potential conflict of interest was reported by the author(s).
