Unique H₂-utilizing lithotrophy in serpentinite-hosted systems

Abstract

Serpentinization of ultramafic rocks provides molecular hydrogen (H₂) that can support lithotrophic metabolism of microorganisms, but also poses extremely challenging conditions, including hyperalkalinity and limited electron acceptor availability. Investigation of two serpentinization-active systems reveals that conventional H₂-/CO₂-dependent homoacetogenesis is thermodynamically unfavorable in situ due to picomolar CO₂ levels. Through metagenomics and thermodynamics, we discover unique taxa capable of metabolism adapted to the habitat. This included a novel deep-branching phylum, “Ca. Lithacetigenota”, that exclusively inhabits serpentinite-hosted systems and harbors genes encoding alternative modes of H₂-utilizing lithotrophy. Rather than CO₂, these putative metabolisms utilize reduced carbon compounds detected in situ presumably serpentinization-derived: formate and glycine. The former employs a partial homoacetogenesis pathway and the latter a distinct pathway mediated by a rare selenoprotein—the glycine reductase. A survey of microbiomes shows that glycine reductases are diverse and nearly ubiquitous in serpentinite-hosted environments. “Ca. Lithacetigenota” glycine reductases represent a basal lineage, suggesting that catabolic glycine reduction is an ancient bacterial innovation by Terrabacteria for gaining energy from geogenic H₂ even under hyperalkaline, CO₂-poor conditions. Unique non-CO₂-reducing metabolisms presented here shed light on potential strategies that extremophiles may employ for overcoming a crucial obstacle in serpentinization-associated environments, features potentially relevant to primordial lithotrophy in early Earth.

Introduction

Serpentinite-hosted systems are rare and extreme habitats in which a hydrothermal process, serpentinization, alters ultramafic mantle rocks and yields hyperalkaline fluid rich in molecular hydrogen (H₂) and reduced one-carbon compounds [1–8]. These fluids are often electron acceptor depleted—oxygen, nitrate, sulfate, etc. are absent (i.e., anoxic) and even the least favorable exogenous acceptor, carbon dioxide (CO₂), is limiting due to the high alkalinity. Though previous studies explore the diversity of organisms in serpentinite-hosted systems, we have little insight into how indigenous H₂-utilizing microorganisms combat the unique metabolic challenges in situ. One recent study shows strategies that methane-generating archaea employ to oxidize H₂ in situ [9], but how other microorganisms (i.e., H₂-utilizing anaerobic bacteria) overcome the electron acceptor limitation is poorly understood. Further, given that life is theorized to have emerged as H₂-utilizing lithotrophs in early Earth serpentinite-hosted systems [10–24], modern lithotrophs inhabiting such ecosystems may represent valuable extant windows into the metabolism of primordial organisms. In this study, we pair metagenomics and thermodynamics to characterize uncultured putative anaerobic H₂ utilizers inhabiting alkaline H₂-rich serpentinite-hosted systems (Hakuba Happo hot springs in Hakuba, Japan, and The Cedars springs in California, USA; pH ~10.9 and ~11.9, respectively [25–27]) and elucidate novel, potentially ancient, lithotrophic strategies.

Thermodynamics and geochemistry

The two primary strategies for utilizing H₂ under anoxic conditions without favorable exogenous electron acceptors are methanogenesis and homoacetogenesis. As bacteria were detected in both Hakuba and The Cedars, yet archaea were absent in Hakuba, we focused our analyzes on metabolic strategies supporting bacterial H₂ utilization (i.e., homoacetogenesis). To evaluate whether homoacetogenesis is viable in situ, we examined the in situ geochemical environment and the thermodynamics of H₂/formate utilization and homoacetogenesis. The spring waters of both Hakuba and The Cedars contained H₂ (e.g., 201–664 μM in Hakuba [27]). Formate, another compound thought to be abiotically generated through serpentinization, was also detected in Hakuba (8 μM in drilling well #3 [28]) and The Cedars (6.9 µM in GPS1). Acetate has also been detected in situ (4 μM in Hakuba [28] and 69.3 µM in The Cedars GPS1), suggesting these ecosystems may host novel H₂- and/or formate-utilizing homoacetogens. Thermodynamic calculations using newly measured and published geochemical data (Tables S1 and S2) confirmed that H₂ and formate are reductants in situ (i.e., H₂ = 2H⁺ + 2e⁻/Formate⁻ = H⁺ + CO₂ + 2e⁻): the Gibbs free energy yields (∆G) for oxidation (coupled with physiological electron carriers NADP⁺, NAD⁺, and ferredoxin) are less than −4.78 kJ per mol H₂ and −24.92 kJ per mol formate in Hakuba, and −10.73 and −22.03 in The Cedars respectively (H₂ concentration was not available for The Cedars so the highest concentration observed in Hakuba [664 µM] was used; see Supplementary Results). However, serpentinite-hosted systems impose a unique challenge to homoacetogenesis—a key substrate, CO₂, is at extremely low concentrations due to the high alkalinity. We estimate that the aqueous CO₂ concentration is below 0.0006 nM in Hakuba (pH 10.7 and <0.1 µM TIC) and 0.003 nM in The Cedars (pH 11.9 and 35 µM TIC) (Table S2) [25, 27]. In Hakuba, H₂/CO₂-driven acetogenesis (∆G of −3.71 kJ per mol acetate) cannot support microbial energy generation (∆G ≤ −20 kJ per mol is necessary [29]; Fig. S1). Moreover, in both Hakuba and The Cedars, one of the first steps in CO₂-reducing homoacetogenesis, reduction of CO₂ to formate, is unfavorable based on the thermodynamics presented above (∆G > +24.92 or +22.02 kJ per mol formate). Thus, catabolic reduction of CO₂ to acetate is thermodynamically challenging in situ and may only run if investing ATP (e.g., Calvin–Benson–Bassham cycle [−6 ATP; ∆G of −361.68 kJ per mol acetate in Hakuba] or reductive tricarboxylic acid [−1 ATP; −61.68 kJ per mol]). Under CO₂ limitation, autotrophs are known to accelerate CO₂ uptake through HCO₃⁻ dehydration to CO₂ (carbonic anhydrase) or carbonate mineral dissolution, but both only modify kinetics and are not effective in changing the maximum CO₂ concentration (determined by equilibrium with carbonate species). In addition, in Hakuba, the CO₃²⁻ concentration is too low (84.7 nM CO₃²⁻) to cause carbonate mineral precipitation (e.g., [CO₃²⁻] must exceed 38.5 µM given K_s of 5 ×  10⁻⁹ for CaCO₃ and [Ca²⁺] of 0.13 mM).

Based on thermodynamic calculations, the energy obtainable from H₂/CO₂-driven homoacetogenesis is too small to support life in many serpentinite-hosted systems, yet acetate is detected in some of these ecosystems (Fig. S2 and Table S2; note that we cannot exclude the possibility that acetate may be produced abiotically by water–rock reactions [30]). Thus, CO₂-independent electron-disposing metabolism may have been necessary for extremophilic organisms to gain energy from H₂ in the hyperalkaline fluids of hydrothermal systems. Here, we explore the metabolic capacities of organisms living in serpentinite-hosted systems to gain insight into potential metabolic strategies for utilizing H₂ under the extreme conditions in situ.

Diverse putative H₂- and formate-utilizing organisms

Through metagenomic exploration of the two serpentinite-hosted systems (Table S3), we discover a plethora of phylogenetically novel organisms encoding genes for H₂ and formate metabolism (19 bins with 73.2–94.8% completeness and 0.0–8.1% contamination [86.1% and 3.8% on average respectively]; available under NCBI BioProject PRJNA453100) despite challenges in acquisition of genomic DNA (15.7 and 18.9 ng of DNA from 233 and 720 L of filtered Hakuba Happo spring water, respectively; RNA was below the detection limit). We find metagenome-assembled genomes (MAGs) affiliated with lineages of Firmicutes (e.g., Syntrophomonadaceae and uncultured family SRB2), Actinobacteria, and candidate division NPL-UPA2 [31] (Fig. S3). We also recovered MAGs for a novel lineage, herein referred to as “Ca. Lithacetigenota”, that inhabits both Hakuba and The Cedars and, to our knowledge, no other ecosystems (Figs. 1, 2a, S3, and S4). The average amino acid identity (AAI) between Ca. Lithacetigenota and neighboring phyla (Coprothermobacterota, Dictyoglomi, Thermodesulfobiota [GTDB-defined phylum], Thermotogae, and Caldiserica) was comparable to the average interphylum AAI among the neighboring phyla (45.33 ± 0.86% vs 45.17 ± 0.99%), suggesting that Ca. Lithacetigenota represents a novel phylum-level lineage (Fig. 2a, b). These genomes encode enzymes for oxidizing H₂ and formate (i.e., hydrogenases and formate dehydrogenases [32–39]; see Supplementary Results), suggesting that organisms in situ can employ H₂ and formate as electron donors.

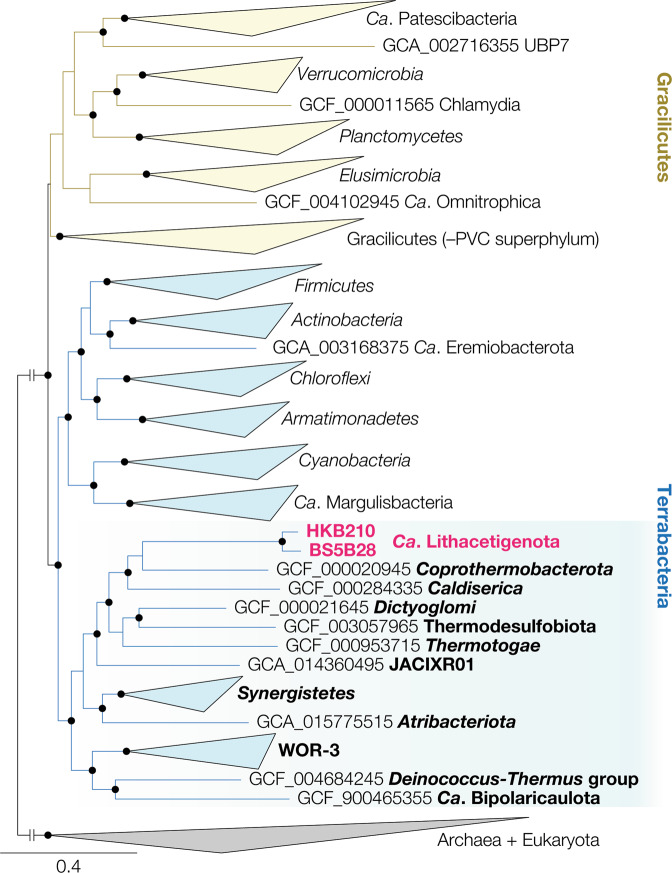

Fig. 1. Ribosomal protein tree including high-quality MAGs from 74 GTDB-defined phylum-level lineages.

Representative genomes (highest quality based on a score defined as completeness – 5*contamination, both estimated by CheckM) were chosen for bacterial classes that contain at least one genome the meet the following criteria: (i) cultured organisms with ≥90% completeness, ≤5% contamination (as estimated by CheckM), and ≤ 20 contigs; (ii) uncultured organisms with ≥85% completeness, ≤3% contamination, and ≤20 contigs; and (iii) Ca. Patescibacteria with ≥60% completeness and ≤1 contig. Universally conserved ribosomal proteins were collected from each genome, aligned with MAFFT v7.394, trimmed with BMGE v1.12 (-m BLOSUM30 -g 0.67 -b 3), and concatenated. A maximum likelihood tree was calculated using IQ-TREE v2.1.3 with the UDM0064LCLR model (-m Poisson+UDM0064LCLR), ultrafast bootstrap approximation, and SH-like approximate likelihood ratio test (-B 1000 -alrt 1000; bootstrap values are recalculated with BOOSTER using the -tbe option). Branches with ≥90% ultrafast bootstrap support and ≥80% SH-alrt support are indicated with black circles. Archaeal and eukaryotic genomes were used as an outgroup. The inter-domain branch was shortened with a break to 1/10 of the calculated length for illustrative purposes. Phylogenetic groups corresponding to “Gracilicutes” and “Terrabacteria” are indicated yellow and blue respectively. Ca. Lithacetigenota are highlighted (magenta). See Supplementary Fig. S4 for full tree.

Fig. 2. “Ca. Lithacetigenota” phylogeny, lithotrophic acetate generation pathways, and comparative genomics with neighboring phyla.

a A maximum likelihood tree was calculated for a concatenated alignment of universally conserved ribosomal protein sequences from representative genomes of individual phyla (aligned with MAFFT v7.394 [default parameters] and trimmed with BMGE v1.12 (−m BLOSUM30 −g 0.67 −b 3) using IQ-TREE v2.1.3 with the UDM0064LCLR model (-m Poisson+UDM0064LCLR), ultrafast bootstrap approximation, and SH-like approximate likelihood ratio test (-B 1000 -alrt 1000; bootstrap values are recalculated with BOOSTER using the -tbe option). Branches with ≥90% ultrafast bootstrap support and ≥80% SH-alrt support are indicated with black circles. Phylum names are shown for NCBI taxonomy (italicized) or GTDB classification (*). b The average inter-phylum AAI (as calculated by CompareM) was calculated using GTDB species representatives. c Putative metabolic pathways potentially adapted to the CO₂-limited hyperalkaline conditions encoded by “Ca. Lithacetigenota” members and others: formate- and glycine-reducing acetate generation. Arrow colors indicate oxidative (pink), reductive (blue), ATP-yielding (orange), and ATP-consuming (green) steps. d Venn diagram of COGs/NOGs (as predicted by eggnog-mapper) fully conserved across all members of each phylum (genomes included in GTDB release 95 with completeness ≥85% and contamination ≤5%). COGs/NOGs related to lithotrophy and alkaliphily are highlighted. * “COG” abbreviated.

“Ca. Lithacetigenota” has unique site-adapted metabolism

Inspection of the serpentinite-hosted environment-exclusive phylum “Ca. Lithacetigenota” reveals specialization to H₂-driven lithotrophy potentially suitable for the low-CO₂ in situ conditions (Fig. 2c). We discover that The Cedars-inhabiting population (e.g., MAG BS5B28, 94.8% completeness and 2.9% contamination) harbors genes for H₂ oxidation ([NiFe] hydrogenase Hox), a nearly complete Wood-Ljungdahl pathway, and an oxidoreductase often associated with acetogenesis—NADH:ferredoxin oxidoreductase Rnf [40, 41] (Tables S4 and S5). One critical enzyme, the formate dehydrogenase, is missing from all three “Ca. Lithacetigenota” MAGs from The Cedars (and unbinned contigs), indicating that these bacteria can neither perform H₂/CO₂-driven nor formate-oxidizing acetogenesis (Fig. 2c). However, even without the formate dehydrogenase, the genes present can form a coherent pathway that uses formate rather than CO₂ as a starting point for the “methyl branch” of the Wood–Ljungdahl pathway (i.e., formate serves as an electron acceptor; Fig. 2c). This is a simple yet potentially effective strategy for performing homoacetogenesis while circumventing the unfavorable reduction of CO₂ to formate. Coupling H₂ oxidation with this formate-reducing pathway is thermodynamically viable as it halves the usage of CO₂ (3H₂ + Formate⁻ + CO₂ = Acetate⁻ + 2H₂O; ∆G of −29.62 kJ per mol acetate) and, as a pathway, is simply an intersection between the conventional H₂/CO₂-driven and formate-disproportionating acetogenesis (Fig. 2c and S5). Although use of formate as an electron acceptor for formate-oxidizing acetogenesis is quite common, no previous homoacetogens have been observed to couple H₂ oxidation with acetogenesis from formate, likely because CO₂ has a much higher availability than formate in most ecosystems.

The Hakuba-inhabiting “Ca. Lithacetigenota” (HKB210 and HKB111) also encodes Hox for H₂ oxidation but lacks genes for homoacetogenesis (no homologs closely related to The Cedars population genes were detected even in unbinned metagenomic contigs). We suspect that this population forgoes the above H₂/formate-driven homoacetogenesis because the estimated energy yield of the net reaction in situ (∆G of −19.94 kJ per mol acetate) is extremely close to the thermodynamic threshold of microbial catabolism (slightly above −20 kJ per mol) and, depending on the actual threshold for “Ca. Lithacetigenota” and/or even slight changes in the surrounding conditions (e.g., ∆G increases by 1 kJ per mol if H₂ decreases by 20 µM decreases in Hakuba), the metabolism may be unable to recover energy. Through searching the physicochemical environment for alternative exogenous electron acceptors and MAGs for electron-disposing pathways, we detected a low concentration of glycine in situ (5.4 ± 1.6 nM; Table S6) and found genes specific to catabolic glycine reduction (see next paragraph). We suspect that some portion of this glycine is likely geochemically generated in situ, given that (a) glycine is often detected as the most abundant amino acid produced by both natural and laboratory-based serpentinization (e.g., H₂ + Formate = Formaldehyde ⇒ Formaldehyde + NH₃ = Glycine) [10, 16, 42–47] and (b) no other amino acid was consistently detectable (if glycine was cell-derived, other amino acids ought to also be consistently detected).

For utilization of the putatively abiotic glycine, the Hakuba “Ca. Lithacetigenota” encodes glycine reductases (Grd; Fig. 3 and S6; Tables S4 and S5)—a unidirectional selenoprotein for catabolic glycine reduction [48, 49]. Based on the genes available, this population likely specializes in coupling H₂ oxidation and glycine reduction (H₂ + Glycine⁻ → Acetate⁻ + NH₃; Fig. 2c). Firstly, the genomes encode NADP-linked thioredoxin reductases (NADPH + Thioredoxin_ox → NADP⁺ + Thioredoxin_red) that can bridge electron transfer from H₂ oxidation (H₂ + NADP → NADPH + H⁺) to glycine reduction (Glycine⁻ + Thioredoxin_red → Acetyl-_Pi + NH₃ + Thioredoxin_ox). Secondly, though glycine reduction is typically coupled with amino acid oxidation (i.e., Stickland reaction in Firmicutes and Synergistetes [48, 50]), similar metabolic couplings have been reported for some organisms (i.e., formate-oxidizing glycine reduction [via Grd] [51] and H₂-oxidizing trimethylglycine reduction [via Grd-related betaine reductase] [52]). Thirdly, Grd is a rare catabolic enzyme, so far found in organisms that specialize in amino acid (or peptide) catabolism, many of which are reported to use glycine for the Stickland reaction (e.g., Peptoclostridium of Firmicutes and Aminobacterium of Synergistetes [53]). Lastly, the population lacks any discernable fermentative (propionate [methylmalonyl-CoA pathway], butyrate [reverse beta oxidation], lactate [lactate dehydrogenase], and alanine [alanine dehydrogenase]) and respiratory (aerobic [terminal oxidases], nitrate [nitrate reductase, nitrite reductase, nitric oxide reductase, nitrous oxide reductase], sulfate [dissimilatory sulfate reductase and sulfite reductase], other sulfurous compounds [molybdopterin-binding protein family sulfurous compound reductases], and metals [outer membrane cytochrome OmcB]) electron disposal pathways and oxidative organotrophy (Tables S4 and S5). Although the BS5B28 genome encodes a bifunctional alcohol/aldehyde dehydrogenase and aldehyde:ferredoxin oxidoreductase, no complete sugar or amino acid degradation pathways could be identified, suggesting that these genes have a physiological role unrelated to ethanol fermentation. Further, though formate and glycine transporters were absent in the genomes, a survey of transporters (annotated in UniProtKB 2021_03 [54]) revealed that no alkaliphiles (organisms with optimum pH ≥ 9.5 in the DSMZ BacDive database [55]) encoded known formate transporters (focA; TIGR04060) or amino acid permeases (PF00324) (ABC transporters were not considered as substrate specificity for these complexes cannot be annotated reliably), indicating that alkaliphiles likely employ unknown transport proteins. Reflecting the lack of other catabolic pathways, the Hakuba “Ca. Lithacetigenota” MAGs display extensive genome streamlining, comparable to that of Aurantimicrobium [56, 57], “Ca. Pelagibacter” [58], and Rhodoluna [59] in aquatic systems, as also reported for other organisms inhabiting serpentinite-hosted systems [60, 61] (Fig. S7). Thermodynamic calculations show that H₂-oxidizing glycine reduction is favorable in situ (∆G°’ of −70.37 kJ per mol glycine [∆G of −85.84 in Hakuba]; Fig. S1). Further, based on the pathway identified, this putative metabolism is >10 times more efficient in recovering energy from H₂ (1 mol ATP per mol H₂) than acetogenesis utilizing H₂/CO₂ (0.075 mol ATP per mol H₂ based on the pathway Acetobacterium woodii utilizes) or H₂/formate (0.075 mol ATP per mol H₂, assuming no energy recovery associated with the formate dehydrogenase). We also detect glycine reductases in The Cedars “Ca. Lithacetigenota”, indicating that it may also perform this metabolism (∆G of −76.87 in The Cedars, assuming 201 µM H₂).

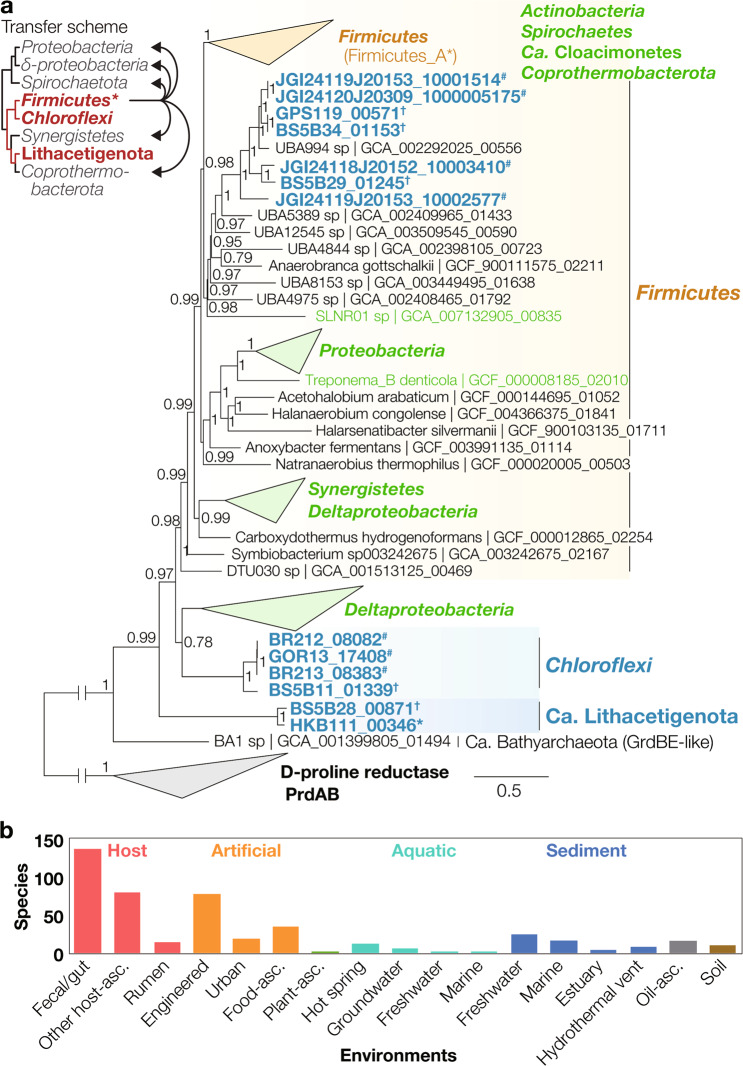

Fig. 3. Evolution and distribution of glycine reductases.

a Phylogeny of serpentinite-hosted microbiome glycine reductase subunit GrdBE homologs (Hakuba Happo hot spring*, The Cedars springs^†, and other serpentinite-hosted system metagenomes^#) and a brief scheme for evolutionary history of Grd. Grd-related COG1978 homologs were collected from the representative species genomes in GTDB, filtered using a GrdB motif conserved across members of phyla known to perform glycine-reducing Stickland reaction (see Methods and Supplementary Fig. S6) and clustered with 75% amino acid sequence similarity using CD-HIT (-c 0.75). GrdB-related sarcosine reductase subunits were excluded by identification of a GrdF motif conserved across sequences that form a distinct cluster around the biochemically characterized Peptoclostridium acidaminophilum GrdF. GrdE neighboring GrdB were collected. D-proline reductase subunits PrdBA (homologous to GrdB and GrdE respectively) was used as an outgroup. GrdB+PrdB and GrdE+PrdA were aligned (MAFFT v7.394) and trimmed (BMGE v1.12 -m BLOSUM30 -g 0.05) separately, then concatenated. A maximum likelihood tree was calculated using IQ-TREE v2.1.3 (-m LG+C20+G+F) and 1000 ultrafast bootstrap replicates (bootstrap values are recalculated with BOOSTER). Branches with ≥95% ultrafast bootstrap support are indicated with pink circles. Serpentinite-hosted system-derived sequences are shown in blue and taxa that may have gained GrdB through horizontal transfer are shown in green. Though the GrdB motif did not match, the closest (and only) detectable archaeal homolog (COG1978) identified in Ca. Bathyarchaeota is included. An axis break is used for the branch connecting GrdBE (and the Ca. Bathyarchaeota homolog) and outlier PrdBA for readability (10% of actual length). See Supplementary Fig. S6 for complete tree and full branch length between GrdBE and PrdBA. In the brief scheme of Grd evolution (top left), the cladogram topology is based on Fig. S4. Vertical transfer (red lines in cladogram) and horizontal transfer (black arrows) inferred from tree structures are shown. Phyla that may have acquired Grd vertically (red) and horizontally (gray) are indicated. GTDB phyla belonging to Firmicutes were grouped together. * GTDB-defined phylum-level lineage nomenclature. b Number of glycine reductase-encoding GTDB-defined species representatives (GTDB r95) associated with different environments. Only genomes with both GrdB and GrdE were included.

Given the phylogenetic and metabolic uniqueness of these populations, we report provisional taxonomic assignment to “Ca. Lithacetigenota” phyl. nov., “Ca. Lithacetigena glycinireducens” gen. nov., sp. nov. (HKB111 and HKB210), and “Ca. Psychracetigena formicireducens” gen. nov., sp. nov. (BS525, BS5B28, and GPS1B18) (see Supplementary Results). Based on a concatenated ribosomal protein tree, this serpentinite-hosted ecosystem-associated candidate phylum is closely related to the deepest-branching group of bacterial phyla in “Terrabacteria”, one of the two major of lineages Bacteria (Fig. 1). Comparative genomics shows that “Ca. Lithacetigenota” shares 623 core functions (based on Bacteria-level COGs/NOGs predicted by eggnog-mapper shared by the two highest quality Hakuba and The Cedars MAGs HKB210 and BS5B28; Fig. 2d). When compared with the core functions of two closest related phyla (Caldiserica and Coprothermobacterota), 176 functions were unique to “Ca. Lithacetigenota”, including those for NiFe hydrogenases (and their maturation proteins), selenocysteine utilization (essential for Grd), and sodium:proton antiporter for alkaliphily. With Coprothermobacterota, 232 functions were shared, including Grd, thioredoxin oxidoreductase (essential for electron transfer to Grd), and additional proteins for NiFe hydrogenases and selenocysteine utilization, pointing toward importance of H₂ metabolism and glycine reduction for these closely related phyla. More importantly, among bacterial phyla in the deep-branching group, “Ca. Lithacetigenota” represents the first lineage inhabiting hyperalkaliphilic serpentinite-hosted ecosystems, suggesting that these organisms may be valuable extant windows into potential physiologies of primordial organisms who are thought to have lived under hyperalkaline conditions (albeit with 4 billion years of evolution in between; see discussion regarding Grd below).

Widespread glycine reduction in serpentinite-hosted systems

Uncultured members of Chloroflexi (Chloroflexota) class Dehalococcoidia inhabiting The Cedars and Firmicutes (Firmicutes_D) class SRB2 in Hakuba and The Cedars also possess glycine reductases (Table S5). In addition, these populations encode hydrogenases and formate dehydrogenases, suggesting that they may also link H₂ and formate metabolism to glycine reduction. Closely related glycine reductases were also detected in other studied serpentinite-hosted systems (47–94% amino acid similarity in Tablelands, Voltri Massif, and Coast Range Ophiolite) [1, 2, 7]. Phylogenetic analysis of the glycine-binding “protein B” subunits GrdB and GrdE reveals close evolutionary relationships between glycine reductases from distant/remote sites (Fig. 3a and S6). Note that Tablelands spring glycine reductase sequences were not included in the analysis as they were only detected in the unassembled metagenomic reads (4460690.3; 69.7–82.2% similarity to Hakuba SRB2). Overall, “Ca. Lithacetigenota”, Dehalococcoidia, and SRB2 glycine reductases are all detected in at least two out of the seven metagenomically investigated systems despite the diverse environmental conditions (e.g., temperature). Thus, we propose glycine as an overlooked thermodynamically and energetically favorable electron acceptor for H₂ oxidation in serpentinite-hosted systems. We suspect that glycine reduction may be a valuable catabolic strategy as the pathway requires few genes/proteins (a hydrogenase, Grd, acetate kinase, and thioredoxin oxidoreductase) and conveniently provides acetate, ammonia, and ATP as basic forms of carbon, nitrogen, and energy.

Phylogenetic analysis of glycine reductases (Fig. 3a and S6) shows that the novel homologs recovered from serpentinite-hosted systems represent deep-branching lineages distantly related from those detectable in published genomes (GTDB r95 species representatives). Further comparison of the topology with a ribosomal protein-based genome tree (Fig. 2a) indicates that the two deep-branching serpentinite-hosted system-affiliated lineages (Ca. Lithacetigenota and novel Chloroflexi family) and Firmicutes vertically inherited glycine reductases. Thus, catabolic glycine reduction can be traced back to the concestor of these three lineages, suggesting the metabolism at least dates back to the ancestor of “Terrabacteria”. We further identified an archaeal GRD homolog (in Miscellaneous Crenarchaeota Group [MCG] or Ca. Bathyarchaeota member BA-1; Fig. 3a and S6), but whether this gene functions as a glycine reductase (GrdB motif not fully conserved) and, further, truly belong to this clade (source is metagenome-assembled genome) remains to be verified. Reconstruction of the ancestral Grd sequence and estimation of its pH preference (via AcalPred) showed that the ancestral enzyme likely had good efficiency under alkaline conditions (pH > 9; probability of 0.9973 and 0.9858 for GrdB and GrdE, respectively). Thus, the currently available data suggest that Grd (and catabolic glycine reduction) is an ancient bacterial catabolic innovation in an alkaline habitat, dating back to one of the deepest nodes in the bacterial tree.

While we detect glycine reductases in many serpentinite-hosted systems, examination of genomes derived from other natural ecosystems shows that only 107 species (species representatives in GTDB r95; 0.35% of all GTDB species) inhabiting such habitats encode GrdBE (Fig. 3b and S6). This is a level comparable to rare artificial contaminant-degrading enzymes (e.g., tetrachloroethane dehalogenase pceA—65 species [encoding KEGG KO K21647 based on AnnoTree with GTDB r95 and default settings [62]]; dibenzofuran dioxygenase—258 species [K14599 and K14600]). Most glycine reductase homologs are found in species affiliated with host-associated (mostly human body and rumen) or artificial habitats (360 species), the majority of which belong to the phylum Firmicutes. We suspect that glycine reduction has low utility in most natural ecosystems (e.g., no excess glycine via abiotic generation and no severe nutrient/electron acceptor limitation) and has been repurposed by some anaerobes for the fermentative Stickland reaction in organic-rich ecosystems (e.g., host-associated ecosystems) where excess amino acids are available but access to favorable electron acceptors is limited (Fig. 3b) (notably, glycine is the dominant amino acid in collagen [>30%], the most abundant protein in vertebrate bodies).

Other characteristics of putative indigenous homoacetogens

In contrast with members of “Ca. Lithacetigenota”, several other putative homoacetogenic populations encode the complete Wood–Ljundgahl pathway (Tables S4 and S5), indicating that other forms of acetogenesis may also be viable in situ. One putative homoacetogen in The Cedars, NPL-UPA2, lacks hydrogenases but encodes formate dehydrogenases. Although the NPL-UPA2 population cannot perform H₂/formate-driven acetogenesis, it may couple formate oxidation with formate-reducing acetogenesis—another thermodynamically viable metabolism (∆G of –50.90 kJ per mol acetate in The Cedars; Fig. S5). The pathway uses CO₂ as a substrate but has lower CO₂ consumption compared to H₂/CO₂ homoacetogenesis and can produce intracellular CO₂ from formate. A recent study also points out that methanogens inhabiting serpentinite-hosted environments oxidize formate presumably to generate intracellular CO₂ [9]. In Hakuba, an Actinobacteria population affiliated with the uncultured class UBA1414 (MAG HKB206) encodes hydrogenases and a complete Wood–Ljungdahl pathway (Table S5) and, thus, may be capable of H₂/formate or the above formate-disproportionating acetogenesis (Fig. 2c and S5). Indeed, the UBA1414 population was enriched in Hakuba-derived cultures aiming to enrich acetogens using the H₂ generated by the metallic iron–water reaction [63] (Fig. S8). Many populations encoding a complete Wood–Ljungdahl pathway possess monomeric CO dehydrogenases (CooS unassociated with CODH/ACS subunits; NPL-UPA2, Actinobacteria, Syntrophomonadaceae [Hakuba and The Cedars], and Dehalococcoidia [The Cedars]; Table S4). Although CO is below the detection limit in Hakuba (personal communication with permission from Dr. Konomi Suda), another study shows that CO metabolism takes place in an actively serpentinizing system with no detectable CO [64]. Given that CO is a known product of serpentinization [7, 64], it may be an important substrate for thermodynamically favorable acetogenesis in situ. However, further investigation is necessary to verify this (e.g., need to measure CO at multiple time points).

Another interesting adaptation observed for all putative homoacetogens detected in Hakuba and The Cedars was possession of an unusual CODH/ACS complex. Although Bacteria and Archaea are known to encode structurally distinct forms of CODH/ACS (designated as Acs and Cdh respectively for this study), all studied Hakuba/The Cedars putative homoacetogens encode genes for a hybrid CODH/ACS that integrate archaeal subunits for the CO dehydrogenase (AcsA replaced with CdhAB) and acetyl-CoA synthase (AcsB replaced with CdhC) and bacterial subunits for the corrinoid protein and methyltransferase components (AcsCDE) (Table S4). The Firmicutes lineages also additionally encode the conventional bacterial AcsABCDE. Given that all of the identified putative homoacetogens encode this peculiar hybrid complex, we suspect that such CODH/ACS’s may have features adapted to the high-pH low-CO₂ conditions (e.g., high affinity for CO₂ and/or CO). In agreement, a similar hybrid CODH/ACS has also been found in the recently isolated “Ca. Desulforudis audaxviator” inhabiting an alkaline (pH 9.3) deep subsurface environment with a low CO₂ concentration (below detection limit [65, 66]) [67].

Implications for primordial biology

The last universal common ancestor (LUCA) is hypothesized to have evolved within alkaline hydrothermal mineral deposits at the interface of serpentinization-derived fluid and ambient water (e.g., Hadean weakly acidic seawater) [22–24]. Although such interfaces no longer exist (i.e., ancient Earth lacked O₂ but most water bodies contain O₂ on modern Earth), modern anoxic terrestrial and oceanic ecosystems harboring active serpentinization [1–8] may hold hints for how primordial organisms utilized H₂ under hyperalkaline CO₂-depleted conditions (e.g., post-LUCA H₂-utilizing organisms that ventured away from the interface towards the alkaline fluids). Our findings suggest that unconventional modes of lithotrophy that take advantage of geogenic reduced carbon compounds (e.g., formate and glycine) as exogenous electron acceptors may have been viable approaches to circumventing thermodynamic issues and obtaining energy from H₂ oxidation in situ. The strategies we discover are largely exclusive to the bacterial domain (archaeal CO₂ reduction does not involve formate as an intermediate and, to our knowledge, glycine reduction is limited to Bacteria) and originated deep in the bacterial tree, suggesting they may have been relevant in the divergence towards the bacterial and archaeal domains. Notably, the estimated alkaliphily of the ancestral Grd also points towards the relevance of this metabolism in ancient alkaline habitats.

Conclusion

Through the investigation of serpentinite-hosted systems, we discover a novel habitat-exclusive alkaliphilic phylum that belongs to a deep-branching group of bacterial phyla and likely relies on putative site-adapted H₂-oxidizing lithotrophy (e.g., coupled with formate or glycine reduction) thermodynamically favorable in the electron acceptor- and CO₂-depleted conditions in situ. The consistent presence of catabolic glycine reductases across these habitats also indicates that glycine may be an important electron acceptor, potentially abiotically generated via serpentinization. Moreover, the identified glycine reductases represent hitherto overlooked deep-branching lineages that point toward antiquity of catabolic and potentially alkaline glycine reduction, suggesting thermodynamic and phylogenetic relevance to ancient metabolism in serpentinite-hosted systems. Further investigation of microbiology in these habitats may reveal novel organisms, metabolic strategies, and rare enzymes adapted to polyextreme conditions in Earth’s modern and ancient subsurface environments.

Methods

Sampling site and sample collection

The Hakuba Happo samples for geochemical and microbiological analysis were artificially pumped from a drilling well (700 m in depth), which was previously described and named Happo #3 (36°42′N 137°48′E [27]). For microbiological analysis, two spring water samples were taken at different time points, 233 L taken in July 2016 (labeled HKB701) and 720 L taken in October 2016 (labeled HKB702), respectively. To collect microbial cells, samples were filtered through a 0.1-μm Omnipore membrane filter (Merck Millipore) using a 90 mm diameter stainless-steel filter holder (Merck Millipore) attached to FDA Viton tubing (Masterflex) at a sampling site. After filtration, filters were immediately transferred to sterile tubes and frozen in a dry ice-ethanol bath, transported in dry ice, and stored at −80 °C until DNA extraction. Only in October 2017, water samples for NH₃ and amino acid analysis were collected from the same well Happo #3, transferred to dry-heat-sterilized nitrogen-purged 100 ml glass vials, and stored at 4 °C.

Geochemical analysis

The water temperature of hot spring water was measured using a thermometer (CT-430WP, Custom Ltd.) at a site. The pH, oxidation reduction potential (ORP), electrical conductivity (EC), and dissolved oxygen (DO) level were determined with portable devices, including a pH meter (D-23, Horiba), an ORP meter (RM-30P, TOA-DKK), an EC meter (CM-31P, TOA-DKK), and a DO meter (DO-31P, TOA-DKK), correspondingly (note that the water sample was pumped up from underground and immediately used for these measurements before cooling). The ion concentrations of Na⁺, K⁺, Ca²⁺, and NO₃^- were determined using portable sensors (LAQUAtwin series, Horiba). The in situ NH₃ concentration was determined by measuring aqueous NH₄⁺ and gaseous NH₃ (purged with N₂ gas, gas dissolved into deionized water, and measured dissolved NH₄⁺) of a sample stored as described above using high-performance liquid chromatography (HPLC; Prominence; Shimadzu), then adding the two together. For amino acid quantification, the sample was concentrated under a stream of nitrogen gas and then analyzed following Shimadzu protocol no. L323 (https://www.an.shimadzu.co.jp/hplc/prominence/l323.pdf) using HPLC with minor modifications (fluorescence detector RF-20Axs; sodium hypochlorite solution was not added for detection of proline). The Cedars spring concentrations of formate and acetate were determined by Isotope-Ratio-Monitoring Liquid Chromatography Mass Spectrometry; Thermo- Finnigan Delta Plus XP isotope-ratio mass spectrometer connected to LC IsoLink, as described by Heuer et al. [68] and Ijiri et al. [69].

Thermodynamic calculations

The Hakuba and Cedars calculations Gibbs free energy yield (∆G) are based on ∆G°_f and ∆H°_f values at 298 K, respective pH (10.7 and 11.9), and adjustment to the in situ temperatures (48 and 17 °C) through the Gibbs–Helmholtz equation [70]. The effect of pressure was approximated as described by Wang et al. [71]. For both Hakuba and The Cedars calculations, the glycine concentration (5.4 nM) was based on measurements from Hakuba. Formate, acetate, and NH₃ concentrations were based on respective measurements from Hakuba (8 µM formate, 4 µM acetate, and 2.9 µM NH₃) and The Cedars (6.9 µM formate [average of 6.777 and 7.079 µM measured on September 2017], 69.3 µM acetate [average of 69.601 and 68.967 µM measured on September 2017], and 1 µM NH₃ [below detection limit]). For Hakuba, the H₂ concentration measured in Hakuba drilling well #3 (DNA source) was used (201 µM H₂). For The Cedars, the highest detected H₂ concentration in Hakuba was used (664 µM H₂ in drilling well #1). See also Tables S1 and S2 and Supplementary Equations.

Metagenome sequencing, assembly, and binning

The filter was aseptically cut into 16 equal pieces using sterilized tweezers, and each piece was placed in the bead-beating tube (Lysing Matrix E tube; MP Biomedicals). After DNA extraction following the bead-beating method described previously [72], the 16 DNA samples were mixed and then stored at −80 °C until used. Sequence libraries were prepared with Nextera XT DNA Library Preparation kit (Illumina) with a genomic DNA fragment size ranging from 200 to 2000 bp. These libraries sequenced on HiSeq2500 sequencing platform (Illumina) with HiSeq Rapid SBS kit v2 (Illumina), generating paired-end reads up to 250 bp. The generated sequences were trimmed using Trimmomatic v0.33 [73] with a quality cutoff of 30, sliding window of 6 bp, and minimum length cutoff of 78 bp. The trimmed sequences were assembled using SPAdes v3.10.1 [74] with the “-meta” option and k-mer values of 21, 31, 41, 53, 65, and 77. The assembled contigs were binned using MaxBin2.2.1 [75, 76]. The completeness and contamination of each bin were checked using CheckM [77]. These bins were manually curated as described in our metagenomics study [40]. Genes were then annotated using Prokka v1.12 [78] and eggnog-mapper [79]. For interpretation and comparison of microbial metabolism, bin genomes were also constructed from public metagenomic data generated from The Cedars [3] (trimmed with sliding window of 6, quality cutoff of 20, and a minimum length of 68 bp through Trimmomatic v0.33, normalized using BBMap 36.99 (https://jgi.doe.gov/data-and-tools/bbtools/) with target and minimum coverages of 40 and 2, assembled using SPAdes v3.10.1 with the “-meta” option and k-mer values of 21, 33, 45, 55, 67, and binned through MaxBin2.2.1) and were then analyzed collectively.

Phylogenomic and phylogenetic analysis

For tree construction, sequences were aligned with MAFFT [80] v7.453 (default parameters) and trimmed using trimAl [81] v1.2rev59 (-gt 0.9) or BMGE v1.12 (-m BLOSUM30) [82]. For ribosomal protein trees, a concatenated alignment of universally conserved ribosomal proteins [83] was used. Protein sequences were retrieved by downloading the GTDB [84] database and predicting protein sequences using Prokka [78] 1.14 (-kingdom Bacteria/Archaea -rnammer -addgenes -mincontiglen 200). Maximum likelihood trees were calculated using IQ-TREE v2.1.3 using the LG [85] model and C20 mixture model with 1000 ultrafast bootstrap replicates (-m LG+C20+G+F -B 1000 -tbe). For ribosomal protein tree calculation with IQ-TREE, a universal distribution mixture (UDM) model with 64 components and LCLR transformation constructed based on the HOGENOM and HSSP databases (-m Poisson+UDM0064LCLR) [86], ultrafast bootstrap approximation (-B 1000), and SH-like approximate likelihood ratio test (-alrt 1000) were used instead. The number of components for the mixture model was selected as the maximum number of components that did not result in estimation of mixture weights close to zero, as indicated by IQ-TREE. The UDM model was chosen over the C60 mixture model often used in ribosomal protein tree calculation as it has been shown to have improved model fit and performance [86, 87]. The model that integrates both the HOGENOM and HSSP databases was used. Bootstrap values were recalculated using BOOSTER [88] (-tbe for IQ-TREE).

For glycine reductase phylogeny, sequence clustering was performing through CD-HIT [89] v4.8.1. For glycine reductase GrdB and sarcosine reductase GrdF, conserved motifs were predicted by first identifying fully conserved residues in the sequence cluster including the biochemically characterized Peptoclostridium acidaminophilum GrdF ((YxNx(6)GGE x(34,38) CGD x(27,35) GPxF[NF]AGRYG x(150,181) IHGGYDRx(6)[IP]x(4)PxD x(19,20) TTGTGTx(7)F x(12) [HILV])), then identifying fully conserved residues in the phylogenetic clusters that include GrdB from phyla known to perform the Stickland reaction (Firmicutes, Spirochaetes, and Synergistetes) subtracting any sequences clusters that contain the GrdF motif above (YxNx(6)GGE x(34,38) CGD x(27,35) GPxF[NF]AGRYG x(157,178) AHGGxD[QTAP] x(8) RV[IL]PxD x(19,20) TxGNxTxV)). Ancestral sequence reconstruction for GrdBE was performed using IQ-TREE (-asr), an alignment of glycine reductase sequences included in the concatenated tree (including one archaeal sequence that had mismatches and excluding proline reductases) (MAFFT with default parameters), and a tree rooted with the archaeal GrdBE-like sequence and D-proline reductase subunits PrdBA sequences as the outgroups. The pH preference of the reconstructed sequence was estimated using AcalPred [90].

Author contributions

MKN and RN designed and performed metagenomic, phylogenetic, and thermodynamic analyses, interpreted the data, and wrote the manuscript. ST performed sampling, DNA extraction, and cultivation. HM, AT, and KK performed metagenomic sequencing and metagenomic analysis. AI performed chemical measurements. SS supported chemical data collection. HT and YK designed the project, supervised sampling and cultivation, and supported manuscript preparation.

Data availability

The datasets generated during and/or analyzed during the current study are available in the National Center for Biotechnology Information (NCBI) under BioProject PRJNA453100 and BioSamples SAMN08978938-SAMN08978962.

Competing interests

The authors declare no competing interests.

Supplementary information

The online version contains supplementary material available at 10.1038/s41396-022-01197-9.
