Ribosome Stalling of N-Linked Glycoproteins in Cell-Free Extracts

Sean S Chung †, Erik J Bidstrup ‡, Jasmine M Hershewe §,∥,⊥, Katherine F Warfel §,∥,⊥, Michael C Jewett §,∥,⊥, Matthew P DeLisa †,‡,#,*
PMCID: PMC9764415  PMID: 36399685

Abstract

graphic file with name sb2c00311_0005.jpg

Ribosome display is a powerful in vitro method for selection and directed evolution of proteins expressed from combinatorial libraries. However, the ability to display proteins with complex post-translational modifications such as glycosylation is limited. To address this gap, we developed a set of complementary methods for producing stalled ribosome complexes that displayed asparagine-linked (N-linked) glycoproteins in conformations amenable to downstream functional and glycostructural interrogation. The ability to generate glycosylated ribosome–nascent chain (glycoRNC) complexes was enabled by integrating SecM-mediated translation arrest with methods for cell-free N-glycoprotein synthesis. This integration enabled a first-in-kind method for ribosome stalling of target proteins modified efficiently and site-specifically with different N-glycan structures. Moreover, the observation that encoding mRNAs remained stably attached to ribosomes provides evidence of a genotype–glycophenotype link between an arrested glycoprotein and its RNA message. We anticipate that our method will enable selection and evolution of N-glycoproteins with advantageous biological and biophysical properties.

Keywords: asparagine-linked glycosylation, cell-free protein synthesis, directed evolution, protein display technology, protein engineering, synthetic glycobiology

Introduction

Asparagine-linked (N-linked) protein glycosylation, the chemical modification of specific amino acid side chains with oligosaccharides termed glycans, is a conserved co- and post-translational modification (PTM) that occurs in all domains of life.1 It is one of the most abundant PTMs in nature and serves to expand the diversity of secretory and membrane proteins. Importantly, N-linked glycans are well-known to modulate functional and structural properties of proteins.2 The N-glycosylation process involves assembly of lipid-linked oligosaccharides (LLOs) bearing N-glycan structures that are subsequently transferred from the lipid carrier onto asparagine residues in acceptor proteins by an oligosaccharyltransferase (OST).

A major breakthrough in our ability to study and engineer N-glycosylation occurred when Aebi and co-workers functionally transferred the bacterial glycosylation machinery encoded by the Campylobacter jejunipgl locus into Escherichia coli cells, which do not natively perform protein glycosylation.3 Since this early pioneering work, diverse proteins of prokaryotic and eukaryotic origin have been N-glycosylated in engineered E. coli cells carrying the pgl glycosylation pathway4−6 or other heterologous glycosylation pathways.7,8 More recently, glycoengineered E. coli have been leveraged as source strains to provide cell-free extracts selectively enriched with protein glycosylation machinery, including OSTs and LLOs.9−12 Upon addition of cofactors and plasmid DNA encoding an acceptor protein of interest, these glyco-enriched cell-free extracts enable a one-pot reaction scheme for site-specific expression and glycosylation of target glycoproteins at relatively high titers.

With the advent of E. coli cell-based and cell-free methods for customizable protein glycosylation, it becomes possible to develop advanced peptide/protein display techniques such as phage, ribosome, and mRNA display for high-throughput screening of N-glycoprotein libraries. One representative example is the extension of phage display to include N-linked glycosylation based on the C. jejunipgl system.13 A key feature of this “glycophage” technology is the establishment of a physical coupling between the phenotype of the displayed glycoprotein (glycophenotype) and the corresponding genotype encoded in the phage genome. The resulting genotype–glycophenotype link was subsequently leveraged to select functional glycosylation sequons from libraries of randomized acceptor sequences.13

Protein display methods that are entirely cell-free, such as ribosome and mRNA display14, are attractive alternatives to phage display because they potentially enable larger libraries (>109) and greater diversity due to DNA library transcription occurring in vitro. However, while cell-free display methods have been widely used with great success, they have yet to be extended to N-linked glycoproteins with natural glycosidic bonds. This technology gap is most likely due to the fact that conventional in vitro translation systems, on which these methods depend for producing displayed proteins, are limited by their inability to coactivate efficient protein synthesis and glycosylation. For example, cell-free protein synthesis (CFPS) systems based on E. coli (e.g., S30 extract, PURE system) are incapable of making glycoproteins because these systems lack glycosylation machinery.15 Other commonly used eukaryotic CFPS systems (e.g., rabbit reticulocyte, wheat germ extracts) also cannot perform glycosylation because they lack microsomes.16 While glycosylation in eukaryotic CFPS systems can be introduced via microsome supplementation or enrichment,17 the resulting glycoprotein yields in these systems are often low due to the poor compatibility between the extract translational machinery and microsomal glycosylation machinery. Protein glycosylation in these microsomal vesicles is difficult to control or engineer and likely incompatible with protein display on ribosomes or mRNA due to the sequestration of glycoproteins inside the vesicles. Indeed, the glycophage display method described above was possible only because the processes of phage assembly and N-linked protein glycosylation could be harmonized in the periplasm of living E. coli cells.

In this study, we investigated the extent to which ribosome display is compatible with emerging methods for cell-free glycoprotein biosynthesis (CFGpS) based on extracts derived from glycoengineered E. coli that effectively couple transcription/translation with glycosylation.9,10 A prerequisite for selecting proteins from ribosome display libraries is the genotype–phenotype link, which is accomplished during in vitro translation by stabilizing a complex consisting of the ribosome, the mRNA, and the nascent, correctly folded polypeptide. To generate this crucial genotype–phenotype link, we combined two different cell-free protein glycosylation strategies with the 17 amino acid ribosome stall sequence (FSTPVWISQAQGIRAGP) derived from E. coli SecM (SecM17)18 that enables long-lived ribosome stalling of heterologous proteins of interest (POIs) and their encoding mRNAs in living E. coli cells and cell-free extracts.19,20 The resulting methods enabled production of glycosylated ribosome–nascent chain (glycoRNC) complexes that displayed several different N-linked glycoproteins in conformations that were sufficiently exposed to permit downstream functional and glycostructural interrogation. Importantly, mRNA transcripts encoding the displayed glycoproteins were found stably attached to stalled ribosomes both before and after biopanning, thereby providing the crucial physical linkage between an arrested glycoprotein and its RNA transcript, paving the way for future selection and evolution of N-linked glycoproteins with desirable properties.

Results and Discussion

Ribosome display of N-linked glycoproteins hinges on the generation of glycoRNC complexes (Figure 1). Therefore, we first investigated whether target acceptor proteins were amenable to N-linked glycosylation poststalling using a hybrid in vivo–in vitro approach. For the in-vivo step, expression of a POI–SecM17 fusion was performed in living E. coli cells from which 70S ribosomes were subsequently isolated. For the in vitro step, isolated 70S ribosomes were subjected to an in vitro reconstituted glycosylation system to install N-glycans on the SecM17-arrested POI. Importantly, we used a previously identified linker sequence between the POI and SecM17 that had sufficient length to fully expose stalled proteins outside the ribosome exit tunnel, rendering them available for functional interrogation.19 Our initial POI was the E. coli immunity protein, Im7, a globular 87-residue protein that is well-expressed in E. coli. While not a native glycoprotein, Im7 has been shown to tolerate N-glycan installation at numerous artificial DQNAT acceptor sites throughout its structure using both cellular and cell-free glycosylation systems based on the C. jejunipgl machinery.6 We specifically chose the Im7N58 mutant (where the superscript denotes the location of the asparagine residue), as it is efficiently glycosylated in vitro.6

Figure 1.

Figure 1

Open in a new tab

Cell-free glycoprotein display on ribosomes. A schematic of ribosome display for N-linked glycoproteins is shown. In the hybrid in vivo–in vitro approach, living E. coli cells are transformed with a plasmid for expressing glycoPOI–SecM17 fusions. Following 70S ribosome isolation, N-glycan installation on ribosome-stalled glycoproteins is performed in a subsequent in vitro glycosylation step. In the integrated CFGpS approach, plasmid DNA is used to prime a reaction mixture in which transcription, translation, and N-linked glycosylation occur in a single pot. Both approaches yield glycoRNC complexes, which are subjected to function-based affinity selection (i.e., binding to immobilized antigen) and/or glycosylation-based affinity selection (i.e., binding to immobilized antibody or lectin specific for the N-glycan). Bound complexes are dissociated by EDTA or specifically eluted with antigen or glycan, and the identities of bound glycoproteins are determined by sequencing RT-PCR products. This image was created with BioRender.

To confirm ribosome stalling of Im7N58–SecM17 fusions, we first isolated 70S ribosomes from E. coli cell lysates via sucrose cushion centrifugation. Western blot analysis demonstrated that only the Im7N58–SecM17 fusion but not Im7N58 lacking the SecM17 stall sequence was present in ribosome fractions, as judged by the absorbance profile at 254 nm (A254) and the sedimentation position (70S) (Supplementary Figure 1a). These results confirmed that coelution of Im7N58 with ribosomes depended on the SecM17 stall signal. Arrested expression of Im7N58–SecM17 on ribosomes did not significantly affect ribosomal composition, as evidenced by the similar protein profiles for ribosome preparations derived from cells expressing Im7N58 with or without SecM17 (Supplementary Figure 1b). Likewise, the growth rates of cells expressing Im7N58 with or without SecM17 during the induction period were indistinguishable relative to cells containing an empty expression vector (data not shown).

To create glycoRNC complexes, we hypothesized that 70S ribosome preparations derived from the in vivo step above could be used as purified acceptor substrates for an in vitro reconstituted glycosylation assay. To test this notion, RNC complexes displaying aglycosylated Im7N58–SecM17 were combined with purified PglB OST from C. jejuni (CjPglB) and solvent-extracted LLOs bearing the C. jejuniN-glycan (CjLLOs) (Figure 2a). Western blot analysis of the in vitro glycosylation reaction products was performed using an anti-FLAG antibody to detect the Im7N58–SecM17 protein and hR6 serum to specifically detect the C. jejuniN-glycan.21 A shift in the apparent molecular weight of Im7N58–SecM17 in the anti-FLAG immunoblot that corresponded to a similarly sized band detected in the hR6 immunoblot confirmed that ribosome-tethered Im7N58–SecM17 was nearly 100% glycosylated (Figure 2b). When CjPglB was omitted from the reaction, we observed no detectable glycosylation of ribosome-stalled Im7N58–SecM17, confirming that glycosylation of ribosome-stalled acceptor proteins was OST-dependent.

Figure 2.

Figure 2

Open in a new tab

Hybrid in vivo–in vitro strategy for generating and selecting glycoRNC complexes. (a) Schematic of hybrid strategy in which 70S ribosomes derived from living cells (in vivo) are isolated and subjected to cell-free glycosylation (in vitro). This image was created with BioRender. (b) Western blot analysis of 70S ribosome fractions derived from cells expressing Im7N58–SecM17 or DQNATscFv13-R4–SecM17 and subjected to in vitro glycosylation with (+) or without (−) CjPglB along with solvent-extracted CjLLOs. Blots were probed with anti-FLAG antibody to detect acceptor protein (top) and hR6 serum against the glycan (bottom). Markers for aglycosylated (g0) and singly glycosylated (g1) forms of acceptor protein are indicated at the right. Molecular weight (MW) markers are indicated at the left. Blots are representative of biological replicates (n = 2). (c) ColE7-binding activity measured for 70S ribosomes isolated from cells expressing Im7N58 or Im7N58–SecM17 with (+) or without (−) CjPglB along with solvent-extracted CjLLOs. 70S ribosomes from cells carrying empty plasmid served as a negative control. Data are averages of biological replicates (n = 3) ± SD. Statistical significance was determined by unpaired t test with Welch’s correction (*, p < 0.05; **, p < 0.01; ns, not significant). (d) Postselection detection of mRNA associated with ribosomes enriched via ColE7 biopanning. mRNA isolated from functionally selected ribosomes was subjected to RT-PCR with (+) or without (−) reverse transcriptase (RT). Results are representative of biological replicates (n = 2).

To demonstrate the modularity of our hybrid approach, we swapped the POI from Im7N58 to a single-chain Fv antibody specific for β-galactosidase modified with a DQNAT glycosylation tag at its N-terminus (DQNATscFv13-R4).22 Of note, previous studies confirmed that scFv13-R4 bearing a C-terminal DQNAT tag was glycosylated by the C. jejuni glycosylation machinery.4,9 Here the DQNATscFv13-R4–SecM17 construct was present in sucrose gradient fractions containing 70S ribosomes based on the A254 profile, sedimentation position, and Western blot analysis of the resulting sucrose gradient fractions (Supplementary Figure 2). Similar to Im7N58–SecM17, DQNATscFv13–R4-SecM17 was efficiently glycosylated in a CjPglB-dependent manner (Figure 2b), leading to the formation of glycoRNC complexes displaying the glycosylated scFv antibody. We next determined whether intact mRNA encoding the POI remained associated with glycoRNC complexes following functional selection. Specifically, a biopanning procedure was performed in which in vitro glycosylation reaction products were directly incubated in enzyme-linked immunosorbent assay (ELISA) plates coated with ColE7, a 60 kDa bacterial toxin that is inhibited by Im7 binding.23 Following extensive washing, strong antigen-binding activity was measured for stalled RNC complexes displaying glycosylated Im7N58–SecM17 that was comparable to that observed for aglycosylated Im7N58–SecM17 (Figure 2c), indicating that ribosome stalling of glycosylated Im7N58 was compatible with ColE7-binding activity. Upon verification of affinity capture, the bound glycoRNC complexes were dissociated with EDTA, and the ribosome-associated RNA, including stalled mRNA, was isolated from dissociated complexes. To detect the presence of mRNA, reverse transcription polymerase chain reaction (RT-PCR) was performed using primers specific for the Im7N58 gene sequence. By this method, we determined that RNA recovered from functionally selected glycoRNC complexes gave rise to clearly detectable amplicons corresponding in size to the full-length Im7N58 sequence (Figure 2d), which was confirmed by sequencing. In contrast, RT-PCR performed on RNA recovered from samples corresponding to Im758 lacking the SecM17 stall sequence produced no detectable amplicons, indicating that the SecM17 stall sequence is essential for functional selection of glycoRNC complexes. Collectively, these data confirmed that the model Im7N58 glycoprotein and its encoding mRNA were stably attached to stalled ribosomes, thereby creating the essential genotype–glycophenotype link required for library screening.

We also investigated an alternative strategy for generating glycoRNC complexes via an entirely cell-free procedure that circumvented the need for in vivo expression and purification of stalled 70S ribosome–POI complexes and supplementation of laboriously extracted/purified glycosylation components. We hypothesized that such an approach would be possible by integrating SecM-mediated translation arrest with a previously described CFGpS technology in which transcription and translation are coupled to N-linked glycosylation in a single pot9 (Figure 3a). Using Im7N58 as the POI, we generated a cell-free expression plasmid in which this acceptor protein was fused to the SecM17 stall sequence. In parallel, glycoengineered E. coli CLM24 cells were used to prepare S12 extracts that were selectively enriched with both CjPglB and CjLLOs.9 Our previous work showed that S12 extract can achieve higher glycosylation efficiencies than S30 extract due to its increased concentration of vesicle-bound glycosylation machinery.11 To generate glycoRNC complexes, batch-mode sequential CFGpS reactions were performed by priming glycoenriched extracts with plasmid DNA encoding Im7N58–SecM17 followed by isolation of 70S ribosomes by sucrose cushion centrifugation. Western blot analysis of ribosome fractions with anti-FLAG antibody and hR6 serum revealed efficient glycosylation of Im7N58–SecM17 on stalled ribosomes, with nearly 100% of the acceptor protein appearing as the g1 form in the anti-FLAG blot (Figure 3b). When S12 extracts were enriched with only CjLLOs but not CjPglB, there was no detectable glycosylation of Im7N58–SecM17 on stalled ribosomes. Importantly, the mRNA encoding SecM17-stalled Im7N58 was stably attached to ribosomes, as evidenced by the prominent amplicon generated via RT-PCR of ribosome-associated RNA (Figure 3c). Nearly identical results were obtained when CFGpS reactions were primed with plasmid DNA encoding a different POI, namely, an scFv antibody specific for human epidermal growth factor receptor 2 (scFv-HER2) that was modified at its C-terminus with a DQNAT glycosylation tag6,24 (Figure 3b,c). Using immobilized HER2 as the antigen, we selected glycoRNC complexes displaying glycosylated scFv-HER2DQNAT–SecM17 and observed that the encoding mRNA remained associated with these functionally selected glycoRNCs (Figure 3d). In contrast, no mRNA was detected for ribosome complexes prepared from CFGpS reactions primed with plasmid DNA encoding unfused scFv-HER2DQNAT, indicating that functional selection of glycoRNCs was dependent on SecM17.

Figure 3.

Figure 3

Open in a new tab

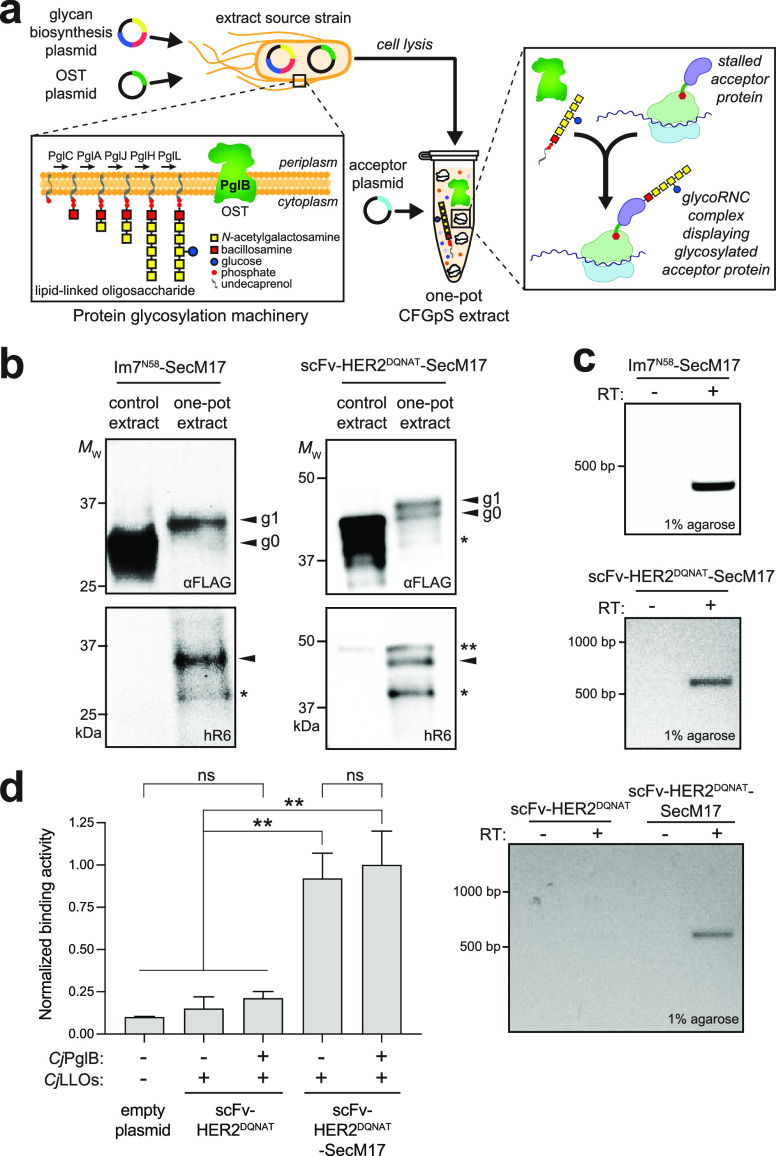

One-pot cell-free strategy for generating and selecting glycoRNC complexes. (a) Schematic of the one-pot strategy in which 70S ribosomes are derived from glycoenriched CFGpS extracts. This image was created with BioRender. (b) Western blot analysis of 70S ribosome fractions derived from CFGpS extracts coenriched with CjPglB and CjLLOs (one-pot) or enriched with CjLLOs only (control) that were primed with plasmids encoding Im7N58–SecM17 or scFv-HER2DQNAT–SecM17. Blots were probed with anti-FLAG antibody to detect acceptor protein (top) and hR6 serum against the glycan (bottom). Markers for aglycosylated (g0) and singly glycosylated (g1) forms of acceptor proteins are indicated at the right. The asterisk (*) denotes the degradation product, and the double asterisk (**) denotes the nonspecific product. Molecular weight (MW) markers are indicated at the left. Blots are representative of biological replicates (n = 2). (c) Preselection detection of mRNA associated with 70S ribosomes displaying glycosylated Im7N58–SecM17 or scFv-HER2DQNAT–SecM17. RT-PCR was performed with (+) or without (−) RT. (d, left) HER2-binding activity measured for 70S ribosomes isolated from CFGpS reactions primed with plasmid DNA encoding scFv-HER2DQNAT or scFv-HER2DQNAT–SecM17 with (+) or without (−) CjPglB. 70S ribosomes from cells carrying empty plasmid served as the negative control. Data are averages of biological replicates (n = 3) ± SD. Statistical significance was determined by unpaired t test with Welch’s correction (*, p < 0.05; **, p < 0.01; ns, not significant). (d, right) Postselection detection of mRNA associated with ribosomes enriched via HER2 biopanning. mRNA isolated from functionally selected ribosomes was subjected to RT-PCR in the presence (+) or absence (−) of RT. Results are representative of biological replicates (n = 2).

To expand the utility of our glycoprotein display method, we designed a one-pot cell-free bioconjugation strategy for displaying conjugate vaccine candidates on 70S ribosomes (Figure 4a). Cell-free bioconjugation is a recently described approach that leverages glycocompetent cell-free extracts for producing conjugate vaccines that retain native immunogenic structures.12 In this approach, cell-free extracts are coenriched with an OST and LLOs bearing heterologously expressed capsular polysaccharides (CPSs) or O-antigen polysaccharides (O-PSs). The glycoenriched extracts are then primed with plasmid DNA encoding a vaccine carrier protein such as non-acylated Haemophilus influenzae protein D (PD), yielding product proteins that are site-specifically glycosylated with CPS or O-PS antigens of interest.

Figure 4.

Figure 4

Open in a new tab

Display and selection of ribosome-stalled bioconjugate vaccine. (a) Schematic of the one-pot strategy for producing 70S ribosomes that display glycosylated vaccine carrier proteins. This image was created with BioRender. (b, top) Western blot analysis of 70S ribosome fractions derived from CFGpS extracts coenriched with CjPglB and FtLLOs (one-pot) or enriched with only FtLLOs (control) that were primed with plasmid DNA encoding DQNATPD–SecM17. A merged image of blots that were probed with anti-FLAG antibody to detect the acceptor protein (red) and hR6 serum against the glycan (green) is shown. Markers for aglycosylated (agly) and multiply glycosylated (gly) forms of acceptor proteins are indicated at the right. Western blots are representative of biological replicates (n = 2). (b, bottom) Preselection detection of mRNA associated with 70S ribosomes displaying glycosylated DQNATPD–SecM17 with (+) or without (−) RT. (c, top) FB11-binding activity measured for 70S ribosomes isolated from CFGpS reactions primed with plasmid DNA encoding DQNATPD–SecM17 with (+) or without (−) CjPglB. 70S ribosomes derived from cells carrying empty plasmid served as negative control. Data are averages of biological replicates (n = 3) ± SD. Statistical significance was determined by unpaired t test with Welch’s correction (*, p < 0.05; **, p < 0.01; ns, not significant). (c, bottom) Postselection detection of mRNA associated with ribosomes enriched viaFtO-PS-specific biopanning with FB11 antibody. mRNA was isolated from selected ribosomes corresponding to glycosylated (+) or aglycosylated (−) DQNATPD–SecM17 and subjected to RT-PCR. Results are representative of biological replicates (n = 2).

Here we integrated this cell-free vaccine expression technology with SecM-mediated stalling to engineer glycoRNC complexes that displayed a vaccine carrier protein modified with an O-PS antigen. We focused on PD because it has been shown to be a safe and effective conjugate vaccine carrier protein25 that can be efficiently glycosylated with the Francisella tularensis O-PS (FtO-PS) antigen in CFGpS.12 Here PD was modified at its N-terminus with a DQNAT acceptor motif and at its C-terminus with the SecM17 stall sequence. In parallel, glycoengineered E. coli CLM24 cells were used to prepare S12 extracts that were selectively enriched with CjPglB and LLOs bearing the FtO-PS antigen. Our previous work showed that such extracts are selectively enriched with these components.12 Next, batch-mode sequential CFGpS reactions were performed by priming these glycoenriched extracts with plasmid DNA encoding the DQNATPD–SecM17 construct. Isolation of 70S ribosomes and Western blot analysis were performed as described above but with antibody FB11, which specifically recognizes the FtO-PS antigen.26 Importantly, the CFGpS reaction mixture promoted efficient glycosylation of DQNATPD-SecM17 on stalled ribosomes with a ladderlike banding pattern (Figure 4b), which was similar to laddering seen previously for FtO-PS conjugates and arises from variable O-PS chain lengths generated by the Wzy polymerase.12 As above, the encoding mRNA was stably associated with glycoRNC complexes displaying stalled DQNATPD–SecM17 (Figure 4b). We also demonstrated glycan-based selection of RNC complexes displaying glycosylated DQNATPD–SecM17 using immobilized FB11 antibody, which preferentially enriched RNC complexes bearing the FtO-PS antigen over aglycosylated RNC complexes or empty ribosomes corresponding to DQNATPD that lacked the SecM17 stall sequence (Figure 4c). Importantly, the encoding mRNA remained associated with the enriched glycoRNCs (Figure 4c), indicating that ribosome-stalled conjugates could be directly selected based on their glyco-phenotype. In contrast, only a faint mRNA signal was detected for ribosomes prepared from CFGpS extracts that lacked CjPglB, confirming that glycan-based enrichment had occurred.

Collectively, the results of our study demonstrate that ribosome stalling is compatible with emerging methods for cell-free glycoprotein biosynthesis (CFGpS),9,10 enabling the display of several different N-linked glycoproteins on ribosomes in a manner that is compatible with downstream functional and glycostructural interrogation. While our work represents the first demonstration of ribosome stalling of N-linked glycoproteins, we note that phage display has previously been extended for displaying post-translationally modified proteins, including N-glycoproteins13 as well as phosphorylated and phosphopantetheinylated protein.27 A handful of reports have also described the use of phage or mRNA to display short peptides (5–33 residues) that were chemically modified by either a single mannose or a high-mannose glycan.28−30 In each case, the attachment was through a non-natural linkage, including formation of a disulfide bond between the side chain of a cysteine residue and 2-(3-nitropyridyl disulfide ethyl)mannopyranoside (Man-Npys),28 oxime ligation following oxidation of an N-terminal Ser/Thr residue,29 and installation of the unnatural amino acid homopropargylglycine that was “click”-glycosylated with Man9-azide through copper-assisted azide–alkyne cycloaddition (CuAAAC).30 In contrast, our method involved more natural N-glycan installation via OST-catalyzed glycosidic bond formation between the reducing-end sugar and the side chain of an asparagine residue.

An important facet of this work was the successful creation of a physical link between the ribosome-stalled glycoprotein and its encoding mRNA. Although not directly demonstrated here, this linkage will be crucial for future efforts focused on uncovering the functional and structural consequences of N-glycan installation as well as the selection and evolution of N-linked glycoproteins with desirable properties. The utility of our method for such applications will depend in part on whether the two underlying cell-free glycosylation strategies can install glycans onto acceptor sites that are located at internal locations within structurally complex proteins. In the present work, we showed glycosylation at an internal site engineered within Im7, which provides preliminary evidence for the ability to glycosylate proteins beyond easily accessible N- or C-terminal glycosylation tags. Our previous studies demonstrated that cell-free glycosylation methods could install N-linked glycans at three native glycosylation sites located internally within human erythropoietin (EPO)9 and at a variety of bespoke locations throughout the structure of bovine RNase A.6 These examples illustrate the ability of different cell-free glycosylation strategies to introduce glycans into complex protein structures in situ.

Display of N-linked glycoproteins on ribosomes stands alongside a growing list of screening and selection tools that are amenable to glycoprotein engineering. Besides the glycophage display methods discussed above, several other high-throughput genetic assays for N-linked glycosylation have been described including enzyme-linked immunosorbent assay (ELISA)-based detection of periplasmic N-glycoproteins,31 cell-surface display of N-glycans and N-glycoproteins,5,8 and a colony replica blotting strategy called glycosylation of secreted N-linked acceptor proteins (glycoSNAP).4,6 Collectively, these assays are enabling the creation and evaluation of an unprecedentedly large number of intact glycoproteins (>150 in one study alone6) for which the structure–activity relationships associated with N-glycan installation can be systematically catalogued or technologically exploited. Indeed, our demonstration of ribosome stalling for a conjugate vaccine candidate composed of an FDA-approved carrier protein and a pathogen-specific polysaccharide paves the way for studying and engineering the biological, biophysical, and immunological properties of this important class of new-to-nature glycoproteins.

Materials and Methods

Bacterial Strains and Plasmids

E. coli strain DH5α was used for cloning and maintenance of plasmids. E. coli strain BL21(DE3) was used for in vivo production of RNC complexes displaying different POIs and for production of ColE7H569A as described previously.6E. coli strain CLM24 was used for purification of the CjPglB enzyme and organic-solvent-based extraction of CjLLOs used for in vitro glycosylation as described previously.9 CLM24 was also used as the source strain for preparing cell-free extracts with selectively enriched glycosylation components as described previously.9 CLM24 is a glyco-optimized derivative of W3110 that carries a deletion in the gene encoding the WaaL ligase, thus facilitating the accumulation of preassembled glycans on undecaprenyl phosphate.7 All of the plasmids used in this study, including new plasmid constructions, are described in Supplementary Methods

Preparation of Ribosomes, OSTs, LLOs, and Immobilized Antigens

Ribosomes were isolated from soluble cell fractions or cell-free extracts using sucrose cushion centrifugation according to previously published procedures.19,20 Purification of CjPglB and organic solvent extraction of CjLLOs from E. coli membranes were both performed according to previously described protocols.15 Purification of ColE7 was performed according to standard Ni-NTA affinity purification. Each of these procedures is described in detail in Supplementary Methods.

Preparation of Crude S12 Extracts

CLM24 source strains were grown in 2× YTP (10 g/L yeast extract, 16 g/L tryptone, 5 g/L NaCl, 7 g/L K2HPO4, 3 g/L KH2PO4, pH 7.2). To generate CjLLO-enriched extract, CLM24 carrying plasmid32 pMW07–pglΔB for the C. jejuni glycan or pGAB2 for the FtO-PS## was used as the source strain. To generate one-pot extracts containing both CjPglB and CjLLOs, CLM24 carrying pMW07–pglΔB and pSF–CjPglB93232 was used as the source strain. After inoculation, the expression of CjPglB was induced at an Abs600 of 0.8 with l-arabinose to a final concentration of 0.2% w/v. After induction, protein expression was allowed to proceed at 30 °C to a density of Abs600 ∼ 3, at which point cells were harvested by centrifugation (5000g) at 4 °C for 15 min. All subsequent steps were carried out at 4 °C unless otherwise stated. Cells were harvested and washed twice using S12 buffer (10 mM Tris acetate, 14 mM magnesium acetate, 60 mM potassium acetate, pH 8.2). The pellet was then resuspended in 1 mL of S12 buffer per 1 g of cells. The resulting suspension was passed once through a EmulsiFlex-B15 high-pressure homogenizer (Avestin) at 20,000–25,000 psi to lyse cells. The extract was then centrifuged at 12,000g for 10 min to remove cell debris, and the supernatant was collected and incubated at 37 °C for 60 min with shaking at 250 rpm for the runoff reaction. Following centrifugation at 10,000g for 10 min at 4 °C, the supernatant was collected, flash-frozen in liquid nitrogen, and stored at −80 °C.

Cell-Free Glycosylation

For in vitro reconstituted glycosylation of E. coli cell-derived RNC complexes displaying Im7N58 or DQNATscFv13-R4, reactions were carried out in a 50 μL volume containing 3 μg of ribosome-stalled acceptor protein, 2 μg of purified CjPglB, and 5 μg of extracted LLOs in in vitro glycosylation buffer (10 mM HEPES, pH 7.5, 10 mM MnCl2, 0.1% w/v DDM). The reaction mixture was incubated at 30 °C for 16 h. For CFGpS, reactions were carried out in 1 mL reaction volumes in a 15 mL conical tube using a modified PANOx-SP system.33 The reaction mixture contained the following components: 0.85 mM GTP, 0.85 mM UTP, 0.85 mM CTP, 1.2 mM ATP, 34.0 μg/mL folinic acid, 170.0 μg/mL E. coli tRNA mixture, 130 mM potassium glutamate, 10 mM ammonium glutamate, 12 mM magnesium glutamate, 20 amino acids (each at 2 mM), 0.4 mM nicotinamide adenine dinucleotide (NAD), 0.27 mM coenzyme-A (CoA), 1.5 mM spermidine, 1 mM putrescine, 4 mM sodium oxalate, 33 mM phosphoenolpyruvate (PEP), 57 mM HEPES, 6.67 μg/mL plasmid, and 27% v/v cell lysate. Protein synthesis was carried out for 30 min at 30 °C, after which protein glycosylation was initiated by the addition of MnCl2 and DDM at a final concentration of 10 mM and 0.1% w/v, respectively, and allowed to proceed at 30 °C for 16 h. Isolation of ribosomes from in vitro reconstituted glycosylation and CFGpS reactions was performed as described above.

Characterization and Affinity Enrichment of GlycoRNCs

Western blot analysis and ELISA were performed according to standard protocols as described in Supplementary Methods. Affinity selection of ribosome complexes, mRNA isolation, and RT-PCR were performed as described previously.19 Each of these procedures is described in detail in Supplementary Methods.

Statistical Analysis and Reproducibility

All data were reported as average values with error bars representing standard deviation. Statistical significance was determined by unpaired t test with Welch’s correction (*, p < 0.05; **, p < 0.01; ns, not significant). All graphs were generated using Prism 9 for MacOS version 9.2.0.
