Otopathologic and Computed Tomography Correlation of Internal Auditory Canal Diverticula in Otosclerosis

Dawson Wells 1,2,*, Renata M Knoll 1,2,*, Elliott Kozin 1,2,*, Jenny X Chen 1,2, Katherine L Reinshagen 3, Hinrich Staecker 4, Hugh D Curtin 3, Michael J McKenna 5,**, Joseph B Nadol Jr 1,2, Alicia M Quesnel 1,2
PMCID: PMC9771591  NIHMSID: NIHMS1825277  PMID: 36075107

Abstract

Introduction:

Internal auditory canal (IAC) diverticula, also known as IAC cavitary lesions or anterior cupping of the IAC, observed in otopathologic specimens and high-resolution computed tomography (CT) scans of the temporal bone are thought to be related to otosclerosis. Herein, we examined the utility of CT scans in identifying diverticula and determined whether IAC diverticula are associated with otosclerosis on otopathology.

Methods:

105 consecutive specimens were identified from the National Temporal Bone Hearing and Balance Pathology Resource Registry. Inclusion criteria included the availability of histological slides and post-mortem specimen CT scans. Exclusion criteria included cases with severe post-mortem changes or lesions causing bony destruction of the IAC.

Results:

Ninety-seven specimens met criteria for study. Of these, 42% of the specimens were from male patients and the average age of death was 77 years old (SD=18). IAC diverticula were found in 48 specimens, of which 46% were identified in the CT scans. The mean area of the IAC diverticula was 0.34mm2. The sensitivity and specificity of detecting IAC diverticula based on CT were 77% and 63% respectively. Overall, 27% of specimens had otosclerosis. Histologic IAC diverticula were more common in specimens with otosclerosis than those without (37.5% vs 16%, p=0.019). Cases with otosclerosis had a greater mean histological diverticula area compared to non-otosclerosis cases (0.69 mm2 vs 0.14 mm2, p=0.001).

Conclusion:

IAC diverticula are commonly found in otopathologic specimens with varied etiologies, but larger diverticula are more likely to be associated with otosclerosis. The sensitivity and specificity of CT scans to detect IAC diverticula are limited.

Keywords: otosclerosis, otopathology, temporal bone pathology, conductive hearing loss, sensorineural hearing loss, diverticula, apple bite

Introduction

Otosclerosis is a common cause of acquired hearing loss and is characterized by abnormal remodeling of endochondral bone in the otic capsule.1–3 Typically, otosclerosis presents from the third to fifth decade of life with conductive hearing loss (CHL),2,4,5 which is caused by spreading of the lesion across the stapedial annular ligament that results in fixation the stapes (fenestral otosclerosis).1–3 However, it may also surround the cochlea and parts of the labyrinth (cochlear otosclerosis), causing mixed or sensorineural hearing loss.6,7

The estimated incidence of clinical otosclerosis in the Caucasian population is about 0.1%, though postmortem histological evidence in individuals without clinical symptoms have been reported in up to 11%.8 Histologically, otosclerosis consists of islands of bony remodeling with enlarged pseudovascular spaces, highly acidophilic new bone deposition, increased cellularity and occasionally osteoclasts.4,9 Even though these histological changes are most commonly located along the area anterior to the oval window, otosclerosis have also been reported in other locations of the inner ear, such as the round window, cochlear apex, cochlear aqueduct, semicircular canals, within the stapes footplate and anterior wall of the internal auditory canal (IAC).1 In fact, several small histologic case series have referred to this latter finding, also known as IAC diverticula, as a form of “cavitary otosclerosis”.10–12 At our institution, the anterior IAC diverticula is sometimes referred to as the “apple bite” lesion due to the erosive appearance in the anterior canal wall.

There are several tools for evaluating otosclerosis clinically, including otoscopy, tuning forks, behavioral audiometry, and imaging. Although the accuracy of diagnosing otosclerosis without high resolution temporal bone (TB) CT scan is quite high, this is the imaging modality of choice when imaging is included in the preoperative evaluation of otosclerosis.1,2,13 Further, CT scans may be helpful in determining the extent of the disease.1,2,13 Commonly used imaging findings for otosclerosis diagnosis include changes in the width of the oval window and sclerotic or hypodense foci on or around footplate, thickening, irregular or hypodense footplate and demineralized areas in temporal bone.14–18 Additionally, the aforementioned IAC diverticula has been also described in CT scans of patients with otosclerosis19–22 and suggested to be related to the severity of the disease.23 A recent otopathological study by Muelleman et al.24 found that when otosclerosis involved the IAC, there was a concomitant IAC diverticula in 70%. However, IAC diverticula have been also described in high resolution CT scans of patients without radiographic evidence of fenestral or retrofenestral otosclerosis20, and even reported in histologically normal temporal bones from subjects with normal hearing.24

Taken together, while these lesions have been identified in both otopathology specimens and CT scans, their etiology, prevalence and clinical implications are not completely understood. Previous otopathological studies on IAC diverticula have been largely based in small cohorts10–12, or limited to cases with known IAC otosclerosis.24 Additionally, the sensitivity and specificity of IAC diverticula as a radiologic marker of otosclerosis has never been specifically explored. Thus, this study aimed to (1) determine whether IAC diverticula are associated with otosclerosis on otopathology and (2) compare TB histologic sections and CT scans to evaluate the sensitivity and specificity of CT scans in identifying diverticula.

Methods

Subjects

The National Temporal Bone Hearing and Balance Pathology Resource Registry was searched for cases. One hundred and five consecutive temporal bone specimens from the Massachusetts Eye and Ear Otopathology Laboratory collection were identified. The inclusion criteria were the availability of histologic slides and CT scans. The exclusion criteria were severe post-mortem changes or bony destruction of the IAC due to pathology, such as benign or malignant tumors.

Histological Methods

Temporal bones were prepared via fixation in formalin, decalcification in ethylenediaminetetraacetate (EDTA) or trichloroacetic acid (TCA), dehydration in alcohols, and embedment in celloidin. Axial sections were cut 20 μm thick, and every 10th section was stained with hematoxylin and eosin (H&E) and mounted on a glass slide.25 Slides were then examined using light microscopy for otosclerosis and IAC diverticula. Otopathology raters were blinded to the clinical history. Two otopathology raters reviewed together and reported consensus results. Otosclerosis was diagnosed if there was any histologic evidence of the disease,9 including early or mild otosclerosis. Diverticula was defined as any cavitary lesion – regardless of size – on the anterolateral side of the IAC. Size was measured by identifying the slide with a diverticulum’s largest cross-sectional area and measuring that area using ImageJ software (ImageJ version 1.51; The National Institutes of Health, Bethesda, MD; available at: http://imagej.nih.gov/ij/).

CT Scan Evaluation

High resolution CT imaging (40-slice MDCT SOMATOM Sensation; Siemens, Erlangen, Germany; 64-slice MDCT Discovery 750 HD, General Electric, Milwaukee, WI) of the TBs was performed after extraction and prior to histologic preparation. Images were obtained as follows: 40-slice MDCT scanner with 120 kVp and 320 mAs, 0.6 mm slice thickness with 0.1 mm overlap; 64-slice MDCT with 120 kVp, 10 mAs, 0.6 mm slice thickness with 0.3 mm overlap. CT scans were then reviewed retrospectively by a neuroradiologist who was blinded to the histologic evaluations. Diverticula were defined as any low-density outpouching on the anterolateral wall of the IAC, regardless of size.

Statistical Analysis

To evaluate the efficacy of CT scanning in detecting IAC diverticula, sensitivity and specificity values were calculated. Histology was used as a reference for the “true presence” or “true absence” of IAC diverticula. A chi-squared test of independence was used to evaluate the correlation between IAC diverticula presence (determined histologically) and otosclerosis. The mean histological diverticula area of case with and without otosclerosis was compared using the Mann-Whitney U test. A p-value <.05 was considered statistically significant.

Results

Demographics

Ninety-seven out of 105 TB specimens met the inclusion and exclusion criteria. Eight TBs were excluded due to severe post-mortem artifacts or bony destruction of the IAC. The mean age of death was 77 years old (SD ±18) and 42% of TB’s came from male patients.

Histopathology

There were 48 cases (49%) with IAC diverticula present and 49 cases (51%) with diverticula absent (Table 1). The mean diverticula area was 0.34mm2 (SD: ±0.60, range: 0.02–3.07mm2). Photomicrographs of horizontal sections of TBs from representative cases are shown in Figures 1–3. Histological evidence of otosclerosis was found in 26 out of the 97 specimens (27%).

Table 1.

IAC diverticula in cases with and without otosclerosis

IAC diverticula on histology IAC diverticula on CT review
Present Not Present Total Present Not Present Total
Otosclerosis
  Present 18 8 26 13 13 26
  Not present 30 41 71 32 39 71
  Total 48 49 97 45 52 97
Open in a new tab

IAC, Internal auditory canal; CT, Computed tomograpghy

Figure 1. Representative CT and temporal bone histologic sections illustrating patients with an IAC diverticulum (yellow arrow).

Figure 1.

Open in a new tab

(A, B) A left temporal bone from a 58-year-old male without otosclerosis. (C, D) A left temporal bone from a 91-year-old female with otosclerosis(*).

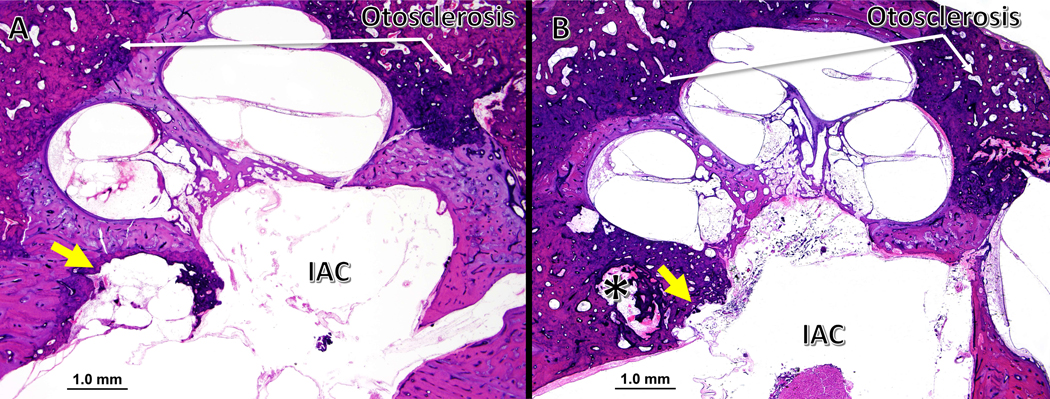

Figure 3. IAC diverticula in temporal bones with otosclerosis.

Figure 3.

Open in a new tab

(A) A right temporal bone from a 91-year-old female with clinical and histological evidence of otosclerosis. There is a large diverticulum (yellow arrow) completely surrounded by a thin layer otosclerotic bone. (B) A right temporal bone from an 89-year-old male, also with clinical and histological diagnosis of otosclerosis. There is a much larger otosclerotic foci involving the cochlea, with a shallower diverticulum (yellow arrow). An additional cavitary lesion (*) is adjacent to the IAC diverticulum, and associated with the same focus of otosclerosis.

In patients with histologically identified IAC diverticula, the rate of otosclerosis was 37.5%, which was significantly higher than the rate of 16% for those without diverticula (chi squared test of independence, p=0.019). Of all patients with diverticula identified histologically, those with concurrent otosclerosis typically had larger diverticula (Mann-Whitney U test, p=0.001). The diverticula mean area for cases with otosclerosis was 0.69 mm2 (SD ±0.88 mm2), whereas non-otosclerosis cases had a mean area of 0.14 mm2 (SD ±0.13 mm2) (Figure 4).

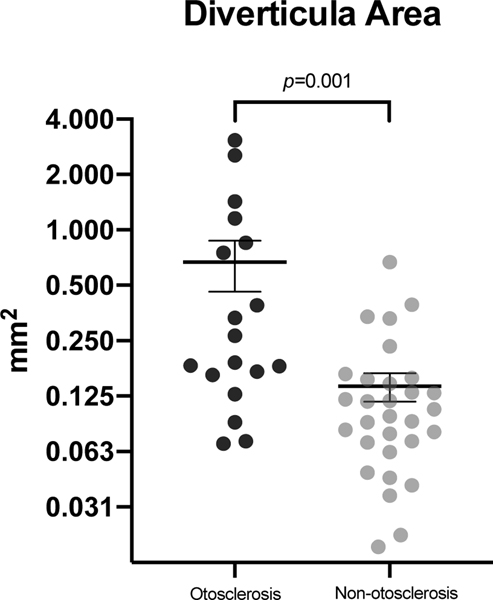

Figure 4. Scatter plot with diverticula area in otosclerosis and non-otosclerosis cases.

Figure 4.

Open in a new tab

Cases with otosclerosis had a greater mean diverticula area compared to non-otosclerosis cases (p=0.001). The horizontal lines and error bars represent the mean and standard error of the mean, respectively.

CT Imaging

CT review identified 45 patients (46%) with diverticula, of which 70% had evidence of IAC diverticula on histology. The sensitivity and specificity of identifying IAC diverticula on CT for specimens with histologically confirmed IAC diverticula was 77% and 63%, respectively (Table 2). Thirteen out of the 45 cases with diverticula identified on CT review had histological evidence of otosclerosis (Table 1). The sensitivity and specificity of CT in identifying IAC diverticula that were associated with otosclerosis was 50% and 55%, respectively. The mean histological diverticula area for those patients with otosclerosis that had diverticula identified by CT was 0.65 mm2 (SD ±0.85 mm2), which was significantly greater than those without otosclerosis (mean= 0.13 mm2, SD ±0.15 mm2; Mann-Whitney U test, p<0.001).

Table 2.

Diagnostic efficacy of CT scan in identifying diverticula

Statistic Estimate 95% Confidence Interval
Sensitivity 77.08 62.69 – 87.97
Specificity 63.27 48.29 – 76.58
Open in a new tab

Discussion

Our study identified IAC diverticula in 49% of histologic specimens, though there was variability in shape and size. In our study, CT did not appear to be a sensitive or specific modality for detecting IAC diverticula, especially when the diverticula were small. However, cases with diverticula on CT scan and concurrent otosclerosis presented with larger diverticula size on histology compared to those without otosclerosis. Also, the rate of otosclerosis in specimens with IAC diverticula in the histopathological analysis was significantly higher than the rate in the control group without diverticula.

Previous radiological studies have already linked these cavitary lesions on the anterior wall of the IAC to otosclerosis.19–22,26 In a retrospective study by Puac et al.,21 35% of cases with otosclerotic lesions were reported to have a cavitary lesion. In another prospective study by Wang et al.26, IAC diverticula was significantly more frequent in both fenestral and retrofenestral otosclerosis ears, with an incidence of 39.3%. Their results are consistent with our findings. However, our study also showed that the presence of IAC diverticula on imaging is not sensitive nor specific enough to diagnose cases with otosclerosis, as they may be still present in normal ears or associated with other pathologies. Additionally, our findings suggest that the presence of small IAC diverticula on imaging is less likely to be associated with otosclerosis.

Other studies have suggested that these cavitary lesions may represent a normal anatomic variant.13,27 In another recent study by Pippin et al.20, IAC diverticula were usually described as an isolated CT scan finding, and rarely occurred alongside otosclerosis, which conflicts with our findings. One possible explanation for this discrepancy is that their study was entirely based on CT scans rather than histologic slides to identify diverticula,20 and small diverticula were probably missed. Although there was variability in IAC diverticula shape and size in our study, we provide evidence of an association between large IAC diverticula and otosclerosis.

There are limitations that should be considered when interpreting the results of this study. Although the present study is among the largest otopathological study comparing randomly selected cases with and without IAC diverticula, it is important to consider that individuals with severe hearing or balance disorders are more motivated than other members of the population to donate their TBs for scientific study, leading to a skewed subject pool. Therefore, we cannot infer the population-wide prevalence of IAC diverticula from this current study. Additionally, even though audiometric evaluation was not assessed in our study, conclusions on how diverticula could affect hearing in our sample would likely be confounded by the higher rate of hearing loss and diverse otological histories from patients who donate their TBs. In fact, recent studies have failed to demonstrate a relationship between the presence and/or size of an IAC diverticulum and the degree of hearing loss, suggesting that hearing loss in this population may be a product of sampling bias.21,28 Nevertheless, further studies with a healthy control group are needed to better understand how IAC diverticula may influence on hearing.

Taken together, our study supports the notion that while IAC diverticula may be more commonly associated with otosclerosis, they are not pathognomonic. Also, even though CT scan does not appear sensitive or specific modality to identify IAC diverticula in our study, the presence of a diverticulum on CT, particularly when large, may be an indicator, but not a definitive marker, of otosclerosis. Nevertheless, we suggest that TB CT scan evaluations include a survey for IAC diverticula, particularly when ordered in the setting of clinical suspicion for otosclerosis.

Conclusion

Histopathologic analysis of human TBs indicates that IAC diverticula, although not pathognomonic, are more commonly found in the setting of otosclerosis, especially when large. While the sensitivity and specificity of CT scans to detect IAC diverticula is limited, identification of a large IAC diverticula may be an indicator of otosclerosis.

Figure 2. IAC diverticula in temporal bones without otosclerosis.

Figure 2.

Open in a new tab

(A) A left temporal bone from a 88-year-old male with a large IAC diverticulum. (B) A smaller, more rounded diverticulum is seen in the right temporal bone from a 90-year-old female.

Funding:

This work was supported by a grant from the National Institutes of Health (NIDCD U24DC013983).

Disclosures are listed below:

Jenny Chen: Grace Medical (patent pending)

Elliott Kozin: Desktop Metal (scientific advisor), Grace Medical (patent pending)

Hinrich Staecker: MedEl (surgical advisory board), Rescue Hearing (shareholder)

Michael McKenna: Akouos Inc (co-founder and CMO)

Alicia Quesnel: Frequency Therapeutics (sponsored research agreement), Grace Medical (sponsored research agreement, patent pending), Alcon (consulting)

Footnotes

No authors have direct conflicts of interest.
