Skip to main content
NCBI home page
ACS AuthorChoice logoLink to ACS AuthorChoice
. 2022 Nov 14;61(47):18873–18882. doi: 10.1021/acs.inorgchem.2c02709

Postsynthetic Modification of NU-1000 for Designing a Polyoxometalate-Containing Nanocomposite with Enhanced Third-Order Nonlinear Optical Performance

Yangdan Pan †, Soheila Sanati ‡, Marzieh Nadafan §, Reza Abazari ‡,*, Junkuo Gao †,*, Alexander M Kirillov ∥,*
PMCID: PMC9775467  PMID: 36375112

Abstract

graphic file with name ic2c02709_0008.jpg

For the advancement of laser technologies and optical engineering, various types of new inorganic and organic materials are emerging. Metal–organic frameworks (MOFs) reveal a promising use in nonlinear optics, given the presence of organic linkers, metal cluster nodes, and possible delocalization of π-electron systems. These properties can be further enhanced by the inclusion of solely inorganic materials such as polyoxometalates as prospective low-cost electron-acceptor species. In this study, a novel hybrid nanocomposite, namely, SiW12@NU-1000 composed of SiW12 (H4SiW12O40) and Zr-based MOF (NU-1000), was assembled, completely characterized, and thoroughly investigated in terms of its nonlinear optical (NLO) performance. The third-order NLO behavior of the developed system was assessed by Z-scan measurements using a 532 nm laser. The effect of two-photon absorption and self-focusing was significant in both NU-1000 and SiW12@NU-1000. Experimental studies suggested a much superior NLO performance of SiW12@NU-1000 if compared to that of NU-1000, which can be assigned to the charge-energy transfer between SiW12 and NU-1000. Negligible light scattering, good stability, and facile postsynthetic fabrication method can promote the applicability of the SiW12@NU-1000 nanocomposite for various optoelectronic purposes. This research may thus open new horizons to improve and enhance the NLO performance of MOF-based materials through π-electron delocalization and compositing metal–organic networks with inorganic molecules as electron acceptors, paving the way for the generation of novel types of hybrid materials for prospective NLO applications.

Short abstract

A new SiW12@NU-1000 nanocomposite was prepared via a postsynthetic modification of the NU-1000 framework with SiW12 (H4SiW12O40) polyoxometalate. After complete characterization, the NLO performance of the obtained hybrid composite was studied by the Z-scan technique using a Ng:YAG laser at 532 nm, revealing a significant enhancement in the NLO performance of NU-1000 upon the inclusion of polyoxometalate. This work broadens the application of MOFs as promising matrices for hybrid nanomaterials with remarkable NLO properties.

1. Introduction

The third-order NLO (nonlinear optical) materials have attracted attention in various fields including harmonic generators, electro-optical signal processing, optical limiting and communications, saturable absorbers, lasers, optical switching, ultrafast photonics, and two-photon photodynamic therapy.1−3 In this regard, the development of novel third-order NLO materials with improved performance is of crucial significance.4,5 A number of strategies have been adopted to boost the third-order NLO susceptibility, with examples including the introduction of additional organic moieties with delocalization of electrons,6,7 semiconductor doping of glasses,8,9 and application of metallic nanoparticles to enhance surface plasmons.10,11 Despite a long optical response time (pico-nanoseconds), the highest third-order NLO susceptibility (χ(3)(ω)) is typically observed for inorganic NLO materials.9,12,13 However, the optical response time of polymeric and π-conjugated organic NLO materials lies in the femtosecond range in spite of their lower χ(3)(ω) values.14−16 Numerous applications of NLO materials have motivated the research toward deep understanding of possible relationships between optical signals and chemical structures, ultimately aiming to find novel substances with a supreme nonlinear optical performance.

As a prominent class of crystalline compounds, metal–organic frameworks (MOFs) feature porous structures constructed from metal cations or clusters and organic linking ligands.17−20 This class of materials has attracted a colossal attention in many fields, owing to their structural and chemical tunability, high surface area, controllable morphologies, multiple active sites, adjustable porous structures, and variable chemical functionalities.21−25 Because MOFs can feature π bonding in their structures, the electron transfer between the organic ligands and metals can significantly enhance the NLO effect.26−29 To further improve the NLO performance of these materials, the charge transfer can be tuned by the introduction of strong electron-acceptor/donor groups so that the energy gap can decline by reinforcing the resulting conjugated systems.30−34 Among a variety of MOFs, NU-1000 ([Zr6(μ3-OH)4(μ3-O)4(OH)4(H2O)4(μ8-TBAPy)2], Scheme 1) has been regarded as an ideal NLO material because of a diversity of features, which include good stability, high size of pores for postsynthetic modifications, tunable electronic structure with π-conjugated organic linkers, large NLO coefficient, and narrow linear adsorption.35−38 The application of MOFs in the NLO field is, however, accompanied by several limitations such as insufficient thermostability and optical transparency, which can potentially be overcome by blending MOFs with other materials to generate hybrid composites.39,40

Scheme 1. Schematic Depiction of the Preparation of the SiW12@NU-1000 Nanocomposite.

Scheme 1

Open in a new tab

However, the NLO performance of MOF composites has been rarely investigated. Given the presence of pores and large voids in the structures of MOFs, various species can be incorporated into frameworks to improve the NLO behavior. Polyoxometalates (POMs) are an example of stable41−43 and low-cost inorganic metal-oxygen clusters, which can be considered as ideal acceptors of electrons from organic moieties, particularly due to elevated metal content with high oxidation states. Some prior studies have indicated a proper NLO performance of POMs, which can be attributed to the presence of clusters with ideal electron-accepting capability.44−46 Electron transfer is a vital process in the determination of the NLO behavior of materials.47,48 An interesting example concerns a significant enhancement in the NLO properties of a composite comprising a planar binuclear Co-phthalocyanine and a polyoxometalate anion, [SiW12O40]4–.49

With a motivation based on the abovementioned explanations, the principal objectives of this work consist in (i) the assembly of a hybrid nanocomposite between NU-1000 and SiW12 (H4SiW12O40) polyoxometalate, and (ii) the characterization and detailed investigation of the NLO behavior of the generated SiW12@NU-1000 nanomaterial. Hence, here, we report the first example of the NU-1000-based nanocomposite (SiW12@NU-1000) that bears POM and features a remarkable nonlinear optical performance. Following the analysis of literature data, the present work also opens up the application of hybrid MOF-POM composites in the NLO field.

2. Experimental Section

2.1. Preparation of the SiW12@NU-1000 Nanocomposite

NU-1000 was obtained according to a previous report (see the SI for details).50 The stages for the synthesis of NU-1000 and SiW12@NU-1000 nanocomposites are illustrated in Scheme 1. Briefly, 0.2 g of NU-1000 and 0.08 g of H4SiW12O40·xH2O (Aldrich, 99.8%) were placed into a glass bottle (200 mL volume), followed by the addition of 100 mL of dimethylformamide (DMF), 5 mL of EtOH, and ultrasonic treatment for 15 min. The obtained mixture was then kept reacting at ∼115 °C for 12 h. At the end of the reaction, the formed solid product was isolated and washed with DMF and EtOH four times and dried in an oven at 60 °C to produce the SiW12@NU-1000 nanocomposite with a molar ratio of ∼1:3 between its two components. For equipment used for the characterization of SiW12@NU-1000 and investigation of its NLO properties, see the Supporting Information (SI).

3. Results and Discussion

3.1. Characterization of SiW12@NU-1000

Field emission scanning electron microscopy (FE-SEM) and transmission electron microscopy (TEM) were used for morphological characterization. As illustrated in Figure 1a,d, the synthesized NU-1000 precursor possesses a uniform rodlike morphology with a controlled length of ∼1 μm. Figure 1b,c represent the FE-SEM images of the SiW12@NU-1000 composite in two different resolutions, revealing a rodlike morphology similar to that of the NU-1000 precursor. The TEM image (Figure 1e) shows the size of the SiW12@NU-1000 composite with a diameter of ∼150 nm and a length of ∼1.5 μm. Also, the elemental mappings of SiW12@NU-1000 were conducted (Figure 2), disclosing a uniform distribution of C, O, Zr, Si, and W and demonstrating successful incorporation of SiW12 into NU-1000. Besides, the Energy-dispersive X-ray spectroscopy results (three-point average) showed that the contents of C, O, Zr, Si, and W elements are 34.59, 43.13, 17.05, 0.84, and 3.72 wt %, respectively. A relatively low quantity of Si and W can be explained by the presence of SiW12 in the pores of NU-1000.

Figure 1.

Figure 1

Open in a new tab

FE-SEM images of NU-1000 (a) and SiW12@NU-1000 nanocomposites in two different resolutions (b,c) and TEM images of NU-1000 (d) and SiW12@NU-1000 nanocomposite (e).

Figure 2.

Figure 2

Open in a new tab

Elemental mapping of the SiW12@NU-1000 nanocomposite.

The Fourier transform infrared (FT-IR) spectra of the precursors (SiW12, NU-1000) and nanocomposite (SiW12@NU-1000) are represented in Figure 3a. In the FT-IR spectrum of SiW12@NU-1000, the broad bands with some shoulders with maxima at 1600 and 1478 cm–1 correspond to the νas and νs vibrations of carboxylate groups and the ν(C=C) vibrations of aromatic rings of the linker in NU-1000.20 In SiW12@NU-1000, the bands in the range of 600–1100 cm–1 are in agreement with those of the SiW12 sample. The bands at 1095, 950, and 800 cm–1 are ascribed to stretching vibration modes of Si–O, W=O, and W–O–W, respectively.51,52 These results further confirm that the SiW12@NU-1000 composite was successfully synthesized.

Figure 3.

Figure 3

Open in a new tab

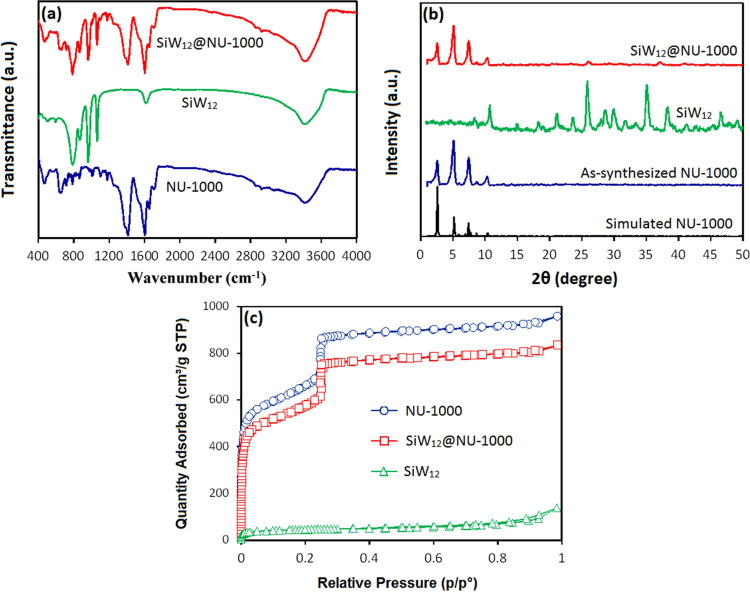

(a) FT-IR spectra, (b) PXRD patterns, and (c) N2 adsorption–desorption isotherms of studied materials.

The powder X-ray diffraction (PXRD) patterns of NU-1000, SiW12, and SiW12@NU-1000 are shown in Figure 3b. The diffraction peaks of the as-synthesized NU-1000 perfectly match those simulated from the crystal structure of this compound, thus confirming the structure and purity of the obtained sample. In the range of 2–12°, the SiW12@NU-1000 composite reveals the diffraction peaks similar to those of the as-synthesized NU-1000, thus confirming that the crystalline structure of NU-1000 is retained after the SiW12 incorporation. The SiW12 diffraction peaks in the PXRD pattern of SiW12@NU-1000 are not visible as POM moieties occupy the pores of NU-1000 and are not present on the surface of MOF. These results are in agreement with the related literature data.53−57 The characterization by PXRD can also be affected by the crystallinity decline of SiW12 when incorporated into SiW12@NU-1000. However, the diffraction peaks of both components were observed in the PXRD pattern of the physical mixture of SiW12 and NU-1000 (Figure S1, SI). In addition, it is clear from the SEM images and elemental mapping (Figures S2 and S3) that in the physical mixture of H4SiW12O40·xH2O with NU-1000 (1:3) obtained by grinding, SiW12 stays on the surface of NU-1000 and its morphology is completely different if compared with the nanocomposite sample. Thus, because POM is not seen on the composite’s surface, it should be present inside the pores. In the PXRD pattern, there is a weak intensity peak at ∼25.5° that corresponds to SiW12, which further supports the incorporation of SiW12 into SiW12@NU-1000. The nitrogen adsorption–desorption isotherms (Figure 3c) were used to investigate the surface area, microporous volume, and total pore volume of NU-1000, SiW12, and SiW12@NU-1000. An obvious phenomenon can be observed for a porous composite material, wherein the N2 absorption by SiW12@NU-1000 is slightly below that of NU-1000 and significantly superior if compared to SiW12. A decrease in the N2 absorption by SiW12@NU-1000 is due to a blockage of the pores of NU-1000 that is caused by substantial incorporation of SiW12 (up to ∼30 mol %). The pore sizes of NU-1000 are 3.3 and 1.3 nm,58 while the maximum size of SiW12 is 1.043 nm (CCDC: 903574), thus enabling a good fitting of SiW12 into the pores of NU-1000. Besides, the pore volume of NU-1000 (1.65 cm3 g–1) decreases in the composite (1.29 cm3 g–1). Such a 22% decrease in the pore volume confirms the encapsulation of POM in the pores of NU-1000. Any significant structural change in NU-1000 is not observed after loading it with SiW12.

Also, we synthesized a sample of NU-1000 according to the protocol of composite formation but in the absence of SiW12. As shown in Figure S4, NU-1000’s surface area essentially remained unaltered (2137 vs 2135 m2 g–1) and the solvent and temperature had no effect on NU-1000. Therefore, under the conditions of nanocomposite synthesis, there is no decomposition of NU-1000 or appreciable change in its surface area. In addition, after the synthesis of the composite in the presence of SiW12, the diffraction peaks of NU-1000 are preserved (Figure 3b). Thus, a slight decrease in the surface area of SiW12@NU-1000 if compared to the parent MOF is related to the presence of SiW12.

3.2. NLO Properties

The Z-scan method has been widely employed to explore the NLO (nonlinear optical) behavior of materials.59 The OA (open-aperture) and CA (closed-aperture) modes were used to perform the Z-scan analyses with a previously outlined setup and then to measure NLO.60,61 Overall, a constant wave Ng:YAG DPSS laser (diode-pumped solid-state laser) having a 532 nm wavelength was used as the light source, and the beams were concentrated utilizing the 19 cm lens. To scan the samples, a transition stage was monitored by a PC with the ability to transfer to the positive and negative sides of the Z = 0 axis in every scan. Preparation of samples was initially performed as a 0.01 mM dispersion in DMF, followed by placing the obtained samples in a 1 mm long quartz cell.

As supported by the experimental evidence, NU-1000 and SiW12@NU-1000 perform extremely well as NLO materials upon the use of an uncomplicated but effective single-beam Z-scan technique supported by constant wave or CW (continuous wave). The above technique was utilized to determine the NLO coefficients for NU-1000 and SiW12@NU-1000, considering different incident laser power values and a constant wave of the TEM00 Gaussian mode of the Nd:YAG laser. An example of the Z-scan OA mode is represented in Figure 4 for the prepared samples at different incident power values. Eq 1 was used to fit the experimental data and estimate the nonlinear optical absorption (NLA) coefficient, as shown in Table 1.5,62

3.2. 1

Figure 4.

Figure 4

Open in a new tab

OA curves for (a) NU-1000 and (b) SiW12@NU-1000 under various laser incident power values in DMF.

Table 1. NLO Parameters of NU-1000 and SiW12@NU-1000 at Different Power Values of the Laser.

sample P0 (mW) α (cm–1) Leff (mm) Inline graphic β × 10–3 (cm/W)
NU-1000 10 9.78 0.63 22.3 21.3
20 8.47 0.67 9.09 10.1
30 8.26 0.68 7.43 5.95
40 8.43 0.67 4.35 3.41
50 9.02 0.65 3.17 2.37
60 10.7 0.61 2.53 1.92
SiW12@NU-1000 10 8.51 0.67 41.8 23.6
20 7.91 0.69 27.2 13.9
30 8.05 0.68 20.1 9.73
40 8.15 0.68 19.2 7.79
50 8.60 0.67 19.0 6.30
60 8.10 0.68 18.8 5.46
Open in a new tab

Herein, q0(z, t) = βI0Leff/(1 + z2/zR2) and Leff = (1 – e–α0L)/α0 denote the sample thickness. Besides, L and α0 are the path length and the linear absorption (LA) coefficient, respectively, while zR = kω0/2 and k = 2π/λ represent the beam diffraction range and the wave vector, respectively. Finally, λ and I0 show the laser wavelength and excitation intensity at z = 0, respectively. The relation I0 = 2P0/πω02 was utilized to calculate the value of I0. The NLA coefficient calculations led to totally negative values, confirming that 2-photon absorption (2PA) responses were present. Furthermore, a decrease in the laser incident power resulted in a deeper valley, revealing an increase in the 2PA response.63 The theoretical fitting of the experimental results is presented by solid lines in Figure 5. Different factors, including the functional group types of the ligands, the organic linker configuration in the crystal, and the MOF porous structure contribute significantly to the outcomes of NLO.64

Figure 5.

Figure 5

Open in a new tab

CA curves for NU-1000 and SiW12@NU-1000 under various laser incident power values in DMF.

The CA/OA Z-scan transmission curves for NU-1000 and SiW12@NU-1000 under various laser incident power values are shown in Figure 5. For the peak-valley separation of >1.7 zR (2.2 zR), there is evidence for the nonlinear state.61eq 2 was used to calculate Inline graphic (nonlinear refractive index, NLR) with the value of ΔTp – v.

3.2. 2

In this equation, the value of S = 0.28 represents a linear transmittance of the aperture estimated by S = 1 – exp (( – 2ra2)/(ωa)). Here, ωa and ra indicate beam and aperture radii, respectively. When the normal transmittance (TV) has the minimum value, there is evidence on the downward trend, corresponding to a deeper valley due to higher intensities. On the other hand, the maximum values of normal transmittance (TP) demonstrate an upward tendency. As the laser incident power declines, an increase is observed in the values of the nonlinear refractive index (NLR index).

The changes in the n2 (NLR index) and β (nonlinear adsorption coefficient) were 2.53–22.3 cm2/W and 2.12–4.99 cm/W for NU-1000 and 18.8–41.8 cm2/W and 1.11–4.93 cm/W for SiW12@NU-1000, respectively. More significant differences in transmittance would lead to higher values of the NLR index and nonlinear optical response (Table 1). The positive NLR (self-focusing effects) can be supported by the relative values of ΔTp – v for the NU-1000 and SiW12@NU-1000. Besides, n2 has a value equal to 10–8 cm2/W (Table 1).

As shown in Figure 4, NU-1000 and SiW12@NU-1000 feature a considerable 2PA under the open-aperture configuration, which can be extensively used to protect optical sensors. A 1.1–2.8-fold improvement can be observed in β values of SiW12@NU-1000 at P0 of 10–60 mW in comparison to the nonlinear optical characteristics of NU-1000. On the other hand, there was a 1.9–7.4-fold improvement in the values of the NLR index (n2).

The current work aimed to provide useful information on the structure–property relationships in MOF-POM hybrids, which would foster their exploration as novel nonlinear optical materials with greater hyperpolarizability. Because metal clusters contain delocalized dπ–pπ and conjugated dπ–dπ arrangements, they can perform well as nonlinear optical materials.65,66 Besides, if metal–ligand and ligand–metal charge transfers are introduced, the nonlinear optical characteristics of these clusters can be improved.67−69 The π-electron cloud delocalization mainly gives rise to the nonlinear optical characteristics even though a variety of procedures are applicable for the promotion of such characteristics in metal clusters.70,71 Metal ions and organic ligands that construct the skeleton of MOFs are both of great importance in the NLO characteristics of NU-1000 as they primarily lead to the delocalization in metal clusters.

Following the analysis of prior data (Table S1), the remarkable NLO properties of SiW12@NU-1000 can justify its prospective applications. As indicated by Hassan et al., significant NLO characteristics were observed in POM-porphyrin hybrids.72 According to Hou et al., metal ions and ligands contribute to nonlinear optical materials, given their conjugated dπ–dπ and delocalized dπ–pπ arrangements.73 It is also possible to alter the strength of the NLO characteristics by enhancing the metal ion-ligand π-back-donating and creating more extended π-electron systems.73 Jia et al. indicated that metals with different radii can have various application prospects in third-order nonlinear materials.74 Zhang et al. reported the NLO properties of fulvalene Ru2-linked POM, in which the NLO response is enhanced by introducing an electron-donating group (NH2).75 The contribution of heavy-metal ions to the third-order NLO characteristics is very considerable in metal clusters, permitting more allowed electronic transitions because of the introduction of additional sublevels in the energy hierarchy, thus generating greater NLO effects.76 Another factor that can alter the NLO properties of hybrid MOF-POM materials concerns linker ligands used in the construction of MOFs. These linkers can be decorated with functional groups77,78 or bear additional aromatic rings to improve the electron density, subsequently enhancing an electron transfer.79

According to the Z-scan curves, polyoxometalates show insignificant NLO absorption and refractive characteristics under the experimental conditions similar to the present study.80 Polyoxometalates are stable and generally soluble inorganic metal-oxygen clusters, the introduction of which into, for example, SiW12@NU-1000, enhances electron-accepting properties because of elevated oxidation states of the transition metal atoms within the clusters. It is theoretically anticipated that the nonlinear optical activities can be improved through charge transfer interactions in appropriate donating–accepting complexes.81 POM clusters can accept charge from organic electron donors (OEDs). NU-1000 can be among such donors with an excellent NLO behavior because of extensively 2D delocalized π-electrons, allowing to consider this type of compounds as suitable alternatives for optical switching and limiting applications.

According to both theoretical and experimental evidence,82,83 charge and/or energy transfer are observed during the formation of donating–accepting systems between polyoxometalates and MOFs, enhancing or tuning the NLO responses. Also, Al-Yasari et al. confirmed that the integration of conjugated ligands into POM increased electron delocalization and effectively improved the NLO performance.84 Therefore, organic linkers (e.g., H4TBAPy) with conjugated structures are suitable candidates for third-order NLO applications because of their large electron polarizability. Hence, the main contributing factor in enhancing the NLO responses in the hybrid SiW12@NU-1000 nanocomposite can be the NU-1000-to-POM charge transfer. The present study represents the first case when POM and NU-1000 are combined within a new composite material to enhance the NLO characteristics.

4. Conclusions

In this research, a new SiW12@NU-1000 nanocomposite was prepared by hydrothermal method via a postsynthetic modification of the NU-1000 framework with a water-soluble SiW12 (H4SiW12O40) polyoxometalate. After complete characterization, the NLO performance of the obtained hybrid MOF-POM composite was investigated by the Z-scan method using a Ng:YAG DPSS laser at 532 nm. The obtained data indicate a significant enhancement in the NLO performance of NU-1000 upon an inclusion of POM. Self-focusing effect and 2PA were also observed for both NU-1000 and SiW12@NU-1000 samples. The effect of third-order NLO can be modified by regulating the power of the laser. The π-electron cloud delocalization is responsible for the NLO behavior of NU-1000. The important point is that the NLO performance of MOFs can be significantly improved by the incorporation of POM because of the energy transfer between NU-1000 and SiW12 as a result of laser collision at various power values. The present research represents a unique investigation of a hybrid material based on NU-1000 and POM in terms of NLO properties. The results of this research can broaden our insight into the design and assembly of advanced MOF-based materials with promising NLO behavior.

Acknowledgments

This work was financially supported by the University of Maragheh, Iran. A.M.K. acknowledges the Foundation for Science and Technology (FCT) (projects PTDC/QUI-QIN/3898/2020, LISBOA-01-0145-FEDER-029697, UIDB/00100/2020, and LA/P/0056/2020).

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acs.inorgchem.2c02709.

  • Materials and methods; synthesis of H4TBAPy and NU-1000; additional figures with PXRD, SEM, element mapping, and BET (Figures S1–S4); and comparison of NLO materials (Table S1) (PDF)

Author Contributions

⊥ Y.P. and S.S. contributed equally to this work.

The authors declare no competing financial interest.

Supplementary Material

ic2c02709_si_001.pdf (505.2KB, pdf)

References

  1. Gao M.-Y.; Wang Z.; Li Q.-H.; Li D.; Sun Y.; Andaloussi Y. H.; Ma C.; Deng C.; Zhang J.; Zhang L. Black titanium-oxo clusters with ultralow band gaps and enhanced nonlinear optical performance. J. Am. Chem. Soc. 2022, 144, 8153–8161. 10.1021/jacs.2c00765. [DOI] [PubMed] [Google Scholar]
  2. Hales J. M.; Matichak J.; Barlow S.; Ohira S.; Yesudas K.; Brédas J.-L.; Perry J. W.; Marder S. Design of polymethine dyes with large third-order optical nonlinearities and loss figures of merit. Science 2010, 327, 1485–1488. 10.1126/science.1185117. [DOI] [PubMed] [Google Scholar]
  3. Liu X.; Guo Q.; Qiu J. Emerging low-dimensional materials for nonlinear optics and ultrafast photonics. Adv. Mater. 2017, 29, 1605886 10.1002/adma.201605886. [DOI] [PubMed] [Google Scholar]
  4. Feng C.-C.; Zhang Z.; Wang Z.-R.; Li D.-J.; Li Q.-H.; Zhang L.; Zhang J. Experimental and theoretical studies on effects of structural modification of tin nanoclusters for third-order nonlinear optical properties. Inorg. Chem. 2021, 60, 1885–1892. 10.1021/acs.inorgchem.0c03331. [DOI] [PubMed] [Google Scholar]
  5. Zhou J.; Xing C.; Zhai Y.; Xu W.; Zhao Y.; Geng K.; Hou H. Influence of a substituted methyl on the photoresponsive third-order nonlinear-optical properties based on azobenzene metal complexes. Inorg. Chem. 2021, 60, 7240–7249. 10.1021/acs.inorgchem.1c00331. [DOI] [PubMed] [Google Scholar]
  6. Hales J. M.; Barlow S.; Kim H.; Mukhopadhyay S.; Brédas J.-L.; Perry J. W.; Marder S. Design of organic chromophores for all-optical signal processing applications. Chem. Mater. 2014, 26, 549–560. 10.1021/cm402893s. [DOI] [Google Scholar]
  7. Huang Q.; Yu J.; Gao J.; Rao X.; Yang X.-L.; Cui Y.; Wu C.; Zhang Z.; Xiang S.; Chen B.; Qian G. Two chiral nonlinear optical coordination networks based on interwoven two-dimensional square grids of double helices. Cryst. Growth Des. 2010, 10, 5291–5296. 10.1021/cg101135r. [DOI] [Google Scholar]
  8. Lin G.; Luo F.; Pan H.; Smedskjaer M. M.; Teng Y.; Chen D.; Qiu J.; Zhao Q. J. Universal preparation of novel metal and semiconductor nanoparticle–glass composites with excellent nonlinear optical properties. J. Phys. Chem. C 2011, 115, 24598–24604. 10.1021/jp207851r. [DOI] [Google Scholar]
  9. Dini D.; Calvete M. J. F.; Hanack M. Nonlinear optical materials for the smart filtering of optical radiation. Chem. Rev. 2016, 116, 13043–13233. 10.1021/acs.chemrev.6b00033. [DOI] [PubMed] [Google Scholar]
  10. Noguez C. Surface plasmons on metal nanoparticles: The influence of shape and physical environment. J. Phys. Chem. C 2007, 111, 3806–3819. 10.1021/jp066539m. [DOI] [Google Scholar]
  11. Ito-Washiyama W.; Onodera T.; Ageishi M.; Sato R.; Zhang B.; Kato S.; Masuhara A.; Kasai H.; Mamiya H.; Jinnai H.; Takeda Y.; Oikawa H. Structural correlations of the nonlinear optical response in polydiacetylene nanotubes hybridized with gold nanoparticles. J. Phys. Chem. C 2022, 126, 2763–2771. 10.1021/acs.jpcc.1c08884. [DOI] [Google Scholar]
  12. Gong P.; Liu X.; Kang L.; Lin Z. J. Inorganic planar π-conjugated groups in nonlinear optical crystals: Review and outlook. Inorg. Chem. Front. 2020, 7, 839–852. 10.1039/C9QI01589B. [DOI] [Google Scholar]
  13. Halasyamani P. S.; Zhang W. Viewpoint: inorganic materials for UV and deep-UV nonlinear-optical applications. Inorg. Chem. 2017, 56, 12077–12085. 10.1021/acs.inorgchem.7b02184. [DOI] [PubMed] [Google Scholar]
  14. Liu H.; Zhang B.; Wang Y. Second-order nonlinear optical materials with a benzene-like conjugated π system. Chem. Commun. 2020, 56, 13689–13701. 10.1039/D0CC05821A. [DOI] [PubMed] [Google Scholar]
  15. Castet F.; Rodriguez V.; Pozzo J.-L.; Ducasse L.; Plaquet A.; Champagne B. design and characterization of molecular nonlinear optical switches. Acc. Chem. Res. 2013, 46, 2656–2665. 10.1021/ar4000955. [DOI] [PubMed] [Google Scholar]
  16. Amerling E.; Zhai Y.; Larson B. W.; Yao Y.; Fluegel B.; Owczarczyk Z.; Lu H.; Whittaker-Brooks L.; Blum V.; Blackburn J. L. Charge transfer states and carrier generation in 1D organolead iodide semiconductors. J. Mater. Chem. A 2021, 9, 14977–14990. 10.1039/D1TA03325E. [DOI] [Google Scholar]
  17. Sanati S.; Morsali A.; García H. First-row transition metal-based materials derived from bimetallic metal–organic frameworks as highly efficient electrocatalysts for electrochemical water splitting. Energy Environ. Sci. 2022, 15, 3119–3151. 10.1039/D1EE03614A. [DOI] [Google Scholar]
  18. Abazari R.; Sanati S.; Morsali A. Mixed metal Fe2Ni MIL-88B metal–organic frameworks decorated on reduced graphene oxide as a robust and highly efficient electrocatalyst for alkaline water oxidation. Inorg. Chem. 2022, 61, 3396–3405. 10.1021/acs.inorgchem.1c03216. [DOI] [PubMed] [Google Scholar]
  19. Luo X.; Abazari R.; Tahir M.; Fan W. K.; Kumar A.; Kalhorizadeh T.; Kirillov A. M.; Amani-Ghadim A. R.; Chen J.; Zhou Y. Trimetallic metal–organic frameworks and derived materials for environmental remediation and electrochemical energy storage and conversion. Coord. Chem. Rev. 2022, 461, 214505 10.1016/j.ccr.2022.214505. [DOI] [Google Scholar]
  20. Abazari R.; Sanati S.; Morsali A.; Kirillov A. M. Instantaneous sonophotocatalytic degradation of tetracycline over NU-1000@ZnIn2S4 core–shell nanorods as a robust and eco-friendly catalyst. Inorg. Chem. 2021, 60, 9660–9672. 10.1021/acs.inorgchem.1c00951. [DOI] [PubMed] [Google Scholar]
  21. Chen J.; Abazari R.; Adegoke K. A.; Maxakato N. W.; Bello O. S.; Tahir M.; Tasleem S.; Sanati S.; Kirillov A. M.; Zhou Y. Metal–organic frameworks and derived materials as photocatalysts for water splitting and carbon dioxide reduction. Coord. Chem. Rev. 2022, 469, 214664 10.1016/j.ccr.2022.214664. [DOI] [Google Scholar]
  22. Abazari R.; Amani-Ghadim A. R.; Slawin A. M. Z.; Carpenter-Warren C. L.; Kirillov A. M. Non-calcined layer-pillared Mn0.5Zn0.5 bimetallic–organic framework as a promising electrocatalyst for oxygen evolution reaction. Inorg. Chem. 2022, 61, 9514–9522. 10.1021/acs.inorgchem.2c00542. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Kalhorizadeh T.; Dahrazma B.; Zarghami R.; Mirzababaei S.; Kirillov A. M.; Abazari R. Quick removal of metronidazole from aqueous solutions using metal–organic frameworks. New J. Chem. 2022, 46, 9440–9450. 10.1039/D1NJ06107K. [DOI] [Google Scholar]
  24. Xu H.; Zhong F.; Chen F.; Luan T.-X.; Li P.; Xu S.; Gao J. A Zr-MOF nanoflower sensor and its mixed-matrix membrane for the highly sensitive detection of nitroaromatics. J. Mater. Chem. C 2022, 10, 7469–7475. 10.1039/D2TC00920J. [DOI] [Google Scholar]
  25. Wang C.; Wang W.; Tan J.; Zhang X.; Yuan D.; Zhou H. C. Coordination-based molecular nanomaterials for biomedically relevant applications. Coord. Chem. Rev. 2021, 438, 213752 10.1016/j.ccr.2020.213752. [DOI] [Google Scholar]
  26. Gu C.; Zhang H.; You P.; Zhang Q.; Luo G.; Shen Q.; Wang Z.; Hu J. Giant and multistage nonlinear optical response in porphyrin-based surface-supported metal–organic framework nanofilms. Nano Lett. 2019, 19, 9095–9101. 10.1021/acs.nanolett.9b04221. [DOI] [PubMed] [Google Scholar]
  27. Abazari R.; Yazdani E.; Nadafan M.; Kirillov A. M.; Gao J.; Slawin A. M. Z.; Carpenter-Warren C. L. Third-order nonlinear optical behavior of an amide-tricarboxylate Zinc(II) metal–organic framework with two-fold 3D+3D interpenetration. Inorg. Chem. 2021, 60, 9700–9708. 10.1021/acs.inorgchem.1c00997. [DOI] [PubMed] [Google Scholar]
  28. Horike S.; Ma N.; Fan Z.; Kosasang S.; Smedskjaer M. M. Mechanics, Ionics, and optics of metal–organic framework and coordination polymer glasses. Nano Lett. 2021, 21, 6382–6390. 10.1021/acs.nanolett.1c01594. [DOI] [PubMed] [Google Scholar]
  29. Li D.-J.; Li Q.-H.; Wang Z.-R.; Ma Z.-Z.; Gu Z.-G.; Zhang J. Interpenetrated metal-porphyrinic framework for enhanced nonlinear optical limiting. J. Am. Chem. Soc. 2021, 143, 17162–17169. 10.1021/jacs.1c07803. [DOI] [PubMed] [Google Scholar]
  30. Teran N. B.; He G. S.; Baev A.; Shi Y.; Swihart M. T.; Prasad P. N.; Marks T. J.; Reynolds J. R. Twisted thiophene-based chromophores with enhanced intramolecular charge transfer for cooperative amplification of third-order optical nonlinearity. J. Am. Chem. Soc. 2016, 138, 6975–6984. 10.1021/jacs.5b12457. [DOI] [PubMed] [Google Scholar]
  31. Chen Q.-F.; Zhao X.; Liu Q.; Jia J.-D.; Qiu X.-T.; Song Y.-L.; Young D. J.; Zhang W.-H.; Lang J.-P. Tungsten(VI)–copper(I)–sulfur cluster-supported metal–organic frameworks bridged by in situ click-formed tetrazolate ligands. Inorg. Chem. 2017, 56, 5669–5679. 10.1021/acs.inorgchem.7b00261. [DOI] [PubMed] [Google Scholar]
  32. Safaralizadeh E.; Darzi S. J.; Mahjoub A. R.; Abazari R. Visible light-induced degradation of phenolic compounds by Sudan black dye sensitized TiO2 nanoparticles as an advanced photocatalytic material. Res. Chem. Intermed. 2017, 43, 1197–1209. 10.1007/s11164-016-2692-7. [DOI] [Google Scholar]
  33. Li Y.; Liang F.; Zhao S.; Li L.; Wu Z.; Ding Q.; Liu S.; Lin Z.; Hong M.; Luo J. Two non-π-conjugated deep-UV nonlinear optical sulfates. J. Am. Chem. Soc. 2019, 141, 3833–3837. 10.1021/jacs.9b00138. [DOI] [PubMed] [Google Scholar]
  34. Pan Y.; Abazari R.; Yao J.; Gao J. Recent progress in 2D metal-organic framework photocatalysts: synthesis, photocatalytic mechanism and applications. J. Phys. Energy 2021, 3, 032010 10.1088/2515-7655/abf721. [DOI] [Google Scholar]
  35. Zhao W.; Wang Z.; Malonzo C. D.; Webber T. E.; Platero-Prats A. E.; Sotomayor F.; Vermeulen N. A.; Wang T. C.; Hupp J. T.; Farha O. K.; Penn R. L.; Chapman K. W.; Thommes M.; Stein A. Extending the compositional range of nanocasting in the oxozirconium cluster-based metal–organic framework NU-1000—a comparative structural analysis. Chem. Mater. 2018, 30, 1301–1315. 10.1021/acs.chemmater.7b04893. [DOI] [Google Scholar]
  36. Goswami S.; Yu J.; Patwardhan S.; Deria P.; Hupp J. T. Light-harvesting “Antenna” behavior in NU-1000. ACS Energy Lett. 2021, 6, 848–853. 10.1021/acsenergylett.0c02514. [DOI] [Google Scholar]
  37. Wang Z.; Schmalbach K. M.; Combs R. L.; Chen Y.; Penn R. L.; Mara N. A.; Stein A. Effects of phase purity and pore reinforcement on mechanical behavior of NU-1000 and silica-infiltrated NU-1000 metal–organic frameworks. ACS Appl. Mater. Interfaces 2020, 12, 49971–49981. 10.1021/acsami.0c12877. [DOI] [PubMed] [Google Scholar]
  38. Lu Z.; Wang R.; Liao Y.; Farha O. K.; Bi W.; Sheridan T. R.; Zhang K.; Duan J.; Liu J.; Hupp J. T. Isomer of linker for NU-1000 yields a new she-type, catalytic, and hierarchically porous, Zr-based metal–organic framework. Chem. Commun. 2021, 57, 3571–3574. 10.1039/D0CC07974J. [DOI] [PubMed] [Google Scholar]
  39. Wu J.; Chen J.; Wang C.; Zhou Y.; Ba K.; Xu H.; Bao W.; Xu X.; Carlsson A.; Lazar S.; Meingast A.; Sun Z.; Deng H. Metal–organic framework for transparent electronics. Adv. Sci. 2020, 7, 1903003 10.1002/advs.201903003. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Chen Z.; Zhang Y.; Song Q.; Ma L.; Lv Y. Synthesis and characterization of polymerizable MOFs for the preparation of MOF/polymer mixed matrix membranes. STAR Protoc. 2022, 3, 101039 10.1016/j.xpro.2021.101039. [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Zhang Z.; Liu Y.; Tian H.; Ma X.; Yue Q.; Sun Z.; Lu Y.; Liu S. Hierarchically ordered macro–microporous polyoxometalate-based metal–organic framework single crystals. ACS Nano 2021, 15, 16581–16588. 10.1021/acsnano.1c06259. [DOI] [PubMed] [Google Scholar]
  42. Janjua M. R. S. A. Quantum mechanical design of efficient second-order nonlinear optical materials based on heteroaromatic imido-substituted hexamolybdates: First theoretical framework of POM-based heterocyclic aromatic rings. Inorg. Chem. 2012, 51, 11306–11314. 10.1021/ic3002652. [DOI] [PubMed] [Google Scholar]
  43. Gumerova N. I.; Rompel A. Polyoxometalates in solution: speciation under spotlight. Chem. Soc. Rev. 2020, 49, 7568–7601. 10.1039/D0CS00392A. [DOI] [PubMed] [Google Scholar]
  44. Boulmier A.; Vacher A.; Zang D.; Yang S.; Saad A.; Marrot J.; Oms O.; Mialane P.; Ledoux I.; Ruhlmann L.; Lorcy D.; Dolbecq A. Anderson-type polyoxometalates functionalized by tetrathiafulvalene groups: Synthesis, electrochemical studies, and NLO properties. Inorg. Chem. 2018, 57, 3742–3752. 10.1021/acs.inorgchem.7b02976. [DOI] [PubMed] [Google Scholar]
  45. Wang J.-L.; Yang M.-X.; Li N.-F.; Liu X.-M.; Li J.-N.; Ping Q.-D.; Xu Y. Two Ni-substituted trilacunary keggin-type polyoxometalates: Syntheses, crystal structures, NLO studies, and magnetic properties. Inorg. Chem. 2021, 60, 13748–13755. 10.1021/acs.inorgchem.1c02181. [DOI] [PubMed] [Google Scholar]
  46. Al-Yasari A.; El Moll H.; Purdy R.; Vincent K. B.; Spence P.; Malval J.-P.; Fielden J. Optical, third order non-linear optical and electrochemical properties of dipolar, centrosymmetric and C2v organoimido polyoxometalate derivatives. Phys. Chem. Chem. Phys. 2021, 23, 11807–11817. 10.1039/D0CP06610A. [DOI] [PubMed] [Google Scholar]
  47. Evans O. R.; Lin W. Crystal engineering of NLO materials based on metal–organic coordination networks. Acc. Chem. Res. 2002, 35, 511–522. 10.1021/ar0001012. [DOI] [PubMed] [Google Scholar]
  48. Perry J. W.; Mansour K.; Lee I.-Y. S.; Wu X.-L.; Bedworth P. V.; Chen C.-T.; Ng D.; Marder S. R.; Miles P.; Wada T.; Tian M.; Sasabe H. Organic optical limiter with a strong nonlinear absorptive response. Science 1996, 273, 1533–1536. 10.1126/science.273.5281.1533. [DOI] [Google Scholar]
  49. Xu L.; Wang E.; Li Z.; Kurth D. G.; Du X.; Zhang H.; Qin C. Preparation and nonlinear optical properties of ultrathin composite films containing both a polyoxometalate anion and a binuclear phthalocyanine. New J. Chem. 2002, 26, 782–786. 10.1039/b110671f. [DOI] [Google Scholar]
  50. Sanati S.; Abazari R.; Morsali A. Enhanced electrochemical oxygen and hydrogen evolution reactions using an NU-1000@NiMn-LDHS composite electrode in alkaline electrolyte. Chem. Commun. 2020, 56, 6652–6655. 10.1039/D0CC01146K. [DOI] [PubMed] [Google Scholar]
  51. Hicks K. E.; Rosen A. S.; Syed Z. H.; Snurr R. Q.; Farha O. K.; Notestein J. M. Zr6O8 Node-catalyzed butene hydrogenation and isomerization in the metal–organic framework NU-1000. ACS Catal. 2020, 10, 14959–14970. 10.1021/acscatal.0c03579. [DOI] [Google Scholar]
  52. Sanati S.; Rezvani Z.; Abazari R.; Hou Z.; Dai H. Hierarchical CuAl-layered double hydroxide/CoWO4 nanocomposites with enhanced efficiency for use in supercapacitors with long cycling stability. New J. Chem. 2019, 43, 15240–15248. 10.1039/C9NJ03250A. [DOI] [Google Scholar]
  53. Su S.; Li X.; Zhang X.; Zhu J.; Liu G.; Tan M.; Wang Y.; Luo M. Keggin-type SiW12 encapsulated in MIL-101 (Cr) as efficient heterogeneous photocatalysts for nitrogen fixation reaction. J. Colloid Interface Sci. 2022, 621, 406–415. 10.1016/j.jcis.2022.04.006. [DOI] [PubMed] [Google Scholar]
  54. Benseghir Y.; Lemarchand A.; Duguet M.; Mialane P.; Gomez-Mingot M.; Roch-Marchal C.; Pino T.; Ha-Thi M. H.; Haouas M.; Fontecave M.; Dolbecq A.; Sassoye C.; Mellot-Draznieks C. Co-immobilization of a Rh catalyst and a Keggin polyoxometalate in the UiO-67 Zr-based metal–organic framework: in depth structural characterization and photocatalytic properties for CO2 reduction. J. Am. Chem. Soc. 2022, 142, 9428–9438. 10.1021/jacs.0c02425. [DOI] [PubMed] [Google Scholar]
  55. Bhattacharya S.; Ayass W. W.; Taffa D. H.; Nisar T.; Balster T.; Hartwig A.; Wagner V.; Wark M.; Kortz U. Polyoxopalladate-loaded metal–organic framework (POP@MOF): Synthesis and heterogeneous catalysis. Inorg. Chem. 2020, 59, 10512–10521. 10.1021/acs.inorgchem.0c00875. [DOI] [PubMed] [Google Scholar]
  56. Zhang Z.; Gómez-García C. J.; Wu Q.; Xin J.; Pang H.; Ma H.; Chai D.; Li S.; Zhao C. Synthesis of a polyoxometalate-encapsulated metal–organic framework via in situ ligand transformation showing highly catalytic activity in both hydrogen evolution and dye degradation. Inorg. Chem. 2022, 61, 11830–11836. 10.1021/acs.inorgchem.2c01579. [DOI] [PubMed] [Google Scholar]
  57. Abazari R.; Esrafili L.; Morsali A.; Wu Y.; Gao J. PMo12@UiO-67 nanocomposite as a novel non-leaching catalyst with enhanced performance durability for sulfur removal from liquid fuels with exceptionally diluted oxidant. Appl. Catal., B 2021, 283, 119582 10.1016/j.apcatb.2020.119582. [DOI] [Google Scholar]
  58. Li P.; Chen Q.; Wang T. C.; Vermeulen N. A.; Mehdi B. L.; Dohnalkova A.; Browning N. D.; Shen D.; Anderson R.; Gómez-Gualdrón D. A.; Cetin F. M.; Jagiello J.; Asiri A. M.; Stoddart J. F.; Farha O. K. Hierarchically engineered mesoporous metal-organic frameworks toward cell-free immobilized enzyme systems. Chem 2018, 4, 1022–1034. 10.1016/j.chempr.2018.03.001. [DOI] [Google Scholar]
  59. Zhao W. Z.; Zhang Y. N.; Lan Y. Z.; Cheng J. W.; Yang G. Y. Ba2B10O16(OH)2·(H3BO3)(H2O): A possible deep-ultraviolet nonlinear-optical barium borate. Inorg. Chem. 2022, 61, 4246–4250. 10.1021/acs.inorgchem.2c00102. [DOI] [PubMed] [Google Scholar]
  60. Mushtaq A.; Pradhan B.; Kushavah D.; Zhang Y.; Wolf M.; Schrenker N.; Fron E.; Bals S.; Hofkens J.; Debroye E.; Pal S. K. Third-order nonlinear optical properties and saturation of two-photon absorption in lead-free double perovskite nanocrystals under femtosecond excitation. ACS Photonics 2021, 8, 3365–3374. 10.1021/acsphotonics.1c01351. [DOI] [Google Scholar]
  61. Nadafan M.; Ghorbani-Moghadam T.; Mousavi M. Investigation of the linear and nonlinear optical properties of La2–xSrxCoO4 (x= 0.5, 0.7, 0.9, 1.1, 1.3 and 1.5) nanoparticles. J. Mater. Chem. C 2021, 9, 10443–10452. 10.1039/D1TC01982A. [DOI] [Google Scholar]
  62. Zhao Y.; Li H.; Shao Z.; Xu W.; Meng X.; Song Y.; Hou H. Investigation of regulating third-order nonlinear optical property by coordination interaction. Inorg. Chem. 2019, 58, 4792–4801. 10.1021/acs.inorgchem.8b03154. [DOI] [PubMed] [Google Scholar]
  63. Hou H.; Meng X.; Song Y.; Fan Y.; Zhu Y.; Lu H.; Du C.; Shao W. Two-dimensional rhombohedral grid coordination polymers [M(bbbt)2(NCS)2]n (M= Co, Mn, or Cd; bbbt= 1, 1 ‘-(1, 4-butanediyl) bis-1 H-benzotriazole): Synthesis, crystal structures, and third-order nonlinear optical properties. Inorg. Chem. 2002, 41, 4068–4075. 10.1021/ic0255858. [DOI] [PubMed] [Google Scholar]
  64. Ni B.; Sun W.; Kang J.; Zhang Y. Understanding the linear and second-order nonlinear optical properties of UiO-66-derived metal–organic frameworks: A comprehensive DFT study. J. Phys. Chem. C 2020, 124, 11595–11608. 10.1021/acs.jpcc.0c01580. [DOI] [Google Scholar]
  65. Wang Z.; Yan W.; Zhao G.; Wu K.; Gu Z. G.; Li Q. H.; Zhang J. Novel third-order nonlinear optical materials with craig-möbius aromaticity. J. Phys. Chem. Lett. 2021, 12, 11784–11789. 10.1021/acs.jpclett.1c03541. [DOI] [PubMed] [Google Scholar]
  66. Zhang C.; Song Y.; Wang X. Correlations between molecular structures and third-order non-linear optical functions of heterothiometallic clusters: a comparative study. Coord. Chem. Rev. 2007, 251, 111–141. 10.1016/j.ccr.2006.06.007. [DOI] [Google Scholar]
  67. Coe B. J.; Harris J. A.; Brunschwig B. S.; Asselberghs I.; Clays K.; Garín J.; Orduna J. Three-dimensional nonlinear optical chromophores based on metal-to-ligand charge-transfer from ruthenium (II) or iron (II) centers. J. Am. Chem. Soc. 2005, 127, 13399–13410. 10.1021/ja053879x. [DOI] [PubMed] [Google Scholar]
  68. Colombo A.; Dragonetti C.; Guerchais V.; Roberto D. An excursion in the second-order nonlinear optical properties of platinum complexes. Coord. Chem. Rev. 2021, 446, 214113 10.1016/j.ccr.2021.214113. [DOI] [Google Scholar]
  69. Liang Y.; Hu W.; Yuan X.; Zeng Z.; Zhu B.; Gu Y. Switchable nonlinear optical absorption of metal–organic frameworks. Adv. Opt. Mater. 2022, 10, 2200779 10.1002/adom.202200779. [DOI] [Google Scholar]
  70. Al-Yasari A.; Van Steerteghem N.; Kearns H.; El Moll H.; Faulds K.; Wright J. A.; Brunschwig B. S.; Clays K.; Fielden J. Organoimido-polyoxometalate nonlinear optical chromophores: A structural, spectroscopic, and computational study. Inorg. Chem. 2017, 56, 10181–10194. 10.1021/acs.inorgchem.7b00708. [DOI] [PubMed] [Google Scholar]
  71. Khan M. U.; Hussain S.; Asghar M. A.; Munawar K. S.; Khera R. A.; Imran M.; Ibrahim M. M.; Hessien M. M.; Mersal G. A. Exploration of nonlinear optical properties for the first theoretical framework of non-fullerene DTS (FBTTh2)2-based derivatives. ACS Omega 2022, 7, 18027–18040. 10.1021/acsomega.2c01474. [DOI] [PMC free article] [PubMed] [Google Scholar]
  72. Hassan S. U.; Asif H. M.; Zhou Y.; Zhang L.; Qu N.; Li J.; Shi Z. “Closer is better and two is superior to one”: third-order optical nonlinearities of a family of porphyrin–anderson type polyoxometalate hybrid compounds. J. Phys. Chem. C 2016, 120, 27587–27599. 10.1021/acs.jpcc.6b09951. [DOI] [Google Scholar]
  73. Hou H.; Wei Y.; Song Y.; Mi L.; Tang M.; Li L.; Fan Y. Metal ions play different roles in the third-order nonlinear optical properties of d10 metal–organic clusters. Angew. Chem., Int. Ed. 2005, 44, 6067–6074. 10.1002/anie.200463004. [DOI] [PubMed] [Google Scholar]
  74. Jia J.; Wang J.; Li M.; Gong C.; Liang G.; Song Y.; She Y. Phenothiazine metal-organic framework materials with excellent third-order nonlinear properties. Dyes Pigm. 2022, 205, 110398 10.1016/j.dyepig.2022.110398. [DOI] [Google Scholar]
  75. Zhang T.; Wei X. H.; Zuo Y.; Ma T. Y. Switchable NLO response induced by rotation of the fulvalene diruthenium-linked polyoxometalate derivatives. J. Mol. Struct. 2021, 1230, 129659 10.1016/j.molstruc.2020.129659. [DOI] [Google Scholar]
  76. Lin W.; Wang Z.; Ma L. A novel octupolar metal–organic NLO material based on a chiral 2D coordination network. J. Am. Chem. Soc. 1999, 121, 11249–11250. 10.1021/ja9928327. [DOI] [Google Scholar]
  77. Yin W.; Tao C. A.; Wang F.; Huang J.; Qu T.; Wang J. Tuning optical properties of MOF-based thin films by changing the ligands of MOFs. Sci. China Mater. 2018, 61, 391–400. 10.1007/s40843-017-9143-5. [DOI] [Google Scholar]
  78. Zhang J.; Xiang Q.; Zhu Y.; Yang J.; Song Y.; Zhang C. Two W/S/Cu-cluster-containing metal–organic frameworks fabricated by multidentate organic ligands: New topologies, strong NLO properties, and efficient luminescent detection. Cryst. Growth Des. 2021, 21, 3225–3233. 10.1021/acs.cgd.0c01580. [DOI] [Google Scholar]
  79. Han Y. M.; Cheng W. W.; Cao J. P.; Yang M. X.; Hong Y. L.; Kang R. K.; Xu Y. Two isolated Zn-ε-Keggin decorated by pyridine-imidazole with excellent electrocatalytic and third-order NLO properties. Inorg. Chim. Acta 2019, 498, 119169 10.1016/j.ica.2019.119169. [DOI] [Google Scholar]
  80. Wang L.; Wang Y.; Lv C. L.; Guo C.; Xing F.; Dong Y.; Xie Z.; Zhou S.; Wei Y. Polyoxometalates with tunable third-order nonlinear optical and superbroadband optical limiting properties. Inorg. Chem. Front. 2022, 9, 4413–4424. 10.1039/D2QI00899H. [DOI] [Google Scholar]
  81. Bosch-Navarro C.; Matt B.; Izzet G.; Romero-Nieto C.; Dirian K.; Raya A.; Molina S. I.; Proust A.; Guldi D. M.; Martí-Gastaldo C.; Coronado E. Charge transfer interactions in self-assembled single walled carbon nanotubes/Dawson–Wells polyoxometalate hybrids. Chem. Sci. 2014, 5, 4346–4354. 10.1039/C4SC01335B. [DOI] [Google Scholar]
  82. Song P.; Yan L. K.; Guan W.; Liu C. G.; Yao C.; Su Z. M. A theoretical study on the efficient reversible redox-based switching of the second-order polarizabilities of two-dimensional nonlinear optical-active donor–acceptor phenanthroline-hexamolybdate. J. Mol. Graphics Modell. 2010, 29, 13–20. 10.1016/j.jmgm.2010.04.006. [DOI] [PubMed] [Google Scholar]
  83. Yao C.; Yan L. K.; Guan W.; Liu C. G.; Song P.; Su Z. M. Prediction of second-order optical nonlinearity of porphyrin–metal–polyoxometalate sandwich compounds. Dalton Trans. 2010, 39, 7645–7649. 10.1039/c002547j. [DOI] [PubMed] [Google Scholar]
  84. Al-Yasari A.; Spence P.; El Moll H.; Van Steerteghem N.; Horton P. N.; Brunschwig B. S.; Clays K.; Fielden J. Fine-tuning polyoxometalate non-linear optical chromophores: a molecular electronic “Goldilocks” effect. Dalton Trans. 2018, 47, 10415–10419. 10.1039/C8DT01491D. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

ic2c02709_si_001.pdf (505.2KB, pdf)

Articles from Inorganic Chemistry are provided here courtesy of American Chemical Society

RESOURCES
