Halofuginone, a promising drug for treatment of pulmonary hypertension

Abstract

Background and Purpose:

Halofuginone is a febrifugine derivative originally isolated from Chinese traditional herb Chang Shan that exhibits anti-hypertrophic, anti-fibrotic and anti-proliferative effects. We sought to investigate whether halofuginone induced pulmonary vasodilation and attenuates chronic hypoxia-induced pulmonary hypertension (HPH).

Experimental Approach:

Patch-clamp experiments were conducted to examine the activity of voltage-dependent Ca²⁺ channels (VDCCs) in pulmonary artery smooth muscle cells (PASMCs). Digital fluorescence microscopy was used to measure intracellular Ca²⁺ concentration in PASMCs. Isolated perfused and ventilated mouse lungs were used to measure pulmonary artery pressure (PAP). Mice exposed to hypoxia (10% O₂) for 4 weeks were used as model of HPH for in vivo experiments.

Key Results:

Halofuginone increased voltage-gated K⁺ (K_v) currents in PASMCs and K⁺ currents through KCNA5 channels in HEK cells transfected with KCNA5 gene. HF (0.03–1 μM) inhibited receptor-operated Ca²⁺ entry in HEK cells transfected with calcium-sensing receptor gene and attenuated store-operated Ca²⁺ entry in PASMCs. Acute (3–5 min) intrapulmonary application of halofuginone significantly and reversibly inhibited alveolar hypoxia-induced pulmonary vasoconstriction dose-dependently (0.1–10 μM). Intraperitoneal administration of halofuginone (0.3 mg·kg⁻¹, for 2 weeks) partly reversed established PH in mice.

Conclusion and Implications:

Halofuginone is a potent pulmonary vasodilator by activating K_v channels and blocking VDCC and receptor-operated and store-operated Ca²⁺ channels in PASMCs. The therapeutic effect of halofuginone on experimental PH is probably due to combination of its vasodilator effects, via inhibition of excitation–contraction coupling and anti-proliferative effects, via inhibition of the PI3K/Akt/mTOR signalling pathway.

1 ∣. INTRODUCTION

Halofuginone is a synthetic halogenated derivative of febrifugine, a natural quinazolinone alkaloid originally isolated from the plant Dichroa febrifuga (also referred to as the Chinese herb Chang Shan (Pines & Spector, 2015). Halofuginone exerts beneficial effects on the treatment of malaria (Jiang et al., 2005; Samant & Sukhthankar, 2009), cancer (Elkin et al., 1999), heart failure (Qin et al., 2017) and fibrosis-related autoimmune diseases (Nagler et al., 1996; Pines, 2014). In a scleroderma clinical trial, a topical formulation of halofuginone improved the mean total skin score, which was used to evaluate the severity of disease (Pines et al., 2003). At the cellular and molecular level, halofuginone has been shown to have an anti-proliferative effect on cancer cells (Grudzien et al., 2010).

Sustained pulmonary vasoconstriction due to pulmonary artery smooth muscle cell (PASMC) contraction and concentric pulmonary vascular remodelling due to PASMC proliferation and migration contribute to the elevated pulmonary vascular resistance and pulmonary artery pressure (PAP) in patients with pulmonary arterial hypertension (PAH) and animals with experimental pulmonary hypertension (PH). Current medical therapies for PAH include IP receptor agonists, such as prostacyclin and its analogues, ET_A/ET_B receptor antagonists such as bosentan and ambrisentan, voltage-dependent Ca²⁺ channel (VDCC) blockers such as nifedipine and verapamil, soluble guanylate cyclase (sGC) stimulators such as riociguat and PDE inhibitors such as sildenafil (Galie et al., 2015). Recently, clinical trials, along with in vivo animal experiments and in vitro experiments using tissue and cells isolated from PAH patients, have also disclosed that tyrosine kinase receptor antagonists such as imatinib (Hoeper et al., 2013; Quatredeniers et al., 2019), 5-HT receptor and transporter inhibitors (MacLean, 2018) and intravascular pulmonary artery (PA) denervation (Rothman et al., 2020) have beneficial or therapeutic effects on PAH or experimental PH. In addition, many repurposed drugs (Prins et al., 2019), such as digoxin (by inhibiting hypoxia-inducible factor-α) (Abud et al., 2012), rapamycin (by inhibiting mTORC1) (Houssaini et al., 2013), dehydroepiandrosterone (DHEA, by activating Ca²⁺-activated K⁺ channels and inhibiting oxidative stress) (Alzoubi et al., 2013; Krick et al., 2002; Paulin et al., 2011; Prins et al., 2019) and metformin (by activating AMP kinase) (Shang et al., 2016; Zhang et al., 2018), are all proven to have a beneficial effect on experimental PH (Prins et al., 2019). A more effective drug for the treatment of PAH, for example, prostacyclin (PGI₂), is one that affects multiple targets or signalling pathways to achieve its therapeutic effects (Lindegaard Pedersen et al., 2019). Searching for or developing new and effective drugs that can reverse established experimental PH by affecting multiple targets and different signalling pathways is an unfinished task in the research field of the pulmonary circulation and lung vascular disease. Halofuginone is potentially a new drug for the treatment of idiopathic and associated PAH and PH due to lung diseases and/or hypoxia.

An increase in cytosolic free Ca²⁺ concentration ([Ca²⁺]_cyt) in PASMCs is a major trigger for pulmonary vasoconstriction and an important stimulus for PASMC proliferation and migration, and subsequent pulmonary vascular remodelling. Sustained pulmonary vasoconstriction and concentric pulmonary vascular remodelling (or concentric wall thickening) both contribute to the development and progression of PAH (Kuhr et al., 2012; Sakao et al., 2015; Tuder et al., 2013). Up-regulated cation channels and enhanced Ca²⁺ influx through different Ca²⁺-permeable cation channels including VDCCs, receptor-operated Ca²⁺ channels (ROCCs) and store-operated Ca²⁺ channels (SOCCs) in PASMCs have been implicated in the development of idiopathic PAH (Golovina et al., 2001; Lin et al., 2004; Song et al., 2011; Yu et al., 2009). Furthermore, down-regulation or dysfunction of K⁺ channels and membrane depolarization are reported to enhance voltage-dependent Ca²⁺ entry and cause pulmonary vasoconstriction and vascular remodelling in patients with PAH and animals with experimental PH (Bonnet et al., 2006; Weir et al., 2008; Yuan et al., 1998).

In this study, we sought to investigate whether acute treatment with halofuginone affects the function of Ca²⁺ and K⁺ channels in PASMCs and induces pulmonary vasodilation in isolated lungs and if chronic treatment with halofuginone would ameliorate established experimental PH via regression of the remodelled pulmonary vasculature in mice.

2 ∣. METHODS

2.1 ∣. In vivo animal experiments

All animal care and experimental procedures were approved by the Institutional Animal Care and Use Committee (IACUC) of the University of California, San Diego (Protocol No. S18205) and were performed according to the university and the Institutional Animal Care and Use Committee (IACUC) guidelines that comply with national and international regulations. Animal studies are reported in compliance with the ARRIVE guidelines (Percie du Sert et al., 2020) and with the recommendations made by the British Journal of Pharmacology (Lilley et al., 2020). C57Bl/6 mice (male, 8 weeks old and ~25 g of body weight) purchased from The Jackson Laboratory were placed in standard cages under 12-h light and dark cycles provided with standard chow feed and tap water ad libitum. These mice were used for measuring pulmonary haemodynamics in intact animals, vascular reactivity in isolated perfused and ventilated lungs and lung vascular structural changes in lung angiograms.

The hypoxia-induced PH mouse model was established by exposing mice to 10% O₂ (PO₂ is approximately 71 mmHg) in a normobaric hypoxic chamber (BioSpherix, Lacona, NY) for 4 weeks. The O₂ level in the chamber was continuously monitored by a Proox Model P110 oxygen sensor (BioSpherix) and maintained at 10% by flushing 100% N₂ into the chamber. The normoxic control mice were housed in the same room (21% O₂) but outside the hypoxic chamber. The bedding of the animal cages, as well as water and food for the animals, were replaced once a week.

Animal experiments were designed to have groups of equal size using randomized and blinded analysis. In some instance, however, group sizes were unequal due to unexpected loss of animals while conducting the procedures. In this study, we used the reversal experimental protocol to examine the effect of halofuginone on established experimental PH (or hypoxia-induced PH [HPH]). Mice were first randomly divided into four experimental groups: (i) normoxia + vehicle group (n = 10), (ii) hypoxia + vehicle group (n = 9), (iii) hypoxia group with intraperitoneal injection of 0.15 mg·kg⁻¹, once a day (q.d.), of halofuginone (Hyp + HF-0.15) (n = 8) and (iv) hypoxia group with intraperitoneal injection of 0.3 mg·kg⁻¹ (q.d.) of halofuginone (Hyp + HF-0.3) (n = 7). Halofuginone was injected per day (0.15 and 0.3 mg·kg⁻¹·day⁻¹), for 2 weeks after 4 weeks of hypoxic exposure. To examine whether halofuginone affects pulmonary haemodynamics in normoxia control group, we injected 0.3-mg·kg⁻¹ halofuginone (i.p., q.d., for 2 weeks) and measured RVP and RV- ± dP/dt. The total duration of hypoxic exposure was 6 weeks, first 4 weeks to establish HPH and then 2 weeks for halofuginone treatment. In hypoxia + vehicle group, the equivalent amount of vehicle (DMSO) was injected i.p. to mice once a day for 2 weeks after 4 weeks of hypoxic exposure. Following haemodynamic measurements, two sets of experiments were performed to measure Fulton index using the heart and conduct angiography experiments using the lungs.

All mice were weighed before experiments. After hypoxic exposure and treatment with halofuginone mice were anaesthetized by inhaling 1.5% isoflurane. Right heart catheterization was performed by introducing a highly sensitive Millar pressure catheter (PVR1030, 1F, Millar Instruments, Colorado, USA) through the external right jugular vein. A baseline calibration was performed for each mouse to ensure that the pressure measured by the catheter was 0 at the beginning of measurements. Right ventricular (RV) pressure (RVP) and RV contractility (RV- ± dP/dt) were measured continuously by the Millar pressure catheter, recorded and analysed by the LabChart software (ADInstruments, Colorado, USA). The mean systemic arterial pressure (mSAP) was continuously measured by a Millar pressure catheter (ADInstruments, Colorado, USA) positioned in the left carotid artery and monitored using the Millar data acquisition system (ADInstruments, Colorado, USA). The mean PAP (mPAP) was estimated by the value of RV systolic pressure (RVSP) using the formula: mPAP = 0.61 × RVSP + 2 (in mmHg) (Chemla et al., 2004). Following the haemodynamic measurements, pentobarbital (120 mg·kg⁻¹) was injected to minimize pain, the heart was carefully isolated, and the right and left atria were carefully removed to measure Fulton index. The right ventricle was precisely excised from the left ventricle (LV) and septum (S) and weighed immediately to avoid drying of tissue. The ratio of the weight of RV to the weight of LV and S [RV/(LV + S)], also referred to as Fulton index, was measured for each mouse to indicate RV hypertrophy.

2.2 ∣. Measurement of PAP in isolated, perfused and ventilated mouse lung

PAP was measured in isolated perfused and ventilated mouse lungs as described previously (Jain et al., 2020; Yoo et al., 2013). Briefly, C57BL/6 mice were anaesthetized with pentobarbital sodium (120 mg·kg⁻¹, i.p.), and the trachea was immediately intubated and lungs ventilated with a normoxic gas mixture (21% O₂, 5% CO₂ and balanced N₂) using a miniventilator (Minivent 845, Harvard Apparatus, Holliston, MA, USA). Heparin was injected into the right ventricle to prevent clotting in the pulmonary circulation. A stainless steel catheter was inserted to the main PA via RV. PAP was continuously measured by a pressure sensor (P75 type 379; Hugo Sachs Elektronik-Harvard Apparatus) attached to the PA catheter. A second catheter was introduced in the left heart to drain the perfusate. The lungs were perfused, via the PA catheter, with warm physiological salt solution (PSS, ~37°C) containing 120-mM NaCl, 4.3-mM KCl, 1.8-mM CaCl₂, 1.2-mM MgCl₂, 19-mM NaHCO₃, 1.1-mM KH₂PO₄, 10-mM glucose and 20% FBS (pH 7.4). In the isotonic high K⁺ or 40-mM K⁺ (40K)-containing solution, equimolar NaCl was replaced by 35.7-mM KCl to maintain the same osmolarity. The PSS perfused the isolated lungs via a peristaltic pump (ISM 834; Ismatec, Glattbrugg, Switzerland) at a flow rate of 1 ml·min⁻¹. To achieve a stable baseline of PAP, the lung was first challenged by perfusing 40K-containing solution through the PA catheter three times (3 min for each time), while the lung was ventilated with normoxic gas mixture. To elicit a hypoxic response, the lungs was ventilated with a hypoxic gas mixture (1% O₂, 5% CO₂ and balanced with N₂) for 4 min to achieve a stable or sustained increase in PAP. PowerLab 8/30 and LabChart (ADInstruments, USA) were used for data acquisition and data storage.

2.3 ∣. Mouse lung angiography

Lung angiograms were used to estimate pulmonary vascular remodelling in mice as described previously (Jain et al., 2020; Smith et al., 2015). After haemodynamic measurements, angiography experiments were performed on a second set of C57B1/6 mice. Mice were first randomly divided into four experimental groups: (i) normoxia + vehicle group (Nor), (ii) normoxia + HF group with intraperitoneal injection of 0.3-mg·kg⁻¹ halofuginone (q.d.) (Nor + HF), (iii) hypoxia + vehicle group (Hyp) and (iv) hypoxia + HF group with intraperitoneal injection of 0.3-mg·kg⁻¹ halofuginone (q.d.) (Hyp + HF-0.3); n = 5 mice in each group. The mice were anaesthetized by pentobarbital sodium (120 mg·kg⁻¹, i.p.). The chest was opened by a median sternotomy, and heparin (20 IU) was immediately injected into RV to prevent blood clotting in the pulmonary vasculature. A polyethylene tube (PE-20, BD Instramedic^™ PE Tubing) was inserted into the main PA through RV, and the PBS (pH = 7.4, at 36–38°C) was perfused into the PA at a flow of 0.05 ml·min⁻¹ for 3 min to wash out residual blood and blood clots in the pulmonary vasculature. Then, a casting polymer, MICROFIL^® (MV-122, Flow Tech, Inc., Carver, MA), was superfused into the PA using an automatic syringe pump (Farmingdale, New York, USA) at the same speed for 1–2 min until the whole lungs were filled with the casting polymer. The MICROFIL-filled lungs were then carefully isolated and stored overnight at 4°C. The next day, dehydration was performed for the MICROFIL-filled lungs using different concentrations of ethanol (50%, 70%, 80%, 95% and 100%, twice for each concentration per hour) to show the lung vasculature. Following the dehydration, the lungs were placed in methyl salicylate on a shaker overnight. The dehydrated MICROFIL-filled lungs were then photographed with a digital camera (MU1000, FMA050, AmScope, CA, USA) through a dissecting microscope (WILD M651, Leica, Switzerland). The periphery of the left lung (1 mm from the edge) vascular image from the apical, middle and basal regions was selected with Adobe Photoshop software and converted to binary images using NIH ImageJ software to quantify the total length of lung vascular branches, the number of vascular branches and the number of vascular branch junctions at a given area. Angiography analysis was not blinded.

2.4 ∣. Cell culture and transfection

Normal human PASMCs (Lonza, RRID:SCR_000377) were cultured in smooth muscle growth medium (SMGM, Lonza), whereas HEK-293 cells were cultured in high-glucose DMEM (Invitrogen) supplemented with 10% FBS (Invitrogen), 100-IU·ml⁻¹ penicillin and 100-μg·ml⁻¹ streptomycin (Sigma-Aldrich). Cells were maintained in a humidified environment at 37°C and 5% CO₂. Upon reaching 70–90% confluence, cells were detached with trypsin and plated on 25-mm coverslips for electrophysiological and in 60-mm Petri dish for Western blot experiments. The next day, HEK-293 (RRID:CVCL_0045) cells were transiently transfected with 2 μg of human KCNA5 construct (Plasmid No, RG219793; OriGene, Rockville, MD) using X-tremeGENE 9 DNA Transfection Reagent (Roche, Basel, Switzerland) for 4–6 h in Opti-MEM Reduced Serum Medium (Gibco). Then, the Opti-MEM medium was replaced with 10% FBS DMEM. Forty-eight to 72 h later, cells were collected for protein isolation or were used for electrophysiological experiments. The transfection efficiency was confirmed by Western blot.

2.5 ∣. Western blot analysis

The Immuno-related procedures used comply with the recommendations made by the British Journal of Pharmacology (Alexander et al., 2018). HEK-293 cells (transfected with KCNA5) and human PASMCs were washed with warm PBS and resuspended into 1× RIPA buffer (Millipore) supplemented with protease inhibitor cocktail tablet (Roche) followed by the incubation on ice for 20 min. The suspensions were centrifuged at 8050 g for 15 min at 4°C. The supernatants were collected, and protein concentrations were measured by a NanoDrop spectrophotometer (Thermo Scientific, USA). Cell lysates with equal quantities of protein were heated at 100°C for 7 min in 6× SDS sample buffer (Boston BioProducts), loaded into 4–12% Bolt^™ Bis-Tris Plus polyacrylamide gel (Invitrogen) for electrophoretic separation and transferred to nitrocellulose membrane (Millipore) in Mini Gel Tank apparatus Invitrogen) under conditions recommended by the manufacturer. The membranes were blocked in 5% non-fat milk (in 1× TBS containing 0.1% Tween 20) for 1 h at room temperature and incubated overnight at 4°C with primary antibodies for KCNA5 (Santa Cruz Biotechnology, Cat. No. sc-25681, RRID:AB_2133661), phosphorylated mTOR (pmTOR) (Cell Signaling Technology, Cat. No. 2971S, 1:1000, RRID:AB_330970), phosphorylated AKT (pAKT) (Cell Signaling Technology, Cat. No. 4060S, 1:1000, RRID: AB_2315049), pan-AKT (Cell Signaling Technology, Cat. No. 4691S, 1:1000, RRID:AB_915783) and mTOR (Cell Signaling Technology, Cat. No. 2983S, 1:1000, RRID:AB_2105622). All samples were reprobed for β-actin (Santa Cruz Biotechnology, Cat. No. sc-47778; 1:2000, RRID:AB_626632) as a loading control. At the next day, the membranes were washed and incubated with anti-rabbit (Cell Signaling Technology, Cat. No. 7074S, RRID:AB_2099233) or anti-mouse (Cell Signaling Technology, Cat. No. 7076S, RRID:AB_330924) secondary antibodies for 1 h at room temperature. Blots were developed using the SuperSignal West Pico Chemiluminescent Substrate (Pierce Biotechnology). Band intensity of target proteins was normalized to β-actin and expressed in arbitrary units (a.u.). For Western blot analyses on pAKT, AKT, pmTOR and mTOR, the band intensity of target proteins from cells treated with PDGF-BB in the absence or presence of BAPTA and BAPTA-AM was normalized to the level of control cells (incubated in 0.3% FBS media) and expressed in arbitrary units.

2.6 ∣. Electrophysiological measurement

Whole-cell outward or inward currents were recorded with the patch-clamp technique using an Axopatch-1D amplifier and a DigiData 1322 interface (Molecular Devices). Whole-cell voltage-gated (K_v) currents (I_K(V)) were recorded from primary human PASMCs and HEK-293 transiently transfected with the human KCNA5 gene (OriGene), whereas whole-cell Ba²⁺ currents (I_Ba) through VDCCs were recorded from human PASMCs. Briefly, a glass coverslip plated with cells was mounted onto a Plexiglas perfusion chamber on the stage of a Nikon inverted microscope. For recording whole-cell I_K(V), cells on the coverslip were bathed in Ca²⁺-free PSS containing 141-mM NaCl, 4.7-mM KCl, 3-mM MgCl₂, 10-mM HEPES, 1-mM EGTA and 10 glucose (pH 7.4). The pipette (intracellular) solution contained 135-mM KCl, 4-mM MgCl₂, 10-mM HEPES, 10-mM EGTA and 5-mM Na₂ATP (pH 7.2). Ca²⁺-free extracellular and intracellular solution and EGTA were used to minimize the contribution of Ca²⁺-activated K⁺ currents to the whole-cell K⁺ currents. ATP is included in the intracellular solution to minimize the contribution of ATP-sensitive K⁺ currents to the whole-cell K⁺ currents. Under these conditions, the whole-cell K⁺ currents are mainly K_v currents. For recording whole-cell K⁺ currents through KCNA5 channels (I_KCNA5), we used HEK-293 cells transiently transfected with the human KCNA5 gene. The same ionic composition of bath (extracellular) and pipette (intracellular) solutions used for recording whole-cell I_K(V) in native PASMCs was used to record whole-cell I_KCNA5 in KCNA5-transfected HEK-293 cells. Digital subtraction of the currents (I_K(V) in PASMCs or I_KCNA5 in HEK-293) recorded in cells during the application of halofuginone from the currents recorded in control cells was defined as halofuginone-sensitive I_K(V) or I_KCNA5. For recording whole-cell I_Ba through VDCCs, the extracellular (bath) solution contained 115-mM NaCl, 10-mM BaCl₂, 4.7-mM KCl, 0.5-mM MgCl₂, 10-mM HEPES and 10-mM glucose (pH 7.4), and the pipette solution contained 130-mM CsCl, 10-mM EGTA, 5-mM Mg-ATP and 10-mM HEPES (pH 7.2). We used Ba²⁺ in the bath (extracellular) solution as the charge carrier to measure inward currents through VDCCs and Cs⁺ in the pipette (intracellular) solution to minimize outward currents through K⁺ channels.

Patch pipettes (2–3 MΩ) were fabricated on an electrode puller (Sutter Instrument, Novato, CA) using borosilicate glass tubes and fire polished on a microforge (Narishige Scientific Instruments, Tokyo, Japan). Command voltage protocols and data acquisition were performed using pCLAMP-10 software (Axon Instruments). With the use of the 2–3 MΩ of pipettes, the series resistance was at a range of 4–9 MΩ when the whole-cell configuration was formed. Series resistance compensation was performed in most of the experiments for recording whole-cell currents. Currents were filtered at 1–2 kHz and digitized at 2–5 kHz. Leak and capacitive currents were subtracted using the P/4 protocol in pCLAMP software. To obtain a full scale of current-voltage (I–V) relationship curve for whole-cell I_K(V) in PASMCs or I_KCNA5 in KCNA5-transfected HEK-293, the cells were depolarized to a series of test potentials (for 300 ms) ranging from −80 to +80 mV (in 20-mV increments) from a holding potential of −70 mV. For the I–V curves of whole-cell I_Ba, the cells were depolarized to a series of test potentials (for 200 ms) ranging from −40 to +30 mV (in 10-mV increments) from a holding potential of −70 mV. All experiments were performed at room temperature (22–24°C).

2.7 ∣. Measurement of [Ca²⁺]_cyt

Digital imaging fluorescence microscopy approach was used to determine [Ca²⁺]_cyt in human PASMCs and HEK-293 cells. PASMCs were grown on glass coverslips (25 mm in diameter). Cells were first incubated with 4-μM Fura-2 acetoxymethyl ester (Fura-2/AM, Invitrogen/Molecular Probes, Eugene, OR) for 60 min at room temperature (22–24°C). Cells loaded with Fura-2/AM were then superfused with HEPES-buffered bath solution for 30 min to washout extracellular Fura-2/AM and allow enough time for intracellular esterase to cleave Fura-2/AM to Fura-2. Cells loaded with Fura-2 were then alternatively illuminated at 340- and 380-nm wavelengths using Xenon lamp (Hamamatsu Photonics, Hamamatsu, Japan) connected to a Nikon inverted fluorescent microscope (Eclipse Ti-E; Nikon, Tokyo, Japan). The fluorescence emitted at 520 nm was captured using EM-CCD camera (Evolve; Photometrics, Tucson, AZ, USA), and the fluorescence intensity was analysed using NIS Elements 3.2 software (Nikon). The ratio of fluorescence intensity (F₃₄₀/F₃₈₀) was used to measure [Ca²⁺]_cyt within an area of interest (AOI) in a cell and recorded every 2 s. The HEPES-buffered solution contained 137-mM NaCl, 5.9-mM KCl, 1.8-mM CaCl₂, 1.2-mM MgCl₂, 14-mM glucose and 10 HEPES (pH, 7.4, by NaOH). The Ca²⁺-free solution was prepared by replacing 1.8-mM CaCl₂ with equimolar MgCl₂ and adding 1-mM EGTA to chelate residual Ca²⁺. All experiments for measuring [Ca²⁺]_cyt were performed at room temperature (22–24°C).

2.8 ∣. Data and statistical analysis

The data and statistical analysis comply with the recommendations of the British Journal of Pharmacology on experimental design and analysis in pharmacology (Curtis et al., 2015). Data analysis was performed in a blinded manner wherever possible. Statistical tests were performed using SigmaPlot 11.0 Systat Software (SigmaPlot Inc., Chicago, IL, USA) with group size equal to or more than 5 (n ≥ 5). ‘n’ represents the number of animals in in vivo experiments or independent experimental values in in vitro experiments. No outliers were removed from the data analysis and presentation. Data are expressed as means ± SEM. Statistical analysis was performed using paired or unpaired Student's t test (for two groups) or ANOVA and post hoc tests (Student–Newman–Kuels or Holm–Sidak) (for multiple groups). The post hoc tests were only performed when there was a significant difference between two groups and there was no variance in homogeneity. Differences are considered significant at P < 0.05.

2.9 ∣. Materials

All drugs and chemicals were obtained from Sigma-Aldrich unless otherwise stated. Halofuginone (HY-N2584) was obtained from MedChemExpress (MCE, Monmouth Junction, NJ 08852, USA). Halofuginone and BAPTA-AM were dissolved in DMSO, whereas BAPTA was dissolved in distilled water, to make concentrated stock solutions of halofuginone, BAPTA and BAPTA-AM. These concentrated stock solutions were aliquoted and stored at −20°C until the day of experiments.

2.10 ∣. Nomenclature of targets and ligands

Key protein targets and ligands in this article are hyperlinked to corresponding entries in the IUPHAR/BPS Guide to PHARMACOLOGY (http://www.guidetopharmacology.org) and are permanently archived in the Concise Guide to PHARMACOLOGY 2019/20 (Alexander, Christopoulos et al., 2019; Alexander, Fabbro et al., 2019; Alexander, Kelly et al., 2019a, b; Alexander, Mathie et al., 2019).

3 ∣. RESULTS

An increase in [Ca²⁺]_cyt in smooth muscle cells is a major trigger for pulmonary vasoconstriction. Membrane depolarization-induced Ca²⁺ influx through VDCCs is an important trigger for excitation–contraction coupling in vascular smooth muscle cells. Activation of K⁺ channels and an increase in outward K⁺ currents result in membrane hyperpolarization or repolarization, which can subsequently inhibit Ca²⁺ influx through VDCCs. To test whether halofuginone induces pulmonary vasodilation by activating K⁺ channel activity and/or inhibiting Ca²⁺ influx, we first examined the effect of halofuginone on whole-cell K⁺ currents and Ca²⁺ currents in PASMCs using patch-clamp techniques and on receptor-operated (ROCE) and store-operated Ca²⁺ entries (SOCE) in PASMCs using digital imaging fluorescence microscopy.

3.1 ∣. Halofuginone reversibly increases whole-cell K⁺ currents in PASMCs

Hypoxia decreases K⁺ currents in rat PASMCs causing membrane depolarization (Yuan et al., 1993). We first used intracellular (or pipette) and extracellular (or bath) solutions that were suitable to measure whole-cell voltage-gated K⁺ (K_v) currents in PASMCs. In these experiments, the contribution of K⁺ currents through ATP-sensitive K⁺ (K_ATP) channels and Ca²⁺-activated K⁺ (K_Ca) channels to the whole-cell currents was minimized by including 10-mM ATP and 10-mM EGTA in the pipette solution and Ca²⁺-free bath solution. Extracellular application of 1-μM halofuginone significantly and reversibly increased the whole-cell K_v currents in PASMCs (Figure 1a-c). The halofuginone -sensitive K_v currents seemed to be induced by relatively negative potentials (between −40 and −60 mV) (Figure 1d), whereas multiple parameter fitting was required to best fit the activation (sigmoid, four parameters), inactivation (exponential decay, triple, six parameters) and deactivation (sigmoid, three parameters) phases of the halofuginone -activated currents (Figure 1e). These data indicate that halofuginone significantly and reversibly increased whole-cell K_v currents in PASMCs and that several K_v channels contribute to the halofuginone-induced or halofuginone-enhanced K_v currents.

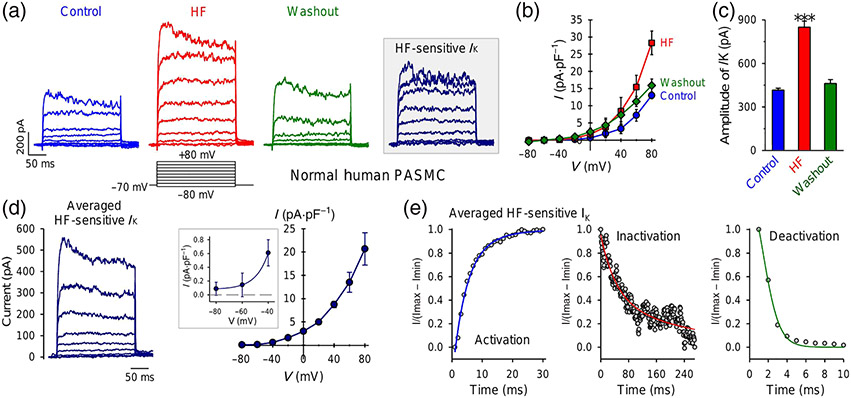

FIGURE 1.

Halofuginone (HF) reversibly increases whole-cell K⁺ currents in pulmonary arterial smooth muscle cells (PASMCs). (a) Representative currents, elicited by depolarizing a cell from a holding potential of −70 mV to a series of test potentials ranging from −80 to +80 mV in increment of 20 mV, before (control), during (HF) and after (washout) extracellular application of 1-μM halofuginone. The halofuginone-sensitive K⁺ currents (IK) shown in inset are obtained by subtracting the currents recorded before halofuginone application (control) from the currents recorded during halofuginone application (HF). (b) Averaged current–voltage (I–V) relationship curves (means ± SE, n = 12) for currents recorded before (control), during (HF) and after (washout) halofuginone application. The halofuginone curve is significantly different from control and washout curves. (c) Amplitude of currents at +80 mV under control, HF and washout conditions. Data shown are means ± SEM, n = 12. *P < 0.05, significantly different from control and washout. (d) Averaged HF-sensitive I_K (left panel) and its I–V curve (right panel). Inset: enlarged portion of the I–V curve showing the halofuginone -sensitive I_K at negative potentials (−80 to −40 mV). (e) Activation (left panel), inactivation (middle panel) and deactivation kinetics of averaged halofuginone-sensitive I_K at +80 mV. The data were best fitted by sigmoid (four parameters) for activation, exponential decay (six parameters) for inactivation and sigmoid (three parameters) for deactivation

In human and animal PASMCs, many K_v channels are expressed and contribute to the whole-cell K_v currents. We and others previously reported that KCNA5 (or K_v1.5) is one of the K_v channels playing an important role in regulating membrane potential and acute hypoxic pulmonary vasoconstriction (HPV) (Archer et al., 1993, 2000; Platoshyn et al., 2006; Post et al., 1995; Yuan, 1995). To examine if halofuginone directly affects KCNA5, we transfected the human KCNA5 gene to HEK-293 cells. As shown in Figure 2, transient transfection of KCNA5 into HEK cells generated large K⁺ currents upon depolarization from a holding potential of −70 mV to test potentials ranging from −40 to +80 mV (Figure 2a). The current amplitude and density in HEK-293 cells transiently transfected with KCNA5 (2009.0 ± 263.6 pA and 164.5 ± 31.8 pA·pS⁻¹ at +80 mV) were approximately 4.8 (current amplitude) and 12.7 (current density) times higher than those in native PASMCs (415.7 ± 12.4 pA and 12.9 ± 0.9 pA·pS⁻¹ at +80 mV), respectively. Extracellular application of 1-μM halofuginone reversibly induced a 36% increase in the current amplitude and a 45% increase in the current density (Figure 2a-c). The I–V curve of the halofuginone -sensitive KCNA5 currents indicated an activation threshold of around −60 mV (Figure 2d), and the time course showed that halofuginone -induced increase in KCNA5 currents occurred within 1 min and maximized around 5 min after extracellular application of halofuginone (Figure 2e). Western blot experiments confirmed the efficient transfection and expression of KCNA5 in HEK 293 cells (Figure 2f) we used in the experiments. These results indicate that halofuginone significantly and reversibly increases K⁺ currents through KCNA5 channels.

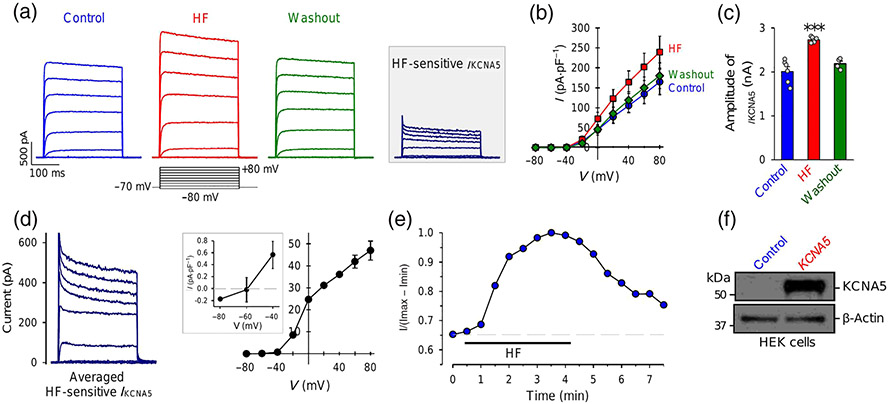

FIGURE 2.

Halofuginone (HF) reversibly increases whole-cell K⁺ currents in HEK cells transiently transfected with the human KCNA5 gene. (a) Representative outward K⁺ currents, elicited by depolarizing a cell from a holding potential of −70 mV to a series of test potentials ranging from −80 to +80 mV in increment of 20 mV, before (control), during (HF) and after (washout) extracellular application of 1-μM halofuginone. The halofuginone -sensitive K⁺ currents through KCNA5 channels (I_KCNA5) shown in inset are obtained by subtracting the currents recorded before halofuginone application (control) from the currents recorded during HF application (HF). (b) Averaged current–voltage (I–V) relationship curves (means ± SE, n = 8) for I_KCNA5 recorded before (control), during (HF) and after (washout) halofuginone application. The halofuginone curve is significantly different from control and washout curves. (c) Amplitude of I_KCNA5 at +80 mV under control, HF and washout conditions. Data shown are means ± SEM; n = 8 cells; for two of the 8 cells we were unable to record current after application of HF. *P < 0.05, significantly different from control and washout. (d) Averaged halofuginone -sensitive I_KCNA5 (left panel) and its I–V curve (right panel). Inset: enlarged portion of the I–V curve showing the halofuginone -sensitive I_KCNA5 at negative potentials (−80 to −40 mV). (e) Time course of halofuginone -induced effect on I_KCNA5. Normalized I_KCNA5 at +80 mV before, during and after extracellular application of 1-μM halofuginone. (f) Western bot analysis on KCNA5 in HEK cells transfected with an empty vector (control, n = 6 cells) or the human KCNA5 gene (KCNA5, n = 6 cells)

3.2 ∣. Halofuginone inhibits Ca²⁺ entry through ROCC, SOCC and VDCC

Agonist ligand- and hypoxia-induced pulmonary vasoconstriction is triggered by an increase in [Ca²⁺]_cyt in PASMCs due to Ca²⁺ influx through various Ca²⁺ channels in the plasma membrane and Ca²⁺ release from the intracellular stores (McDaniel et al., 2001). The Ca²⁺ influx through ROCC and SOCC is involved in pulmonary vasoconstriction induced by vasoactive agonists, such as endothelin-1, 5-HT and Ang II) (Liu et al., 2012; Xia et al., 2013; Yamamura et al., 2011) and acute alveolar hypoxia (Wang et al., 2005, 2006). SOCE and ROCE are also enhanced in PASMCs isolated from rats with chronic HPH (Lin et al., 2004; Tang et al., 2016; Xiao, Su, et al., 2017), whereas VDCCs are up-regulated in pulmonary arteries in mice with HPH (Wan et al., 2013).

The calcium-sensing receptor (CaSR) is a GPCR that is activated by divalent cations such as Ca²⁺ and Mg²⁺ (Bouschet et al., 2008; Magno et al., 2011), and it appears to be involved in the development and progression of PH (Tang et al., 2016) To test if halofuginone affects CaSR-mediated increase in [Ca²⁺]_cyt, we first transfected HEK-293 cells with the CaSR gene. The CASR-transfected cells were first superfused with Ca²⁺-free solution, and then extracellular Ca²⁺-mediated increase in [Ca²⁺]_cyt through activation of CaSR was induced by application of 1.8-mM Ca²⁺, as a ligand of CaSR, in the bath solution. Our previous study showed that application of extracellular Ca²⁺ to HEK cells overexpressing CaSR caused oscillatory increases in [Ca²⁺]_cyt, whereas the Ca²⁺ oscillation was not present in non-transfected and GFP-transfected control cells (Song et al., 2020). As shown in Figure 3, extracellular application of Ca²⁺ to CASR-transfected HEK-293 cells caused an oscillatory increase in [Ca²⁺]_cyt (Figure 3a). Halofuginone caused a concentration-dependent inhibition of the amplitude of extracellular Ca²⁺-induced oscillatory increase in [Ca²⁺]_cyt (Figure 3a,b) and the concentration–response curve implied that the IC₅₀ for halofuginone-induced inhibition on CaSR-mediated Ca²⁺ influx was approximately 0.07 μM (Figure 3b). We also compared the basal [Ca²⁺]_cyt in CASR-transfected HEK-293 cells treated with vehicle and all concentrations of halofuginone (0.03–1 μM). As shown in Figure 3c, halofuginone treatment also decreased basal [Ca²⁺]_cyt. These data indicate that halofuginone significantly inhibited the CaSR-mediated increase in [Ca²⁺]_cyt due to ROCE. In these experiments, however, we could not rule out the possibility that halofuginone might also inhibit CaSR-mediated Ca²⁺ mobilization from intracellular Ca²⁺ stores.

FIGURE 3.

Halofuginone (HF) inhibits receptor-operated and store-operated Ca²⁺ entry. (a) Representative traces showing changes in [Ca²⁺]_cyt before, during and after superfusion of extracellular application of 1.8-mM Ca²⁺ (calcium) in HEK-293 cells transfected with the calcium-sensing receptor (CaSR) gene (CASR) with (HF) or without (vehicle [Veh]) treatment of 0.03-, 0.1- and 1-μM halofuginone. (b) Summarized data showing the concentration–response curve of 1.8-mM Ca²⁺-induced increases in [Ca²⁺]_cyt in CASR-transfected HEK-293 cells treated with different concentrations of halofuginone (0.0001 to 1 μM). Data shown are means ± SEM, n = 6 independent experiments for each data points. *P < 0.05, significantly different from 0.0001-μM halofuginone. (c) Summarized data (means ± SEM) showing the basal [Ca²⁺]_cyt in CASR-transfected HEK-293 cells treated with Veh (n = 5) and all concentrations of halofuginone (0.03–1 μM) (HF, n = 7). *P < 0.05, significantly different from Veh. (d) Representative traces showing changes in [Ca²⁺]_cyt before and during extracellular application of cyclopiazonic acid (CPA, 10 μM) in the absence (0Ca) or presence (1.8Ca) of 1.8-mM Ca²⁺ in human PASMCs shortly (10 min) treated with Veh (left panel) or 0.1-μM halofuginone (right panel). (e) Summarized data (means ± SEM, n = 6 independent experiments) showing the CPA-induced increases in [Ca²⁺]_cyt in the absence (first peak, 0Ca) and presence (second peak, 1.8Ca) of 1.8-mM extracellular Ca²⁺ in human PASMCs treated with Veh or halofuginone (0.1 μM). *P < 0.05, significantly different from Veh. (f) Summarized data (means ± SEM) showing the basal [Ca²⁺]_cyt in human PASMCs treated with Veh (n = 6 independent experiments) and 0.1-μM halofuginone (n = 6 independent experiments)

We therefore tested the effect of halofuginone on SOCE in native PASMCs. We used cyclopiazonic acid (CPA, 10 μM), a sarcoplasmic/endoplasmic reticulum Ca²⁺ pump (SERCA) inhibitor, to induce intracellular Ca²⁺ store depletion or reduction (Seidler et al., 1989; Wu et al., 2017). Extracellular application of CPA (10 μM) induced an increase in [Ca²⁺]_cyt in the absence of extracellular Ca²⁺ (0Ca) due apparently to Ca²⁺ mobilization or leak from the SR to the cytosol (Figure 3d, left panel). When CPA-mediated increase in [Ca²⁺]_cyt in the absence of extracellular Ca²⁺ returned to the baseline level (i.e., when Ca²⁺ in the SR was depleted), restoration of extracellular Ca²⁺ to 1.8 mM (1.8Ca) caused another increase in [Ca²⁺]_cyt (Figure 3d, left panel), which was due obviously to Ca²⁺ entry through SOCCs (Wu et al., 2017). Treatment of the cells with halofuginone (0.1 μM, for 10 min) had no effect on the increase in [Ca²⁺]_cyt (first peak increase) due to CPA-mediated Ca²⁺ mobilization from the SR, but significantly inhibited the increase in [Ca²⁺]_cyt (second peak increase) due to CPA-mediated Ca²⁺ influx through SOCCs (or SOCE) (Figure 3d, right panel, and Figure 3e). We also compared the basal [Ca²⁺]_cyt in human PASMCs treated with vehicle and 0.1-μM halofuginone. As shown in Figure 3f, halofuginone slightly decreased basal [Ca²⁺]_cyt with no statistical significance. These data indicate that halofuginone inhibits both ROCE and SOCE, but its effect on Ca²⁺ release remains elusive.

To examine the effect of halofuginone on voltage-dependent Ca²⁺ entry, we also measured and compared whole-cell voltage-gated Ca²⁺ (or Ba²⁺) currents in PASMCs before, during and after extracellular application of halofuginone. In these experiments, we used Ba²⁺ as the charge carrier to indicate VDCC activity because of its high permeability through VDCCs. Extracellular application of 1-μM halofuginone slightly, but with statistical significance, reduced the whole-cell Ba²⁺ currents, elicited by depolarizing the cells from a holding potential −70 mV to a series of test potentials ranging from −40 to +80 mV (Figure 4a,b). The I–V curves showed that the activation threshold for the channels was around −30 mV and the maximal currents occurred at +10 mV (Figure 4b). halofuginone reduced the amplitude of the currents but seemed to have little effect on the amplitude and kinetics of the currents (Figure 4c). The averaged data indicated that acute treatment of PASMCs with halofuginone (1 μM for 10 min) resulted in a 48% decrease of the current amplitude at +10 mV (Figure 4d). The halofuginone-mediated inhibitory effect on VDCCs was associated with an inhibition of high K⁺-induced pulmonary vasoconstriction (Figure 4e,f). In isolated perfused and ventilated mouse lungs, intrapulmonary superfusion of solutions containing 40K caused a rapid increase in PAP apparently due to membrane depolarization-induced increase in [Ca²⁺]_cyt in PASMCs. Short-term treatment with halofuginone (1 μM) through intrapulmonary perfusion resulted in a reversible 42% inhibition of 40K-induced increase in PAP (Figure 4e,f). The inhibition of 40K-mediated pulmonary vasoconstriction (or increase in PAP) in isolated lungs was consistent with the reduction of whole-cell voltage-gated Ca²⁺ currents in PASMCs. These data indicate that halofuginone blocks L-type VDCCs, inhibits voltage-gated Ca²⁺ entry and causes pulmonary vasodilation.

FIGURE 4.

Halofuginone (HF) reversibly decreases whole-cell voltage-gated Ca²⁺ currents (I_Ca) in pulmonary arterial smooth muscle cells (PASMCs). (a) Representative inward currents, elicited by depolarizing a cell from a holding potential of −70 mV to a series of test potentials ranging from −40 to +30 mV in increment of 10 mV, before (control), during (HF) and after (washout) extracellular application of 1-μM halofuginone. (b) Averaged current–voltage (I–V) relationship curves (means ± SEM, n = 12) for currents recorded before (control), during (HF) and after (washout) halofuginone application. The halofuginone curve is significantly different from control and washout curves. (c) Activation and inactivation kinetics of I_Ca in PASMCs before (control), during (HF) and after (washout) treatment with halofuginone. (d) Amplitude of peak inward currents at +10 mV under control, HF and wash conditions. (means ± SEM; n = 5 in each group. *P < 0.05, significantly different from control and washout. (e) Representative records showing pulmonary arterial pressure (PAP) in isolated perfused/ventilated mouse lung before, during and after intrapulmonary superfusion of 40-mM K⁺ (40K)-containing solution in the absence or presence of 1-μM halofuginone. (f) Summarized data (means ± SEM, n = 5 in each group) showing the 40K-induced increase in PAP in isolated perfused/ventilated lungs before (control), during (HF) and after (wash) intrapulmonary application of 1-μM halofuginone. *P < 0.05, significantly different from control and washout

3.3 ∣. Halofuginone inhibits acute HPV

Persistent pulmonary vasoconstriction induced by sustained alveolar hypoxia is involved in the increased pulmonary vascular resistance and PAP in patients with obstructive lung diseases (Simonneau et al., 2019), obstructive sleep apnoea (Simonneau et al., 2019) and chronic mountain sickness and in residents living in high altitude (Wilkins et al., 2015). Using isolated perfused and ventilated lung preparations, we examined the effect of halofuginone on alveolar hypoxia-induced increase in PAP due to acute HPV. As shown in Figure 5a, the angiography image of the left lung showed the vascular complexity and density of pulmonary vascular tree (Figure 5a). Intrapulmonary arterial perfusion of vasoconstrictive agent (e.g., 40K-containing solution in this case, Figure 5b) or ventilation of hypoxic gas mixture (e.g., 1% O₂ and 5% CO₂ in N₂) through a tracheal intubation tube caused a rapid increase in PAP in the isolated perfused/ventilated lung (Figure 5b); restoration of intrapulmonary arterial perfusion to PSS or ventilation to normoxic gas (room air, 21% O₂) resulted in a rapid recovery of the increased PAP to the baseline level (Figure 5b). Short-term (10 min) treatment of the isolated perfused and ventilated lungs with halofuginone (through intrapulmonary arterial perfusion) significantly inhibited alveolar hypoxia-induced increase in PAP due to HPV (Figure 5c,d). Perfusion of halofuginone, from 0.1 to 1 μM, provided effective block of HPV (Figure 5e). These data indicate that intrapulmonary arterial perfusion of halofuginone at concentrations between 0.1 and 1 μM inhibited alveolar hypoxia-induced pulmonary vasoconstriction as a result of its inhibitory effect on VDCC and ROCC and augmenting effect on K⁺ channels, including KCNA5.

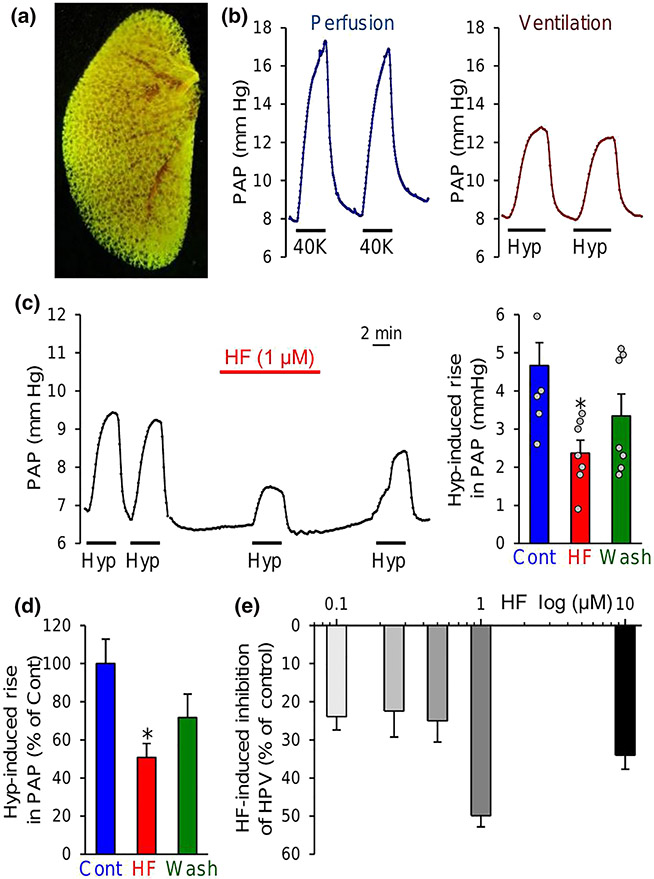

FIGURE 5.

Halofuginone (HF) inhibits acute hypoxia-induced pulmonary vasoconstriction (HPV) in isolated perfused/ventilated mouse lungs. (a) Representative lung angiogram of the left lung from a C57/BL6 mouse. (b) Representative records of pulmonary arterial pressure (PAP) in the isolated perfused/ventilated lungs before, during and after intrapulmonary perfusion with 40-mM K⁺ (40K)-containing solution through a right ventricular/pulmonary arterial catheter (left panel) or ventilation with hypoxic gas (Hyp, 1% O₂ in N₂) through tracheal intubation (right panel). (c) Representative record (left panel) of PAP before, during and after ventilation with Hyp (4 min) when the lung was perfused with physiological salt solution (PSS) with (HF) or without 1-μM halofuginone. Summarized data (means ± SEM, n = 7 mouse lungs, right panel) showing the acute hypoxia-induced increases in PAP before (Cont), during (HF) and after (wash) before (Cont), during (HF) and after (wash) intrapulmonary application of 1 μM halofuginone. *P < 0.05, significantly different from Cont. (d) Normalized changes of hypoxia-induced increases in PAP before (Cont), during (HF) and after (wash) intrapulmonary application of 1-μM halofuginone. *P < 0.05, significantly different from Cont (blue). (e) Concentration–response curve showing the alveolar hypoxia-induced increases in PAP in the isolated perfused/ventilated lungs with the intrapulmonary application of different concentrations of halofuginone (0.1 to 10 μM). n = 5 in each group

3.4 ∣. Halofuginone inhibits PDGF-mediated phosphorylation of Akt and mTOR in PASMCs

Receptor-mediated Ca²⁺ influx in PASMCs is not only required for agonist-mediated pulmonary vasoconstriction (Wu et al., 2017) but also required for or involved in growth factor-mediated PASMC proliferation and pulmonary vascular remodelling (Rieg et al., 2018; Song et al., 2011; Yamamura et al., 2014). The in vitro and ex vivo experiments shown in this study indicate that halofuginone significantly inhibited Ca²⁺ influx in PASMCs, by indirectly activating K⁺ channel activity and directly inhibiting voltage-dependent Ca²⁺ entry, ROCE and SOCE (Figures 1-5). The next set of experiments was designed to examine whether halofuginone -induced inhibitory effect on Ca²⁺ influx was associated with inhibition of intracellular signalling cascades required for PASMC proliferation.

Growth factor-mediated PASMC proliferation is associated with activation of the PI3K/Akt/mTOR pathway (Rieg et al., 2018; Song et al., 2011; Tang et al., 2016), one of the major signalling pathways associated with cell proliferation (Tang et al., 2015; Xiao, Peng, et al., 2017). We used BAPTA, a potent Ca²⁺ chelator, to chelate extracellular Ca²⁺ in the culture media, and BAPTA-AM, a cell-permeant Ca²⁺ chelator, to chelate intracellular Ca²⁺, to examine the effects of removal or chelation of extracellular and/or intracellular free Ca²⁺ on PDGF-mediated p-Akt and p-mTOR in PASMCs (Song et al., 2016). As shown in Figure 6a, chelation of free Ca²⁺ in extracellular perfusate by BAPTA significantly attenuated the increase in [Ca²⁺]_cyt induced by CPA, a SERCA inhibitor that induces SOCE by passively depleting Ca²⁺ from the intracellular stores. In the presence of extracellular BAPTA, CPA still induced a marked increase in [Ca²⁺]_cyt due to Ca²⁺ mobilization or leakage from the sarcoplasmic/endoplasmic reticulum to the cytosol. In PASMCs pretreated with BAPTA-AM, however, CPA failed to induce any increase in [Ca²⁺]_cyt (Figure 6a,b). These data indicate that BAPTA and BAPTA-AM can efficiently inhibit or abolish increases in cytosolic free [Ca²⁺]_cyt.

FIGURE 6.

Halofuginone (HF) inhibits Ca²⁺-sensitive Akt/mTOR phosphorylation in human PASMCs. Representative record (a) and summarized data (b, means ± SEM, n = 5 independent experiments) showing cyclopiazonic acid (CPA)-induced changes in [Ca²⁺]_cyt in PASMCs superfused with 1.8-mM Ca²⁺ (1.8Ca)-containing solution in the absence (1.8Ca) or presence of BAPTA (BAPTA), BAPTA-AM (1.8Ca + BAPTA-AM) or BAPTA + BAPTA-AM. *P < 0.05, significantly different from 1.8Ca. (c) Western blot analysis on phosphorylated Akt (pAKT), total Akt (AKT), phosphorylated mTOR (pmTOR) and total mTOR (mTOR) in control PASMCs and PASMCs treated with PDGF (PDGF-BB, 10 ng·ml⁻¹) in the absence (−) and presence (+) of BAPTA or BAPTA-AM. (d) Summarized data (means ± SEM, n = 8 independent experiments) showing the ratio of p-Akt/Akt and p-mTOR/mTOR in control PASMCs (control) and PDGF-treated PASMCs in the absence and presence of BAPTA or BAPTA-AM: PDGF alone, PDGF + BAPTA, PDGF + BAPTA-AM or PDGF + BAPTA + BAPTA-AM. *P < 0.05, significantly different from PDGF alone; #P < 0.05, significantly different as indicated. (e) Western blot analysis on p-Akt, Akt, p-mTOR and mTOR in control PASMCs and PASMCs treated with PDGF in the absence (vehicle control, Veh) and presence (HF) of 1-μM halofuginone (for 24 h). Summarized data (means ± SEM, n = 5–6 in each group) showing the ratio of p-Akt/Akt and p-mTOR/mTOR (f) as well as the relative p-Akt, Akt, p-mTOR and mTOR protein level (g, normalized to actin) in control PASMCs (control) and PDGF-treated PASMCs in the absence (PDGF) and presence (PDGF + HF) of 1-μM halofuginone. *P < 0.05, significantly different from control; *P < 0.05, significantly different from PDGF; ^#P < 0.05, significantly different as indicated.. (g) Summarized data (means ± SEM, n = 5–6 in each group) showing the ratio of p-Akt/Akt and p-mTOR/mTOR in control PASMCs (control) and PDGF-treated PASMCs in the absence (PDGF) and presence (PDGF + HF) of 1-μM halofuginone. *P < 0.05, significantly different from control; ^#P < 0.05, significantly different as indicated

Chelation of extracellular Ca²⁺ by BAPTA or chelation of intracellular Ca²⁺ by BAPTA-AM significantly inhibited PDGF-mediated increases in p-Akt and p-mTOR in human PASMCs (Figure 6c), whereas treatment of the cells with BAPTA and BAPTA-AM further almost abolished the PDGF-mediated increases in p-Akt and p-mTOR (Figure 6c,d). These results provide compelling evidence that PDGF (and other growth factors)-mediated activation of the Akt/mTOR signalling pathway, indicative of increased p-Akt and p-mTOR, is dependent on Ca²⁺ influx and/or release in PASMCs.

Indeed, treatment of PASMCs with halofuginone (1 μM, for 48 h) significantly inhibited PDGF (10 ng·ml⁻¹)-mediated increases in p-Akt/Akt and p-mTOR / mTOR ratios (Figure 6e,f) as well as in p-Akt and p-mTOR (Figure 6g). The inhibitory effect of halofuginone on PDGF-mediated phosphorylation of Akt/mTOR was likely to be due to its inhibitory effect on Ca²⁺ influx in PASMCs. It has to be noted that halofuginone may inhibit Akt and mTOR phosphorylation via other mechanisms (Chen et al., 2015) (Follo et al., 2019). Given that the Akt/mTOR signalling pathway is a major pathway for inducing cell proliferation, the halofuginone -induced inhibitory effect on the Akt/mTOR signalling cascade would attenuate PASMC proliferation and, ultimately, ameliorate pulmonary vascular remodelling or concentric pulmonary arterial medial thickening.

3.5 ∣. Halofuginone partly reversed established experimental PH in mice

Sustained pulmonary vasoconstriction, inhibited vasodilation and concentric pulmonary arterial remodelling all contribute to the elevation of pulmonary vascular resistance and PAP in patients with PAH and animals with experimental PH (Kuhr et al., 2012; Stenmark et al., 2009; Tuder, 2017). In addition to its acute vasodilatory effect, halofuginone may exert a chronic regression effect on remodelled pulmonary vasculature and reverse PH. To test this hypothesis, we conducted a reversal experiment using mice with chronic hypoxia-induced PH. As shown in the experimental protocol (Figure 7a), 8-week-old mice were first divided into four groups: (i) normoxic group (Nor), (ii) hypoxia + vehicle group (Hyp), (iii) hypoxia group with an intraperitoneal injection of 0.15 mg·kg⁻¹, q.d., of halofuginone (Hyp + HF-0.15) and (iv) hypoxia group with an intraperitoneal injection of 0.3 mg·kg⁻¹ (q.d.) of halofuginone (Hyp + HF-0.3). The Hyp and Hyp + HF mice were first exposed to normobaric hypoxia (10% O₂) for 4 weeks and then were injected i.p., once a day, with vehicle (in Hyp group), 0.15 mg·kg⁻¹ of halofuginone (HyP + HF-0.15) or 0.3 mg·kg⁻¹ of HF (Hyp + HF-0.3) for two more weeks under hypoxic conditions before the haemodynamic and angiography measurements were conducted.

FIGURE 7.

Halofuginone (HF) partly reverses established pulmonary hypertension (PH) in mice exposed to chronic hypoxia. (a) Timeline and experimental protocol for the pharmacological experiments in mice with experimental PH or hypoxia-induced PH. Mice were divided into four groups: normoxia (Nor), hypoxia + vehicle (Hyp), hypoxia + 0.15-mg·kg⁻¹ halofuginone (Hyp + HF-0.15) and hypoxia + 0.3-mg·kg⁻¹ halofuginone (Hyp + HF-0.3). The Hyp and Hyp + HF mice were first exposed to hypoxia for 4 weeks and then were injected i.p. with vehicle or halofuginone at 0.15 or 0.3 mg·kg⁻¹, once a day (q.d.), for two more weeks under hypoxic conditions before haemodynamic measurements were conducted. (b) Representative records of right ventricular pressure (RVP) (A, upper panels) and right ventricular (RV) contractility (RV- ± dP/dt) (A, lower panels) in normoxic (Nor) mice, hypoxic (Hyp) mice and Hyp mice receiving i.p. administration of 0.15 mg·kg⁻¹ (Hyp + HF-0.15) or 0.3 mg·kg⁻¹ (Hyp + HF-0.3) of halofuginone. Summarized data (B, means ± SEM) showing right ventricular systolic pressure (RVSP), estimated mean pulmonary arterial pressure (mPAP), RV- + dP/dt_max and heart rate in Nor, Hyp, Hyp + HF-0.15 and Hyp + HF-0.3 mice, n = 7–10 in each group. *P < 0.05, significantly different from Nor; ^#P < 0.05, significantly different from Hyp. (c) Summarized data (means ± SEM) showing Fulton index, the ratio of the weight of RV to the weight of left ventricle (LV) and septum (S) [RV/(LV + S)] in Nor, Hyp, Hyp + HF-0.15 and Hyp + HF-0.3 mice, n = 5 in each group. *P < 0.05, significantly different from Nor; ^#P < 0.05, significantly different from Hyp. (d) Summarized data (means ± SEM) showing averaged changes of RVSP (A, in mmHg and in % of Hyp), mPAP (B, in mmHg and in % of Hyp), RV- + dP/dt_max (C, in mmHg·s⁻¹ and in % of Hyp) and Fulton index (D, in actual value of the ratio and in % of Hyp)

Four weeks of exposure to hypoxia significantly increased RVSP, a surrogate measure for pulmonary arterial systolic pressure (Figure 7b,c). Due to the increased RVSP during hypoxia, the RV contractility, indicated by RV- ± dP/dt, was also increased. The RV-dP/dt is a surrogate measure and reliable indicator for RV contractility that increases in response to the elevated PAP (Tabima et al., 2010; Vitali et al., 2014). Injection of halofuginone, i.p. once a day, at a dose of 0.15 mg·kg⁻¹, for 2 weeks did not significantly attenuate the increases in RVSP and estimated mean PAP (mPAP) (Chemla et al., 2004; Parasuraman et al., 2016) (Figure 7b), Fulton index (Figure 7c) and the ratio of weight of RV to the weight of LV and S [RV/(LV + S)] during hypoxia (Figure 7b,c). Although there was a trend for 0.15-mg·kg⁻¹ halofuginone to reverse the chronic hypoxia-induced PH, none of the parameters bear statistical significance. Then we repeated the experiments by increasing the dose of halofuginone to 0.3 mg·kg⁻¹ (q.d., for 2 weeks) and found that halofuginone at the higher dose significantly ameliorated the chronic hypoxia-induced PH (Figure 7c,d). The data indicated that this dose of halofuginone reversed, at least partly, the established PH (by approximately 50–55% on RVSP and mPAP and more than 90% on Fulton index).

The next set of experiments was designed to repeat and confirm the reversal experimental results (shown in Figure 7) and show whether halofuginone affected pulmonary haemodynamics and lung vascular structure under normoxic conditions. Intraperitoneal injection of 0.3-mg·kg⁻¹ halofuginone q.d. for 2 weeks after 4 weeks of exposure to normoxia (room air, 21% O₂) had no significant effect on RVSP, mPAP and heart rate but slightly decreased RV- + dP/dt_max (Figure 8a,b). Four weeks of initial hypoxic exposure significantly increased RVSP, mPAP and RV- + dP/dt_max (Figure 8a,b). Then, 2 weeks of intraperitoneal injection of halofuginone (0.3 mg·kg⁻¹, q. d.) under hypoxic conditions significantly inhibited hypoxia-induced increases in RVSP and mPAP (Figure 8b). Halofuginone had no effect on heart rate under normoxic or hypoxic conditions (Figure 8b).

FIGURE 8.

Halofuginone (HF) partly reverses established pulmonary hypertension (PH) in mice exposed to chronic hypoxia by inhibiting pulmonary vascular remodelling. (a) Representative records of right ventricular pressure (RVP) (upper panels) and right ventricular (RV) contractility (RV- ± dP/dt) (lower panels) in normoxic (Nor) mice, Nor mice receiving intraperitoneal administration of 0.3 mg·kg⁻¹ of halofuginone (Nor + HF-0.3), hypoxic (Hyp) mice and Hyp mice receiving 0.3 mg·kg⁻¹ of halofuginone (i.p.) (Hyp + HF-0.3). (b) Summarized data (means ± SEM) showing right ventricular systolic pressure (RVSP), estimated mean pulmonary arterial pressure (mPAP), RV- + dP/dt_max and heart rate in Nor, Nor + HF-0.3, Hyp and Hyp + HF-0.3 mice, n = 5 in each group. *P < 0.05, significantly different from Nor and Nor + HF-0.3; #P < 0.05, significantly different from Hyp. (c) Representative lung angiograph of the left lung at 8× (upper panels) and 30× (lower panels) magnification from Nor, Nor + HF-0.3, Hyp and Hyp + HF-0.3 mice. (d) Summarized data (means ± SEM) showing the total length of lung vascular branches (left panel), the number of lung vascular branches (middle panel) and the number of vascular branch junctions (right panel) per mm² of area in the lungs from Nor, Nor + HF-0.3, Hyp and Hyp + HF-0.3 mice n = 5 in each group. *P < 0.05, significantly different from Nor and Nor + HF-0.3; ^#p < .05 and ^#P < 0.05, significantly different from Hyp. Eight-week-old mice were divided into four groups: normoxia (Nor), Nor + HF (0.3 mg·kg⁻¹), hypoxia (Hyp) + vehicle and hypoxia + 0.3-mg·kg⁻¹ HF (Hyp + HF-0.3). The Hyp and Hyp + HF mice were first exposed to hypoxia for 4 weeks and then intraperitoneally injected with vehicle and halofuginone (0.3 mg·kg⁻¹), once a day (q.d.), for two more weeks under hypoxic conditions (total time, 6 weeks) before angiography measurements were conducted

In addition to haemodynamics, we also tested the effect of halofuginone on pulmonary vascular remodelling by angiography. Chronic exposure of mice to hypoxia for 4 weeks significantly decreased the total number of lung vascular branches, the number of vascular branches and the number of vascular branch junctions (Figure 8c,d). It must be noted that the decreased number of lung vascular branches does not necessarily mean that the branches were lost during the 4-week exposure to hypoxia. The decreased total number of branches shown in angiogram in chronically hypoxic mice was mainly due to sustained pulmonary vasoconstriction, concentric pulmonary vascular wall thickening and in situ thrombosis that preclude or inhibit the contrast to fill into small pulmonary arteries and arterioles. Intraperitoneal injection of halofuginone (0.3 mg·kg⁻¹, q.d., for 2 weeks) after 4-week normoxic exposure in control groups of mice had no significant effect on the total length of branches, the number of branches and the number of junctions (Figure 8c,d). Administration of halofuginone (i.p., 0.3 mg·kg⁻¹, q.d., for 2 weeks) after 4-week hypoxic exposure in chronically hypoxic mice reversed the angiography parameters (the total length of branches, the number of branches and the number of junctions) almost back to the normoxic control level. (Figure 8d).

Further, we also tested the effect of halofuginone on mSAP in mice with established experimental PH. As shown in Figure 9, halofuginone treatment (i.p., 0.3-mg·kg⁻¹, q.d., for 1 week) in mice pre-exposed to 4 weeks of hypoxia had little effect on SAP (Figure 9a), LV- + dP/dt_max and heart rate (Figure 9b). The same experimental protocol, however, still caused a significant inhibition of RV hypertrophy, as indicated by a decrease of Fulton index (Figure 9c).

FIGURE 9.

Halofuginone (HF) did not affect systemic arterial pressure (SAP) in mice with established pulmonary hypertension (PH). Summarized data (means ± SEM) showing systolic (left), diastolic (middle) and mean (right) systemic arterial pressure (SAP, a) measured by a catheter in left carotid artery as well as left ventricle (LV)- + dP/dt_max (left) and heart rate (right) (b) in normoxic mice (Nor), hypoxic mice (Hyp [6 weeks]) and Hyp (6 weeks) mice receiving 0.3 mg kg⁻¹ of halofuginone (i.p. and q.d. for 1 week) (Hyp [6 weeks] + HF [0.3 mg·kg⁻¹., q.d., for 1 week]). (c) Summarized data (means ± SEM) showing Fulton index, the ratio of the weight of RV to the weight of LV and septum (S) [RV/(LV + S)] in Nor, Hyp and Hyp + HF mice (n = 5 in each group). *P < 0.05, significantly different from Nor and Nor + HF mice

These data indicate that halofuginone at the dose of 0.3 mg·kg⁻¹ (q.d. and i.p.) was an efficient therapy for experimental PH, inhibiting pulmonary vascular remodelling and vasodilating the pulmonary vasculature. The inhibitory effect of halofuginone on pulmonary haemodynamics and vascular structure was specific to mice with hypoxia-induced PH. Treatment with halofuginone given to mice under normoxic conditions had no effect on RVSP and mPAP, and halofuginone given to mice under hypoxic conditions had little effect on systemic arterial pressure and left ventricular contractility.

4 ∣. DISCUSSION

In this study, we report that (i) acute (5–10 min) treatment with halofuginone significantly and reversibly increased whole-cell K_v currents in PASMCs and K⁺ currents through KCNA5 channels in KCNA5-transfected HEK-293 cells; (ii) acute treatment with HF inhibited ROCE, specifically, CaSR-associated Ca²⁺ influx, and SOCE, specifically, CPA-mediated Ca²⁺ influx, in PASMCs; (iii) acute halofuginone treatment slightly, but significantly, decreased whole-cell cation currents through VDCCs in PASMCs; (iv) acute (5–10 min) intrapulmonary perfusion of halofuginone significantly inhibited acute alveolar hypoxia-induced pulmonary vasoconstriction and high K⁺-mediated pulmonary vasoconstriction; and (v) chronic treatment of mice with i.p. halofuginone partly and significantly reversed established experimental PH, as indicated by improved pulmonary haemodynamics, reduced lung vascular remodelling and inhibited RV hypertrophy.

Febrifugine, along with chloroquine and quinine, is an anti-malarial drug extracted from hydrangea and the Chinese herb D. febrifuga Lour, which belongs to the Saxifragaceae family of herbaceous perennial flowering plants. Extracts from either the roots or the leaves are effective for treating chicks infected with Plasmodium gallinaceum and in clinical cases of malaria (Leiba et al., 2006). The active quinazoline-type alkaloid isolated from the roots, with the molecular structure C₁₆H₂₁0₃N₃, is designated as febrifugine (Koepfli et al., 1947). Halofuginone is a halogenated derivative of febrifugine and a Food and Drug Administration (FDA)-approved drug for treatment of scleroderma (Pines et al., 2003). Halofuginone also has therapeutic potential on autoimmune disease (Leiba et al., 2006), ischaemic retinal degenerative disease (Kunimi et al., 2019) and cancer (Elkin et al., 1999) based on its anti-inflammatory, anti-fibrotic and anti-proliferative effects (Grudzien et al., 2010; Nagler et al., 1996; Sundrud et al., 2009).

The anti-malarial effect of febrifugine and its analogues is due, at least in part, to the interaction with prolyl-tRNA synthetase (ProRS) in the blood stage of infection. Halofuginone inhibits ProRS activity causing intracellular accumulation of uncharged tRNA and this action requires ATP (Zhou et al., 2013). Halofuginone also exerts anti-fibrotic effect by reducing collagen synthesis and increasing collagenase activity (Popov et al., 2006) in mice and rats with various fibrotic diseases (Levi-Schaffer et al., 1996; Pines et al., 2001) including pulmonary fibrosis (Nagler et al., 1996, 1998, 1999, 2000) (Gnainsky et al., 2004; Zion et al., 2009). Halofuginone, as shown in in vitro experiments, reduces Smad3 protein (Nelson et al., 2012), inhibits TGF-β-dependent Smad3 phosphorylation and up-regulates expression of the inhibitory Smad7 in a variety of cell types (Gnainsky et al., 2007; Roffe et al., 2010; Zion et al., 2009). The inhibition of Smad3 phosphorylation is due partly to halofuginone -dependent activation of Akt, ERK and p38 MAPK phosphorylation (Roffe et al., 2010). Halofuginone also inhibited endothelial cell MMP-2 expression, basement membrane invasion, capillary tube formation and vascular sprouting, as well as deposition of subendothelial ECM in vitro. In addition, halofuginone inhibits tumour angiogenesis and metastasis in vivo and in vitro (Juarez et al., 2012; Sheffer et al., 2007; Spector et al., 2012; Taras et al., 2006). Furthermore, halofuginone induces myofibroblast and melanoma cell apoptosis (Juarez et al., 2012; Spector et al., 2012) by inhibiting Smad3 phosphorylation downstream of the TGF-β pathway. However, halofuginone also decreases apoptosis of the satellite cells that can re-enter the cell cycle to proliferate and differentiate into myoblasts, which is associated with a decrease in the Bax/Bcl2 ratio (Bodanovsky et al., 2014). Halofuginone inhibits cobalt-mediated increase in HIF-1α (Kunimi et al., 2019) and inhibits NF-κB/p38 MAPK (Leiba et al., 2006) signalling pathways to inhibit cancer cell proliferation. Halofuginone also activates the amino acid response (AAR) by mimicking proline deprivation, protects against renal ischaemic injury and inhibits inflammation (Sundrud et al., 2009). The effects of halofuginone on Th17 differentiation involve increased signalling of ERK and down-regulated expression of STAT3 and NFATc1 (Park et al., 2014).

The observations from this study indicated that halofuginone significantly and reversibly enhanced whole-cell K_V1.5/KCNA5 currents and decreased whole-cell cation currents through VDCCs in PASMCs. Halofuginone-induced increase in I_K(V) or I_KCNAS can lead to membrane hyperpolarization or repolarization, which subsequently decreases the open probability of VDCC. The halofuginone-induced inhibition of whole-cell Ba²⁺ currents through VDCCs in human PASMCs when membrane potential was clamped using the whole-cell configuration of patch-clamp techniques indicates that halofuginone also exerts an inhibitory effect on VDCCs that is independent of membrane potential change. The opposite effect of halofuginone on K_v channels (increasing the channel activity) and VDCCs (decreasing the channel activity) in human PASMCs suggests that halofuginone is an ideal drug for PAH or experimental PH by inducing pulmonary vasodilation and/or inhibiting sustained pulmonary vasoconstriction. Activity of L-type and T-type VDCCs has been implied not only in excitation–contraction coupling for vascular smooth muscle but also in smooth muscle cell proliferation and migration (Fleischmann et al., 1994; Hirenallur et al., 2008; Kuga et al., 1996; Nelson & Quayle, 1995). In addition to inhibiting Ca²⁺ influx through VDCCs, halofuginone also exerted an acute inhibitory effect on ROCE induced by activation of CaSR and SOCE induced by passive store depletion (using CPA). These data seem to suggest that halofuginone has a non-selective inhibitory effect on different Ca²⁺-permeable cation channels in PASMCs including VDCC, ROCC and SOCC. It is unclear whether and how halofuginone affects specific channel subunits in these three categories of cation channels.

The halofuginone-mediated inhibition of Ca²⁺ influx or increase in [Ca²⁺]_cyt in PASMCs results in pulmonary vasodilation and inhibition of pulmonary vasoconstriction. In our in vitro experiments, we also found that halofuginone inhibited PDGF-mediated phosphorylation of Akt and mTOR in human PASMCs. The PI3K/Akt/mTOR signalling pathway is one of the major pathways controlling or regulating cell proliferation and protein expression in a variety of cell types (Sourbier et al., 2006; Woo et al., 2017; Xu et al., 2020). We and others have shown that the PI3K/Akt1/mTORC1 pathway is an important signalling pathway associated with pulmonary vascular remodelling in animals with experimental PH, due to its critical role in regulating PASMC (and other types of lung vascular cell) proliferation (Goncharov et al., 2014; Kudryashova et al., 2015; Tang et al., 2015, 2018). The inhibitory effect of halofuginone on PDGF-mediated and Ca²⁺-sensitive activation or phosphorylation of Akt and mTOR might be due indirectly to its inhibitory effect on Ca²⁺ influx through various Ca²⁺ channels and/or directly to its inhibitory effect on receptor kinase activity (Juarez et al., 2017). Further studies are required to define the pharmacological mechanisms by which halofuginone decreases Akt/mTOR phosphorylation in human PASMCs.

Based on pharmacokinetic and pharmacodynamic studies, Stecklair et al. (2001) reported that i.p. injection of 1.5 mg·kg⁻¹ of halofuginone in mice resulted in peak plasma halofuginone concentrations between 173 and 209 ng·ml⁻¹. Using a non-compartmental pharmacokinetic model, the AUC of halofuginone produced by a dose of 1.5 mg·kg⁻¹ given i.p., was 21,626 ng·ml⁻¹·min⁻¹, thus indicating a bioavailability of 100%. halofuginone after oral administration was undetectable in plasma indicating limited oral bioavailability (Stecklair et al., 2001). The study by Stecklair et al. (2001) also demonstrated that halofuginone doses greater than 1.5 mg·kg⁻¹ showed significant toxicity in mice. It has been previously reported that i.p. doses of halofuginone between 50 and 300 μg·kg⁻¹ exhibited significant anti-tumour effects with no significant toxicity (de Figueiredo-Pontes et al., 2011). Some studies have further reported that using halofuginone doses between 5 and 400 ng·ml⁻¹ inhibits angiogenesis in vitro (Elkin et al., 2000) and T-cell activation (Leiba et al., 2006). Recently, it has been shown that halofuginone has therapeutic potential in a mouse model of chronic periodontitis using doses between 0.1 and 1 mg (Wang et al., 2020). Thus, the doses we used for our in vitro and in vivo experiments were within the range previously reported.

The in vivo pharmacological experiments showed that halofuginone at 0.3-mg·kg⁻¹ (i.p. and q.d.) could efficiently ameliorate experimental PH in mice by improving pulmonary haemodynamics, regressing pulmonary vascular remodelling and attenuating RV hypertrophy. The partial reversal, by halofuginone, of hypoxia-induced PH in mice was believed to result from its combined vasodilative and anti-proliferative effects on the pulmonary vasculature. The halofuginone -mediated activation of K⁺ channels or increase in whole-cell K⁺ currents or K⁺ efflux may contribute not only to inducing membrane hyperpolarization/repolarization and inhibiting excitation-contraction coupling in pulmonary arterial smooth muscle but also to promoting apoptotic volume decrease (AVD) and apoptosis in PASMCs, causing regression of pulmonary vascular remodelling (Chu et al., 2013). Halofuginone-mediated inhibition of voltage-dependent Ca²⁺ entry, ROCE and SOCE in PASMCs contribute directly to attenuating Ca²⁺-mediated PASMC contraction and migration (Jin et al., 2014) as well as Ca²⁺/calmodulin (CaM)-dependent PASMC proliferation (Chu et al., 2013). There are four steps in the cell cycle that are Ca²⁺/CaM dependent: transition from G₀ phase to G₁ phase, transition from G₁ to S (DNA synthesis) phase, transition from G₂ to M (mitosis) phase and the entire mitosis phase (Kahl & Means, 2003). In addition, a rise in cytosolic and nuclear Ca²⁺ is also an initial stimulus for many signalling proteins and transcription factors, such as CaMK, MAPK, NFAT, CREB, AP-1 and NF-κB that are associated with cell proliferation (Berridge, 1995; Graef et al., 2001; Sheng et al., 1990). Therefore, halofuginone -mediated inhibition of Ca²⁺ influx through various Ca²⁺-permeable cation channels would result efficiently in inhibition of the cell cycle or the Ca²⁺/CaM/CaMK-dependent PASMC proliferation and, ultimately, regression of pulmonary vascular remodelling. It is not known whether halofuginone -mediated improvement of pulmonary haemodynamics (i.e., decreased RVSP and mPAP) may also be due to reduction of cardiac output. Halofuginone is known to inhibit cardiac fibrosis and improve heart function in experimental animals (Huebner et al., 2008; Qin et al., 2017). Further studies are needed to investigate whether halofuginone also reduces VDCC activity and increases K_v channel activity in RV cardiomyocytes, thereby reducing cardiac output.

The in vitro and ex vivo experiments seemed to indicate that halofuginone affects, directly or indirectly, a number of targets to achieve the beneficial or therapeutic effect on experimental PH. The previously published modes of halofuginone actions include inhibition of TGF-β-mediated Smad3 phosphorylation, inhibition of ProRS activity, inhibition of Th17 cell differentiation and inhibition of collagen type I synthesis (Keller et al., 2012; Nagler et al., 1997; Pines, 2008; Roffe et al., 2010; Sundrud et al., 2009). The observations from this study add more modes of its pharmacological actions: activation of K_v channels (e.g., KCNA5), inhibition of Ca²⁺ influx through VDCC, ROCC and SOCC and inhibition of the PI3K/Akt/mTOR signalling pathway in PASMCs. All these actions of halofuginone may contribute to the therapeutic effect on experimental PH shown in this study.

As mentioned earlier, halofuginone is an FDA-approved oral drug for the treatment of scleroderma based on its inhibitory effect on collagen type I synthesis (Pines et al., 2003). Given that collagen deposition in the extracellular matrix contributes to increasing pulmonary vascular wall stiffness and the association of scleroderma with PAH (40% patients with scleroderma develop PAH) (Kolstad et al., 2018), more clinical studies are needed to confirm its beneficial effect on patients with PAH (including associated PAH in patients with scleroderma) and PH due to lung diseases and/or hypoxia.

In conclusion, halofuginone, an FDA-approved low MW drug, is a potent and reversible pulmonary vasodilator and reversed established PH in animals. The mechanisms involved in the acute vasodilator effect and chronic anti-proliferative effect of halofuginone include (i) activation of K_v channels and enhancement of whole-cell K⁺ currents through K_v channels; (ii) inhibition of Ca²⁺ influx through VDCC, ROCC and SOCC; and (iii) inhibition of the PI3K/Akt/mTOR signalling pathway. Taken together with its anti-fibrotic, anti-inflammatory and anti-collagen synthesis effects, halofuginone is potentially a novel and efficient drug for treatment of PAH and PH associated with lung diseases and/or hypoxia and connective tissue disease.

What is already known

• Halofuginone is an analogue of febrifugine originally isolated from traditional Chinese herb Chang Shan.

• Halofuginone shows beneficial effects in treatment of malaria, cancer, fibrosis and heart failure.

What does this study add

• Halofuginone increases voltage-gated K⁺ currents and decreases Ca²⁺ influx through various Ca²⁺ channels in PASMCs.

• Halofuginone attenuates hypoxic pulmonary vasoconstriction, inhibits hypoxia-induced pulmonary vascular remodelling and reverses established pulmonary hypertension.

What is the clinical significance

• Halofuginone shows promise in treatment for pulmonary hypertension by inducing vasodilation and reversing vascular remodelling.

Abbreviations:

[Ca²⁺]_cyt

cytosolic free Ca²⁺ concentration

AAR

amino acid response

AVD

apoptotic volume decrease

CaM

Ca²⁺/calmodulin

CaSR

calcium-sensing receptor

CPA

cyclopiazonic acid

DHEA

dehydroepiandrosterone

HPH

hypoxia-induced pulmonary hypertension

HPV

hypoxic pulmonary vasoconstriction

K_Ca

Ca²⁺-activated K⁺ channel

K_v

voltage-gated K⁺ channel

LV

left ventricle

mPAP

mean pulmonary arterial pressure

mSAP

mean systemic arterial pressure

PA

pulmonary artery

PAH

pulmonary arterial hypertension

PAP

pulmonary artery pressure

PASMCs

pulmonary artery smooth muscle cells

PH

pulmonary hypertension

ProRS

prolyl-tRNA synthetase

PSS

physiological salt solution

ROCC

receptor-operated Ca²⁺ channel

ROCE

receptor-operated Ca²⁺ entry

RV- ± dP/dt

right ventricular contractility

RV

right ventricular

RV/(LV + S)

ratio of the weight of the right ventricle to the weight of the left ventricle and septum (also referred to as Fulton index)

RVP

right ventricular pressure

RVSP

right ventricular systolic pressure

S

septum

sGC

soluble guanylate cyclase

SOCC

store-operated Ca²⁺ channel

SOCE

store-operated Ca²⁺ entry

SR

sarcoplasmic reticulum

VDCC

voltage-dependent Ca²⁺ channel

DATA AVAILABILITY STATEMENT

Data are available on request from the authors.
