BY-kinases: Protein tyrosine kinases like no other

Abstract

BY-kinases (for bacterial tyrosine kinases) constitute a family of protein tyrosine kinases that are highly conserved in the bacterial kingdom and occur most commonly as essential components of multicomponent assemblies responsible for the biosynthesis, polymerization, and export of complex polysaccharides involved in biofilm or capsule formation. BY-kinase function has been attributed to a cyclic process involving formation of an oligomeric species, its disassembly into constituent monomers, and subsequent reassembly, depending on the overall phosphorylation level of a C-terminal cluster of tyrosine residues. However, the relationship of this process to the active/inactive states of the enzyme and the mechanism of its integration into the polysaccharide production machinery remain unclear. Here, we synthesize the substantial body of biochemical, cell-biological, structural, and computational data, acquired over the nearly 3 decades since the discovery of BY-kinases, to suggest means by which they fulfill their physiological function. We propose a mechanism involving temporal coordination of the assembly/disassembly process with the autokinase activity of the enzyme and its ability to be dephosphorylated by its counteracting phosphatase. We speculate that this temporal control enables BY-kinases to function as molecular timers that coordinate the diverse processes involved in the synthesis, polymerization, and export of complex sugar derivatives. We suggest that BY-kinases, which deploy distinctive catalytic domains resembling P-loop nucleoside triphosphatases, have uniquely adapted this ancient fold to drive functional processes through exquisite spatiotemporal control over protein–protein interactions and conformational changes. It is our hope that the hypotheses proposed here will facilitate future experiments targeting these unique protein kinases.

Tyrosine phosphorylation, long recognized as a ubiquitous mode of signal transduction in higher eukaryotes (1, 2), is now known to also play a significant regulatory role in bacterial cells (3, 4). In the bacterial kingdom, this post-translational modification is largely driven by members of the BY-kinase (for bacterial tyrosine kinase) family (5, 6, 7) that are widely conserved in both Gram-positive and Gram-negative species (8) but have no known eukaryotic or archeal orthologs. While BY-kinases have been shown to contribute to diverse cellular processes (9, 10, 11), their most significant, and best studied, role is in the assembly and export of complex polysaccharides that are key components of biofilms (12, 13) or virulence-determining capsules (9, 14, 15) in many bacterial species. In a manner reminiscent of higher eukaryotes (16), BY-kinases appear capable of integrating into complex signaling networks, which also include serine/threonine kinases (17), to drive critical physiological processes.

In the 25 years that have elapsed since the assignment of Acinetobacter johnsonii Ptk (18, 19) as a bona fide protein tyrosine kinase, and a “founding” member of the BY-kinase family, a wealth of information on these enzymes has emerged from structural, biochemical, and cell-biological studies, reviewed in several excellent treatises (5, 6, 7, 20, 21). Despite the considerable progress, many critical aspects of the functional regulation of BY-kinases remain poorly understood. Recently, in silico approaches (22, 23) have begun to provide insight into hitherto unknown regulatory features of these unique enzymes. Here, we will draw on these recent results, from both theory and experiment, to interpret the available biochemical, cell-biological, and functional data on BY-kinases to suggest a mechanism for their activation and activity in the context of bacterial physiology, specifically in the synthesis and export of complex polysaccharides. We will also utilize this review as a vehicle to propose hypotheses that are amenable to future experimental validation/testing.

Escherichia coli Wzc, the archetypal (see later) BY-kinase, has been extensively studied using a variety of biophysical and biochemical approaches in the context of the K-12 and K30 strains by the Grangeasse and Whitfield groups among others. Wzc proteins from these two E. coli strains are very similar (sequence identity ∼52%) but are integrated into slightly different macromolecular assemblies that bridge the inner and outer membranes. The polysaccharide products are also slightly different in the two cases with the exopolysaccharide (EPS) colanic acid being produced in K-12 (24), and capsular polysaccharides (CPSs) utilized in forming group 1 capsules being generated in K30 (25). However, the overarching mechanisms underlying Wzc regulation appear to be identical in these two cases (we use Wzc interchangeably later unless explicitly stated). Furthermore, broad mechanistic insights obtained from studies on E. coli Wzc are expected to be relevant across the bacterial kingdom. Therefore, in our discussion later, we will rely heavily on data for E. coli Wzc, invoking available results from other systems as and when necessary.

An ancient fold for a new function

In a manner characteristic of most Gram-negative BY-kinases (Table 1), E. coli Wzc comprises an N-terminal “transactivation” domain (TAD) (26) and C-terminal catalytic domain (CD). The TAD consists of a two-pass transmembrane domain responsible for inner membrane localization and a periplasmic domain (PD) that is proposed to interact with the outer membrane transporter, Wza (27). The enzymatic function is encoded within the CD, which is fully cytosolic, and terminates in a flexible tail containing a cluster of tyrosine residues (the Y-cluster) (28, 29) (Fig. 1A) that are sites for intermolecular autophosphorylation. Both the number and sequential positions of the Y-cluster tyrosine residues are variable across the BY-kinase family. Contrasting Wzc, in many Gram-positive bacteria (Table 1), most notably, the firmicutes, the TAD and CD occur as two separate proteins, encoded by flanking genes, which must associate to form a functional membrane-anchored complex (30). This latter group has been termed firmicute- or F-type, contrasting the proteobacterial- or P-type BY-kinases (20) like Wzc. In addition, some bacterial genomes (8) contain so-called “orphan” CDs with no obvious TAD partners (Table 1). It has been speculated that these orphan CDs are activated by the TADs of another F-type BY-kinase also present in the cell (31). Interestingly, some of the orphan CDs are predicted to contain transmembrane segments (Table 1) suggesting nonstandard arrangements that likely represent species-specific variations on a common theme.

Table 1.

Distribution of BY-kinases in the bacterial kingdom^a,b

	P-type	F-type	Orphan CD with transmembrane domainsc	Orphan CD	Total
Gram-positive
Actinomycetota (Actinobacteria)	1588	2	265	46	1901
Bacillota (Firmicutes)	281	441	133	5025	5880
Mycoplasmatota (Tenericutes)	—	—	1	39	40
Deinococcota (Deinococcus-thermus)	2	—	3	—	5
Gram-negative
Abditibacteriota	2	—	1	—	3
Acidobacteriota (Acidobacteria)	424	—	74	238	736
Aquificota (Aquificae)	2	—	2	—	4
Armatimonadota (Armatimonadetes)	17	—	9	2	28
Atribacterota	1	—	—	2	3
Bacteroidota (Bacteroidetes)	792	3	237	20	1052
Balneolota (Balneolaeota)	13	—	6		19
Calditrichota (Calditrichaeota)	30	—	10	7	47
Chlorobiota (Chlorobi)	34	—	4	—	38
Chloroflexota (Chloroflexi)	126	2	29	69	226
Chrysiogenota (Chrysiogenetes)		—	—	1	1
Cyanobacteria	537	—	75	4	616
Elusimicrobiota (Elusimicrobia)	19	—	4	2	25
Euryarchaeota (Euryarchaeota)	2	—	—	4	6
Fibrobacterota (Fibrobacteres)	82	—	9	1	92
Fusobacteriota (Fusobacteria)	—	3	—	14	17
Gemmatimonadota (Gemmatimonadetes)	115	—	60	14	189
Ignavibacteriota (Ignavibacteriae)	46	—	20	—	66
Kiritimatiellota (Kiritimatiellaeota)	12	—	3	—	15
Lentisphaerota (Lentisphaerae)	19	—	12	1	32
Nitrospirota (Nitrospirae)	34	—	9	24	67
Planctomycetota (Planctomycetes)	256	—	215	21	492
Pseudomonadota (Proteobacteria)	10,741	28	422	592	11,783
Rhodothermota (Rhodothermaeota)	7	—	3	—	10
Spirochaetota (Spirochaetes)	22	—	—	2	24
Thermodesulfobacteriota (Thermodesulfobacteria)	—	—	—	3	3
Thermotogota (Thermotogae)	41	—	1	—	42
Verrucomicrobiota (Verrucomicrobia)	308		236	11	555
Unclassified/unknown	286	1	79	173	539
Total	15,839	480	1922	6315	24,556

^aBased on sequence dataset in BYKdb release 67.0 (8).

^bPhyla are named according to the International Code of Nomenclature for Prokaryotes; historical synonyms are shown in parantheses.

^cTransmembrane segments predicted by DeepTMHMM (biolib.com/DTU/DeepTMHMM/).

Figure 1.

Structural organization of a functional BY-kinase.A, structure of full-length Escherichia coli K30 Wzc (K540M mutant; Protein Data Bank code: 7NHR; a P-type BY-kinase) showing the periplasmic domain (PD), the two-pass transmembrane domain (TMD) that is embedded in the bacterial inner membrane, and the cytoplasmic catalytic domain (CD). The TMD and PD together form the transactivation domain (TAD). The TAD and CD are separate proteins in F-type BY-kinases. The middle inset shows a representative monomer from the octameric assembly indicating the N-terminal transmembrane helix (TM1) that leads to the PD followed by a second transmembrane helix (TM2) that terminates in the CD. The top right inset shows a view of the CD octamer looking up from the cytoplasm into the periplasmic space; the TAD is hidden for ease in visualization. The C-terminal Y-cluster is colored red, and the constituent tyrosine residues are shown in stick representation. Shown on the bottom right panel is a representative trimer extracted from the octameric assembly that illustrates the enzyme–substrate dual role of each CD. A tyrosine from the Y-cluster of monomer a is inserted into the active site of monomer b, which in turn inserts a tyrosine from its own Y-cluster into the active site of monomer c. Thus, b can simultaneously act both as an enzyme (with respect to a) and as a substrate (with respect to c). B, interactions at the intermonomer interface of the CD of E. coli K-12 Wzc (K540M mutant; Protein Data Bank code: 3LA6) involving conserved O-motif residues E508, R511, and R514 on α2 (yellow) at the first interface (I₁) with residues on α7 (light blue) and α9 (dark blue) that form the second interface (I₂). The two interacting monomers (designated a and b) are colored pink and purple. Key interface residues are shown as spheres. C, the interaction of the E. coli K-12 Wzc CD with its cognate phosphatase, the LMW-PTP Wzb (teal); this interaction also involves α2 on the former and the O-motif therein. Selected interactions at the interface are illustrated with the residues involved (Wzb residues are indicated using three-letter codes) shown as spheres. D, the characteristic P-loop fold of Wzc CD is shown indicating the conserved motifs (key side chains are shown in stick representation; the motifs they belong to are indicated by the corresponding subscripts): Walker-A (⁵³³GVSPSIGKT⁵⁴¹, teal; conserved residues are indicated in bold font), Walker-A’ (⁵⁵⁸VLLIDCDMR⁵⁶⁶, orange), and Walker-B (⁶³⁹VLIDTPP⁶⁴⁵, purple). Also indicated are α2, α7, and α9, colored as in (B). The Y-cluster tyrosine residues (Y705, Y708, Y710, Y711, Y713, and Y715) are also indicated (in red as sticks). Y705 (indicated by the “∗”) is neither autophosphorylated nor can it optimally access the Wzb active site. A substrate tyrosine residue (Y715_S) from the Y-cluster of a flanking CD docked at the active site is also shown. BY-kinase, bacterial tyrosine kinase; LMW-PTP, low molecular weight protein tyrosine phosphatase; O-motif, oligomerization motif.

The BY-kinase CD possesses an inherent ability to self-associate, assembling into a ring-shaped octamer both in isolated form (30, 32) and in the context of the full-length protein (33) when the Y-cluster is dephosphorylated or sparsely phosphorylated. Within this octameric assembly, individual CD monomers associate in a front-to-back arrangement through a conserved EX₂RX₂R sequence (oligomerization motif [O-motif]; where X is any residue) on a helical segment (α2), which defines an interaction interface (I₁) on one monomer, and engages helices α7 and α9, which comprise the complementary interface (I₂) on a flanking monomer (Fig. 1B). This arrangement, with C₈ rotational symmetry, enables each monomer to act as an enzyme, hosting a Y-cluster tyrosine from one flanking monomer at its active site, while simultaneously acting as a substrate by inserting a tyrosine from its own Y-cluster into the active site of the other flanking monomer (Fig. 1A, right panel). In Wzc, the α2 helix and the O-motif therein is also utilized to dock its counteracting low molecular weight protein tyrosine phosphatase (LMW-PTP) Wzb (Fig. 1C) (34, 35).

The BY-kinase CD, illustrated by several structures, for example, of E. coli Wzc (32, 33) and Etk (36), Staphylococcus aureus CapB (30), Vibrio cholerae VpsO (13), and others, bears no structural resemblance to the dual-lobed fold characteristic of eukaryotic protein kinases (37), deploying instead a variation on the P-loop scaffold (38) seen in NTPases. The P-loop fold, a primordial structural module that predates the emergence of the last universal common ancestor (39), is also utilized by many small-molecule kinases (40) but is exceedingly rare for a protein kinase; the dual-acting serine kinase/phosphorylase, HprK/P, found in some Gram-positive bacteria, being the only other known example (41). The BY-kinase active site (Fig. 1D) is lined by variants of the nucleoside-binding Walker-A (GX₅GKS/T) and Walker-B (φ₄DX₂P; where φ is a hydrophobic residue) motifs (42). Also present is a so-called Walker-A′ motif (φ₄DXDXR) reminiscent of the DXD sequences seen in some P-loop kinases, for example, shikimate and gluconate kinases (40). The second aspartate within the Walker-A′ motif has been proposed to play a critical role in recognizing the tyrosine substrate and driving chemistry (32). Mutations of conserved residues within the Walker motifs alter both the intrinsic ATPase activity and the autokinase activity in Wzc (23, 32, 43) and other BY-kinases (44, 45) (Table 2). This suggests that BY-kinases utilize an NTPase-like mechanism to transfer the γ-phosphate of ATP to a substrate −OH, which in this case is housed on a tyrosine rather than on water. It is therefore apparent that BY-kinases have evolved elaborate mechanisms establishing the primacy of their autokinase function over their ATPase activity as explored in greater detail later.

Table 2.

Influence of key mutations on the kinase and ATPase activities of select BY-kinases

BY-kinase	Mutations	ATPase activity	Kinase activity	Reference
Bacillus subtilis YwqD	D81A, D83A (Walker-A′)	Greatly reduced	Abolished	Mijakovic (45)
	Y225F/Y227F/Y228F (Y-cluster)	Enhanced	N/A	Mijakovic (45)
Sinorhizobium meliloti ExoP	G588V, G588E, K589I (Walker-A)	Abolished	Abolished	Niemeyer (44)
E. coli K-12 Wzc	D562A, D564A (Walker-A′)	Reduced	Reduced	Soulat (43)
	Y569N, Y569F	Reduced	Reduced	Soulat (43)
	K540M (Walker-A)	Abolished (Hajredini)	Reduced (Bechet)	Hajredini (23) Bechet (32)

Assembly and disassembly, hallmarks of a functional cycle

Wzc function (32, 33), and that of BY-kinases (30) in general, has been ascribed to a cyclic assembly/disassembly process coupled to the phosphorylation state of the Y-cluster. As noted previously, formation of an octameric ring provides an efficient means of facilitating intramolecular autophosphorylation of the Y-cluster by allowing each monomer to simultaneously serve as both enzyme and substrate. The octameric ring disassembles into its constituent monomers after several rounds of autophosphorylation on the Y-cluster. Disassembly depends on the overall level of Y-cluster phosphorylation rather than the phosphorylation state of any specific tyrosine or set of tyrosine residues therein (28, 46). Reassembly occurs once the Y-cluster is sufficiently dephosphorylated by its counteracting phosphatase, which in the case of Wzc is the LMW-PTP Wzb (47), and the cycle reinitiates. This oscillatory assembly/disassembly process integrates into an elaborate multiprotein assembly (see, e.g., Fig. 4 of Whitfield (25) for an illustration) responsible for polysaccharide synthesis, polymerization, and export. The mechanism of this integration and the precise role of Wzc therein remain poorly defined.

In its simplest conceptualization, the cyclic process may be conceived as involving transitions between two discrete functional species/states (Fig. 2A), designated Σ_Ο and Σ_Μ. For Σ_Ο, CDs with dephosphorylated Y-clusters assemble into an octameric ring; Σ_Μ comprises monomeric CDs with highly phosphorylated Y-clusters. Individual monomers that comprise Σ_Ο adopt conformations that allow the efficient engagement of ATP–Mg²⁺ and are thus chemistry capable, that is, “active” (discussed in detail later). This assembly allows the Y-cluster tyrosine residues to be successively autophosphorylated at the expense of ATP (generating ADP), thereby enhancing the overall level of phosphorylation. This is accompanied by increasing intermonomer repulsion because of the accumulation of negative charges within the constituent Y-clusters. Once the level of phosphorylation exceeds a certain critical threshold (C_phos), estimated to be an average of about four phosphorylated tyrosine residues per monomer in Wzc (33), the electrostatic repulsion leads to dissociation of the octameric ring into its constituent monomers generating Σ_Μ. As noted previously, Wzc oligomerization and its interaction with Wzb both involve I₁ (Fig. 1, B and C) and the O-motif therein. Therefore, these two sets of interactions cannot occur simultaneously. Since Wzc is housed in the bacterial inner membrane, the resultant enhancement in local concentration favors intermonomer interactions over the diffusion-controlled association with the wholly cytosolic Wzb. Additional mechanisms that could potentially serve to exclude Wzb from interacting with CDs assembled within the Σ_Ο species may also be conceived. For example, π–π stacking and hydrogen bonding between the tyrosine residues have been shown to result in fibril formation (48). Given that the Wzc active site can accommodate only a single tyrosine at any given time, formation of a viscous gel-like phase-separated state (49) resulting from interactions between exposed and still unphosphorylated Y-cluster tyrosines to further spatially exclude Wzb, in a manner somewhat reminiscent of that seen in T-cell receptor signaling (50), is not beyond the realm of possibility. It is worth testing this scenario through future experiments. Irrespective of the detailed mechanisms operative, it may be reasonably argued that the engagement of Wzc by Wzb can occur with any level of efficiency only after the C_phos threshold has been exceeded and the octamer has disassembled, that is, in the context of Σ_Μ. It is also notable that Wzc CD monomers (Σ_Μ) adopt conformations that are not chemistry compatible, that is, “inactive” (discussed later). This provides an additional level of control facilitating Y-cluster dephosphorylation catalyzed by Wzb while preventing the competing (and unproductive) rephosphorylation of the Y-cluster through transient interactions between monomers (or perhaps through intramolecular phosphoryl transfer). Furthermore, since the Wzc I₁ is protected by the associated Wzb through an interaction that is further enhanced by the engagement of a phosphorylated Y-cluster tyrosine at the Wzb active site and the resultant avidity (∼10 μM affinity estimated for interactions outside the Wzb active site and an additional ∼250 μM for the interaction of a phosphotyrosine with the Wzb catalytic elements) (35), it is possible that dephosphorylation continues to levels below the C_phos threshold (hysteresis), perhaps to completion in some cases. Sufficient reduction in Y-cluster phosphorylation levels ultimately regenerates the octameric species (Σ_Ο) and reinitiates the cyclic process. This proposed bistable behavior and accompanying hysteresis is not unusual in systems regulated through multisite phosphorylation/dephosphorylation cycles (51). It is to be mentioned here, that in some Gram-positive bacteria, the phosphatase partner of the BY-kinase is not an LMW-PTP but rather belongs to the polymerase and histidinol phosphatase family, for example, Streptococcus pneumoniae CpsB or S. aureus CapC (52). Precisely, how these phosphatases engage their cognate BY-kinase CDs is not known. Additional studies, perhaps like those described for the Wzc/Wzb pair (34, 35), are necessary to establish the universality of the mechanism described previously on the precise mechanistic role of phosphatases in the context of the assembly/disassembly process.

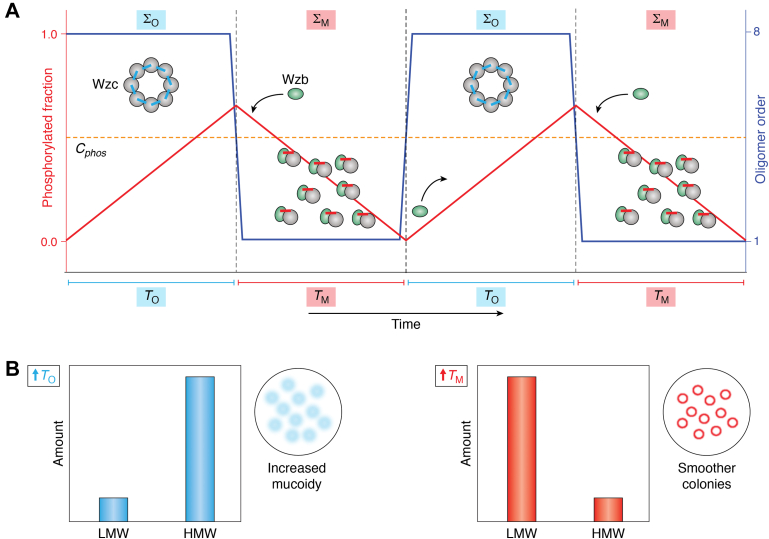

Figure 2.

A simple model for BY-kinase function.A, schematic representation of the effects of autophosphorylation and dephosphorylation (red line) on the temporal distribution of the octameric (Σ_O) and monomeric (Σ_M) species (dark blue line). The left ordinate indicates the fraction of phosphorylated Y-cluster tyrosine residues; the right ordinate indicates the oligomer order. Autophosphorylation occurs at a given rate within the octameric state until the Y-cluster phosphorylation levels exceed a critical threshold (C_phos, dashed orange line), following which the octameric ring dissociates into its constituent monomers. The phosphatase (light green) can then engage the kinase and perform multiple rounds of Y-cluster dephosphorylation, following which the oligomer reassembles and the cycle repeats (two cycles are shown). Assuming fixed rates of autophosphorylation and dephosphorylation (in reality, these rates are likely to be nonlinear functions of the level of Y-cluster phosphorylation), the system cycles between Σ_O and Σ_M; the corresponding lifetimes of T_O and T_M, respectively, define the periodicity of the process. B, increasing the lifetime of Σ_O (relative to the lifetime of Σ_M), that is, enhancement of T_O (relative to T_M) shifts the distribution toward high molecular weight (HMW) polysaccharides and increased mucoidy (blurred circles in the inset); a larger T_M (relative to T_O) results in increased production of low molecular weight (LMW) polysaccharides and smoother colonies (sharp circles in the inset). BY-kinase, bacterial tyrosine kinase.

Altered cycle, modified product

As mentioned earlier, Wzc is part of a complex multiprotein machine responsible for the synthesis, polymerization, and export of polysaccharides (24, 25) utilized in capsule or biofilm formation. It has been shown that mutations that perturb the phosphorylation/dephosphorylation cycle and thereby the associated disassembly/assembly process in Wzc, and other BY-kinases (see later), strongly influence the properties of the polysaccharide product. A mechanism for potentially achieving this effect is through alteration of the relative lifetimes of the Σ_Ο and Σ_Μ species (thereby altering the periodicity of the assembly/disassembly process) to perturb the coordination between the synthesis of the sugar subunits and their subsequent polymerization. While the details of how Wzc integrates into this scheme remain obscure, mutations that putatively stabilize it (53), or other BY-kinases (13, 15, 44, 54, 55, 56, 57) (Table 3), in states that mimic Σ_Ο or Σ_Μ, provide important clues. Y-cluster Y-to-F mutants or catalytically dead (or compromised) variants that prevent (or impair) Y-cluster phosphorylation are expected to stabilize Σ_Ο (increase T_O in Fig. 2A). Mutations that mimic the enhanced negative charge on the Y-cluster because of phosphorylation (Y-cluster Y-to-E mutants), or variants with modified O-motifs impaired in the ability to oligomerize, would lead to a stabilized Σ_Μ (increased T_M). Analysis of the available functional data (Table 3) suggests that, in general, putative Σ_Ο-stabilizers shift the product distribution toward high molecular weight polysaccharides or yield bacterial colonies that display enhanced mucoidy (indicative of increased levels of high molecular weight polymers). In contrast, mutations that are expected to stabilize Σ_Μ result in a higher proportion of low molecular weight polysaccharides and smoother bacterial colonies. These observations seem to suggest that increasing T_Ο results in aberrant extension of the polymer chains, whereas increasing T_Μ results in reduced polymerization (Fig. 2B). These correlations are, expectedly, not perfect, given the simplicity of the model shown in Figure 2A, the diversity of experimental conditions, and system/strain-dependent idiosyncrasies (see Table 3). For example, E. coli K-12, cells expressing wildtype Wzc, produce EPS with a broad size distribution in 600 to 2000 kDa range. In contrast, Σ_Ο-stabilizers (Y-cluster Y-to-F or Y569F mutants; Y569 plays a significant functional role described later) result in a more uniform distribution centered around ∼1350 kDa, whereas putative Σ_Μ-stabilizers (Y-cluster Y-to-E mutants) are unable to produce EPS, a similar phenotype as the cells expressing a construct missing the catalytic Walker-A lysine (K540M) that would be expected to stabilize Σ_Ο (53). Despite these nuances, it would not be too bold to speculate that the cyclic processes attributed to BY-kinase function serve to coordinate the polysaccharide synthesis, oligomerization, and perhaps, the export processes.

Table 3.

Effects of BY-kinase mutations on observed phenotype

BY-kinase	Mutation	Kinase activity	Phenotype	Proposed to stabilize	Reference
V. cholerae VpsO	K551A (Walker-A)	Abolished	Rougher colonies, higher EPS levels	ΣΟ	Schwechheimer (13)
	VpsU C12S (inactive cognate LMW-PTP)	—	Smooth colonies, lower EPS levels	ΣΜ
	E519A/R522A/R525A (O-motif)	Reduced	Smooth colonies, lower EPS levels	ΣΜ
	Y720F/Y721F/Y726F/Y727F (Y-cluster)	—	Smooth colonies, lower EPS levels	ΣO
E. coli K-12 Wzc	Y708E/Y710E/Y11E/Y713E/Y715E (Y-cluster)	—	No EPS	ΣΜ	Obadia (53)
	ΔY-cluster	—	No EPS	ΣΜ
	K540M (Walker-A)	Abolished	No EPS	ΣΟ
	Y708F/Y710F/Y11F/Y713F/Y715F (Y-cluster)	—	Uniform EPS size distribution ∼1350 kDa (600–2000 kDa in WT)	ΣΟ
	Y569F	Reduced	Uniform EPS size distribution ∼1350 kDa (600–2000 kDa in WT)	ΣΟ
S. pneumoniae CpsD	Y215F/Y218F/Y221F (Y-cluster)	—	Decreased levels of LMW EPS, no effect on total abundance	ΣΟ	Nakamoto (15)
	Y215E/Y218E/Y221E (Y-cluster)	—	Increased levels of LMW EPS, no effect on total abundance	ΣΜ
Acinetobacter baumannii Wzc	Y712F/Y714F/Y716F/Y718F/Y720F/Y722F (Y-cluster)	—	Increased levels of high molecular weight (HMW) CPS	ΣΟ	Geisinger (54)
	D569N (Walker-A′)	Reduced	Increased levels of HMW CPS	ΣΟ
	K547Q (Walker-A)	Not affected	Increased levels of HMW CPS	ΣΟ
	D649N (Walker-B)	Not affected	Increased levels of HMW CPS	ΣΟ
Burkholderia cepacia BceF	ΔBceD (deletion of cognate LMW-PTP)	—	Reduced viscosity suggestive of LMW EPS	ΣΜ	Ferreira (55)
Acinetobacter lwoffii Wzc	Y712F/Y714F/Y716F/Y718F/Y720F (Y-cluster)	—	Increased mucoidy, enhanced levels of higher MW EPS	ΣΟ	Nakar (56)
B. subtilis EpsB	Y225F/Y227F (Y-cluster)	—	Hyperwrinkled colonies	ΣΟ	Esholz (57)
	Y225E/Y227E (Y-cluster)	—	Flat colonies	ΣΜ

Open and closed, inactive and active

As was mentioned earlier, Wzc CD monomers are compatible with chemistry when part of Σ_Ο, and inactive as Σ_Μ. This provides additional temporal separation between the autophosphorylation and dephosphorylation events. Enhanced sampling molecular dynamics simulations suggest that monomeric Wzc CD accesses distinct conformations in its various liganded states (22). These conformations are distinguished by global changes involving a displacement of helix α4 and rotations of helices α2 and α3 with respect to the protein core (Fig. 3A). These changes are best represented in a two-dimensional coordinate system comprising an angle θ and a rise |h| (Fig. 3B) (22). Projection of the structural ensembles onto θ−|h| space reveals two dominant conformations, an open state (OS) with high values of both θ and |h| and a closed state (CS), with low values of both variables. While apo Wzc CD exists almost exclusively in the OS, the presence of ADP–Mg²⁺or ATP–Mg²⁺, but not ADP alone, results in a substantial population shift to the CS, suggesting that this transition is induced by Mg²⁺, rather than by nucleotide (Fig. 3C) (22). The OS is not compatible with formation of the closed octameric ring. This property is clearly illustrated by the catalytically inactive K540M mutant that populates an OS that is significantly more extended than for the wildtype enzyme when free of ligands and transitions almost completely into a CS when bound to ATP–Mg²⁺ (Fig. 3D, top panels). In line with these predictions, this mutant exists in a monomeric state at low Mg²⁺ levels despite containing a dephosphorylated Y-cluster; the presence of excess Mg²⁺ (also ATP–Mg²⁺or ADP–Mg²⁺) results in appearance of the oligomeric species (Fig. 3D, bottom panel) (23).

Figure 3.

Coupling between global and local conformations in the Wzc CD.A, global conformational changes that drive the transition from the closed state (CS, cyan) to the open state (OS, lime) are represented by the red arrows. B, definition of the 2-dimensional frame of reference that parses the OS and CS. P1: center of mass (COM, indicated by colored spheres in all cases) of the Cα atoms of the first two turns of the N terminus of α3 (541–547; Escherichia coli K-12 Wzc numbering, brown); P2: COM of Cα atoms of the penultimate turn (548–552, red) from the C terminus of α3; P3: COM of Cα atoms of the 569 to 573 segment (pink) on α4; and P4: COM of the Cα atoms of the first turn of the N terminus of α2 (505–509, green). The structures are rotated and translated to place P1 and P2 along the Cartesian z-axis and then rotated about the z-axis to place P3 on the x-axis in the positive direction. The |h| coordinate is then defined as the absolute value of the z-projection of P1; θ is defined as the angle between the x-axis and the xy-projection of a vector directed from P1 to P4. C, probability density plots of the conformational ensembles obtained through enhanced sampling MD simulations of apo Wzc CD (top left), and the corresponding ATP–Mg²⁺ (top right), ADP–Mg²⁺ (bottom left), and ADP (bottom right) complexes in θ−|h| space. The green circle represents the position occupied by the crystallographic monomers. Regions corresponding to the OS and CS are indicated. An additional “hyperclosed state” (HS), which contains structural features characteristic of a fully active state, sampled only in the ATP–Mg²⁺ complex, is also shown. D, probability density plots of the structural ensembles of the K540M mutant of Wzc CD in its unliganded state (top left), and its ATP–Mg²⁺ (top right) complex, are represented in θ−|h| space; the plots for the corresponding WT cases are shown as green contours with the positions of key states indicated. The lower plot shows gel filtration traces of the untreated mutant CD and that incubated with excess Mg²⁺. E, OS/CS transitions are correlated with local rearrangements at the active site. In the CS, the Walker-B D642 forms a hydrogen bond (lime dashed lines) with the Walker-A T541 enabling coordination of the catalytically essential Mg²⁺ ion (not shown for visual ease). This interaction is broken in the OS with the Walker-A K540 establishing interactions with the D642 side chain and the T643 backbone in a manner that neither allows optimal coordination of Mg²⁺ nor the availability of K540 for chemistry. Parts of this figure were adapted from Hajredini et al. (22, 23); © the authors, some rights reserved; exclusive licensee AAAS. Distributed under a Creative Commons Attribution noncommercial license 4.0 (CC BY-NC). CD, catalytic domain; MD, molecular dynamics.

The global conformational changes that distinguish the CS and OS are also correlated with local rearrangements of conserved elements at the active site (Fig. 3E). Within the CS, the conserved Walker-B aspartate (D642 in E. coli K-12 Wzc) interacts with the Walker-A signature threonine (T541) to yield a configuration necessary for the optimal coordination of the catalytically essential Mg²⁺ cation (23), suggesting a state that encodes features compatible with chemistry. This active-site geometry appears to be a universal characteristic of the CSs of P-loop enzymes (58). Perhaps the geometric constraints on such a state are defined by the ability to yield a Michaelis complex appropriate for NTP hydrolysis. In contrast, in the OS, the Walker-B aspartate (D642) traps the catalytic Walker-A lysine (K540) in a salt bridge, with the latter also forming a hydrogen bond with the backbone of a residue (T643) that immediately follows the Walker-B aspartate. This alignment is incompatible with Mg²⁺, and therefore ATP–Mg²⁺ (ATP is mostly Mg²⁺ bound, see discussion later), coordination suggesting that the OS represents an inactive state. It is notable that while all P-loop enzymes populate states that are more open than the reactive CSs described previously, the former are stabilized by diverse sets of interactions that, unlike the universal conservation of the defining features of the latter, are dependent on the family/class of P-loop enzyme. This suggests that diversification of the open and inactive states has enabled adaptation of the basic P-loop fold to different functional contexts by the acquisition of family specific structural detail (58). This feature, that is, similar active-state geometries with divergent inactive-state geometries, has been proposed for eukaryotic protein kinases (59), and we suspect that this may also hold in other large enzyme families.

As noted previously, the presence of ATP–Mg²⁺ leads to a shift of population into the CS for Wzc CD monomers. However, in such cases, the CS (while in Σ_M) ensemble comprises structures that show significant distortions at the interfaces I₁ and I₂ that are involved in oligomer formation (transition to Σ_O, Fig. 4A). These include a significant bending of α2 (I₁) or the partial unfolding of α7 and/or α9 (I₂) (22), suggesting that formation of the CS upon ATP–Mg²⁺ binding within a monomeric (Σ_Μ) species results in a loss of several hydrogen bonds at the two interaction interfaces. This instability may be resolved by ejection of ATP–Mg²⁺ and transition back to the OS where α2, α7, and α9 are intact. One may, therefore, attribute the tendency of monomeric Wzc to form the OS to the inherent helical propensity of the two interaction interfaces. Oligomer formation (Σ_Ο) stabilizes these interfaces through interactions between flanking monomers, resulting in a stable CS that can then efficiently engage ATP-Mg²⁺. One can therefore conceptualize the CS formed in the presence of ATP–Mg²⁺ in the CD monomers (Σ_Μ) as “mechanically strained.” This strain is “released” in the oligomer (Σ_Ο) through intermonomer interactions and resultant stabilization of the interfaces, I₁ and I₂ (Fig. 4B). For the Wzc CD, the CS may also be stabilized in the context of the monomer (Σ_Μ) by engineering “strain-releasing” mutations. Such a variant is illustrated by the “G4-construct” generated by the in silico replacement of the 523 to 526 segment at the C-terminus of α2 by glycine residues, thereby introducing disorder but away from the region that participates directly in oligomer formation (Fig. 4C) (22).

Figure 4.

Structural destabilization in the CS of monomeric Wzc CD.A, major conformations selected from within the CS ensemble obtained through enhanced sampling MD simulations of monomeric Wzc CD bound to ATP–Mg²⁺. These structures are characterized by distortions of the two oligomerization interfaces including a significant bending (red arrows) of α2 (yellow; I₁; left panel) or a partial unfolding (red circles) of α7 (light blue; I₂) and/or α9 (dark blue; I₂; right panel). ATP–Mg²⁺ is not shown for ease in visualization. B, classical MD simulations of the ATP–Mg²⁺ complex of Wzc CD (red) as part of a trimeric “pseudoring” (used in lieu of the octamer for computational convenience) where positional restraints are applied to the flanking monomers (cyan) to mimic the octameric ring (top left) or in its monomeric state (top right). The corresponding projections of structures from representative 100 ns classical MD simulations onto θ−|h| space are shown on the lower panels; the points are color coded according to the simulation time stamps. The black circle indicates the reference value in the crystal structure of the octamer. The CS is stabilized in the pseudoring preventing transition to the OS. C, the CS for the Wzc CD in the monomeric state may be stabilized through the introduction of a 4-glycine sequence (G₄) at the C terminus of the α2 away from the O-motif (G₄-construct). The structural ensemble of the ATP–Mg²⁺ complex (top) of the G₄-construct obtained through enhanced sampling MD simulations populates a stable CS in which the constituent structures display intact oligomerization interfaces free from distortions in α2, α7, or α9. The disordered G₄ region at the C terminus of α2 is indicated by the orange circle; the positions of the conserved O-motif residues are also indicated in green for reference. The bottom panel shows the probability density plot of the G₄-construct–ATP–Mg²⁺ complex projected onto in θ-|h| space. The structure seen in crystallo (representative of the CS) is shown as a green circle. Parts of this figure were adapted with permission from Hajredini et al. (22, 23); © the authors, some rights reserved; exclusive licensee AAAS. Distributed under a Creative Commons Attribution noncommercial license 4.0 (CC BY-NC). CD, catalytic domain; CS, closed state; MD, molecular dynamics; O-motif, oligomerization motif; OS, open state.

An intricate dance in space and time

Based on the observations described previously, it is possible to propose a comprehensive model for the regulation of Wzc (as a representative BY-kinase) through Y-cluster phosphorylation (shown schematically in Fig. 5A). Oligomerization (Σ_Ο) results in a stable CS and formation of the associated critical hydrogen bond between the Walker-B aspartate (D642 in E. coli K-12 Wzc) and the Walker-A serine/threonine (T541) allowing optimal engagement of ATP–Mg²⁺ and the exchange of the bound ADP through mass action. It is worth noting that in the cellular context, ATP, rather than ADP, is significantly more likely to be bound to Mg²⁺, given the ∼20-fold higher Mg²⁺ affinity of the former compared with the latter (60). Formation of the CS also generates additional structural features that are conducive to chemistry (Fig. 5B). ATP (ATP–Mg²⁺) engages the CS with its triphosphate moiety trending toward a reactive high-energy all-eclipsed conformation (23) known to promote hydrolysis (61, 62). Furthermore, formation of the CS (and of the so-called hyper-CS, which represents a greater degree of closure, only observed in the ATP–Mg²⁺ complex, and may be considered an extreme case of the CS; Fig. 3C) enables the interaction of a conserved tyrosine (Y569) with the α-phosphate of ATP, and ordering of a basic element, the so-called RK-cluster (32), to allow the insertion of a positively charged residue (R490) therein into the active site. These events serve to promote the desolvation of ATP (23), a feature that makes a favorable free-energy contribution to promote hydrolysis (63, 64). The basic RK-cluster residue (R490) also appears to play a role equivalent to the so-called “arginine finger” that has been shown to “activate” the γ-phosphate of NTP in P-loop NTPases (62, 65). Furthermore, oligomerization and engagement of a substrate Y-cluster tyrosine at the active site prior to the stable binding of ATP–Mg²⁺ and the consequent displacement of water prevents futile ATP hydrolysis through the intrinsic ATPase activity (43). This sequence of events ensures phosphotransfer to tyrosine rather than to water, thereby establishing the dominance of the kinase activity over the ATPase function of Wzc. Following multiple rounds of phosphorylation at the expense of ATP and increasing negative charge on the Y-clusters, the oligomer becomes progressively unstable, finally dissociating into its constituent monomers (Σ_Μ) once the C_phos threshold (Fig. 2A) is exceeded. While the exchange of the ADP with ATP (ATP–Mg²⁺) can occur in optimal fashion within Σ_Ο, it can no longer take place within Σ_Μ that now adopts an OS. Thus, Wzc CD monomers remain stably bound to the ADP product from the last round of phosphorylation prior to disassembly. Mg²⁺ can no longer be optimally coordinated because of the loss of the D642–T541 hydrogen bond in the OS. Furthermore, the presence of an unobstructed I₁ interface allows Wzb to dock onto Wzc and catalyze Y-cluster dephosphorylation. Once sufficiently dephosphorylated, the monomers can transit back into Σ_Ο through formation of the octameric ring to reinitiate the cycle. Thus, activity is driven by coordinated conformational transitions on multiple length scales ranging from supramolecular events (assembly and disassembly), at the level of the tertiary fold (CS and OS), and locally at the active site (side-chain reorientation, realignment of secondary elements, and exclusion of solvent).

Figure 5.

Global and local features in the regulation of Wzc activity.A, in clockwise fashion starting from the point indicated by the red “∗.” In the oligomer (Σ_Ο), individual Wzc CD monomers (indicated by the green outlines) with dephosphorylated Y-clusters (cyan sticks) exist in the CS. As shown in the inset, the two oligomerization interfaces, I₁ (α2 in yellow) and I₂ (α7 and α9 in light and dark blue, respectively), are stabilized through intermonomer interactions though some disorder persists (red arcs) at the C terminus of α2 away from the O-motif. The CS allows formation of the characteristic D642_B–T541_A hydrogen bond (Fig. 3E) and thereby the stable engagement of ATP–Mg²⁺ (orange) that displaces the bound ADP (purple) from the active site. Binding of ATP–Mg²⁺, multiple rounds of Y-cluster phosphorylation (indicated by progressively darker shades of orange), and nucleotide exchange within Σ_Ο ultimately results in the C_phos threshold being exceeded and disassembly of the oligomer into its constituent monomers (Σ_Μ). These monomers exist in the OS (monomers shown with dark blue outlines) bound to ADP but unable to engage Mg²⁺ (and therefore ATP–Mg²⁺). While a CS (CS_M, shown in the inset) may be forced within Σ_Μ by the presence of ATP–Mg²⁺, such a state shows instability in I₁ (through bending of α2; green arrows) or I₂ (through partial unfolding of the α7 and/or α9). The RK-cluster (in brown) is disordered in Σ_Μ; its ordering for a stabilized CS facilitates the formation of a reactive state. In Σ_Μ, stable engagement with Wzb (shown in green) through I₁ initiates Y-cluster dephosphorylation. Σ_Ο formation can occur after several rounds of Wzb-mediated dephosphorylation, and the functional cycle can be reinitiated. It is likely that the assembly/disassembly process also involves partially assembled/disassembled states (dashed boxes) representing a deviation from the simple two-state scheme presented in Figure 2. Some individual monomers in such cases also likely contain features that deviate (pink outlines) from those that are characteristic of the OS and CS, perhaps containing properties of both in addition to unique ones. B, engagement within the CS facilitates the formation of a reactive conformation of ATP. ATP is shown as a Newman projection with its α-, β-, and γ-phosphate moieties indicated by blue, yellow, and red lines, respectively. The Walker-A lysine (K540_A, scarlet sphere) and the catalytic Mg²⁺ ion (green circle), lock the β- and γ-phosphates within the same plane. Rotation of the α-phosphate is enabled through its engagement with Y569, thereby facilitating formation of a high-energy all-eclipsed conformation. The ordering of the RK-cluster and insertion of R490 (cyan circle) therein, together with Y569, and a substrate tyrosine (from the Y-cluster of a flanking monomer; red), into the active site facilitate desolvation (dark blue dashes) providing favorable free energy contributions to overcome the activation barrier for chemistry. The precise sequence of the conformational events mentioned that lead to the reactive state remains unclear. Parts of this figure were adapted with permission from Hajredini et al. (22); © the authors, some rights reserved; exclusive licensee AAAS. Distributed under a Creative Commons Attribution noncommercial license 4.0 (CC BY-NC). CD, catalytic domain; CS, closed state; O-motif, oligomerization motif; OS, open state.

Dynamic regions as hot spots for adaptation

BY-kinases show mutation rates that are higher than those of other bacterial genes (31). Overall, there is sparse conservation outside the Walker motifs and for specific residues with known functional roles (e.g., Y569, discussed previously). Nevertheless, BY-kinase CD sequences clustered using protein similarity network analysis (66) parse into distinct groups each with multiple subgroups containing signature motifs beyond the broadly conserved “catalytic” residues (Fig. 6; the readers are referred to the study by Shi et al. (31) for further detail). A subset of defining features of these motifs is retained within some groups, but not others, suggesting that these regions have differentiated within the subgroups and across groups of BY-kinase CDs. Interestingly, some of these conserved elements overlap with those that display significant conformational variability between functional states, for example, the CS and OS, discussed previously. A prime example of such a region includes helices α7 and α9 that form I₂ (Fig. 6) and comprise regions of instability within the CS (CS_M in Fig. 5A) of the monomeric (Σ_Μ) species.

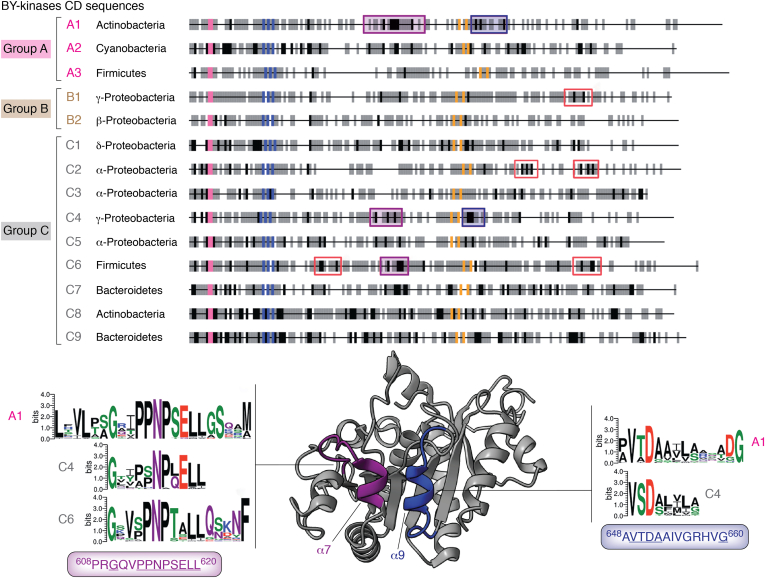

Figure 6.

Dynamic regions as hot spots for adaptation in BY-kinases. Clustering of 796 BY-kinase CD sequences results in three large groups—A (labeled in magenta), B (brown), and C (gray). Group A comprises three subgroups—A1 (mostly Actinobacteria, dominant constituent phyla indicated in all cases using historical phyla names), A2 (Cyanobacteria), and A3 (Firmicutes). Group B comprises two subgroups—B1 (Gammaproteobacteria) and B2 (Betaproteobacteria). Group C comprises nine subgroups—C1 (Deltaproteobacteria), C2 (Alphaproteobacteria), C3 (Alphaproteobacteria), C4 (Gammaproteobacteria), C5 (Alphaproteobacteria), C6 (Firmicutes), C7 (Bacteroidetes), C8 (Actinobacteria), and C9 (Bacteroidetes). Each of these groupings display specific signature motifs (strongly conserved positions are indicated by black and gray bars; conserved motifs are indicated by the red, dark blue, and purple boxes) beyond the universally conserved Walker motifs (indicated by the colored bars; Walker-A: pink, Walker-A’: orange, and Walker-B: blue). Key features of some of these motifs are conserved across some groups but not others. Some of these motifs overlap with dynamic regions, for example, α7 (purple; similar in A1, C4, and C6) and α9 (dark blue; similar in A1 and C4). The corresponding sequence logos are indicated for each case, and that from the Escherichia coli (K-12) Wzc sequence is shown below; residues with high level of conservation are underlined. Parts of this figure have been modified with permission from Shi et al. (31). BY-kinase, bacterial tyrosine kinase; CD, catalytic domain.

A possible role of mutations localized within key conformationally labile regions could be to impart fitness in pathogenic species by altering the stabilities of the OS and CS, thereby affecting the relative lifetimes of Σ_Μ and Σ_Ο and allowing rapid adaption to environmental cues. It has been shown that Wzc mutations enable drug-resistant strains of Klebsiella pneumoniae to adapt to the urinary tract by regulating mucoidy (67). G569, which lies on α4 (rigid body motions of α4 distinguish the CS and OS; Fig. 3A), was found to be extensively mutated (G569C, G569V, and G569D). These modifications were causative for enhanced mucoidy, a characteristic that we attribute to a stabilized Σ_Ο. Indeed, these mutations also resulted in decreased kinase activity, a reduction that would yield an increased T_O in our simple model (Fig. 2). Furthermore, an insertion at the C-terminal end of α2 (at position 526) was also found to enhance mucoidy without reducing kinase activity (67). It is notable that this insertion coincides with the region modified to generate the G₄-construct that stabilizes the CS in E. coli Wzc (22), as discussed previously (Fig. 4C). It is conceivable that this insertion, by increasing disorder in this region, produces a similar effect in K. pneumoniae Wzc of stabilizing the CS and thereby Σ_Ο.

A molecular timer for polysaccharide production

As noted previously, perturbations in phosphorylation/dephosphorylation-coupled oscillations between the octameric (Σ_Ο) and monomeric (Σ_Μ) species modify the physiological output. Specifically, it appears that modulation of BY-kinase activity alters the size distribution of the polysaccharide product suggesting a change in the balance between the synthesis of constituent sugar units and their polymerization within the multicomponent machine (24, 25). One may therefore speculate that the proposed switch-like behavior driven by Y-cluster phosphorylation could potentially provide a timing mechanism to maintain coherence between these events. We propose that BY-kinase activity serves the role of a “molecular timer” that coordinates the various processes involved in the generation of the polysaccharide product. We suggest that this coordination is achieved by modulating the lifetimes of the octameric (Σ_Ο) and monomeric (Σ_Μ) forms of the enzyme to enable adaptation to specific conditions in a particular bacterium under altered environmental pressures (short evolutionary timescales) or in different bacterial species (long evolutionary timescales). These lifetimes are related to the degree of instability introduced into the oligomeric form by each successive Y-cluster phosphorylation event and on the corresponding autophosphorylation and dephosphorylation rates. One could conceive of several ways by which this could potentially be achieved. For example, changes in the rates of phosphorylation and/or dephosphorylation would affect T_O and/or T_M (Fig. 2B). Alternatively, modifications in the relative stabilities of the CS or the OS and therefore the ability to generate Σ_Ο or Σ_Μ species with increased/decreased C_phos thresholds could also provide similar outcomes. For example, a CS stabilized through the introduction of disorder at the C terminus of α2, as in the G₄-construct of Wzc mentioned previously (22), likely generates a Σ_Ο that would require a higher C_phos threshold for dissociation compared with the wildtype enzyme.

An intriguing example that suggests functional regulation by modulation of the relative lifetimes of the Σ_Ο and Σ_Μ species is provided by the Xanthomonas campestris inner-membrane protein, GumC. However, in this case, modulation is achieved through a unique phosphorylation-independent mechanism (68). GumC contains a cytosolic domain that closely resembles a BY-kinase CD but lacks the Y-cluster. Overexpression of GumC results in xanthan molecules with increased chain lengths suggestive of a stabilized Σ_Ο and an enhanced T_O. While the detailed biochemical characteristics of this system are not yet known, it is conceivable that activity in GumC is regulated through clustering in a manner reminiscent of the scaffolding function of eukaryotic pseudokinases (indeed it would not be too much of a stretch to classify GumC as a “pseudo-BY-kinase”) (69). Thus, enhanced local concentration from increased expression of this membrane-anchored protein potentially stabilizes the oligomeric Σ_Ο and yields the characteristic phenotype. The Σ_Ο species can be “dissolved” through reduced expression levels and decreased local concentration.

Looking back, looking forward

Here, we have attempted to synthesize the large body of cell-biological, biochemical, structural, and computational data into a coherent framework to interpret the mechanisms underlying the activation and activity of BY-kinases. We suggest that BY-kinases integrate into the polysaccharide synthesis machinery by functioning as molecular timers that serve to synchronize the synthesis and polymerization of complex carbohydrates in a manner unique to a given bacterial species. Such “timing control” has been suggested for other multisite phosphorylation-driven systems (70). Several observations raise the tantalizing possibility of such a role for BY-kinase function. In S. aureus, activity of the functional complex comprising the catalytic CapB and its membrane-anchored TAD partner, CapA, appears to synchronize capsule assembly and cell wall biosynthesis (71). In S. pneumoniae, the phosphorylation/dephosphorylation cycle of the BY-kinase CpsD is required for the appropriate coupling of cell division and capsule synthesis (14). However, this idea of a molecular clock remains in the realm of speculation pending verification through precisely designed future experiments. In this regard, a defining set of measurements could involve obtaining quantitative estimates of the cellular lifetimes of the Σ_O and Σ_M species (and perhaps additional ones in more comprehensive models), the influence of alterations (through mutations like those described previously) thereon, and resultant changes in the nature of the polysaccharide product.

In the aforementioned discussions, we have largely focused on interactions within the cytosol, that is, those involving the BY-kinase CD and the catalytic activity encoded therein. There is mounting evidence that extracytoplasmic events also affect the physiological outcomes. For example, despite close similarities, E. coli K-12 Wzc is incapable of substituting for the native enzyme in E. coli K30 cells apparently decoupling CPS synthesis from their display on the cell surface suggesting altered export properties (72). It has been proposed that the outer membrane transporter Wza is gated through interactions with the Wzc PD in the periplasm (33). Deletion of the so-called motif 3 (33), a helical segment in the Wzc PD that is a likely interaction partner of Wza, results in a phenotype that is similar to that of a Wza deletion strain without affecting the ability to form the octameric species or perturbing kinase activity (33, 73). Whether and how these intracytoplasmic and extracytoplasmic events communicate with each other remains unknown. It is possible that the extracytoplasmic unit, necessarily part of a functional assembly involving a BY-kinase (as a single protein in case of a P-type or as a separate TAD protein for an F-type BY-kinase), could serve as a sensor to elicit activating/deactivating conformational changes in the CD by means of the transmembrane domain, perhaps also influenced by the lipid membrane. Such a mode of communication has been suggested for the eukaryotic receptor tyrosine kinase, epidermal growth factor receptor (74, 75). Indeed, observation of EPS-mediated regulation of the activity of the BY-kinase EpsB through its membrane-bound TAD EpsA in the Gram-positive B. subtilis (57) hints at such possibilities. One can, however, expect a larger diversity in the roles of the extracellular/PDs and their interactions compared with those within the cytosol across the bacterial kingdom. A comparison of the AlphaFold-predicted structures (76, 77) of the TADs of representative P-type and F-type BY-kinases shows more variability compared with the corresponding CDs. These differences could, in some cases, be related to the presence/absence of a protein partner (e.g., Wza for Wzc). It has also been suggested that in addition to stimulating kinase function, the TAD may itself encode specific enzymatic activity, for example, for one of the two CapA variants in S. aureus, CapA1 (71).

It is evident, that a lot is still unknown about the unique enzymes that are the BY-kinases, in terms of structure, mechanism, and the diversity therein. Answering these open questions, testing the many predictions made here, and refining the proposed hypotheses will involve extensive future experimentation through the application of techniques ranging from structural/biochemical studies of intact functional assemblies to cell-biological studies and single-molecule analyses combined with computational approaches. The design of these approaches can perhaps draw inspiration from those that have been crucial in providing critical insights into the regulation of the eukaryotic functional cousins of the BY-kinases, the eukaryotic receptor tyrosine kinases (74, 78). We expect that these studies will provide fertile grounds for BY-kinase research during this, the third decade since their annotation, and beyond, given the importance of these systems both in terms of fundamental biology and the opportunity for the design of novel antibacterial therapies (79).

Conflict of interest

The authors declare that they have no conflicts of interest with the contents of this article.

Edited by Wolfgang Peti
