Laser microporation facilitates topical drug delivery: A comprehensive review about preclinical development and clinical application

Abstract

Introduction:

Topical drug delivery is highly attractive and yet faces tissue barrier challenges. Different physical and chemical methods have been explored to facilitate topical drug delivery.

Areas covered:

Ablative fractional laser (AFL) has been widely explored by the scientific community and dermatologists to facilitate topical drug delivery since its advent less than two decades ago. This review introduces the major efforts in exploration of AFL to facilitate transdermal, transungual, and transocular drug delivery in preclinical and clinical settings.

Expert opinion:

Most of the preclinical and clinical studies find AFL to be safe and highly effective to facilitate topical drug delivery with little restriction on physicochemical properties of drugs. Clinical studies support AFL to enhance drug efficacy, shorten treatment time, reduce pain, improve cosmetic outcomes, reduce systemic drug exposure, and improve safety. Considering most of the clinical trials so far involved a small sample size and were in early phase, future trials will benefit from enrolling a large group of patients for thorough evaluation of the safety and efficacy of AFL-assisted topical drug delivery. The manufacturing of small and less costly AFL devices will also facilitate the translation of AFL-assisted topical drug delivery.

1. Introduction

Topical drug delivery delivers drugs to readily accessible body locations, such as skin, nail, and eye, to treat local diseases with good patient compliance. Topical drug delivery bypasses harsh environment of the gastrointestinal tract and first-pass metabolism and usually has a good drug bioavailability. Topical drug delivery mainly relies on drug’s own properties to penetrate and reach disease sites [1]. Without help, only a small number of drugs with low molecular weight and good lipophilicity can be successfully delivered via topical routes [1].

Penetration enhancers have been explored to enhance topical drug delivery [2]. A variety of chemicals are able to enhance topical drug delivery by disruption of tissue barrier function [2]. Yet, chemical enhancers have a risk to cause tissue irritation [2]. Physical methods have also been explored to facilitate topical drug delivery, such as iontophoresis, ultrasound, and microneedles [3]. Iontophoresis utilizes electric currents to drive charged molecules into the tissue and can also breach tissue barrier function to facilitate topical drug delivery [4]. Yet, iontophoresis has a risk to cause electric burn or pain [4]. Ultrasound takes advantage of high-frequency sonophoresis to generate oscillating pressure waves or low-frequency sonophoresis to generate cavitation bubbles to disrupt lipid structures to facilitate topical drug delivery [5]. High-frequency sonophoresis mainly enhances transdermal delivery of small and lipophilic compounds and more aggressive conditions have a risk to cause tissue damage due to excessive heating [5]. Low-frequency sonophoresis can be used to enhance transdermal delivery of small chemicals and macromolecules [5]. Yet, the development of cost-effective devices suitable for delivery of diverse drugs in different patients presents a challenge [3]. Microneedles received tremendous attention to facilitate topical drug delivery in the last two decades due to its minimal invasiveness and low cost [3,6]. Drugs can be coated on microneedle surface or encapsulated during microneedle fabrication for release after insertion of microneedles into the skin [3,6]. Microneedles can also be used to generate skin microchannels (MCs) to facilitate topical drug delivery [3,6]. Yet, microneedles often induce rapid drug release and have a low drug delivery capacity.

Laser has a long history in disruption of tissue barriers to support topical drug delivery [7]. Laser parameters can be conveniently adjusted to achieve the desired ablative depths. Laser ablation can be achieved in a non-contact manner. In early times, lasers were used to ablate full-surface superficial skin to facilitate transdermal drug delivery [7]. Yet, full-surface laser ablation causes significant local reactions with slow skin recovery. Fractional photothermolysis was conceptualized in 2004 for improved skin resurfacing [8], which inspired the fabrication of non-ablative and ablative fractional lasers. Non-ablative fractional lasers deliver tiny laser beams and cause microscopic thermal damage, while ablative fractional lasers (AFLs) instantly ablate tiny skin tissues and generate skin MCs [9]. Microscopic skin damage was found to induce quick skin recovery [9], which makes fractional laser resurfacing highly attractive in aesthetic field. Almost at the same time, AFLs were explored to facilitate topical drug delivery in preclinical and clinical studies with unique advantages (Fig.1). Due to the complete removal of tissue barriers, AFLs greatly expand drugs that can be delivered via topical routes. AFL-generated MCs can be quickly and completely recovered in days, which ensures a good safety of AFL to facilitate topical drug delivery.

Figure 1.

Illustration of AFL-assisted topical drug delivery and advantages

The aim of this comprehensive review is to introduce preclinical development and clinical evaluation of AFL to facilitate transdermal, transungual, and transocular drug delivery, summarize the major findings, and discuss future directions.

2. AFL devices in topical drug delivery

There are 3 major types of AFL devices explored for topical drug delivery: carbon dioxide (CO₂) laser, erbium-doped yttrium aluminum garnet (Er:YAG) laser, and handheld P.L.E.A.S.E. laser (Pantec Biosolutions). CO₂ laser emits 10,600 nm wavelength light, while Er:YAG laser and P.L.E.A.S.E. laser emit 2,940 nm wavelength light. Water is the major tissue chromophore to absorb laser energies at 2,940 and 10,600 nm wavelengths. During tissue ablation, laser-generated heat dissipates to surrounding tissues and generates microthermal zones (MTZs), a phenomenon called tissue coagulation in skin resurfacing field. Tissue coagulation reduces bleeding risks during laser ablation. Er:YAG laser has an absorption coefficient of 2 × 10⁷ cm⁻¹ and requires less energy for tissue ablation than CO₂ laser, which has an absorption coefficient of 2 × 10⁶ cm⁻¹ [10]. Thus, ablative fractional CO₂ laser usually generates larger MTZs than the ablative fractional Er:YAG laser and the portable P.L.E.A.S.E. laser. The first two AFL types of different manufacturers and models were explored to facilitate topical drug delivery.

AFLs are usually designed for convenient adjustment of laser parameters, such as energy, percent coverage, pulse duration and frequency. Laser energy, pulse duration, and frequency affect skin MC diameter and depth and also MTZs, while percent coverage determines skin MC density. AFL-generated skin MCs are usually 50–300 µm in diameter and 50–1,850 µm in depth. Laser percent coverage is usually set at 5–20% to achieve quick skin recovery. The impact of laser parameters and skin MC depths on topical drug delivery was extensively studied in preclinical animal models.

3. Preclinical investigation of AFL to facilitate transdermal drug delivery

3.1. Skin barrier

Skin is the largest organ of human body with a surface area of 1.7 m², which is the most accessible site for drug delivery [11]. Stratum Corneum (SC) is situated in the outmost layer of the skin and forms the major barrier for transdermal drug delivery. SC layer is comprised of highly packed and terminally differentiated corneocytes with only cellular membrane remaining. Interstitial space of corneocytes is filled with highly lipophilic materials, such as cholesterol, ceramides, and fatty acids. Only small (<500 Da) and lipophilic molecules (logP: 1–3), such as nicotine, fentanyl, estrogen, could readily permeate through the SC layer. Due to the major barrier function of the SC layer, there are only about 20 transdermal products approved for human use. The majority of large, lipophilic drugs and almost all hydrophilic drugs cannot be efficiently delivered through the transdermal route.

3.2. Franz Cell system

The ability of AFL to assist topical drug delivery in vitro has been mainly studied in Franz Cell systems. Franz Cell systems contain donor and receiver chambers and excised skin can be mounted in between to study drug deposition into or permeation across the skin. Receiver chamber often contains physiological solution, such as phosphate-buffered saline (PBS) or 0.9% saline solution. A small volume of samples can be harvested from receiver chambers to quantify drug concentrations and study cumulative drug delivery. Receiver chambers can also be surrounded by a water jacket to maintain skin temperature at around 32°C, resembling surface skin temperature of human and live animals. Donor chamber can also be removed if the drug is not in a liquid form. For example, drug creams can be topically applied after AFL treatment followed by mounting the skin on the receiver chamber to study intracutaneous and transcutaneous drug delivery. Franz Cell systems allow convenient study of the impact of laser parameters or skin MC depths on drug permeation into and across the skin. Various systems were used for in vivo delivery of topical drugs after AFL treatment depending on dosage forms and were introduced case by case.

3.3. AFL enhances transdermal delivery of different types of drugs

Drugs suitable for transdermal delivery have been mainly limited by their physicochemical properties. Relatively big lipophilic drugs and the majority of hydrophilic drugs face significant challenges to penetrate through the SC layer. AFL has been found to enhance transdermal delivery of drugs capable of penetrating the skin by their own or enable efficient transdermal delivery of chemical drugs, biologics, nano- and microparticles, and even live cells that cannot penetrate the skin by their own (Table 1 and Fig.2).

Table 1.

AFL enhances transdermal drug delivery in preclinical studies

Laser	Drug and skin type	Delivery system and duration	Major findings	Ref
Drugs with the ability to permeate the skin
Prototype CO2 laser	MAL cream/Pig skin	In vivo topical application/180 min	AFL enhanced MAL delivery in dermis of all depths and facilitated deep tissue penetration. Laser channels ~3 mm apart could produce porphyrins throughout the entire skin.	[12]
Prototype CO2 laser	MAL cream/Pig skin	In vivo topical application/180 min	AFL accelerates PpIX accumulation, but laser channel depths does not affect porphyrin accumulation. AFL with 120 min MAL incubation induced significantly higher fluorescence intensities than non-laser exposed sites at 180 min.	[13]
Prototype CO2 laser	ALA and MAL cream/Pig skin	In vivo topical cream application/180 min	AFL-MAL induced higher fluorescence than AFL-ALA at 30 min while the latter elicited the highest fluorescence intensities at 180 min. AFL changes kinetics and biodistribution of ALA and MAL. It appears that AFL-ALA favors targeting deep structures.	[14]
P.L.E.A.S.E. laser	Lidocaine solution/Pig skin	In vitro Franz Cell system/24 h	Cumulative lidocaine permeation increased with increasing pore densities, laser fluences, and drug concentration at 24 h.	[15]
Fractional Er:YAG laser	Lidocaine cream/Pig skin	In vivo topical application/240 minutes	Serum levels of lidocaine were undetectable in untreated skin. Following laser treatment lidocaine was detectable. Peak levels of lidocaine were significantly higher at 250 µm than other skin layers (500, 50, and 25 µm).	[16]
P.L.E.A.S.E. laser	Diclofenac solution or gel formulation/Pig and human skin	In vitro Franz Cell system/24 h	Cumulative diclofenac permeation increased with pore densities and laser fluence at 24 h. There was no statistically significant effect of laser fluence on skin deposition.	[17]
P.L.E.A.S.E. laser	IngMeb gel formulation/Pig skin	In vitro Franz Cell system/21 h	AFL profoundly enhanced dermal deposition of IngMeb. Increasing coverage enhanced dermal uptake. Channel depth did not influence drug uptake.	[18]
Fractional Er:YAG laser	MTX solution (10 mg/mL)/Pig skin	In vitro Franz Cell system/24 h	AFL facilitated rapid MTX delivery through skin MCs. MTX absorbs rapidly into mid-dermis of AFL-processed skin with minimal transdermal permeation until skin saturation. Microthermal zone presents no barrier for drug dissipation to surrounding tissues.	[19]
P.L.E.A.S.E. laser	MTX solution (10 mg/mL)/Pig skin	In vitro Franz Cell system/21 h	AFL increased topical MTX-delivery in different skin depths. Deeper skin MCs favored maximum accumulation of MTX in deeper skin layers. Microthermal zone presents no barrier for drug dissipation to surrounding tissues.	[20]
P.L.E.A.S.E. laser PLGA microneedle	MTX solution /Pig and human skin	In vitro Franz Cell system/24 h	Laser created significantly larger microchannels than microneedles. Laser more significantly enhanced methotrexate permeability into the receptor chamber and skin layers than microneedles.	[21]
Chemical drugs unable to penetrate intact skin
P.L.E.A.S.E. laser	Prednisone solution/Pig skin	In vitro Franz Cell system	Transport was controlled by pore number and depth. Increasing pore depth so that micropores reached the epidermis produced corresponding increases in prednisone transport.	[23]
Fractional CO2 laser (UltraPulse)	SRB, MB, and TR-OVA solution/Mouse skin	In vivo gauze patch/18 h	Following entry into the MCs, the drugs or OVA diffused quickly to the entire dermal tissue. AFL-generated skin MCs provided free paths for drug and vaccine delivery into the dermis while inducing quick healing of the MCs.	[24]
Fractional CO2 laser (UltraPulse)	SRB powder/Mouse, pig, and human skin	Topical application of powder array patches	The novel EPD delivered more than 80% SRB into murine, swine, and human skin within 1 h.	[25]
Prototype CO2 laser	PEG solution of varying MWs/Human skin	In vitro Franz Cell/16 h	AFL substantially increased intra- and transcutaneous delivery of PEGs in a MW range from 240 to 4300 Da. Increasing laser density from 1 to 20% resulted in augmented intra- and transdermal delivery.	[26]
Fractional CO2 laser (UltraPulse)	Cisplatin solution/Pig skin	In vitro Franz Cell system/24 h	Cisplatin delivery was greatly accelerated by AFL. A significant difference in cutaneous uptake was not shown at any time point between mid- and deeper laser channels, though the latter resulted in increased transdermal cisplatin permeation.	[27]
Fractional CO2 laser (UltraPulse)	5-FU cream/Pig skin	In vitro Franz Cell system/24 h	AFL enhanced and accelerated 5-FU uptake versus unexposed controls, with increased accumulation in deep skin layers. AFL enhanced and accelerated deeper and more uniform 5-FU distribution.	[28]
Fractional CO2 laser (UltraPulse)	Cisplatin solution followed by 5-FU cream/Pig skin	In vivo delivery via customized wells (cisplatin/30 or 60 min and 5-FU/120 h)	AFL leads to rapid cisplatin uptake at 1,500 μm depth and induced maximal 5-FU deposition in 1 h. Greater cellular apoptosis after AFL-drug delivery, particularly after combined cisplatin + 5-FU exposure. No detectable level of either drug in the systemic circulation.	[29]
P.L.E.A.S.E. laser	Donepezil hydrochloride solution/Pig skin	In vitro Franz Cell system/24 h	Microneedles, laser, and iontophoresis increased the permeation. A significantly higher permeation was achieved with microneedles and laser in combination with iontophoresis.	[30]
Biologics
P.L.E.A.S.E. laser	Cyt c and FITC-BSA solution/Pig and human skin	In vitro Franz Cell system/24 h	Laser enabled significant delivery of Cyt c, hGH, FSH, and FITC-BSA and increasing pore density and fluence increased cumulative permeation of FITC-BSA. Delivery of Cyt c and FSH was dependent upon concentration.	[31]
Fractional Er:YAG laser Fractional CO2 laser (eCO2)	FITC, FD10, FD20, or siRNA and pDNA/Mouse skin	In vitro Franz Cell systems/24 h or in vivo glass cylinder attached to dorsal skin/2 h	Fractional laser-mediated ablation of the skin resulted in significant enhancement of dextran and siRNA penetration. This is the first report of siRNA and pDNA penetrating the skin with a sufficient amount and depth with the assistance of fractional lasers.	[32]
Ablative fractional Er:YAG laser and non-ablative Er:glass laser	Peptide and siRNA solution/ mouse and pig skin	In vitro Franz Cell systems/48 h	Er:YAG but not Er:glass laser was able to further enhance peptide influx on tape stripped pig skin. The fractional laser was valid for ameliorating macromolecule permeation into barrier-disrupted skin although the enhancement level was lower than that of normal skin.	[33]
P.L.E.A.S.E. laser	hGH solution/Pig and human skin	In vitro Franz Cell systems/48 h	Increase of laser energy from 34.1 to 45.4 J/cm2 or 68.1 J/cm2 but not from 45.4 to 68.1 J/cm2 significantly increased hGH permeation. Increase of percent coverage could increase hGH permeation.	[34]
Fractional CO2 laser (UltraPulse)	Bleomycin solution/Pig skin	In vitro Franz Cell system/24 h	Bleomycin was successfully delivered into the skin and deeper MCs and longer exposure time resulted in higher skin concentrations. After 24 h, AFL exposure resulted in significant amounts of bleomycin throughout all skin layers.	[36]
Fractional CO2 laser (UltraPulse)	Bleomycin solution/Pig skin	In vivo delivery via customized wells/216 h	AFL resulted in a horizontal belt-shaped drug distribution, differing from the radiating distribution after injection. Local skin reactions were tolerable overall, and all interventions permitted almost complete recovery of skin integrity within 9 days.	[35]
Fractional CO2 laser (UltraPulse)	Bleomycin solution or 5-FU cream/Human and pig skin	In vitro Franz Cell system/19 h	Bleomycin uptake was similar in all skin types at all depths. 5‐FU uptake was similar at 100 and 500 µm and slightly different at 1,500 µm depth in human and normal pig skin.	[37]
P.L.E.A.S.E. laser	ATG and Basiliximab solution/Mouse, pig, and human skin	In vitro Franz Cell systems or in vivo Franz Cell donor cell mounted on mouse skin/3 h	Increasing the pore number and laser fluence increased total antibody delivery. Total ATG delivery across porcine ear and human abdominal skin was statistically equivalent and an excellent in vitro/in vivo correlation was observed in the murine model	[38]
Fractional CO2 laser (UltraPulse)	Nivolumab solution/Pig skin	In vitro Franz Cell systems/18 h	AFL-assisted delivery and immediate EPI both resulted in significantly enhanced uptake of nivolumab in all skin depths. AFL elicited a horizontal and homogenous band distribution of nivolumab, while EPI-delivery showed a deep focal deposition.	[39]
Fractional CO2 laser (UltraPulse)	Nivolumab solution/Pig skin	In vivo delivery via Customized wells/4 h and 2 days	AFL elicited a superficial horizontal band‐like uptake of nivolumab, while EPI delivery showed a deep focal deposition. AFL‐assisted nivolumab uptake in upper dermis peaked after 4 h.	[40]
Complex systems
P.L.E.A.S.E. laser	FITC-BSA (in vitro), OVA and recombinant Phl p 5 (in vivo)/Mouse and pig skin	In vitro Franz Cell system (Pig skin) and in vivo mouse skin	By targeting different layers of the skin, we were able to bias polarization of T cells, which could be modulated by addition of adjuvants. The P.L.E.A.S.E. laser represents a highly effective and versatile platform for transcutaneous vaccination.	[57]
Fractional CO2 laser (UltraPulse)	OVA, BCG vaccine, LPS/CpG, VV-OVA powder/Mouse, pig, and human skin	In vitro and in vivo mouse and pig skin; In vitro human skin; Topical powder array patches	The novel EPD efficiently delivered more than 80% OVA into murine, pig, and human skin within 1 h. EPD reduced local side effects of LPS/CpG adjuvant and BCG vaccine, leading to complete skin recovery. In contrast, intradermal injection induced severe local reactions that persisted for weeks.	[25]
Fractional CO2 laser (UltraPulse)	OVA and influenza vaccine powder/Mouse skin	In vivo immunization study	LPD could significantly enhance pandemic influenza 2009 H1N1 vaccine immunogenicity and protective efficacy as compared with needle-based intradermal delivery in murine models. The ablative fractional laser activated MyD88 to mediate its adjuvant effects by potentiation of antigen uptake, maturation, and migration of dendritic cells.	[41]
P.L.E.A.S.E. laser	pDNA-loaded nanoparticle (dual rabies and contraceptive vaccine)/Mouse skin	In vivo immunization study	Adjuvanted nanoparticulate pDNA vaccine significantly upregulated the expression of co-stimulatory molecules in dendritic cells. After topical administration of the adjuvanted nano-vaccine in mice, the high avidity serum for GnRH antibodies were induced and maintained up to 9 weeks.	[42]
P.L.E.A.S.E. laser	Measles vaccine-loaded microparticles/Mouse skin	In vivo immunization study	These vaccine microparticles were non-cytotoxic and could effectively stimulate the innate immune response. Transdermal immunization with microparticulate vaccine is as efficient as the traditional subcutaneous administration.	[43]
P.L.E.A.S.E. laser	FITC and RD70, or PS-nano- and microparticle-incorporated dry PVA polymer films/Pig skin	In vitro Franz Cell systems	The increased water transport facilitated the dissolution of topically applied dry PVA-based film formulations within 6 h. Incubation of the film patches on laser microporated skin for 24 h led to a considerable intradermal delivery of RD70 or PS-nanoparticles. No intradermal delivery was observed on intact skin or when larger PS-microparticles with a diameter of 5 μm were investigated.	[44]
Fractional CO2 laser (eCO2) Full ablative Er:YAG laser	PRP; FITC-IFN-γ and FITC-PDGF-BB/Pig and mouse skin	In vitro Franz Cell systems (pig skin, /4 or 24 h); In vivo via Franz Donor Cells (mouse skin, 3 and 6 h)	Both lasers significantly elevated skin deposition of IFN-γ and TNF-α from PRP and led to an extensive and deep skin distribution of IFN-γ and PDGF-BB. In MRSA infection model, CO2 laser- and Er:YAG laser-assisted PRP delivery reduced bacterial load and the open wound induced by MRSA was closed by the laser-assisted PRP penetration.	[45]
P.L.E.A.S.E. laser	Heparin-loaded poloxamer gel and solution/Pig skin	In vitro Franz Cell system/	Laser-assisted delivery from solution was higher than delivery from heparin gel. However, gel is likely to sustain the delivery over prolonged periods like a maintenance dose via continuous intravenous infusion.	[46]
Fractional Er:YAG laser	20 × 106 BrdU–labeled ADSC/Pig skin	In vivo topical delivery of ADSC/4 or 48 h	2.40 × 106 cells (12.0% total cells) were found in the tissue at 4 h and 1.1 × 106 cells (5.5% total cells) were seen at 48 h. This pilot study demonstrates that ADSC can be delivered transdermally through skin that has been pretreated with a laser.	[47]
Fractional Er:YAG laser	Living human cells/Pig skin		Total cell delivery after 24 h increased with increasing pore density. Production of GFP post-delivery confirmed cell remained viability.	[48]
Impact of dosage forms on MC filling
Fractional CO2 laser (UltraPulse)	Shandon™ blue tissue-marking dye in 0.9% saline solution, gel, and cream/Pig skin	Ex vivo topical delivery and evenly distributed to cover the entire AFL field, and left to settle for 10 min.	At 80 mJ/microbeam, liquid and gel formulations filled skin MCs significantly better than cream formulation. At 40 mJ/microbeam, liquid but not gel formulations filled skin MCs significantly better than cream formulation. In conclusion, vehicle type affects filling of MTZs, which may be of importance for AFL-assisted drug delivery.	[49]
Techniques enhancing AFL-assisted drug permeation
Fractional CO2 laser (UltraPulse)	Green biomarker liquid or PEG400/Pig skin	In vitro Franz Cell systems followed by PVP/4 h	Active filling with PVP induces a deeper, greater, more rapid delivery than conventional AFL. AFL alone generated an inhomogeneous uptake of PEG400, which greatly improved with active filling.	[50]
Fractional CO2 laser (UltraPulse)	Fluorescent drug ICG solution/Human skin	Topical ICG followed by massage, acoustic pressure wave, or PVP/24 h	Penetration enhancement techniques, especially acoustic pressure wave treatment and massage, result in improved drug accumulation in AFL-pretreated skin and reduce the application time needed.	[51]
Sustained drug delivery
P.L.E.A.S.E. laser	TA or Fluorescein/Nile Red microparticles/Pig skin	In vitro Franz Cell systems/2 days	Microporation enabled delivery and deposition of TA-MP, which could serve as local depots for sustained release of TA even after micropore closure.	[52]
P.L.E.A.S.E. laser	Pentoxifylline and D-α-tocopherol succinate c-containing microparticle/Pig skin	In vitro Franz Cell system/48 h	After deposition into the micropores, the PLGA microparticles containing pentoxifylline and D-α-tocopherol succinate could serve as an intraepidermal depot to enable sustained drug delivery after micropore closure and thereby reduce the need for repeated microporation.	[53]
Fractional CO2 laser (UltraPulse)	Vismodegib oil-in-water microemulsion/Pig skin	In vitro Franz Cell system/24 h	The overall highest concentration was reached at 24 h in superficial AFL exposed skin, 7.6-fold higher than vehicle control. Compared to intact skin, AFL exposure significantly increased skin concentrations of vismodegib even in deep skin layers.	[54]
Fractional CO2 laser (UltraPulse)	Vismodegib oil-in-water microemulsion/Pig skin	In vivo delivery via customized wells for 4 h/evaluation lasted 9 days	Sustained delivery of vismodegib was detected in all depths of AFL-exposed skin with peak concentrations found at 5 and 9 days. Only mild local skin responses to vismodegib were observed, and no vismodegib was detected in plasma.	[58]
P.L.E.A.S.E. laser	Ketamine and brexanolone solution, brexanolone microemulsions/Human skin	In vitro Franz Cell systems/24 h (ketamine)	Microporation of skin using laser was more effective than microneedles, for the delivery of ketamine as well as brexanolone. The developed microemulsions resulted in significantly higher transdermal delivery across laser-treated skin.	[55]
Fractional CO2 laser (UltraPulse)	SRB, ZDV, Insulin, and anti-PD1 powder/Mouse skin	In vitro Franz Cell systems and in vivo powder array patch delivery/15 h	EPD could efficiently deliver chemical drugs without excipients and biologics drugs in the presence of sugar excipients into the skin with a duration of ~12h. sEPD increased drug bioavailability or functionality in vivo.	[56]
Fractional CO2 laser (UltraPulse)	SRB, ZDV, BSA powder/Mouse skin	In vitro Franz Cell systems/7 days; In vivo topical reservoir patches/8 days	Tapped coating could coat 10–20 mg drug per 0.5 cm2 reservoir patch to elicit 3-day sustained delivery. Compression coating could coat ~35–70 mg drug per 0.5 cm2 reservoir patch to elicit week-long sustained delivery.	[22]

Figure 2.

Drug types suitable for AFL-assisted topical drug delivery

3.3.1. Chemical drugs capable of penetrating the skin by their own

Photodynamic therapy (PDT) is an attractive non-invasive treatment of actinic keratoses (AKs) and non-melanoma skin cancers (NMSCs). For this therapy, photosensitizer prodrug 5-aminolevulinate (ALA) or methyl aminolevulinate (MAL) is first applied on the lesion sites. Patients need to wait 3 h to allow ALA or MAL to penetrate the skin and converted into active photosensitizer protoporphyrin IX (PpIX) inside skin cells. The lesion sites are then cleaned and exposed to a source of red light to activate porphyrins and generate super oxygen species and other toxic compounds to destruct cancer cells. As compared to ALA, MAL is more lipophilic and can more readily penetrate the skin. Haedersdal et al. used a prototype CO₂ AFL and generated deep MCs (1850 µm) in pig skin [12]. AFL treatment prompted deep tissue penetration of topically applied MAL, which further dissipated to entire dermal tissue in 3 h with MCs 3 mm apart. Haak et al. explored whether skin MC depths could affect topical MAL delivery with the same prototype CO₂ AFL [13]. Skin MC depths (300, 1400, 2100 µm) showed no significant effects on porphyrin accumulation in the skin. In addition, 1 h MAL incubation with prior AFL treatment induced significantly higher porphyrin fluorescence in the surface of the skin and 2 h MAL incubation with prior AFL treatment induced significantly higher porphyrin fluorescence in the dermis when compared to 3 h MAL incubation without AFL treatment. This study supported the potential of AFL to shorten the waiting period in MAL-based PDT (MAL-PDT). Haedersdal et al. further compared the prototype CO₂ AFL-assisted topical ALA and MAL delivery in pig models and found AFL treatment favorably enhanced the delivery of ALA over MAL to the deep layer of the skin in 3 h, while ALA and MAL similarly penetrated into the intact skin in 3 h [14].

Similar to ALA and MAL, lidocaine can penetrate the skin by its own. Yet, it takes 30 min to 1 h to reach deep layer of the skin to minimize the pain associated with procedures, such as blood collection and venipuncture. Bachhav et al. found AFL pretreatment could significantly increase lidocaine permeation across pig skin in Franz Cell systems [15]. Increase of pore density and lidocaine concentration significantly increased transdermal delivery, while increase of laser fluences showed a lesser effect [15]. AFL-enhanced lidocaine delivery was confirmed in vivo using a commercially available lidocaine cream. Oni et al. found AFL pretreatment could enhance transdermal delivery of lidocaine to reach systemic circulation [16]. Interestingly, skin MC depth at 250 µm elicited significantly higher peak serum lidocaine levels than other MC depths at 25, 50, and 500 µm. Although systemic delivery of lidocaine may not be desirable, this study indicated AFL was highly effective to enhance transdermal delivery of lidocaine and potentially shorten the waiting time. Diclofenac is a widely used non-steroid anti-inflammatory agent. Oral delivery of diclofenac faces rapid clearance and causes adverse reactions in gastric mucosa [17]. Bachhav et al. found AFL could be used to significantly enhance transdermal delivery of diclofenac in Franz Cell systems [17]. Furthermore, increase of pore density and laser fluence could significantly increase cumulative diclofenac permeation across the skin, while increase of laser fluence showed no significant effect on diclofenac deposition in the skin [17].

Topical Ingenol Mebutate (IngMeb) gel is approved to treat AKs due to its cytotoxic effects against fast-growing cancerous cells. Erlendsson et al. explored the ability of AFL to facilitate deep penetration of IngMeb to treat NMSCs [18]. IngMeb could readily deposit to the epidermal layer of intact skin, while dermal deposition was limited. AFL pretreatment was found to significantly enhance IngMeb deposition in the dermal tissue. Furthermore, skin MC depths did not significantly affect IngMeb uptake.

Methotrexate (MTX) is a chemotherapy and immunosuppressive drug and often prescribed as an oral dosage form with a high risk to cause adverse reactions, such as nausea/vomiting, thrombocytopenia, and leukopenia. Local delivery may reduce these adverse reactions. Taudorf et. al. explored two types of AFLs (Er:YAG, P.L.E.A.S.E.) to facilitate topical MTX delivery in Franz Cell systems [19,20]. Both AFLs were effective to enhance MTX penetration into the skin. Interestingly, coagulation zone (CZ) or MTZ provided no barrier for MTX diffusion into the surrounding tissues. Furthermore, deeper skin MCs favored MTX deposition into deep dermis. Nguyen et al. compared AFL and poly(lactic-co-glycolic acid) (PLGA) microneedles in facilitation of topical MTX delivery in pig and human skin in Franz Cell systems [21]. AFL was found to generate bigger skin MCs and was more efficient than PLGA microneedles to facilitate intracutaneous and transcutaneous delivery of MTX. This result was in line with our finding that CO₂ AFL even at the relatively weak laser condition (2.5 mJ, 5% coverage) could more significantly increase transepidermal water loss (TEWL) than a stainless steel 2D microneedle (each microneedle: 700 µm in height, 200 µm in base width, and 50 µm in thickness) when similar numbers of skin MCs were created in a similar skin area (unpublished data). TEWL data hinted AFL created bigger skin MCs than microneedle insertion. This might be due to the diverse MC-creating mechanisms. AFL ablates tiny tissues to generate skin MCs, while microneedle insertion pushes tissues away to generate skin MCs [22]. After AFL treatment, skin MCs remain in its original size, while microneedle retraction leads to partial skin MC closure [22].

3.3.2. Chemical drugs unable to penetrate the skin

The majority of hydrophilic drugs are unable to penetrate the skin. Due to the aqueous feature of AFL-generated skin MCs, AFL has been tested to facilitate transdermal delivery of hydrophilic drugs including chemical and biologics drugs. Yu et al. found prednisone delivery could be significantly enhanced with prior AFL treatment [23]. Furthermore, micropore number could positively impact prednisone delivery [23]. Increase of laser fluence or micropore depths more significantly increased prednisone permeation across but not deposition into the skin especially when micropores already reached the deep epidermal layer [23]. Chen et al. evaluated the ability of CO₂ AFL to enhance transdermal delivery of fluorescent model drugs sulforhodamine b (SRB), methylene blue (MB), and Texas-red ovalbumin (TR-OVA) in murine models [24]. The in vivo delivery was achieved by topical application of liquid drug-soaked gauze patches on AFL-treated skin. AFL was found to significantly enhance transdermal delivery of SRB, MB, and TR-OVA, while fluorescent drugs remained on skin surface without AFL treatment. Furthermore, AFL-treated skin achieved quick recovery in 1–2 days. This study demonstrated the high potency and safety of AFL to facilitate transdermal delivery of hydrophilic drugs. Chen et al. also explored direct powder drug delivery via AFL-generated skin MCs by coating powder drugs on the surface of adhesive patches in the same pattern as skin MCs [25]. Using SRB as a model, powder SRB was found to rapidly deposit into excised pig and human skins in vitro [25]. Haak et al. explored the prototype CO₂ AFL treatment of human skin to facilitate intracutaneous and transcutaneous delivery of highly water-soluble polyethylene glycols (PEGs) with molecular weights (MWs) ranging from 400 to 3350 Da in Franz Cell systems [26]. AFL significantly enhanced intracutaneous delivery of PEGs with PEG delivery rate positively correlated with laser percent coverage. Furthermore, higher MW of PEGs showed more intracutaneous retention than transcutaneous delivery.

Cisplatin is the first FDA-approved platinum compound for cancer treatment and is effective against different types of cancer, such as lung, ovarian, head and neck, due to its ability to crosslink and cause DNA damage. Cisplatin also showed its cytotoxic effects against NMSCs. Local delivery is promising to enhance its therapeutic effects while limiting its adverse reactions. Wenande et al. found AFL could significantly enhance cisplatin delivery into and across the skin in Franz Cell systems and skin MC depth did not affect cisplatin deposition into the skin, while deeper skin MCs favored cisplatin permeation across the skin [27]. Wenande et al. also explored the ability of AFL to enhance topical delivery of 5-fluorouracil (5-FU) in Franz Cell systems. 5-FU is a hydrophilic chemotherapy agent used to treat skin cancer. AFL was found to enhance and accelerate 5-FU uptake and accumulation in deep skin layers [28]. Wenande et al. further explored the ability of AFL to enhance topical delivery of combined cisplatin and 5-FU therapy in pig skin in vivo [29]. For in vivo delivery, customized wells made from DuoDerm Hydroactive^™ dressings (ConvaTec, Flintshire, UK) were secured on skin surface and further occluded with Tegaderm film after cisplatin solution loading. Cisplatin was allowed to deliver for 30 or 60 min and then removed followed by topical application of 5-FU cream. AFL enhanced peak cisplatin levels in the skin by 6 folds at 5 h when compared to non-laser-treated skin. AFL also allowed 5-FU to reach maximal skin levels within 1 h, while 5-day delivery on intact skin failed to reach such a level. Interestingly, AFL-assisted combinatorial cisplatin/5-FU therapy elicited the greatest cell apoptosis than either drug alone with no detectable systemic distribution of drugs.

Kale et al. explored AFL to assist transdermal delivery of Donepezil, a highly water-soluble medicine prescribed to treat all stages of Alzheimer’s disease [30]. AFL was further compared with microneedles to generate skin MCs to facilitate transdermal delivery of Donepezil across pig skin in Franz Cell systems [30]. Results showed that AFL could more efficiently enhance transdermal delivery of Donepezil than microneedles [30].

3.3.3. Biologics and complex systems

Besides chemical drugs, AFL has been also explored to facilitate transdermal delivery of biologics, including protein/peptide drugs, monoclonal antibodies (mAbs), and genetic materials. Bachhav et al. explored AFL to facilitate protein/peptide delivery across pig and human skin in Franz Cell systems and found AFL could significantly enhance the intracutaneous deposition of cytochrome c (Cyt c, 12.4 kDa), human growth hormone (hGH, 22 kDa), follicle-stimulating hormone (FSH, 30 kDa), and fluorescein isothiocyanate (FITC)-labeled bovine serum albumin (FITC-BSA, 70 kDa) [31]. Further studies found increase of pore density and drug concentration significantly increased transcutaneous delivery of Cyt c and FITC-BSA, while increase of laser fluence only showed a positive effect on transcutaneous delivery of FITC-BSA [31].

Lee et al. used FITC-labeled Dextrin (FD) at 10 and 20 kDa as model systems and demonstrated significant enhancement of transcutaneous FD delivery by both Er:YAG and CO₂ AFLs [32]. This study for the first time demonstrated high efficiency of AFL to enhance transdermal delivery of siRNA and plasmid DNA. Lee et al. also compared Er:YAG AFL and Er:glass non-AFL to enhance peptide and siRNA delivery across mouse Psoriasis and Atopic Dermatitis skin [33]. Results indicated AFL but not non-AFL enhanced macromolecule delivery on barrier-disrupted psoriasiform skin. Song et al. explored the potential of AFL to facilitate transdermal delivery of hGH [34]. Results showed that increase of laser energy from 34.1 to 45.4 J/cm² or 68.1 J/cm² but not from 45.4 to 68.1 J/cm² significantly increased hGH delivery across AFL-treated pig and human skin. Increase of laser percent coverage also significantly increased hGH permeation.

Bleomycin is a non-ribosomal peptide and an anti-cancer chemotherapy drug to treat a variety of tumors, such as melanoma, sarcoma, and ovarian cancer. Bleomycin was also reported to be effective to treat non-malignant (e.g., keloids) and malignant skin conditions (e.g., basal cell carcinoma (BCC)) after intralesional delivery. Hendel et al. explored AFL to facilitate topical delivery of Bleomycin in pig models [35,36]. In vitro Franz Cell studies found AFL could enhance transdermal delivery of Bleomycin with deeper skin MCs leading to higher drug concentrations in the skin. In vivo studies found AFL-assisted delivery led to a horizontal belt-shaped BLM distribution, while needle injection resulted in a radiating BLM distribution from the injection site. In vivo studies further found electroporation (EP) did not significantly change BLM delivery at any time point in both deliveries. AFL-assisted delivery induced almost complete skin recovery in 9 days. Rosenberg et al. compared Bleomycin and 5-FU delivery across AFL-treated human and pig skin in Franz Cell systems and found Bleomycin uptake was similar between pig and human skins at all skin depths, while 5-FU showed similar uptake in superficial skin and mid-dermis but different uptake in deep dermis [37]. Overall, pig skin is a good model to study AFL-assisted topical drug delivery.

mAbs are an attractive type of biologics due to their high specificity to targets. Till now, there are over 100 mAb drugs approved by FDA. mAbs are usually delivered by systemic routes. Topical delivery is promising to increase local mAb concentration and reduce systemic side effects. Several groups explored the potential of AFL to facilitate topical delivery of mAbs in preclinical studies. Yu et al. explored the use of AFL to enhance transdermal delivery of two immunosuppressive mAbs (ATG (Thymoglobulin^®) and Basiliximab (Simulect^®)) in vitro and in vivo [38]. AFL was highly effective to enhance transdermal delivery of ATG and Basiliximab and increase of laser percent coverage and fluence enhanced mAb delivery. Nivolumab is a mAb drug targeting programmed death-1 (PD-1), which is an immune checkpoint. Nivolumab was first approved in 2014 for advanced melanoma and later expanded to treat other tumors, such as advanced lung cancer, metastatic renal cell carcinoma, and Hodgkin lymphoma. Christensen et al. explored AFL-assisted topical delivery of Nivolumab for treatment of advanced skin cancer to avoid systemic side effects in pig models. In vitro Franz Cell studies found AFL could significantly enhance Nivolumab delivery into the pig skin and Nivolumab further showed a horizontal and homogenous distribution in the upper and mid-dermis, while electronically controlled pneumatic injection (EPI) displayed a deep focal deposition extending into the deep dermis [39]. In vivo study confirmed the different biodistribution of AFL-assisted delivery and intradermal injection delivery [40]. AFL-assisted delivery induced peak Nivolumab levels in the upper dermis after 4 h [40]. These studies consistently indicated the safety and efficacy of AFL to facilitate topical mAb delivery despite of their high molecular weight and complex 3D structures.

More complex systems, such as vaccines, nanoparticles, plasma, and cells, have been also successfully delivered into or across the skin with the help of AFL. Weiss et al. found model antigen ovalbumin (OVA) and recombinant Phl p 5 (a grass pollen allergen) could be efficiently delivered via AFL-generated skin MCs after topical delivery in a liquid form and elicit potent antigen-specific immune responses. Chen et. al. found powder array patch-coated OVA could be efficiently delivered into mouse, pig, and human skin via AFL-generated skin MCs within 1 h [25]. Furthermore, AFL-assisted powder array patch delivery of lipopolysaccharide (LPS)/oligonucleotide CpG mixture (LPS/CpG), BCG vaccine, and OVA-encoding vaccinia virus (VV-OVA) induced significantly reduced local reactions as compared to intradermal injection [25]. Due to the induction of significant photothermal stress in MC-surrounding tissues by the Ultrapulse Lumenis CO₂ AFL, Li et al. explored whether laser-based powder delivery (LPD) could elicit more potent immune responses than needle-based injection delivery. It was found LPD of OVA and influenza vaccine at relatively strong laser conditions (10 mJ and 10% coverage) elicited more potent antigen-specific immune responses than needle-based injection delivery [41]. AFL treatment stimulated NLRP3 inflammasome and MyD88 pathways and only MyD88 pathway was critical for the observed laser adjuvant effects [41]. Besides needle-free delivery and improved vaccine immunogenicity, direct powder vaccination eliminates reconstitution steps and is likely to have improved vaccine stability and reduced storage volume, ideal for immunization in resource-poor territories. Besides these studies, Bansal et al. prepared dual rabies and contraceptive vaccine antigen-encoding pDNA-loaded PLGA nanoparticles, while were further incorporated into poloxamer hydrogel for topical immunization on AFL-treated skin [42]. Interestingly, Alum and MF59 adjuvants could be also incorporated into the same poloxamer hydrogel to further enhance vaccine-induced immune responses [42]. Joshi et al. encapsulated measles vaccines in crosslinked BSA microparticles and successfully immunized mice with measles vaccine-encapsulated microparticles after topical application on AFL-treated skin [43]. The AFL-assisted topical immunization was found to elicit comparable immune responses to subcutaneous injection [43].

Engelke et al. prepared FITC, rhodamine B-labeled dextran (RD70), and polystyrene (PS) nano- and microparticle-incorporated dry polyvinyl alcohol (PVA) polymer films and explored the topical delivery via AFL-generated skin MCs [44]. Similar to LPD, water evaporated from AFL-generated skin MCs needed to transform topically applied dry polymer films into a wet form to initiate the transdermal drug delivery. It was found dry PVA films could be sufficiently wetted within 6 h, which led to a considerable intradermal delivery of RD70 and PS nano- but not microparticles [44].

Lee et al. explored superficial ablation by CO₂ AFL and fully ablative Er:YAG laser to facilitate platelet-rich plasma (PRP) delivery to treat methicillin-resistant Staphylococcus Aureus (MRSA)-infected wounds and photoaging of the skin [45]. It was found CO₂ and Er:YAG lasers were effective to enhance skin deposition of interferon γ (IFN-γ) and tumor necrosis α (TNF-α) from PRP in vitro and interestingly fully ablative Er:YAG laser showed a higher penetration enhancement than AFL. Both lasers also enhanced an extensive and deep distribution of IFN-γ and platelet-derived growth factor (PDGF)-BB in the pig skin in vitro. Both lasers were effective to enhance PRP delivery and induce wound closure in MRSA infection mouse models despite more reduction of bacterial load in fully ablative laser group. Topical PRP delivery with fully ablative laser rather than AFL or PRP alone was found to fully restore elastin and collagen deposition in the mouse photoaging model. This study remains one of the few studies that compared AFL and fully ablative laser side by side in assisting topical drug delivery to treat skin disorders. More therapeutic effects observed in fully ablative laser group might be related to the photomechanical waves that created transient delivery routes in the epidermis to facilitate macromolecule delivery. In support, tape stripping physically removed SC layer but failed to enhance macromolecule uptake in the skin. Vora et al. prepared heparin-loaded poloxamer gel and found AFL could facilitate topical heparin delivery across pig skin in Franz Cell systems [46]. Moreover, AFL-assisted poloxamer gel delivery might sustain heparin delivery over a prolonged period [46]. Oni et al. explored possible delivery of adipocyte-derived stem cells (ADSCs) via AFL-generated skin MCs to aid chronic wound healing [47]. Using in vivo pig models, it was found 12% applied ADSCs were alive in the skin at 4 h and 5.5% applied ADSCs were alive in the skin at 48 h. This study indicated AFL could be used to generate skin MCs to support topical cell therapy in wound healing or other skin conditions. Yu et al. found living human cells could be delivered via AFL-generated skin MCs in pig skin and increase of pore density could increase living cell delivery [48]. Furthermore, cells delivered via AFL-generated skin MCs were found to express GFP, confirming live cell status after AFL-assisted topical delivery [48].

3.4. Strategies to increase topical drug delivery

The above studies indicated increase of laser coverage and drug concentration had a major impact on intracutaneous and transcutaneous drug delivery, while increase of laser fluence and MC depth mainly enhances transcutaneous but not intracutaneous drug delivery [13,15,17,23,27,31,34,38], which is also summarized in Table 2. The less impact of MC depths on intracutaneous drug delivery reflects the major barrier function of the SC layer. When the SC layer is disrupted, drugs can readily transmigrate into the skin regardless of skin MC depths. Yet, deep skin MCs facilitate rapid drug deposition to deep tissue layers required to relieve the pain associated with blood collection and venipuncture and treat malignant skin neoplasm, such as MNSCs and BCCs. Generally, increase of laser coverage, laser fluence, and drug concentration is promising to increase transdermal drug delivery. Yet, increase of laser coverage and laser fluence also delays skin recovery (Table 2). The maximal drug concentration is limited by its solubility and also affected by dosage forms. Thus, strategies to increase transdermal drug delivery need to be carefully considered and balanced in real applications.

Table 2.

Increase of diverse parameters on intracutaneous and transcutaneous drug delivery and limitations

Increase of	Intracutaneous delivery	Transcutaneous delivery	Limitations
Laser coverage	↑	↑	Delayed skin recovery
Laser fluence	Not much	↑
Skin MC depths	Not much	↑
Drug concentration	↑	↑	Controlled by drug solubility and dosage forms

3.5. Drug dosage forms in AFL-assisted topical drug delivery

Different dosage forms were explored in AFL-assisted topical drug delivery in vivo (Fig.3). Traditional topical dosage forms, such as creams and gels, can be topically applied without modifications in AFL-assisted topical drug delivery. Drugs can also be blended into a cream or gel base for convenient delivery via AFL-generated skin MCs. For liquid dosage forms, gauze patches, customized wells, or Franz donor cells can be used to hold liquid drugs for topical delivery via AFL-generated skin MCs. Different patch systems were also fabricated to facilitate direct powder drug delivery via AFL-generated skin MCs. Different from other dosage forms, powder drugs need to be wetted and dissolved in situ by evaporated water from skin MCs before initiation of delivery. As of such, usually two phases of delivery were observed with the first phase contributed by drug powder in close proximity to skin MCs and the second phase contributed by the remaining drug powder. Drugs can also be incorporated into dry polymer films for topical delivery via AFL-generated skin MCs. Similar to direct powder delivery, dry polymer films need to be wetted by evaporated water from skin MCs to initiate the drug delivery. Dry polymer films share similar advantages to direct powder drug delivery in storage and stability.

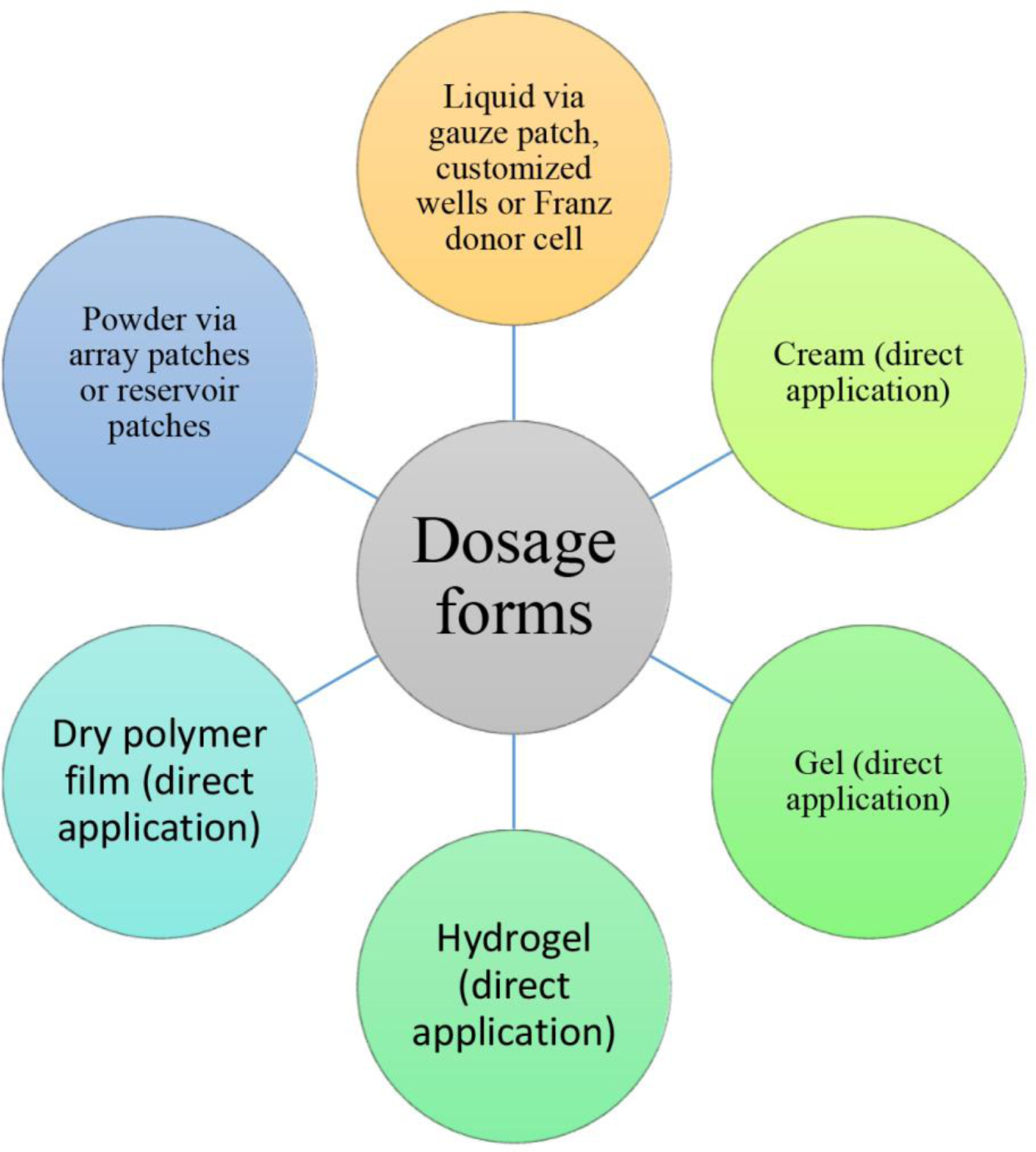

Figure 3.

Dosage forms for AFL-assisted topical drug delivery

Rare studies directly compared the diverse dosage forms in AFL-assisted topical drug delivery. Olesen et al. compared topical dosage forms (liquid, gel, cream) on drug delivery via AFL-treated ex vivo pig skin and found drugs prepared in liquid and gel forms showed higher percentage of filling of AFL-generated skin MCs than drugs prepared in cream form regardless of skin MC depths [49].

3.6. Strategies to enhance liquid drug filling of skin MCs

Right after laser ablation, interstitial fluids were found to crowd the bottom of laser-generated skin MCs, leaving the upper part void. Due to the tiny skin MCs, topically applied liquid drugs face challenges to fill skin MCs. Erlendsson et al. explored altering pressure, vacuum, pressure (PVP) to facilitate liquid drug filling of AFL-generated skin MCs [50]. Theoretically, pressure is expected to push liquid drugs to fill skin MCs, while vacuum might extract entrapped tiny air bubbles out of skin MCs to facilitate liquid drug filling. AFL alone was found to generate an inhomogeneous uptake of PEG400 by skin MCs, which was greatly improved with the PVP application. Active filling with PVP also significantly enhanced intracutaneous delivery of PEG400.

Meesters et al. explored massage, acoustic pressure wave, and PVP to enhance topical delivery of liquid fluorescent drug indocyanine green (ICG) on AFL-treated ex vivo human skin [51]. Enhancement techniques were found to significantly enhance drug delivery at early time points and no difference could be observed regardless of the use of enhancement techniques or not at 24 h [51]. After 3 h, acoustic pressure wave showed the highest efficiency to improve drug accumulation in AFL-treated skin [51]. The above two studies indicated enhancement techniques could be used to increase liquid drug filling and transdermal drug delivery at early phases.

3.7. AFL facilitates sustained drug delivery

The majority of the above studies focused on relatively short duration of drug delivery. Several groups explored the potential of AFL to assist sustained transdermal drug delivery. Sustained drug delivery is promising to reduce dosing frequency and improve patient compliance. Sustained drug delivery may also improve therapeutic efficacy and reduce drug toxicity. One approach to induce sustained AFL-assisted drug delivery is to introduce slow-releasing drug formulations. Singhal et al. encapsulated triamcinolone acetate (TA) into polymeric microparticles (MPs) followed by topical delivery via AFL-generated skin MCs to form local depot for sustained release of TA [52]. TA was found to have more uniform distribution in the epidermis and upper dermis following AFL-assisted MP delivery as compared to TA suspension delivery. Furthermore, almost no transcutaneous delivery was found in the Franz Cell systems, indicating the dominant intracutaneous delivery in the 2-day study period. A similar approach was explored by Gou et al. to induce sustained release of Pentoxifylline and D-α-tocopherol from PLGA MPs after AFL-assisted transdermal delivery to reverse radiation injuries [53]. It was found this approach allowed successful deposition of drug-encapsulated PLGA MPs in AFL-treated skin at 48 h with potential release of drugs over an extended period of time [53].

Olesen et al. encapsulated Hedgehog inhibitor vismodegib, an approved chemotherapy drug to treat BCC, in oil-in-water (o/w) microemulsion and explored AFL-assisted topical delivery in pig skin in Franz Cell systems. The highest drug concentration was found in superficial AFL-treated skin at 24 h and significantly enhanced drug concentration was also found in deep skin layers [54]. Olesen et al. further explored AFL-assisted vismodegib microemulsion delivery in vivo and found 4 h-topical delivery of vismodegib microemulsion could sustain drug release for at least 9 days. AFL enhanced drug concentration in different skin layers at different time points and peak drug concentrations in dermis exceeded steady-state plasma concentration following oral delivery in humans. AFL-assisted vismodegib microemulsion delivery elicited mild local reactions with no systemic delivery observed. Bhattacchrjee et al. explored sustained delivery of brexanolone, a newly approved antidepressant to treat post-partum depression, across AFL-treated skin using novel microemulsion formulations [55]. It was found AFL was more effective than microneedles to support transdermal delivery of brexanolone [55]. Furthermore, percutaneous absorption of brexanolone across AFL-treated skin was significantly higher using o/w microemulation than w/o microemulsion [55]. Efficient delivery of brexanolone microemulsion via AFL-generated skin MCs might sustain drug release over an extended period of time.

Powder drugs were also coated in diverse patch systems to elicit sustained delivery via AFL-generated skin MCs by taking advantage of water evaporation from AFL-generated skin MCs to dissolve powder drugs in situ. Yan et al. formulated drugs into a powder form and further coated them in volumetric channels of thick patches to allow powder drugs to be slowly dissolved and delivered via AFL-generated skin MCs [56]. Using SRB, zidovudine (ZDV), insulin, and anti-PD-1 antibodies as examples, Yan et al. proved topical application of powder drug-coated array patches onto AFL-treated skin could elicit ~12 h sustained drug release in murine models. The sustained epidermal powder delivery (sEPD) was found to increase bioavailability of ZDV by ~100%. sEPD of insulin maintained blood glucose levels in the normal range much longer than needle injection delivery in a chemical-induced diabetes mouse model (Fig.4). sEPD of anti-PD-1 antibodies more significantly inhibited B16F10 melanoma growth than needle injection delivery. To increase drug coating capacity, reservoir patches were coated with a bulk amount of drug powder. Using SRB, ZDV, and BSA as examples, Kakar et al. found tapped coating could coat 10–20 mg drug per 0.5 cm² reservoir patch to elicit 3-day sustained delivery, while compression coating could coat ~35–70 mg drug per 0.5 cm² reservoir patch to elicit week-long sustained delivery [22]. The ability of AFL-generated skin MCs to support multi-day or week-long sustained drug delivery was due to the delayed skin MC resealing with topical patch occlusion, which prevented oxygen exposure and delayed re-epithelization. Yet, AFL-generated skin MCs could reseal in 1–2 days after completion of the week-long delivery to minimize infection risks [22]. By enlarging the reservoir patch size to about 10 cm², similar to traditional patch size, AFL-assisted reservoir powder patch is promising to deliver high-dose drugs in grams for week-long sustained release.

Figure 4. Sustained insulin delivery.

A. Pictures of patches before (left) and 24 h after powder insulin delivery (middle) as well as picture of blank patches (right). Experiments were repeated 3 times and representative pictures were shown. Scale: 667μm. B–C. Powder insulin-coated patches were topically applied onto AFL-treated skin of STZ-induced diabetic mice or extracted for subcutaneous injection. At different time points, serum insulin levels (B) and BGLs (C) were measured. Non-treated mice served as control. n=7–9. Cited from [56].

4. Clinical investigation of AFL to assist transdermal drug delivery

Preclinical investigation of AFL in the last 12–15 years has proved its good safety, high efficiency, and broad applicability to enhance different types of drug delivery. AFL has been found to increase the delivery rate of skin permeable drugs and enable the delivery of skin impermeable chemical and biologics drugs. AFL-generated skin MCs can be conveniently adjusted to reach superficial, mid, or deep dermis and provide short-cuts for topical drugs to reach deep skin layers without being impeded by the epidermal layer, which also presents a barrier for transdermal drug delivery. In support, tape-stripping removal of SC layer failed to allow significant drug penetration to the dermal layer as observed in our studies and also others [24,25,57]. Different groups consistently found deep skin MCs favored drug permeation across the skin but not drug deposition into the skin especially when the skin MCs reached deep epidermis or dermal layers (Table 2). These results strongly encouraged clinical investigation of AFL to assist transdermal drug delivery (Table 3).

Table 3.

Clinical investigation of AFL-assisted transdermal drug delivery

Laser	Drug and trial	Patient and skin condition	Methods	Major findings	Ref
MAL and ALA
Fractional Er:YAG laser	MAL cream occluded for 3 h. Prospective randomized non-blinded trial	AKs (n=45, >18 years old, total 136 lesions)	Efficacy, recurrence, cosmetic outcomes, and safety were evaluated.	AFL-PDT was more effective and also had a lower lesion recurrence rate than MAL-PDT. Excellent or good cosmetic outcome was reported in >90% cases. Side effects were more frequent in AFL-PDT group, but these were mild and well tolerated.	[60]
P.L.E.A.S.E. laser	MAL cream occluded for 180 min Intra-individual randomized study	Healthy male volunteers (n=11, >18 years old)	Impact of laser parameters, incubation time, and drug concentration on PpIX accumulation were studied.	A low laser density of 1% markedly enhanced fluorescence intensities. Fluorescence intensities increased substantially by enhancing densities up to 5%. Accumulation of PpIX was accelerated by laser exposure.	[61]
Fractional CO2 laser (eCO2)	ALA 20% occluded for 60, 120, and 180 min	Healthy male subjects (n=10)	ALA-induced porphyrin fluorescence intensities were evaluated and compared.	AFL resulted to higher fluorescence intensities. Increasing pulse energy or combining with sonophoresis did not further increase ALA penetration. AFL alone with >60 min ALA incubation could be an ideal setting for ALA penetration.	[63]
Fractional Er:YAG laser	ALA 20% occluded for 45 min	AKs (n=6)	Efficacy and treatment satisfaction	All patients achieved more than 95% clearance of AKs and showed improved satisfaction with the clinical appearance Safety profiles were similar to that of PDT monotherapy	[62]
Fractional Er:YAG laser	MAL occluded for 2 h (AFL-PDT) or 3 h (conventional PDT). 12-month follow-up of a prospective, randomized, comparative trial	AKs (n=41, >18 years old, total 160 lesions)	Efficacy, recurrence, cosmetic outcomes, and safety were evaluated.	Iontophoresis increased the efficacy of 2 h AFL-PDT to a similar level to 3 h PDT. The recurrence rates were not significantly different between the groups at 12 months. The Cosmetic outcomes and safety did not differ among groups.	[64]
Fractional CO2 Laser (eCO2)	MAL cream occluded for 90 min in AFL-PDT group and 180 min in conventional PDT group	AKs (n=46, >18 years old, total 69 lesions)	Safety and efficacy of the treatment were evaluated.	The clearance rate did not differ between AFL-PDT and conventional PDT groups. The use of AFL before PDT reduced the incubation time but yielded similar treatment efficacy as compared to conventional PDT.	[65]
Fractional CO2 laser (Pixel)	MAL cream occluded for 1 h in AFL-PDT (plus acoustic pressure wave ultrasound) and 3 h in conventional PDT. A left-right comparison	AKs (n=15, 40–70 years old, total 638 lesions)	Efficacy, safety, cosmetic outcomes were evaluated.	1 h AFL-PDT/acoustic pressure wave ultrasound and conventional PDT similarly reduced AK lesions and both were well tolerated. Cosmetic outcomes were better on the AFL-PDT side.	[66]
Fractional CO2 laser (Pixel)	MAL cream was applied after AFL treatment Indoor daylight exposure at a dose of 48 J/cm2	Field cancerized skin in association with AK (n=46)	Safety and efficacy were evaluated	All patients showed remission (complete: 71.7%, partial: 28.3%). Pain scores using a visual analog scare immediately following treatments were 9.0 ± 2.0.	[67]
Other chemical drugs
Fractional Er:YAG laser (Pixel)	Lidocaine cream/5 min occlusion Prospective, randomized, controlled clinical trial	Healthy female subjects (n=22, age 40.05±5.38)/Normal skin	Pain levels were scored after induction with a 2,790-nm YSGG laser as a pain stimulus.	Pain score of Group LaserAnes (AFL + Anesthesia) is significantly lower than Group Anes (sham laser + Anesthesia) and Group Con (sham laser + sham Anesthesia)	[68]
Fractional CO2 laser (UltraPulse)	AHES and EMLA cream/10 min occlusion Prospective, single blinded, randomized, controlled within subject pilot study	Healthy subjects (n=10)	Pain levels were scored following a pain stimulus with a single AFL pass	AFL pretreatment was not considered painful. AFL pretreatment at very low settings gives significant pain reduction already within ten minutes when AHES is used as topical anesthetic.	[69]
Fractional CO2 laser P.L.E.A.S.E. laser	AHES/15 min occlusion A prospective, single blinded, randomized controlled, within subject pilot study	Healthy volunteer (n=15)	Subjects were asked to score pain after each pain stimulus.	Pain scores for all pretreated test regions were significantly lower than untreated region. No significant difference in pain between CO2 and Er:YAG laser pretreated regions. Pain scores were significantly lower at 15% density compared to 5% density for both lasers.	[70]
Fractional CO2 Laser (Pixel)	BTX (diluted at 100 units/mL)/4 h occlusion Right–left comparison trial	Idiopathic palmar hyperhidrosis (n=10, 18–50 years old)	Treatment pain and sweat inhibition were evaluated.	AFL-assisted delivery elicited more homogenous reduction of sweat and similar reduction of sweating to intradermal injection. Pain intensity was higher on the side treated with needles.	[71]
Fractional Er:YAG laser	TA (10 mg/cm3)/3 h occlusion A split-lesion comparable study	Keloids after BCG vaccination (n=10, 31–42 years old)	Treatment efficacy and safety were evaluated.	AFL-assisted delivery similarly improved keloid scores to intradermal injection. However, the mean pain score was 1.1 out of 10 on the topical side versus 6.1 on the corticosteroid injection site.	[72]
Fractional Er:YAG laser	TA (10 mg/mL)/3 h occlusion A split-lesion comparable study	Keloid scars (n=30, 19–50 years old)	Treatment efficacy and safety were evaluated	AFL-assisted delivery similarly improved keloid scores to intradermal injection. Patients experienced less pain in AFL-assisted delivery as compared to intradermal injection.	[73]
Fractional CO2 Laser (UltraPulse)	Pentavalent antimonial sodium stibogluconate (Pentostam™)	Cutaneous leishmaniasis (n=20, 18–60 years old, total 181 lesions)	Treatment pain and cosmetic outcomes were evaluated.	AFL-assisted delivery induced significantly reduced pain than intralesional injection. AFL-assisted delivery elicited better cosmetic outcomes then intralesional injection.	[74]
Fractional CO2 Laser (UltraPulse)	Sodium stibogluconate	Cutaneous leishmaniasis (n=10 children, 5–14 years old)	Cosmetic outcomes and safety of treatment were evaluated.	AFL-assisted delivery achieved clinical cure in nine out of 10 patients. Self-rated patient satisfaction and tolerance were high with no adverse effects reported.	[75]
Fractional CO2 Laser (UltraPulse)	Topical timolol maleate 0.5% ophthalmic solution under occlusion for 30 min (4–5 times/day for 14.2 weeks).	Deep Infantile Hemangioma (n=9, 1–6 months old)	Treatment efficacy and safety were evaluated.	AFL-assisted delivery elicited moderate to excellent regression in all patients and significantly reduced Hemangioma Activity Score. Plasma timolol concentration was not detected. No systemic complication or skin side effects were observed in any of the patients.	[76]
Fractional CO2 laser (UltraPulse)	0.1% cisplatin solution delivered for 60 min via customized wells followed by 5% 5‐FU cream under occlusion for 7 days.	Low-risk superficial or nodular BCCs (n=20, 56–89 years old)	Tumor response, local reactions, cosmetics, safety and drug distribution were analyzed.	AFL-assisted delivery elicited clinical clearance in 18/19 patients with 94% (17/18) achieving histological clearance at 3 months. Local skin reactions were well‐tolerated. Pain and infection were not observed. No systemic exposure to drugs was detected.	[77]
Fractional CO2 laser (UltraPulse)	0.1% cisplatin solution applied for 60 min followed by 5% 5‐FU cream under occlusion for 7 days. A follow-up study of AFL‐assisted delivery of cisplatin and 5-FU therapy	Low-risk superficial or nodular BCC (n=20, >18 years old)	Follow-up tumor clearance rate, tumor recurrence rate, cosmetic outcomes, and long-term safety were evaluated.	AFL-assisted delivery elicited complete tumor clearance in 89% (17/19) and 79% (15/19) patients at 6 and 12 months, respectively. Cosmetic outcomes were similarly rated "good" or "excellent". Treatment-related local skin reactions were mild and tolerable.	[78]
Fractional CO2 laser (eCO2)	0.015–0.05% IngMeb gel	Bowen’s disease (squamous cell carcinoma, n=17)	Treatment effects and safety were evaluated.	AFL-assisted delivery elicited complete response in 8 patients (88.9%) and partial response in one patient (11.1%) (total 9 patients). IngMeb gel alone elicited complete response in one patient (12.5%), partial response in 4 patients (50%), and no response in 3 patients (37.5%) (total 8 patients).	[79]
Biologics
P.L.E.A.S.E. laser	FSH patch equivalent to 150 IU SC FSH	Oocyte donor enrolled in a clinical study with transdermal delivery of highly purified urinary FSH	Follicular size was monitored and tranvaginal oocyte retrieval was conducted	The recipient received two of the donor-derived embryos in the same cycle. As of writing, the recipient has experienced 12 weeks of uneventful dichorionic-diamniotic twin pregnancy. This is the first pregnancy recorded after transdermal delivery of the large molecular-weightFSH with promotion of ovarian superovulation in an oocyte donor.	[80]
P.L.E.A.S.E. laser	Etanercept (50 mg) solution applied to microporated or native surface of the plaque.	Chronic plaque-type psoriasis (n=8, a mean age of 43 ± 14 years)	Local and systemic side effects and treatment efficacy were evaluated.	AFL-assisted delivery showed a favorable safety profile and significantly improved lesion-specific score, whereas ETA or AFL alone failed to significantly improve the score.	[81]
Cosmetics
Fractional Er:YAG laser	HQ topical 4% cream A split-face controlled study	Melasma (n=32)	The efficacy to treatment and safety were evaluated.	AFL-assisted HQ delivery more significantly decreased the degree of pigmentation as compared to HQ alone. Minor reversible side effects were observed on both sides.	[82]
Fractional erbium laser	Topical betamethasone cream applied twice a day under occlusion	Keloids resistant to first-line treatment (n=23, 12–51 years old, 70 lesions)	Treatment efficacy and side effects were evaluated.	AFL-assisted delivery induced 50% median percentage of improvement with a recurrence of 8 lesions (22%) at the mean 8 months follow-up.	[83]
Fractional CO2 laser (UltraPulse)	Topical TA suspension (10 or 20 mg/ml)	Hypertrophic scars (n=15, 17–52 years of age)	Treatment efficacy and safety were evaluated.	Combination same session laser therapy and immediate post-operative corticosteroid delivery resulted in average overall improvement of 2.73/3.0.	[84]
Fractional Er:YAG laser	Topical 5-FU (5% cream) Split-lesion comparison study	Severe hypertrophic scars (n=24)	Treatment efficacy and safety were evaluated.	AFL-assisted 5-FU delivery significantly reduced the mean height, pliability, and vascularity of the lesions and also induced a higher rate of pain and ulceration than 5-FU monotherapy.	[85]
Ablative fractional RF Fractional CO2 laser	Topical triamcinolone (20 mg/mL) at (0.1 ml/1 cm2 )	Areata alopecia (n=5, 18–47 years old)	Efficacy was evaluated.	AFL-assisted delivery plus acoustic pressure ultrasound elicited complete response in 2 patients after one session and in another 2 patients after 3 and 6 sessions.	[86]
Fractional CO2 laser (DEKA Smartxide DOT/RF c60)	Topical application of 6 puffs of minoxidil 5% solution twice daily	Androgenetic Alopecia (n=45, 21–45 years old)	Efficacy was evaluated.	AFL-assisted delivery significantly increased the number of double hair units and the mean number of hair and also the hair thickness.	[87]
Miscellaneous
Palomar Lux2940 erbium laser	TiO2 nanoparticles and Al2O3 microparticles	Both ex vivo (n=4) and in vivo human volunteer skin (n=3)	Photograph and imaging study of particle delivery and local safety	AFL allowed efficient transdermal delivery of TiO2 nanoparticles and Al2O3 microparticles with a depth up to 230 μm. The particles could stay in the dermis longer than 1 month.	[88]
Fractional CO2 laser (UltraPulse)	Pilot trial	Healthy subjects (n=6)/Normal skin	In vivo imaging study of skin MC closure.	Laser channels were found to gradually close. Higher laser energy resulted in slower microchannel closure.	[89]
Fractional CO2 laser (UltraPulse)	NaF applied at different time points after AFL Randomized controlled trial	Healthy volunteers (n=11)	Fluorescence photography and in vivo imaging and TEWL	FI significantly elevated when NaF was applied up to 6 h after laser exposure. TEWL measurements proved loss of skin integrity up to 6 h after AFL exposure.	[90]
Fractional CO2 laser (eCO2)	20,000 ppm ADSC-CM and 2% niacinamide or the vehicle cream A double-blind, randomized, vehicle-controlled study	Skin aging (n=25, 27–62 years old)	Efficacy and safety were evaluated.	The wrinkle index, melanin index, patient satisfaction score, and the investigator's global esthetic improvement scale after use of ADSC-CM plus niacinamide were significantly higher than after use of the vehicle cream. Post-laser topical application of ADSC-CM in combination with niacinamide showed anti-aging effect on skin.	[91]

4.1. ALA and MAL

One application of AFL in topical drug delivery is to increase drug delivery rate and shorten the time to reach therapeutic levels in target tissues. As introduced earlier, MAL and ALA are FDA-approved photosensitizers used in PDT to treat AKs. However, standard therapies require 3 h incubation time to allow deep penetration and conversion of MAL and ALA to the active photosensitizer PpIX. Preclinical studies hinted pretreatment of lesion site with AFL might increase the rate of MAL or ALA delivery and shorten the incubation time.

Ko et al. found pretreatment of the lesion site with AFL followed by conventional MAL-PDT was more effective to treat all AK grades, reduce recurrence, and improve cosmetic outcomes [58]. Although more frequent side effects were observed in the AFL group, most of the adverse reactions were mild and well tolerated [58]. Haak et al. compared the impact of laser parameters on topical MAL cream delivery in healthy volunteers and found fluorescence intensities of PpIX could be markedly enhanced with AFL treatment at 1% coverage and further enhanced by increasing laser coverage to 5% [59]. Wang et al. found AFL-assisted ALA-PDT with 45 min of ALA occlusion achieved more than 95% clearance of AK lesions with a similar safety profile to traditional ALA-PDT [60]. In healthy subjects, Choi et al. found CO₂ AFL pretreatment could significantly enhance ALA penetration into the skin and AFL-assisted ALA-PDT with 60 min incubation elicited similar PpIX fluorescence intensities to traditional ALA-PDT [61]. Interestingly, increase of laser fluence or combining with sonophoresis did not further increase ALA penetration. Choi et al. found AFL-assisted MAL-PDT with 2 h incubation in combination with iontophoresis elicited similar treatment efficacy against AK lesions to AFL-assisted MAL-PDT with 3 h incubation, while AFL-assisted MAL-PDT with 2 h incubation without iontophoresis showed a slightly weaker treatment efficacy than AFL-assisted MAL-PDT with 3 h incubation [62]. Interestingly, all treatments elicited similar cosmetic outcomes and safety. This study did not include conventional MAL-PDT group and thus the potential of AFL to shorten the incubation time of MAL could not be assessed. Yet, this study indicated combination of AFL and iontophoresis might further shorten the incubation time of MAL in PDT.

Song et al. found AFL-assisted MAL-PDT with 90 min incubation elicited similar treatment efficacy against AK lesions to conventional MAL-PDT with 3 h incubation [63]. Pires el al. explored AFL-assisted MAL-PDT in combination with acoustic pressure wave ultrasound to treat AK lesions and found the combined approach could shorten MAL incubation time to 1 h while generating similar treatment efficacy to conventional MAL-PDT [64]. Furthermore, the combined AFL/ultrasound approach was more effective to improve cosmetic outcomes as compared to conventional MAL-PDT although both treatments were well tolerated by patients [64]. Paasch et al. explored AFL-assisted MAL delivery in combination with indoor daylight exposure to treat skin field cancerization associated with AK and found this treatment showed a complete response rate of 71.7% and a partial response rate of 28.3% despite a high pain score [65].

The above studies support AFL pretreatment to enhance the treatment efficacy of conventional MAL/ALA-PDT against AK lesions. The majority of these studies also support AFL pretreatment to shorten the incubation time to achieve similar treatment efficacy. Several studies also support the combination of AFL with iontophoresis or acoustic pressure wave ultrasound to further shorten the incubation time. The above clinical studies also found AFL-assisted MAL/ALA-PDT was well tolerated by patients.

4.2. Anesthetics and other chemical drugs

AFL was also effective to increase the rate of topical anesthetics delivery. Five minutes after AFL-assisted topical lidocaine delivery, patients experienced significantly less pain after exposed to laser stimuli as compared to sham laser-assisted topical lidocaine delivery, which failed to reduce pain when compared to sham medication treatment [66]. Meesters et al. found 10 min of AFL-assisted articaine hydrochloride (40 mg/ml) and epinephrine (10 mg/ml) (AHES) delivery could significantly reduce pain induced by laser stimuli [67]. In another study, Meesters et al. compared two different AFLs (UltraPulse Lumenis CO₂ and P.L.E.A.S.E. laser) to facilitate topical AHES delivery with 15 min occlusion in healthy volunteers [68]. Significantly reduced pain was observed in AFL groups and the two AFL groups showed no significant difference in reducing the pain scores [68]. Furthermore, increase of skin MC density from 5% to 15% led to significantly reduced pain scores in both AFLs [68]. These studies indicated AFL could be used to induce a quick response of topical anesthetics.

AFL can also be used for painless or less painful drug delivery especially when a number of injections are required to deliver drugs to cover a big skin area. Idiopathic palmar hyperhidrosis is a common disorder characterized as excessive hand sweating and has a substantial negative impact on quality of life. Intradermal injection of botulinum toxin (BTX) is an effective palliative therapy for palmar hyperhidrosis. However, over 20 intradermal injections are needed for BTX to cover the whole palm, which causes significant pain during treatment and limits its broad application. Issa et al. compared AFL-assisted BTX delivery and needle injection delivery of BTX [69]. In this study, BTX was dripped onto laser-treated right palm with an Impact Ultrasound handpiece after a pixel CO₂ laser treatment, while the left palm was intradermally injected with the same total BTX amounts among 25 equidistant points across the palm. They found both treatments significantly reduced sweat production, while AFL-assisted BTX delivery showed significantly reduced pain during treatment. Intralesional injection of corticosteroids has been considered as the first-line therapy of keloids, which are formed by abnormal proliferation of scar tissues. Yet, intralesional injection of corticosteroids often causes severe and unbearable pain. Two split-lesion comparable studies compared AFL-assisted topical delivery and intralesional injection delivery of TA to treat keloid scars [70,71]. Both studies found AFL-assisted delivery and intralesional injection similarly decreased mean keloid scores, while AFL-assisted delivery induced less pain as compared to intralesional injection [70,71]. Another example to use AFL for less painful drug delivery is cutaneous leishmaniasis treatment. Cutaneous leishmaniasis is caused by parasite infection. The current gold standard for cutaneous leishmaniasis treatment is intralesional injection of sodium stibogluconate. This treatment is effective, however, often left with disfiguring strophic hypo- or hyper-pigmented post-inflammatory scars. Artzi et al. found AFL-assisted topical sodium stibogluconate delivery was equally effective to treat cutaneous leishmaniasis to intralesional injection [72]. Yet, AFL-assisted topical delivery resulted in remarkably improved cosmetic outcomes and was also less painful than intralesional injection. Hilerowicz et al. conducted a trial in pediatric patients diagnosed of cutaneous leishmaniasis and found AFL-assisted topical sodium stibogluconate delivery effectively treated 9 out of 10 pediatric patients with good cosmetic outcomes and safety [73].

AFL has been also explored to deliver drugs to deep layer of the skin to treat deep infantile hemangiomas (IHs). Topical timolol was found to be an effective treatment for superficial IHs. Yet, it showed a limited effect for deep IHs. Ma et al. explored CO₂ AFL pretreatment to facilitate deep penetration of topical timolol to treat deep IHs [74]. They found 4 out of 9 patients showed excellent regression and another 4 out of 9 patients showed good response. Only one patient experienced moderate regression. Such a treatment was safe without significant local or systemic adverse reactions in infants.

Wenande et al. explored potential use of AFL to enhance topical drug delivery to treat BCC [75]. Prior CO₂ AFL treatment followed by topical delivery of 0.1% cisplatin for 1 h and then topical 5-FU cream for 7 days resulted in a clinical clearance in 18/19 patients with 94% (17/18) achieving histological clearance at 3 months. Interestingly, AFL-assisted topical cisplatin/5-FU delivery did not induce detectable drug levels in the plasma. AFL-assisted topical cisplatin/5-FU delivery was well tolerated in the absence of pain or infection. In a follow-up study [76], complete BCC clearance was found to be 89% and 79% at 6 and 12 months, respectively, and 67% (2/3) recurrent tumors received only one treatment. The cosmetic outcomes were still rated as good or excellent in the follow-up study. Lee et al. found topical application of IngMeb gel alone showed limited efficacy for treatment of Bowen’s Disease (i.e., squamous cell carcinoma), while pretreatment with CO₂ AFL followed by topical application of IngMeb gel elicited a complete response in 8 out of 9 patients and a partial response in the remaining patient [77].

4.3. Biologics

Besides chemical drugs, AFL has been also explored to facilitate biologics delivery in clinical trials. Zech el al. explored AFL-assisted topical delivery of FSH in a patch form for induction of superovulation in an attempt to address needle phobia in oocyte donors [78]. Transvaginal oocyte was successfully retrieved following AFL-assisted topical delivery of FSH that led to uneventful dichorionic-diamniotic twin pregnancy in a recipient [78]. Bauer et al. explored the potential use of AFL to facilitate topical delivery of biologics to treat psoriasis [79]. Psoriasis is an autoimmune disease of the skin affecting about 2% of the population. Besides topical corticosteroids, novel therapies have been developed or under development against pathogenic TNF/IL-23/Th17 pathway in psoriasis, such as anti-TNF, anti-p40, anti-p19, anti-IL17A, and anti-IL-17 receptor antibodies. Etanercept (ETA) is a genetically engineered fusion protein capable of binding and neutralizing TNFα and lymphotoxin α activities, which play a pathogenic role in psoriasis, and have been approved to treat moderate-to-severe plaque psoriasis in a number of countries, including the US. Topical delivery is highly attractive to increase its local concentration and reduce systemic side effects. It was found AFL-assisted topical ETA delivery improved the lesion-specific Target Plaque Severity Score (TPSS) score by 1.75, while ETA or AFL alone improved TPSS score only by 0.75 points, which was not statistically significant as compared to baseline. AFL-assisted topical ETA delivery also showed a favorable safety profile in this study.

4.4. Cosmetics

Other applications of AFL have been related to skin aesthetics. AFL was explored to facilitate topical cosmetics delivery to treat melasma, keloids, hypertrophic scars, and etc. In these applications, topical cosmetics alone work fine. Yet, topical cosmetics with prior AFL treatment usually result in more significant improvement in cosmetic outcomes. Hydroquinone (HQ) topical 4% cream is used to treat melasma characterized as brown or grey patches on the face. AFL pretreatment followed by topical HQ cream produced more significant improvement of treatment outcomes than topical HQ cream alone [80]. Cavalie et al. explored AFL-assisted topical betamethasone cream to treat keloids resistant to first-line treatment and found the median improvement reached 50% [81]. AFL pretreatment followed by topical triamcinolone suspension or 5-FU cream was found to be safe and effective to treat hypertrophic scars [82,83].

AFL followed by topical triamcinolone cream and then acoustic pressure ultrasound was found to be safe and effective to treat areata alopecia, which is an autoimmune disorder resulting in unpredictable patchy hair loss [84]. In this study, acoustic pressure ultrasound was used to enhance triamcinolone permeation into AFL-treated skin [84]. AFL followed by topical application of minoxidil also showed the most significant effect in stimulation of hair growth compared with AFL alone or topical minoxidil alone in treatment of androgenetic alopecia, a genetically predetermined disorder causing hair loss primarily in the top and front of the scalp [85].

4.5. Miscellaneous

A few other clinical trials explored AFL to assist topical delivery of nano- and microparticles, sodium fluorescein (NaF), and ADSC-conditioned medium (CM). Genina et al. found AFL-generated skin MCs in human skin enabled efficient delivery of topical TiO₂ nanoparticles and Al₂O₃ microparticles into the skin [86]. Furthermore, nano- and microparticles could reach a depth of 230 µm and remained in the skin for more than one month [86]. Banzhaf et al. found AFL-generated skin MCs gradually close and higher laser energy resulted in delayed MC closure [87]. Banzhaf et al. further explored the impact of delayed topical NaF delivery on drug deposition in AFL-treated skin by measurement of fluorescence intensities (FI) of NaF [88]. It was found the highest FI occurred when NaF was applied within 30 minutes after laser exposure and significantly higher FI could be detected when NaF was applied up to 6 h after laser exposure [88]. This study confirmed that a significant number of AFL-generated skin MCs closed within 6 h. Lee et al. found AFL-assisted topical delivery of ADSC-CM in combination with niacinamide showed anti-aging effect on skin [89].

4.6. Summary of clinical studies

Clinical studies in the last 10 years find AFL to be highly effective to enhance transdermal delivery of various types of drugs, including small chemicals, biologics, and nanoparticles, with little restriction on their physicochemical properties, confirming findings from preclinical studies. AFL-assisted transdermal drug delivery is found to be well-tolerated in patients with transient and mild local reactions and lack of systemic adverse reactions. In these clinical trials, AFL showed a great promise to shorten the incubation time of MAL/ALA in PDT against AK lesions, induce rapid action of topical anesthetics, reduce pain of intralesional corticosteroid therapy against keloid scars, improve the cosmetic outcomes of cutaneous leishmaniasis therapy, induce the deep penetration of chemotherapy drugs against BCCs, and etc. Yet, most of the clinical trials are in early phase to test safety and efficacy of AFL-assisted transdermal drug delivery with a small sample size (<50 participants). Some clinical trials have no proper controls to evaluate the relative efficacy of AFL-assisted topical drug delivery. As of such, larger randomized, double-blinded, well-controlled clinical trials are needed to evaluate the full potential of AFL to assist topical drug delivery in treatment of diverse skin conditions.

5. AFL-assisted transungual drug delivery

Human nail consists of nail plate and four epithelial tissues including nail matrix, nail bed, hyponychium and perionychium. Human nail plate is about 0.25–0.60 mm in thickness and comprised of roughly 25 layers of closely packed dead keratinocytes within a matrix of keratin filaments [90]. The upper layer of the human nail plate is slightly elastic and poorly permeable and acts as a primary barrier for topical drug delivery. Nail illnesses are difficult to cure due to poor permeation of topical medicine into the nail bed, pain from intralesional injections, and patients' noncompliance with long-term therapy. AFL was used to treat nail plates to generate tiny channels to enhance topical drug delivery in vitro and in vivo (Table 4).

Table 4.

AFL-assisted transungual drug delivery

Laser	Drug and trial	Study subjects	Methods	Major findings	Ref
P.L.E.A.S.E. laser	MTX solution 2 mg/mL	Finely sliced bovine hoof membrane has been validated to simulate human nail.	In vitro Franz Cell systems	No significant difference in the pore dimension was found in different treatment groups. Laser ablation resulted in a significant increase in the drug cumulative delivery. A change in the laser energy and pore density was found to alter the drug permeability.	[92]
Fractional CO2 laser (UltraPulse)	50 μl of 1% rhodamine B coated on a commercialized skin patch test device	Rabbit toenails of right forelimbs	In vivo delivery for 2 h followed by histological examination and confocal imaging	The depths of these micropores as well as the permeation of rhodamine B in nails increased significantly in an energy-dependent manner. The ultrapulsed ablative fractionated CO2 laser may assist transungual drug delivery	[93]
Fractional CO2 laser (UltraPulse)	Normal saline solution	Fingernails of the same female volunteer	Imaging of AFL-generated nail micropores and saline diffusion process	This study establishes OCT as an effective tool for the investigation of fractional photothermolysis and water/drug delivery after nail fractional laser treatment	[94]
Fractional CO2 laser (UltraPulse)	100 µM aqueous solution of the carboxy derivative of ATTO-647N in dimethyl sulfoxide	Nail samples from healthy participants (n = 18) and anonymous discard clippings from fungal nail disease (n = 12)	Nail samples placed on PBS-soaked gauze	Microporation led to a significantly increased fluorophore permeation in all samples. While proportionally deeper ablation craters correlated moderately with higher fluorescence intensities in healthy nail tissue, fungal samples showed no significant relationship.	[95]
Fractional CO2 laser (eCO2)	Topical bleomycin solution with a sterile cotton swab A pilot study	Periungual warts (n=17)	No control, all AFL/Drug	Twenty-six lesions (68.4%) achieved complete clearance; three (7.8%) had excellent partial response (>75% improvement). The warts clearing completely did not recur over the follow-up period of 6 months.	[96]
Fractional CO2 laser (Ultrapulse)	Topical betamethasone propionate-calcipotriol gel once daily to the nail plate A prospective, open-label study	Bilateral fingernail psoriasis (n=22, age 24–63)	One hand treated and the other hand as non-treated control, monthly for 3 times	Treatment was associated with a statistically significant improvement of the Nail Psoriasis Severity Index (NAPSI) scale (p< .002). Patient satisfaction was high.	[97]

Nguyen et al. used bovine hoof membrane as an in vitro model of human nail and explored the potential use of AFL to generate vertical nail channels to facilitate topical drug delivery in Franz Cell systems [90]. The portable P.L.E.A.S.E. laser was used in this study and it was found increase of laser energy could increase pore depths. AFL treatment significantly increased topical MTX permeation through the human nail model and the permeation rate could be modified by laser parameters. Guan et al. evaluated AFL-assisted topical rhodamine B delivery in toenails of rabbit in vivo [91]. It was found AFL could successfully generate micropores in nail plates and the micropore depths and rhodamine B permeation could be significantly increased with increase of laser energy [91].

Several groups used clipped human nails and explored AFL-assisted topical drug delivery in vitro. Yang et al. found optical coherence tomography (OCT) could be an effective tool to study topical drug delivery through microscopic ablation channels after nail fractional laser treatment [92]. Ortner et al. found AFL treatment was highly effective to enhance deposition of fluorescent dye (ATTO-647N) in nail tissues [93]. Interestingly, AFL had a more profound effect to enhance ATTO-647N delivery into healthy nail as compared to fungal nail [93].

Several groups conducted human clinical trials to study AFL-assisted topical drug delivery to treat nail diseases. Suh et al. explored AFL-assisted topical bleomycin to treat periungual warts and found 68.4% lesions showed complete clearance with no recurrence and 7.8% had partial response with 75% improvement [94]. This study indicated AFL could be used to enhance efficacy of topical cytotoxic agents to treat periungual warts and limit the recurrence after complete clearance.

AFL-assisted topical drug delivery has been also explored to treat fingernail psoriasis. Shehadeh et al. used a combination of pulse-dye laser (PDL) therapy of the nail folds and CO₂ AFL-assisted betamethasone propionate-calcipotriol gel drug delivery to the nail bed to treat all aspects of nail psoriasis. The Nail Psoriasis Severity Index (NAPSI) score improved dramatically after three months of treatment utilizing this combination method [95].

Overall, AFLs would be an excellent option for the treatment of nail illnesses when paired with topical medications.

6. AFL-assisted transocular drug delivery

Ocular drug delivery is challenging. Physiological barriers, such as cornea, sclera and blood-retina barriers, and short residence time of drugs in the eye due to tear drainage, lacrimation and conjunctival uptake seriously impeded the drug delivery into anterior and vitreous chambers of the eye [96,97]. Conventional intraocular injections could efficiently deliver both small molecules (corticosteroids) and biologics through the corneal or scleral tissues. However, their highly invasive nature has driven researchers to search for better alternative permeation enhancing strategies [98–100].

Laser, as a non-invasive tool to create micropores with controlled depth, density, and area for transdermal drug delivery, may also have potential for ocular drug delivery [15]. Besides, the wide application of laser in ocular disease treatment, such as laser photocoagulation surgeries, vision correction and cataract surgeries, provided evidence of its safety and potential feasibility for ocular drug delivery [101–103]. Although laser has not been well studied for ocular drug delivery yet, some studies have shown the promise of laser as an alternative minimally invasive tool for ocular drug delivery. Recently, a study using P.L.E.A.S.E. laser showed enhanced permeation of both rhodamine B and FD through porcine scleral and corneal tissues [104]. They also proved fast healing of laser-created micropores (<24 h) by measuring the transscleral water loss change after laser irradiation [104]. In another study, an ophthalmic Nd:YAG laser was used to disrupt the membrane of a device implanted in rabbits’ eyes to release the model drug 10% NaF dye into vitreous chamber, supporting a good potential of laser as a trigger for controlled drug delivery to treat ocular diseases [105].

7. Conclusion

Since its advent, AFL has been widely explored to facilitate topical drug delivery owing to its minimal invasiveness and high efficiency to breach tissue barrier function. AFL-assisted topical drug delivery involves two steps with the first step to generate MCs in tissue surface and the second step to apply drugs topically to initiate drug delivery. AFL-generated MCs allow efficient delivery of different types of drugs, such as chemical drugs, biologics, nano- and microparticles, and live cells, with little restriction on physicochemical properties of drugs. AFL-generated MCs also allow the efficient delivery of drugs in different dosage forms, such as cream, lotion, gel, liquid, and powder. AFL has been mostly explored to facilitate transdermal drug delivery. Studies consistently find laser percent coverage and drug concentration have a major impact on transcutaneous and intracutaneous drug delivery, while laser fluence and MC depths mainly impact transcutaneous but not intracutaneous drug delivery. AFL can be used to enhance therapeutic efficacy, shorten the waiting period, reduce pain, improve cosmetic outcomes, minimize systemic exposure, and reduce drug toxicity. Although microneedles can also be used to generate skin MCs to support transdermal drug delivery, several group found AFL was prone to generate relatively big skin MCs and more efficiently support transdermal drug delivery than microneedles. Furthermore, AFL may be a more suitable technology to support sustained drug delivery due to the slower rate of recovery of relatively big skin MCs. Besides transdermal drug delivery, AFL has been also explored to facilitate transungual drug delivery to treat nail diseases, which are otherwise hard to reach by topical delivery or face painful injection procedures. There are also a small number of studies that explored AFL to facilitate transocular drug delivery and results are highly encouraging in both safety and efficacy of delivery.

8. Expert opinion

Tissue barrier presents a big challenge for topical drug delivery. AFL emits high-energy micro-laser beams to ablate tiny tissues and create MCs in a non-contact, well controlled, and highly repeatable manner. A large number of preclinical and clinical studies support the good safety and efficacy of AFL to support topical drug delivery. Although the field has advanced well in the last two decades, several factors hinder further progress and clinical translation of AFL-assisted topical drug delivery. First, the majority of the AFL devices explored to facilitate topical drug delivery were originally fabricated for improved skin resurfacing. These AFLs are generally large and expensive. Although these cosmetic devices allow convenient adjustment of laser parameters, the field will benefit from the development of small and cost-effective AFL devices specifically designed for drug delivery applications. Challenges remain though considering this might need to attract investment from pharmaceutical companies to design and manufacture such a device and during this process a good input from potential users of such a device, such as clinicians and academic investigators, is required to guide the design and test. Second, appropriate dosage forms are required to use in conjunction with AFL to facilitate topical drug delivery. Topical dosage forms, such as creams, lotions, gels, can be directly applied on AFL-treated skin. However, the majority of the hydrophilic drugs are not prepared as topical dosage forms due to their inability to permeate across the intact tissue. Liquid drugs were frequently prepared in preclinical and even clinical studies to explore AFL-assisted topical drug delivery. However, liquid drugs are easy to leak and not convenient to deliver on AFL-treated skin or other tissues. Topical dosage forms also face challenges to control variations between applications and individuals. Topical dosage forms are highly likely to have an incomplete drug delivery, which may pose challenges to high-cost drug delivery, such as mAbs. Third, most of the clinical trials so far are in relatively early phase with the focus to establish safety and gain insights about efficacy in a small number of patients. Future trials would benefit by enrolling a bigger group of patients with well-designed controls included for comparison. One disease area that might benefit from AFL-assisted topical drug delivery in the near future is MAL/ALA-PDT against AKs considering a handful of clinical trials have been conducted so far. Larger clinical trials are needed to determine the time that can be shortened by the use of AFL, while eliciting similar therapeutic efficacy to traditional MAL/ALA-PDT. The other disease area that is likely to benefit from AFL-assisted topical drug delivery in the near future is the treatment of deep skin malignancies, such as BCC, NMSCs, and infantile hemangiomas. The safety and efficacy of AFL-assisted topical drug delivery need to be thoroughly evaluated and compared with current practices in larger clinical trials to justify its use.

Besides use in doctor’s office, AFL-assisted topical drug delivery can also be developed for at-home use. One potential at-home application is to use AFL for needle-free, painless insulin delivery in diabetes patients with needle phobia. However, at-home AFL-assisted topical drug delivery requires an appropriate topical dosage forms to minimize the variations between deliveries and applied by different subjects. For at-home use, the two-step AFL-assisted topical drug delivery is better integrated with one click of button to accomplish laser ablation and drug application processes. From this regard, the powder patches that enables high-efficient drug delivery via AFL-generated skin MCs present an ideal form for incorporation into AFL-assisted topical drug delivery for at-home use.

AFL holds a great promise to facilitate topical drug delivery due to its minimal invasiveness to breach tissue barrier and elicitation of quick and complete tissue recovery at the end of delivery. AFL greatly expands the number and types of drugs that can be delivered via topical routes. The development of small, less costly AFL devices suitable for delivery of diverse types of drugs remains the key to expand its use in preclinical and clinical settings. The various benefits of AFL-assisted topical drug delivery warrants further development for human use.

Article highlights.

• This review introduces preclinical development and clinical evaluation of ablative fractional laser to facilitate transdermal/transungual/transocular drug delivery.

• Ablative fractional laser allows efficient delivery of small chemicals, biologics, nano- and microparticles, and even live cells with little restriction on physicochemical properties of drugs.

• Ablative fractional laser allows rapid drug penetration to deep tissue layers and is promising to enhance drug efficacy, shorten treatment time, reduce pain, and improve cosmetic outcomes.

• Ablative fractional laser-assisted topical drug delivery enables quick and complete tissue recovery and is well-tolerated in humans.

• The development of small, cost-effective ablative fractional laser devices is expected to facilitate its clinical translation in topical drug delivery.
