NACHO: an R package for quality control of NanoString nCounter data

Abstract

Summary

The NanoString^TM nCounter^® is a platform for the targeted quantification of expression data in biofluids and tissues. While software by the manufacturer is available in addition to third parties packages, they do not provide a complete quality control (QC) pipeline. Here, we present NACHO (‘NAnostring quality Control dasHbOard’), a comprehensive QC R-package. The package consists of three subsequent steps: summarize, visualize and normalize. The summarize function collects all the relevant data and stores it in a tidy format, the visualize function initiates a dashboard with plots of the relevant QC outcomes. It contains QC metrics that are measured by default by the manufacturer, but also calculates other insightful measures, including the scaling factors that are needed in the normalization step. In this normalization step, different normalization methods can be chosen to optimally preprocess data. Together, NACHO is a comprehensive method that optimizes insight and preprocessing of nCounter^® data.

Availability and implementation

NACHO is available as an R-package on CRAN and the development version on GitHub https://github.com/mcanouil/NACHO.

Supplementary information

Supplementary data are available at Bioinformatics online.

1 Introduction

The NanoString^TM nCounter^® platform enables the quantification of expression data in biofluids and tissues with prebuild panels (e.g. miRNA panel). Before any data can be analyzed and interpreted, data has to undergo quality control (QC) to identify poor measurements, samples and perform adequate normalization. The manufacturer’s software nSolver^TM contains basic normalization and correction methods but lacks flexibility for data visualization. Other NanoString^TM quality-control solutions such as NanoStringDiff (Wang, 2016) or NanoStringNorm (Waggott, 2012) also lack insightful graphical representations. To address the lack of a complete, visual QC and normalization pipeline, we developed an R package that we called NACHO (‘NAnostring quality Control dasHbOard’). It allows the user to systematically perform QC on miRNA, CodeSet or PlexSet panels from NanoString^TM nCounter^® platform.

2 Approach

NACHO consists of three subsequent quality steps, 1.summarize, 2.visualize and 3.normalize.

1. summarize A typical analysis of nCounter^® starts with parsing of the raw data from RCC files and pre-processing to obtain quality metrics. The arguments that need to be given are the directory of the data, the samplesheet path, the column within the sample sheet that represents the file names and which housekeeping genes to use. For the latter, one can use all default housekeeping genes, provide a subset of the default housekeeping genes or identify custom housekeeping genes (Mestdagh, 2009).

2. visualize Next, one can assess the quality of the data on an interactive web application based on Rstudio’s shiny and ggplot2 (Wickham, 2016) using the visualize function. The web application is initiated with the visualize function that only requires the object generated with the summarize function. The web application dashboard consists of six tabs (Fig. 1) QC Metrics, Control Genes, QC Visuals, Normalization Factors, Outlier table and About. Under the QC Metrics tab four metrics are shown, Binding Density, Imaging, Positive Control Linearity and Limit of Detection (also see Supplementary Methods). Binding density is the number of optical features per square micron. Imaging or Field of View is a metric that indicates how many sections of a lane are successfully processed. Positive control linearity is the Pearson’s correlation coefficient of the observed counts against the known positive control concentrations. Finally, limit of detection reflects the lower boundary of the detection spectrum.

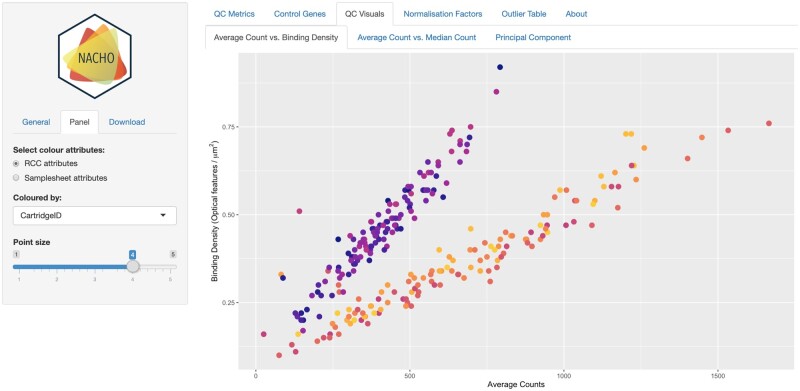

Fig. 1.

Screenshot of the dashboard of the NACHO interface. Data used are miRNA levels of individuals with nasopharyngeal carcinoma (Bruce, 2015). Figure shows the binding density against the average counts colored by Cartridge ID

To further provide insight into the quality of the spike-in control probes, on the Control Genes tab plots are shown of the counts against the known concentrations of the positive control probes, the negative control probes, the predicted or default housekeeping genes (e.g. ACTB, B2M, GAPDH, RPL19, RPLP0).

The QC Visuals tab is subdivided in three sub tabs: Average Counts versus Binding Density, Average Counts versus Median Counts and Principal Components. The first two sub tabs are mainly focused on providing overall insight of the data. The usefulness hereof is illustrated using the public miRNA data of individuals with nasopharyngeal carcinoma (GEO, GSE70970), where two distinct groups of individuals are observed (Fig. 1). Of note, these two groups were analyzed separately in the original manuscript (Bruce, 2015). On the last tab of the QC Visuals, principal components of the data can be plotted against an outcome of interest.

3. normalize In the last step of the QC of nCounter^® data, outliers are removed and the data is normalized. The effect of normalization on the data and the outliers can be found on the Normalization Factors—and the Outliers tab. Different methods are implemented in NACHO. For the housekeeping genes, the default genes or predicted housekeeping genes can be used (Mestdagh, 2009; Vandesompele, 2002). The normalization based on the positive control spike-ins can be done based on either the geometric mean (NanoString, 2018) or using a general linearized model (Wang, 2016). The raw counts, normalization factors, normalized counts and settings used are returned to the user as a list.

3 Conclusion and future prospects

The NACHO package is a complete pipeline to process nCounter^® data by providing insight in the data quality, removal of poor samples and normalization of the data. In future versions of NACHO, new normalization methods will be added including a recently published normalization method (Molania, 2019).
