. 2023 Jan 13;8(4):4337–4343. doi: 10.1021/acsomega.2c07685

Controlling the Hydrogen Generation Reaction from Waste Water in Oil Fields Using an Ionic Liquid

Mohamed A Deyab †,*, Mohsen Mohammed Al Qhatani ‡
PMCID: PMC9893448  PMID: 36743000

Abstract

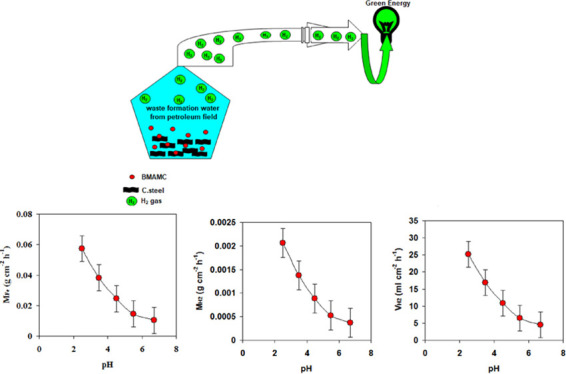

graphic file with name ao2c07685_0013.jpg

Hydrogen production technologies are attracting widespread interest in energy technologies. The conventional methods for hydrogen production suffer from high cost, restricting their production everywhere. Here, we use waste formation water from a petroleum field and carbon steel materials to produce hydrogen. The most suitable conditions have been investigated to maximize the hydrogen yield. In addition, an ionic liquid (i.e., tributylmethylammonium methyl carbonate, BMAMC) has been used to control the hydrogen generation reaction. We reveal that the amount of hydrogen release rapidly increases with decreasing pH of the solution from 6.7 to 2.5. A further increase in temperature resulted in more amount of hydrogen release. Our study investigates the influence of chloride ions on hydrogen generation activity. The results revealed that ionic liquid BMAMC remarkably decreases the amount of hydrogen release with an efficiency of 92% at 5.08 × 10–4 M. The addition of ionic liquid BMAMC into waste formation water increases the activation energy of the hydrogen generation reaction. The Langmuir model is the best isotherm describing the adsorption of BMAMC on carbon steel. Finally, to confirm the adsorption of the ionic liquid BMAMC, scanning electron microscopy and Fourier-transform infrared spectroscopy analysis were conducted.

1. Introduction

Now, hydrogen energy is a promising source for energy in modern industrials and vehicles. Hydrogen has four essential benefits: very clean, sustainable, high energy content, and multiple uses.1,2 At present, large mass production is mostly obtained from fossil fuel sources.3 Although this source gives large quantities, it is a danger to the environment; in addition, it is a depleted and costly source.4

Recently, many studies have focused on water electrolysis to generate hydrogen energy. However, one of the main disadvantages of this method is the use of electricity to complete the electrolysis process, and this increases the cost of producing hydrogen; in addition, electricity is not available anywhere.5 The alternative approach to produce hydrogen depends on hydrogen storage materials such as metal hydride6 and chemical hydride.7 This approach also is restricted because of the high cost of these hydride materials.

The modern methods use hydrogen production in which the electrochemical reactions occur during the immersion of some metal in solutions.8 The most common metal used in this method is aluminum in aqueous alkaline environments.9 The main problem here is the formation of an oxide layer on the surface of the metal, which stops the hydrogen generation reactions.10

Increasing reports toward solving this problem suggest that we can use aluminum alloys. For instance, Katsoufis et al.11 indicated that the use of aluminum alloys such as Al-6061 leads to the generation of more hydrogen than pure aluminum. Recently, some metals such as Fe, Sn, and Ni alloys12−14 have been used for hydrogen generation. However, their high cost is still a great challenge.

Here, we face two main challenges. The first is the cost of materials used to generate hydrogen. The second is the deposition of corrosion products on the metal surface, which stops the hydrogen generation reaction.

To address these challenges, we aim to use waste formation water from a petroleum field and carbon steel materials to generate hydrogen. The low cost of waste formation water and carbon steel materials make the utilization of these materials as a hydrogen source a promising strategy. In general, waste formation water is rich in high salt content and this leads to continuous hydrogen generation reactions. Here, we will design the most suitable conditions that allow obtaining a high hydrogen yield. In addition, an ionic liquid (i.e., tributylmethylammonium methyl carbonate, BMAMC) will be tested as an inhibitor for the hydrogen generation reaction. Thermodynamic quantities and adsorption discussion on the ionic liquid and carbon steel interaction will be addressed.

2. Experimental Section

2.1. Materials

Carbon steel materials were obtained from a waste petroleum pipeline. The chemical composition of this material was detected using X-ray fluorescence spectroscopy (SPECTRO Analytical Instruments GmbH). According to this method, the carbon steel composition is 0.32% C, 0.23% Mg, 0.28% Si, 0.023% P, 0.02% S, 0.12% Ni, and remaining % Fe.

The waste formation water was collected from petroleum wells (Egypt). The chemical and physical analysis of waste water is presented in Table 1. The ionic liquid BMAMC (see Figure 1) was provided by Sigma-Aldrich.

Table 1. Chemical and Physical Analysis of Waste Formation Water.

total dissolved solids (T.D.S.) 200154.2 mg/L
salinity (as NaCl) 202451.1 mg/L
alkalinity (as CaCO3) 16.7 mg/L
total hardness (as CaCO3) 70231.5 mg/L
density @ 25 °C 1.14340 g/mL
specific gravity 1.14453
pH @ 25 °C 6.5
conductivity 21.8 × 10–2 mohs/cm @28 °C
Inorganic Chemical Constituents—Cation
lithium 7.09 mg/L
sodium 47444.14 mg/L
ammonium Nil
potassium 774.01 mg/L
magnesium 1064.98 mg/L
calcium 26370.00 mg/L
strontium Nil
barium Nil
Inorganic Chemical Constituents—Anion
fluoride 145.22 mg/L
chloride 122697.64 mg/L
bromide 1353.13 mg/L
nitrate 76.96 mg/L
nitrite nil
sulfate 200.70 mg/L
hydroxide nil
carbonate nil
bicarbonate 20.3 mg/L
Open in a new tab

Figure 1.

Figure 1

Open in a new tab

Molecular structure of BMAMC solution.

2.2. H2 Evolution Assessments

The carbon steel specimen (dimension 2.49 × 1.48 × 0.2 cm) was immersed in the 100 mL waste formation water for 12 h at different pH and temperatures. Prior to each experiment, the specimens were cleaned according to the standard method (ASTM-B322-99-2014) and ASTM G1-03.15,16

The volume of H2 evolution during the reaction was illustrated in earlier studies.17 To estimate the rate of hydrogen generation (VH2) during the immersion, we have computed the carbon steel surface area (A) and immersion time (t), which are related to the following relation:17

2.2. 1

The mass loss of carbon steel during the H2 evolution reaction was measured according to the standard method (ASTM-G1/90-2000).18 To estimate the rate of mass loss of carbon steel (MFe) during the immersion, we have computed the carbon steel surface area (A) and immersion time (t), which are related to the following relation:19

2.2. 2

By using MFe, the amount of H2 evolution (MH2) was calculated using the following relation:

2.2. 3

To adjust solution pH, we added some of the drops of aqueous solutions of HCl or NaOH to waste formation water.

To investigate the purity of H2 evolution, the component of the gas released during the carbon steel immersion in waste formation water was analyzed using a gas chromatograph (GC-2014, Shimadzu Corporation, Japan). ASTM D2504 was used as the standard method. All experiments were run three times to verify the accuracy of the data.

2.3. Electrochemical Measurements

The cathodic polarization curve was recoded using a potentioscan (model: Gamry’s Reference-3000). In this system, we used a three electrode cell (i.e., carbon steel electrode, Pt electrode, and calomel electrode). The polarization curves were recoded with a scan rate of 1.25 mV s–1. In this study, the carbon steel electrode has a cylindrical shape with an exposed area equal to 0.543 cm2.

2.4. Surface Characterization

Selected samples were analyzed by scanning electron microscopy (SEM) (JEOL, Quantek detector) to inspect the morphology of the carbon steel surface after some experiments. In addition, the Fourier-transform infrared (FTIR) spectroscopy analysis was conducted for pure ionic liquid BMAMC and the surface product using an FTIR instrument (ATI Mattson Infinity Series, USA).

3. Results and Discussion

3.1. pH and Temperature Influences

In this section, the influences of solution pH and the changes in the environment temperatures on the amount of hydrogen released from the reaction of carbon steel with waste formation water are discussed in detail. Generally, the amount of both hydrogen release (i.e., VH2 and MH2) and mass loss of carbon steel (i.e., MFe) rapidly increases with decreasing pH of the solution from 6.7 to 2.5 (see Figure 2).

Figure 2.

Figure 2

Open in a new tab

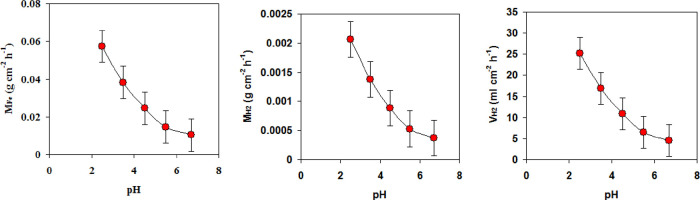

Amount of hydrogen released (VH2 and MH2) and mass loss of carbon steel (MFe) during the reaction of carbon steel with waste formation water at different pH.

The hydrogen release rate due to the reaction of waste formation water with carbon steel on the anodic and cathodic sites is expressed as follows:20

3.1. 4
3.1. 5
3.1. 6
3.1. 7

The presence of chlorides ions in waste formation water leads to the continuous carbon steel dissolution and hydrogen release during the anodic and cathodic processes, which is responsible for the high amount of hydrogen release.21,22 We list the following reactions in order to more clearly understand the part of chloride ions in the ongoing anodic and cathodic reactions and in preventing the creation of the oxide layer on the surface of the metal:22

3.1. 8
3.1. 9
3.1. 10
3.1. 11

According to the above reactions, the solubility of FeCl2 compound in the solution increases with decreasing pH of the solution.

This suggests that the lower pH facilitates the cathodic reaction and will lead to more hydrogen release.

At low pH (i.e., 2.5), we also tested the influences of the temperature increase on the amount of hydrogen release. Under these conditions, we noted that the amount of both hydrogen release (i.e., VH2 and MH2) and mass loss of carbon steel (i.e., MFe) rapidly increases with increasing temperature from 298 to 338 K (see Figure 3). In this case, the temperature rise causes an increase in both mass loss and hydrogen release reactions. To accelerate the hydrogen release reaction, we need to increase the activated ions with energy more than the activation energy of the hydrogen release reaction. This effect has occurred through the increasing temperature.23,24

Figure 3.

Figure 3

Open in a new tab

Amount of hydrogen released (VH2 and MH2) and mass loss of carbon steel (MFe) during the reaction of carbon steel with waste formation water (pH 2.5) at different temperatures.

To check the purity of hydrogen released from the reaction of carbon steel and waste formation water, the releasing gas from this reaction was detected by gas chromatography. As illustrated in the chromatogram (Figure 4), the sharp signal at 0.72 s (retention time) corresponds to hydrogen gas.25 From the calculated area under the peak, we found that the purity of hydrogen is about 99.8%.

Figure 4.

Figure 4

Open in a new tab

Gas chromatogram recorded during the reaction of carbon steel with waste formation water (pH 2.5) at 298 K.

To support these data, the cathodic polarization experiments were conducted in the case of the immersion of carbon steel in waste formation water at different pH and temperatures. Notably, the cathodic current density increases with decreasing pH of the solution from 6.7 to 2.5 (see Figure 5).

Figure 5.

Figure 5

Open in a new tab

Cathodic polarization curves of carbon steel in waste formation water at different pH.

This means that the amount of hydrogen release increases in more acidic solution. At the same time, we noted that the cathodic current density rapidly increases with increasing temperature from 298 to 338 K (see Figure 6). These results suggest that the pH and temperature have a great role in the increase of the amount of hydrogen release during the immersion of carbon steel and waste formation water.

Figure 6.

Figure 6

Open in a new tab

Cathodic polarization curves of carbon steel in waste formation water (pH 2.5) at different temperatures.

3.2. Effect of BMAMC on the Hydrogen Release

In this section, the role of BMAMC on the control of the hydrogen released during the immersion of carbon steel in waste formation water at pH 2.5 and 298 K was investigated. The efficiency of ionic liquid (ηH2%) and the rates of hydrogen generation (VH2) in the presence of BMAMC were collected and are listed in Table 2. The ηH2% can be formulated as:26

3.2. 12

where V0H2 is the rate of hydrogen generation in the absence of BMAMC. It is noted that the addition of BMAMC in waste formation water leads to the slowdown in the rates of hydrogen generation (see Table 2). In addition, the high concentration of BMAMC further deteriorates the level of hydrogen generation.

Table 2. Rate of Hydrogen Generation (VH2) and the Corresponding Efficiency of Ionic Liquid (ηH2%) during the Reaction of Carbon Steel with Waste Formation Water (pH 2.5) without and with Different Concentrations of Ionic Liquid BMAMC at 298 K.

conc. BMAMC (M) VH2 (ml cm–2 h–1) ηH2%
waste formation water 25.25 ± 0.65
0.72 × 10–4 17.07 ± 0.52 32.3
1.45 × 10–4 11.21 ± 0.63 55.6
2.17 × 10–4 9.44 ± 0.42 62.6
2.90 × 10–4 6.08 ± 0.23 75.9
3.63 × 10–4 4.14 ± 0.21 83.6
4.35 × 10–4 2.17 ± 0.18 91.4
5.08 × 10–4 2.02 ± 0.09 92.0
Open in a new tab

It is significant to highlight that a considerable increase in the ηH2% value (92.0%) occurs at 5.08 × 10–4 M of BMAMC.

An additional inspection into the efficiency of ionic liquid BMAMC comes from the cathodic polarization curve (see Figure 7). It is observed that the cathodic current density rapidly decreases with increasing the BMAMC concentration from 0.72 × 10–4 M to 5.08 × 10–4 M (see Figure 7).

Figure 7.

Figure 7

Open in a new tab

Cathodic polarization curves of carbon steel in waste formation water (pH 2.5) without and with different concentrations of ionic liquid BMAMC at 298 K.

This result confirms that the ionic liquid BMAMC plays a great role in the decreasing of the amount of hydrogen release during the immersion of carbon steel and waste formation water.

The insight on how the ionic liquid inhibits the hydrogen generation comes from the created charges on both the carbon steel surface and ionic liquid molecules. Notably, the carbon steel in the acidic waste formation water carries a positive charge.27,28 This attracts the negative portion of BMAMC molecules to the carbon steel surface. According to this situation, the cationic portion of BMAMC molecules will be adsorbed on the negative charge sites of carbon steel by Van der Waals to prevent the adsorption of H3O+.15,29−31 These adsorbed ionic liquid BMAMC molecules on the carbon steel surface inhibit the hydrogen generation reaction.

3.3. Thermodynamic and Adsorption Studies

At present, research on the activation energy of the hydrogen generation reaction (EaH) is very significant, which can be investigated from the estimated rate of hydrogen generation VH2 in the absence and presence of BMAMC at different temperatures (298–338 K) (see Table 3).

Table 3. Rate of Hydrogen Generation (VH2) and the Corresponding Efficiency of Ionic Liquid (ηH2%) during the Reaction of Carbon Steel with Waste Formation Water (pH 2.5) without (Blank) and with Ionic Liquid BMAMC at Different Temperatures.

temp. (K) VH2 (ml cm–2 h–1) blank VH2 (ml cm–2 h–1) BMAMC (5.08 × 10–4 M) ηH2%
298 25.25 ± 0.65 2.02 ± 0.09 92.0
308 27.58 ± 0.68 2.97 ± 0.15 89.2
318 32.84 ± 0.70 4.43 ± 0.19 86.5
328 43.44 ± 0.75 6.64 ± 0.23 84.7
338 57.04 ± 1.02 12.20 ± 0.42 78.6
Open in a new tab

It is discovered that the rates of hydrogen generation VH2 in both blank and inhibited waste formation water are slightly increased by increasing temperatures. This is primarily related to the de-sorption of some BMAMC molecules from the carbon steel surface because of the high temperature.32 At the same time, the high temperature accelerates the hydrogen generation reaction.33,34

The activation energy of hydrogen generation reaction EaH could be calculated by Arrhenius formula:32

3.3. 13

where R = ideal-gas constant, A = Arrhenius constant, and T = absolute temperature.

Figure 8 shows the Arrhenius plots in the absence (blank) and presence of 5.08 × 10–4 M of BMAMC.

Figure 8.

Figure 8

Open in a new tab

Arrhenius plots in the absence (blank) and presence of 5.08 × 10–4 M of BMAMC.

The EaH could be calculated from the slopes of Arrhenius plots. It could be noted that the addition of 5.08 × 10–4 M of BMAMC in waste formation water could increase the EaH from 17.35 kJ mol–1 (in the case of the blank solution) to 36.84 kJ mol–1. This means that the presence of ionic liquid BMAMC increases the amount of the potential barrier that is required for the hydrogen generation reaction and, consequently, the ionic liquid decreases the amount of hydrogen release.35

Adsorption behavior of ionic liquid BMAMC on the carbon steel surface is investigated using the following mathematical eqs 14 and 15.36

3.3. 14
3.3. 15

In this case, eq 14 represents the Langmuir adsorption isotherm, where CIL is the ionic liquid concentration and Kads is the Langmuir isotherm constant. The best isotherm to the adsorption data is presented in Figure 9.

Figure 9.

Figure 9

Open in a new tab

Langmuir adsorption isotherm for carbon steel in waste formation water (pH 2.5) containing increasing concentrations of ionic liquid BMAMC at 298 K.

This figure presents a linear regression of eq 14. We confirm the validity of the Langmuir model because the correlation coefficient (R2) is close to the unit (R2 = 0.9899).37 It is worth noting that the Kads value obtained from Figure 9 was 0.6 × 104 M. The high value of Kads refers to the favorable condition for the ionic liquid BMAMC adsorption on the carbon steel surface.38 The change in standard free energy (ΔG°) can be evaluated from the value of Kads according to eq 16.39

3.3. 16

The value of ΔG° is – 31.45 kJ·mol–1. This means that the adsorption of the BMAMC on the steel surface is spontaneous and belongs to physical adsorption.39

3.4. Surface Morphology Studies

Figure 10 shows the surface morphology of carbon steel discovered by SEM after 12 h immersion in waste formation water solution with and without ionic liquid BMAMC. The surface of carbon steel after immersion in waste formation water (Figure 10b) was characterized by a large damage in comparison to the as-received sample (Figure 10a).

Figure 10.

Figure 10

Open in a new tab

SEM images for (a) abraded carbon steel, (b) carbon steel immersed in waste formation water solution (pH 2.5) at 298 K, (c) carbon steel immersed in waste formation water (pH 2.5) solution containing 4.35 × 10–4 M of ionic liquid BMAMC at 298 K.

According to Figure 10b, the corrosion effects on the carbon steel surface were distributed in a uniform shape. This means that hydrogen generation reactions occur over the whole carbon steel surface. Meanwhile, the corrosion damage by waste formation water was reduced to a high extent after adding 5.08 × 10–4 M of ionic liquid BMAMC as seen in Figure 10c.

To confirm the adsorption of the ionic liquid BMAMC on the carbon steel, FTIR analysis was conducted for pure ionic liquid BMAMC and the surface product (see Figure 11). As shown in Figure 11a, hydrogen-bonded O–H stretching occurs at 3420 cm–1, C–H stretch occurs at 3010 cm–1, C=0 stretch occurs at 1730 cm–1, CH2 bending modes at 1465 cm–1, CH3 bending absorption at 1375 cm–1, C–N stretching occurs at 1350 cm–1, and C–O stretching occurs at 1150 cm–1. The FT-IR spectrum for the products formed on the carbon steel after immersion in waste formation water containing ionic liquid BMAMC (see Figure 11b) confirms the adsorption of BMAMC on the surface. The shifting in the position of some bands such as hydrogen-bonded O–H, C–O and C–N indicates the adsorption between the BMAMC molecule and carbon steel.40−42

Figure 11.

Figure 11

Open in a new tab

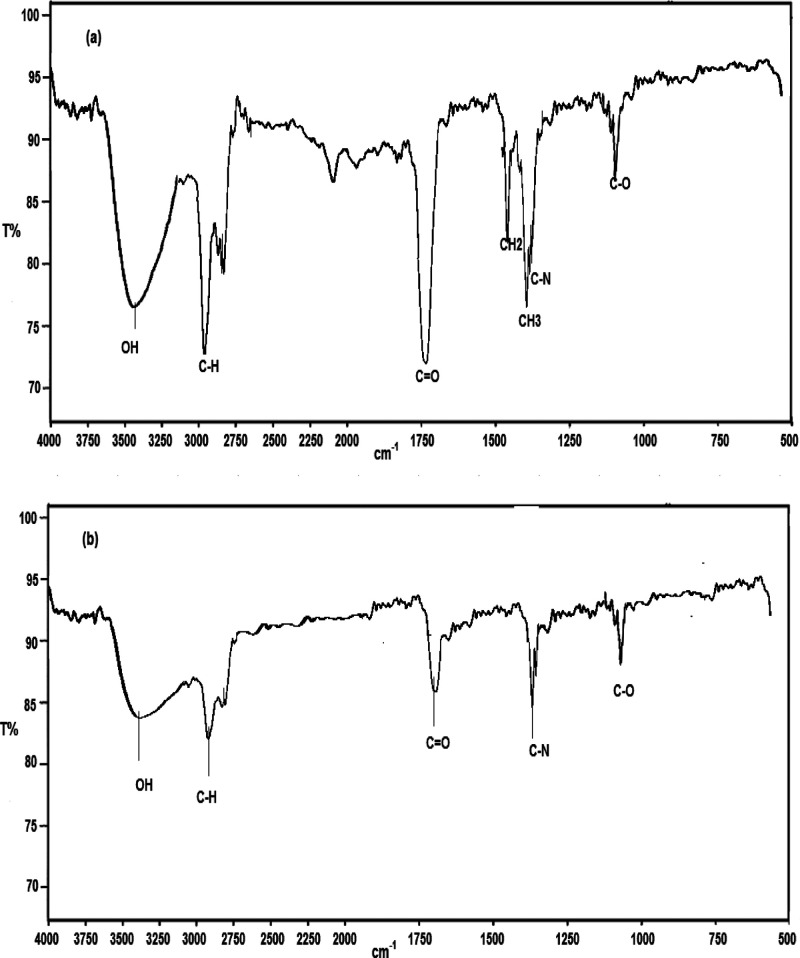

FTIR spectra for pure ionic liquid BMAMC (a) and for the scratched film formed on carbon steel in waste formation water (pH 2.5) solution containing 4.35 × 10–4 M of ionic liquid BMAMC (b).

4. Conclusions

For the first time, the waste formation water from petroleum field and carbon steel is used to generate hydrogen. With the aid of the change in the solution conditions such as pH and temperature, a variety of volumes of H2 evolution can be obtained. The presence of chloride ions in waste formation water leads to the continuous hydrogen release. It was confirmed that the highest hydrogen release rate (57.04 mL cm–2 h–1) could be achieved by immersion carbon steel in waste formation water at pH 2.5 and temperature 338 K. In addition, the introduction of ionic liquid BMAMC with waste formation water could inhibit the hydrogen generation reaction. The performance of ionic liquid is likely due to the adsorption of BMAMC molecules on the carbon steel surface, which is supported by SEM and FTIR inspections. This work reveals the future promise of the waste materials and ionic liquids for the production of hydrogen.

Acknowledgments

Taif University Researchers Supporting Project number (TURSP – 2020/19), Taif University, Saudi Arabia. The authors gratefully acknowledge the support of the Science-Technology & Innovation Funding Authority as well as Egyptian Petroleum Research Institute.

The authors declare no competing financial interest.
