Synthesis and Characterization of New Mixed-Ligand Complexes; Density Functional Theory, Hirshfeld, and In Silico Assays Strengthen the Bioactivity Performed In Vitro

Abstract

N′-Acetyl-2-cyanoacetohydrazide (H₂L¹) and 2-cyano-N-(6-ethoxybenzo thiazol-2-yl) acetamide (HL²) ligands were used to synthesize [Cr(OAc)(H₂L¹)(HL²)]·2(OAc) and [Mn(H₂L¹)(HL²)]·Cl₂·2H₂O as mixed ligand complexes. All new compounds were analyzed by analytical, spectral, and computational techniques to elucidate their chemical formulae. The bidentate nature was suggested for each coordinating ligand via ON donors. The electronic transitions recorded are attributing to ⁴A₂g(F) → ⁴T₂g(F)(υ₂) and ⁴A₂g(F) → ⁴T₁g(F)(υ₃) types in the octahedral Cr(III) complex, while ⁶A₁ → ⁴T₂(G) and ⁶A₁ → ⁴T₁(G) transitions are attributing to the tetrahedral Mn(II) complex. These complexes were optimized by the density functional theory method to verify the bonding mode which was suggested via N(3), O(8), N(9), and N(10) donors from the mixed-ligands. Hirshfeld crystal models were demonstrated for the two ligands to indicate the distance between the functional groups within the two ligands and supporting the exclusion of self-interaction in between. Finally, the biological activity of the two mixed ligand complexes was tested by in silico ways as well as in vitro ways for confirmation. Three advanced programs were applied to measure the magnitude of biological efficiency of the two complexes toward kinase enzyme (3nzs) and breast cancer proliferation (3hy3). All in silico data suggest the superiority of the Mn(II) complex. Moreover, the in vitro assays for the two complexes that measure their antioxidant and cytotoxic activity support the distinguished activity of the Mn(II) complex.

1. Introduction

Essential bioactive compounds are mainly derived from heterocyclic compounds that include NSO donors which basically act as sensors in coordination chemistry.^1,2 Among such compounds are the thiazole derivatives which could promote a distinct biological activity and also enrich the coordination field by changeable binding modes.^3,4 Thiazoles are considered a powerful nucleus that contribute in designing drugs due to their extensive therapeutic efficiency.⁵ Diverse coordinating compounds were obtained from thiazoles and exhibited different biological effectiveness toward free radicals, general pain, hypertension, cancer, allergy, inflammation, malaria, bacteria, and fungi.^6,7 The interest of mixed ligand complexes was shinned recently to enrich the coordination chemistry by new ideas, binding modes, and diverse applications.⁸ Mixed ligand complexes were derived from acid (phthalic, oxalic, or succinic) which mixed with heterocyclic bases to prepare Zn(II) and Cd(II) mixed-ligand complexes. Such complexes were investigated to characterize their tetrahedral geometry and then their antimicrobial activity was evaluated versus different bacteria.⁹ Quercetin and diimine ligands were mixed to isolate some bivalent metal ion complexes. These complexes were screened versus cancer cell lines and the mixed ligand Cu(II) complex showed the most toxic activity toward breast cancer cell.¹⁰ 4-Aminoantipyrine (4-AAP) and imine derivative (H₂L) were added sequential to copper, nickel, and manganese ions to prepared mixed ligand complexes. The analysis suggested that the complexes were formed with 2:1:2 molar ratio of metal/H₂L/4-AAP, respectively. The antimicrobial activity of these complexes was investigated against different bacteria and fungi.¹¹ Antiviral drugs were explored from tri-substituted thiazoles through investigation against common viruses.^12,13 Octahedral complexes were formed from Mn(II), Fe(III), and Cr(III) ions with the Schiff base ligand. The electrolytic nature of the Mn(II) complex was recorded, while the non-electrolytic nature was appeared with Fe(III) and Cr(III) complexes. All compounds were screened versus bacteria and fungi to evaluate their biological influence.¹⁴ Schiff base ligand of the thiazole derivative was derived and used for coordination with Mn(III), Fe(III), Cr(III), Zr(IV), and VO(IV) ions. The complexes were elucidated by various tools and then their antibacterial activities¹⁵ were tested. The octahedral and square-pyramidal geometries were suggested for Co(II) and Cr(III) complexes, respectively. These complexes showed significant antibacterial data toward different bacteria.¹⁶

Proceeding from previous studies, we intended to prepare N′-acetyl-2-cyanoacetohydrazide and 2-cyano-N-(6-ethoxybenzo thiazol-2-yl) acetamide ligands to be used for preparing mixed ligand complexes derived from Cr(III) and Mn(II) ions. The targeted ligands have the same nature that is the cause behind their selection for this preparation to exclude their self-interaction. All new compounds were investigated by different available techniques which varied between analytical, spectral, and computational methods. The biological activity was predicated from a quantum point of view (in silico) via estimating pharmacokinetics, drug-likeness, and molecular docking studies. Then, the antioxidant activity and toxicity of the new complexes were investigated to evaluate the biological activity of the two mixed ligand complexes, practically.

2. Experimental Work

2.1. Reagents and Synthesis of Organic Compounds

The chemicals used to synthesize cyanoacetohydrazide derivative were 2-cyanoacetohydrazide and acetic anhydride, whereas those used to synthesize thiazole derivative were 2-amino-6-ethoxybenzothiazole and 3,5-dimethyl-1-cyanoacetyl. The CrCl₃·6H₂O and MnCl₂ are the salts used to synthesize the two mixed ligand complexes, and NaOAc was used to rise the pH of the medium slightly. The ethanol (EtOH, 95%), dioxane (99.5%), and dimethyl sulfoxide (DMSO, 99%) were the solvents used either for synthesis or for analysis. All the reported chemicals are extra pure and purchased from Sigma-Aldrich then used as it is without any preliminary treatment.

2.1.1. Synthesis of N′-Acetyl-2-cyanoacetohydrazide (1) (H₂L¹)

A suspension of 2-cyanoacetohydrazide (5.0 g, 0.05 mol) in 50 mL of acetic anhydride was kept at 60–70 °C for 10 h. After standing overnight, a white precipitate was formed. It was collected by filtration and washed with plenty of water to give 3.50 g of N′-acetyl-2-cyanoacetohydrazide (1) (Scheme 1).

Scheme 1. Synthesis N′-Acetyl-2-cyanoacetohydrazide (1, H₂L¹) and 2-Cyano-N-(6-ethoxybenzo thiazol-2-yl) Acetamide (2, HL²) Ligands.

White solid, yield = 50%, mp = 175–176 °C, lit. mp = 176–178 °C.¹⁷ IR (KBr): 3273 (N–H), 3209 (N–H), 2250 (C≡N), 1620 (C=O) cm^–1. ¹H NMR (CDCl₃): δ/ppm = 1.85 (s, 3H, CH₃), 3.78 (s, 2H, CH₂), 9.80 (s, 1H, NH), 9.98 (s, 1H, NH) (Figure S1).

2.1.2. Synthesis of 2-Cyano-N-(6-ethoxybenzothiazol-2-yl)acetamide (2) (HL²)

A mixture of 2-amino-6-ethoxybenzothiazole (1.94 g, 0.01 mol) and 3,5-dimethyl-1-cyanoacetyl pyrazole (1.64 g, 0.01 mol) was refluxed for 4 h in 20 mL of dioxane. The precipitate that formed after cooling of the reaction mixture was filtered off, dried, and recrystallized from ethanol (Scheme 1).

Beige powder, yield = 84%. mp = 218–219 °C, lit. mp = 214–216 °C.¹⁸ IR (ν_max/cm^–1): 3329 (N–H), 2222 (C≡N), 1676 (C=O). ¹H NMR (DMSO-d₆): δ/ppm = 1.35 (t, 3H, CH₃), 3.80 (s, 2H, CH₂), 4.06 (q, 2H, OCH₂), 7.05–7.65 (m, 3H, Ar–H), 11.49 (s, 1H, NH) (Figure S1).

2.2. Synthesis of Mixed Ligand Complexes

The Cr(III) and Mn(II) complexes were prepared by dissolving 5 mmol (1.33 g) CrCl₃·6H₂O and 5 mmol (0.629 g) of MnCl₂ salt in adequate amount of EtOH (10 mL), respectively. Then, equi-molar amounts of the N′-acetyl-2-cyanoacetohydrazide (H₂L¹) ligand (5 mmol, 0.706 g) and 2-cyano-N-(6-ethoxybenzothiazol-2-yl) acetamide (2) (HL²) ligand (5 mmol, 1.306 g) were dissolved separately in 10 mL of EtOH by heating. The solutions of the two ligands were added drop wise sequentially at the same time to each metal salt solution. This addition will give equal chance for the two ligands in coordination to the metal ions. Each reaction mixture was refluxed over night to complete the reaction, while the solid precipitates were isolated after adding NaOAc salt (in H₂O), 0.5 g in Mn(II) complex and 1.5 g in Cr(III) complex.

2.3. Equipment

Most of instruments used for analysis were depicted in the Supporting Information as images for simplicity and each devise properties were typed below its image (Scheme S1). Additionally, the measurement conditions of each technique will be reported in the discussion part, individually. The ¹H NMR spectra of the two ligands were registered by Bruker WP (500 MHz) in DMSO-d₆ as the solvent and tetramethylsilane as an internal reference. The conductance of the complexes was determined for 1 mmol in DMSO solvent using JENWAY model 4070 Conductance Bridge. Also, the magnetic moments were determined via estimating the magnetic susceptibility at room temperature by using Johnson Matthey Magnetic Susceptibility Balance. The Cr(III) and Mn(II) contents were measured by complexometric titration by using the standard method.¹⁹ On the other hand, the absence or presence of chloride in the two complexes was detected qualitatively by AgNO₃ after complete digestion of an adequate amount of the complex in conc. HNO₃.¹⁹ There is no precipitate observed with the Cr(III) complex, while a white precipitate appeared with the Mn(II) complex which quantitatively evaluated gravimetrically to calculate the chloride percentage in the complex. The absence of a chloride ion in the Cr(III) complex is acceptable especially in presence of sufficient amount of NaOAc salt (1.5 g) that facilitates the coordination of the acetate group instead of chloride.

2.4. Optimizing the Structures

Well-known molecular dynamics simulation program (Gaussian 09)²⁰ is analogous to the single crystal X-ray capacity and has been certified for structural type verification. The valence double zeta polarizing basis set (6-31G*) and Becke3–Lee–Yang–Parr (B3LYP)²¹ have been added to the DFT/B3LYP method applied. To the most common split-valence double-zeta plus polarization, this balanced basis set correlates. This term indicates that the valence is determined by two Gaussian orbitals, whereas the core-orbital is specified by a contract of six. The star (*) denotes polarization operations on non-hydrogen atoms. Gauss-View and Gauss-Sum 2.2²² software were used to evaluate the generated computational files (log and chk) in order to retrieve all physical properties. On the other side, the fchk file was produced from chk file that was altered in the Gauss-prog panel.

2.5. In Silico Assessments

To put an accurate prediction for the biological behavior of the complexes under study before practical applications, the molecular docking study must be taken in consideration. Consequently, we selected the most advanced techniques for this purpose as the Pharmit link, Molecular operating environmental software (MOE, Ver 2018), and Swiss ADME link for confirmation. Two proteins were selected for this simulation from PDB co-crystal files as 3nzs and 3hy3 (Scheme S2), which were characterized based on the protein database. These proteins belong to the kinase enzyme (3nzs) which is essential for cell activities and breast cancer proliferation (3hy3). As is known, inhibiting such essential proteins predicates the success of the complex in controlling cancer cells.

2.5.1. Pharmacophore Query

Pharmit link (http://pharmit.csb.edu) was the primary docking tool implemented in this study regarding the two complexes toward the selected proteins. Pharmacophore was run according to the ligand-based and grid-based model²³ to evaluate the interaction availability with protein receptors and searching on drug analogues. Each protein was applied as receptors that interacted with the complexes after adjusting them (mol2 file) to be suitable for this simulation software. The Pharmit search was run onto MolPort and Zn libraries to search on drug analogues.²⁴ Moreover, the number and types of H-bonding formed with protein receptors were determined.

2.5.2. Docking Strategy (MOE)

MOE was the most advanced docking tool that offers all features of intercalation between the tested complex and pockets or receptors of proteins (3nzs and 3hy3). Either complexes or proteins must be oriented before starting each docking operation.²⁵ The oriented compounds were saved as MDB in a new database which is ready for the docking process. Also, each protein was oriented via, selecting receptors, adding H-atoms, fixing potential energy, searching on interacting sites after that the docking will run after inserting the MDB file. The amino acid residues and dummies in protein were adjusted according to the MMFF-force field.²⁶ The most stable docking pose was obtained among 30 poses formed during the trail. These poses are regulated by London dG-scoring function which improved two times by triangle-matcher.²⁷ The length of each H-bonding was determined and the effective one does not exceed than 3.5 Å. To rank the inhibition efficiency of the tested complexes toward the two proteins, the scoring value of each docking process must be estimated according to known relation.²⁸ The 2D and 3D patterns for docking operations were obtained to investigate all interaction features and shed light on the powerful inhibition.

2.5.3. ADME Parameters

Swiss link depends on the absorption, distribution, metabolism, and extraction (ADME) of small molecules to assess their physicochemical nature, pharmacokinetics, and drug-likeness properties.²⁹ Here, we are just dealing with the two mixed ligand complexes as the targets of this study to examine their bioavailability score. The hypothetical polarity of surface area (TPSA), solubility (log S), unsaturation ratio depending on sp³ hybridized carbon, and flexible bonds were used in the viability radar calculation to assess drug-likeness. Other essential proteins that support organisms and tissues, the solubility in aqueous solution, and the partition coefficient between n-octanol and water (log P_o/w) were also detected and recognized.³⁰

2.6. In Vitro Assessments

The antioxidant activity of the two mixed ligand complexes were evaluated by the 2,2″-diphenyl-1-picrylhydrazyl (DPPH) method. The details of the work applied are displayed in the Supporting Information (Part A). Furthermore, the biological test was extended to measure the cytotoxic activity of these complexes toward liver carcinoma (HepG2), prostate cancer (PC3), and breast cancer (MCF-7) by applying (4,5-methyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide as known by the MTT assay. The details of applied methodology are displayed in the Supporting Information also (Part B) to minimize the similarity in the text.

3. Results and Discussion

3.1. General Properties of New Synthesizes

The N′-acetyl-2-cyanoacetohydrazide (H₂L¹) and 2-cyano-N-(6-ethoxybenzothiazol-2-yl) acetamide (2) (HL²) ligands were analyzed to estimate their CHN percentages (Table 1). Subsequently, the two mixed ligand complexes were also analyzed to propose their molecular formulae according to elemental percentages. The most fitted molar ratio of the two complexes was 1:1:1 that belongs to metal/H₂L¹/HL², respectively. The acetate and chloride anions are ionically attached with Cr(III) and Mn(II) complexes, respectively. This is depending on their molar conductivity values that determined for 1 mmol in DMSO solvent, which detects the conducting property of the two complexes (Table 1).³¹

Table 1. Analytical and Physical Properties of New Synthesizes.

				% found (calcd.)
compound empirical formula F.W. found (calculate)	color	mp (°C)	yield (%)	C	H	N	M	Λma
(1) H2L1, (C5H7N3O2); (141.13)	white	175–176, lit. mp = 176–178	50	42.30 (42.55)	4.83 (5.00)	29.69 (29.77)
(2) HL2, (C12H11N3O2S); (261.3)	beige powder	218–219, lit. mp = 214–216	84	55.03 (55.16)	4.50 (4.24)	15.88 (16.08)
(3) [Cr(OAc)(H2L1)(HL2)]·2(OAc); (C23H27CrN6O10S);631.24 (631.56)	green	>300	71	43.59 (43.74)	4.16 (4.31)	13.10 (13.31)	8.20 (8.23)	78.91
(4) [Mn(H2L1) (HL2)]·Cl2·2H2O; (C17H22Cl2MnN6O6S);530.50(564.30)	yellowish green	>300	62	36.02 (36.18)	3.74 (3.93)	14.90 (14.89)	9.77 (9.74)	98.67

^aIn DMSO (ohm^–1 cm² mol^–1).

The interpretation of mixed ligand complexes needs special verifications that start from the two ligands themselves. The chance of interaction between the ligands was excluded depending on their similar nucleophilic nature produced either by the methylene group, N–H functions, or heteroatom centers. Also, the amidic nature of N–H functions prevents their chemical reactions with the carbonyl and/or nitrile group. These factors direct the ligands to form metal complexes without self-interaction between them.

3.2. IR Spectra

KBr-discs were prepared for the two ligands (H₂L¹ and HL²) to examine the changes happened under influence of IR-radiation on the functional groups. The H₂L¹ ligand showed vibrations of (N–H), (C≡N), and (C=O) at 3273, 3209; 2250, and 1620 cm^–1, respectively. Additionally, the HL² ligand showed vibrations of (N–H), (C≡N), (C=O), and (C=N) at 3329, 2222, 1676, and 1521 cm^–1, respectively (Table 2). Comparing the spectra of Cr(III) and Mn(II) complexes (Figure S2) with that of the ligands offers an information about the binding mode inside the complexes. Significant changes were observed for υ(C=O)₂ and υ(N³H) vibrations in the H₂L¹ ligand, while the HL² ligand exhibited changes of υ(C=O)* and υ(C=N) vibrations due to their coordination with the metal ions. Each ligand behaved as a neutral bidentate toward the metal ions. The coordinating acetate group with the Cr(III) complex was suggested based on the appearance of υ_as(OAc) and υ_s(OAc) bands at 1457 and 1373 cm^–1, respectively.³² The separation between two vibrations (Δυ = υ_as – υ_s) indicates the bidentate nature of the contributing acetate group.³³ The crystal water molecules attached with the Mn(II) complex was suggested based on the noticeable broadness around 3400 cm^–1 which is later supported by thermogravimetric analysis (TGA). Finally, the new bands observed at 520; 525 and 575; 643 cm^–1 may be assigned to υ(M–N) and υ(M–O) vibrations in Cr(III) and Mn(II) complexes, respectively.

Table 2. Significant IR Bands for the Ligands and Their Mixed-Ligand Complexes^a.

compound	υ(CN)	υ(NH)	υ(C=O)1	υ(C=O)2	υ(C=O)*	υ(C=N)	δ(NH)	υas(OAc); υs(OAc)	υ(M–O)	υ(M–N)
(1) H2L1	2250	3270	1620	1620
		3209
(2) HL2	2222	3329			1676	1521
(3) [Cr(OAc) (H2L1)(HL2)]·2(OAc)	2250	3399	1620	1610	1670	1547	1457	1457	575	520
		3150						1373
(4) [Mn(H2L1)(HL2)]·Cl2·2H2O	2250	B. C. at 3448	1642	Sh, 1600	1681	1563	1412		643	525

^aB. C. Board centered for υ(OH) of water + υ(NH); Sh Shoulder.

3.3. UV–Vis Spectra and Magnetic Susceptibility

To obtain electronic transitions inside a chemical compound, a sample of it must be subjected to UV–vis radiations. This sample may be as emulsion in nujol or dissolved either in DMSO or DMF for the trace amount. Here, the two complexes were dissolved in DMSO solvent on cold and then scanned by radiations in instrument (200–1000 nm range).³⁴ The ligand field transitions (d–d transitions), charge transfer, and intra-ligand transitions were recorded (Figure S3) to investigate the geometry of coordination of each complex. All observable transitions were extracted (nm) then changed to their wavenumber values (cm^–1, Table 3). The [Cr(OAc)(H₂L¹)(HL²)]·2(OAc) complex showed ⁴A₂g(F) → ⁴T₂g(F)(υ₂) and ⁴A₂g(F) → ⁴T₁g(F) (υ₃) transitions at 11,299 and 16,835 cm^–1, respectively.³⁵ These transitions are attributing to transitions within the octahedral geometry of the d³ system. Furthermore, the [Mn(H₂L¹) (HL²)]·Cl₂·2H₂O complex showed ⁶A₁ → ⁴T₂(G)(υ₂) and ⁶A₁ → ⁴T₁(G)(υ₁) transitions at 20,321 and 14,281 cm^–1, respectively.³⁶ These weak transitions assign to that of tetrahedral geometry of high spin d⁵ system. On the other hand, the ligand field parameters as nephelauxetic (β), Racah (B), and crystal field stabilization energy (Δ = 10D_q) were calculated for the two complexes (Table 3). The calculated values close to that known for octahedral Cr(III) and tetrahedral Mn(II) complexes³⁴⁻³⁶ which formed from strong covalent bonds with coordinating ligands. The B parameter of the Cr(III) complex was calculated by using the following equation; υ₃ = 15B + 30D_q – υ₂, where υ₁ = 10D_q so υ₃ = 15B + 3υ₁ – υ₂ then after calculating B we could calculate Δ value from this relation Δ_o/B = 24. The β value can be calculated from this relation β = B (complex)/B^o(free ion) by knowing B^o of Cr(III) which equals 1030 cm^–1. Meanwhile, the parameters of the Mn(II) complex was calculated from the ratio of υ₂(E₂)/υ₁(E₁) which used to determine the E₂/B ratio from the energy table and then B value can be estimated. Consequently, the ratio of Δ_o/B = 11 was used to calculate Δ_o and the β was calculated by knowing the B^o value (free ion = 960 cm^–1).³⁴ The magnetic moment (μ_eff) values of Cr(III) and Mn(II) complexes were determined at room temperature and their values are 4.63 and 4.69 BM, respectively. Such values confirming the geometries suggested for weak field ligands with high spin states (Scheme 2).

Table 3. Magnetic Susceptibility, Transition Bands of Electrons, and Ligand Field Parameters.

compound	μeff. (BM)	ligand field bands (cm–1) ; assignments	intra-ligand transitions ; charge transfer bands (cm–1)	Dq (cm–1)	B (cm–1)	β	geometry
[Cr(OAc)(H2L1) (HL2)]·2(OAc)	4.63	16,835; 4A2g(F) → 4T1g(F)(υ3)	44,400; 38,168	1129.9	607.14	0.661	octahedral
		11,299; 4A2g(F) → 4T2g(F)(υ2)	30,395; 23,148
[Mn(H2L1)(HL2)]·Cl2·2H2O	4.69	20,321; 6A1 → 4T2(G)	44, 743; 36,496	654.54	595.04	0.692	tetrahedral
		14,281; 6A1 → 4T1(G)	34,602; 27,789

Scheme 2. Structures of Two Mixed-Ligand Complexes.

3.4. Thermogravimetric Analysis

TGA technique aims to elucidate the hydrating nature of the Mn(II) complex that matches the presence of two water molecules and, on the other hand, confirms the dehydrating nature of the Cr(III) complex. The process was performed on solid samples under nitrogen at a constant rate of heating (10 °C min^–1) and on a broad range of temperatures (20–800 °C, Figure S4). The decomposition curve of the Cr(III) complex was limited on two steps that were started at 185 and ended at 675 °C (Table S1). These two steps reflect the complete distortion for the complex and the organic ligands were divided to small moieties that easily evaporated leaving carbon atoms polluted the chromium metal. On the other side, the decomposition curve of the Mn(II) complex was extended to four steps that started at low temperature (25 °C) and ended at 742 °C (Table S1). The first step recorded the dehydration of the complex by losing 2H₂O by 6.56 (calcd. 6.38%) mass loss. Meanwhile, the following steps are capable for complete distortion for the complex and leaving residues from carbon atoms that polluted the MnO molecule. The lower thermal stability of the [Mn(H₂L¹)(HL²)]·Cl₂·2H₂O complex verifies the presence of hydrated water molecules that suggested previously.

3.5. Mass Spectroscopy

The importance of mass spectral analysis is growing in failure of isolating single crystal for the compound targeted for analysis. The two mixed-ligand complexes were subjected to an accelerated beam of electrons at 70 eV potential difference, 40 °C/min heating rate and over mass/charge range from 50 to 800. The successive fragmentation peaks were recorded on the displayed patterns (Figure S5) to elucidate the chemical formulae of Cr(III) and Mn(II) complexes. The molecular ion peaks appeared in the patterns were 631.24(calcd. 631.56) and 530.50 (calcd. 564.30) for the two complexes, respectively. The ion peak of Cr(III) complex formula could being assign to [M⁺] which confirms the suggested formula of the complex. Meanwhile, the ion peak of Mn(II) complex formula could being assigned to [M⁺ + 2] also but after losing the two water molecules as usually happened in some cases.³⁷ This initial decomposition of water molecules is known to occur in the vaporization stage before recoding the formula peak.³⁷ Furthermore, the fragmentation stages in the two complexes yield chromium or manganese isotopes as appeared around m/z = 54 or 55, respectively. Finally, the suitable fragmentation strategy was suggested for the Cr(III) complex, as depicted in Scheme 3.

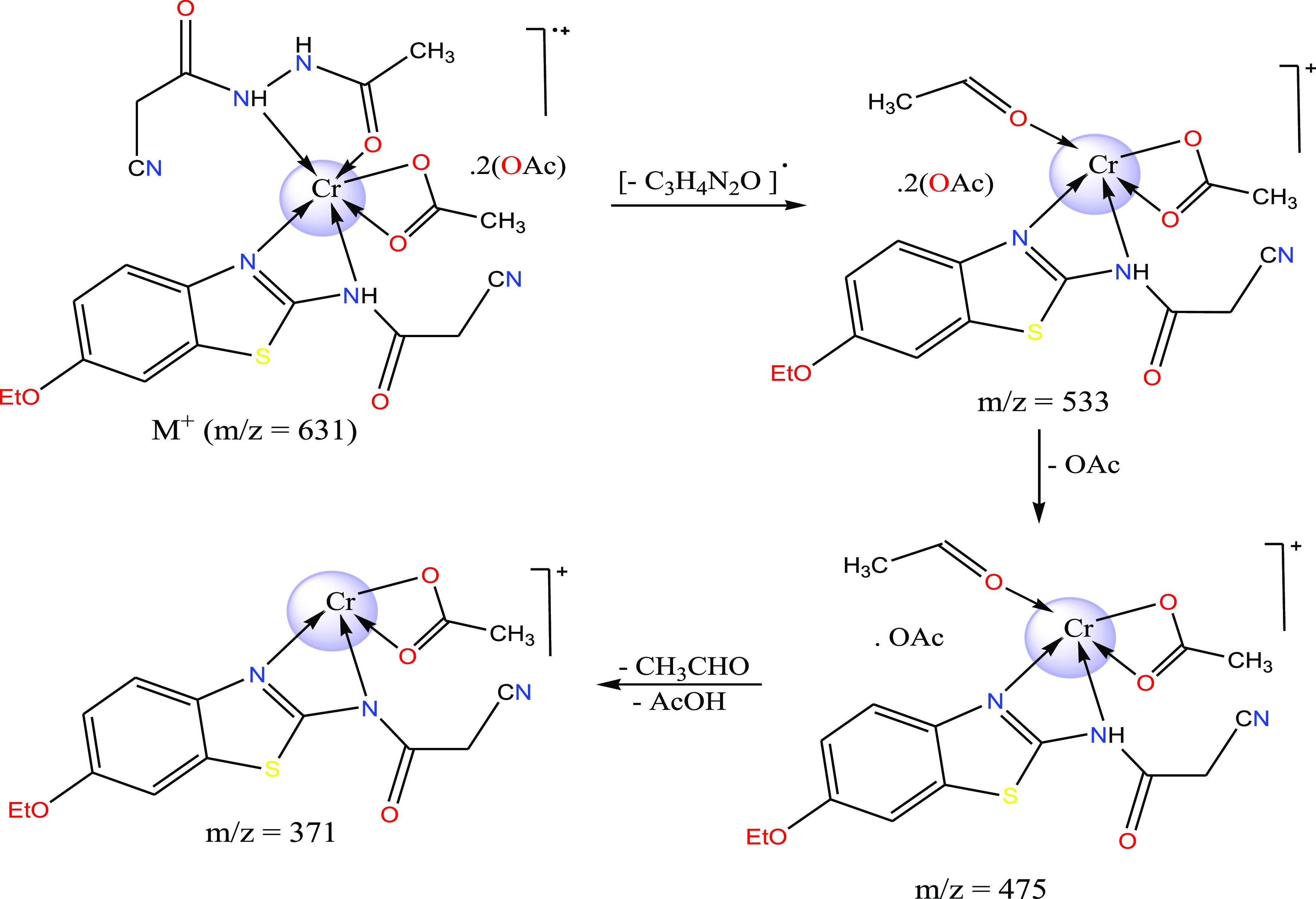

Scheme 3. Fragmentation Scheme of the Cr(III) Complex.

3.6. X-ray Analyses Either via Energy-Dispersive or Diffraction

Energy-dispersive X-ray analysis confirms the coordination process itself via displaying singlet-set of peaks attributed to the Cr(III) or Mn(II) element (Figure S6) in the complex. This analysis depends on accelerated X-ray photons to penetrate the inner shells (K- or L-shell). These photons excite the electrons then leave positive holes which easily attract another electrons from higher levels (L- or M-shell). This relaxation is attached with emitted radiation which draws the pattern peaks of K-series (Ka1, Ka2, or Kb) or L-series. Such peaks characterize the elements according to the unique electronic configuration of each element, while L-series is the most significant.³⁸ Also, the wt/at % was determined regarding to the indicator element (heavier element as the metal).

X-ray diffraction (XRD) technique could identify the magnitude of crystallinity of the tested complexes as well as determines the crystal properties of crystalline one. X-rays were used over 10° < 2θ < 80° range after their emission from the tube containing stimulated electrons that bombarding copper target (Cu/Kα). The obtained patterns (Figures 1 and S7) that recorded by the diffracted radiations³⁹ were used to calculate the crystal parameters for the two complexes. Deby–Scherrer [β = 0.94 λ/(S cos θ)] and Bragg (nλ = 2d sin θ) equations were applied according to full width at half-maximum (FWHM) to estimate the crystal parameters as follows: diffraction angle of sharp peak (2θ°), d-spacing (Å), FWHM (β), intensity (I), and the size (S, Å).⁴⁰ It is easy to show the extent of crystallinity of the Mn(II) complex based on the sharp peaks appeared in its pattern. Meanwhile, the pattern of the Cr(III) complex reflects its lower crystallinity, although we could calculate its crystal parameters also. The calculated crystal parameters of the Mn(II) complex were 11.277, 7.84017, 0.2667, 18.0, and 5.4563°, respectively, whereas the parameters calculated for the Cr(III) complex were 25.12, 3.54207, 0.6444, 6.23, and 5.1161°, respectively. The sizes calculated for Mn(II) and Cr(III) complexes are 54.563 and 51.161 nm which fall in the nanometer range perfectly. This feature is strongly preferable for various applications among that the biological activity which is already applied in this research.

Figure 1.

XRD scanning for the Mn(II) mixed-ligand complex.

3.7. Computational Study

3.7.1. Optimizing the Structures

Under standard conditions, Gaussian 09 program produced three files that visualized on program screen to estimate quantum calculations. Such features are the optimized structure (Figure S8), computational parameters (Table 4), 3D-maps for frontier orbitals (Figure 2), and iso-surface with array plots (Figure S9). Investigating the extracted parameters and maps leads to aggregate the following information.

Table 4. Essential Log-File Parameters for Optimized Compounds.

the compound	bond lengths (Å)	bond angles (°)	Mullikan’s charges
H2L1	C(6)=O(8) 1.20901	C(7)–C(6)–O(8) 122.85	N(3) = −0.185547
HOMO = −0.24167 eV	C(2)–N(3) 1.36986	C(7)–C(6)–N(5) 119.55	O(8) = −0.418200
LUMO = −0.01739 eV	N(3)–N(5) 1.35435	C(6)–N(5)–N(3) 121.48	O(4) = −0.405864
ΔE = 0.22428 eV			N(5) = −0.102243
dipole moment = 4.112 debye
formation energy = −509.246 au
HL2	N(10)–C(11) 1.36662	C(11)–N(10)–C(8) 121.16	N(9) = −0.422790
HOMO = −0.21884 eV	N(9)=C(8) 1.30832	C(8)–N(9)–C(5) 121.31	N(10) = −0.330873
LUMO = −0.05173 eV	C(11)=O(12) 1.20788	N(9)–C(8)–N(10) 118.27	O(12) = −0.330617
ΔE = 0.16711 eV
dipole moment = 7.403 debye
formation energy = −1176.498 au
[Cr(OAc)(H2L1)(HL2)]·2(OAc)	C(6)=O(8) 1.21878	C(7)–C(6)–N(5) 114.62	N(3) = −0.001477
HOMO = −0.20625 eV	C(2)–N(3) 1.38129	N(5)–N(3)–C(2) 118.34	O(8) = −0.000490
LUMO = −0.12457 eV	C(25)=N(26) 1.30757	C(22)–N(26)–C(25) 111.35	N(26) = −0.000524
ΔE = 0.08168 eV	C(25)–N(27) 1.34750	C(25)–N(27)–C(28) 131.33	N(27) = −0.000030
dipole moment = 10.592 debye		N(3)–Cr(47)–O(8) 84.82
formation energy = −2958.939 au
[Mn(H2L1)(HL2)]·Cl2·2H2O	C(6)=O(8) 1.21845	C(7)–C(6)–N(5) 114.81	N(3) = −0.153868
HOMO = −0.17602 eV	C(2)–N(3) 1.36985	N(5)–N(3)–C(2) 119.69	O(8) = −0.456864
LUMO = −0.10068 eV	C(25)=N(26) 1.30780	C(22)–N(26)–C(25) 111.51	N(26) = −0.596077
ΔE = 0.07534 eV	C(25)–N(27) 1.34740	C(25)–N(27)–C(28) 131.45	N(27) = −0.450556
dipole moment = 8.798 debye		N(3)–Mn(47)–O(8) 105.67
formation energy = −2825.216 au

Figure 2.

HOMO and LUMO images for the two ligands (H₂L¹ and HL²) and their mixed-ligand complexes.

3.7.1.1. General Properties

The two ligands (H₂L¹ and HL²) are characterized by their high nucleophilicity according to the atomic charges displayed in Table 4. In particular, the calculated charges of N(3) and O(8) donors in the H₂L¹ ligand, as well as the N(9) and N(10) donors in the HL² ligand, reflect their comparable nucleophilic feature. These charges are severely minimized in the Cr(III) complex, while they improved in Mn(II) complex due to Mn → ligand charge transfer through π-back donation.^41,42 On the other hand, the optimized structures (Figure S7) reflect the best orientation of the donors (N³; O⁸ and N⁹; N¹⁰) that coordinated from the two mixed-ligands used. This supports their facilitated coordination toward both Cr(III) and Mn(II) ions without twisting or bond strain for their functional groups. This is observed easily in the bond lengths (Å) of the functional groups that selected for comparison in Table 4. A noticeable elongation of the coordinating functional groups appeared in normal range due to complexation without any change in hybridization of the atoms. Some bond angles were estimated for the two free ligands as well as the two mixed ligand complexes (Table 4). The bond angles in the two ligands indicate the regularity of trigonal planer geometry (∼120°) of the atoms. While in the two complexes, these angles appeared shifted from such regularity particularly that include the coordinating functional groups. In addition, the bond angles centered by the Cr(III) ion seem close to 90°, while that centered by the Mn(II) ion seem close to 109°. These angles supported the octahedral and tetrahedral geometries of the two complexes, respectively.^43,44

The energy values of highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) levels were estimated for all compounds (Table 4) to determine the band gap in between (ΔE = E_LUMO – E_HOMO). The calculated values detect the reduction of band gap in the two complexes which clarify the impact of metal ions on the electronic transitions inside chemical systems. The electronic transitions inside the complexes are extremely facilitated based on reduced ΔE values. The dipole moment values detect the reduced polarity of the ligands as well as the Mn(II) complex which expect their lipophilicity that leads to effective biological activity. Also, the formation energy values (au) detect the higher stability of the two complexes.⁴⁵

3.7.1.2. 3D-Maps

The HOMO and LUMO images were constructed over the contours of the optimized structures. Such orbitals appeared covering most functional groups in the two free ligands, which indicates that the first electronic transition is confined between coordinating functional groups,⁴³ whereas the shape of these orbitals were significantly changed in the two complexes. The HOMO levels seem concentrated on the H₂L¹ ligand but the LUMO levels appeared concentrated around the central atom (Figure 2).

Furthermore, array plot shapes of the iso-surface were developed to assess the unsaturation degree of the compound surface (Figure S9). This kind of image was made after measuring the electron density at various locations on the surface grid and correlating it. The 2D-array plot divides the compound onto sections, with the inner contour denoted by the thin yellow lines around the edge. On the other side, the red lines denote the exterior contour limit. The two ligands and their Mn(II) complex exhibited in the images as an elongation of exterior counters. The capability of the ligands and their Mn(II) complex to absorb electrons from their environment is essentially represented by this property. As it would if it interacted with amino acids in biological systems, this might lead to their interaction with additional functional groups. Therefore, the effective biological activity may be expected from the Mn(II) complex.

3.7.2. Hirshfeld Study

This study was executed by crystal explorer software which is capable to build the crystal form of the chemical compound to identify significant properties among that the strength of the crystal packing.⁴⁶ Here, we considered only H₂L¹ and HL² ligands to assess the probability of contact in between which is not preferable to happen during coordination. Each ligand was optimized on VESTA package⁴⁷ to be in a suitable format for the explorer program, and then, the optimized file was imported on the crystal program to run. The 3D-models (Figure 3) were obtained by using d_norm (A) which depends on normalized contact distance and shape index (B) to identify the contact strength between crystals. Red, white, and blue colors were the indicators for short, moderate, and long length (H-bonding) between crystals in the compound packing style. These lengths recorded reflect strong, moderate, and weak contact between crystals based on van der Waals radii.⁴⁷ As observed in Figure 3, the red spots in the two ligands were centered by oxygen atoms. This clarifies the probability of closeness of the carbonyl groups during their reaction with the metal ions. Therefore, these groups have the same nature and then the probability of self-reaction in between is completely excluded as reported previously (Section 3.1). Furthermore, the 2D-models (Figure S10) were constructed to identify the contributing atoms in surface contact. As appeared, the nitrogen and oxygen atoms were the contributing in the surface contact, while the length percentage of N–H in crystal packing is 21.0% in H₂L¹ and 17.8% in HL². This longer length detects their farther presence during their coordination with the Cr(III) or Mn(II) ion.⁴⁸ Also, the length percentage of O–H in crystal packing is 11.1 in H₂L¹ and 0.1% in HL². This detects the closeness of two identical functional groups during the coordination process, which leads to a safe mixed-ligand complexation process.

Figure 3.

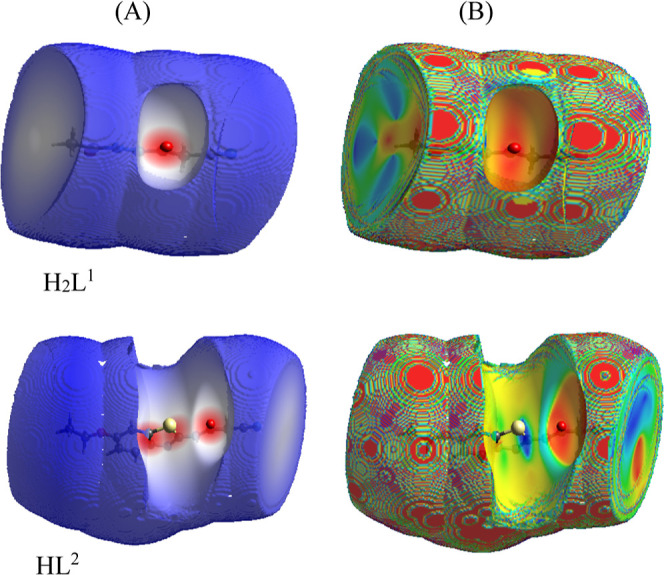

d_norm (A) and shape index (B) of H₂L¹ and HL² ligands.

3.8. Biological Investigation

In this investigation we aimed to evaluate the extent of reactivity of the two mixed ligand complexes via computational methods which followed by practical methods belong to antioxidant and cytotoxicity tests.

3.8.1. In Silico Assays

This computation was used to visualize the inhibition feature of the two complexes before practical tests. Three advanced programs (A–C) were used for this in silico assays to measure their magnitude of biological efficiency toward kinase enzyme (3nzs) which is essential for cell activities and breast cancer proliferation (3hy3).

3.8.1.1. Pharmacophore Profile

Pharmit server was used to put an introductory view about the interaction between the two complexes and the selected proteins (3nzs and 3hy3).^49,50 The pharmacophore profiles were presented (Figure 4) for investigation. As seen, the structure of the Cr(III) complex is significantly farther of both proteins. This predicates the lower activity of such a complex due to the absence of any interaction with protein pockets. On the other side, the structure of the Mn(II) complex is relatively interacted with 3hy3, while it is completely penetrating the pockets of the 3nzs protein. This expects a significant reactivity toward kinase enzyme but as an excellent inhibitor for breast cancer cell growth.⁵¹ The H-bonding appeared with the Mn(II) complex and 3nzs receptors were H-acceptor (acc = 9) and H-donor (don = 3). Finally, searching at MolPort and Zn libraries detects that there is no analogue for the Mn(II) complex among the drugs already found.

Figure 4.

Pharmit search for interaction of mixed-ligand complexes with 3nzs and 3hy3 proteins.

3.8.1.2. Molecular Docking (MOE)

MOE software able to give all interaction details in between the complexes and proteins. This is more advanced than the previous tool; it gives a view nearer to the true behavior in living cells.⁵² The docking parameters (Table 5) as well as the 2D or 3D shapes (Figures S11 and S12) of interaction were exported and displayed for studying. The following remarks were aggregated to rank the inhibition activity of the Cr(III) or Mn(II) complex toward 3nzs and 3hy3 proteins;

• (i)The scoring value of energy (S) was calculated and represents the following inhibition order: Mn(II) complex-3nzs > Mn(II) complex-3hy3 > Cr(III) complex -3nzs. The best inhibition was expected from the Mn(II) complex toward the two proteins especially with that of breast cancer cells (3nzs).⁵³ The interaction paths are mostly true due to the formation of natural H-bonding (≤3.5 Å), except the interaction path of Cr(III) complex toward 3hy3 protein.
• (ii)Regarding the two proteins, polar (pink circle) and basic (blue circle) residues were the basically contributors in interaction with the Mn(II) complex (Figures S11 and S12). Such an interaction was carried out by the side chain acceptor and backbone acceptor types mainly via H-acceptor but the H-donor in one case only.
• (iii)The interacting sites in the Mn(II) complex were O4, O24, N11, and N22, while those of the Cr(III) complex were N3 and N38. The amino acid residues that interacted with the Mn(II) complex were GLU 880(A) and ARG 849(A) from 3nzs, while the residues from 3hy3 were SER 7(A), ARG 14(A), GLY 147(A), and LYS 10(A). On the other hand, the residues from 3nzs protein were SER 236(A) and ASP 239(A).⁵⁴
• (iv)The ligand exposure surface in docking complexes is significantly lower regarding the docking of the Mn(II) complex, while this surface is significantly broad regarding the docking of the Cr(III) complex. This points to the saturated surface of the Mn(II) complex by interaction which reached to the maximum level. The formation energy values of docking complexes belong to the Mn(II) complex were reached to −16.4 kcal/mol with 3nzs protein and −12.1 kcal/mol with 3hy3 protein. These values signify the stability of its docking complexes, while the values belong to the Cr(III) complex docking are very low.⁵⁴ Finally, this investigation expects the superiority of the Mn(II) complex in biological field especially in cytotoxicity.

Table 5. Interaction Parameters for Docking Results of Two Mixed-Ligand Complexes toward Two Functional Proteins.

compounds	proteins	ligand	receptor	interaction	distance (Å)	E (kcal/mol)	S (energy score)
Cr(III) complex	3hy3	N36	OD1 ASP 189 (A)	H-donor	3.90	–0.7	–5.775
	3nzs	N38	OG SER 236 (A)	H-donor	3.09	–5.7	–6.1060
		N3	OD2 ASP 239 (A)	ionic	3.19	–3.3
Mn(II) complex	3hy3	O4	OG SER 7 (A)	H-acceptor	297	–1.4	–6.1243
		N11	NH2 ARG 14 (A)	H-acceptor	3.43	–12.0
		N11	N GLY 147 (A)	H-acceptor	3.09	–4.2
		O24	NZ LYS 10 (A)	H-acceptor	3.02	–4.0
	3nzs	N22	OE1 GLU 880 (A)	H-donor	3.04	–16.4	–6.9622
		S18	NH2 ARG 849 (A)	H-acceptor	3.54	–1.6

3.8.1.3. ADME Parameters

Swiss link was implemented to estimate ADME parameters which produce intensive insights into pharmacokinetics and drug-likeness score of the tested complexes (Table 6). Additionally, the physicochemical properties of the two complexes such as polarity (TPSA), molar reactivity, and rotatable bonds were calculated. The lipophilicity of the two complexes was assessed based on XLOGP3, Log S, and Log P_o/w parameters. Pharmacokinetics of the two complexes were tested via Log K_p (permeability of skin), P-glycoprotein (P-gp) substrate, GI absorption, BBB permeation, and cytochromes P450 (CYP) parameters. Meanwhile, the drug-likeness property was evaluated from the bioavailability radar which showed six parameters over the axis. These parameters are XLOGP3, polarization, unsaturation, size, flexibility, and solubility (Table 6). The pink area showed the optimum range for the six indexes, so the drug-likeness depends on the range of such area for each tested compound regarding these indexes.⁵⁵ The radar of the Cr(III) complex exhibited XLOGP3 (1.42), saturation limit (sp³ ≥ 0.25), size (small), polarity (203.58), and flexibility (6) parameters that detect its reduced drug-like properties. Meanwhile, the parameters of the Mn(II) complex reflect its elevated drug-like features depending on its lower lipophilicity and polarity values. Furthermore, the solubility indices (Log P_o/w and Log S) were also estimated for the two complexes (Table 6). The partition coefficient (Log P_o/w) of the compounds in n-octane/water solvent as well as the Log S parameter detects their ability for water solubility. Consequently, the reduced values recorded with the Mn(II) complex support its lipophilicity that elevates its biological activity.

Table 6. ADME Parameters Estimated for the Two Mixed Ligand Complexes.

Regarding pharmacokinetic parameters, we investigated the behavior of the two complexes against P-gp and cytochrome P450 (CYP) enzymes. As known, the excretion of the P-gp protein in tumor cells resists the action of drugs, while on the opposite side, this protein protects the nerve cells from xenobiotics. Regarding cytochromes (CYP), the behavior of these complexes was examined toward collection of iso-enzymes such as CYP1A2, CYP2C19, CYP2C9, CYP2D6, and CYP3A4 which are essential to eliminate drug residues through metabolism.⁵⁶ These complexes are the substrates of P-gp which indicates their rule in protecting the cell organisms or tissues. Also, the two complexes inhibit only one iso-enzyme (CYP2C19) among the five CYP. Consequently, the metabolism of drug residues is not highly affected and there is no significant drug accumulation in living cells. The skin permeation ability was evaluated by log K_p (cm/s) values which are determined from the relation between lipophilicity and the size of the tested complex. The smaller the negative value as in the Mn(II) complex (−8.18 cm/s), the higher the skin permeability feature.

Moreover, the absorption of these complexes in the gastrointestinal tract (HIA) and barrier of brain (BBB) was evaluated through BOILED-Egg images (Table 6). The BOILED-Egg images refer to the relation between WLOGP and TPSA. The absorption in the gastrointestinal tract was indicated from the white zone, while the absorption in the brain was indicated from the yellow region (yolk).⁵⁶ The blue point appeared in the image of the Mn(II) complex supports its function as the substrate of P-gp (PGP+) but this complex did not absorb in the gastrointestinal tract or brain barrier. Meanwhile, the Cr(III) complex did not have any indication about this property.

To expect the pathways of the Mn(II) complex as the most active one inside living cells, Swiss-Target Prediction tool was run to reach this target. The resulting figure (Figure 5) was displayed for clarification. The Mn(II) complex could interact with 11-β-hydroxysteroid dehydrogenase enzyme 26.7%, cyclooxygenase-2 oxidoreductase by 6.7%, glycine transporter 1 (by homology) electrochemical transporter by 13.3%, and acetylcholinesterase hydrolase by 13.3% also.

Figure 5.

Predicated biological targets of the Mn(II) complex inside living cells.

3.8.2. In Vitro Assays

This part aimed to evaluate the biological activity of the two mixed ligand complexes based on in silico results which expect their biological efficiency, in particular to Mn(II) complex. Here, we focused on testing their antioxidant and anticancer activities to shed a light on the best therapeutic behavior.

3.8.2.1. Antioxidant Activity

We know the dangerous role of free radicals inside human cells, so controlling the free radicals is a precious target of researchers. The free radicals (DPPH^•) generated from the DPPH sensor in a polar solvent could be overcome by the two tested complexes which may take a hypothetical symbol of AH. The reaction between the antioxidant compound (AH) and the sensor (DPPH) must follow this reaction; DPPH^• + AH → DPPH-H + A^•.³⁸ Therefore, the complex release hydrogen radicals have an antioxidant behavior toward DPPH^• and then the concentration of such free radical will decrease leading to low absorption at 517 nm.⁵⁷ The release of hydrogen radicals was expected from the amide group in the coordinating ligands (Scheme 4) depending on the liability of NH hydrogen due to its neighboring with the carbonyl group. The IC₅₀ values (mg/mL, Table 7) were calculated for the two complexes compared to the reference (ascorbic acid). The antioxidant behavior of the Mn(II) complex is highly significant.

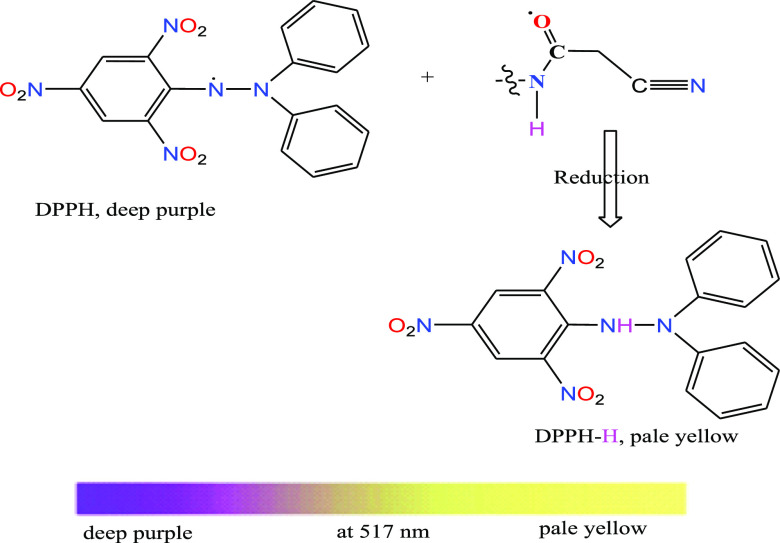

Scheme 4. Antioxidant Mechanism which May be Happened from the Complexes.

Table 7. DPPH Inhibition of New Complexes.

acrchemical compounds	DPPH IC50 (mg/mL)
ascorbic acid	5.39
[Cr(OAc)(H2L1)(HL2)]·2(OAc)	13.21
[Mn(H2L1)(HL2)]·Cl2·2H2O	9.14

3.8.2.2. Cytotoxicity

After treating with the novel complexes in comparison to 5-fluorouracil (5-Fu), the MTT technique was used to measure the cell viability of liver carcinoma (HepG2), prostate cancer (PC3), and breast cancer cells (MCF-7). Table 8 lists the results for the IC₅₀ (μg/mL), and the Mn(II) complex demonstrated the greatest toxicity for breast cancer cells (MCF-7). As a result, silico and vitro studies predicted the potential biological activity of the Mn(II) complex. This activity may be due to the presence of the thiazole ring, C=N, C=O, and NH groups that improved the penetration capability of the tested complexes within the cell membrane. Moreover, Tweedy’s theory of chelation reflects a light on the role of metal ion on the biological activity of the complex which varied the activity from the complex to another for the same ligand. The charge of the metal ion after coordination was reduced to extent permit the miscibility of such complex in cell lipids. The charge of Mn(II) ion was highly reduced compared to the Cr(III) charge which already higher than the Mn(II) ion.⁵⁸

Table 8. Antitumor Activity of the Two Mixed-Ligand Complexes against Three Cancer Cell Lines.

	in vitro cytotoxicity IC50 (μg/mL)a
compounds	HePG2	PC3	MCF-7
[Cr(OAc)(H2L1)(HL2)]·2(OAc)	26.28 ± 1.1	16.64 ± 9.0	13.36 ± 0.8
[Mn(H2L1)(HL2)]·Cl2·2H2O	15.68 ± 1.6	12.44 ± 1.2	9.87 ± 1.0
5-FUb	7.91 ± 0.3	8.22 ± 0.2	5.60 ± 0.2

^aIC50 (μg/mL): 1–10 (very strong), 11–20 (strong), 21–50 (moderate), 51–100 (weak), and above 100 (non-cytotoxic).

^b5-FU = 5-fluorouracil is the reference drug for anticancer tests.

4. Conclusions

Two mixed ligand complexes were prepared from Cr(III) and Mn(II) ions. The molar ratios of the two complexes appeared the same by the 1M/1ligand¹/1ligand² ratio. All compounds were characterized by available analytical and spectral techniques to know their molecular and structural formulae. The electronic transitions and magnetic moment values point to the octahedral geometry of Cr(III) complex, whereas to the tetrahedral one of the Mn(II) complex. All structures were optimized to confirm the mode of bonding for the two ligands inside the coordination sphere. Moreover, the biological activity was extended onto two pathways, the first interested in silico and the second interested in vitro to strengthen the application part. In silico was performed by pharmacophore search, MOE docking, and Swiss ADME link. All extracted parameters or figures signify the superiority of the Mn(II) complex in biological applications. This assumption was confirmed lately from in vitro which investigated the antioxidant and antitumor activity of the two complexes. Also, the calculated IC₅₀ values supported the distinguished biological behavior of Mn(II) complex toward DPPH radical and breast cancer cell line (MCF-7).

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.2c07407.

• Outlines of methodology of antioxidant activity and cytotoxicity, analytical tools utilized for analysis of new mixed-ligand complexes, PDB files of treated pathogen cell proteins, spectral images, TGA curves, EDX patterns, XRD patterns, iso-surface with array plots, 2D-fingerprint of the atoms, 2D and 3D interaction patterns, and TGA data (PDF)

The authors declare no competing financial interest.

Notes

The author(s) agree to publish the article under the Creative Commons Attribution License. All data generated or analyzed during this study are included in this published article.
