The Rise and Future of Discrete Organic–Inorganic Hybrid Nanomaterials

Abstract

Hybrid nanomaterials (HNs), the combination of organic semiconductor ligands attached to nanocrystal semiconductor quantum dots, have applications that span a range of practical fields, including biology, chemistry, medical imaging, and optoelectronics. Specifically, HNs operate as discrete, tunable systems that can perform prompt fluorescence, energy transfer, singlet fission, upconversion, and/or thermally activated delayed fluorescence. Interest in HNs has naturally grown over the years due to their tunability and broad spectrum of applications. This Review presents a brief introduction to the components of HNs, before expanding on the characterization and applications of HNs. Finally, the future of HN applications is discussed.

1. Introduction

Recently, there has been an increase in research in the field of organic semiconductor ligands attached to nanocrystals (NCs) (typically quantum dots (QDs)), replacing ligands that offer colloidal stability with ones that add additional optoelectronic properties. For this Review, we define hybrid nanomaterials (HNs) as the combination of an inorganic NC or QD and an attached organic semiconductor/chromophore (ligand), which is usually a conjugated small molecule (Figure 1a). By combining the ease of attachment/functionalization of the organic component with the tunability (via confinement effects¹) of QDs, HNs present a new and versatile class of optoelectronic materials with properties beyond the sum of the individual components. This versatility has been utilized across different optoelectronic disciplines such as biology,²⁻⁷ chemistry,⁸⁻¹⁰ electronics,¹¹ optics,^12,13 photophysics,^14,15 photovoltaics,^16,17 and spectral management,^10,18−25 and it is the dominant reason for the rapid increase in recent publications (Figure 1b).

Figure 1.

(a) General structure of HNs. (b) Histogram analysis from ISI Web of Science with keywords “inorganic organic hybrid quantum dot”.

While there are recent reviews on both the design of specific ligands for photophysical control²⁶ and utilizing organic/inorganic interfaces for spectral management,²⁷ this Review aims to focus on the fabrication of this new class of materials. To produce functional and versatile HNs for a variety of applications, it is necessary to understand the effects each component part has on the HN system. We will assume a basic knowledge of the two major constituents of HNs, the inorganic and organic semiconductors, and take a more in depth look at how the five major components of HNs control the fabrication and application of these materials. The five major component parts are (1) the QD, (2) any inorganic shells on the QD surface, (3) the binding group of the ligand, (4) the spacer separating the organic chromophore center and the QD (linker), and (5) the organic chromophore itself (Figure 1a). To aid comprehension and discussion, we will briefly touch on common measurement techniques used in the field of HNs. Finally, we will comment on the published applications of these materials based on their potential as a new class of optoelectronic materials.

2. Quantum Dots

QDs are small particles of semiconductor materials, and these QDs have shown potential in optoelectronic applications.²⁸⁻³⁰ QDs can be considered as an intermediate species between atoms or molecules and bulk material (Figure 2). As the size of semiconducting NCs is reduced, the electronic transitions shift to higher energy, and the oscillator strength is concentrated into just a few transitions.^31,32 This quantum-size effect drastically modifies the energy spectra of three-dimensionally confined NCs.¹ Thus, NC absorption and luminescence are size dependent. QDs energy levels are also dependent on their surface chemistry. Changing binding group type and the dipole moment of a surface ligand changes the strength of the QD-ligand surface dipole, shifting the vacuum energy and, in turn, the QD valence band maximum and conduction band minimum.³³

Figure 2.

Illustration of quantum confinement effect on the band gap of general semiconductors. Adapted from ref (34). Copyright 2018 with permission from Elsevier.

Over the past decade, research has focused on optimizing the synthesis of semiconductor NC QDs. Synthetic routes utilizing organometallic precursors enable the production of nanocrystalline particles with near monodisperse size distribution.³⁵ The preparation of nearly monodisperse well passivated NC samples is essential to permit studies that distinguish the truly novel properties inherent to nanoscale structures from those associated with structural heterogeneities or polydispersity. NC samples must be uniform not only in size and shape, but they must also have well-formed crystalline cores and controlled surface chemistry.³⁶

Typically, monodisperse QDs are synthesized by a hot injection method.^37,38 Briefly, the hot injection method entails the rapid injection of a precursor to a hot reaction mixture/solvent. Nuclei are formed immediately upon injection. As the nuclei form, concentration and temperature drop, disabling the formation of any new nuclei. Leftover precursor reagents grow onto existing nuclei, forming monodisperse QDs.

QDs have gained attention due to their large absorption coefficients,³⁹ which can extend into the NIR,^35,40−45 efficient spin–orbit coupling for the emission of transferred triplet excitons,²⁶ and improved photostability compared with their organic counterparts.^46,47 In addition, it remains difficult to synthesize organic molecules that absorb and emit strongly at energies below 900 nm. Those that have been made typically undergo rapid internal conversion to the ground state.⁴⁸

As discussed, the energy levels of QDs are dependent on both the QD size and the surface chemistry.³³ While size can be controlled during the QD synthesis, the surface chemistry can be modified either by the growth of an external inorganic shell⁴⁹⁻⁵¹ or via subsequent exchange of the colloidally stabilizing ligands.³³

3. Inorganic Shells

Due to their geometry, QDs have a distinct difference between their surface and bulk crystal lattice chemistry. At the surface of a crystal, the periodicity of the bulk crystal lattice gives way to faceting, bond contraction, reconstruction, unsaturated/dangling bonds as well as physisorbed and chemisorbed molecular species. With dimensions on the order of a few nanometers, many of the atoms in NCs are located at or near the surface.⁵² This high surface area to volume ratio makes NCs prone to high trap state densities. Imperfectly passivated surfaces promote nonradiative recombination of charge carriers and are detrimental to optical and device performance.^53,54 To improve QDs optical properties, chemical stability, and photostability, several approaches have been developed, including passivation of the NC surfaces with inorganic shells.^43,55 These inorganic shells are limited to having the same crystal structure as the QD core and must have minimal lattice mismatch for adequate passivation. Examples of core/shell QD structures are listed in Table 1.

Table 1. Examples of Core/Shell QD Structures Used to form HNs.

QDs	band gap tunability	shells	application
InP	450–700 nm64	ZnSe, ZnS	FRET,6 upconversion65
CdSe	450–650 nm66	ZnS, CdS	FRET,13 upconversion,22,68,69 thermally activated delayed emission70
CdS	390–440 nm67
PbSe	0.6–4 μm71	CdS	singlet fission,20,72,73 triplet energy transfer,74 upconversion75−78
PbS	800–1400 nm35
CsPbX3 (X = Cl, Br or I)	400–690 nm79		singlet fission,18 triplet energy transfer,80 upconversion,23,81 thermally activated delayed emission82
CuInS2	450–900 nm83	ZnS	FRET,84 upconversion85
Si	355–1130 nm86		energy transfer,12 upconversion87
NaYbF4:Tm3+	∼40, ∼360, ∼450, ∼475, ∼510, ∼580, ∼650 nm88	NaYF4:Nd3+	energy transfer cascade,88 upconversion88

Several commonly used methods exist for the formation of shells: Successive ionic layer adsorption and reaction (SILAR),⁵⁶⁻⁵⁹ in which cationic and anionic precursors are added separately to form monolayers one at a time (Figure 3). Cation exchange, in which introduced precursor cations exchange with cations within the core QD, causing an inward growth of a shell (Figure 3). Sonochemical,^60,61 where sonication induces a reaction between precursors forming a shell. Finally, heat up methods, where precursors are added and gradually heated to a desired reaction temperature, are also used.^62,63 While these measures have achieved varying levels of success, they result in complex, heterostructured materials with altered carrier dynamics.⁴³

Figure 3.

Different methods of inorganic shell growth onto core QDs.

Another technique is to replace the long insulating ligands that enable colloidal stability following synthesis with short organic linkers, potentially leading to improved surface coverage and higher packing densities.^54,89,90 Attached ligands can positively and negatively influence carrier mobility,⁹¹⁻⁹³ tunneling distance,^94,95 dielectric environment,^96,97 carrier and exciton lifetimes,⁹⁸⁻¹⁰¹ electronic trap sites,^96,99−101 surface dipoles,³³ and valence and conduction band edges.³³ However, this Review aims to focus on the relatively new idea of replacing these colloidally stabilizing ligands with ligands that offer new optical and electronic functionality. In general, a chromophore ligand can be broken into three parts: the binding group, the linker, and the chromophore.

4. Binding Groups

As mentioned above, the surface atoms of a QD have lower coordination than the core atoms, resulting in free sites with unbonded orbitals.¹⁰² These unbonded orbitals allow for interaction with ligands, which can increase passivation of surface traps¹⁰³ and help prevent aggregation of the QD.^102,104 The portion of the ligand interacting with the surface orbitals of the QD is called the ligand binding group. In the simplest form, binding to the QD surface involves the transfer or exchange of electrons between a surface atom and the ligand binding group.¹⁰⁵ The Covalent Bond Classification has been used to describe these surface interactions, with ligands defined as either L-, X-, or Z-type based on the number of electrons contributed to the surface bond from the neutral ligand (2, 1, or 0 respectively, Figure 4).¹⁰⁵

Figure 4.

Representation of the three ligand classes used to describe nanoparticle ligands. L-, X-, and Z-type ligands donate 2, 1, and 0 electrons to the QD surface, respectively.¹⁰⁵

A wide range of ligand binding groups have been used to efficiently bind to different QD crystal structures (Figure 5).¹⁰⁶ The simplest method of attaching a ligand to a nanoparticle is through physisorption, whereby van der Waals forces facilitate a weak binding between the ligand and QD surface.^107−109 Monodentate ligands can also be used to attach ligands to the QD surface, for example, with carboxylic acids,^{8−10,106,110,111} amines,^{106,111−114} thiols,^{106,111,115−117} or phosphorus based binding groups.^{106,111,118,119} These binding groups connect the QDs and ligands with chemisorption,¹¹¹ thus providing a stronger interaction than the physisorption method. Multidentate ligands have multiple binding groups on a single ligand, allowing the chelate effect to provide ligands with more stability on the QD surface, reducing ligand desorption.¹²⁰ Multidentate ligand binding groups include zwitterions^121−123 and polymers.^123−125

Figure 5.

Examples of linkers that have can be used to bind a chromophore to QD.^{8−10,106−125}

Binding strength is arguably the most important consideration for a hybrid system: without adequate binding, the ligand will not remain attached. As such, in selecting a binding group for a hybrid organic–inorganic system, the aim should be to maximize ligand binding strength without negatively influencing the desired properties of the system. Optimizing the binding group to meet these two aims for each hybrid system is often a balancing act. There is a range of factors that may need to be considered when selecting a binding group including (but not limited to): (1) composition of the QD;^105,121 () postsynthetic treatment method of the hybrid QDs; (3) application requirements for the HN; (4) steric effects of the organic ligand; (5) desired ligand density; and (6) ease of access to the desired binding group.

Of these factors, several directly affect the binding strength required. The composition of the QD influences the interactions between QD and ligand and can result in facile ligand desorption if binding is inadequate. An example of this is in the functionalization of CsPbBr₃ perovskite QDs, where it has been found that monodentate ligands have dynamic surface interactions resulting in poor QD stability over time.^105,121 To overcome this, a range of bidentate zwitterionic ligands have been employed, using the chelate effect to reduce the effects of the dynamic nature of the CsPbBr₃ QDs.¹²¹ Vigorous centrifugation and solvation are used in the postsynthetic purification of the QDs, which can cause ligand dissociation with weak binding. Similarly, ligand dissociation is more prevalent in solution than solid state, so the final application of the particles also needs to be considered in selecting the binding group. While considerations of the medium containing a HN is beyond the scope of this review, it is important to note that the dielectric constant of the immediate solvent environment affects the charge distribution of the NC,¹²⁶ and the organic component,¹²⁷ influencing binding strength. Finally, the steric bulk of the ligand near to the QD may reduce the efficacy of the binding group, requiring stronger binding groups.

Binding strength aside, it is important to consider the desired ligand density for a HN. The more space that the binding group requires on the surface of the QD, the fewer ligands that can fit on the surface. In cases where ligand density needs to be sufficiently high, it can be useful to select monodentate binding groups over the stronger binding multidentate groups. Finally, the design of an organic ligand with a particular binding group will often not be commercially available and thus may require in-house synthesis to be made. Depending on the sensitivity of the system, it is often worthwhile selecting more accessible binding groups that do not require significant synthetic work. Selecting a binding group that balances all factors to provide a solution suitable for the application is often a challenge that requires testing and optimization to achieve.

5. Linker

The linker section of the HN system acts to connect the binding group to the chromophore. While it is not essential to the HN system, it can improve the overall function.²⁶ As the field of HNs is intrinsically dependent on the energy transfer between NC and ligand, the distance between the two components plays an important role. The linker can be used to effectively tune the distance (and thus the energy transfer occurring) in the HN system.^{24−26,128,129} The linker also acts to spatially separate the binding group and chromophore, reducing negative influences (typically electronic or steric) that can arise from directly connecting the binding group to the chromophore.

Linkers do not have any specific structural requirements, although they tend to be chemically, electronically, and optically inert to avoid unwanted interactions with the HN system. Literature examples of linkers have not had much diversity, likely due to the synthetic requirement for designing a diverse linker. Common linkers tend to be based on alkyl chains^{7,9,26,129,130} or phenyl spacers,^{25,26,128,129} sometimes with other structural motifs present due to the synthetic route used, such as triazole rings,⁹ ethers¹²⁹ or amides⁷ (Figure 6).

Figure 6.

Examples of linkers that can be used to connect chromophores to binding groups.^{7,9,25,26,128−130} Note that these exact structures may not have necessarily been used, only the functionality.

The fact that linkers are not essential to the function of a HN system and tend to require organic synthesis to include, often results in their exclusion from this system.^{10,18,22,23,75} Despite this, some situations require a linker to distance the chromophore from the nanoparticle surface. For example, Xu et al. designed a HN system that worked as an energy transfer cascade, from QD to surface chromophore to solution chromophore (Figure 7).²⁵ With increasing linker length, the efficiency of the first energy transfer decreased but the efficiency of the second energy transfer increased.²⁵ Thus, the linker length was used to optimize the efficiency of the entire process.²⁵ Thus, it is a necessary step to consider whether a linker in required for the specific application.

Figure 7.

Energy transfer cascade from a PbS NC to a rubrene emitter, via a mediator tetracene with variable distance from the crystal. The energy transfer efficiency optimized through the length of the linker system used, by changing the number of phenyl rings (n). Adapted from ref (25). Copyright 2020 American Chemical Society.

If decided that a linker would be beneficial for a particular HN system, there is a range of factors that should be considered in selecting a linker including: (1) the desired length of the linker; (2) the flexibility and sterics of the linker; (3) the electronics of the linker; and (4) the accessibility of the linker. As the inclusion of a linker is typically synthetically demanding, investigations into these factors are currently limited.²⁶ Instead, we will discuss the broader reasoning behind these considerations, providing literature examples where available.

Primarily, a linker acts to provide distance between the QD and chromophore. The power of the linker length comes in the ability to tune this distance to optimize the desired properties of the HN system. However, this makes selecting a linker length for a particular application a challenging task because it depends on many factors specific to each system. For example, a key influence in the choice of linker length is the type of energy transfer expected to take place; for example, Dexter energy transfer requires shorter distances than Förster resonance energy transfer (FRET) does.¹³¹ Linker flexibility and sterics are important factors that needs to be considered in designing a HN system. A flexible linker may allow for chromophores to vary the distance to the QD, altering the energy transfer properties.¹³² In addition, flexibility in the linker may reduce the number of chromophores that can fit on the surface of the particle, likely the result of random chromophore movement increasing the disorder of the system, thus increasing the entropic cost of binding.¹³³ Similarly, if the linker has steric bulk associated with it, it may reduce the quantity of chromophores that can fit around the QD compared to a less bulky linker. In addition, the electronics of the linker can play a part and may need to be considered. For example, if a chromophore is aromatic, then attaching a phenyl linker system can extend the conjugation of the system, influencing the desired properties. In some cases, this extended conjugation may be desired when transmission through the linker is necessary.²⁵ In addition, the electronics can influence the packing of molecules on the surface. This can either cause unexpected effects such as aggregation induced excimer formation⁷³ or be desired for other applications like singlet fission.¹⁰ These electronic effects tend to be minimal so linkers with strong electronic influences (such as phenyl rings) are still used.²⁵

Depending on the HN system, it is often more sensible to select a linker than can easily be accessed through known synthetic methods. Overall, the selection of a linker involves balancing a range of factors to help optimize the overall function of the HN system.

6. Chromophores

A chromophore is defined as the part of a molecule in which electronic transitions occur in the visible region and is thus responsible for the color of the molecule.¹³⁴ For the purposes of a HN system, chromophores need not necessarily have their transitions in the visible region, so long as the energy is appropriately matched to the QD of choice. Despite this, chromophores used in HN systems tend to fall in the visible region.^{6,8−10,18,19,22,23,75,130,135}

The primary selection criteria for choosing a chromophore are the intrinsic properties associated with it. These properties generally include absorption maxima, molar absorptivity, emission maximum, photoluminescent quantum efficiency (PLQE), or Stokes shift.¹³⁶ In addition to these innate properties, sometimes the energy levels of the chromophore allow for other processes such as singlet fission (SF) or triplet–triplet annihilation (TTA) to occur (these processes will be discussed in detail later).^{10,22,23,75,130} Besides these processes, the selection of a particular chromophore is usually dependent on the energy levels of absorption and/or emission. Energy transfer is an essential process for HN systems; thus, absorption/emission matching is crucial for optimizing this process.¹³⁷

Besides optimizing energy transfer, the selected chromophore needs to have the ability to bind to a QD. Some chromophores innately contain binding groups that can be utilized, such as the carboxylic acid on some rhodamine-based dyes.⁶ However, if this is not the case, there needs to be a way to modify the chromophore without negatively impacting the properties. Typically, this simply involves the attachment of an additional handle in place of a hydrogen atom–for example, a single aromatic proton in tetracene can be replaced with a binding group or linker binding group to allow the chromophore’s attachment.^10,130 Despite this, most chromophores have portions that can be functionalized with a binding group with only minor effects to the intrinsic properties of the chromophore.

7. Methods of Characterization

Hybrid systems as currently described exhibit a multitude of different properties. In many circumstances, one hybrid system cannot be characterized in the same means as another. In this section, we discuss available characterization techniques to cover a wide variety of hybrid systems.

7.1. Förster Resonance Energy Transfer

FRET (Figure 8) is the most extensively researched phenomenon in hybrid systems to date (Table 2).^{3,6,7,12,13,138−164} It is also a technique for supporting the findings of whether a donor and acceptor are closely bound.

Figure 8.

Illustration of FRET, where an excited donor species nonradiatively relaxes by exciting a nearby (1–10 nm) acceptor species.

Table 2. Tabulation of the Commonly Utilized Annihilators for TTA Based Upconversion Systems.

annihilator	T1 (eV)	S1 (eV)	peak PL (nm)	PLQE (%)
2,5-diphenyloxazole203	2.37	3.70	355	95
2,5-diphenyl-1,3,4-oxadiazole22	2.82	4.00	443	98
naphthalene22	2.72	4.29	320	25
p-terphenyl22	2.53	3.92	337	100
9,10-diphenyl anthracene204	1.77	3.54	405	100
rubrene205	1.14	2.23	557, 591	∼65
5,11-bis(triethylsilylethylnyl)-anthradithiophene78	1.08	2.16	580, 610, 660	∼74

FRET is a nonradiative energy transfer process occurring from the dipole–dipole coupling of an excited state donor to a ground state acceptor. It is generally only possible from donor–acceptor distances of 1–10 nm. At distances shorter than this threshold, Dexter energy transfer typically takes place instead. FRET is described by the following equations:^4,5,165

1

2

where J(λ) is the spectral overlap between the donor emission and acceptor absorption spectrum, R₀ is the distance at which energy transfer between the donor and acceptor is 50%, N_A is the Avogadro constant, κ is the dipole orientation factor, n is the refractive index of the medium, Q_D is the PLQE of the donor in the absence of acceptor, F_D is the emission spectrum of the donor, ε_A is the extinction spectrum of the acceptor, and λ is the wavelength.

3

where E is the efficiency of energy transfer between donor and acceptor and r is the distance between the donor and acceptor.

Energy transfer efficiencies are commonly characterized by the quenching of the donor species in the presence of acceptor, as shown in eqs 4 and 5.^4,5,165

4

5

where F refers to fluorescent intensity of the donor, τ refers to the lifetime of the donor, and 0 indicates donor with no acceptor present. Using eqs 1–5 allows one to solve the donor–acceptor distance of a given system and hence infer whether ligand binding is likely taking place.

7.2. Dexter Energy Transfer

Similar to FRET, Dexter energy transfer is another short-range energy transfer process that can occur when chromophores are located close to a QD. The Dexter energy transfer process involves the correlated transfer of two electrons between the donor and acceptor (Figure 9).^135,166,167 This transfer requires short-range correlation (typically <1 nm) to provide adequate orbital overlap between the donor and acceptor.¹⁶⁸ Dexter energy transfer allows triplet energy transfer, a useful property for SF and TTA.¹⁰

Figure 9.

Demonstration of the correlated electron transfer that occurs in Dexter energy transfer from donor (here a molecule in the triplet excited state) to acceptor (here a QD).

7.3. Stern–Volmer

The Stern–Volmer equation (eq 8)¹⁶⁹ is a powerful tool when characterizing physisorbed hybrid donor–acceptor systems. By collecting both fluorescence and lifetime quenching data as a function of acceptor concentration, the static and dynamic quenching contributions can be established:

6

7

8

where K_S is the static quenching constant, K_D is the collisional or dynamic quenching constant, Q is the concentration of quencher, K is the Stern–Volmer quenching constant and k_q is the bimolecular quenching constant.

The most important constant for inferring if some form of binding is taking place between a donor and acceptor is k_q, which can be calculated by substituting K for K_S or K_D. If k_q is larger than 1 × 10¹⁰ M^–1, then some type of binding interaction is taking place¹⁶⁹ (lower than this value indicates poor quenching or steric shielding occurring between the donor and acceptor).

7.4. Changes in Optical Properties and Photoluminescent Properties

Convincing evidence of strong binding between a donor and acceptor is commonly seen when comparing the absorption spectrum of the acceptor to the absorption spectrum of the hybrid system. The acceptor will commonly be red-shifted by 5–15 nm (ref (6).) and the extinction coefficient of the acceptor in some cases has been shown to change.^7,12 This is due to native ligands attached to the donor NC’s surface forming an environment of differing polarity compared to the bulk solvent in which they are dispersed. When an acceptor is bound to the NC surface, the change in the surrounding environments polarity causes these photophysical changes. QDs may also assist the formation of dye aggregates when bound,¹⁷⁰ causing changes to the optical properties of the dye.^171−174

Evidence of energy transfer can be observed when comparing the excitation spectra of individual donor and acceptor to the excitation spectrum of the acceptor in a hybrid system at the wavelength of the acceptors PL maximum. If energy transfer is present, the hybrid system will exhibit donor excitation character. While this does not directly suggest any form of binding between a donor and acceptor it serves as supporting evidence of an interaction.

In many cases, binding between a donor and acceptor will modify the PLQE of the system.¹² Donor QDs may exhibit a change in PLQE due to bound acceptors changing its passivation at the surface. Acceptors may exhibit a change in PLQE as a function of energy transfer or through the formation of aggregates on the surface.⁷³

7.4.1. Ligand Exchange

Observable color and phase changes are a common means of characterizing binding between a donor and acceptor.⁷ In any ligand exchange, if sufficient washing is performed post ligand exchange and the color of the clean donor sample is observably different to the exchanged sample (with the absorption spectrum showing acceptor character also present), binding is likely. In a biphasic exchange, if the donor QDs become dispersed in the antisolvent containing the desired ligand to be exchanged, binding is proven.

7.5. NMR

Nuclear magnetic resonance (NMR) spectroscopy is a powerful tool that can be used for the visualization of molecules. For a HN system, it can be used to aid confirmation of chromophore attachment to the surface of a QD.¹⁷⁵ There are several NMR techniques that are used, including one-dimensional (1D) NMR or two-dimensional (2D) diffusion-ordered NMR spectroscopy (DOSY) and nuclear Overhauser effect spectroscopy (NOESY).¹⁷⁵

1D NMR probes a single spin-active nucleus, for example, ¹H, ¹³C or ³¹P, to name a few. The 1D NMR spectrum of a molecule is often affected when it is bound to a QD compared to the molecule in solution alone. First, changes in the chemical shift of nuclei in the molecule can indicate binding to a QD,¹⁷⁵ the result of the QD influencing the chemical environment of the molecule. In addition, a broadening of peaks can be observed, a result of attachment to a large QD which tumbles far slower in solution.^121,175 Broadening tends to occur more in atoms closer to the surface of the particle.¹⁷⁵

Although 1D NMR can give an idea of ligand binding, it is not conclusive. Diffusion-ordered NMR spectroscopy (DOSY), however, can provide this information. DOSY is a 2D NMR technique that measures the diffusion coefficient, D, against chemical shift. The diffusion coefficient of the ligand in the QD solution can then be compared to free ligand and should diffuse slower (i.e., lower diffusion coefficient) if bound and attached to a relatively heavy QD.¹⁷⁵ The diffusion coefficient, D, can be used in the Stokes–Einstein relation to determine the hydrodynamic diameter, d_H:¹⁷⁵

9

where k_B is the Boltzmann constant, T is the temperature, and η is the solvent viscosity. If the calculated hydrodynamic diameter is roughly equivalent to the sum of the nanoparticle diameter and twice the ligand shell thickness, then the ligand can be assumed to be bound.¹⁷⁵ However, specific note of solvent effects should be considered when determining the hydrodynamic diameter as these have a known effect on ligand conformation.^176−179

Nuclear Overhauser effect NMR spectroscopy (NOESY) is another technique that can provide more conclusive evidence that a ligand has been bound to the surface of a QD. The nuclear Overhauser effect (NOE) is a distance dependent ¹H–¹H internuclear effect, with a 2D NOESY reflecting these interactions and the intensity of the NOE.¹⁷⁵ The sign of a NOE signal depends on the rotational correlation time, τ_c, of the molecule, with relatively long τ_c values giving negative signals and short τ_c’s yielding positive signals. When a molecule is attached to a large QD, its rotation is slowed, increasing τ_c and thus affording a negative NOE signal. In comparison, free molecules have short τ_c values, so are observed as a positive signal in the NOE spectrum.¹⁷⁵ This allows for differentiation of bound and unbound molecules.¹⁷⁵

8. Applications

8.1. Energy Transfer

HNs have been used extensively in the development of FRET Based Systems (Figures 10 and 11).

Figure 10.

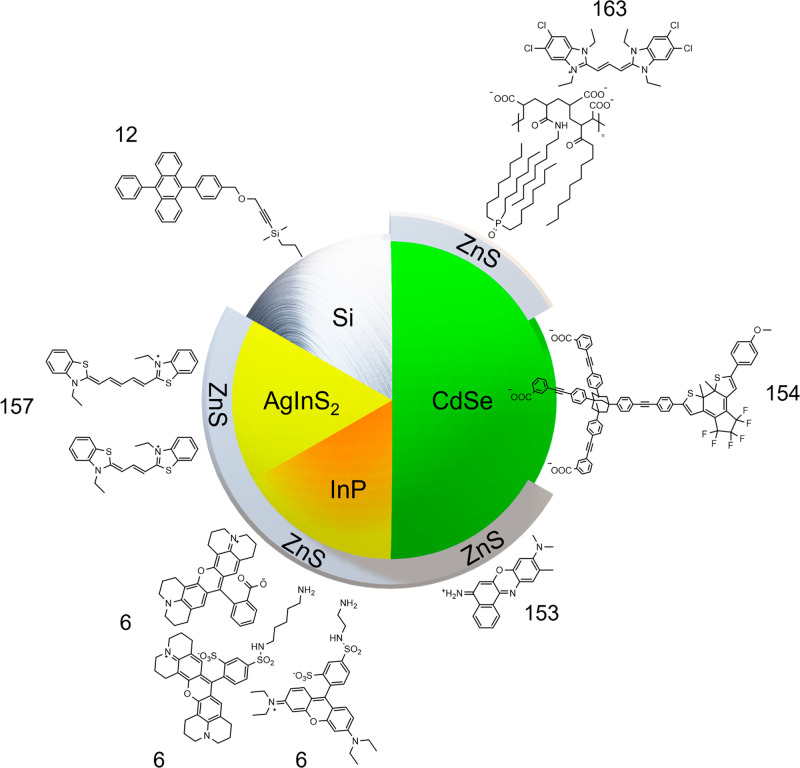

Visual summary of the HNs utilized in FRET based energy transfer systems for nonbiological systems. References of presented research are displayed as numbers around the image.

Figure 11.

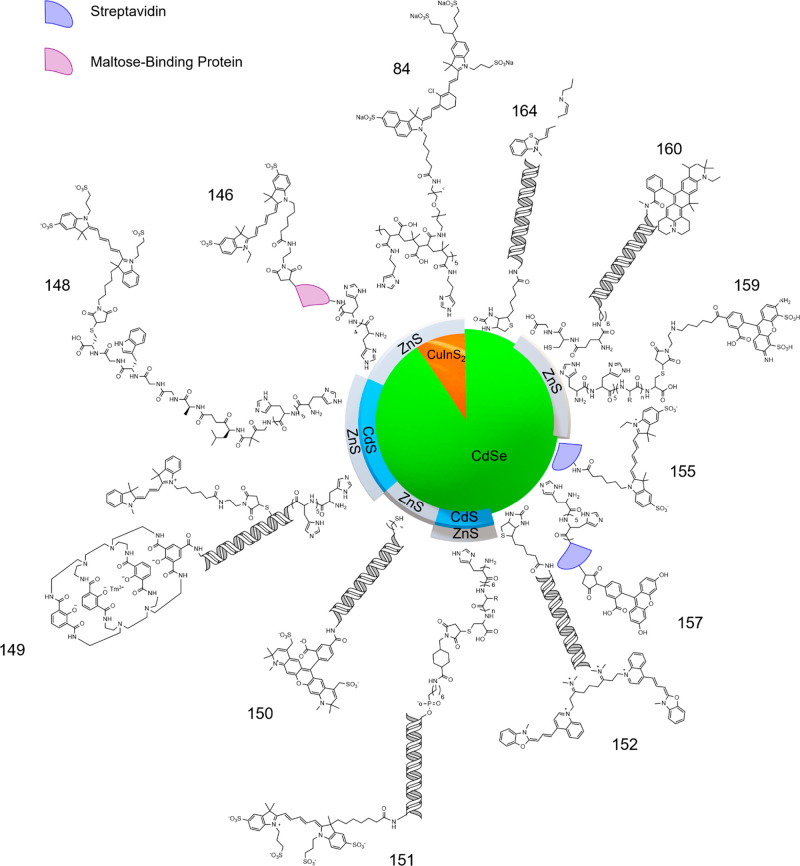

Visual summary of the HNs utilized in FRET based energy transfer systems for biological systems. References of presented research are displayed as numbers around the image.

FRET is a powerful tool in potential medical imaging applications, resulting in a collection of well researched hybrid systems (Figure 10).^{6,7,142−164} Thomas et al.⁶ (Figure 12) first showed that FRET was possible from (Cd/Pb free) InP/ZnS QDs to emissive organic acceptors. The authors synthesized InP QDs by hot injection. As as-synthesized InP QDs without further treatment exhibit <1% PLQEs,¹⁸⁰ the authors overcoated a ZnS shell by a heat up method, yielding core/shell QDs with a PLQE of ≈10%. Acceptor molecules were chosen to maximize FRET, and this included lissamine rhodamine B-ethylenediamine (LiRh), Texas red cadaverine C5 (TxRed), and rhodamine 101 (Rh101). Each organic dye exhibited good spectral overlap, required for FRET, carboxylate or amine binding groups for attachment to the QDs, and small linker lengths to minimize donor–acceptor distance. Attachment of the acceptors was performed by a Stern–Volmer quenching experiment, in which the authors found a high bimolecular constants (1.71 × 10¹⁴ M^–1 s^–1 for LiRh, 2.28 × 10¹⁴ M^–1 s^–1 for TxRed, and 6.80 × 10¹³ M^–1 s^–1 Rh101), indicating a static interaction between the donor and acceptors. High levels of energy transfer were determined by fluorescence and lifetime quenching of the donor (≈60% for LiRh, ≈72% for TxRed, and ≈74% Rh101).

Figure 12.

FRET occurring from InP/ZnS to lissamine rhodamine B-ethylenediamine. Adapted from ref (6). Copyright 2014 American Chemical Society.

Xia et al.⁷ assembled a FRET pair between colloidal CuInS₂/ZnS QDs and a dark quencher (Figure 13), for biological applications such as biomedical imaging, photodynamic therapy, and diagnostic and sensing devices. The work performed by Xia et al.⁷ is a particularly good example of the power that tunable hybrid systems have to offer, as they carefully choose each component of their hybrid system to fit their desired purpose. The authors synthesized CuInS₂ cores NCs by a heat up method. The cores were chosen for their reduced toxicity compared to cadmium-based alternatives.^181−185 Similar to the work by Thomas et al.,⁶ a thin ZnS shell was then overcoated through a SILAR method, with the resultant passivation increasing the core QD PLQEs from ≈20 to ≈50%. While FRET is readily achievable using the cores alone, a donor with a high PLQE is desirable to improve sensitivity when in the presence of the dark quencher. As a foundation for quencher attachment, and to allow for water solubility of the synthesized dots, the authors synthesized two polymer ligands, whose monomers consisted of an imidazole ring for binding, methoxy termination (His-PIMA-PEG-OMe) for one polymer ligand, and amine termination (His-PIMA-PEG-NH₂) for the other. Native oleate ligands on CuInS₂/ZnS were exchanged for the polymer ligands, forming two separate dispersions of polymer functionalized CuInS₂/ZnS QDs in water. The difference in terminal functionalization allowed for the comparison of binding strength to quencher (IRDye QC-1). The OMe functionalized CuInS₂/ZnS QDs showed a small quenching effect in the presence of the quencher, whereas in contrast, using NHS ester reaction chemistry the quencher was covalently bound to the amine functionalized CuInS₂/ZnS QDs. The quenching effect was prominent, and the estimated FRET efficiency of their system reaches nearly ≈80% (estimated by lifetime quenching of the donor). The work performed illustrates a clear, comparable example in which a covalently attached donor–acceptor HN within a given medium outperforms (in terms of FRET) the individual, unattached donor and acceptor of the aforementioned HN, within the same medium.

Figure 13.

FRET occurring from CuInS₂/ZnS to IRDye QC-1. Adapted from ref (7). Copyright 2020 American Chemical Society.

The use of hybrid systems is not limited to medical applications, and recent research has explored their use in improving existing solar technologies.^12,13 Tummeltshammer et al.¹³ explored the usage of a hybrid system for the use of luminescent solar concentrators (LSCs) by the fabrication of the first proof-of-concept HN LSC (Figure 14). The theory being that reabsorption by the high extinction coefficient QDs can be reduced if absorbed energy is transferred to an organic luminophore whose emission spectrum has reduced overlap with the donor’s absorption spectrum. CdSe based QDs (Qdot 545 ITK amino (PEG)) were used as the donor. Alexa Fluor 546 NHS ester dye was chosen as an acceptor for its suitable spectral overlap and readily reactive ester to allow for attachment by NHS ester reaction chemistry to the amphiphilic surface coating of the donor. The resultant hybrid system was dispersed in deionized water, and the FRET efficiency was estimated as ≈94% by lifetime quenching of the donor. The hybrid dispersion was then injected into a 2 cm × 2 cm glass cell, forming a liquid-based LSC. Optical efficiency (η_opt, defined below) was obtained from AM1.5 g illumination.

10

where PL_LSC is the photoluminescent intensity of the edges of a LSC, PL_EXCT is the photoluminescent intensity of the excitation source, and G is the size factor (calculated as the ratio between the surface of the top slab compared to the edges of the LSC). An η_opt of 2.87% was measured for the hybrid system, in contrast to 2.11% and 2.24% for the Alexa Fluor dye and QDs, respectively. While this work does not particularly contribute to new knowledge of hybrid systems, it does importantly show a new step in terms of versatility of application, being the first published work exploring hybrid systems for use in LSCs.

Figure 14.

HN system for use in a liquid LSC. Reprinted with permission under a Creative Commons Attribution 4.0 International License from ref (13). Copyright 2017 Elsevier.

Mazzaro et al.¹² explored the first hybrid luminophore based solid state LSCs. Silicon NCs (SiNCs) were chosen as the primary luminophore for the authors LSCs, due to their inherently low reabsorption. SiNCs by themselves however offer poor sensitization of the solar spectrum; thus, the authors sought to form hybrid SiNCs functionalized with 9,10-diphenylanthracene (DPA) as a UV sensitizer. SiNCs were produced by thermal disproportionation of hydrogen silsequioxane, obtaining SiNCs in SiO₂. Etching the oxide matrix with HF yields free-standing H-terminated SiNCs. Hydrosilylation with a linker containing an electrophilic site, followed by a substitution reaction with alkyne functionalized 9,10-diphenylanthracene, formed the overall hybrid system. As a control, the authors compared an LSC composed of unbound SiNCs and DPA, which yielded an η_opt of 4.25%. In comparison, the LSC composed of the covalently bound counterpart yielded a reduced η_opt of 3.08%. This decrease in efficiency was attributed to the hybrid luminophore systems PLQE being decreased in the covalently bound system (PLQE SiNCs 43%, SiNCs with unbound DPA 45%, and SiNCs bound DPA 27%). The authors attribute this decrease to be from the Si core upon covalent functionalization due to decreased ligand passivation, resulting in increased surface defects. Importantly, this paper illustrates the care that must be taken when designing a hybrid system for a given application, as extensive work to ensure the binding of an organic luminophore may not be necessary, and even detrimental, to the desired application.

Dworak et al.¹⁵⁴ formed a photochromatic hybrid system to elucidate the quenching mechanisms taking place in the donor. Assembly of the hybrid system can cause a loss of passivation of the QD donor, thus giving rise to a quenching effect that could be mistaken for energy transfer. The authors begun by choosing CdSe QDs as a donor for its well-established FRET and ligand exchange ability.^{13,146−155,157,159,160,163,164,186} The authors then chose a photochromatic dye, dithienylethene dye (DTE), as their acceptor candidate to be bound (Figure 15). An adamantyl based tripodal linker furnished with three COOH anchoring groups was utilized for binding between donor and acceptor. Ligand exchange was performed in chloroform over 15 min using specific amounts of each component, the resultant hybrid system was isolated by syringe filtration. In the open form (o-DTE), DTE cannot perform FRET, conversely the closed or photo stationary form (pss-DTE) can perform FRET. The open and closed form was accessed by 590 and 320 nm illumination, respectively. The authors examined the emissive lifetime of the donor for: CdSe, CdSe/o-DTE, and CdSe/pss-DTE. In both the CdSe/o-DTE and CdSe/pss-DTE systems, quenching was observed relative to CdSe. In CdSe/o-DTE, this quenching is attributed to decreased passivation of the donor, whereas in CdSe/pss-DTE the quenching is attributed to FRET and decreased passivation of the donor. This enabled the authors to directly estimate a FRET efficiency by comparing how the CdSe/pss-DTE system quenches relative to the CdSe/o-DTE system, resulting in an efficiency of ≈81%. Being able to discriminate between the quenching mechanisms taking place in a hybrid system made these findings the first of their kind, and naturally they have important implications for FRET based hybrid systems when quantifying FRET efficiencies.

Figure 15.

Photochromatic HN system. FRET is the reported photochromic FRET. Adapted with permission under a Creative Commons Attribution 3.0 Unported License from ref (154). Copyright 2014 Royal Society of Chemistry.

8.2. Singlet Fission

Singlet fission (SF) is a process that can occur in some organic chromophores, converting one singlet excited state of the chromophore into two triplet excited states.¹⁸⁷ This process offers promise to increase the number of excited states reaching a photovoltaic from solar excitation.^10,135 Two types of HN system have been employed with SF chromophores. The first involves triplet energy transfer from the chromophore to QD, aiming to emit the SF generated excited states, acting as a photon multiplier (Figure 16).^{10,20,21,130,188} The second involves energy transfer from QD to chromophore, sensitizing SF for wavelengths where the chromophore has poor absorption.¹⁸

Figure 16.

SF based photon-multiplier utilizing bound TIPS-tetracene and PbS QDs as demonstrated in the literature.^10,20,130

Recent progress of the photon multiplication process has focused on transferring the dark triplet states from SF chromophores into QDs where quantum confinement effects introduce a triplet like ground state in the QD,¹⁸⁹ allowing emission.¹³⁵ The initial work on QD doped tetracene (a chromophore that exhibits excellent SF efficiencies) films exhibited significant loss mechanisms due to inefficient triplet transfer through insulating ligands.¹³⁵ This led to interest in a HN system, with a SF chromophore directly attached to an emissive QD to act as a photon multiplier system.^{10,21,130,188}

Davis et al.¹⁰ demonstrated the first example of a HN system using a SF chromophore, directly attaching a TIPS-tetracene carboxylic acid ligand, 6,11-bis((triisopropylsilyl)ethynyl)tetracene-2-carboxylic acid, to the surface of PbS QDs (Figure 16).¹⁰ While SF in the molecule chosen had yet to be measured, SF in tetracene is known to be up to 200% efficient.¹⁸⁷ To allow triplet energy transfer from tetracene to the QD, the band gap energy of the QD must be lower than the triplet energy of TIPS-tetracene (∼1.25 eV).¹⁹ In addition to this, the excitons transferred need to be re-emitted, meaning a high PLQE QD is desired. Lead sulfide nanoparticles have shown the ability to be broadly tuned across the near-infrared region,³⁵ with moderate PLQEs between 10–60% depending on the band gap energy.¹⁹⁰ As a result of these properties, PbS QDs with a band gap of 0.93 eV were selected.¹⁰ Since triplet energy transfer proceeds via short-range Dexter energy transfer,¹⁰ including a shell and linker would increase the distance between the chromophore and QD, reducing the transfer efficiency.¹⁰ The binding group was selected as a carboxylic acid,¹⁰ a well-known binding group for PbS QD ligands.^35,135 Following attachment of the TIPS-tetracene carboxylic acid to the surface of the PbS QDs, analysis showed that SF and triplet transfer was occurring with near 200% efficiency.¹⁰ However, functionalization of the PbS reduced the PLQE of the particles, resulting in an overall photon multiplication efficiency of just 17%.¹⁰

Since this first publication showing the potential for a HN system to act as a photon multiplier, further investigations into this system have been carried out. A thiol functionalized TIPS-tetracene, 6,11-(bis((triisopropylsilyl)ethynyl)tetracen-2-yl)methanethiol, was also shown to undergo efficient SF and triplet transfer to a PbS QD.¹³⁰ While the photon multiplication results were similar to the tetracene carboxylic acid, the thiol was proposed to bind more strongly to the surface of the PbS QD, accounting for the improved thermal stability.¹³⁰ This thiol also employed a small single carbon linker between chromophore and binding group, although this was only necessary for the synthetic route used to the ligand.¹³⁰

A challenge with SF chromophores is the limited absorption range they cover, reducing the portion of high energy photons that can undergo SF.¹⁸ For example, pentacene has little to no absorption in the 400–500 nm region.¹⁸ To improve absorption in this region, a HN system was utilized, attaching a TIPS-pentacene carboxylic acid to a CsPbBr₃ perovskite QD.¹⁸ Like the TIPS-tetracene carboxylic acid system discussed above, no linker or shell was included and the chromophore was bound to the QD using a carboxylic acid. Again, short-range dexter energy transfer occurred, although in this case from QD to chromophore, where SF could then take place. They found that excitation of the perovskite QD ultimately led to the formation of triplet excited states in the SF chromophore, indicating that the hybrid system successfully sensitized SF.¹⁸ Future work is needed to allow for extraction of the generated triplets following sensitization.

Overall, the inclusion of HNs in the SF area has drastically improved the outlook for utilization of the SF process. The ability for a process such as SF to occur at the surface of a QD is powerful and may have a range of future impacts across other fields. The biggest challenge facing SF HN systems is the reduction of QD PLQE when attaching the SF chromophore to the surface. Future work is also needed to transition to higher PLQE QDs so that photon multiplication efficiencies approaching 200% can be achieved. If this is possible, then these SF HN systems could be broadly applied to existing solar panels to increase efficiency.^21,188

8.3. Upconversion

Upconversion in organic/inorganic HNs takes advantage of triplet–triplet annihilation (TTA), an energy transfer mechanism that occurs between two molecules in their triplet excited states, producing a singlet ground state (S₀) and an emissive singlet excited state (S₁). The exact mechanism of TTA will not be described in this text, but more information can be found in a report by Bossanyi et al.¹⁹¹ As direct excitation from the singlet ground state to the first triplet excited state is a spin forbidden process, it is necessary to “sensitize” the triplet states of the annihilator with another compound that can efficiently produce triplet excited states and transfer them.¹⁹² Inorganic semiconductors possessing a significant heavy metal content can fulfill this role as the spin–orbit interaction can convert photogenerated singlet excitons into triplets with minimal energy penalty (<15 meV).^193−197 These triplets can then undergo triplet energy transfer (TET) to nearby annihilators in solution that possess the appropriate triplet energy state.

While not present in all HN upconversion systems, it is common to have a third component which is commonly referred to as a mediator or transmitter ligand.^22,76 The mediator ligand is a chemical species that facilitates TET between the sensitizer and annihilator¹⁹¹ by allowing triplets to transition through the ligand shell^76,168 and increasing the lifetime of the photoproduced triplets by up to 6 orders of magnitude.^25,198−200 In the literature, it is common to report the upconversion efficiency as a percentage out of 100%. However, in terms of a photons absorbed versus photons emitted, the maximum PLQE of a TTA based conversion system is 50%, as two photons are required to produce one upconverted photon. Therefore, most reported upconversion efficiencies are the PLQE of the upconversion system multiplied by two. It must be pointed out, that there is debate among the community about merits of this practice.²⁰¹ In this Review, the reported “upconversion efficiency” will be referenced as opposed to the traditional quantum yield.

There are several potential applications for photon upconversion including the production of UV light, deep tissue bioimaging, and increasing the efficiency of photovoltaic cells.^22,23,202 The intended application heavily dictates the three components of the HN, but this is heavily dictated by the annihilator as that controls the emission wavelength. A tabulation of commonly utilized annihilators can be viewed in Table 2 and Figure 17.

Figure 17.

Visual summary of all HNs of upconversion that will be discussed in this following section. References of presented research are displayed as numbers around the image.

8.3.1. Upconversion of Visible to UV Light

The upconversion of visible to UV light has been achieved in several organic/inorganic HNs. In such systems, the sensitizer is usually a wide band gap QD such as cadmium sulfide (CdS), cadmium selenide (CdSe), or quantum confined cesium lead bromide (CsPbBr₃).^22,23,76,202 The annihilator is usually 2,5-diphenyloxazole (PPO) with a peak emission wavelength of 355 nm and a fluorescence quantum yield of between 85 and 95%.^22,203,204

The first such example was developed by Gray et al.²⁰² which involved the use of CdS QDs in solution with PPO annihilator. The CdS QDs were synthesized via a hot-injection method with a passivating ZnS shell ranging from 0 to 6 monolayers. PLQEs increased from near 0 to a maximum of 26% with a shell thickness of 4 monolayers (Figure 18). The QDs were then functionalized with naphthalene-1-carboxylic acid (1-NCA) to act as the mediator ligand. With pure, unshelled, CdS QDs, a low upconversion efficiency (Φ′_UC) of 0.8% was observed, a likely consequence of the lack of surface defect passivation, resulting in significant nonradiative decay which competes with TET. The addition of just one monolayer of ZnS passivation resulted in a small improvement in upconversion, though the highest upconversion efficiency of 5.2 ± 0.5% was achieved with a shell thickness of 4 monolayers, which also correlates with the highest QD PLQE and therefore the lowest rate of nonradiative decay (see Figure 18). While it would be simple to conclude that further passivation should further increase the upconversion efficiency, it should be noted that shelling material such as ZnS has been shown to be a tunnelling barrier to TET.²⁰⁶ Though not found in this example, a study which utilized PbS QDs with a CdS shell found that 0.1 nm is the ideal shell thickness for maximizing upconversion efficiency. Beyond this thickness, the shell hinders TET.⁷⁵

Figure 18.

Plot of ZnS shell thickness, CdS/ZnS PLQE, and upconversion efficiency. Reprinted with permission under a Creative Commons Attribution 3.0 Unported License from ref (202). Copyright 2017 Royal Society of Chemistry.

It should be noted that the shelling of QDs is not required for efficient upconversion as shown by several studies.^22,207 An upconversion efficiency of 10.4% can be achieved utilizing high quality, nonshelled CdS cores²² (which can be synthesized with a PLQE between 19.6 and 27.5%²⁰⁸) and a PPO annihilator. In this case, the mediator ligand was phenanthrene-3-carboxylic acid (3-PCA) which possesses a higher triplet energy than 1-NCA, therefore providing a stepped energetic gradient between the mediator ligand and the annihilator.²²

An alternative to CdS/ZnS QDs as a sensitizer for upconversion is lead halide perovskite NCs. Due to their defect tolerance, perovskite NCs do not require a shell to achieve high PLQEs. He et al.²³ demonstrated that quantum-confined CsPbBr₃ perovskite NCs, functionalized with 1-NCA, can efficiently sensitized PPO, resulting in an upconversion efficiency of 10.2%. When utilizing perovskites as a sensitizer for TTA, it is important to synthesis NCs of a sufficiently small size, as the efficiency of TET and subsequently upconversion increases as the size of the sensitizer decreases.^209−211 While this is true for all QDs, it is particularly crucial for perovskite NCs as most methods of synthesis produce NCs that are larger in size than the bohr radius (5 nm for CsPbCl₃, 7 nm for CsPbBr₃, and 12 nm for CsPbI₃).^79,212

The importance of quantum confinement, and thus NC size, for TET when utilizing perovskite NCs is highlighted by the upconversion system developed by Mase et al.⁸¹ In this system, CsPbI_xBr_3–x NCs in conjunction with the annihilator 9,10-diphenylanthracene (DPA) enable the upconversion of 532 nm excitation into 443 nm emission. TET was facilitated by performing a ligand exchange to functionalize the surface of the NCs with 2-(4-(10-phenylanthracen-9-yl)phenyl)ethan-1-amine, an ethylamine functionalized derivative of DPA (here referred to as DPA*). However, the upconversion efficiency of the system was only 1.5%, which is much lower than that of both the previously discussed CsPbBr₃/1-NCA/PPO system and a comparable CdSe/ACA/DPA system developed by Huang et al.⁷⁶ which achieved an upconversion efficiency of 9 ± 2%.

In the system developed by Huang et al.,⁷⁶ the annihilator is the same as that utilized in the system developed by Mase et al.;⁸¹ however, both the utilized sensitizer and mediator ligands differ. Comparing the energetic separation between the sensitizer and mediator ligands, the perovskite/DPA* pair has a smaller separation of 0.22 eV versus the 0.46 eV of the CdSe/ACA pair (Figure 19). Considering the closer energetic alignment between the perovskite and DPA* versus CdSe and ACA, and the higher PLQE of perovskite at over 65% versus the 12% for CdSe, it would be expected that the upconversion efficiency of the perovskite based system would be better than that of the CdSe system.

Figure 19.

Energy level diagram of the components that make up the CsPbI_xBr_3-x/DPA*/DPA (left) and the CdSe/ACA/DPA (right) upconversion HNs.^81,211

There are two possible reasons for the dramatic difference in UC efficiency between the CsPbI_xBr_3-x/DPA*/DPA system and the CdSe/ACA/DPA system. (1) As DPA is both the mediator and annihilator, there is no significant energetic gradient for TET, whereas ACA/DPA has a 60 meV difference. (2) The perovskite NCs were 7.5 ± 1.7 nm and therefore not sufficiently quantum confined to allow for effective TET. Given that 60 meV offers only a small driving force, it is likely that the lack of quantum confinement is the main cause for the efficiency difference. This comparison highlights how an upconversion system can be optimized to improve upconversion efficiency.

As shown by De Roo et al.,²⁰⁷ the upconversion efficiency of a CdSe/DPA system can be improved further by replacing ACA with 10-phenyl-anthracene-1,8-diyl (dihydrogen phosphate) (Ph-ADP). The authors observe both a faster rate of TET between CdSe and Ph-ADP than for CdSe and ACA and an improved upconversion efficiency of 16.9%. The faster rate of TET is attributed to the lower lying triplet energy of the mediator ligand, while the higher upconversion efficiency is a consequence of the increased triplet lifetime of Ph-ADP at 299.9 ± 9.5 μs versus the 88.2 ± 2.1 μs for ACA. The longer triplet lifetime is theorized to be the result of lower rates of nonradiative recombination, as indicated by the higher PLQE of 76% of Ph-ADP versus the 43.2% for ACA.²⁰⁷ Low rates of nonradiative recombination and therefore increased triplet lifetimes is beneficial to the final TET to the annihilator.

Besides cadmium chalcogenides and lead halide perovskites, tertiary copper indium sulfide NCs (CIS NCs) have also been incorporated as sensitizers in HN upconversion systems, with impressive results.⁸⁵ The CIS NCs were synthesized via a thiol free method, as the presence of thiol based ligands prevented ligand exchange due to the high affinity of thiols for the NCs surface. The CIS NCs were coated with a thin ZnS shell to passivate the surface, an ACA mediator ligand was then coupled to the core/shell NCs, and the final sensitizer/mediator hybrid was mixed into a solution with the annihilator DPA. This system produced an upconversion efficiency of 18.6 ± 0.3%, which, at the time of writing, is the highest upconversion efficiency for a hybrid organic/inorganic nanomaterial. The high efficiency is attributed to the good mediator/annihilator pair and to the unusually long lifetime of self-trapped excitons within CIS NCs (209 ± 17 ns) which resulted in a TET efficiency from the CIS/ZnS sensitizer to the mediator ligand of 92.3%.⁸⁵

A drawback to the use of CIS NCs is that the emission is the result of self-trapped excitons which results in a significant energy loss between the initial excitation and the final emission. Alternative nontoxic triplet sensitizers involve the use of silicon (Si) QDs and shelled indium phosphide (InP). Silicon NCs can be thermally hydrosilylated in the presence of 9-vinylanthracene which functionalizes the surface of the NC with triplet accepting anthracene. While in the presence of DPA, the system is able to upconvert 532 and 640 nm light into violet DPA emission with an upconversion efficiency of 7 ± 0.9%⁸⁷ which was further increased to 15% in a subsequent study in the following year by preventing oxygen induce quenching.²¹³ However, due to the indirect band gap of silicon, the sensitizer is ineffective at absorbing wavelengths above 400 nm, making for a poor sensitizer at low excitation densities.

InP QDs have also been shown to sensitize TTA in DPA when coupled to ACA ligands.⁶⁵ To reduce nonradiative decay, the InP QDs were shelled with ZnSe and ZnS. The upconversion efficiency of this InP-ZnSe-ZnS/ACA/DPA system was 10 ± 0.1% when excited with 530 nm light, which exceeds the efficiency of the equivalent system developed by Huang et al.⁷⁶ which utilized unshelled CdSe.

All examples discussed so far have utilized zero-dimensional QDs,; however, several studies have been performed on higher dimensional nanomaterials, such as two-dimensional nanoplatelets and one-dimensional nanorods. CdSe nanoplatelets can be coupled to 9ACA mediator ligands and sensitizer DPA, just as standard CdSe QDs can, with an upconversion efficiency of 5.4%.²¹⁴ Vanorman et al.²¹⁵ demonstrated successful upconversion utilizing cadmium telluride nanorods which were functionalized with 9ACA mediator ligands, with the DPA annihilator. CdTe was chosen as the sensitizer to allow for a narrower band gap while still maintaining sufficient quantum confinement to enable efficient TET.²¹⁵ This system was shown to be capable of converting 520 nm excitation into blue DPA emission with an upconversion efficiency of 4.3%.

8.3.2. Upconversion of Near Infrared to Visible Light

The upconversion of infrared light to visible photons is an area of intense research due to its potential to increase the efficiency of photovoltaics cells above the Shockley–Queisser Limit.²¹⁶ As the band gap of a typical silicon photovoltaic is 1.1–1.3 eV, any photon with an energy less than this will not be absorbed.²¹⁷ Upconversion offers the possibility of converting this energy into harvestable shorter wavelength photons. For this application, HNs are well suited as PbS and PbSe QDs have tunable absorption ranges that extend well into the near-infrared spectral region. Additionally, molecules such as rubrene are capable of TTA and have triplet energies of 1.1 eV, allowing them to accept triplet states from lead chalcogenide QDs of an appropriate size.

The first example of near-infrared upconversion utilizing an organic/inorganic HN was developed by Huang et al.⁷⁶ and was composed of PbSe QDs as the sensitizer and rubrene as the annihilator (Figure 20). With both components in degassed toluene, excitation of the QDs with both 808 and 980 nm laser light resulted in the bright yellow emission of rubrene. However, the upconversion efficiency was only 0.01% which the authors argue was due to the lack of a mediator ligand. This conclusion was proven correct when the same group introduced a mediator ligand in the form of 4-(tetracen-5-yl)benzoic acid (abbreviated to CPT) which has a triplet energy of 1.16 eV, above that of the annihilator at 1.14 eV. The addition of CPT to the PbSe/rubrene system increased the upconversion efficiency 11-fold, from 0.20 to 2.1%. Note that this is with an excitation wavelength of 808 nm. The researchers simultaneously also experimented with PbS QDs, demonstrating an even more dramatic increase in upconversion efficiency with the addition of a mediator ligand, from 0.021 to 1.7%.⁷⁷

Figure 20.

Energy level diagram of the PbSe/Rubrene upconversion HN.⁷⁶

As with cadmium chalcogenide QDs, nonradiative decay in lead chalcogenide QDs can be reduced via the growth of a passivating shell, typically CdS.²¹⁸ Via the use of a CdS shell along with a 5-carboxylic acid tetracene (5-CAT) ligand as a mediator ligand, Mahboub et al.⁷⁵ was able to increase the upconversion efficiency of a PbS/rubrene system to 8.4 ± 1%.⁷⁵ The same system was tested without the mediator ligand, and as expected the upconversion efficiency dropped significantly to a maximum of ∼0.085%, which correlated with a CdS shell thickness of 0.1 nm (Figure 21). A further increase in shell thickness results in lower upconversion efficiency, demonstrating that there is a point where the potential increase in QD PLQE is offset by the tunnelling barrier presented by the shell.

Figure 21.

Plots showing the relationship between QD shell thickness and upconversion efficiency. Reprinted from ref (75). Copyright 2016 American Chemical Society.

However, as with CdS QDs, a passivating shell is not necessary to achieve efficient upconversion when utilizing PbS QDs. By synthesizing high quality PbS QDs via the use of high purity reagents, Huang et al.²⁰⁰ was able to achieve an upconversion efficiency of 11.8 ± 1.1% with a PbS/5-CAT/Rubrene system.²⁰⁰ Additionally, the authors also found that the surface chemistry of the QD is significant factor in terms of the final upconversion efficiency. PbS QDs were made via two methods, one which uses a thiourea as the sulfur precursor and another which uses hexamethyldisilathane. In the original publication, the two sets of QDs are referred to as PbS-T for the dots synthesized with thiourea and PbS-S for those synthesized with hexamethyldisilathane. An upconversion system that uses PbS-T QDs achieves an almost 12% upconversion efficiency, while the use of the PbS-S QDs only achieves an upconversion efficiency of 4.6 ± 0.4% (Figure 22). The difference in upconversion efficiency is not due to the difference in quality of the dots, as both possess comparable PLQEs of 34.1 ± 1.3 and 29.5 ± 1.2%, respectively. The difference arises in the lifetime of the triplet excited state of the 5-CAT ligands. When 5-CAT is bound to PbS-T, the lifetime of the triplet excited state is measured to be 2.86 μs, while it is 10 times shorter at 0.27 μs when 5-CAT is bound to PbS-S. The authors argue that there is a difference in the surface chemistry between PbS-T and PbS-S QDs that influences the heavy atom effect on the triplet lifetime of the ligands, though they could not speculate exactly what the difference in surface chemistry was.

Figure 22.

(a) Energy level diagram of the PbS/5-CT/Rubrene upconversion HN. (b) Absorbance and PL of two samples of PbS QDs, 5-CT mediator ligand, and rubrene annihilator. (c) Plot of upconversion efficiency versus the concentration of mediator ligand for two PbS/5-CT/Rubrene systems.²⁰⁰ Reprinted from ref (200). Copyright 2019 American Chemical Society.

One drawback of the use of a mediator ligand is that a larger energy difference between the sensitizer and annihilator is required to provide enough of an energetic gradient to facilitate each TET step. In theory, by eliminating the use of a mediator ligand, QDs with narrower band gaps could be utilized, allowing for longer wavelengths to be harnessed. To address this issue, Nishimura et al.⁷⁸ sought to use an annihilator that could reversibly bind and unbind to the QD. Due to the lack of binding functionality, rubrene could not be used for this purpose and the authors instead utilized bis(triethylsilylethylnyl)-anthradithiophene (TES-ADT), a heterocyclic aromatic compound which possesses sulfur atoms that can bind to the surface of lead chalcogenide QDs. Due to the lack of a mediator ligand, large PbS QDs were able to be utilized, allowing for excitation with wavelengths up to 1064 nm. While the efficiency of TET to TES-ADT is higher at 12 ± 2% versus the 0.02% to rubrene, and the authors suggest that detachment of the ligand was occurring, a maximum upconversion efficiency of only 0.012% was achieved.⁷⁸

8.3.3. Overall HN design for UC

Efficient upconversion using hybrid organic/inorganic nanomaterials requires several factors from each component of the system. First, with regard to the sensitizer, the most important factor is sufficient quantum confinement which is found to be crucial for effective TET.^209−211 Additional benefits include high PLQEs and long triplet lifetimes.^22,23,87 For mediator ligands, it is important that there is a close energetic alignment between the triplet energy states of the ligand and the other components of the system to allow for both effective TET and to minimize the loss in energy between the initial triplet excited state in the sensitizer and the final triplet state in the annihilator.²² Simultaneously, it is beneficial to the efficiency of TET to have a steep energetic gradient between the mediator ligand and annihilator to facilitate the final TET step.^22,76 For the annihilator, efficient TTA requires a high PLQE to maximize the final emission event.²² As there is a limited number of effective annihilators, it is much easier to adjust the sensitizer and mediator ligands of the system to maximize the upconversion efficiency. A tabulation of the discussed hybrid organic/inorganic nanomaterials can be viewed in Table 3, and a visual representation of this table can be viewed in Figure 17 at the beginning of this section.

Table 3. Summary Table of the Discussed Upconversion Systems.

sensitizer	mediator	annihilator	excitation (nm)	upconversion efficiency (%)
CdS/ZnS202	1-NCA	PPO	405	5.2 ± 0.2
CdS22	3-PCA	PPO	405	10.4
CsPbBr323	1-NCA	PPO	443	10.2
CsPbBrxI3-x81	DPA*	DPA	532	1.5
CdSe76	ACA	DPA	532	9 ± 2
CdSe207	Ph-ADP	DPA	488	16.9
CuInS2/ZnS85	ACA	DPA	520	18.6 ± 0.9
Si87,213	anthracene	DPA	488	15
InP/ZnSe/ZnS65	ACA	DPA	530–590	10 ± 0.1
CdSe (platelets)214	ACA	DPA	532	5.4
CdTe (nanorods)215	ACA	DPA	520	4.3
PbSe76		rubrene	808–980	0.01
PbSe77	CPT	rubrene	808	2.1
PbS77	CPT	rubrene	808	1.7
PbS/CdS75	5-CAT	rubrene	808	8.4 ± 1
PbS200	5-CAT	rubrene	781	11.8 ± 1.1
PbS78		TES-ADT	647–1064	0.012

8.4. Thermally Activated Delayed Fluorescence

Thermally activated delayed fluorescence (TDAF) is the process in which a system can incorporate thermal energy to transition from a nonemissive state into an emissive state.^219−221 In hybrid organic/inorganic systems, TDAF can be achieved via the population of triplet states in surface bound organic chromophores via an energetically favorable TET from a QD and then a subsequent thermally activated reverse TET (rTET) back to the original donor from which delayed emission can occur.^70,82 In essence, an equilibrium between forward and reverse TET can develop between the components of the HN.

To enable efficient thermally activated rTET, the energy separation between the triplet state of the chromophore and the conduction band minimum of the QD must be within a certain energy threshold. This fact was shown by Mongin et al.⁷⁰ who synthesized unshelled CdSe QDs of various band gap values (as indicated by the PL signal) which they functionalized with pyrene carboxylic acid (PCA) ligands. For the QD sample with the widest band gap (488 nm PL), the energy separation between the conduction band minimum of the QD and triplet excited state of the ligand was 0.54 eV and no back transfer would occur as indicated by the fully quenched CdSe emission which was determined to have a photoluminescence quantum efficiency of ≤1%. Only after decreasing the band gap would rTET activate. A maximum TADF was observed for QDs that exhibited 600 nm PL which corresponded to an energy separation of 0.07 eV (70 meV). In this scenario, the PLQE of TDAF in the CdSe QDs was 13%.⁷⁰ Additionally, the lifetime of QD emission increased dramatically. For unshelled CdSe, the typical fluorescence lifetime is on the order of 10¹ ns.²²² However, with the coupling of PCA, this lifetime can be increased to between 1.57 ± 0.02 μs and 52 ± 2 ms.⁷⁰ Similar results were obtained by a later study that also coupled CdSe to PCA ligands.²²³

A second example of TDAF in a hybrid organic/inorganic nanomaterial involves the use of quantum confined CsPbBr₃ NCs and phenanthrene carboxylic acid (PTA) ligands (Figure 23).⁸² TET efficiencies varied with the concentration of ligand in solution with values between 13.1 and 63.2% were reported, though no reverse TET efficiencies were reported. The lifetime of perovskite emission is typically on the order of 1–29 ns.⁷⁹ However, when coupled to PTA ligands, the lifetime can be increased to ∼35 μs at the highest ligand concentration.⁸²

Figure 23.

Energy levels and TADF mechanism of the HN CsPbBr₃–PTA.⁸² Reprinted from ref (82). Copyright 2021 American Chemical Society.

At the time of writing, these are the only three examples of TDAF in hybrid organic/inorganic nanomaterials. Due to this, there is plenty of opportunity for further refinement of these systems. As Mongin et al.⁷⁰ mention in their concluding remarks, the use of unshelled CdSe allows for competitive nonradiative recombination mechanisms and therefore the use of a passivating shell would be a next step forward for future investigations. Additionally, TDAF in HNs has only been demonstrated in a narrow range of emission wavelengths (510–605 nm).

9. Future

The future directions and applications of HNs will be fundamentally controlled by the material systems developed. Thus, potential must be found in the two major components of the HN, the QD and the organic semiconductor. The ability to synthesize heterodot architectures gives rise to a vast number of NC permutations, the importance of which being the ability to control passivation, Stokes shift, stability, donor–acceptor distance, excited state lifetimes, and surface chemistry. The continued growth of the field of HNs will inevitably result in the development of sophisticated heterodot architectures designed to improve HN systems. The three-component design of organic semiconductors for HN applications means that synthetic chemistry plays a vital role in optimizing chromophores. The ability to tune the binding group, linker, and chromophore independently allows for the binding strength, packing orientation, QD-chromophore distance, and chromophore to each be optimized, providing an optimal HN system. As the field of HNs continues to grow, we expect to see an increase in novel synthetic chromophores optimized for their unique applications, thus improving the properties of the HN systems.

Out of all the discussed applications, HNs for FRET are the most thoroughly studied and the closest to seeing real world applications,^{6,84,142−164} with FRET efficiencies surpassing 90%. As such, current research is focused on the deployment of these HNs in practical applications, for example, sensing and solar technologies.

Efficient singlet fission in HNs is currently limited by the low PLQEs of the PbS QDs used for re-emission of the generated triplets.¹⁰ Transitioning to higher PLQE QDs is a priority to allow for photon multiplication efficiencies to approach 200%. If possible, SF photon multiplication could be broadly used with existing solar panels to increase efficiency.

For upconversion, the limiting factor to the overall efficiency is the sequential TET from the sensitizer to the mediator ligand and from the ligand to the annihilator in solution.²²⁴ The highest TETs have been achieved via a combination of high PLQEs and long triplet lifetimes of both the QDs sensitizer and mediator ligands.^85,207 Additionally, a steep energetic cascade also benefits TETs; however, this increases the energetic penalty of each TET step.²¹¹ Therefore, future work will need to find the optimal triads of sensitizer, mediator, and annihilator that allows for the most efficient TET with the smallest loss in triplet excitation energy.

The application of thermally activated delayed fluorescence in HNs is relatively unexplored and has so far only been demonstrated in a very limited number of systems. As there is a wide range of possible QD/chromophore combinations, there is plenty of scope for further research in this field.

Although so far unproven, HNs may have the potential to create a new class of LED materials. It is well-known that organic light emitting diodes (OLEDs) currently suffer from electron-spin limitations and are capped at 25% efficiency.²²⁵ This limit stems from the spin-statistics of recombination which, in general, form one emissive singlet state per three nonemissive triplet states. While QD LEDs (QDLEDs) can bypass electron-spin efficiency limits (due to ‘quantum confinement effects making triplets emissive),^226,227 unfortunately the surfaces of QDs, which are usually coated by insulation molecules (ligands), hinders charge injection.²²⁸ As such, while QDLEDs are unaffected by electron-spin limits, device efficiencies are still below those of OLEDs due to the issue of charge injection through the surface ligand shell.²²⁹ By replacing the insulating surface ligands on a QD with OLED molecules, these new HN LEDs may exhibit increased charge injection efficiency (compared to QDLEDs) and the ability to emit from historically nonemissive triplet states (compared to OLEDs).

HNs have a promising future ahead in many research fields and technology applications. The adjustable nature of HNs has seen their successful application in various optoelectronic applications including Förster resonance energy transfer, singlet fission, upconversion, and thermally activated delayed fluorescence (as referenced above in specific sections). While the initial demonstration of each of these processes typically exhibited low efficiencies, incremental improvements of HN systems has seen these efficiencies rise, though there is still a need for further improvement before many of these systems see application beyond the laboratory.
