KRIT1-mediated regulation of neutrophil adhesion and motility

Abstract

Loss of Krev interaction-trapped-1 (KRIT1) expression leads to the development of cerebral cavernous malformations (CCM), a disease in which abnormal blood vessel formation compromises the structure and function of the blood–brain barrier. The role of KRIT1 in regulating endothelial function is well-established. However, several studies have suggested that KRIT1 could also play a role in regulating nonendothelial cell types and, in particular, immune cells. In this study, we generated a mouse model with neutrophil-specific deletion of KRIT1 in order to investigate the effect of KRIT1 deficiency on neutrophil function. Neutrophils isolated from adult Ly6G^{tm2621(cre)Arte} Krit1^flox/flox mice had a reduced ability to attach and spread on the extracellular matrix protein fibronectin and exhibited a subsequent increase in migration. However, adhesion to and migration on ICAM-1 was unchanged. In addition, we used a monomeric, fluorescently-labelled fragment of fibronectin to show that integrin activation is reduced in the absence of KRIT1 expression, though β1 integrin expression appears unchanged. Finally, neutrophil migration in response to lipopolysaccharide-induced inflammation in the lung was decreased, as shown by reduced cell number and myeloperoxidase activity in lavage samples from Krit1^PMNKO mice. Altogether, we show that KRIT1 regulates neutrophil adhesion and migration, likely through regulation of integrin activation, which can lead to altered inflammatory responses in vivo.

Graphical Abstract

Loss of KRIT1 expression in neutrophils has no effect on adhesion to and migration on ICAM-1, but causes a loss of the neutrophil attachment and spreading on fibronectin and a reduction in fibronectin-binding integrin activity. This may explain why, though KRIT1 deficient neutrophils migrate faster ex vivo, migration of KRIT1 ko neutrophils into the lung in response to lipopolysaccharide was decreased. Thus, we conclude that KRIT1 regulates neutrophil behavior.

Introduction

Cerebral cavernous malformation (CCM) is a vascular disease characterized by the formation of abnormal blood vessels, which exhibit a loss of barrier function [1–3]. CCM is thought to occur due to loss of function mutations in one of three genes: Krit1 (CCM1), CCM2 and CCM3 (PDCD10) [4–7], which form a heterotrimeric complex [8]. Loss of CCM protein expression in endothelial cells promotes proliferation [9] and resistance to apoptosis [10], and leads to higher levels of oxidative stress [11,12]. However, it is still unclear how the loss of these proteins leads to the development of CCM. Currently, defects in endothelial cell–cell junction integrity are thought to be the primary drivers of CCM formation and clinical presentation due to leakage of blood from the capillaries into the brain tissue.

On the other hand, we and others have shown that KRIT1 is widely expressed and that the expression level of KRIT1 in nonendothelial cells is often higher than in endothelial cells [13]. Furthermore, KRIT1 and the other CCM proteins have been shown to play important roles in nonendothelial cell types and tissues, which may or may not be related to their role as pathogenic originators of CCM. For example, we previously demonstrated that heterozygous loss of KRIT1 increases the oncogene-driven development of intestinal adenocarcinoma, likely due to decreased epithelial cell–cell contact [14]. This suggests that KRIT1 acts as an epithelial tumour suppressor, and that Krit1 haploinsufficiency could have an important clinical impact despite not leading to the formation of CCM lesions. Related studies have shown that loss of KRIT1 in intestinal epithelial cells decreases epithelial barrier function and increases cation selectivity [15] and that loss of CCM3 in mouse gut epithelium results in disruption of the colonic mucus barrier [16]. Furthermore, studies in zebrafish have pointed to a role for CCM proteins in cardiac development [17–19]. In addition, loss of KRIT1 in fibroblasts was shown to alter NADPH oxidase signalling and promote increased production of reactive oxygen species [20], which parallels a similar pathway we described in endothelial cells [21]. Another cell type in which CCM proteins have been shown to function is in astrocytes/neuroglia. Mice with CCM3-deficient astrocytes/neuroglia have been shown to develop CCM-like lesions [22]. Moreover, feedback mechanisms between endothelial cells and astrocytes or endothelial cells and pericytes in the brain milieu have been suggested to enhance angiogenic signalling in CCM lesions [23,24]. While the number of studies is limited, the data strongly suggest that KRIT1 and the other CCM proteins are highly likely to have important signalling functions in nonendothelial cell types.

In our prior studies, we sought to determine what effect KRIT1-depletion would have on the response to inflammation. To accomplish this, we used a global heterozygous KRIT1 knockout mouse (Krit1^+/−) to assess changes in vascular physiology and inflammation due to Krit1 haploinsufficiency, and discovered that heterozygous mice were more sensitive to inflammatory stimuli and exhibited an enhanced response, including increased edema formation and cell infiltration [25]. Given that these animals were KRIT1-deficient in all cell types, we were unable to definitively point to endothelial KRIT1 expression as being responsible for these phenotypes, leaving open the possibility of a role for other cell types, particularly leukocytes (including neutrophils). Leukocyte adhesion and migration are regulated by the GTPase Rap1 [26,27], which promotes integrin activation and adhesion to various substrates, including ICAM-1 [28,29] and fibronectin [29,30]. KRIT1 is an effector of Rap1 and has been shown to mediate specific Rap1-dependent functions in endothelial cells [31]. KRIT1 also binds to the β₁ integrin regulatory protein ICAP1α, which is expressed in most cell types [32,33]. KRIT1 has been reported to regulate ICAP1α expression and compete with β₁ integrin for binding to ICAP1α [34–37]. These studies support the hypothesis that KRIT1 could regulate leukocyte adhesion in general, yet a more recent study reported that CCM3 regulates the release of the ‘reserved’ pool of granules from neutrophils due to its interaction with the serine/threonine kinase-24 (STK24) [38]. Though the impact of the interaction of CCM3 with STK24 vs. with KRIT1/CCM2 is still in debate [39–41], these findings demonstrate that CCM proteins can regulate neutrophil-specific functions. Together, the role of KRIT1 in limiting the response to inflammatory stimuli [25] and the high expression of KRIT1 in neutrophils and other myeloid cells (data not shown), combined with the potential for KRIT1 to regulate neutrophil adhesion via binding to Rap1 [31] or ICAP1α [32–37], led us to explore a potential role for KRIT1 in regulating neutrophil function.

We therefore generated neutrophil-specific KRIT1 knockout mice by breeding Krit1^flox/flox mice with Ly6G^{tm2621(cre)Arte} animals, which express Cre recombinase downstream of the Ly6G promoter. By isolating neutrophils from these mice, we show that loss of KRIT1 in neutrophils reduces neutrophil adhesion and spreading on a fibronectin matrix, but not when plated on ICAM-1. This reduced adhesion likely contributes to increased migration of KRIT1-deficient neutrophils on fibronectin and corresponds with a significant attenuation of integrin activity. Finally, we observe that in vivo, loss of KRIT1 results in decreased neutrophil recruitment to the inflamed lung tissue of mature Ly6G mice. Thus, we conclude that KRIT1 is a regulator of integrin activity, cell adhesion and cell migration in neutrophils.

Results

Generation of neutrophil-specific KRIT1 knockout mice

Neutrophils mature in the bone marrow before circulating in the blood, where they await activation by inflammatory stimuli [42]. With a half-life of approximately 1 day, primary neutrophils are short-lived, terminally differentiated cells not amenable to cell culture [43–45]. Neutrophil-like cell culture models are derived from neoplastic tissues, require lengthy culture times to induce a neutrophil-like phenotype and fail to replicate true neutrophil phenotypes [46,47]. Therefore, in order to probe the role of KRIT1 in neutrophils, we generated a novel mouse model that lacks expression of KRIT1 in mature neutrophils by crossing the existing Krit1^flox/flox transgenic line [48] with Ly6G^{tm2621(cre)Arte} mice [49] in which Cre recombinase is inserted into the neutrophil-specific Ly6G locus. The Ly6G-Cre transgene also contains the red fluorescent reporter tdTomato [49], which allowed us to quantify recombination in mature neutrophils via flow cytometry. Blood and whole bone marrow samples from adult Ly6G^{tm2621(cre)Arte} Krit1^flox/flox mice (Krit1^PMNKO) vs. Krit1^flox/flox mice (Krit1^PMNWT) clearly showed that only Krit1^PMNKO blood and bone marrow–expressed tdTomato (Fig. 1A). As seen in Fig. 1B, we were also able to detect the Ly6G-Cre transgene (Ly6G Cre) in both ear tissue and purified bone marrow–derived neutrophils (PMN) by PCR; however, recombination of Krit1, which generates the Krit1D allele, was only detected in the purified PMN indicating specific deletion of KRIT1 in mature neutrophils. Semi-quantitative RT-PCR showed that Krit1 mRNA was reduced in Krit1^PMNKO neutrophils by ~ 50% (Fig. 1C); however, protein expression, as shown by western blot, was almost completely lost (> 85% reduction, Fig. 1D). The overall health of the Krit1^PMNKO animals was indistinguishable from control animals. Krit1^PMNKO animals demonstrated normal haematopoiesis as assessed using complete blood count (CBC) analysis; numbers of white blood cells (WBC 7.3 × 10⁹), lymphocytes (LYM 6.4 × 10⁹), monocytes (MON 0.25 × 10⁹), neutrophils (NEU 0.69 × 10⁹), platelets (PLT 4.93 × 10¹¹) and red blood cells (RBC 8.87 × 10¹²) observed in Krit1^PMNKO were comparable to their Krit1^PMNWT littermates (Fig. 1E). In addition, we reliably recovered similar total numbers of neutrophils from each genotype using the Easy-Sep Mouse Neutrophil Enrichment kit from STEMCELL Technologies (WT 4.47 ± 0.32 × 10⁶ vs. KO 4.35 ± 0.52 × 10⁶, data not shown) Thus, we used mature neutrophils isolated from these animals for further analysis.

Fig. 1.

Ly6G^{tm2621(cre)Arte} Krit1^flox/flox mice (Krit1^PMNKO) display normal haematopoiesis despite neutrophil-specific reduction of KRIT1. (A) Representative FACS analysis of Krit1^PMNWT and Krit1^PMNKO mouse blood and bone marrow for tdTomato and Ly6G expression. (B) Representative genotyping gel of ear tissue and isolated neutrophils from Krit1^PMNWT and Krit1^PMNKO mice. Ly6G Cre-Cre transgene; Ly6G WT wildtype Ly6g allele; KRIT1 D-recombined Krit1 allele (exons 4–8 deleted). (C) Krit1 mRNA levels were measured by qPCR in isolated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils. Data shown are mean Krit1 mRNA levels ± SEM, relative to Gapdh and normalized to Krit1^PMNWT, from n = 8 independent experiments. ****P < 0.0001 by the unpaired t-test. (D) Representative western blot of neutrophil lysate from Krit1^PMNWT and Krit1^PMNKO mice. Marker lane was adjusted to allow marker bands to be easily visible, and black line denotes boundary of adjustment. (E) Blood collected from Krit1^PMNWT and Krit1^PMNKO mice was analysed using an Abaxis VetScan HM5 for white blood cell (WBC), lymphocyte (LYM), monocyte (MON), neutrophil (NEU), platelet (PLT) and red blood cell (RBC) counts. n = 3 mice/genotype, all between-genotype comparisons were not significant as determined by one-way ANOVA.

Loss of KRIT1 reduces neutrophil adhesion to fibronectin

While the loss of KRIT1 did not appear to affect neutrophil viability or the recoverable population, based on its role as a Rap1 effector [31] and a regulator of ICAP1α [32–37], we hypothesized that loss of KRIT1 could affect neutrophil behaviour and function. As mentioned earlier, neutrophils will circulate in the bloodstream until activation triggers their adherence to and migration through the endothelium to the source of inflammation [42,50]. As our previous study indicated a potential role for KRIT1 in leukocyte extravasation [25], we first investigated whether loss of KRIT1 affected neutrophil adhesion to the endothelially expressed surface protein and β₂ integrin ligand ICAM-1. Krit1^PMNKO or Krit1^PMNWT neutrophils we loaded with calcein-AM to facilitate cell counting, then were treated with ±10 nm phorbol myristate acetate (PMA) and allowed to adhere to plates coated with 5 μg·mL⁻¹ immobilized recombinant mouse ICAM-1 for 20 min. While treatment with PMA increased adhesion to ICAM-1, we detected no difference between Krit1^PMNKO and Krit1^PMNWT neutrophils in their ability to adhere to recombinant mouse ICAM-1 (Fig. 2A).

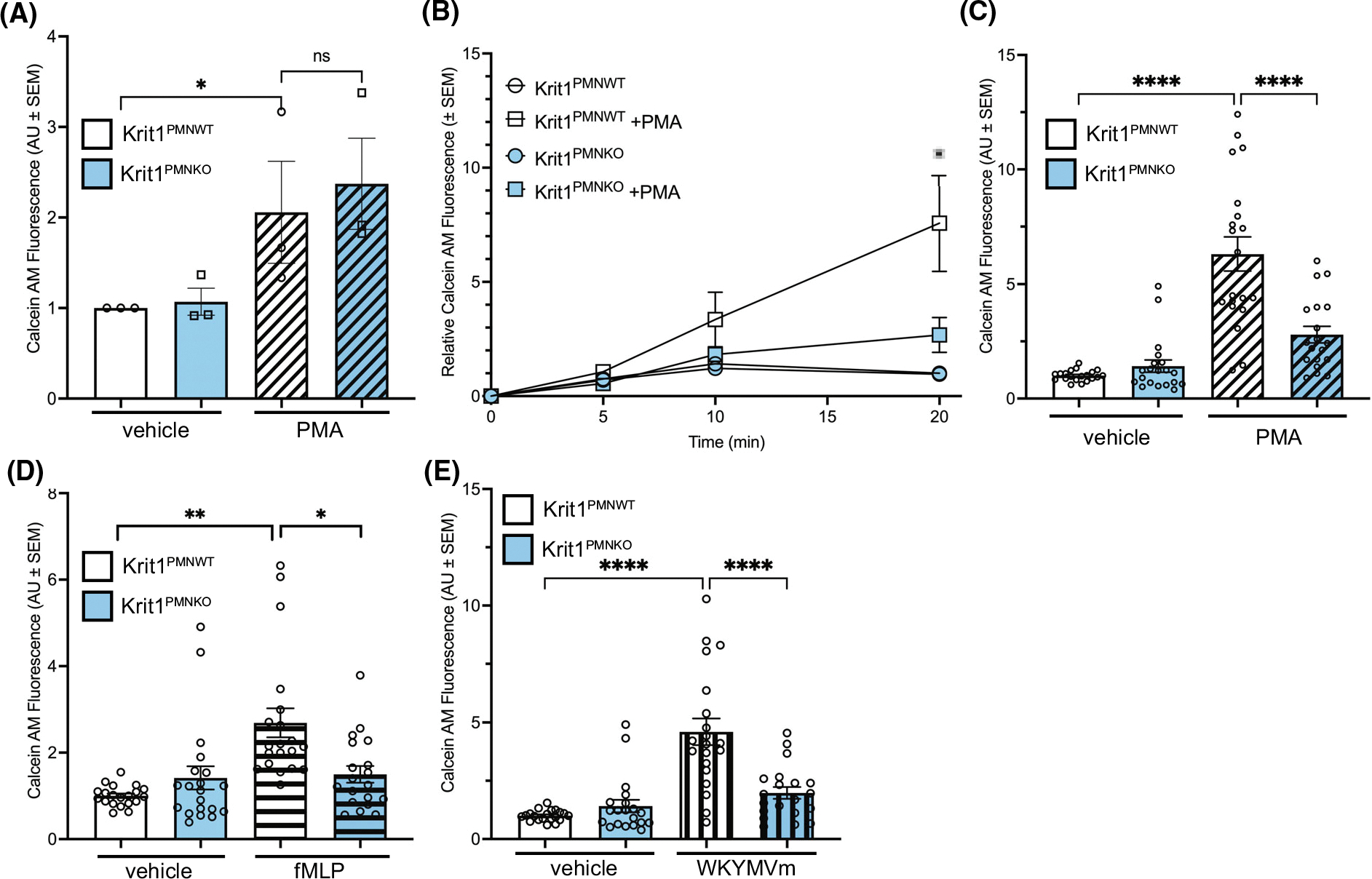

Fig. 2.

Krit1^PMNKO neutrophils have reduced adhesion to fibronectin. (A) Adhesion of vehicle and 10 nm PMA-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils plated on 5 μg·mL⁻¹ ICAM-1 after 20 min. Data shown are mean calcein-AM fluorescence, ±SEM, n = 3. (B) Time course of adhesion of 10 nm PMA-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils to 10 μg·mL⁻¹ fibronectin. Data shown are mean calcein-AM fluorescence normalized to Krit1^PMNWT vehicle: 20 min, ±SEM, n = 4. *P < 0.001 by the two-way ANOVA with the Tukey’s post hoc testing. (C) Adhesion of vehicle or 10 nm PMA-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils to fibronectin (10 μg·mL⁻¹) after 20 min. Data shown are mean calcein-AM fluorescence, ±SEM, n = 20. ****P < 0.001 by the one-way ANOVA and Tukey’s post hoc testing. Alternative stimuli were also used: (D) Adhesion of vehicle or 250 nm fMLP-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils to fibronectin after 20 min. Data shown are mean calcein-AM fluorescence, ±SEM, n = 20. **P < 0.01 and *P < 0.05 by the one-way ANOVA and Tukey’s post hoc testing. (E) Adhesion of vehicle or 1 μm WKYMVm-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils to fibronectin after 20 min. Data shown are mean calcein-AM fluorescence, ±SEM, n = 20. ****P < 0.0001 by the one-way ANOVA and Tukey’s post hoc testing.

Following extravasation through the endothelial layer, neutrophils adhere to extracellular matrix (ECM) proteins in the endothelial basement membrane and interstitial tissue. While these matrices are comprised of a complex mix of matrix proteins, the glycoprotein fibronectin is an important component of the extravascular ECM. Therefore, we plated vehicle and PMA-treated KRIT1-deficient neutrophils on plates coated with 10 μg·mL⁻¹ fibronectin and allowed them to adhere for 5, 10 and 20 min prior to washing off unattached cells. After 10 min of adhesion, we could detect a difference between PMA-treated and vehicle-treated cells, and between PMA-treated Krit1^PMNWT and Krit1^PMNKO neutrophils (Fig. 2B). After 20 min, KRIT1-deficient neutrophils demonstrated a 56% reduction in PMA-induced adhesion (Fig. 2B,C). To determine whether this effect was specific to PMA treatment, we also treated Krit1^PMNWT and Krit1^PMNKO neutrophils with 250 nm N-formylmethionyl-leucyl-phenylalanine (fMLP) or 1 μM of the chemoattractant peptide Trp-Lys-Tyr-Met-Val-Met (WKYMVm) and measured the number of cells adhering after 20 min. Krit1^PMNKO cells treated with fMLP showed a 44% reduction in adhesion vs. Krit1^PMNWT (Fig. 2D), and Krit1^PMNKO cells treated with WKYMVm exhibited a 57% decrease in adhesion compared with Krit1^PMNWT (Fig. 2E), indicating that the loss of KRIT1 expression reduces neutrophil adhesion to fibronectin independent of the type of stimulus.

Loss of KRIT1 reduces neutrophil spreading on fibronectin

We then wanted to characterize the adhesion deficiency in Krit1^PMNKO neutrophils, therefore we examined the ability of Krit1^PMNKO or Krit1^PMNWT cells to adhere and spread on fibronectin-coated glass coverslips. Neutrophils were allowed to adhere for an hour in the presence of 10 nm PMA, 1 μg·mL⁻¹ lipopolysaccharide (LPS), 250 nm fMLP, 1 μm WKYMVm or vehicle, then were fixed and stained with fluorescein isothiocyanate (FITC)-phalloidin to visualize the actin cytoskeleton. Cell area was then quantified using metamorph. Minimal differences in the number of cells attached after 1 h were seen between groups, suggesting that the Krit1^PMNKO cells can overcome their adhesion deficiency given sufficient time (data not shown). No significant differences in spreading were seen in fMLP or WKYMVm treated cells (data not shown). However, when we examined the distribution of cell areas of adhered Krit1^PMNWT and Krit1^PMNKO neutrophils using frequency analysis, vehicle-treated Krit1^PMNKO neutrophils exhibited a reduction in cell area vs. vehicle-treated Krit1^PMNWT neutrophils (P = 0.0156, Fig. 3A), though cells from both genotypes remained rounded (Fig. 3B,C). This trend also held true with PMA- or LPS-treated Krit1^PMNKO neutrophils, whose distribution trended toward smaller cell areas (PMA P = 0.0102, Fig. 3D; LPS P = 1.28 × 10⁻⁶, Fig. 3G) and were significantly less spread (Fig. 3E,F,H,I) when compared to Krit1^PMNWT neutrophils with the same treatment.

Fig. 3.

Krit1^PMNKO neutrophils show reduced cell spreading on fibronectin. (A) Frequency distribution of average cell area of unstimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils plated on 10 μg·mL⁻¹ fibronectin after 1 h. P = 0.0156 by the Kolmogorov–Smirnov test. Representative images of FITC-phalloidin-stained Krit1^PMNWT (B) and Krit1^PMNKO (C) neutrophils. n = 3 mice /genotype, 10 images per mouse. Scale bar = 50 μm. (D) Frequency distribution of average cell area of 10 nm PMA-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils plated on 10 μg·mL⁻¹ fibronectin after 1 h. P = 0.0102 by the Kolmogorov–Smirnov test. Representative images of FITC-phalloidin-stained Krit1^PMNWT (E) and Krit1^PMNKO (F) neutrophils. n = 3 mice/genotype, 10 images per mouse. Scale bar = 50 μm. (G) Frequency distribution of average cell area of 1 μg·mL⁻¹ LPS-stimulated Krit1^PMNWT and Krit1^PMNKO mouse neutrophils plated on 10 μg·mL⁻¹ fibronectin after 1 h. P = 1.28 × 10⁻⁶ by the Kolmogorov–Smirnov test. Representative images of FITC-phalloidin-stained Krit1^PMNWT (H) and Krit1^PMNKO (I) neutrophils. n = 3 mice/genotype, 10 images per mouse. Scale bar = 50 μm. (J) Krit1^PMNKO neutrophils show increased phosphorylation of myosin light chain. Krit1^PMNWT vs. Krit1^PMNKO neutrophil phospho-MLC staining intensity per cell, ±SEM, n = 4 mice/genotype, n = 5 (WT + vehicle), 17 (WT + PMA), 14 (WT + LPS), 14 (KO + vehicle), 19 (KO + PMA), 11 (KO + LPS) fields/condition. *P < 0.05, ****P < 0.0001 by the Brown–Forsythe ANOVA and Games–Howell post hoc testing.

Studies in endothelial cells have shown that KRIT1 is a negative regulator of RhoA and its effector Rho kinase (ROCK); loss of KRIT1 expression leads to increased RhoA/ROCK activity, phosphorylation of myosin light chain (MLC) and increased actin-myosin contractility [51,52]. In neutrophils, RhoA/ROCK has been shown to regulate adhesion and migration on multiple substrates [53–57]. Therefore, we examined the effect of KRIT1 depletion on RhoA/ROCK activity in neutrophils by measuring phospo-MLC levels using immunofluorescent microscopy. Similar to the spreading assays above, neutrophils were allowed to adhere to fibronectin-coated coverslips for an hour in the presence of 10 nm PMA, 1 μg·mL⁻¹ LPS or vehicle then were fixed and stained with anti-pMLC antibody followed by Alexa 568 labelled goat anti-rabbit secondary antibody. Images were captured using a Leica Stellaris 5 laser scanning confocal microscope at 63× magnification, and individual cell fluorescence intensity was quantified using imaris analysis software. Vehicle-treated Krit1^PMNKO neutrophils displayed significantly increased pMLC fluorescence compared with vehicle-treated Krit1^PMNWT neutrophils, though this difference was reduced by PMA treatment (Fig. 3J). This suggests that KRIT1 deficient neutrophils exhibit increases in RhoA/ROCK activity similar to those observed in endothelial cells; however, this difference may not explain the reduced spreading and adhesion observed in these cells in response to PMA.

Loss of KRIT1 enables increased neutrophil migration on fibronectin

After transmigrating through the endothelium, neutrophils will migrate through the basement membrane and interstitial connective tissue toward sources of inflammation [50]. Both of these migration events require reversible adhesion to the ECM proteins via integrin cell adhesion receptors [58–60]. Reduced adhesion to ECM components has been shown to both reduce and amplify neutrophil migration based on the cellular context. Therefore, we investigated the ability of Krit1^PMNKO and Krit1^PMNWT neutrophils to migrate on cell culture dishes coated with either 5 μg·mL⁻¹ ICAM-1 or 10 μg·mL⁻¹ fibronectin. Migration was stimulated by the addition of 250 nM fMLP to the tissue culture media prior to imaging. Migratory behaviour was captured over 100 min using live-cell video microscopy. volocity software was used to quantify several migration-related parameters from individual cells isolated from n = 6/group Krit1^PMNWT or Krit1^PMNKO mice.

As expected based on our adhesion assay, the ability of Krit1^PMNKO cells to migrate on ICAM-1 was similar to that of Krit1^PMNWT neutrophils (Fig. 4A–E). However, loss of KRIT1 increased neutrophil migration on fibronectin. The distribution of total track length (distance migrated) of each cell is shown as a violin plot of cells from each animal (Figs 4A and 5A). While Krit1^PMNKO neutrophils on fibronectin showed a trend toward longer track length, the overall average track length was not significantly different (Fig. 5B). However, the KRIT1 deficient neutrophils had significantly higher cell velocity (distance/time, Fig. 5C). Careful examination of these data suggest that the explanation for this discrepancy is that the Krit1^PMNKO neutrophils exhibited a higher likelihood of leaving the frame of imaging (15.31% vs. 7.06%) during the time-course of migration, which lowered the average track length. In addition, Krit1^PMNKO neutrophils also exhibited an increase in persistence/directionality as calculated by the meandering index (Fig. 5D) and shown by an increase in cell displacement (Fig. 5E). In sum, these data indicate that the loss of KRIT1 can increase fMLP-stimulated cell migration velocity and improves cellular persistence, likely related to the defect in neutrophil adhesion.

Fig. 4.

Krit1^PMNKO neutrophils display normal migration on ICAM-1. Krit1^PMNWT and Krit1^PMNKO mouse neutrophils were plated in chamber wells coated with 10 μg·mL⁻¹ ICAM-1 then stimulated with 250 nm fMLP. The migration of individual neutrophils was tracked using time-lapse video microscopy and then analysed using volocity software. (A) Violin plots of total track length per cell for each animal, representing data point frequency distribution between minimum and maximum values, with quartiles indicated by dotted lines and median indicated by a dashed line. n = 41–72 cells per mouse. (B) Average cell track length. Data shown are mean of total track length for each genotype, ±SEM, n = 6. (C) Average cell velocity (total track length/time) ± SEM, n = 6. (D) Average meandering index ± SEM, n = 6. (E) Average cell displacement (distance between origin and endpoint) ± SEM, n = 6 mice. Data were analysed by the one-way ANOVA (A) or unpaired t-test (B–E); no significant differences were detected.

Fig. 5.

Krit1^PMNKO neutrophils display increased motility on fibronectin. Krit1^PMNWT and Krit1^PMNKO mouse neutrophils were plated in chamber wells coated with 10 μg·mL⁻¹ fibronectin then stimulated with 250 nm fMLP. The migration of individual neutrophils was tracked using time-lapse video microscopy and then analysed using volocity software. (A) Violin plots of total track length per cell for each animal, representing data point frequency distribution between minimum and maximum values, with quartiles indicated by dotted lines, and median indicated by a dashed line. n = 24–91 cells per mouse. (B) Average cell track length. Data shown are mean of total track length for each genotype, ±SEM, n = 6. P = 0.0526 by the unpaired t-test. (C) Average cell velocity (total track length/time) ± SEM, n = 6. *P < 0.05 by the unpaired t-test. (D) Average meandering index ± SEM, n = 6. *P < 0.05 by the unpaired t-test. (E) Average cell displacement (distance between origin and endpoint) ± SEM, n = 6 mice. *P < 0.05 by the unpaired t-test.

Loss of KRIT1 reduces integrin activation

Altered neutrophil adhesion and migration on fibronectin could be driven by any of a number of changes to adhesion/migration signalling. In order to determine the level at which loss of KRIT1 leads to defects in neutrophil adhesion and migration, we first tested whether loss of KRIT1 expression led to differences in integrin activity or expression. Using an Alexa488-labelled monomeric fragment of fibronectin containing the integrin-binding RGD sequence, fibronectin 9–11 (Fn9–11) [61] we measured integrin activation in neutrophils from Krit1^PMNKO and Krit1^PMNWT mice using flow cytometry. Activation was calculated as an index of maximum activation (+Mn) and minimum activation (+EGTA) controls. Though neutrophils express both fibronectin receptors α₅β₁ and α_vβ₃, fibronectin-dependent migration has been shown to depend heavily on β₁ integrin [62,63]. Therefore, we also measured total β₁ integrin expression by FACS. KRIT1-deficient neutrophils exhibited a 53% decrease in integrin activation compared with Krit1^PMNWT (Fig. 6A). There was not a significant difference in β₁ integrin expression (Fig. 6B), which supports the hypothesis that KRIT1 contributes to integrin activation in neutrophils. Furthermore, we infer that the reduction in integrin activation underlies the reduction in adhesion to fibronectin and enhanced migration of KRIT1-depleted neutrophils.

Fig. 6.

Krit1^PMNKO neutrophils have decreased fibronectin-binding integrin activation. (A) PMA-treated Krit1^PMNWT and Krit1^PMNKO neutrophils were incubated with fluorescently-labelled monomeric FN-9–11 to assess integrin activation. Data shown are (columns) average activation index ± SEM; individual data points are matched by dashed lines, n = 4. *P = 0.003 by the unpaired t-test. (B) β1 integrin expression in Krit1^PMNWT and Krit1^PMNKO neutrophils was analysed by flow cytometry. Data shown are average integrin expression, normalized to wildtype neutrophils, ±SEM, n = 8.

Loss of KRIT1 decreases neutrophil infiltration to lung tissue

Finally, changes in integrin activity and subsequent adhesion in our in vitro studies suggest that the loss of KRIT1 expression could affect the neutrophil response to inflammation in vivo. Therefore, we wanted to assess whether loss of KRIT1 expression altered neutrophil recruitment in vivo. While there are many models of in vivo leukocyte recruitment, we elected to use LPS-induced neutrophil recruitment into the lung as our in vivo model as it is a predominantly neutrophil-driven response. Intratracheal administration of 5 mg·kg⁻¹ LPS in saline has been shown to stimulate neutrophil migration into the lung [64], which can be quantified following recovery of the cell-rich lung exudate by bronchoalveolar lavage (BAL). LPS or vehicle (saline) was administered by intratracheal aspiration/instillation 24 h prior to lavage. Infiltrates were collected by flushing the lungs with saline and analysed for total cell concentration (cells·mL⁻¹). The specific presence of activated neutrophils was quantified using a myeloperoxidase activity assay. LPS treatment triggered a large increase in the presence of cells in the lavage fluid of 8-week-old mice, indicating a robust inflammatory response (Fig. 7A). The myeloperoxidase activity in the lavage fluid (a measure of neutrophil activation) was also increased by LPS treatment but was unchanged in Krit1^PMNKO mice compared with Krit1^PMNWT mice (Fig. 7B). Interestingly, the serendipitous assessment of a slightly older animal cohort (12-weeks) exposed a deficit in the neutrophil response in these animals. Twelve-week-old Krit1^PMNKO animals had significantly fewer cells in the lavage fluid (Fig. 7C) and a significant reduction in myeloperoxidase activity compared to Krit1^PMNWT mice (Fig. 7D). This result is surprising, as the difference in age between these animal cohorts is minor. Nevertheless, the neutrophil function is known to decline with age, stress levels, inflammation and frailty in humans, and our data suggest that the expression of KRIT1 could be a modifier of these processes.

Fig. 7.

Krit1^PMNKO mice have reduced cell infiltration to inflamed lung tissue. Krit1^PMNWT and Krit1^PMNKO mice were given saline or 5 mg·kg⁻¹ LPS by inhalation 24 h prior bronchoalveolar lavage with 2 × 1 mL lavage buffer. (A) Raw cell counts per mL of lavage fluid recovered from 8-week-old animals; ±SEM, n = 3–6. (B) Myeloperoxidase activity (U·L⁻¹) in lavage fluid from 8-week-old animals; ±SEM, n = 3–6. (C) Raw cell counts per mL of lavage fluid recovered from 12-week-old animals; ±SEM, n = 3–6. P = 0.004 by the Brown–Forsythe ANOVA, **P < 0.01 and *P < 0.05 by the unpaired t-test with Welch’s correction. (B) Myeloperoxidase activity (U·L⁻¹) in lavage fluid from 12-week-old animals; ±SEM, n = 3–6. P < 0.0001 by the Brown–Forsythe ANOVA, *P < 0.05 by the unpaired t-test with Welch’s correction.

Discussion

The goal of this study was to characterize the phenotype of neutrophil-specific KRIT1 knockout animals and KRIT1-deficient neutrophils. We found that loss of KRIT1 in mature neutrophils did not affect viability, fertility or normal haematopoiesis (Fig. 1), neither did the loss of KRIT1 in neutrophils affect adhesion to ICAM-1, putatively through β₂ mediated integrins. However, KRIT1-deficient neutrophils did exhibit reduced adhesion to fibronectin, an important neutrophil ligand in the vascular basement membrane and interstitial space (Fig. 2). The reduction in adhesion corresponded to a reduction in cell spreading on fibronectin, in both the absence and presence of inflammatory stimuli but did not directly correlate with increased pMLC staining (indicative of increased RhoA/ROCK signalling and cellular contractility) as only unstimulated Krit1^PMNKO neutrophils exhibited an increase pMLC staining vs. Krit1^PMNWT cells (Fig. 3). Furthermore, KRIT1-deficient neutrophils induced to migrate on fibronectin migrated faster, and in a more directional manner, than wildtype cells (Fig. 5). This may be due to changes in integrin activation, as we observed reduced integrin activation in Krit1^PMNKO as measured by flow cytometry (Fig. 6). Finally, we observed that these defects manifested as decreased neutrophil infiltration into the inflamed lung tissue in vivo, albeit only in older animals (Fig. 7).

Previous studies have largely focused on KRIT1 as an endothelial protein due to the primary role of endothelial KRIT1 (and the other CCM proteins) in the vascular disorder Cerebral Cavernous Malformations. However, several studies have already pointed to roles for nonendothelial cells in CCM formation [14–16,20,22]. Notably, we previously found that bone marrow–derived cells regulate increased endothelial permeability in Krit1 heterozygous mice, as engraftment of wildtype bone marrow restored the increased microvascular permeability in KRIT1-deficient mice to control levels [25]. As increased permeability is tightly linked to CCM development, severity and progression, this suggests that loss of KRIT1 expression in neutrophils or other bone marrow–derived cells may play a role in endothelial dysfunction and CCM disease pathogenesis. Indeed, CCM lesions from human patients regularly contain leukocytes, including B-cells/plasma cells, T-cells and neutrophils [65,66]. Recently, it was shown that neutrophils make up the most pronounced increase in immune cells in an endothelial-specific CCM3 knockout model, which was accompanied by the deposition of neutrophil extracellular traps (NETs) [67]. However, it remains unclear whether the recruitment of leukocytes is involved in CCM formation or is a general response to vascular injury. More studies will be needed to fill in such gaps in knowledge and clarify the role haematopoietic cells in CCM. This study, which suggests that KRIT1 functions in postextravasation neutrophil adhesion, which can result in improper trafficking to sites of inflammation, is the first step in that direction.

Our data also suggests that KRIT1 is a key modifier of neutrophil behaviour, a finding that could impact our understanding of the inflammatory response in general. Specifically, we show that loss of KRIT1 reduces neutrophil adhesion to fibronectin due to reduced integrin activity. Neutrophils are thought to bind to fibronectin through activation of α₅β₁ integrin, and to some extent α_vβ₃ integrin, though some have reported a role for α₄β₁ and even β₂ integrins in neutrophil binding to fibronectin [62,63,68–71]. Future studies will closely examine the role of KRIT1 in regulating the activation of these integrin isoforms. Several potential regulatory mechanisms are supported by the literature. For example, KRIT1 binds to the small GTPase Rap1, an integrin regulator involved in the recruitment of talin-1 to the β integrin cytoplasmic tail [26,31,72]. This function has been ascribed to the interaction of Rap1 with its effector RIAM [73–75] or to direct interaction with talin [76]. Other Rap1 effectors reported to modify integrin signalling include RAPL [77,78], Mst1 [79], PKD [80], Rasip1 [81,82] and Radil [83,84], though their involvement varies depending on cell and tissue context. Though we recently reported that Rap1 binding is not required for endothelial KRIT1 to maintain barrier function [85], we speculate that KRIT1 could modify Rap1-mediated integrin activation by competing with other Rap1 effectors for binding to Rap1. On the other hand, based on data from endothelial cells, it has been proposed that Rap1 binding to KRIT1 facilitates the inactivation of RhoA/ROCK [31,51,52]. As RhoA/ROCK activity is also important for neutrophil function [53–57], that KRIT1 could also regulate RhoA in neutrophils is an attractive hypothesis. Our data suggest that KRIT1 deficient neutrophils exhibit increased baseline RhoA/ROCK activity, as shown by increased pMLC staining in vehicle-treated cells. However, PMA strongly increases pMLC levels in both Krit1^PMNWT and Krit1^PMNKO neutrophils and, though PMA-treated Krit1^PMNKO neutrophils exhibit a trend toward higher pMLC levels, the difference between genotypes is not significant. These data suggest that KRIT1 depletion-dependent increased RhoA/ROCK activity and subsequent cell contractility could contribute to the decrease in cell spreading in vehicle-treated Krit1^PMNKO cells (Fig. 3A–C) but is unlikely to underlie the decreased spreading or adhesion of PMA-treated Krit1^PMNKO cells (Figs 3D–F and 2B,C). Alternatively, KRIT1 also binds to the β₁ integrin inhibitory protein ICAP-1α. ICAP1α binds to KRIT1 and also was reported to limit KRIT1 interaction with microtubules [32,86]. However, ICAP1α can also bind to the cytoplasmic tail of β₁ integrins [36,37], where it acts as a competitive inhibitor of talin binding [87]. In endothelial cells, studies support conflicting roles for KRIT1 in regulating ICAP1α, as KRIT1 expression has been reported to promote β₁ integrin activation by sequestering ICAP1α away from the integrin [35] and to inhibit β₁ integrin activation by increasing the stability of ICAP1α protein [34]. As ICAP1α is an important regulator of integrin activity and turnover [87], it is feasible that KRIT1 expression could modify this critical pathway in neutrophils.

The reduction in integrin activity and adhesion to fibronectin we observed in KRIT1-deficient neutrophils would be expected to drive changes in neutrophil migration. In fact, we did observe increased neutrophil migration speed and directionality on a fibronectin matrix in vitro. It is well established that changes in the cell migration machinery, including integrin activity, have biphasic effects on cell migratory behaviour, thus this disparity is not unexpected. However, in vivo, neutrophil recruitment into the lung was unaffected or reduced. The discrepancy between the in vitro and in vivo models is likely due to differences in the complex tissue microenvironment of the lung, which requires cells to migrate through two cellular barriers (endothelial and epithelial) and interstitial tissue in order to be collected in the lavage fluid. Additionally, while administration of LPS via aspiration is designed to induce local lung inflammation, it is possible that, given the 24 h treatment time frame, it could also stimulate some level of systemic inflammation, which could alter neutrophil phenotype in unexpected ways. More intriguing is the serendipitous finding that neutrophil infiltration is reduced in 12-week-old but not 8-week-old Krit1^PMNKO mice. Aging is known to reduce neutrophil infiltration, but most studies of neutrophil aging in animal models have been performed by comparing ‘elderly’ (18–24-month-old) animals to 3-month-old ‘young adult’ controls [88,89]. While we were unable to find precedent for differences in the neutrophil function between juvenile and adult mice, the development of the immune system is still ongoing at 8 weeks of age [90]. Indeed, in models of juvenile asthma, differences in immune cell infiltration and other inflammatory responses have been observed between 100-, 40- and 18-day-old mice [91]. Thus, our data, while demonstrating that loss of KRIT1 can affect neutrophil function in vivo, could also point to interesting developmental changes in the mouse lung or in the neutrophil function that could be explored in future work.

In conclusion, we have developed a new mouse model, which demonstrates that KRIT1 regulates neutrophil adhesion and migration through integrin activation and that this affects immune responses in the host organism. While much remains to be done in order to understand the underlying mechanism by which KRIT1 regulates neutrophil adhesion, this is an important step toward understanding how KRIT1 expression in immune cells could impact the response to inflammation. Further study of KRIT1’s role in neutrophils will enhance our understanding of its impact on CCM disease and more.

Materials and methods

Mouse models

Mice with a conditional (floxed) allele for Krit1, a germline deleted Krit1 allele, and the constitutively active neutrophil Cre recombinase (Ly6G^{tm2621(cre)Arte}) have been described [48,49]. The presence of the Ly6G-Cre transgene, the conditional Krit1 allele and recombination at the conditional Krit1 allele were validated by PCR (Ly6G-WT: F-GGTTTTATCTGTGCAGCCC, R-GAGGTCCAAGAGACTTTCTGG; Ly6G-Cre: F-ACGTCCAGACACAGCATAGG, R-GAGGTCCAAGAGACTTTCTGG; Krit1 D: F-TACACCAGGCTACTTGGCTTCAC, R-AAACCAGCAGTCTCAACTAATCGG). As the Ly6G-Cre transgene only weakly drives Cre-expression, heterozygous Ly6G-Cre animals did not exhibit significant loss of KRIT1 expression (data not shown). Therefore, it was necessary to breed mice homozygous for both the floxed Krit1 allele and the Ly6G-Cre recombinase (Krit1^PMNKO). Cre-negative mice containing homozygous floxed Krit1 gene alleles (Krit1^PMNWT) were used as controls and were either littermates derived from a Ly6G^+/−/Krit1^fl/fl × Ly6G^+/−/Krit1^fl/fl cross or from Ly6G^−/−/Krit1^fl/fl breeding pairs. No differences in phenotype were observed between littermate and nonlittermate controls, therefore these data are combined in our analyses. Mice were bred and maintained under standard conditions in the University of Rochester animal facilities, which are accredited by the American Association for Accreditation of Laboratory Animal Care. All protocols were approved by the institutional review board.

Cell isolation

Blood was collected retro-orbitally for complete blood count (CBC) analysis using an Abaxis (Union City, CA, USA) VetScan HM5. In brief, mice between 8 and 10 weeks of age were anaesthetised, and a micro-capillary tube was inserted into the venous retro-orbital sinus behind the eye. Blood was collected by applying light but firm pressure to penetrate the vessels. Collected blood was heparinized and transferred into a cuvette for CBC analysis.

Neutrophils were isolated from the bone marrow of 8- to 10-week-old animals using a Mouse Neutrophil Enrichment Kit (StemCell Technologies, Vancouver, BC, Canada). In brief, bone marrow from the femurs and tibia was flushed out with saline and then resuspended in EasySep buffer (Hanks’ Balanced Salt Solution (HBSS) w/o Ca²⁺ or Mg²⁺, 2% fetal bovine serum (FBS), 1 mm ethylenediaminete-traacetic acid (EDTA)). The cells were then incubated with an antibody cocktail for negative selection, followed by a cocktail of biotinylated secondary antibodies, and then incubated with streptavidin-coated magnetic beads. This cell suspension was exposed to a magnet, which removed all non-neutrophil cells. The purity of the remaining cell population was measured by FACS analysis of Ly6G expression (wildtype cells) or tdTomato expression (knockout cells, Fig. 1A) and consistently exceeded 80%. Following isolation, neutrophils were resuspended in L-15 media (Gibco Leibovitz L-15 phenol-free medium, 2 mg·mL⁻¹ glucose) and used for experiments within 1 h.

Antibodies

Polyclonal rabbit anti-KRIT1 (Abcam, Cambridge, UK) was used at a dilution of 1 : 1000 for western blotting. Horseradish peroxidase (HRP)-linked donkey anti-rabbit IgG secondary antibody (Cell Signalling Technology, Danvers, MA, USA) was used at a dilution of 1 : 1000. Monoclonal rabbit anti-phospho-myosin light chain 2 (Cell Signalling Technology) and goat anti-rabbit IgG, Alexa Fluor 568 (Invitrogen, Waltham, MA, USA) were used at a dilution of 1 : 500 for immunocytochemistry. BV786 Rat anti-Mouse Ly6G and Ly6C (BD Biosciences, Franklin Lakes, NJ, USA), Allophycocyanin (APC) Rat anti-Mouse Ly6G (BD Biosciences) and/or APC Rat anti-Mouse Ly6C (BD Biosciences) antibodies were used at a concentration of 200 μg·mL⁻¹, and/or FITC Rat anti-Mouse CD4 (BD Biosciences) antibody was used at a concentration of 500 μg·mL⁻¹ to stain mouse neutrophils prior to FACS analysis. Armenian hamster anti-mouse CD29 (BD Biosciences) and FITC-goat anti-hamster IgG (ThermoFisher Scientific, Waltham, MA, USA) were used at 500 μg·mL⁻¹ to stain mouse neutrophils before FACS analysis.

RNA isolation and semi-quantitative RT-PCR

RNA was isolated using Trizol (Life Technologies, Waltham, MA, USA) extraction according to the manufacturer’s instructions. Complementary DNA was obtained using Lunascript RT Supermix (New England BioLabs, Ipswich, MA, USA) and oligo dT primers. Amplifications were run on a 7000 real-time PCR system (Applied Biosystems/ThermoFisher) using Taqman gene expression assays (Krit1, Mm00459502; Gapdh, Mm99999915). Each value was calculated using the comparative Ct method and normalized to Gapdh internal control. All samples were run in at least triplicate.

Western blotting

Neutrophil lysates were prepared by lysing cells in lysis buffer (50 mmol·L⁻¹ Tris pH 7.4, 150 mmol·L⁻¹ NaCl, 0.5% NP-40, 5 mmol·L⁻¹ MgCl₂) containing complete mini EdTA-free protease inhibitor tablet (Roche, Basel, Switzerland) and phosphatase inhibitor cocktail (final concentration 100 μm Na₄P₂O₇, 1mm NaF, 1 mm Na₃VO₄, 300 μm β-glycerophosphate, 2 mm imidazole, 4 mm sodium tartrate). Protein quantification was performed using a bicinchoninic acid assay kit (Thermo Fisher), and equivalent amounts of total cell protein were separated by SDS/PAGE on precast 7.5% Tris–HCl gels (BioRad, Hercules, CA, USA). Following transfer to 0.45 μm nitrocellulose, blots were blocked in 5% nonfat dry milk (NFDM) in 1× TBS plus 0.1% Tween 20 (TBST). Primary rabbit anti-KRIT1 antibody (Abcam) was diluted in TBST plus 5% NFDM and the membrane was incubated in primary antibody overnight at 4 °C. The membrane was then incubated with anti-rabbit-HRP secondary antibody for 1 h at room temperature before detection using SuperSignal West Femto enhanced chemiluminescent substrate (ThermoFisher Scientific). Densitometry was performed using a BioRad ChemiDoc Imaging System to quantify band intensity.

Neutrophil adhesion, spreading and migration assays

To assess the ability of neutrophils to adhere to different substrates, glass-bottom 96-well plates were coated with 20 μg·mL⁻¹ recombinant Protein A (ThermoFisher Scientific) overnight at 4 °C then at room temperature for 2 h followed by 5 μg·mL⁻¹ recombinant ICAM-1 (R&D Systems, Minneapolis, MN, USA) for 2 h at room temperature [92] or coated with 10 μg·mL⁻¹ human fibronectin (isolated from human plasma) for 2 h at 37 °C [93]. Prior to the adhesion assay, neutrophils were loaded with calcein-AM (1 μg·mL⁻¹, Invitrogen) at 37 °C for 15 min prior to treatment with 10 nm PMA [94,95], 250 nm fMLP [96], 1 μm WKYMVm [97] or vehicle (phosphate-buffered saline, PBS). The cells were then plated onto the precoated plate and allowed to adhere for the times indicated. At the end of the adhesion period, the plates were rinsed twice with 1× PBS to wash off any nonadherent neutrophils and then covered with 100 μL 1× PBS. Blank wells were prepared by adding 100 μL 1× PBS to wells that had been coated but received no cells; positive control wells were prepared by adding 3 × 10⁴ calcein-AM-treated neutrophils (suspended in 100 μL 1× PBS) to control wells immediately prior to measurement of calcein-AM fluorescence. The fluorescence of the labelled cells was read at excitation/emission wavelengths of 485/528 nm using a BioTek (Winooski, VT, USA) Synergy H4 plate reader.

To quantify cell spreading and phosphorylation of MLC, glass coverslips were coated with 10 μg·mL⁻¹ fibronectin for 2 h at 37 °C. Neutrophils were then plated on the coated coverslips and immediately treated with 10 nm PMA, 250 nm fMLP, 1 μm WKYMVm, 1 μg·mL⁻¹ LPS [98] or vehicle (PBS) and allowed to adhere and spread for 1 h. Cells were then fixed with 10% formalin (Fisher) and permeabilized with 0.2% Triton-X-100 (Research Products International, Mount Prospect, IL, USA) before staining with FITC-phalloidin (Enzo, New York, NY, USA) or primary rabbit anti-pMLC antibody followed by Alexa Fluor 568 goat anti-rabbit IgG. Cells were then counterstained with Hoechst 33258 before the coverslips were mounted on slides using Prolong Gold antifade reagent (Invitrogen). Phalloidin-stained neutrophil images were captured using an Olympus IX81 microscope using a 40×/0.60 Ph2 objective and a Hamamatsu (Hamamatsu City, Japan) ORCA-ER camera. Cell area was quantified by dividing the FITC-phalloidin fluorescent area by the total number of cells to get the average cell area per field using metamorph software (Metamorph Inc, Nashville, TN, USA). pMLC antibody-stained neutrophil images were captured using a Stellaris 5 laser scanning confocal microscope (Leica, Wetzlar, Germany) using a 63×/1.4 n.a. oil immersion objective. Individual cell pMLC staining intensity was obtained using imaris image visualization & analysis Software (Oxford Instruments, Abingdon, UK).

Neutrophil migration was quantified in cells plated on 20 μg·mL⁻¹ recombinant Protein A plus 5 μg·mL⁻¹ ICAM-1, or 10 μg·mL⁻¹ fibronectin-coated chamber wells (Nunc, Rochester, NY, USA). Isolated neutrophils were added and allowed to adhere for 20 min in the presence of 250 nm fMLP before the media was changed to remove nonadherent cells (refreshed media still contained 250 nm fMLP). Cells were then imaged on an IX70 inverted microscope (Olympus, Tokyo, Japan) with a 10×/0.40 Ph1 objective. Digital images were acquired every 30 s for up to 100 min using a digital camera (MicroPublisher 3.3, QImaging, Sarasota, FL, USA). volocity software (Quorum Technologies, Lewes, UK) was used to track individual cells across the image sets and analyse the data.

Bronchoalveolar lavage

Bronchoalveolar lavage was performed as previously described [64,99]. In brief, 24 h prior to lavage, 5 mg·kg⁻¹ LPS (Sigma, Burlington, MA, USA) was intratracheally administered to Krit1^PMNWT and Krit1^PMNKO mice. Prior to lavage, mice were euthanized with 100 mg sodium pentobarbital (Sleepaway: Euthasol Euthanasia Solution, Virbac, Carros, France). The trachea was exposed, and a catheter was introduced into the trachea to allow for the introduction and removal of lavage fluid. The lungs were rinsed twice with 1 mL 1× PBS containing 0.1 mm EDTA and the lavage fluid combined. The concentration of cells in the lavage fluid was measured using an Invitrogen Countess auto cell counter. Analysis of myeloperoxidase activity in 20 μL of lavage fluid was done using an EnzyFluo assay kit (BioAssay Systems, Hayward, CA, USA) and quantified on a BioTek Synergy H4 plate reader.

Flow cytometry

Blood, collected retro-orbitally, was resuspended in 1× PBS with heparin and centrifuged at 300 × g for 10 min to collect the buffy coat. Buffy coat and whole bone marrow, collected by flushing the femur and tibia, were resuspended in HBSS without calcium and magnesium plus 20 mm 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), 5% FBS and 1 mm EDTA. Approximately 5 × 10⁵ buffy coat or bone marrow cells were incubated with BV786 Rat anti-Mouse Ly6G and Ly6C (BD Biosciences), APC Rat anti-Mouse Ly6G (BD Biosciences), APC Rat anti-Mouse Ly6C (BD Biosciences) and/or FITC Rat anti-Mouse CD4 (BD Biosciences) antibodies. FACS was performed on an LSRII flow cytometer, and data were analysed using flojo software (FloJo, Ashland, OR, USA).

To measure integrin activity, neutrophils isolated from Krit1^PMNWT and Krit1^PMNKO mice were resuspended in Tyrode buffer (100 mm HEPES with 170 mm NaCl, 12 mm NaHCO₃, 2.6 mm KCl, 1.5 mL MgCl, 0.5 mm CaCl₂, 1 mg·mL⁻¹ dextrose and 1 mg·mL⁻¹ bovine serum albumin) and 5 × 10⁶ cells per condition were aliquoted into polystyrene tubes. Individual aliquots were treated with 10 mm EDTA, 1 mm MnCl₂, 10 nm PMA or vehicle for 10 min prior to the addition of Alexa488-labelled Fn9-11, generated as previously described [61]. Integrin expression was measured by staining Krit1^PMNWT and Krit1^PMNKO neutrophils with Armenian hamster anti-mouse CD29 (BD Biosciences) followed by FITC-goat anti-hamster IgG (ThermoFisher Scientific). Flow cytometry was performed on an LSRII flow cytometer, and data were analysed using flojo. Activation index was calculated as described in Konstandin et al. [100].

Statistics

Statistical analysis (i.e. one-way ANOVA with appropriate post hoc testing) was performed using prism software (version 9.0, GraphPad Software Inc, San Diego, CA, USA). Statistical significance was assessed assuming a 0.05 significance level and a two-sided alternative hypothesis.

Abbreviations

ICAM-1

intercellular adhesion molecule-1

KRIT1

Krev interaction-trapped-1

Data availability statement

All data and materials from this work are available upon reasonable request.
