Abstract
Background

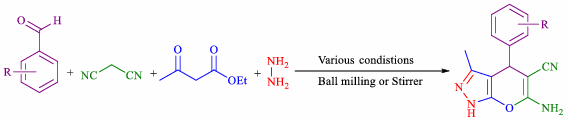

Ball mill is an effective, and green method for the synthesis of heterocyclic compounds in very good yields. This method is a simple, economical, and environmentally friendly process. In this work, an efficient approach for the synthesis of pyranopyrazoles (PPzs) using ball milling and metal-free nano-catalyst (Nano-silica/aminoethylpiperazine), under solvent-free conditions was reported.
Results
The new nano-catalyst silica/aminoethylpiperazine was prepared by immobilization of 1-(2-aminoethyl)piperazine on nano-silica chloride. The structure of the prepared nano-catalyst was identified by FT-IR, FESEM, TGA, EDX, EDS-map, XRD, and pH techniques. This novel nano-catalyst was used for the synthesis of dihydropyrano[2,3-c]pyrazole derivatives under ball milling and solvent-free conditions.
Conclusions
Unlike other pyranopyrazoles synthesis reactions, this method has advantages including short reaction time (5–20 min), room temperature, and relatively high efficiency, which makes this protocol very attractive for the synthesis of pyranopyrazoles derivatives.
Supplementary Information
The online version contains supplementary material available at 10.1186/s13065-023-00934-1.
Keywords: Green chemistry, Ball milling, Pyranopyrazoles, Nano-silica/aminoethylpiperazine
Introduction
Recent advances in chemistry have led to its increasing use of it in various fields of life and industry. In addition to this comfort and well-being, unfortunately, the excessive use of toxic and dangerous substances has caused serious and irreparable damage to the environment and humans. Since the relationship between chemical knowledge and human life is a two-way relationship, the appropriate solution to reduce the risks along with enjoying the benefits of chemistry is the use of green chemistry [1]. Environmental protection has become a very important and popular topic for organic chemists in recent decades. That's why scientists are designing reactions by following green chemistry. Except for green chemistry methods, many of the methods reported for the synthesis of the heterocyclic compound often need hard experimental conditions or have poor yields and by-products [2].
The ball milling method is new and environmentally friendly and is a mechanicochemical method that has recently become very popular and is considered by organic chemists for the synthesis of various organic materials [3]. The advantages of the mechanicochemical methods are that the reactions can be performed under solvent-free conditions, in a short time, and with pure products [4]. In addition, ball milling methods have different applications in medicinal and pharmaceutical chemistry [5, 6], it is also widely used in the polymerization reaction by mediating ball milling [7, 8], multi-component organic synthesis [9–11], including gas reagents [12], carbon materials [13–15], and the preparation of crystals [16, 17].
Pyranopyrazole (PPz) is a fused heterocyclic framework comprising pyran and pyrazole moieties [18–21]. PPzs have shown important roles in the field of medicinal and pharmaceutical chemistry [18] including antimicrobial [22], anti-cancer [23], and anti-fungal [24], and many drugs containing sulfaphenazole (antibacterial) [25], celecoxib (anti-inflammatory) [26, 27], rimonabant (antiobesity) [28], and mepiprazole (antidepressant) [29] are derived from pyrazole core [30, 31]. Several catalysts have been applied for the synthesis of PPz such as Nano-AlPO4/Ti(IV) [32], nano-eggshell/Ti(IV) [33], Fe3O4@SiO2@(CH2)3NH@CC@Imidazole@SO3H [34], AC-SO3H/[Choline-Cl][Urea]2 [35], PAN@melamine/Fe3O4 [36] isonicotinic acid [37], nano‐Fe‐ [phenylsalicylaldiminemethylpyranopyrazole]Cl2 [38], CaO@SiO2-SO3H [39], IRMOF-3/GO/CuFe2O4 [40], [(EMIM)Ac)] [41], RuIII@CMC/Fe3O4 [42], PS-DABCO [43], Fe3O4@rGO-NH [44], and NiFe2O4@SiO2-H14[NaP5W30O110] [45].
In this work, we wish to report an efficient method for the synthesis of PPz using nano-silica/aminoethylpiperazine (Nano-SiO2/AEP) under solvent-free ball milling conditions (Fig. 1). The heterogeneous nano-catalyst was identified by the FT-IR, FESEM, TGA, EDX, EDS mapping, XRD, and pH techniques.
Fig. 1.
Synthesis of PPz using Nano-SiO2/AEP under solvent-free ball milling conditions
Results and discussion
To prepare the Nano-SiO2/AEP nano-catalyst, first, a mixture of nano-silica gel and thionyl chloride was refluxed for 48 h to prepare the nano-silica chloride. In the next step, the dried silica-chloride was reacted with 2-aminoethylpiperazine (AEP) in DMF at 80 °C (Fig. 2).
Fig. 2.
Preparation of Nano-SiO2/AEP
FT-IR of nano-SiO2/AEP
According to the FT-IR 2-AEP (Fig. 3a), the peaks at 2804 cm−1 and 2936 cm−1 are due to the symmetric and asymmetric stretching vibration of the CH2 group, respectively, and the peak at 1594 cm−1 is related to N–H bending vibration. The broad peak at the range of 3200–3400 cm−1 is related to N–H stretching vibration. In the spectrum of nano-silica chloride (Fig. 3b), two bands at 806 cm−1 and 1055 cm−1 are assigned to the stretching and bending vibration of the Si–O–Si, respectively. After immobilization of AEP on nano-silica chloride (Fig. 3c), the peak at 1452 cm−1 is assigned to the stretching vibration of the C-N. All of these observations indicate that the Nano-SiO2/AEP heterogeneous catalyst has been successfully prepared.
Fig. 3.
FT-IR of (a) 2-AEP, (b) nano-silica chloride, (c) Nano-SiO2/AEP
XRD of nano-SiO2/AEP
XRD analysis of the Nano-SiO2/AEP spectrum is shown in Fig. 4. A broad peak was observed at 2θ = 23–30° which proved that the catalyst is predominantly in the amorphous form. This is in agreement with the literature [46].
Fig. 4.
XRD pattern of Nano-SiO2/AEP
Thermal gravimetric analysis (TGA) of nano-SiO2/AEP
The thermal stability of the Nano-SiO2/AEP nano-catalyst was determined by TGA and DTA (Fig. 5) in the temperature range (50–800 °C). The DTA curve shows the endothermic processes in the temperature range of 50–100 °C and 150–350 °C. According to the TGA curve, two stages of weight loss occurred. The first weight loss (less than 100 °C) can be related to the loss of surface water and other solvents on the catalyst surface. The second weight loss of 150–390 °C can be attributed to the destruction of the organic part of the catalyst.
Fig. 5.
TGA curve of Nano-SiO2/AEP
FESEM of heterogeneous nano-SiO2/AEP
The morphological properties and size of Nano-SiO2/AEP nano-catalysts were investigated by FESEM and the results are compiled in Fig. 6. The results show that the Nano-SiO2/AEP is composed of a nanoparticle scale that shows a quasi-spherical morphology with diameters in the range of 16–27 nm.
Fig. 6.
FESEM images of Nano-SiO2/AEP
EDS-map of nano-SiO2/AEP and energy dispersive X-ray (EDX)
The EDX spectrum of Nano-SiO2/AEP (Fig. 7a), shows the presence of the elements O, Si, C, and N with the corresponding weight percentages (47.70, 21.68, 16.56, 10.99%). The elemental mapping of the Nano-SiO2/AEP nano-catalyst is shown in Fig. 7b. According to obtained textures, the elements are homogeneously distributed within the nano-catalyst.
Fig. 7.
a EDX spectrum of Nano-SiO2/AEP, b Element mapping images for Nano-SiO2/AEP nano-catalyst
To confirm the basic property of nano-catalyst Nano-SiO2/AEP, 0.04 g of it was added to 20 mL of deionized water (pH = 7) and stirred for 1 h at room temperature. Then, the pH of the obtained mixture is 8.62.
After the characterization of the basic nano-catalyst Nano-SiO2/AEP, it was used for the synthesis of pyranopyrazoles. To optimize the reaction conditions, 4-nitrobenzaldehyde, hydrazine hydrate, ethylacetoacetate, and malononitrile were performed under various conditions such as the catalyst amount, temperature, and solvent (Table 1). Meanwhile, the model reaction was done in a stainless steel vial and milled with two stainless steel balls of 0.8 mm diameter at 10, 15, and 20 Hz at room temperature (Fig. 8). At the end of the reaction, hot ethanol was added and the entire reaction mixture was scraped, then the catalyst was separated. When the reaction was performed at lower frequencies such as 10 Hz, a few substrates were still present, probably due to the reduction in the amount of energy per impact.
Table 1.
Optimization of various reaction conditionsa
 | |||
|---|---|---|---|
| Entry | Conditions | Time (min) | Yield (%)b |
| Solvent/ Temp. (°C)/ (Catalyst (g)) | |||
| 1 | -/ r. t./ (Nano-SiO2/AEP (0.01)) | 60 | 49 |
| 2 | -/ r. t./ (Nano-SiO2/AEP (0.02)) | 60 | 53 |
| 3 | -/ r. t./ (Nano-SiO2/AEP (0.03)) | 45 | 68 |
| 4 | -/ r. t./ (Nano-SiO2/AEP (0.035)) | 25 | 87 |
| 5 | -/ r. t./ (Nano-SiO2/AEP (0.04)) | 5 | 95 |
| 6 | -/ r. t./ (Nano-SiO2/AEP (0.05)) | 30 | 90 |
| 7c | -/ 80/ (Nano-SiO2/AEP (0.04)) | 80 | 68 |
| 8c | -/ 70/ (Nano-SiO2/AEP (0.04)) | 70 | 73 |
| 9c | -/ 50/ (Nano-SiO2/AEP (0.04)) | 35 | 89 |
| 10c | H2O/ r. t./ (Nano-SiO2/AEP (0.04)) | 120 | 50 |
| 11c | EtOH/ r. t./ (Nano-SiO2/AEP (0.04)) | 120 | 49 |
| 12c | H2O/EtOH/r. t./(Nano-SiO2/AEP (0.04)) | 120 | 70 |
| 13c | MeOH/ r. t./ (Nano-SiO2/AEP (0.04)) | 120 | 67 |
| 14c | CH3CN/ r. t./ (Nano-SiO2/AEP (0.04)) | 120 | 56 |
| 15 | -/ r. t./ - | 120 | Trace |
| 16 | -/ r.t./ (Nano-SiO2 (0.04)) | 120 | Trace |
| 17 | -/ r.t./ (Nano-SC (0.04)) | 120 | Trace |
Bold values indicate the modified condition for synthesis of pyranopyrazole
aReaction conditions: ethylacetoacetate (1 mmol), hydrazine hydrate (1.5 mmol), malononitrile (1 mmol), and 4-nitrobenzaldehyde (1 mmol) were milled in a 10 mL stainless steel milling vial with two balls at 20 Hz. bIsolated yield. cNormal stirring condition
Fig. 8.
Influence of frequency and milling time on the yield of product
With the optimal reaction conditions (Table 1, entry 5), the best result was achieved by using a mixer-milling (frequency of 20 Hz) and 0.04 g of catalyst without any solvent.
As Table 2 shows, a wide range of aromatic aldehydes containing electron donors and electron-withdrawing groups were applied for the synthesis of PPz derivatives under optimized conditions.
Table 2.
Synthesis of PPz derivatives catalyzed by Nano-SiO2/AEP at room temperature and solvent-free conditionsa
 | |||||
|---|---|---|---|---|---|
| Entry | Aldehyde | Time (min) | Yield (%)b | m. p. (°C) | |
| Found | Reported (ref.) | ||||
| 1 | 4-Nitrobenzaldehyde | 5 | 95 | 242–244 | 246–248 [32] |
| 2 | 4-Chlorobenzaldehyde | 5 | 93 | 230–231 | 235–237 [32] |
| 3 | 3-Nitrobenzaldehyde | 10 | 76 | 210–211 | 235–236 [32] |
| 4 | 2,4-Dichlorobenzaldehyde | 5 | 87 | 223–225 | 223–225 [33] |
| 5 | 4-Fluorobenzaldehyde | 5 | 96 | 212–214 | 212–214 [33] |
| 6 | 4-Boromobenzaldehyde | 5 | 97 | 178–180 | 179–181 [32] |
| 7 | 3-Methoxy-4-hydroxybenzaldehyde | 20 | 93 | 233–235 | 234–236 [33] |
| 8 | 4-Hydroxybenzaldehyde | 10 | 92 | 220–221 | 222–224 [33] |
| 9 | 4-Methylbenzaldehyde | 15 | 87 | 204–205 | 170–173 [32] |
| 10 | Benzaldehyde | 20 | 90 | 241–243 | 243–244 [35] |
| 11 | 3,4-Dihydroxybenzaldehyde | 15 | 90 | 221–224 | 220–222 [32] |
| 12 | Furan-2-carbaldehyde | 15 | 93 | 234–235 | 233–235 [32] |
| 13 | Pyrrole-2-carbaldehyde | 20 | 94 | 210–213 | - |
| 14 | 2-Methoxybenzaldehyde | 20 | 80 | 220–222 | 214–216 [32] |
| 15 | Cyclohexanecarbaldehyde | 15 | 80 | 138–139 | 140–142 [32] |
| 16 | 3-phenylpropionaldehyde | 12 | 90 | 210–212 | – |
| 17 | butyraldehyde | 20 | 68 | 117–118 | 115–117 [32] |
aReaction conditions: ethylacetoacetate (1 mmol), hydrazine hydrate (1.5 mmol), malononitrile (1 mmol), and 4-nitrobenzaldehyde (1 mmol) were milled in a 10 mL stainless steel milling vial with two balls at 20 Hz for 5–20. bIsolated yield
Reusability of nano-SiO2/AEP nano-catalyst
The reusability of nano-catalyst Nano-SiO2/AEP was investigated as an important factor for green synthesis (Fig. 9). After completion of the reaction, hot ethanol was added to the reaction mixture and then filtered to separate the nano-catalyst from it. The separated nano-catalyst was washed three times with hot ethanol, dried at ambient temperature, and reused three times with a low loss of its activity.
Fig. 9.
Reusability of Nano-SiO2/AEP nano-catalyst
The catalytic activity of the Nano-SiO2/AEP heterogeneous nano-catalyst was compared with other catalysts. As shown in Table 3, Nano-SiO2/AEP nano-catalyst acts with relatively high catalytic activity in a short reaction time.
Table 3.
Comparison of catalytic activity of Nano-SiO2/AEP with other catalysts
| Entry | Conditions | Time (min) | Yield (%) | References |
|---|---|---|---|---|
| Temp. (℃), Solvent, Catalyst | ||||
| 1 | Reflux, EtOH, NAPT | 30 | 82 | [46] |
| 2 | Reflux, EtOH, RuIII@CMC/Fe3O4 | 30 | 93 | [42] |
| 3 | Reflux, EtOH, PS-DABCO | 120 | 84 | [43] |
| 4 | r. t., H2O, Piperidine | 5–10 | 89 | [47] |
| 5 | Reflux, EtOH, Et3N | 15 | 72 | [48] |
| 6 | r. t., no solvent, Nano-SiO2/AEP | 5 | 95 | This work |
According to relevant literature reports [18], the proposed mechanism for the synthesis of PPz is shown in Fig. 10. Pyranopyrazole formation is a three-step process. Initially, under ball milling conditions, ethylacetoacetate reacts with hydrazine to form an active pyrazolone intermediate (IM1). Then in the second step, aldehyde with malononitrile is condensed and forms an active intermediate IM2. In the third step, both intermediates, IM1, and IM2 are condensed to produce the desired product.
Fig. 10.
Proposed mechanism for synthesis of PPz in the presence of Nano-SiO2/AEP
Conclusions
In summary, we have developed Nano-SiO2/AEP as a new heterogeneous nano-catalyst and identified it by FT-IR, FESEM, TGA, XRD, EDX, EDS-map, and pH techniques. A highly efficient, environmentally friendly practical method for the synthesis of PPz derivatives was developed in the presence of Nano-SiO2/AEP nano-catalysts. The reaction proceeds well by ball milling under solvent and metal-free conditions. Other key features of this green approach include high performance, easy preparation, and low temperature.
Experimental section
Materials and methods
Chemicals were purchased from Merck, Fluka, and Aldrich Chemical Companies. FT-IR spectra were run on a Bruker, Equinox 55 spectrometer. A Bruker (DRX-400 Avanes) NMR was applied to record the 1H-NMR and 13C-NMR spectra. Melting points were determined on a Büchi B-540 apparatus. X-ray diffraction (XRD) pattern was obtained by the BRUKER, (Avance). Field Emission Scanning Electron Microscopy (FESEM) images were obtained by a TESCAN, Mira III. The EDS-MAP micrographs were obtained on MIRA II detector SAMX from TESCAN company (France). Thermal gravimetric analysis (TGA) was conducted using the “STA 503” instrument from BAHR company. The pH of the nano-catalyst was matured by the Metrohm model 691 pH/mv meter. The Reactions were conducted using the Mixer Mill model Retsch MM 400 which consisted of two stainless steel vials, each containing two stainless steel balls.
Preparation of nano-silica chloride (SC)
In a 250 mL round-bottomed flask equipped with a condenser, 10 g of Silica gel and 40 mL of thionyl chloride were added and refluxed for 48 h. Then, the reaction mixture was filtered and the resulting mixture was washed three times with dichloromethane (40 mL × 3) to remove unreacted thionyl chloride from the reaction mixture, the resulting white-grayish powder was dried at ambient temperature and stored in a tight sample tube.
Preparation of nano-silica chloride/aminoethylpiperazine (nano-SiO2/AEP)
In a 100 mL round-bottomed flask, 15 mmol nano-Silica chloride (1.433 g) and 15 mmol of 2-AEP (1.938 g, pH = 12), 10 mL of DMF were heated for 24 h at 80 °C. Then, the resulting mixture was washed three times with dichloromethane (10 mL × 3) and dried at ambient temperature.
General procedure for the synthesis of PPz
In a stainless steel ball mill vessel, a mixture of ethylacetoacetate (1 mmol), hydrazine hydrate (1.5 mmol), aldehydes (1 mmol), malononitrile (1 mmol), and Nano-SiO2/AEP (0.04 g) was milled at 20 Hz. The reaction progress was monitored by TLC (n-hexane: ethyl acetate [8:2]). After checking out the reaction, hot ethanol was added and the reaction mixture was scraped and filtrated to separate the catalyst. Then, the obtained solution was poured into cold water. The crude products appeared as solids that were filtered and washed with water. The crude products were recrystallized in ethanol.
Supplementary Information
Additional file 1. Supplementary file containing FTIR and NMR of products.
Acknowledgements
The Research Council of Yazd University is gratefully acknowledged for the financial support of this work.
Abbreviations
- PPz
Pyranopyrazole
- FESEM
Field emission scanning electron microscopy
- TGA
Thermo gravimetric analysis
- XRD
X-ray diffraction
- AEP
2-Aminoethylpiperazine
- DMF
N, N-Dimethylformamide
- IM
Intermediate
Author contributions
DM and BFM designed and performed the research, analyzed the data, interpreted the results, and prepared the manuscript. DM performed the assay and conducted the optimization, and purification of compounds. All authors read and approved the final manuscript.
Funding
This study was financially supported by Yazd University. The funding bodies played no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.
Availability of data and materials
All the methods were carried out in accordance with relevant local/national/international institutional guidelines and regulations. All data generated or analyzed during this study are not publicly available due to DATA NOT PUBLIC but are available from the corresponding author on reasonable request.
Declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication.
Not applicable.
Competing interests
The authors declare that they have no competing interests.
