Identifying Patients with Undiagnosed COPD in Primary Care Settings: Insight from Screening Tools and Epidemiologic Studies

Abstract

Objective

Chronic obstructive pulmonary disease (COPD) is a major cause of morbidity and mortality, yet research suggests this disease is greatly underdiagnosed. This literature review sought to summarize the most common and significant variables associated with case-finding or missed cases of COPD to inform more effective and efficient detection of high-risk COPD patients in primary care.

Methods

PubMed and EMBASE were searched for articles describing case-finding and epidemiologic research to detect or characterize new cases of COPD. International studies in primary and non-primary care settings, published in English from 2002–2014, were eligible for inclusion. Studies related to risk factors for development of COPD were excluded.

Results

Of the 33 studies identified and reviewed, 21 were case-finding or screening and 12 were epidemiological, including cross-sectional, longitudinal, and retrospective designs. A range of variables were identified within and across studies. Variables common to both screening and epidemiological studies included age, smoking status, and respiratory symptoms. Seven significant predictors from epidemiologic studies did not appear in screening tools. No studies targeted discovery of higher risk patients such as those with reduced lung function or risks for exacerbations.

Conclusion

Variables used to identify new cases of COPD or differentiate COPD cases and non-cases are wide- ranging, (from sociodemographic to self-reported health or health history variables), providing insight into important factors for case identification. Further research is underway to develop and test the best, smallest variable set that can be used as a screening tool to identify people with undiagnosed, high-risk COPD in primary care.

Introduction

According to the updated 2013 Global initiative for chronic Obstructive Lung Disease (GOLD) guidelines, chronic obstructive pulmonary disease (COPD) is defined as: “a common preventable and treatable disease…characterized by persistent airflow limitation that is usually progressive and associated with an enhanced chronic inflammatory response in the airways and the lungs to noxious particles or gases.”¹ Symptoms are primarily chronic and include dyspnea, cough, and sputum production.^{2, 3}

COPD is the cause of substantial morbidity and mortality worldwide and was recorded as the third leading cause of death in the United States in 2008.^4-6 Data from the 2011 Behavioral Risk Factor Surveillance System survey reported that an estimated 15 million adults in the United States have been told by a health-care provider that they have COPD (age-adjusted prevalence: 6.0%).⁷ Risk factors for developing COPD include, gender, socio-economic factors, aging, infections, as well as tobacco smoke, occupational dust, vapors, fumes, indoor air pollutants, outdoor air pollutants, and genetic factors.⁸

Research also suggests that COPD is greatly underdiagnosed, as indicated by data from the Third National Health and Nutrition Examination Study (NHANES III). These data suggest that over 63% of adults with evidence of impaired lung function have never been diagnosed with a lung disease (asthma, chronic bronchitis, or emphysema).⁹ Other lines of research have also demonstrated that many cases are first diagnosed at the time of an acute exacerbation of COPD (AECOPD).¹⁰ Earlier detection of previously undiagnosed, yet clinically significant, COPD in primary care settings could improve short- and long-term patient outcomes and may be cost-effective.¹¹ Therapeutic options exist to treat COPD, with the greatest therapeutic benefit likely to be in symptomatic individuals with a forced expiratory volume in 1 second (FEV₁) <60% predicted who are symptomatic or at risk for AECOPD (i.e., clinically significant COPD).^{12, 13}

Although spirometry is the diagnostic gold standard,¹ it is not efficient as a case-finding tool, and routine use in primary care is not feasible or cost-effective. A brief, easy-to-use self-administered questionnaire may be a more practical method for identifying people most likely to have clinically significant COPD and who are in need of follow-up and diagnostic spirometric testing. Several screening questionnaires have been developed for use in varied settings, including the general population, primary care, and specialty areas, to identify people with COPD. None of these instruments (e.g., COPD Diagnostic Questionnaire [CDQ]¹⁴; COPD Assessment Test [CAT]¹⁵) have specifically attempted to identify previously undiagnosed individuals with clinically significant COPD or who are at high risk of an exacerbation.

The current project is part of a larger study using a multi-method approach to develop a simple, standardized case-finding method for identifying individuals with moderate to severe airway obstruction and those at risk for AECOPD, who have not been diagnosed or treated for COPD. The approach includes a comprehensive literature review, systematic analyses of 3 datasets using random forests methodology, and qualitative research with individuals from the target population.

The purpose of this literature review was to glean insight from existing screening or case-finding instruments and epidemiologic literature related to COPD case identification. Specifically, the intent was to compare and contrast the content and performance of screening questionnaires, as well as identify factors from the epidemiological literature that were predictive of those at high risk of AECOPD, in order to identify significant factors, or sets of factors, which would inform the selection of candidate constructs for the new case-finding tool.

Methods

Search Strategy

This search used PubMed and EMBASE databases to identify articles published in English, from January 1, 2002 to July 14, 2014. An overview of the search strategy is shown in Figure 1. The initial step was a broad search, to identify as many candidate articles as possible. Key search terms included: chronic obstructive pulmonary disease, chronic bronchitis, pulmonary emphysema, and related terms in combination with screening, case-finding, undiagnosed, early diagnosis, or questionnaire—specifying adults only. Search terms excluded papers related to depression, anxiety, nutrition, or diet, common but unrelated topics in the COPD and COPD epidemiology literature. Since the goal was to be more expansive than restrictive and review studies across available literature, articles were not restricted by study population (i.e., primary care, general population, etc.).

Figure 1. Article Selection Process.

Abstracts were reviewed by 2 research team members and selected for further review if the study addressed new case identification using screening or epidemiologic methods, and included empirical evidence of screening effectiveness (screening instrument studies) or predictive power (epidemiology studies). Abstracts of studies describing the prevalence of COPD; risk factors for the development of COPD; characteristic features or treatment outcomes of COPD, such as symptoms, quality of life, management strategies, smoking, or smoking cessation; studies using spirometric or genetic testing only; and case studies were excluded from further review.

Abstracts of the selected papers were reviewed by the remaining team members who rated each on a 6-point Likert rating scale of relevance to the identification of candidate factors for identifying undiagnosed cases of COPD (0 = not very relevant to 5 = very relevant). Abstracts rated relevant or very relevant (mean score ≥4) were selected for full-text review. Team members were also asked to suggest additional articles that should be retrieved for further review.

Two authors examined each of the full-text articles for consistency with the inclusion/exclusion criteria; articles failing to meet these criteria were excluded from further review. Data from the final set of articles were extracted and summarized in tables that included study design, sample size, study population, predictive factors, and results from the statistical analysis, including screening questionnaire performance or the value of predictive factors in identifying new cases of COPD.

Results

Figure 1 details the results from the article selection process. Of the 2702 abstract reviews and additional 21 papers identified, 64 articles were examined in detail and 33 met the inclusion/exclusion criteria for data extraction. The articles reviewed included 21 case-finding/screening and 12 epidemiologic studies.

Case-finding/Screening Questionnaire Studies

The case-finding/screening studies included development studies, validation studies, and retrospective data analysis reviews of developed screeners. The median sample size was 676 (range: 39–7701). Studies were conducted in a range of countries: United States (n=9), Australia (n=2), United Kingdom (n=2), Netherlands (n=1), Japan (n=1), Canada (n=1), China (n=1), Greece (n=1), Mexico (n=1), and United States and United Kingdom combined samples (n=2). The study populations consisted of primary care (n=9), the general population (n=9) (i.e., recruitment through random-digit dialing, conference attendance, and mailed surveys), specialist clinics (n=2), or a combination of both primary care and specialist clinics (n=1). Most studies (n=17) used the GOLD criteria for COPD case definition, where COPD was defined by a post bronchodilator FEV₁/forced vital capacity (FVC) ratio less than 70%¹; 2 studies used physician diagnosis via medical chart; and 1 study used pre-bronchodilator FEV₁/FVC<70%.

Table 1 summarizes key features of the 21 case-finding/screening questionnaires, grouped according to study population (i.e., general population, primary care, specialist, and combined).

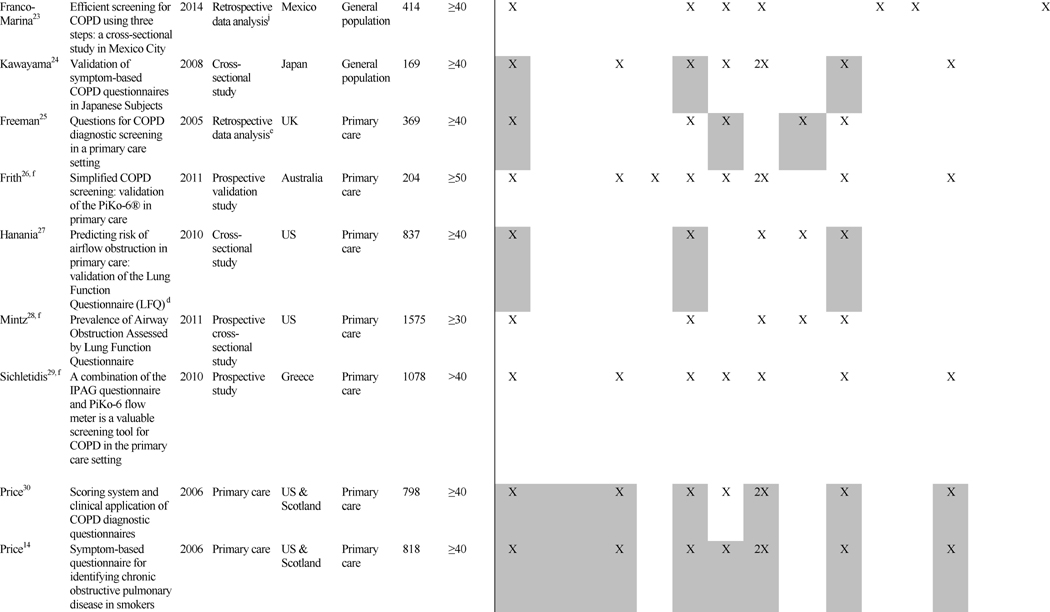

Table 1. Case-finding/Screening Studies: Design and Factors/Predictors.

^aCOPD case definition unless otherwise noted were defined as post bronchodialator of FEV₁/FVC Ratio <0.70

^bPrior diagnosis of: van Schyack—asthma, emphysema, and chronic bronchitis; Mullerova—asthma, COPD, emphysema, and chronic bronchitis; Franco-Marina: Tuberculosis;

^cNHANES dataset used in analysis

^dPost bronchodialator and a history of at least 10 pack-years or 10 years of exposure to other inhaled substances with no physician diagnosis of asthma or other lung disease

^eDatabase collected from 1997 to 2002 from a primary care clinic in the UK

^fStudy did not assess the strength of individual factors in the analysis

^gCOPD case-finding: a diagnosis of COPD

^hNursing home patient registry

ⁱQuestionnaire case definition of COPD: 45 years-old, at least 10 pack-years smoking and physician diagnosis of COPD

^jMexico City PLATINO Survey (2003) and Mexico City Residents' Survey (2010)

^kExposure: Zhou: biomass fuels from cooking; Franco-Marina: dust in the workplace and wood smoke from cooking

Grey Shading = Odds ratio was significant at p<0.05

The number of questions present in each screener ranged from 2²³ to 10²⁶ and included a range of factors. Most included age (n=20), smoking pack-years (n=17), phlegm or sputum (n=16), cough (n=15), wheeze (n=13), and dyspnea or shortness of breath (SOB) (n=10). While these questions were more commonly found across screeners, questions inquiring about exposure (n=3) and family history (n=1) were also found, highlighting the range of questions that have been used to screen for COPD cases.

Performance characteristics of the screening instruments are summarized in Table 2. All studies reported the sensitivity and specificity of the screener, the majority reported positive and negative predictive values, and approximately half presented results from the area under the receiver operating characteristic (ROC) curve. For the studies conducted in the general population, sensitivities ranged from 65.8% to 91.7% and specificity from 46.7% to 97.7% (area under the curve [AUC]=0.65 to 0.79). In primary care studies, sensitivities ranged from 50% to 91% and specificities from 25% to 77% (AUC=0.65 to 0.85). The 1 study that combined primary care and specialist populations (e.g., nursing home) reported sensitivity and specificity within the range of primary care and general population studies (84.4% and 60.7%, respectively; AUC=0.73).³³ The 2 studies utilizing only specialist populations reported the highest sensitivities and good specificities: 90.6% sensitivity and 77.8% specificity was reported for the nursing home population (AUC=0.903),³⁴ and 92% sensitivity and 79.4% specificity was reported for the pulmonary hospital population.³⁵

Table 2. Performance Characteristics of COPD Case-finding/Screening Tools by Setting.

Study Author	Title	Year	Population	Name of Screening Instrument	No. of Items	Score Range	Significant Cut-point	Sensitivity	Specificity	Positive Predictive Value	Negative Predictive Value	Likelihood Ratio LR (95% CI)	Area Under the ROC Curve
Calverley16	Development of a population-based screening questionnaire for COPD	2005	General population	“Could it be COPD”	5	0–5	3 points, age >35	80.8%	62.8%	32.7%	93.6%	--	--
Raghavan17	Components of the COPD Assessment Test associated with a diagnosis of COPD in a random population sample	2012	General population	CAT questionnaire item breathlessness (0–5)/smoking (0,1,2)/age(0,1)	3	0–40	Decision tree screening model (≥55 years; Current smoker; breathlessness of 4)	77.6%	64.9%	18.6%	96.5%	2.21	0.772
van Schayck18	Comparison of existing symptom-based questionnaires for identifying COPD in the general practice setting	2005	General population	Case-finding tool	7	--	--	71.0%	67.0%	25.0%	94.0%	--	0.747
Yawn19	Development of the Lung Function Questionnaire to identify airflow obstruction	2010	General population	Lung Function Questionnaire (LFQ)	5	25	≥3 questions	77.8%	52.4%	--	--	--	0.651
Kotz20	External validation of a COPD diagnostic questionnaire	2008	General population	COPD Diagnostic Questionnaire (CDQ)	8	0–38	19.5	65.8%	54.0%	--	--	--	0.65
Nelson21	Questionnaires and Pocket Spirometers Provide an Alternative Approach for COPD Screening in the General Population	2012	General population	No name	7	--	--	40.7%	97.7%	--	--	--	--
Zhou22	Development and validation of a chronic obstructive pulmonary disease screening questionnaire in China	2013	General population	COPD-Screening Questionnaire (COPD-SQ)	7	--	≥16	60.6%	85.2%	35.1%	95.0%	4.09	0.812
Franco-Marina23	Efficient screening for COPD using three steps: a cross-sectional study in Mexico City	2014	General population	COPD Scale	2	--	≥10	91.7%	46.7%	--	--	--	0.71
Kawayama24	Validation of symptom-based COPD questionnaires in Japanese Subjects	2008	General population	CDQ	8	0–38	19.5	84.8%	64.7%	--	--	--	0.791
Freeman25	Questions for COPD diagnostic screening in a primary care setting	2005	Primary care	Model 2	6	0–40	--	87.1%	71.3%	38.0%	96.5%	3.6	0.85
Frith26	Simplified COPD screening: validation of the PiKo-6® in primary care	2011	Primary care	CDQ	8	--	19.5	71.0%	62.0%	42.0%	85.0%	1.88	0.72
Hanania27	Predicting risk of airflow obstruction in primary care: validation of the Lung Function Questionnaire (LFQ)	2010	Primary care	LFQ	5	25	≤18	82.6%	47.8%	26.5%	92.3%	1.58	0.652
Mintz28	Prevalence of airway obstruction assessed by Lung Function Questionnaire	2011	Primary care	LFQ	5	25	≤18	88.0%	25.0%	21.0%	90.0%	--	--
Sichletidis29	A combination of the IPAG questionnaire and PiKo-6 flow meter is a valuable screening tool for COPD in the primary care setting	2011	Primary care	IPAG questionnaire	8	0–38	19	72.0%	77.0%	--	--	--	--
Price30, a	Scoring system and clinical application of COPD diagnostic questionnaires	2006	Primary care	CDQ	8	0–38	16.5	58.7%	77.0%	37.0%	89.0%	--	--
							19.5	80.4%	57.5%	30.3%	92.7%	--	--
Price14, b	Symptom-based questionnaire for identifying chronic obstructive pulmonary disease in smokers	2006	Primary care	CDQ	8	N/A	Inflection point	80.4%	72.0%	--	--	--	0.816
Estes31	An evidence-based quality improvement perspective for a chronic obstructive pulmonary disease case-finding program	2014	Primary care	COPD Questionnaire	9	0–38	≥17	50.0%	71.0%	17.0%	93.0%	--	0.67
Stanley32	Validation of the COPD Diagnostic Questionnaire in an Australian general practice cohort: a cross-sectional study	2014	Primary care	CDQ	8	0–38	19.5	63.0%	70.1%	24.1%	92.6%	--	AUC=0.713
Martinez33	Development and initial validation of a self-scored COPD Population Screener Questionnaire (COPD-PS)	2008	Primary care and pulmonary specialist	COPD-PS questionnaire	5	0–10	5	84.4%	60.7%	56.8%	86.4%	--	AUC=0.73
Zarowitz34	Development and Validation of a screening tool for chronic obstructive pulmonary disease in nursing home residents	2011	Specialist: nursing home	No name	4		Yes to at least one and if the only one is smoking it must be ≥19 pack years	90.6%	77.8%				ROC = 0.903
Müllerová35	Validation of a chronic obstructive pulmonary disease screening questionnaire for population surveys	2004	Specialist: pulmonary hospital	Confronting COPD Survey (personal level screener for COPD)	5		--	92.0%	79.4%	92.0%	79.3%		Chance-corrected agreement k was 0.66 (SE 0.098)

^aThe Price et al. 2006 Chest article did not report one final recommended cut-point for their screener; hence the table presents the performance characteristics from the two cut-points presented in the article.

^bThe Price et al. 2006 Respiration article details the development of the COPD screening instrument and used a different sample of individuals. The screening instrument was validated in the Price 2006 Chest study.

Epidemiological Studies

Table 3 presents an overview of the 12 epidemiological studies, grouped by study population (6 general population and 6 primary care). Median sample size was 2578 (range: 146–5002). Studies were conducted in a range of countries: Netherlands (n=3), Norway (n=2), Denmark (n=2), United States (n=1), Canada (n=1), Greece (n=1), and multiple European countries (n=2). The majority (n=8) used the GOLD guidelines for COPD case definition, where COPD was defined by a post bronchodilator FEV₁/FVC ratio less than 70%.¹

Table 3. Predictive Factors Assessed in COPD Epidemiological Studies.

Study Design and Setting								Factors/Predictors
Study Author	Titlea	Year	Study Designb	Country	Population	Sample Size	Age Range Inclusion	Age	Gender	Race	BMI	Smoking	Passive Smoke, Exposure to Smoke, Second Hand Smoke	Primary Care Visits	Respiratory symptoms	Cough	Phlegm/Sputum	Dyspnea or Shortness of Breath	Wheeze	Chest Infectionsc	Prior Diagnosisd	Exposures (Dust; Biomass Fuel)	Childhood Illness	Education/Occupation	Health Status	Fatigue/Tiredness	Allergies	Breathing Medication or Antibiotics	Family History of Lung Disease	Income	Cardiac Co-Morbidity
de Marco36	Incidence of chronic obstructive pulmonary disease in a cohort of young adults according to the presence of chronic cough and phlegm	2007	Prospective study of COPD (incidence of COPD)	12 European countries	General population	5002	20–44	X	X			X				X	X	X						X
Hvidsten37	Prevalence and predictors of undiagnosed chronic obstructive pulmonary disease in a Norwegian adult general population	2010	Prospective study of COPD	Norway	General population	3506	47–48 and 71–73	X	X		X	X			X	X		X	X	X				X	X					X	X
Lamprecht38	COPD in never smokers: results from the population-based burden of obstructive lung disease study	2011	Prospective analysis	14 countries	General population	Men (n=1311)Women (n=2578)	≥40	X			X		X								X	X	X	X							X
Medbø39	What role may symptoms play in the diagnosis of airflow limitation?e	2008	Prospective study of COPDf	Norway	General population	3919	≥60	X	X			X				X	X	X	X
Ohar40	Do symptoms predict COPD in smokers?g	2010	Prospective study of COPD	US	General population	3955	≥40					X				X	X	X	X
Ulrik41	Early detection of COPD in general practice	2011	Prospective study of COPD	Denmark	General population	3095	>35	X	X		X	X
Albers42	Do family physicians records fit guideline diagnosed COPD?h	2009	Retrospective studyi	Netherlands	Primary care	532	20–70	X	X			X		X		X	X	X
Hill43	Prevalence and underdiagnosis of chronic obstructive pulmonary disease among patients at risk in primary care	2010	Prospective study of COPD	Ontario, Canada	Primary care	1003	≥40	X	X	X		X		X	X
Løkke44	Detection of previously undiagnosed cases of COPD in a high-risk population identified in general practice	2012	Prospective study of COPD	Denmark	Primary Care	4049	>35	X	X		X	X				X	X	X	X	X
Minas45	COPD prevalence and the differences between newly and previously diagnosed COPD patients in a spirometry program	2010	Prospective study of COPD	Greece	Primary care	1526	>30	X	X		X	X				X	X	X	X			X	X	X				X
Van Schayck46	Detecting patients at a high risk of developing chronic obstructive pulmonary disease in general practice: cross sectional case finding studyj	2002	Prospective study	Netherlands	Primary care	651	35–70									X		X	X		X					X	X		X
Vandevoorde47	Early detection of COPD: A case finding study in general practice	2007	Prospective study of COPD	Netherlands	Primary care	146	40–70	X	X			X				X		X	X		X	X				X

^aCOPD case definition unless otherwise noted was defined as postbronchodialator FEV₁/FVC ratio <0.70

^bMultivariate analysis used to assess significance in all studies unless otherwise noted

^cChest infections including cough, colds, respiratory issues that bring to the doctor

^dPrior diagnosis of asthma, bronchitis, or chronic expectorations

^eCOPD case definition: Pre bronchodilator FEV₁/FVC<0.70 for subjects 69 years and younger and pre bronchodilator FEV₁/FVC<0.65 for subjects 70 years and older

^fBinary logistic regression was used in calculating odds ratios

^gCOPD case definition: Post bronchodilator FEV₁/FVC<70%, aged ≥40, and ≥20 pack-years of smoking

^hCOPD case definition: No FEV₁ reversibility ≥12% and ≥200 ml after taking salbutamol

ⁱData source: DMCA, Detection, Intervention and Monitoring of COPD and Asthma

^jCOPD case definition: FEV₁<80%

Grey shading = odds ratio was significant at p<0.05

Overall, the epidemiological articles assessed 24 predictive factors. Of these, 17 were found to be statistically significant in at least 1 study and 6 were significant in more than half of the studies where assessed. Significant factors included: smoking history or status (n=8 of 10 studies), age (n=7 of 10 studies), cough (n=5 of 9 studies), wheeze (n=5 of 7 studies), dyspnea/SOB (n=4 of 9 studies), gender (n=4 of 9 studies), phlegm/sputum (n=4 of 6 studies), and body mass index (BMI) (n=3 of 5 studies).

Cross-study Comparison

Similarities and differences in predictive factors identified in the screening and epidemiologic literature are summarized in Table 4.

Table 4. Variables Used to Identify Cases of COPD by Study Type.

Theme	Variables Used in Screening Tools	Variables Tested in Epidemiologic Studies
Exposure	Smoking status	Smoking status
	Pack years	Passive smoke, exposure to smokea, second hand smoke
		Exposure to dust, biomass fuel, or other inhalant
Personal and Family History	Allergies	Allergies
	Prior diagnosis of asthma	Prior diagnosis of asthma, bronchitis, or chronic expectoration
	Breathing-related hospitalizations	Chest infectionsa
		Childhood illnessa
		Family history of lung disease
		Frequency of primary care visitsa
		Breathing medication or antibiotics
		Cardiac co-morbidity
Symptoms	Cough	Cough
	Phlegm	Phlegm
	SOB	SOB
	Wheeze	Wheeze
		Respiratory symptoms (combination)a
		Fatigue/tiredness
Impact	Activity limitation (Breathing-related)	Self-rated health statusa
Demographics	Age	Age
	BMI	BMI
		Gendera
		Race
		Education/occupationa
		Income

^aSignificant independent predictor of COPD status

Variables in italics are unique to that study type.

Although the themes/content categories were similar across study type, the range of factors was broader in the epidemiological literature. Almost half of predictive factors tested in the epidemiologic studies (11 of 24) did not appear in the screening questionnaires, such as sociodemographic factors (e.g., education or occupation) and personal history (e.g., primary care visits, chest infections, previous diagnosis of asthma).

Seven factors unique to the epidemiologic literature were significant predictors of COPD diagnosis. These were chest infections (n=1 of 2 studies), childhood illness (n=1 of 2 studies), frequency of primary care visits (n=1 of 2 studies), respiratory symptoms (n=2 of 2 studies), self-rated health status (n=1 of 1 study), gender (n=4 of 9 studies, with male gender a significant predictor of COPD status), and education/occupation (n=1 of 4 studies). Interestingly, 1 study³⁸ found exposure to organic dust and lower education were significant predictors of COPD in women who never smoked (n=1 of 1 study); passive smoke exposure was also of borderline significance in this group. Factors not included in the screeners and not statistically significant in the epidemiological studies were income, fatigue/tiredness, cardiac co-morbidity, and taking breathing medications or antibiotics.

Discussion

This paper summarizes predictive factors for identifying new cases of COPD (defined as the presence of airflow limitation on spirometry) using literature from case-finding/screening questionnaires and epidemiologic studies. The intent was to improve our understanding of the factors and sets of factors that can be used to identify people with undiagnosed COPD. This information is not only useful for general case-finding in clinical practice, but will be used together with data mining techniques and qualitative research methods to inform the development of candidate variables for a new method for identifying undiagnosed, clinically-significant COPD in primary care.

While the review summarized the COPD screening and epidemiologic studies separately, it is clear that, in many instances, COPD screening tools were built based upon the existing epidemiologic literature. For example, Calverley et al¹⁶ first identified characteristics of COPD patients by conducting a literature review, and then identified the correspondence to those specific questions in the NHANES III dataset. Similarly, van Schayk et al¹⁸ conducted a literature review to first identify previously available tools and potentially useful items for screening, and then retrospectively validated the selected set of items using the NHANES III dataset. Yawn et al¹⁹ used NHANES III data for empirical item selection and item-reduction, and conducted a qualitative assessment phase to assess the content and face validity of their items via physician focus groups and patient interviews. Martinez et al³³ used a combination of expert opinion and patient survey data.

Not surprisingly, there was substantial overlap between the screening and epidemiologic studies amongst individual factors most likely to identify COPD. In both studies, factors that appear to be strongly associated with COPD were older age, BMI, smoking history, and symptoms such as cough, wheeze, and dyspnea. However, we also identified factors through the epidemiological studies that were not included in the screening studies. One of these factors was childhood illness. Other lines of research suggest that factors such as prenatal maternal smoking, low birth weight, postnatal tobacco exposure, and childhood respiratory infections may predispose individuals to the development of COPD.⁴⁸ Therefore, it makes sense that factors like childhood illness might increase the likelihood of identifying individuals with COPD. History of chest infections, frequency of primary care visits, and poor self-rated health status were also factors identified in the epidemiologic studies but not tested in the screening studies. While it is possible that chest infections could predispose the development of COPD, it is also possible that chest infections, frequent primary care utilization, and poorer health status are manifestations of COPD, which could aid in the identification of high-risk COPD.

With respect to performance characteristics, it should be noted that the screening tools were tested in a variety of populations, which significantly influenced the sensitivity and specificity of the instruments. Several authors commented on how a study population can influence the performance properties of a screening tool. For example, the CDQ screening tool developed by Price et al³⁰ had good performance properties in the initial evaluation (AUC=0.82). However, in 2 subsequent articles where other authors tested the same screening tool in different samples, the performance characteristics of the screening tool were reduced (AUC=0.65 in Kotz et al²⁰; AUC=0.72 in Frith et al²⁶).Frith et al²⁶ suggested that the difference in results may be due to differences in the demographic characteristics of the study populations (the individuals in the original study by Price et al³⁰ were younger with lower cumulative cigarette consumption compared to Frith et al²⁶). Frith concluded that the utility of screening questionnaires may be more limited outside the development and validation population. Alternatively, Yawn et al¹⁹ developed a screening tool to be useful across a broad spectrum of patient types and settings, rather than targeted to a particular population (e.g., smokers), as many of the other studies were.^{20, 25, 26, 28-30} Yawn et al¹⁹ tested their items in both a general population and a chronic bronchitic population and found that items performed similarly. This highlights the importance of considering the target population during questionnaire development and initial validation.

Limitations

Several limitations of this review should be mentioned. First, due to the heterogeneity among studies in terms of study design, the large number of different risk factors studied, and the different ways in which certain variables were measured (e.g., smoking), the use of meta-analytic techniques was not the appropriate methodology to synthesize results. This may be possible in the future, as more studies utilize the same screening tool or capture the same risk factors in the same way. Second, the review was limited to studies published in English, and the majority of the studies were from developed countries, limiting generalizability of results to patients in other countries. In developing countries, risk factors such as biomass fuel exposure and occupational exposures are likely important and would need to be considered when developing a case-finding questionnaire specific to these countries. Finally, most studies use FEV₁/FVC<0.70 as the cutoff for COPD diagnosis, which is likely to overdiagnose disease in older individuals.

Implications for Practice and Further Research

Previous research suggests that COPD is widely under-diagnosed,⁹ with many individuals experiencing symptoms of clinically-significant COPD or AECOPD, with diagnosis at the time of the event. Case-finding methods are needed to easily and accurately identify these patients as part of routine clinical practice. Screening tools are available which cover several key factors, e.g., the COPD Population Screener Questionnaire (COPD-PS)³³ and the Lung Function Questionnaire (LFQ),¹⁹ but our literature review highlights new variables such as prenatal maternal smoking, low birth weight, postnatal tobacco exposure, and childhood respiratory infection that could further the precision of screening in primary care settings. Factors were identified in the epidemiologic studies that have not been tested in screening studies, including prior history of chest infections, childhood illness, self-rated health status, and frequency of primary care visits. Incorporating these missing variables into a COPD case-finding measure may allow clinicians to accurately identify not only undiagnosed cases of COPD, but also patients at risk of clinically-significant COPD that would benefit most from treatment. Currently, no method has been developed to identify this group in most need of care. The findings from the present study are currently being used in further work to find the smallest set or combination of items that are able to identify undiagnosed, high-risk COPD patients in primary care. The use of values from a peak flow meter, such as that used by Nelson et al²¹ and Sichletidis et al,²⁹ combined with the questionnaire may further refine the patient population in whom spirometry is needed.

Conclusion

This review lays the groundwork for a multi-method development of a new screening approach for identifying undiagnosed, clinically-significant COPD in a primary care setting. Findings from this review highlight several factors that previous research has shown to be consistently and significantly associated with COPD case-finding in a variety of health care settings: age, BMI, wheeze, phlegm/sputum, smoking, cough, and dyspnea/breathlessness. However, our review suggests there are other factors—such as childhood illness and education/occupation—that are not included in existing screening questionnaires, but may also increase our ability to more precisely identify undiagnosed cases of clinically-significant COPD.

Abbreviations

AECOPD

acute exacerbation of COPD

AUC

area under the curve

BMI

body mass index

CAT

COPD Assessment Test

CDQ

COPD Diagnostic Questionnaire

COPD-PS

COPD Population Screener Questionnaire

FEV₁

forced expiratory volume in 1 second

FVC

forced vital capacity

GOLD

Global initiative for chronic Obstructive Lung Disease

LFQ

Lung Function Questionnaire

NHANES III

Third National Health and Nutrition Examination Study

ROC

receiver operating characteristic

SOB

shortness of breath

Declaration of Interest

Dr. Han has consulted for GlaxoSmithKline, Boehringer-Ingelheim, and Regeneron. She has served on speaker bureaus for GlaxoSmithKline, Novartis, Boehringer-Ingelheim, Forest, and Grifols. Dr. Leidy, Dr. Bacci, Ms. Kim, Ms. Steenrod, and Ms. Murray are employees of Evidera, a health care research firm that provides consulting and other research services to pharmaceutical, device, government, and non-government organizations. In this salaried position, they work with a variety of companies and organizations and receive no payment or honoraria directly from these organizations for services rendered. Dr. Mannino has received honoraria/consulting fees and served on speaker bureaus for GlaxoSmithKline PLC, Novartis Pharmaceuticals, Pfizer Inc., Boehringer- Ingelheim, AstraZeneca PLC, Forest Laboratories Inc., Merck, Amgen, and Creative Educational Concepts. Furthermore, he has received royalties from UptoDate and is on the Board of Directors of the COPD Foundation. Dr. Thomashow has consulted for Boehringer-Ingelheim and has been on advisory boards for GlaxoSmithKline PLC, Novartis, AstraZeneca PLC, and Forest. Dr. Barr received grant funding for this work from the National Heart Lung and Blood Institute under R01HL114055. Dr. Barr received grant support from the National Institutes of Health (NIH), the United States Environmental Protection Agency, and the Alpha-1 Foundation; he has received royalties from UptoDate. Dr. Make has participated in research studies and/or served on medical advisory boards for AstraZeneca, Boehringer- Ingelheim, CSL Bering, GlaxoSmithKline, Forest, Novartis, Spiration, and Sunovion. Dr. Bowler's work has been funded by the NIH, FAMRI, Butcher Foundation, and John W. Carson Foundation. He participates in AstraZeneca and GlaxoSmithKline- sponsored clinical trials. He has received compensation as a member of scientific advisory boards of Boehringer Ingelheim Pharmaceutical. Dr. Rennard has had or currently has a number of relationships with companies who provide products and/or services relevant to outpatient management of chronic obstructive pulmonary disease, including the American Association of Respiratory Care, the American Board of Internal Medicine, Able Associates, Align2 Acton, Almirall, APT, AstraZeneca, the American Thoracic Society, Beilenson, Boehringer Ingelheim, Chiesi, CIPLA, Clarus Acuity, CME Incite, the COPD Foundation, Cory Paeth, CSA, CSL Behring, CTS Carmel, Dailchi Sankyo, Decision Resources, Dunn Group, Easton Associates, Elevation Pharma, FirstWord, Forest, GLG Research, Gilead, Globe Life Sciences, GlaxoSmithKline, Guidepoint, Health Advance, HealthStar, HSC Medical Education, Johnson and Johnson, Leerink Swan, LEK, McKinsey, Medical Knowledge, Medimmune, Merck, Navigant, Novartis, Nycomed, Osterman, Pearl, PeerVoice, Penn Technology, Pennside, Pfizer, Prescott, Pro Ed Communications, PriMed, Pulmatrix, Quadrant, Regeneron, Saatchi and Saatchi, Sankyo, Schering, Schlesinger Associates, Shaw Science, Strategic North, Summer Street Research, Synapse, Takeda, Telecon SC, ThinkEquity; these relationships include serving as a consultant, advising regarding clinical trials, speaking at continuing medical education programs and performing funded research both at basic and clinical levels. Dr. Rennard does not own any stock in any pharmaceutical companies. Dr. Houfek declares no conflict of interest. Dr. Yawn has received research funding from the NIH, AHRQ, the Centers for Disease Control and Prevention, and from Boehringer Ingelheim for research on COPD. Dr. Yawn has received compensation from Merck and Forrest for COPD advisory boards on COPD, and Grifols for advisory board on alpha-1 antitrypsin deficiency states. Catherine Meldrum declares no conflict of interest. John W. Walsh declares no conflict of interest. Dr. Martinez has participated in steering committees on COPD or idiopathic pulmonary fibrosis sponsored by Bayer, Centocor, Forest, Gilead, Janssens, GlaxoSmithKline, Nycomed/Takeda and Promedior. He has participated in advisory boards for COPD or IPF for Actelion, Amgen, Astra Zeneca, Boehringer Ingelheim, Carden Jennings, CSA Medixcal, Ikaria, Forest, Genentech, GlaxoSmithKline, Janssens, Merck, Pearl, Nycomed/Takeda, Pfizer, Roche, Sudler& Hennessey, Veracyte, and Vertex. He has prepared or presented continuing medical presentations on COPD or IPF for the American College of Chest Physicians, the American Thoracic Society, CME Incite, the Center for Health Care Education, Inova Health Systems, MedScape, Miller Medical, the National Association for Continuing Education, Paradigm, Peer Voice, Projects in Knowledge, Spectrum Health System, St. John's Hospital, St. Mary's Hospital, the University of Illinois Chicago, the University of Texas Southwestern, the University of Virginia, UptoDate, and Wayne State University. Dr. Martinez has participated in data safety monitoring committees sponsored by GlaxoSmithKline and Stromedix. He has assisted with U.S. Food and Drug Administration presentations sponsored by Boehringer Ingelheim, GlaxoSmithKline, and Ikaria. He has spoken on COPD for Bayer, Forest, GlaxoSmithKline, and Nycomed/Takeda. He has participated in advisory teleconferences sponsored by the American Institute for Research, Axon, Grey Healthcare, Johnson & Johnson, and Merion. He has received book royalties from Informa.
