Nonalcoholic Steatohepatitis Disrupts Diurnal Liver Transcriptome Rhythms in Mice

Abstract

Background & Aims

The liver ensures organismal homeostasis through modulation of physiological functions over the course of the day. How liver diseases such as nonalcoholic steatohepatitis (NASH) affect daily transcriptome rhythms in the liver remains elusive.

Methods

To start closing this gap, we evaluated the impact of NASH on the diurnal regulation of the liver transcriptome in mice. In addition, we investigated how stringent consideration of circadian rhythmicity affects the outcomes of NASH transcriptome analyses.

Results

Comparative rhythm analysis of the liver transcriptome from diet-induced NASH and control mice showed an almost 3-hour phase advance in global gene expression rhythms. Rhythmically expressed genes associated with DNA repair and cell-cycle regulation showed increased overall expression and circadian amplitude. In contrast, lipid and glucose metabolism–associated genes showed loss of circadian amplitude, reduced overall expression, and phase advances in NASH livers. Comparison of NASH-induced liver transcriptome responses between published studies showed little overlap (12%) in differentially expressed genes (DEGs). However, by controlling for sampling time and using circadian analytical tools, a 7-fold increase in DEG detection was achieved compared with methods without time control.

Conclusions

NASH had a strong effect on circadian liver transcriptome rhythms with phase- and amplitude-specific effects for key metabolic and cell repair pathways, respectively. Accounting for circadian rhythms in NASH transcriptome studies markedly improves DEG detection and enhances reproducibility.

Graphical abstract

Summary.

Circadian profiling improves target gene detection and pathway characterization in mouse models of nonalcoholic steatohepatitis. Fatty livers show 3-hour advances in metabolic and clock gene transcript rhythms. Circadian profiling further reveals temporal changes in lipid, carbohydrate, and cholesterol metabolic transcripts.

See editorial on page 497.

Living beings are subject to rhythmic changes in environmental factors such as light and temperature. Mammals use internal circadian clocks to anticipate such regular changes and adjust physiological processes to meet environmental demands.^1,2 Most biological processes show rhythmic activity such as heart rate, DNA repair, energy metabolism, and immunity.^1,3, 4, 5 At the cellular level, circadian timekeeping is based on interlocked transcriptional-translational feedback loops of clock genes and proteins. The clock transcriptional-translational feedback loop orchestrates physiological rhythms through transcriptional programs of clock-controlled genes.³

Circadian clocks are present in most cells and tissues, including liver. Although the importance of circadian rhythms in liver physiology is well known, many basic and clinical studies often pay little attention to this factor when taking and analyzing samples. A recent study evaluated the top-50 cited reports in 10 different fields between 2015 and 2019, showing that only 6.1% of the studies included time-of-day information.⁶ In recent years, the advances in omics techniques and analysis have clearly shown that a substantial portion of the transcriptome, proteome, and metabolome shows rhythmic patterns.7, 8, 9, 10, 11 Therefore, a lack of temporal control may severely affect study outcome and reproducibility.

The prevalence of nonalcoholic fatty liver disease (NAFLD) is estimated at 25%–30% worldwide.¹² NAFLD may progress to liver inflammation with tissue damage, a phenotype known as nonalcoholic steatohepatitis (NASH). If not treated, NASH can progress to cirrhosis or hepatocellular carcinoma. Unfortunately, no specific drug treatment for NAFLD is yet approved.^13,14 NASH results from an imbalance of lipid metabolic processes such as lipogenesis, β-oxidation, and secretion of triglycerides from the liver, as well as endoplasmic reticulum stress, inflammation, and insulin resistance, most of which are under circadian control.^3,13,15, 16, 17, 18 Disruption of circadian rhythms has been shown to hasten NASH and hepatocellular carcinoma in mice.¹⁹

Several studies have identified gene signatures of NASH in mice and human beings to develop prognostic markers.^20,21 Considering that a large portion of the liver transcriptome is rhythmic, we hypothesized that diurnal profiling of gene expression would critically improve detection of differentially expressed genes (DEGs) in this context.

Results

Time Stamping of Tissue Sampling Improves Detection of DEGs in NASH

Our initial step was to evaluate how consistent DEGs were identified between different studies using similar NASH mouse models. Three independent studies using high-fat diet containing high fructose and cholesterol (HFFC)-induced NASH in C57BL/6J mice were chosen.22, 23, 24 RNA sequencing (RNAseq) data were reanalyzed with identical parameters in DESeq2.²⁵ A total of 5608 NASH-dependent DEGs were identified across all 3 studies, but only 688 (12%) NASH shared DEGs were identified at the same time in all 3 data sets (Figure 1A, Supplementary Table 1). Considering the marked rhythmicity of the liver transcriptome and liver metabolism,^11,26 one explanation for this lack of consistency would be differences in sampling times and control thereof between studies.

Figure 1.

DEGs from similar NASH studies show a remarkably small concordance. (A) Venn diagram represents the DEGs of 3 independent studies analyzed using DESeq2 (adjusted P value < .01 and fold change > ±1). (B) Venn diagram shows the number of DEGs (identified in panel A) that are rhythmic according to liver circadian transcriptome collected every 2 hours over a 48-hour period. Shared DEGs (688) were identified by evaluating 3 independent studies. (C) Representative circadian profiles of exclusively detected DEGs in each data set. (D) Blue curves and red curves represent hypothetical scenarios for changes in mesor, phase, or amplitude, which is described in each plot. Representative scenarios of possible combination in rhythmic parameters that can contribute to the lack of consistent DEGs identified in different studies.

We compared identified DEGs against the Circa database of circadian gene expression,¹¹ and, indeed, 52% of the 5608 DEGs detected across studies and 58% of the shared 688 DEGs were rhythmic (Figure 1B and C, Supplementary Table 1). Three principal scenarios are possible in which rhythmicity of gene expression may influence results in a non–time-controlled test scenario (Figure 1D): if a gene is stably (ie, without rhythm) expressed under both conditions (Figure 1D, left panel), then tissue sampling time will have no effect on the outcome of the comparison. However, once DEG expression is rhythmic in any of the 2 conditions, alterations in mesor (baseline expression), amplitude (variation across time), and acrophase (time of peak expression) may lead to different results depending on the time of sampling (Figure 1D, right panels). This prompted us to study NASH-induced changes in liver gene expression by profiling transcriptome regulation across 24 hours.

Effects of NASH on the Diurnal Regulation of the Liver Transcriptome

Mice of both sexes were kept on choline-deficient high-fat diet (cdHFD) for 2 weeks for rapid NASH induction,²⁷ which was marked by increased lipid and cholesterol accumulation, marked histologic alteration, and increased serum marker for liver damage (aspartate aminotransferase) (Figure 2) as corroborating a previous study.²⁸ Liver samples from cdHFD and normal chow (NC) control animals were collected at 6-hour intervals over 24 hours and subjected to RNAseq (Figure 3A). Initially, comparable with previous studies, we evaluated DEGs irrespective of sampling time by pooling data for each condition. This approach yielded 1684 DEGs (1214 up-regulated and 470 down-regulated) (Supplementary Table 2). When DEG analysis was performed for each time point (zeitgeber time, ZT) separately, 1664 time-dependent DEGs (tdDEGs) were detected, 80% of which overlapped with the DEGs detected in the previous studies (Figure 3B, Supplementary Table 2). Among the tdDEGs, 337 genes were consistently up-regulated or down-regulated at every single time point in NASH (Figure 3C). Comparison of these robust DEGs with DEGs from previous studies (Figure 1) showed a high overlap of 93% (314 genes). There were 181 robust DEGs detected in all data sets (Supplementary Table 2), constituting a set of bona fide transcriptional NASH markers. Gene set enrichment analysis (GSEA) of robust DEGs showed several NASH-relevant biological processes such as sterol, lipid, and cholesterol metabolism, inflammation, and insulin signaling²⁹ (Figure 3D and examples in E, Supplementary Table 2).

Figure 2.

cdHFD leads to extensive liver steatosis and tissue damage. (A) Representative macroscopic evaluation of the liver (upper row), H&E staining (middle row), and Oil Red O (ORO) staining (lower row) of NC and cdHFD mice. Scale bar: 100 μm for all micrographs. (B) Serum aspartate aminotransferase (AST; n = 5 per group) and tissue cholesterol (n = 20 per group) levels. ∗∗P <.01 by unpaired Student t test.

Figure 3.

cdHFD results in a marked liver DEG pattern comparable with HFFC diet. (A) Experimental design is represented. (B) DEG analysis was performed for each time point (ZT) and is shown in individual volcano plots. Totals of genes down-regulated and up-regulated are shown in each graph. Genes identified in at least 1 ZT were merged into a single list and classified as tdDEGs. Venn diagram shows how many genes are exclusive and shared between the NASH DEGs and tdDEGs. (C) Robust DEGs were identified as being differentially expressed across all ZTs and are represented as a heatmap. (D) GSEA of robust DEGs. (E) Diurnal profile of robust DEGs that show changes in mesor, amplitude, and/or phase. n = 4 for each ZT. FC, fold change; NR, no rhythmicity; pAdj, adjusted P value; R, rhythmicity.

NASH Phase-Advance Liver Transcriptome Rhythms

A total of 5151 and 4215 genes showed significant circadian rhythmicity in either control or NASH livers, respectively, but only 1714 of these retained rhythmicity across both conditions (Figure 4A, Supplementary Table 3). Only slight differences in acrophase distribution between groups were found, with the highest number of genes peaking around the night–day transition (ZT23) (Figure 4B). Remarkably, a marked phase advance of approximately 3 hours on average was observed in the rhythms of robustly rhythmic genes in NASH (Figure 4C). This phase advance was mirrored in a marked shift in circadian clock gene expression rhythms (Figure 4D). To distinguish between NASH and high-fat diet (HFD) effects, we compared cdHFD data with a previously published HFD data set.¹⁰ On average, core clock gene rhythms were reduced for mesor, phase, and amplitude under cdHFD conditions, and these effects were not observed (mesor, amplitude) or were expressed much less on a HFD, suggesting NASH-specific responses (Figure 4E and F, Supplementary Table 3). A definition and a flowchart of all categories of DEGs are provided (Figure 4G).

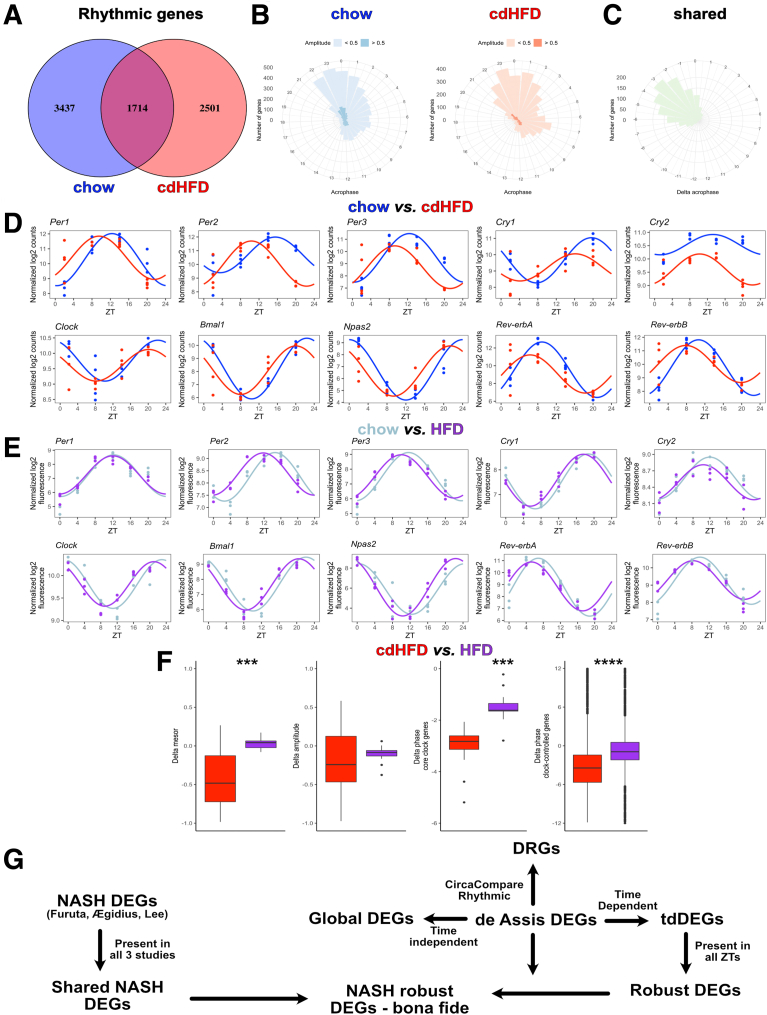

Figure 4.

cdHFD results in a marked phase advance in the liver, which is stronger compared with regular HFD. (A) Venn diagram shows the number of rhythmic genes for each group. Rhythmicity was performed using CircaN, JTK cycle, Metacycle, and DyrR (P < .01). (B and C) Rose plots represent the acrophase of chow, cdHFD, and shared rhythmic genes. (D and E) Diurnal profile of chow and cdHFD livers and reanalysis of Eckel-Mahan et al¹⁰ using our bioinformatic pipeline. (F) Rhythm parameter evaluation between cdHFD and HFD models. For core clock gene evaluation, a paired Mann–Whitney test was used. For chow and cdHFD, n = 4 for each time point (ZT). (G) Flow chart of the different classes of DEGs and DRGs used in this study. For chow and HFD, n = 3 for each ZT. ∗∗∗P < .001, ∗∗∗∗P < .0001.

The comparable NASH-induced phase advance in the expression profiles of core clock and rhythmic genes suggested a liver clock–mediated process. To further evaluate this, we extracted direct targets of core clock transcription factors (Basic helix-loop-helix ARNT like 1, BMAL1, Nuclear receptor subfamily 1 group D member 1, Nuclear receptor subfamily 1 group D member 1, NR1D1, Circadian locomoter output cycles protein kaput, CLOCK, and D-box binding PAR BZIP transcription factor, DBP/Adenovirus E4 promoter binding protein 4,E4BP4) using the Chromatin Immunoprecipitation Sequencing (Chipseq) Atlas database.³⁰ We identified 294, 1067, 70, and 358 bona fide targets of BMAL1, NR1D1, CLOCK, and DBP/EBP4, respectively, which also were rhythmic in at least 1 diet condition and showed alterations in mesor, amplitude, or phase (Supplementary Table 4). Across all of these clock transcription factor targets, reductions in mesor and amplitude as well as robust phase advances were observed (Figure 5A). Exclusive targets were filtered and selected for each clock transcription factor and analyzed for phase responses. Supporting our assumption, a marked phase advance (of 4 hours on average) was observed (Figure 5B–D, Supplementary Table 4). Together, these data suggest that NASH induction phase advances the liver clock and, subsequently, clock-controlled genes.

Figure 5.

Transcriptional targets of clock transcription factors show a marked phase advance. (A) Putative targets of core clock proteins were extracted from Chipseq Atlas (except Dbp/E4bp4, see the Materials and Methods section) and filtered for rhythmicity according to CircaCompare. Heatmaps of each transcription factor are plotted. (B) Exclusive targets for each transcriptional factor were filtered and are shown in heatmaps. (C) Representative genes with marked phase advance are shown. (D) Overall phase distribution of the exclusive targets according to CircaCompare. For chow and cdHFD, n = 4 for each ZT. ∗P < .05, ∗∗∗∗P < .0001 against zero.

NASH Induced Damping and Phase Advance of Lipid Metabolic Pathways

To assess the metabolic effects of transcriptome rhythm alterations in NASH, we quantitatively evaluated changes in circadian rhythm parameters in NASH compared with control livers. Most rhythmic genes were altered in mesor (n = 5062), with similar numbers for an increase or decrease. A total of 1292 genes showed amplitude changes, and most of them (90%) were dampened in NASH. A total of 1317 genes showed significant alterations in phase, of which 90% were phase advanced, in line with our previous observations (Figures 6A and B and 4C, Supplementary Table 5). GSEA of genes with rhythm alterations mainly yielded processes associated with cell damage repair (eg, Gene Ontology categories of cell-cycle progression and DNA repair) and processes associated with lipid metabolism (eg, lipid and fatty acid metabolism), among others (Figure 6C, Supplementary Table 5). A marked reduction in mesor and amplitude combined with phase advances was seen for key genes involved in lipid metabolism such as Lipc, Dgat2, Acaca, Fasn, Crot, Elovl1/5/6, and Cpt1a (Figure 6D, Supplementary Table 5). In line with this, NASH led to loss of rhythmicity (amplitude reduction) in liver triglyceride levels in addition to a marked 11-fold overall up-regulation (Figure 6D).

Figure 6.

cdHFD leads to marked diurnal transcriptome rewiring with several metabolic biological processes affected in mesor, amplitude (Amp), or phase. (A) Venn diagram shows the changes in rhythm parameters detected by the CircaCompare method. (B) Chord plot represents the combination of rhythmic parameter alterations identified by CircaCompare. (C) The top 5 enriched biological processes are represented by each rhythmic parameter. (D and E) Genes related to lipid metabolism and protein ubiquitination processes are shown in heatmaps for changes in mesor. Volcano and dot plots show the amplitude and phase change for each gene that participated in a biological process, respectively. Phase was estimated according to CircaCompare. When phase was higher than 18 in the cdHFD group, phase value was subtracted from 24 and plotted to emphasize phase alteration. Liver levels of triglycerides (TAGs) are shown in log₂ values. Presence and absence for rhythmicity is shown as R or NR, respectively. For RNAseq data, n = 4 for each time point (ZT). For TAG data, n = 4–5 per ZT. A, amplitude; AD, amplitude down; ADV, advance; AU, amplitude up; GO, Gene Ontology; M, mesor; MD, mesor down; MU, mesor up; NR, no rhythmicity; P, phase; PA, phase advance; PD, phase delay; R, rhythmicity.

Interestingly, GSEA also detected protein ubiquitination as a NASH regulated pathway with alterations in mesor, amplitude, and phase. Ubiquitination of circadian clock proteins is a major regulator of clock period and phase.³¹ In NASH, genes associated with protein ubiquitination displayed reductions in amplitude and/or mesor. For others, marked phase advances were observed (Ube2h, Ube4b, Ube2q1, Ube2q2, and Ube2u) (Figure 6E, Supplementary Table 5). These data indicate a time-dependent regulation of protein ubiquitination in the healthy liver, which is altered by NASH. They also suggest a potential direct mechanism for NASH effects on liver clock regulation.

In summary, our comparative rhythm analysis revealed distinct alterations in biological processes associated with liver steatosis. NASH-related changes in ubiquitination transcript rhythms may contribute to the phase advance effect observed for clock and clock-controlled gene expression. Further experiments are necessary to validate this premise.

Temporal Control of Tissue Sampling Augments DEG Detection

Finally, we compared the power of temporal profiling against traditional 1-time point approaches without temporal control. From the previously identified NASH DEGs (n = 5608) detected by at least 1 of 3 studies (Figure 1), CircaCompare analysis confirmed 1875 genes with alterations in at least 1 rhythm parameter (Figure 7A). Of these, 1746, 356, and 361 genes showed changes in mesor, amplitude, or phase, respectively (Supplementary Table 6). In addition, our profiling approach detected 4157 DEGs with alterations in 1 or more rhythm parameters (CircaCompare; n = 3926) or overall expression (global DEGs; n = 231). A total of 568 (83%) of the DEGs consistently detected by all 3 previous studies also were detected as altered by this approach. Some examples for NASH-induced changes in expression profiles are depicted for alterations in mesor (Figure 7B, upper row), amplitude (Figure 7B, middle row), and phase (Figure 7B, lower row) (see Supplementary Tables 5 and 6 for a full list). Overall, this combined approach outmatched traditional DEG detection for rhythmic parameter changes by a factor of 3.

Figure 7.

Accounting for sampling time results in increased DEG detection and higher reproducibility of NASH models. (A) Venn diagram represents the number of DEGs identified in at least 1 published study (DEGs published), DEGs identified in all 3 studies (DEGs published robust), DEGs identified in our data set disregarding sampling time (DEGs global), and DRGs. (B) Representative plots for DEGs that show mesor (upper row), amplitude (middle row), or phase effect (lower row). On top of each gene is shown the study in which such gene was identified. (C) Comparison among DEGs generated by random sampling (rDEGs), tdDEGs, and time-controlled sampling followed by DRGs. ∗Statistical difference (P < .001) against rDEGs and tdDEGs. ^#Difference against rDEGs (P = .029). For chow and cdHFD, n = 4 for each time point (ZT).

To estimate the gain in DEG detection power achieved by controlling for time in transcriptome analyses, we simulated 1-time point random-time sampling and tdDEGs from chow and cdHFD data sets and compared these against circadian profiling on a reduced sampling (n = 3 per time point; differentially rhythmic genes [DRGs]). On average, a higher DEG detection rate of 20% was obtained when sampling time was controlled (Figure 7C). Of note, random sampling did not impact robust DEG detection (from the cdHFD data set) because on average 94% of robust DEGs were identified independent of sampling time. Combined circadian profiling, however, resulted in a 7-fold increase in DEGs, but coming at the cost of a 3-fold increase in sample sizes compared with 1-time point sampling (Figure 7C, Supplementary Table 6). GSEA analyses of the different DEG classes showed that accounting for time increased the detection of exclusive (91 of 221) biological processes compared with global and tdDEGs by 40%. As expected, processes such as circadian rhythms, fatty acid, glycogen, carbohydrates, cholesterol metabolism, and insulin signaling regulation were markedly presented in DRGs (Supplementary Table 6).

Discussion

Our findings corroborate previous NASH studies as the identified NASH gene signature is suggestive of increased DNA damage and repair,³² disrupted cell-cycle progression, tissue repair, and apoptosis,³³ and immune system activation^34,35. Several genes associated with these processes showed increased amplitudes in their circadian expression rhythms, which suggests a stronger level of temporal control. Processes such as lipid and glucose metabolism showed decreased gene expression (mesor down) in NASH livers, thus suggesting an overall activity reduction of energy metabolic pathways. Genes associated with lipid, glucose, and glycogen metabolism also showed reduced amplitude in their daily rhythms or phase advances. A similar phase advance in core clock genes was found, suggesting a clock-mediated mechanism. This idea was supported further by phase shifts in bona fide direct clock target genes.

One limitation of our study lies on the low circadian resolution (every 6 hours), which can increase the number of false positives. Upon estimating rhythmicity, we adopted a rather strict uniform P value cut-off level across the different methods to assess rhythmicity. Other parameters such as amplitude and/or cosine curve fits were not considered, which also can increase false-positive detection. One might argue that such phase effects are associated with the high steatosis environment induced by cdHFD. Upon evaluating a previous study that used a HFD,¹⁰ we indeed identified a phase advance in gene expression rhythms, albeit to a much lesser extent (Figure 4). Therefore, the presence of a high lipid environment indeed contributes to the phase advancement, but such effect is enhanced further by pathologic events in the NASH liver. Proper molecular clock functioning is dependent on cycles of protein synthesis and degradation. The first clock mutant (tau) discovered³⁶ had a shorter locomotor activity period. A subsequent study identified casein kinase 1ε as responsible for such an event because of its capacity to phosphorylate PERIOD (PER). Increased PER degradation as a consequence of defective casein kinase 1ε phosphorylation resulted in a shorter circadian period.^37,38 Protein degradation is mediated primarily via ubiquitination and targeting to proteasomes. Several clock proteins are subject to ubiquitination, which provides a mechanism for period fine-tuning and phase adjustment.³¹ We suggest that disrupted ubiquitination signaling may result in increased clock protein degradation, which, in turn, can phase-advance the core clock (Figure 6). Interestingly, increased ubiquitination levels have been detected previously in human NASH and were suggested as a marker as well as a driver of NASH pathology.^39,40

The observed phase advance in liver glucose metabolism transcripts may have systemic consequences and trigger a compensatory response to normalize serum glucose levels. Similarly, a phase advance in liver lipid metabolism transcripts may shift systemic energy substrate bioavailability to an earlier time. Previous findings showing that HFD-fed mice display increased food consumption during the light (rest) phase⁴¹ corroborated our findings, despite the differences in diet composition. A systemic phase advance in liver transcript rhythms may result in misalignment between geophysical (external) and internal time, affecting metabolic efficiency. In a second potential scenario such phase advance would be restricted to the liver or the liver and a few metabolic organs. Such internal circadian misalignment was shown for HFD conditions in which shifts mostly were restricted to insulin-sensitive organs.⁴² Similarly, NASH-induced transcriptome changes could contribute to tissue decoupling, further propagating metabolic pathologies and NASH progression.¹⁸ Vice versa, addressing such phase shifts by external zeitgebers could slow down or prevent NASH, and such applications warrant further investigation.

From a medical standpoint, any changes in rhythm parameters are relevant for the optimization of NASH therapies. Alterations in expression mesor of a relevant gene indicate that the goal of treatment is to modify overall levels of expression or activity, and this goal may be achieved independent of treatment time. This scenario changes once a gene shows an amplitude or a phase effect. Now, the time of treatment may critically determine the therapeutic outcome. NASH-induced phase effects may call for a reduction in activity at one time and an increase at another (Figure 1D). To avoid such complexity, it may be advisable to attempt to stabilize the circadian clock itself and in this way indirectly rectify clock-controlled gene (CCG) output instead of targeting specific genes/processes.⁴³ Considering the changes found in our study, we suggest that clock strengthening either by a pharmacologic approach⁴⁴ and/or time restricted feeding⁴⁵ may benefit NASH treatment. Chronomodulated pharmacologic approaches have been suggested in NASH treatment.⁴⁶

Although time is an important regulatory element for health,³ the control for or evaluation of (day-) time as a variable factor often is neglected in many research fields.⁶ We hypothesized that a lack of control for sampling time augments inconsistencies in results between different NASH studies that used a similar NASH-inducing model. Upon selecting 3 independent but similar studies,22, 23, 24 only a small fraction of DEGs were identified consistently (12%), and many DEGs detected by either one of these studies showed rhythmic regulation of expression across the day.¹¹ It has been shown previously that 3 weeks of cdHFD does not lead to fibrosis.²⁸ However, longer exposure to NASH-inducing diets such as HFFC is known to lead to fibrosis.22, 23, 24 One could consider our experimental model and the studies from the literature (NASH DEGs) as early and late-type NASH, respectively. Therefore, this can be considered an important source of variation that might explain the incomplete overlap between the studies.

To estimate the impact of not having temporal control on sampling, we determined DEG yields using randomized sampling under time-controlled and time-ignorant conditions and compared these against circadian profiling. We confirmed that lack of proper temporal control hampers the detection of DEGs (Figure 7). Moreover, by performing circadian rhythm analyses, we identified approximately 7-fold more DEGs. Our findings clearly show the consequences for not accounting for time, which can result in increased false positives and lack of consistency between similar NASH studies.

The marked NASH effects observed on the circadian phase of liver transcripts warrant particular attention. Such phase changes, either delays or advances, could be interpreted mistakenly as up-regulation or down-regulation, depending on the time point of assessment. This, in turn, may affect therapy targets. However, with a circadian perspective, more informed decisions on therapeutic strategies could be made. Clearly, considering circadian rhythms in NASH will provide a more comprehensive understanding of the molecular underpinnings of this disease with high therapeutic potential beyond the development of novel compounds.

Materials and Methods

Mouse Model and Experimental Conditions

Two- to 3-month-old male and female wild-type (C57BL/6J) mice were group-housed under 12-hour/12-hour light/dark conditions (LD, 200–400 lux) at 22°C ± 2°C with food and water provided ad libitum. After 1 week of acclimatization under NC (5% fat, 1314; Altromin) NASH was induced by switching to a cdHFD (9% protein, 60% fat, 2% cholesterol, and 31% carbohydrate, 0.17% methionine, E15673-94; Ssniff) for 2 weeks. NASH and control mice (on NC) were killed by cervical dislocation at 6-hour intervals and tissues were flash-frozen in N₂ and stored at -80°C. Animal experiments were ethically approved by the Animal Health and Care Committee of the Government of Schleswig–Holstein and were in line with international guidelines for the ethical use of animals. Even numbers of males and females were used for all conditions except for cdHFD at time point (ZT) 14, with 1 female and 3 males.

RNAseq

Total RNA was extracted from livers using TRIzol reagent (Thermofisher) and spin-columns (Zymo Research) according to the manufacturer’s instructions. Trueseq RNAseq comprising 40 million reads per sample (12 GB) was performed at Novogene. Samples underwent quality control and only those with a RNA integrity number higher than 6.5 were used. Messenger RNA was purified from total RNA using poly-T oligo-attached magnetic beads. After fragmentation, the first-strand complementary DNA was synthesized using random hexamer primers, followed by the second-strand complementary DNA synthesis using deoxythymidine triphosphate (dTTP) for nondirectional library. The library was checked with Qubit and real-time polymerase chain reaction for quantification and a bioanalyzer for size distribution detection. The clustering of the index-coded samples was performed according to the manufacturer’s instructions. After cluster generation, the library preparations were sequenced on an Illumina platform and paired-end reads were generated. Raw data (raw reads) of fastq format were first processed through in-house perl scripts. In this step, clean data (clean reads) were obtained by removing reads containing adapter, reads containing ploy-N, and low-quality reads from raw data. At the same time, quality scores (Q20, Q30) and guanine-cytosine content (GC) content for the clean data were calculated.

Reference genome (GRCm38/mm10) and gene model annotation files were downloaded from genome website browsers NCBI/UCSC/ENSEMBL directly. Paired-end clean reads were mapped to the reference genome using HISAT2 software. HISAT2 uses a large set of small graph FM index (GFM) indexes that collectively cover the whole genome. These small indexes (called local indexes), combined with several alignment strategies, enable rapid and accurate alignment of sequencing reads. All of the downstream analyses were based on the clean data with high quality. FeatureCounts was used to count the read numbers mapped to each gene. Genes containing a sum of reads among 2 groups lower than 100 were excluded from analysis. The remaining genes were log₂ transformed in DESeq2 using the vsd function (blind = FALSE). A total of 18,980 transcripts were considered for subsequent analyses.

DEG Analysis

To identify DEGs independent of sampling time, we used DESeq2²⁵ with an adjusted P value of .01 and a log₂ fold-change of ±1 as cut-off values for pooling samples from all time points (ZTs). For time point–specific DEGs, DESeq2 was performed separately for each ZT. Data from 3 independent mouse NASH RNAseq studies (Lee et al,²² GSE162249; Furuta et al,²³ GSE164084; and Ægidius et al,²⁴ GSE195483) were downloaded from GEO (https://www.ncbi.nlm.nih.gov/geo) and processed as described earlier. Of note, genetic background of mice and diet interventions (HFFC: 40% fat, 20% fructose, and 2% cholesterol for 24–36 weeks) were largely comparable between the 3 studies. They differed, however, in light conditions (LD 12:12 for Ægidius et al,²⁴ Furuta et al,²³ and our study; LD 14:10 for Lee et al²²).

Rhythm Analyses

To identify diurnal (24-hour) oscillations in gene expression, we combined 4 independent algorithms: CircaN,⁴⁷ Jonckheere-Terpstra-Kendall (JTK) cycle,⁴⁸ Metacycle,⁴⁹ and DryR.⁵⁰ CircaCompare was used to compare rhythmic parameters between groups.⁵¹ For mesor and amplitude comparison, CircaCompare was allowed to fit a sine curve irrespective of meeting rhythmicity thresholds. Phase comparison was performed only in robustly rhythmic genes as described.²⁶ CircaN, JTK cycle, and Metacycle algorithms were run in a CircaN algorithm using the default parameters. An exact period of 24 hours was used. The significance of rhythmicity was set as P < .01 for each method. Rhythmic genes were combined into a single list for each group, followed by rhythm parameters comparison using CircaCompare algorithm.⁵¹

Data sets from Zhang et al¹¹ and Eckel-Mahan et al¹⁰ were extracted; log₂ (value +1) normalized; and CircaN, JTK cycle, and Metacycle were used to evaluate rhythmicity. The DryR method was not included in this analysis owing to high temporal resolution and because adding DryR only led to a marginal increase (approximately 10%) in novel gene rhythmicity detection in our RNAseq analysis (6-hour profile). For the Zhang et al¹¹ study, each time point consisted of 1 sample every 2 hours. For the Eckel-Mahan et al¹⁰ study, each time point consisted of 3 samples every 4 hours. For all comparisons in CircaCompare, a P value of .05 was used. For heatmap and rose plots, phase estimation was extracted from CircaCompare. Rhythmic gene visualization was made using CircaCompare algorithm.

Reanalysis of Chipseq Analyses

Target genes of transcriptional factors were obtained using the Chipseq Atlas.³⁰ Putative targets genes were selected by selecting genes up to 10,000 bases from the transcription start sites of mice (Mus musculus, mm9 or mm10). Targets genes were filtered for redundancy and only those with an average score greater than 250 were selected for rhythmicity evaluation using CircaCompare data set. For DBP/E4bp4, data were extracted from the original study.⁵² All putative targets were analyzed against our rhythmicity analysis data set.

GSEA

Enrichment analyses were performed using Gene Ontology annotations for Biological Processes with DAVID 6.8 software⁵³ and cut-off values of 3 genes per process and a P value less than .05. REVIGO (reduction of 0.5 and default conditions) was used to reduce redundant calls in GSEA.⁵⁴

Random-Sampling DEG Evaluation

To estimate the effect of time-controlled sampling on the power of DEG detection, we generated 1000 data sets without time control by randomly picking combinations of 4 samples from the diurnal profile data. DEG evaluation was performed using DESeq2, as described. In addition, a total of 100 temporal profile data sets for NC and cdHFD mice with 4 sampling times and 3 samples per ZT were randomly generated. Previously identified rhythmic genes (using the whole data set) were kept constant for each generated data set and used for CircaCompare analysis. Genes with alteration in rhythmic parameters were merged and classified as DRGs. Comparison between different classes of DEGs was made by using permutation analysis (lmPerm, permutation “Exact”). A P value less than .05 was considered significant.

Histologic Evaluation

For H&E staining, livers were collected, washed with phosphate-buffered saline, and fixed in paraformaldehyde (4%; Electron Microscopy Sciences) for 48 hours, followed by dehydration with increasing concentrations of ethanol. Livers were embedded in paraffin and cut into 5- to 10-μm slices. After dewaxing and dehydration, slices were stained with H&E for light microscope examination. For Oil Red O(ORO) staining, livers were collected, washed with phosphate-buffered saline, and snap-frozen in liquid nitrogen. Liver tissue was embedded in optimal cutting temperature (OCT) compound, and 10-μm sections were made with a cryostat. ORO staining was performed according to an established protocol.⁵⁵

Triglyceride and Cholesterol Evaluation

Tissue triglyceride and cholesterol were processed according to the manufacturer’s instructions (MAK266; Sigma-Aldrich; STA 384; Cell Biolabs).

Liver Damage Marker Evaluation

Plasma from NC and cdHFD mice was used to quantify aspartate aminotransferase activity using commercial kits (MAK055; Sigma-Aldrich). NC and cdHFD were diluted 5 and 10 times, respectively.

Data Handling and Statistical Analysis

Samples were excluded only upon technical failure. Analyses were performed in Prism 9.4 (GraphPad) with a cut-off P value of .05. Two-group comparisons were performed by Student t test with Welch correction, or Mann–Whitney test for parametric or nonparametric samples, respectively. Normality evaluation was performed using the Shapiro–Wilk test. All transcriptome analyses were conducted using R 4.2.1 (R Foundation for Statistical Computing) or in Prism 9.4 (GraphPad). The R packages used are described in Table 1.

Table 1.

R Packages Used in the Bioinformatic Analysis

Name	Version	Use
Eulerr	6.1.1	Venn diagram
VennDiagram	1.7.1	Venn diagram
CircaCompare	0.1.1	Graph and rhythm comparisons
CircaN	2.0.0	Rhythm analysis
DyrR	1.0.0	Rhythm analysis
DESeq2	1.32.0	Differentially expressed genes
Gplot	3.1.3	Heatmap generation
Gplot2	3.3.5	Graph generation
GraphPad	9.1	Graph generation
Circlize	0.4.14	Chord plot
lmPerm	2.1.1.	Permutation analysis
ggbreak	0.1.0	Graph generation
UpSetR	1.4.0	Graph generation
