Performance enhancement and optimization of residential air conditioning system in response to the novel FAl₂O₃-POE nanolubricant adoption

Abstract

This paper aims to evaluate residential air conditioning systems' performance enhancement and optimization by adopting a novel functionalized Al₂O₃ (FAl₂O₃)–Polyolester (POE) nanolubricant. Comprehensive discussions were conducted on key performance parameters, including heat absorption, compressor work, cooling capacity, coefficient of performance (COP), and power consumption. Novel FAl₂O₃ nanoparticles were dispersed into the POE lubricant using a two-step method. The findings reveal that FAl₂O₃–POE nanolubricant exhibits superior heat absorption compared to pure POE. Heat absorption decreases with an increased initial refrigerant charge, while cooling capacity performance improves with an increased initial refrigerant charge. The COP shows an increasing trend at all concentrations of FAl₂O₃–POE nanolubricant when operating with R32. FAl₂O₃–POE/R32 demonstrates an enhanced range of 3.12%–32.26% for COP. The results suggest that applying novel FAl₂O₃–POE nanolubricant with R32 can reduce electrical power consumption by 13.79%–19.35%. The central composite design (CCD) offers an optimal condition for FAl₂O₃–POE nanolubricant with a concentration of 0.11 vol%, an initial refrigerant charge of 0.442 kg, resulting in a COP of 3.982, a standard error of 0.019, and a desirability of 1.0.

1. Introduction

Air conditioning technology plays an essential role in modern life [1]. However, refrigerants with high Global Warming Potential (GWP) have a more significant heating effect on the surrounding air, resulting in lower energy efficiency. Increasing the use of air conditioning systems that utilize high GWP refrigerants will lead to amplified global warming effects and higher energy consumption [2]. Montreal Protocol requires that the refrigerant air conditioning system have zero ozone depletion potential (ODP) and lower GWP [3]. R410a has been adopted as a refrigerant in residential air conditioning systems because it possesses zero ODP and a GWP of 2088 [4]. Therefore, there is a need for an alternative refrigerant that possesses zero Ozone Depletion Potential (ODP) and lower Global Warming Potential (GWP) as a replacement for the current refrigerant R410a. Such a replacement would effectively mitigate the global warming effect and contribute to energy sector sustainability by reducing energy consumption [5].

In recent years, nanolubricants have emerged as a promising solution for improving the performance of air conditioning systems. Nanoparticles, such as Functionalize Al2O3 (FAl2O3) nanoparticles, have demonstrated exceptional properties that can enhance the base fluid's thermal conductivity and lubrication characteristics [[6], [7], [8]]. Incorporating these nanoparticles into the lubricant matrix offers the potential to optimize heat transfer, reduce friction losses, and improve overall system efficiency [9]. Moreover, nanolubricants have shown the ability to mitigate wear and tear on system components, leading to an extended equipment lifespan and reduced maintenance requirements [10].

Several studies have investigated the application of nanolubricants in air conditioning systems, focusing on their impact on key performance parameters. The addition of nanoparticles has enhanced heat absorption capabilities, improving cooling efficiency [11]. Furthermore, nanolubricants have shown promise in reducing compressor work, resulting in energy savings and increased system reliability [12]. These findings highlight the potential of nanolubricants to contribute to the development of sustainable and energy-efficient air conditioning technologies [13].

Furthermore, Sanukrishna et al. [14] reported that the thermal conductivity of nanolubricant could be increased by 1.38% at 0.8 vol% by dispersing TiO2 in PAG. Xu et al. stated that replacing R410a with R32 resulted in a 2–9% improvement in overall performance. As reported by Xu et al., the increase in discharge compressor temperature promotes a loss in compressor efficiency, which results in a decrease in the air conditioning system's coefficient of performance [15]. Panato et al. [16] observed that replacing R410a with R32 decreased overall performance between 4 and 14% in the following evaporator temperature range −5 to 5 °C. Thus, many previous researchers have made significant efforts into improving refrigeration system performance by adopting nanolubricants. COP can be enhanced by 37.3 at 0.5 vol% by adopting MWCNT/POE in the air conditioning system, as reported by Salem et al. [17].

Pico et al. [18] reported that adopting Diamond/POE for the RAC system enhanced COP by 4 and 8% at 0.1 and 0.5 vol%. COP of the RAC system could be increased by 2.06% by adopting TiO2–MO, as reported by Jatinder et al. [19]. A recent finding from Nawaf et al. [20] reported dispersing nanodiamond at 0.05–0.5 vol% in polyolester. According to tribology assessment results, nanolubricant with a concentration of 0.1 vol% has the lowest coefficient of friction (COF) compared to others. Recently, Ahmed et al. [21] formulated a TiO2–mineral oil nanolubricant that works with R32 and R22 (75:25%) labelled as mixture 1 and R32 and R600a (75:25%) labelled as mixture 2. The results reveal that pure R32 has the same compressor work as R22, but a mixture of 1 and 2 can lower compressor work by 33% when TiO2–MO nanolubricant with 0.02 vol% is used. Chauhan [22] claimed that he synthesized Al2O3–SiO2/Polyalkylene Glycol (PAG46) at various volume concentrations ranging from 0.02% to 0.1% and examined it with the refrigerant R134a. According to the experimental results, an Al2O3–SiO2 nanolubricant concentration of 0.08 vol% is an optimum concentration since it lowered compressor power by up to 10.89% compared to pure PAG lubricant. Evidence suggests that Al2O3–SiO2/PAG46 with 0.08 vol% concentration is ideal for automobile air conditioning systems.

Upon a thorough review of the existing literature, it is evident that there is a need for more studies investigating the direct application of nanolubricants in air conditioning systems across diverse operating conditions. Furthermore, it is essential to acknowledge the necessity of creating a universal nanolubricant solution applicable to all air conditioning systems. Therefore, this manuscript addresses these gaps by presenting a comprehensive evaluation of the refrigerant effect, compressor work, overall performance, and cooling capacity of residential air conditioning systems upon adopting a novel FAl2O3–POE nanolubricant.

The main objective of this study is to address the challenge of enhancing performance in the context of refrigerant R32 when compared to the existing refrigerant R410a. By investigating the utilization of the FAl2O3–POE nanolubricant, this research presents a potential solution for enhancing the overall system performance. A systematic approach based on the central composite design of the response surface methodology is employed to determine the optimal nanolubricant configuration that effectively operates in conjunction with refrigerant R32 to achieve this goal.

2. Experimental procedure

2.1. Materials

The aluminum oxide nanoparticles used in this research were obtained from Sigma-Aldrich in Saint Louis, Missouri, USA. Alumina was selected for its performance characteristics, including heat conductivity, density, and shape. Alumina, being naturally polar nanoparticles, presents challenges in dispersing within predominantly non-polar synthetic oils. Consequently, Al₂O₃ functionalization treatment is necessary to modify the surface of Al₂O₃ nanoparticles. This process is detailed in the following sub-section. SUNISO from Belgium supplied the polyolester (POE) lubricant, a synthetic refrigerant oil. Table 1, Table 2 present the fundamental properties of Al₂O₃ and Polyolester (POE), respectively.

Table 1.

Al2O3 physical nanoparticles properties [23].

Properties	Metric
Density	3.95 g/cm3
Molar mass	101.96 g/mol
Diameter	13 nm
Color	White
Melting point	2040 °C
Boiling Point	2977 °C

Table 2.

Properties of Polyolester oil [24].

Lubricant	Properties
	Viscosity at 40 °C	Viscosity at 100 °C	Viscosity Index	Density At 15 °C	Flash Point	Pour Point
Suniso SL 68	70.1 cSt	9.1 cSt	105	0.960 g/cm3	252 °C	−36 °C

2.2. Functionalization of Al2O3 nanoparticle and characterization method

The goal of the functionalization process is to transform the polar Al2O3 surface into a non-polar one. The Al2O3 functionalization process incorporates non-polar SiO2 nanoparticles and ethanol, serving as the modifier material and solvent, respectively. SiO2 nanoparticles are chosen as the modifier material due to their predominant non-polar properties arising from silica. Yuan et al. [25] reported that the functionalization process was carried out by silica adsorption to the alumina. Ethanol (C2H6O) was chosen as the solvent agent in this process because the non-polar ethyl (C2H5) group molecules could enhance the wettability effect of SiO2 on Al2O3 surfaces [26]. Thus, the Al2O3 and SiO2 dispersion in ethanol can increase SiO2 adsorption on Al2O3 and formulate non-polar FAl2O3. After formulating the FAl2O3 nanolubricant, the nanoparticles were mixed into the POE lubricant to create the nanolubricant [27]. The schematic diagram of the functionalization process is shown in Fig. 1. The FAl2O3 nanoparticles were subsequently characterized using Transmission Electron Microscopy (TEM) FEI Tecnai G2 T20 X-TWIN to assess their morphology and diameter size. The dimensions of FAl2O3 were further confirmed using Image J software. The energy dispersive X-ray spectroscopy (EDX) method was adopted to assess the newly synthesized FAl2O3 nanoparticles’ elements.

Fig. 1.

Process flow of Al₂O₃ functionalization

2.3. Nanolubricants preparation and visual observation method

The nanolubricant in this study was formulated using a two-step method. he two-step method involves two primary stages for formulating the nanolubricant: first, mixing the nanoparticle dispersion into the lubricant to create the nanolubricant, and second, applying ultrasonication treatment. This two-step method involves four stages that must be performed in a specific sequence [28]. The initial stage involves weighing the required nanoparticles and POE lubricant for the dispersion process based on volume concentration. The volume of nanolubricant concentration is determined using Equation (1), as suggested by Azmi et al. [29]. The nanolubricant preparation process flow is depicted in Fig. 2.

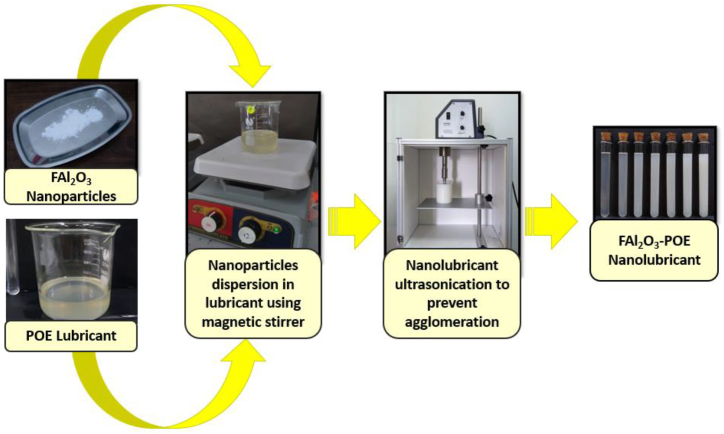

Fig. 2.

FAl₂O₃-POE nanolubricant formulation using the two-step method.

The second stage involves dispersing nanoparticles into the POE lubricant using a magnetic stirrer for 30 min without applying heat. The magnetic stirrer used in this study is the FAVORIT Stirring Hotplate HS0707V2. In the third stage, ultrasonic treatment is applied to the nanolubricant for 100 min to enhance its stability and prevent agglomeration. Ultrasonication treatment was conducted in three cycles of 40-40-20 min for each sample, with a 15-min pause in between to prevent a significant temperature increase in the nanolubricant and ensure compliance with device safety standards [30]. An ultrasonic homogenizer with a probe was chosen for its ability to provide stronger vibrations to the suspension, resulting in better dispersion compared to using an ultrasonic bath, as reported by Mellado et al. [31]. The ultrasonic homogenizer used in this study is the Hielscher Ultrasonics Germany UP400S.

Formulating the FAl2O3-POE nanolubricant required three phases. The initial phase involved Al2O3 nanoparticles and POE lubricant measurement. Nanoparticles were weighed using the digital weighing scale Sartorius Entris to determine the necessary mass of Al2O3 nanoparticles and POE lubricant before mixing. Beforehand, the balance was calibrated to achieve a suitable level and fine-tune the validation of the circle center's leveling bubble. The middle stage encompassed mixing the base lubricant (POE lubricant) and Al2O3 nanoparticles using a magnetic stirrer for 30 min. The third stage involved the ultrasonication process using an ultrasonic homogenizer. Interlude mode was employed to disperse the nanolubricant agglomeration for 100 min. Equation (1), as suggested by Sharif et al. [32], was utilized to estimate the volume fraction of the nanolubricants. After each 40-min cycle, a 15-min interlude was applied to prevent deterioration of nanolubricant homogeneity [33].

$$\varnothing =\frac{\raisebox{1ex}{$m_p$}\!\left/ \!\raisebox{-1ex}{${\rho }_p$}\right.}{\raisebox{1ex}{$m_p$}\!\left/ \!\raisebox{-1ex}{${\rho }_p$}\right.+\raisebox{1ex}{$m_l$}\!\left/ \!\raisebox{-1ex}{${\rho }_l$}\right.}x100\%$$ (1)

Here, ∅ represents the nanoparticle volume concentration in %; mp and ml stand for the masses of the nanoparticle and POE lubricant, respectively, while ρn and ρl denote the density of the Al2O3 nanoparticle and POE lubricant, respectively. The prepared FAl2O3-POE nanolubricants were stored in experimental tubes to assess their stability through observation of aggregation and sedimentation.

2.4. Experimental facility and procedure

To conduct the experimental procedure, we constructed an in-house developed calorimeter to assess the performance of the RAC system. The RAC system installed in the experiment chamber has a capacity of one horsepower. The layout and design of the experiment chamber, referred to as the calorimeter chamber, are shown in Fig. 3. The RAC system is designed in a back-to-back configuration, wherein the interior and outdoor units are positioned opposite each other, following the suggestion of previous researchers [[34], [35], [36]]. The RAC system is installed in a room equipped with a calorimeter for control [36]. Fig. 3 was designed to replicate real-world conditions and tailored to meet the needs of the experimental study. Its construction guarantees a controlled environment, facilitating effective conduct of our experiments. The core aim of the distinct chamber, illustrated in Fig. 3, is to proficiently regulate indoor and outdoor temperatures and humidity levels, aligning with the testing criteria outlined in Table 3. This controlled setting guarantees that the experimental conditions closely adhere to the standard's guidelines. Through the implementation of the separate chamber, we can effectively simulate real-world conditions while exercising essential control over variables. This facilitates precise and reliable measurements of the air conditioning system's performance.

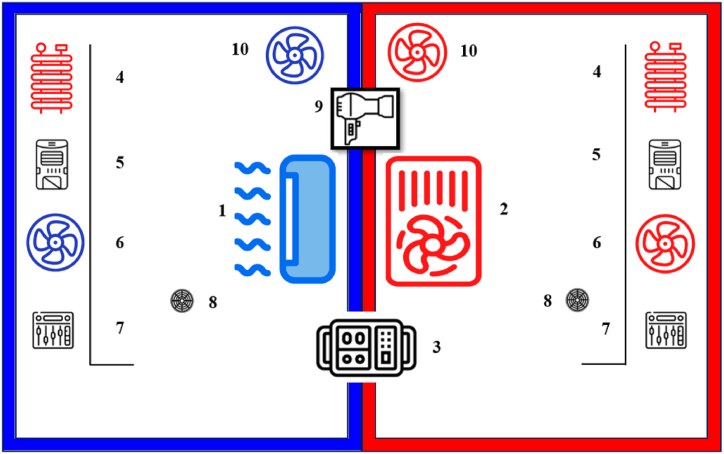

Fig. 3.

Calorimeter RAC experiment layout.

Table 3.

Performance test conditions [37].

Parameter	Standard Rating Condition
	T1	T2	T3
Dry bulb temperature in indoor side	32 °C	27 °C	32 °C
Dry bulb temperature in outdoor side	43 °C	35 °C	52 °C

A 2-inch square iron structure supports the frame of the calorimeter chamber, while the design of the members employs 1-inch square iron. Exterior walls are constructed from 2 mm plywood, while interior walls are composed of 2-inch polystyrene to inhibit heat transfer between the surrounding air and the controlled chamber, as suggested by previous researchers [38,39]. Silicone rubber is applied to seal the spaces between the polystyrene joints, preventing any leakage of heat transfer.

The key components of the calorimeter include 1. indoor unit, 2. outdoor unit, 3. equipment under test, 4. heating unit, 5. humidifier unit, 6. fan, 7. mixer, 8. air sampling tube, 9. pressure equalization device, and 10. exchange air fan. For the air conditioning system setup, no modifications were applied to the specifications. This is because all component specifications used in the setup align with the standard specifications provided by the manufacturer. This approach is adopted to ensure optimal performance, in line with the factory-defined requirements indicated on the air conditioning system's nameplate. This is consistent with the suggestion of previous researchers [[40], [41], [42]].

The performance test in this study was conducted under T1 conditions in a moderate climate. All tests were carried out with the equipment operating under full-load conditions. In order to establish a moderate climate, a 900 W electric heater was placed inside the indoor room. Fig. 4 illustrates the performance test of the RAC system using POE nanolubricants in the context of R410a and R32 system flow.

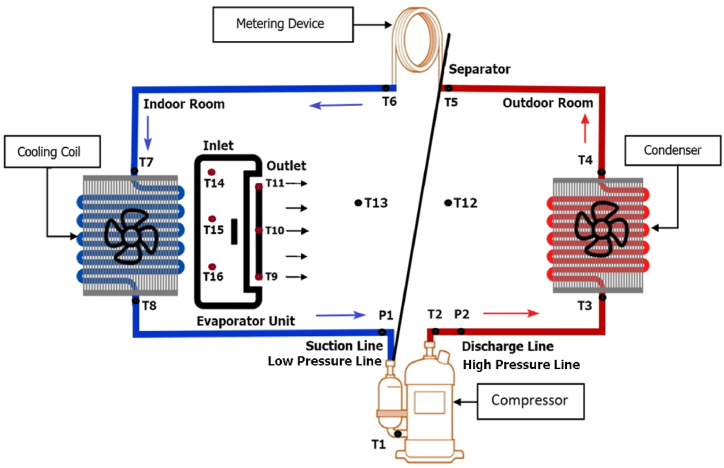

Fig. 4.

The schematic diagram illustrates the setup of the RAC system, depicting the positions of the thermocouples.

A 1 HP rotary compressor was utilized in the setup of the RAC system. Pure POE lubricant is introduced into the RAC system at the commencement of each assessment for the next concentration. This is done to prevent any contamination from the previous nanolubricant to the succeeding one [11]. This process is repeated three times for the FAl2O3-POE nanolubricant.

Sixteen K-type thermocouples were positioned as indicated in Table 3 to record and quantify temperatures during the test. K-type thermocouples were installed using snug, non-conductive insulation material to prevent temperature transfer between the sensor and the surrounding environment, as advised by previous researchers [43,44]. Throughout the test, the RAC system settings were configured for full-speed fan conditions, and the barometric pressure location remained constant. Grille and damper positions, as well as fan speed, were adjusted to full speed according to the manufacturer's instructions, and no changes were made to these settings in accordance with the standard as suggested by Zhou et al. [36].

The RAC system performance test refers to the maximum cooling performance within the T1 setting, specifically denoted as the standard cooling rating for a moderate climate [45]. The schematic diagram in Fig. 4 illustrates the position of each thermocouple within the RAC system setup. The performance test conditions at T1 were as follows: the indoor and outdoor temperatures were maintained at 32 °C and 43 °C, respectively, both during conditioning and RAC system testing. Consequently, a 900-Watt electric heater fan is installed and activated, providing consistent heating during the conditioning and testing phases to uphold a stable indoor temperature of 32 °C.

The RAC system within the calorimeter is initially operated until it achieves a steady-state (equilibrium) condition, preventing data fluctuations; the difference in the steady state should not exceed 0.3%. Preparation for the steady-state condition was upheld for a minimum of 1 h before recording performance test data. To meet the consistency and accuracy standards of data, continuous data recording for at least 30 min without interruption was mandated by performance testing requirements, in alignment with the standard's guidance [37]. In this study, data recording was performed for 40 min during each test to ensure data consistency and reliability. Testing was conducted three times to guarantee data reliability and consistency.

2.5. Experimental performance analysis

The vapor-compression refrigeration cycle is the chosen cycle for air-conditioning systems, featuring an isentropic compression process in the compressor [46]. Adiabatic processes entail no heat transfer between the fluid and its surroundings and vice versa. A reversible process occurs when the fluid remains in constant equilibrium, akin to a frictionless process in the compressor [47]. The isentropic process condition is both reversible and adiabatic. The saturation cycle, featuring isentropic compression in the RAC system, is illustrated in Fig. 5.

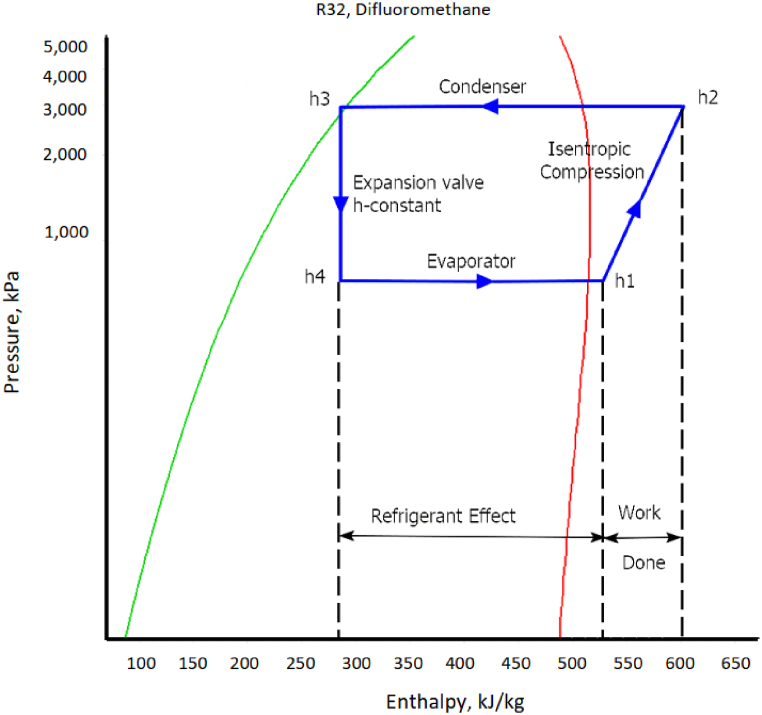

Fig. 5.

Saturation cycle with isentropic compression.

Performance analysis is the stage where each critical component of the refrigeration cycle is identified and evaluated. The performance of this analysis includes estimating the amount of refrigerant effect or heat absorbed by the evaporator, calculating compressor work, and evaluating the coefficient of performance [48]. The outcome of this analysis determines the overall coefficient of performance (COP) value for the RAC system. The vapor compression refrigeration cycle is expected to exhibit a no-pressure drop phenomenon in the condenser, evaporator, and all refrigerant lines in the RAC system test setup. The pressure gauge then indicates the condensing and evaporating pressures, which are expected to be equivalent to the discharge and suction pressures. Furthermore, any increases in kinetic and potential energy are considered to be insignificant. Temperature and pressure at a specific location play a critical role in influencing the RAC system's heat absorption, compressor effort, and COP. Enthalpy is calculated by considering both temperature and pressure simultaneously.

The following calculations of mass and energy balance are adopted to analyze the performance of the RAC system, as suggested by previous researchers [18,47,49,50].

Heat absorbs or refrigerant effect (kJ/kg) [51].

$$Q_e=h_1-h_4$$ (2)

Compressor work done (kJ/kg) [51].

$$W_c=h_2-h_1$$ (3)

Cooling capacity or refrigerant duty (kW) [51].

$$Qe=m.\left(h_1-h_4\right)$$ (4)

Refrigerant mass flow rate (kg/s) [51].

$$\dot{m}=\frac{Q_e}{\left(h_1-h_4\right)}$$ (5)

According to the performance of each parameter of the RAC system, the overall COP can be determined by calculating the ratio between the refrigerant effect and the compressor work done, as expressed in equation (6).

$$COP=\frac{Q_e}{W_D}$$ (6)

Equation (6) is used to determine the compressor's electrical power [52].

$$P=V.I$$ (7)

2.6. Uncertainty and consistency analysis

This study employed a wide range of sensors and measurement tools. Performing a consistency analysis using the percent relative standard error (RSE) as suggested by a previous researcher, the measurement consistency and standard error that occurred in each of the mentioned parameters were evaluated [51]. Additionally, based on the % relative standard error (RSE) given by Yusri et al. [53], the measurement error of data collection for all performance metrics was computed. A consistency study, following Yusri et al. [53], was conducted to ensure the reliability and repeatability of the experimental data [53].

$$RSE=\frac{S_{eer}}{\bar{X}}x100wherethestandarderror{S}_{eer}using{S}_{eer}=\frac{\sigma }{\sqrt{n}}$$ (8)

Where $\bar{X}$ is the mean, σ is the standard deviation, and n is the number of samples.

2.7. Response surface methodology optimization

The current study utilized the Central Composite Design (CCD) of the Response Surface Methodology (RSM) to identify the optimal operating conditions for the nanolubricant. Two parameters, specifically the volume concentration and initial refrigerant mass, were identified and employed to assess the RAC system's overall performance response, particularly the COP, for each type of nanolubricant paired with refrigerants R410a and R32. The data collection process was repeated three times for each nanolubricant concentration during the experiment. This step aimed to ensure data consistency, reliability, and the elimination of potential errors in data capture. This rigorous approach was undertaken before initiating the optimization calculation and analysis. While the minimum CCD center point is typically set to 5, this study increased it to 8 points to enhance the reliability of calculations and data processing [54]. Determining alpha one as the face aims to accurately establish the value within the intended boundary [55]. For optimization purposes, it is recommended that RSM perform 16 rounds of experimental analysis for each nanolubricant based on the CCD settings.

3. Results and discussion

Prior to conducting experiments, all equipment and apparatus used in this investigation underwent verification. The validation method for equipment and instruments was implemented in this study to ensure that measurement and data capture results during the experimental process are accurate, consistent, reliable, and free of errors. The experiments and data collection were subsequently repeated three times. This repetition was carried out to prevent data-gathering errors and ensure data reliability before proceeding to the data analysis procedure.

3.1. FAl₂O₃ nanoparticles characterization

The novel FAl₂O₃ nanoparticles were characterized using FEI Tecnai G2 T20 X-TWIN to determine their morphology, shape, and size. Fig. 6 depicts the results of the characterization of FAl₂O₃ suspended in POE. The TEM micrograph displays two dominant colors: dark and contrast-based. The intensity of the beam interacting with the sample and the thickness of the nanoparticles contribute to the dark-to-black coloration.

Fig. 6.

TEM image of FAl₂O₃–POE Nanolubricant in 50.000 magnitude.

Fig. 7 illustrates the distribution of novel FAl₂O₃ nanoparticle diameters. It is evident that the distribution follows a normal pattern based on Gaussian distribution analysis, with mean and standard deviation values. The graph is symmetrical, maintaining balance as it approaches the peak, with equal distances and patterns on both sides. No significant deviations are present on either the left or right side, nor are there valleys at the peak of the frequency distribution. The standard deviation indicates data variability or dispersion. A smaller standard deviation implies data points closer to the mean, resulting in a narrower peak. This demonstrates the reliability and homogeneity of the utilized FAl₂O₃ nanoparticles. According to the graph, the average diameter of the FAl₂O₃ nanoparticles is determined to be 43.11 nm.

Fig. 7.

Gaussian distribution of FAl₂O₃ Nanoparticles.

The density of nanoparticles and the interaction between the characterizing nanoparticles simultaneously determine the thickness level. The micrograph confirms the dispersion of FAl2O3 in the POE, aligning with Liu's findings [56].

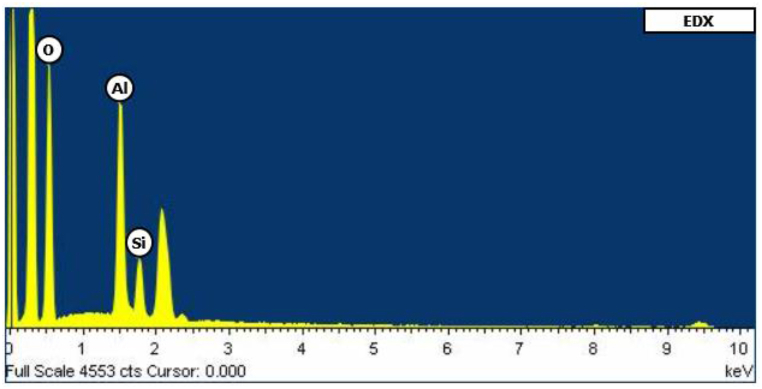

Fig. 8 displays the EDX evaluation results of FAl₂O₃ nanoparticles. It is evident that the displayed elements correspond to the elements constructing the nanoparticles. As shown in Fig. 8, the study involves interpreted FAl₂O₃ nanoparticles. The larger the EDX spectra peak, the greater the representation of the specific element, as summarized in Table 4.

Fig. 8.

EDX element analysis of FAl₂O₃ Nanoparticle.

Table 4.

Element percentage of FAl₂O₃ nanoparticles.

Element	Weight %	Atomic %
Oxygen	64.17	75.34
Aluminum	25.78	17.95
Silicon	10.04	6.72
Total	100.00	–

3.2. FAl₂O₃-POE nanolubricant visual observation

On the first day, each nanolubricant sample exhibited extensive nanoparticle dispersion, with no signs of sedimentation in either type of nanolubricant. This observation suggests the excellent quality of dispersion in this nanolubricant sample. Ultrasonication treatment proves efficient in preventing aggregation and sedimentation of the nanolubricant sample. Observations continued on day 30; all samples remained highly stable, showing no significant signs of sedimentation. While there were hints of minor agglomeration, they were quite slight and primarily occurred in samples with higher concentrations, especially samples 4 and 5, as shown in Fig. 9. The minimal sedimentation in the nanolubricant sample highlights the strong repulsion between nanoparticle surfaces, minimizing the van der Waals attraction effect [57].

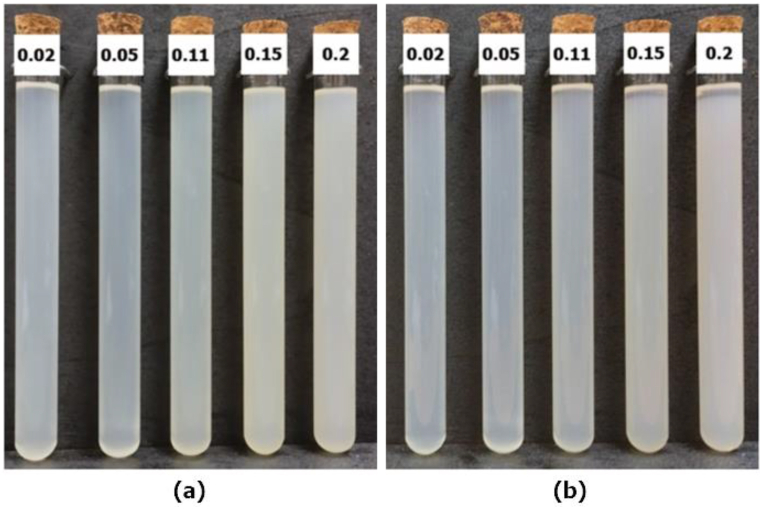

Fig. 9.

Visual evaluation of FAl₂O₃-POE nanolubricant on (a) day 1 and (b) day 30.

3.3. Heat absorbs and cooling performance evaluation

Figs. 10 and 11 illustrate the impact of the initial refrigerant charge on the heat absorption and cooling performance of FAl₂O₃–POE nanolubricants with R32 at various concentrations. The refrigerant charge in an air conditioning system is closely linked to the mass flow rate. The refrigerant charge denotes the quantity of refrigerant, usually measured in kilograms or pounds, in the system. In contrast, the mass flow rate indicates the mass of refrigerant passing through the system per unit of time, often measured in kilograms per second or pounds per minute. The refrigerant charge influences the mass flow rate by determining the amount of refrigerant present in the system to facilitate heat transfer and cooling. A proper refrigerant charge is crucial for the optimal operation of the air conditioning system.

Fig. 10.

Effect of initial refrigerant charge on heat absorption.

Fig. 11.

Effect of initial refrigerant charge on the cooling capacity.

When the refrigerant charge is too low, there isn't sufficient refrigerant to efficiently absorb heat from the indoor air. This situation can lead to diminished cooling capacity and poor performance, a finding consistent with prior researchers' earlier discoveries [[58], [59], [60]]. A low refrigerant charge can also result in the evaporator coil freezing due to insufficient heat absorption. Conversely, if the refrigerant charge is excessively high, it can also adversely affect the system's performance. An excessive amount of refrigerant can cause problems like heightened compressor workload, reduced heat transfer efficiency, and potential damage to system components, as reported by Porras et al. [61].

This event demonstrates a crucial aspect of the RAC system: the evaporator's capacity to absorb heat from the surrounding environment in 60 s [62]. In general, the FAl2O3–POE nanolubricant enhances heat absorption more than pure POE. According to the graph, heat absorption declines as the initial refrigerant charge decreases, which is directly related to the cooling capacity phenomenon. This phenomenon can be explained by an increase in the mass flow rate for each increment of refrigerant charge, resulting in higher refrigerant weight, which in turn affects the reduction in heat absorbed [63]. The cooling capacity exhibits the opposite phenomenon, with an improvement in cooling capacity performance as the initial refrigerant charge increases, as illustrated in Fig. 10.

The high refrigerant mass flow rate in the RAC system mixed with nanolubricant promotes higher nanoparticle collisions, enhancing cooling capacity compared to pure POE. Additionally, the wave movement generated by phonons of the dispersed nanolubricant escalates the heat transfer in the system [64]. This cooling capacity improvement could be attributed to the enhancement in the higher refrigerant mass flow rate compared to the RAC system with pure POE lubricant. This situation directly influences the increased cooling capacity of the RAC system. However, the cooling capacity of the highest fraction of 0.2 vol% nanolubricant shows a decrement. This phenomenon can be explained by the fact that the density of the mixture of refrigerant and nanolubricant with 0.2 vol% increased tremendously, leading to an increase in the viscosity of the nanolubricant [65]. This condition has a direct impact on the lower mass flow rate. The cooling capacity of FAl2O3–POE/R3 increased by 5%–18%, respectively.

3.4. Compressor work evaluation

Fig. 12 illustrates the compressor performance phenomenon observed in the current investigation using FAl2O3–POE/R3. The graphs display the phenomenon of decreasing compressor work with increasing initial refrigerant charge. When the AAC system employs a limited amount of refrigerant, the compressor must exert greater effort to compress the refrigerant and raise system pressure. Consequently, the compressor's work is highest at the lowest initial refrigerant charge. Conversely, higher compressor work results in elevated inlet and outlet temperatures for the compressor at low initial refrigerant levels [17]. The utilization of nanolubricant can mitigate compressor work in the RAC system, leading to a decrease in compressor work due to the improved lubrication effect and tribological impact, as explained in the previous sub-section on tribology assessment. This phenomenon has a direct positive influence on the overall performance enhancement of the RAC system, as reported by Kamarulzaman [66].

Fig. 12.

Effect of initial refrigerant charge on compressor work.

The increase in compressor lubrication is linked to the tribological aspect, which transforms sliding motion into rolling motion [67]. This effect also influences the compressor's power input. However, there is a noticeable inclination for the compressor power input to rise as the initial refrigerant charge in the RAC system increases. This phenomenon is attributed to the impact of increasing the refrigerant mass flow rate for each initial refrigerant charge, which affects the compressor power input. This trend aligns with the findings reported by Adelekan et al. [11,68]. The experimental results demonstrated that the use of nanolubricant decreased compressor work by 4.91%–17.23%.

3.5. Coefficient of performance evaluation

Fig. 13 illustrates the coefficient of performance (COP) of FAl2O3–POE/R32 nanolubricants. The graphs generally indicate that increasing the initial refrigerant charge results in an increase in COP. Moreover, as the nanolubricant concentration increases, COP also rises. The COP shows a rise up to a concentration of 0.15 vol%, after which it decreases at a concentration of 0.2 vol%, approximately mirroring the increase in COP at a concentration of 0.02 vol%. This change in COP ranges from 3.12% to 32.26%. The most significant increase is observed at 0.15 vol%, with a COP improvement of 32.26% using an initial refrigerant charge of 0.442 kg.

Fig. 13.

COP RAC system in various initial refrigerant charge.

The mechanism responsible for improving COP can be summarized as follows: COP increases as compressor work decreases [69]. This outcome stems from the reduction in compressor load, leading to a decrease in compressor work. This reduction in work is attributed to the tribological impact of nanolubricants, which can provide substantially better lubrication compared to pure POE lubricants. The introduction of nanolubricants has a significant positive effect on the COP value in the RAC system. This behavior is attributed to improvements in the compressor's heat transfer mechanism, cooling capacity, and overall energy efficiency. These findings align with the work of Ahmed and Elsaid et al. [49], which suggests that the use of nanolubricants can enhance the coefficient of performance in refrigeration systems. Similarly, Bakthavatchalam et al. [70] reported a substantial reduction in compressor work and a consequent increase in the coefficient of performance in air conditioning systems through the use of nanolubricants.

The decrease in COP for the nanolubricant with the highest concentration of 0.2 vol% is illustrated in Fig. 13. This phenomenon can be attributed to a significant increase in the density of the refrigerant and nanolubricant mixture under these conditions. The introduction of 0.2 vol% nanoparticles to the lubricant has a substantial impact on the viscosity of the nanolubricant. As a result, this phenomenon leads to a rise in pressure within the refrigerant line, consequently resulting in elevated temperatures at the inlet and outlet of the compressor. The substantial temperature increase at the discharge outlet of the compressor hampers the efficiency of the isentropic compression process, thereby leading to an increase in compressor work [71].

3.6. Power consumption evaluation

Fig. 14 illustrates the impact of nanolubricant utilization on the electrical power consumption of the RAC system. The graph demonstrates that the use of FAl₂O₃–POE nanolubricant results in decreased power consumption compared to pure POE lubricant. A decline in power consumption is evident at each concentration, up to 0.15 vol%. However, beyond this point, a substantial increase in power consumption surpasses the adoption of pure POE lubricant at the 0.2 vol%.

Fig. 14.

Power consumption of RAC system in various initial refrigerant charge.

Therefore, the adoption of nanolubricant significantly decreases the electrical power demand of the RAC system's compressor. This reduction can be attributed to the influence of dispersed nanoparticles in the lubricant, which impacts the pressure drop at the suction and discharge inlets of the compressor. This pressure drop subsequently affects the low current entering the compressor, leading to a reduction in the required electrical power [72].

At a concentration of 0.2 vol%, there was an increase in the compressor's electrical current flow across all levels of the initial refrigerant charge and all types of nanolubricant. This phenomenon can be attributed to the higher concentration of nanoparticles (0.2 vol%), leading to elevated pressure levels in both the suction and discharge refrigerant lines [73]. Consequently, this rise in pressure contributed to an increase in temperature within the compressor's discharge line.

The escalation in operating pressure and temperature at a concentration of 0.2 vol% resulted in an augmentation of the current input to the RAC system. As a consequence, this situation prompted a rise in power consumption for the RAC system. However, the findings provide evidence that the application of FAl₂O₃–POE nanolubricant in conjunction with R32 leads to a reduction in electrical power consumption by 13.79%–19.35%, respectively.

3.7. Uncertainty and consistency analysis

Table 5 presents an overview of the outcomes from the RSE calculations. An authentic air conditioning system setup was employed in this investigation. The analysis of this study centered around critical parameters pertinent to the cooling system, including refrigerant effect or heat absorption, compressor work, cooling capacity, vibration displacement, and coefficient of performance (COP).

Table 5.

Consistency values of the present study.

mrc kg	Qe[kJ/kg]	Wc[kJ/kg]	qc[kW]	COP
0.364	0.05	0.04	0.05	0.04
0.416	0.04	0.05	0.04	0.03
0.442	0.03	0.04	0.05	0.05
0.520	0.03	0.04	0.05	0.03

Consistency analysis was conducted in this study using Equation (8) to calculate the relative standard error (RSE), as recommended by previous researchers, in order to assess the measurement consistency and standard error of the mentioned parameters. In this study, RSE values were computed based on experimental data from three runs conducted under the same conditions.

3.8. Central composite design of response surface methodology outcome

The quadratic model is the exact model advocated for each RSM analysis. These models are determined by maximizing the modified R² and the projected R², as shown in Table 6.

Table 6.

Model summary statistics FAl₂O₃-POE/R32.

Source	Std. Dev.	R2	Adjusted R2	Predicted R2	PRESS
Linear	0.3882	0.1355	0.0025	−0.6854	0.3882
2FI	0.8050	0.1400	−0.0750	−2.8320	0.8050
Quadratic	<0.0001	0.9852	0.9778	0.8933	<0.0001	Suggested
Cubic	0.6480	0.9867	0.9751	−0.4627	0.6480	Aliased

3.8.1. ANOVA output

Table 7 demonstrates the analysis of variance for the quadratic model used to examine the adequacy of the FAl₂O₃-POE/R32 model developed by CCD RSM.

Table 7.

ANOVA output of COP in FAl₂O₃-POE/R32.

Source	Sum of Squares	df	Mean Square	F-value	p-value
Model	2.16	5	0.4315	133.08	<0.0001	significant
A-Volume Concentration	0.0150	1	0.0150	4.63	0.0570
B-Refrigerant Charge	0.2817	1	0.2817	86.87	<0.0001
AB	0.0100	1	0.0100	3.08	0.1096
A2	0.6182	1	0.6182	190.67	<0.0001
B2	0.3782	1	0.3782	116.65	<0.0001
Residual	0.0324	10	0.0032
Lack of Fit	0.0324	3	0.0108
Pure Error	0.0000	7	0.0000
Cor Total	2.19	15
R2	0.9852		Std. Dev.	0.0717
Adjusted R2	0.9778		Mean	3.55
Predicted R2	0.8933		C.V. %	2.02
Adequate Precision	29.6774

Table 7 presents the ANOVA response for FAl2O3–POE/R32. The table demonstrates that the ANOVA analysis yields a polynomial model with a p-value <0.0001, signifying the model's significance in fitting the experimental results within a 95% confidence level [74]. B, A², and B² are significant model terms in this context [75]. The model's F-value of 133.08 suggests its significance. The strong positive relationship between the analyzed factors and response is evident from the R² value of 0.9852. The predicted R² of 0.8933 reasonably aligns with the Adjusted R² of 0.9778. Adequate precision, which measures the signal-to-noise ratio [76], is represented by a ratio of 29.6774 in this model, indicating a sufficient signal. This finding is in line with the research by Fazeli et al. [77].

3.8.2. 2D contour and 3D surface plot analysis

Fig. 15 and Fig. 16. illustrate the correlation and interaction of factors in the optimization process of the present study, presented in 2D contour and 3D surface shapes, respectively. Utilizing the CCD RSM model, these plots were constructed to showcase the impact of factor variables and their interactions. Color variation indicates the effect of factor interaction. The curved and nearly round or oval shape of the 2D contour plots signifies the relevant characteristics of RSM optimization [78].

Fig. 15.

Plot of FAl₂O₃–POE/R32 in 2D contour.

Fig. 16.

Plot FAl₂O₃–POE/R32 in 3D surface.

The 3D surface contour exhibits the optimal operating conditions within a red, dome-shaped zone. This prominent dome shape signifies the success of the optimization process. Consequently, the contour's red zone indicates the ideal operational parameters. The circular orbits observed in the 2D contour remain consistent across all regions of color variation, with no individual circular orbit deviating or appearing anomalous [79]. Each element examined demonstrates a noteworthy influence on the targeted response. This validation is evident on each matrix within Fig. 16 as a 3D surface.

3.8.3. Optimization output

Table 8 presents the optimal solutions for each nanolubricant in the current evaluation. These solutions result from the determination of optimization criteria, which aims to achieve the "in range" COP value within the initial refrigerant charge range of 0.364%–0.52% and the concentration range of 0.02 vol% to 0.2 vol%. Subsequently, the standard error was chosen to be minimized. The RSM's desirability function is employed to identify the optimal operating condition. The desirability value ranges from 0 to 1, with 1 representing the most favorable condition [[80], [81], [82]].

Table 8.

The optimized nanolubricant solution.

Nanolubricant	Volume Concentration (%)	Refrigerant Charge (kg)	COP	Std Error	Desirability
FAl2O3-POE/R32	0.110	0.442	3.982	0.019	1.000

The graph illustrates the values of factors such as volume concentration and initial refrigerant charge, which serve as the operating conditions for the RAC system to attain the optimal COP. The optimal operating conditions are determined by considering the volume concentration, initial refrigerant charge, and COP within the "in range" parameters. These factors contribute to deriving the optimal solution using the developed model and its correlation, as shown in Fig. 17. This criterion was controlled by specifying the minimum standard error to ensure the acceptability of the RSM results and recommendations [83]. An important insight is that the optimal condition does not necessarily equate to the highest COP. Instead, the optimal condition revolves around the interaction relationship between the independent variables (concentration and initial refrigerant charge) and the dependent variable (COP). Consequently, while achieving the maximum COP is realized when applying FAl₂O₃–POE nanolubricant at a concentration of 0.15 vol% with an initial refrigerant charge of 0.442 kg, this scenario is not considered the optimum. The CCD-RSM suggests that the optimal condition is a concentration of 0.11 vol% with an initial refrigerant charge of 0.442 kg as depicted in Fig. 17(a). This selection is rational, given that adding nanoparticles at concentrations exceeding 0.11 vol% becomes ineffective for the RAC system.

Fig. 17.

Ramps diagram optimization solution for FAl₂O₃–POE/R32.

3.8.4. Optimization verification

The verification results of the RSM CCD optimization are shown in Table 9. The optimization analysis can be validated with a 95% confidence level. The standard variation between experimental results and forecasts is within 1%.

Table 9.

Optimization validation of response surface methodology.

Parameter	Value
COP Predicted Mean	3.99933
COP Predicted Median	3.99933
COP Experimental Data	4
Std. Deviation	0.056942
Std. Error Prediction	0.060099
95% PI Low	3.86542
Mean	3.999325
95% PI High	4.13323

4. Conclusions

The evaluation yields several significant findings: Firstly, the utilization of nanolubricant in the RAC system enhances heat absorption; however, this absorption diminishes as the initial refrigerant charge decreases. Furthermore, increasing the initial refrigerant charge leads to improved cooling capacity performance. Secondly, the compressor work decreases up to a concentration of 0.15 vol% and then increases at 0.2 vol%. These findings shed light on the impact of nanolubricant utilization on heat absorption, cooling capacity performance, and compressor work at varying concentrations within the RAC system.

Thirdly, the incorporation of the novel FAl₂O₃–POE nanolubricant led to a rise in COP up to 0.15 vol%, followed by a decline at 0.2 vol%. The observed COP increase ranged from 3.12% to 32.26%, with the highest boost recorded at 0.15 vol% and an initial refrigerant charge of 0.442 kg. Electric power consumption decreased at all concentrations up to 0.15 vol%, but a noticeable surge in COP was seen at 0.2 vol%. The connection between initial refrigerant charge, nanolubricant concentration, and COP was affirmed by the high R2 value of 0.9852, supported by the ANOVA output (p-value <0.0001, F-value = 133.08). The optimal nanolubricant combination was identified at a concentration of 0.11% and an initial refrigerant charge of 0.442 kg, yielding a COP of 3.982 (standard error = 0.019, desirability = 1.000).

In our investigation of air-cooled air conditioner performance testing, we have gained valuable insights into these cooling systems' capacity and efficiency ratings under various conditions. Our efforts have highlighted the factors influencing their operational effectiveness, helping us understand their behavior and potential improvements. The present investigation has illuminated essential aspects of air-cooled air conditioner performance testing. However, the absence of an ISO 5151:2017-certified experimental setup presents a limitation that signals an exciting pathway for future research. By aligning our methodology with this internationally recognized standard, we can enhance the rigor and reliability of our findings, ultimately contributing to a better understanding of air conditioning system capabilities and efficiencies. As researchers and practitioners, we encourage the integration of standardized protocols into performance testing endeavors, fostering a more cohesive and insightful body of knowledge in the field.

The significant rise in COP at a concentration of 0.11 vol% FAl2O3-POE presents a compelling pathway for extended exploration. The complex interplay between nanoparticle properties and lubricant behavior is likely the primary factor driving these enhanced performances. Investigating the altered physical properties of nanoparticles resulting from functionalization processes and their interactions with the base lubricant within the system unveils novel research prospects.

Author contribution statement

A. Nugroho: Conceived and designed the experiments; Performed the experiments; Analyzed and interpreted the data; Wrote the paper.

R. Mamat: Conceived and designed the experiments; Analyzed and interpreted the data; Contributed reagents, materials, analysis tools or data; Wrote the paper.

J. Xiaoxia, M. F. Jamlos, M. F. Ghazali: Analyzed and interpreted the data; Contributed reagents, materials, analysis tools or data; Wrote the paper.

Z. Bo: Conceived and designed the experiments; Contributed reagents, materials, analysis tools or data; Wrote the paper.

Data availability statement

Data included in article/supplementary material/referenced in article.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Nomenclature

FAl₂O₃

Functionalized Al₂O₃

min

Minute

vol %

Volume %

Std

Standard

POE

Polyolester

UV Vis

Ultra Violet visible

T

temperature(°C)

CCD

Central composite design

RSM

Response surface methodology

TEM

Transmission electron microscopy

COP

Coefficient of Performance

P

Power

V

Voltage

I

Current

h

Enthalpy

Greek symbols

φ

Volume concentration(%)

ρ

Density(kg/m³)

Subscripts

L

Lubricant

P

Nanoparticle

c

Compressor

e

Evaporator
