Live-cell biosensors based on the fluorescence lifetime of environment-sensing dyes

Summary

In this work, we examine the use of environment-sensitive fluorescent dyes in fluorescence lifetime imaging microscopy (FLIM) biosensors. We screened merocyanine dyes to find an optimal combination of environment-induced lifetime changes, photostability, and brightness at wavelengths suitable for live-cell imaging. FLIM was used to monitor a biosensor reporting conformational changes of endogenous Cdc42 in living cells. The ability to quantify activity using phasor analysis of a single fluorophore (e.g., rather than ratio imaging) eliminated potential artifacts. We leveraged these properties to determine specific concentrations of activated Cdc42 across the cell.

Graphical abstract

Highlights

• •Characterize solvent-dependent fluorescence lifetimes to generate live-cell biosensors
• •Dye-protein conjugate changes lifetime upon binding activated Cdc42
• •Quantifies the concentration of a specific Cdc42 conformation in cells
• •FLIM biosensor used in cells to report localized Cdc42 activity during cell protrusion

Motivation

Fluorescent biosensors that read out protein activity as changes in the fluorescence lifetime of incorporated dyes can avoid artifacts associated with other designs and can be used to quantify the intracellular concentration of specific conformations. Here, we identify dyes suitable for live-cell imaging that undergo solvent-dependent changes in lifetime and construct a biosensor reporting the conformation of endogenous Cdc42 in living cells.

Mehl et al. construct biosensors based on dyes whose fluorescence lifetimes respond to their solvent environment. Lifetime changes of a biosensor reflect the changing level and location of Cdc42 activation during cell protrusion and enable quantitation of the activated concentration in cells.

Introduction

Fluorescent biosensors have been a powerful tool for untangling signaling behavior in living cells.^1,2,3,4,5,6 Most often, they have been based on fluorescence resonance energy transfer (FRET), with readouts quantified using ratiometric fluorescence intensity measurements. Although ratiometric imaging can achieve fast acquisition with relatively high signal-to-noise ratio, fluorescence lifetime imaging microscopy (FLIM) can provide important advantages over FRET and other biosensor approaches.^7,8,9 Unlike some ratiometric biosensors (e.g., those using two fluorophores on separate protein chains), single-dye FLIM biosensors do not need corrections for varying biosensor concentrations across the cell. In FRET biosensors, two fluorophores can bleach at different rates, complicating quantitation of photobleaching effects. It is difficult to distinguish between true FRET changes (reflecting actual biological interactions or conformational changes) and artifactual changes (due to incomplete folding, variable expression, or photobleaching) because all these changes manifest as alterations in fluorescence intensity at similar wavelengths. Using a single fluorophore on the biosensor simplifies multiplexed imaging.^10,11,12,13

FLIM was previously explored for intracellular biosensor imaging, including studies of NAD(P)H,¹⁴ calcium,^15,16 sodium,¹⁷ and protein conformation. For the latter, FLIM was used largely to image FRET,^{8,9,18,19,20,21} but FLIM biosensors based on single dyes have the potential for brighter emission than FRET because the dyes are directly excited.^22,23,24 Environment-sensing dyes have been monitored in cells using fluorescence intensity changes,^{22,23,24,25,26} but biosensors based on the FLIM of such dyes remain largely unexplored.^27,28

For biosensors, environment-sensing dyes have been attached to target proteins,^6,29 where they are affected by conformational changes,^30,31,32 or to “affinity reagents” (ARs) that bind selectively to the activated conformation of the target, causing a spectral change in the attached dye when the AR binds its target.^22,24 ARs have been based on proteins, peptides, or even small molecules^22,24,33 (Figure 1A). They can report the activation of endogenous, unmodified targets.

Figure 1.

Dye-based biosensors

(A) The dye-based Cdc42 biosensor consisted of an AR that specifically binds to the active conformation of Cdc42, with a covalently attached environment-sensing dye (red). Upon Cdc42 activation, the AR bound to Cdc42, altering the dye’s local environment and affecting optical properties, including brightness and fluorescence lifetime.

(B) Parent dyes (left) and derivatives with a cysteine-reactive linker (middle). Pht, phthalimide; BA, barbituric acid; TBA, thiobarbituric acid; SO, benzothiophene. n indicates the number of double bonds as shown in the structure at top. mero81 and mero77 are based on the red-shifted fluorophore.

(C) Phase lifetime measurements of parent merocyanine dyes in DMSO, methanol, and butanol (n = 3, data shown as mean ± SD).

Here, we make a FLIM-based biosensor by attaching a merocyanine dye to an AR that selectively binds the activated conformation of Cdc42. Such a biosensor was previously constructed using dyes undergoing intensity changes,²⁴ and we here take advantage of the previous biochemical characterization of that biosensor, constructing it again but with dyes for FLIM readouts. Dyes were screened for optimal fluorescence and solvent-sensitive lifetime, and the dye with the best combination of brightness and lifetime response to Cdc42 binding was used in the final FLIM biosensor.^23,24,25,26 The final FLIM biosensor provided sensitive readouts of Cdc42 activity in living cells. By adapting an approach used for calcium biosensors, we were able to determine the actual concentration of activated species, not just the relative distribution of activity. In summary, our results identify dyes suitable for FLIM biosensors and show how they can be used to quantify the subcellular concentrations of activated Cdc42. This can be a paradigm for the application of the dyes to other proteins.

Results

Merocyanine dyes

Merocyanine dyes can show changes in quantum yield, extinction coefficient, excitation maxima, and/or emission maxima when placed in different solvent environments.^{23,26,34,35,36,37,38} Dyes selected for photostability, brightness, and emission greater than 595 nm in DMSO²³ were tested for FLIM changes that could be used in biosensors. Merocyanine dyes are characterized by electron donor and acceptor moieties linked together through conjugation. An indolenine donor can be combined with different strong electron acceptors to produce merocyanines with a useful compromise between brightness, photostability, and environment-sensitive fluorescence.^{23,25,26,36,37} Here, we linked indolenine to phthalimide (Pht), barbituric acid (BA), thiobarbituric acid (TBA), and benzothiophene (SO) (Figure 1B). Simple versions of the dyes, without reactive side chains, were assessed for FLIM and other fluorescence properties. Useful fluorophores were then derivatized with a cysteine-selective linker for attachment to the AR (Figure 1B). We examined four dyes with known favorable fluorescence properties, previously used in biosensors but not for FLIM, and one red-shifted dye synthesized for this study, potentially useful for multiplexed imaging. The dyes were screened for the sensitivity of their fluorescence lifetimes to environment. Figure 1C shows the measured phase lifetimes, τ_p, for each of the parent dyes prior to attachment of the cysteine-reactive linker. Lifetime was measured in three solvents with different polarity and hydrogen-bonding strengths.³⁹ The parent merocyanine dyes included mero50, mero51, mero89, and mero88,²³ all of which contain an indolenine donor but different acceptors (Pht, BA, TBA, and SO). The previously unpublished dyes, mero81 and mero77 (Figure 1B), had extended polyene systems that produced red-shifted absorption and emission spectra valuable for multiplexed imaging applications (Figure 2). They were shown to have photostability greater than Cy5, a well-known dye used for live-cell imaging (Figure S1A).

Figure 2.

Photophysical properties of mero77 and mero81

(A) The excitation and emission spectra of mero77 dissolved in DMSO.

(B–G) Emission spectra (B) and normalized emission spectra (C) of mero81, excitation spectra (D) and normalized excitation spectra (E) of mero81, absorption spectra (F) and normalized absorption spectra (G) of mero81.

(H) Molar extinction coefficients of mero81 at λ_max.

(I) Solvents used in (B)–(G).

All parent dyes had lifetimes in the nanosecond range, suitable for current lifetime instrumentation.⁴⁰ The shortest lifetimes were observed when the parent dyes were measured in the strongly polar, hydrogen-bonding solvent DMSO. In contrast, the longest lifetimes were observed in the least polar hydrogen-bonding solvent, butanol. Response to environment can be seen as resulting from differential solvent interaction with specific resonance structures^41,42,43,44 or electron distributions.^34,35,36,37

In vitro assay of biosensor response

The solvent dependence of dye lifetimes was promising, but it was hard to predict how a given dye would change FLIM when attached to an AR and exposed to a given protein (see discussion). Therefore, each dye was tested in an actual Cdc42 biosensor. A water-soluble, cysteine-reactive side chain was attached to each dye for covalent coupling to the single cysteine of the AR. This was based on the approach previously used to attach intensiometric dyes to the same cysteine.²⁴ The AR was based on the Cdc42-binding domain (CBD) of Wiskott-Aldrich syndrome protein.^23,24 It has been shown that this domain binds selectively to the activated, GTP-bound conformation of Cdc42.⁴⁵ In vitro assays were performed to measure the difference in lifetime between bound and unbound biosensors. The final products were named mero-CBD biosensors,²³ with the number denoting the dye (e.g., mero87-CBD for the AR CBD labeled with dye mero87).

The phasor approach is a powerful way to visualize lifetime changes without the aid of complex fitting routines.^13,46,47 Figure 3A shows a phasor plot of mero87-CBD in the presence and absence of a constitutively active Cdc42 mutant (Q61L). The free and bound forms of the biosensor had unique phasor locations within the phasor plot, defining characteristic lifetimes for each state. Utilizing the property of linear combination, a phasor that contains a portion of free and bound biosensors will be located somewhere along a line connecting the two distinct states. We observed that upon biosensor binding to Cdc42, the lifetime of all tested biosensors increased (Figure 3B). Additionally, the phasors did not lie on the “universal circle,”^8,13,47 indicating complex decay kinetics.

Figure 3.

In vitro assay for lifetime changes associated with Cdc42 binding and measurement of endogenous Cdc42 activation

(A) Phasor histogram of mero87-CBD biosensor (400 nM) in the presence and absence of 12 μM constitutively active Cdc42 mutant (Q61L). Excess Cdc42 was used to shift the equilibrium of the biosensor to the bound form. G = M∗cosφ; S = M∗sinφ, where M is the modulation and φ is the phase shift in the frequency domain measurements.^8,13,47

(B) Bar graph displaying phase lifetimes¹³ of biosensors made with the indicated dyes (n = 3, data shown as mean ± SD).

(C–E) Intensity (C), activated Cdc42 concentration (D), and phasor histogram (E) for cells injected with mero87-CBD (12 cells) or mero87-mCBD (AR mutated to abrogate Cdc42 binding; 7 cells). The phasor histograms are labeled with the locations of free and bound biosensors (solid red circles). The hash marks indicate 10% increments of protein activation. Scale bar: 10 μm.

All Cdc42 biosensors exhibited an appreciable change in lifetime. Mero87-CBD showed the largest difference between the free and bound conformations. Although dye mero81 performed the best in solvent tests (Figure 1C), the biosensor derived from it (through reaction with mero77, its reactive derivative) showed a relatively weak response to Cdc42 binding. This again showed that response to proteins is complex and that dye selection for a given biosensor cannot be based simply on the performance of free dye in solution. We chose to pursue mero87-CBD because of its strong response to Cdc42. Changes in pH over the physiological range minimally affected the fluorescence of the attached dye (Figure S1B). The small changes observed outside this range were likely due to effects on the AR, not the dye, as there were no dye functional groups with pKa near this range.

Fluorescence lifetime imaging in living cells

NIH 3T3 mouse embryonic fibroblasts were microinjected with mero87-CBD and imaged on a confocal FLIM microscope. FLIM allowed us to visualize both the distribution of the biosensor (Figure 3C) and the absolute concentration of active Cdc42 (Figure 3D; STAR Methods). We used phasor locations of the free and bound biosensors from the in vitro assay (p_f and p_b, respectively, solid circles; Figure 3E, column 3); phasor locations determined in cells were comparable (Figures 4A and 4B; data are available at Zenodo, https://doi.org/10.5281/zenodo.10654587). The increase in emission intensity produced by binding active Cdc42 resulted in a nonlinear relationship between the fraction of activated protein (hash marks, increments of 10%) and the fractional contribution of each species to the overall lifetime (see discussion). Cells loaded with the wild-type biosensor (Figures 3C–3E, columns 1 and 2) had phasors that displayed a smear along the line connecting the two states, indicating a distribution of Cdc42 activity within the cells. The majority of pixels ranged between 0% and 10% of what would be observed for a fully bound biosensor, as indicated by the first two hash marks. This was consistent with previous biochemical studies.^48,49 It is noteworthy that this relatively small change in binding produced a readily discernable change in lifetime shown by the phasor plot (see discussion). In the negative control cells where a mutation of the AR abolished the interaction with Cdc42 (Figures 3C–3E, column 3), the measured lifetimes were bunched near the free form of the biosensor, signifying negligible Cdc42 activation.

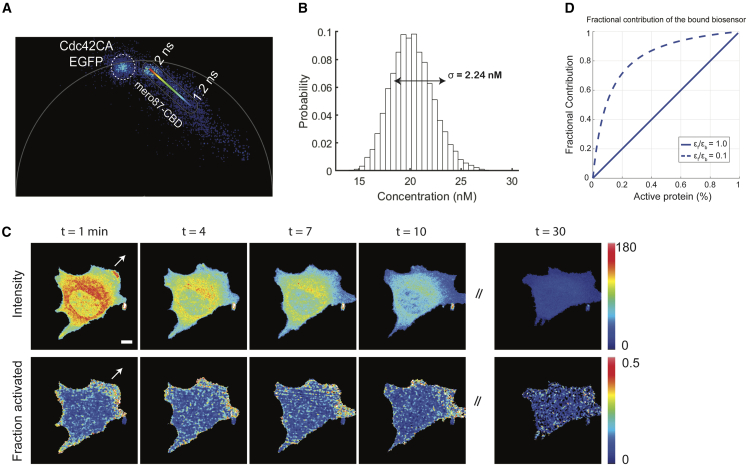

Figure 4.

Phasor analysis and FLIM imaging of mero87-CBD in a migrating mouse embryonic fibroblast (MEF) cell

(A) The phasor plot of mero87-CBD co-expressed with constitutively active Cdc42 in living cells showed that bounded biosensors could reach an extreme (2 ns) similar to that seen in vitro (Figure 3B).

(B) The slight discrepancy between the in vitro and live-cell measurements of phasor locations causes negligible changes in quantified concentrations. The simulation used the K_D of mero87-CBD binding to Cdc42 with the assumption that the activation level was at 10%.

(C) Time course of the distribution (top) and fraction activated (bottom) of mero87-CBD in a migrating MEF cell. The cell was continuously imaged until it was completely photobleached at 30 min.

(D) Fractional contribution changes upon activation for a dye-based biosensor: brightness ratios of the free to the bound form are 1.0 (solid blue) or 0.1 (dashed blue). Dye-based FLIM biosensors are most sensitive to activation changes when protein activation levels are low. Scale bar: 10 μm.

Knowledge of active protein concentrations provides information valuable for the understanding and quantitative modeling of biochemical regulatory cycles. The spatial distribution of active Cdc42 concentrations across individual cells was calculated by analyzing phasors as described in the STAR Methods section (Equation 5). Shown in Figure 3D are the pseudo-colored, mapped concentrations of active Cdc42. Endogenous Cdc42 activation was observed near protrusions, consistent with previous results^24,50 (Figures 3D and 4C).

Discussion

Here, we evaluated a series of bright dyes that showed solvent-induced changes in lifetime, promising for FLIM biosensors. Although one dye was clearly superior for monitoring Cdc42, the others provide a tool chest of dyes that could prove to be more useful for other targeted proteins. The response of the dyes to solvent changes did not indicate the extent of their response to our specific target, Cdc42. Interaction of dyes with proteins is complex and multifactorial, so this was not surprising. The dyes were marginally soluble in water (just enough to enable protein labeling when low concentrations of DMSO were included in buffers). This suggested that they interacted with protein surfaces rather than extended from the proteins, completely solvated by buffer. When the dye on AR was exposed to target protein, this could have changed interactions with specific residues or the ability of specific atoms in the dyes to undergo hydrogen bonding with water or protein side chains. Previous studies have shown that hydrogen bonding to specific atoms on the dye can have a strong effect and that general solvent effects play a role as well.^37,38 The rigidity and length of the linker will be important in drawing the maximum response from each dye.

In the FLIM biosensors, only one fluorophore was needed, providing advantages. They did not show the complex photobleaching behavior encountered due to differential photobleaching of two fluorophores in FRET biosensors. In the future, simultaneous imaging of multiple biosensors can be simplified because each biosensor uses less of the spectrum.

The biosensors showed the greatest change in overall FLIM (or phasor location) at lower activation levels (Figures 4D; data available at Zenodo, https://doi.org/10.5281/zenodo.10654587). This feature will likely be especially valuable for GTPases, which can initiate cell behaviors when less than 10% of the protein population is active.^48,49 The biosensor design used here responds to endogenous protein, reducing artifacts that come from overexpression or substituting target protein with modified analogs. Combining reduced perturbation with the ability to quantify low activated concentrations bodes well for the study of low-abundance targets or phenomena driven by low activation levels. We showed that the mero87-CBD biosensor could not only report the relative subcellular distribution of activity but could quantify the actual concentrations of activated species at different locations. We hope that the dyes described here can be used to provide quantitative readouts of active species for a range of protein targets.

Limitations of the study

One of the more difficult challenges in using dye-protein conjugates as biosensors is delivery of the biosensors to the interior of cells. A number of methods can accomplish this, including microinjection,^22,24 electroporation,⁵¹ bead loading,⁵² and cell-penetrating peptides.⁵³ However, these can be substantially more cumbersome than genetic encoding. More recently, biosensors have been generated by genetically encoding the protein portion and using membrane-permeable dyes to covalently attach dyes to proteins within live cells. This has been accomplished using unnatural amino acids for site-specific labeling^26,54 or through attachment of fluorophores to enzyme fragments that catalyze attachment (e.g., SNAP-tag⁵⁵ and HaloTag⁵⁶). Labeling of unnatural amino acids with merocyanine dyes in living cells has already been used to generate biosensors.²⁶

Another issue with dye-labeled biosensors is the propensity of some dyes to cause aggregation within cells or the cells’ recognition of the biosensor as a foreign body. Both result in packaging of the biosensors into vesicles, leading to punctate fluorescence superimposed on the signal being studied (see Figures 3C–3E and S1C). The impact of this depends on the kinetics of vesicle formation. In some cases, no puncta are seen for hours, if at all. For other biosensors, puncta form within minutes. Our control studies (Figure S1C) showed that, for the biosensor mero87-CBD (Figures 3C–3E), the presence of the dye increased the cell’s propensity to produce vesicles, albeit not to levels that prohibited our experiments regarding motility signaling. Finally, the merocyanine dyes here show a bi-exponential decay, which may present difficulties for some types of FLIM analysis. This may be due to the exposure of the dye to multiple environments or different solvent effects. Further study could improve this property.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Chemicals, peptides, and recombinant proteins
2,3,3-Trimethylindolenine	TCI America	T0766
N-(5-Anilino-2,4-pentadienylidene)aniline hydrochloride	TCI America	G0201
Benzo[b]thiophen-3(2H)-one 1,1-dioxide	Ambeed Inc	A532355
2,3,3-trimethyl-1-(3-((3-sulfopropyl)amino)propyl)indolinium bromide	MacNevin et al.23	N/A
1,2,3,3-Tetramethylindolium iodide	Wang et al.57	N/A
Dulbecco’s Modified Eagle’s Medium	Cellgro	15-013-CV
Fetal Bovine Serum	Hyclone	SH30088.03
GlutaMax	GIBCO	35050061
Hams/F12	Caisson Labs	HFL12
HEPES	GIBCO	15630106
Deposited data
Spectra of dyes and intermediates	This paper	In Zenodo: 10.5281/zenodo.10654587
Experimental models: Cell lines
NIH 3T3 mouse embryo fibroblast	ClonTech	630914
HeLa cells	American Type Culture Collection (ATCC)	CCL-2; RRID: CVCL_0030
Recombinant DNA
Cdc42 binding domain (CBD) of Wiskott-Aldrich Syndrome Protein (WASP), (Nalbant et al.24)	Provided by Dr. Gary Bokoch, Scripps Research Institute	N/A
Cdc42 Q61L (Nalbant et al.24)	Provided by Dr. Gary Bokoch, Scripps Research Institute	N/A
Software and algorithms
MATLAB 2016, 2020, 2022	The MathWorks, Inc.	https://ww2.mathworks.cn/en/
Code for FLIM analysis	This paper	In Zenodo: https://doi.org/10.5281/zenodo.10654587

Resource availability

Lead contact

Further information and requests for resources should be directed to and will be fulfilled by the lead contact, Klaus M. Hahn (khahn@med.unc.edu)

Materials availability

Plasmids in this study are available by request to lead contact, Dr. Klaus M. Hahn (khahn@med.unc.edu).

Data and code availability

• •Raw data reported in this paper is available from the lead contact upon request. Spectra of dyes and intermediates can be found in Figures S2 and S3 and at Zenodo: (https://doi.org/10.5281/zenodo.10654587).
• •Codes used for FLIM analysis and to generate Figures 4B and 4D can be found at Zenodo: (https://doi.org/10.5281/zenodo.10654587). These are also listed in the KRT and are available from the lead contact upon request.
• •Any additional information required to reanalyze the data reported in this paper is available from the lead contactupon request

Experimental model and study participant details

Cell lines

NIH 3T3 mouse embryo fibroblasts (MEF) were obtained from Clontech (RRID: CVCL_0594), authenticated by Short Tandem Repeat (STR) profile. HeLa cells were purchased from the American Type Culture Collection (ATCC, https://www.atcc.org/). All cells were tested for mycoplasma by polymerase chain reaction (PCR). MEF and HeLa cells were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 10% fetal bovine serum and 1X GlutaMax. Before imaging, cells were re-plated on fibronectin-coated coverslips and allowed to attach for at least 2 h. Before imaging, the media was replaced with Hams/F12 medium supplemented with 5% Fetal Bovine Serum and 10 mM HEPES.

Method details

Dye synthesis and protein conjugation

Dyes were synthesized as previously described,^48,49 except for the dyes mero81 and mero77, whose synthesis is described below (Scheme: Synthesis of merocyanine dyes). Production of the WASP domain used as the affinity reagent, and its conjugation with dyes, was as described in MacNevin et al.,²³ a modification of the procedure in Nalbant et al.²⁴

2,3,3-Trimethylindolenine and N-(5-anilino-2,4-pentadienylidene)aniline hydrochloride were purchased from TCI America. Benzo[b]thiophen-3(2H)-one 1,1-dioxide was purchased from Ambeed Inc. All other reagents were purchased from Sigma-Aldrich. The following compounds were prepared according to published procedures: 1,2,3,3-tetramethylindolium iodide,⁵⁷ and 2,3,3-trimethyl-1-(3-((3-sulfopropyl)amino)propyl)indolinium bromide.²³ Reactions were run using anhydrous solvents. All operations with dyes were performed under dim light. UV-Visible spectra were recorded on a Hewlett-Packard 8453 diode array spectrophotometer or Agilent Cary 60 UV-Vis spectrophotometer. Fluorescence spectra were obtained on a Spex Fluorolog 2 spectrofluorometer. NMR spectra were taken on a Inova-400 or Bruker-500 or Bruker-700 or Bruker-850 spectrometer using deuterated solvents purchased from Cambridge Isotope Laboratories. Reference peaks of 7.26 ppm (CDCl₃), 2.50 ppm and (DMSO-d₆) were used for ¹H NMR spectra. Reference peaks of 77.2 ppm (CDCl₃), and 39.5 ppm (DMSO-d₆) were used for ¹³C NMR spectra. High resolution mass spectra were obtained on a Thermo Scientific Q Exactive HF-X mass spectrometer with direct infusion. The synthesis is shown in Scheme: Synthesis of merocyanine dyes. NMR spectra and high resolution mass spectra of compounds S2, mero81, S3 and meo77 are available at Zenodo (https://doi.org/10.5281/zenodo.10654587) and in supplemental information (Figures S2 and S3).

Scheme. Synthesis of merocyanine dyes

N-((1E,3E,5E)-5-(1,1-dioxido-3-oxobenzo(b)thiophen-2(3H)-ylidene)penta-1,3-dien-1-yl)-N-phenylacetamide (S2)

A mixture of the benzo[b]thiophen-3(2H)-one 1,1-dioxide (2.73 g, 15.0 mmol) and N-(5-anilino-2,4-pentadienylidene)aniline hydrochloride (5.98 g, 21.0 mmol) were diluted in acetic anhydride (25 mL). The mixture was heated to reflux under argon for 2 h and cooled to room temperature. The resulting precipitate was filtered, washed with ethyl acetate, and dried under vacuum. The product was re-crystalized from isopropanol to give 4.16 g dark brown solid (73% yield). ¹H NMR (CDCl₃, 400 MHz) δ ppm 8.21 (d, J = 16.0 Hz, 1H), 8.07 (d, J = 8.0 Hz, 1H), 7.99 (d, J = 8.0 Hz, 1H), 7.89 (t, J = 8.0 Hz, 1H), 7.81 (t, J = 8.0 Hz, 1H), 7.70–7.60 (m, 4H), 7.28–7.14 (m, 3H), 6.86 (t, J = 12.0 Hz, 1H), 5.41 (t, J = 12.0 Hz, 1H), 2.02 (s, 3H); ¹³C NMR (CDCl₃, 100 MHz) δ ppm 178.6, 169.4, 152.8, 144.1, 143.4, 140.8, 138.3, 136.0, 134.0, 133.2, 130.8, 130.0, 128.4, 128.1, 124.6, 122.3, 121.2, 113.3, 23.5; HRMS (positive mode) obsd 380.0946, calcd 380.0951 [(M + H)⁺, M = C₂₁H₁₇NO₄S].

Mero81

1,2,3,3-Tetramethylindolium iodide (0.15 g, 0.50 mmol), compound S2 (0.21 g, 0.55 mmol), and sodium acetate (0.053 g, 0.65 mmol) were dissolved in methanol (2.0 mL) and heated to reflux for 10 min. The reaction mixture was cooled to room temperature, concentrated via rotary evaporation, and purified by silica gel chromatography using dichloromethane and ethyl acetate. The product was isolated as 0.136 g blue-olive solid (65% yield). ¹H NMR (CDCl₃, 400 MHz) δ ppm 8.00 (d, J = 8.0 Hz, 1H), 7.94 (d, J = 8.0 Hz, 1H), 7.81–7.66 (m, 3H), 7.48–7.39 (m, 1H), 7.28–7.18 (m, 3H), 7.03 (t, J = 8.0 Hz, 1H), 6.92 (t, J = 12.0 Hz,1H), 6.82 (d, J = 8.0 Hz, 1H), 6.38 (t, J = 12.0 Hz, 1H), 5.64 (d, J = 12.0 Hz, 1H), 3.31 (s, 3H), 1.63 (s, 6H); ¹³C NMR (CDCl₃, 100 MHz) δ ppm 177.9, 165.9, 156.6, 145.3, 143.9, 143.9, 143.8, 139.8, 134.9, 133.9, 133.6, 128.3, 124.6, 124.1, 123.4, 122.4, 122.0, 120.8, 119.3, 108.0, 99.1, 47.4, 29.9, 28.4; HRMS (positive mode) obsd 418.1478, calcd 418.1471 [(M + H)⁺, M = C₂₅H₂₃NO₃S].

3-((tert-Butoxycarbonyl)(3-((E)-2-((2E,4E,6Z)-6-(1,1-dioxido-3-oxobenzo[b]thiophen-2(3H)-ylidene)hexa-2,4-dien-1-ylidene)-3,3-dimethylindolin-1-yl)propyl)amino)propane-1-sulfonic acid (S3)

2,3,3-Trimethyl-1-(3-((3-sulfopropyl)amino)propyl)indolinium bromide (0.420 g, 1.00 mmol), and di-tert-butyl dicarbonate (1.09 g, 5.00 mmol) were mixed with water (0.2 mL). The resulting mixture was sonicated for a minute and then heated at 80°C under reduced pressure in a rotary evaporator for 30 min. The residue obtained was mixed with S2 (0.100 g, 0.264 mmol), sodium acetate (0.082 g, 1.00 mmol) and methanol (5.0 mL) under argon. The reaction mixture was stirred at 80°C under argon for 30 min. The solvent was removed under reduced pressure. The residue was purified on a flash chromatography using methanol/dichloromethane mixture (1:9) as an eluent. The product was isolated as a dark blue solid (105 mg, 58% yield). E/Z isomerism in tertiary amide caused peak doubling in ¹H NMR and ¹³C NMR. ¹H NMR (DMSO-d6, 850 MHz) δ ppm 8.03 (d, J = 7.6 Hz, 1H), 7.93–7.89 (m, 2H), 7.87–7.81 (m, 2H), 7.73 (t, J = 12.8 Hz, 1H), 7.55 (d, J = 13.6 Hz, 1H), 7.50 (d, J = 7.3 Hz, 1H), 7.33 (t, J = 7.7 Hz, 1H), 7.20 (d, J = 7.9 Hz, 1H), 7.12 (t, J = 7.4 Hz, 1H), 6.60 (t, J = 12.8 Hz, 1H), 6.51 (t, J = 12.8 Hz, 1H), 6.07 (d, J = 13.6 Hz, 1H), 3.96 (br s, 2H), 3.22–3.27 (br m, 4H), 2.38 (t, J = 7.4 Hz, 2H), 1.90 (br s, 2H), 1.79 (br s, 2H), 1.62 (s, 6H), 1.41 & 1.27 (2 s, 9H); ¹³C NMR (DMSO-d6, 213.7 MHz) δ ppm 175.6, 168.3, 158.4, 154.4, 149.5, 143.1, 142.5, 141.9, 140.2, 135.0, 134.0, 133.0, 128.2, 124.0, 123.2, 122.2, 120.4, 119.1, 116.6, 109.6, 100.6, 78.4, 49.0, 47.8, 46.1, 44.4, 44.2, 40.6, 28.0, 27.5, 26.2, 25.6, 24.9, 24.5; HRMS (negative mode) obsd 681.2316, calcd 681.2310 [(M-H)^-, M = C₃₅H₄₂N₂O₈S₂].

mero77

A solution of compound S3 (48 mg, 0.070 mmol) in dichloromethane (3.0 mL) was treated with trifluoroacetic acid (1.0 mL) and stirred under argon for 2 h. Completion of Boc deprotection was confirmed by TLC analysis. Then, the reaction mixture was concentrated under reduced pressure and the residue was thoroughly washed with diethyl ether. The resulting residue was mixed with iodoacetic anhydride (50 mg, 0.14 mmol), THF (1.0 mL) and N,N-diisopropylethyl amine (0.33 mmol, 0.057 mL) and stirred under argon for 1 h. The solvent was removed by rotary evaporation under reduced pressure. The residue was purified on a flash chromatography using methanol/dichloromethane mixture (3:17) as an eluent. The product was isolated as a dark blue solid (33 mg, 54% yield). E/Z isomerism in tertiary amide caused peak doubling in ¹H NMR and ¹³C NMR. ¹H NMR (DMSO-d6, 500 MHz) δ 8.02 (d, J = 7.3 Hz, 1H), 7.92–7.79 (m, 4H), 7.71 (t, J = 12.0 Hz, 1H), 7.54–7.49 (m, 2H), 7.36–7.31 (m, 1H), 7.24–7.20 (m, 1H), 7.12 (t, J = 7.6 Hz, 1H), 6.97 (t, J = 6.3 Hz, 0.5H), 6.60–6.46 (m, 1.5H), 6.17–6.06 (m, 1H), 5.25 (m, 0.5H), 4.47–4.31 (m, 1.5H), 4.00–3.90 (m, 2H), 3.48–3.36 (m, 4H), 2.46–2.36 (m, 2H), 1.92–1.74 (m, 4H), 1.62 (s, 6H); ¹³C NMR (DMSO-d6, 176 MHz) δ 175.5, 168.1, 167.4, 166.0, 165.6, 158.4, 149.6, 143.0, 142.5, 141.9, 140.1, 136.6, 135.1, 133.9, 132.7, 128.2, 124.2, 123.2, 122.2, 120.4, 118.9, 116.5, 109.6, 100.8, 48.6, 47.83, 47.77, 46.4, 42.8, 42.6, 42.0, 27.5, 27.4, 24.9, 24.8, 24.6, 23.5, −0.5, −4.4; HRMS (negative mode) obsd 749.0860, calcd 749.0858 [(M)^-, M = C₃₂H₃₄IN₂O₇S₂].

Lifetime measurements

Lifetimes in vitro and in live cells were collected on a modified laser scanning confocal microscope (Olympus FV1000) equipped with a UPLFL40X, 1.30 NA objective. The merocyanine dyes were excited at 594 nm using a pulsed supercontinuum laser source (Fianium) at 20 MHz in combination with an acousto-optic tunable filter (AOTF) (Crystal Technologies). The images were obtained with 256 x 256, 20 μs/pixel, 1.660 s/frame acquisition settings. Lifetime images were averaged over 35 frames for a total acquisition period of 58 s. The emission was detected with an external GaAsP photomultiplier detector (Hamamatsu: H722P-40). An emission bandpass filter (Semrock: FF-02-628/40-25) was placed before the PMT to reject unwanted excitation light. A digital frequency domain approach was used to acquire lifetime measurements (ISS: A320 FastFlim box).²³ Calibration of the system was performed by measuring Texas red, which has a known lifetime of 4.2 ns in water. Processing was done with custom scripts developed in MATLAB.

The fluorescence decay of each merocyanine dye was acquired with a time-correlated single photon counting fluorometer based on an ISS Koala automated sample compartment, supercontinuum laser source (Fianium), Hamamatsu photomultiplier tube, and Becker & Hickl SPC-144 board. For each acquisition, the bin time was 24.43 ps and points were integrated over 60 s. Depending on the spectral properties of each merocyanine dye the Fianium laser was tuned to either 570 nm or 600 nm while emission was collected using a 600/25 nm or 625/25 nm bandpass filter placed in the front of the detector. The instrument response was calibrated by measuring the instantaneous response from an aqueous dispersion of glycogen. Experiments for Figures 4A, 4B, 4D and S1C were carried out with a Leica SP8X Falcon microscope, with excitation at 561 nm and emission collected between 570 and 640 nm.

Photobleaching of Cy5 and mero77

Photobleaching curves were measured as previously described.²⁵ In brief, 1 μM dye was dissolved in 1% low-melting point agarose and sandwiched between two glass coverslips. Samples were imaged on a home-built inverted microscope equipped with a 100x, NA1.50 oil objective (UPLAPO100XOHR, Olympus) and a scientific CMOS (sCMOS, Photometrics 95B) camera. Samples were excited with a mercury lamp (U-LH100HG, Olympus) filtered by HQ630/45M (Chroma) and the fluorescence was collected through an HQ700/75M (Chroma) emission filter.

Calculation of active Cdc42 concentration

The following is based on a similar derivation previously published for the calcium sensor, CG5N.⁵⁸ The following description has been included for completeness. The free, ${\mathit{p}}_{\mathit{f}}$ and bound, ${\mathit{p}}_{\mathit{b}}$ forms of the biosensors have unique locations within the phasor plot, defining characteristic lifetimes for both states. Utilizing the property of linear combinations, a phasor $\mathit{p}\text{,}$ which contains a portion of free and bound biosensor, will be located somewhere along a line connecting the two states. This phasor position is given by the following equation.

$$\mathit{p}=\frac{\left[{Cdc42}^{\ast }dyeCBD\right]{\epsilon }_b{\mathit{p}}_{\mathit{b}}+\left[dyeCBD\right]{\epsilon }_f{\mathit{p}}_{\mathit{f}}}{\left[{Cdc42}^{\ast }dyeCBD\right]{\epsilon }_b+\left[dyeCBD\right]{\epsilon }_f}$$ Equation 1

${\epsilon }_f$ and ${\epsilon }_b$ correspond to the relative brightness of the free ($dyeCBD$) and bound (${Cdc42}^{\ast }dyeCBD$) states of the biosensor, respectively. The asterisk designates that Cdc42 is in its active, GTP-bound conformation. With knowledge of these phasor locations along with the relative brightness of the two states, the fraction of bound biosensor, $Fb$ can be calculated.

$$Fb=\frac{\frac{\left[{Cdc42}^{\ast }dyeCBD\right]}{\left[dyeCBD\right]}}{1+\frac{\left[{Cdc42}^{\ast }dyeCBD\right]}{\left[dyeCBD\right]}}=\frac{\frac{{\epsilon }_f}{{\epsilon }_b}\frac{\Vert {\mathit{p}}_{\mathit{f}}-\mathit{p}\Vert }{\Vert \mathit{p}-{\mathit{p}}_{\mathit{b}}\Vert }}{1+\frac{{\epsilon }_f}{{\epsilon }_b}\frac{\Vert {\mathit{p}}_{\mathit{f}}-\mathit{p}\Vert }{\Vert \mathit{p}-{\mathit{p}}_{\mathit{b}}\Vert }}$$ Equation 2

To determine the concentration of active Cdc42, the dissociation constant, $K_D$ must be determined. Mathematically, this is presented through the law of mass action.

$$K_D=\frac{\left[{Cdc42}^{\ast }\right]\left[dyeCBD\right]}{\left[{Cdc42}^{\ast }dyeCBD\right]}$$ Equation 3

When Equation 3 is inserted into Equation 2 and after some algebraic reorganization, the concentration of active Cdc42 is given by Equation 5. It is proportional to the dissociation constant and dependent on the fraction of bound biosensor.

$$Fb=\frac{\left[{Cdc42}^{\ast }\right]}{K_D+\left[{Cdc42}^{\ast }\right]}$$ Equation 4

$$\left[{Cdc42}^{\ast }\right]=K_D\frac{Fb}{1-Fb}$$ Equation 5

The dissociation constant, and ratio of free to bound brightness were previously published for mero87-CBD; 186 ± 40 nM and 1/8.9 respectively.²³ Pseudo-colored images of activated Cdc42 concentration were generated by first determining the fraction of bound biosensor for every pixel. This was achieved by projecting the measured phasor p for each pixel on the line connecting p_f and p_b (Equation 2). After this, the concentration was determined using Equation 5, with knowledge of the dissociation constant. Step-by-step instructions for use of the software are shown below.

Procedures for calculating protein concentrations in single cells.

1. Introduction

IFLI_Viewer is a GUI developed in Dr. Enrico Gratton’s Laboratory at the University of California, Irvine. The main functions include decode.fli FLIM data, phasor analysis, and FRET-FLIM analysis. The most recent version is maintained at the Laboratory for Fluorescence Dynamics, named as Globus for Images. This document gives step-by-step instructions for generating a protein concentration map in single cells using IFLI_Viewer.

2. Prerequisite

• •MATLAB (tested on 2016, 2020, 2022)
• •Phasor locations of the active and inactive species, obtained from in vitro data
• •FLIM data (.fli format) of single cells
• •The cell mask (binary image) generated by ImageJ/Fiji or MovieThresh (see Hahn lab)

3. Step-by-step instructions

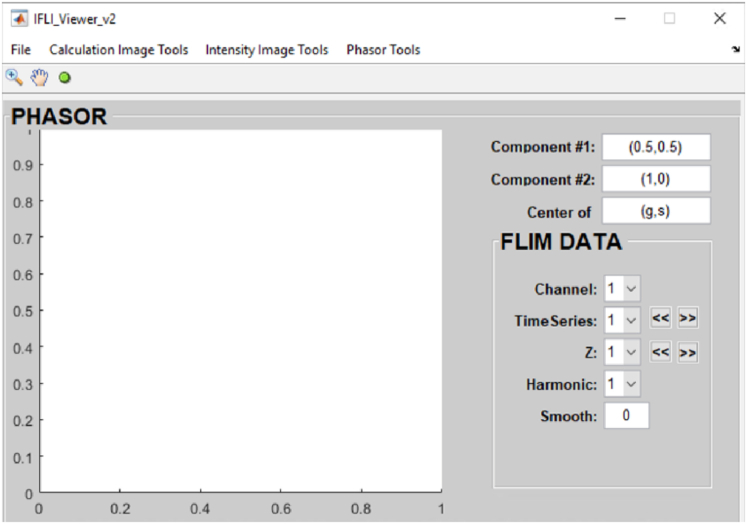

3.1 Open IFLI View and load .fli data

• •Open MATLAB and change the current directory to the directory where IFLI_Viewer is located
• •Type in IFLI_View in the command window to run the GUI

• •Go to File>Open IFLI File to open an FLIM dataset (∗.fli)

• •The intensity image will show up, along with the raw phasor plot

• •A cell mask will be applied to clean up the phasor. This can be done under Intensity Image Tools>Apply Mask

3.2 Calculate fraction bound

• •Step up phasor locations of active and inactive species

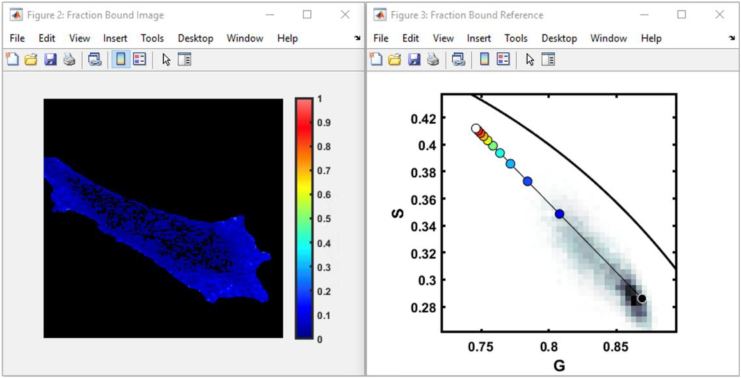

• •Click Calculation Image Tools > Calculate Linear Projection > Calculate Fraction Bound and type in the intensity ratio of the free and bound states

• •To adjust the colorbar of the Fraction Bound Image, click on the Fraction Bound Image window, then go to the MATLAB Command Window and type in caxis([0 0.2])

3.3 Calculate concentration

• •Click Calculation Image Tools > Calculate Linear Projection > Calculate Concentration and type in the intensity ratio of the free and bound states, as well as the K_D

Quantification and statistical analysis

Both the in vitro and in vivo FLIM data were analyzed using home-built software written in MATLAB (see data and code availability). Statistical details can be found in the figure legends. Data (Figures 1C, and 3B) were shown as mean ± SD.
