Partial suppression of BCAA catabolism as a potential therapy for BCKDK deficiency

Abstract

Branched chain ketoacid dehydrogenase kinase (BCKDK) deficiency is a recently described inherited neurometabolic disorder of branched chain amino acid (BCAA) metabolism implying increased BCAA catabolism. It has been hypothesized that a severe reduction in systemic BCAA levels underlies the disease pathophysiology, and that BCAA supplementation may ameliorate disease phenotypes. To test this hypothesis, we characterized a recent mouse model of BCKDK deficiency and evaluated the efficacy of enteral BCAA supplementation in this model. Surprisingly, BCAA supplementation exacerbated neurodevelopmental deficits and did not correct biochemical abnormalities despite increasing systemic BCAA levels. These data suggest that aberrant flux through the BCAA catabolic pathway, not just BCAA insufficiency, may contribute to disease pathology. In support of this conclusion, genetic re-regulation of BCAA catabolism, through Dbt haploinsufficiency, partially rescued biochemical and behavioral phenotypes in BCKDK deficient mice. Collectively, these data raise into question assumptions widely made about the pathophysiology of BCKDK insufficiency and suggest a novel approach to develop potential therapies for this disease.

Highlights

• •Increased BCAA catabolism likely contributes to the pathogenic mechanism of BCKDK deficiency.
• •BCAA treatment inadequately corrected neurodevelopmental delay in Bckdk^−/− mice.
• •BCAA treatment did not correct molecular biochemistry in Bckdk^−/− mice.
• •Dbt genetic haploinsufficiency partially rescued neurodevelopmental delay in Bckdk^−/− mice.
• •Dbt genetic haploinsufficiency mostly rescued molecular biochemistry in Bckdk^−/− mice.

1. Introduction

Branched-chain amino acids (BCAA), leucine, isoleucine, and valine, are essential amino acids, required for cellular function and growth. Abnormalities of BCAA metabolism have been implicated in a variety of human diseases including inborn errors of metabolism, diabetes, cancer, heart failure, and neurodegenerative diseases [1,2]. BCAA levels are controlled by a highly regulated catabolic pathway. In the first step of the pathway, BCAAs are converted into alpha-keto acids by a branched-chain aminotransferase. These alpha-keto acids are then further broken down by the rate limiting enzyme branched-chain ketoacid dehydrogenase complex (BCKDH). The BCKDH complex and subsequent downstream enzymes convert the alpha-keto acids into intermediates, including acetyl-CoA and succinyl-CoA. These CoA species can feed into the tricyclic acid (TCA) cycle, which is coupled to the electron transport chain in the mitochondria. Within the mitochondria, branched-chain keto-acid dehydrogenase kinase (BCKDK) phosphorylates BCKDH and inhibits its activity to prevent excessive catabolism of BCAAs and BCKAs².

BCAAs cross the blood brain barrier and regulate several key processes in the central nervous system. BCAAs provide approximately 30% of the nitrogen groups required for the synthesis of glutamate, the major excitatory neurotransmitter of the brain [3]. As such, BCAAs provide essential precursors for neurotransmitter biosynthesis and recycling. Additionally, BCAAs serve as key energy sources, as they donate their carbon skeleton to TCA cycle intermediates when catabolized [3]. Although the biochemistry of BCAA catabolism is well studied, how perturbation of this pathway leads to brain dysfunction is not well understood.

Pathogenic variants in BCKDK lead to a syndrome characterized by intellectual disability, postnatal microcephaly, autism, and seizures in human patients [4]. To date, there are 14 reported unique pathogenic variants located throughout the protein structure [[4], [5], [6]]. BCKDK deficiency patients all have reduced BCAA levels in the blood, which has resulted in BCAA supplementation being proposed as a potential therapy [4]. However, recent studies of high protein diets with BCAA supplementation and its impact on brain function reveal nominal improvement of neurodevelopmental skills and neurodevelopment [6,7].

Furthermore, how BCKDK pathogenic variants induce neurological symptoms remains understudied. Previous studies of BCKDK deficiency have focused on behavioral characterization of mouse models, amino acid level changes in mice and humans, and mitochondrial defects observed in patient-derived fibroblasts [4,8,9]. However, an explanation as to how these changes alter brain function remains to be elucidated.

Here, we investigate the consequences of loss of BCKDK function in the brain by utilizing a recently published Bckdk^−/− mouse model [10]. In addition, we evaluate if implementation of BCAA repletion therapy in the postnatal period can prevent early neurodevelopmental deficits and postnatal microcephaly. Finally, we compare BCAA supplementation to an alternative therapeutic approach, re-regulating BCAA catabolism through genetic inhibition.

2. Materials and methods

2.1. Animals

All experiments with animals were approved by the Institutional Animal Care and Use Committee at the Children's Hospital of Philadelphia and guidelines set by the US Public Health Service's Policy on Humane Care and Use of Laboratory Animals. Bckdk^−/− Mice were generated, published, and gifted from the Arany lab [10]. Mice were collected after cryoanesthetization (p0) followed by decapitation or euthanasia with isoflurane (p21) and cervical dislocation followed by decapitation. Heads were collected for μCT analysis for microcephaly at p0 and p21. Brains and livers were collected, and flash frozen for metabolic analysis at p21. Mice were perfused with PBS followed by 4% PFA for representative images of brains.

Dbt^{−/+ mice} were generated from a novel floxed DBT allele mouse on the C57BL/6 J background. Dbt ^Flox/Flox mice with loxP sites flanking exon 2 of Dbt were generated by the University of Pennsylvania CRISPR/Cas9 Mouse Targeting Core using the Alt-R™ CRISPR-Cas 9 genome editing system (Integrated DNA Technologies, Coralville, IA). The target sequences were as follows: 5′ - GTGAAGGTTATTGACAGAGTGGG; 3′ - CATTGTGGGAAACTATGGAGCGG. CRISPR guides were designed, and the crispr RNA (crRNA) sequences were as follows: 5′ - GTGAAGGTTATTGACAGAGT; 3′ - CATTGTGGGAAACTATGGAG. The trans-activating crRNA (tracrRNA, Integrated DNA Technologies, #1072533) then hybridizes to crRNA to activate the Cas9 enzyme. After oocyte injection, founders were confirmed via Sanger sequencing of genomic DNA. Founders were backcrossed to C57BL/6 J mice, which were then bred to homozygosity (Dbt ^Flox/Flox).

Dbt^Flox/Flox mice were then crossed with Nestin ^Cre+ mice (The Jackson Laboratory, Bar Harbor, ME; B6.Cg-Tg(Nes-cre)1Kln/J, Stock No: 003771), which express Cre in both the nervous system and oocytes, resulting in the frequent germline recombination of Cre in pups [31]. Offspring that demonstrated germline recombination of the floxed allele were then bred to Dbt^+/+ mice to produce Dbt ^+/− (Nestin ^Cre-) mice, which were used for breeding.

2.2. Genotyping

Mouse tail snips were obtained for genotyping. DNA extraction was performed using the DNeasy Blood & Tissue Kit (QIAGEN, Hilden, Germany, #69506). For Bckdk genotyping, a combination of primers that flank the Bckdk Flox and KO sites were used to discern the Bckdk Flox, WT, and KO alleles. The sequence of the flox primers were 5′- CTGCTTAAGCCCTTCCCTCT −3′ and 5’-AAGAGCACTTGCCCTTCCTT −3′. The sequence of the BCKDK KO primers were 5′- TACTGCCAGCTGGTGAGACA −3′ and 5′- GCAACACTTCCACCCAACTT −3′. The relevant product sizes were 442 bp for the WT allele, and 253 bp for the KO allele. The flox allele size is 1301 bp. The PCR was performed with the KAPA2G Fast HotStart ReadyMix (Roche, Switzerland, #KK 5609).

For Dbt genotyping, we selected primers which flanked the 5′ and 3’ LoxP's to distinguish Flox, WT, and KO allele. The sequences for the forward and reverse primer are 5’-ACCGGAGCATCAGCCTAAA, and 3′- TGTGCACAAGGACATACAGG. The product sizes are 621 bp for the wild-type allele, 311 bp for the knockout allele, and 689 bp for the flox allele.

2.3. Developmental assessments

A panel of developmental assessments was performed on Bckdk^−/−mice and age matched littermate controls from postnatal day 1–21, unless otherwise indicated. After assessment at p1, pups were tattooed for identification throughout the study. Developmental milestones were assessed on scales or time-based assessments with a maximum cut-off time of 60 s. Body weight and body length from snout to tail base were measured for developmental progression. Eye opening was assessed on a scale of 0–3; 0 indicates that both eyes are closed with no slits present, 1 indicates the presence of slits but the eyes are still fully closed or one eye is partially open, 2 indicates that both eyes are partially open or one eye is fully open, and 3 indicates that both eyes are fully open. Incisor eruption was assessed as the age of full protrusion of the lower incisors through the gums. Grasping reflexes were scored on a scale of 0–2; 0 indicates no movement from either paw (no grasp), 1 indicates partial grasp or full grasp from only one paw, and 2 indicates a full grasp from both paws. Surface righting time was assessed from p4-p14 by placing mice in a supine position on a flat surface and recording the time it takes for mice to fully roll over with all four paws flat on the surface. Edge avoidance was assessed from p4-p14 by placing a mouse on a raised platform in a prone position with both the forepaws and head placed over the edge and recording the time for the mouse to retreat onto the platform with no part of the body remaining over the edge. Mice that fell from the platform could be retested a maximum of 3 times. Vertical hold time was assessed from p7-p21 by placing each mouse on top of a screen rotated 90^o until vertical relative to the table. The time at which the mouse fell off the apparatus was recorded. Horizontal hold time was assessed from p10-p21 by placing each mouse on top of a horizontal screen rotated 180^o relative to the table, so that the mouse was hanging below the screen. The time to fall off the apparatus was recorded. T-bar hold time was assessed from p10-p21 by placing the forepaws of the mouse on a thin horizontal bar. Proper grip was ensured, and the time suspended on the bar was recorded. The age at maximum score or time, on scale-based or time-based assays, respectively, was also represented to illustrate developmental delay of the indicated developmental milestone. Pups that did not survive to p14 were excluded from the study.

2.4. Micro CT analysis for microcephaly

Bckdk^−/− mice and age matched wildtype littermate controls were collected at p21 after euthanasia with isoflurane followed by cervical dislocation and decapitation. Heads were stored in paraformaldehyde for 48 h, then transitioned to 70% ethanol at 4 °C until μCT images were obtained. Postnatal day 21 mouse skulls were scanned with a Scanco μCT35 (SCANCO Medical AG, Switzerland, Penn Center for Musculoskeletal Disorders MicroCT Imaging Core, Perelman School of Medicine, University of Pennsylvania) at a resolution of 15 μm. Skulls were reconstructed with Scanco software and analysis of images was performed with 3DSlicer (V5.2.2, Slicer.org) [11]. Threshold settings were optimized to visualize only bone volume. Virtual endocasts of the skull were created to compare skull volumes by using 3DSlicer Software and the Wrap Solidify extension. Cephalometric quantifications from these images were measured from the 3D skull models including length, width, height, and endocranial volume. These measurements were inferred using previously published landmarks [12,13]. Genotype specific measurements were compared for normality and homogeneity of variance. Unpaired t-test was used for significance (p ≤ 0.05) in the original characterization (Fig. 1), 2-way ANOVA was used for BCAA treatment studies (Fig. 3), and 1-way ANOVA was used for genetic rescue studies (Fig. 5). Non-parametric assessment was used as needed for analyses (SPSS 26.0, IBM, Armonk, NY, USA).

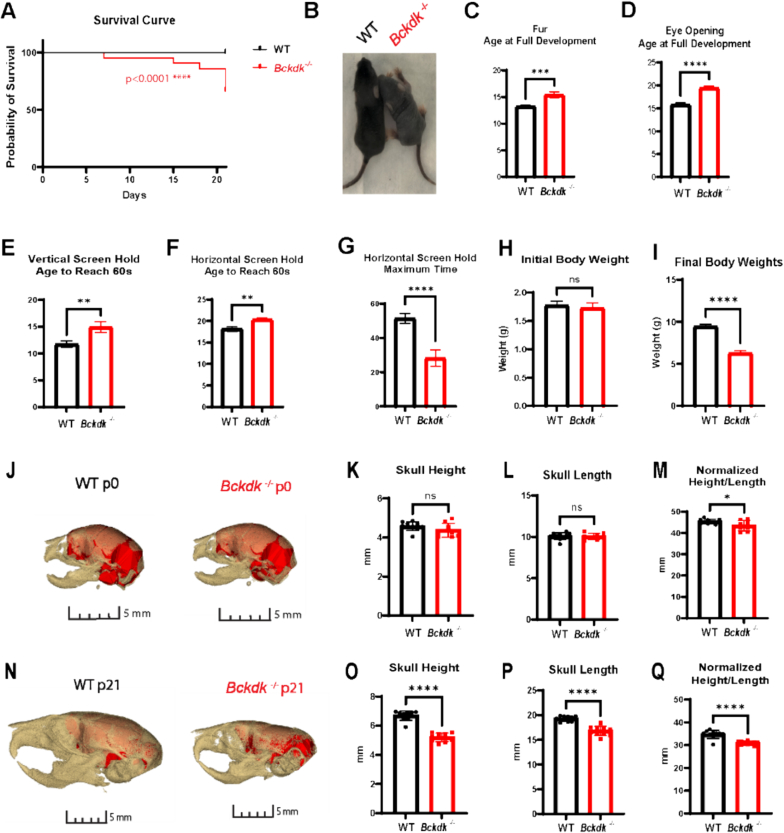

Fig. 1.

Reduced survival, neurodevelopmental delay, weight loss, and postnatal microcephaly in Bckdk^−/−mice. A sex balanced cohort of WT (n = 27) and Bckdk^−/− (n−21) mice were compared for neurodevelopmental assessment. An unpaired t-test was used for statistical comparison. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A) A proportion (8/21) Bckdk^−/− mice died before p21. (B) Fur development is delayed in Bckdk^−/− mice as seen by a representative image at p9. (C) Full fur coat development is significantly delayed in Bckdk^−/− mice. (D) Age at full eye development was significantly delayed in Bckdk^−/− mice. (E) Delayed age to reach maximum time in Bckdk^−/− mice on vertical screen hold. (F) The age to reach the maximum time for horizontal screen hold is significantly delayed in Bckdk^−/− mice. (G) The maximum hold time is significantly reduced in Bckdk^−/− mice on the horizontal screen hold (max 60 s). (H) Similar initial body weights for Bckdk^−/− and control mice at p1. (I) Decrease in final body weight in Bckdk^−/− mice compared to WT mice at p21. (J) No changes in brain size at p0 between WT (n = 10) and Bckdk^−/− (n = 10), as seen by 3D reconstructed overlay of skull and brain from CT endocasts. (K) Minimal changes in skull height in Bckdk^−/− mice compared to WT mice at p0. (L) No changes in skull length in Bckdk^−/− mice at p0. (M) Slight decrease in a normalized metric of microcephaly (height/length*100) in Bckdk^−/− mice at p0. (N) Drastically smaller skull sizes in Bckdk^−/− (n = 10) mice compared to WT (n = 10) mice at p21 as seen by 3D reconstructed overlay of skull and endocast from μCT. (O) Reduced skull height in Bckdk^−/− mice relative to WT mice at p21. (P) Decreased skull length in Bckdk^−/− mice at p21 compared to WT mice. (Q) Significantly reduced skull size in Bckdk^−/− mice at p21 evidence of the normalized metric of microcephaly comparing skull measurements (height/length*100).

Fig. 3.

BCAA supplementation did not significantly impact survival, neurodevelopmental delay, weight loss, or microcephaly in Bckdk^−/−mice. A sex balanced cohort of WT (n = 39) and Bckdk^−/− (n = 28) mice were compared for all neurodevelopmental assessments. A 2-way ANOVA with multiple comparisons was used for all statistical analyses. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A) Experimental design of BCAA administration through dams through lactation, with simultaneous neurodevelopmental assessment of treated pups. (B) Significant elevation of BCAAs in the livers of BCAA treated WT mice (n = 8). (C) Reduced survival (4/28; 14%) of BCAA treated Bckdk^−/− mice prior to p21. (D) Delayed fur development of BCAA treated Bckdk^−/− mice as seen by representative images at p9. (E) Delayed age of full coat development of BCAA treated Bckdk^−/− mice. (F) Delayed age of full eye opening in BCAA treated Bckdk^−/− mice. (G) Significantly reduced final body weight in BCAA treated Bckdk^−/− mice at p21. Final body weight was taken from mice collected for experiments (WT(n = 8), BCKDK^−/−(n = 16), BCAA treated WT (n = 9), BCAA treated Bckdk^−/− (n = 8)). (H) Delayed age to reach the maximum hold time for vertical screen in BCAA treated Bckdk^−/− mice. (I) Delayed age to reach the maximum hold time for horizontal screen in BCAA treated Bckdk^−/− mice. (J) Decreased maximum hold time on horizontal screen hold in BCAA treated Bckdk^−/− mice. (K) Further delayed age to reach full pinnae development in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice. (L) Further increased maximum time on vertical screen hold in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice. (M) Further worsening of edge avoidance in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice. (N) Smaller skull sizes in BCAA treated Bckdk^−/− (n = 10) mice compared to BCAA treated WT (n = 10) mice at p21 as seen by 3D reconstructed overlay of skull and endocast from μCT. (O) Reduced skull height in BCAA treated Bckdk^−/− mice (n = 10 per group). (P) Decreased skull length in BCAA treated Bckdk^−/− mice (n = 10 per group). (Q) Reduced skull size in BCAA treated Bckdk^−/− mice at p21 evidence of the normalized metric of microcephaly comparing skull measurements.

Fig. 5.

Higher survival, less severe neurodevelopmental delay, increased weight gain, and partial restoration of microcephaly in Bckdk^−/−Dbt^+/−mice. A sex balanced cohort of WT (n = 12), Bckdk^−/− (n = 13), and Bckdk^−/-Dbt^+/− (n = 26) mice were compared for all neurodevelopmental assessments. A one-way ANOVAs with multiple comparisons was used for comparisons between the three groups. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A) Breeding scheme to obtain Dbt haploinsufficient Bckdk^−/− mice. Bckdk^+/− and Dbt^+/− mice were crossed to obtain Bckdk^+/-Dbt^+/−. These mice were further crossed to obtain Bckdk^−/-Dbt^+/− mice. (B) Design of qRT-PCR for Dbt KO and WT allele to measure mRNA transcript levels. (C) Decreased relative DBT transcript levels in Bckdk^−/-Dbt^+/− (n = 7) mice compared to WT (n = 7) mice measured by qRT-PCR and normalized to Actin levels. (D) Higher survival rates in Bckdk^−/-Dbt^+/− (3/25;12%) mice compared to littermate matched Bckdk^−/− mice (3/13;23%). (E) Delayed fur development in Bckdk^−/-Dbt^+/− as seen by representative images at p10. (F) Partial rescue of delayed age of full coat development of Bckdk^−/-Dbt^+/− mice relative to Bckdk^−/− mice, both compared to WT mice. (G) Similarly delayed age of full eye opening in Bckdk^−/-Dbt^+/− mice compared to Bckdk^−/− mice. (H) Similarly delayed age to reach the maximum hold time for vertical screen in Bckdk^−/-Dbt^+/− mice relative to Bckdk^−/− mice. (I) Later age to reach the maximum hold time for horizontal screen in Bckdk^−/-Dbt^+/− mice compared to WT mice. (J) Similar maximum time on horizontal screen hold in Bckdk^−/-Dbt^+/− mice relative to WT mice. (K) Final body weights are partially rescued in Bckdk^−/-Dbt^+/− compared to WT and Bckdk^−/− matched controls. (L) Partial rescue of skull size in Bckdk^−/-Dbt^+/− (n = 10) mice compared to WT (n = 10) mice at p21 as seen by 3D reconstructed overlay of skull and endocasts from μCT. (M) Partially restored increase in skull height in Bckdk^−/-Dbt^+/− mice (n = 10 per group) compared to Bckdk^−/− mice. (N) Partial rescue of skull length in Bckdk^−/-Dbt^+/− mice (n = 10 per group) compared to WT mice. (O) Partial restoration of skull size in Bckdk^−/-Dbt^+/− mice at p21 compared to WT mice evidence of the normalized metric of microcephaly comparing skull measurements.

2.5. Amino acid levels analysis

Flash frozen mouse brains were homogenized in 50% acidified acetonitrile for targeted LC/MS metabolomics (acylcarnitines, amino acids, organic acids) according to validated, optimized protocols in our previously published studies [14,15]. These protocols use cold conditions and solvents to arrest cellular metabolism and maximize the stability and extraction recovery of metabolites. Each class of metabolites was separated with a unique HPLC method to optimize their chromatographic resolution and sensitivity. Quantitation of metabolites in each assay module was achieved using multiple reaction monitoring of calibration solutions of metabolites and study samples spiked with matched isotopically labelled internal standards found in Supplementary Table 1–3. Experiments were performed on an Agilent 1290 Infinity UHPLC/6495 triple quadrupole mass spectrometer [14,15]. Raw data was processed using Mass Hunter quantitative analysis software (Agilent). Calibration curves (R² = 0.99 or greater) were either fitted with a linear or a quadratic curve with a 1/X or 1/X² weighting.

Liver tissue from BCAA supplemented animals were snap frozen in liquid nitrogen. Frozen tissue was homogenized, and 30 mg was weighed out. Tissue was mixed with 1 mL 40:40:20 methanol:acetonitrile:water (extraction solvent) and homogenized with a benchtop lyser (SciLogex OS20-S) at 1600 mhZ for approximately 15 s. Samples were then immediately centrifuged at 13.3 g for 20 mins at 4C. Supernatant was saved and dried down in a speedvac (ThermoFisher Savant SpeedVac SPD130DLX) overnight at room temp. Samples were resuspended in 50 uL 60:40 methanol:water and spun down again at 13.3 g for 20 mins at 4C. Supernatant was collected for LC-MS analysis.

A quadrupole-orbitrap mass spectrometer (Q Exactive, Thermo Fisher Scientific, San Jose, CA) operating in negative ion mode was coupled to hydrophilic interaction chromatography on a Vanquish UHPLC System (Thermo Fisher Scientific) via electrospray ionization and used to scan from m/z 65–425 at 1 Hz and 140,000 resolution. LC separation was on a ACQUITY Premier BEH Amide VanGuard FIT Column, 1.7 μm, 2.1 mm × 100 mm (Water, Milfod, MA) using a gradient of solvent A (20 mM ammonium acetate, 20 mM Ammonium hydroxide in 95:5 water:acetonitrile, pH 9.45) and solvent B (acetonitrile). Flow rate was 300 μL/min. The LC gradient was: 0 min, 95% B; 9 min, 40%; 11 min, 40%; 11.1 min, 95%; 20 min, 95%. Autosampler was set at 4 °C and injection volume was 3 μL. LC-MS was used to measure BCAA levels and relative values are shown after normalized to total ion current (TIC) for each sample similar to previously published manuscripts [16,17]. Data analysis was done using El-MAVEN software [18].

2.6. BCAA supplementation

BCAA powder was ordered at a premixed 2:1:1 ratio of Leu:Iso:Val (BCAA 5000 Natural Powder, Nutrabio, Inc., Middlesex, NJ). A previous publication verified this biochemical ratio with assistance from an independent 3rd party vendor (ALS Global, Salt Lake City, UT) [19]. A 2% percent BCAA solution (2 g/100 mL) was introduced via drinking water to dams with a new litter at age p0/p1 and maintained until p21. Bottles were weighed alternate days to monitor intake and the solution was refreshed weekly. IACUC approval was received for BCAA supplementation.

2.7. Realtime qPCR

RNA extraction, cDNA synthesis, and real-time qPCR were performed as described [31]. Briefly, RNA was extracted and purified using a combination of TRIzol reagent and QIAGEN RNeasy columns (QIAGEN, #74004); reversed transcribed into cDNA using the qScript cDNA SuperMix (Quantabio, Beverly, MA, #95047). The cDNA was then diluted and used as the template for real-time PCR analysis using the Power up SYBR Green PCR Master Mix (ThermoFisher Scientific, # A25779) on the QuantStudio3 Real-Time PCR System (ThermoFisher Scientific). The list of primers and sequences used is found in Supplementary Table 4.

2.8. Western blot

Whole brains were homogenized in 1× RIPA buffer followed by BCA assay (ThermoFisher Scientific, #23227). Equivalent protein quantities for all genotypes were loaded onto a Nupage 4–12% Bis-Tris Protein Gels (ThermoFisher Scientific) for 1 h. Subsequently, resolved proteins were transferred to a nitrocellulose membrane for 1.5 h (ThermoFisher Scientific). Membranes were blocked with 5% bovine serum albumin in tris-buffered saline with 0.1% tween (TBS-T) for 1 h, followed by incubation of primary antibody dilutions in blocking solution overnight at 4 °C. The following primary antibodies were used for Western blot including BCKDK, pBCKDH-E1a, BCKDH-E1a, and GAPDH. Additional antibody information can be found in Supplementary Table 5. Membranes were washed with TBS-T, incubated with HRP-conjugated secondary antibodies (1:10,000) or Li-cor florescent secondary antibodies (1:10,000) diluted in blocking solution for 1 h, and washed with TBS-T prior to imaging. SuperSignal™ West Pico PLUS reagents were used (ThermoFisher Scientific) to image relative protein amounts using a ChemiDoc Gel Imaging System (BioRad, Hercules, CA) or the LI-COR Odyssey CLx (LI-COR Lincoln, NE). After acquisition, protein levels were quantified using Image J software's band analysis feature (NIH).

2.9. Statistical analysis

Data are presented as mean ± SEM. Statistical analysis was performed using Prism8 software (GraphPad, San Diego, CA). The respective statistical test for each experiment is indicated in the figure legends. Regardless of statistical test performed, statistical significance was annotated with asterisks within the figures as follows for all tests and results, unless otherwise stated (* p < 0.05, ** p < 0.005, *** p < 0.0005, **** p < 0.0001).

3. Results

3.1. Bckdk^−/− mice have reduced survival, developmental delay, and postnatal microcephaly

To determine if a previously published Bckdk^−/− model had clinically relevant neurological phenotypes of BCKDK deficiency, a panel of neurodevelopmental assessments and micro computed tomography (μCT) analysis for microcephaly was performed [10]. We validated molecular loss of BCKDK by PCR and western blot in addition to the phosphorylation site of BCKDH-E1a subunit indicating functional loss of BCKDK (Supplemental Fig. 1 A-D). A subset (38%) of Bckdk^−/− mice died prior to weaning at postnatal day 21 (p21) (Fig. 1A). Prior to p21, neurodevelopmental assessments revealed that ectodermal-derived tissues have delayed development including delayed fur development (Fig. 1B-C) and eye opening (Fig. 1D). Motor development was also reduced with delayed age to reach the maximum screen hold times in both a vertical and horizontal assay (Fig. 1E-G, Supplemental Fig. 1 J). The initial weight of Bckdk^−/− mice was not significantly different from WT controls (Fig. 1H). Bckdk^−/− mice gained weight during the first two weeks of life, but then started losing weight in the third week, indicative of developmental regression (Supplemental Fig. 1E). Final weight at p21 was significantly reduced in Bckdk^−/−mice (Fig. 1I). Additional metrics assessed were not significantly altered including mouse length, grasping ability, pinnae development, incisor protrusion, maximum time for T-bar suspension, surface righting, and edge avoidance (Supplemental Fig. 1F—I,K-M).

Microcephaly was assessed by μCT at p0, and there was an initiation of a subtle reduction in skull height to skull length at this early age (Fig. J-M). μCT derived endocasts of skulls at p0 revealed no differences in endocranial volume, normalized to skull length, at this early age (Supplemental Fig. 1 N-O). However, by p21 Bckdk^−/− mice had significantly reduced skull height to skull length, revealing a flattened skull characteristic of postnatal microcephaly and suggesting a delay in cortical development (Fig. 1N-Q) [20]. Similarly, Bckdk^−/− mice had noticeably smaller brains seen by 3D endocasts and significantly reduced endocranial volumes at p21, revealing that microcephaly arises postnatally and that brain size is affected (Supplemental Fig. 1P-Q). Quantification of physical brain size revealed reduced brain weight recapitulating μCT results at p21 (Supplemental Fig. 1R-S). Therefore, this Bckdk^−/− mouse effectively models clinically relevant neurological phenotypes of human disease including neurodevelopmental delay and postnatal microcephaly.

3.2. Acylcarnitine and TCA cycle intermediate pooling in Bckdk^−/− brains

Previous literature revealed depletion of BCAAs in human patients and a decrease in downstream adenosine triphosphate (ATP) levels in BCKDK deficient patient-derived cells [5,[7], [8], [9], [10],21,22]. Given the unique role of BCAAs in the brain, we sought to elucidate how BCKDK deficiency impacts BCAA catabolism and downstream TCA cycle intermediate levels in the brain. We hypothesized that there would be increased levels of intermediates derived from BCAA nitrogen donation (glutamate, glutamine) and carbon donation (acylcarnitine species, TCA cycle intermediates) due to loss of BCKDK. Brain BCAA levels were significantly reduced at p21, as has previously been shown at a similar timepoint in another Bckdk^−/− mouse model (Fig2A-C) [21]. Glutamate and glutamine levels were unchanged from WT levels at p21, suggesting compensatory changes in nitrogen donation to neurotransmitter synthesis occurs in early development (Fig. 2D-E). Acylcarnitine conjugates of downstream intermediates below the BCKDH step accumulated, supporting that there is increased carbon donation to direct downstream intermediates (Fig. 2F-H). Interestingly, the leucine-derived intermediate C5-OH carnitine is depleted, two steps below the BCKDH step, suggesting a blockade in catabolism and pooling of upstream intermediates (Fig. 2I) [23].

Fig. 2.

Acylcarnitine species accumulate downstream of BCKDH in the brain of Bckdk^−/−mice at p21. A sex balanced cohort of WT (n = 8) and Bckdk^−/− (n = 15) mice were sent for amino acid and acylcarnitine analysis, and a subset of Bckdk^−/− mice (n = 7) for organic acids measured by mass spectrometry. Unpaired t-tests were performed to compare the two genotypes. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A-C) Significant reduction of BCAA levels in Bckdk^−/− mice. (D-E) No changes in glutamate and glutamine levels in Bckdk^−/− mice. (F—H) Increased pooling of acylcarnitine intermediates one step below BCKDH in Bckdk^−/− mice. (I) Reduced levels of an acylcarnitine two steps below BCKDH (C5-OH) in Bckdk^−/− mice, specifically in the leucine degradation pathway. (J) Elevated pyruvate levels in Bckdk^−/− mice relative to WT levels. (K) No significant changes in citrate levels in Bckdk^−/− mice. (L) Increased aKG levels in Bckdk^−/− mice. (M) Decreased succinate levels in Bckdk^−/− mice. (N) Significant increase in fumarate levels in Bckdk^−/− mice. (O) Increased malate levels in Bckdk^−/− mice.

To bridge the gap between pooling BCAA acylcarnitine intermediates and their downstream impact on downstream metabolism in the brain, we investigated if organic acids, particularly TCA-cycle intermediates, were altered. 3-HBA organic acid levels were elevated in Bckdk^−/− mice (Supplemental Fig. 2 A). Pyruvate levels, derived from both glucose and BCAA breakdown, were elevated while lactate levels were similar between groups, suggesting that cytosolic NAD/NADH ratios may be increased (Fig. 2J, Supplemental Fig. 2B). All TCA cycle intermediate levels increase, except succinate, implying that there is increased anaplerosis in Bckdk^−/− mice (Fig. J-O). These results are consistent with higher flux through the anaplerotic BCAA catabolic pathways.

Interestingly, we also found a blockade in other amino acid degradation pathways that have been previously implicated in neurologic disorders, specifically lysine and glycine degradation [24]. Lysine and tryptophan levels accumulated in Bckdk^−/− mice (Supplemental Fig. 2C—D). Accumulation of lysine degradation intermediates have previously been associated with pyridoxine-dependent epilepsy [[25], [26], [27]]. Therefore, we looked at downstream C5-DC levels, which are also significantly depleted implying reduced lysine degradation (Supplemental Fig. 2E). In addition, glycine levels were significantly elevated at p21 (Supplemental Fig. 2F). Glycine has been associated with glycine encephalopathy, a severe seizure disorder [28]. Secondary clinical biomarkers of BCKDK deficiency, tyrosine, phenylalanine, and alanine, were significantly and trend increased in Bckdk^−/− mice (Supplemental Fig. 2G-I). Subtle abnormalities in additional amino acid levels were also observed (Supplemental Fig. 2 J-R). BCKA levels trend decreased relative to WT levels but had high variability, further supporting higher flux through the BCAA pathway (Supplemental Fig. 2S-T).

3.3. BCAA repletion does not rescue survival, developmental delay, or microcephaly

To determine if BCAA repletion could impact clinically relevant neurological phenotypes in our Bckdk^−/− model, we performed the same panel of neurodevelopmental assessments and μCT evaluation for microcephaly in BCAA treated mice and compared them to our untreated mice [10]. BCAAs were diluted in reverse osmosed water to a supersaturated 2% solution, as previously described [19]. BCAAs were administered through lactation to treat pups continuously throughout the day to maximize BCAA repletion from p0-p21 (Fig. 3A). BCAAs did not significantly impact overall water intake and daily dosage was adjusted for litter size by maternal intake (Supplemental Fig. 3A-B). Through this administration route, BCAAs were significantly increased in the liver of WT pups (Fig. 3B). BCAA treated Bckdk^−/− mice still had 15% reduced survival, revealing peripherally administered BCAAs did not fully rescue survival deficits (Fig. 3C). Developmental delay of ectodermal-derived tissues persisted in BCAA treated Bckdk^−/− pups including delayed fur development (Fig. 3D-E), and eye opening (Fig. 3F). BCAA treated Bckdk^−/− mice initially gained weight similarly to control littermates, but also developmentally regressed around week 2 of life (Supplemental Fig. 3C). Final body weight was not significantly altered by BCAA administration as compared to untreated Bckdk^−/− mice (Fig. 3G). Motor development was also delayed despite BCAA treatment, with reduced age to reach the maximum time in the horizontal screen hold and reduced screen hold times in both the vertical and horizontal assay (Fig. 3H-K). BCAA administration worsened maximum time on the vertical screen hold, pinnae development, and edge avoidance in BCAA treated versus untreated Bckdk^−/− mice (Fig. 3K-M). Furthermore, differences in edge avoidance, grasping, and maximum T-bar suspension time were new defects elicited by BCAA administration to Bckdk^−/− mice (Fig. 3M, Supplemental Fig. 3D-E). Like our initial characterization, body length, incisor protrusion, and surface righting did not differ between groups (Supplemental Fig. 3F—H). Microcephaly was not drastically improved by BCAA treatment, as skull height and lengths were still reduced (Fig. 3N-Q) [20]. BCAA treatment did increase brain weight (Supplemental Fig. 3 K-L), which recapitulates what was seen in the first Bckdk^−/− mouse model supplemented with a high protein diet [8]. However, BCAA treatment was not sufficient to normalize endocranial volumes (Supplemental Fig. I-J). Together, these data indicate that postnatal peripheral BCAA repletion is not sufficient to rescue neurodevelopmental delay in Bckdk^−/− mice and can even worsen some neurological phenotypes.

3.4. BCAA repletion reduced catabolic pathway pooling but not downstream TCA cycle changes in the brain of Bckdk^−/− mice

Although BCAA repletion did not significantly rescue neurodevelopmental delay in mice, it remained unclear if BCAA repletion would be sufficient to prevent pooling of pathway intermediates and normalize downstream TCA cycle intermediate levels. Peripheral BCAA supplementation through lactation did not drastically elevate BCAA levels in the brain despite elevated levels in the liver (Fig. 4A-C), revealing a limitation of peripheral BCAA intervention also seen in a lack of restoration of BCAA levels in the central nervous system in human patients [7]. Again, glutamate and glutamine levels were not altered by this intervention (Fig. 4D-E). BCAA supplementation did reduce the amount of pooling of intermediates directly downstream of the BCKDH step, as measured through acylcarnitine analysis (Fig. 4F-H). The intermediate two steps down from BCKDH, C5-OH carnitine, was further depleted in Bckdk^−/− mice with BCAA supplementation (Fig. 4I).

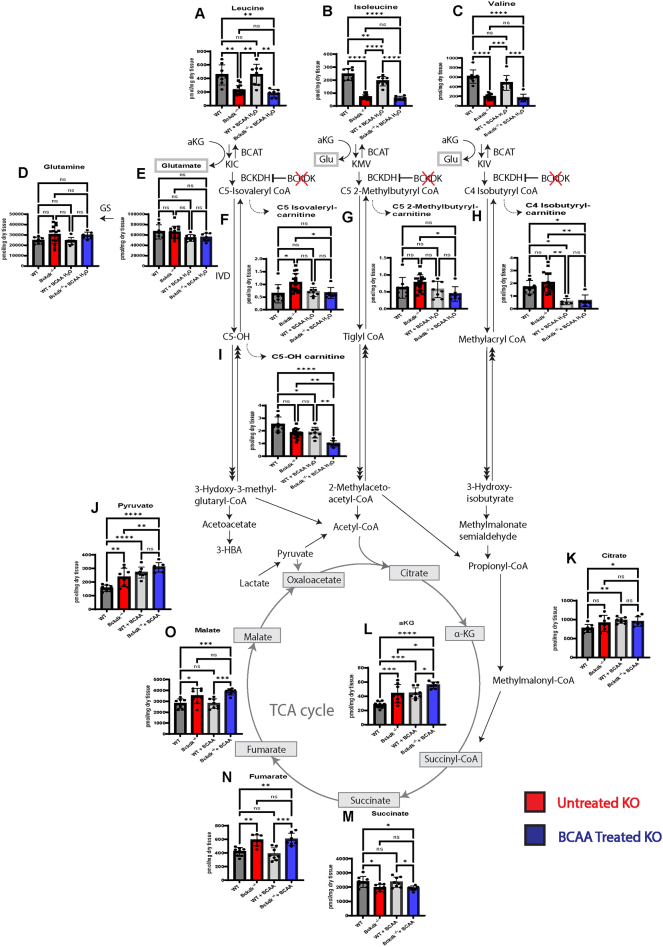

Fig. 4.

Amino acid and acylcarnitine levels in the brain of WT and Bckdk^−/−mice at p21. A sex balanced cohort of BCAA treated WT (n = 8) and Bckdk^−/− (n = 7) mice were compared to untreated WT (n = 8) and Bckdk^−/− (n = 15) data from Fig. 2. Brain amino acid, acylcarnitine, and organic acid levels were measured by mass spectrometry. 2-way ANOVAs were performed to compare all four groups for genotype and BCAA intervention differences. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A-C) BCAA levels are significantly reduced in BCAA treated Bckdk^−/− mice at p21. (D-E) No differences in glutamate and glutamine in BCAA treated Bckdk^−/− mice. (F—H) Reduced pooling of acylcarnitine intermediates one step below BCKDH in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice. (I) Further reduced levels of acylcarnitine species two steps below BCKDH (C5-OH) in BCAA treated BCKDK^−/− mice relative to untreated Bckdk^−/− mice. (J) Further elevated pyruvate levels in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice and untreated WT mice. (K) Increase in citrate levels in BCAA treated Bckdk^−/− mice relative to untreated WT mice. (L) Further increased aKG levels in BCAA treated Bckdk^−/− mice compared to WT levels and untreated Bckdk^−/− levels. (M) Similarly decreased succinate levels in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice. (N) Similar increase in fumarate levels in BCAA treated Bckdk^−/− mice relative to Bckdk^−/− mice. (O) Further increase in malate levels in BCAA treated Bckdk^−/− mice compared to untreated Bckdk^−/− mice, both relative to WT levels.

Since BCAA supplementation corrected levels of upstream intermediates, we investigated if BCAA supplementation also normalized organic acid levels, particularly downstream intermediates of the TCA cycle. 3-HBA levels were elevated upon BCAA supplementation in Bckdk^−/− mice (Supplemental Fig. 4A). Pyruvate levels were further elevated by BCAA supplementation (Fig. 4J), while lactate levels remained unchanged (Supplemental Fig. 4B). Citrate levels were increased compared to WT untreated controls (Fig. 4K). Interestingly, aKG levels were further increased on BCAA supplementation in Bckdk^−/− mice (Fig. 4L). Inversely, succinate levels were still depleted in Bckdk^−/− mice even in the presence of BCAAs (Fig. 4M). Fumarate and malate levels were elevated with similar levels compared to untreated Bckdk^−/− mice (Fig. 4N-O). The pooling of citrate and aKG is consistent with increased catabolism upon BCAA supplementation in Bckdk^−/− mice, although this is not reflected in the fumarate-malate span of the TCA cycle. Together, these data show that BCAA supplementation has identifiable effects on levels of various brain metabolic intermediates, but it alone does not normalize carbon donation to downstream intermediates nor restore TCA cycle changes due to loss of BCKDK.

Lysine accumulation in BCAA treated Bckdk^−/− mice remained increased while lysine degradation remained restricted as evidence by reduced C5-DC carnitine (Supplemental Fig. 4C-E). Similarly, glycine levels remained elevated in untreated Bckdk^−/− mice despite BCAA treatment (Supplemental Fig. 4F). Additional amino acid markers of BCKDK deficiency remained elevated in BCAA treated Bckdk^−/− mice compared to BCAA treated WT mice (Supplemental Fig. 4G-I). Multiple amino acids were not impacted by BCAA supplementation including arginine, histidine, and aspartate (Supplemental Fig. 4 J-K, P). Specific amino acids, proline and asparagine, were similarly elevated in Bckdk^−/− mice with or without BCAA supplementation (Supplemental Fig. 4 N-O). BCAA supplementation further exacerbated differences in amino acid levels particularly for serine between Bckdk^−/− and WT treated mice (Supplemental Fig. 4 M,O,Q-R). BCKA levels, specifically KIC/KMV but not KIV levels, were trend elevated in BCAA treated mice, suggesting this treatment is not specifically improving BCAA catabolism upstream of the key rate limiting step in BCKDK deficient mice (Supplemental Fig. 4S-T). Together this data suggests that peripheral repletion of BCAAs does not restore all metabolic changes in the brain nor neurodevelopmental delay phenotypes associated with BCKDK deficiency, implying that an alternative mechanism of disease pathology besides BCAA depletion alone.

3.5. DBT haploinsufficiency rescues neurodevelopmental delay in Bckdk^−/− mice

An alternative hypothesis to low levels of BCAAs being the cause of neurological defects in Bckdk^−/− mice is the hypothesis that high flux of BCAA catabolism is in fact causal. To test this hypothesis, we reduced BCAA catabolism by haploinsufficiency of Dbt, encoding the critical E2 subunit of the BCKDH complex. We crossed Bckdk^+/− mice with a novel Dbt^+/− mouse model to obtain Bckdk ^+/− Dbt ^+/− mice for breeding. These mice were further crossed to obtain “genetic rescue” mice (Bckdk^−/-Dbt^+/−) and littermate controls for neurodevelopmental assessment and metabolic analysis (Fig. 5A). Dbt haploinsufficiency was detected by PCR, and DBT mRNA levels in genetic rescue mice were decreased 46% relative to normalized WT levels in the brain (Fig. 5B-C, Supplemental Fig. 5A-B). Dbt haploinsufficiency slightly increased Bckdk^−/− mice survival with 12% death prior to our endpoint at 21 (Fig. 5D). Prior to this endpoint, neurodevelopmental assessment revealed a trend rescue of fur development (Fig. 5E-F), but no change in the age at full eye opening (Fig. 5G). Motor development was partially rescued with slightly earlier ages to reach the maximum time of vertical screen hold (Fig. 5H). Although the age to be able to reach the maximum time on the horizontal screen was delayed compared to WT mice, their average time on the horizontal screen was more similar to WT mice than Bckdk^−/− mice indicative of motor improvement (Fig. 5I-J). Genetic rescue mice tracked with WT mice in their weight gain throughout the 3-week assessment (Supplemental Fig. 5C). Additionally, final body weights at p21 were partially rescued (Fig. 5K). Genetic rescue mice had similar lengths, grasping, pinnae development, incisor protrusion, max vertical screen hold time, maximum suspension time on T-bar, surface righting, and edge avoidance compared to both WT and Bckdk^−/− mice (Supplemental Fig. 5D—K). Microcephaly analyses revealed highly.

significant partial rescue of skull length (Fig. 5L-O) [20]. Estimation of brain size through μCT analysis indicated higher endocranial volume relative to Bckdk^−/− mice (Supplemental Fig. 5 L-M). Partial rescue of brain weight recapitulated CT studies with a trend toward increased brain weight relative to Bckdk^−/− mice (Supplemental Fig. 5 N-O). These data thus support the use of Dbt inhibition as a novel therapeutic target, which partially rescues neurodevelopmental delay and microcephaly in Bckdk^−/− mice.

Furthermore, Dbt haploinsufficiency in Bckdk^−/− mice altered BCKDH complex transcript levels. BCKDHA mRNA levels increased but BCKDHB levels did not in genetic rescue mice relative to Bckdk^−/− brain levels (Supplemental Fig. 5P-Q). Interestingly, DBT protein levels were not significantly changed, suggesting the presence of a compensatory mechanism to maintain levels of complex proteins. In addition to regulating complex members at the protein level, Dbt haploinsufficiency also reregulates transcript levels of associated complex members including Bckdha and Ppm1k in Bckdk^−/− mice (Supplemental Fig. 5R-T).

3.6. DBT haploinsufficiency reduces BCAA catabolite pooling and partially rescues TCA cycle changes in the brain of Bckdk^−/− mice

Next, we evaluated if Dbt haploinsufficiency could improve metabolic markers of BCKDK deficiency in the brain. DBT haploinsufficiency in genetic rescue mice did not significantly increase BCAA levels in the brain (Fig. 6A-C), further supporting that BCAA depletion alone is not the sole cause of disease pathology. However, DBT haploinsufficiency was sufficient to reduce pooling of intermediates one step below BCKDH, partially normalizing the BCAA catabolic pathway (Fig. 6F-I). Glutamate and glutamine levels were not significantly changed, similar to control groups (Fig. 6D-E), again supporting that excess glutamate is an unlikely cause of disease pathology in BCKDK deficiency.

Fig. 6.

Amino acid and acylcarnitine levels in the brain of WT and Bckdk^−/-Dbt^+/−mice at p21. A sex balanced cohort of Bckdk^−/-Dbt^+/− (n = 7) mice were compared to untreated WT (n = 8) and Bckdk^−/− (n = 15) metabolic data from the original characterization shown in Fig. 2. Amino acid, acylcarnitine, and organic acids levels were measured by mass spectrometry. One-way ANOVA with multiple comparisons was used to compare genotypes. In all panels, data are represented as mean with s.e.m. (* p < 0.05, ** p < 0.005, *** p < 0.001, **** p < 0.0001, ns = non-significant). (A-C) Significant reduction of BCAA levels in Bckdk^−/-Dbt^+/− mice at p21. (D-E) No changes in glutamate and glutamine in all groups at p21. (F—H) Reduced pooling of acylcarnitine species one step below BCKDH are relatively similar in Bckdk^−/-Dbt^+/− mice compared to WT mice, and C4-Isobutyryl carnitine was even further reduced. (I) Further reduced levels of acylcarnitine species two steps below BCKDH (C5-OH) in Bckdk^−/-Dbt^+/− mice relative to WT mice. (J) Normalization of pyruvate levels back to WT levels in Bckdk^−/-Dbt^+/− mice. (K) Citrate levels were similar in all groups. (L) aKG levels resolved in Bckdk^−/-Dbt^+/− mice back to WT levels. (M) Succinate levels were similarly decreased in Bckdk^−/-Dbt^+/− mice compared to WT mice. (N) Fumarate levels remained elevated in Bckdk^−/-Dbt^+/− mice relative to WT, although to a lesser extent than Bckdk^−/− levels. (O) Malate levels were also elevated in Bckdk^−/-Dbt^+/− mice compared to WT mice, having similar levels to Bckdk^−/− mice.

Lastly, we investigated if DBT haploinsufficiency in BCKDK deficiency restored organic acid including TCA cycle intermediate changes. Pyruvate levels were restored back to WT levels (Fig. 6J). Citrate levels remained unchanged (Fig. 6K). aKG levels resolved back to WT levels in genetic rescue mice (Fig. 6L), suggesting there is partial correction of the TCA cycle. However, downstream changes in succinate, fumarate, and malate were unchanged in genetic rescues compared to Bckdk^−/− mice (Fig. 6M-O). Together, partial rescue of BCAA catabolic intermediates and resolution of initial intermediates of the TCA cycle are therefore achievable with Dbt haploinsufficiency in BCKDK deficiency.

Dbt haploinsufficiency also corrected elevations of key amino acids in the CNS, including lysine and glycine (Supplemental Fig. 6C, F). Several additional amino acid markers of disease were similar in genetic rescue mice as compared to WT mice (Supplemental Fig. 6G-I, K-M, O-R). Together these data support that there is partial restoration of amino acid levels, acylcarnitine levels, and organic acid levels through DBT haploinsufficiency in Bckdk^−/− mice.

4. Discussion

Pathogenic variants in BCKDK lead to a syndrome characterized by intellectual disability, postnatal microcephaly, autism, and seizures in human patients [4]. Previous models of Bckdk deficiency focused solely on the presence of seizures and hindlimb clasping as a phenotypic readout of Bckdk deficiency [8,21]. Therefore, in our study we characterized additional early onset, clinically-relevant neurological phenotypes and found significant neurodevelopmental delay and postnatal microcephaly in a recently published Bckdk^−/− mouse model [10]. From these assessments we can conclude that this mouse is a useful tool to investigate disease pathophysiology and assess potential therapies.

To date the cause of death in humans or mice with BCKDK deficiency has not been documented. We observed generalized tonic-clonic seizures in these mice. A subset of these mice succumbed to sudden death shortly after these seizures. Further research is warranted to understand the impact of metabolic decompensation on electrophysiological changes in the brain and seizure burden in these mice. This is an interesting area of future research since only approximately half of patients with BCKDK deficiency present with seizures [7].

Since the discovery of BCKDK pathogenic variants, the mechanism of disease pathology was assumed to be hyper catabolism of BCAAs leading to their severe depletion. Our study revealed that there are multiple imbalances in BCAA catabolism and the TCA cycle due to BCKDK deficiency. First, we showed that there is accumulation of acylcarnitine derivatives downstream of the BCKDH step and decreased C5-OH levels further downstream suggesting a partial blockade in the BCAA catabolic pathway. One limitation of this study is that free carnitine levels were not measured, as such, it is possible that a secondary carnitine deficiency could be contributing to the observed acylcarnitine pattern.

Additionally, we found loss of BCKDK leads to imbalances in precursors to and intermediates of the TCA cycle with elevated pyruvate, aKG, fumarate, and malate levels but decreased succinate levels. Together, these data suggest that abnormal upstream BCAA metabolites induce accumulation of most TCA cycle intermediates. It is possible that mitochondrial energetic alterations contributed to impaired lysine and glycine degradation, both through alterations in aKG levels and perhaps the NAD/NADH ratio in cells.

These findings led us to question whether BCAA supplementation could both correct BCAA levels and normalize downstream TCA cycle changes. Clinical studies of BCAA supplementation in patients with pathogenic variants of BCKDK are limited, and no randomized-control trials have been conducted to date. Available data suggest that in small cohorts early BCAA supplementation can partially improve disease phenotypes [5,7]. Therefore, we systematically tested the efficacy of enteral BCAA supplementation in our mouse model of BCKDK deficiency. Our approach to replete BCAA levels was two-fold. The first was to test if peripheral administration would be sufficient to replete BCAA levels in the brain, since this had not yet been systematically proven [5,7]. Secondly, we aimed to increase the frequency of BCAA dosage to maximize repletion of BCAAs. Clinical studies revealed that multiple enteral with BCAA supplementation (up to 6×) a day would be required, and even then, levels were insufficiently maintained within physiological ranges for most of the day [7]. Therefore, BCAA supplementation through dams via lactation was the best option to maximize frequent dosing of pups during the developmental timeframe without negatively impacting simultaneous neurodevelopmental assessments. In order to supplement BCAAs without them precipitating out of solution or reducing pup intake, we used a published protocol utilizing a 2% supersaturated solution of a ratio of BCAAs (2 Leu:1 Iso:1 Val) to maximize supplementation to pups [19]. BCAA supplementation did increase brain weight and size in Bckdk^−/− mice, likely through BCAAs known role to increase protein synthesis required for tissue growth and brain development [8]. However, BCAA supplementation did not rescue neurodevelopmental deficits, prevent postnatal microcephaly, or drastically correct biochemical abnormalities despite increasing systemic BCAA levels. The only correction BCAAs made to the BCAA catabolic pathway in Bckdk^−/− mice was to reduce pooling of the acylcarnitine derivatives one step below BCKDH, which we hypothesize is due to increased BCAA catabolism as evidence by a further increase in downstream TCA cycle intermediate levels. It is possible that alternative routes of administration for BCAA supplementation may be more successful at raising CNS BCAA levels.

These results reveal limitations in the ability of BCAA supplementation to rescue neurodevelopmental and biochemical changes in BCKDK deficiency. First, enteral administration of BCAAs does not significantly increase BCAA levels in the cerebral spinal fluid of patients [7] nor in the brain of Bckdk^−/− mice. Therefore, restoration of BCAAs in the brain is not likely achievable through a peripheral administration route. This is likely due to insufficient BCAA transport into the brain and is a shared feature of both BCKDK deficiency and a related autism disorder SLC7a5 deficiency. Second, enteral supplementation may be insufficient to sustainably increase BCAAs in the periphery, as seen in patients where levels dropped to below the reference range 3–5 h after dosing and in mice where leucine levels trended toward an increase but demonstrated great variability (Fig. 3B) [7].

As BCAA supplementation was insufficient to normalize secondary clinical biomarkers of disease and neurodevelopment, we explored alternative therapeutic approaches. Under normal physiological conditions BCKDK serves to decrease activity of the BCKDH complex [8]. Therefore, we sought to mimic its inhibitory function by reducing expression of DBT, a key component of the BCKDH complex. Specifically, we tested if Dbt haploinsufficiency, could normalize BCAA pathway and TCA cycle intermediates in the absence of BCKDK. Interestingly, early genetic re-regulation of BCAA catabolism, through Dbt haploinsufficiency, partially rescued microcephaly, neurodevelopmental phenotypes and restored most biochemical changes in Bckdk^−/− mice. The mechanism of how Dbt haploinsufficiency restores metabolic changes in BCKDK deficiency is worth further investigation. Previous research has shown significant transcriptional changes due to loss of BCKDK in a mouse model [21]. Specifically, our work has shown that Dbt haploinsufficiency in Bckdk^−/− mice reduced Dbt transcript levels and simutaneously rebalanced additional BCKDH complex transcript levels (BCKDHA,BCKDHB) required for idealized ratios of each protein subunit for proper BCKDH complex formation (Supplemental Fig. 5P-Q). Simutaneously, we have shown re-regulation of the BCAA pathway as evidence by restored PPM1K transcription, required for BCKDH complex activation (Supplemental Fig. 5R). Future research should focus on testing these additional therapeutic targets. Although intervention timing was not directly investigated in this work, our genetic rescue study supports that earlier intervention can affect outcomes such as survival and developmental phenotypes, both of which were improved with Dbt haploinsufficiency in Bckdk^−/− mice. In genetic rescue mice, Dbt mRNA transcript levels were only reduced by 46%, suggesting that future directions of this work could aim to further reduce these levels to potentially maximize phenotypic outcomes.

Still, caution should be taken to not fully deplete DBT levels in BCKDK deficiency, as the loss of DBT function would lead to a Maple-Syrup Urine Disease (MSUD), which induces severe neurological dysfunction [2]. Dbt haploinsufficiency may modulate this pathway by additional mechanisms by reducing BCAT activity, as they have been shown to interact in a metabalon [29]. This further illustrates that BCAA catabolism is fine-tuned to maintain metabolic homeostasis and neurodevelopment. Interestingly, not all changes in the downstream TCA cycle were changed by Dbt haploinsufficiency in Bckdk^−/− mice, although restoration of pyruvate and aKG levels were noted with phenotypic improvements. This suggests that the lack of changes downstream of succinyl-CoA within the TCA cycle are inherent to absence of Bckdk. BCKDK in a non-canonical functional paralog of pyruvate dehydrogenase kinase (PDK) and shares structural homology with alpha-ketoglutarate dehydrogenase complex (KGDHC). KGDHC aids in the conversion of alpha-ketoglutarate into succinyl-CoA in the TCA cycle. Therefore, we hypothesize that succinate levels are reduced due to loss of BCKDK by acting as a non-canonical functional paralog of KGDHC [30,31]. Previous studies have shown that pharmacologic inhibition of BCKDK with BT2 affected additional protein targets beyond BCKDH [32]. Therefore, a key future direction of this research is to investigate the impact of BCKDK in regulating the TCA cycle, the impact on ATP production and mitochondrial function, and how BCKDK regulates overall macronutrient metabolism beyond BCAA catabolism.

5. Conclusion

In summary, we found that regulation of the rate of BCAA catabolism is essential to maintain metabolic homeostasis and neurodevelopment. As universal newborn screening has been transformative in other BCAA disorders, as is the case for MSUD [33], the possibility of screening for BCKDK deficiency has been raised [7]. For screening to be effective, we must have therapeutics that improve clinical phenotypes and treat the underlying disease pathophysiology. Early studies of BCAA supplementation in patients have yielded some signs of benefit, yet outcomes vary and neurologic deficits remain in most if not all patients [7]. Here we also found that early BCAA supplementation does not fully correct and even worsens some disease phenotypes in a Bckdk^−/− mouse model. In addition, our data suggest that decreasing flux through the BCAA pathway may provide an alternative therapeutic approach. Future, additional, well-controlled studies of BCAA supplementation and additional potential therapies are needed to improve outcomes in BCKDK deficiency.
