Insertion of dNTPs Opposite the 1,N²-Propanodeoxyguanosine Adduct by Sulfolobus solfataricus P2 DNA Polymerase IV^,

Abstract

1, N²-Propanodeoxyguanosine (PdG) is a stable structural analogue for the 3-(2′-deoxy-β-d-erythro-pentofuranosyl)pyrimido[1,2-α]purin-10(3H)-one (M1dG) adduct derived from exposure of DNA to base propenals and to malondialdehyde. The structures of ternary polymerase–DNA–dNTP complexes for three template–primer DNA sequences were determined, with the Y-family Sulfolobus solfataricus DNA polymerase IV (Dpo4), at resolutions between 2.4 and 2.7 Å. Three template 18-mer–primer 13-mer sequences, 5′-d(TCACXAAATCCTTCCCCC)-3′ • 5′-d(GGGGGAAGGATTT)-3′ (template I), 5′-d(TCACXGAATCCT-TCCCCC)-3′ • 5′-d(GGGGGAAGGATTC)-3′ (template II), and 5′-d(TCATXGAATCCTTCCCCC)-3′ • 5′-d(GGGGGAAGGATTC)-3′ (template III), where X is PdG, were analyzed. With templates I and II, diffracting ternary complexes including dGTP were obtained. The dGTP did not pair with PdG, but instead with the 5′-neighboring template dC, utilizing Watson–Crick geometry. Replication bypass experiments with the template–primer 5′TCACXAAATCCTTACGAGCATCGCCCCC-3′ • 5′-GGGGGCGATGCTCGTAAGGATTT-3′, where X is PdG, which includes PdG in the 5′-CXA-3′ template sequence as in template I, showed that the Dpo4 polymerase inserted dGTP and dATP when challenged by the PdG adduct. For template III, in which the template sequence was 5′-TXG-3′, a diffracting ternary complex including dATP was obtained. The dATP did not pair with PdG, but instead with the 5′-neighboring T, utilizing Watson–Crick geometry. Thus, all three ternary complexes were of the “type II” structure described for ternary complexes with native DNA [Ling, H., Boudsocq, F., Woodgate, R., and Yang, W. (2001) Cell 107, 91–102]. The PdG adduct remained in the anti conformation about the glycosyl bond in each of these threee ternary complexes. These results provide insight into how −1 frameshift mutations might be generated for the PdG adduct, a structural model for the exocylic M1dG adduct formed by malondialdehyde.

The guanine adduct M₁dG¹ [3-(2′-deoxy-β-d-erythro-pentofuranosyl)pyrimido[1,2-α]purin-10(3H)-one] arises in DNA from multiple sources. One source is exposure to malondialdehyde (MDA), a toxic and mutagenic metabolite produced by lipid peroxidation and prostaglandin biosynthesis (for a review, see refs ¹ and ²). In aqueous solution, MDA exists as β-hydroxyacrolein. It reacts with DNA as a bis-electrophile to form M1dG (3–7). Alternatively, M1dG arises as a consequence of oxidative damage to DNA, resulting in the formation of base propenals that subsequently transfer their oxopropenyl group to dG (8) (Scheme 1). The base propenals are significantly more potent than MDA in forming M1dG (9).

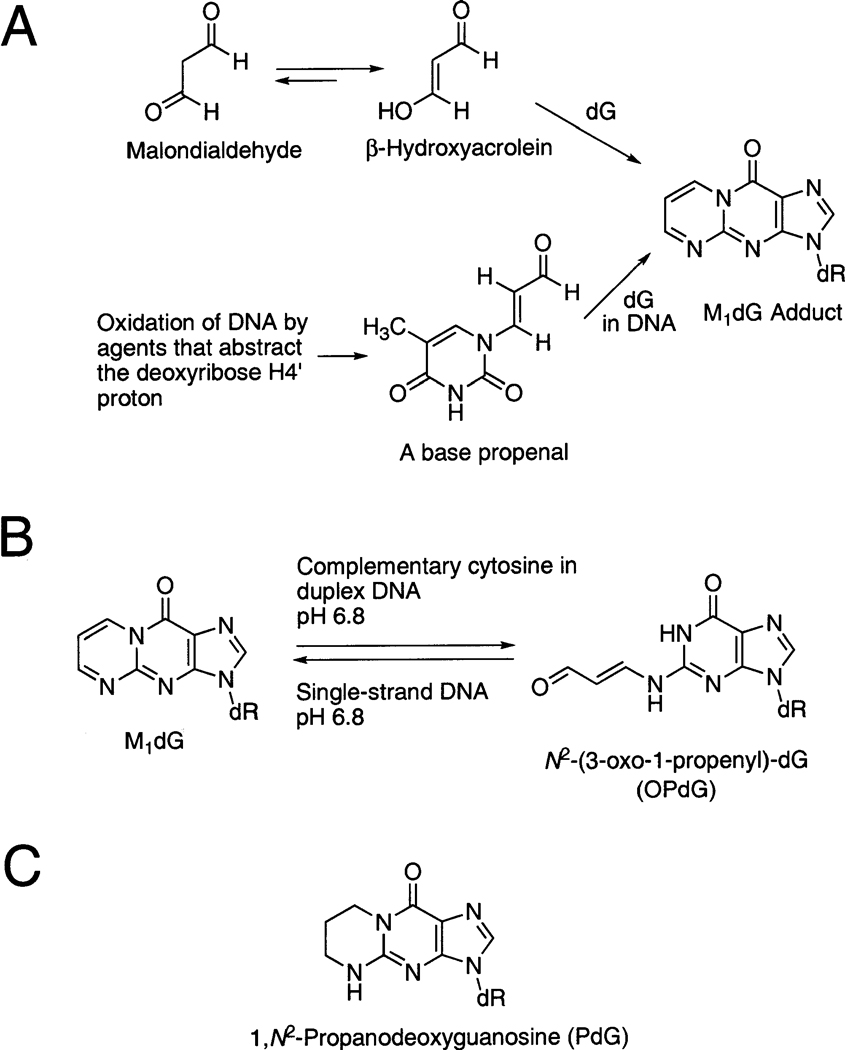

Scheme 1.

(A) Formation of M₁dG from Malondialdehyde or from Base Propenals,^a (B) M₁dG Which Is Stable in Single-Stranded DNA,^b and (C) 1,N²-Propanodeoxyguanosine (PdG), a Structural Model for the M₁dG Adduct

^a Thymine propenal is shown as a representative propenal.

^b In duplex DNA, when placed opposite deoxycytosine, it is spontaneously and quantitatively converted to N²-(3-oxo-1-propenyl)-dG, the OPdG derivative.

M₁dG has been identified in DNA from rodent (10) and human (11,12) tissue samples, as have other exocyclic purine lesions (13–16), suggesting their presence in vivo. The levels of M₁dG in DNA have been quantified by mass spectrometric (17, 18), postlabeling (19, 20), and immunochemical (21) techniques. This endogenously formed adduct is present in human DNA (18–20, 22). It has also been detected at low levels in human urine (23). The low urinary levels of M₁dG likely reflect metabolic conversion to the 6-oxo-M₁dG derivative (24). M₁dG is an efficient premutagenic lesion in Escherichia coli (25, 26), mammalian (26), and human (27) cells. Thus, M₁dG is anticipated to mediate human carcinogenesis.

M₁dG is stable in nucleotides and single-stranded DNA at neutral pH. Under basic conditions, it converts to the N²-(3-oxo-1-propenyl)-dG (OPdG) derivative. In contrast, when M₁dG is placed at neutral pH into duplex DNA opposite dC, a spontaneous conversion to the OPdG derivative is facilitated. Upon denaturation of the duplex, M₁dG is regenerated (Scheme 1). Ring opening does not occur at neutral pH in duplex DNA if thymine is placed opposite M₁dG. These observations suggested that dC in duplex DNA catalyzes the transformation of M₁dG to its ring-opened OPdG derivative (28). The ring opening of M₁dG as a nucleoside or in oligodeoxynucleotides is a reversible second-order reaction with hydroxide ion (29). The reverse ring closure mechanism involves rapid formation of protonated OPdG and 8-hydroxy-6,7-propeno-dG intermediates that slowly convert to M₁dG in a general acid-catalyzed reaction (30).

1,N²-Propanodeoxyguanosine (PdG) (Scheme 1) (31) provides a structural model for M₁dG. Unlike M₁dG, it does not undergo ring opening to OPdG. This chemical difference can be exploited to determine how 1,N²-dG lesions are accommodated by the DNA duplex under conditions in which M₁dG spontaneously undergoes ring opening to OPdG when placed opposite dC. When mispaired with dA, PdG exhibited X(syn) • A(anti) pairing at pH 5.8 and simultaneous partial intercalation of the complementary X and A bases at pH 8.9. When mispaired with dG, PdG exhibited X(syn) • G(anti) pairing which was pH-independent (32–35). The exocyclic ring of PdG was inserted into the DNA duplex when positioned opposite an abasic site (36). When placed in 5′-d(CGCXCGGCATG)-3′ at pH 5.8, PdG induced a localized structural perturbation involving the modified base pair and its 3′-neighbor. PdG rotated into the syn conformation about the glycosyl bond, and the 3′-neighbor base pair existed in a mixture of Watson–Crick and Hoogsteen conformations (37). In the 5′-d(CGCGGTXTCCGCG)-3′ • 5′-d(CGCGGACACCGCG)-3′ duplex, PdG introduced a localized perturbation, which was pH-dependent (38). At pH 5.2, PdG rotated into the syn conformation about the glycosyl bond, placing the exocyclic moiety into the major groove. PdG formed a protonated Hoogsteen pair cytosine in the complementary strand. In this sequence, the 3′-neighbor base pair did not equilibrate between Hoogsteen and Watson–Crick base pairing (38). When PdG was placed in 5′-d(ATCGCX-CGGCATG)-3′ opposite a two-base deletion in the complementary strand, PdG was in the anti conformation about the glycosyl bond and inserted into the DNA duplex. The 3′-neighbor dC was extruded toward the major groove (39, 40). PdG reduced the thermal stability, transition enthalpy, and transition free energy of duplex DNA when positioned opposite cytosine or adenine, and the destabilization of the duplex was not sensitive to whether the base opposite the lesion was adenine or cytosine (41). The structure of PdG has also been determined in a three-base hairpin loop formed by d(CGCGGTXTCCGCG). The structure of the PdG-modified hairpin consisted of a 5 bp stem and a three-base loop, with PdG oriented such that the imidazole proton faced the minor groove of the stem and the exocyclic protons projected into the major groove (42).

The Sulfolobus solfataricus P2 DNA polymerase IV (Dpo4) polymerase is a DinB homologue that belongs to the Y-family of DNA polymerases characterized by their low fidelity on undamaged DNA templates and propensity to traverse normally replication-blocking lesions. It possesses a right-hand architecture containing thumb, palm, and finger subdomains in the polymerase domain. The core of the palm appears conserved between Y-family and replicative polymerases, while the thumb and fingers are significantly smaller in the Y-family. Furthermore, Y-family polymerases contain a unique little finger subdomain, which is believed to play an important role in facilitating DNA binding (43–45). The Dpo4 polymerase can insert the correct complementary nucleotide at each of the investigated DNA lesions, but mispairs and frameshifts have also been observed (46). Crystal structures of the Dpo4 polymerase in complex with unmodified DNA and the incoming nucleotide provide excellent models for investigating the structural features that determine lesion bypass efficiency and fidelity (43). The structures determined for the Dpo4 polymerase in the presence of unmodified primer–template DNAs show two modes of entry for dNTPs. In the type I structure (PDB entry 1JX4) (43), the entering dNTP is paired with the normal, 3′-neighbor template base. In the type II structure (PDB entry 1JXL), the entering dNTP skips this base and is paired instead with the 5′-neighboring base. The active sites of Y-family polymerases, in contrast to replicative polymerases, are solvent accessible and more spacious (43–45) and in some cases can accommodate two template bases. Moreover, the nascent base pair is sterically less constrained than in replicative polymerases. A bulky DNA adduct at the active site is bypassed more easily by the Y-family DNA polymerases, and the spacious active site results in a relaxed geometric selection for the incoming 2′-deoxynucleotide 5′-triphosphate (dNTP) (47), thus compromising the efficiency and fidelity of DNA replication. The lesion bypass ability, accuracy, and efficiency of these polymerases vary significantly and depend on the type of DNA lesion (46, 48–58).

At present, structures of the ternary Dpo4–DNA–dNTP complexes for three 18-mer primer • 13-mer sequences modified with PdG (Scheme 2) have been determined, at resolutions between 2.4 and 2.7 Å. These ternary complexes contained PdG in the template 5′-CXA-3′ (template I), 5′-CXG-3′ (template II), and 5′-TXG-3′ (template III) sequence contexts. With templates I and II, diffracting ternary complexes including dGTP were obtained. The dGTP did not pair with PdG, but instead with the 5′-neighboring template dC, utilizing Watson–Crick geometry. Replication bypass experiments utilizing a template–primer sequence which included PdG in the 5′-CXA-3′ template sequence (as in template I) showed that the Dpo4 polymerase inserted dGTP and dATP when challenged by the PdG adduct. For template III, in which the template sequence was 5′-TXG-3′, a diffracting ternary complex including dATP was obtained. The dATP did not pair with PdG, but instead with the 5′-neighboring T, utilizing Watson–Crick geometry. Thus, all three ternary complexes were of the “type II” structure described for ternary complexes with native DNA (43). The PdG adduct remained in the anti conformation about the glycosyl bond in each of these three ternary complexes. The structures analyzed in this work reveal the importance of stacking in the generation of a stable intermediate of the Dpo4 polymerase with primer–template DNA and provide visualization of a possible –1 frameshift mutation mechanism involving the lesion bypass and the template slippage for mutagenic exocyclic DNA adducts.

Scheme 2.

Template (18-mer)—Primer (13-mer) Oligonucleotide Duplexes Used in This Work (X is PdG)

MATERIALS AND METHODS

Materials

The Dpo4 polymerase was expressed in E. coli and purified using heat denaturation, Ni²⁺-nitriloacetate chromatography, and ion-exchange chromatography as described by Zang et al. (59). All dNTPs were obtained from Amersham Biosciences (Piscataway, NJ). Unmodified oligodeoxynucleotides were synthesized and purified by Midland Certified Reagent Co. (Midland, TX), with analysis by MALDI mass spectrometry. The 13-mer primers used for crystallography were not dideoxy-terminated. PdG was synthesized, purified, and incorporated into oligodeoxynucleotides using an established methodology (31), in house, with analysis by MALDI mass spectrometry. Purity was assessed by capillary gel electrophoresis. Oligodeoxynucleotides were desalted by Sephadex G-25 gel exclusion chromatography (GE Healthcare, Inc., Piscataway, NJ). Oligodeoxynucleotide concentrations were determined by the UV absorption at 260 nm (60).

Replication Bypass Experiment

These experiments utilized either a PdG-adducted or nonadducted 28-mer • 23-mer template • primer 5′-d(TCACXAAATCCTTACGAGCATCGC-CCCC)-3′ • 5′-d(GGGGGCGATGCTCGTAAGGATTT)-3′ sequence, where X is PdG or G. The primers were 5′-end-labeled with [γ-³²P]ATP using T4 polynucleotide kinase (T4PNK) (New England BioLabs). The labeled primers were annealed to either unmodified or modified templates in 1:1 molar ratios in 50 mM Tris-HCl buffer (pH 7.8). The unmodified and modified primers were extended in the presence of single dNTPs. Each reaction was initiated by adding 2 µL of dNTP (final concentration of 50 µM) to a preincubated template/primer/polymerase mixture [final concentrations of 50 mM Tris-HCl (pH 7.8), 50 mM NaCl, 5 mM MgCl₂, 1 mM DTT, 50 µg/mL BSA, 100 nM DNA duplex, and 150 nM Dpo4] at 37 °C, yielding a total reaction volume of 10 µL. The reaction mixtures were incubated over a time period of 15, 30, or 60 min. Each reaction was quenched with 70 µL of 20 mM Na₂EDTA (pH 9.0) in 95% formamide (v/v) and each mixture heated for 10 min at 95 °C. For full-length extension assays, the unmodified and modified primers were extended in the presence of all four dNTPs. Each reaction was initiated by adding 2 µL of all four dNTPs (final concentrations of 50 µM) to a preincubated template/primer/polymerase reaction mixture [final concentrations of 50 mM Tris-HCl (pH 7.8), 50 mM NaCl, 5 mM MgCl₂, 1 mM DTT, 50 µg/mL BSA, 100 nM DNA duplex, and 150 nM Dpo4] at 37 °C, yielding a total reaction volume of 10 µL. The reaction mixtures were incubated over a time period of 15, 30, or 60 min. Each reaction was quenched with 70 µL of 20 mM Na₂EDTA (pH 9.0) in 95% formamide (v/v) and each mixture heated for 10 min at 95 °C. A denaturing gel containing 8.0 M urea and 16% acrylamide (w/v) (from a 19:1 acrylamide/bisacrylamide solution, Accu-Gel, National Diagnostics, Atlanta, GA) with 80 mM Tris borate buffer (pH 7.8) containing 1 mM Na₂EDTA was used for electrophoresis on which aliquots of 6 µL were separated. The gel was exposed to a PhosphorImager screen (Imaging Screen K, Bio-Rad) overnight. The bands were visualized with a PhosphorImaging system (Bio-Rad, Molecular Imager FX) using the manufacturer’s software Quantity One, version 4.3.0.

Crystallization of Dpo4 • DNA Complexes

The 18-mer template containing the PdG adduct was annealed with the 13-mer primer at a 1:1 molar ratio in 0.1 M NaCl, 10 mM NaH₂PO₄, and 50 µM Na₂EDTA (pH 7.2). The duplexes were eluted from DNA grade hydroxylapatite (Bio-Rad Laboratories, Richmond, CA) with a gradient from 10 to 200 mM NaH₂PO4 in 10 mM NaH₂PO4, 0.1 M NaCl, and 50 µM EDTA (pH 7.0). Duplexes were desalted with Sephadex G-25. The Dpo4 polymerase was concentrated to 300–550 µM (12–22 mg/mL) using a spin concentrator with a 10⁴ M_r Amicon cutoff filter (Millipore, Inc., Billerica, MA) in 50 mM Tris-HCl (pH 7.4 at 25 °C) buffer containing 200 mM NaCl, 5 mM β-mercaptoethanol, and 10% glycerol (v/ v). The Dpo4 polymerase was combined with DNA (1:1.2 molar ratio) and then placed on ice for 1 h prior to incubation with 1 mM d(N)TP and 5 mM CaCl₂. Crystals were grown using the sitting drop vapor diffusion method by mixing 1 µL of complex with 1 µL of a solution containing 10% polyethylene glycol 3350 (w/v) and 100 mM Ca(OAc)2 and equilibrated against a well solution containing 25 mM Tris-HCl (pH 7.4 at 25 °C) buffer, 5–10% polyethylene glycol 3350 (w/v), 100 mM Ca(OAc)2, and 2.5% glycerol (v/v). Crystals were soaked in mother liquor containing an additional 25% polyethylene glycol 3350 (w/v) and 15% ethylene glycol (v/v) and then swiped through paratone-N (Hampton Research, Aliso Viejo, CA) and flash-frozen in a stream of liquid nitrogen.

X-ray Diffraction Data Collection and Processing

Diffraction data sets for the ternary Dpo4–DNA–dNTP complexes were collected at 110 K using a synchrotron radiation wavelength of 0.99 Å on the ID-5 beamline (crystals I and III) and a wavelength of 0.92 Å on the ID-22 beamline (crystal II) at the Advanced Photon Source (Argonne, IL). Indexing and scaling were performed using XDS (61) or HKL2000 (62). The data were further processed using CCP4 package programs, and the truncate procedure was performed with TRUNCATE (63).

Structure Determination and Refinement

A refined structure (PDB entry 2BQU) downloaded from Protein Data Bank was used as a starting model by modifying the template and primer and inserting the PdG adduct. In each instance, several rounds of rigid body refinement of the diffraction data, with gradually increasing resolution, optimized the initial positions of the models. The model was refined further using CNS Solve (version 1.1) (64), including simulated annealing, gradient minimization, individual occupancy, and refinement of individual isotropic temperature factors. Manual model building was performed using TURBO-FRODO (65, 66). A total of 5% of the reflections were excluded from the refinement to calculate the cross-validation residual R_free. Water oxygen atoms were added into positive regions (more than 3.0 standard deviations) of F_o – F_c Fourier difference electron density during the manual model rebuilding steps. The crystallographic figures were prepared using TURBO-FRODO and InsightII (Accelrys, Inc., San Diego, CA).

RESULTS

Replication of a 5′-CXA-3′ PdG-Adducted Template by the Dpo4 Polymerase

Replication bypass experiments were performed at 37 °C using the template • primer 5′TCACXAAATCCTTACGAGCATCGCCCCC-3′ • 5′-GGGGGCGATGCTCGTAAGGATTT-3′ sequence, where X is PdG (Figure 1). This template • primer contained PdG in the 5′-CXA-3′ sequence context. The reactions were monitored at time increments of 0, 15, 30, and 60 min. At this temperature, the Dpo4 polymerase was not highly efficient, but it inserted both dATP and dGTP when challenged by the template PdG. When all four dNTPs were included in the reaction, the Dpo4 polymerase did not extend the primer strand to the full-length product. In the corresponding unmodified template • primer, the Dpo4 polymerase inserted dCTP opposite the template G, and including all four dNTPs in the reaction mixture successfully extended the template • primer to full extension products in 30 min.

FIGURE 1.

(A) Replication bypass of the native primer•template complex with the S. solfataricus P2 DNA polymerase IV (Dpo4) enzyme. (B) Replication bypass of the PdG-adducted primer•template complex with the S. solfataricus P2 DNA polymerase IV (Dpo4) enzyme. The reactions were monitored at time increments of 0, 15, 30, and 60 min. The first four panels in each assay represent insertion of a single dNTP to either the native or the adducted template. The last panel in each assay represents the inclusion of all four dNTPs in the reaction mixture and their addition to either the native or the adducted template. The assays were carried out at 37 °C, using 150 nM Dpo4 and 50 µM dNTPs.

Crystallization, Data Collection, and Data Processing

The three site-specifically PdG-modified 18-mer templates, 5′-TCACXAAATCCTTCCCCC-3′ (template I), 5′-TCACX-GAATCCTTCCCCC-3′ (template II), and 5′-TCATX-GAATCCTTCCCCC-3′ (template III), differed in the nearest-neighbor sequence context at the PdG-modified site, having 5′-CXA-3′, 5′-CXG-3′, and 5′-TXG-3′ sequences, respectively (Scheme 2). These were annealed with the complementary 13-mer primers 5′-GGGGGAAGGATTT-3′, 5′-GGGGGAAGGATTC-3′, and 5′-GGGGGAAGGATTC-3′, respectively, which terminated at the base pair 3′ to PdG in the templates. The resulting template • primer complexes were primed for insertion of dNTP opposite PdG in the template. Crystallization trials were conducted for all three template • primer complexes, in the presence of Ca²⁺, an inhibitor of DNA polymerases, and Na2EDTA to chelate traces of Mg²⁺, each in the presence of four possible dNTPs. A concentration range of 3–15 mg/mL of the Dpo4 polymerase was used to find the optimum concentration for growing crystals that diffracted well. For template I, suitable crystals were found at a concentration of 10 mg/mL polymerase. For template II, suitable crystals were found at a concentration of 3 mg/ mL polymerase. For template III, suitable crystals were found at a concentration of 5 mg/mL polymerase. It was possible to crystallize and diffract ternary Dpo4–DNA–dNTP complexes for templates I and II, each with dGTP, whereas for template III, it was possible to crystallize and diffract a ternary complex with dATP. Ternary complexes with TTP and dGTP as the incoming nucleotides with template III also diffracted, but the crystals were twinned and could not be indexed. Thus, the crystallization and diffraction of ternary complexes corresponded to the identities of the 5′-neighbor nucleotides with respect to PdG in the templates.

The statistics of data processing and data quality are summarized in Table 1. Each of the three ternary Dpo4–DNA–dNTP complexes diffracted to medium resolution, within a range of 2.4–2.7 Å. The highest-resolution shell was from 2.7 to 2.9 Å with a completeness of 88.0% for template I, from 2.5 to 2.6 Å with a completeness of 76.1% for template II, and from 2.4 to 2.5 Å with a completeness of 98.2% for template III. The resulting data sets for three ternary complexes were of good quality as indicated by R_merge values of 8.1% (template I), 7.0% (template II), and 7.0% (template III), as well as by signal-to-noise ratios (I/σI) of 6.9 (template I), 7.0 (template II), and 7.0 (template III), respectively. Autoindexing and systematic absences indicated space group P2₁2₁2 for all three sequences.

Table 1.

Crystal Data and Refinement Parameters for the Three Ternary Dpo4–DNA–dNTP Complexes

	crystal I	crystal II	crystal III
template	template I	template II	template III
X-ray source	ID-5 (DND-CAT/APS)	ID–22 (SER–CAT/APS)	ID-5 (DND-CAT/APS)
wavelength (Å)	0.92	0.99	0.92
temperature (K)	110	110	110
no. of crystals	1	1	1
space group	P21212	P21212	P21212
unit cell (a, b, c) (Å)	93.5, 103.3, 52.8	93.4, 103.0, 52.8	92.2, 101.9, 52.7
resolution range (Å)	50.0–2.70 (2.70–2.90)a	50.0–2.48 (2.48–2.59)a	50.0–2.38 (2.38–2.48)a
no. of measurements	17770	15421	25742
no. of unique reflections	25290	23739	35739
redundancy	5.1	5.5	6.4
completeness (%)	100.0 (88.0)a	99.6 (76.1)a	100.0 (98.2)a
Rmergeb(%)	8.1 (8.6)a	7.0 (7.4)a	7.0 (7.2)a
signal to noise (I/σI)	6.9 (7.2)a	7.0 (7.6)a	7.0 (7.4)a
solvent content (%)	47.5	47.9	49.5
model composition (asymmetric unit)
no. of amino acid residues	341	341	341
no. of protein atoms (non-H)	2744	2744	2744
no. of water molecules	105	98	116
no. of Ca2+ ions	3	3	3
no. of template nucleotides	17	17	17
no. of primer nucleotides	13	13	13
no. of dATPs			1
no. of dGTPs	1	1
Rfc (%)	20.8	21.5	22.0
Rfreed (%)	25.8	27.9	26.6
estimated coordinate error (Å)
from Luzatti plot	0.38	0.43	0.35
from Luzatti plot (cross validation)	0.47	0.47	0.43
from σ A plot	0.51	0.60	0.36
from σ A plot (cross validation)	0.61	0.64	0.39
temperature factor from Wilson plot (Å2)	68.7	61.8	62.8
mean isotropic temperature factor (Å2)	58.7	56.6	49.5
rms deviation in temperature factors (Å2)
bonded main chain atoms	1.45	1.39	1.52
bonded side chain atoms	2.07	2.19	2.17
rms deviation from ideal values
bond lengths (Å)	0.007	0.007	0.007
bond angles (deg)	1.37	1.29	1.57
dihedral angles (deg)	21.61	22.3	21.88
improper angles (deg)	1.11	2.77	1.20

^aValues in parentheses correspond to the highest-resolution shells.

^bR_merge =Σ_{hkl,j= 1},_N |I_hkl — I_hkl,j|/Σ_hkl,j=1,_N|I_hkl,j|, where the outer sum (hkl) is taken over the unique reflections.

^cR_f = Σ_hkl ||F_o,hkl — k|F_c,hkl||/Σ_hkl|F_o,hkl|, where |F_o,hkl| and |F_c,hkl| are the observed and calculated structure factor amplitudes, respectively.

^dR_free idem., for the set of reflections (5% of the total) omitted from the refinement process.

Crystal Structures

(a) Template I

The structure of the ternary Dpo4–DNA–dGTP complex was determined at 2.7 Å resolution (Table 1). The active site of the Dpo4 polymerase (Figure 2A) resembled that in the type II structure with native DNA (Figure 2D; based upon PDB entry 1JXL) (43). Thus, both PdG and the 5′-neighbor template dC were accommodated within the active site. Similar to the native type II structure, the 5′-neighbor template C was directed into the active site. PdG stacked inside the duplex (Figures 3A,B) but did not pair with the incoming dGTP. Instead, the incoming dGTP was inserted opposite the 5′-neighbor template dC to form a Watson–Crick base pair (Figure 3A), leaving a gap of 7.7 Å to the 3′-terminal primer T that was itself paired with the 3′-neighboring template dA. The base moieties of dGTP and the 3′-terminal T in the primer were tilted 3.2° and 18°, respectively, with respect to PdG, reducing the distance between the terminal 3′-hydroxyl group of the primer and the α-phosphate group of dGTP to 6.8 Å (Figure 4A).

FIGURE 2.

Structures of three ternary Dpo4—DNA—dNTP complexes containing PdG-adducted DNA. (A) Template sequence I. (B) Template sequence II. (C) Template sequence III. (D) Type II crystal with native DNA from PDB entry 1JXL (43). The Dpo4 polymerase is colored blue and the PdG adduct red; dNTPs and other DNA bases are colored yellow, and the three Ca²⁺ ions are shown as red spheres.

FIGURE 3.

Stacking patterns of DNA base pairs at the active site of three ternary Dpo4—DNA—dNTP complexes: (A and B)template sequence I, (C and D) template sequence II, and (E and F) template sequence III. The PdG adduct is colored red. The dGTP•C (template sequences I and II) and dATP•T (template sequence III) base pairs are colored yellow, and the primer 3′-terminal T • A (template sequence I) and C • G (template sequences II and III) base pairs are colored blue.

FIGURE 4.

Electron density and DNA duplex conformations at the active sites in the three ternary Dpo4—DNA—dNTP complexes: (A) template sequence I, (B) template sequence II, and (C) template sequence III. The views are into the minor groove. Fourier 3F_σ — 2F_c sum electron density (light green meshwork) is drawn at the 1σ level. Ca²⁺ ions and PdG adduct are colored red, and DNA base pairs are colored yellow.

Three calcium ions were coordinated in this structure (Figure 5A). The first two were in the active site for catalysis and dGTP coordination. The first Ca²⁺ ion was weakly coordinated at a distance of 4.2 Å with respect to the side chain carbonyl oxygen of Glu¹⁰⁶. Further contacts by this ion were established at distances of 3.0 and 3.7 Å with respect to the two α-phosphate oxygens of dGTP and at distances of 2.5, 2.7, and 4.4 Å with respect to the three γ-phosphate oxygens of dGTP. The second Ca²⁺ ion was located 2.9 and 4.5 Å from the two α-phosphate oxygens of dGTP and 3.3 Å from one of the three γ-phosphate oxygens of dGTP. The third Ca²⁺ ion was located 2.7 Å from the side chain carbonyl oxygen of Ala¹⁸¹ in the thumb domain of the Dpo4 polymerase. The third Ca²⁺ ion was also located 2.1 and 4.0 Å from two oxygens of the α-phosphate group linking the 12th and 13th primer nucleotides.

FIGURE 5.

Active site structures of three ternary Dpo4—DNA—dNTP complexes containing PdG-adducted DNA, showing the catalytic sites defined by Asp⁷, Asp¹⁰⁵, and Glu¹⁰⁶: (A) template sequence I, (B) template sequence II, (C) template sequence III, and (D) type II crystal with native DNA from PDB entry 1JXL (43). The three Ca²⁺ ions are shown as green spheres.

(b) Template II

The structure of the ternary Dpo4–DNA–dGTP complex was determined at 2.5 Å resolution (Table 1). As for the ternary complex involving template I, the Dpo4 polymerase active site resembled that in the type II structure with native DNA (43) (Figure 2B). Again, PdG stacked inside the duplex (Figures 3C,D) but did not pair with the incoming dGTP. Instead, the incoming dGTP was inserted opposite to the 5′-neighboring template dC to form a Watson–Crick base pair (Figure 3C). This resulted in a gap of 7.4 Å with respect to the 3′-terminal primer dC that was paired with the 3′-neighbor template dG. The base moieties of dGTP and the 3′-terminal dC in the primer were tilted 5.2° and 11°, respectively, with respect to PdG. This reduced the distance between the terminal 3′-hydroxyl group of the primer dC and the α-phosphate group of dGTP to 6.4 Å in the ternary complex (Figure 4B).

Three bound calcium ions were identified (Figure 5B). The first two were in the active site for catalysis and dGTP coordination. The first Ca²⁺ ion was 3.2 Å from the side chain carbonyl oxygen of Asp⁷. The first Ca²⁺ ion was also located 3.0 and 5.0 Å from the two α-phosphate oxygens of dGTP, 3.1 and 4.8 Å from the two β-phosphate oxygens of dGTP, and 3.3, 3.9, and 4.9 Å from the three γ-phosphate oxygens of dGTP. The second Ca²⁺ ion was 2.9 and 4.5 Å from the two α-phosphate oxygens of dGTP and 4.7 Å from one of the three γ-phosphate oxygens of dGTP. The third Ca²⁺ ion was 2.5 Å from the side chain carbonyl oxygen of Ala¹⁸¹ in the thumb domain of the Dpo4 polymerase. The third Ca²⁺ ion was also 4.1 Å from one oxygen of the α-phosphate group linking the 12th and 13th primer nucleotides.

(c) Template III

The structure of the ternary Dpo4–DNA–dATP complex was determined at 2.4 Å resolution (Table 1). Again, the active site of the polymerase resembled that in the type II structure with native DNA (Figure 2C) (43), in which PdG stacked inside the duplex (Figures 3E,F) but did not pair with the incoming dATP. Instead, the incoming dATP was inserted opposite the 5′-neighboring template T to form a Watson–Crick base pair (Figure 3E). This resulted in a 7.5 Å gap with respect to the 3′-terminal primer dC. The latter was Watson–Crick paired with the 3′-neighboring template dG. The base moieties of dATP and the 3′-terminal primer dC were tilted 2.1° and 13°, respectively, with respect to PdG, reducing the distance between the terminal 3′-hydroxyl group of the primer and the α-phosphate group to 6.4 Å (Figure 4C).

Three calcium ions were identified (Figure 5C). The first two were in the active site for catalysis and dATP coordination. The first Ca²⁺ ion was 2.4 Å from the side chain carbonyl oxygen of Asp⁷. The first Ca²⁺ was also 2.4 and 4.6 Å from the two α-phosphate oxygens of dATP, 2.3 and 4.9 Å from the two β-phosphate oxygens of dATP, and 2.5, 3.9, and 5.0 Å from the three γ-phosphate oxygens of dATP. The second Ca²⁺ ion was 3.0 Å from the side chain carbonyl oxygen of Glu¹⁰⁶. The second Ca²⁺ ion was also 2.7 and 3.7 Å from the two α-phosphate oxygens of dATP, 4.6 Å from one of the two β-phosphate oxygens of dATP, and 4.4 Å from one of the three γ-phosphate oxygens of dATP. The third Ca²⁺ was 2.7 Å from the side chain carbonyl oxygen of Ala¹⁸¹ in the thumb domain of the Dpo4 polymerase. The third Ca²⁺ ion was also 4.3 and 4.5 Å from the two oxygens of the α-phosphate group linking the 12th and 13th primer nucleotides.

DISCUSSION

PdG provides a chemically stable structural analogue for structural and biological studies of potential mutagenic exocyclic DNA adducts. In replicative DNA polymerases, the dNTP binding pocket is tightly packed with protein residues on the minor groove side and, to some extent, on the major groove side. These steric restraints, combined with specific hydrogen bonds between amino acid side chains, the primer • template DNA, and the incoming dNTP, strongly favor the incorporation of the correct dNTP. However, because of the smaller thumb and finger subdomains, the Y-family Dpo4 DNA polymerase has been shown to lower the nucleotide selectivity and accommodate two template residues within its active site. The interactions of the Y-family DNA polymerase Dpo4 and the site-specifically modified DNA template • primer containing PdG provide a model of how 1,N² -dG exocyclic adducts might be processed by related mammalian Y-family polymerases.

Role of the Type II Ternary Complex in Inserting dNTPs Opposite PdG

These three ternary PdG-adducted Dpo4 polymerase complexes are similar to the type II ternary complex between the Dpo4 polymerase and unmodified DNA, in which the incoming dNTP skips the first template nucleotide (in this case, the noninformational PdG nucleotide), to form a Watson–Crick base pair with the 5′-neighboring template nucleotide. Comparisons between the structures of these three ternary PdG-adducted Dpo4 polymerase complexes reveal small differences (Figure 6). The rmsd between superimposed carbon atom positions for the three ternary complexes is 0.4 Å. Figure 6A shows the superimposed structures of the Dpo4 polymerase, in the type II ternary complex with native DNA, and in all three ternary complexes investigated here. From Figure 6A, it is also apparent that the orientations of the DNA primer • template duplexes in all three Dpo4–dNTP complexes differ minimally from the one in the complex with native DNA. The structures of the DNA duplexes at the active sites in the three PdG-modified ternary complexes also differ minimally from the corresponding active site in the type II complex with native DNA (43) (Figure 6B). These structures are unlikely to represent catalytically active conformations since the 3′-hydroxyl of the primer and the α-phosphate of the dGTP remain >6 Å apart. It is unclear what rearrangements would need to occur to bring these atoms close enough so that the reaction could occur.

FIGURE 6.

Superimpositions of the structures of three ternary Dpo4—DNA—dNTP complexes with adducted and native DNA duplexes: (A) overall conformations and (B) DNA conformations at the active site. Template sequence I is colored red. Template sequence II is colored blue. Template sequence III is colored green. The native DNA (PDB entry 1JXL) is colored yellow.

PdG Remains in the anti Conformation about the Glycosyl Bond in the Type II Ternary Complexes with the Dpo4 Polymerase

The exocyclic 1,N²-PdG adduct prevents Watson–Crick hydrogen bonding interactions in DNA. Moreover, the exocyclic ring presents a bulky lesion, which is anticipated to interfere with DNA replication. Consistent with these expectations, PdG disrupted duplex DNA structure (32, 33, 36–38). At neutral pH, it has not been possible to obtain a structure for PdG positioned opposite dC in duplex DNA. The spectrum of PdG opposite dC in DNA sharpened as the pH was lowered (37, 38). Likewise, when PdG was mismatched with dA, an ordered structure was stabilized at pH 5.8 (32, 34). On the other hand, when PdG was mismatched with dG, an ordered structure was formed which was independent of pH (32). The pH-dependent equilibrium observed when PdG was placed opposite dC or dA in DNA arises from its ability to rotate into the syn conformation about the glycosyl bond. In the syn conformation, PdG can form hydrogen bonds with protonated dC and dA. When placed opposite dC, this leads to formation of a Hoogsteen pair (37).

The ability of PdG to rotate into the syn conformation, allowing formation of Hoogsteen-type interactions with protonated cytosine, has led to the question of whether this occurs during lesion bypass in damaged template • primer complexes. In all three type II ternary complexes involving PdG-damaged template • primer complexes and the Dpo4 polymerase studied here, PdG remains interhelical and the glycosyl bond remains in the anti conformation. The data suggest that the Dpo4 polymerase utilizes its large active site to insert an incoming dNTP opposite the 5′-neighboring template base. Thus, dNTP insertion is dependent upon the identity of the 5′-neighboring template base. In the ternary complexes examined here, the 5′-neighboring template base was dC for templates I and II, whereas it was T for template III. Significantly, the replication bypass experiment shown in Figure 1 indicates insertion of dGTP in the 5′-CXA-3′ template sequence similar to the crystallographic template I, which is presumed to have occurred via insertion of dGTP opposite the 5′-neighbor template dC in this sequence, and involving a ternary complex similar to that observed here for template I. Likewise, in the other two ternary complexes examined here, the incoming dNTP was dGTP for template II (5′-CXG-3′ sequence) and it was dATP for template III (5′-TXA-3′ sequence).

The question of whether the Dpo4 polymerase actively stabilizes the anti conformation of the PdG glycosyl bond is of interest. In all three ternary complexes examined here, PdG forms cross-strand stacking interactions with 5′-neighboring incipient base pair dGTP • dC (templates I and II) or dATP • T (template III) and with 3′-neighboring base pair dA • dT (template I) or dG • dC (templates II and III) (Figure 3). These stacking interactions might stabilize the anti orientation of the PdG glycosyl bond. Interestingly, it was reported that in ternary complexes site-specifically modified with 7,8-dihydro-8-oxodeoxyguanosine (8-oxodG), Arg³³² of the Dpo4 polymerase assisted in stabilizing the anti conformation of the 8-oxodG glycosyl bond by means of a hydrogen bond or an ion (pole)–dipole pairing interaction, thus increasing the propensity for correct incorporation of dCTP opposite the lesion (59).

Replication Bypass of PdG by the Dpo4 Polymerase

The interactions of M₁dG and OPdG with various Y-family polymerases (67, 68) are likely to be crucial in understanding the mechanisms by which these lesions induce both frameshift and base pair substitution mutations in human cells. From the biochemical and crystallographic data presented here, it is inferred that one mechanism by which the Dpo4 polymerase might bypass PdG is by accommodating both PdG and the 5′-neighboring template nucleotide within its enlarged active site, forming a type II dNTP insertion complex, utilizing the 5′-neighboring nucleotide as a templating base. Replication bypass studies (Figure 1) indicated that the Dpo4 polymerase inserted dGTP opposite PdG in the adducted template • primer duplex containing the 5′-CXA-3′ sequence context, in which insertion of dGTP presumably reflected the type II structure using the 5′-neighboring template nucleotide. However, insertion of dATP was also observed in vitro, and the observation that it was possible to crystallize ternary complexes with other dNTPs as incoming nucleotides suggests that the Dpo4 polymerase may utilize additional methods of dNTP insertion when challenged by template PdG. Hence, further in vitro primer extension and kinetic measurements are in progress.

It is of interest to note that when all four dNTPs were included in the reaction mixture, under these conditions (Figure 1), the Dpo4 polymerase did not successfully extend the primer strand to a full-length product. This possibly reflects the fact that the assays in Figure 1 were conducted at 37 °C, conditions under which this polymerase is less efficient. This contrasted with 1,N²-ethenodeoxyguanosine (1,N²-∈dG). 1,N²-∈dG is a mutagenic DNA lesion derived from lipid oxidation products and also from the chemical carcinogen vinyl chloride and is structurally similar to the PdG adduct. With 1,N²-∈dG, analysis of the products of primer extension by the Dpo4 polymerase indicated preferential incorporation of dATP opposite 3′-(1,N²-∈dG)TACT-5′ (59). This was consistent with the Dpo4 polymerase utilizing the 5′-neighboring thymine to template, rather than 1,N²-∈dG. With the template 3′-(1,N²-∈dG)CACT-5′, both dGTP and dATP were incorporated. In the presence of a mixture of all four dNTPs, opposite 3′-(1,N²-∈dG)CACT-5′, the major product was 5′-GTGA-3′ and the minor product was 5′-AGTGA-3′. Again, the major product was consistent with the Dpo4 polymerase skipping the 1,N²-∈dG template and utilizing the 5′-neighboring cytosine as a template (59). With the template 3′-(1,N²-∈dG)TACT-5′, four products were identified: 5′-AATGA-3′, 5′-ATTGA-3′, 5′-ATGA-3′, and 5′-TGA-3′.

Ternary Complexes of 1,N²-∈dG-Adducted Templates with the Dpo4 Polymerase

Structures of the Dpo4 polymerase have been obtained for binary and ternary complexes with primer templates site-specifically modified with 1,N²-∈dG (59, 69). A crystal structure of the Dpo4 polymerase was determined with a primer • template, and A was placed in the primer to be opposite 1,N²-∈dG in the template 3′-(1,N²-∈dG)TACT-5′. The added A in the primer was paired across the template T with Watson–Crick geometry. Similar structures were observed in a ternary Dpo4–DNA–dATP complex and a ternary Dpo4–DNA–ddATP complex, with d(d)ATP opposite the template T. A similar structure was observed with a ddGTP adjacent to the primer and opposite the C next to 1,N²-∈dG in 3′-(1,N²-∈dG)CACT-5′. In concert with the crystallography studies, the replication bypass studies led to the conclusion that the Dpo4 polymerase uses several mechanisms, including incorporation of dATP opposite 1,N²-∈dG and also a variation of dNTP-stabilized misalignment, to generate both base pair and frameshift mutations (59).

Generation of Frameshift Mutations by PdG

The observation that malondialdehyde is a frameshift mutagen in the hisD3052 tester strain of Salmonella typhimurium (70) originally piqued interest in PdG, a structural analogue of the malondialdehyde-induced M1dG adduct. Site-specific mutagenesis studies utilizing PdG (71–74) and M1dG (25, 26) showed that PdG and M1dG induced both base pair substitution and frameshift mutations, in a sequence-dependent manner. For example, M1dG induced −1 and −2 frameshift mutations in vivo when positioned in a reiterated (CpG)4 sequence but not when positioned in a nonreiterated sequence in E. coli and in COS-7 cells (26).

However, relationships between adduct structure and dynamics, and the formation and accommodation of transient dislocation complexes during error-prone DNA replication, are anticipated to be polymerase-specific (75). Indeed, the replication bypass of PdG in vitro depended upon the identity of the polymerase attempting to replicate past the lesion and was also sequence-dependent (76, 77). In the 5′-TXT-3′ sequence, the Klenow fragment of E. coli DNA polymerase I induced −1 base deletions in vitro, which were proposed to occur by misinsertion of dA followed by slippage of the newly inserted adenine to form the dA • dT pair with the 5′-neighbor dT, and subsequent extension (76). In contrast, when PdG was in a 5′-CXC-3′ sequence, −1 and −2 deletions were observed during in vitro lesion bypass (76). A similar result was reported by Shibutani and Grollman (72). With DNA polymerase β, PdG bypass in vitro yielded a mixture of base pair substitutions and deletions (77). Significantly, the incorporated dNTP was complementary to the base 5′ to PdG in the template strand. The replication by pol β of template • primers containing abasic sites showed similar behavior (78). The type II structures reported here for all three PdG-adducted ternary Dpo4–DNA–dNTP complexes suggest a possible mechanism for the generation of −1 bp frameshift mutations during bypass of PdG by the Dpo4 polymerase, in which the polymerase selectively utilizes the 5′-neighboring template base and skips the damage site.

Base Pair Substitution Mutagenesis by PdG and M₁dG

The relationship of the structural data presented here to the formation of base pair substitutions by PdG and M1dG is less clear. Site-specific mutagenesis of PdG in E. coli showed approximately equal numbers of PdG → A transitions and PdG → T transversions when 5′-d(CGCGGTXTCCGCG)-3′ was inserted into a viral replication vector and replicated (74, 79). The mutation frequency was 2-fold greater than with M1dG, which is attributed to the fact that M1dG can rearrange to the acyclic N²-OPdG adduct, which supports Watson–Crick base pairing (80). Thus, N²-OPdG is anticipated to be less blocking than M1dG. With the Klenow fragment of DNA polymerase I in a (CpG)4 repeat sequence (80), greater bypass to full-length replication products was observed with N²-OPdG than with M1dG. With Kf exo⁺, the extended primers contained dC opposite both adducts, whereas with Kf exo⁻, primers extended past M1dG contained T opposite the adduct but primers extended past N²-OPdG contained dC opposite the adduct. Single-nucleotide incorporation experiments indicated that Kf exo⁻ incorporated all four nucleotides opposite M1dG or N²-OPdG. Kf exo⁺ removed dA, dG, and T opposite M1dG and N²-OPdG but was less active when dC was opposite M1dG.

Summary

The Dpo4 polymerase may utilize a type II ternary complex to insert dNTPs when challenged by template PdG. In this scenario, the Dpo4 polymerase skips the PdG base and utilizes the 5′-neighbor template base to form a Watson–Crick hydrogen bonding interaction with the incoming dNTP. PdG remains in the anti conformation about the glycosyl bond. These data also reveal the importance of stacking for generating stable ternary Dpo4–DNA–dNTP complexes. They provide insight into how −1 frameshift mutations might be generated for PdG, a structural model for the M1dG adduct formed by malondialdehyde.
