Interactions between subunits a and b in the rotary ATP synthase as determined by cross-linking

Abstract

The interaction of the membrane traversing stator subunits a and b of the rotary ATP synthase was probed by substitution of a single Cys into each subunit with subsequent Cu⁺² catalyzed cross-linking. Extensive interaction between the transmembrane (TM) region of one b subunit and TM2 of subunit a was indicated by cross-linking with 6 Cys pairs introduced into these regions. Additional disulfide cross-linking was observed between the N-terminus of subunit b and the periplasmic loop connecting TM4 and TM5 of subunit a. Finally, benzophenone-4-maleimide derivatized Cys in the 2–3 periplasmic loop of subunit a were shown to cross-link with the periplasmic N-terminal region of subunit b. These experiments help to define the juxtaposition of subunits b and a in the ATP synthase.

1. Introduction

The ATP synthase is a rotary enzyme embedded in the membranes of mitochondria, chloroplasts and many bacteria. It couples the flow of hydrogen ions across the membrane (or sodium ions in some species) to the synthesis of ATP (for reviews see [1–4]). The enzyme from E. coli, with its eight different subunits α₃β₃γδεab₂c₁₀, [5,6] is considered a prototype of the mammalian enzyme. The 3 nucleotide-binding catalytic sites are formed by the stator subunits α and β, which are connected to the membrane through the peripheral stalk subunits δ and b. The b subunits are each anchored to the membrane through a single transmembrane (TM) helix, and further interact with subunit a, another stator subunit. The third membrane subunit, called c, forms an n-fold symmetrical ring, where n appears to be 10 in E. coli [6]. The c-ring forms a dynamic interface with subunit a, and makes fixed contacts with the other rotor subunits γ and ε. The γ subunit forms a central shaft within the hexamer of α and β subunits, and both γ and ε make multiple contacts with α and β subunits as the rotor goes through 360° of rotation relative to the stator [7].

The complex of a, b, and c subunits is traditionally referred to as F_o, while the remaining subunits form F₁. Subunit c is folded as a helical hairpin with a single proton carrier, D61, which is located near the center of the membrane [8]. Proton translocation is facilitated by subunit a, which appears to form 2 offset half-channels that provide pathways for hydrogen ions to access the key aspartate residue of subunit c (D61) from different sides of the membrane [9,10]. The proton pathway is expected to include travel through one half-channel, protonation of c_D61, rotation through nearly 360°, and exit through the other half-channel.

The structures of c-rings are known for enzymes from several different species through x-ray crystallography [11–17], but such information is not available for subunit a. Analysis of monocysteine mutants by chemical labeling studies revealed that subunit a contains 5 TM helices, with the N-terminus in the periplasm and the C-terminus in the cytoplasm [18–20]. The fold of the TM helices has been proposed, based on disulfide bond formation of di-substituted cysteine mutants [21]. Evidence for the existence of the half-channels has been provided by a series of accessibility studies using various sulfhydryl labels [22–27]. Disulfide cross-linking studies have found TM4 and TM5 to be near the c-ring [28,29], and the cytoplasmic loop connecting TM3 and TM4 can be cross-linked to c subunits using a bi-functional cross-linker [30]. Similarly, from a residue in the cytoplasmic loop between TM1 and TM2 of subunit a, K74C, cross-linking to subunit b was observed using a bi-functional cross-linker [31]. Cross-linked a-b products were also found using a bi-functional cross-linker, benzophenone-4-maleimide (BPM), with b_R36C [32], and but no information from disulfide cross-linking between a and b subunits has been reported.

The structure of the first 34 amino acids of subunit b has been solved by NMR in a membrane mimetic organic solvent (chloroform:methanol:water 4:4:1) using a synthetic peptide [33]. Residues 4–22 were found to form an α-helix. Combined with results from disulfide formation of monocysteine mutants, a model of the subunit b dimer was produced. Cysteines at positions 6 and 10 formed disulfides at the highest yield [33]. Results of a previous study had suggested that one face of TM2 in subunit a was conserved and could interact with b subunits [34]. Therefore, a systematic analysis of this possible interaction was carried out using monocysteine mutations in both subunits. In addition, the proximity of the N-terminal residue 2 of subunit b to periplasmic regions of subunit a and c was tested by cross-linking.

2. Materials & Methods

2.1 Materials

Materials were obtained as described in previous work [28,29,35,36].

2.2 Plasmids, mutagenesis, and growth

To produce mutations in the genes for both subunits a and c, a new plasmid, pNac, was constructed. The plasmid pFV2-HA [36] was reduced by digesting with PpuMI and XbaI, isolating the 3.7 kb fragment, and ligating with a 15 bp linker (CTCAAGACTGGTGGT and appropriate overhangs) that regenerated the two sites. This plasmid has resistance to ampicillin, and contains the complete genes for subunits a and c, and also codes for the first 53 residues of subunit b, up to the PpuMI site. Individual mutations in the genes for subunits a or b were constructed using Quikchange II mutagenesis (Agilent Technologies), and transferred to pFV2-HA [36] using the 1.3 kb fragment from the digestion at the PflMI site in the gene for subunit a and PpuMI in the gene for subunit b. Double mutants were constructed by using the BspEI site in the HA-tag region at the 5’-end of the gene for subunit a and the MluI site in the gene for gamma. The subunit b mutations were carried on the 3.2 kb fragment, and the subunit a mutations were on the 6.0 kb fragment. The pFV2-HA plasmids were expressed in E. coli strain DK8 [37], which lacks the genes for the ATP synthase. Succinate medium for the analysis of the mutations in pFV2-HA was made from Minimal A, supplemented with 0.2 % succinate, and 0.2 mM L-valine, L-leucine, and L-isoleucine, as described previously [35].

The monocysteine mutants in subunit a from residue 128 to 146 were previously constructed in pLN6HisHA [38]. The double cysteine mutant a_I129C/a_D146C was made by double digestion of the two plasmids using EcoRI and DraIII. The 2.1 kb fragment with the I129C mutation, and the 1.2 kb fragment with the D146C mutation were ligated. These mutations were all expressed in RH305 [39,40], a strain that lacks subunit a. Succinate medium for the analysis of these mutations was the same as above, but lacking the 3 amino acids.

2.3 Membrane preparation, Cross-linking, and Immunoblotting

For disulfide cross-linking of b mutants (residues 4–26) cells were grown to A₆₀₀ = 1 in LB medium, harvested, and resuspended in TMG buffer (50 mM Tris-HCl, 5 mM MgCl₂, 10% glycerol, pH 7.5) according to [28]. Cross-linking reactions were carried out as described [28], except that, when indicated, CuCl₂ was used instead of Cu(1,10 phenanthroline)₂ SO₄. For cross-linking of subunit a to subunit b with benzophenone-4-maleimide (BPM), whole intact cells of the strain RH305 were used. The pellet obtained from cells grown in a 50-ml LB flask was resuspended in 1 ml of TMG buffer and placed into 1.5-ml polypropylene microcentrifuge tubes transparent to UV light. 1 mM of BPM (from a 50 mM stock solution in ethanol) cross-linker was added to cells followed by incubation in darkness on a rotating platform for 1 hr at room temperature. After that the cross-linker was quenched by 15 mM cysteine, and cells were exposed to UV light (3 cm distance) for two hours. For extraction of subunit a, cells were spun down (1 min at 20,000 × g (14,000 RPM) in a microcentrifuge and resuspended in 1 ml of extraction buffer. (50 mM Tris-HCl, pH 8.0, 250 mM sucrose, 100 mM KCl, 30 mM imidazole, 1.5% octylglucoside, 0.5% sodium deoxycholate, 0.5% sodium cholate, 0.5% sodium dodecyl sulfate, 2.5% glycerol.) Extraction was carried out on a rotating platform for 90 min at 4°C. After that samples were centrifuged as above and supernatant was placed into 1 ml tubes containing 150 µl of Ni-NTA resin, equilibrated with the same extraction buffer. After incubation on a rotating platform for 45 min at room temperature the resin was spun down and the supernatant was discarded. 1 ml of fresh extraction buffer was added into the tube and resin was washed for 5 – 10 min on a rotating platform. This step was repeated 3 times. For elution 200 µl of elution buffer (the same extraction buffer with 180 mM imidazole) was added to the resin for 5 min. The supernatant containing isolated subunit a was collected and stored for further use.

Procedures for electrophoresis and immunoblotting of disulfide cross-linked b mutants (4–26) and BPM cross-linked products were previously described [36,38]. The b_NC2 mutants were analyzed according to previously published procedures [28,29].

3. Results

Interactions between the TM region of subunit b and TM2 of subunit a were probed by the introduction of a cysteine substitution into each subunit and subsequent cross-linking trials with the double mutant membranes. A summary of the results for the combinations tested is shown in Table 1. All of the single and double mutants described in this study were found to grow on minimal medium supplemented with succinate as sole carbon source, indicative of a functional ATP synthase. Membrane vesicles were prepared from cell cultures expressing the double mutants, and treated with Cu⁺² ions to catalyze disulfide formation. Western blots were probed with antibodies both to subunit b and to the HA peptide, which is carried at the C-terminus of subunit a. Single mutations in the b subunit were also tested, since b-b dimers had previously been shown to form following cysteine substitutions at particular positions in the TM region. Among the 38 double mutants tested, only eight resulted in a cross-linked a-b product. Western blots demonstrating the cross-linked products for b_N4C/a_L121C, b_N4C/a_P122C, b_F14C/a_W111C, b_V15C/a_W111C, b_V18C/a_T107C, and b_M22C/a_L104C, are shown in Figures 1–3. In addition, b_W26C/a_L100C, and b_W26C/a_I101C formed a-b cross-links (results not shown).

Table 1.

Yield of cross-linked a–b product from double mutants

a Subunit Monocysteine Mutations	b Subunit Monocysteine Mutations
	N4C	F14C	V15C	L16C	F17C	V18C	L19C	F20C	A21Ca	M22C	W26C
P122C	++
L121C	+
W111C		+	+	−				−
V110C		−	−	−		−	−
F109C					−	−	−	−	−
I108C					−	−	−	−	−
T107C					−	++	−	−	−
L106C							−	−	−
A105C							−	−	−
L104C							−	−	−	++
I101C											+
L100C											+

^aResidue 21 is natively cysteine, but all cysteines in pFV2-HA have been changed to alanine, so it is a unique cysteine here.

(−) little or no a–b product detected

(+) less than 50% yield (subunit a)

(++) greater than 50% yield (subunit a)

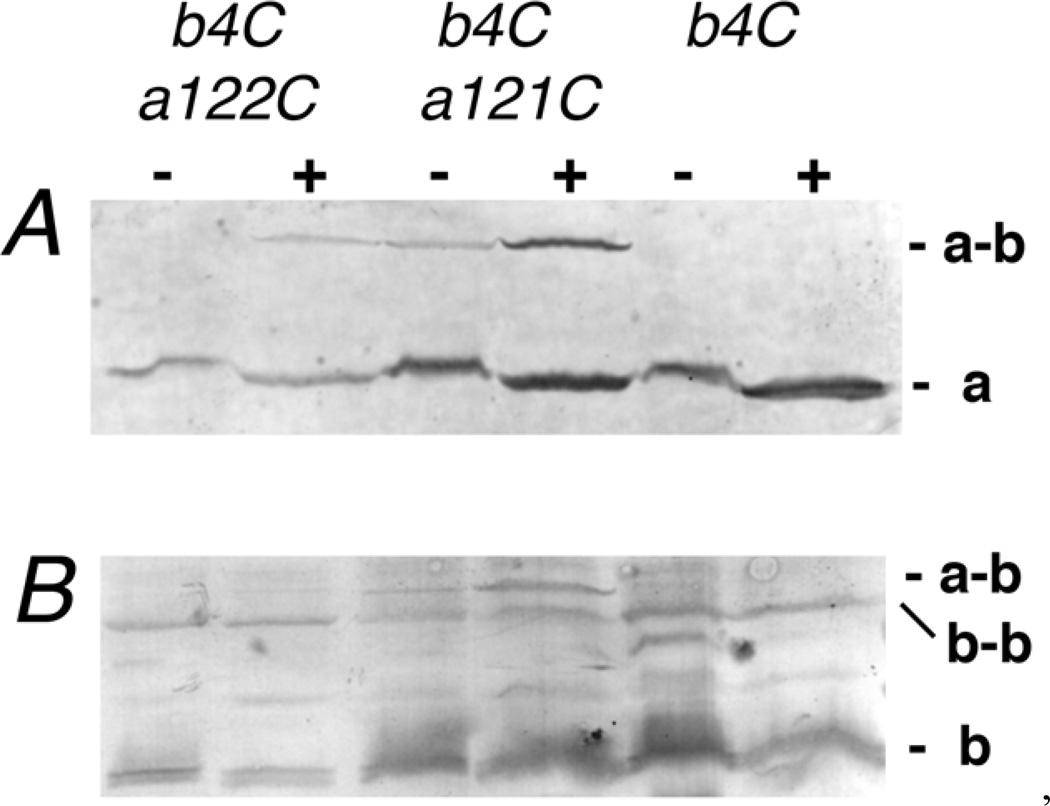

Figure 1.

Disulfide cross-linking of b_N4C to a_L121C and a_P122C. Membrane vesicles were prepared from cells expressing the single b mutation N4C, and double mutants in combination with a_P122C and a_L121C. Each sample was treated with (+) or without (−) CuCl₂ to promote disulfide formation. In Panel A the Western blot was probed with the anti-HA antibody to detect subunit a. In panel B the blot was probed with anti-b antibody.

Figure 3.

Disulfide cross-linking of b_V18C to a_T107C, and b_M22C to a_L104C. Membrane vesicles were prepared from cells expressing the single b mutation V18C and the double mutants b_V18C/a_T107C and b_M22C/a_L104C. Each sample was treated with (+) or without (−) CuCl₂ to promote disulfide formation. In Panel A the Western blot was probed with the anti-HA antibody to detect subunit a. In panel B the blot was probed with anti-b antibody.

Disulfide cross-links were also demonstrated between b_N2C at the N-terminus of subunit b and substitutions a_G227C and a_L228C in the 4–5 periplasmic loop of subunit a connecting TM helices 4 and 5 (Fig. 4). In addition, the a_G227C and a_L228C sulfhydryls were shown to be close enough to the periphery of the c-ring to form disulfide cross-links with c_V78C (Fig. 5). The formation of the a-b cross-links did not significantly reduce the ATP-driven quinacrine quenching response of treated membranes (as described in ref. [41]), indicating an unperturbed and functional structure, whereas the formation of the b _N2C-c_V78C cross-link does abolish ATPase coupled quinacrine quenching [41], as would be predicted by the rotary model for ATP synthesis [1–4].

Figure 4.

Disulfide cross-linking of b_N2C to a_G227C and to a_L228C. Membrane vesicles were prepared from cells expressing the single b mutation N2C and the double mutants b_N2C/a_G227C and b_N2C/a_L228C. Each sample was treated with (+) or without (−) Cu(1,10 phenanthroline)₂ SO₄ to promote disulfide bond formation as described [28]. The Western blots in the left and right panels were probed with antibody to subunit b and subunit a respectively.

Figure 5.

Screening for a-c dimer formation between c_V78C and cysteine in the 4–5 loop of subunit a. Membrane vesicles were prepared from cells expressing c_V78C and seven Cys substitutions in the 4–5 loop of subunit a. Each sample was treated with Cu(1,10 phenanthroline)₂ SO₄ to promote disulfide bond formation as detected by Western blots probed with antibody to subunit a [28]. Dimer formation between subunits a and c was only observed with the c_V78C/a_G227C and c_V78C/a_L228C double mutant pairs.

Using a different approach, the proximity of subunit b to the 2–3 periplasmic loop in subunit a, connecting TM helices 2 and 3, was tested using a photoactivatable-cross-linker benzophenone-4-maleimide (BPM). Mono-cysteine mutations in subunit a had been constructed previously at positions 127–135, 137–138, and 141–146. Since these residues appear to reside in the periplasm or the periplasmic side of TM3 [25], cross-linking was carried with whole cells, which had been partially permeabilized with polymyxin B nonapeptide [20], and subsequent treatment with BPM and then UV radiation. In initial studies, residues 127–134 and residues 142–146 all showed various levels of a–b cross-linking (results not shown). The results for a_I129C, a_V142C, a_S144C, and a_D146C are shown in Figure 6A. Two of the residues that showed efficient cross-linking were selected, 129 and 146, and the 129/146 double mutant was constructed. The results of photoactivated cross-linking of subunit a and b using a_I129C/D146C are shown in Figure 6B. The results indicate that subunit a can be simultaneously cross-linked from this region to both of the b subunits.

Figure 6.

Cross-linking of subunit a to subunit b through benzophenone-4-maleimide. In panel A four different mutants were reacted with BPM, and then incubated in the presence (+) or absence (−) of UV radiation. The Western blots were probed with anti-HA antibody to show the presence of the a-b cross-linked product. Control blots, shown just below, demonstrate a consistent level of subunit a in the membranes initially. In panel B, cross-linking of the single mutant a_D146C and the double mutant a_D146C/a_Y128C are shown using BPM following UV radiation. The blot is probed with anti-b antibody. It shows an a-b product in the single mutant, and both a-b and a-b-b products in the double mutant.

4. Discussion

In this report the structural proximity of the TM helices of subunit b and TM2 of subunit a, and the 2–3 and 4–5 connecting loops, between TM2 and TM3 and TM4 and TM5, have been defined by cross-linking reactions. A view of the TM helices of the subunit b-dimer, as proposed in an NMR based structural model of the TM peptide region [33], is shown in Figure 7A. Residues 6 and 10, which were shown to promote the strongest disulfide bond and homodimer formation after substitution by cysteine, are colored yellow [33]. The residues in the TM helix region of subunit b that form disulfides with matched residues in subunit a, are colored red. This pattern indicates that the cross-linkable residues of TM2 of subunit a are likely to be interacting with only one of the two b subunits, as is discussed further below.

Figure 7.

Model of the b dimer and its placement relative to subunit a. A. One b subunit is colored white, and the other is colored light blue. The structure shown is that predicted by solution NMR of the peptide shown [33]. Residues 6 and 10 when changed to cysteine were shown to form disulfide-linked dimers in the membrane, and are colored yellow. Cys substitutions that form disulfides with Cys introduced into subunit a, as demonstrated here, are colored red. B. A cross-sectional map of TM helices of subunits a, b, and c as viewed from the cytoplasmic side of the membrane. The orientation of TM helices for subunit a is based upon an internal disulfide cross-linking study [21]. No information is available about the relative location of aTM1. The b subunit dimer is placed according to the results presented here. The disulfide cross-links generated in this study are shown by solid black lines. Thin dotted lines between the b subunits represent disulfide cross-links between them [33]. Thick dotted lines between TM helices of subunit a represent periplasmic loops between TM2–3 and TM4–5. The C-terminal helices (C2) of only three subunits from the c₁₀ ring are shown.

On inspection of the cross-sectional view of the b-dimer model (Fig. 7B), it is clear that the cross-linkable face of two b TM helices could not simultaneously interact with the a TM2 cross-linkable region. Given the b-b dimer formation with Cys at positions 6 and 10, this conclusion is true regardless of whether the proposed helix-helix interactions in the NMR model are correct or not. The cross-sectional view also makes it clear that the b_N2C cross-link to the residue 227 and 228 Cys in the 4–5 loop of subunit a likely originates from the b-subunit that does not cross-link with aTM2. The b subunit neighboring aTM5 is also likely to be the one generating the b_N2C/c_V78C cross-link reported previously by Jones et al. [41]. In addition, Jones et al. [41] reported cross-linking of Cys at positions 74, 75 and 78 in subunit c with Cys at positions a227 and a228 in the 4–5 loop, which is consistent with the model shown in Fig 7B.

Cross-linking of b_N4C to a_P122C suggests that only about four residues at the N-terminus of the b subunits are exposed in the periplasm, since a_P122C, but not a_L120C, was shown previously to be accessible to a periplasmic maleimide label [38]. Cysteine substitutions within this four residue span appear to cross-link in several distinct ways. In addition to the cross-link of b_N2C to residues in the TM4-TM5 loop and the C-terminus of subunit c, and the cross-link of b_N4C with the aTM2 peripheral interface as described in the preceding paragraph (Fig. 7A & B), the N-termini of both b subunits appear to be near the TM2-TM3 periplasmic loop of subunit a. This proximity is indicated by the positive BPM catalyzed cross-linking with subunit b from multiple sites within the 2–3 loop of subunit a, and the simultaneous cross-linking from a_I129C and a_D146C to both b subunits. Given the shortness of the exposed N-terminal segment of subunit b, and the relatively short length of the cross-linker (about 6 Å), it seems likely that the periplasmic end of aTM3 is angled toward the N-termini of the b subunits to give the aTM2–5 four-helix bundle a funnel like appearance. A structural answer such as that suggested above seems necessary since the packed diameter of each TM helix shown in Fig. 7B should be in the range of 10 Å, which would make cross-linking between subunit b and residue 146 in aTM3 impossible if all of the alpha-helices were of equal length and packed in parallel.

The relative positions of the a, b, γ and ε subunits have been addressed in two studies using FRET (Förster resonance energy transfer) distance measurements [42,43]. The a and b subunits were both located relative to fluorophores at position 56 of ε and position 106 of γ. Subunit a was tagged genetically with green fluorescent protein at its C-terminus [43], while both b subunits were tagged at position 64 by a single fluorophore Cy5bis-C5-maleimide [42]. The results presented here are consistent with these earlier studies, if one considers the location of the C-terminus of subunit a (TM5) relative to the b subunit dimer interface. In a recent study of the I. tartaricus F_o sector using cryoelectron microscopy at 7 Å resolution [17], two helices were located in projection at positions very similar to the that of the two b subunits in Fig. 7B.

In summary, the cross-linking results presented here position one b subunit in proximity to much of the peripheral surface of the membrane spanning region of TM2 of subunit a, whereas the second subunit b is likely to be closer to TM5 and the surface of the c-ring. The N-termini of the b subunits are packed in such a way that contact can be made by one of the two b subunits with periplasmic extensions of aTM2, aTM3 and aTM5.

Figure 2.

Disulfide cross-linking of b_F14C and b_V15C to a_W111C. Membrane vesicles were prepared from cells expressing the single b mutations F14C and V15C, and in combination with a_W111C. Each sample was treated with (+) or without (−) CuCl₂ to promote disulfide formation. In Panel A the Western blot was probed with the anti-HA antibody to detect subunit a. In panel B the blot was probed with anti-b antibody.

Highlights.

• >Interactions of subunits a and b of the rotary ATP synthase were examined.
• >Cys substitutions were used for disulfide formation or with a bi-functional reagent.
• >Cross-linked products indicated that one b subunit has contact with TM2 of subunit a.
• >Additional cross-links were detected between subunits a and b and between b and c.
• >A model is presented in which one b subunit is near aTM2 and the other is near aTM5.
