Mechanical Properties of Respiratory Muscles

Abstract

Striated respiratory muscles are necessary for lung ventilation and to maintain the patency of the upper airway. The basic structural and functional properties of respiratory muscles are similar to those of other striated muscles (both skeletal and cardiac). The sarcomere is the fundamental organizational unit of striated muscles and sarcomeric proteins underlie the passive and active mechanical properties of muscle fibers. In this respect, the functional categorization of different fiber types provides a conceptual framework to understand the physiological properties of respiratory muscles. Within the sarcomere, the interaction between the thick and thin filaments at the level of cross-bridges provides the elementary unit of force generation and contraction. Key to an understanding of the unique functional differences across muscle fiber types are differences in cross-bridge recruitment and cycling that relate to the expression of different myosin heavy chain isoforms in the thick filament. The active mechanical properties of muscle fibers are characterized by the relationship between myoplasmic Ca²⁺ and cross-bridge recruitment, force generation and sarcomere length (also cross-bridge recruitment), external load and shortening velocity (cross-bridge cycling rate), and cross-bridge cycling rate and ATP consumption. Passive mechanical properties are also important reflecting viscoelastic elements within sarcomeres as well as the extracellular matrix. Conditions that affect respiratory muscle performance may have a range of underlying pathophysiological causes, but their manifestations will depend on their impact on these basic elemental structures.

This review is part of an initiative by the American Physiological Society that extends the classic Handbook of Physiology series. The original Handbook was created almost a half-century ago to provide “…a critical, comprehensive presentation of physiological knowledge and concepts” (112). The respiratory muscles were mentioned in chapters on respiratory system anatomy, mechanics, and neural regulation. Existing information was largely limited to respiratory muscle structure and function at the whole-body and tissue levels. Two decades later, the Handbook was revised and expanded (253). New chapters were dedicated to the mechanical and electrical properties of respiratory muscle, respiratory muscle energetics, and inspiratory muscle fatigue. Traditional concepts of muscle cell biology – fiber type, metabolic properties, sarcolemmal excitability – were integrated with data from intact animals and humans to broaden our understanding of respiratory muscle function.

Since then, interest in respiratory muscles has exploded. A search of the PubMed data base (http://www.ncbi.nlm.nih.gov/pubmed) using the term ‘respiratory muscle’ identified fewer than 11,000 reports published in the century prior to 1985. In the succeeding 24-year period, from 1986-2010, over 25,000 manuscripts on respiratory muscles have been published. This shows that investigators recognize the critical importance of respiratory muscles in health and disease. Researchers have learned that the functional properties of respiratory muscles and their limits to performance can differ markedly from limb muscles. The cellular physiology of respiratory muscles has become a major focus of research. Emerging technologies and contemporary biological tools have allowed investigation of the biochemical and molecular mechanisms that define respiratory muscle mechanics. In this review, discoveries made over the last quarter century have been combined with concepts of enduring value to provide a comprehensive perspective on respiratory muscle mechanics.

Respiratory Muscle Types

Pump muscles

Breathing is mediated by the concerted action of “pump” muscles of the chest wall (i.e., the thorax and the abdomen) that change intrathoracic pressure. The pump muscles act to change transthoracic pressure thereby altering lung volume, causing air to flow in or out of the lungs. The pump muscles are essential for breathing and are major determinants of respiratory mechanics.

The pump muscles consistently active with inspiratory or expiratory efforts are categorized as “primary” respiratory muscles. Those muscles recruited only occasionally with increased inspiratory or expiratory efforts are termed accessory respiratory muscles. Classification of primary and accessory respiratory muscles can vary across species. In humans, the primary inspiratory pump muscles include the diaphragm and parasternal intercostal muscles that act to expand the chest wall. Muscles such as the sternocleidomastoid, scalenes and triangularis sterni that also act on the chest wall are accessory, since they are recruited only with increased inspiratory effort. In fact, activation of these accessory inspiratory muscles is an important clinical sign of inspiratory loading.

In humans, expiration is typically passive requiring no muscle activity, but driven by the elastic recoil of the lung and chest wall. During forced expiration, abdominal muscles are activated to increase intraabdominal pressure (184, 254, 310). Accordingly, abdominal muscles are classified as accessory respiratory muscles, and their recruitment is also used in the clinical setting as an indicator of respiratory loading.

Upper airway muscles

Dilator muscles of the pharynx and larynx minimize upper airway resistance during inspiration, thus facilitating airflow into and out of the lungs (87, 257, 447, 448, 450). The pharynx is collapsible and subatmospheric pressures generated in the airway lumen during inspiration can cause airway narrowing and in some cases occlusion (e.g., obstructive sleep apnea) (443, 448, 472). Airway patency is maintained during breathing by tightly coordinated co-activation of respiratory pump muscles and muscles of the upper airways.

The main airway dilator muscle of the pharynx is the genioglossus. Contraction of the genioglossus muscle depresses and protrudes the tongue, thereby opposing obstruction of the posterior pharynx during breathing (368). However, contraction of the genioglossus alone is not sufficient to prevent narrowing of the upper airway in humans (87, 307, 308).

The position of the hyoid bone strongly influences upper airway resistance. The hyoid is not connected directly to any other skeletal structure; thus, making it highly mobile (442). If posterior movement of the hyoid is not opposed during inspiration, it can increase airway resistance and limit airflow. However, contraction of some of the extrinsic muscles of the neck including the sternothyroid, thyrohyoid, sternohyoid, and geniohyoid results in dilation of the upper airways (447). For example, simultaneous contraction of the sternohyoid and geniohyoid move the hyoid bone in the anterior direction, thus dilating the upper airway (306, 448, 472). The mylohyoid and digastrics are non-dilator muscles (306), while contraction of the omohyoid muscle is likely to constrict the upper airway through posterior displacement of the hyoid bone.

In the larynx, the posterior cricoarytenoid muscle abducts the arytenoid cartilages and separates the vocal cords, thereby increasing glottal diameter and facilitating airflow (17, 81, 201). Other non-dilator and constrictor muscles play important roles in non-respiratory actions of the upper airways, e.g., swallowing and phonation (447).

Twitch and tetanic mechanical characteristics have been determined for the geniohyoid, sternohyoid, and genioglossus muscles (70, 449, 451-453). Other studies have established the fiber type composition and metabolic characteristics of upper airway dilator muscles in animals and humans (51, 183, 247, 306, 368, 450, 454, 457, 480). Overall, muscles of the upper airways have faster twitch characteristics than the diaphragm. During normal breathing, upper airway muscles contract isometrically (448) and maintain patency of the upper airway with approximately the same diameter as in the absence of respiratory drive. Measurements of whole muscle mechanics are consistent with histochemical analyses that show a predominance of type II fibers in the genioglossus, geniohyoid, and sternohyoid muscles (51, 306, 451). Single fiber function from non-dilator (vocal) laryngeal muscles is consistent with those of skeletal muscles in general (81). To our knowledge, the mechanical properties of upper airway muscles have not been studied at the single fiber level.

This article addresses the mechanical properties of respiratory pump muscles, with a special focus on the diaphragm as the primary muscle of inspiration. Other respiratory muscles will be discussed where differences among muscles may illustrate useful concepts or influence the mechanics of breathing.

Respiratory Muscle Structure

Three major regions of the diaphragm muscle are recognized by the origin of their muscle fibers. Muscle fibers in the sternal region originate from the xyphisternal junction. Fibers in the costal region originate from the lower rib cage. Fibers in the crural region originate from the upper lumbar vertebrae. In each of these diaphragm muscle regions, fibers insert into the central tendon. In the sternal region, the orientation of fibers is generally parallel. In the costal region, the circumference of the costal margin is longer than that of the central tendon insertion, thus, the orientation of fibers radiate outward from the central tendon. The orientation of fibers in the crural region is far more complex as they encompass the esophagus, serving as an esophageal sphincter. Of physiological importance is the fact that the descending aorta and inferior vena are not encompassed by diaphragm muscle fibers as they traverse between thoracic and abdominal cavities. In smaller animals such as rats and mice, diaphragm muscle fibers extend from origin to insertion reaching lengths exceeding 20 mm. In larger species such as cats, dogs, and humans, diaphragm muscle fibers do not extend the full length of the muscle but instead, have intramuscular tendinous insertions (147, 375).

Mechanical effects of fiber activation in different regions of the diaphragm muscle depend on the specific origins and insertions of fibers, and the varying loads imposed by ribcage and abdominal displacement (43, 86). Differences between mechanical effects of different diaphragm regions led to the suggestion that the costal and crural regions are actually different muscles, with different embryonic origins and neural innervation (85, 86). With respect to embryonic origin, Greer and colleagues reported an elegant series of studies clearly demonstrating that all regions of the diaphragm muscle have similar embryonic origin (4, 11, 165). A systematic evaluation of diaphragm innervation using glycogen depletion techniques clearly demonstrated considerable overlap in the cervical segmental innervation of diaphragm fibers across regions (117, 386, 391). For example, phrenic nerve axons from higher cervical levels innervate more ventral aspects of the costal and crural regions, while axons from lower cervical levels innervate more dorsal aspects of both diaphragm regions (Figure 1).

Figure 1.

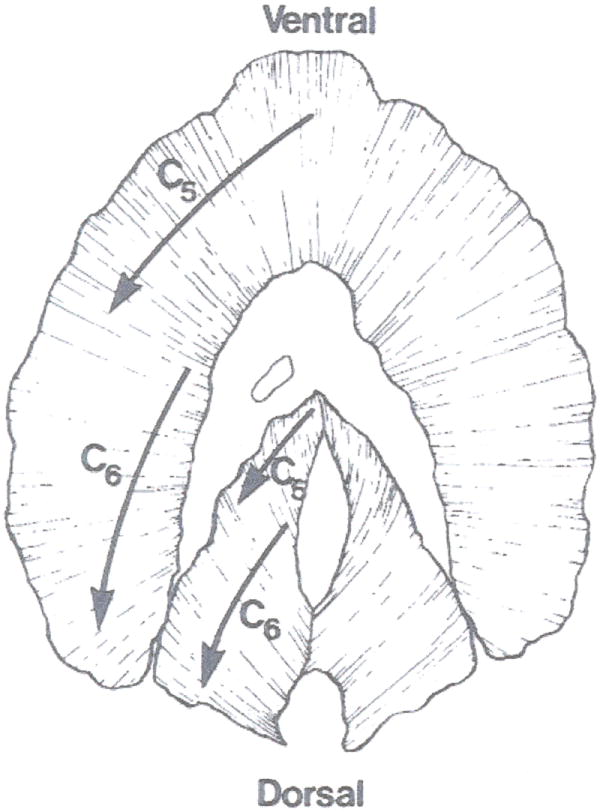

Innervation of the cat diaphragm muscle. Phrenic nerve axons derived from the C4 segment of the cervical spinal cord innervate ventral aspects of the costal and crural regions of the diaphragm muscle, whereas axons derived from C6 innervate more dorsal aspects. Reproduced from ref. (378); used with permission.

Sarcomeric structure and contractile proteins

The basic structural unit of a skeletal muscle fiber is the sarcomere, comprising thick (myosin) and thin (actin) filaments aligned in an interdigitating, crystalline structure. The sarcomere itself is bounded at each end by a dense Z-disc (Z-line) from which the actin filaments project toward the midline, while thick filaments are situated in the middle of the sarcomere (Figure 2). Myosin molecules of the thick filaments bind with actin molecules of the thin filament to form cross-bridges that are the essential units of force generation and contraction – the two primary functions of muscle fibers. The Z-disc runs perpendicular to the filaments and connects neighboring sarcomeres, creating a functional unit that permits transmission of lateral and longitudinal force during contraction. The dimension of each sarcomere is approximately 1 μm in diameter and ~2.5 μm in length (Z-line to Z-line). The overlap between thick and thin filaments determines the number of cross-bridges that can be formed during muscle contraction. The thick filament has a relatively fixed length of ~1.6 μm, while the thin filament length ranges between 1.0-1.3 μm and is species and fiber type-dependent. During muscle fiber contraction, the intrinsic lengths of both the thick and thin filaments does not change, but the binding of the myosin head to actin pulls the Z-line of the sarcomere toward the midline thus increasing the overlap between thick and thin filaments. The number of sarcomeres in series can vary but generally does not exceed ~20 mm (~8,000 sarcomeres in series).

Figure 2.

Muscle fibers contain myofibrils (a), each comprising sarcomeres arranged in series which give muscle a striated appearance visible also in transmission electron micrographs. Thick and thin filaments in the sarcomere are composed of myosin (red) and actin (yellow), respectively, and their interaction provides the basis for force generation and contraction. In cross section, myosin and actin filaments are organized in a myofilament lattice, clearly visible with electron microscopy. Reproduced from ref. (167); used with permission.

The structural organization of the sarcomere appears crystalline with a fixed stoichiometry between the number of thick and thin filaments. This crystalline structure of the sarcomere is evident in electron microscopic images and by X-ray diffraction. In cross-sections of skeletal muscle fibers, each myosin filament is surrounded by six actin filaments, which are further surrounded by six myosin filaments. The spacing between each myosin and actin filament is relatively fixed in a lattice structure. Thus, this arrangement creates a double hexagonal array forming a myofilament lattice (Figure 2). Understanding the thick and thin filament spacing in this myofilament lattice is key to understanding the interactions between thick and thin filaments during skeletal muscle force generation and contraction. The filament lattice provides stability to the sarcomere and balances radial and axial forces placed upon it. Since the sarcomere is encompassed by the sarcolemma, muscle fiber osmolarity shifts caused by changes in ion concentrations across the membrane can result in osmotic compression of the lattice and change the spacing between thin and thick filaments. Under hypertonic conditions, lattice spacing and muscle force generation are decreased. Conversely, under hypotonic conditions, lattice spacing increases and may lead to a decrease in force.

Myosin Heavy Chain (MyHC)

The myosin molecule is a hexameric protein with two heavy and four light chains. At its C-terminus, the two heavy chains dimerize into an alpha-helical tail and at the N-terminus, the heavy chains separate and form two distinct heads that serve both as the actin binding and catalytic domains (79, 340). Several MyHC isoforms exist, encoded by a highly conserved family located on chromosome 17 (human) or 11 (mouse) (367). The MyHC isoform composition of muscle fibers forms the basis for fiber type classification with a general correlation to histochemical classification based on the pH lability of myofibrillar adenosine triphosphatase (mATPase) (15, 148, 365, 430). Rates of ATP hydrolysis vary across MyHC isoforms, contributing to fiber type differences in cross-bridge cycling kinetics (393-395, 412).

Myosin Light Chain

Myosin light chains are divided into essential (MyLC₂₀) and regulatory (MyLC₁₇) proteins that provide structural support and modulation of mechanical performance, respectively (339, 349). The extent of the regulatory role of MyLC₁₇ remains controversial, but there is evidence that MLC₁₇ phosphorylation and perhaps Ca²⁺ binding may modulate MyHC ATPase activity and thus, cross-bridge cycling kinetics and velocity of shortening (91, 161, 162, 319, 324).

Thin filament proteins

Thin filaments attach to the Z-line and serve as the insertion point for muscle contraction. In skeletal and cardiac muscle fibers, Ca²⁺ binding to the regulatory protein troponin C (TnC) removes the steric hindrance that prevents binding of the myosin head (MyHC) to actin, and thus, cross bridge formation and force generation. Thus, Ca²⁺ binding to TnC underlies excitation-contraction coupling and the dependency of force on myoplasmic Ca²⁺ concentration [Ca²⁺]. The number of Ca²⁺ binding sites differ between fast (TnC-f – 2 binding sites) and slow (TnC-s 1 binding) TnC isoforms. Accordingly, there are differences in Ca²⁺ binding affinities between TnC isoforms that are reflected in fiber type differences in force/[Ca²⁺] relationships. For example, the force/[Ca²⁺] relationship of slow fibers is less steep and is shifted to the left (higher Ca²⁺ sensitivity) when compared to that of fast fibers (130, 131). It has been shown that when the TnC-f present in fast (rabbit psoas) fibers is substituted with the TnC-s isoform, the force/pCa relationship of these fibers is altered to reflect the newly constituted TnC-s isoform (52, 296). Other troponin subunits (TnI or TnT) may also contribute to the regulation of muscle contractility, but their role is not clear (58, 482). Both slow and fast isoforms of TnI and TnT are present in skeletal muscle and their expression is coupled to that of TnC. Thus, fibers expressing slow TnI and TnT isoforms have higher Ca²⁺ sensitivity than fibers containing fast TnI and TnT isoforms. However, whether this properly reflects the individual properties of the different subunits or results from the coupled expression across troponin subunit isoforms has not been elucidated.

Fiber type classification

Myofibrillar ATPase

In adults, skeletal muscle fibers can be classified using histochemical techniques that are based on the pH lability of staining for myofibrillar ATPase. After preincubating muscle sections at acid vs. alkaline pH, there are differences in myofibrillar ATPase staining across muscle fibers, allowing classification as type I, IIa and IIb fibers (37, 56, 375). As mentioned above, this histochemical classification has been shown to correlate with MyHC isoform content of muscle fibers in both immunohistochemical and single fiber biochemical studies (358, 384, 386, 387).

Metabolic activity

An earlier histochemical classification scheme relied on differences in fiber staining for metabolic enzymes related to oxidative or glycolytic capacities. Accordingly, fibers were initially classified as slow (type S) or fast (type F) based on differences in myofibrillar ATPase staining, with further subclassification of type F fibers based on relative differences in staining for oxidative and glycolytic enzymes (325). In this classification scheme, type S fibers display more intense staining for oxidative enzymes but lower staining intensity for glycolytic enzymes; thereby classified as slow-twitch oxidative (SO) fibers. Type F fibers display higher staining for glycolytic enzymes but vary in their staining for oxidative enzymes. Accordingly, type F fibers that display higher relative staining intensity for oxidative enzymes are classified as fast-twitch-oxidative-glycolytic (FOG) whereas type F fibers that display lower relative staining for oxidative enzymes are classified as fast-twitch-glycolytic (FG) (325). One major problem with this classification scheme is the subjective nature of assessing relative staining for oxidative and glycolytic enzymes. In this regard, methods were developed to quantify both actomyosin ATPase and succinate dehydrogenase activities (35, 37, 275). Using these quantitative techniques, a number of studies have shown that the metabolic properties of diaphragm muscle fibers are continuous and highly plastic under a variety of conditions (36, 204, 237, 377, 381, 389, 390, 466).

Myosin heavy chain isoform expression

The histochemical classification schemes generally correlate with the expression of different MyHC isoforms in muscle fibers such that fibers classified as type I (or type S) express the MyHC_Slow isoform, whereas fibers classified as type IIa (type FOG) express MyHC_2A, fibers classified as type IIx (type FOG or FG) express MyHC_2x, and fibers classified as type IIb (type FG) express either MyHC_2B alone or together with MyHC_2X (15, 149, 366, 367, 380, 387, 389). In particular, the classification of type II fibers is challenging with histochemical techniques. Specific antibodies for all adult MyHC isoforms exist except for the MyHC_2X isoform (365). Immunoreactivity for MyHC antibodies is now the method of choice to classify fiber types since it is less ambiguous and relates back to the molecular basis for differences in mechanical properties of different fiber types.

Using Western blot analysis, it has been shown that under normal conditions rat diaphragm muscle fibers generally express a single MyHC isoform, with one exception: the frequent co-expression of MyHC_2X and MyHC_2B (Figure 3). However, with aging or under pathophysiological conditions, the incidence of MyHC isoform co-expression increases, and classification of a unique “fiber type” becomes more difficult (135, 151, 206, 262, 397, 455, 466, 468). Under these conditions, single fiber analyses have generally shown a higher incidence of certain patterns of MyHC isoform co-expression; for example, MyHC_Slow together with MyHC_2A, MyHC_2A together with MyHC_2X and MyHC_2X together with MyHC_2B (400).

Figure 3.

Muscle fibers from the rat diaphragm muscle express a single myosin heavy chain (MyHC) isoform with the exception of MyHC_2X and MyHC_2B in some fibers. Modified from ref. (130)

Fiber type composition of the diaphragm muscle

In a number of species, the diaphragm muscle has been shown to comprise all fiber types, but the relative proportions vary (116, 208, 360, 380, 389). There are relatively few studies that have examined fiber type distribution in the human diaphragm muscle. These studies employed immunohistochemical techniques (235, 303), and surprisingly reported expression of neonatal and embryonic MyHC isoforms in adult biopsies. Unfortunately, these studies were not systematic, relying on limited sampling of biopsy material in relatively few subjects. The expression of neonatal and embryonic MyHC isoforms in the adult human diaphragm muscle needs to be further explored since it is inconsistent with all other mammalian species that have been examined.

Fiber type classification during postnatal development

During fetal and early postnatal development classification of muscle fiber types is more difficult. During this period there are transitions in MyHC isoform expression, with a high incidence of co-expression of MyHC isoforms that precludes clear distinction of muscle fiber types (231, 232, 465, 468). In the fetal mouse and rat diaphragm muscle, an embryonic MyHC isoform (MyHC_Emb) is abundantly expressed together with MyHC_Slow and MyHC_2A isoforms. During the perinatal period, there is a transient increase in expression of a neonatal MyHC isoform (MyHC_Neo), while expression of the MyHC_Emb decreases. Subsequently, expression of the MyHC_Neo gradually disappears in the mouse and rat diaphragm muscle and is totally absent by postnatal day 28. Expression of the adult MyHC_2X and MyHC_2B isoforms appears only by the second postnatal week in both the mouse and rat diaphragm muscle, and the proportion of fibers expressing these isoforms increases until the fourth postnatal week, when the adult pattern of MyHC isoform expression is fully established (136). These postnatal transitions in MyHC isoform expression in the rodent diaphragm muscle are accompanied by changes in muscle contractile properties – most notably an increase in maximum specific force and shortening velocity (132, 151). After weaning at postnatal day 21, the relative growth of fibers expressing MyHC_2X and MyHC_2B is far greater than that of fibers expressing MyHC_Slow and MyHC_2A isoforms (206, 330). Thus, the relative contributions of these fiber types to total diaphragm muscle mass increases (132, 136). It is likely that the pattern of innervation exerts a major influence on the differentiation and growth of diaphragm muscle fibers either directly (e.g., activation patterns) or indirectly (e.g., release of neurotrophic factors) (397). However, the precise mechanisms by which activation history and/or neurotrophic factors affect diaphragm muscle development are poorly understood.

Among the many factors that may influence muscle fiber type differentiation, it has been suggested that class II histone de-acetylases (HDACs) may contribute by inhibiting the myocyte enhancer factor-2 (MEF2) family of transcription factors (283). MEF2 mediated gene transcription is regulated by p38 MAP kinase signaling, but the role of MEF2 in the developmental determination of muscle fiber type is still unknown. Recently, postnatal changes in MyHC isoform mRNA transcription were found to be regulated by a natural antisense transcript (bII NAT) such that expression of MyHC_Neo is positively correlated with expression of bII NAT whereas expression of MyHC_2B is negatively correlated. Thus, postnatally expression of bII NAT can play a critical role in coordinating the transition from MyHC_Neo to adult MyHC_2B (and possibly MyHC_2X) isoforms (315). Recently, it was shown that postnatal changes in MyHC isoform mRNA expression in the rat diaphragm muscle do not match the changes in MyHC protein expression, suggesting that changes in MyHC isoform expression in the developing rat diaphragm muscle are not driven solely by changes in mRNA expression (136). Furthermore, myonuclear domain size (reflecting the volume of myoplasm under transcriptional control by a single myonucleus) increased postnatally as fiber cross-sectional area increased, indicating that changes in transcriptional activity (although present) do not exclusively determine the postnatal growth of diaphragm muscle fibers (136, 262).

Fiber type classification and motor unit organization

In adults, muscle fiber types are functionally organized by their motor innervation into different motor units, defined as a single motoneuron and the group of muscle fibers it innervates (92, 245). Normally, muscle fibers within a motor unit are a single type, sharing similar contractile protein composition and metabolic enzyme activities that influence the contractile and fatigue properties of motor units (Figure 4) (63, 380, 390). Diaphragm motor units that comprise type I fibers (expressing MyHC_Slow with high oxidative enzyme activity) display slower contractile properties and are more fatigue resistant. Motor units comprising type IIa fibers (expressing MyHC_2A with higher oxidative and glycolytic enzyme activities) display faster contractile properties and are also more fatigue resistant. Motor units comprising type IIx fibers (expressing MyHC_2X with higher glycolytic enzyme activity but lower oxidative enzyme activity) display faster contractile properties but are more susceptible to fatigue. Finally, motor units comprising type IIb fibers (expressing MyHC_2B usually in combination with MyHC_2X with higher glycolytic capacity but the lowest oxidative enzyme activity) display faster contractile properties but are the most susceptible to fatigue (389). Studies examining the mechanical properties of single permeabilized diaphragm muscle fibers have clearly demonstrated an association between MyHC isoform composition, specific force and shortening velocity (130, 131, 394).

Figure 4.

Motor units are classified according to their contractile and fatigue properties as slow-twitch (type S) and as fast-twitch units, which display fatigue-resistant (type FR), fatigue-intermediate (type FInt) and fatigable (type FF) characteristics. Expression of MyHC isoforms by muscle fibers corresponds with motor unit properties. Contraction speeds also vary across motor unit types. Reproduced from ref. (156); used with permission.

Structural Proteins

Z-line proteins

The most obvious element of the striated structure of skeletal and cardiac muscle is the Z-lines as the densest sarcomeric component. It takes its name for the German “Zwischenscheibe”, meaning spacer in the case of muscle fibers between sarcomeric contractile elements. The Z-line splits the I (isotropic) band which is made of thin filaments, as opposed to the M-line which binds thick filaments together in the A (anisotropic) band. The major proteins in the Z-line include the actin-binding α-actinin, the actin-capping protein CapZ, as well as Z-nin, Z protein, zeugmatin and myozenin (417, 425). Other filament proteins including titin, which extends from the M line to the Z line, and nebulin, which forms inextensible filaments associated with thin filaments, also insert at the Z-line. Titin and nebulin may contribute to passive properties of striated muscle by providing both elastic and inextensible templates for thick and thin filaments, respectively. Titin interacts with many sarcomeric proteins including telethonin and α-actinin at the Z-line, calpain and obscurin in the I-band region and myosin-binding protein C, calmodulin 1, CAPN3, and MURF1 within the A-band and at the M-line (14). Within the I-band, titin contains IgG and proline-glutamate-valine-lysine (PEVK) regions that confer extensibility. Based on its insertion and elastic “spring-like” properties, titin helps stabilize myosin filaments in a central location relative to the thin filaments during contraction (125). Changes in titin expression or stiffness may contribute to developmental adaptations in mechanical properties (314) and impaired diaphragm muscle function in adult patients with COPD (312).

Cross-bridge Formation and Muscle Fiber Mechanical Properties

Sliding filament theory

The sliding filament theory resulted from independent seminal observations in the labs of A.F Huxley and H.E. Huxley in 1954 in which they used interference light microscopy to observed a decrease in sarcomere length and most notably, in I-band length during muscle contraction (191, 195). Subsequently, the cross-bridge model for muscle contraction was proposed (192, 194) in which cross-bridges cycle between two functional states: 1) A force generating state in which myosin heads (MyHC cross-bridges) are strongly attached to actin and via a power stroke generate force; and 2) A non-force generating or detached state in which the myosin head is detached from actin. Thus, a cross-bridge is the essential element of force generation and movement. Relaxation results from cross-bridges detaching from actin and thereby transitioning to a non force generating state. This is a grossly simplified model, but it is useful in assessing force generation and contraction of muscle fibers.

Conceptual framework for force generation

The transitions between functional cross-bridge states can be simply described by two apparent rate constants (Figure 5): one for cross-bridge attachment (f_app) and a second for cross-bridge detachment (g_app). With an increase in myoplasmic [Ca²⁺], the binding site for MyHC on the actin filament is exposed by removal of steric hindrance leading to the attachment of cross-bridges and force generation (described by f_app). With the removal of myoplasmic [Ca²⁺] and ATP hydrolysis (actomyosin ATPase), cross-bridges transition to a non-force-generating state (described by g_app).

Figure 5.

Cross-bridges cycle between a strongly bound and an unbound state during force generation and contraction. Cross-bridge cycling determines rates of cross-bridge attachment (f_app) and detachment (g_app). Illustration copyrighted by the Mayo Clinic and Foundation and reproduced from ref. (398) with permission.

Although the transduction of chemical to mechanical energy during the cross-bridge cycle is likely to involve multiple steps, Brenner proposed a simpler analytical framework that is based on Huxley’s two-state model (53-55). In this analytical framework, the steady-state fraction of strongly-bound cross-bridges in the force generating state (α_fs) is given by:

$${\mathrm{\alpha }}_{\mathrm{fs}}=f_{\mathrm{app}}/\left(f_{\mathrm{app}}+g_{\mathrm{app}}\right)$$

Geiger et al (131) estimated α_fs during maximum Ca²⁺ activation in single permeabilized fibers in the rat diaphragm muscle by imposing small amplitude sinusoidal length perturbations (0.2% of optimal length at 2 kHz) and measuring the recoil force (fiber stiffness). In the absence of ATP (rigor condition), it was assumed that all available cross-bridges would be attached and that maximum stiffness would be achieved. By normalizing to this maximum stiffness, it was observed that α_fs during maximum Ca²⁺ activation was approximately 75-80% with no difference across fiber types.

Taking into account the number of myosin heads in parallel per half sarcomere or MyHC content per half sarcomere (n), and the mean force per cross-bridge (F), the force generated by a muscle fiber can be described by:

$$\mathrm{Force}=\mathrm{n}\cdot F\cdot {\mathrm{\alpha }}_{\mathrm{fs}}$$

With an increase in fiber cross-sectional area the MyHC content per half sarcomere (n) increases and thus the number of potential cross-bridges per half sarcomere increases. To account for this relationship, it is common practice to normalize the force generated by a muscle fiber by the cross-sectional area of the muscle (specific force). However, this assumes that MyHC content per half-sarcomere is directly proportional to fiber cross-sectional area. This assumption was challenged by direct measurements of MyHC content per half-sarcomere in the rat diaphragm muscle (131). In this study, it was shown that type I and IIa fibers had similar MyHC contents per half-sarcomere and that these were lower than those of type IIx and IIb fibers. When maximum force was normalized for MyHC content per half-sarcomere, the force of type I fibers was lower than that of all type II fibers and there were no differences in normalized force across type II fibers. Force normalized for MyHC content per half-sarcomere thus reflects the average force per cross-bridge (F).

In single muscle fibers, the number of myosin heads per half sarcomere (n) can be estimated based on electrophoretic separation of MyHC from a known volume of muscle fiber to determine MyHC concentration. If the length and cross-sectional area of the single fiber segment is measured (to determine fiber volume), and the number of sarcomeres in series are counted, MyHC content per half sarcomere can be derived (131). This relatively simple measure can be extrapolated further by assuming parameters for the length of the thick filament and the distance between myosin heads, which yields approximately 300 myosin heads per myosin filament. With relatively fixed thick-thin lattice spacing in muscle fibers, the number of myosin heads can be calculated. For example, in a muscle fiber with a cross-sectional area of 1,500 μm², there are approximately 1 million myosin filaments and 300 million myosin heads. Thus, the MyHC content (number of myosin heads) per half sarcomere volume (n) was estimated to be ~400 myosin heads per μm³ half sarcomere volume.

The specific force of single permeabilized diaphragm muscle fibers during maximum Ca²⁺ activation at 37°C is ~30 Ncm^-2. Based on the estimated number of myosin heads per half sarcomere (n), and an α_fs of 80%, the force per myosin head or cross-bridge (F) is ~0.5 pN. However, the estimated force per cross-bridge is ~45% lower in type I fibers compared to all fast fiber types (131). The molecular basis for this fiber type difference in force per cross-bridge is unclear.

The force generated by a muscle fiber is primarily regulated by affecting the fraction of cross-bridges recruited (changing α_fs) either by changing muscle fiber length or intracellular Ca²⁺ concentration ([Ca²⁺]_i). The fraction of cross-bridges in a strongly-bound state (α_fs) can be estimated by measuring muscle fiber stiffness (131-134, 174). As the number of cross-bridges formed increases, longitudinal stiffness of the muscle fiber also increases. Stiffness is determined by stretching single muscle fibers using high frequency (2 kHz), small amplitude (0.01% of L_o) length oscillations and then measuring recoil force (Figure 6). Such small amplitude length perturbations do not disrupt cross-bridge binding, and the high frequency oscillations exceed the cross-bridge cycling rate, thereby minimizing hysteresis. Under these conditions, muscle fiber stiffness reflects the number of strongly bound cross-bridges, at different muscle fiber lengths and/or Ca²⁺ activation conditions that affect cross-bridge recruitment and α_fs. To induce maximum recruitment of strongly bound cross-bridges, permeabilized muscle fibers are exposed to a “rigor” solution that contains higher Ca²⁺ concentration (e.g., pCa of >4.0) but does not contain ATP. Muscle fiber stiffness is then normalized to the maximum rigor condition. Using this approach, ~75-80% of cross-bridges are recruited during optimal conditions of L_o and maximum Ca²⁺ activation. Muscle fiber stiffness can also be measured under submaximal conditions of fiber length or Ca²⁺ activation, and generally measurements of fiber stiffness parallel measures of muscle force generation. There are no apparent differences in α_fs across fiber types during maximum or submaximal Ca²⁺ activation.

Figure 6.

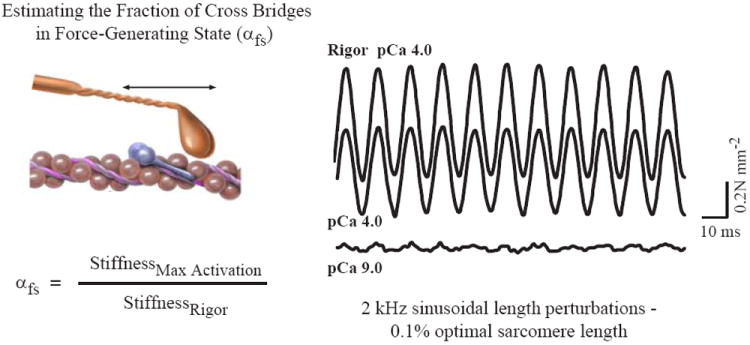

Force measurements in single muscle fibers during maximal activation in rigor solution (without ATP and with free ionized Ca²⁺ concentration of 100 μM, i.e., pCa 4.0), pCa4.0 solution (with ATP) and pCa9.0 solution (free ionized Ca²⁺ concentration of 1 nM). Resting and activated stiffness were determined by imposing sinusoidal length oscillations (0.2% L_o) at 2kHz. Reproduced from ref. (174); used with permission.

Muscle weakness under a variety of conditions, is reflected by a decrease in specific force. For example, the diaphragm muscle is generally weaker (reduced specific force) during early postnatal development (132, 206, 385, 392, 464, 468, 485) and during old age (99, 151) compared to adults. Similarly, diaphragm muscle specific force is reduced following muscle denervation (133, 240, 386, 397, 484) and under conditions of sepsis (39, 83, 473), hypothyroidism (134, 154, 263) and corticosteroid treatment (237, 241, 445). In these conditions, the simplified two-state model of force generation provides a conceptual framework to assess possible underlying mechanisms for muscle weakness. For example, diaphragm muscle fiber weakness induced by denervation is associated with reduced MyHC content per half sarcomere (n) and a decrease in the average force per cross-bridge (F) (133). However, α_fs is not affected by denervation. Similarly, hypothyroidism results in reduced MyHC content per half sarcomere but no change in the average force per cross-bridge or α_fs (134). Obviously, the balance between MyHC protein synthesis and degradation is extremely important in respiratory muscles and underlies functional changes leading to muscle weakness under a variety of conditions.

Fiber type differences in atrophy and muscle weakness

It is well known that under a variety of conditions, diaphragm muscle fiber cross-sectional area can change (hypertrophy or atrophy); however the change in MyHC content per half-sarcomere has received little attention. Disproportionate changes in MyHC content per half-sarcomere may underlie changes in specific force that are often noted. For example, during postnatal development there is an increase in diaphragm muscle specific force concurrent with substantial growth in diaphragm muscle fibers. The increase in the cross-sectional area in the developing rat diaphragm muscle is disproportionate across fiber types, with a larger increase for type IIx and IIb fibers compared to type I or IIa fibers (132). Of more importance, during postnatal growth of the rat diaphragm muscle, there is a disproportionate increase in MyHC content per half-sarcomere in type IIx and IIb fibers compared to type I or IIa fibers leading to a greater increase in normalized force (per MyHC content per half-sarcomere) in these fibers. Similarly in the adult diaphragm muscle, phrenic nerve denervation leads to selective atrophy of type IIx and IIb fibers and a disproportionate decrease in MyHC content per half-sarcomere (133). Specific force (normalized per cross sectional area) does not reflect the reduction in contractile protein content but force normalized per MyHC content per half-sarcomere does unveil a fundamental effect on force per cross-bridge. A change in MyHC content per half-sarcomere in diaphragm muscle fibers may underlie reductions in force generation in other pathophysiological conditions as well – e.g., hypothyroidism (134).

Fiber type differences in Ca²⁺ sensitivity of force generation

As mentioned above, force generation depends on myoplasmic Ca²⁺ concentration, and this dependency is evident in permeabilized muscle fibers by the force/pCa (-log [Ca²⁺]) relationship (Figure 7). A leftward shift in this force/pCa relationship as is evident in diaphragm muscle fibers expressing MyHC_Slow indicates a greater Ca²⁺ sensitivity (130). It should be noted that all diaphragm muscle fibers expressing fast MyHC isoforms have similar force/pCa relationships. The pCa at which 50% of maximum force is generated (PCa₅₀) is commonly used as an index of the Ca²⁺ sensitivity of muscle fiber force generation. In diaphragm muscle, fibers expressing MyHC_Slow are more sensitive to Ca²⁺ (lower pCa₅₀) compared to fibers expressing fast MyHC isoforms (130). Again, the simplified two-state model of force generation provides a valuable conceptual framework to interpret differences in Ca²⁺ sensitivity across fiber types. In this model, the fraction of cross-bridges in a strongly bound state (α_fs) depends on myoplasmic Ca²⁺ concentration and this can be observed by changes in muscle fiber stiffness.

Figure 7.

Force development in single diaphragm muscle fibers expressing slow (open symbol) and fast (closed symbols – in A: MyHC_2A: ▼, MyHC_2X: ■, MyHC_2B and/or MyHC_2X: ◆) isoforms of MyHC. Force depends on myoplasmic Ca²⁺ concentrations (pCa; -log[Ca²⁺]). Reproduced with permission from ref. (130).

In skeletal muscle, myoplasmic Ca²⁺ binds to troponin C (TnC), which is part of the troponin protein regulatory process on the thin filament that exposes the actin binding site to the myosin head. Thus, Ca²⁺ binding to TnC simply acts to increase the probability of cross bridge formation by unmasking myosin binding sites on actin. There are different TnC isoforms in muscle fibers expressing fast MyHC (TnC-f) versus slow MyHC (TnC-s). The TnC-f isoform has two regulatory binding sites for Ca²⁺ compared to one binding site for TnC-s. Fiber type differences also exist in the binding affinities of TnC for Ca²⁺. These essential differences in TnC isoforms underlie fiber type differences in Ca²⁺ sensitivity. For example, when TnC-f normally expressed in rabbit psoas muscle fibers is substituted with TnC-s, the force/pCa relationship shifts leftward indicating grater Ca²⁺ sensitivity (52, 296).

In addition to TnC, the troponin complex also comprises TnI or TnT subunits. Ca2+ binding to TnC induces conformation changes in both TnI and TnT, which are required to remove the steric hindrance that tropomyosin presents for the myosin binding site on actin. Both slow and fast isoforms of TnI and TnT exist, generally conforming with TnC-s and TnC-f expression, and it has been reported that muscle fibers comprising slow TnI and TnT have greater Ca²⁺ sensitivity than fibers expressing fast TnI and TnT isoforms (58).

Fiber type differences in excitation-contraction coupling

Excitation-contraction coupling in skeletal muscles, including the diaphragm and other respiratory muscles, begins with neuromuscular transmission, in which the motor neuron action potential is transmitted to muscle fiber to induce a transient increase in myoplasmic [Ca²⁺]. Depolarization-induced release of ACh from the presynaptic nerve terminal causes depolarization of the postsynaptic motor endplate via binding of ACh to cholinergic receptors. The morphology of pre- and postsynaptic elements of the neuromuscular junction differs across fiber types in the diaphragm muscle. It has been clearly demonstrated that the diaphragm muscle is susceptible to neuromuscular transmission failure with repetitive nerve stimulation (2, 101, 205, 225, 258, 259, 264, 268, 332, 374, 396, 475), and that this susceptibility increases with the rate of nerve stimulation. In addition, the diaphragm is more susceptible to neuromuscular transmission failure in old age (226, 267, 331, 401), and under different pathophysiological conditions. At the single fiber level, it has been demonstrated that quantal release of ACh varies across fiber types, with quantal content being higher at type IIx and/or IIb diaphragm fibers (100, 258, 359). The quantal release of ACh decreases rapidly with repetitive stimulation, and this may at least partially underlie fiber type differences in susceptibility to neuromuscular transmission. Type IIx and or IIb fibers are muscle more susceptible to neuromuscular transmission failure compared to type I or IIa fibers (205, 359).

With successful neuromuscular transmission, depolarization at the endplate generates propagating muscle fiber action potentials that are passively transmitted down transverse tubules (T-tubules) resulting in activation of voltage-gated Ca²⁺ (dihydropyridine receptor - DHPR) channels in the T-tubules (115, 119, 193). The DHPR channels are associated with ryanodine receptor (RyR1) channels of the sarcoplasmic reticulum (SR) and depolarization-induced activation of DHPR channels allosterically activates RyR1 channel opening and SR Ca²⁺ release and a transient increase in myoplasmic [Ca²⁺]. The subsequent decrease in myoplasmic [Ca²⁺] is mediated by a sarcoplasmic/endoplasmic reticulum Ca²⁺ ATPase (SERCA) that actively pumps Ca²⁺ back into the SR. In skeletal muscle, the protein phospholamban is associated with SERCA and serves to regulate the rate of Ca²⁺ reuptake into the SR via phosphorylation (323). When phospholamban is not phosphorylated it is more closely associated with SERCA and the rate of SR Ca²⁺ reuptake is reduced. Phosphorylation of phospholamban leads to its dissociation from SERCA, causing the rate of SR Ca²⁺ reuptake to increase. Thus, the duration of the myoplasmic Ca²⁺ transient can be modulated by the state of phospholamban phosphorylation, and the effect on force relaxation will affect the force-frequency response of the muscle fiber. Another SR protein, calsequestrin, binds Ca²⁺ and thereby reduces the concentration of free Ca²⁺ within the SR (120). The Ca²⁺ concentration in the SR is normally much higher than the myoplasmic Ca²⁺ concentration (10,000-fold). Thus, the SERCA pump must act against this large concentration gradient, and calsequestrin facilitates the activity of SERCA.

Fiber type differences in E-C coupling obviously exist, as evidenced by differences in contractile properties (145). Varying expression of DHPR and RyR isoforms and calsequestrin are reported across muscles of different fiber type composition, throughout the lifespan and in response to altered use (82, 122, 322). Most of these studies, however, have conducted analyses at the whole muscle and thus whether these differences reflect issues specifically related to fiber type is not clear.

Muscle fiber shortening velocity

In addition to force generation, contraction or shortening is also a fundamental outcome of muscle fiber activation. As external load on a muscle increases, the velocity of shortening decreases. When the force generated by a muscle equals the external load, no shortening occurs, but maximum force is generated (F_max or P_o) assuming optimal sarcomere length.

Conceptual framework based on thermodynamics

In his classic paper A.V. Hill described the hyperbolic relationship between the force generated by muscle and velocity of shortening (181). The initial focus of his study was to understand the relationship between the heat produced by muscle during shortening under constant load conditions. Experimentally, Hill systematically measured muscle shortening velocity under varying constant load (isotonic) conditions. Maximum muscle force generation occurs during isometric (no shortening) conditions at optimal fiber length, while maximum velocity (V_max) occurs under unloaded conditions (no force generation). Since it is difficult to achieve truly unloaded conditions, the force-velocity curve is typically extrapolated to zero load using Hill’s model for muscle contraction, which is based on a mathematical description for a rectangular hyperbola:

$$(\mathrm{F}+\mathrm{a})\mathrm{v}=\mathrm{b}({\mathrm{F}}_{\max }­\mathrm{F})$$

where v is the velocity of muscle shortening, F is the force generated by a muscle (or the load opposing muscle shortening), and F_max is the maximum isometric force. In the equation there are two constants, a termed the coefficient of shortening heat and b equal to a·V_max/F_max. Solving the equation gives units of energy dissipation, reflecting its derivation based on thermodynamic principles. Since the curve is hyperbolic, with higher loads opposing muscle shortening, shortening velocity becomes slower. Similarly, faster shortening velocities are achieved only with lower loads and less force generation by the muscle.

Force-velocity relationship

As in the studies by Hill, maximal shortening velocity can be calculated from the force-velocity relationship, where isotonic loads are systematically varied. Unfortunately, using this technique it is not possible to achieve zero load conditions experimentally; thus, it is necessary to extrapolate the curve to obtain an estimate of V_max. Alternatively, another method was developed in which during maximal activation, muscle fiber length is rapidly shortened to varying fractions of optimal length, thereby releasing external loading while the muscle fiber shortens against zero external load (“slack” test) (6, 73, 94, 290). The time required before force redevelops depends on the extent of “slack” (% L_o) and the maximum unloaded shortening velocity (V_o) of the fiber. In single muscle fibers, V_max and V_o should match, although some differences may be associated with errors introduced by extrapolation in the V_max measurement. For this reason, most single fiber studies employ the “slack” test. However, there may be concern regarding the possibility of shortening inactivation as a result of the quickly imposed slack in the muscle fiber. If anything, this would prolong force redevelopment, with an underestimation of V_o. Shortening inactivation is not necessarily obviated by measuring isotonic shortening by a quick release to varying loads. In muscle bundles, especially those with mixed fiber type composition, V_max and V_o are not the same, since fibers with faster V_o (type IIx and/or IIb) will predominate. Accordingly, the V_max measurement in muscle bundles will reflect an average of the shortening velocities for all fibers within the bundle (74).

Fiber type differences in V_o

In diaphragm muscle, there are differences in V_o across fibers expressing different MyHC isoforms. Fibers expressing MyHC_2B display the fastest V_o followed by fibers expressing MyHC_2X, MyHC_2A, and MyHC_Slow (93, 394, 395, 399, 400). In the rat diaphragm muscle at 15°C, fibers expressing MyHC_Slow and MyHC_2A display V_o of 1.2 ± 0.2 and 2.0 ± 0.2 L_os^-1, respectively, compared to 5.1 ± 0.2 L_os^-1 for fibers expressing MyHC_2X and/or MyHC_2B (394). Comparable results were obtained across all studies and these differences in V_o can be generally attributed to the lower actomyosin ATPase activities of fibers expressing MyHC_Slow and MyHC_2A compared to those of fibers expressing MyHC_2X and/or MyHC_2B (394, 395, 399, 400). In “hybrid” fibers where MyHC isoforms are co-expressed, there is likely an impact on V_o, but this has not been thoroughly explored. This is important since the incidence of hybrid fibers increases in many pathophysiological conditions.

Muscle fiber energetic properties – ATP consumption

Brenner’s two-state conceptual framework for cross-bridge cycling can also be used to evaluate changes in muscle fiber energetic properties during activation. Assuming that one ATP molecule is hydrolyzed by each cross-bridge during the cross-bridge cycle, ATP consumption rate can be described by:

$$\mathrm{ATP\; Consumption\; Rate}=\mathrm{n}·\mathrm{b}·g_{\mathrm{app}}·{\mathrm{\alpha }}_{\mathrm{fs}}$$

Since during activation, ATP consumption occurs throughout the muscle fiber, the total number of cross-bridges must be considered; thus, ATP consumption will also depend on the number of half-sarcomeres in series (b) and the fraction that are in the strongly bound force-generating state (α_fs). At any given level of Ca²⁺ activation, where α_fs remains constant, ATP consumption within the fiber is thus directly proportional to g_app reflecting the fact that cross-bridge detachment is dependent on ATP hydrolysis.

The maximum velocity of the biochemical actomyosin ATPase reaction (V_max ATPase) in single diaphragm muscle fibers has been measured using a quantitative histochemical procedure (37, 394, 395). As might be expected, type IIx and/or IIb fibers in the rat diaphragm have the highest V_max ATPase followed by type IIa and type I fibers. The ATP consumption rate of single permeabilized fibers in rat diaphragm muscle during maximum isometric activation (ATP_iso), was measured using an NADH-linked fluorometric procedure (394, 395, 400). In the rat diaphragm muscle, ATP_iso was also dependent on fiber type (type IIb>IIx>IIa>I). Across all fibers ATP_iso was significantly lower than V_max ATPase. In addition, ATP_iso varies with velocity of shortening reaching a maximum at ~33% maximum unloaded shortening velocity. This is consistent with the well-known fact that ATP consumption rate increases in proportion to work – the Fenn effect (110, 111). Accordingly, maximum ATP consumption rate was observed during diaphragm muscle contraction at an isovelocity rate that approximated 1/3 maximum shortening velocity and 1/3 maximum force. Differences in ATP consumption across diaphragm muscle fibers may contribute, at least in part, to the differences in fatigability that exist (394, 395).

Force-Length Relationship

Passive length-tension relationship

Under passive conditions, tension increases exponentially as muscle fibers are lengthened beyond optimal length. Respiratory muscle length is closely related to lung volume in vivo. As lung volume increases, inspiratory muscles shorten and expiratory muscles lengthen. Passive tension in inspiratory muscles decreases, while passive tension in expiratory muscles increases accordingly. This opposing change in passive tension can be measured as the transmural pressure gradient across intact respiratory muscles.

Beyond the diaphragm, other respiratory muscles appear to vary in their resting lengths. The resting length of rectus abdominis and intercostal muscles (internal and external) are similar to Lo measured in vitro (103, 106). In contrast, resting lengths of the external oblique and parasternal muscles are 20% shorter than L_o and longer than L_o, respectively (103, 106).

Passive tension

Skeletal muscles develop nearly no passive tension below or at L_o, with passive tension increasing exponentially as sarcomere length exceeds L_o (Figure 8) (142, 146, 329). This effect is seen in limb and respiratory muscles (102, 272, 279, 282, 343). Across muscles and species, the relationship between passive tension and sarcomere length can vary. For example, rabbit diaphragm muscle fiber bundles develop passive tension when sarcomere length is 2.3 μm or greater (329); mice, rat and human diaphragm single fibers develop passive tension when sarcomere length is 2.5 μm or greater (175, 223, 293, 313). However, there is controversy regarding the relationship between passive tension developed by the diaphragm muscle in vivo and L_o For example, it has been reported that passive tension in the diaphragm muscle develops at lengths estimated to be 70-80% of L_o in sheep (168, 169) and dogs (274) vs. 110% L_o in rabbits (483). This discrepancy between in vitro and in vivo measurements of passive tension in relation to sarcomere length may reflect species differences and/or experimental techniques. Another possibility is that the diaphragm is exposed to biaxial loading in vivo, i.e., tension is developed both longitudinally and transversely with respect to the direction of muscle fibers (274). Biaxial loading in vitro elicits an increase in passive tension at sarcomere lengths shorter than L_o (168, 169) and may account for the apparently greater passive stiffness of the diaphragm muscle in vivo compared to in vitro measurements under uniaxial loading conditions (274). However, it remains unresolved whether the diaphragm muscle is exposed to significant biaxial loading and passive tension during ventilatory behaviors, and if so, whether or not higher passive tension affects the performance of these behaviors.

Figure 8.

Muscle force generation depends on sarcomere length and the overlap between thick and thin filaments, which determines the fraction of cross-bridges that can form (α_fs). Reproduced from ref. (167); used with permission.

Passive tension exerted by respiratory muscles varies among muscle groups. Parasternal, internal and external intercostals, and rectus abdominis muscles are stiffer than the diaphragm (103, 106), while the external oblique muscle of the abdomen is less stiff than the diaphragm (106). It is worth noting that these comparisons among respiratory muscle groups were performed in vitro using muscle segments during uniaxial loading. Thus, mechanical properties of either the myocyte and/or connective tissue may account for differences in muscle stiffness.

Molecular basis of passive tension in muscle

In the diaphragm, like in limb muscles (188), stiffness is highest in the (central) tendon, followed by the myotendinous junction, and muscle fibers (196). The central tendon is composed largely of collagen fibers that are stiff and non-distensible within the range of forces developed during breathing (196). Connective tissue in the endomysium, perimysium, and epimysium contribute to diaphragm stiffness. Collagen digestion of diaphragm strips reduces stiffness by roughly 40% in vitro (357). Aging increases diaphragm and intercostal stiffness (210), in part, due to heightened collagen concentration and cross-linking content in the diaphragm (152). Another extra-myocyte structure that contributes to diaphragm stiffness is a fascia-like membrane of high elastin content that lies over the thoracic surface of the diaphragm (168, 169). This structure is responsible for approximately 50% of passive tension at a sarcomere length near functional residual capacity (FRC), a contribution that lessens progressively as sarcomere length increases.

Under relaxed conditions, stiffness is less in diaphragm muscle fiber bundles than limb muscles (329). This likely reflects differences in sarcomeric proteins that influence passive tension. A potential source of passive tension is cross-bridges that may exist in a weakly bound, non-force generating state. This concept remains a matter of debate (298, 334) with some studies suggesting that cycling weakly bound cross-bridges contribute substantially to passive tension (66, 158, 159) and others indicating there is no effect (12, 18, 299). Early microscopic studies suggest nebulin is not a determinant of passive tension (459, 481). However, this structural protein may contribute to passive tension by enhancing cross-bridge cycling kinetics and thin filament activation (71).

As mentioned above, titin is a primary determinant of passive stiffness in diaphragm muscle (329). Titin acts as a molecular spring that helps to keep the thick filaments centered during stretch and shortening (contraction) cycles (186). In this manner, titin can be considered a determinant of the active length-tension relationship. Titin is a large protein with molecular weight >3.0 MDa (121, 157, 329). Little is known about the molecular structure of titin in respiratory muscles. The size of titin size (3.6 – 3.7 MDa) (223, 329) and titin-based passive stiffness (329) are similar in rabbit diaphragm and soleus muscles. It is likely that the spring elements of titin in the diaphragm muscle have a molecular composition similar to that of titin in the soleus muscle (329). Thus, the ensuing discussion of the structure and function of titin is based on data from limb muscles with focus on the diaphragm whenever appropriate.

The I-band region of skeletal muscle titin contains spring elements that are responsible for the elasticity of titin: two blocks of tandem immunoglobulin (Ig) segments separated by a domain rich in proline (P), glutamate (E), valine (V), and lysine (K) (PEVK), and the N2A element (Figure 9) (121, 157, 159, 460, 461). The spring elements of titin are differentially expressed (splice variants) among muscles (438), which lead to variations in titin-based passive stiffness (329). Titin-based passive stiffness can be assessed based on molecular events in the tandem Ig and PEVK segment, which behave as entropic springs in series (437). The Ig segment is less stiff than the PEVK domain. Consequently, stretch of sarcomeres beyond slack length initially extends Ig segments (157, 289, 438, 461) followed by extension of the PEVK segment at intermediate to long sarcomere length (157, 438, 460). Upon sarcomere lengthening, fractional extension of tandem Ig and PEVK segments with longer contour lengths (diaphragm and soleus) is lower than muscles with shorter contour lengths (e.g., psoas) (121). The contour lengths of Ig and PEVK segments of soleus muscle titin are, respectively, ~100 nm and ~400 nm longer than psoas muscle (121) – contour lengths in the diaphragm are possibly the longest among skeletal muscles (329). Therefore, titin-based passive force is higher in the psoas than the diaphragm (and soleus) muscle. However, the psoas muscle is not representative of limb muscles – it has one the smallest titin sizes reported in skeletal muscles (121, 329).

Figure 9.

Titin cDNA sequences for splice variants expressed in rabbit psoas and soleus muscles. Sequences predict differences in the I-band region of titin. Estimated protein molecular weight is show on the right. The longer segments in soleus contribute to lower titin-based passive tension. Titin-based passive tension is similar for diaphragm and soleus (329). Thus, we anticipate similar titin sequences for both muscles. Reproduced from ref. (125); used with permission from Springer®.

Titin-based stiffness of striated muscles can be modulated by interaction with thin filaments, titin phosphorylation, and calcium concentration (157, 160). Interaction between F-actin and the PEVK segment increases passive stiffness in cardiomyocytes (227, 478). However, skeletal muscle PEVK segment does not bind actin (478). Titin in the diaphragm muscle can be phosphorylated mainly at serine residues (407), a modification expected to decrease passive tension. Titin phosphorylation by PKA lowers passive tension in cardiomyocytes (124, 223). Diaphragm stiffness is unaffected by PKA-induced phosphorylation of titin (223). PKA may phosphorylate diaphragm titin at residues located in the A-band (non-elastic) region. The possibility of modulation of titin-based passive stiffness in the diaphragm by phosphorylation of (serine/threonine (407)) residues in the spring elements cannot be ruled out. Titin-based stiffness is also calcium sensitive. The PEVK segment has high affinity for calcium (427) – an effect that requires E-rich exons (123, 229, 230). The PEVK segment of mouse skeletal (soleus) muscle contains 9 E-rich exons (123, 229). Exposure of skinned soleus muscle fibers to Ca²⁺ (10 μM) increases passive tension in the absence of actomyosin interaction (post-gelsolin treatment) (229). Importantly, titin-based passive stiffness is not the sole determinant of total passive stiffness. The soleus and diaphragm muscles have similar titin-based passive stiffness, but soleus fiber bundles are roughly twice the stiffness of diaphragm fiber bundles (329). This emphasizes the relevance of extra-myofibrillar sources to total passive stiffness in skeletal muscles.

Extramyofibrillar contribution to passive tension

Extra-myofibrillar sources are responsible for a significant portion of passive tension in diaphragm muscle fiber bundles (329). These extra-myofibrillar sources include proteins of the intermediate filaments, extracellular matrix (ECM), and sarcolemma. Tension in the intermediate filaments of rabbit psoas muscle fibers increases at lengths beyond a sarcomere length of 4.5 μm (159, 460, 461). Therefore, in the physiological range of sarcomere lengths, intermediate filaments do not seem to contribute to passive tension during uniaxial loading. However, deficiency of the intermediate filament protein desmin increases stiffness in mouse soleus muscle (7). Desmin deficiency has no effect on diaphragm longitudinal stiffness (tension exerted along the axis of the fibers), but decreases diaphragm transversal stiffness (46). The role of the intermediate filament protein vimentin on skeletal muscle stiffness is unknown. Vimentin contributes to stiffness in smooth muscles: decreased vimentin content lowers passive tension upon stretch (462).

Proteins of the extracellular matrix are fundamental for force transmission along the muscle fibers. The contribution of extracellular matrix proteins to passive tension is evident in animals deficient in individual proteins. Dystrophin deficiency in mdx mice decreases diaphragm muscle stiffness (228). Stiffness is also reduced in the diaphragm muscle of mice lacking the transmembrane protein α₇-integrin (248). In a counter-intuitive manner, merosin or α-sarcoglycan deficiency increase passive stiffness of diaphragm muscle fiber bundles (200, 320). However, caution should be exercised when interpreting findings from muscles deficient in extracellular matrix proteins. These deficiencies are often accompanied by increased collagen content (200) and can cause muscle degenerative disorders, e.g., Duchenne and limb girdle muscular dystrophies (228, 248, 320).

Viscoelastic characteristics

Upon deformation, viscous materials develop tension that is proportional to the rate of shape change. Elastic materials develop tension that is proportional to the magnitude of shape change and return to their original shape when the deforming input is released. Skeletal muscles display both viscous and elastic properties, i.e., muscles are viscoelastic (295, 440). General viscoelastic characteristic of muscle include stress relaxation, creep, and static elasticity (440). A key property of viscoelastic material is hysteresis in the stress-strain relationship, i.e., at any muscle length, tension developed during passive stretch will exceed the tension during passive shortening (Figure 10) (200, 320, 333, 423). In hysteresis, both viscous and elastic forces resist passive lengthening; elastic recoil causes passive shortening and is opposed by viscous forces. Thus, energy is lost during stretch-shortening cycles. Hysteresis is observed in intact muscles and isolated single fibers, and is affected by the history of stretch-shortening cycles (Figure 10) (66, 67, 297). The diaphragm exhibits hysteresis that is dependent on cycle frequency, strain, initial muscle length, and direction of tension (200, 228, 320, 423). Viscous and elastic forces are increased in the rat diaphragm when stretch-shortening cycles start at longer muscle lengths (Figure 10) (423). In addition, viscous resistance is proportional to the rate of strain (299, 423). Viscous resistance is greater for tension applied to the long axis of diaphragm and abdominal muscle fibers than for tension applied transversely (200, 228, 320). Biaxial loading decreases the magnitude of hysteresis in intact diaphragm and abdominal muscles (196, 200, 320).

Figure 10.

Force-length relationship of rat diaphragm muscle during lengthening and shortening cycles. Results are from cycles of sinusoidal oscillations at 2 Hz and loops are displayed in clockwise orientation. L_o is optimal length and cycle strain is the amplitude of oscillations as percentage of L_o. Note that passive force during lengthening is higher than during shortening (hysteresis). The amount of hysteresis depends on resting length of the diaphragm. Viscous work (area within each loop) increases at longer lengths. Reproduced from ref. (423); used with permission.

Viscoelasticity is determined by the mechanical properties of extracellular and intracellular proteins. Collagen is viscoelastic (336) and partially responsible for tissue hysteresis. Removal of the basement membrane of frog semitendinosus muscle fibers with collagenase and hyaluronidase reduces hysteresis by 85% (432). However, these findings do not exclude contributions from intracellular components. The cytoplasm (or sarcoplasm), as a fluid, has viscous properties (27, 249). Viscous properties of muscle fibers could arise from shearing forces in the sarcoplasm between the sliding thin and thick filaments (295). Proteins of the thin, thick, and intermediate filaments are also directly involved in viscoelastic characteristics of muscles. As shown for the whole diaphragm muscle in Figure 10 (423) and for single diaphragm fibers in Figure 11 (LF Ferreira, KS Campbell, and MB Reid; unpublished observations), hysteresis is present in the passive length-tension relationship. Hysteresis nearly disappears in muscle fibers after extraction of thick and thin filaments using KCl/KI (438, 460), but is unchanged after selective extraction of thin filaments using gelsolin (158, 438). These results, along with computer simulations (297, 338), suggest a role for thick filaments in the viscoelasticity of skeletal muscles. Single titin molecules display viscoelastic properties (84) and exhibit hysteresis in lengthening-shortening cycles (441). The viscous component of titin has been attributed to distension of Ig domains, which dictate slow stress-relaxation. Elastic properties of titin are determined by the PEVK segment of titin (437, 438, 441, 461). The intermediate filament protein desmin dissipates mechanical force in the diaphragm. Stress-relaxation upon stretch is decreased in diaphragm muscle fiber bundles of desmin-deficient mice (46). The molecular mechanisms proposed by Boriek et al. (46) to explain dissipation of energy by desmin include distension of coiled-coil domains and/or alignment of filaments in the longitudinal and transverse planes. Actomyosin cross-bridges may also contribute to hysteresis. The mechanical behavior of rapid cycling cross-bridges, modeled as linear springs with a single rate of attachment and detachment, have been shown to mimic a viscoelastic system (369).

Figure 11.

Movement history-dependence (thixotropy) of length-tension relationship in diaphragm single fibers. Raw tracings of fiber length (A) and tension (B) in a chemically permeabilized fiber from mouse diaphragm (LF Ferreira, KS Campbell, and MB Reid; unpublished observations). Data collected during maximal calcium activation (pCa 4.5) at 15°C. Fiber was stretched by 35 μm from the optimal fiber length (879 μm; sarcomere length 2.586 μm). C) Relationship between tension and fiber length – data re-plotted from panel A. Hysteresis is greater in the first lengthening-shortening cycle than in subsequent cycles. The initial portions of the first and second cycles are traced by blue and red lines, respectively. D, Relationship between changes (Δ) in tension and fiber length shows a decrease in stiffness with a prior lengthening-shortening cycle, i.e., slope of relationship for second cycle (red circles) is approximately 30% lower than slope of first cycle (blue circles). Solid black lines are best fit from linear regression. For details on protocol and methods see Campbell & Moss (68) and Hardin et al. (175).

Hysteresis is affected by the history of lengthening-shortening and stretch velocities. This history dependence has been termed ‘thixotropy’ (66, 67, 233) and is evident in single muscle fibers. In a series of lengthening-shortening cycles, hysteresis (or energy loss) of an individual fiber is greater in the first cycle than in subsequent cycles (Figure 11; Ferreira LF, Reid MB, Campbell KS, unpublished observations) (12, 67, 182). This thixotropic behavior is determined by a short-range elastic component that appears to stem from the number of attached cross-bridges (67, 68) (see refs. 12, 13, 297 for an opposing view on this topic). At the molecular level, titin also exhibits thixotropic behavior; prior stretches decrease the stiffness of this protein (209, 289). The intact respiratory system displays thixotropy that is considered to reflect history dependence of inspiratory muscles (185, 198). Assuming that diaphragm muscle is similar to limb muscles, the short-range elastic component of diaphragm muscle fibers will contribute to hysteresis of lengthening-shortening cycles and affect the mechanics of breathing. Indeed, end-expiratory lung volume increases following respiratory efforts above or below FRC (185, 198, 199). These changes have been linked to temporary perturbations in the mechanics of respiratory muscle cells following movement (199).

The hysteretic properties of respiratory muscle are physiologically relevant. However, experimental results from isolated muscle tissue and single muscle fibers should be interpreted with caution. Stretch velocities are important determinants of the viscoelastic characteristics of any material. Fast stretches in experiments, if outside the physiological range of lengthening-shortening rate, will overestimate energy loss due to viscous resistance and underestimate the contribution of thixotropy to viscoelastic characteristics. The influence of thixotropy on hysteresis of respiratory muscles during breathing should be greater in large mammals than in small mammals where breathing frequencies can range from 5 breaths·min^-1 in the Asian elephant (197) to 230 breaths·min^-1 in mice (220). Viscous resistance of respiratory muscles during breathing is expected to scale inversely with body size. Another confounding factor in the quantification of viscoelastic properties is temperature. Viscosity and elasticity of a material decreases when temperature is elevated, a concept valid for skeletal muscles (224, 295). Accordingly, in vitro experiments performed at temperatures <25°C will overestimate viscosity and hysteresis relative to respiratory muscles that operate at 37°C in vivo. Nevertheless, viscoelastic characteristics of respiratory muscles are evident in experiments performed at 37°C (46, 196, 200, 320) suggesting that these properties influence the mechanics of breathing.

Active force-length relationship of muscle

The active force-length relationship measured in diaphragm bundles in vitro is bell shaped, plateauing at lengths ranging from 90 to 110% L_o (105, 272, 279, 343); a feature consistent among several mammalian species (Figure 8) (279). The ascending limb of the force-relationship is shifted to the right for intercostals (external and internal) and abdominal muscles compared to the diaphragm (103, 106). In single muscle fibers, the bell-shaped profile is dictated by the classical description of thick-thin filament overlap that gave rise to the sliding-filament theory of muscle contraction (Figure 8) (146).

Optimal sarcomere length and cross-bridge recruitment

The optimal sarcomere length (L_o) at which single diaphragm muscle fibers generate maximal force is ~2.5-2.7 μm. At this sarcomere length, the maximum number of myosin heads per half sarcomere (n) overlap with the thin filament and thus, the maximum number of cross-bridge can form during Ca²⁺ activation (maximal α_fs). As muscle fibers shorten or stretch beyond L_o, fewer myosin heads can bind to the actin filament; thus fewer cross-bridges can form and force is reduced (α_fs decreases).

Additional factors related to muscle fiber length may also affect force generation. Myofibril bending (or wavy myofibrils) has been reported in frog sarcomeres allowed to shorten below 2.0 μm (59, 429). Sarcomere shortening below slack length stretches the extensible region of titin in a direction opposite to elongation, creating restoring forces that counteract active tension development at short sarcomere lengths (160). Inward transmission of depolarization in the T-tubules may also be less effective or incomplete at short sarcomere lengths, thereby affecting the release of Ca²⁺ from the SR and excitation-contraction coupling (337, 429).

Active force in respiratory muscles

The force-length relationship of respiratory muscles is a fundamental component of the mechanics of breathing. The general features of force development as a function of muscle length determined in vivo are also evident in diaphragm muscle fiber bundles and single fibers examined in vitro. This uniformity implies that the relationship between muscle force (or trans-diaphragmatic pressure) and muscle length (or lung volume) is predominantly determined at the cellular level.

During active force (pressure) generation, the intact diaphragm muscle of supine quadrupeds (dogs, sheep) generally produces the highest trans-diaphragmatic pressure (Pdi) at a lung volume near FRC (168, 169, 273, 353). However, one study suggested that active Pdi is highest when muscle length is 10-30% longer than at supine FRC (216). Posture is an important consideration for data from quadrupeds. Some studies assessed animals in the supine position whereas, in the prone position, FRC is larger and intact diaphragm length is shorter than at supine FRC. In the rabbit diaphragm muscle, in vivo passive length changes were measured in the sternal and midcostal regions using sonomicrometry (483). Changes in diaphragm muscle length during the respiratory cycle were then compared to optimal muscle fiber length (L_o) measured in vitro. Resting length of the sternal region of the diaphragm muscle (at FRC) was ~78% of L_o, whereas resting length of the midcostal region was ~95% of L_o. It should be noted, that in both diaphragm regions, these resting lengths were not associated with any appreciable passive tension.

During conditions of lung hyperinflation, the diaphragm muscle is chronically shortened. In response, there is a decrease in the number of sarcomeres in series, thereby maintaining optimal overlap of thick and thin filaments. This length adaptation has been demonstrated in a number of models of emphysema (212, 238). Thus, length adaptation would lead to a decreased muscle mass while fiber cross-sectional area may be unaffected.

Plyometric contraction-induced muscle injury

Application of an external load that is greater than the force generated by a muscle results in lengthening of activated muscle. Such maneuvers are termed plyometric or eccentric contractions or more correctly lengthening activation. Respiratory muscles routinely undergo plyometric contractions. Inspiratory and expiratory muscle groups have opposing actions and are co-activated to regulate air flow, maintain posture, or stabilize the trunk. Increased activation of one muscle group exerts increased force (or load) on the opposing group, causing it to actively lengthen.

For a given level of activation, muscle force is higher during plyometric contractions than during isometric (fixed length) activation. This principle, first defined in limb muscles, was later demonstrated for human inspiratory muscles by Topulos, et al. (436) who showed that healthy volunteers develop higher mouth pressures during maximum plyometric maneuvers than during maximum static efforts against an occluded airway. More recently, Tzelepis and associates (444) reported that plyometric contractions performed immediately before an inspiratory effort can augment maximum inspiratory power, mimicking limb muscle performance in a stretch-shortening cycle (50).

Plyometric contractions can be damaging to muscle fibers. In limb muscles, plyometric exercise causes tissue injury characterized by myofibrillar disruption, sarcolemmal damage, and decrements in force (109, 280). The mechanism of injury involves mechanical overload at the cellular level that is exacerbated by loss of Ca²⁺ regulation (251) and increased free radical activity (278).

Less is known about plyometric injury of respiratory muscles. Subjects tested by Topulos and co-workers (436) perceived no deleterious consequences following maximal inspiratory efforts under plyometric conditions. However, subsequent studies confirmed that plyometric contractions can injure respiratory muscles. For example, myofibrillar disruption has been reported in the rat diaphragm during plyometric contractions (467). Analyses of excised tissue by Gea and associates (129) demonstrated sarcomeric and sarcolemmal damage and depressed force in canine diaphragm subjected to maximum plyometric contractions. Clinical reports further suggest that expiratory muscles of the abdominal wall may by injured by plyometric contractions during athletic activity (271).

Isotropic and Anisotropic Force Transmission

Functional relevance

The diaphragm and abdominal muscles are subjected to mechanical loading along multiple axes. These forces can alter muscle dimensions, i.e., produce strain. In isotropic materials, the tension-strain relationship is independent of the direction that force is applied. Conversely, anisotropic materials have mechanical properties that are non-uniform; strain varies with the direction of force. The central tendon is nearly isotropic (47, 49, 196) and inextensible (47). The diaphragm and internal abdominal muscles are anisotropic. Stiffness is less when force is oriented along the longitudinal axis of muscle fibers compared to force is applied in the perpendicular (transverse) direction (45, 196, 274, 320, 418). For example, in the intact diaphragm, longitudinal stress is 2-4 times greater than transverse stress during passive loading (45) and breathing (274). The anisotropic tissue characteristics and three-dimensional distribution of forces have major implications for respiratory muscle mechanics.

The description of skeletal muscle architecture in traditional and modern textbooks suggests that muscle fibers span the full length of the muscle and are connected to tendons at their origin and insertion through myotendinous junctions (173, 252). However, several skeletal muscles – including the diaphragm of larger mammals – have a substantial fraction of fibers with tapered, non-myotendinous ends that terminate within muscle fascicles (44, 45, 335, 439). In the canine diaphragm, nearly 80% of muscle fibers do not span the entire muscle length (48). Thus, forces generated by the diaphragm muscle during breathing are transmitted from chest wall to central tendon mainly through adjacent non-spanning fibers. Experiments using frog muscle show that 75-100% of the tension generated by a single fiber is transmitted laterally to neighboring fibers through shear forces (416). The relevance of lateral force transmission to diaphragm function is emphasized by studies showing that P_o is increased by 10-20% when tension is applied transverse to the fiber orientation (200, 248, 320). Thus, contractile forces in the axial dimension are increased by mechanically loading the structures that transmit lateral forces. These include proteins of the costamere, extracellular matrix, and connective tissue (188, 217, 292).

Molecular determinants

The term costamere refers to a cluster of transmembrane proteins that anchor sarcomeric proteins and the sarcolemma near the Z- and M-lines of myofibrils (Figure 12) (24, 69, 75, 316). The costamere is part of the cytoskeleton, which consists of several proteins whose functions remain elusive. Proteins of the costamere that may be involved in lateral force transmission include vinculin, laminin, integrin, and the dystrophin-associated glycoprotein complex (24, 38, 321). Consistent with the notion that costameric proteins play a role in force transmission, maximal tetanic stress of diaphragm muscle fiber bundles is depressed in mice lacking α₇-integrin (248), merosin (α₂-laminin) (200), α-sarcoglycan (component of dystrophin-associated complex; (320)), and dystrophin (mdx mice; (166)). In addition, muscles of mice deficient in α-sarcoglycan do not exhibit augmented maximal tetanic stress during transverse loading (320). Vinculin is a promising candidate for lateral force transmission (292, 316). However, establishment of the role of vinculin has been hindered by the fact that vinculin deficiency is embryonically lethal (477). Linking sarcomeric proteins to the sarcolemma, desmin is also expected to participate in lateral transmission of force (431). Desmin-deficient diaphragm muscle generates higher P_o than control muscle but lacks the increase in P_o with transverse loading (46). Boriek and colleagues (46) proposed that desmin might dissipate lateral forces. The greater P_o generated the diaphragm muscle of desmin-deficient mice contrasts with the weakness observed in the soleus muscle of such mice (244). Compensatory adaptations to desmin deficiency must be examined before a definitive conclusion can be reached regarding the role of desmin in lateral force transmission.

Figure 12.

Schematic illustration of proteins of the extracellular matrix, costamere, and intermediate filaments. The extracellular matrix and basement membrane include laminin, collagen IV, and intermediate filament (IF) proteins which include desmin (yellow) and keratins (K8/K19; red) plus other proteins not shown (synemin, paranemin, syncoilin). Desmin surrounds the Z-disks connecting myofibrils to each other and to the sarcolemma. Most IF proteins are linked to costameric proteins; keratin-containing IF are located around the M-line and also link to costameres. Ank, ankyrin; ANT, adenine nucleotide translocator; CK, creatine kinase; DG, dystroglycan; K, keratin; MLP, striated muscle-specific LIM protein; SP, sarcospan; SG, sarcoglycan; SR, sarcoplasmic reticulum. Reproduced from ref. (69); used with permission from Elsevier.

The extracellular matrix consists mainly of proteoglycans, laminin, and type IV collagen (172, 217, 246, 433, 434). With the exception of laminin (see above), there is relatively little information regarding the role of extracellular matrix components in lateral force transmission within respiratory muscles. The endo, peri, and epimysium are composed of several collagen types but types I and III collagen predominate (246). Types I and III collagen are thought to confer rigidity and elasticity, respectively, to connective tissues (see references in 152). mRNA levels of type III collagen are 2-fold higher than mRNA of type I collagen in rat diaphragm (153). Immunohistochemistry using antibodies for type I collagen reveals a dense network of connective tissue in the diaphragm muscle (78). Visual inspection of immunohistochemistry images suggest the diaphragm perimysium is composed largely of type I collagen (78) – consistent with limb muscles (217, 246). Perhaps, the higher levels of type III collagen mRNA (153) result in enhanced type III collagen in the endomysium (318). Hydroxyproline is found in collagen and elastin (302) and is higher in the mouse diaphragm muscle compared to the gastrocnemius muscle (155). The collagen content of diaphragm muscle does not change during development but cross-linking of collagen fibrils increases from birth to adulthood (150) and with aging (152). The increase in collagen cross-linking presumably leads to stiffening of the diaphragm (152, 210).

Structural organization

Architecture and molecular composition are important determinants of the mechanical properties of a multifibril network. The endomysium contains elastin and type IV collagen (246, 318) that have low stiffness (255, 335). The endomysium is also characterized by a mesh of collagen fibrils oriented in multiple directions (mean angle 60°) – a structure that confers lower passive stiffness (335). Collagen fibrils of the endomysium are oriented along the longitudinal axis of myofibers (217). Purslow & Trotter (335) proposed that the low stiffness makes the endomysium unsuitable for lateral force transmission. However, once the muscle is stretched, endomysial fibers oriented longitudinally may facilitate lateral force transmission among muscle fibers (335, 439).

The perimysium, which is connected to the endomysium, is another important site of lateral force transmission in skeletal muscles (188, 292, 318). Collagen fibrils of the perimysium are oriented in a plane perpendicular to the long axis of muscle fibers (217). This fibril distribution makes perimysium collagen a potential structure for the distribution of transverse tension, increasing diaphragm P_o. It is reasonable to suppose that transverse tension stretches collagen fibrils of the endomysium and perimysium in the diaphragm muscle; thus, promoting the transmission of force from rib to central tendon. This speculation is supported by the observation that collagenase treatment diminishes passive stiffness of the diaphragm (357).

Isometric Force-Frequency Relationship

Skeletal muscle force increases with an increase stimulus frequency reaching a plateau that corresponds to maximum tetanic force. The relationship between force and stimulus frequency is sigmoidal and the shape of this relationship is primarily determined by the rate of force relaxation (one-half relaxation time: ½RT) during a twitch contraction. Tetanic fusion of force occurs at lower frequencies of stimulation in muscle fibers and motor units with slower ½RT (Figure 13) (116, 380). Consequently, skeletal muscles primarily composed of slow-twitch (type I) fibers have a force-frequency relationship that is shifted leftward compared to fast-twitch (type II) muscle fibers (219, 250). The force-frequency curve is also affected by temperature such that at room-temperature (22-25°C) the curve is shifted leftward compared to the force-frequency relationship at 35-37°C (89, 287, 343) –½RT nearly doubles with every 10°C increase in temperature, i.e., Q₁₀ ~2.0 (287). The force-frequency relationship of the diaphragm muscle has a sigmoidal shape in humans, dogs (103, 105), and rodents (89, 113, 114, 215, 250, 343, 421). Canine abdominal, sternomastoid, scalene, intercostal, and parasternal muscles also have a sigmoidal force-frequency relationship that is right-shifted in relation to the diaphragm muscle (103, 104, 106). The differences in shape and position of the force-frequency relationship among respiratory muscles may arise from distinct fiber type composition and contractile properties of individual muscle fibers that scales with animal size.

Figure 13.

Force (normalized to percent maximum tetanic force) generated by cat diaphragm motor units at different frequencies of stimulation. Results are for individual motor units classified by their contractile and fatigue properties (see text for details). The steepest portion of the force-frequency curve occurs between 10 and 30 Hz for all types of motor units in the diaphragm muscle (116), consistent with onset and peak discharge frequencies of ~8 Hz and ~25 Hz respectively for type S and FR units (top arrows) and ~15 Hz and ~60 Hz respectively for type FInt and FF units (bottom arrows), reported in (376).

Twitch characteristics

Muscle twitch force can be characterized by three parameters: peak twitch force (P_t), time to peak tension (TPT), and ½RT. These parameters vary among species and follow closely with the muscle fiber type composition of a muscle (Table 1). Canine abdominal and intercostal muscles reach P_t approximately 10-15 ms faster than the diaphragm muscle (106). The ½RT follows a species- and muscle-specific pattern similar to TPT (Table 1). The ½RT of canine intercostals is similar to the diaphragm, except for external intercostals (½RT ~ 40 ms) (103). These twitch characteristics are determined by rates of cross-bridge attachment (f_app) and detachment (g_app), and intracellular Ca²⁺ dynamics.

Table 1.

Diaphragm muscle twitch characteristics at 35-37°C.

	TPT (ms)	½RT (ms)	Pt (N/cm2)	Pt:Po (%)	References
mouse	10-15	10-15	5-8	20 - 30	(113, 138, 175, 250, 408)
rat	20-30	25-40	5-8	20 - 30	(89, 215, 279, 287, 344, 346, 348)
cat	30-70	40	10	25-40	(116, 279)
dog	50-60	60-70	6.5	30	(105, 187, 279)
monkey	30-40	30-40	6.5	30	(107, 279)
human	80-100	60-80	30-50**	20	(21, 328, 479)

TPT, time to peak twitch force; ½ RT, relaxation time from maximum to half-maximum twitch force, P_t:P_o, twitch to tetanus force ratio

^*Also, twitch force of 4.0 N/cm² were measured in rabbit diaphragm bundles in situ (373);

^**twitch force reported as cm H₂O, not N/cm².

Maximum tetanic force (P_o)

Maximal specific force (force per cross-sectional area) of the diaphragm is commonly measured using isolated muscle fiber bundles in vitro or in situ. The advantage of this preparation is that diaphragm fibers are oriented perpendicular to the rib and follow a straight line to the central tendon (46, 347). Using the dissection method first introduced by Bulbring (62) and modified by Goffart & Ritchie (141), the cross-sectional area of fiber bundles can be estimated from L_o and bundle weight (based on a muscle specific density of 1.06 g·cm^-3) to calculate specific force (force per cross-sectional area) (77). Since diaphragm muscle fibers run parallel, the calculation does not require correction for physiological cross-sectional area based on the angle of pennation of fibers (57). The P_o of the diaphragm muscle measured in vitro is 20-30 Ncm^-2 in a variety of species (102, 105, 108, 113, 151, 175, 187, 236, 238, 239, 241, 269, 272, 279, 294, 311, 344, 345, 351, 364, 373, 408, 420, 423) and is consistent with values reported for limb muscles (57). The maximum specific force generated by single muscle fibers is relatively consistent across species and muscles. Thus, it is likely that differences among muscles examined in vitro reflect limitations of the technical procedures involved in the experiment.

Molecular Determinants of Muscle Protein Balance

In all cells, including skeletal muscle fibers, proteins are continuously synthesized and degraded with this balance determining net protein loss or gain. Changes in protein synthesis and degradation rates thus determine whether there is muscle fiber atrophy or hypertrophy. For example, following unilateral denervation of the diaphragm muscle, both protein synthesis and protein degradation increase, with a net decrease in protein balance by 5 days (8). Recent developments in molecular and cell biology guide our understanding of the mechanisms regulating protein balance in muscle fibers. However, specific information regarding protein balance across many diseases or physiological states is lacking. The complexity of the signaling pathways likely reflects redundancy in maintaining essential cellular functions (e.g., in muscle contractile protein expression and metabolic support) (9, 362, 363, 413). This complexity precludes unambiguous interpretation of studies that examine only one mechanism. For example, hypertrophy can result from either an increase in protein synthesis and/or a decrease in protein degradation. Similarly, atrophy reflects a decrease in the net protein balance that may involve changes in both protein synthesis and degradation. Muscle fiber hypertrophy and atrophy are not synonymous with an increase in protein synthesis and degradation, respectively.

The Akt signaling pathway is thought to be critical in triggering an increase in protein synthesis under a variety of conditions (139, 363). This signaling cascade is initiated by Akt phosphorylation (41, 355, 356, 426) with downstream activation of the mammalian target of rapamycin (mTOR), glycogen synthase kinase-3β (GSK3β) and p70S6 kinase (p70S6K) (10). Among a number of extracellular signals, phosphorylation of Akt is induced by IGF-1 and insulin (178, 356). Binding to their receptors activates phosphoinositide-3 kinase (PI3K), which targets Akt to the plasma membrane where PI3K phosphorylates Akt. Akt signaling involves phosphorylation of a variety of substrates, involved in protein synthesis, gene transcription, glucose metabolism, cell proliferation, and regulation of apoptosis (276, 456). Ultimately, the extent of protein synthesis depends on translation initiation factors such as eukaryotic initiation factor 2B (eIF2B), eukaryotic initiation factor 4E (eIF4E), and eIF4E-binding protein 1 (4EBP1) (218, 463). The Akt signaling pathway has been evaluated in diaphragm muscle under conditions of hypertrophy and atrophy of muscle fibers. For example, following unilateral denervation of the diaphragm muscle there is an initial phase of muscle hypertrophy followed by subsequent muscle atrophy (156, 240, 290, 358, 484). Of note, following denervation, Akt phosphorylation with downstream activation of mTOR and p70S6K is unchanged but protein degradation rate decreases leading to a net positive protein balance and transient fiber hypertrophy (9). Subsequently, Akt signaling pathways contribute to elevated protein synthesis but this is more than offset by a marked increase in protein degradation with consequent net negative protein balance and fiber atrophy. In the condition of acute short-term nutritional deprivation, Akt phosphorylation and activation of mTOR and p70S6K decrease in the diaphragm muscle, consistent with reduced protein synthesis (242, 243). Since there is muscle fiber atrophy, this change in Akt signaling does not appear to be offset by a decrease in protein degradation. Indeed, it is likely that protein degradation also increases. These examples highlight the complexity of assessing both aspects of protein balance in concert.

Signaling pathways involved in protein degradation in muscle fibers include the ubiquitin ligases atrogin-1/MAFbx and MuRF1 which increase protein degradation via the ubiquitin-proteasome system (40, 144). In addition, protein degradation can be mediated via autophagy-lysosome pathways and by regulation of metabolic processes. The “forkhead box” family of transcription factors FoxO is regulated by Akt via phosphorylation of FoxO and export of FoxO from the nucleus (28, 29, 60, 402). Thus, Akt terminates transcriptional activity exerted by FoxO. In conditions of muscle atrophy (e.g., following fasting or glucocorticoid treatment), Akt and FoxO are dephosphorylated with upregulation of atrogin-1/MAFbx (362, 405). Following denervation of the diaphragm muscle, there is an immediate decrease in Akt phosphorylation followed by nuclear translocation of FoxO1 protein, and increased total protein ubiquitination with subsequent increase in protein degradation (8, 9).

Activation of nuclear factor κB (NF-κB) transcription factors is also involved in muscle atrophy under a variety of conditions (65, 189, 190, 207, 370, 446). NF-κB-mediated muscle atrophy is likely due to its transcriptional regulation of MuRF1 (65). Inhibition of both NF-κB and FoxO transcription factors is necessary to prevent muscle atrophy after immobilization (341). Importantly, MuRF1 and MAFbx, encode ubiquitin ligases responsible for targeting proteins for degradation in the proteasome (40). Three distinct enzymes (E1 ubiquitin-activating enzyme, E2 ubiquitin-conjugating enzyme, and E3 ubiquitin-ligating enzyme) regulate the addition of the short peptide ubiquitin to specific protein substrates. The proteasome complex comprises more than 50 subunits (19) that execute protein breakdown into small peptides (326). Inhibiting the proteasome prevents increased protein breakdown associated with several atrophy conditions (428). Notably, MyHC is degraded by the ubiquitin-proteasome pathway via MuRF1 (76, 406).

Autophagy and activation of the lysosome system also contribute to protein degradation given their role in removing dysfunctional organelles and unfolded proteins (363). Indeed, lysosomal proteases are upregulated in various conditions associated with muscle atrophy (88, 127, 234, 291). The interplay between protein degradation pathways is exemplified by the FoxO3-mediated interaction between ubiquitin-proteasome and autophagy-lysosome pathways. FoxO3 regulates expression of several autophagy-related genes and activates autophagic protein breakdown (256, 486).

Metabolic processes may also contribute to the regulation of protein balance. In particular, AMPK inhibits protein synthesis by downregulating mTOR (42, 128, 410) while promoting protein degradation via FoxO and atrogin-1/MAFbx expression (80, 163, 164, 301, 305, 435). However, following denervation of the diaphragm muscle, there was no evidence of AMPK activation at a time of markedly increased protein degradation (9). Mitochondrial remodeling is also associated with muscle atrophy, likely via activation of AMPK (354). Mitochondria are crucial for energy production and respond to environmental stressors via the balance between fusion and fission processes. It is thought that mitochondrial fission may be important in isolating dysfunctional components from mitochondria, targeting them for repair or removal via autophagy (23). Mitochondrial fission can subsequently activate AMPK, triggering FoxO-mediated signaling and activation of ubiquitin-proteasome and autophagy-lysosome pathways (354).

Muscle Fatigue and Endurance

Muscle fatigue is defined as a decline in the ability of a muscle to generate an expected or required level of force (95), and is typically apparent as a decline in force with repetitive activation of muscle fibers. What distinguishes muscle fatigue from muscle weakness is that fatigue is reversible; i.e., the muscle recovers from fatigue in a relatively short period of time; thus muscle fatigue is temporary. Muscle endurance is the ability of a muscle to sustain a given level of force during repeated activation, and endurance is usually presented in units of time. Although muscle fatigue and endurance may be related to each other, they are not the same and the terms should not be used interchangeably.

In the entire neuromotor system, there are several potential sites where failure may occur leading to a decline in muscle force (fatigue) and a decrease in endurance. These potential sites have been generally categorized as being either “central” (i.e., central nervous system – CNS) or “peripheral” origin (32). If a motor neuron fails to generate an action potential, the innervated muscle fibers will not be activated and a “central fatigue” of force generation will result (214). This failure to activate a motor neuron may result from reduced synaptic drive (213, 214). It is important to note that “central fatigue” does not reflect an inability of the muscle per se to generate force. In other words, it is not a form of intrinsic muscle fatigue.

Peripheral fatigue may result from a failure at several potential sites including: axonal propagation especially at nerve branch points (388), neuromuscular transmission, muscle fiber action potential propagation, T-tubule depolarization, excitation-contraction coupling, sarcoplasmic reticulum release of Ca²⁺, Ca²⁺-mediated thin filament regulation (Ca²⁺ sensitivity), cross-bridge recruitment (affecting α_fs), average force per cross-bridge (F), or ATP production within muscle fibers. Central fatigue is bypassed by stimulating the motor nerve to activate the muscle; however, it is far more difficult to discriminate among the various potential sites of peripheral fatigue. Toward this end, direct muscle stimulation eliminates the potential neural sites of failure and focuses on intrinsic muscle fatigue.

Susceptibility to fatigue is an important property that defines muscle fiber types similar to shortening velocity (e.g., fast vs. slow; fatigable vs. fatigue resistant). The susceptibility of muscle fibers to fatigue varies across the motor unit types they comprise (116, 380). For example, fatigue resistant slow- and fast-twitch motor units display little change in force during repetitive stimulation (<25% decline in force during repetitive stimulation at 40-Hz in 330-ms duration trains repeated every s for a 2-min period). It has been shown that these motor units comprise type I and IIa muscle fibers that higher oxidative metabolic capacities and are therefore capable of producing higher levels of ATP to meet the metabolic demands of increased activity (98, 390). In contrast, more fatigable fast-twitch motor units display substantial force decline (>75%) using the same 2-min stimulation paradigm. The type IIx and/or IIb muscle fibers that comprise these more fatigable fast-twitch motor units have lower oxidative metabolic capacities for energy production. This has led some investigators to suggest a relationship between intrinsic fatigue of muscle fibers and their oxidative capacities (386).

Axonal propagation and neuromuscular transmission failure

A number of studies have clearly demonstrated that both axonal propagation failure and neuromuscular transmission failure can contribute to “peripheral” muscle fatigue. In either case, this would result in fewer muscle fibers being activated, and therefore, a decline in force generation. However, the underlying mechanisms differ between axonal propagation failure and neuromuscular transmission failure, but both would appear as what was formerly termed “peripheral” fatigue. In reality, both reflect a central nervous system mechanism of fatigue rather than intrinsic muscle fatigue.

Axonal propagation failure

In 1935, Barron and Mathews (16) first demonstrated that in response to electrical stimulation action potentials sometimes failed to propagate along each branch of a motor axon. With repetitive stimulation of the phrenic nerve, Krnjevic and Miledi (221, 222) observed that action potential propagation failure occurred, and that the incidence of this failure increased at higher stimulation rates (222). They attributed this to a failure of propagation at axonal branch points. Since then, the incidence of axonal propagation failure has been clearly demonstrated in a variety of species (34, 171, 176, 317). In the abductor muscle of the crayfish, Smith (403) showed that axonal branch point failure of action potential propagation occurred first in more peripheral branches and then progressed centrally to regions where axons were larger. Accordingly, the probability of axonal branch point failure is greater in larger motor units, where the innervation ratio (number of muscle fibers per motor unit) is greater. This would explain the increased incidence of axonal branch point failure in larger type FF and FInt motor units.

Associated with a failure of axonal action potential propagation, there is also a prolonged depolarization of the axonal membrane and a decrease in inward Na⁺ current (176). It was also shown that axonal propagation failure could be reversed by hyperpolarization of the axon or by exposing the axon to a low K⁺ solution. Accordingly, it was suggested that axonal propagation failure results from a prolonged refractory period of the axon that was more prevalent at axonal branch points. Stimulation-induced alterations in Na⁺ and K⁺ concentrations around the axon may also underlie axonal propagation failure (1, 171, 404). Alterations in N⁺ and K⁺ concentrations are more likely at smaller axonal sizes, where the surface-to-volume ratio is higher (403).

A number of theoretical models have examined the relationship of axonal geometry on action potential propagation (143, 414, 415, 422, 469). These models indicate that changes in axonal membrane excitability due to differences in axonal geometry may result in propagation failure in smaller axons, depending on action potential frequency in the parent axon (414, 415). For example, at an axonal branch point, higher axial resistance and lower membrane capacitance in one of the daughter branches results in a frequency dependent propagation failure along that smaller daughter branch compared to the larger daughter branch. Even small differences in axonal resistance (length of axon branches) and membrane capacitance (diameter of axon branches) of daughter branches may result in higher probabilities of axonal propagation failure especially at higher stimulation frequencies. Clinical neurophysiological recording of single muscle fiber action potentials has identified neuromuscular “jitter” (increased variability of interval between single fiber action potentials) that is attributed, at least in part, to axonal branch point failure. The incidence of neuromuscular jitter increases with age and in neuromotor diseases. Thus, the complex interactions between changes in axonal branching geometry and susceptibility to action potential propagation failure may underlie “peripheral” fatigue under a variety of conditions.

Axonal propagation failure has been demonstrated in the diaphragm muscle by the inability to consistently evoke muscle fiber action potentials by phrenic nerve stimulation (118). In adult rat diaphragm muscle, the incidence of propagation failure depends on stimulation frequency, with lower probability with stimulation rates below 75 Hz (118). In contrast, in the neonatal diaphragm muscle the incidence of propagation failure is much higher across all stimulation frequencies, but it is particularly prevalent at higher stimulation rates. Importantly, the neonatal diaphragm displays polyneuronal innervation, such that a muscle fiber initially receives input from multiple phrenic motor neurons (61, 261). Accordingly, the extent of axonal branching is much greater in the neonate compared to the adult. Thus, it is possible that the higher incidence of axonal failure in neonates reflects the increased axonal branching associated with polyneuronal innervation of muscle fibers.

In a study of the adult cat diaphragm, susceptibility to axonal propagation failure was assessed by changes in evoked muscle unit action potentials (MUAP) (382). Fatigue resistant type S and FR motor units displayed consistent evoked MUAP during repetitive stimulation at 40 Hz. In contrast, more fatigable FF and FInt units occasionally displayed an abrupt decrease in evoked MUAP amplitude consistent with a failure to activate a subset of muscle fibers within the motor unit (e.g., as might occur with axonal branch point failure). Similar abrupt changes in MUAP amplitude were observed in cat medial gastrocnemius muscle motor units during repetitive stimulation (361). These investigators showed that such abrupt changes in MUAP waveform were associated with a failure to evoke action potentials in some motor unit fibers.

Neuromuscular transmission failure

Neuromuscular transmission failure is distinct from axonal propagation failure and is defined as inability of a nerve impulse to elicit a muscle fiber action potential. This may occur at the presynaptic terminal with inadequate release of ACh (decreased quantal content) or postsynaptically with an inadequate excitatory postsynaptic potential (EPP) response. The fact that neuromuscular transmission failure occurs under experimental conditions is indisputable, but its contribution to muscle fatigue during normal motor behaviors remains controversial. Neuromuscular transmission failure has been assessed using three techniques: 1) comparison of the forces induced by repetitive nerve vs. superimposed direct muscle stimulation, thereby bypassing neuromuscular transmission; 2) assessment of evoked compound muscle action potentials (e.g., M wave) during motor behaviors; and 3) electrophysiological assessment of neuromuscular transmission including quantal content and EPP responses.

With repetitive nerve stimulation, muscle fibers that are not activated due to neuromuscular transmission failure are spared from intrinsic muscle fatigue. Accordingly, with increasing extent of neuromuscular transmission failure, the difference between forces induced by nerve vs. direct muscle stimulation will become greater (Figure 14). Using this nerve vs. direct muscle stimulation technique, a number of studies have demonstrated neuromuscular transmission failure in the diaphragm muscle under a variety of conditions (2, 101, 205, 211, 225, 258, 259, 264, 268, 290, 332, 374, 396, 475). The relative extent of neuromuscular transmission failure in the diaphragm muscle varies with stimulation rate (225). At a stimulation rate of 20 Hz (33% duty cycle, 1 s duration train repeated each s), neuromuscular transmission failure contributes approximately 16% to diaphragm fatigue after a 2 min period. With the same duty cycle and train duration but with stimulation at 40 Hz, neuromuscular transmission failure contributes approximately 35%, and at 75 Hz approximately 42%. Thus, in the adult rat diaphragm, most of the peripheral fatigue appears to be intrinsic to the muscle rather than a failure of neural activation. However, there is a difference in the susceptibility of different diaphragm muscle fiber types to neuromuscular transmission failure. By comparing the pattern of muscle fiber glycogen depletion induced by repetitive direct muscle stimulation versus phrenic nerve stimulation, it was shown that type IIx and IIb fibers are most susceptible to neuromuscular transmission failure (205).

Figure 14.

Contribution of neuromuscular transmission failure to diaphragm muscle fatigue. Diaphragm muscle-phrenic nerve preparations are stimulated electrically every 1 s via a suction electrode to the phrenic nerve (40 Hz in 330-ms trains) and direct muscle stimulation via plate electrodes is superimposed intermittently every 15 s. A. Representative measurement of force developed by a mouse diaphragm muscle with repetitive stimulation. Reduced force generation by the diaphragm muscle reflects fatigue. The difference in force elicited by nerve and muscle stimulation reflects neuromuscular transmission failure. B. Neuromuscular transmission failure (mean ± SE) measured in diaphragm muscles from adult rats and mice. *, statistically significant difference. Reproduced from ref. (374); used with permission.

Merton introduced the assessment of evoked muscle electrophysiological response (compound action potentials termed M waves) as a means of estimating the extent of neuromuscular transmission failure during voluntary contractions in 1954 (286). If the M wave amplitude decreased during voluntary contractions, the decline in force (or fatigue) was attributed to neuromuscular transmission failure rather than intrinsic muscle fatigue. In the human adductor pollicis muscle, Merton observed no change in the M wave amplitude despite substantial force decline during maximum voluntary contractions (286). Accordingly, he concluded that neuromuscular transmission failure does not contribute to fatigue during maximum voluntary contractions; a conclusion that has been reached in a number of subsequent studies in human muscles (22, 30, 31, 33, 281). However, not all investigators agree, as some have reported significant declines in M wave amplitude of the human adductor pollicis during fatiguing maximum voluntary contractions (300) as well as the first dorsal interosseus (409). With repeated electrical stimulation of the ulnar nerve to activate the first dorsal interosseus muscle, Grob (170) reported that at frequencies greater than 25 Hz there was a parallel reduction in M wave amplitude and tetanic force, indicating significant neuromuscular transmission failure. A parallel reduction in M wave amplitude and force was shown during inspiratory loaded breathing in anesthetized rabbits (3) and in unanesthetized sheep (20), also suggesting significant neuromuscular transmission failure in the diaphragm muscle. During inspiratory loaded breathing in anesthetized rabbits (309) and piglets (277), there was no change in M wave amplitude or measures of diaphragm force (Pdi) during inspiratory loaded breathing despite terminal task failure. Unfortunately, inspiratory loaded breathing involves submaximal activation of the diaphragm muscle and it is thus unclear whether in the latter two studies any fatigue occurred since task failure may not relate to muscle fatigue. Using repetitive stimulation of the hypoglossal nerve to elicit tongue protrusion or retraction, Fuller and Fregosi (126) reported that there was little change in either force or M wave amplitude during normoxic conditions in anesthetized rats. However, during hypoxia (15% O₂), there was a parallel reduction in both M wave amplitude and force suggesting neuromuscular transmission failure. Very few studies currently use the M wave to assess neuromuscular transmission failure as it is an indirect measurement that is influenced by a number of other variables, which may account for the discrepant results in the literature. In contrast, direct electrophysiological assessment of neuromuscular transmission provides a direct measure although it cannot be performed in vivo during motor behaviors.

Adequate synaptic vesicle release at the presynaptic terminal is essential to sustain neuromuscular transmission. Synaptic vesicles are distributed throughout the presynaptic terminal and their location is an important determinant of their probability of release with a nerve impulse. One group of synaptic vesicles is docked at active zones, and therefore, these vesicles are readily available for release (defined as the “readily releasable” pool - RRP) (350, 352). However, only a fraction of these RRP vesicles are released with each neural impulse. Another group of synaptic vesicles is located in close proximity to active zones and can be cycled into the RRP; thus, these synaptic vesicles comprise a “cycling” pool (487). Another group of synaptic vesicles are located at some distance from active zones and constitute a “reserve” pool of vesicles that may be recruited to the “cycling” pool or RRP sustained neuromuscular transmission with repeated stimulation. Once released, synaptic vesicles can be recycled returning to the RRP, “cycling” or “reserve” pool of vesicles (350, 419). Although a number of studies have described the distribution of these synaptic vesicle pools at the presynaptic terminal (96, 258, 327, 342, 359, 474), the mechanisms regulating the distribution of synaptic vesicles and their release during repeated stimulation are not well understood.

Activity-dependent neuroplasticity can improve the efficacy synaptic neurotransmission (177). Using fluorescent styryl dyes to label recycling synaptic vesicles at rat soleus (predominantly comprising type I and IIa fibers) and extensor digitorum longus (EDL - predominantly comprising type IIx and IIb fibers), Reid and colleagues (342) reported fiber type differences in vesicle cycling, which they attributed to differences activation history. Electrophysiological studies demonstrated that presynaptic terminals at EDL muscle fibers have a higher initial quantal content compared to terminals at soleus muscle fibers (137, 342, 476). Because of their more frequent activation, the total number of synaptic vesicles cycled into the RRP or cycling pools would need to be higher at type I or IIa fiber terminals compared to type IIx and IIb terminals (205, 379). In agreement, during repetitive phrenic nerve stimulation, vesicle recycling, as measured by styryl dye uptake (FM4-64), was significantly greater at type I or IIa fiber terminals in the diaphragm muscle compared to type IIx and IIb terminals (258, 260, 359). Similar findings were obtained in limb muscles that comprise a more homogenous fiber type (26, 288, 342, 411). Thus, it is likely that fiber type differences in synaptic vesicle release and recycling reflect the activation history of these fibers.

As the major pump muscle for breathing, the diaphragm muscle is one of the most active skeletal muscles in the body with a duty cycle of ~0.4. However, it is likely that only type I and IIa fibers are active in sustaining ventilation (265, 266, 379, 383, 387). Presynaptic terminals at type I and IIa fibers in the diaphragm muscle have lower quantal content than terminals at type IIx and/or IIb fibers (100, 359). Compared to type IIx and IIb fibers, presynaptic terminals a type I and IIa fibers have a greater density of synaptic vesicles at each active zone, but the overall size of the RRP is proportional to the number of active zones within a presynaptic terminal (359). Thus, because presynaptic terminals at type IIx and IIb fibers are larger, there are more active zones and accordingly, the overall size of the RRP is greater. The larger initial quantal content at type IIx and IIb diaphragm muscle fibers is consistent with the larger overall RRP at these presynaptic terminals (359). The number of synaptic vesicles released per nerve impulse (quantal content) most likely depends on the number of vesicles available (size of the RRP), and the probability of vesicle release at each active zone (100, 342, 359, 474).

During repetitive activation of the presynaptic terminal, the ability to sustain neuromuscular transmission depends on the probability of synaptic vesicle release and the size of the RRP. The RRP is likely replenished through recruitment from other pools and/or the recycling of released vesicles (100, 258, 260, 359). The number of synaptic vesicles released with each repetitive stimulus (i.e., the quantal content) progressively decreases (100, 359). This decrease in quantal content results from depletion of the RRP (97, 140, 342, 359, 474), as well as a decrease in the probability of release (25, 72, 359). The relative contribution of RRP depletion versus decreased probability of release differs across presynaptic terminals innervating different muscle fiber types (359). At terminals innervating type IIx and/or IIb fibers in the rat diaphragm muscle, the initial rapid decline in quantal content that occurs during repetitive stimulation appears to predominantly result from the depletion of RRP vesicles with little change in the probability of release. At type I or IIa diaphragm fibers, the initial decline in quantal content during repetitive stimulation is more rapid and cannot be entirely explained by a depletion of RRP vesicles. Therefore, a decrease in the probability of vesicle release at type I and IIa presynaptic terminals also appears to contribute to the decease in quantal content during repetitive stimulation. Fiber type differences in the decline quantal content likely reflect differences in activation histories of these fibers and may underlie differences in susceptibility to neuromuscular transmission.

Intrinsic muscle fatigue

Intrinsic muscle fatigue is defined as a decline in muscle force generation that is independent of the fidelity of neuromuscular transmission and/or excitation-contraction coupling. In this case, muscle fatigue is typically assessed by repetitive direct muscle stimulation rather than indirect nerve stimulation, where axonal propagation or neuromuscular transmission failure may occur (388). The timing and extent of muscle fatigue depends on stimulation parameters such as stimulation frequency and/or duty cycle (time muscle is active vs. relaxed) (205, 387). With increasing stimulation frequency, muscle fatigue occurs more rapidly and to a greater extent. Similarly, as duty cycle increases the rate of decline of muscle force is more rapid and the extent of fatigue is more pronounced.

Relationship to motor unit fatigue

Motor units comprise different muscle fibers that vary in their contractile protein composition, which underlies fiber type classification. Typically, motor units are homogeneous comprising a single muscle fiber type (Figure 4). Relevant to the discussion of the intrinsic fatigue properties of muscle fibers is the fact that motor units vary in their susceptibility to fatigue with repetitive stimulation, i.e., they are defined as fatigue resistant (type S and FR) and fatigable (type FInt and FF units). The recruitment of motor units during different motor tasks is closely matched to their fatigability; thus, the intrinsic fatigue properties of muscle fibers comprising these motor units critically determine the efficacy of motor control.

Relationship to muscle fiber metabolic capacity

Intrinsic muscle fatigue depends on the balance between energy utilization (cross-bridge cycling rate and ATP consumption) and production (mitochondrial volume density and capacity for oxidative phosphorylation) within a single fiber. Within single muscle fibers, differences in MyHC isoform expression are associated with differences in cross-bridge cycling rate, ATP consumption, mitochondrial volume density, and the capacity for oxidative phosphorylation (98, 390). For instance, in muscle fibers expressing MyHC_2X and/or MyHC_2B isoforms ATP consumption rate is much higher compared to fibers expressing MyHC_Slow and MyHC_2A isoforms, even when normalized for differences in myosin concentration (174, 394, 399). Accordingly, it is not surprising that muscle fibers expressing MyHC_2X and/or MyHC_2B isoforms comprise fatigable motor units, whereas fibers expressing MyHC_Slow and MyHC_2A isoforms comprise fatigue resistant motor units (98, 390).

Metabolites produced during cross-bridge cycling may also influence force generation and contribute to fatigue. For example, during cross-bridge cycling and associated ATP hydrolysis, there is an accumulation of inorganic phosphate (P_i) and a decrease in pH. In studies using single, permeabilized muscle fibers, it has been shown that both increased P_i and decreased pH reduce force generation (5, 471). In addition, increased P_i and decreased pH reduce Ca²⁺ sensitivity such that submaximal force generation is also reduced (304). This would affect the force-frequency relationship of muscle fibers. Repetitive activation of muscle fibers may also alter the availability of myoplasmic Ca²⁺ by reducing Ca²⁺ release from the sarcoplasmic reticulum (470). Thus, not only is there a reduction in Ca²⁺ sensitivity but also a reduction in available myoplasmic Ca²⁺.

Conditions that disproportionately affect the cross-sectional area of certain muscle fiber types (e.g., chronic obstructive pulmonary disease, corticosteroid treatment, hypothyroidism, sarcopenia) will impact the overall assessment of muscle fatigue under experimental conditions where supramaximal activation is used. For example, selective atrophy of type IIx and/or IIb diaphragm muscle fibers that comprise more fatigable motor units may lead to confusion about the impact of disease conditions on muscle fatigue. With selective atrophy of type IIx and/or IIb diaphragm muscle fibers, there would be a reduced contribution of more fatigable motor units to diaphragm muscle force. At the same time, there would be an apparent improvement in the fatigue resistance of the diaphragm muscle.

Neuromotor Control of Respiratory Muscles

Motor units are recruited based on the size of motoneurons as reflected by axonal conduction velocity (179, 180, 284). Accordingly, motor units that are recruited first (i.e, lower threshold) display slower axonal conduction velocities compared to higher threshold units (i.e., recruited later during motor behaviors). Motor unit recruitment order thus corresponds with the mechanical and fatigue properties of the muscle fibers comprising these units. Type S motor units comprising type I fibers are recruited first, followed in rank order by type FR, FInt and FF units, comprising type IIa, IIx and/or IIb fibers, respectively (64, 285, 424). This orderly recruitment of motor units also exists in the diaphragm muscle (90, 202, 203, 371, 372).

A model of motor unit recruitment in the diaphragm muscle was developed to account for forces generated across a range of ventilatory and non-ventilatory behaviors. This model was based on a progressive recruitment of type S, FR, FInt and FF units, and the forces contributed by each motor unit type (265, 266, 379, 387, 458). During ventilatory behaviors in several species, quiet breathing (eupnea) can be accomplished by the recruitment of only type S and FR motor units (265, 379, 383, 386). Even during more stressful ventilatory behaviors (e.g, following exposure to 10% O₂ and 5% CO₂), the necessary forces generated by the diaphragm can be accomplished primarily by the recruitment of type S and FR units with the possible additional recruitment of only a small number of type FInt units. Only during more forceful non-ventilatory behaviors (e.g., overcoming airway obstruction and during airway protective behaviors such as coughing or sneezing) would it be necessary to recruit the remaining more fatigable (type FInt and FF) motor units. Obviously it is more relevant to explore respiratory muscle activation under these behavioral conditions rather than during non-physiological conditions reflected in most studies using isolated nerve-muscle preparations. The model of motor unit recruitment has been used to evaluate the impact on motor performance of various pathophysiological conditions that may differentially affect muscle fibers comprising specific motor unit types (e.g, COPD or spinal cord injury) (266, 269, 270).

Conclusion

Striated respiratory muscles serve as the pump for lung ventilation and in this respect they are equivalent to the heart in the cardiovascular system. Yet, in comparison to the heart, the respiratory muscles have received relatively little attention and there is much to be learned about their unique function and how they might fail in pulmonary disease. Striated respiratory muscles also serve to maintain the patency of the upper airway, and their dysfunction leads to highly prevalent diseases such as obstructive sleep apnea. Again, we have much to learn about the physiology and pathophysiology of the upper airway muscles.

As in other striated muscles, the sarcomere is the basic structural and functional element of respiratory muscles, and expression of sarcomeric proteins underlies the mechanical properties of muscle fibers. Cross-bridges form by the binding of MyHC to the actin filament, and are the elementary units of force generation and contraction. Passive mechanical properties of muscle fibers also relate to sarcomeric proteins as well as their interaction with the extracellular matrix. Categorization of different fiber types based on expression of different MyHC isoforms provides a conceptual framework to understand the physiological properties of respiratory muscles. The nervous system controls respiratory muscle contraction based on activation of motor units that comprise specific fiber types. These motor units vary in the contractile and fatigue properties and recruitment of specific motor unit types is well matched to accomplishing specific ventilatory and non-ventilatory functions of the respiratory muscles. Pathophysiology that results in respiratory muscle dysfunction will manifest differently depending on the impact on sarcomeric proteins and may vary across muscle fiber (motor unit) types. Recent attention to fiber type specific adaptations to injury and disease offer significant promise to the development of novel therapeutic strategies.
