Ca_v3.2 T-type calcium channel is required for the NFAT-dependent Sox9 expression in tracheal cartilage

Significance

The tracheal cartilage rings are important for protecting and maintaining the airway. However, the chondrogenesis of tracheal cartilage is not completely understood. We demonstrate that the Ca_v3.2 T-type calcium channel is required for normal tracheal cartilage ring formation. Calcium influx via Ca_v3.2 induces chondrogenesis and up-regulates a chondrogenic master gene, sex determination region of Y chromosome (SRY)-related high-mobility group-Box gene 9 (Sox9), via a calcium and calcineurin-dependent pathway. Ca_v3.2-dependent regulation of Sox9 is mediated by a newly identified nuclear factor of activated T-cell binding site on the Sox9 promoter. Our study provides novel insight into the roles of Ca_v3.2 T-type calcium channels in tracheal development. Moreover, CACNA1H, the human homolog of the mouse Ca_v3.2-encoding gene, may be a potential candidate gene involved in congenital tracheal stenosis in humans.

Abstract

Intracellular Ca²⁺ transient is crucial in initiating the differentiation of mesenchymal cells into chondrocytes, but whether voltage-gated Ca²⁺ channels are involved remains uncertain. Here, we show that the T-type voltage-gated Ca²⁺ channel Ca_v3.2 is essential for tracheal chondrogenesis. Mice lacking this channel (Ca_v3.2^−/−) show congenital tracheal stenosis because of incomplete formation of cartilaginous tracheal support. Conversely, Ca_v3.2 overexpression in ATDC5 cells enhances chondrogenesis, which could be blunted by both blocking T-type Ca²⁺ channels and inhibiting calcineurin and suggests that Ca_v3.2 is responsible for Ca²⁺ influx during chondrogenesis. Finally, the expression of sex determination region of Y chromosome (SRY)-related high-mobility group-Box gene 9 (Sox9), one of the earliest markers of committed chondrogenic cells, is reduced in Ca_v3.2^−/− tracheas. Mechanistically, Ca²⁺ influx via Ca_v3.2 activates the calcineurin/nuclear factor of the activated T-cell (NFAT) signaling pathway, and a previously unidentified NFAT binding site is identified within the mouse Sox9 promoter using a luciferase reporter assay and gel shift and ChIP studies. Our findings define a previously unidentified mechanism that Ca²⁺ influx via the Ca_v3.2 T-type Ca²⁺ channel regulates Sox9 expression through the calcineurin/NFAT signaling pathway during tracheal chondrogenesis.

Congenital tracheal malformations (CTMs), such as tracheal stenosis, are rare human conditions caused by defective development of the cartilaginous trachea (1, 2). Made of a series of imperfect rings interconnected by fibrous tissue, the trachea is flexible enough to bend yet rigid enough to remain widely patent during respiration. Each ring, with the exception of the cricoid cartilage (a true ring), is actually an arch that rests on the posterior membranous trachea, which separates the airway and esophagus. As might be expected from their functional importance, defects in the tracheal rings can compromise the airway lumen and lead to tracheal stenosis, a life-threatening condition (2, 3). The pathogenesis of the tracheal stenosis has not been elucidated.

The development of mouse trachea begins as a simple outpouching from ventral foregut endoderm at about embryonic day (E) 9.5 (4). The foregut is then further partitioned into the ventral trachea and the dorsal esophagus at E11.5 along the dorsoventral axis (5). Cartilage rings and smooth muscle of the trachea tube are differentiated from the trachea surrounding the splanchnic mesenchyme at E13.5–E15.5 (6, 7). Cartilage rings are formed by proliferation and then condensation of chondrogenic-committed mesenchymal cells. These condensed mesenchymal cells then differentiate into chondrocytes that express cartilage-specific proteins, such as type II collagen (Col2a1) (8).

The transcription factor sex determination region of Y chromosome (SRY)-related high-mobility group-Box gene 9 (Sox9) is involved in chondrogenesis, as well as sex determination, during embryonic development (9–11). Sox9 plays critical roles in each step of chondrogenesis and is expressed in chondrogenic progenitors and differentiated chondrocytes but not in hypertrophic chondrocytes (12–14). Mutation of the human SOX9 gene causes a severe skeletal malformation syndrome called campomelic dysplasia (15). In mice, loss of one allele of Sox9 gene (Sox9^+/−) is perinatal-lethal because of severe bone malformation and respiratory deficiency. Sox9^+/− mice also show abnormal cartilage formation, including tracheal cartilage (16). Interestingly, transgenic mice with overexpression of Sox9 driven by the Col2a1 promoter showed chondrodysplasia due to inhibited chondrocyte proliferation (17). These studies demonstrate that Sox9 expression is crucial for normal development of cartilage and needs to be precisely regulated.

Voltage-gated Ca²⁺ channels (VGCCs) are key regulators of Ca²⁺ influx in many cell types, including chondrocytes and osteoblasts (18, 19), and Ca²⁺ influx is involved in the differentiation of chondrogenic mesenchymal cells into chondrocytes (20). Ca_v3.2 T-type and Ca_v1.2 L-type Ca²⁺ channels, but not other VGCCs, are regulated by 1,25-dihydroxyvitamin D3 in murine osteoblast cells (21), and these two channels are dynamically regulated in cartilage and bone during endochondral development (18). However, the roles of VGCCs, especially T-type Ca²⁺ channels, in tracheal chondrogenesis remain unclear.

T-type Ca²⁺ channels (Ca_v3 family) are involved in diverse physiological processes, such as hormone secretion, gene expression, cell proliferation and differentiation, and development of neuronal and cardiac diseases (22, 23). Three T-type Ca²⁺ channel subunits have been identified: Ca_v3.1, Ca_v3.2, and Ca_v3.3 (24). Polymorphism or mutations of the human Ca_v3.2 gene are associated with childhood-absent epilepsy, idiopathic generalized epilepsy, and autism-spectrum disorders (25–27). Ca_v3.2^−/− mice exhibit many abnormal phenotypes related to cardiovascular and neuronal functions (28–33). Here, we provide evidence to support the hypothesis that the Ca_v3.2 T-type Ca²⁺ channel is important in tracheal chondrogenesis via a calcineurin/nuclear factor of activated T cell (NFAT)/Sox9-dependent pathway.

Results

Ca_v3.2^−/− Mice Show Abnormal Tracheal Development.

Previously, we showed that mice lacking Ca_v3.2 demonstrated cardiac fibrosis due to abnormal relaxation of the coronary arteries (28). In addition, Ca_v3.2^−/− mice emitted an intermittent, high-pitched chirping sound similar to the inspiratory stridor made by neonates with congenital tracheal stenosis (Movie S1). To explore the etiology of this noise in Ca_v3.2^−/− mice, we conducted a detailed analysis of the airway. Compared with WT tracheas, which had a smooth appearance, tracheas from all Ca_v3.2^−/− mice were narrow and elliptically shaped, with the long axis oriented in the anterior-posterior direction (Fig. S1A). Alcian blue staining showed that WT mice had continuous, distinct cartilaginous rings that resembled arches, whereas the cartilaginous rings of the Ca_v3.2^−/− mice were frequently disrupted anteriorly, resembling an arch missing its keystone, thus collapsing the transverse diameter of the tracheal airway (Fig. 1A). The mean number of disrupted cartilaginous rings in adult Ca_v3.2^−/− mice was 9.95 ± 0.51 (n = 25) vs. none in WT mice (n = 20). We also examined the cartilage ring pattern in the bronchi and found there is no difference between the WT and Ca_v3.2^−/− mice (Fig. S1B). To determine whether the cartilage disruption was congenital, we examined tracheas from embryos and neonatal pups and found abnormal tracheal rings at both E14.5 and postnatal day 1, with no ring abnormalities in age-matched WT embryos and neonates (Fig. 1A). Almost all of the cartilage rings were disrupted in the Ca_v3.2^−/− trachea at E14.5 and postnatal day 1. We also examined cricoid cartilage and cartilages from the xiphistemum, ear, nose, and articular cartilage and found no morphological difference between WT and Ca_v3.2^−/− mice (Fig. S1C). It is unclear why only tracheal ring cartilage but not the other cartilages are affected in the Ca_v3.2^−/− mice. One possibility is that Ca_v3.2 is differentially expressed in different cartilages. To test this possibility, we examined the expression of Ca_v3.2 in different cartilages and found that Ca_v3.2 is predominantly expressed in the tracheal cartilage rings and hardly detectable in the other cartilages (Fig. S2). The unique expression pattern of Ca_v3.2 explains the tracheal-specific defects in Ca_v3.2^−/− mice.

Fig. 1.

Ca_v3.2^−/− mice show abnormal tracheal development. (A) Alcian blue staining of WT and Ca_v3.2^−/− cartilaginous rings in the tracheas of 12-wk-old mice (adult), postnatal day 1 mice (P1), and E14.5 embryos. Arrows indicate incomplete cartilage. (Scale bar: 300 μm.) (B) In situ hybridization of Ca_v3.2 transcript in the developing trachea at E11.5 and E13.5, revealing expression on the ventrolateral side of Ca_v3.2^+/+ but not Ca_v3.2^−/− tracheas. (Insets) Higher magnification of the area in the rectangles are shown. Es, esophagus; Tr, trachea. (Scale bars: 100 μm; Insets, 10 μm.) (C) RT-PCR analysis of Ca_v3.2, Agc1, and Scgb1a1 mRNA levels in tracheal cartilage (C) and epithelium (E) from P1 mice and adult mice.

Ca_v3.2 Is Expressed in Tracheal Mesenchyme and Cartilage but Not Epithelium.

During the early stages of chondrogenesis, the embryonic trachea is surrounded by a continuous layer of mesenchymal cells that condense at E14.5 to form segments (34). Our in situ hybridization results (Fig. 1B) showed Ca_v3.2 expressed in chondrogenic mesenchymal cells on the ventrolateral sides of E11.5 and E13.5 WT but not Ca_v3.2^−/− developing trachea. Importantly, Ca_v3.2 was not expressed in the tracheal epithelium at E11.5 or E13.5 in WT mice (Fig. 1B). These observations were supported by RT-PCR analysis of Ca_v3.2 transcripts in isolated cartilaginous rings and epithelia from neonatal and adult tracheas (Fig. 1C). In addition, RT-PCR revealed clear, tissue-specific expression of aggrecan (Agc1, a marker of chondrogenic cells) and secretoglobin 1a1 [Scgb1a1, an epithelium marker (35)] in tracheal cartilage and the epithelium, respectively, which indicates no cross-contamination of tissues (Fig. 1C). The temporal and spatial expression patterns of Ca_v3.2 transcripts suggest that the CTM in Ca_v3.2^−/− mice resulted from abnormal chondrogenesis.

Ca_v3.2 Up-Regulates Chondrogenic Markers and Enhances Chondrogenesis in ATDC5 Cells.

Because Ca_v3.2 transcripts were expressed in chondrogenic mesenchymal cells of E13.5 WT mice (Fig. 1B), Ca_v3.2 may be involved in regulating chondrogenic differentiation. Therefore, we expressed Ca_v3.2 in the murine chondrogenic cell line ATDC5, which is often used to assess chondrogenesis in vitro (36). ATDC5 cells expressed Ca_v1.2 but not Ca_v3 channels (Fig. S3A). After expression of Ca_v3.2 in ATDC5 cells, typical low-voltage activated calcium currents can be recorded (Fig. S3 B and C), indicating that functional Ca_v3.2 T-type Ca²⁺ channels were expressed in transfected ATDC5 cells. Alcian blue staining revealed greater chondrogenic differentiation in Ca_v3.2-transfected ATDC5 cells than negative control cells (Fig. 2A). To support further our hypothesis that Ca_v3.2 plays a role in chondrogenic differentiation, we blocked Ca²⁺ influx into ATDC5 cells via T-type Ca²⁺ channels by using NNC 55-0396 (37). This treatment blocked enhancement of chondrogenic differentiation in Ca_v3.2-transfected ATDC5 cells but not control cells (Fig. 2A). Ca_v3.2 overexpression significantly increased the mRNA levels of chondrogenic marker genes Sox9, Agc1, and Col2a1 in ATDC5 cells, which could be inhibited by the addition of NNC 55-0396 (Fig. 2B). The reduced percentages of Sox9, Agc1, and Col2a1 by NNC 55-0396 in Ca_v3.2-transfected ATDC5 cells are similar (68 ± 3.6%, 63 ± 3.2%, and 65 ± 2.6%, respectively). To test whether the above-described effects in an established cell line are conserved in embryonic cells, we established high-density micromass cell cultures of embryonic limb bud mesenchymal cells from WT and Ca_v3.2^−/− embryos. Ca_v3.2^−/− mesenchymal cells were able to undergo chondrogenic differentiation, but to a much less extent compared with WT mesenchymal cells (Fig. 2C). Notably, treatment with NNC 55-0396 reduced chondrogenic differentiation in WT cells but did not affect the process further in Ca_v3.2^−/− cells. To confirm our observation of the positive association of Ca_v3.2 levels and chondrogenic differentiation, we used another T-type Ca²⁺ channel blocker, mibefradil, and obtained results similar to those for NNC 55-0396 in both WT and Ca_v3.2^−/− cells (Fig. S4A). Reexpression of Ca_v3.2 in primary chondrocytes isolated from Ca_v3.2^−/− pups also significantly increased the mRNA levels of Sox9, Agc1, and Col2a1 (Fig. S4B). Thus, in both ATDC5 and embryonic mesenchymal cells, Ca²⁺ influx via Ca_v3.2 up-regulates the expression of chondrogenic markers and promotes chondrogenic differentiation.

Fig. 2.

Ca_v3.2 enhances chondrogenesis in ATDC5 cells. (A) Alcian blue staining and quantification of cartilage nodules formed in ATDC5 cells transfected with control or Ca_v3.2 plasmids and then treated with NNC 55-0396 (5 μM) or vehicle for 12 d (n = 6 for each group). (Scale bar: 2 mm.) *P < 0.05, compared with control. (B) Real-time PCR analysis of Sox9, Agc1, and Col2a1 mRNA expression in ATDC5 cells transfected with control or Ca_v3.2 plasmids and then treated with NNC 55-0396 or vehicle for 9 d (n = 8 for each group). *P < 0.05, compared with Ca_v3.2. (C) Micromass cultures of mesenchymal cells from E11.5 WT and Ca_v3.2^−/− mouse limbs treated with vehicle or NNC 55-0396 for 9 d. (Scale bar: 2 mm.)

Ca_v3.2 Enhances Chondrogenesis in a Calcineurin/NFAT-Dependent Manner.

We previously showed that Ca²⁺ influx via Ca_v3.2 activates the calcineurin/NFAT signaling pathway, which then induces pathological cardiac hypertrophy (29). Moreover, signaling by the calcineurin/NFAT pathway can induce chondrogenesis in vitro (38). In addition, we have recently shown that Ca_v3.2 regulates the calcineurin/NFAT pathway through both Ca²⁺ influx and calcineurin binding (39). Thus, we hypothesized that Ca²⁺ influx via Ca_v3.2 activates the calcineurin/NFAT signaling pathway to induce tracheal chondrogenesis. To test this hypothesis, we investigated the effects of the calcineurin inhibitor cyclosporin A (CsA) on the chondrogenic differentiation of ATDC5 cells with and without Ca_v3.2 overexpression. CsA attenuated the expected enhancement of Ca_v3.2-induced chondrogenic differentiation but had little effect on control cells (Fig. 3A). Quantification of Alcian blue staining showed a 46% reduction in the CsA-treated, Ca_v3.2-overexpressing cells compared with control cells (Fig. 3A; P < 0.05). In addition, the expression of chondrogenic marker genes was significantly reduced in CsA-treated, Ca_v3.2-overexpressing ATDC5 cells but not their control counterparts (Fig. 3B). The reduced percentages of Sox9, Agc1, and Col2a1 by CsA in Ca_v3.2-transfected ATDC5 cells are similar (62 ± 2.8%, 58 ± 3.3%, and 55 ± 3.5%, respectively), indicating the regulation of Sox9, Agc1, and Col2a1 is likely dependent on the same calcineurin/NFAT signaling pathway.

Fig. 3.

Ca_v3.2 enhances chondrogenesis in a calcineurin/NFAT-dependent manner. (A) Alcian blue staining and quantification of cartilage nodules formed in ATDC5 cells transfected with control or Ca_v3.2 plasmids with and without CsA (2.5 μM for 12 d, n = 5 for each group). (Scale bar: 2 mm.) *P < 0.05, compared with vehicle. (B) Real-time PCR analysis of mRNA levels of Sox9, Agc1, and Col2a1 in transfected ATDC5 cells treated with CsA (2.5 μM) or vehicle for 9 d (n = 8 for each group). *P < 0.05, compared with Ca_v3.2. (C) NFAT-Luc reporter analysis of tracheal tubes from Ca_v3.2^−/−/NFAT-Luc and Ca_v3.2^+/−/NFAT-Luc embryos at E15.5. Data are the relative luciferase activity (RLU) per microgram of protein of the indicated tissue lysate (n = 3 for each group). *P < 0.05, compared with Ca_v3.2^+/−. (D) Immunohistochemical staining of Luc expression in longitudinal sections of tracheal tubes of Ca_v3.2^−/−/NFAT-Luc and Ca_v3.2^+/−/NFAT-Luc embryos at E14.5. (Scale bar: 100 μm.)

We also crossed Ca_v3.2^−/− mice with NFAT-luciferase (Luc) reporter transgenic mice (40) to generate Ca_v3.2^+/−/NFAT-Luc and Ca_v3.2^−/−/NFAT-Luc mice. Luc activity was lower (by 5.6-fold; P < 0.005) in tracheas from Ca_v3.2^−/−/NFAT-Luc mice than Ca_v3.2^+/−/NFAT-Luc mice at E15.5 (Fig. 3C). As expected, the expression of Luc was lower in tracheal rings of Ca_v3.2^−/−/NFAT-Luc mice than Ca_v3.2^+/−/NFAT-Luc mice at E14.5 (Fig. 3D). Thus, the ATDC5 chondrogenesis assay and the transgenic model provide evidence to support our hypothesis that Ca²⁺ influx via Ca_v3.2 activates the calcineurin/NFAT signaling pathway to induce tracheal chondrogenesis.

Ca_v3.2^−/− Mice Exhibit Reduced Sox9, Agc1, and Col2a1 Expression.

Sox9, one of the earliest markers of committed chondrogenic cells, is essential for early differentiation of chondrogenic cells (14). Therefore, we examined the effect of the Ca_v3.2 null mutation on chondrogenic differentiation by assessing Sox9 expression. Sox9 protein was expressed on the ventrolateral sides of the tracheal tube at E11.5 and E13.5 in both WT and Ca_v3.2^−/− mice (Fig. 4A). However, the Sox9 signal was significantly weaker in Ca_v3.2^−/− trachea than WT trachea at both E11.5 and E13.5 (Fig. 4A), even though the total number of mesenchymal cells at E11.5 was similar in WT and Ca_v3.2^−/− embryos (568 ± 33 and 566 ± 34, respectively). The reduced expression of Sox9 was observed throughout the embryonic Ca_v3.2^−/− tracheal tube (Fig. S5). Furthermore, in vivo BrdU labeling of E13.5 embryos revealed no difference in the number of proliferating Sox9⁺ mesenchymal cells (Fig. S6B). There is also no significant difference in the proliferating cell nuclear antigen-positive cells (Fig. S6A). A TUNEL assay also showed no difference in the apoptosis of embryonic WT and Ca_v3.2^−/− tracheas at E13.5 (Fig. S6C). Thus, Ca_v3.2 may be an important modulator for Sox9 expression but not for mesenchyme cell proliferation or apoptosis during chondrogenesis in the trachea.

Fig. 4.

Ca_v3.2^−/− mouse embryos show reduced Sox9, Agc1, and Col2a1 expression. (A) Immunohistochemical staining and quantification of Sox9 expression on the ventrolateral side of the developing trachea from E11.5 (n = 5) and E13.5 (n = 6) WT and Ca_v3.2^−/− mice. *P < 0.05, compared with WT. (B) Immunohistochemical staining of Sox9 and Prx1 expression in the longitudinal middle sections of developing tracheas. Vertical lines indicate the location of segments. (C) Immunohistochemical staining and quantification of Agc1 (n = 5) and Col2a1 (n = 6) expression in E16.5 WT and Ca_v3.2^−/− tracheas. *P < 0.05, compared with the WT. (Scale bar: 100 μm.)

A certain level of Sox9 expression is essential for the condensation of chondroprogenitor cells into segments along developing trachea at E14.5 (14, 34). Sox9-positive cells formed a clear banding pattern on the ventral side of developing trachea in WT but not Ca_v3.2^−/− mice (Fig. 4B). The reduced Sox9-positive banding in Ca_v3.2^−/− mice may be due to a specific loss of Sox9 expression, impaired mesenchymal condensation during tracheal cartilage development, or both. Thus, we examined the expression pattern of another mesenchymal cell marker, paired-related homeobox gene-1 (Prx1) in embryonic tracheas (41, 42). Prx1 is a homeobox-containing gene that is expressed in the mesenchymal cells differentiating into facial, limb, and vertebrate skeleton during embryogenesis (41). In limb bud mesenchymal cells, the expression of Prx1 preceded that of Sox9 (42). Our results showed that Prx1-positive cells also formed a clear banding pattern on the ventral side of developing trachea in WT mice and a disrupted banding pattern in Ca_v3.2^−/− mice (Fig. 4B). Interestingly, the staining intensity of Prx1 in each prechondrogenic condensate was similar in both WT and Ca_v3.2^−/− tracheas (Fig. 4B and Fig. S7). These results show that lack of Ca_v3.2 indeed affects the condensation of chondroprogenitor cells but not the expression of Prx1.

Sox9 regulates many chondrogenic marker genes, such as Agc1 and Col2a1 (43, 44), and, indeed, the expression of both of these proteins was decreased in E16.5 Ca_v3.2^−/− trachea (Fig. 4C) (45). Reduced Sox9 expression in Ca_v3.2^−/− trachea may lead to abnormal tracheal segmentation and reduced expression of markers of chondrogenesis.

Ca_v3.2 Up-Regulates Sox9 Expression in a Calcineurin/NFAT-Dependent Manner.

Given the similar expression patterns for Ca_v3.2 and Sox9 during early tracheal development, the reduced Sox9 expression in Ca_v3.2^−/− tracheas, and the involvement of the calcineurin/NFAT signaling pathway in Ca_v3.2-dependent chondrogenesis, we hypothesized that Ca²⁺ influx via Ca_v3.2 may regulate the expression of Sox9 during tracheal chondrogenesis, perhaps through NFAT signaling. An earlier study of human SOX9 showed an essential promoter region located ∼750 bp upstream of the transcription start site (46). We thus generated a construct that contains the equivalent mouse Sox9 sequence, from −735 to +53 bp, fused to a Luc reporter (−735-Luc) and generated serial 5′-deletions using this construct. It has been shown that increasing the extracellular Ca²⁺ concentration to 10 mM can induce Ca²⁺ influx via the Ca_v3.2 window currents at the resting membrane potential in nonexcitable cells (29, 39, 47). Our positive control experiment demonstrated that the NFAT-response element (RE)-Luc reporter could be activated in a Ca_v3.2-dependent manner by increasing extracellular Ca²⁺ concentration in ATDC5 cells (Fig. 5A). Using this approach, we identified the Ca_v3.2-dependent fragment (from −499 to −312 bp) from which expression could be induced in calcium-treated Ca_v3.2-transfected ATDC5 cells (Fig. 5A). The Ca_v3.2-dependent induction of −499-Luc reporter activity could be inhibited by treatment with NNC 55-0396, FK506, and CsA (Fig. 5B). To confirm that Sox9 expression is regulated by NFAT, we expressed EGFP-NFATc4 in ATDC5 cells and found induced Sox9 expression (Fig. S8). Coexpression of EGFP-NFATc4 also increased the reporter activity of −499-Luc (Fig. 5C).

Fig. 5.

Ca_v3.2 up-regulates Sox9 expression in a calcineurin/NFAT-dependent manner. (A) Deletion analysis of the Sox9 promoter in ATDC5 cells transfected with control or Ca_v3.2 plasmids and then treated with 10 mM CaCl₂. The Ca_v3.2-dependent promoter site was located between −499 and −312 bp. The NFAT-RE-Luc reporter was a positive control (n = 4 for each group). *P < 0.05, compared with the other treatments and using the same reporter. (B) Effect of FK506 (2.5 μM), CsA (2.5 μM), and NNC 55-0396 (5 μM) treatment on ATDC5 cells transfected with the −499-Luc reporter plasmid (n = 5 for each group). *P < 0.05, compared with Ca_v3.2. (C) Luc reporter analysis of pGL3, −499-Luc (wt), mutated −499-Luc (mut1, mut2), and NFAT-RE-Luc reporters in ADTC5 cells transfected with EGFP or EGFP-NFAT plasmid (n = 4 for each group). *P < 0.05, compared with the EGFP group. (D) Luc reporter analysis in ADTC5 cells transfected with control or Ca_v3.2 plasmids and with 10 mM CaCl₂ (n = 5 for each group). *P < 0.05, compared with the control group.

Therefore, the Sox9 promoter region between −499 and −312 bp may be important for NFAT binding and Ca_v3.2 regulation. Using PROMO software (48), we identified a putative NFAT binding site (TTTCC, −489 to −485 bp) upstream of the Sox9 transcription start site and showed that mutations within this site (mut1 and mut2) abolished the NFAT dependence, as well as the Ca_v3.2 dependence, on the induction of −499-Luc reporter activity (Fig. 5 C and D). To confirm the interaction between NFAT and the putative NFAT binding site on the Sox9 promoter, we used an EMSA with a digoxigenin (DIG)-labeled oligonucleotide (−502 to −474 bp) as a probe. Lysates from EGFP-NFATc4 but not EGFP-transfected cells showed several shifted bands (Fig. 6A). The shifted bands disappeared in the presence of excess unlabeled WT probe, but the upper band, which represents the NFAT–Sox9 DNA complex, remained, with the addition of an excess of unlabeled mutant probes unable to bind NFAT (mut1 or mut2). Therefore, the putative NFAT binding site is essential for the interaction between NFAT and the Sox9 promoter. An anti-GFP antibody could supershift the NFAT–Sox9 promoter complex (Fig. 6A). Thus, NFAT could bind to the TTTCC sequence of the mouse Sox9 promoter.

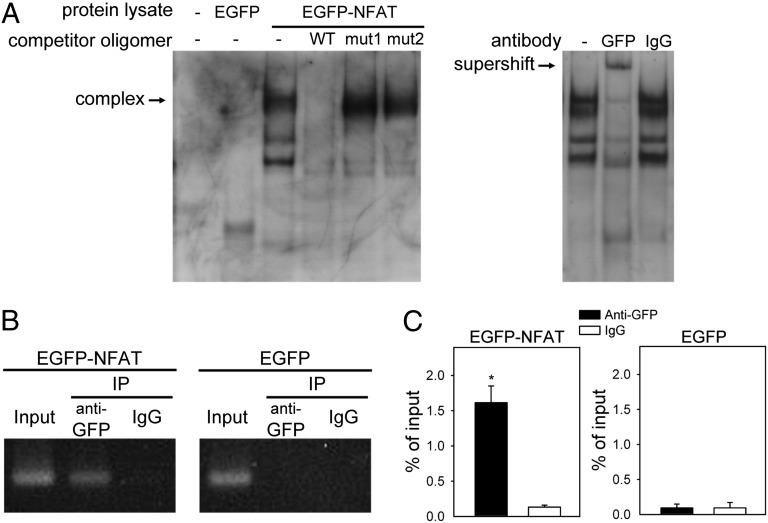

Fig. 6.

NFAT binds to the promoter region of Sox9 in ATDC5 cells. (A, Left) EMSA with mouse Sox9 promoter region −502 to −474 bp used as a probe in the detection of NFAT–Sox9 DNA complex in lysates from EGFP-NFAT4–transfected but not EGFP-transfected cells. (A, Right) Supershift of NFAT–Sox9 DNA complex induced by anti-GFP but not IgG antibody. (B) ChIP assay of anti-EGFP antibody or control rabbit IgG in ATDC5 cells transfected with EGFP-NFAT or EGFP plasmid. DNA immunoprecipitated by anti-EGFP antibody was amplified by PCR to detect the Sox9 fragment containing the NFAT binding site. A 10-fold dilution was used in the input lanes. (C) Quantification of real-time PCR from ChIP assay (n = 4). *P < 0.05, compared with the IgG group.

To demonstrate that NFAT binds to the Sox9 promoter in vivo, we used a ChIP assay to examine enrichment of 227 bp containing the NFAT binding sequences in Sox9 promoter pulled down with EGFP-NFATc4 in ATDC5 cells. Compared with the EGFP control, the precipitated product with EGFP-NFATc4 showed a significantly enriched 227 bp of Sox9 promoter detected by PCR or real-time PCR (Fig. 6 B and C). Combined with the fact that overexpressing NFAT increased Sox9 expression (Fig. S8), as well as with the results of EMSA experiments (Fig. 6A) and Luc reporter assays (Fig. 5), these results suggest that NFAT regulates Sox9 expression by binding to the TTTCC sequence of the mouse Sox9 promoter.

Discussion

Although many molecules are involved in chondrogenesis (49), little is known about the role of VGCCs in this process. T-type Ca²⁺ channels are highly expressed in many developing tissues and are implicated in regulating cellular events leading to cell proliferation and differentiation (50). Calcium influx through T-type Ca²⁺ channels activates several cellular pathways, including calcineurin/NFAT (29, 39), extracellular signal-regulated kinase (31, 51–53), nitric oxide synthase 3 (54), and Ca²⁺/calmodulin-dependent protein kinase II (55). However, the detailed mechanisms linking these T-type Ca²⁺ channel-activated signaling pathways to cell proliferation and differentiation are not completely clear. Interestingly, Ca_v3.1 is mostly linked to cell proliferation, whereas Ca_v3.2 is implicated in cell differentiation. Ca_v3.1 is involved in cell proliferation of smooth muscle cells (56–58), tumor cells (59, 60), and preadipocytes (61), but Ca_v3.2 is implicated in the differentiation of human skeletal muscle (62), neuritogenesis of neuroblastoma cells (63, 64), and neuroendocrine differentiation of prostate cancer cells (65). In line with these studies, our data demonstrated that Ca_v3.2 is involved in tracheal chondrogenic differentiation but not proliferation or apoptosis of tracheal mesenchymal cells (Fig. S6). Ca_v3.2^−/− mice did not show abnormal morphogenesis in cartilage other than trachea (Fig. S1C). The trachea-specific cartilage defects in Ca_v3.2^−/− mice are probably caused by the differential expression of Ca_v3.2 in different cartilages, as shown in Fig. S4. We could not detect the expression of the other two T-type Ca²⁺ channels, Ca_v3.1 and Ca_v3.3, in different cartilages isolated from WT and Ca_v3.2^−/− mice, which rules out the possible compensatory effect by other Ca_v3 T-type Ca²⁺ channels.

The ATDC5 cell line is often used as a cellular model to assess chondrogenesis in vitro (36). Ca_v3.2 T-type Ca²⁺ channels can be detected by a specific Ca_v3.2 antibody in ATDC5 cells (18). However, we could not detect the presence of Ca_v3.2 in ATDC5 cells using either RT-PCR (Fig. S3A) or the whole-cell patch-clamp technique (Fig. S3B). Under our recording condition, both T-type and L-type Ca²⁺ channels can be activated and recorded if present. Even though the transcript of Ca_v1.2 can be detected in ATDC5 cells (Fig. S3A), we cannot detect the calcium influx via L-type Ca²⁺ channels (Fig. S3B). These results suggest that in our culture condition, ATDC5 cells did not express detectable T-type or L-type Ca²⁺ channels using an electrophysiological technique.

VGCCs are encoded by 10 different genes (Ca_v1.1–Ca_v1.4, Ca_v2.1–Ca_v2.3, and Ca_v3.1–Ca_v3.3) (66); however, to our knowledge, only Ca_v3.2^−/− mice display abnormal tracheal malformation. In addition to VGCCs, other calcium-permeable channels, such as NMDA receptor (67, 68), Orai 1 (69), acid-sensing ion channel (70), and transient receptor potential (TRP) (71) channels, are identified in chondrocytes. The role of these channels in chondrocytes is not completely understood. TRPV4-mediated Ca²⁺ influx is involved in transmitting the mechanotransduction signals to increased ECM production (72). The TRPV4 channel is important for osmotically activated Ca²⁺ signaling in articular chondrocytes, and lack of TRPV4 in mice leads to progressive increases in bone density and joint degradation (73). However, it has not been reported that these channels are involved in tracheal chondrogenesis. These results support the idea that Ca_v3.2 plays a specific role in regulating the development of tracheal cartilage rings.

One may argue that the abnormal tracheal phenotype in the Ca_v3.2^−/− mice is because of a closure failure of the tracheal rings rather than a problem with cartilage formation. If the tracheal rings are formed by migration of chondrocytes from the bilateral sides to the ventrocentral part of the trachea, we would expect to observe a temporary gap in the cartilage ring during development in WT trachea. However, we never observed a broken Alcian blue staining pattern in the WT trachea. The earliest time point when Alcian blue staining could be observed was E14.5, with a clear cartilage banding pattern (Fig. 1A). In addition, immunostaining of Sox9 and Prx1 showed a clear banding pattern on the ventrocentral part of the WT trachea at E14.5 (Fig. 4). Immunostaining of Sox9 on the cross-section of the WT trachea at E13.5 also showed continuous staining on the ventrocentral part of the tracheal tube (Fig. 4 and Fig. S5). These data suggest that during normal tracheal cartilage development, the cartilaginous rings are formed by mesenchymal cells differentiated from the condensed mesenchymal cells surrounding the tracheal tube but not by chondrocytes migrating from the ventrolateral side of the tracheal tube. Thus, the abnormal tracheal phenotype in the Ca_v3.2^−/− mice most likely resulted from defective cartilage formation rather than closure of the tracheal rings resulting from migration or patterning defects.

The transcription factor Sox9 plays important roles in sex determination and chondrogenesis during development (9–11). During chondrogenesis, Sox9 is required for mesenchymal cell condensation and the expression of cartilage-specific ECM genes, including Col2a1, Col11a2, and Agc1 (11, 14, 43, 44, 74). Even though Sox9 is crucial in chondrogenesis, its regulation remains unclear, and only a few transcriptional factors were found to regulate Sox9 expression directly. For example, Sp1, the cyclic-AMP response element binding protein, NF-κB, and CCAAT binding factor can bind to the promoter region of Sox9 and promote its expression in chondrocytes (75–77). We identified an NFAT binding motif (TTTCC) in the mouse Sox9 promoter that was required for Ca_v3.2-dependent Sox9 regulation on Luc reporter assay. In addition, NFAT directly bound to the identified sequence on gel shift, supershift, and ChIP assays. In agreement with our results, the calcineurin/NFAT signaling pathway induced chondrogenesis in vitro (38) and constitutively active NFAT induced the expression of Sox9 in C17 chondroprogenitor cells (78). SOX9 haploinsufficiency results in a lethal skeletal malformation syndrome called campomelic dysplasia in humans (15). Disruption of Sox9 also leads to perinatal lethality in heterozygous mice (11, 14). These results show that a 50% reduction of Sox9 already leads to a lethal phenotype in humans and mice. In mice lacking sonic hedgehog, the level of Sox9 is almost absent at the time of chondrogenesis, resulting in the failure of tracheal cartilage formation (34). The reduced percentage of Sox9 in Ca_v3.2^−/− trachea (Fig. 4) is around 30%; in Ca_v3.2^−/− mice, this reduction is enough to lead to malformation of the tracheal cartilage ring but not severe enough to cause a lethal phenotype.

In humans, CTMs can be observed in several disorders (79) [e.g., Pfeiffer syndrome (80), Goldenhar’s syndrome (81), atelosteogenesis type 1 (82)]. The molecular mechanism leading to CTMs is not understood and is believed to be multifactorial. CTMs have been described in mice lacking genes involved in embryonic development [e.g., sonic hedgehog (6), Wnt (83, 84), bone morphogenetic protein (85, 86), FGFs (87, 88)]. Recently, mice with cartilage-specific deletion of Dicer 1 showed abnormal tracheal development because of a lack of ECM deposition (89). Most of these mutant mice die embryonically or shortly after birth because of the severe and complicated embryonic defects. We are the first, to our knowledge, to show that VGCCs are involved in the development of tracheal cartilage. Mice lacking chloride channels, cystic fibrosis transmembrane conductance regulator (CFTR) (90), or transmembrane protein 16A (TMEM16A) (7) also show abnormal tracheal cartilaginous rings; however, the tracheal cartilage defects in CFTR^−/− and TMEM16A^−/− mice may be secondary to defects in the tracheal epithelium (7, 90). Hence, our study provides novel insight into the roles of Ca_v3.2 T-type Ca²⁺ channels in tracheal development. Moreover, CACNA1H, the human homolog of the mouse Ca_v3.2-encoding gene, may be a potential candidate gene involved in congenital tracheal stenosis in humans.

Materials and Methods

Animals.

All research conformed to National Institutes of Health guidelines and those of the Institutional Animal Care and Utilization Committee, Academia Sinica. Ca_v3.2^−/− and NFAT-Luc mice were generated as described (28, 40). For analyses of embryonic trachea, 129SVJ Ca_v3.2^−/− mice were bred into an imprinting control region (ICR) background for two generations. Ca_v3.2^+/− (129/ICR) mice were used to generate the littermate Ca_v3.2^+/+ and Ca_v3.2^−/− embryos used in this study. Ca_v3.2^+/−/NFAT-Luc mice were bred to Ca_v3.2^−/− mice to generate Ca_v3.2^+/−/NFAT-Luc and Ca_v3.2^−/−/NFAT-Luc mice.

In Vitro Chondrogenesis.

ATDC5 cells were grown and maintained in a 1:1 mixture of DMEM/F-12 medium with 5% (vol/vol) FBS. Chondrogenic differentiation was induced by plating ATDC5 cells at 5.0 × 10⁴ cells in 12-well plates with insulin, transferrin, and sodium selenite supplement for 12 d as described (36). ATDC5 cells transfected with Ca_v3.2 or control plasmid (pcDNA3) using a Neon Transfection System (Invitrogen) were selected with 600 μg/mL G418, and the medium was changed every other day for 2 wk. During induction of chondrogenesis, the G418 concentration was reduced to 60 μg/mL. For micromass chondrogenesis, the limb mesenchymal cells in 2:3 DMEM/Ham F-12 medium containing 10% (vol/vol) FBS were cultured at a density of 1 × 10⁷ cells/mL as described (38). ATDC5 and micromass cultures were changed every other day until harvesting and were supplemented with DMSO (vehicle), CaCl₂ (10 mM), FK506 (2.5 μM, a calcineurin inhibitor), CsA (2.5 μM), NNC 55-0396 (5 μM), or mibefradil (10 μM). Alcian blue (Sigma) staining, RNA isolation, quantitative RT-PCR, and the Luc reporter assay are described in SI Materials and Methods.

In Situ Hybridization.

In situ hybridization of paraffin sections was done as previously described (91), using a DIG-labeled RNA system (Roche). A Ca_v3.2-specific probe was generated by RT-PCR and subcloned into pBluescript II Kpn 1/Sac I plasmid. Anti–DIG-alkaline phosphatase antibody was used to detect the RNA probe, and color was developed by use of nitro blue tetrazolium/5-bromo-4-chloro-3-indolyl-phosphate.

Immunohistochemistry.

Paraffin sections (5 μm) were deparaffinized by boiling in 0.01 M sodium citrate, blocked in 3% (vol/vol) goat serum, and incubated with primary antibody overnight at 4 °C. Sections were then rinsed with PBS and incubated with biotinylated secondary antibody (1:200 dilution; Vector Labs) for 60 min. The antigen/antibody complexes were detected by sequential use of kits for detection of avidin/biotin complex (Vector Labs) and diaminobenzidine (Vector Labs). The following primary antibodies were used: anti-Sox9 and rabbit polyclonal anti-Luc (Santa Cruz Biotechnology), anti-Agc1 (Millipore), anti-Col2a1 (Abcam), and anti-Luc (Santa Cruz Biotechnology). The immunostaining intensities of Sox9, Agc1, and Col2a1 were analyzed using a HistoQuest system (TissueGnostics). Sox9-positive cells around the tracheal tube at E11.5 were counted as mesenchymal cells.

EMSA.

Synthetic oligonucleotides containing the NFAT binding site of Sox9 and the complementary oligonucleotide were 3′ end-labeled with the use of DIG-11-ddUTP (Roche) and terminal transferase (New England Biolabs) following the manufacturers’ instructions and then annealed. The probes were incubated for 20 min at room temperature with 10 μg of HEK cell lysates containing the EGFP or EGFP-NFATc4 protein; 1 μg of poly(deoxyinosinic-deoxycytidylic) acid; and 0.1 μg of poly l-lysine in buffer containing 20 mM Hepes-KOH (pH 7.6), 1 mM EDTA, 10 mM (NH4)₂SO₄, 1 mM DTT, 0.2% Tween 20, and 30 mM KCl. For the competition assay, unlabeled WT or mutant-annealed oligonucleotide was added at 125-fold excess for 10 min at room temperature before the probe was added. For analysis of supershift induction, 8 ng of GFP antibody (monoclonal anti-GFP; Sloan–Kettering Cancer Center) was added for 20 min at room temperature before the probe was added. The reaction products were analyzed on 6% nondenaturing polyacrylamide gel.

ChIP Assay.

A total of 6 × 10⁶ ATDC5 cells were used for each immunoprecipitation as described earlier (92). Rabbit anti-GFP antibody (ChIP grade; Abcam) or control rabbit IgG (Sigma) was used for immunoprecipitation. DNA was purified and amplified by real-time quantitative PCR (qPCR). Data were expressed as the percentage of input DNA associated with immunoprecipitated GFP relative to the input chromatin. Oligonucleotides sequences used for RT-PCR, in situ hybridization, EMSA, ChIP and qPCR assays are listed in Table S1.

Statistical Analysis.

Data are presented as mean ± SEM. Statistical analysis involved the Student t test or one-way ANOVA for more than two sample groups and Tukey’s post hoc analysis. P < 0.05 was considered statistically significant.
