Human sensory neurons: Membrane properties and sensitization by inflammatory mediators

Abstract

Biological differences in sensory processing between human and model organisms may present significant obstacles to translational approaches in treating chronic pain. To better understand the physiology of human sensory neurons, we performed whole-cell patch-clamp recordings from 141 human dorsal root ganglion (hDRG) neurons from five young adult donors without chronic pain. Nearly all small diameter hDRG neurons (<50 μm) displayed an inflection on the descending slope of the action potential, a defining feature of rodent nociceptive neurons. A high proportion of hDRG neurons were responsive to the algogens allyl isothiocyanate (AITC) and ATP, as well as the pruritogens histamine and chloroquine. We show that a subset of hDRG neurons responded to the inflammatory compounds bradykinin and prostaglandin E2 with action potential discharge and show evidence of sensitization including lower rheobase. Compared to electrically-evoked action potentials, chemically-induced action potentials were triggered from less depolarized thresholds and showed distinct after-hyperpolarization kinetics. These data indicate that most small/medium hDRG neurons can be classified as nociceptors, that they respond directly to compounds that produce pain and itch, and can be activated and sensitized by inflammatory mediators. The use of hDRG neurons as preclinical vehicles for target validation is discussed.

Introduction

Cultures of rodent dorsal root ganglion (rDRG) neurons are useful for studying the molecular and cellular mechanisms underlying sensory transduction of painful stimuli, but notable translational failures have raised questions about the wisdom of developing drugs for pain relief in rodents for eventual use in humans [35; 54]. Biological differences between rodent and human physiology may present significant obstacles to translation, but are rarely considered [33; 39; 43; 52]. One strategy to minimize this risk is to confirm observations made in rodents directly in viable human sensory neurons. However, obtaining healthy hDRG from adult donors has been a limiting factor. Instead, sensory neurons retrieved primarily from ganglionectomized chronic pain patients or fetuses have been studied [1; 6; 7; 32; 38; 42; 50]. Consequently, little is known about membrane properties and chemo-sensitivity of adult hDRG neurons from individuals without chronic pain.

Increasing evidence suggests that the repertoire of channels, receptors, and signaling molecules expressed in hDRG differ critically from those of model organisms, and even homologous proteins can exhibit altered ligand binding affinities, functional properties, and accessory protein interactions. For example, voltage-gated sodium channels produce a unique TTX-resistant current in hDRG neurons not previously identified in rodents [19]. Additionally, GABA_A receptor-evoked currents in rodent DRG are effectively blocked by picrotoxin and bicuculline, but neither antagonist blocked GABAR currents from hDRG neurons, suggesting fundamental functional differences in human sensory neurons [51]. Genetic differences of homologous receptors between human and model organisms have also been identified. For instance, mouse DRG express a large family of more than 30 genes encoding mas-related G-protein-coupled receptors (Mrgprs), several of which are involved in nociception and pruriception, compared with only four types of Mrgprs in human [21; 31; 57]. These observations of critical variations in protein expression and function between rodent and hDRG neurons may render physiological mechanisms identified in rodent as invalid targets for therapeutic studies aimed at humans. To enhance target validation and translational potential of novel analgesics, these variations must be identified and functionally characterized. Currently, scant evidence exists on the sensitivity of hDRG neurons to directly applied chemical stimuli used in studies of rodent nociceptors.

Sensitization of primary afferent neurons is thought to be a major contributor to ongoing pain, and compounds that block or reverse sensitization are attractive targets for analgesic drug development [5; 56]. Rodent studies support the concept that blocking the signal initiated by mediators of sensitization reduces neural hyperexcitability and nocifensive behaviors [9]. However, little is known about whether inflammatory mediators directly sensitize or activate human sensory neurons.

Here, we establish the electrophysiological profile of hDRG neurons from five donors without chronic pain. A high proportion of tested neurons responded to the chemical algogens AITC, ATP, and the itch producing compounds histamine and chloroquine. We also show that human sensory neurons can be sensitized by the inflammatory mediators bradykinin and PGE₂. Our results take an important step toward closing the translational gap between studies in model organisms and effective therapeutic development in humans.

Methods

Donors

Human DRGs were isolated from U.S. organ donors (mean age 18.2 years old) with full legal consent for use of tissue for research (Table 1).

Table 1.

	Age	Sex	BMI	Ethnicity	Cause of death	Neurons recorded
Donor 1	21	Male	22.9	Caucasian	Anoxia	38
Donor 2	13	Male	20.0	Caucasian	Head trauma	36
Donor 3	19	Male	26.9	Asian	Head trauma	38
Donor 4	19	Female	26.1	Caucasian	Stroke	21
Donor 5	19	Male	25.3	Hispanic	Stroke	8

DRG preparation

DRG from the second thoracic vertebra (T2) through the twelfth thoracic vertebra (T12) were used in the present study. The DRGs were dissected to remove all connective tissue and fat. Subsequently, the ganglia were enzymatically digested at 37°C for 2 hours using AnaBios’ proprietary enzyme mixture. Samples were then centrifuged for 2 minutes at 200× g, solution was gently removed and tissue was washed 3 times, followed by resuspension in DMEM/F12 (Lonza; Allendale, NJ) containing 1% horse serum (Thermo Fisher Scientific; Rockford, IL). Ganglia were mechanically dissociated by gentle trituration through the fire-polished tip of a sterile glass Pasteur pipette. Dissociated cells were seeded on glass coverslips that had been pre-coated with poly-D-lysine. Cells were maintained in culture at 37°C with 5% CO₂ in DMEM/F12 supplemented with 10% horse serum (Thermo Fisher Scientific), 2 mM glutamine, 25 ng/mL hNGF (Cell Signaling Technology; Danvers, MA), 25 ng/mL GDNF (Peprotech; Rocky Hill, NJ) and penicillin/streptomycin (Thermo Fisher Scientific). Half of the culture media was replaced with fresh media every three days.

Electrophysiological recordings

Human DRG neurons were incubated in culture at least three days before recording. This time was necessary to allow satellite glial cells surrounding the soma to move down onto the coverslip thus exposing the plasma membrane to permit pipette access and subsequent formation of a tight seal. During the course of preliminary experiments, it was determined that aggressive enzymatic cell dissociation could provide DRG neurons completely stripped of satellite glial cells. While these preparations provided immediate access to patch clamp-based electrophysiology recordings, those treatments appeared to compromise cell health (depolarized V_m<-40 mV and survival in culture <24 hours). Cells exhibited a wide range of diameters and both small and large neurons were healthy and patchable; however we chose to focus on smaller cells as presumptive nociceptive neurons for this study. Neurons that exhibited a resting membrane potential more depolarized than −40 mV, were considered unhealthy and were not analyzed.

Whole-cell recordings were made in current-clamp, using pipettes pulled from thick-walled borosilicate glass (Warner Instruments; Hamden, NJ), with open tip resistances ranging from 2-4 MΩ using a P-97 horizontal puller (Sutter Instrument; Novato, CA). The extracellular solution contained (in mM): 145 NaCl, 3 KCl, 2.5 CaCl₂, 1.2 MgCl₂, 10 HEPES, 7 glucose, adjusted to pH 7.4 with NaOH, and was warmed to 32°C. The intracellular solution contained (in mM): 130 K-gluconate, 5 KCl, 5 NaCl, 3 Mg-ATP, 0.3 EGTA, 10 HEPES, adjusted to pH 7.3 with KOH and 294 mOsm using sucrose. Following gigaseal formation, it was often necessary to combine a 300-500 mV zap pulse with negative pressure to achieve whole-cell configuration in these cells. Following whole-cell access and nulling the slow transients with the capacitance-compensation circuit of the amplifier, cells were dialyzed for a minimum of 2 minutes, while holding at −60 mV. Neurons were recorded using Patchmaster software (HEKA Instruments; Bellmore, NY) controlling an EPC10 USB amplifier (HEKA). Data were sampled at 20 kHz and analyzed offline.

All recordings were performed with continuous whole-bath perfusion. Gravity fed solution flow and exchange was controlled with a 16-channel valve controller (PC-16, Bioscience Tools), and flow rates were ~1-2 mL/min. This resulted in a void time of 15-20 seconds between the time solutions were switched and when they first entered the bath. The temperature was maintained at 32°C with a heated chamber stage (TC-E35, Bioscience Tools), controlled using a 2-channel bipolar temperature controller (TC2-80-150, Bioscience Tools), and monitored constantly with a feedback thermistor positioned in the bath.

Chemicals (Sigma Aldrich; St. Louis, MO): bradykinin (100 nM), PGE₂ (1 μM), AITC (30 μM), ATP (100 μM), histamine (100 μM), and chloroquine (100 μM) were prepared in external solution.

Analysis and statistics

All recordings were performed within nine days of dissociation; over this period hDRG neurons did not exhibit any differences in cell size, whole-cell capacitance or membrane excitability, indicating biophysical stability over the duration of the experiments. Additionally, numerous biophysical properties including resting membrane potential, action potential (AP) amplitude, and rheobase between the five donors examined showed no differences. The recordings were therefore pooled across donors and days in vitro for analyses of action potential waveforms and measures of sensitization.

Membrane properties were calculated using several protocols in current clamp mode. Input resistance was determined with a hyperpolarizing current injection of 50-100 pA. Action potentials were elicited by a series of either 800 ms step current injections or during a 500 ms ramp, and increased by 50-100 pA per sweep until cells reached threshold. Inter-sweep intervals were 3-5s. Chemical applications were monitored in gap-free recording mode.

Data were analyzed offline with Igor Pro (WaveMetrics; Portland, OR) using custom-written macros and the NeuroMatic plug-in (v2.00). Data organization and statistical analysis were performed using Microsoft Excel and Prism 5 (GraphPad; La Jolla, CA). Linear regression was performed to determine covariation. One-way ANOVA was used to determine differences in multiple groups. Student's t-test was used to test for significance between two groups, except for bradykinin-treated cells, where paired t-tests were used to compare neurons before and after chemical application. All data are presented as mean ± standard error of the mean (SEM). Statistical significance is denoted as *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001).

Results

Physical appearance and capacitance of human DRG neurons in vitro.

Whole-cell patch clamp recordings were performed in vitro over a range of eight days on 141 hDRG neurons from five donors. Examples of hDRG neurons isolated in culture are shown in Figure 1A. Neuronal membranes generally appeared clear in bright field illumination with a subset of cells exhibiting brown lipofuscin deposits in the membranes surrounding the nucleus. The mean diameter measured from a representative subset of recorded neurons was 42.8 ± 0.8 μm (Figure 1B, n=69). A population of cells was observed in culture with diameters over 60 μm, but we chose to focus on small to medium-sized cells which are more likely to represent the slower conducting A and C-fiber nociceptors. After break-in, whole-cell capacitance ranged from 16.8 to 248.9 pF with an average of 106.3 ± 5.1 pF (Figure 1C, n=118). Neither the mean diameter nor whole-cell capacitance differed between donors or days in vitro, indicating consistency between individuals and repeatability for the isolation and culturing techniques (Figure 1D). A weak linear correlation was found between whole-cell capacitance and soma diameter, suggesting that while capacitance scales with diameter in human neurons, non-spherical soma morphology or process growth may limit our accuracy in assessing the degree of correlation (Figure 1E).

Figure 1. Physical characteristics and capacitance of hDRG neurons.

A) Phase-contrast images depicting dissociated hDRG neurons illustrating neurons that are suitable for patch-clamp recordings. Scale bar = 50 μm. B) Histogram summarizing the range of hDRG soma diameters from a subset of recorded neurons. Diameters were determined using a calibrated ocular eyepiece. C) Histogram of whole-cell capacitance from recorded hDRG neurons. D) Summary graph of the whole-cell capacitance from all donors and across time in vitro. Number of neurons indicated in parentheses: 3 DIV (6), 4 DIV (21), 5 DIV (16), 6 DIV (35), 7 DIV (21), 8 DIV (11), 9 DIV (19). n.s., not significantly different. E) Plot of whole-cell capacitance vs. soma diameter indicating a linear relationship between these two measurements. R² = 0.336; Y=4.84x + 23.0 (p<0.0001). Dotted lines represent 95% confidence interval.

Action potential parameters from naïve hDRG neurons

Naïve hDRG neurons had a resting membrane potential of −62.4 ± 2.0 mV (n=133), which did not differ across days in culture or by donor (Figure 2C). To investigate hDRG excitability, action potentials (APs) were evoked with current injections using both a ramp and a step protocol. Most neurons fired only a single spike to current injection; when multiple action potentials were evoked, analyses were performed on the first spike (Figure 2A). To calculate the voltage threshold of activation, the first derivative of the action potential waveform was plotted and the value at which the rate of voltage change exceeded 5 volts/sec was taken as the threshold (Figure 2A, inset). Overall, action potential threshold varied from donor to donor (1-way ANOVA, p<0.05); however, no pairwise comparisons between donors were significantly different from one another (Tukey's Multiple Comparison Test). Over the course of seven days in vitro, no significant differences in action potential threshold were observed (Figure 2D). Rheobase, the step current required to evoked an action potential, was 1.44 ± 0.11 nA (n=110), and did not vary from donor-to-donor or across days in vitro (Figure 2B, E). The mean action potential peak amplitude (from 0 mV) was 64.6 ± 0.9 mV, and did not differ between donors or with extended time in culture. Additional features of naïve hDRG membrane properties are documented in Table 3. These data show little variability in parameters of membrane excitability between donors and preparations, and that hDRG neurons remain stable across several days in vitro.

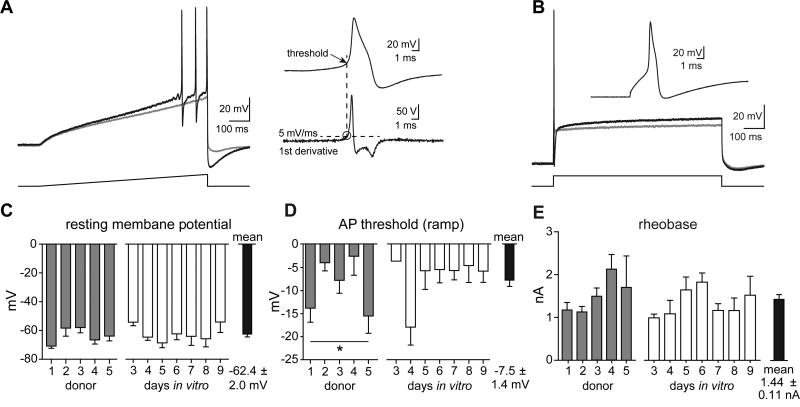

Figure 2. Excitability of hDRG neurons.

A) Action potentials evoked by a 500 ms ramp current injection protocol. Gray trace depicts membrane voltage during a subthreshold step, with the subsequent sweep in the series of increasing current injections eliciting action potentials (black trace). Current steps were increased 50-100 pA per sweep. AP threshold was taken as the membrane voltage at the point in which the 1^st derivative waveform of the first action potential crossed 5 volts/second (dashed line). B) Rheobase was established from an 800 ms step current protocol, increased in 50-100 pA increments. The gray trace illustrates a subthreshold depolarization, with the following sweep eliciting an action potential at the start. A majority of hDRG (70%) fired an action potential during the initial rising step of the current injection. C) Summary graph of the resting membrane potential across donors and time in culture, which was not significantly different. D) Summary of the action potential threshold across donors and time in culture, determined by ramp current injections shown in panel A. Action potential thresholds were variable by donor (*p<0.05, 1-way ANOVA) although no post-hoc comparisons between any groups were significant (Tukey's Multiple Comparison Test). Threshold did not differ by days in vitro. E) Graph of rheobase (step current thresholds to elicit an AP), which did not differ by donor or days in vitro.

Table 3.

		Bradykinin effect		Electrical vs. chemical AP
	all naïve neurons	Naive (evoked)	Post-BK (evoked)	Post-BK (evoked)	Bradykinin (spontaneous)
Resting potential (mV)	−62.36 ± 2.02 (133)	− 60.6 ± 1.5 (21)	− 58.3 ± 1.9 (21)*	-	-
Input resistance (M Ω )	97.51 ± 10.09 (122)	63.90 ± 13.96 (23)	73.16 ± 20.61 (23)
Ramp AP (nA)	2.45 ± 0.24 (87)	1.96 ±0.33 (13)	1.56 ± 0.35 (13)***	-	-
Step rheo (nA)	1.43 ± 0.11 (111)	1.24 ± 0.12 (22)	0.97 ± 0.15 (22)***	-	-
Threshold (mV)	Ω15.73 ± 1.12 (80)	Ω16.32 ± 1.70 (24)	Ω19.02 ± 2.24 (24)	Ω 18.1 ± 4.4 (11)	Ω 45.49 ± 3.77 (11)***
AP peak (mV)	64.64 ± 0.89 (111)	65.89 ± 1.88 (25)	63.03 ± 1.92 (25)	65.04 ± 3.19 (11)	60.53 ± 1.59 (11)
AP rise time (μs)	528.4 ± 40.2 (80)	380.4 ± 33.9 (25)	502.9 ± 50.7 (25)**	552.9 ± 83.6 (11)	536.8 ± 74.2 (11)
AP slope (max, mV/ms)	326.9 ±18.6 (83)	395.2 ± 29.5 (25)	314.4 ± 27.1 (25)*	281.9±37.6 (11)	204.7±6.0 (11)*
AP slope (min, mV/ms)	−100.2 ± 8.6 (83)	− 101.6 ± 10.0 (25)	− 88.33 ± 9.12 (25)*	−70.51 ± 13.31 (11)	−71.58 ± 6.83 (11)
AP width (full, ms)	4.92 ± 0.42 (79)	5.11 ± 1.05 (24)	4.93±0.69 (24)	6.41 ± 5.69 (12)	5.68 ± 0.74 (12)
AHP amplitude (mV)	−52.66 ± 1.21 (52)	−53.66 ± 1.82 (25)	−53.37 ± 1.55 (25)	− 51.48 ± 2.52 (12)	− 73.07 ± 1.32 (12)***
AHP kinetics (tau, ms)	26.67 ± 2.38 (86)	30.01 ± 5.02 (25)	31.26 ± 4.94 (25)	45.46 ± 6.99 (12)	75.89 ± 10.52 (12)**

The action potential “shoulder” of hDRG neurons

Further inspection of hDRG action potentials showed that 97% (73/75) of recorded cells exhibited a “shoulder” on the falling phase of the action potential. Representative examples of action potentials with a large and small shoulder are shown (Figure 3A, insets). The change in voltage with respect to time is indicated in phase-plane plots, which illustrate the distinct components of the action potential, including the rapidly accelerating/decelerating rising phase and the slower, dynamic, falling phase which includes the shoulder (Figure 3A, shaded). We were curious whether shoulder size was indicative of any specific cellular signatures, and used the first derivative of the action potential waveform to establish shoulder onset and offset times (the inflection point on either side of the shoulder peak). Shoulder size was plotted on a frequency histogram (Figure 3B). Shoulder areas exhibited a range of values from 0 to 186 mV*ms with a mean of 41.6 ± 3.7 mV*ms (n=75). No significant correlation was detected between shoulder size and the mean slope of the rising phase, the maximum, or minimum rates of change in membrane voltage over time (data not shown). We also did not find a significant correlation between shoulder size and measurements of physical cell size or excitability (Figure 3C).

Figure 3. Waveform and shoulder analysis of hDRG.

A) Phase-plane plots of hDRG neurons showing examples from cells with a large shoulder (top) and small shoulder (bottom). Boxed regions indicate the onset and offset of the shoulder, depicted by the slowing rate of membrane voltage change. B) Histogram showing a distribution of the range of shoulder areas. Inset shows an example action potential waveform and the method used for calculating the shoulder area. Shoulder size was approximated using the formula ½(height*base). C) Scatter plot of the shoulder areas relative to cell size or current injection threshold. Shoulder areas did not correlate with either measure. Linear fits of the data are shown; R²=0.013, p=0.475 (size); R²=0.003, p=0.715 (rheobase).

After-hyperpolarization kinetics of hDRG action potentials

Subsequent to the shoulder, hDRG neurons exhibited an after-hyperpolarization (AHP) – a component of the action potential that could act as a modulator of inter-spike intervals and firing frequency. We noticed that these AHP decays exhibited a wide range of durations. To quantify this, we calculated the mean weighted tau values from single or double exponential fits of the voltage decay. Examples of a range of fast and slower waveforms are shown in Figure 4A. The mean amplitude and tau values for naïve hDRG neurons are listed in Table 3. Tau values ranged from 2.8 to 88 ms and AHP kinetics for each cell are shown in a frequency histogram (Figure 4B). Tau values strongly correlated with action potential width (measured across the AP from a 5 mV/ms threshold), but did not correlate with cell capacitance or action potential peak (Figure 4C, D; AP peak data not shown). These data demonstrate that hDRGs exhibit a wide range of AHP kinetics, which may impart unique firing characteristics to individual neurons.

Figure 4. Human DRG exhibit a wide range of afterhyperpolarization decay kinetics that correlate with action potential widths.

A) Example traces of action potentials evoked by step current injections in three different human DRG neurons that exhibited markedly different action potential widths and afterhyperpolarization kinetics. B) Distribution of the mean weighted tau values from fitting the AP afterhyperpolarization from 86 hDRG neurons. Tau values were determined from either single or biexponential fits of the voltage decay. C, D) Scatter plots showing a strong linear correlation between afterhyperpolarization tau values and action potential widths, but not whole-cell capacitance measurements. Linear fits of the data are shown; R² = 0.432, p<0.0001 (panel C); R²=0.002, p=0.6989 (panel D).

Activation of hDRG by chemical algogens and pruritogens

Ganglionectomized hDRG neurons from pain patients have been shown to respond to the algogens capsaicin and acidic pH [3; 6; 7], but the effects of many commonly used algogens in rodent studies have never been demonstrated on human sensory neurons. To test whether naïve hDRG neurons respond directly to substances that produce pain and itch, we bath-applied AITC, ATP, histamine, or chloroquine onto a subset of recorded neurons (Figure 5A-D). Only a single substance was delivered to each neuron. A high proportion of cells (14/25 or 56%) discharged in response to one of these algogenic or pruritogenic substances, suggesting hDRG likely possess considerable overlap in their capability to respond to a variety of chemical stimuli.

Figure 5. Human DRGs are activated by chemical algogens and pruritogens.

A-D) Voltage traces depicting responses to AITC (30 μM), ATP (100 μM), histamine (100 μM), and chloroquine (100 μM). Bath application of compounds, indicated by colored rectangles, resulted in action potential discharge in a subset of cells. The number of responsive neurons is indicated in parentheses next to each chemical. The insets depict the AP waveforms of the first action potential in response to chemical application. Dashed lines represent −60 mV.

Modulation of hDRG excitability by the inflammatory compounds bradykinin and PGE₂

Inflammatory mediators such as bradykinin and prostaglandin E2 (PGE₂) can activate and sensitize nociceptors from model organisms, but whether hDRG neurons respond directly to these mediators has not been tested. Therefore, we examined ongoing activity and membrane excitability of hDRG neurons exposed to bradykinin. Twenty-seven hDRG neurons were bath-exposed to 100 nM bradykinin, and 13 of these (48%) responded by discharging action potentials (total BK-evoked APs, Table 2). Examples of bradykinin-evoked discharge are in Figure 6A. In a few cases, cells would undergo spontaneous discharge followed by a return to a quiescent state, with single ectopic action potentials occurring at random times following the initial barrage. To test whether these effects were unique to bradykinin in human DRG, we applied PGE₂ (1 μM) to a subset of naïve neurons and observed similar effects (Figure 6B). Bradykinin and PGE₂ both enhanced the response to a step current injection with the rheobase often evoking multiple action potentials after exposure (Figure 6C, D). These findings demonstrate that human sensory neurons can be sensitized by inflammatory mediators; however, we focused our analysis on cells exposed solely to bradykinin to quantify this sensitization.

Table 2.

AP type	naïve	BK-evoked APs
start	18/27 (67%)	6/18 (33%)
delayed	9/27 (33%)	7/9 (78%)*

Figure 6. Human DRG excitability is modulated by the inflammatory compounds bradykinin and PGE₂.

A) Five minute bath application of bradykinin (100 nM) and B) prostaglandin E2 (1 μM) produced action potential discharge in a subset of hDRG neurons. These traces are in the continued presence of the indicated inflammatory mediator. C, D) Voltage traces of action potential firing during threshold step current injections before (black traces), and after exposure to either bradykinin (red) or PGE₂ (blue). Neurons often fired multiple action potentials at rheobase following application of either compound. E) Summary graph of the injected current threshold to elicit action potentials in neurons before (naïve) and after bradykinin application. Nearly every cell exhibited a lower rheobase after exposure to bradykinin. Paired t-test, ***p<0.001. F) Graph of average membrane voltage during electrically-evoked action potentials (threshold of 5 mV/ms), before (naïve, dark gray), after bradykinin (red) exposure. Chemically evoked action potentials had much lower thresholds than those evoked electrically (light gray); ****p<0.0001. G) Table summarizing the responses to bradykinin (subset of 27 total neurons exposed). Step current-evoked action potentials were delayed (>10 ms) in 33% of hDRG neurons. These “delayed-type” neurons exhibited significantly greater probability of displaying chemically-evoked ongoing activity. 78% of these neurons fired action potentials, whereas only 33% of cells that fired early action potentials exhibited bradykinin-evoked discharge. Fisher's exact test, p<0.05. H) Distribution and average AHP tau values for neurons grouped based on their response to bradykinin. Of the 27 cells exposed to bradykinin, 14 experienced transient depolarization with action potential discharge, while the other 13 cells fired action potentials. **p<0.01.

We first examined the rheobase after bradykinin application, and found a significant reduction in current required to evoke an action potential (Figure 6E, Table 3). The voltage threshold for initiation of stimulus-evoked action potentials did not change after bradykinin. However, we noticed that after bradykinin, “spontaneous” discharge of action potentials were generated at a significantly more hyperpolarized membrane potential compared to electrically-evoked action potentials (Figure 6F, Table 3). A phase-plane plot of overlapping traces from a single representative neuron before and after exposure to bradykinin is shown in Figure 6G, illustrating the slower rise-time and rates of change in membrane voltage summarized in Table 3. The graph illustrates similar AP thresholds but also shows several bradykinin-induced changes to the action potential waveform which are described in Table 3. Prior to bradykinin treatment, step-evoked action potentials were elicited immediately (‘start’) or were delayed by >10 ms from the onset of the stimulus. Neurons exhibiting this delay were significantly more likely to discharge spontaneously during bradykinin application (78% versus 33%; Table 2; Fisher's exact test, p<0.05). Interestingly, neurons that discharged spontaneously after bradykinin exhibited significantly longer duration AHPs, measured from step current injections, compared to neurons that did not discharge after bradykinin (mean weighted tau values: depolarize, 16.7 ± 3.7 ms; fire action potential, 45.0±7.2 ms; n=14 and 13, respectively; p=0.0014; Figure 6H).

The differences between electrically- and chemically-evoked action potentials are shown in Table 3. Most notable are the differences in threshold for action potential activation which was significantly hyperpolarized for bradykinin-induced firing (electrically-evoked, −18.1 ± 4.4 mV; bradykinin-induced, −45.5 ± 3.8 mV; n=11, paired comparison, p<0.001). AHP amplitude and tau values were also significantly altered between electrically- and chemically-evoked AP discharges in the presence of bradykinin. These results confirm that human sensory neurons respond directly to the inflammatory compounds bradykinin and PGE₂, and that exposure can enhance neuronal excitability leading to peripheral sensitization.

Discussion

Clinical trials for pain relief have not replicated many of the findings from studies in animal models, leading to considerable debate on the reasons behind the lack of translational success. Much of the focus has been on the possibility that reflexive behavioral tests of hyperalgesia and sensitization in rodents may not reflect the ongoing nature of human chronic pain [8; 35; 54]. However, it must not be overlooked that biological differences between model organisms and humans may account for much of the difficulty with translation [16]. Here, we characterized the membrane properties and functional responses to algogens, pruritogens, and inflammatory mediators. Our results show the first demonstrations of activation by itch-producing compounds and membrane sensitization by inflammatory mediators in naïve hDRG neurons.

Electrophysiology of human sensory neurons

Young adult hDRG neurons in our cultures ranged in diameter from ~30-90 μm, consistent with observations from histological sections of whole ganglia and cultures of avulsed ganglia [2; 27]. This indicates that our cultures reasonably reflect the total population of hDRG neurons. In rodent models, small diameter somata (<30 μm) have been linked to slowly conducting axons and are more likely to serve as nociceptors [24; 26]. In this study, we focused on the subset of relatively small/medium hDRG neurons between 30-60 μm in diameter that are likely to represent the C-fiber and Aδ populations.

Ninety-seven percent of recorded human sensory neurons exhibited a ‘shoulder’ on the descending phase of the action potential, similar to what has been reported for small diameter nociceptors from rodents [24; 34; 40]. These inflections are thought to be the result of a combination of calcium and sodium influx through voltage-gated ion channels, and act to prolong AP duration [10]. One consequence of this is increased intracellular calcium in axon terminals, which may enhance neurotransmitter release. Broadened APs in sensory neurons have been correlated with binding of isolectin-B4 (IB4), a marker for non-peptidergic, small diameter nociceptors, which possess relatively high thresholds for activation in rodents [23; 46]. Given the prolonged shoulder observed in our recordings and the high response rate of tested neurons to various nociceptive stimuli, most small diameter hDRG neurons are likely to be nociceptors. However, unlike rodent sensory neurons, we found that cultured hDRG neurons do not bind IB4 (unpublished observations), nor did we find that neurons with the largest shoulders correlate with cell size or higher rheobase. Our observation that hDRG do not bind IB4 is consistent with the suggestion that human versican lacks the IB4 binding epitope. Further anatomical and physiological classification of hDRG neurons will hopefully lead to a clearer delineation of their roles in sensory information processing.

Subsequent to the inflection, the falling phase of the AP leads to an after-hyperpolarization (AHP). A methodological consideration in the present experiments is that AHPs were measured during step current injection, which necessarily interfered with the AHP profile. Nevertheless, a wide range of AHP durations was observed which correlated positively with AP width. Longer duration AHPs recorded from rodent sensory neurons in vivo have been considered to be an indicator of nociceptors, while shorter AHPs correlate with low threshold mechanoreceptors [11; 20; 55]. We found that hDRG neurons exhibiting longer duration AHP kinetics in response to electrical stimulation were more likely to fire APs during exposure to bradykinin, suggesting that longer duration AHPs in hDRG neurons are also indicative of nociceptors. We tested the idea that bradykinin could alter AHP kinetics and contribute to sensitization as has been suggested in rodents [30]. Human DRG neurons were resistant to bradykinin-induced changes in AHP amplitude or decay kinetics. The AHP_slow, a many seconds long after-hyperpolarization evoked by a high frequency stimulus and inhibited by bradykinin [15; 49], was not examined in the present study, but might serve as a useful parameter for further classification of these neurons.

Differences between humans and other animals

Among the many differences between humans and most model organisms is the large discrepancy in lifespans. For practical reasons rodent models of persistent and “chronic” pain are typically measured in the span of days or weeks, whereas human chronic pain conditions are experienced over months and years. In addition to these temporal differences in modeling human pain conditions, distinctions in gene expression and protein function of sensory neurons have been recently identified between humans and other species. For instance, monkey and human DRG neurons express little if any P2X2, an ATP-activated receptor robustly expressed in rodents and involved in rodent models of chronic pain [44]. Additionally, human P2X3 receptors in heterologous cells exhibit greatly reduced antagonist potency relative to P2X3 receptors from nonhuman species [44]. Such functional differences are not limited to purinergic receptors; heterologously expressed human TRPA1 channels exhibited sensitivity to acidic pH, however both rodent and monkey TRPA1 were insensitive to low pH, highlighting important functional differences even between primate species [13; 17]. These examples suggest important evolutionary divergence in the function of hDRG signaling that emphasize the need for continued characterization of receptor and channel properties in human cells. Given the increasing observations documenting the differences between hDRG and those from model organisms, defining the differences between human and model physiology is increasingly important.

Chemosensitivity

We tested naïve hDRG neurons for sensitivity to several algogens or pruritogens, and found a high proportion of chemosensitive cells compared to rodent studies. For example, the TRPA1 receptor which has been linked to pungent, cold, and mechanical sensation, is activated by the agonist AITC in only about 25% of rodent DRG neurons [4; 29; 45]. However, we observed responses to AITC in 4 out of 5 hDRG neurons. Similarly, peripheral application of bradykinin elicits acute pain behaviors in both rodents and humans [22; 41] and activates 15-20% of total mouse DRG in vitro [4; 25]. When applied to hDRG neurons, we observed a discharge in 13 of 27 cells (48%). In addition to algogens, we tested the sensitivity of hDRG neurons to the itch-producing compounds histamine and chloroquine. Histamine activated 6 of 12 hDRG neurons in this study, but elicited responses in only ~15% of rodent sensory neurons [25; 37]. Similarly, the antimalarial drug chloroquine activates only 4-13% of rodent sensory neurons [31; 48], but produced responses in 2 out of 6 (33%) hDRG neurons tested. Previous studies of cultured monkey trigeminal neurons likewise showed a high response rate to the algogen capsaicin (9 of 14 cells, 64%) [28], and a similarly large proportion (~65%) of human sensory neurons from ganglionectomized DRG of chronic pain patients were responsive to capsaicin [6; 7]. Taken together, these results show a pattern of observations suggesting that humans and nonhuman primates may possess a relatively higher proportion of chemosensitive sensory neurons than rodents. Potential differences in culturing and chemical concentrations between the current study and the wide range of experimental conditions in rodent studies, direct comparisons may require some caution. Further examination of hDRGs using higher throughput methods such as calcium imaging is needed to clarify the nature of human chemosensitivity.

Sensitization

Human DRG neurons exposed to bradykinin and PGE₂ exhibited increased discharge to electrical stimulation and lowered rheobase, which outlasted the acute effects of chemical application. In addition, resting membrane potential was depolarized after bradykinin and AP upstroke exhibited slowed kinetics. In rodents, bradykinin-induced sensitization lowers the threshold temperature for heat activation of TRPV1, resulting in enhanced responses to capsaicin and noxious heat [12; 14; 47; 53]. We did not test heat-induced activation in this study; however, our results support the idea that bradykinin-induced sensitization of hDRG neurons may involve functional modulation of membrane excitability. In rodents, PGE₂ sensitizes neurons by lowering AP threshold and increasing stimulus-evoked discharge by modulating membrane excitability through effects on voltage-gated sodium and potassium channels [24; 36]. Further work can determine the nature of the intracellular signaling cascade involved in sensitization of hDRG neurons by these inflammatory mediators.

Chemical- versus electrically-evoked action potentials

We observed that hDRG neurons responding to chemical activation produced action potentials with significantly lower AP thresholds than those from current injections. While current injections typically evoked a single or a few APs, chemically-evoked discharge produced multiple action potentials at much higher frequencies. It is possible that current injection into the soma fails to effectively activate the presumed sodium channel-rich areas within the axon, although our preliminary observations of isolated sodium currents demonstrates evoked currents in the tens of nanoamperes, arguing against this hypothesis. It is possible however, that the larger size and membrane surface area of hDRG neurons, compared to rDRG, may cause space-clamp issues in these distal processes. Chemical stimulation of these small diameter axons may therefore be more effective in eliciting localized membrane depolarization. Alternatively the increased chemical excitability, relative to electrically-evoked APs, could be the result of receptor-induced enhancement of voltage-gated ion channels.

Summary

Here we show that naïve hDRG neurons cultured from young adults without chronic pain are highly chemo-sensitive to algogens and pruritogens, and can be sensitized by inflammatory mediators. Small to medium sized hDRG neurons exhibit AP waveforms similar to what has been described for rodent nociceptors. In conclusion, cultured hDRG neurons represent a more direct way of studying analgesic translational efficacy and confirming target validation before initiating expensive and time-consuming clinical trials.

Summary.

Physiological properties of human dorsal root ganglion neurons are examined in vitro and responses to various classes of noxious chemicals are demonstrated; sensitization is described.
