. 1994 May 24;91(11):4920–4924. doi: 10.1073/pnas.91.11.4920

Direct determination of layer packing for a phospholipid solid solution at 0.32-nm resolution.

D L Dorset 1
PMCID: PMC43901  PMID: 8197158

Abstract

Electron diffraction intensity data were collected from a 2:3 binary solid solution of two homologous phosphatidylethanolamines (1,2-dimyristoyl-sn-glycerophosphoethanolamine and 1,2-dipalmitoyl-sn-glycerophosphoethanolamine) epitaxially oriented by cocrystallization with naphthalene. The layer packing was determined directly by predicting the value of 12 of the 17 phases from sigma 1- and sigma 2-triplet invariants in space group P1. A reverse Fourier transform of the resulting potential maps provides estimates for three other phases and the two remaining ones were found by generating maps for the 2(2) = 4 possible phase combinations and then testing the smoothness of the potential profile of the hydrocarbon chain packing. The same phase solution can be found by translating a molecular model (based on the known x-ray crystal structure of a shorter homologue) past the unit cell origin. The solid solution is found to retain a stable polar group packing while the statistical occupancy of two terminal-chain carbons is expressed by a reduced potential profile at the nonpolar interface at the bilayer center.

Full text

PDF

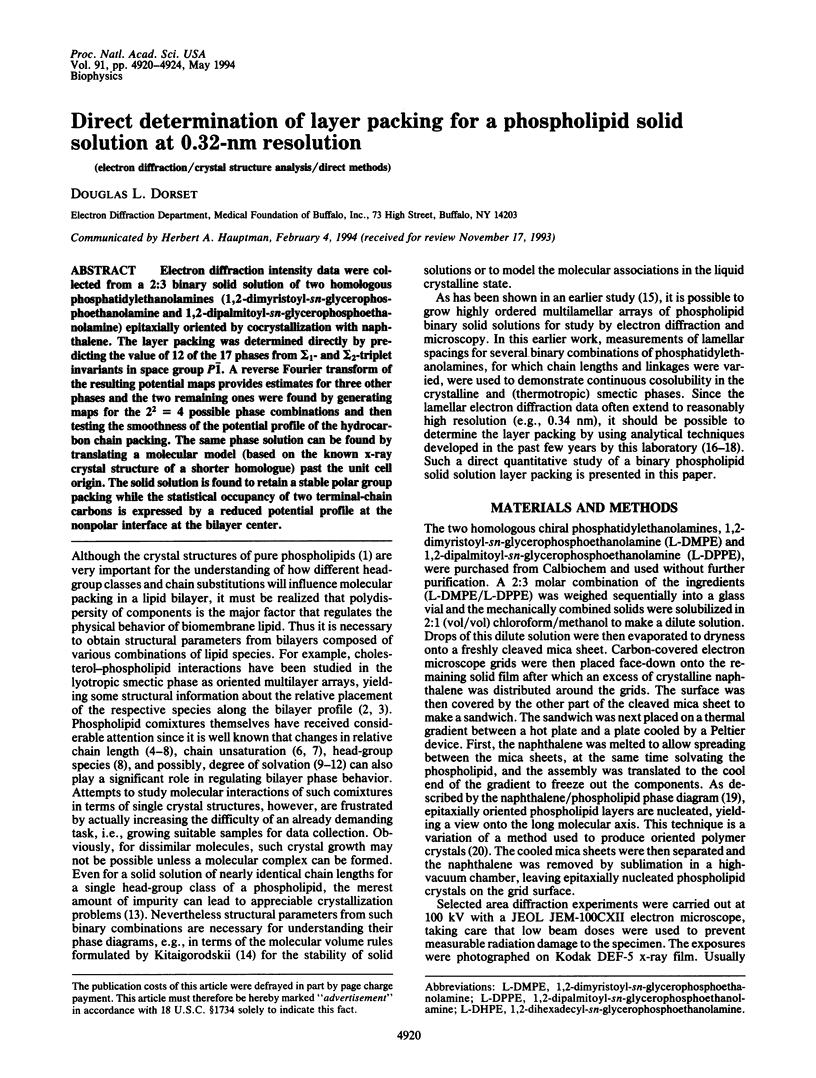

4920

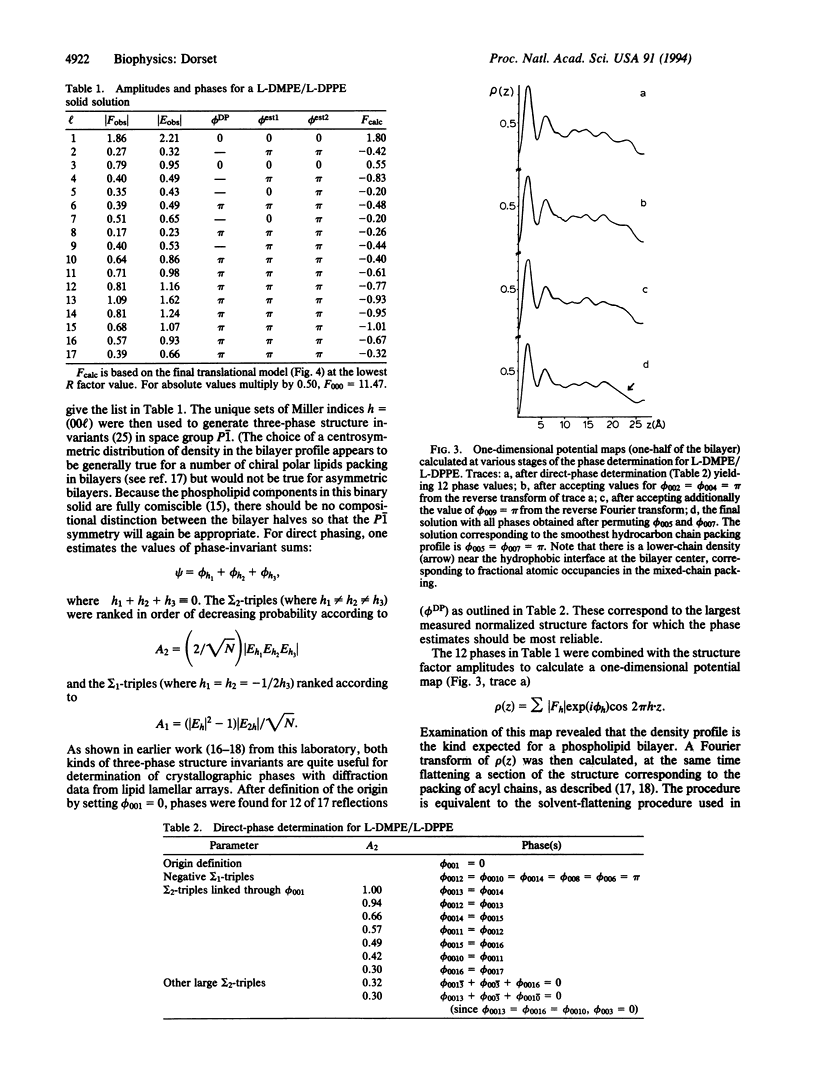

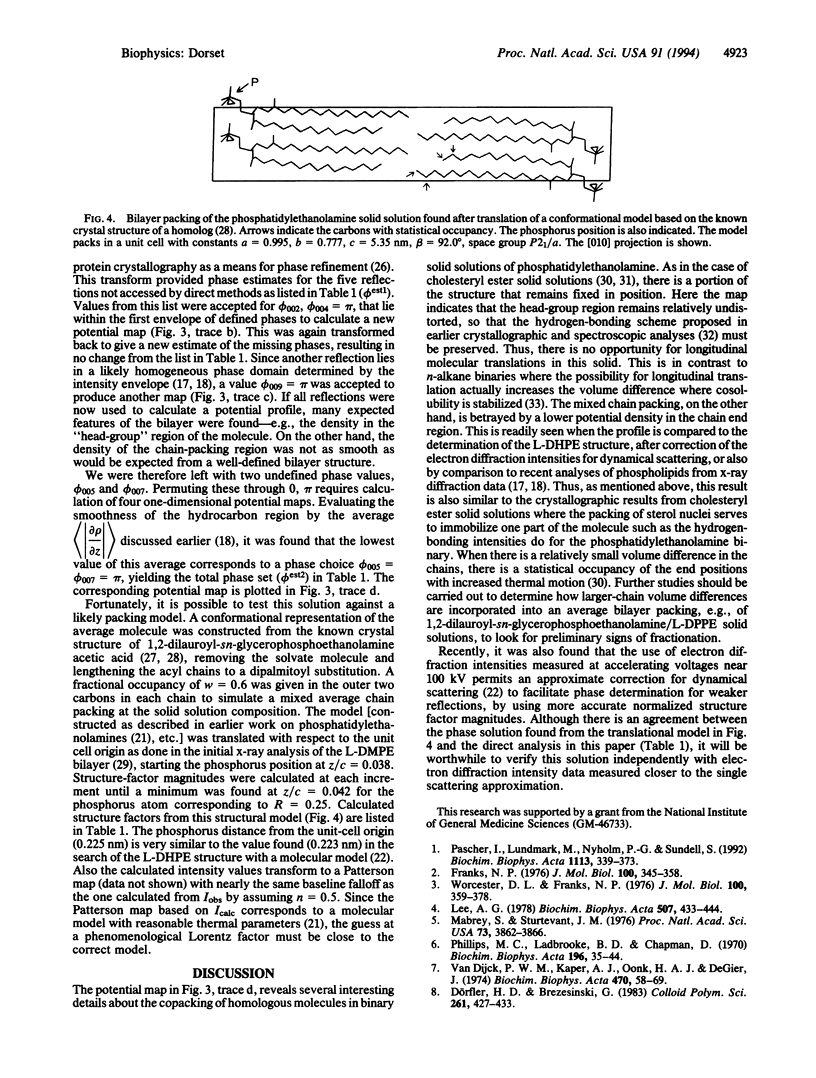

Images in this article

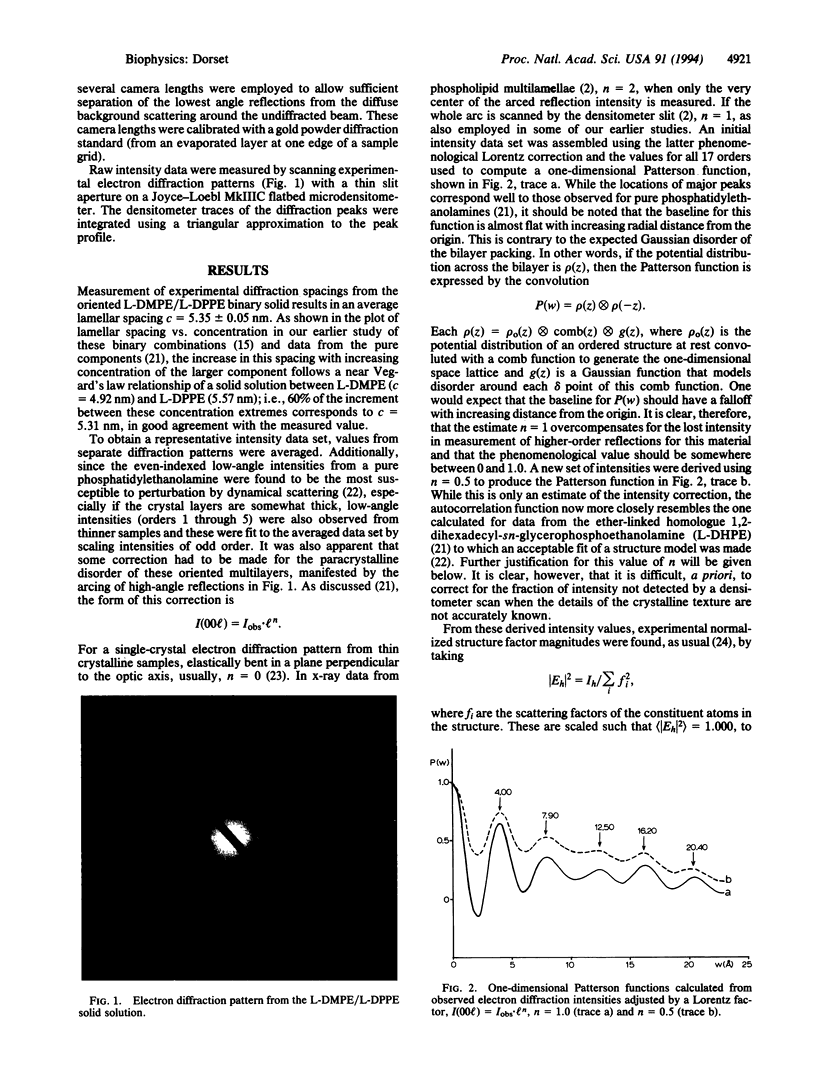

4921Image
on p.4921

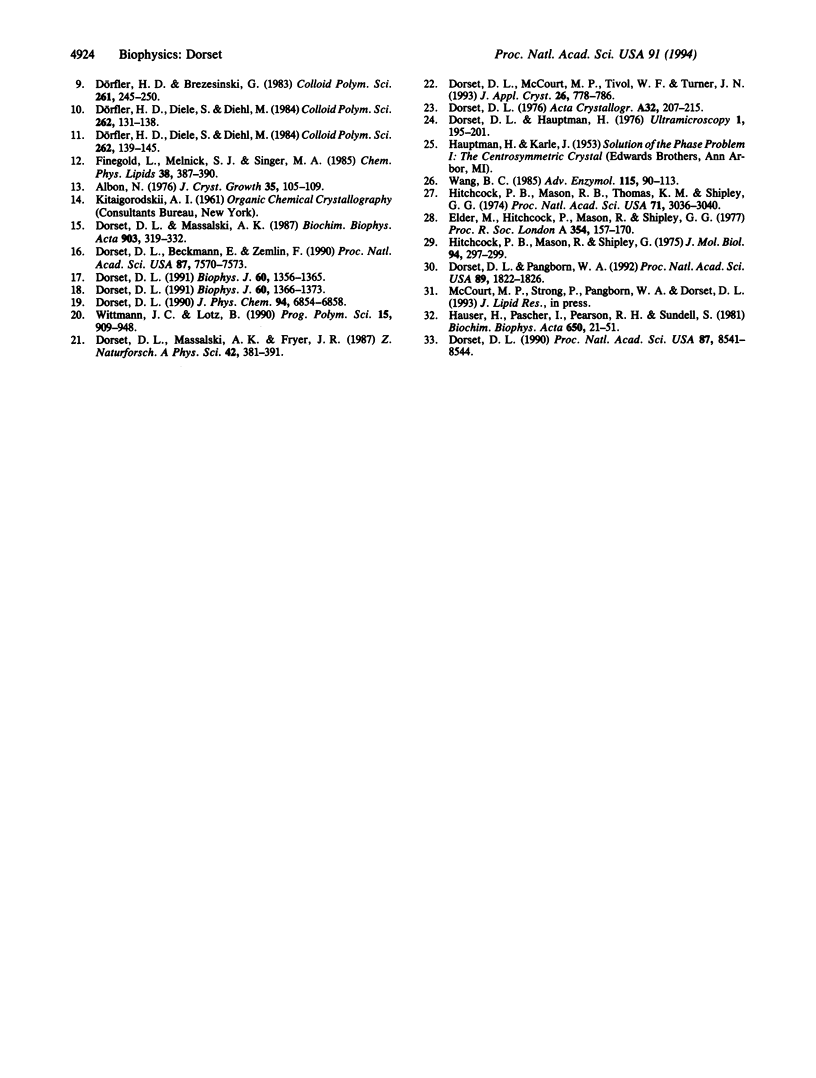

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Dorset D. L., Beckmann E., Zemlin F. Direct determination of phospholipid lamellar structure at 0.34-nm resolution. Proc Natl Acad Sci U S A. 1990 Oct;87(19):7570–7573. doi: 10.1073/pnas.87.19.7570. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Dorset D. L. Direct determination of crystallographic phases for diffraction data from lipid bilayers. I. Reliability and phase refinement. Biophys J. 1991 Dec;60(6):1356–1365. doi: 10.1016/S0006-3495(91)82173-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Dorset D. L. Direct determination of crystallographic phases for diffraction data from lipid bilayers. II. Refinement of phospholipid structures. Biophys J. 1991 Dec;60(6):1366–1373. doi: 10.1016/S0006-3495(91)82174-9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Dorset D. L. Direct structure analysis of a paraffin solid solution. Proc Natl Acad Sci U S A. 1990 Nov;87(21):8541–8544. doi: 10.1073/pnas.87.21.8541. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Dorset D. L., Hauptman H. A. Direct phase determination for quasi-kinematical electron diffraction intensity data from organic microcrystals. Ultramicroscopy. 1976 Jun;1(3):195–201. doi: 10.1016/0304-3991(76)90034-6. [DOI] [PubMed] [Google Scholar]
  6. Dorset D. L., Massalski A. K. Co-solubility in binary phospholipid crystals. Biochim Biophys Acta. 1987 Oct 2;903(2):319–332. doi: 10.1016/0005-2736(87)90222-7. [DOI] [PubMed] [Google Scholar]
  7. Dorset D. L., Pangborn W. A. Molecular interactions in binary solids: crystal structure of a cholesteryl ester solid solution. Proc Natl Acad Sci U S A. 1992 Mar 1;89(5):1822–1826. doi: 10.1073/pnas.89.5.1822. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Finegold L., Melnick S. J., Singer M. A. The thermal properties of dilauryl phosphatidylethanolamine liposomes are affected by lipid source and preparation. Chem Phys Lipids. 1985 Nov-Dec;38(4):387–390. doi: 10.1016/0009-3084(85)90032-5. [DOI] [PubMed] [Google Scholar]
  9. Franks N. P. Structural analysis of hydrated egg lecithin and cholesterol bilayers. I. X-ray diffraction. J Mol Biol. 1976 Jan 25;100(3):345–358. doi: 10.1016/s0022-2836(76)80067-8. [DOI] [PubMed] [Google Scholar]
  10. Hauser H., Pascher I., Pearson R. H., Sundell S. Preferred conformation and molecular packing of phosphatidylethanolamine and phosphatidylcholine. Biochim Biophys Acta. 1981 Jun 16;650(1):21–51. doi: 10.1016/0304-4157(81)90007-1. [DOI] [PubMed] [Google Scholar]
  11. Hitchcock P. B., Mason R., Shipley G. G. Phospholipid arrangements in multilayers and artificial membranes: quantitative analysis of the X-ray diffraction data from a multilayer of 1,2-dimyristoyl-DL-phosphatidylethanolamine. J Mol Biol. 1975 May 15;94(2):297–299. doi: 10.1016/0022-2836(75)90084-4. [DOI] [PubMed] [Google Scholar]
  12. Hitchcock P. B., Mason R., Thomas K. M., Shipley G. G. Structural chemistry of 1,2 dilauroyl-DL-phosphatidylethanolamine: molecular conformation and intermolecular packing of phospholipids. Proc Natl Acad Sci U S A. 1974 Aug;71(8):3036–3040. doi: 10.1073/pnas.71.8.3036. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Mabrey S., Sturtevant J. M. Investigation of phase transitions of lipids and lipid mixtures by sensitivity differential scanning calorimetry. Proc Natl Acad Sci U S A. 1976 Nov;73(11):3862–3866. doi: 10.1073/pnas.73.11.3862. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Pascher I., Lundmark M., Nyholm P. G., Sundell S. Crystal structures of membrane lipids. Biochim Biophys Acta. 1992 Dec 11;1113(3-4):339–373. doi: 10.1016/0304-4157(92)90006-v. [DOI] [PubMed] [Google Scholar]
  15. Phillips M. C., Ladbrooke B. D., Chapman D. Molecular interactions in mixed lecithin systems. Biochim Biophys Acta. 1970 Jan 6;196(1):35–44. doi: 10.1016/0005-2736(70)90163-x. [DOI] [PubMed] [Google Scholar]
  16. Worcester D. L., Franks N. P. Structural analysis of hydrated egg lecithin and cholesterol bilayers. II. Neutrol diffraction. J Mol Biol. 1976 Jan 25;100(3):359–378. doi: 10.1016/s0022-2836(76)80068-x. [DOI] [PubMed] [Google Scholar]
  17. van Dijck P. W., Kaper A. J., Oonk H. A., de Gier J. Miscibility properties of binary phosphatidylcholine mixtures. A calorimetric study. Biochim Biophys Acta. 1977 Oct 3;470(1):58–69. doi: 10.1016/0005-2736(77)90061-x. [DOI] [PubMed] [Google Scholar]
