A diverse group of small circular ssDNA viral genomes in human and non-human primate stools

Abstract

Viral metagenomics sequencing of fecal samples from outbreaks of acute gastroenteritis from the US revealed the presence of small circular ssDNA viral genomes encoding a replication initiator protein (Rep). Viral genomes were ∼2.5 kb in length, with bi-directionally oriented Rep and capsid (Cap) encoding genes and a stem loop structure downstream of Rep. Several genomes showed evidence of recombination. By digital screening of an in-house virome database (1.04 billion reads) using BLAST, we identified closely related sequences from cases of unexplained diarrhea in France. Deep sequencing and PCR detected such genomes in 7 of 25 US (28 percent) and 14 of 21 French outbreaks (67 percent). One of eighty-five sporadic diarrhea cases in the Gambia was positive by PCR. Twenty-two complete genomes were characterized showing that viruses from patients in the same outbreaks were closely related suggesting common origins. Similar genomes were also characterized from the stools of captive chimpanzees, a gorilla, a black howler monkey, and a lemur that were more diverse than the human stool-associated genomes. The name smacovirus is proposed for this monophyletic viral clade. Possible tropism include mammalian enteric cells or ingested food components such as infected plants. No evidence of viral amplification was found in immunodeficient mice orally inoculated with smacovirus-positive stool supernatants. A role for smacoviruses in diarrhea, if any, remains to be demonstrated.

1. Introduction

Small circular, Rep-encoding, ssDNA (CRESS-DNA) genomes encode a large and rapidly expanding collection of diverse viruses (Delwart and Li 2012; Rosario, Duffy, and Breitbart 2012) that infect a wide range of hosts including vertebrates (Circoviridae), plants (Geminiviridae and Nanoviridae), crustaceans (Dunlap et al. 2013; Ng et al. 2013a), and fungi (SsHADV) (Yu et al. 2010). CRESS-DNA genomes have also frequently been detected in complex environmental samples including aquatic settings (Zawar-Reza et al. 2014), insects (Rosario et al. 2012; Dayaram et al. 2013, 2014), and animal stools (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012; Cheung et al. 2013, 2014a, b; Sikorski et al. 2013; Smits et al. 2013; Reuter et al. 2014). Collectively these reports indicate that CRESS-DNA viruses can infect a diverse range of hosts. The genomes of most CRESS-DNA viruses are 2-3 kb in length. Most genomes are monopartite; however, nanoviruses are multipartite with 6–8 segments, and some geminiviruses, such as the begomoviruses, contain bipartite genomes. CRESS-DNA genomes typically encode both a replication initiator protein (Rep) and a capsid protein (Cap), and contain a DNA stem loop structure required for the initiation of DNA replication (Stenger et al. 1991: Fontes et al. 1994). Based on the orientation of the Rep and Cap genes and the location of the stem loop, these viral genomes can be classified into 8 different genome types (Rosario, Duffy, and Breitbart 2012). Substitution rates for ssDNA genomes can be as high as 1.2 × 10⁻³ substitutions/site/year, approaching that of RNA viruses (Duffy, Shackelton, and Holmes 2008) and are also prone to recombination (Lefeuvre et al. 2009). The hosts of most CRESS-DNA viruses characterized in fecal or environmental samples remain elusive.

A group of CRESS-DNA viruses initially identified as ‘stool-associated circular virus (SCV)’ were detected in stools of chimpanzees as well as stools of pigs, turkeys, cows, and rats (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012, 2014; Cheung et al. 2013, 2014; Sikorski et al. 2013; Reuter et al. 2014). SCV-like genomes were reported in stools of both diarrheic and healthy animals. In this report, we describe genomes of related viruses we named smacoviruses, in human and non-human primate fecal samples. Attempts to replicate the smacoviruses by inoculation of immunodeficient mice are described. The cellular tropism and role of smacoviruses in enteric diseases remain unknown.

2. Methods

2.1. Sample collection and viral metagenomics

A total of 70 human stool samples from 25 US outbreaks of unexplained diarrheal disease with typical viral gastroenteritis epidemiology (Kaplan et al. 1982) were analyzed by viral metagenomics. Human samples were submitted to the Centers for Disease Control and Prevention (CDC) with the corresponding dates (Table 1). Fifty-five samples from 21 French outbreaks were similarly pooled and analyzed by metagenomics (Table 1). Stools from non-human primates were collected in December 2009, from the San Francisco Zoo, including 4 samples from aye-aye (Daubentonia madagascariensis), 3 from bare-face tamarin (Saguinus bicolor), 3 from black howler monkey (Alouatta caraya), 4 from chimpanzee (Pan troglodytes), 3 from emperor tamarin (Saguinus imperator), 5 from gorilla (Gorilla gorilla), 7 from ring-tailed lemur (Lemur catta), 2 from lion-tailed macaques (Macaca Silenus), 3 from mandrills (Mandrillus sphinx), 4 from patas monkeys (Erythrocebus patas), 2 from siamang (Symphalangus syndactylus), and 3 from squirrel monkey (Saimiri sp.).

Table 1.

Virome analysis and PCR prevalence of smacovirus in 25 unexplained acute gastroenteritis outbreaks in the US and 21 outbreaks in France, showing the outbreak locations, sample size, and next generation sequencing result

Metagenomes of pools						Deep sequencing/viral metagenomics					PCR
						Virus (normalized to reads per million raw reads)					Prevalence
Collection info			No. of sample		NGS info	I	II	III	IV	V
City	State	Date	Available	NGS	Raw reads	Smacovirus	Enteric pathogens	Picobirnavirus	Other human viruses	Likely dietary	Smacovirus
USA
Beachwood	Ohio	2/2/2011	1	1	401,668				Human polyomavirus 6 (2)		–
St. Ignace	Michigan	4/5/2011	2	2	713,544						–
Rockingham	Virginia	4/6/2011	3	3	585,730				HIV (4)		–
Cottage Grove	Oregon	6/6/2011	6	4	1,605,266	Smacovirus(139)	Norovirus (8)	PBV (1)	Betapapillomavirus 2 (1)	GyV4 (1)	3/6
Forest Grove	Oregon	7/9/2011	2	2	499,184						–
Portland	Oregon	8/10/2011	13	5	1,624,648	ǂ		PBV (1)			2/13
Fairfax	Virginia	10/17/2011	2	2	2,093,400					CAV (4)	–
Virginia Beach	Virginia	10/22/2011	2	2	328,454						–
Hampton	Virginia	11/16/2011	4	2	2,400,570			PBV (9)			–
Henrico	Virginia	12/9/2011	2	2	279,912						–
Accomack	Virginia	12/19/2011	2	2	2,729,952			PBV (4)			–
Albemarle	Virginia	12/23/2011	3	2	2,335,410	Smacovirus (12)		PBV (812)		CAV (2)	1/3
Cleveland	Ohio	1/13/2012	2	2	529,962						–
Mecklenburg	Virginia	1/16/2012	5	4	1,265,224	Smacovirus (843)				CAV (2)	1/5
Hampton	Virginia	1/17/2012	3	3	3,619,476			PBV (2)	Feline papillomavirus 2 (1)	GyV4 (1)	–
Orange	Virginia	1/17/2012	1	1	118,076					CAV (17)	–
York	Virginia	1/24/2012	3	3	209,234					AGV2 (10)	–
Albemarle	Virgini a	2/18/2012	3	3	453,002	ǂ					1/3
Chesapeake	Virginia	2/27/2012	2	2	1,498,366	Smacovirus (33,154)		PBV (351)	Merkel cell polyomavirus (2)		1/2
Middlesex	Virginia	2/27/2012	4	2	1,310,932	Smacovirus (1,035)					1/4
NA	S Carolina	3/10/2012	1	1	585,730		Norovirus (4)				–
cruise ship	NA	4/4/2012	3	3	1,952,158		Norovirus (6), AichiV (2)				–
Sioux Falls	S Dakota	8/17/2012	11	11	4,524,754				Human polyomavirus 6 (1)		–
Cartersville	Georgia	9/7/2012	2	2	5,712						–
Fresno	California	4/14/2013	4	4	146,772						–
France
Bain de Bretagne	Bretagne	Feb 2008	11	5	1,952,326	Smacovirus (11241)					2/11
Montluçon	Auvergne	Jan 2009	5	0	–	ǂ					2/5
Plan de Cuques	Provence-Alpes-Côte d'Azur	Apr 2009	4	0	–	ǂ					1/4
Figeac	Midi-Pyrénées	Feb 2007	3	3	313,902	ǂ					1/3
Saint-Etienne	Rhone-Alpes	Jun 2007	5	5	102,930	ǂ					1/5
Dijon	Bourgogne	Sept 2007	4	4	399,002	ǂ			Anellovirus(213)		1/4
Sevran	Ile de France	Feb 2008	4	3	233,370	Smacovirus (994)		PBV(291)			1/3
Bergesserin	Bourgogne	March 2008	9	4	93,098	Smacovirus (1095)					1/4
Dieuze	Lorraine	Dec 2008	2	2	306,082	Smacovirus (254)					1/2
Lavelanet	Midi-Pyrénées	Jan 2009	3	3	261,498		Norovirus(3533)	PBV(61)			–
Drulingen	Alsace	Feb 2009	3	3	261,498	ǂ					1/3
Lutterbach	Alsace	Jan 2009	4	4	267,802	Smacovirus (291)	Astrovirus-MLB1(1855)				1/4
Maisons	Ile de France	March 2009	3	3	165,092	Smacovirus (321)					2/3
Lormes	Bourgogne	Jan 2008	2	2	274,042	Smacovirus (320)					1/2
Dijon	Bourgogne	Feb 2009	2	2	352,024	ǂ		PBV(6)			1/2
Roubaix-Lille	Nord	Jan 2003	10	2	524,530						–
Lyon	Rhone-Alpes	Feb 2005	17	2	360,668						–
Lyon	Rhone-Alpes	Jul 2008	13	2	349,636		Norovirus(14)				–
Lyon	Rhone-Alpes	Nov 2008	4	2	431,094						–
Angoulême	Poitou-Charentes	Nov 2008	16	2	223,370						–
Arras	Nord	Apr 2009	8	2	992,138						–

The number of viral reads is normalized to reads per million raw reads. PBV, picobirnavirus; GyV4, gyrovirus 4; CAV, chicken anemia virus; AGV2, Avian gyrovirus 2. ǂ Smacovirus DNA detected by PCR only.

Deep sequencing using the Illumina Miseq platform (human samples) and the 454 Genome Sequencer FLX platform (primate samples) was performed on enriched viral particles according to previously described protocols (Ng et al. 2012, 2013b). Sequence data were analyzed by a customized NGS pipeline as described previously (Deng et al. 2015). Specifically, human host reads and bacterial reads were subtracted by mapping the reads to human reference genome hg19 and bacterial RefSeq genomes release 66 using bowtie2. Remaining reads were considered duplicates if position 5 to 55  from 5′ prime end were identical. One random copy of duplicates was kept. Low-sequencing quality tails were trimmed using Phred quality score 10 as the threshold. Adaptor and primer sequences were trimmed using the default parameters of VecScreen (NCBI). The cleaned reads were de novo assembled using EnsembleAssembler (Deng et al. 2015). The assembled contigs, along with singlets were aligned to an in-house viral proteome database using BLASTx and E-value cutoff 0.01. The matches to viral sequences were then aligned to an in-house non-virus-non-redundant (NVNR) universal proteome database using BLASTx. Hits with more significant adjusted E-value to NVNR than to virus were removed. To digitally screen for smacovirus-related sequences in our in-house virome, the available iral DNA genomes were compared with 1.04 billion sequences using BLASTn and E-value cutoff of 0.0001. Resulting hits were analyzed manually by sequence alignment and phylogenetic analysis.

2.2. Whole genome sequencing

Since smacoviruses are encoded by small circular DNA genomes, a combination of regular and inverse PCR primers were designed to amplify the entire viral genomes in US diarrheal samples (primer sequences are provided in Supplementary Table 1). First, nucleic acids were extracted from stool samples using QIAamp Viral RNA Mini Kit (Qiagen). PCRs were performed using LA Taq (Clontech) with reagent concentrations according to the manufacturer’s instructions. PCR reactions were carried out with a ‘universal touch-down PCR’ suitable for the melting temperatures of all primers (Ng et al. 2013c), as follows: 95°C for 5 min, 45 cycles of [94°C for 1 min, 58°C−0.2°C per cycle for 1 min, 72°C for 1–3 min depending on amplicons size], followed by 72°C for 10 min.

To obtain complete genomes from NHP stool-associated smacoviruses, the extracted DNA were first randomly amplified by rolling circle amplification using Phi29 polymerase for 18 h (Illustra GenomiPhi V2 DNA Amplification Kit, GE Healthcare Biosciences). Inverse PCR was performed using abutting primers targeting individual genomes (primer sequences available upon request). The PCR products were sequenced by Sanger sequencing and primer walking.

2.3. PCR screening for smacoviruses in human fecal samples

DNA was extracted from 86 US stool supernatants (70 samples were analyzed by deep sequencing and 16 samples analyzed by PCR only) using QIAamp Viral RNA Mini Kit (Qiagen). To validate that smacovirus DNA was not the result of possible contamination from DNA extraction columns (Naccache et al. 2013), we confirmed the presence of the viral DNA by PCR after extraction with a different method lacking silica (MyTaq Extract-PCR Kit, Bioline, Gilroy) for all 121 samples from France (70 samples were sequenced by NGS and an additional 51 samples by PCR only). A single round of PCR was performed using primer pairs (ScvXF and ScvXR, ScvIF and ScvIR, FscvAF and FscvAR, FscvEF and FscvER; Supplementary Table 1) targeting conserved regions of the human feces-associated smacovirus clusters. Negative water controls were included in every PCR experiment.

2.4. Case–control study

The case control study involved 85 fecal samples from cases of moderate–severe diarrhea and 89 fecal samples from controls aged 2–58 months participating in the Global Enteric Multicenter Study (GEMS) from The Gambia (Kotloff et al. 2013). The samples were PCR screened using primer pairs (ScvXF and ScvXR, ScvIF and ScvIR). Demographics of the subjects are summarized in Supplementary Table 2. Samples were collected from The Gambia between March 2008 and August 2008. The ethics committees at the University of Maryland, Baltimore, MD, USA, and at the field site, approved the study. Cases of moderate–severe diarrhea were defined as acute (onset within 7 days) with ≥3 loose stools within 24 h and 1 of the following criteria: sunken eyes, loss of skin turgor, intravenous hydration prescribed, dysentery, or admission to hospital. Controls reported no diarrhea in the prior 7 days.

2.5. Genome and phylogenetic analysis

To generate phylogenetic trees, the protein sequences were aligned using Mafft with the E-INS-I alignment strategy (Katoh et al. 2005). Bayesian inference trees were constructed using MrBayes (Huelsenbeck and Ronquist 2001). The Markov chain was run for a maximum of 1 million generations, in which every 50 generations were sampled and the first 25 percent of Markov chain Monte Carlo samples were discarded as burn-in.

Rolling circle replication (RCR) motifs were analyzed from the sequence alignment with reference genomes of circoviruses and geminiviruses. Pairwise protein identities of replicase and capsid protein sequences were calculated using the species demarcation tool software (Muhire, Varsani, and Martin 2014). Stem–loop structure was analyzed using mfold with default settings (Zuker 2003).

2.6. Inoculation of immunodeficient NGS mice

Infectivity studies of human smacovirus in immunodeficient mice were conducted with approval of the Institutional Animal Care and Use Committee at ISIS Services LLC (San Carlos, CA). Breeding pairs of immunodeficient NOD.Cg-Prkdc^scid Il2rg^tm1Wjl/SzJ (NSG) were purchased from Jackson Laboratories (Sacramento, CA) and bred at our institute. In a barrier facility free of standard recognized murine pathogens detected using a sentinel-mouse screening program. In the first experiment, smacovirus-positive human stool samples were resuspended in sterile PBS. Host and bacteria cells were removed using 0.2-µm filter (Millipore). An aliquot of 100 µl of the filtrate containing smacovirus was inoculated into the gastrointestinal tract of a 19-week-old immunodeficient NSG mouse by gavage feeding under light anesthesia. Fecal samples were collected and tested by PCR every day until Day 14 post-inoculation (PI). One cage change was performed at Day 3 PI.

In a second experiment, 4 mice were inoculated with similar inoculum, but 1 mouse per day was sacrificed at Days 1, 2, 3, and 4 PI, with the remaining mice’s cage changed every day. Their stool, stomach, duodenum, ileum, cecum, colon, liver, spleen, kidney, heart, lung, brain, and mesenteric lymph nodes were collected. The DNA was extracted from these samples using QIAamp Viral RNA Mini Kit, which also extracts DNA, and tested for smacovirus using the PCR assay described above.

3. Results

3.1. Deep sequencing reveals smacovirus in human diarrheal outbreaks in the US

A total of 70 samples from 25 outbreaks in the US that tested negative for norovirus (GI, GII, GIV), sapovirus, rotavirus, adenovirus gpF, astrovirus (types1-8), and enterovirus were selected for viral metagenomics (Victoria et al. 2008; Li et al. 2010; Grard et al. 2012; Ng et al. 2012). Fecal samples were first pooled by outbreaks (Table 1) and were then processed by filtration of fecal supernatant followed by nuclease treatment of the filtrate to enrich for virus particle-associated nucleic acids. Extracted nucleic acids were then randomly amplified and prepared for Illumina sequencing. On average, 1.2 million sequence reads were generated for each outbreak (Table 1).

The viral sequences detected could be classified into 5 groups (Table 1): (I) Sequences related to a group of CRESS-DNA viruses previously reported in stools from wild chimpanzees, domesticated animals including pigs, cows, a turkey, and urban rats (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012, 2014; Cheung et al. 2013, 2014; Sikorski et al. 2013; Reuter et al. 2014). (II) Sequences from known enteric viral pathogens, norovirus, Aichivirus, and astrovirus, presumably missed by prior testing due to low viral load or sequence divergence relative to the screening assay used. (III) Picobirnaviruses. A highly diverse virus group not associated with human diarrhea. (IV) Viral sequences not known to be associated with gastroenteritis, including HIV, polyomavirus, papillomavirus, and anellovirus. (V) Viral sequences likely originating from diet, such as chicken anemia virus and related gyroviruses. Here we investigated the genomic features and genetic diversity of the CRESS-DNA viruses in group I, here tentatively named smacoviruses (small circular genome virus), to differentiate them from other CRESS-DNA viruses.

3.2. Detection of smacovirus by digital and PCR screening of diarrheal outbreaks in France

Through the use of digital screening, we detected smacovirus sequences in previously analyzed stool samples from France. Specifically, using the US stool-associated smacovirus genomes as queries, we used BLASTn to search for closely related sequences in our in-house virome sequence database. At time of testing, the in-house virome database consisted of over 1.04 billion sequence reads generated from 40 runs of 454 pyrosequencing and 130 runs of Illumina MiSeq from fecal, respiratory, blood, and tissue samples collected from humans and animals. Smacovirus-related sequences were exclusively identified in fecal specimens from gastroenteritis outbreaks collected in France during 2005–2009. Based on this finding, we performed additional deep sequencing and/or PCR analysis on samples from 21 outbreaks from France. Samples from 14 of these outbreaks tested positive for smacovirus (Table 1 and summarized below).

3.3. Prevalence and genetic diversity of smacoviruses in AGE outbreaks

A total of 86 diarrhea samples from the US and 121 diarrhea samples from France were screened for smacovirus DNA by PCR. Out of the investigated outbreaks, smacovirus DNA was detected in samples from 7 (28 percent) of the 25 unexplained outbreaks in the US and in 14 (67 percent) of the 21 unexplained outbreaks in France (Table 1). Smacovirus DNA was detected in 1–3 samples per outbreak (Table 1. Column PCR prevalence).

A subset of 17 smacovirus PCR positive stool samples were then individually analyzed (not in pools) by deep sequencing (Table 2). Four samples also contained picobirnaviruses, a recently described virus frequently reported in stools of both healthy and diarrheic subjects that has not been associated with diarrhea (van Leeuwen et al. 2010; Ng et al. 2014). Astrovirus MLB1, a virus recently associated with diarrhea in a Kenyan pediatric population (Meyer et al. 2015), was detected in 3 subjects. Seven samples contained viruses of likely dietary origins such as chicken anemia virus, pig circovirus, and ungulate protoparvovirus 1 from pig. Seven of these 17 samples contained no other vertebrate virus. Smacovirus DNA were the only recognizable viral sequences detected in 7 samples. In some samples, smacovirus accounted for as much as 7 percent of all sequence reads indicating a high concentration of smacovirus (Sample J23 and E2623 in Table 2).

Table 2.

Virome analysis of 17 individual samples of unexplained acute gastroenteritis positive for smacoviruses

Metagenome of individual sample					Deep Sequencing / Viral metagenomics
					Virus (normalized to reads per million raw reads)
Collection info			Sample info	NGS info	I	II	III	IV	V
City	State	Date	Sample Name	Raw reads	Smacovirus	Enteric pathogen	Picobirnavirus	Other human viruses	Likely dietary
USA
Cottage Grove	Oregon	6/6/2011	B3	938,086	Smacovirus (179)
Albemarle	Virginia	2/18/2012	G16	674,106	Smacovirus (16)		PBV(2820)		CAV (2)
Mecklenburg	Virginia	1/16/2012	H19	552,958	Smacovirus (6988)
Middlesex	Virginia	2/27/2012	I22	221,478	Smacovirus (4,700)
Chesapeake	Virginia	2/27/2012	J23	1,195,568	Smacovirus (27,743)		PBV(323)
France
Figeac	Midi-Pyrénées	Feb 2007	E1668	547,428	Smacovirus(18)
Saint-Etienne	Rhone-Alpes	June 2007	E2013	792,956	ǂ			Anellovirus(10)	Duck circovirus(7),GyV(5),CAV(1)
Dijon	Bourgogne	Sept 2007	E2074	642,246	Smacovirus(114)	Astrovirus-MLB1(3)
Sevran	Ile de France	Feb 2008	E2548	1,215,354	Smacovirus(1674)
Bergesserin	Bourgogne	March 2008	E2623	308,786	Smacovirus(21669)			Human polyomavirus (133)	CAV(42), GyV1(7)
Dieuze	Lorraine	Dec 2008	E3454	817,894	Smacovirus(375)
Lutterbach	Alsace	Jan 2009	E3804	1,032,400	ǂ	Astrovirus-MLB1(6815)	PBV(4)		CAV(4),Ungulate protoparvovirus 1(2)
Drulingen	Alsace	Feb 2009	E3953	1,450,828	Smacovirus(289)		PBV(2)		PCV(2)
Maisons	Ile de France	March 2009	E4191	754,000	Smacovirus(2273)			Human polyomavirus (28)	Po-Circo-like virus (28), Ungulate protoparvovirus 1 (7)
Maisons	Ile de France	March 2009	E4192	930,822	Smacovirus(2)				Duck circovirus(2)
Lormes	Bourgogne	Jun 2008	E2871	765,378	Smacovirus(534)	Astrovirus-MLB1(3)
Dijon	Bourgogne	Feb 2009	E3976	1,743,222	Smacovirus(3)

Abbreviations are the same as Table 1. ǂ Smacovirus DNA detected by PCR only.

We generated 22 full human stool-associated smacovirus genomes. The sequence identity among them ranged from 64 to 100 percent and 64 to 100 percent (nt and a.a., respectively) in the Rep gene and 54–100 and 48–100 percent (nt and a.a., respectively) in the Cap gene (nt identities are shown in Fig. 1B), indicating that Cap genes were slightly more diverse than Rep genes.

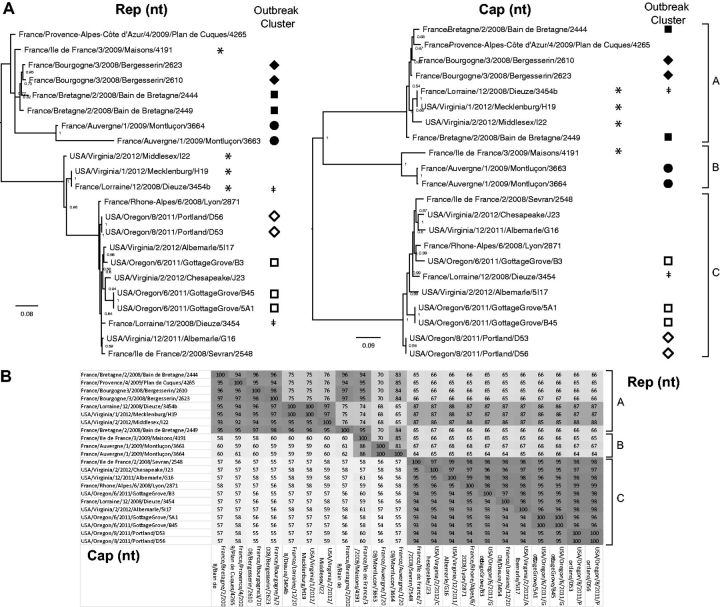

Figure 1.

Smacovirus phylogeny and outbreak clustering, and pairwise identities. (A) Bayesian inference analysis was performed to compare the phylogeny of the Rep and Cap nucleotide sequences. Sample collection dates and locations are shown. Smacoviruses from the same outbreak are labeled with same symbols. Co-infection with 2 smacoviruses was detected in 1 sample labeled with ǂ. Recombinant genomes are labeled with *. (B) Pairwise nucleotide identities between human feces-associated smacoviruses in the Rep and Cap genes. Tree of all smacoviruses with accession numbers can be found in supplementary figure 3.

Phylogenetic and pairwise analysis of the Cap gene revealed 3 major clusters (Fig. 1A). Cluster A was comprised of smacoviruses in fecal samples from France and USA. Cluster B was comprised of only French stool-associated viruses from two 2009 outbreaks. Cluster C included mostly outbreaks from the USA during 2011–2012, but also viruses from 2 French outbreaks collected as early as 2008. A single stool sample (Dieuze/3454) contained 2 smacoviruses, 1 from cluster A and 1 from cluster C. Notably, individual sequences from the same outbreak often clustered together (Fig. 1A), showing that similar smacovirus sequences were shared by different patients in the same outbreak presumably viruses originating from a common source.

The Rep gene shared similar tree topology with the Cap gene, except for 4 strains (4191, I22, H19, and 3454b)—whose Rep and Cap genes exhibited dissimilar phylogenetic clustering, suggesting possible recombination (Fig. 1A). Because I22, H19, and 3454b genomes were nearly identical, only H19 together with 4191 were analyzed for recombination.

3.4. Recombination in human stool-associated smacovirus genome

Recombination analysis (Simplot) as well as sequence alignment analysis showed that smacoviruses strain H19 is a recombinant with cluster A contributing Cap sequence, and cluster C contributing Rep sequence (Simplot and alignment analysis, Supplementary Fig. 1). A likely recombination event was also detected using RDP4 by RDP (P-value = 5.20 × 10⁻⁹²), GENECONV (P-value = 7.12 × 10⁻⁹²), Maxchi (P-value = 2.03 × 10⁻⁸⁹), Chimaera (P-value = 2.38 × 10⁻³²), and 3Seq (P-value = 6.52 × 10⁻¹⁰⁰) (Smith et al. 1992; Padidam, Sawyer, and Fauquet 1999; Posada and Crandall 2001; Martin et al. 2005, 2015; Boni, Posada, and Feldman 2007). Recombination analysis for strain 4191 was less conclusive; our analyses show that parental sequence related to strain 4265 from cluster A contributed Rep sequence, while the Cap sequence originated from an as-yet undiscovered genome in cluster B. We identified 2 recombination break points: 1 downstream of the Rep ORF near where the stem loop is located, and a second one near the first 1/3 of the Rep protein between RCR motif II and motif III. Recombination is a known mechanism for increasing sequence diversity in ssDNA viruses (Martin et al. 2011), and our analysis suggests that it also plays a role in smacovirus evolution.

3.5. Smacovirus DNA rare in African human stool samples

Stool samples from 85 Gambian children with diarrhea and 89 samples from age-matched healthy Gambian children were tested by PCR. Samples were previously screened for 17 pathogens (Kotloff et al. 2013; Meyer et al. 2015). Only 1 sample from a 15-month-old boy with diarrhea was PCR positive. Based on prior microbiological testing, this sample was also positive for norovirus GII and rotavirus.

3.6. Highly diverse smacovirus genomes in non-human primate stools

In order to determine the extent of genetic diversity of smacovirus in the stools of other primates, we collected 43 stool samples from 12 non-human primate (NHP) species without clinical diarrhea for metagenomic sequencing and PCR detection. Smacovirus genomes were detected in 4 of the 12 NHP species tested from the San Francisco Zoo.

3.7. Genomic characteristics of the smacovirus clade

Smacovirus genomes contained a set of conserved features. Each contained 2 major bi-directionally transcribed ORFs, encoding a Rep and a Cap (Fig. 2). All genomes but 1 are of type IV organization (Rosario, Duffy, and Breitbart 2012), with the predicted stem loop located at the 3′ end of the Rep gene. The single exception was the PigSCV (JQ023166) from pig stools, which atypically belongs to type V organization since the two major ORFs were in the same orientation. The human and NHP stool-associated smacovirus genomes showed a tight genome size distribution (2452–2651 bases), as previously described for other animal-associated smacoviruses (2403–2639 bases) (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012, 2014; Cheung et al. 2013, 2014; Sikorski et al. 2013; Reuter et al. 2014). All Rep of the NHP smacoviruses were encoded by a single continuous ORF when aligned with other Rep proteins of CRESS-DNA virus except for the black howler monkey smacovirus whose ORF was interrupted by an intron.

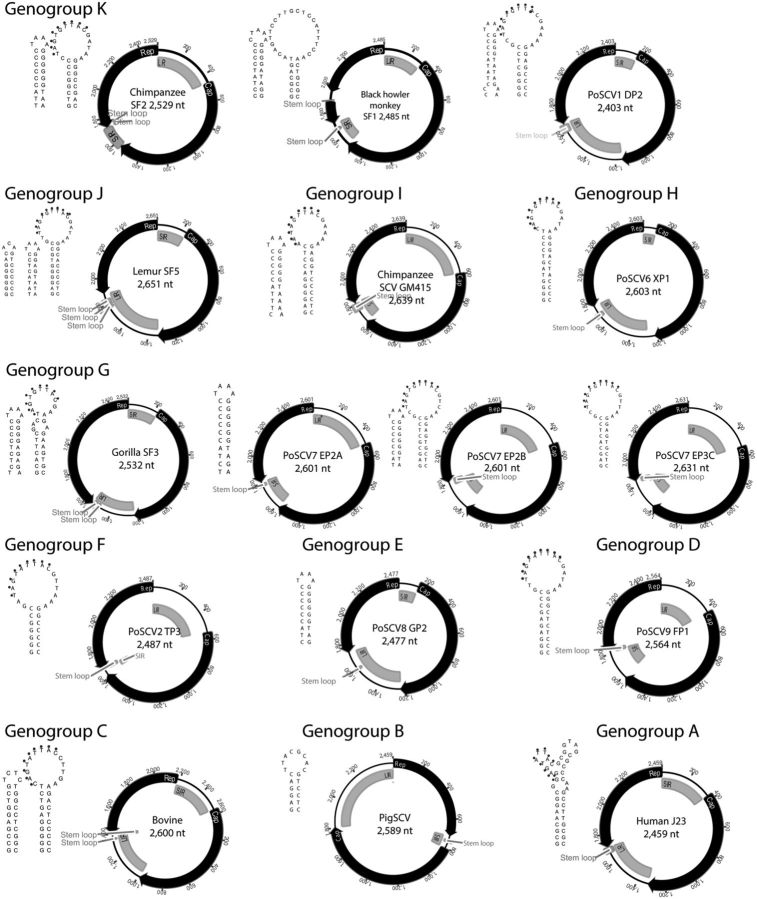

Figure 2.

Schematic genome organization of smacoviruses. Representative genomes were selected from each genogroup for their genome size, ORFs (Rep, replication initiator protein; Cap, capsid protein) intergenic regions, (LIR, long intergenic region; SIR, small intergenic region), and predicted stem loop structure. Stem loop structures were predicted by mfold (Zuker 2003). Three categories of stem loop configurations, stem loop type L, S, and SL, were detected in these smacovirus genomes (for example: type L, genogroup D; type S, genogroup E; type SL, genogroup C). Nucleotide motif sequence NANNNTTAC in the stem-loop in stem loop type L, homologous to those involved in the initiation of DNA replication, were labeled with black dots.

Phylogenetic analysis of the complete smacovirus Rep proteins showed them to be distinct from other CRESS-DNA viral families such as Circoviridae, Geminiviridae, and Nanoviridae (Fig. 3A). Human and NHP smacoviruses clustered with the previously reported ‘SCV’ from chimpanzees, pigs, turkeys, cows, and rats (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012, 2014; Cheung et al. 2013, 2014; Sikorski et al. 2013; Reuter et al. 2014). By Bayesian inference analysis, we determined that these smacovirus Rep sequences clustered into a monophyletic group (Fig. 3A) distinct from the other described CRESS-DNA from animals, plants, or environmental samples available in GenBank (Rosario, Duffy, and Breitbart 2012). In addition to the monophyletic nature of the smacovirus Rep gene, these viruses also shared similar genome organization and location of their stem loops (Fig. 2).

Figure 3.

Rep gene phylogeny of smacoviruses, including genomes associated with stools from human and other animals. (A) The Bayesian phylogeny was generated using MrBayes, where 1,000,000 generations were sampled every 50 steps. Eleven clades were labeled as genogroups using 60 percent identity cutoff that was calculated by pairwise identities analysis. The scale bar indicates genetic distance. Branches were colored according to the animal from which the viral sequences were reported, and sequences from this study are annotated with an asterisk. (B) Frequency histogram of the pairwise identities between smacovirus Rep protein sequences. To avoid over-representation of human-associated smacoviruses, all animal-associated sequences and 3 selected human-associated sequences from Fig. 1 were used. (C) RCR motifs of smacoviruses comparing the 11 genogroups.

Pairwise comparison of all smacovirus Rep proteins showed sequence identities as low as 27 percent (Fig. 3B), reflecting a high level of genetic diversity. After plotting the frequency of pairwise identities of Rep sequences (Fig. 3B), we chose an arbitrary cut-off value of 60 percent identity to group Rep sequences into 11 smacovirus genogroups (A through K, Fig. 2). Viruses in most genogroups originated from the stools of a single host species (Fig. 3A) with 3 exceptions: genogroup K contained smacoviruses from stools of chimpanzee, black howler monkey, pig, and turkey; genogroup H were found in stools of pigs and rats; and genogroup G in stools of pigs and gorilla. Smacoviruses from pig stools have been the most extensively characterized (Sachsenröder et al. 2012; Cheung et al. 2013, 2014) and were represented in 8 of the 11 genogroups; whereas chimpanzee stool-associated smacoviruses were represented in 2 genogroups. All human stool-associated smacoviruses analyzed here fell in a single genogroup (Genogroup A, Fig. 2 and 3A).

CRESS-DNA viruses, such as members of the Circoviridae and Geminiviridae families, typically contain highly conserved RCR and NTPase/helicase motifs in their Rep. All 6 motifs were detected in most smacoviruses (Fig. 3C), indicating their genomes likely replicate via rolling circle amplification. There were only a few exceptions to the presence of all 6 complete motifs (ChiSCV-GT306, genome of 1198 nt; ChiSCV-DP152, genome of 2609 nt; and PigSCV, genome of 2459 nt) (Blinkova et al. 2010: Sachsenröder et al. 2012).

The stem loop structure is required for the initiation of DNA replication of CRESS-DNA viruses (Stenger et al. 1991; Fontes et al. 1994). Smacoviruses differs from known CRESS-DNA viral families in both location and structure of the tentative stem loop. Stem loops for circovirus and geminivirus are located upstream of their Rep gene (Rosario, Duffy, and Breitbart 2012), whereas for smacoviruses, the location is downstream (Fig. 2). Both circoviruses and geminiviruses contain the NANTATTAC motif on top of the stem loop, but only a fraction of smacovirus genomes contain this canonical sequence (Fig. 2). Three different kinds of stem loop structures could be detected in smacoviruses: Stem loop type L (Stem_L)—a stem with a large loop containing the nanonucleotide NANT(A/G)TTAC, similar to those described in Geminiviridae and Circoviridae; Stem loop type S (Stem_s)—a stem with a small loop containing 4 bases, often TAAA; and, Stem loop type SL (Stem_SL)—a double stem loop structure in which a stem loop type S was followed by a stem loop type L (Fig. 2).

Based on the currently available genomes, all smacoviruses found in human stools contained canonical Stem_L, whereas smacovirus genomes in the stools of non-human primates, cow, and turkey contained Stem_SL (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012; Sikorski et al. 2013; Cheung et al. 2014; Reuter et al. 2014). All 3 stem loop types are present in the various genogroups of porcine stool-associated smacovirus genomes (Cheung et al. 2013, 2014). The stem loop types do not appear to be genogroup-specific, for example, genogroup G contains multiple porcine smacoviruses with all 3 stem loop types (Cheung et al. 2014).

3.8. Inoculation with immunodeficient mice

We attempted to establish a small animal model for human stool-associated smacoviruses by inoculating fecal filtrates into the gastrointestinal tract of an adult immunodeficient NOD.Cg-Prkdc^scid Il2rg^tm1Wjl/SzJ (NSG) mouse by gavage feeding. The viral DNA was detected in the stools by PCR up to Day 2 PI, but was not detected at Days 3–10 PI.

Four NSG mice were similarly inoculated orally and were sacrificed at Days 1, 2, 3, and 4 PI. When their internal organs were PCR tested, only the cecum was PCR positive for the virus on Days 1 and 2 only (Supplementary Table 3). These results suggest that the human-stool-associated smacovirus either underwent low level transient replication or simply transited the gut without replication before being passively shed in the stools.

4. Discussion

We detected smacovirus DNA in 7 of the 25 (28 percent) unexplained US diarrhea outbreaks using deep sequencing and PCR. We subsequently detected smacovirus DNA in 14 of 21 (67 percent) unexplained acute gastroenteritis outbreaks in France. No other known viral enteric pathogens were detected in 14/17 of individual smacovirus-positive samples using metagenomics sequencing (3 samples also contained astrovirus MLB1 which has been associated with diarrhea in Gambian children) (Meyer et al. 2015) (Table 2). When 85 stools from children with diarrhea and 89 from healthy controls from The Gambia were PCR tested, a single diarrhea case was smacovirus PCR positive—the same patient was coinfected with norovirus GII and rotavirus.

Smacovirus is distantly related to other CRESS-DNA viruses, such as Circoviridae, Geminiviridae, and Nanoviridae, which include known pathogens of animals and plants. Smacovirus DNA (named SCV or small circular genome viruses in prior reports) has been reported in the stools of chimpanzees, pigs, turkeys, cows, rats, both with and without diarrhea and in sewage (Blinkova et al. 2010; Kim et al. 2012; Sachsenröder et al. 2012, 2014; Cheung et al. 2013, 2014; Sikorski et al. 2013; Reuter et al. 2014; Kraberger et al. 2015). Here, we describe smacovirus genomes in stool samples from people with diarrhea and from 4 species of captive primates.

We also demonstrate the utility of digitally screening a large collection of pre-existing metagenomics data from animal and human biological samples. Here this screening was applied in our in-house metagenomics database. Using similar approaches in regional or global networks could shorten the time required to detect wider presence of newly described viral genomes which may have been unrecognized or unreported in previous analyses.

Analysis of 22 complete smacovirus genomes in human stool samples collected from 2008 to 2012 showed that these viruses showed a high level of genetic variations in both Cap and Rep proteins while retaining overall genome organization and genome size. Plant CRESS-DNA viruses such as geminiviruses are known to generate sequence diversity via recombination (Padidam, Sawyer, and Fauquet 1999). Based on the analysis of smacovirus genomes, it is likely that recombination also plays a role in their evolution.

When smacoviruses were detected in more than one patient from the same outbreak, their genomes clustered phylogenetically. This observation supports the possibility that smacoviruses, or possibly their cellular host, were ingested from a shared contaminated source by different individuals in the same outbreak, or were spread following person-to-person transmission. Although smacoviruses were shed by people with diarrhea, it remains possible that smacoviruses infect organisms present in the gastroenteric tract or originate from ingested food including plants. Since all animal and human-associated smacovirus genomes reported have been detected in stool samples, their cellular hosts remain uncertain, as stools may also contain viruses from consumed plants, fungi, and meats or viruses replicating in organisms in the gut such as bacteria, protozoas, or worms (Zhang et al. 2006; Victoria et al. 2009; Dutilh et al. 2014). The detection of an intron region in the Rep gene of the black howler monkey stool-associated smacovirus provides evidence for a eukaryotic host. An indirect line of evidence against a dietary origin of smacovirus comes from a study failing to detect bovine smacovirus DNA in animal feed, even though the virus was detected in the cows’ stools (Kim et al. 2012). Another study weighing against a common dietary origin of smacovirus comes from a controlled feeding trial of pigs where, despite being fed the same diet, only a subset of the pigs shed smacovirus in their stools (Sachsenröder et al. 2012). It is therefore conceivable, yet remains to be shown, that smacoviruses in feces originate from infections of enteric cells. While our initial attempts to infect laboratory mice with human stool-associated smacovirus were not successful, these results may reflect either its inability to cross species barrier, or its origin from a non-vertebrate host, such as plant. Further investigations will be required to resolve the tropism of smacoviruses and their possible role in gastroenteritis outbreaks in humans.

Data availability

Data are available under GenBank accession numbers KP233174–KP233194 and KP264964–KP264969.

Supplementary data

Supplementary data are available at Virus Evolution online.
