Nuclear Phosphoproteomic Screen Uncovers ACLY as Mediator of IL-2-induced Proliferation of CD4⁺ T lymphocytes

Abstract

Anti-cancer immunotherapies commonly rely on the use of interleukin-2 (IL-2) to promote the expansion of T lymphocytes. IL-2- dependent proliferation is the culmination of a complex network of phosphorylation-driven signaling events that impact on gene transcription through mechanisms that are not clearly understood. To study the role of IL-2 in the regulation of nuclear protein function we have performed an unbiased mass spectrometry-based study of the nuclear phosphoproteome of resting and IL-2-treated CD4⁺ T lymphocytes. We detected 8521distinct phosphosites including many that are not yet reported in curated phosphorylation databases. Although most phosphorylation sites remained unaffected upon IL-2 treatment, 391 sites corresponding to 288 gene products showed robust IL-2-dependent regulation. Importantly, we show that ATP-citrate lyase (ACLY) is a key phosphoprotein effector of IL-2-mediated T-cell responses. ACLY becomes phosphorylated on serine 455 in T lymphocytes upon IL-2-driven activation of AKT, and depletion or inactivation of ACLY compromises IL-2-promoted T-cell growth. Mechanistically, we demonstrate that ACLY is required for enhancing histone acetylation levels and inducing the expression of cell cycle regulating genes in response to IL-2. Thus, the metabolic enzyme ACLY emerges as a bridge between cytokine signaling and proliferation of T lymphocytes, and may be an attractive candidate target for the development of more efficient anti-cancer immunotherapies.

The underlying principle of cancer immunotherapy is to eliminate malignant cells by tuning the immune system (1–2). This revolutionary way of fighting tumors was originated three decades ago when a patient suffering from metastatic melanoma was treated with the T-cell growth promoting factor interleukin-2 (IL-2)¹ (3). The success of IL-2 administration in fighting metastatic melanoma demonstrated for the first time that solely potentiating the activation of T lymphocytes could abrogate certain human cancers (4). Current immunotherapy approaches include the use of autologous gene-engineered T cells that, once expanded ex vivo with IL-2, are re-infused back into patients by the so-called adoptive cell transfer therapy (ACT) (5–7). Despite the promising results of this approach, a safe and long-lasting expansion of transferred T cells remains a major challenge because of the undesirable side effects derived from the use of IL-2. Continued exposure to high doses of IL-2 results in increased susceptibility of T cells to apoptosis (8). Moreover, IL-2 is also a critical component for regulatory T-cell (T_reg) development and function (9–10), and as such it functions as a negative regulator of the immune response (11). Consequently, although IL-2 constitutes a key component of current immunotherapies, a great deal of effort is being devoted to the development of novel strategies that would boost the T-cell immune response more safely. In this regard, it has been shown that IL-2-related toxicity can be partially minimized by the use of gene-engineered T cells expressing IL-2 receptor chimeras capable of transducing signals in the absence of the cytokine (12–13). A synthetic version of IL-2 with increased affinity for IL-2 receptor beta chain, named superkine or super-2, has also been proven to successfully induce the proliferation of cytotoxic T cells while eliciting a reduced expansion of T_reg populations (14). However, although great improvements have been achieved since IL-2 was first administered to boost the immune system of a cancer patient, IL-2-related toxicity issues still persist in current anti-cancer immunotherapies. Therefore, a deeper understanding of IL-2-mediated regulatory mechanisms could help to design safer therapies.

Signaling cascades activated in response to IL-2 have been extensively studied since the late ′70s when the cytokine was discovered (15–17). Antigen binding to the T-cell receptor promotes IL-2 secretion as well as expression of IL-2 receptor (IL-2R), which comprises a hetero-oligomeric complex consisting of three polypeptide subunits named α, β and γ. Engagement of IL-2/IL-2R induces receptor oligomerization which results in the activation of members of the JAK tyrosine kinase family (18–19). JAK kinases associate with discrete regions of the IL-2R β and γ subunits, thereby phosphorylating the receptor and initiating a complex network of downstream signaling cascades (20–21). JAK/STAT, RAS/MAPK and PI3K/AKT pathways are the three main signaling branches activated upon IL-2 stimulation of T cells that culminate in immune response modulation (22–24). Traditionally, effectors involved in signal transduction have been analyzed using classical biochemical methods. However, this approach is hampered by the limited capacity to analyze biological systems in their complexity. Signaling pathways are interconnected protein networks, therefore they need to be analyzed as a whole. In this regard, mass spectrometry (MS)-based quantitative proteomics/phosphoproteomics has emerged as a powerful tool to investigate signal transduction cascades (25–27). In fact, using quantitative mass spectrometry techniques we have elucidated the global tyrosine phosphoproteome of IL-2 and IL-15 signaling pathways in T lymphocytes (28–29).

It has been shown that besides playing a key role in signal transduction, protein phosphorylation is an essential regulatory mechanism altering gene expression (30–31). IL-2-triggered signals are known to be transmitted to the nucleus leading to changes in gene expression regulation that generate the adequate cellular response and immune regulation. For instance, IL-2 treatment results in phosphorylation of STAT5A, which is a pre-requisite for this transcription factor to translocate into the nucleus and regulate gene expression (32–33). Despite its relevance, the precise influence of IL-2 in the modulation of nuclear phosphorylation and its impact on cellular proliferation remains obscure. In the present study we have examined the nuclear phosphoproteome of resting and IL-2-treated T lymphocytes. We report the identification and quantification of thousands of site-specific phosphosites, which represents the largest dataset of nuclear phosphorylations reported on human CD4⁺ T lymphocytes. Importantly, over 300 phosphosites were found to be specifically regulated upon IL-2 stimulation, including Ser⁴⁵⁵ on ATP-citrate lyase (ACLY), a metabolic enzyme responsible for generating acetyl-CoA. By inhibiting or depleting ACLY in T cells we demonstrate the relevance of this enzyme in IL-2-dependent modulation of histone acetylation levels and T-cell proliferation. Moreover, our study provides a collection of candidates for future hypothesis-driven experiments that could clarify the regulatory networks that lead to IL-2-triggered expansion of T cells and may serve as targets for cancer immunotherapy.

MATERIALS AND METHODS

Reagents, Antibodies, Peptides, and Primers

Human recombinant IL-2 was kindly provided by “AIDS Research and Reference Reagent Program”, Division of AIDS (NIH, National Institute of Health, Bethesda, MD). The following antibodies from (Cell Signaling, Danver, MA) were used for Western blotting assays: AKT (#-9272), phospho-AKT (Ser⁴⁷³) (#-4060), ACLY (#-13390), phospho-ACLY (Ser⁴⁵⁵) (#-4331), ERK1/2 (#-9102), phospho-ERK1/2 pThr²⁰²/Tyr²⁰⁴ (#-9101), Histone H3 (#-9715), and phospho-STAT5 (Tyr⁶⁹⁵) (#-9351). α-tubulin (T6199) was purchased from (Sigma-Aldrich, Copenhaguen, Denmark). Anti-acetyl histone H3 (06–599) and anti-acetyl histone H4 (06–598) used for Western blotting and chromatin immunoprecipitation were purchased from (Millipore, Darmstadt, Munich, Germany). The HPR-conjugated secondary antibodies anti-mouse (NA931) and anti-rabbit (NA934) were purchased from GE Healthcare. AKT inhibitor MK-2206 and HDAC inhibitor SAHA were purchased from (Selleckchem, Munich, Germany) MEK inhibitor U0126 from (Promega, Madison, WI) and ACLY inhibitor SB-204990 from (Tocris, Bristol, UK). Information concerning stable isotope labeled (SIL) peptides purchased for PRM assay and sequences of the qRT-PCR primers as well as primers used for site-directed mutagenesis are provided in supplemental Table S1.

Cell culture and stimulation

Human leukemic Kit225 T lymphocytes were maintained in RPMI 1640 media (Gibco, Hvidovre, Denmark) supplemented with 10% FBS, 1% glutamine, 1% sodium pyruvate, 1% penicillin/streptomycin and 16 U/ml of IL-2 at a density of 1.10⁶ cell/ml at 37 °C and 5% CO₂. Cell number was estimated using NucleoCounter (ChemoMetec, Allerod, Denmark). For the large-scale SILAC experiments, Kit225 T cells were grown in media containing either the light (Arg0/Lys0) or heavy (Arg6/Lys4) isotopes of lysine and arginine. Prior to cytokine treatment, cells were IL-2-starved for 48 h to synchronize them at G₁ phase of the cell cycle. Stimulation was performed by incubating cells with 200 U/ml of IL-2 for 5 min at 37 °C and rapidly quenched by placing cells on ice and washing with cold PBS. In the SILAC experiments, T cells grown in light media were kept unstimulated and served as control whereas heavily labeled Kit225 T cells were treated with the cytokine.

Human U2OS osteosarcoma cell line was maintained in Dulbecco's modified Eagle's medium supplemented with 10% fetal bovine serum (FBS).

Plasmids, Cell Transfection and Generation of Stable T-cell Line

The lentiviral vector pSicoR was obtained from (Addgene, Cambridge, MA) (Addgene Plasmid 11579) in accordance with Material Transfer Agreements (MTAs) and the lentiviral vector pCDF1-MCS2-EF1-Puro was purchased from (System Biosciences Co, Palo Alto, CA). In order to create a DNA construct for ACLY expression, the pSicoR plasmid was modified so that the U6-ShRNA cloning cassette was exchanged with EF1alpha-eYFP construct by PCR methods and conventional cloning. Simiarly, the CMV-eGFP cassette on the pSicoR plasmid was exchanged by EF1-Puro cassette from vector pCDF1-MCS2-EF1-Puro and puromycin resistance gene was substituted by ORF of ACLY cDNA. ACLY cDNA containing each single point mutation of interest was generated by standard site-directed DNA mutagenesis. The sequences of several clones were verified by DNA sequencing and error free clones were chosen for transfections. U2OS cells were transfected using XtremeGENE HD (Roche, Hvidovre, Denmark) following manufacturer′s recommendations.

The RNAi sequence potentially targeting human ACLY transcript was generated using available web resources (http://www.dharmacon.com) according to published recommendations for siRNA/shRNA design (34–35). The shRNA sequences were synthesized (DNA technology, Denmark) as two complementary DNA oligonucleotides: T(N19)TTCAAGAGA(rN19)TTTTTTC and TCGAGAAAAAA(N19)TCTCTTGAA(rN19)A where N19 is the 19-nt sense strand of the target sequence and rN19 is the complementary antisense strand. The targeting sequence (N19) we used for silencing ACLY was 5′-GGAGGAAGGGAATGAAACA-3′ whereas the random sequence 5′-GCAATATGACGAGTTAGTA-3′ was used as control. Annealed oligonucleotides were directly cloned into the lentiviral pSicoR-puro vector that allows puromycin resistance-based selection of shRNA-expressing cells. After DNA constructs were verified, lentiviral particles were generated as previously described (36). Briefly, HEK-293T cells were co-transfected with the lentiviral vector and the virus packaging plasmids using Metafectene and supernatants were collected 48 h and 72 h postinfection. Then viral particles were concentrated by ultracentrifugation and used for infection of Kit225 T cells to generate stable cell lines expressing the described RNAi constructs.

Nuclear and Phosphopeptide Enrichment

Unstimulated (Arg0/Lys0) and IL-2-treated (Arg6/Lys4) Kit225 T cells were subjected to cytosol and nuclear enrichment. Briefly, cells were resuspended in a lysis buffer (25 mm TrisHCl pH 7.5, 100 mm NaCl, 1% Nonidet P-40, complete protease inhibitor mixture tablets (Roche) and phosphoSTOP tablets (Sigma-Aldrich), and centrifuged for 15 min at 13,000 rpm. Cytosolic fraction was recovered and nuclei-containing pellet was disrupted by resuspending in urea buffer (8 m urea, 10 mm TrisHCl pH 7.5) and sonication. After estimating protein abundance by BCA method, light and heavy cell lysates were combined in 1:1 ratio according to their protein concentration and subjected to in-solution digestion using LysC and trypsin as previously described (37). Proteolytic digestion products were desalted on a Sep-Pak C₁₈ cartridge (Waters, Milford), lyophilized for 2 days and enriched in phosphopeptides by consecutive incubations with TiO₂ beads (38–39). Half sample of each fraction was directly analyzed by LC-MS/MS whereas the remaining halves were pooled together and further fractionated using high pH fractionation prior MS analysis (40).

Mass Spectrometry Analysis

Shotgun proteomic analyses were carried out using a reverse phase liquid chromatography system (EASY-nLC 1000 ultrahigh pressure, Thermo Fisher Scientific) interfaced with a Q Exactive HF mass spectrometer (Thermo Fisher Scientific, Waltham, MA) via a nanoelectrospray source (Thermo Fisher Scientific). Acidified peptides were loaded on an analytical in-house packed column (20 cm × 75 μm, ReproSil-Pur C₁₈-AQ 3 μm resin (Dr. Maisch GmbH)) in solvent A (0.5% acetic acid) and eluted by a nonlinear 120 min solvent B gradient (0.5% acetic acid, 80% acetonitrile) at a flow rate of 250 nl/min. Q Exactive was operated in a top 10 data dependent mode. Survey scans were acquired at a resolution of 70,000 (m/z 400) and fragmentation spectra at 35,000 (m/z 400). Precursors were fragmented by higher energy C-trap dissociation (HCD) with normalized collision energy of 25 eV. The maximum injection time was 120 ms for survey and 124 ms for MS/MS scan whereas the AGC target values of 1e6 and 1e4 were used for survey scans and for MS/MS scans, respectively. Repeated sequencing of peptide was minimized by excluding the selected peptide candidates for 45 s.

All raw data files acquired were searched against the UniProt human database version 2014.01 (with 88,479 sequence entries) with MaxQuant proteomics computational platform version 1.3.0.5 and using Andromeda search engine (41). SILAC doublets were selected for the analysis where light and heavy labels were set as Arg0/Lys0 and Arg6/Lys4. Precursor and fragment mass tolerances were set to 7 and 20 ppm, respectively. Enzyme specificity was set to trypsin, allowing for cleavage N-terminal to proline and between aspartic acid and proline (with a maximum of 2 missed cleavages). Carbamidomethylation of C was set as fixed modification whereas oxidation of M, protein N-terminal acetylation, NQ deamidation and STY phosphorylation were selected as variable modifications for database searching. For the analysis of phosphopeptides, 1% FDR, a minimum localization probability of 0.75 and a score difference of at least 5 was used (42). The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via PRIDE partner repository (43–44) with the data set identifier PXD002839.

PRM analyses were performed using a Q Exactive mass spectrometer (ThermoFisher Scientific) interfaced with an Easy-nLC 1000 nanoUPLC System (ThermoFisher Scientific). Phosphopeptides were air dried in a Speedvac and resuspended with the SIL phosphopeptide mixture. Samples were loaded onto an Acclaim PepMap100 precolumn (75 μm × 2 cm, ThermoFisher Scientific) connected to an Acclaim PepMap RSLC (50 μm × 15 cm, Thermo Scientific) analytical column. Peptides were eluted with a 90 min linear gradient from 3% to 30% of acetonitrile in 0.1% of formic acid at a flow rate of 300 nl/min directly onto the nanoES Emitter (ThermoFisher Scientific). The Q Exactive was operated in Targeted-MS2 mode and method optimization was achieved by analysis of SIL phosphopeptide by Full MS, Full MS/dd-MS² (Top10) and Targeted-MS². Then, selected m/z values were incorporated in an inclusion list and specific retention time windows were applied based on method optimization results. Spectra were acquired at a resolution of 17,500 (m/z 200). Peptide selection was done with an isolation window of 2.0 Th and normalized collision energy of 28 was applied for peptide fragmentation. The maximum injection time was 500 ms and an AGC target value of 5e5 was used. For peptide relative quantification Skyline v2.6.0.6851 software was used (45). All integrated peaks were manually inspected to ensure correct peak detection and total peak area values were exported into Microsoft Office Excel (Microsoft) for further data analysis.

Flow Cytometry

For cell proliferation assays, Kit225 T cells were incubated with 2.5 μm carboxyfluorescein diacetate succinimidyl ester (CFSE) (ThermoFisher Scientific) and U2OS cells with 0.5 μm CellTrace Far Red™ (CTFR) (ThermoFisher Scientific) for 15 min at 37 °C. Cells were washed with complete medium for 20 min, treated and cultured as indicated and finally fixed for 10 min in a solution of buffered formaldehyde (3.7%). Only YFP-expressing U2OS cells were selected for the dye dilution analysis and hence, estimation of the proliferation index. To assess cell cycle distribution, Kit225 T cells were fixed with chilled 70% ethanol and stained with 50 μg/ml propidium iodide. In both type of experiments fluorescence was detected using a FACSCalibur (BD Biosciences, San Jose, CA) flow cytometer. Proliferation Wizard software was used to identify cells in different generations and calculate the Proliferation Index whereas Summit 4.3 software was used to perform the cell cycle distribution analysis.

Crystal Violet Staining

U2OS cells were fixed for 10 min (buffered formaldehyde 3.7%), washed with PBS and subsequently stained with a 0.25% crystal violet solution. After removing excess stain, crystal violet was dissolved in 2% SDS solution for 30 min. The optical density of the extract was read with a spectrophotometer at 546 nm.

Acid Extraction of Histones

Cell pellets were resuspended in complete hypotonic buffer (10 mm Hepes, 10 mm KCl, 1.5 mm MgCl₂, 0.5 mm DTT and phosphatase inhibitors and protease inhibitor mixture) supplemented with H₂SO₄ to a final concentration of 1% and incubated for 30 min at 4 °C with rotation. Samples were centrifuged for 10 min at 11,000 rpm at 4 °C and supernatant was collected to further precipitate protein by adding trichloroacetic acid (TCA) to 33% final concentration and incubating for 10 min at 4 °C. Following 5 min centrifugation at 14,000 rpm at 4 °C, pellets were washed twice with acetone and after allowing drying they were resuspended in MilliQ water.

Chromatin Immunoprecipitation (ChIP) Analyses

ChIP analyses were performed following previously published protocols with minor modifications (46–47). Briefly, differentially treated Kit225 T cells were crosslinked using formaldehyde and lysed. Nuclei were collected and subjected to sonication to fragment chromatin. DNA was immunoprecipitated using anti-H3 and anti-H4 antibodies and enriched chromatin was quantified by real-time PCR in the Applied Biosystems 7000 Real-Time PCR System using Power SYBR Green PCR Mastermix (Applied Biosystems).

Immunobloting

Equal amounts of protein lysates were loaded onto a precast gradient NuPAGE 4–12% Bis-Tris Gel (Invitrogen, Brondby, Denmark) and transferred into a nitrocellulose membrane using a semi-dry system. Membranes were blocked with 5% BSA in TTBS, incubated with the corresponding antibody overnight at 4 °C, washed prior incubation with the secondary antibody. Finally, ECL Western blotting detection reagents (PRN2106, GE Healthcare, Brondby, Denmark) and autoradiography films were used together with a Kodak Image Station 1000 to visualize the protein of interest. The intensity of the bands was quantified using ImageJ software (National Institutes of health, Bethesda, MD).

Gene Expression Analyses

Total RNA was prepared as previously described (48). Briefly, RNA was purified from Kit225 T cells using TRIzol (Invitrogen) according to manufacturer′s instructions. cDNA was synthesized from 1 μg of total RNA by incubating with a reaction mixture containing 0.25 μg of random hexamers and 1 mm dNTP mix for 5 min at 65 °C followed by 1h incubation at 37 °C with Invitrogen 1^st Strand Buffer, 10 mm dithiothreitol and 12 units of M-MLV reverse transcriptase (Promega). Prior PCR analysis samples were diluted with 200 μl of sterile MilliQ water. For mRNA expression analysis, cDNA was amplified in the Stratagene Mx3000P System using SYBR Green JumpStart Taq Ready Mix (Sigma-Aldrich) and quantified using Stratagene MxPro. Amplification of β-actin was used for normalization.

Bioinformatic Analyses

The Perseus software was employed for the calculation of the statistical significance B, a p value that depends on protein intensities and ratios. It was also used to perform the hierarchical clustering analysis. DAVID functional annotation tool (49) was used to detect the overrepresented gene ontology (GO) terms “cellular compartment” and “biological process” within the nuclear phosphoproteome of Kit225 T cells and IL-2-regulated phosphoproteins. Overrepresented phosphorylation motifs were searched by MotifX (50) using a sequence window of ±6 residues adjacent to the phosphorylated amino acid. Then, NetworKIN algorithm (51) version 3.0 was used to predict the kinases responsible for phosphorylating the defined motifs. For each motif, the frequency of putative kinases was calculated discarding the kinases predicted to phosphorylate less than 5% of the sites sharing a motif. Finally, the frequency of each kinase was normalized to the most frequently occurring kinase for each motif.

Experimental Design and Statistical Rationale

To define the nuclear phosphoproteome of resting and IL-2-treated T cells we analyzed three biological replicas that were separately SILAC-labeled, stimulated, processed and finally analyzed by LC-MS/MS. Acquired raw files were searched using the MaxQuant version 1.3.0.5 and specifying the raw files that corresponded to each replica. Data was filtered by FDR < 1% and only the phosphosites displaying a localization probability above 0.75 and a score difference of at least 5 were considered as confident phosphorylated sites (Class I sites). From those, the phosphosites that were quantified in two out of the three biological replicas were analyzed using the Perseus software to calculate their statistical significance B value, a p value that depends on phosphopeptide intensities and ratios. We considered as IL-2-dependent phosphosites the ones that were consistently regulated (IL-2/Ctr > 2 or IL-2/Ctr < 0.5 and Significance B p value 0.05) in at least two out of the three replicas performed. Proliferation experiments were performed at least three times and statistical analysis was performed using the Student′s t test.

RESULTS

Defining the Nuclear Phosphoproteome of CD4⁺ T lymphocytes

IL-2 signaling pathways converge into the nucleus to regulate gene expression and generate an adequate cellular response. Thus, a precise knowledge of the molecular mechanisms orchestrated in the nucleus of IL-2-treated T cells is essential for the better understanding of the molecular actions of the cytokine in CD4⁺ T lymphocytes. For that reason, we characterized on a global scale the IL-2-mediated regulation of nuclear function. We conducted an unbiased phosphoproteomic study based on the identification of site-specific phosphorylation events occurring primarily in the nucleus of resting and IL-2-treated Kit225 human T lymphocytes (Fig. 1A). Proteins were extracted from the nuclear-enriched fraction of SILAC-labeled T cells that were kept unstimulated (Arg0/Lys0) or were stimulated with IL-2 (Arg6/Lys4) for 5 min. Protein extracts derived from both conditions were combined at a 1:1 ratio according to protein concentration, digested with trypsin, and the resulting peptides were enriched in phosphopeptides using TiO₂ beads prior to mass spectrometry (MS) analysis. We performed three biological replicates resulting in the identification of a total of 12,250 phosphorylated sites. Of these, 8521 could be confidently assigned to a specific position within a protein (median localization probability and score difference 0.999 and 35, respectively) (Fig. 1B). The 8,521 class I sites are comprised mainly by serine phosphorylations (pSer) although we also detected numerous phosphothreonine (pThr) and phosphotyrosine (pTyr) residues (Fig. 1C and supplemental Table S2). The majority of phosphosites that we identified have already been described and are reported in PhosphoSitePlus database. However, we now present evidence that a large number of phosphosites reported only in mice or rats in the database are also present in humans (termed as “by homology” in Fig. 1D). Furthermore, our study has identified many previously unreported phosphorylation sites (Fig. 1D), which represent a valuable source of novel information to understand the role of phosphorylation events in the nucleus of T lymphocytes.

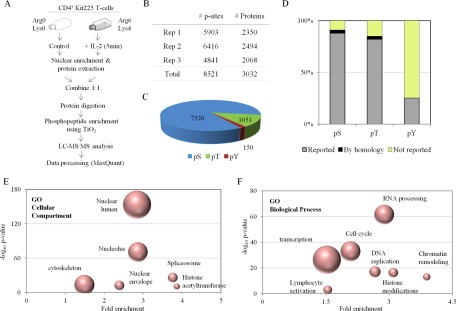

Fig. 1.

Nuclear phosphoproteomic analysis of CD4⁺ T lymphocytes. A, Flow diagram of the MS-based quantitative phosphoproteomic strategy followed. B, Number of unique Class I phosphosites (p-sites) and corresponding proteins quantified in the three individual biological replicates. C, Distribution of all quantified phosphorylated serine, threonine and tyrosine residues. D, Proportion of phosphorylated sites reported or not in PhosphoSitePlus database. Gene Ontology analysis indicating the Cellular compartments (E) and biological processes (F) overrepresented within the phosphoproteome of CD4⁺ T lymphocytes. The fold enrichment and the statistical significance p value of the most indicative terms are indicated. The size of the dots correlate with the number of proteins grouped in the same term.

The 8521 class I sites detected in this study correspond to 3032 distinct gene products. These phosphoproteins were functionally classified by Gene Ontology (GO) analysis aiming to detect the most significantly enriched terms within the “Cellular Compartment” and “Biological Process” categories. Regarding the cellular compartment category, most of the phosphoproteins that we report belong to distinct nuclear localizations such as nuclear lumen, nucleolus or nuclear envelope, consistent with the aim of our study focused on depicting the nuclear phosphoproteome of T lymphocytes. Moreover, the spliceosome and histone acetyltransferase complexes were also highly enriched within our dataset of lymphocytic phosphoproteins (Fig. 1E). In line with these results, various biological processes related to key nuclear functions such as gene transcription and cell cycle regulation were significantly overrepresented among the phosphoproteins in our dataset (Fig. 1F).

IL-2-induced Changes in the Nuclear Phosphoproteome of T Cells

From the collection of unique class I phosphosites identified, a total of 8215 could be quantified and displayed a SILAC IL-2/control ratio. For subsequent analyses, we focused on 6145 phosphosites, which could be quantified in at least two out of the three biological replicates that we performed (Fig. 2A–2B, supplemental Table S3). These phosphosites belong to 2,382 proteins that were mainly monophosphorylated, although we also detected numerous nuclear proteins that were phosphorylated on multiple residues in Kit225 T lymphocytes (Fig. 2C).

Fig. 2.

Nuclear phosphoproteome in resting and IL-2-stimulated T lymphocytes. A, Overlap between the p-sites quantified in the three biological replicates performed. B, Number of unique p-sites and phosphoproteins overlapping between the different replicates. C, Distribution of number of p-sites identified and quantified for each phosphoprotein. D, Overall IL-2/Ctr SILAC ratio as a function of phosphopeptide intensity. In blue and red are indicated the p-sites down-regulated and up-regulated by IL-2, respectively. The MS spectra of ZNF292 pThr¹⁰¹⁷ and STAT5A pTyr⁶⁹⁴-bearing peptides that are down-regulated and up-regulated upon IL-2 stimulation respectively are shown. E, Phosphoproteins containing regulated p-sites may also have non-regulated sites. The size of the dots represents the amount of proteins following the same regulation. F, Biological processes over-represented among phosphoproteins with IL-2-regulated p-sites.

For deciphering IL-2-dependent nuclear phosphorylation events we only considered those sites that were consistently regulated (IL-2/Ctr ratio > 2 or IL-2/Ctr ratio < 0.5 and Significance B p value < 0.05) in at least 2 out of the three replicates. Following these criteria, we found that IL-2 triggers the phosphorylation of 331 sites and the de-phosphorylation of 59 sites (Fig. 2D, supplemental Table S4). Selected IL-2-dependent phosphorylations were validated by parallel reaction monitoring (PRM)-based targeted proteomics (supplemental Fig. S1). Several of the phosphorylation sites that are known to be induced upon IL-2 stimulation of T cells were also detected in our study, thus validating our approach (Table I). This is the case of STAT5A (Ser⁷⁸⁰/Tyr⁶⁹⁴), the two main representatives of the MAPK signaling cascades, MAPK1 (Thr¹⁸⁵/Tyr¹⁸⁷) and MAPK3 (Thr²⁰²/Tyr²⁰⁴), and AHNAK (Ser¹³⁵) (28, 32–33, 52–53).

Table I. Known IL-2-induced phosphorylation sites. Positions of phosphosites are presented according to Uniprot number and the phosphorylated residue is highlighted in bold within the sequence window.

Protein	Uniprot ID	Modified residue	Normalized IL-2/Ctr ratio			Sequence window (±6aa)
			Rep1	Rep2	Rep3
MAPK1	P28482	Tyr187	17.64	15.68	7.23	TGFLTEYVATRWY
		Thr185	8.95	9.21	9.74	DHTGFLTEYVATR
MAPK3	P27361	Thr202	10.45	10.40	4.61	DHTGFLTEYVATR
		Tyr204	6.48	9.18	4.61	TGFLTEYVATRWY
STAT5A	P42229	Tyr694	7.59	10.12	6.29	AKAVDGYVKPQIK
		Ser780	2.19	2.11	–	SLDSRLSPPAGLF
AHNAK	Q09666	Ser135	4.38	4.22	3.89	IKPRLKSEDGVEG

However, the majority of IL-2-regulated phosphosites identified in this study have not been described previously. In addition, we identified a large number of multiply phosphorylated proteins highlighting the complex regulation exerted by IL-2 on individual nuclear proteins in T lymphocytes (Fig. 2E).

Gene Ontology analysis of IL-2-regulated phosphoproteins in Kit225 T cells revealed that biological processes related to gene expression and cell cycle regulation are the most highly enriched terms, in line with the documented pro-proliferative function of IL-2 (Fig. 2F). Our dataset of IL-2-modulated phosphoproteins includes several transcription factors (supplemental Table S5) as well as numerous enzymes involved in chromatin remodeling. We found that the phosphorylation status of several residues corresponding to histone methyltransferases and demethylases was increased upon IL-2 stimulation of T cells (Table II). Additionally, we detected differentially regulated phosphosites corresponding to distinct histone acetyltransferases (HAT) whereas the overall phosphorylation status of histone deacetylases (HDAC) seemed to be unaltered upon IL-2 stimulation in Kit225 T cells (Table II and supplemental Table S6). Altogether, our data indicate that nuclear events triggering IL-2-mediated T-cell proliferation are readily induced following 5 min of stimulation with the cytokine.

Table II. IL-2-modulated enzymes involved in chromatin remodelling. Positions of phosphosites are presented according to Uniprot number and the phosphorylated residue is highlighted in bold within the sequence window.

	Protein	Uniprot ID	Modified residue	Normalized IL-2/Ctr ratio			Sequence window (±6aa)
				Rep1	Rep2	Rep3
Histone lysine N-methyltransferases	MLL	Q03164-3	Ser261	11.33	5.51	–	KIKRTPSATFQQA
			Ser2152	3.45	3.83	–	PRIRTPSYSPTQR
			Ser2199	3.14	3.03	–	IGSRRHSTSSLSP
			Ser3039	2.57	2.35	3.17	GLQVPVSPTVPIQ
	MLL2	O14686-3	Ser2277	3.03	2.74	–	ASEPLLSPPPFGE
	WHSC1L1	Q9BZ95	Thr456	3.55	3.74	–	HSQRRHTSAEEEE
Lysine-specific demethylases	PHF2	O75151	Ser655	2.87	2.85	2.05	ALRPPTSPGVFGA
			Ser705	11.81	9.72	8.48	APKRDLSFLLDKK
			Ser899	3.27	2.80	–	SKKRKGSDDAPYS
			Ser929	3.54	2.28	–	EGTRVASIETGLA
	KDM3B	Q7LBC6	Ser798	5.20	6.08	4.29	EAVKRFSLDERSL
Histone acetyltransferases	KAT6A	Q92794	Ser941	4.63	3.82	–	LPKRRLSEGVEPW
	KAT7	O95251	Ser50	2.72	2.59	–	RSSARLSQSSQDS
			Ser57	0.15	1.04	0.15	QSSQDSSPVRNLQ

To have a better understanding of the mechanisms leading to changes in the nuclear phosphoproteome of IL-2-treated T cells, we searched for the presence of overrepresented linear kinase motifs within IL-2-modulated phosphosites. We processed all phosphopeptide sequences bearing the IL-2-modulated phosphosite (pThr/pSer ± 6 aa) using MotifX software and detected five significantly enriched pSer motifs and a single pThr motif (Fig. 3A). The sequence logos of the two most enriched motifs (.R.R…… and …RR.S…) and of the most abundant motif (……SP….) among IL-2-dependent phosphosites are shown in Fig. 3B. To identify the putative kinases responsible for the phosphorylation of those motifs, all phosphopeptide sequences sharing the same linear kinase motif were examined using the NetworKIN software. The analysis revealed that the phosphoserine motifs in which the modified residue is preceded by a single basic amino acid are likely to be phosphorylated by protein kinase C beta (PKCβ) and CDC-like kinase 1 (CDK1) (Fig. 3A). The most enriched basic motifs (.R.R..S…… and …RR.S……) were predicted to be targeted among others, by the AKT, mTOR, p70S6 kinase and the ribosomal protein S6 kinase alpha-1 (RSK1) which are downstream effectors of the PI3K and MAPK signaling pathways (54–55). Additionally, the proline-directed kinases MAPK1/3 and CDK1/2 were predicted to phosphorylate the majority of the IL-2-regulated phosphosites (31%). Given that the two key residues modulating the activity of MAPK1 and MAPK3 are phosphorylated in our nuclear samples of IL-2 stimulated T cells (Table I), most phosphorylation events triggered by IL-2 in the nucleus of CD4⁺ T lymphocytes appear to be conducted by members of the MAPK family. Furthermore, our data set includes hundreds of other kinases and phosphatases that may also contribute to IL-2-driven nuclear phosphorylation events (Table III and supplemental Table S3).

Fig. 3.

Linear phosphorylation motif analyses of IL-2-regulated nuclear phosphoproteome. A, Significantly overrepresented linear motifs (middle) were identified by MotifX and then, motifs were matched to putative kinases using NetworKIN (left). Fold enrichment and number of p-sites showing the same linear motif are also indicated (right). B, The two most enriched (.R.R..S…… and …RR.S……) and the most abundant (…..SP….) phosphorylation motifs among regulated p-sites.

Table III. IL-2-regulated serine/threonine kinases and phosphatases. Positions of phosphosites are presented according to Uniprot number and the phosphorylated residue is highlighted in bold within the sequence window.

	Protein	Uniprot ID	Modified residue	Normalized IL-2/Ctr ratio			Sequence window (±6aa)
				Rep1	Rep2	Rep3
Ser/Thr kinases	MAPK1	P28482	Tyr187	17.64	15.68	7.23	TGFLTEYVATRWY
			Thr185	8.95	9.21	9.74	DHTGFLTEYVATR
	MAPK3	P27361	Thr202	10.45	10.40	4.61	DHTGFLTEYVATR
			Tyr204	6.48	9.18	4.61	TGFLTEYVATRWY
	CDKL5	O76039	Ser407	2.46	2.39	2.64	NIPHLLSPKEAKS
	SRPK2	P78362–2	Ser391	2.58	3.45	–	DPTWIESPKTNGH
	PRKG1	Q13976–2	Thr532	–	0.25	0.45	FGKKTWTFCGTPE
	PRKAR2B	P31323	Ser114	0.27	0.20	–	RFTRRASVCAEAY
	CDK13	Q14004	Ser1054	0.38	0.55	0.30	SLGLDDSRTNTPQ
Ser/Thr phosphatases	PPP1R10	Q96QC0	Ser313	2.19	2.13	2.66	KKKKVLSPTAAKP
	CTDSPL2	Q05D32	Ser28	7.14	7.23	–	RAKRKYSEVDDSL
	PPP1R12A	O14974	Ser507	5.42	4.39	–	IPRRLASTSDIEE
	SSH1	Q8WYL5	Ser897	5.73	4.19	–	EGGSLKSPPPFFY

ACLY, a Novel Target of IL-2-driven Phosphorylation

Most of the IL-2-regulated phosphosites reported in this study have never been shown to be modulated by the cytokine. Hence, corresponding phosphoproteins are putative candidates to participate in IL-2-dependent T-cell responses. We focused our attention on ACLY (ATP-citrate lyase) whose phosphorylation levels appeared to be regulated by IL-2 (Fig. 4A). ACLY is an acetyl-CoA generating enzyme that is thought to play a key role in the proliferation of tumor cells (56–57). However, the contribution of this enzyme to IL-2-triggered T-cell growth is unknown. We identified three phosphorylation sites on the central region of ACLY: pSer⁴⁵⁵ and pSer⁴⁸¹, which precede the CoA binding domain, and pSer⁶⁴⁶, located between the CoA binding and ligase CoA domains (Fig. 4A). Importantly, this is the first study demonstrating that ACLY Ser⁶⁴⁶ can be phosphorylated in CD4⁺ T cells. The precise assignment of the newly identified phosphosite was verified by manual annotation of the fragmentation spectra (supplemental Fig. S2). Our analysis revealed that, whereas pSer⁴⁸¹ and pSer⁶⁴⁶ remain unaffected by cytokine treatment, phosphorylation on ACLY Ser⁴⁵⁵ is induced in IL-2-treated T lymphocytes (Fig. 4B). IL-2-dependent up-regulation of ACLY pSer⁴⁵⁵ was confirmed by PRM-based targeted proteomics (Fig. 4C, supplemental Fig. S3). Because phosphorylation of Ser⁴⁵⁵ has been shown to stimulate the enzymatic activity of ACLY (58), our results suggest that treatment of T lymphocytes with IL-2 triggers functional activation of ACLY.

Fig. 4.

Characterization of IL-2-induced ACLY phosphorylation. A, Graphical representation of ACLY. The localization and sequence of the three phosphopeptides quantified in this study are indicated. B, IL-2/Ctr SILAC ratios obtained for each ACLY phosphopeptide in the three biological experiments. C, PRM-based validation of IL-2-induced phosphorylation of ACLY Ser⁴⁵⁵. D, Time-dependent phosphorylation of nuclear and cytoplasmic ACLY in response to IL-2 stimulation. E, IL-2 dose-dependent response of ACLY pSer⁴⁵⁵. F, IL-2-induced pSer⁴⁵⁵ on ACLY is mediated by AKT.

ACLY has been traditionally considered a cytosolic enzyme, although it was recently found in the nucleus of several types of mammalian cells as well (59). Our large-scale phosphoproteomic analysis using a nuclear-enriched fraction of T cells also suggested that ACLY could be present in the nucleus of CD4⁺ T lymphocytes. To confirm this, we followed an exhaustive nuclear enrichment protocol and investigated the presence of ACLY by Western blotting both in the nuclear and cytosolic fractions obtained from resting or IL-2-treated T cells. As shown in Fig. 4D, ACLY could be clearly detected in the nucleus and cytoplasm of Kit225 T cells independently of the stimulus. Importantly, ACLY phosphorylation on Ser⁴⁵⁵ was nearly undetectable in cytokine-starved T cells but was induced upon 5 min of stimulation with IL-2. In addition, we monitored the dynamics of ACLY pSer⁴⁵⁵ and showed that IL-2-induced phosphorylation of this site reached the maximum level after 20 min of stimulation both in the nucleus and cytoplasm and decreased subsequently (Fig. 4D).

To characterize further the regulation mediated by IL-2 on ACLY we performed a dose-dependent assay. We found that ACLY pSer⁴⁵⁵ is significantly induced in T cells treated with a saturating IL-2 concentration (6.25 nM) coinciding with the activation of the MAPK (or ERK) and PI3K signaling networks, as shown by the increased phosphorylation of their representative effectors MAPK1/3 and AKT, respectively (Fig. 4E). To disclose if any of these two signaling pathways is responsible for mediating IL-2-induced phosphorylation of ACLY, T cells were pre-treated with several concentrations of U0126 and MK-2206, specific inhibitors of MEK1/2 and AKT, respectively, and subsequently stimulated with IL-2. As shown in Fig. 4F, U0126 dramatically hampered IL-2-induced phosphorylation of MAPK1/3 or ERK1/2 without altering the phosphorylation status of ACLY. By contrast, pre-treatment with the AKT inhibitor resulted in a reduction of AKT phosphorylation and a notable decrease in IL-2-triggered ACLY pSer⁴⁵⁵. Altogether, our data indicate that phosphorylation of ACLY Ser⁴⁵⁵ is mediated by IL-2-induced activation of AKT.

ACLY Plays a Key Role in IL-2-dependent Proliferation of Kit225 T Cells

We and others have previously demonstrated that IL-2, or its closely related family member IL-15, is required for promoting the proliferation of Kit225 T cells (29, 53). In the present study we aimed to investigate the role of ACLY in IL-2-mediated T-cell growth. We generated a stable Kit225 T-cell line with efficient shRNA-mediated suppression of ACLY and a control cell line (Fig. 5A). Both were deprived of IL-2 for 2 days and then maintained in the presence of the cytokine for an additional 48 h. After this period, cell number was estimated. As shown in Fig. 5B, ACLY-depleted cells grew significantly less than control T lymphocytes. A similar effect was observed by estimating T-cell proliferation index by flow cytometry using the intracellular fluorescent dye CFSE, which is diluted twofold with each cell division. Proliferation of shACLY-expressing Kit225 T cells was clearly hampered in comparison to control cells 48 h after re-introduction of the cytokine, an effect that was even more dramatic 72 h after cytokine addition (Fig. 5C). To strengthen these data pointing to ACLY as a relevant mediator of IL-2-induced T-cell proliferation, we carried out additional experiments using a commercially available ACLY inhibitor (SB-204990). In agreement with the data gathered with shACLY, cell counting assay showed that T cells cultured with IL-2 in the presence of the ACLY inhibitor lack the capacity to proliferate (Fig. 5D). Moreover, CFSE-based flow cytometry analysis showed that the inhibitor dramatically compromised the capacity of the T lymphocytes to respond to IL-2 in a dose-dependent manner (Fig. 5E). Altogether, these results indicate that functional ACLY is required for Kit225 T cells to proliferate in the presence of IL-2.

Fig. 5.

ACLY activity is required for IL-2-triggered T-cell proliferation. A, Western blot showing total levels of ACLY in shCtr- and shACLY-expressing cells. B, Cell number was estimated in control and ACLY silencing Kit225 cells deprived with IL-2 and 48 h after re-introduction of the cytokine. C, Resting shCtr- and shACLY-expressing cells were stained with CFSE and cultured with IL-2 up to 48 h and 72 h. Then fluorescence was measured by flow cytometry and Proliferation Wizard software was used to calculate the proliferation index. D, Kit225 T-cell number was estimated in IL-2-deprived and IL-2-treated T cells that were grown in the absence or presence of the ACLY inhibitor. E, Proliferation index of Kit225 T cells cultured with IL-2 in the absence or presence of increasing concentrations of ACLY inhibitor for 2 days was estimated using CFSE dye dilution method. F, Proliferation index of YFP-ACLY phosphomimetic Ser⁴⁵⁵Asp (S455D) and Ser⁴⁵⁵Glu (S455E) and phosphomutant expressing U2OS cells in the presence of 5 μm AKT inhibitor was estimated by flow cytometry; mean ± S.D. of triplicates (*, p < 0.05). G, Images of crystal violet stained U2OS cells transfected with the indicated YFP-ACLY mutant and cultured in the presence of 5 μm AKT inhibitor. Relative quantification of the optical density is also shown; mean ± S.D. of triplicates (**, p < 0.0005; ***, p < 0.0001).

We next tested the impact of ACLY phosphorylation in cellular proliferation. We expressed YFP-ACLY Ser⁴⁵⁵ phosphomimetic Ser⁴⁵⁵Asp (S455D) or Ser⁴⁵⁵Glu (S455E) and phosphomutant Ser⁴⁵⁵Ala (S455A) proteins in U2OS cells. Transfected cells were grown in the presence of the AKT inhibitor MK-2206 for 24 h and subsequently the proliferation index of YFP⁺ U2OS cells was estimated by dye dilution assay using flow cytometry. As shown in Fig. 5F, ACLY S455D- and S455E-expressing cells proliferated significantly more than ACLY S455A-expressing cells. Accordingly, crystal violet staining revealed that ectopic expression of phosphorylation-mimicking mutants (ACLY S455D and S455E) promote higher cellular proliferation rates relative to the expression of ACLY S455A (Fig. 5G). These results suggest that ACLY is a relevant downstream effector of AKT involved in promoting the proliferation of cells.

To examine further the effect of ACLY depletion or inhibition in cellular proliferation, we monitored the distribution of cell cycle phases in Kit225 T cells. As expected, cytokine deprived T cells were arrested in the G₁ phase of the cell cycle (G₁ 82%; S 9%; G₂/M 7%) and entered the S phase 24 h after addition of IL-2 (G₁ 46%; S 41%; G₂/M 12.5%) (Fig. 6A). By contrast, in the presence of ACLY inhibitor fewer cells could enter S phase, an effect that was more dramatic as the concentration of the inhibitor increased. In agreement with these results, we observed that the expression of several key regulators of the G₁/S transition such as CDC25, CDK1, E2F2 and cyclin A (CYCA) was induced in IL-2-treated T cells but dramatically reduced in cells treated with the ACLY inhibitor (Fig. 6B). Collectively, our data show that inhibition of ACLY compromises IL-2-induced T-cell proliferation by reducing the expression of key genes required for G₁/S transition of the cell cycle.

Fig. 6.

Inhibition of ACLY results in G1/S cell cycle arrest. A, Cell cycle distribution analysis of Kit225 T cells supplemented with IL-2 in the absence or presence of indicated concentration of ACLY inhibitor. B, mRNA expression levels of the genes (CDC25, CDK1, E2F1 and CYCA) was measured by qRT-PCR in control and IL-2-treated T cells that were or were not simultaneously treated with the ACLY inhibitor. Results were normalized against the expression levels of actin.

ACLY Influences Histone Acetylation Levels on CD4⁺ T lymphocytes

Acetyl-CoA is impermeable to membranes and consequently it is assumed that it is generated in the same subcellular compartment where it is required. Given the nuclear localization of ACLY in Kit225 T lymphocytes, we postulated that this enzyme could be a source of acetyl-CoA in the nucleus of IL-2-treated T cells. We observed that IL-2 stimulation leads to an increase in global acetylation of both histone 3 and 4 (H3 and H4) in human T lymphocytes (Fig. 7A). The increase in H4 acetylation observed is in line with the data presented by Taplick and colleagues showing that IL-2 promotes changes in the acetylation of H4 in murine T cells deprived of IL-2 (60). More interestingly, we found that IL-2-induced H3 and H4 acetylation was dramatically reduced upon inhibition of ACLY (Fig. 7A), suggesting that ACLY is a key player modulating histone acetylation in IL-2-treated T lymphocytes.

Fig. 7.

ACLY influences the histone acetylation level of IL-2-treated T cells. A, Acetylation of acid-extracted histones from starved T cells and T cells grown with IL-2 in the presence or absence of ACLY inhibitor. SAHA deacetylase inhibitor was used as control. B, Chromatin immunoprecipitation was performed with antibodies against acetylated H3 (AcH3) and AcH4 using starved T cells and T cells grown IL-2 in the presence or absence of ACLY inhibitor. Purified DNA was analyzed by Q-PCR using primers close to transcription start site of CDC25, CDK1, E2F2 and CYCA genes. Data are presented as percentage of input chromatin.

It is assumed that histone acetylation renders chromatin more accessible to nuclear factors, leading to enhanced gene expression (61–62). We aimed to determine if the impaired gene expression detected upon ACLY inhibition (Fig. 6B) could be explained by alterations in promoter histone acetylation levels. Using chromatin immunoprecipitation assays, we observed that H3 and H4 acetylation was increased on the promoters of CDC25, CDK1, E2F2, and CYCA upon IL-2 stimulation. By contrast, the acetylation levels of H3 and H4 were significantly reduced in these four promoters upon ACLY inhibition (Fig. 7B). These results correlate well with gene expression data presented above. Altogether, we provide evidence indicating that ACLY is involved in modulating histone acetylation levels that result in induction of gene expression to promote IL-2-dependent T-cell growth.

DISCUSSION

IL-2-induced proliferation of T lymphocytes is vital in the generation of the immune response and a key process in current anti-cancer immunotherapy (63–64). Nevertheless, IL-2 administration is usually accompanied by severe side effects and it is considered that a more detailed knowledge of IL-2-dependent signaling events should help improve the existing anti-cancer therapies. We have evaluated the nuclear phosphoproteome of resting and IL-2-treated T lymphocytes to gain an insight into the phosphorylation events occurring in the nucleus of T cells upon IL-2 stimulation. We report the identification of a large number of IL-2-regulated phosphoproteins, including the metabolic enzyme ACLY. Importantly, we present mechanistic evidence suggesting that ACLY is a crucial player in IL-2-induced T-cell proliferation.

Our nuclear phosphoproteomic screen has uncovered over 8000 phosphosites, including many previously not reported ones and thus, represents the most extensive phosphoproteomic screen performed to date in CD4⁺ T lymphocytes. In addition, applying a SILAC-based quantification strategy allowed us to discern between IL-2-dependent and -independent phosphorylation events. In agreement with most differential phosphoproteomic studies performed to date the vast majority of phosphosites detected were not affected by cytokine stimulation, but they could nevertheless play a role in T-cell biology. This could be the case of constitutive phosphorylations on histone deacetylases (HDACs). Indeed, Navarro and colleagues demonstrated that basal serine-threonine phosphorylations on HDACs play a central role in dictating the capacity of cytotoxic T lymphocytes (CTL) to respond to T-cell receptor (TCR) signaling (65). Interestingly, phosphorylation status of HDACs also remains unaffected by IL-2 stimulation (supplemental Table S7), although their role in T-cell fate has not been examined in the present work.

Without underestimating the relevance of basal phosphorylations, we focused our efforts on characterizing the fraction of phosphosites that was modulated by IL-2. We detected five times more phosphosites that were up-regulated by IL-2 relative to those down-regulated by the cytokine. A similar distribution was observed upon TCR engagement on CTLs (65). Kinase prediction tools anticipated that the majority of the IL-2 induced phosphosites detected were likely to be phosphorylated by members of the MAPK family, which we found phosphorylated and therefore activated. Although MAP kinases also become active upon TCR engagement, Navarro and co-workers showed that TCR-induced phosphorylations do not depend so much on MAPK activity, unveiling a relevant difference between TCR and IL-2 mediated phosphorylations (65). In addition, the phosphorylation status of certain chromatin re-modeling factors is also differentially affected upon stimulation of TCR or IL-2R. For instance, CBX3 Ser⁹³ becomes phosphorylated in IL-2-treated CD4⁺ T cells but not in CTLs (66). By contrast, SMARCC2 pSer²⁸³ and CBX3 pSer⁹⁵ remain unaffected in TCR- and IL-2-treated cells (supplemental Table S7) whereas TRIM28 pSer⁴⁷³ and ACLY pSer⁴⁵⁵ are induced in both cases.

Metabolic enzymes have emerged as pivotal linkers between signaling networks and proliferative responses (67–68). ACLY is a metabolic enzyme that mediates the conversion of mitochondrial-derived citrate into acetyl-CoA, an essential metabolite at the intersection of anabolism and catabolism. Its enzymatic activity is modulated by phosphorylation, and in addition to the catalytic autophosphorylation site (His⁷⁶⁰), at least three site-specific phosphorylations (Thr⁴⁴⁷, Ser⁴⁵¹ and Ser⁴⁵⁵) are known to influence the activity of ACLY (58, 69). ACLY Ser⁴⁵¹-containing peptide was repeatedly detected in our study but never identified as phosphorylated on that specific residue, suggesting that Ser⁴⁵¹ is unlikely to be phosphorylated in resting or cytokine-treated Kit225 T cells. Conversely, we demonstrated that ACLY Ser⁴⁵⁵ becomes phosphorylated in IL-2-treated T cells, a modification that is known to increase up to sixfold the catalytic activity of the enzyme. ACLY Ser⁴⁵⁵ phosphorylation has also been demonstrated in TCR-stimulated cytotoxic T lymphocytes (65) and also in IL-3-treated hematopoietic cells (56). Therefore, distinct mitogenic signals affecting immune cells may converge on the phosphorylation on this specific residue of ACLY to elicit a related cellular response. Notably, among the signaling pathways that are activated in response to IL-2, our results indicate that PI3K/AKT pathway is responsible for the phosphorylation of ACLY Ser⁴⁵⁵ in T cells (Fig. 8).

Fig. 8.

IL-2 Signaling to histone acetylation via ACLY. Our working model suggests that ACLY pSer⁴⁵⁵ is induced upon IL-2-triggered AKT activation. Consequently, the enzyme becomes active and generates acetyl-CoA which serves as substrate for HATs that induce acetylation of histones in the promoters of cell cycle-related genes. Accordingly, the transcription of these genes is induced and T cells proliferate.

ACLY has recently emerged as a relevant therapeutic target in anti-cancer treatments because of the capacity of its product acetyl-CoA to promote proliferation in yeast and mammalian cells (70–72). The acetyl-CoA generated through ACLY activity is the building block for the biosynthesis of fatty acids and cholesterol (73) and also serves as substrate for acetylation reactions that affect a plethora of cellular functions both in the cytoplasm and nucleus (74–76). In line with this, we demonstrate here that ACLY inhibition is accompanied by a reduction of overall histone acetylation levels that could lead to suppression of IL-2-induced T-cell growth. A similar effect was observed upon down-regulation of AKT, the kinase involved in the phosphorylation of ACLY Ser⁴⁵⁵ in Kit225 T-cells. Interestingly, Lee and colleagues have recently shown that AKT-dependent phosphorylation of ACLY is sufficient to sustain high histone acetylation levels in LN229 glioblastoma cells even when nutrients are limited (71). In line with this, we observed that inhibition of ACLY abolished IL-2-induced histone acetylation on the promoter of key proliferation-related genes such as E2F2 and CDK1, which correlated with a reduction of gene expression and subsequent arrest at the G₁/S transition of the cell cycle (Fig. 7). Nevertheless, it is unlikely that the function of nuclear ACLY is restricted to modulating the acetylation of histones; acetylation of additional proteins such as transcription factors may also be affected by ACLY activity. Furthermore, ACLY is also present in the cytoplasm of Kit225 T cells where it follows the same IL-2-dependent regulation of phosphorylation as the nuclear population. Thus, in addition to its nuclear function, ACLY probably performs a cytoplasmic function by triggering the lipogenic pathway in IL-2-treated Kit225 T cells. The anti-proliferative effects observed upon ACLY inhibition in T cells may partially be the result of a disrupted lipid metabolism. Indeed, several studies have shown that inhibition or depletion of the enzyme results in impaired lipid synthesis and subsequent tumor growth suppression (56–57, 73). Further investigation will clarify the role of cytoplasmic ACLY in mediating IL-2 initiated proproliferative pathways.

Recently, two additional sources of nuclear acetyl-CoA have been described and both were detected in our large-scale phosphoproteomics study. Mitochondrial pyruvate dehydrogenase complex (PDC) has been shown to translocate into the nucleus of human lung carcinoma cells, and to generate acetyl-CoA from pyruvate, which can be used for epigenetic regulation (77). According to our data the three inhibitory phosphorylations on the E1 alpha subunit of PDC (Ser²³², Ser²⁹³, and Ser³⁰⁰) remain unaffected by IL-2 treatment, indicating that although inactive, PDC localizes to the nucleus of human leukemic Kit225 T lymphocytes. Similarly, we detected two non-regulated phosphosites of unknown function corresponding to acetyl-CoA synthetase (ACSS2), which generates acetyl-CoA using acetate as substrate. Although we cannot come to any conclusion regarding the activity of ACSS2, our data suggests that this metabolic enzyme is present in the nucleus of CD4⁺ T cell, consistent with other reports (59). Despite the coexistence of several acetyl-CoA-generating enzymes in the nucleus of Kit225 T cells, considering the impact of ACLY inhibition in IL-2-triggered histone acetylation, it is likely that ACLY is the principal source of nuclear acetyl-CoA in the nucleus of Kit225 T cells.

In summary, we have conducted a quantitative phosphoproteomic screen that has uncovered the complexity of phosphorylation-dependent nuclear IL-2 regulatory networks. A large set of putative candidates have been identified, which could be used in future studies. Characterization of the role of additional players in IL-2-induced T-cell growth should give a better understanding of the molecular events initiated by the cytokine that may help design more efficient and less harmful therapies.
