A type I IFN-dependent DNA damage response regulates the genetic program and inflammasome activation in macrophages

Abigail J Morales 1, Javier A Carrero 2, Putzer J Hung 2, Anthony T Tubbs 2, Jared M Andrews 2, Brian T Edelson 2, Boris Calderon 2, Cynthia L Innes 3,4, Richard S Paules 3,4, Jacqueline E Payton 2, Barry P Sleckman 1,*
Editor: Michel C Nussenzweig5
PMCID: PMC5409825  PMID: 28362262

Abstract

Macrophages produce genotoxic agents, such as reactive oxygen and nitrogen species, that kill invading pathogens. Here we show that these agents activate the DNA damage response (DDR) kinases ATM and DNA-PKcs through the generation of double stranded breaks (DSBs) in murine macrophage genomic DNA. In contrast to other cell types, initiation of this DDR depends on signaling from the type I interferon receptor. Once activated, ATM and DNA-PKcs regulate a genetic program with diverse immune functions and promote inflammasome activation and the production of IL-1β and IL-18. Indeed, following infection with Listeria monocytogenes, DNA-PKcs-deficient murine macrophages produce reduced levels of IL-18 and are unable to optimally stimulate IFN-γ production by NK cells. Thus, genomic DNA DSBs act as signaling intermediates in murine macrophages, regulating innate immune responses through the initiation of a type I IFN-dependent DDR.

DOI: http://dx.doi.org/10.7554/eLife.24655.001

Research Organism: Other

Introduction

Genomic DNA damage occurs upon exposure to genotoxic agents and during physiologic processes such as transcription and DNA replication. DNA double strand breaks (DSBs) are a dangerous form of DNA damage which, if incorrectly repaired, lead to chromosomal rearrangements and genome instability (Jackson and Bartek, 2009). Cells mount a canonical DNA damage response (DDR) to repair DSBs and protect the integrity of the genome (Ciccia and Elledge, 2010). In G1-phase cells, this DDR is initiated through the activation of ataxia telangiectasia mutated (ATM) and the catalytic subunit of the DNA-dependent protein kinase (DNA-PKcs), both members of the PI3-like family of serine threonine kinases (Ciccia and Elledge, 2010). These kinases phosphorylate downstream targets that drive the cellular response to DNA damage (Ciccia and Elledge, 2010). ATM is the primary kinase that orchestrates the DDR in G1-phase cells (Ciccia and Elledge, 2010). DNA-PKcs, by contrast, has fewer known DDR functions, but shares some downstream targets, and functions, with ATM (Callén et al., 2009).

The canonical DDR includes the activation of cell cycle checkpoints and, in G1-phase cells, the initiation of DSB repair by non-homologous end joining (NHEJ) (Ciccia and Elledge, 2010). However, in some contexts, the DDR can regulate non-canonical cell type-specific responses. DNA DSBs generated by the RAG endonuclease during antigen receptor gene assembly activate a genetic program that is important for normal lymphocyte development (Bednarski et al., 2012, 2016; Bredemeyer et al., 2008; Helmink and Sleckman, 2012). DNA damaging agents can also induce components of this genetic program in developing lymphocytes (Bredemeyer et al., 2008; Innes et al., 2013). DNA DSBs generated during immunoglobulin class switch recombination in mature B cells induce gene expression changes required for plasma cell differentiation (Sherman et al., 2010). RAG activity in lymphoid progenitors alters the function of mature T and NK cells, presumably through the generation of DSBs and activation of the DDR in these cells (Karo et al., 2014). Additionally, DDR activated by replication stress can promote the differentiation of polyploid macrophages that have developed in response to chronic inflammatory stimuli (Herrtwich et al., 2016).

Innate immune cells such as macrophages are among the first to respond to bacterial pathogens. They are activated by signals from Toll-like receptors (TLRs) that bind bacterial ligands and by interferon (IFN, type I or II) receptor signals (Akira and Takeda, 2004; McNab et al., 2015; Schoenborn and Wilson, 2007). Bacterial pathogens that enter the cytosol, such as Listeria monocytogenes, activate additional cytosolic pathways that lead to the production of type I IFN and the production of inflammatory cytokines IL-1β and IL-18 through activation of the inflammasome (Lamkanfi and Dixit, 2014; McNab et al., 2015; Witte et al., 2012).

Once activated, macrophages produce genotoxic agents that kill bacterial pathogens, including reactive oxygen species (ROS) and reactive nitrogen species such as nitric oxide (NO) (Mosser and Edwards, 2008). ROS is generated rapidly through the activation of the NADPH oxidase. NO production, by contrast, is delayed due to a requirement to induce the expression of the Nos2 gene, which encodes the nitric oxide synthase (MacMicking et al., 1997). Nos2 expression is induced by TLR signals coupled with IFN receptor (type I or II) signals. Both ROS and NO have genotoxic properties and could conceivably damage host macrophage genomic DNA, initiating a DDR that could regulate macrophage functions in innate immune responses.

Here we establish functions for the DDR in regulating diverse innate immune responses in macrophages. We find that bone marrow-derived macrophages (BMDMs) activated by IFN-γ and LPS, the ligand for TLR4, or infected with L. monocytogenes, leads to the initiation of a DDR that requires type-I IFN signaling and regulates both the genetic program of activated macrophages and the production of IL-1β and IL-18 by the inflammasome in these cells. These findings establish the DDR as an important signaling pathway in innate immune responses.

Results

Activated macrophages initiate an ATM- and DNA-PKcs-dependent DDR

The DDR was assayed in bone marrow-derived macrophages (BMDMs) by examining phosphorylation of the histone H2A variant, H2AX (forming γ-H2AX) or KAP-1, which are both substrates of ATM and DNA-PKcs. Treatment with IFN-γ and the TLR4 agonist, LPS, but neither agent alone, led to the initiation of a robust DDR in BMDMs (Figure 1A). Infection of BMDMs with the intracellular bacterial pathogen L. monocytogenes also led to a robust DDR, and IFN-γ augments, but is not required for, this response (Figure 1B). As with cultured BMDMs, LPS and IFN-γ treatment of primary macrophages isolated from the peritoneal cavity also activates a robust DDR (Figure 1C).

Figure 1. ATM and DNA-PKcs-dependent DDR activation in macrophages.

(A–C) Western blotting for γ-H2AX, H2AX, phosphorylated KAP-1 (p-KAP-1) and KAP-1 in whole cell lysates from (A) wild type (WT) BMDMs after no stimulation (-) or stimulation (+) with LPS, IFN-γ, or both for 9 hr. (B) WT BMDMs after no infection (-) or infection (+) with L. monocytogenes (L. m.) either in the presence (+) or absence (-) of IFN-γ for 9 hr. (C) WT peritoneal macrophages after no stimulation (-) or stimulation (+) with LPS + IFN-γ for 24 hr. (D, F) Western blotting of p-KAP-1 and KAP-1 (D) and γ-H2AX and H2AX (F) in whole cell lysates from WT and Atm-/- BMDMs after no treatment (-) or treatment (+) with LPS + IFN-γ for 9 hr. in the presence (+) or absence (-) of NU7026. (E, G) Western blotting of p-KAP-1 and KAP-1 (E) and γ-H2AX and H2AX (G) in whole cell lysates from WT, Atm-/-, and Scid BMDMs after no infection (-) or infection (+) with L. m. for 24 hr. (H) Western blotting for γ-H2AX, H2AX, p-KAP-1, and KAP-1 in whole cell lysates from Lyz2Cre/+ and Scid:AtmC/C:Lyz2Cre/+ BMDMs after no infection (-) or infection (+) with L. m. for 24 hr. Data are representative of 2–5 independent experiments. Blank spaces in (F) and (H) indicate that blots have been cropped.

DOI: http://dx.doi.org/10.7554/eLife.24655.002

Figure 1.

Figure 1—figure supplement 1. ATM is efficiently deleted in BMDM.

Figure 1—figure supplement 1.

Southern blot analysis of genomic DNA digested with KpnI and hybridized to the 3’ ATM probe from BMDMs from AtmC/C, Atm-/-and Scid:AtmC/C:Lyz2Cre/+ mice. Arrows indicate the conditional (C) and deleted (-) alleles. Molecular weight (kb) markers are indicated.
DOI: http://dx.doi.org/10.7554/eLife.24655.003
Figure 1—figure supplement 2. L. monocytogenes infection induces G1 arrest.

Figure 1—figure supplement 2.

Flow cytometric analysis of BrdU incorporation (y axis) and DNA content (7AAD; x axis) was performed in Lyz2Cre/+ and Scid: AtmC/C: Lyz2Cre/+ BMDMs after L. monocytogenes infection for 16 hr. Percentage of cells in each phase of the cell cycle (G1, S, and G2-M) after BrdU labeling is indicated. Data are representative of two independent experiments.
DOI: http://dx.doi.org/10.7554/eLife.24655.004
Open in a new tab

ATM is activated in BMDMs, as evidenced by the loss of KAP-1 phosphorylation in ATM-deficient (Atm-/-) BMDMs treated with LPS and IFN-γ or infected with L. monocytogenes (Figure 1D and E). The formation of γ-H2AX in Atm-/- BMDMs, however, indicates that additional DDR kinases must be activated (Figure 1F and G). WT BMDMs treated with the DNA-PKcs kinase inhibitor NU7026 and activated with LPS and IFN-γ exhibit robust KAP-1 and H2AX phosphorylation (Figure 1D). Inhibition of DNA-PKcs kinase activity in Atm-/-BMDMs, however, abrogated H2AX phosphorylation in response to LPS and IFN-γ, demonstrating that both ATM and DNA-PKcs are activated in response to LPS and IFN-γ (Figure 1F).

Scid mice are deficient in DNA-PKcs due to a point mutation in the DNA-PKcs gene that results in low-level expression of a non-functional DNA-PKcs protein (Blunt et al., 1996). Scid BMDMs infected with L. monocytogenes exhibit robust KAP-1 and H2AX phosphorylation (Figure 1G and E). To generate BMDMs deficient in both ATM and DNA-PKs, Scid mice homozygous for a conditionally targeted ATM allele (AtmC) and heterozygous for a Cre knock-in at the lysozyme M (Lyz2) locus (Scid:AtmC/C:Lyz2Cre/+) were generated (Clausen et al., 1999). Mice deficient in ATM and DNA-PKcs exhibit early embryonic lethality (Sekiguchi et al., 2001). Scid:AtmC/C:Lyz2Cre/+ mice are viable, however, and BMDMs from these mice are deficient in DNA-PKcs (Scid) and have deleted both ATM alleles (Figure 1—figure supplement 1). Like WT BMDMs, those that express Cre (Lyz2Cre/+ BMDMs) exhibit robust γ-H2AX formation and KAP-1 phosphorylation in response to infection with L. monocytogenes (Figure 1H). Whereas BMDMs with isolated deficiencies of ATM or DNA-PKcs exhibit a robust DDR, those with deficiencies in both ATM and DNA-PKcs (Scid:AtmC/C:Lyz2Cre/+) exhibit a near-complete abrogation of γ-H2AX and p-KAP-1 formation in response to infection with L. monocytogenes (Figure 1H). Though uninfected Lyz2Cre/+ and Scid:Atm C/C:Lyz2Cre/+ BMDM are cycling, both undergo G1 arrest after infection with L. monocytogenes (Figure 1—figure supplement 2). We conclude that both ATM and DNA-PKcs are activated in BMDMs by LPS and IFN-γ or infection with L. monocytogenes, and that these kinases can have unique (ATM phosphorylation of KAP-1) or overlapping (ATM or DNA-PKcs phosphorylation of H2AX) functions.

The DDR is activated by genomic DNA DSBs

ATM can be directly activated by oxidizing agents, however, several lines of evidence demonstrate that the DDR in activated macrophages is initiated primarily by genomic DNA DSBs (Guo et al., 2010). The neutral comet assay, which quantifies genomic DSBs in single cells, revealed a significant increase in the Olive Tail Moment (measure of DNA DSBs) in BMDM after infection with L. monocytogenes or treatment with LPS and IFN-γ (Figure 2A). γ-H2AX forms in chromatin flanking genomic DNA DSBs, leading to discrete nuclear foci that can be detected by immunostaining (Rogakou et al., 1999). BMDMs infected with L. monocytogenes exhibit an increase in γ-H2AX nuclear foci relative to uninfected cells, indicative of genomic DNA DSB formation (Figure 2B, Figure 2—figure supplement 1). That these DSBs activate the DDR is evidenced by the analyses of BMDMs deficient in either DNA DSB repair or the Mre11, Rad50, Nbs1 (MRN) complex, which is required to sense DNA DSBs and activate ATM (Ciccia and Elledge, 2010). Deficiency in DNA Ligase IV, which is required for DSB repair by NHEJ, leads to embryonic lethality (Frank et al., 1998). However, mice homozygous for a conditionally targeted DNA Ligase IV allele and heterozygous for Lyz2Cre (Lig4loxP/loxP:Lyz2Cre/+) are viable and have BMDMs deficient in DNA Ligase IV (data not shown). As compared to Lyz2Cre/+ BMDMs (normal NHEJ), infection of Lig4loxP/loxP:Lyz2Cre/+ BMDMs (loss of NHEJ) with L. monocytogenes leads to augmented γ-H2AX formation (Figure 2C). Mice homozygous for a hypomorphic Mre11 allele (Mre11ATLD1/ATLD1) exhibit diminished ATM activation in response to DNA DSBs, and BMDMs derived from these mice exhibit a significant reduction in the ATM-dependent phosphorylation of KAP-1 in response to LPS and IFN-γ (Figure 2D) (Theunissen et al., 2003). Taken together, these findings demonstrate that the initiation of a DDR in activated macrophages occurs primarily through the generation of genomic DNA DSBs.

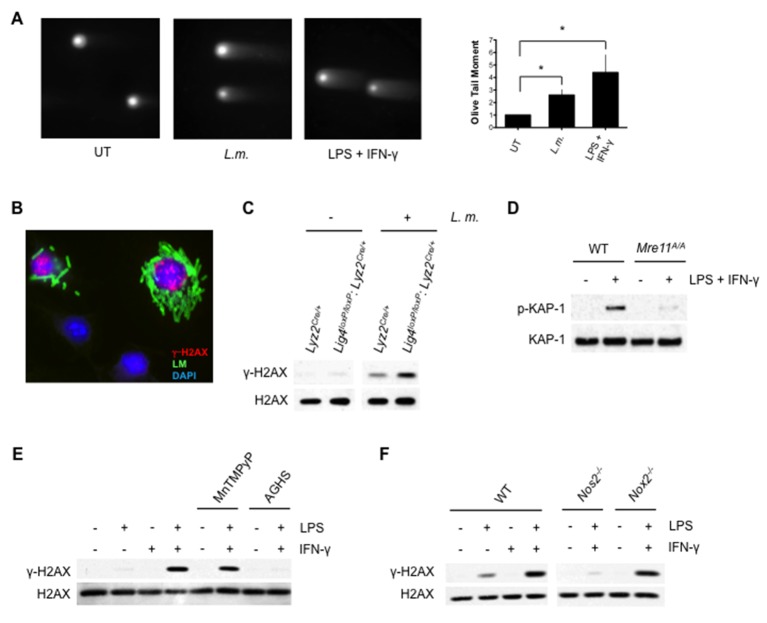

Figure 2. Activation of DDR by DNA DSBs.

(A) Neutral Comet assay and Olive Tail Moment quantification of BMDMs left untreated (UT) or after infection with L. m. or LPS + IFN-γ for 12 hr. (B) Immunofluorescence for L. m. (green) and γ-H2AX (red) in WT BMDMs 9 hr. post-infection. Nuclei are revealed by DAPI (blue). (C) Western blotting of DNA Ligase IV-deficient (Lig4loxP/loxP: Lyz2Cre/+) or Lyz2Cre/+ BMDMs after no infection (-) or infection (+) with L. m. for 24 hr. (D) Western blotting of WT or Mre11ATLD1/ATLD1 BMDMs after no stimulation (-) or stimulation (+) with LPS + IFN-γ for 9 hr. (E, F) Western blot analysis of (E) WT BMDMs after no stimulation (-) or stimulation (+) with LPS + IFN-γ for 9 hr. in the presence or absence of MnTMPyP or AGHS (F) WT, iNOS-deficient (Nos2-/-), or NADPH oxidase-deficient (Nox2-/-) BMDMs after no stimulation (-) or stimulation (+) with LPS + IFN-γ for 9 hr. Data are representative of two or more independent experiments. Quantitation in (A) is the mean and SEM of three independent experiments where ≥ 50 tails were analyzed for each condition and Olive Tail Moment of treated BMDMs is expressed as a ratio to untreated BMDMs. *p<0.05 (Student’s paired t-test). Blank spaces in (C) and (FE) indicate that blots have been cropped.

DOI: http://dx.doi.org/10.7554/eLife.24655.005

Figure 2.

Figure 2—figure supplement 1. L.monocytogenes-infected BMDM exhibit discrete γ-H2AX foci.

Figure 2—figure supplement 1.

(A) Additional representative images of immunofluorescence for L. m. (green) and γ-H2AX (red) in WT BMDMs 9 hr. post-infection. Nuclei are revealed by DAPI (blue). (B) Quantification of γ-H2AX foci in L. monocytogenes-negative and –positive BMDMs. Nuclei with>5 γ-H2AX foci were scored positive for DDR. 119 and 829 L. monocytogenes-negative and –positive nuclei, respectively, were quantified. Data are the mean and SEM of three independent experiments. *p<0.05.
DOI: http://dx.doi.org/10.7554/eLife.24655.006
Open in a new tab

Nitric oxide initiates DDR

Macrophage activation leads to production of ROS and NO, both of which have genotoxic properties that could generate DNA DSBs. We treated BMDMs with a cell-permeable superoxide scavenger, MnTMPyP, or an inhibitor of the inducible nitric oxide synthase, aminoguanidine hemisulfate (AGHS). Treatment with AGHS, but not MnTMPyP, prevented γ-H2AX formation in response to LPS and IFN-γ, suggesting that NO, and not ROS, initiates DDR in activated BMDMs (Figure 2E). In agreement with this finding, BMDMs deficient in the nitric oxide synthase (Nos2-/-) exhibit diminished γ-H2AX in response to LPS and IFN-γ, whereas loss of gp91phox (Nox2-/-), an essential catalytic subunit of the NADPH oxidase, has no effect on γ-H2AX formation (Figure 2F) (Laubach et al., 1995; Pollock et al., 1995). Thus, activation of the DDR in macrophages depends on NO production.

Type I IFN receptor signals drive the DDR in BMDMs

The requirement for both LPS and IFN-γ indicates that both TLR and IFN receptor signaling may be needed to activate the DDR in macrophages (Figure 1A). Indeed, after infection of BMDMs with L. monocytogenes, DDR activation depends on TLR signaling, as BMDMs deficient in MyD88, a critical TLR adaptor protein, exhibit diminished γ-H2AX formation (Figure 3A). However, infection of wild type BMDMs with L. monocytogenes leads to robust DDR activation without the addition of IFN-γ (Figure 1B). In this regard, type I IFN produced upon entry of L. monocytogenes into the cytosol may provide IFN signals required for DDR initiation (Witte et al., 2012). In agreement with this notion, heat-killed L. monocytogenes, which activates TLR signaling but does not enter the cytosol and stimulate type I IFN production, does not initiate a DDR in the absence of exogenous IFN (Figure 3B). Moreover, BMDMs deficient in STING (Tmem173-/-), a cytosolic protein required to stimulate type I IFN production downstream of L. monocytogenes DNA, do not initiate a DDR after infection with L. monocytogenes (Figure 3C). Finally, DDR signaling is not observed in type I IFN receptor-deficient (Ifnar1-/-) BMDMs infected with L. monocytogenes (Figure 3D).

Figure 3. The DDR depends on TLR and interferon signaling cascades.

Figure 3.

Open in a new tab

(A,B) Western blotting for γ-H2AX and H2AX in whole cell lysates from (A) WT or Myd88-/- BMDMs after no infection (-) or infection (+) with L. monoctytogenes (L. m.) for 24 hr. (B) WT BMDMs after no treatment (-) or treatment (+) with IFN-γ, heat-killed L. monocytogenes, or both for 9 hr. (C, D) Western blotting for γ-H2AX, H2AX, p-KAP-1, and KAP-1 in whole cell lysates from WT, Tmem173-/- (C) or Ifnar1-/- (D) BMDMs after no infection (-) or infection with L. m. for 24 hr. Data are representative of 2–4 independent experiments.

DOI: http://dx.doi.org/10.7554/eLife.24655.007

TLR and IFN receptor signaling may be required primarily to induce the DNA damaging agent, NO. Though Ifnar1-/- BMDMs infected with L. monocytogenes do not produce NO, addition of IFN-γ rescues NO production to wild type levels (Figure 4A). This, however, does not lead to a robust DDR (Figure 4B). Thus, type I IFN signaling is required to promote the DDR in BMDMs beyond its role in stimulating NO production. The DDR is also attenuated in Ifnar1-/- BMDMs treated with LPS and IFN-γ (data not shown). Type I IFN does not augment DNA DSB generation, as evidenced by the equivalent levels of DNA DSBs observed by neutral comet assay analysis of BMDMs treated with the DNA DSB-inducing agent bleomycin in the presence or absence of type I IFN (IFN-β) (Figure 4C). However, a robust DDR to bleomycin is only observed in BMDMs treated with IFN-β (Figure 4D). In contrast to macrophages, mouse embryonic fibroblasts (MEFs) treated with bleomycin exhibit a robust DDR that is not augmented by the addition of either IFN-β or IFN-γ (Figure 4D and E). Thus, unlike other cell types, the DDR in macrophages depends on type I IFN signaling. This is not due to an effect of type I IFN signaling on cell cycle parameters or the expression of key DDR proteins (Mre11, Rad50, Nbs1, Ku70, Ku80, ATR, DNA-PKcs, ATM and H2AX) in BMDMs (Figure 4—figure supplements 1 and 2). Notably, many of these proteins exhibit substantially lower expression in BMDMs as compared to MEFs (see Discussion).

Figure 4. Optimal DDR depends on type I interferon signaling.

(A) Nitrite concentration in culture supernatants collected from WT and Ifnar1-/- BMDMs after no infection (-) or infection (+) with L. m. for 24 hr. in the presence or absence of IFN-γ. Data are a compilation of three independent experiments and depict mean and SEM. (B) Western blotting for γ-H2AX, H2AX, p-KAP-1, and KAP-1 in whole cell lysates from WT and Ifnar1-/- BMDMs after no infection (-) or infection (+) with L. m. for 24 hr. in the presence or absence of IFN-γ . (C) Neutral Comet assay and Olive Tail Moment quantification of BMDMs left untreated (UT) or after treatment with bleomycin in the presence or absence of type I interferon (IFN-β). (D, E) Western blotting for p-KAP-1 and KAP-1 of WT mouse embryonic fibroblasts (MEFs) or BMDMs after no stimulation (-) or stimulation with bleomycin (1 ug/mL), (D) IFN-β (100 U/mL), or bleomycin + IFN-β for 6 hr. (E) IFN-γ (10 ng/mL), or bleomycin + IFN-γ for 6 hr. Data are representative of 2-4 independent experiments. Quantitation in (C) is the mean and SEM of three independent experiments where ≥50 tails were analyzed for each condition and Olive Tail Moment of treated is expressed as a ratio to untreated. ns = not significant. Blank space in (E) indicates that blot has been cropped

DOI: http://dx.doi.org/10.7554/eLife.24655.008

Figure 4.

Figure 4—figure supplement 1. Type I IFN does not affect the cell cycle in BMDMs.

Figure 4—figure supplement 1.

Flow cytometric analysis of BrdU incorporation (y axis) and DNA content (7AAD; x axis) was performed in BMDMs left untreated or after stimulation with IFN-β (100 U/mL), bleomycin (1 ug/mL), or bleomycin + IFN-β for 6 hr. Percentage of cells in each phase of the cell cycle (G1, S, and G2-M) after BrdU labeling is indicated. Data are representative of three independent experiments.
DOI: http://dx.doi.org/10.7554/eLife.24655.009
Figure 4—figure supplement 2. Type I IFN does not impact expression of key DDR factors.

Figure 4—figure supplement 2.

Western blotting for Mre11, Nbs1, Rad50, Ku70, Ku80, ATM, ATR, DNA-PKcs, and H2AX in untreated (-) WT mouse embryonic fibroblasts (MEFs) or BMDMs after no stimulation (-) or stimulation (+) with IFN-β (100 U/mL), bleomycin (1 ug/mL), or bleomycin + IFN-β for 6 hr. GAPDH is used as a protein loading control. Data are representative of three independent experiments.
DOI: http://dx.doi.org/10.7554/eLife.24655.010
Open in a new tab

DDR regulates the genetic program of macrophages

We performed gene expression profiling on Lyz2Cre/+ and Scid:AtmC/C:Lyz2Cre/+ BMDMs before and after infection with L. monocytogenes (Figure 5A and Figure 5—source data 1). The expression of 322 genes was induced (≥4 fold) after infection of Lyz2Cre/+ BMDMs with L. monocytogenes (Figure 5A and Figure 5—source data 1). Of these, 128 exhibited greater (≥1.25 fold) induction in Lyz2Cre/+ BMDMs infected with L. monocytogenes relative to infected Scid:AtmC/C:Lyz2Cre/+ BMDMs, indicating that their expression is regulated by ATM and/or DNA-PKcs (Figure 5A and Figure 5—source data 1). These genes encode proteins with diverse functions in the immune response, including several cytokines, chemokines, and cell surface proteins such as the class A scavenger receptor MARCO and CD69, which has a role in cell localization and migration (Figure 5A and B) (Kraal et al., 2000; Schwab and Cyster, 2007). The DDR in L. monocytogenes-infected BMDMs regulates the expression of many (Cxcl1, Cxcl10, Ccl2, Ccl3 and Ccl4), but not all (Ccl5), chemokine genes that are induced in activated macrophages (Figure 5A and B). The analysis of BMDMs deficient in ATM (Atm-/-) or DNA-PKcs (Scid) revealed that both of these kinases can function to regulate gene expression (Figure 5C, Marco and Cxcl10), whereas in other cases the activity of either of these kinases is adequate (Figure 5C, Ccl2). We conclude that once activated by DNA DSBs, ATM and DNA-PKcs regulate the functional genetic program of activated macrophages.

Figure 5. ATM and DNA-PKcs regulate the genetic program of activated macrophages.

Figure 5.

Open in a new tab

(A) Heat map showing genes that are significantly up-regulated (≥4 fold, adj. p-value<0.001) in L. m.-infected Lyz2Cre/+and Scid:Atm C/C:Lyz2Cre/+ BMDMs relative to no infection. Red indicates relatively higher expression; blue indicates relatively lower expression. Genes with increased expression (>1.25 fold) in Lyz2Cre/+controls relative to L. m.-infected Scid:Atm C/C:Lyz2Cre/+ BMDMs are clustered in the upper right hand corner of the heat map. Select genes in this group are indicated. Shown are two biological replicates (1 and 2) for each condition and genotype. (B,C) Quantitative real-time PCR (RT-PCR) of gene expression in uninfected (-) and L. m.-infected (+) (B) Scid:Atm C/C:Lyz2Cre/+ and Lyz2Cre/+ BMDMs and (C) Atm-/-, Scid, and WT BMDMs. Data are the mean and SEM of three or more independent experiments. *p<0.05, **p<0.01, ns = not significant.

DOI: http://dx.doi.org/10.7554/eLife.24655.011

Figure 5—source data 1. Gene expression changes induced by L. monocytogenes infection.
Normalized log2 probe values for genes up-regulated (≥4 fold, adj. p-value<0.001) in L. m.-infected Lyz2Cre/+and Scid:Atm C/C:Lyz2Cre/+ BMDMs relative to uninfected cells. The fold-change between infected Scid:Atm C/C:Lyz2Cre/+-and infected Lyz2Cre/+ cells for each gene is also shown.
DOI: http://dx.doi.org/10.7554/eLife.24655.012
elife-24655-fig5-data1.xlsx (169.1KB, xlsx)
DOI: 10.7554/eLife.24655.012

Regulation of inflammasome activation by ATM and DNA-PKcs

Entry of L. monocytogenes into the cytosol activates the NLRP3 and AIM2 inflammasomes, leading to the activation of the caspase 1 protease and cleavage of pro-IL-1β and pro-IL-18 to form active IL-1β and IL-18, respectively (Lamkanfi and Dixit, 2014; von Moltke et al., 2013; Witte et al., 2012). Loss of both ATM and DNA-PKcs (Scid:AtmC/C:Lyz2Cre/+) leads to a significant reduction in IL-1β production in response to infection of BMDMs with L. monocytogenes (Figure 6A). In contrast, BMDMs with isolated deficiencies in ATM or DNA-PKcs exhibit only a mild reduction in IL-1β production (data not shown). ROS levels in resting ATM-deficient macrophages have been implicated in blunting inflammasome responses (Erttmann et al., 2016). However, we do not observe any notable differences in ROS levels among the different macrophages examined here (Figure 6—figure supplement 1). ATM and DNA-PKcs are not required to promote pro-IL-1β gene expression, nor are they required for optimal expression of the Asc, Nlrp3, or Aim2 genes (Figure 6—figure supplement 2). Rather, after infection with L. monocytogenes, Scid:AtmC/C:Lyz2Cre/+ BMDMs are unable to efficiently convert inactive pro-caspase 1 to active caspase 1 (p20) (Figure 6B). This requirement for ATM and DNA-PKcs is not specific to L. monocytogenes, as AIM2 inflammasome activation by LPS and poly dA:dT also depends on an intact DDR (Figure 6C). Moreover, activation of the NLRP3 inflammasome with LPS and either nigericin or monosodium urate (MSU) crystals is also defective in Scid:AtmC/C:Lyz2Cre/+ BMDMs as evidenced by reduced IL-1β production in response to these stimuli (Figure 6D).

Figure 6. DDR regulates inflammasome activation.

(A) IL-1β protein concentration as determined by ELISA in supernatants from uninfected (-) and L. m.-infected (+) Scid:AtmC/C:Lyz2Cre/+ and Lyz2Cre/+ BMDMs 12 and 24 hr. post-infection. Data are mean and SEM of technical replicates and are representative of four independent experiments. ***p<0.0001. (B) Western blot analysis of pro-caspase 1 in whole cell lysates (WCL) and active caspase 1 (p20) in supernatants (Sup) from Lyz2Cre/+ and Scid:AtmC/C:Lyz2Cre/+ BMDMs 12 and 24 hr. post-L. m. infection. Data are representative of two independent experiments. (C,D) IL-1β protein concentration by ELISA in supernatants from Lyz2Cre/+ and Scid:AtmC/C:Lyz2Cre/+ BMDMs left untreated (-) or after treatment with LPS (200 ng/mL) for 12 hr and in the presence or absence of (C) poly(dA:dT) (5 ug/mL) for 12 hr. (D) nigericin (5 uM) for 30 min. or monosodium urate crystals (MSU, 50 ug/mL) for 12 hr. Data are mean and SEM of technical replicates and are representative of two or three independent experiments. ***p<0.0001.

DOI: http://dx.doi.org/10.7554/eLife.24655.013

Figure 6.

Figure 6—figure supplement 1. Mitochondrial ROS levels are equivalent in DDR-deficient and –sufficient BMDM.

Figure 6—figure supplement 1.

Flow cytometric analysis of mitochondrial superoxide levels in live BMDM from Lyz2Cre/+, AtmC/C: Lyz2Cre/+, and Scid: AtmC/C: Lyz2Cre/+ mice. Superoxide is detected with the fluorogenic dye MitoSOX Red.
DOI: http://dx.doi.org/10.7554/eLife.24655.014
Figure 6—figure supplement 2. Gene expression of inflammasome components.

Figure 6—figure supplement 2.

(A–D) Quantitative RT- PCR analysis of (A) pro Il-1β, (B) Asc, (C) Nlrp3, and (D) Aim2 gene expression in Scid: AtmC/C: Lyz2cre/+and Lyz2cre/+BMDMs infected (+) or not (-) with L. m. Data are a compilation of three independent experiments and depict mean and SEM. ns = not significant.
DOI: http://dx.doi.org/10.7554/eLife.24655.015
Open in a new tab

In contrast to IL-1β, production of IL-18 relies primarily on DNA-PKcs, as Scid BMDMs produce significantly less IL-18 after L. monocytogenes infection (Figure 7A). DNA-PKcs is not required to promote pro-IL-18 gene expression (Figure 7—figure supplement 1). IL-12 and IL-18 stimulate T cells and NK cells to produce IFN-γ (Akira, 2000; Hsieh et al., 1993; Okamura et al., 1995). As compared to wild type BMDMs, Scid BMDMs infected with L. monocytogenes were not effective at simulating IFN-γ production by co-cultured NK cells (Figure 7B). Scid and wild type BMDMs both induce IL-12 (p40) gene expression upon infection with L. monocytogenes and the addition of exogenous IL-18 rescues IFN-γ production by NK cells co-cultured with L. monocytogenes-infected Scid BMDMs (Figure 7B and Figure 7—figure supplement 1). Thus, the inability of Scid BMDMs to induce NK cells to make IFN-γ is due to the role of DNA-PKcs stimulating IL-18 production. We concluded that ATM and DNA-PKcs regulate inflammasome function in response to a broad variety of activators. Moreover, these two kinases are differentially required for the production of IL-1β and IL-18 by the inflammasome.

Figure 7. DNA-PKcs regulates IL-18 production and NK cell activation.

(A) IL-18 protein concentration as determined by ELISA in supernatants from uninfected (-) and L. m.-infected WT and Scid BMDMs 12 and 24 hr. post-infection. Data are mean and SEM of technical replicates and are representative of three independent experiments. ***p≤0.0002. (B) Flow cytometric analysis of intracellular IFN-γ production by WT splenic NK cells co-cultured with uninfected or L. m.-infected WT or Scid BMDM with (+) or without (-) the addition of IL-18 for 15 hr. Data are representative of four independent experiments. (C) Schematic showing the regulation of macrophage functions by DDR.

DOI: http://dx.doi.org/10.7554/eLife.24655.016

Figure 7.

Figure 7—figure supplement 1. Il18 and Il12 gene expression is equivalent in WT and Scid BMDM after L.m. infection.

Figure 7—figure supplement 1.

(A,B) Quantitative RT- PCR analysis of (A) Pro Il18 and (B) Il12p40 gene expression in WT and Scid BMDM 12 hr post- L. m. infection. Data are a compilation of three independent experiments and depict mean and SEM. ns = not significant.
DOI: http://dx.doi.org/10.7554/eLife.24655.017
Open in a new tab

Discussion

Here we establish that DDR signaling pathways regulate inflammasome activation and transcriptional programs with innate immune functions in macrophages. In activated macrophages, the DDR is initiated by genomic DNA DSBs that can be generated by NO produced in response to TLR and type I IFN signals (Figure 7C). However, in addition to stimulating NO production, we find that type I IFN signals are required for optimal DDR activation in macrophages. This is not due to a requirement for type I IFN signaling in the generation of DSBs. Rather, we find that type I IFN signals are required to augment the DDR in macrophages, but not MEFs, once DSBs are generated. Our findings establish a mechanistic link between DNA DSB generation, DDR signaling and innate immune responses mediated by macrophages.

We have primarily analyzed macrophages activated either with LPS and IFN-γ or after infection with L. monocytogenes. Most bacteria initiate TLR signals and stimulate type I IFN production, leading to NO production, which should generate DNA DSBs and activate a DDR in macrophages. Thus, we reason that the DDR will be activated, and regulate macrophage functions, in response to a broad variety of bacterial pathogens and other activating stimuli. Indeed, we find that the DDR augments inflammasome function in macrophages in response to LPS and nigericin or LPS and MSU, which activate the NLRP3 inflammasome, and to LPS and poly dA:dT, which activates the AIM2 inflammasome.

Genotoxic agents other than NO could also cause DNA damage and initiate a DDR. In this regard, ROS initiates a DDR in a human cervical cell line infected with the intracellular pathogen Chlamydia trachomatis (Chumduri et al., 2013). However, we did not find that ROS initiated a DDR in macrophages under the conditions examined here. Perhaps this is due to the robust activity of enzymes, such as superoxide dismutase or catalase, that inactivate ROS in macrophages before it can cause DNA damage (Nathan and Cunningham-Bussel, 2013). The activation of DDR in macrophages by NO, and not ROS, has important temporal implications for the effect of the DDR on macrophage function. Whereas ROS is produced immediately upon macrophage activation, NO production is delayed due to the requirement for induction of Nos2 gene expression and production of nitric oxide synthase (MacMicking et al., 1997; Nunes et al., 2013). Thus, NO-induced DNA damage, the initiation of a DDR, and its physiologic effects on macrophage function will be delayed relative to macrophage activation. Though the mechanism by which NO induces DNA damage remains unclear, NO can react with other species, giving rise to agents such as N2O3, which can cause DNA crosslinking and strand breaks, and the highly reactive peroxynitrite, which rapidly reacts with DNA and can cause DNA breaks and mutations (Anand and Stamler, 2012; Radi, 2013; Tamir et al., 1996). Though these lesions likely occur at random in macrophage DNA, it is certainly possible that there are regions within the genome that are more susceptible to genotoxic damage by nitric oxide and its metabolic derivatives.

It is possible that DNA DSBs could be generated, and a DDR initiated, in activated macrophages in the absence of NO. In this regard, pathogens can produce agents that can directly or indirectly cause DNA damage (Guerra et al., 2011; Weitzman and Weitzman, 2014). Cytolethal Distending Toxins (CDT), produced by some bacteria, have phosphodiesterase activity and can cause DNA DSBs (Alaoui-El-Azher et al., 2010; Fedor et al., 2013; Frisan et al., 2003; Guerra et al., 2011; Jinadasa et al., 2011; Nesić et al., 2004; Weitzman and Weitzman, 2014). Some strains of bacteria produce the genotoxic agent colibactin (Cuevas-Ramos et al., 2010; Nougayrède et al., 2006). Moreover, some bacteria produce agents that can directly modulate the DDR and its activities in response to these pathogens (Weitzman and Weitzman, 2014). Thus, different bacteria may have evolved ways to induce DNA DSBs and to modulate the DDR.

The sensing of bacterial and viral DNA in the cytosol of infected cells is a key initiating event in inflammasome activation and in the production of type I IFN, which is required for a robust DDR. The DDR is initiated by proteins that directly bind to DNA DSBs such as Ku70 and Ku80, which activate DNA-PKcs and the MRN complex, which activates ATM (Ciccia and Elledge, 2010). These proteins have been shown to bind to DNA DSBs in a sequence-independent fashion and are capable of binding mammalian, bacterial and viral DNA. In some settings, several of these proteins have been implicated as sensors for type I IFN production in response to cytosolic bacterial or viral DNA (Chatzinikolaou et al., 2014; Lilley et al., 2007) or can couple with known innate immune adaptors to stimulate the production of pro-IL-1β downstream of NF-κB activation (Roth et al., 2014). We show here, however, that these proteins can regulate macrophage function by activating a DDR downstream of genomic DNA DSBs. In activated macrophages, DDR activation by LPS and IFN-γ depends on the production of type I IFN and on the MRN component, Mre11. In this setting, Mre11 functions to activate DDR to genomic DSBs and not as a sensor of bacterial or viral DNA. Moreover, we show that the activation of the inflammasome by MSU and nigericin depends on ATM and DNA-PKcs, despite the fact that neither of these stimuli include pathogen DNA.

In most cell types, ATM is the predominant kinase that mediates DDR. In macrophages, however, we find that full activation of the DDR depends on both ATM and DNA-PKcs. Indeed, ATM and DNA-PKcs have unique functions required for the expression of some genes and overlapping functions that regulate others. The DDR regulates the expression of a variety of chemokine genes in activated macrophages. This includes CCL2, which mediates inflammatory monocyte trafficking into peripheral tissues, CCL3 (MIP-1α), CCL4 (MIP-1β), and CXCL1, which regulate the migration of innate immune cells such as macrophages, neutrophils, and NK cells (Griffith et al., 2014; Kuziel et al., 1997). NF-κB is a critical transcription factor that regulates chemokine gene expression downstream of pattern recognition receptors as well as IL-1 and TNF receptors. DNA damage can also lead to the ATM-dependent activation of NF-κB (Huang et al., 2003; Wu et al., 2006). Thus, it is possible that DDR in activated macrophages regulate chemokine gene expression by augmenting NF-κB activation. Moreover, Cxcl1 expression is regulated by NF-κB and poly(ADP-ribose) polymerase (PARP)−1, which is activated by DNA damage and has a broad range of functions in DDR (Amiri and Richmond, 2003; Nirodi et al., 2001; Rouleau et al., 2010). Thus, in activated macrophages, the initiation of a DDR may regulate the genetic program through multiple signaling and transcription pathways.

The DDR-regulated genetic program in activated macrophages shares functional similarities with the ATM-dependent genetic program in developing pre-B lymphocytes (Bednarski et al., 2016; Bredemeyer et al., 2008). CD69, which has an established role in cell homing and migration, is regulated by DDR in both pre-B cells undergoing antigen receptor rearrangement and in activated macrophages. Indeed, many of the DDR-regulated genes in both developing lymphocytes and activated macrophages have an established role in cell migration. Optimal expression of Ccl2, Ccl3, Ccl4, and Cxcl1 depends on DDR signaling in macrophages, and these chemokines regulate the migration of innate immune cells during infection (Griffith et al., 2014; Kuziel et al., 1997). Similarly, expression of CD69, CD62L, and SWAP70, known to function in lymphocyte migration, are dependent on the DDR signaling in developing B cells (Bredemeyer et al., 2008). Additionally, the DDR factor PAXIP1 was found to regulate egress of mature single positive T cells from the thymus (Callen et al., 2012). Taken together, these findings suggest that DNA DSBs and the resulting DDR influence the homing and migration of various immune cell types in a variety of distinct cellular contexts.

ATM and DNA-PKcs are both required for optimal IL-1β production by macrophages in response to L. monocytogenes and diverse inflammasome activators. This is due, at least in part, to a role for the DDR in the conversion of pro-caspase 1 to active caspase-1. Interestingly, the production of IL-18, which is also generated through inflammasomes, depends on DNA-PKcs but not on ATM. Thus, ATM and DNA-PKcs may have distinct activities in the generation of IL-18 and IL-1β. The DDR in macrophages depends on type I IFN receptor signals. This is not due solely to the role of type I IFN in promoting the production of the DNA damaging agent, NO nor is it due to a requirement for type I IFN to promote DNA DSBs in response to DNA damaging agents. Rather, type I IFN is required to initiate the DDR to DSBs generated in macrophages. Although it is unclear how type I IFN enables at DDR in macrophages it does not regulate the expression of key DDR proteins (Figure 4—figure supplement 2). However, we find that many of these proteins are expressed at significantly lower levels than MEFs, which do not depend on type I IFN to initiate a robust DDR. Thus, it is conceivable that type I IFN activates pathways that permit robust DDR in cells expressing limiting amounts of DDR proteins. This could result from widespread chromatin modifications induced by type I IFN-dependent gene expression changes. Importantly, we find that this does not lead to an increase in DNA DSBs. However, these chromatin modifications may enhance DDR activation to DSBs (Bakkenist and Kastan, 2003; Floyd et al., 2013).

Materials and methods

Mice

All mice were bred and maintained under specific pathogen-free conditions at the Washington University School of Medicine and Weill Cornell Medical College under protocol number 2015–0036. Mice were handled in accordance with the guidelines set forth by the Division of Comparative Medicine of Washington University and the Research Animal Research Center at Weill Cornell Medical College. Lyz2Cre/+ (Clausen et al., 1999), Scid, Ifnar1-/-, Tmem173-/-, and Nox2-/- mice were maintained on a C57BL/6 background. The Atm-/- and Mre11ATLD1/ATLD1 mice have been described previously (Theunissen et al., 2003). Confirmation of mouse genotypes was done by PCR or Southern blotting. AtmC/C mice (Zha et al., 2008) were extensively backcrossed to the C57BL/6 background and were monitored by the analysis of microsatellite markers at the Rheumatic Disease Core Center, Washington University School of Medicine (St. Louis, MO). All mice were analyzed between 4 and 8 wks of age.

Bacteria

The Listeria monocytogenes strain used in this study was the wild type strain EGD, which was stored as glycerol stocks at −80°C. For all ex vivo experiments, L. monocytogenes were grown and prepared as described previously (Edelson and Unanue, 2001). Heat-killed L. monocytogenes were prepared by incubation of mid-log bacteria at 70°C for 3 hr followed by several washes with sterile 1X PBS.

Cell culture

Bone marrow was harvested from 4–8-wk-old mice and cultured for 6 days in complete DMEM containing 10% heat-inactivated FBS, 5% heat-inactivated horse serum, and 20% culture supernatant from L929 fibroblasts as a source of M-CSF. BMDMs were re-plated in this media in 6-well plates at a density of 2.5 × 106/well. The following day, BMDMs were treated with 100 ng/mL LPS (Escherichia coli serotype 055:B5) (Sigma-Aldrich, St. Louis, MO), 100 U/mL murine IFN-γ (PBL Interferon Source), or both. For infection with L. monocytogenes, BMDMs were re-plated in antibiotic-free media and infected the following day with L. monocytogenes at a multiplicity of infection (MOI) of 5 followed by addition of Gentamicin (5 ug/mL) (Gibco) 30 min post-infection to kill extracellular L. monocytogenes. All L. monocytogenes experiments were done in the presence or absence of 100 ng/mL murine IFN-γ (R&D Systems). Primary peritoneal macrophages were harvested from C57BL/6 mice via peritoneal lavage. Cells were plated in 24-well plates at a density of 1–2 × 106 cells/well and were incubated at 37°C for 4 hr in complete DMEM. At this time, media was removed and the remaining adherent macrophages were incubated for 24 hr in complete DMEM containing LPS (100 ng/mL), IFN-γ (100 U/mL), or both. Mouse embryonic fibroblasts (MEFs) were generated from C57BL/6 d 13.5 embryos and subsequently immortalized with the SV40 T antigen. BMDMs and mouse embryonic fibroblasts (MEFs) were treated with Bleocin (1 ug/mL) (Millipore) for 6 hr without or with IFN-β (100 U/mL) (PBL Interferon Source) pretreatment for 3 hr. For inflammasome studies, BMDM were treated with 200 ng/mL LPS (Escherichia coli serotype 055:B5) (Sigma) with or without 5 ug/mL poly(dA:dT) (Invivogen) or monosodium urate crystals (MSU, 50 ug/mL) (Invivogen) for 12 hr or with LPS for 12 hr followed by nigericin (5 uM) (Invivogen) for 30 min. IL-1β and IL-18 levels in supernatants were measured using the OptEIA ELISA set (BD Biosciences) and Mouse IL-18 ELISA Set (MBL), respectively, in accordance with the manufacturer’s instructions. Supernatant nitrite levels were determined using the Griess reagent. Levels of mitochondrial superoxide were detected in live BMDM using the fluorogenic dye MitoSOX Red (2.5 uM) (Molecular Probes). Cells were treated with the dye for 30 min, washed with warm 1X PBS, and analyzed by flow cytometry using a BD LSR II (BD) and FlowJo software (TreeStar).

PCR and southern blotting

RNA was isolated and quantitative RT-PCR carried out as described previously (Bednarski et al., 2012). Oligonucleotide sequences are detailed at the end of this section. Southern blot analyses were performed using KpnI-digested genomic DNA and the 3’ ATM conditional probe as previously described (Bredemeyer et al., 2006; Zha et al., 2008).

Western blotting

BMDM and MEFs were lysed in RIPA buffer and whole cell lysates were generated with LDS sample buffer (Invitrogen) supplemented with dithiothreitol (DTT). For analysis of culture supernatants, protein was precipitated with 7.2% w/v trichloroacetic acid (TCA) (Sigma) followed by two acetone washes. Immunoblotting was carried out as previously described (Helmink et al., 2011). Primary antibodies used were anti-γ-H2AX clone JBW301 (Millipore) (RRID:AB_309864), anti-H2AX (Millipore) (RRID:AB_2233033), anti-phospho-KAP-1 (Bethyl Laboratories) (RRID:AB_669740), anti-KAP-1 (GeneTex) (RRID:AB_372041), anti-caspase 1 (p20, Casper-1) (Adipogen) (RRID:AB_2490248), anti-DNA-PKcs (Invitrogen), anti-Ku70 (Cell Signaling Technology), anti-Ku80 (Cell Signaling Technology) (RRID:AB_2257526), anti-ATM clone MAT3 (Sigma), anti-Mre11 (Novus) (RRID:AB_10077796), anti-Nbs1 (Abcam) (RRID:AB_777006), anti-Rad50 (Abcam) (RRID:AB_2176935), anti-ATR (Novus) (RRID:AB_10003234), and anti-glyceraldehyde-3-phosphate dehydrogenase (GAPDH) (Sigma). Secondary reagents were horseradish peroxidase–conjugated anti–mouse IgG (Promega) or horseradish peroxidase–conjugated anti- rabbit IgG (Cell Signaling Technology).

Immunoflurescence

BMDM were plated on 12 mm glass coverslips (2.5 × 105 cells/coverslip) in 24-well plates and infected with L. monocytogenes as described above. Nine hr post-infection, cells were fixed with 4% formaldehyde in PBS for 10 min at room temperature, permeabilized in 0.5% Triton X-100 in PBS for 5 min, and then washed with PBS. Coimmunostaining with primary and secondary antibodies was performed with a blocking solution of 3% bovine serum albumin (BSA) in PBS at 37°C for 30 min, and cells were mounted with ProLong Gold Antifade reagent containing 4′,6-diamidino-2-phenylindole (DAPI) (Invitrogen). Antibodies used for staining were anti-γ-H2AX clone JBW301(1:2000 dilution) (Millipore) (RRID:AB_309864), and Difco Listeria O Antiserum Poly Serotypes 1, 4 (1:200 dilution) (BD). Antibodies used for secondary staining were Alexa Fluor 488–goat anti-rabbit IgG (1:2000) (Invitrogen), and Alexa Fluor 594–goat anti mouse IgG (1:2000) (Invitrogen). Imaging was performed with a BX-53 Olympus microscope using an ApoN 60x/1.49-numerical-aperture oil immersion lens and cellSens Dimension software.

COMET assay

BMDM were treated with LPS and IFN-γ, infected with L. monocytogenes, or treated with Bleocin with or without IFN-β, as described above. Cells were subjected to the neutral CometAssay using reagents from Trevigen in accordance with the manufacturer’s protocol. Imaging was performed with a BX-53 Olympus microscope using an ApoN 60x/1.49-numerical-aperture oil immersion lens and cellSens Dimension software. Olive Tail Moment was determined using the software OpenComet. 50 or more tails were analyzed for each condition.

Cell cycle analysis

BMDM were infected with L. monocytogenes for 16 hr as previously described or treated with Bleocin with or without IFN-β, as described above. Cells were then pulsed with BrdU for 30 min using the BrdU-FITC or –APC kits per the manufacturer’s instructions. DNA content was assessed by 7AAD (BD) and data were acquired on a FACSCalibur or BD LSR II (BD Biosciences) and were analyzed with FlowJo software (TreeStar).

Gene array

RNA was isolated from two independent BMDM cultures for each genotype (Lyz2Cre/+and Scid: AtmC/C: Lyz2Cre/+) after no infection or infection with L. monocytogenes for 24 hr. RNA was extracted from cells with the RNeasy Mini Kit (Qiagen). Gene expression profiling was performed using Illumina MouseRef-8 expression microarrays according to the manufacturer’s protocols. Unnormalized summary probe profiles were exported from GenomeStudio (Illumina) and background corrected and quantile normalized using the limma R package’s (Shi et al., 2010) neqc function with default parameters. Only probes with a detection p-value<0.05 in at least three arrays were considered expressed and used for further analyses. A linear model was fit to the data, and an empirical Bayes moderated t-statistics test was used to determine differentially expressed genes in L. monocytogenes-infected cells relative to uninfected cells using the limma R package (Ritchie et al., 2015). Multiple probes for a given gene were resolved by retaining the probe with the highest average expression across all arrays. Upregulated genes with a fold change>4 and adjusted p-value<0.001 in L. monocytogenes-infected cells relative to uninfected were used for heatmaps. Fold changes were calculated based on the average of two biological replicates for each genotype.

NK-BMDM co-culture assay

BMDM were cultured in 12-well plates at a density of 1 × 106 cells/well and infected with L. monocytogenes as described above. Splenic NK cells were magnetically sorted from whole splenocytes obtained from C57BL/6 mice using CD49b (DX5) MicroBeads and MS columns (Miltenyi). 12 hr post- L. monocytogenes infection of BMDM, 0.5 × 106 purified splenic NK cells were added to each well in the presence of IL-2 (50 U/mL) (PeproTech) to foster NK cell survival. Where relevant, murine IL-18 (10 ng/mL) (MBL) was also added to the cultures. 10 hr after adding the purified NK cells to the BMDM, protein transport was inhibited with GolgiStop (BD Biosciences). Five hr later, cells were harvested and nonspecific binding was blocked with 5 ug/mL of anti-CD16/32 (2.4G2; BD Pharmingen) before cell surfaces were stained with anti- NK1.1 (PK136; eBioscience), anti-CD11b (M1/70; BD Pharmingen), and anti-F4/80 (Invitrogen). Cells were fixed and permeabilized according to standard protocol and intracellular staining for IFN-γ (XMG1.2, eBioscience) was performed. Data were acquired on a FACSCanto II (BD Biosciences) and were analyzed with FlowJo software (TreeStar).

Statistical analysis

All p-values were generated via Student’s unpaired two-tailed t test (unless otherwise stated in the figure legend) using Prism Version 5. P-values below 0.05 were considered statistically significant.

Sequences of primers used in quantitative real-time PCR (RT-PCR) analysis


 Forward primer Reverse primer
Gapdh AGGTCGGTGTGAACGGATTTG TGTAGACCATGTAGTTGAGGTCA
Cxcl1 CTGGGATTCACCTCAAGAACATC CAGGGTCAAGGCAAGCCTC
Cxcl10 CCAAGTGCTGCCGTCATTTTC GGCTCGCAGGGATGATTTCAA
Ccl2 TTAAAAACCTGGATCGGAACCAA GCATTAGCTTCAGATTTACGGGT
Ccl3 TTCTCTGTACCATGACACTCTGC CGTGGAATCTTCCGGCTGTAG
Ccl4 TTCCTGCTGTTTCTCCTCTTACACCT CTGTCTGCCTCTTTTGGTCAG
Ccl5 GCTGCTTTGCCTACCTCTCC TCGAGTGACAAACACGACTGC
Marco GCACAGAAGACAGAGCCGATTT GCCACAGCACATCTCTAGCATCT
Cd69 TGGTGAACTGGAACATTGGA CAGTGGAAGTTTGCCTCACA
Il1b AGCTTCCTTGTGCAAGTGTCT GACAGCCCAGGTCAAAGGTT
Il18 TCAAAGTGCCAGTGAACCCC GGTCACAGCCAGTCCTCTTAC
Aim2 CGGGAAATGCTGTTGTTGAC TGCTCCTGGCAATCTGAAA
Il12p40 ACCTGTGACACGCCTGAAGAAGAT TCTTGTGGAGCAGCAGATGTGAGT
Open in a new tab

Accession numbers

The Gene Expression Omnibus number for the gene expression profiling analysis reported in this paper is GSE70467.

Acknowledgements

We thank Dr. Emil R Unanue for stimulating our interest in examining DNA damage responses in macrophages and for thoughtful guidance throughout this project. We thank Drs. Vishva Dixit, Irma Stowe, Marina Cella, Victor Cortez, Daniel Graham, and Alejandro Reyes for helpful discussions and technical assistance. We thank Dr. Gwendalyn Randolph for critical review of the manuscript. We thank all of the members of our laboratory for many helpful discussions and Ryan D Irwin for maintaining the mouse colony. Experimental support was provided by the Speed Congenics Facility of the Rheumatic Diseases Core Center and the Genome Technology Access Center (Washington University School of Medicine, St. Louis, MO). This work was supported by the National Institutes of Health grants T32 AI007163 (AJM), R01 AI113118 (BTE) R01 AI047829 (BPS) and R01 AI074953 (BPS), a Burroughs Wellcome Fund Career Award for Medical Scientists (BTE), and by the Intramural Research Program of the NIH, National Institute of Environmental Health Sciences (Z01ES021157).

Funding Statement

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Funding Information

This paper was supported by the following grants:

  • National Institutes of Health T32 AI007163 to Abigail J Morales.

  • National Institutes of Health R01 AI113118 to Brian T Edelson.

  • National Institute of Allergy and Infectious Diseases R01 AI047829 to Barry P Sleckman.

  • National Institute of Allergy and Infectious Diseases R01 AI074953 to Barry P Sleckman.

  • National Institute of Environmental Health Sciences Z01ES021157 to Barry P Sleckman.

Additional information

Competing interests

The authors declare that no competing interests exist.

Author contributions

AJM, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Visualization, Methodology, Writing—original draft, Writing—review and editing.

JAC, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing.

PJH, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Visualization, Methodology, Writing—original draft, Writing—review and editing.

ATT, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Visualization, Methodology, Writing—review and editing.

JMA, Formal analysis, Validation.

BTE, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—review and editing.

BC, Data curation, Formal analysis, Supervision, Methodology, Writing—review and editing.

CLI, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing—review and editing.

RSP, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Methodology, Writing—review and editing.

JEP, Resources, Data curation, Formal analysis, Supervision, Methodology, Writing—review and editing.

BPS, Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing.

Ethics

Animal experimentation: All mice were bred and maintained under specific pathogen-free conditions at the Washington University School of Medicine and Weill Cornell Medical College under protocol number 2015-0036. Mice were handled in accordance with the guidelines set forth by the Division of Comparative Medicine of Washington University and the Research Animal Research Center at Weill Cornell Medical College.

Additional files

Major datasets

The following dataset was generated:

Sleckman BP,Morales AJ,2015,DNA damage responses activate a multi-functional genetic program in murine bone marrow-derived macrophages,https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE70467,Publicly available at the NCBI Gene Expression Omnibus (accession no: GSE70467)

References

  1. Akira S, Takeda K. Toll-like receptor signalling. Nature Reviews Immunology. 2004;4:499–511. doi: 10.1038/nri1391. [DOI] [PubMed] [Google Scholar]
  2. Akira S. The role of IL-18 in innate immunity. Current Opinion in Immunology. 2000;12:59–63. doi: 10.1016/S0952-7915(99)00051-5. [DOI] [PubMed] [Google Scholar]
  3. Alaoui-El-Azher M, Mans JJ, Baker HV, Chen C, Progulske-Fox A, Lamont RJ, Handfield M. Role of the ATM-checkpoint kinase 2 pathway in CDT-mediated apoptosis of gingival epithelial cells. PLoS One. 2010;5:e11714. doi: 10.1371/journal.pone.0011714. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Amiri KI, Richmond A. Fine tuning the transcriptional regulation of the CXCL1 chemokine. Progress in Nucleic Acid Research and Molecular Biology. 2003;74:1–36. doi: 10.1016/S0079-6603(03)01009-2. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Anand P, Stamler JS. Enzymatic mechanisms regulating protein S-nitrosylation: implications in health and disease. Journal of Molecular Medicine. 2012;90:233–244. doi: 10.1007/s00109-012-0878-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Bakkenist CJ, Kastan MB. DNA damage activates ATM through intermolecular autophosphorylation and dimer dissociation. Nature. 2003;421:499–506. doi: 10.1038/nature01368. [DOI] [PubMed] [Google Scholar]
  7. Bednarski JJ, Nickless A, Bhattacharya D, Amin RH, Schlissel MS, Sleckman BP. RAG-induced DNA double-strand breaks signal through Pim2 to promote pre-B cell survival and limit proliferation. The Journal of Experimental Medicine. 2012;209:11–17. doi: 10.1084/jem.20112078. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Bednarski JJ, Pandey R, Schulte E, White LS, Chen BR, Sandoval GJ, Kohyama M, Haldar M, Nickless A, Trott A, Cheng G, Murphy KM, Bassing CH, Payton JE, Sleckman BP. RAG-mediated DNA double-strand breaks activate a cell type-specific checkpoint to inhibit pre-B cell receptor signals. The Journal of Experimental Medicine. 2016;213:209–223. doi: 10.1084/jem.20151048. [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Blunt T, Gell D, Fox M, Taccioli GE, Lehmann AR, Jackson SP, Jeggo PA. Identification of a nonsense mutation in the carboxyl-terminal region of DNA-dependent protein kinase catalytic subunit in the scid mouse. PNAS. 1996;93:10285–10290. doi: 10.1073/pnas.93.19.10285. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Bredemeyer AL, Helmink BA, Innes CL, Calderon B, McGinnis LM, Mahowald GK, Gapud EJ, Walker LM, Collins JB, Weaver BK, Mandik-Nayak L, Schreiber RD, Allen PM, May MJ, Paules RS, Bassing CH, Sleckman BP. DNA double-strand breaks activate a multi-functional genetic program in developing lymphocytes. Nature. 2008;456:819–823. doi: 10.1038/nature07392. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Bredemeyer AL, Sharma GG, Huang CY, Helmink BA, Walker LM, Khor KC, Nuskey B, Sullivan KE, Pandita TK, Bassing CH, Sleckman BP. ATM stabilizes DNA double-strand-break complexes during V(D)J recombination. Nature. 2006;442:466–470. doi: 10.1038/nature04866. [DOI] [PubMed] [Google Scholar]
  12. Callen E, Faryabi RB, Luckey M, Hao B, Daniel JA, Yang W, Sun HW, Dressler G, Peng W, Chi H, Ge K, Krangel MS, Park JH, Nussenzweig A. The DNA damage- and transcription-associated protein paxip1 controls thymocyte development and emigration. Immunity. 2012;37:971–985. doi: 10.1016/j.immuni.2012.10.007. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Callén E, Jankovic M, Wong N, Zha S, Chen HT, Difilippantonio S, Di Virgilio M, Heidkamp G, Alt FW, Nussenzweig A, Nussenzweig M. Essential role for DNA-PKcs in DNA double-strand break repair and apoptosis in ATM-deficient lymphocytes. Molecular Cell. 2009;34:285–297. doi: 10.1016/j.molcel.2009.04.025. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Chatzinikolaou G, Karakasilioti I, Garinis GA. DNA damage and innate immunity: links and trade-offs. Trends in Immunology. 2014;35:429–435. doi: 10.1016/j.it.2014.06.003. [DOI] [PubMed] [Google Scholar]
  15. Chumduri C, Gurumurthy RK, Zadora PK, Mi Y, Meyer TF. Chlamydia infection promotes host DNA damage and proliferation but impairs the DNA damage response. Cell Host & Microbe. 2013;13:746–758. doi: 10.1016/j.chom.2013.05.010. [DOI] [PubMed] [Google Scholar]
  16. Ciccia A, Elledge SJ. The DNA damage response: making it safe to play with knives. Molecular Cell. 2010;40:179–204. doi: 10.1016/j.molcel.2010.09.019. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Clausen BE, Burkhardt C, Reith W, Renkawitz R, Förster I. Conditional gene targeting in macrophages and granulocytes using LysMcre mice. Transgenic Research. 1999;8:265–277. doi: 10.1023/A:1008942828960. [DOI] [PubMed] [Google Scholar]
  18. Cuevas-Ramos G, Petit CR, Marcq I, Boury M, Oswald E, Nougayrède JP. Escherichia coli induces DNA damage in vivo and triggers genomic instability in mammalian cells. PNAS. 2010;107:11537–11542. doi: 10.1073/pnas.1001261107. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Edelson BT, Unanue ER. Intracellular antibody neutralizes Listeria growth. Immunity. 2001;14:503–512. doi: 10.1016/S1074-7613(01)00139-X. [DOI] [PubMed] [Google Scholar]
  20. Erttmann SF, Härtlova A, Sloniecka M, Raffi FA, Hosseinzadeh A, Edgren T, Rofougaran R, Resch U, Fällman M, Ek T, Gekara NO. Loss of the DNA damage repair kinase ATM impairs Inflammasome-Dependent Anti-Bacterial innate immunity. Immunity. 2016;45:106–118. doi: 10.1016/j.immuni.2016.06.018. [DOI] [PubMed] [Google Scholar]
  21. Fedor Y, Vignard J, Nicolau-Travers ML, Boutet-Robinet E, Watrin C, Salles B, Mirey G. From single-strand breaks to double-strand breaks during S-phase: a new mode of action of the Escherichia coli cytolethal distending toxin. Cellular Microbiology. 2013;15:1–15. doi: 10.1111/cmi.12028. [DOI] [PubMed] [Google Scholar]
  22. Floyd SR, Pacold ME, Huang Q, Clarke SM, Lam FC, Cannell IG, Bryson BD, Rameseder J, Lee MJ, Blake EJ, Fydrych A, Ho R, Greenberger BA, Chen GC, Maffa A, Del Rosario AM, Root DE, Carpenter AE, Hahn WC, Sabatini DM, Chen CC, White FM, Bradner JE, Yaffe MB. The bromodomain protein Brd4 insulates chromatin from DNA damage signalling. Nature. 2013;498:246–250. doi: 10.1038/nature12147. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Frank KM, Sekiguchi JM, Seidl KJ, Swat W, Rathbun GA, Cheng HL, Davidson L, Kangaloo L, Alt FW. Late embryonic lethality and impaired V(D)J recombination in mice lacking DNA ligase IV. Nature. 1998;396:173–177. doi: 10.1038/24172. [DOI] [PubMed] [Google Scholar]
  24. Frisan T, Cortes-Bratti X, Chaves-Olarte E, Stenerlöw B, Thelestam M. The Haemophilus ducreyi cytolethal distending toxin induces DNA double-strand breaks and promotes ATM-dependent activation of RhoA. Cellular Microbiology. 2003;5:695–707. doi: 10.1046/j.1462-5822.2003.00311.x. [DOI] [PubMed] [Google Scholar]
  25. Griffith JW, Sokol CL, Luster AD. Chemokines and chemokine receptors: positioning cells for host defense and immunity. Annual Review of Immunology. 2014;32:659–702. doi: 10.1146/annurev-immunol-032713-120145. [DOI] [PubMed] [Google Scholar]
  26. Guerra L, Guidi R, Frisan T. Do bacterial genotoxins contribute to chronic inflammation, genomic instability and tumor progression? FEBS Journal. 2011;278:4577–4588. doi: 10.1111/j.1742-4658.2011.08125.x. [DOI] [PubMed] [Google Scholar]
  27. Guo Z, Kozlov S, Lavin MF, Person MD, Paull TT. ATM activation by oxidative stress. Science. 2010;330:517–521. doi: 10.1126/science.1192912. [DOI] [PubMed] [Google Scholar]
  28. Helmink BA, Sleckman BP. The response to and repair of RAG-mediated DNA double-strand breaks. Annual Review of Immunology. 2012;30:175–202. doi: 10.1146/annurev-immunol-030409-101320. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Helmink BA, Tubbs AT, Dorsett Y, Bednarski JJ, Walker LM, Feng Z, Sharma GG, McKinnon PJ, Zhang J, Bassing CH, Sleckman BP. H2AX prevents CtIP-mediated DNA end resection and aberrant repair in G1-phase lymphocytes. Nature. 2011;469:245–249. doi: 10.1038/nature09585. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Herrtwich L, Nanda I, Evangelou K, Nikolova T, Horn V, Sagar, Erny D, Stefanowski J, Rogell L, Klein C, Gharun K, Follo M, Seidl M, Kremer B, Münke N, Senges J, Fliegauf M, Aschman T, Pfeifer D, Sarrazin S, Sieweke MH, Wagner D, Dierks C, Haaf T, Ness T, Zaiss MM, Voll RE, Deshmukh SD, Prinz M, Goldmann T, Hölscher C, Hauser AE, Lopez-Contreras AJ, Grün D, Gorgoulis V, Diefenbach A, Henneke P, Triantafyllopoulou A. DNA damage signaling instructs polyploid macrophage Fate in Granulomas. Cell. 2016;167:1264–1280. doi: 10.1016/j.cell.2016.09.054. [DOI] [PubMed] [Google Scholar]
  31. Hsieh CS, Macatonia SE, Tripp CS, Wolf SF, O'Garra A, Murphy KM. Development of TH1 CD4+ T cells through IL-12 produced by Listeria-induced macrophages. Science. 1993;260:547–549. doi: 10.1126/science.8097338. [DOI] [PubMed] [Google Scholar]
  32. Huang TT, Wuerzberger-Davis SM, Wu ZH, Miyamoto S. Sequential modification of NEMO/IKKgamma by SUMO-1 and ubiquitin mediates NF-kappaB activation by genotoxic stress. Cell. 2003;115:565–576. doi: 10.1016/S0092-8674(03)00895-X. [DOI] [PubMed] [Google Scholar]
  33. Innes CL, Hesse JE, Palii SS, Helmink BA, Holub AJ, Sleckman BP, Paules RS. DNA damage activates a complex transcriptional response in murine lymphocytes that includes both physiological and cancer-predisposition programs. BMC Genomics. 2013;14:163. doi: 10.1186/1471-2164-14-163. [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Jackson SP, Bartek J. The DNA-damage response in human biology and disease. Nature. 2009;461:1071–1078. doi: 10.1038/nature08467. [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Jinadasa RN, Bloom SE, Weiss RS, Duhamel GE. Cytolethal distending toxin: a conserved bacterial genotoxin that blocks cell cycle progression, leading to apoptosis of a broad range of mammalian cell lineages. Microbiology. 2011;157:1851–1875. doi: 10.1099/mic.0.049536-0. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Karo JM, Schatz DG, Sun JC. The RAG recombinase dictates functional heterogeneity and cellular fitness in natural killer cells. Cell. 2014;159:94–107. doi: 10.1016/j.cell.2014.08.026. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Kraal G, van der Laan LJ, Elomaa O, Tryggvason K. The macrophage receptor MARCO. Microbes and Infection. 2000;2:313–316. doi: 10.1016/S1286-4579(00)00296-3. [DOI] [PubMed] [Google Scholar]
  38. Kuziel WA, Morgan SJ, Dawson TC, Griffin S, Smithies O, Ley K, Maeda N. Severe reduction in leukocyte adhesion and monocyte extravasation in mice deficient in CC chemokine receptor 2. PNAS. 1997;94:12053–12058. doi: 10.1073/pnas.94.22.12053. [DOI] [PMC free article] [PubMed] [Google Scholar]
  39. Lamkanfi M, Dixit VM. Mechanisms and functions of inflammasomes. Cell. 2014;157:1013–1022. doi: 10.1016/j.cell.2014.04.007. [DOI] [PubMed] [Google Scholar]
  40. Laubach VE, Shesely EG, Smithies O, Sherman PA. Mice lacking inducible nitric oxide synthase are not resistant to lipopolysaccharide-induced death. PNAS. 1995;92:10688–10692. doi: 10.1073/pnas.92.23.10688. [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Lilley CE, Schwartz RA, Weitzman MD. Using or abusing: viruses and the cellular DNA damage response. Trends in Microbiology. 2007;15:119–126. doi: 10.1016/j.tim.2007.01.003. [DOI] [PubMed] [Google Scholar]
  42. MacMicking J, Xie QW, Nathan C. Nitric oxide and macrophage function. Annual Review of Immunology. 1997;15:323–350. doi: 10.1146/annurev.immunol.15.1.323. [DOI] [PubMed] [Google Scholar]
  43. McNab F, Mayer-Barber K, Sher A, Wack A, O'Garra A. Type I interferons in infectious disease. Nature Reviews Immunology. 2015;15:87–103. doi: 10.1038/nri3787. [DOI] [PMC free article] [PubMed] [Google Scholar]
  44. Mosser DM, Edwards JP. Exploring the full spectrum of macrophage activation. Nature Reviews Immunology. 2008;8:958–969. doi: 10.1038/nri2448. [DOI] [PMC free article] [PubMed] [Google Scholar]
  45. Nathan C, Cunningham-Bussel A. Beyond oxidative stress: an immunologist's guide to reactive oxygen species. Nature Reviews Immunology. 2013;13:349–361. doi: 10.1038/nri3423. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Nesić D, Hsu Y, Stebbins CE. Assembly and function of a bacterial genotoxin. Nature. 2004;429:429–433. doi: 10.1038/nature02532. [DOI] [PubMed] [Google Scholar]
  47. Nirodi C, NagDas S, Gygi SP, Olson G, Aebersold R, Richmond A. A role for poly(ADP-ribose) polymerase in the transcriptional regulation of the melanoma growth stimulatory activity (CXCL1) gene expression. Journal of Biological Chemistry. 2001;276:9366–9374. doi: 10.1074/jbc.M009897200. [DOI] [PMC free article] [PubMed] [Google Scholar]
  48. Nougayrède JP, Homburg S, Taieb F, Boury M, Brzuszkiewicz E, Gottschalk G, Buchrieser C, Hacker J, Dobrindt U, Oswald E. Escherichia coli induces DNA double-strand breaks in eukaryotic cells. Science. 2006;313:848–851. doi: 10.1126/science.1127059. [DOI] [PubMed] [Google Scholar]
  49. Nunes P, Demaurex N, Dinauer MC. Regulation of the NADPH oxidase and associated ion fluxes during phagocytosis. Traffic. 2013;14:1118–1131. doi: 10.1111/tra.12115. [DOI] [PubMed] [Google Scholar]
  50. Okamura H, Tsutsi H, Komatsu T, Yutsudo M, Hakura A, Tanimoto T, Torigoe K, Okura T, Nukada Y, Hattori K. Cloning of a new cytokine that induces IFN-gamma production by T cells. Nature. 1995;378:88–91. doi: 10.1038/378088a0. [DOI] [PubMed] [Google Scholar]
  51. Pollock JD, Williams DA, Gifford MA, Li LL, Du X, Fisherman J, Orkin SH, Doerschuk CM, Dinauer MC. Mouse model of X-linked chronic granulomatous disease, an inherited defect in phagocyte superoxide production. Nature Genetics. 1995;9:202–209. doi: 10.1038/ng0295-202. [DOI] [PubMed] [Google Scholar]
  52. Radi R. Protein tyrosine nitration: biochemical mechanisms and structural basis of functional effects. Accounts of Chemical Research. 2013;46:550–559. doi: 10.1021/ar300234c. [DOI] [PMC free article] [PubMed] [Google Scholar]
  53. Ritchie ME, Phipson B, Wu D, Hu Y, Law CW, Shi W, Smyth GK. Limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Research. 2015;43:e47. doi: 10.1093/nar/gkv007. [DOI] [PMC free article] [PubMed] [Google Scholar]
  54. Rogakou EP, Boon C, Redon C, Bonner WM. Megabase chromatin domains involved in DNA double-strand breaks in vivo. The Journal of Cell Biology. 1999;146:905–916. doi: 10.1083/jcb.146.5.905. [DOI] [PMC free article] [PubMed] [Google Scholar]
  55. Roth S, Rottach A, Lotz-Havla AS, Laux V, Muschaweckh A, Gersting SW, Muntau AC, Hopfner KP, Jin L, Vanness K, Petrini JH, Drexler I, Leonhardt H, Ruland J. Rad50-CARD9 interactions link cytosolic DNA sensing to IL-1β production. Nature Immunology. 2014;15:538–545. doi: 10.1038/ni.2888. [DOI] [PMC free article] [PubMed] [Google Scholar]
  56. Rouleau M, Patel A, Hendzel MJ, Kaufmann SH, Poirier GG. PARP inhibition: parp1 and beyond. Nature Reviews Cancer. 2010;10:293–301. doi: 10.1038/nrc2812. [DOI] [PMC free article] [PubMed] [Google Scholar]
  57. Schoenborn JR, Wilson CB. Regulation of interferon-gamma during innate and adaptive immune responses. Advances in Immunology. 2007;96:41–101. doi: 10.1016/S0065-2776(07)96002-2. [DOI] [PubMed] [Google Scholar]
  58. Schwab SR, Cyster JG. Finding a way out: lymphocyte egress from lymphoid organs. Nature Immunology. 2007;8:1295–1301. doi: 10.1038/ni1545. [DOI] [PubMed] [Google Scholar]
  59. Sekiguchi J, Ferguson DO, Chen HT, Yang EM, Earle J, Frank K, Whitlow S, Gu Y, Xu Y, Nussenzweig A, Alt FW. Genetic interactions between ATM and the nonhomologous end-joining factors in genomic stability and development. PNAS. 2001;98:3243–3248. doi: 10.1073/pnas.051632098. [DOI] [PMC free article] [PubMed] [Google Scholar]
  60. Sherman MH, Kuraishy AI, Deshpande C, Hong JS, Cacalano NA, Gatti RA, Manis JP, Damore MA, Pellegrini M, Teitell MA. AID-induced genotoxic stress promotes B cell differentiation in the germinal center via ATM and LKB1 signaling. Molecular Cell. 2010;39:873–885. doi: 10.1016/j.molcel.2010.08.019. [DOI] [PMC free article] [PubMed] [Google Scholar]
  61. Shi W, Oshlack A, Smyth GK. Optimizing the noise versus Bias trade-off for Illumina whole genome expression beadchips. Nucleic Acids Research. 2010;38:e204. doi: 10.1093/nar/gkq871. [DOI] [PMC free article] [PubMed] [Google Scholar]
  62. Tamir S, Burney S, Tannenbaum SR. DNA damage by nitric oxide. Chemical Research in Toxicology. 1996;9:821–827. doi: 10.1021/tx9600311. [DOI] [PubMed] [Google Scholar]
  63. Theunissen JW, Kaplan MI, Hunt PA, Williams BR, Ferguson DO, Alt FW, Petrini JH. Checkpoint failure and chromosomal instability without lymphomagenesis in Mre11(ATLD1/ATLD1) mice. Molecular Cell. 2003;12:1511–1523. doi: 10.1016/S1097-2765(03)00455-6. [DOI] [PubMed] [Google Scholar]
  64. von Moltke J, Ayres JS, Kofoed EM, Chavarría-Smith J, Vance RE. Recognition of bacteria by inflammasomes. Annual Review of Immunology. 2013;31:73–106. doi: 10.1146/annurev-immunol-032712-095944. [DOI] [PubMed] [Google Scholar]
  65. Weitzman MD, Weitzman JB. What's the damage? the impact of pathogens on pathways that maintain host genome integrity. Cell Host & Microbe. 2014;15:283–294. doi: 10.1016/j.chom.2014.02.010. [DOI] [PMC free article] [PubMed] [Google Scholar]
  66. Witte CE, Archer KA, Rae CS, Sauer JD, Woodward JJ, Portnoy DA. Innate immune pathways triggered by Listeria monocytogenes and their role in the induction of cell-mediated immunity. Advances in Immunology. 2012;113:135–156. doi: 10.1016/B978-0-12-394590-7.00002-6. [DOI] [PubMed] [Google Scholar]
  67. Wu ZH, Shi Y, Tibbetts RS, Miyamoto S. Molecular linkage between the kinase ATM and NF-kappaB signaling in response to genotoxic stimuli. Science. 2006;311:1141–1146. doi: 10.1126/science.1121513. [DOI] [PubMed] [Google Scholar]
  68. Zha S, Sekiguchi J, Brush JW, Bassing CH, Alt FW. Complementary functions of ATM and H2AX in development and suppression of genomic instability. PNAS. 2008;105:9302–9306. doi: 10.1073/pnas.0803520105. [DOI] [PMC free article] [PubMed] [Google Scholar]
eLife. 2017 Mar 31;6:e24655. doi: 10.7554/eLife.24655.020

Decision letter

Editor: Michel C Nussenzweig1

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A Type I IFN-Dependent DNA Damage Response Regulates the Genetic Program and Inflammasome Activation in Macrophages" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Michel Nussenzweig as the Reviewing and Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Rafael Casellas (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The referees were generally enthusiastic about the paper and made a number of suggestions that would help clarify the findings. These questions should be addressed in the revised manuscript when it is re-submitted.

1) Can the authors confirm that activated macrophages are in G0/G1?

2) Comment on how NO produces DSBs.

3) Comment on how they think type I IFN signaling promotes DDR initiation/DSBs independently of the NO production?

4) IFN-β increases gH2AX in bleo treated BMDMs but not Olive tail moment by COMET (4C,D). In contrast IFN-γ does not cause gH2AX increase in BMDM despite restoration of nitrite, indicating that type 1 interferon is necessary to mount an effective DDR. How does this work? Does IFN-b change the cell cycle or expression of DDR proteins necessary for gH2AX and KAP1 phosphorylation?

5) The authors should check expression of DDR genes ATM, ATR, DNA-PK, MRN, H2AX, +/- IFN-β. Does gene expression or protein levels of these factors account for the type 1 interferon requirement?

6) Chromatin structural changes are implicated in ATM activation (Bakkenist and Kastan, 2003; Floyd et al., 2013). Perhaps type 1 interferon is necessary to open up chromatin structure for PIKK activation and susbtrate phosphorylation. Does hypotonic or HDACi stimulate KAP-1 and gH2AX phosphorylation in Ifnar1-/- BMDM activated by l.m.?

7) The relationship between DNA breaks and transcriptional regulation is emerging in different systems. In this study, it remains unclear how these two cellular activities are linked. Are DNA brakes elicited at specific genomic locations?

8) Both IFN-β and IFN-γ can, along with LPS co-stimulation, drive macrophage activation and the DNA damage response, and yet loss of IFN-β signaling even in the presence of IFN-γ disrupts the process. Does the same hold true for IFN-γ?

9) The genes differentially expressed due to DNA damage receive only a brief discussion, and little analysis beyond quantification of the effect is performed. Is there an overlap between this gene group and the one seen in B cells downstream of DNA breaks?

eLife. 2017 Mar 31;6:e24655. doi: 10.7554/eLife.24655.021

Author response

The referees were generally enthusiastic about the paper and made a number of suggestions that would help clarify the findings. These questions should be addressed in the revised manuscript when it is re-submitted.

1) Can the authors confirm that activated macrophages are in G0/G1?

We now show in Figure 1—figure supplement 2 that wild type (Lyz2Cre/+) and DDR-deficient (Scid:AtmC/C:Lyz2Cre/+) macrophages arrest in G1 when infected with ListeriaListeria monocytogenes.

2) Comment on how NO produces DSBs.

NO has been shown to lead to the formation of single-strand nicks that, through unknown mechanisms, can form double-strand breaks. This is now discussed and referenced in the revised manuscript.

3) Comment on how they think type I IFN signaling promotes DDR initiation/DSBs independently of the NO production?

Our surprising finding that type I IFN signaling is required for a DDR in macrophages is something of great interest to us. The mechanistic basis of this requirement is unclear, but addressing the thoughtful comments of the reviewers has revealed important findings about this requirement that have been included in the revised manuscript. At the reviewers’ request, we investigated the potential effect of type I IFN on the cell cycle and the expression of key DDR proteins. We found that type I IFN has no effect on macrophage cell cycle (Figure 4—figure supplement 1) and does not alter the expression of the key DDR proteins H2AX, ATR, ATM, DNA-PK, Mre11, Rad50, Nbs1, Ku70 or Ku80 (Figure 4—figure supplement 2). We found, however, that compared to MEFs, macrophages express remarkably lower levels of most of these DDR proteins. Thus, it is conceivable that type I IFN functions to augment the DDR in settings where DDR protein expression is limiting. This possibility is now discussed in the revised manuscript.

4) IFN-β increases gH2AX in bleo treated BMDMs but not Olive tail moment by COMET (4C,D). In contrast IFN-γ does not cause gH2AX increase in BMDM despite restoration of nitrite, indicating that type 1 interferon is necessary to mount an effective DDR. How does this work? Does IFN-b change the cell cycle or expression of DDR proteins necessary for gH2AX and KAP1 phosphorylation?

See answer to comment 3 above.

5) The authors should check expression of DDR genes ATM, ATR, DNA-PK, MRN, H2AX, +/- IFN-β. Does gene expression or protein levels of these factors account for the type 1 interferon requirement?

See answer to comment 3 above.

6) Chromatin structural changes are implicated in ATM activation (Bakkenist and Kastan, 2003; Floyd et al., 2013). Perhaps type 1 interferon is necessary to open up chromatin structure for PIKK activation and susbtrate phosphorylation. Does hypotonic or HDACi stimulate KAP-1 and gH2AX phosphorylation in Ifnar1-/- BMDM activated by l.m.?

This is an excellent point. Initially we thought that perhaps the induction of gene expression by type I IFN may lead to a global increase in accessibility that would increase the generation of DNA DSBs, but the COMET assay revealed that this is not the case. However, as the reviewer points out, it may be that these chromatin changes permit more efficient activation of the DDR in macrophages treated with type I IFN. This may be especially important given that the levels of DDR proteins appear to be significantly lower in macrophages as compared to MEFs (see response to point 3 above). Interrogating this possibility experimentally will certainly be a focus of future studies in this area. Nevertheless, we now discuss this important possibility in the revised manuscript and thank the reviewer for suggesting this.

7) The relationship between DNA breaks and transcriptional regulation is emerging in different systems. In this study, it remains unclear how these two cellular activities are linked. Are DNA brakes elicited at specific genomic locations?

This is an excellent question. These DSBs are not programmed DNA DSBs where the genomic locations of the DSB can be determined, like those made by RAG during V(D)J recombination or AID during Ig class switch recombination. Rather, the DSBs made by NO are likely random throughout the genome like those made by ionizing radiation and radiomimetic drugs. This is discussed more clearly in the revised manuscript.

8) Both IFN-β and IFN-γ can, along with LPS co-stimulation, drive macrophage activation and the DNA damage response, and yet loss of IFN-β signaling even in the presence of IFN-γ disrupts the process. Does the same hold true for IFN-γ?

We have shown (Figure 4) that type 1 IFN, but not IFN-γ, augments the DDR in macrophages treated with bleomycin.

9) The genes differentially expressed due to DNA damage receive only a brief discussion, and little analysis beyond quantification of the effect is performed. Is there an overlap between this gene group and the one seen in B cells downstream of DNA breaks?

We have expanded the discussion of the gene expression changes and the potential overlap with our previously published data in B cells.

Associated Data

    This section collects any data citations, data availability statements, or supplementary materials included in this article.

    Supplementary Materials

    Figure 5—source data 1. Gene expression changes induced by L. monocytogenes infection.

    Normalized log2 probe values for genes up-regulated (≥4 fold, adj. p-value<0.001) in L. m.-infected Lyz2Cre/+and Scid:Atm C/C:Lyz2Cre/+ BMDMs relative to uninfected cells. The fold-change between infected Scid:Atm C/C:Lyz2Cre/+-and infected Lyz2Cre/+ cells for each gene is also shown.

    DOI: http://dx.doi.org/10.7554/eLife.24655.012

    elife-24655-fig5-data1.xlsx (169.1KB, xlsx)
    DOI: 10.7554/eLife.24655.012

    Articles from eLife are provided here courtesy of eLife Sciences Publications, Ltd

    RESOURCES
