. 2018 Jul 5;71(1):117–128.e3. doi: 10.1016/j.molcel.2018.05.026

DNA Replication Determines Timing of Mitosis by Restricting CDK1 and PLK1 Activation

Bennie Lemmens 1,2,5, Nadia Hegarat 3,5, Karen Akopyan 1, Joan Sala-Gaston 1, Jiri Bartek 2,4, Helfrid Hochegger 3,∗, Arne Lindqvist 1,6,∗∗
PMCID: PMC6039720  PMID: 30008317

Summary

To maintain genome stability, cells need to replicate their DNA before dividing. Upon completion of bulk DNA synthesis, the mitotic kinases CDK1 and PLK1 become active and drive entry into mitosis. Here, we have tested the hypothesis that DNA replication determines the timing of mitotic kinase activation. Using an optimized double-degron system, together with kinase inhibitors to enforce tight inhibition of key proteins, we find that human cells unable to initiate DNA replication prematurely enter mitosis. Preventing DNA replication licensing and/or firing causes prompt activation of CDK1 and PLK1 in S phase. In the presence of DNA replication, inhibition of CHK1 and p38 leads to premature activation of mitotic kinases, which induces severe replication stress. Our results demonstrate that, rather than merely a cell cycle output, DNA replication is an integral signaling component that restricts activation of mitotic kinases. DNA replication thus functions as a brake that determines cell cycle duration.

Keywords: cell cycle, S phase, G2 phase, mitosis, replication checkpoint, DNA replication, CDK1, PLK1

Graphical Abstract

graphic file with name fx1.jpg

Open in a new tab

Highlights

  • •

    Double-degron system allows rapid protein degradation and DNA replication control

  • •

    DNA replication restrains PLK1 and CDK1 activities until S/G2 transition

  • •

    DNA replication, via CHK1/p38 signaling, prevents CDK1-driven DNA damage

  • •

    DNA replication functions as a brake that determines the timing of mitosis

Proliferating cells need to duplicate their genome before they divide. Lemmens et al. find that DNA replication determines the timing of cell division by restricting activation of mitotic kinases. This mechanism ensures that DNA replication and cell division are separated in time and prevents replication stress.

Introduction

Cell proliferation is critical to the propagation of life and in eukaryotes is based on mitotic cell division. Mitotic cell division requires two basic steps: first, cells need to replicate their DNA, and second, cells need to divide the replicated genome to daughter cells. Strict separation of these steps in time is critical as division of partially duplicated chromosomes causes genome instability and cell death (Boddy et al., 1998, Piatti et al., 1995, Tercero et al., 2000). Furthermore, activation of mitotic factors during DNA replication causes replication fork instability and DNA damage (Beck et al., 2010, Neelsen et al., 2013). How cells coordinate genome duplication and mitosis thus constitutes a fundamental question in cell cycle control, which has major consequences for both proliferation and genome stability.

Almost 30 years ago, Hartwell and Weinert introduced the concept of a checkpoint and described it as a safety mechanism that prevents cell division if DNA replication is not complete (Hartwell and Weinert, 1989). However, empirical data supporting an intrinsic DNA replication checkpoint proved hard to obtain, as treatments to block DNA replication fork progression are prone to cause DNA damage, evoking secondary responses that halt mitotic progression (Kurose et al., 2006, Natsume et al., 2017). The concept of a checkpoint soon expanded and became increasingly used to depict a cell cycle block in response to DNA damage and other cellular stresses. Stress-induced checkpoints have been widely studied, which has led to the identification of well-conserved signaling kinases, such as CHK1 and p38 (Bulavin et al., 2002, Reinhardt and Yaffe, 2009). Meanwhile, the discovery of autonomous biochemical oscillators in yeast cells and de-nucleated Xenopus egg extracts provided alternative models that could explain orderly cell cycle progression without the need of a DNA replication checkpoint (Haase and Reed, 1999, Newport and Kirschner, 1984, Stern and Nurse, 1996). That is, self-regulating oscillators could in principle ensure sufficient time to finish DNA replication before mitosis is triggered.

The key to understand how DNA replication and cell division are separated is to understand how cell division is initiated. Mitotic entry is driven by the kinases CDK1 and PLK1, which through multiple feedback loops enhance each other’s activity (Lindqvist et al., 2009). Activation of CDK1 depends on CDK2-mediated accumulation of mitotic inducers, such as PLK1, which at a threshold level can induce a switch-like activation and mitotic entry. The threshold is defined by factors opposing CDK1 activation, including PP1 and PP2A phosphatases and Wee1/Myt1 kinases (Hégarat et al., 2016). In addition, checkpoint kinases as CHK1 and p38-MK2 can raise the activation threshold through phosphorylation of multiple CDK regulators (Reinhardt and Yaffe, 2009), effectively suppressing CDK activity in the presence as well as absence of exogenous DNA damage (Beck et al., 2010, Rodríguez-Bravo et al., 2007, Sørensen et al., 2004, Warmerdam et al., 2013). However, if and how unperturbed DNA replication is integrated into this regulatory circuit remains unknown. We previously showed that both CDK1 and PLK1 are activated when the bulk of DNA replication is completed at the S/G2 transition (Akopyan et al., 2014). These observations resurged the prospect of the original checkpoint model and prompted us to test whether DNA replication restricts mitotic kinase activation (Figure 1A).

Figure 1.

Figure 1

Open in a new tab

Plk1 Activation Correlates to Completion of DNA Replication

(A) Schematic of hypothesis.

(B) Example of RPE cell expressing PLK1-FRET and PCNA-cb in S phase, G2 phase, and mitosis. Time between images is 20 min. Please note negative correlation between nuclear PLK1 activity and presence of PCNA-cb foci.

(C) S phase cells expressing PCNA-cb foci were imaged every 20 min and either mock treated or exposed to 2.5 mM thymidine. (Top) Single-cell examples of PLK1 activity and PCNA foci quantifications are shown. (Bottom) Color-coded heatmap of PLK1 activity and PCNA-cb quantifications of multiple single cells are shown. Dotted line highlights temporal correlation between DNA replication completion and PLK1 activation. Further characterization of thymidine-induced S phase arrest is described in Figure S1.

(D) U2OS, RPE, or BJ cells were fixed after a 1-hr EdU pulse and monitored by high-content microscopy. Cells were sorted based on cyclin A2 levels and nuclear size and plotted versus estimated time (Akopyan et al., 2016). Graphs show moving median and SD of EdU signal and pTCTP signal from >1,600 single cells. EdU incorporation is used to measure DNA replication in single cells. pTCTP signal is corrected by treating a control population with the Plk1 inhibitor BI2536. A stepwise scheme of simultaneous cell cycle and TCTP phosphorylation analysis is described in Figure S2.

Here, we generated a double-degron system to rapidly deplete the essential DNA replication-initiation factor CDC6 and show that untransformed human cells shorten the cell cycle and prematurely enter mitosis in the absence of DNA replication. Using RNAi and inhibitors to independently target DNA replication licensing or firing, we find similar results in cancer cells. We also find that abrogating CHK1 activity in transformed cells, or CHK1 and p38 activity in untransformed cells, enhances CDK activation specifically upon G1/S transition, supporting the notion of a DNA replication checkpoint in human cells. While checkpoint inhibition causes premature activation of CDK2, PLK1, and CDK1, we find the latter most harmful and causing severe DNA replication stress.

Our results indicate that DNA replication is not only an output but also an integral signaling component of the cell cycle oscillator and is a major determinant for the timing of mitosis. DNA replication, through checkpoint kinase signaling, coordinates the cell cycle by allowing a slow buildup of CDK2 activity while suppressing CDK1 and PLK1 activation until S phase completion.

Results

Nuclear PLK1 Activation Marks Completion of DNA Replication at S/G2 Transition

In order to simultaneously monitor DNA replication and mitotic kinase activation, we generated untransformed but immortalized retinal pigment epithelial (RPE) cell lines expressing a marker for DNA replication (proliferating cell nuclear antigen [PCNA]-cb) and a sensor for PLK1 target phosphorylation (PLK1-FRET). In agreement with our previous findings in U2OS cancer cells, PLK1 target phosphorylation remained undetectable during active DNA replication and only appeared when the bulk of PCNA foci disappeared (Figure 1B). The close correlation between PCNA foci disappearance and Plk1-mediated phosphorylation was retained when completion of DNA replication was delayed by addition of thymidine (Figures 1C, S1A, and S1B). To test PLK1-dependent phosphorylation of an endogenous target, we next assessed TCTP-pS46 staining (Cucchi et al., 2010) by quantitative immunofluorescence. To estimate temporal kinetics from fixed asynchronous cell populations, we sorted single cells based on cyclin A2 content, DNA content, and nuclear size (Akopyan et al., 2014, Akopyan et al., 2016). DNA replication was assessed by measuring EdU nucleotide incorporation immediately before fixation, and PLK1 activity was determined by PLK1-dependent TCTP-pS46 staining using a low dose of the PLK1 inhibitor BI2536 (Figure S2A). We note that there is a close correlation between the disappearance of EdU staining and the appearance of BI2536-sensitive TCTP-pS46 staining in U2OS, RPE, and early-passage primary fibroblasts (Figures 1D, S2A, and S2B). The robust coupling between completion of S phase and activation of PLK1 as assessed by both fixed and live readouts suggests that PLK1 activation can function as a marker for the S/G2 transition in human cells.

A Double-Degron System to Prevent DNA Replication Licensing

To assess whether PLK1 activation is restricted by DNA replication, we sought to analyze cells that progressed through the cell cycle without replicating DNA. In yeast, mutants in the DNA replication licensing factor Cdc6 can efficiently suppress DNA replication without blocking cell cycle progression (Muzi Falconi et al., 1996, Piatti et al., 1995). We therefore set out to generate a genetic system that would allow rapid degradation of CDC6 in untransformed human cells. We used p53−/− RPE cells to avoid a licensing checkpoint (Nevis et al., 2009, Shreeram et al., 2002) and labeled both endogenous CDC6 alleles with an optimized double-degron tag. The double degron is based on two protein degradation tags: mAID (Nishimura et al., 2009) and SMASh (Chung et al., 2015), allowing rapid depletion of endogenously tagged CDC6d (Figures 2A, 2B, S3A, and S3B; STAR Methods). CDC6d degradation using both mAID and SMASh prevented EdU incorporation more efficiently than using mAID or SMASh alone, showing an additive effect of both degradation tags on suppressing DNA replication (Figures 2C and S3B). After 48 hr CDC6d degradation, cyclin A2 expression and CDK-mediated phosphorylation of lamin A/C pS22 was not reduced, indicating that cells remained engaged in the cell cycle (Figures S3C and S3D). Whereas mitotic cells were abundant, they showed half the DNA content of their control counterparts and few anaphase figures, as expected for cells entering mitosis without sister chromatids (Figures S3E–S3G). Taken together, our results show that the CDC6d double-degron system can be used to suppress DNA replication.

Figure 2.

Figure 2

Open in a new tab

Suppression of DNA Replication Initiation by Targeting CDC6 and CDC7

(A) Schematic of approach to target CDC6d degradation by a double-degron system.

(B) RPE CDC6d cells were treated as outlined, and cell lysates were probed against indicated proteins.

(C) RPE CDC6d cells were treated as in (B) yet fixed 48 hr post-AUX addition. EdU was added 1 hr prior to fixation. Upper panel shows representative images of EdU and cyclin A2 expression, and examples of G2 or S phase cells (dotted circles) are indicated. EdU incorporation is used to measure DNA replication in single cells. Lower panel depicts quantification of EdU intensities of S phase cells, as determined by nuclear cyclin A2 levels. Boxplots indicate 10, 25, 50, 75, and 90th percentiles of at least 200 cells per condition. ∗ indicates p < 0.01; Student’s t test. Light or dark gray bars represent data from 2 independent CDC6d clones.

(D) RPE CDC6d cells were treated as outlined in top panel, and anticipated cell cycle events are shown in middle panel. EdU incorporation is used to measure DNA replication in single cells. Lower graph depicts quantification of EdU staining versus cyclin A2 levels to detect early and late S phase cells. Please note rapid induction of EdU incorporation in early S phase cells.

(E) RPE CDC6d cells were treated as outlined in top panel, and anticipated cell-cycle-dependent effects of combined CDC6d degradation and CDC7 inhibition are shown in middle panels. Lower graph depicts quantification of EdU staining versus cyclin A2 levels to detect early and late S phase cells. Please note that targeting CDC6 and CDC7 specifically inhibits initiation of DNA replication in early S phase cells.

Suppression of DNA Replication Initiation in Unsynchronized Human Cells

We next pursued to study cell cycle progression in the absence of DNA replication. We aimed to prevent initiation of replication, as perturbation of ongoing replication leads to DNA damage and cell cycle arrest (Natsume et al., 2017). Meanwhile, to avoid secondary effects due to continued proliferation with incomplete DNA replication, we sought to detect the immediate effects of suppressed initiation of DNA replication. To this end, we combined CDC6d degradation and a CDC7 inhibitor, targeting both origin licensing and origin firing, the two main events necessary for initiation of DNA replication. DNA replication licensing by CDC6 can in principle start as soon as CDK activities are reset at anaphase. Cells depleted of CDC6d before mitotic exit should thus be impaired in DNA replication initiation. In contrast, G1 or S phase cells already harbor licensed origins and thus should remain DNA replication competent despite CDC6d degradation. To test this prediction, we monitored EdU incorporation between 10 and 12 hr after targeting CDC6, CDC7, or both CDC6 and CDC7. We reasoned that, at this time, G2 cells would have progressed through mitosis and recently entered S phase, whereas G1 cells would have progressed to late S phase (Figures 2D and 2E). To independently monitor DNA replication and cell cycle position, we plotted EdU incorporation versus cyclin A2 content of single cells. The gradual accumulation of cyclin A2 levels from the G1/S border allows identification of cell cycle position within S phase (Akopyan et al., 2014). As predicted, EdU incorporation was effectively abrogated in early S phase cells, whereas it was sustained in late S phase cells (Figures 2D and 2E). This shows that our setup efficiently prevents initiation of DNA replication, while allowing ongoing DNA replication to continue.

DNA Replication Determines Cell Cycle Duration

To study the direct consequence of failed DNA replication initiation, we used time-lapse microscopy to follow single cells that entered mitosis shortly after destruction of CDC6d and inhibition of CDC7 (Figures 3A and S4; Video S1). In parallel, we treated cells with EdU and stained for cyclin A to detect efficiency of DNA replication in S phase (Figures 3A–3C). Combined CDC6d depletion and CDC7 inhibition decreased median cell cycle duration by ∼4 hr (−25%) and allowed cells to re-enter mitosis as early as 6–8 hr after cell division (Figure 3D). Initiation of DNA replication thus constitutes a major brake on cell cycle progression.

Figure 3.

Figure 3

Open in a new tab

DNA Replication Controls Cell Cycle Duration

(A) Asynchronous RPE CDC6d cells were treated as outlined and either fixed after a 2-hr pulse of EdU or followed by time-lapse microscopy. The level of DNA replication initiation, measured by EdU incorporation in single early S phase cells, is correlated directly to cell cycle speed.

(B) Schematic of anticipated effect of CDC6d degradation and/or CDC7 inhibition.

(C) Cells were treated as outlined in (A) and (B), and nuclear EdU intensity was plotted versus nuclear cyclin A2 levels to monitor DNA replication during cell cycle progression. Please note that combined CDC6 degradation and CDC7 inhibition prevents EdU incorporation in early S phase cells. Lower panels illustrate a single cell entering mitosis after CDC6 degradation and/or CDC7 inhibition (i.e., upon addition of AUX/CDC7i). Illustration depicts relative timings of empirical tests (fix or live) as well as anticipated cell fate.

(D) Tracks of single cells passing through mitosis within 6 hr after addition of auxin or CDC7i were followed from mitosis to the following mitosis. Grey bars indicate mitosis, and red bars indicate interphase. See Figure S4 for example images of mitotic cells.

Video S1. Example of RPE CDC6d Cell Entering Mitosis Shortly after Treatment with DOX/BMS/AUX/Cdc7i and Re-entering Mitosis Less Than 10 hr Later, Related to Figure 3

One second in the movie corresponds to 100 min.

Download video file (1.5MB, mp4)

We find that only a limited amount of DNA replication is sufficient to delay the cell cycle. After CDC6d depletion or CDC7 inhibition alone, EdU incorporation is suppressed but still detectable in early S phase cells, while double treatment effectively abolished new synthesis of DNA (Figures 3B and 3C). The need for combined CDC6d depletion and CDC7 inhibition to efficiently suppress DNA replication could in part be due to compensatory mechanisms that enhance firing in genomic regions where origins are sparse (Fragkos et al., 2015, Ozeri-Galai et al., 2011) or due to the fact that CDK activity can complement CDC7 to fire a restricted set of origins (Rainey et al., 2017). Importantly, CDC6d depletion or CDC7 inhibition alone postponed mitotic entry, increasing median cell cycle duration by ∼10 hr (+70%; Figure 3D). The limited availability of licensed or fired origins is expected to delay DNA replication completion, which in turn could postpone mitotic entry. Our results are in agreement with a threshold model in which low levels of DNA replication are sufficient to prolong the cell cycle while a complete block of DNA replication leads to premature mitosis.

DNA Replication Controls Activation of Plk1

To study the impact of DNA replication on activation of PLK1, we targeted origin licensing (by depleting licensing factors CDC6 and CDT1) or origin firing (by combined CDC45 depletion and CDC7 inhibition) in U2OS PLK1-FRET PCNA-cb cells. We find that, after interfering with either DNA replication licensing or origin firing, a subset of cells showed PLK1 activation 4–6 hr after mitosis (Figures 4A, 4B, and S5A). Similarly, some cells entered mitosis 6–8 hr after cell division, in contrast to control cells, in which the shortest time between two cell divisions was 15 hr. Premature PLK1 activation correlated to the absence of PCNA-cb foci and abolished EdU incorporation in S phase cells, indicating that premature PLK1 activation depends on suppression of DNA replication (Figures 4A–4D and S5B). In agreement with a threshold model, intermediate reduction of EdU incorporation or PCNA foci delayed PLK1 activation compared to control cells (Figure 4C). Our data suggest that DNA replication restricts activation of the mitotic kinase PLK1 and that completion of DNA replication functions as a trigger for PLK1 activation.

Figure 4.

Figure 4

Open in a new tab

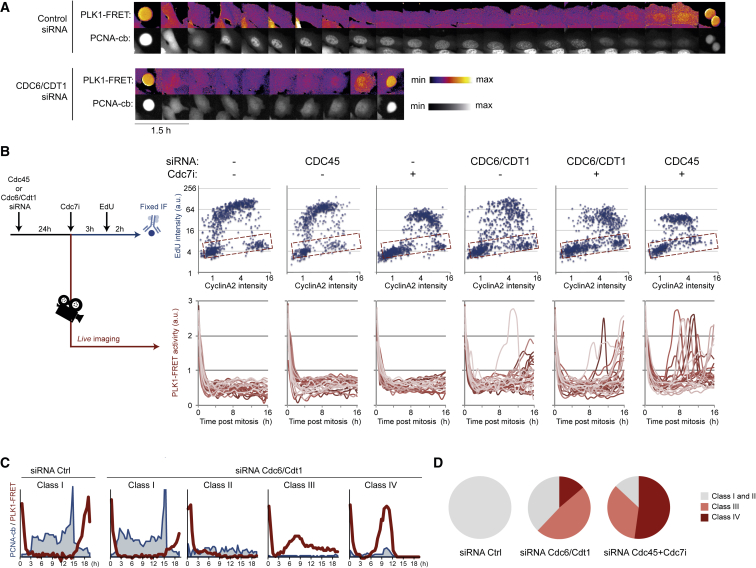

DNA Replication Restricts Activation of PLK1

(A) Examples of U2OS cells expressing PLK1-FRET and PCNA-cb followed in the absence or presence of combined CDC6/CDT1 RNAi. Time between images is 45 min. Please note absence of PCNA foci despite proficient PCNA-cb expression and nuclear PLK1 activation within 5 hr.

(B) U2OS cells expressing PLK1-FRET were treated as outlined in left panel and fixed after a 2-hr pulse of EdU or followed by time-lapse FRET microscopy. (Top) EdU quantification of >600 single cells; nuclear EdU intensity was plotted versus nuclear cyclin A2 levels to monitor DNA replication during cell cycle progression. Outlined boxes indicate EdU-negative cells; please note that the three most right conditions generate cells that have intermediate cyclin A2 levels but fail to incorporate EdU, which corresponds to the conditions that have premature PLK1 activation. (Bottom) Live-cell traces of single cells that entered mitosis within 2 hr upon addition of CDC7i were followed for 16 hr. Graphs show quantified PLK1 activity of 25 single cells.

(C) Representative single-cell traces of the different classes observed upon Cdc6/Cdt1 co-depletion. U2OS cells expressing PLK1-FRET and PCNA-cb were transfected with control or Cdc6/Cdt1 small interfering RNA (siRNA) for 24 hr and mitotic cells were followed by live-cell imaging. The distinct classes include (class I) cells similar to controls, having discrete PCNA foci and PLK1-FRET activity only upon PCNA foci resolution, (class II) cells maintaining dim PCNA foci and no PLK1-FRET activity, and (classes III and IV) cells with no or very few PCNA foci and premature PLK1-FRET activity (4–16 hr post), which either undergo S/G2 arrest (class III) or premature mitosis (class IV).

(D) Pie charts depict distribution of classes I–IV among cells depicted in (B). Whereas targeting licensing or firing can cause premature mitosis, we find the latter approach to be most effective.

CHK1/p38 Signaling Represses PLK1 Activity and Toxic CDK1 during DNA Replication

The function of replication intermediates as direct inhibitors of mitosis via constitutive checkpoint activation is a long-standing yet unproven hypothesis in the cell cycle field (Enoch and Nurse, 1991, Hartwell and Weinert, 1989). Our finding that DNA replication initiation postpones cell cycle progression predicts the need for factors that can sense ongoing DNA replication and suppress the activity of mitotic kinases. Good candidates for such signaling factors are DNA damage checkpoint kinases, as they are known to control DNA replication fidelity during unperturbed growth and inhibit PLK1 activity upon ectopic DNA damage (Smits et al., 2000, Sørensen and Syljuåsen, 2012). Indeed, we find that two structurally unrelated CHK1 inhibitors cause premature PLK1 activation in replicating U2OS cells (Figure S6A). Notably, CHK1 inhibition did not affect progression through G1 phase, but uncoupled nuclear PLK1 target phosphorylation from on-going DNA replication, causing interphase cells to reach high PLK1-FRET levels in the presence of PCNA-cb foci (Figures 5A–5D). Similarly, a live-cell CDK1/2-activity sensor rapidly became saturated in U2OS cells containing PCNA-cb foci (Figures S6B and S6C). CHK1 can function synergistically with the p38-MK2 axis (Dietlein et al., 2015), and combined CHK1/p38 inhibition increased CDK1/2-mediated phosphorylation of lamin A/C in RPE cells (Figure 5E). These data support the notion that mitotic kinases are actively suppressed during S phase.

Figure 5.

Figure 5

Open in a new tab

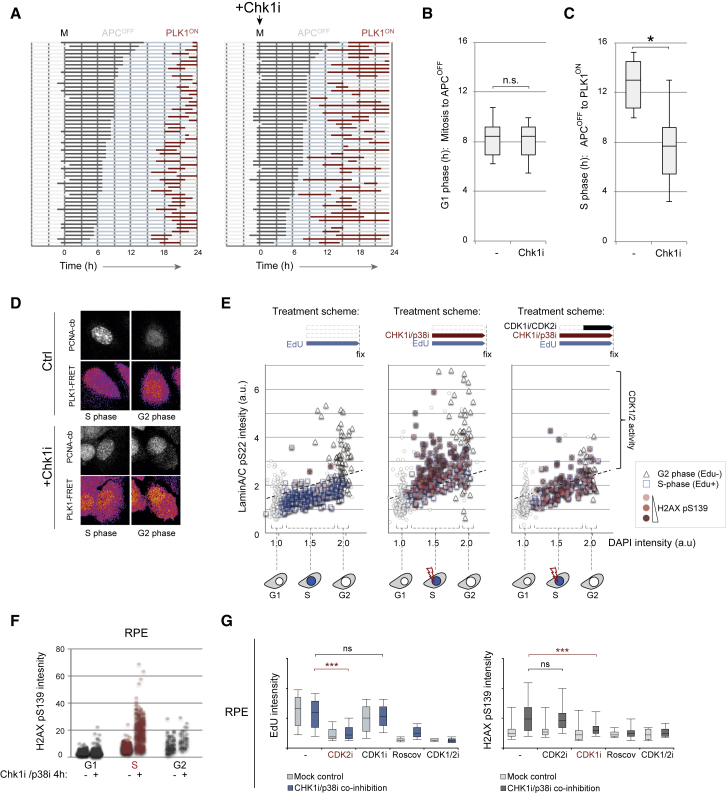

DNA Replication Restricts PLK1 and CDK1/2 Activity to Prevent Replication Stress

(A) Asynchronous U2OS cells expressing PLK1-FRET and APC/CCdh1 substrate reporter were mock treated or treated with 50 nM CHIR-124 at mitosis (±1 hr) and followed by time-lapse microscopy for 24 hr. Each line represents a single cell showing expression of APC/CCdh1 substrate probe (light blue) and/or PLK1 activity (red). Visual appearance of nuclear GEM-RED signal (i.e., stabilization of the APC/CCdh1 substrate probe) was used to assess APC/C inactivation at the G1/S transition (APCOFF). Detection of nuclear PLK1 FRET signal was used to assess PLK1 activation at the S/G2 transition (PLK1ON).

(B) Boxplot depicts G1 phase duration of 50 single cells, as determined by the time observed between mitosis and APC/CCdh1 substrate appearance at the G1/S transition. Boxplots indicate 10, 25, 50, 75, and 90th percentiles. n.s. indicates p > 0.5; Student’s t test.

(C) As in (B), yet boxplot depicts S phase duration as determined by the time observed between APC/CCdh1 substrate appearance and the detection of nuclear PLK1 activity. Boxplots indicate 10, 25, 50, 75, and 90th percentiles. ∗ indicates p < 0.01; Student’s t test.

(D) Images illustrate representative cells in S phase (13 hr post-mitosis) or G2 phase (17 hr post-mitosis).

(E) Asynchronous RPE cells were treated with EdU, CHIR-124 (Chk1i), and SB202190 (p38i) for 2 hr and during the last hour with RO-3306 (CDK1i) and NU6140 (CDK2i) as indicated. EdU is used to mark S phase cells and directly correlate the presence of DNA replication with CHK1i-induced CDK activation and DNA damage. Graphs show DAPI, lamin A/C pS22, and H2AX pS139 for >800 cells measured by high-content microscopy. Single-cell illustrations below the graph indicate cell cycle phases and presence of DNA replication stress.

(F) RPE cells were treated with CHIR-124 (CHK1i) and SB202190 (p38i) as indicated. To define S phase, cells were incubated with EdU 1 hr prior to fixation. Panels show quantifications of high-content microscopy for H2AX pS139 in single cells. Cell populations were separated according to DAPI and EdU intensity.

(G) RPE cells were treated with CHIR-124 (CHK1i), SB202190 (p38i), NU6140 (CDK2i), RO3306 (CDK1i), CDK1/2 inhibitor III (CDK1/2i), and Roscovitine as indicated for 4 hr. Before fixation, cells were incubated for 1 hr with EdU. Boxplots show 90, 75, 50, 25, and 10th percentiles of EdU signal or H2AX pS139 signal of EdU positive cells, as assessed by high-content microscopy. ∗∗∗ indicates p < 0.001, and ns indicates p > 0.1; Student’s t test.

Loss of CDK1/2 regulation is highly genotoxic and causes DNA replication stress (Sørensen and Syljuåsen, 2012). Accordingly, inhibition of CHK1/p38 leads to phosphorylation of the DNA damage marker H2AX specifically in replicating cells (Figures 5E, 5F, and S6D). A short pulse of CDK activity is likely sufficient to induce DNA damage, as contrary to CDK inhibition 1 hr after CHK1/p38 inhibition, simultaneous addition of all inhibitors abolished H2AX phosphorylation (Figures 5E, 5G, S6E, and S6F). Whereas addition of a CDK2 inhibitor decreased EdU incorporation in S phase cells, inhibition of CDK1 suppressed phosphorylation of H2AX (Figures 5G and S6F). Although this does not rule out overlapping functions of CDK1 and CDK2, it suggests that CDK1 activity is the major toxic component for replicating cells. Thus, CDK2 activity stimulates DNA replication (Coverley et al., 2002, Walter, 2000), which in turn activates checkpoint kinases to restrict CDK1 and PLK1 activity. As a consequence, DNA replication is part of a feedforward system that restricts mitotic kinase activation to prevent replication stress.

DNA Replication Checkpoint Acts after G1/S Transition to Limit CDK Activation

A prediction of such a system is that DNA replication continuously restricts CDK activity. We therefore sought to monitor CDK activity as cells entered S phase. A live sensor for CDK1/2 activity shows a gradual increase, starting from before S phase is initiated (Cappell et al., 2016; Figure 6A). In the presence of CHK1 inhibition, we detect no difference in CDK1/2 sensor localization through G1 phase (Figures 6A–6C). However, we detect enhanced CDK activity from the moment cells enter S phase as estimated by appearance of PCNA-cb foci (Figures 6A and 6B) or by expression of an anaphase-promoting complex (APC)/CCdh1 substrate reporter (Cappell et al., 2016; Figure 6C). Similarly, blocking DNA replication licensing or DNA replication firing causes elevated CDK activity upon S phase entry (Figures 6D–6F). We also detect elevated CDK1/2-mediated phosphorylation of Lamin A/C pS22 in cells in which DNA replication initiation is prevented by targeted destruction of CDC6d (Figures S7A–S7C). Thus, rather than merely a consequence of cell cycle signaling (Krude et al., 1997), DNA replication coordinates gradual CDK activation throughout S phase with activation of mitotic kinases PLK1 and CDK1 after completion of S phase (Figure 7).

Figure 6.

Figure 6

Open in a new tab

DNA Replication Limits CDK1/2 Activation upon S Phase Entry

(A) Single U2OS cells were filmed upon mitotic exit, and cells that were ±1 hr from mitosis upon addition of CHIR-124 (CHK1i) were selected for analysis. Montages depict an example cell expressing CDK1/2 activity sensor and PCNA-cb followed by time-lapse microscopy. Time between images is 45 min. Note the rapid cytoplasmic translocation of the CDK1/2 sensor at the G1/S transition in the presence of CHK1i. Please see Figure S6C for readout details.

(B) Quantification of single cells imaged as in (A). Red line indicates relative CDK1/2 activity, and blue line indicates PCNA-cb intensity variation as a surrogate measurement for DNA replication. Grey lines show average CDK1/2 activity of control cells. To illustrate concurrence at G1/S, three single cells with different G1 lengths are depicted.

(C) U2OS cells expressing CDK1/2 activity sensor and APC/CCdh1 substrate (GEM-RED) after CHIR-124 treatment and followed as in (A). To illustrate concurrence at G1/S, two single cells with different G1 lengths are depicted.

(D) Quantification of single cells imaged as in (A) yet 24 hr after transfection of Cdc6 and Cdt1 siRNA. Red line indicates relative CDK1/2 activity, and blue line indicates PCNA-cb intensity variation as a surrogate measurement for DNA replication. Grey lines show average CDK1/2 activity of control cells.

(E) U2OS cells expressing CDK1/2 activity sensor and APC/CCdh1 substrate (GEM-RED) treated and followed as in (D). To illustrate concurrence at G1/S, two single cells with different G1 lengths are depicted per condition.

(F) Quantification of CDK1/2 reporter of cells monitored as in (C) and (E). G1 is defined as 1 hr before and S phase as 3 hr after appearance of APC/CCdh1 substrate reporter. Graph shows mean and SD of 14 cells per condition. ∗p < 0.04; Student’s t test.

Figure 7.

Figure 7

Open in a new tab

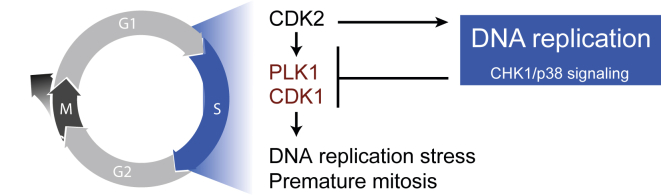

Model for Integral Role of DNA Replication in Human Cell Cycle Wiring

Proposed model in which DNA replication constitutes a functional output as well as an integral component of an incoherent feedforward loop in human cell cycle signaling. DNA replication generates a CHK1- and p38-dependent signal that prevents premature mitosis and CDK1-driven DNA damage in S phase.

Discussion

Separation of DNA replication and cell division lies at the heart of the cell cycle. Several not mutually exclusive models for how cells ensure completion of DNA replication before mitosis have been proposed (reviewed in Uhlmann et al., 2011). These models include (1) a slow buildup of CDK activity coupled to different thresholds for starting DNA replication and mitosis (Stern and Nurse, 1996), (2) different cyclin proteins appear at given times and cellular locations (Murray, 2004), (3) transcriptional oscillator networks (Haase and Reed, 1999; but see also Rahi et al., 2016), and (4) a checkpoint that restricts mitosis before DNA replication is completed (Hartwell and Weinert, 1989). Our results suggest that, in human cells, DNA replication is a major determinant of cell cycle duration and timing of mitosis. We propose that DNA replication functions as a continuous brake with the possibility to separate and coordinate different cell cycle activities.

We find that severe suppression of DNA replication initiation is required to prematurely activate mitotic kinases and to advance mitotic entry. For instance, CDC7 inhibition or CDC6 degradation alone postpones mitotic entry, while combined treatment advances mitotic entry (Figure 3). This suggests that a threshold of replication activity exists, under which mitotic entry is not prevented. DNA replication in human cells is performed by thousands of replication forks (Chagin et al., 2016). How many replication forks are required to reach this threshold is not clear. However, it is likely that a single replication fork is not sufficient to block mitotic entry as Plk1 activation is observed in the presence of occasional weak PCNA-cb foci (Akopyan et al., 2014) and DNA synthesis at fragile sites has been detected in mitotic cells (Minocherhomji et al., 2015, Pedersen et al., 2015).

While complete DNA replication is critical for proper chromosome segregation in mitosis, DNA replication per se is not a prerequisite for mitotic entry. Yeast mutants lacking CDC6, CDT1, ORC2, RFC5, CDC45, or CDC7/DBF4 enter mitosis with unreplicated chromatids (Dowell et al., 1994, Hofmann and Beach, 1994, Liang et al., 1995, Piatti et al., 1995, Sugimoto et al., 1996). Whether mitotic entry in these studies depends on gene-specific functions independent of DNA replication initiation has been debated (Bueno and Russell, 1992). Given that all these proteins have in common to affect initiation of DNA replication, we consider that the most likely explanation involves initiation of DNA replication. In support of this notion, we detect premature mitotic kinase activation and shorter cell cycles in the absence of DNA replication origin licensing and/or origin firing in human cells.

Once initiated, CDK2 activity will promote both DNA replication and stimulate CDK1 and PLK1 activity (Fu et al., 2008, Gheghiani et al., 2017). However, at the same time, CDK1 and PLK1 are restricted by DNA replication, constituting an incoherent feedforward loop (Figure 7). Given that CDK1 activation causes DNA damage during DNA replication, there is a possibility that the feedforward loop is complemented by feedback between CDK1 and DNA replication, ensuring a continuous low level of checkpoint activation. We note that a feedforward system not only ensures that mitosis is avoided until DNA replication is completed but also can ensure that mitotic kinase activation commences immediately after S phase, ensuring a tight coupling between S phase and mitosis.

The feedforward loop between CDK2, DNA replication, and mitotic kinase activation contributes to genome stability in two ways. First, it ensures that mitosis is delayed until the bulk of DNA is duplicated. Second, it prevents DNA replication stress and CDK1-mediated DNA damage. In this sense, complete deregulation of the feedforward loop likely is lethal, whereas slight perturbations have the possibility to contribute to CDK-dependent DNA lesions in S phase (Lecona and Fernández-Capetillo, 2014, Szakal and Branzei, 2013, Zhang and Hunter, 2014) and might promote the occurrence of underreplicated DNA in mitosis (Lukas et al., 2011, Minocherhomji et al., 2015). Such perturbations may not only have consequences for mitosis but also for G1 duration and cell fate of daughter cells (Arora et al., 2017, Barr et al., 2017).

STAR★Methods

Key Resources Table

REAGENT or RESOURCE SOURCE IDENTIFIER
Antibodies
CyclinA2 Santa Cruz sc-751
CyclinA2 Cell Signaling 4656
PLK1 Abcam ab14210
pTCTP Cell Signaling Technology 5251
pH2AX Cell Signaling Technology 2577
pCyclinB1 Abcam ab55184
pLaminA/C Cell Signaling Technology 2026
Alexa Fluor 488 Goat anti-Rabbit Life Technologies A11008
Alexa Fluor 555 Goat anti-Mouse Life Technologies A21422
CDC6 Santa Cruz sc-9964
CDT1 Santa Cruz sc-28262
GAPDH Sigma G8795
Anti-Rabbit HRP Abcam ab6721
Anti-Mouse HRP Abcam ab97023
Chemicals, Peptides, and Recombinant Proteins
CHIR-124 Selleck Chemicals S2683
UCN-01 Sigma U6508
RO-3306 Calbiochem 217699
NU6140 Calbiochem 238804
Roscovitine Selleck Chemicals S1153
CDK1/2 inhibitor III Millipore 217714
SB202190 Selleck Chemicals S1077
BI2536 Selleck Chemicals S1109
GSK461364 Selleck Chemicals S2193
XL-413 Selleck Chemicals S7547
BMS-650032 Adooq Bioscience A11295
3-Indoleacetic acid Sigma-Aldrich I3750
Doxycycline Sigma-Aldrich D3447
Experimental Models: Cell Lines
BJ ATCC CRL-2522
U2OS Rene Medema (NL) N/A
Human hTERT-RPE1 Rene Medema (NL) N/A
Human hTERT-RPE1 p53KO Libor Macurek (CZ) N/A
Oligonucleotides
CDC6 siRNA SMARTpool ON-TARGET plus Dharmacon 003233
Non-targeting siRNA SMARTpool ON-TARGET plus Dharmacon 001810
CDC45 siRNA SMARTpool ON-TARGET plus Dharmacon 003232
CDT1_7 siRNA Flexitube QIAGEN SI04142250
CDT1_8 siRNA Flexitube QIAGEN SI04159477
Recombinant DNA
pCCC-TagRFP (PCNAcb) Chromotek N/A
pCSII-EF-Cdk2probe Sabrina Spencer (US) N/A
pRetroX-SG2M-Red Clontech 631465
hCDC6_mAID_SMASh_T2A_Neo This paper N/A
pROSA26-DV1_OsTIR This paper N/A
PX458_Cas9_GFP Addgene 48138
PX458_Cas9_GFP_hCDC6 This paper N/A
Software and Algorithms
ImageJ 1.51h ImageJ https://imagej.nih.gov
MATLAB R2015b MathWorks https://www.mathworks.com
CellProfiler 2.2.0 CellProfiler http://cellprofiler.org
Open in a new tab

Contact for Reagent and Resource Sharing

Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Arne Lindqvist (arne.lindqvist@ki.se).

Experimental Model and Subject Details

Source of cell lines used in this study is reported in the Key Resources Table.

Method Details

Cell Culture

Human hTERT-RPE1 (hereafter referred to as RPE), U2OS and BJ cells were cultured in an ambient-controlled incubator at 37°C and 5% CO2. Early passage BJ cells were purchased from ATCC (CRL-2522) and examined prior to population doubling 10. RPE and U2OS cells were a kind gift from Dr. René Medema. All cell lines were regularly tested for mycoplasma. RPE cells were cultured using DMEM-F12 GlutaMAX (Invitrogen) supplemented with 1% Pen/Strep (HyClone) and 10% heat-inactivated FBS (HyClone). U2OS and BJ cells were cultured using DMEM GlutaMAX (Invitrogen) supplemented with 1% Pen/Strep (HyClone) and 6% or 10% heat-inactivated fetal bovine serum (FBS, HyClone), resp.

Plasmids and Cell lines

Reporter plasmids pCCC-TagRFP (Chromotek, PCNA-cb), pCSII-EF-Cdk2probe (Spencer et al., 2013) or pRetroX-SG2M-Red (Clontech, 631465) were used to obtain stable cell lines by random plasmid integration. Plasmid transfection was performed using LipofectAMINE 2000 Reagent (Life Technologies) or standard calcium phosphate precipitation. Stable polyclonal populations were selected by flow cytometry using BD-FACSAria II and correct expression patterns were validated by live-cell microscopy.

TP53 knockout RPE cells were from Silva Cascales et al. (2017). Stable OsTIR expression was established by CRISPR-mediated integration: Transient GFP+ cells were sorted 3 days post transfection of pROSA26-DV1_OsTIR and PX458_Cas9_GFP (Addgene 48138) and subsequently subjected to bleomycin selection. For inducible expression of OSTir1 we used a previously described construct (Natsume et al., 2016) that was combined with a bleomycin selection cassette and cloned into a Rosa26 targeting construct to generate pROSA26-DV1_OsTIR. To target the human Rosa26 locus we used the following gRNA sequence: 5′ GACCTGCTACAGGCACTCGT 3′ cloned into pPV576_gRNA_ROSA26. Subsequent double degron tagging at the human CDC6 locus was established through CRISPR-mediated targeting: First a CDC6 guide sequence was cloned into PX458_Cas9_GFP (Addgene 48138) using BbSI sites and two annealed oligos CACCGC CAGCTG AATACT TTCGGG and AAACCC CGAAAG TATTCA GCTGGC. Second, a tagging vector was generated named hCDC6_mAID_SMASh_T2A_Neo, by cloning CDC6 homology arms (gBlock IDT) into a mAID_SMASh_T2A_Neo backbone using SbfI and NotI sites. The mAID_SMASh_T2A_Neo backbone was constructed via Gibson assembly cloning.

The resultant PX458_Cas9_GFP_hCDC6 and hCDC6_mAID_SMASh_T2A_Neo vectors were sequence-verified and transfected into OsTIR-RPEP53KO cells. Three days post transfection GFP+ cells were sorted and subjected to Geneticin selection (G418; GIBCO). Clonal cell lines were established by limiting dilution in a 96-well plate. Successful Cdc6 degron-tagging in single clones was verified by western blot and degron-induced growth arrest.

RNA Interference and Inhibitors

Knockdown studies were performed using SMARTpool scrambled control siRNA (Dharmacon), SMARTpool ON-TARGET plus CDC6 siRNA (Dharmacon), SMARTpool ON-TARGET plus CDC45 siRNA (Dharmacon), FlexiTube Hs_CDT1_7 (QIAGEN) and FlexiTube Hs_CDT1_8 (QIAGEN). siRNAs were transfected at 20nM concentration using HiPerFect reagent (QIAGEN) and OptiMEM (Invitrogen). The following small-molecule inhibitors were used at the indicated final concentrations: 50 nM CHIR-124 (CHK1 inhibitor; Selleck Chemicals), 30nM UCN-01 (CHK1 inhibitor; Sigma), 5 uM RO-3306 (Cdk1 inhibitor; Calbiochem), 10 uM NU6140 (Cdk2 inhibitor; Calbiochem), 25uM Roscovitine (Cdk1/2 inhibitor; Selleck Chemicals), 3uM CDK1/2 inhibitor III (Millipore),10 uM SB202190 (p38 inhibitor; Selleck Chemicals), 50 nM BI2536 (PLK1 inhibitor, Selleck Chemicals), 200nM GSK461364 (PLK1 inhibitor; Selleck Chemicals), 2.5 mM Thymidine (Sigma Aldrich), 15 uM XL-413 (CDC7 inhibitor; Selleck Chemicals), 100 nM BMS-650032 (Asunaprevir; Adooq Bioscience), 50 uM 3-Indoleacetic acid (Auxin; Sigma Aldrich), 1ug/ml Doxycycline (Sigma Aldrich).

Live-Cell Microscopy and Quantitative Immunofluorescence

For time-lapse microscopy of RPE CDC6d cells (Figure 2D), transmitted light images were acquired every 10 min using a Leica DMI6000 Imaging System with 20x (NA 0.4) air objective at 37°C and 5% CO2. Images were analyzed using ImageJ and cells were tracked manually. For live cell fluorescence imaging experiments, 6000-9000 cells were seeded in 96-well imaging plates (BD Falcon) in DMEM with 1% Pen/Strep and 6%–10% FBS and at least 6 hr prior to imaging the medium was changed to Leibowitz-15 (Invitrogen) with 1% Pen/Strep and 6%–10% FBS. Images were acquired at 37°C at 20-45min intervals using ImageXpress microscope (Molecular Devices) 20X objective (NA 0.45) and analyzed using custom ImageJ or MATLAB scripts (Akopyan et al., 2014, Hukasova et al., 2012). PLK1 FRET was measured using ImageJ (Akopyan et al., 2014, Hukasova et al., 2012), using rolling ball background subtraction, 3x YFP signal multiplication and RatioPlus plugin (background 0 and clipping values 25-50). Normalized PCNA-cb intensity variation (i.e., standard deviation of nuclear RFP signal divided by median nuclear RFP intensity) is used as a surrogate measurement for DNA replication; the last few bright PCNA foci at the end of S-phase cause a characteristic peak in PCNA-cb intensity variation (Figures 1C and 4C). CDK1/2 activity probe was analyzed using ImageJ; nuclear ROIs were selected manually and ratio between nuclear YFP intensities and cytoplasmic YFP intensities was determined using custom ImageJ macro’s and Excel (see Data S1 for example macro). For quantitative IF experiments 6000-9000 cells were seeded in 96-well imaging plates (BD Falcon) in DMEM with 1% Pen/Strep and 6%–10% FBS and after treatment washed in DPBS (GIBCO), fixed in formalin (Sigma Aldrich) for 7 min, permeabilised in cold methanol (Sigma Aldrich) for 2 min and finally incubated in blocking media (TBS supplemented with 0.1% Tween20 and 2% bovine albumin serum) for 1 hr at room temperature. For pulse-chase experiments or DNA replication measurements 10mM EdU (5-ethynyl-2′-deoxyuridine, Molecular probes) was added to live cells prior to fixation. Fixed samples were incubated with primary antibodies in blocking media overnight at 4°C, washed in DPBS (GIBCO) and incubated with secondary antibodies and DAPI for 1h at room temperature. Samples were stored in PBS and in case of DNA replication measurements EdU-Click chemistry was performed by incubation in 100mM Tris, 1mM CuSO4, 100mM ascorbic acid and fluorescent dye azide (#A10277, Invitrogen) for 1h at room temperature. Images were acquired at room temperature using ImageXpress microscope (Molecular Devices) 20X objective (NA 0.45) and analyzed using custom Cell profiler pipelines. To assess kinetics and cell cycle stages from quantitative IF data, cells were ordered and distributed linearly based on increasing nuclear Cyclin A2 intensities and normalized DAPI levels (Akopyan et al., 2016). For RPE and BJ cells in Figure 1C, cells containing low DAPI levels (corresponding to under mid S-phase levels) were sorted based on the ratio between nuclear size and roundness, and remaining cells were sorted by Cyclin A2 content.

Antibodies

The following antibodies were used for IF and diluted in TBS supplemented with 0.1% Tween20 and 2% BSA: CyclinA2 (1:400; #sc-751; Santa Cruz), CyclinA2 (1:400; #4656; Cell Signaling), PLK1 (1:400; ab14210; Abcam), pTCTP (1:400; #5251; Cell Signaling), pH2AX (1:800; #2577; Cell Signaling), pCyclinB1 (1:400; #ab55184; Abcam), pLaminA/C (1:400; #2026; Cell Signaling), Alexa Fluor 488-Goat anti-Rabbit (1:2000; #A11008 Life Technologies) and Alexa Fluor 555-Goat anti-Mouse (1: 2000; #A21422 Life Technologies). The following antibodies were used for WB and diluted in TBS supplemented with 0.1% Tween20 and 5% milk powder: CDC6 (1:400; #sc-9964 Santa Cruz), CDT1 (1:400; #sc-28262 Santa Cruz), GAPDH (1:20000; #G8795; Sigma), anti-Rabbit HRP (1:2000; #ab6721; Abcam) and anti-Mouse HRP (1:2000; #ab97023; Abcam).

Quantification and Statistical Analysis

Statistical analysis was performed using the Student’s t test. Quantitative IF studies included >200 cells per conditions and represent at least two independent experiments. Qualitative example images are representative for >10 independent biological replicates. Information about the statistical tests and the number of cells analyzed is provided in the figure legends. For all experiments, samples were not randomized and the investigators were not blinded to the group allocation during experiments and outcome assessment.

Data and Software Availibilty

Original imaging data have been deposited to Mendeley Data and are available at https://doi.org/10.17632/47s44zbm7c.1.

Acknowledgments

This study has been supported by the Wenner-Gren Foundation (to B.L.), the Swedish Research Council (to J.B. and A.L.), the Swedish Cancer Society (to B.L., J.B., and A.L.), BBSRC LoLa grant BB/M00354X/1 (to H.H. and N.H.), and a Cancer Research UK senior research fellowship C28206/A14499 (to H.H.).

Author Contributions

Study Conception and Design, A.L. and B.L.; Double Degron Design and Development, H.H. and N.H.; Generation and Design of hCDC6-degron Cells, B.L.; Acquisition of Data and Image Analysis, B.L., K.A., and J.S.-G.; Analysis and Interpretation of Data, B.L., A.L., and K.A.; Drafting of Manuscript, A.L. and B.L.; Critical Manuscript Revision, J.B. and H.H.; Review and Editing, A.L. and B.L.; Supervision, A.L., B.L., and J.B.; Funding Acquisition, A.L., B.L., J.B., and H.H.

Declaration of Interests

The authors declare no competing interests.

Published: June 28, 2018

Footnotes

Supplemental Information includes seven figures, one video, and one data file and can be found with this article online at https://doi.org/10.1016/j.molcel.2018.05.026.

Contributor Information

Helfrid Hochegger, Email: h.hochegger@sussex.ac.uk.

Arne Lindqvist, Email: arne.lindqvist@ki.se.

Supplemental Information

Document S1. Figures S1–S7
mmc1.pdf (23.2MB, pdf)
Data S1. ImageJ Macro Used for Measurement of CDK Activity Reporter, Related to STAR Methods
mmc3.zip (2.9KB, zip)
Document S2. Article plus Supplemental Information
mmc4.pdf (28.1MB, pdf)

References

  1. Akopyan K., Silva Cascales H., Hukasova E., Saurin A.T., Müllers E., Jaiswal H., Hollman D.A., Kops G.J., Medema R.H., Lindqvist A. Assessing kinetics from fixed cells reveals activation of the mitotic entry network at the S/G2 transition. Mol. Cell. 2014;53:843–853. doi: 10.1016/j.molcel.2014.01.031. [DOI] [PubMed] [Google Scholar]
  2. Akopyan K., Lindqvist A., Müllers E. Cell cycle dynamics of proteins and post-translational modifications using quantitative immunofluorescence. Methods Mol. Biol. 2016;1342:173–183. doi: 10.1007/978-1-4939-2957-3_9. [DOI] [PubMed] [Google Scholar]
  3. Arora M., Moser J., Phadke H., Basha A.A., Spencer S.L. Endogenous replication stress in mother cells leads to quiescence of daughter cells. Cell Rep. 2017;19:1351–1364. doi: 10.1016/j.celrep.2017.04.055. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Barr A.R., Cooper S., Heldt F.S., Butera F., Stoy H., Mansfeld J., Novák B., Bakal C. DNA damage during S-phase mediates the proliferation-quiescence decision in the subsequent G1 via p21 expression. Nat. Commun. 2017;8:14728. doi: 10.1038/ncomms14728. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Beck H., Nähse V., Larsen M.S., Groth P., Clancy T., Lees M., Jørgensen M., Helleday T., Syljuåsen R.G., Sørensen C.S. Regulators of cyclin-dependent kinases are crucial for maintaining genome integrity in S phase. J. Cell Biol. 2010;188:629–638. doi: 10.1083/jcb.200905059. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Boddy M.N., Furnari B., Mondesert O., Russell P. Replication checkpoint enforced by kinases Cds1 and Chk1. Science. 1998;280:909–912. doi: 10.1126/science.280.5365.909. [DOI] [PubMed] [Google Scholar]
  7. Bueno A., Russell P. Dual functions of CDC6: a yeast protein required for DNA replication also inhibits nuclear division. EMBO J. 1992;11:2167–2176. doi: 10.1002/j.1460-2075.1992.tb05276.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Bulavin D.V., Amundson S.A., Fornace A.J. p38 and Chk1 kinases: different conductors for the G(2)/M checkpoint symphony. Curr. Opin. Genet. Dev. 2002;12:92–97. doi: 10.1016/s0959-437x(01)00270-2. [DOI] [PubMed] [Google Scholar]
  9. Cappell S.D., Chung M., Jaimovich A., Spencer S.L., Meyer T. Irreversible APC(Cdh1) inactivation underlies the point of no return for cell-cycle entry. Cell. 2016;166:167–180. doi: 10.1016/j.cell.2016.05.077. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Chagin V.O., Casas-Delucchi C.S., Reinhart M., Schermelleh L., Markaki Y., Maiser A., Bolius J.J., Bensimon A., Fillies M., Domaing P. 4D visualization of replication foci in mammalian cells corresponding to individual replicons. Nat. Commun. 2016;7:11231. doi: 10.1038/ncomms11231. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Chung H.K., Jacobs C.L., Huo Y., Yang J., Krumm S.A., Plemper R.K., Tsien R.Y., Lin M.Z. Tunable and reversible drug control of protein production via a self-excising degron. Nat. Chem. Biol. 2015;11:713–720. doi: 10.1038/nchembio.1869. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Coverley D., Laman H., Laskey R.A. Distinct roles for cyclins E and A during DNA replication complex assembly and activation. Nat. Cell Biol. 2002;4:523–528. doi: 10.1038/ncb813. [DOI] [PubMed] [Google Scholar]
  13. Cucchi U., Gianellini L.M., De Ponti A., Sola F., Alzani R., Patton V., Pezzoni A., Troiani S., Saccardo M.B., Rizzi S. Phosphorylation of TCTP as a marker for polo-like kinase-1 activity in vivo. Anticancer Res. 2010;30:4973–4985. [PubMed] [Google Scholar]
  14. Dietlein F., Kalb B., Jokic M., Noll E.M., Strong A., Tharun L., Ozretić L., Künstlinger H., Kambartel K., Randerath W.J. A synergistic interaction between Chk1- and MK2 inhibitors in KRAS-mutant cancer. Cell. 2015;162:146–159. doi: 10.1016/j.cell.2015.05.053. [DOI] [PubMed] [Google Scholar]
  15. Dowell S.J., Romanowski P., Diffley J.F. Interaction of Dbf4, the Cdc7 protein kinase regulatory subunit, with yeast replication origins in vivo. Science. 1994;265:1243–1246. doi: 10.1126/science.8066465. [DOI] [PubMed] [Google Scholar]
  16. Enoch T., Nurse P. Coupling M phase and S phase: controls maintaining the dependence of mitosis on chromosome replication. Cell. 1991;65:921–923. doi: 10.1016/0092-8674(91)90542-7. [DOI] [PubMed] [Google Scholar]
  17. Fragkos M., Ganier O., Coulombe P., Méchali M. DNA replication origin activation in space and time. Nat. Rev. Mol. Cell Biol. 2015;16:360–374. doi: 10.1038/nrm4002. [DOI] [PubMed] [Google Scholar]
  18. Fu Z., Malureanu L., Huang J., Wang W., Li H., van Deursen J.M., Tindall D.J., Chen J. Plk1-dependent phosphorylation of FoxM1 regulates a transcriptional programme required for mitotic progression. Nat. Cell Biol. 2008;10:1076–1082. doi: 10.1038/ncb1767. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Gheghiani L., Loew D., Lombard B., Mansfeld J., Gavet O. PLK1 activation in late G2 sets up commitment to mitosis. Cell Rep. 2017;19:2060–2073. doi: 10.1016/j.celrep.2017.05.031. [DOI] [PubMed] [Google Scholar]
  20. Haase S.B., Reed S.I. Evidence that a free-running oscillator drives G1 events in the budding yeast cell cycle. Nature. 1999;401:394–397. doi: 10.1038/43927. [DOI] [PubMed] [Google Scholar]
  21. Hartwell L.H., Weinert T.A. Checkpoints: controls that ensure the order of cell cycle events. Science. 1989;246:629–634. doi: 10.1126/science.2683079. [DOI] [PubMed] [Google Scholar]
  22. Hégarat N., Rata S., Hochegger H. Bistability of mitotic entry and exit switches during open mitosis in mammalian cells. BioEssays. 2016;38:627–643. doi: 10.1002/bies.201600057. [DOI] [PubMed] [Google Scholar]
  23. Hofmann J.F., Beach D. cdt1 is an essential target of the Cdc10/Sct1 transcription factor: requirement for DNA replication and inhibition of mitosis. EMBO J. 1994;13:425–434. doi: 10.1002/j.1460-2075.1994.tb06277.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Hukasova E., Silva Cascales H., Kumar S.R., Lindqvist A. Monitoring kinase and phosphatase activities through the cell cycle by ratiometric FRET. J. Vis. Exp. 2012:e3410. doi: 10.3791/3410. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Krude T., Jackman M., Pines J., Laskey R.A. Cyclin/Cdk-dependent initiation of DNA replication in a human cell-free system. Cell. 1997;88:109–119. doi: 10.1016/s0092-8674(00)81863-2. [DOI] [PubMed] [Google Scholar]
  26. Kurose A., Tanaka T., Huang X., Traganos F., Darzynkiewicz Z. Synchronization in the cell cycle by inhibitors of DNA replication induces histone H2AX phosphorylation: an indication of DNA damage. Cell Prolif. 2006;39:231–240. doi: 10.1111/j.1365-2184.2006.00380.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Lecona E., Fernández-Capetillo O. Replication stress and cancer: it takes two to tango. Exp. Cell Res. 2014;329:26–34. doi: 10.1016/j.yexcr.2014.09.019. [DOI] [PMC free article] [PubMed] [Google Scholar]
  28. Liang C., Weinreich M., Stillman B. ORC and Cdc6p interact and determine the frequency of initiation of DNA replication in the genome. Cell. 1995;81:667–676. doi: 10.1016/0092-8674(95)90528-6. [DOI] [PubMed] [Google Scholar]
  29. Lindqvist A., Rodríguez-Bravo V., Medema R.H. The decision to enter mitosis: feedback and redundancy in the mitotic entry network. J. Cell Biol. 2009;185:193–202. doi: 10.1083/jcb.200812045. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Lukas C., Savic V., Bekker-Jensen S., Doil C., Neumann B., Pedersen R.S., Grøfte M., Chan K.L., Hickson I.D., Bartek J., Lukas J. 53BP1 nuclear bodies form around DNA lesions generated by mitotic transmission of chromosomes under replication stress. Nat. Cell Biol. 2011;13:243–253. doi: 10.1038/ncb2201. [DOI] [PubMed] [Google Scholar]
  31. Minocherhomji S., Ying S., Bjerregaard V.A., Bursomanno S., Aleliunaite A., Wu W., Mankouri H.W., Shen H., Liu Y., Hickson I.D. Replication stress activates DNA repair synthesis in mitosis. Nature. 2015;528:286–290. doi: 10.1038/nature16139. [DOI] [PubMed] [Google Scholar]
  32. Murray A.W. Recycling the cell cycle: cyclins revisited. Cell. 2004;116:221–234. doi: 10.1016/s0092-8674(03)01080-8. [DOI] [PubMed] [Google Scholar]
  33. Muzi Falconi M., Brown G.W., Kelly T.J. cdc18+ regulates initiation of DNA replication in Schizosaccharomyces pombe. Proc. Natl. Acad. Sci. USA. 1996;93:1566–1570. doi: 10.1073/pnas.93.4.1566. [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Natsume T., Kiyomitsu T., Saga Y., Kanemaki M.T. Rapid protein depletion in human cells by auxin-inducible degron tagging with short homology donors. Cell Rep. 2016;15:210–218. doi: 10.1016/j.celrep.2016.03.001. [DOI] [PubMed] [Google Scholar]
  35. Natsume T., Nishimura K., Minocherhomji S., Bhowmick R., Hickson I.D., Kanemaki M.T. Acute inactivation of the replicative helicase in human cells triggers MCM8-9-dependent DNA synthesis. Genes Dev. 2017;31:816–829. doi: 10.1101/gad.297663.117. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Neelsen K.J., Zanini I.M., Herrador R., Lopes M. Oncogenes induce genotoxic stress by mitotic processing of unusual replication intermediates. J. Cell Biol. 2013;200:699–708. doi: 10.1083/jcb.201212058. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Nevis K.R., Cordeiro-Stone M., Cook J.G. Origin licensing and p53 status regulate Cdk2 activity during G(1) Cell Cycle. 2009;8:1952–1963. doi: 10.4161/cc.8.12.8811. [DOI] [PMC free article] [PubMed] [Google Scholar]
  38. Newport J.W., Kirschner M.W. Regulation of the cell cycle during early Xenopus development. Cell. 1984;37:731–742. doi: 10.1016/0092-8674(84)90409-4. [DOI] [PubMed] [Google Scholar]
  39. Nishimura K., Fukagawa T., Takisawa H., Kakimoto T., Kanemaki M. An auxin-based degron system for the rapid depletion of proteins in nonplant cells. Nat. Methods. 2009;6:917–922. doi: 10.1038/nmeth.1401. [DOI] [PubMed] [Google Scholar]
  40. Ozeri-Galai E., Lebofsky R., Rahat A., Bester A.C., Bensimon A., Kerem B. Failure of origin activation in response to fork stalling leads to chromosomal instability at fragile sites. Mol. Cell. 2011;43:122–131. doi: 10.1016/j.molcel.2011.05.019. [DOI] [PubMed] [Google Scholar]
  41. Pedersen R.T., Kruse T., Nilsson J., Oestergaard V.H., Lisby M. TopBP1 is required at mitosis to reduce transmission of DNA damage to G1 daughter cells. J. Cell Biol. 2015;210:565–582. doi: 10.1083/jcb.201502107. [DOI] [PMC free article] [PubMed] [Google Scholar]
  42. Piatti S., Lengauer C., Nasmyth K. Cdc6 is an unstable protein whose de novo synthesis in G1 is important for the onset of S phase and for preventing a ‘reductional’ anaphase in the budding yeast Saccharomyces cerevisiae. EMBO J. 1995;14:3788–3799. doi: 10.1002/j.1460-2075.1995.tb00048.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Rahi S.J., Pecani K., Ondracka A., Oikonomou C., Cross F.R. The CDK-APC/C oscillator predominantly entrains periodic cell-cycle transcription. Cell. 2016;165:475–487. doi: 10.1016/j.cell.2016.02.060. [DOI] [PMC free article] [PubMed] [Google Scholar]
  44. Rainey M.D., Quachthithu H., Gaboriau D., Santocanale C. DNA replication dynamics and cellular responses to ATP competitive CDC7 kinase inhibitors. ACS Chem. Biol. 2017;12:1893–1902. doi: 10.1021/acschembio.7b00117. [DOI] [PubMed] [Google Scholar]
  45. Reinhardt H.C., Yaffe M.B. Kinases that control the cell cycle in response to DNA damage: Chk1, Chk2, and MK2. Curr. Opin. Cell Biol. 2009;21:245–255. doi: 10.1016/j.ceb.2009.01.018. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Rodríguez-Bravo V., Guaita-Esteruelas S., Salvador N., Bachs O., Agell N. Different S/M checkpoint responses of tumor and non tumor cell lines to DNA replication inhibition. Cancer Res. 2007;67:11648–11656. doi: 10.1158/0008-5472.CAN-07-3100. [DOI] [PubMed] [Google Scholar]
  47. Shreeram S., Sparks A., Lane D.P., Blow J.J. Cell type-specific responses of human cells to inhibition of replication licensing. Oncogene. 2002;21:6624–6632. doi: 10.1038/sj.onc.1205910. [DOI] [PMC free article] [PubMed] [Google Scholar]
  48. Silva Cascales H., Burdova K., Mullers E., Stoy H., von Morgen P., Macurek L., Lindqvist A. Cyclin A2 localises in the cytoplasm at the S/G2 transition to activate Plk1. bioRxiv. 2017 doi: 10.26508/lsa.202000980. [DOI] [PMC free article] [PubMed] [Google Scholar]
  49. Smits V.A., Klompmaker R., Arnaud L., Rijksen G., Nigg E.A., Medema R.H. Polo-like kinase-1 is a target of the DNA damage checkpoint. Nat. Cell Biol. 2000;2:672–676. doi: 10.1038/35023629. [DOI] [PubMed] [Google Scholar]
  50. Sørensen C.S., Syljuåsen R.G. Safeguarding genome integrity: the checkpoint kinases ATR, CHK1 and WEE1 restrain CDK activity during normal DNA replication. Nucleic Acids Res. 2012;40:477–486. doi: 10.1093/nar/gkr697. [DOI] [PMC free article] [PubMed] [Google Scholar]
  51. Sørensen C.S., Syljuåsen R.G., Lukas J., Bartek J. ATR, Claspin and the Rad9-Rad1-Hus1 complex regulate Chk1 and Cdc25A in the absence of DNA damage. Cell Cycle. 2004;3:941–945. [PubMed] [Google Scholar]
  52. Spencer S.L., Cappell S.D., Tsai F.C., Overton K.W., Wang C.L., Meyer T. The proliferation-quiescence decision is controlled by a bifurcation in CDK2 activity at mitotic exit. Cell. 2013;155:369–383. doi: 10.1016/j.cell.2013.08.062. [DOI] [PMC free article] [PubMed] [Google Scholar]
  53. Stern B., Nurse P. A quantitative model for the cdc2 control of S phase and mitosis in fission yeast. Trends Genet. 1996;12:345–350. [PubMed] [Google Scholar]
  54. Sugimoto K., Shimomura T., Hashimoto K., Araki H., Sugino A., Matsumoto K. Rfc5, a small subunit of replication factor C complex, couples DNA replication and mitosis in budding yeast. Proc. Natl. Acad. Sci. USA. 1996;93:7048–7052. doi: 10.1073/pnas.93.14.7048. [DOI] [PMC free article] [PubMed] [Google Scholar]
  55. Szakal B., Branzei D. Premature Cdk1/Cdc5/Mus81 pathway activation induces aberrant replication and deleterious crossover. EMBO J. 2013;32:1155–1167. doi: 10.1038/emboj.2013.67. [DOI] [PMC free article] [PubMed] [Google Scholar]
  56. Tercero J.A., Labib K., Diffley J.F. DNA synthesis at individual replication forks requires the essential initiation factor Cdc45p. EMBO J. 2000;19:2082–2093. doi: 10.1093/emboj/19.9.2082. [DOI] [PMC free article] [PubMed] [Google Scholar]
  57. Uhlmann F., Bouchoux C., López-Avilés S. A quantitative model for cyclin-dependent kinase control of the cell cycle: revisited. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2011;366:3572–3583. doi: 10.1098/rstb.2011.0082. [DOI] [PMC free article] [PubMed] [Google Scholar]
  58. Walter J.C. Evidence for sequential action of cdc7 and cdk2 protein kinases during initiation of DNA replication in Xenopus egg extracts. J. Biol. Chem. 2000;275:39773–39778. doi: 10.1074/jbc.M008107200. [DOI] [PubMed] [Google Scholar]
  59. Warmerdam D.O., Brinkman E.K., Marteijn J.A., Medema R.H., Kanaar R., Smits V.A. UV-induced G2 checkpoint depends on p38 MAPK and minimal activation of ATR-Chk1 pathway. J. Cell Sci. 2013;126:1923–1930. doi: 10.1242/jcs.118265. [DOI] [PubMed] [Google Scholar]
  60. Zhang Y., Hunter T. Roles of Chk1 in cell biology and cancer therapy. Int. J. Cancer. 2014;134:1013–1023. doi: 10.1002/ijc.28226. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Video S1. Example of RPE CDC6d Cell Entering Mitosis Shortly after Treatment with DOX/BMS/AUX/Cdc7i and Re-entering Mitosis Less Than 10 hr Later, Related to Figure 3

One second in the movie corresponds to 100 min.

Download video file (1.5MB, mp4)
Document S1. Figures S1–S7
mmc1.pdf (23.2MB, pdf)
Data S1. ImageJ Macro Used for Measurement of CDK Activity Reporter, Related to STAR Methods
mmc3.zip (2.9KB, zip)
Document S2. Article plus Supplemental Information
mmc4.pdf (28.1MB, pdf)

RESOURCES
