Downregulation of the Central Noradrenergic System by Toxoplasma gondii Infection

Toxoplasma gondii is associated with physiological effects in the host. Dysregulation of catecholamines in the central nervous system has previously been observed in chronically infected animals.

ABSTRACT

Toxoplasma gondii is associated with physiological effects in the host. Dysregulation of catecholamines in the central nervous system has previously been observed in chronically infected animals. In the study described here, the noradrenergic system was found to be suppressed with decreased levels of norepinephrine (NE) in brains of infected animals and in infected human and rat neural cells in vitro. The mechanism responsible for the NE suppression was found to be downregulation of dopamine β-hydroxylase (DBH) gene expression, encoding the enzyme that synthesizes norepinephrine from dopamine, with downregulation observed in vitro and in infected brain tissue, particularly in the dorsal locus coeruleus/pons region. The downregulation was sex specific, with males expressing reduced DBH mRNA levels whereas females were unchanged. Rather, DBH expression correlated with estrogen receptor in the female rat brains for this estrogen-regulated gene. DBH silencing was not a general response of neurons to infection, as human cytomegalovirus did not downregulate DBH expression. The noradrenergic-linked behaviors of sociability and arousal were altered in chronically infected animals, with a high correlation between DBH expression and infection intensity. A decrease in DBH expression in noradrenergic neurons can elevate dopamine levels, which provides a possible explanation for mixed observations of changes in this neurotransmitter with infection. Decreased NE is consistent with the loss of coordination and motor impairments associated with toxoplasmosis. Further, the altered norepinephrine synthesis observed here may, in part, explain behavioral effects of infection and associations with mental illness.

INTRODUCTION

Toxoplasma gondii infects warm-blooded animals and is characterized by a transient acute infection, wherein vegetative tachyzoite forms rapidly replicate in tissues, followed by conversion of some tachyzoites to slowly replicating bradyzoites, generating a persistent chronic infection. Chronic infection can persist for years and potentially the lifetime of the host, with the bradyzoite-stage parasites encysted in cells within immunoprivileged tissues, including muscle, eyes, and neurons in the brain. Several reports have published host behavioral changes with infection. A selective loss of aversion to feline urine and increased motor activity has been observed in rodents, specifically manipulating behavior that will enhance the probability of parasite transmission (1, 2).

Toxoplasmosis can be a severe disease in immunocompromised individuals and in utero. Infection can cause retinochoroiditis and congenital hydrocephalus and cerebral calcifications. T. gondii was recently ranked the second most important foodborne parasite in Europe, and toxoplasmosis is classified by the Centers for Disease Control and Protection as a neglected parasitic infection (3). It has also been linked by epidemiological studies to cognitive impairment and major mental illnesses. Severe cases are associated with psychoses, seizures, and loss of coordination. However, there are no available cures for infection. Sensorimotor defects, tremors, and headshaking have also been observed in chronically infected mice (4, 5).

In the brain, encysted bradyzoite-stage parasites are restricted to neurons, and recent work has found that neurons are the primary target cell for T. gondii during central nervous system (CNS) infection (6, 7). Recently, a large omics study found canonical pathways in movement disorders, epilepsy, cancer, and Alzheimer’s disease associated with altered gene expression in neural stem cells expressing a mixture of astrocyte and neuronal markers after 18 h of tachyzoite infection (8). As chronic infection is restricted to neurons in the CNS, this study investigated changes in gene expression in neuron-like cells that express neurotransmitters and can form synapses.

Early studies found changes in dopaminergic neurotransmission associated with infection, with high levels of dopamine (DA) in brain tissue cysts of chronically infected rodents and abrogation of infection-induced behavior changes when animals were treated with the dopamine antagonists haloperidol and GBR-12909 (9–11). Perturbations in catecholaminergic signaling with chronic infection have been observed, with elevated DA metabolites in the cortex and decreased norepinephrine (NE) in the cortex and amygdala and loss of amphetamine-induced locomotor activity (12, 13). There are discrepancies in observations of changes in dopamine levels in the brain with T. gondii infection (14–18). Increased levels of dopamine in infected cells have been found when catecholaminergic cells are maintained at a physiological pH (19). Hence, in this study we examined changes in catecholamine expression with infection and explored the underlying alterations in gene expression as a biological mechanism to explain observed changes in NE and DA neurotransmission during CNS infection.

RESULTS

Norepinephrine regulation in the brain during T. gondii infection.

Initially, the effect of chronic infection on CNS NE and DA levels in the brains of T. gondii-infected animals was monitored. The level of NE was significantly decreased in infected animals (P = 0.0019), with a reduction of 50% ± 14% in the brains (Fig. 1A). This experiment and those that follow were performed with the Prugniaud strain unless otherwise stated. Decreased NE in T. gondii-infected mice has been observed in other studies (12, 14). The suppression observed with infection (Fig. 1A) is analogous to decreases in CNS NE levels observed with high-affinity DBH inhibitors (20). High doses of disulfiram and nepicastat, which have been used clinically, reduce brain NE levels by 36% to 45% (21, 22). Although the level of NE was reduced with infection, the rats displayed no obvious signs of pathology. Rats with chronic T. gondii infections do not usually exhibit symptoms of illness (23). The median level of DA in the brains of infected rats was increased to double the uninfected level in this cohort, but this change was not statistically significant (P = 0.12) (Fig. 1B). These observations fit with other investigations, in which high DA levels were observed in cysts but brain tissue levels of DA were unchanged (16, 19, 24).

FIG 1.

Catecholamine levels with T. gondii infection in the brain and catecholaminergic cells. (A) A graph of the norepinephrine concentration in the brains of uninfected and infected rats, with each point representing one animal and bars showing the means ± SEM (P = 0.0019, Student’s t test; n = 6 infected and 6 mock-infected animals). (B) Dopamine levels in the brains of the same uninfected and infected rats shown graphically (P = 0.12, Student’s t test). (C) Norepinephrine levels in uninfected and infected catecholaminergic PC12 cells at day 5 of infection (P = 0.0024, n = 3 biological replicates). (D) Levels of dopamine in the same infected PC12 cells, plotted as described for panel B. P = 0.0043, n = 3 biological replicates with triplicate readings. (E) Overlay of chromatograms from HPLC-ED of uninfected and infected PC12 cells.

To assess whether the change in level of NE could also be observed during in vitro infection, we performed infections with catecholaminergic cells. PC12 cells, derived from a pheochromocytoma of the rat adrenal medulla, are fully functional in synthesis and packaging of DA and NE for vesicle-mediated release upon stimulation, form dendritic extensions, and express dopamine receptors as a classic cell line model of catecholaminergic neurons. We shocked Pruniaud tachyzoites with high pH to induce bradyzoite development prior to infection of cells, as in previous studies (9, 19). As catecholamine synthesis by PC12 cells is sensitive to pH, this technique was used to maintain the full catecholamine biosynthetic capacity of the cells (25, 26).

NE and DA levels were measured in PC12 cells 5 days after parasite infection. NE levels were decreased in infected cultures to 62% ± 6.1% (P = 0.0024) of the uninfected cell level (Fig. 1C and E). The reduction in NE cannot be due to cell lysis, as values are expressed relative to cell number. DA levels in infected PC12 cells were greater than those in uninfected cells (P = 0.0043) in the same samples that exhibited suppression of NE (Fig. 1D). The 3.8- ± 0.74-fold increase is similar to that found in our previously published work with infected PC12 cells (9, 19). In vitro infection of catecholamine-producing cells reduced NE while elevating dopamine levels.

Regulation of the levels of NE and DA may be due to changes in synthesis, transport and storage, or degradation. Further, the mechanism(s) responsible for the opposing decrease in NE and increase in DA in catecholaminergic cells was unclear from these observations. Therefore, we examined the effects of the parasite on proteins expressed by the host neuronal cells.

Downregulation of a key enzyme for norepinephrine synthesis during infection.

The biological mechanism(s) responsible for the decreased NE with infection was investigated. Preliminary experiments with a genome scan of infected rat catecholaminergic cells for gene expression levels identified that the most significantly altered expression was downregulation of the dopamine β-hydroxylase (DBH) gene (P = 7.2 × 10⁻¹³) (data not shown). Although the results were preliminary, rat housekeeping gene expression (glyceraldehyde-3-phosphate dehydrogenase [GAPDH], ribosomal proteins, tRNA ligases, and tubulin) was unchanged, while T. gondii bradyzoite genes (BAG1, LDH2, and MAG1) were upregulated (see Table S1 in the supplemental material). We validated our preliminary data from the transcriptome scan with reverse transcription-quantitative PCR (RT-qPCR) of a collection of catecholamine biosynthesis and metabolism genes. The norepinephrine biosynthetic pathway is shown in Fig. 2A. The only gene altered in expression in this set was downregulation of DBH (Fig. 2B). Although expression of the phenylalanine hydroxylase gene (PAH) appears reduced, this reduction was not significant (P = 0.06). Levels of mRNA for tyrosine hydroxylase, dopamine decarboxylase, monoamine oxidase A, and dopamine receptors D1 and D2 were unchanged with infection. The lack of change in rat tyrosine hydroxylase and dopamine decarboxylase gene expression with T. gondii infection corresponds with previously published data (9). Hence, DBH expression was specifically downregulated in infected cells. This might not have been identified in transcriptomic studies published of whole infected brain tissue, which principally identified changes in expression of host immune response genes with the mixture of cell types in the brain (27, 28). A recent transcriptomic study by Ngô et al. (73) identified differentially expressed genes after only 18 h of infection (i.e., during vegetative replication stages) in neural stem cells that expressed a range of markers for structural proteins found among different types of neurons and astrocytes. Hence, those results are difficult to compare with our approach using neuronal cells that are fully functional in synthesis and release (with potassium activation) of DA and NE to investigate changes in expression of neuronal genes.

FIG 2.

Norepinephrine biosynthesis in catecholaminergic cells with T. gondii infection. (A) Dopamine and norepinephrine biosynthetic pathway showing synthesis from tyrosine. DBH, dopamine β-hydroxylase; AADC, aromatic amino acid decarboxylase (also DDC); TH, tyrosine hydroxylase. Reactions in which dopamine and/or norepinephrine are bound (e.g., dopamine receptor D1 [DRD1], dopamine receptor D2 [DRD2]) or degraded (e.g., monoamine oxidase A [MaoA]) are not included in this schematic. (B) Expression of the set of catecholaminergic genes during infection (black) or without infection (gray). Only DBH gene expression was significantly altered by infection (n = 3 biological replicates with triplicate readings; ***, P = 0.008). PAH, phenylalanine hydroxylase. Error bars are ±SEM. (C) Dopamine β-hydroxylase mRNA levels during a time course of infection (black) relative to levels for uninfected (gray) PC12 catecholaminergic cells and a rat housekeeping gene. ***, P = 0.0046, n = 3 biological replicates. (D) Plot of the level of DBH mRNA in human BE(2)-M17 neuronal cells over a time course of infection relative to human GAPDH, showing that T. gondii induces DBH downregulation in rat and human neuronal cells. **, P = 0.0010; ***, P = 0.00032; n = 3 biological replicates.

The change in DBH mRNA levels was observed over a time course of infection. Parasites were shocked with alkaline conditions in these (as described in Materials and Methods) and the above-described experiments to trigger bradyzoite differentiation. DBH gene expression decreased after 3 days of infection and further after 5 days in PC12 cells (30- ± 2-fold) relative to rat GAPDH (P = 0.0046) (Fig. 2C). Microscopic analysis verified the maintenance of cell numbers and viability during the time course experiments. The level of DBH mRNA in uninfected PC12 cells was unchanged over the course of the experiment (P = 0.58 by one-way analysis of variance [ANOVA]).

To examine whether the silencing of DBH expression is a general response to T. gondii infection, we investigated the effect of infection on a human neuronal cell line. The BE(2)-M17 cell line was derived from a human neuroblastoma and possesses catecholaminergic properties and neuritic processes. These cells were infected with Prugniaud strain T. gondii in a fashion similar to that for the PC12 cells, and samples were taken after 3 and 5 days of infection. Expression of the DBH gene was downregulated 5.7- ± 1.1-fold by day 3 of infection (P = 0.00032) and 17- ± 1.4-fold by day 5 of infection (P = 0.0010) (Fig. 2D) relative to a housekeeping gene. DBH levels were consistent in uninfected BE(2)-M17 cells throughout the experiment (P = 0.97 by one-way ANOVA). We also found downregulation of DBH in BE(2)-M17 cells infected with the T. gondii ME49 strain (Fig. S1).

DBH is the key link between NE and DA, as DBH metabolizes DA into NE. Decreased DBH will decrease synthesis of NE and simultaneously increase levels of the precursor DA. Suppression of DBH by downregulated expression of its gene provides a mechanistic explanation for the observed increase in DA in infected PC12 cells described above (Fig. 1C and D), coincident with decreased levels of NE. DA was not significantly increased in infected rat brains (Fig. 1B), as might have been expected with the disproportionately smaller number of noradrenergic than dopaminergic neurons.

Dopamine β-hydroxylase expression is downregulated in the brain with infection.

We examined whether the downregulation of DBH gene expression in neuronal cells was detectable during in vivo infection. DBH mRNA was quantified in the brains of chronically infected male rats. Gene expression was downregulated in infected animals by a median of 32 ± 2.1-fold relative to uninfected animals (Fig. 3A) (P = 0.0023). We examined the relationship between the intensity of brain infection and DBH expression. A strong negative correlation was observed in infected animals between DBH mRNA and cyst density (tissue cysts can contain thousands of bradyzoites), with a correlation coefficient of −0.90 (Table 1). The coefficient of determination (R²) of 0.82 is a good fit for the linear regression.

FIG 3.

Infection downregulates dopamine β-hydroxylase gene expression in the brain. (A) DBH gene expression in the brains of uninfected (gray) and chronically infected (black) male rats plotted relative to GAPDH (P = 0.0023; n = 4 uninfected and 5 infected animals). (B) Brain region-specific DBH gene expression in uninfected and infected rats in the prefrontal cortex (PFC) (P = 0.0034), midbrain, and pons/locus coeruleus (LC) (P = 0.012). Error bars are ±SEM. n = 4 uninfected and infected animals. (C) Plot showing expression of the neuronal MAP2 gene (as a percentage of GAPDH) in uninfected (gray) and chronically infected (black) brains for the animals shown in panel A (P = 0.57).

TABLE 1.

Sex-specific effect of chronic T. gondii infection on DBH levels^a

Status	Gender	DBH (ΔΔCT)	ESR (ΔΔCT)	P value for DBH (uninfected versus infected) and correlation coefficient (r)
Uninfected	M	−1	NA	P = 0.0023 and r = 0.91 for DBH and cyst number
Uninfected	M	−0.5	NA
Uninfected	M	−0.72	NA
Uninfected	M	−0.14	NA
Infected	M	−7.4	NA
Infected	M	−4.7	NA
Infected	M	−3	NA
Infected	M	−3	NA
Infected	M	−7.2	NA
Uninfected	F	3.6	3	P = 0.45 and r = 0.17 for DBH and cyst number; r = 0.86 for DBH and ESR
Uninfected	F	−5.6	−1.5
Uninfected	F	1.9	−1.4
Infected	F	3.8	0.35
Infected	F	−2.7	0.13
Infected	F	−1.7	−3.2
Infected	F	−1.6	−0.35
Infected	F	−13	−10

^aM, male; F, female; NA, not applicable; C_T, threshold cycle.

DBH is expressed in noradrenergic neurons in the CNS, principally in the locus coeruleus (LC), with efferents extending to most brain regions. Therefore, we examined DBH gene expression in different brain regions in infected animals. DBH mRNA levels were lower (P values of 0.0034 and 0.012, respectively) in the frontal lobe (prefrontal cortex; PFC) and the dorsal region (containing the LC, cerebellum, pons, and surrounding tissue) in infected animals. DBH expression was unchanged in the midbrain region containing the hippocampus, thalamus, and hypothalamus (P = 0.93) (Fig. 3B). Hence, the posterior area and the PFC had 2.5-fold and 4.5-fold, respectively, lower DBH mRNA in infected rats.

One plausible alternative explanation for the decrease in NE in the infected rat brains is poor neuronal health or neuronal death. T. gondii can lyse neurons, and synaptic loss and neuronal dysfunction have been observed in infected mice (29). In this study, we found no difference in neurons between infected and uninfected rats based on quantification of a neuron-specific mRNA, that encoding microtubule-associated protein 2 (MAP2) (Fig. 3C) (P = 0.57).

Effect of sex on altered norepinephrine regulation with infection.

An intriguing observation during these studies was the finding that females did not exhibit the downregulation of DBH. We noted a large range of DBH mRNA levels in the brains of female animals as an anomaly that could mask an effect of infection. Indeed, infected females did not exhibit a measurably lower level of DBH (P = 0.45) (Fig. 4A), with infected females possessing higher and lower DBH mRNA levels than vehicle controls (Table 1). A similar finding was observed with infected mice in which CNS levels of DBH mRNA in males were significantly downregulated (P = 0.0032, n = 26), whereas the levels were unchanged in females (P = 0.85, n = 16) (Fig. S2).

FIG 4.

Dopamine β-hydroxylase expression was not suppressed in infected females. (A) Plot of DBH mRNA in the brains of uninfected (gray) and chronically infected (black) female rats (±SEM; n = 3 uninfected and 5 infected animals; P = 0.45). (B) Expression of estradiol receptor 1 (ESR1) gene in brains of the same female rats shown graphically (±SEM; P = 0.40). (C) Correlation of DBH versus ESR1 gene expression in the brains (Pearson’s correlation coefficient, 0.86).

We investigated the reasons for this difference. DBH gene expression is regulated by estrogen, with the estrogen receptor binding to ER-response elements (ERE) at the 5′ flanking region of the DBH gene and activating transcription (30, 31). Estrogen, estrogen receptor, and DBH mRNA levels fluctuate during the estrous cycle (32). Hence, we measured the levels of estrogen receptor 1 (ESR1) mRNA in the brains of the female rats used in this study.

A range of ESR1 levels was observed in the brains of the female rats, indicative of differences in their estrous cycle (Table 1). Expression of ESR1 was not altered by infection (Fig. 4B) (P = 0.40). ESR1 mRNA levels, however, strongly correlated with DBH mRNA (Fig. 4C), with a correlation coefficient of 0.86 (P = 0.0064), as expected (32). Together, the findings show that DBH expression correlated with ESR1 expression but not infection in females.

These findings provide a biological basis for previously observed sex-specific differences in the effect of T. gondii infection on mouse behavior and estrous dependence of aversive behaviors in female rats (33, 34).

Dopamine β-hydroxylase expression in cytomegalovirus-infected human neuronal cells.

To test whether DBH downregulation is a general response to chronic CNS infection or whether it is specific to T. gondii, changes in DBH gene expression in human neuronal cells infected with human cytomegalovirus (HCMV) were measured. DBH mRNA levels were not significantly changed over a time course of HCMV infection in BE(2)-M17 cells (P > 0.13), with a trend for increased expression at 48 h (Fig. 5A). At this point, HCMV is entering the late stages of viral replication (as indicated by the immediate-early [IE] UL123 gene expression shown in Fig. 5B), yet the data clearly show HCMV infection does not decrease DBH expression. In comparison, DBH gene expression was downregulated (relative to the control gene) in the same cells infected with T. gondii, with DBH expression decreasing over the time course of the experiment (Fig. 5C) and experiencing a small increase in T. gondii (Fig. 5D). Hence, DBH downregulation is specific for T. gondii infection.

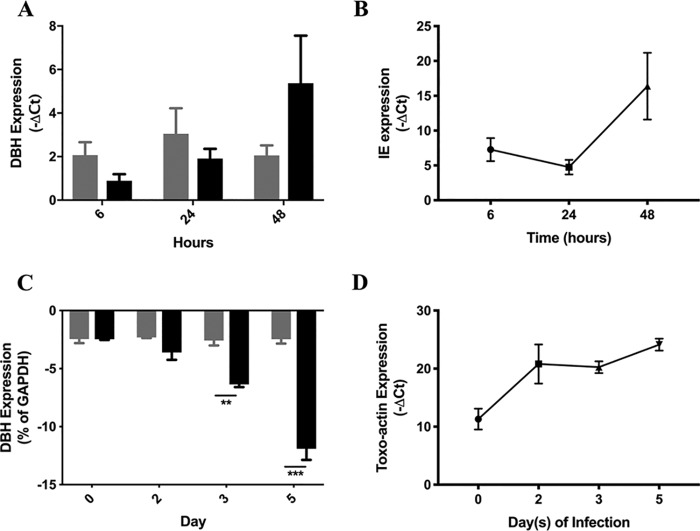

FIG 5.

Dopamine β-hydroxylase suppression is pathogen specific. (A) Plot of DBH gene expression over a time course of 48 h. Uninfected (gray) and human cytomegalovirus-infected (black) human BE(2)-M17 neuronal cell line, shown as a percentage of the housekeeping gene; n = 2 biological repeats of triplicate measures. (B) Accumulation of HCMV UL123 IE as percent gene expression (normalized to GAPDH) over a time course. (C) Plot shows DBH expression over a similar time course for uninfected (gray) and T. gondii-infected (black) human neuronal cells as a percentage of the housekeeping gene. **, P = 0.0015; ***, P = 0.0012; n = 3 biological repeats with triplicate measures; error bars indicate SEM. (D) The intensity of T. gondii infection over the time course based on levels of T. gondii actin plotted as a percentage of host GAPDH.

Suppressed dopamine β-hydroxylase alters norepinephrine-linked behaviors.

A decrease in CNS NE, as observed with T. gondii infection (Fig. 1A), may have specific effects on behavior. Arousal and sociability are associated with CNS noradrenergic signaling (35, 36). Rodents with NE deficiency exhibit lower arousal and increased sociability.

Arousal is measured as a response to evoked or elicited activity and has been quantified in rodents by locomotion in a novel environment, such as an open field, at early time points in the experiment (37). Locomotion was recorded over 1-min intervals for the initial 5 min for chronically infected and uninfected mice in an open field apparatus and then over 5-min intervals to 15 min. The mice were individually removed from the home cage, placed in the center of the open field, and allowed to settle for 60 s (0 to 60 s), while the experimenter withdrew from the apparatus before readings were taken. T. gondii-infected mice exhibited decreased locomotor activity in the open field at early time points but not at later times (Fig. 6). The distance travelled by uninfected mice was one-and-a-half times that of infected animals in the 60- to 120-s (P < 0.0001) and 120- to 180-s (P < 0.0015) intervals. Representative tracking of uninfected and control mice illustrates the decreased locomotor activity during early time points (Fig. 6C). Additionally, the tracking shown illustrates the loss of fear of open spaces found in prior studies of T. gondii-infected rodents (38). In contrast to data for early time points, infected and control groups showed similar levels of activity in the open field after 180 s. In the 5-min intervals between 5 and 15 min, ambulation was not different, matching prior studies of locomotion in T. gondii-infected rodents monitored over longer periods (circa 30 min) (38–40). Changes in initial behavioral response or arousal would not have been observed in these earlier studies that did report mobility in 1-min intervals. The DBH mRNA levels in the mice exhibited a correlation with early locomotor activity (Fig. S3). Published studies of Dbh^−/− knockout mice have described attenuated arousal and decreased locomotion, similar to that observed here, in ambulation in an open field at early time points (35, 36).

FIG 6.

Locomotion and anxiety-related behaviors are altered in infected animals. (A) Mean ambulation of uninfected (gray) and infected (black) mice in the open field at single-minute time points. **, P = 0.0015; ***, P = 0.000097; n = 24 uninfected and 27 infected mice. (B) Graph of distance moved for each mouse over the 15-min time course of the experiment plotted as a box plot, with whiskers representing minimum and maximum at single-minute time points followed by 5-min time points. **, P = 0.0015; ***, P = 0.000097. (C) Tracking in the open field for representative uninfected (top) and infected (bottom) mice from 0 to 180 s in the trial.

Cerebral NE levels have been associated with social interest and male aggression (22). Aggressive behavior is decreased and social memory altered in Dbh^−/− knockout mice (35). In this study, the three-chambered social approach test was used to measure sociability in uninfected and T. gondii-infected mice. This test is a well-established, sensitive model for measuring social interactions in mouse models of autism (41). In the first phase of the social approach test, which measures sociability, preference for exploring a cylinder containing an unfamiliar mouse rather than an empty cylinder was measured (42). Chronically infected mice explored the novel mouse for nearly one-and-a-half times longer than the uninfected mice (Fig. S4). Infection has previously been associated with social interaction, with T. gondii-infected rats exhibiting a longer duration of social interaction than controls (43). In phase 2 of the social approach test, which measures preference for social novelty, mice encountered the Stranger 1 mouse (the now-familiar mouse) as well as a novel mouse (Stranger 2) in the formerly empty cylinder. Both uninfected and infected mice investigated the novel stranger, but the infected mice investigated for a time period 1.5 times longer (P = 0.025), with a correlation, albeit weak, with DBH mRNA levels (Fig. S4).

DISCUSSION

In contrast to prior studies of the effect of T. gondii on neurotransmission in neurons, this study identified DBH gene regulation as the mechanism responsible for observed changes in norepinephrine and, in vitro, DA (9, 12–14, 19). Changes in GABA and glutamate metabolism in the CNS of chronically infected animals have previously been observed, with the distribution of the GABA-associated protein GAD67 altered (44) and GLT-1 expression in astrocytes reduced to half (45). The change in DBH expression observed in this study may provide a mechanism to explain, at least in part, diverse observations of CNS catecholamines with infection and behaviors associated with infection. In this study, downregulation of DBH was observed in the brains of T. gondii-infected males but not females (Fig. 3 and 4). In females, DBH expression correlated with estrogen levels regardless of infection status (Fig. 4). Sex-specific downregulation of DBH may provide some insight into sex differences in behavioral changes with infection.

The downregulation of DBH expression provides an explanation for the observed decreases in NE in infected brains without a significant increase in DA in brain tissue observed in this and some prior studies (Fig. 1). This observation is not surprising given the small proportion of noradrenergic relative to dopaminergic neurons in the brain. Combined with the more severe pathology of T. gondii infection in mice with dysfunctional neurons, the small proportion of noradrenergic neurons provides a possible explanation for why this and other studies did not detect changes in total brain DA levels with infection (12, 16, 24, 29, 46). In vitro, the downregulation of DBH found in this study can account, at least in part, for increased DA levels observed in infected PC12 cells observed in earlier studies (9, 19). In those studies, the amount of DA increased with infection while levels of the enzymes in synthesis, tyrosine hydroxylase and dopa decarboxylase (involved in dopamine synthesis), were unchanged, although dopa decarboxylase could be detected in the parasitophorous vacuole. T. gondii contains two paralogous genes that encode an aromatic amino acid hydroxylase (TgAAAH), with tyrosine and phenylalanine hydroxylase activities, that is secreted from the parasites into the parasitophorous vacuole (47). The gene products have been found to be involved in oocyst development, as proposed at their original discovery (47, 48). The effects of disruption of one of the two paralogs on catecholamine neurotransmission remain inconclusive; hence, collaborative experiments using the recently developed double knockout mutants lacking both genes are ongoing (48).

Noradrenergic neurons are principally located in the locus coeruleus (LC) in the brain and project to the thalamus, hippocampus, and the frontal and entorhinal cortices (49); efferent noradrenergic neurons originating in the LC were recently found to release DA in the dorsal hippocampus, thereby modulating a wide range of behaviors (50, 51). T. gondii cysts have been observed in these brain regions (52, 53). In this study, changes were observed in noradrenaline-related behaviors of arousal and social interactions (Fig. 6; see also the supplemental material). Previously, downregulation of the noradrenergic system has been observed to change social behavior, with Dbh^−/− knockout mice displaying increased sociability with lower aggression and social memory as well as reduced anxiety (35). Chronic T. gondii infection has also been found to impair long-term fear memory, a process that NE enhances (12, 54). Although one could attempt to reverse the parasite-induced effects on noradrenaline-related behaviors with noradrenergic inhibitors, antipsychotic drugs have antiparasitic effects (24, 55, 56), and l-threo-3,4-dihydroxyphenylserine cannot be used because dopa decarboxylase, required for activation, is altered by T. gondii infection (9, 57).

There is a link between NE levels, T. gondii infection, and movement and coordination of the host. Both Dbh^−/− knockout in mice and noradrenergic neuron loss in the LC (in rats) lead to motor impairments and development of dyskinesia (58, 59). Further, mice lacking NE are susceptible to seizures (60, 61). Chronic infection with T. gondii in mice has also been associated with coordination difficulties (62), and loss of coordination is a common symptom of human toxoplasmosis. Severe toxoplasmosis can cause seizures, with documented cases of patients exhibiting Parkinsonian traits, such as bradykinesia (63, 64). Effects of altered GABA metabolism with T. gondii infection (observed in an earlier study) in promoting seizures would be compounded by a lack of anticonvulsant effect promulgated by NE (44).

DBH gene expression correlated with the intensity of infection, but the small number of neurons that are infected in vivo is difficult to reconcile with the large decrease in DBH expression (65). This global effect during in vivo infection is similar to that observed for GAD67 (glutamic acid decarboxylase) distribution in the brains of T. gondii-infected mice (44). The neuroimmune response may be involved, although DBH was downregulated in infected PC12 cells in vitro. Global changes could be mediated by injection of parasite proteins into cells without infecting the cells, as has been observed with neurons in infected mice (7, 66). The mechanism responsible for the global changes is the subject of ongoing studies.

In summary, infection of the CNS influences brain neurophysiology with T. gondii infection, decreasing NE levels through downregulating DBH gene expression. The regulation of DBH by estrogen may explain sex-specific effects of infection, as indeed DBH was not downregulated in infected females. Downregulation of DBH, while suppressing NE, can elevate DA in the same neurons. The consequential effects on neurological signaling of these alterations will be the subject of future studies, as they depend upon the location of the noradrenergic neurons and dopamine receptors. The mechanism(s) whereby the parasite downregulates DBH expression needs clarification. This may be via a parasite mechanism similar to that of T. gondii ROP18 altering JAK/STAT signaling pathways or via the regulation of vasopressin receptor by epigenetic changes (67, 68). The neurophysiological changes observed may provide insights into the mechanisms responsible for behavioral effects of T. gondii infection (69).

MATERIALS AND METHODS

Ethics.

All procedures were approved by the University of Leeds Animal Ethical and Welfare Review Board and performed under United Kingdom Home Office Project and Personal Licenses, in accordance with the Animals (Scientific Procedures) Act, 1986. Rat brain sections were from infections conducted at the School of Public Health, Imperial College London (ICL), and procedures were approved by the ICL Animal Care and Use Committee and followed the same Home Office, HSE, regulations and guidelines. Considerations of replacement, reduction, and refinement were taken in the use of animals for research.

Rodent and rodent infections.

The (BALB/cAnNCrl x C57BL/6NCrl)F₁ mice used in this study were bred by crossing C57BL/6NCrl males to BALB/cAnNCrl females (Charles River Laboratories). The C57BL/6 inbred strain has been used as the genetic background in prior behavioral studies of Dbh^−/− knockout mice, while the BALC/c inbred strain possesses genetic resistance to control T. gondii brain infection and develops a latent chronic infection (22). In pilot studies, purebred C57BL/6NCrl mice infected with T. gondii showed severe toxoplasmic encephalitis.

Mice were housed five of the same sex per cage, with ad libitum access to food pellets and water. Mice were checked for health changes daily, and their weight was measured weekly. Any mouse showing severe illness or significant weight loss (25%) was promptly culled. Mice were grouped according to treatment. Mice were infected by intraperitoneal (i.p.) injection with T. gondii type II strain Prugniaud in sterile phosphate-buffered saline (PBS) at 6 to 14 weeks of age. Infection was monitored by the direct agglutination test (bioMérieux) to detect Toxoplasma antibodies, by following the manufacturer’s instructions, in sera from collected blood samples. Brains were harvested from euthanized animals and snap-frozen. Cryosectioned slices were used for RNA isolation as described for rats below.

Rat samples were from Lister Hooded rats (Harlan UK Ltd.), males and females housed separately and provided food and water ad libitum, that were infected at approximately 3 months of age via i.p. injection of 1 × 10⁶ tachyzoites in sterile PBS. Uninfected control rats were i.p. injected with sterile PBS and sacrificed 5 to 6 months postinfection, with brains quick-frozen for cryosectioning. Sagittal slices were processed for RNA by dissolution with TRIzol (Thermo Fisher) for processing by following the manufacturer’s instructions.

Growth of pathogens and cultured cells.

The T. gondii Prugniaud strain was maintained in human foreskin fibroblast cell line Hs27 (ECACC 94041901) as previously described (47). Rat adrenal pheochromocytoma (PC12) cells (kind gift from C. Peers; ECACC 88022401) were maintained in RPMI medium (Invitrogen, Paisley, UK) supplemented with 10% horse serum (Invitrogen), 5% fetal bovine serum (FBS; Invitrogen), and 100 U/ml penicillin-streptomycin (Sigma, Poole, UK). PC12 cells were passaged by triturating, centrifuging at 800 rpm for 10 min in a benchtop centrifuge, resuspending in fresh media, and incubating at 37°C in an atmosphere of 5% CO₂. The BE(2)-M17 cells (kind gift from R. Wade-Martins, Oxford University) were maintained in a 1:1 ratio of F12 Hams to Opti-MEM (GIBCO, USA) medium supplemented with 10% horse serum (GIBCO, USA), 5% FBS (GIBCO, USA), and 100 U/ml penicillin-streptomycin (Sigma, USA) and incubated in 5% CO₂ at 37°C.

For the induction of parasite conversion to bradyzoite forms, free released tachyzoites were incubated at 37°C in RPMI supplemented with 1% FBS (pH 8.2) for 16 to 18 h in ambient air and then diluted with Dulbecco’s modified Eagle’s medium (Invitrogen), isolated by centrifugation, and suspended in RPMI (pH 7.4) containing horse serum, FBS, and penicillin-streptomycin, as previously described (19). This method was developed because catecholamine-producing cells were found to be sensitive to pH changes, severely reducing their production of catecholamines. The parasite number was determined by microscopy, and an equal number of treated tachyzoites to cells was used for infections unless otherwise stated. The viability and differentiation of parasites in PC12 and BE(2)-M17 cultures were monitored by RT-qPCR (as described below) with T. gondii gene markers for GAPDH, tachyzoites (SAG1), and bradyzoites (SAG4 and BAG1) (see Fig. S5 in the supplemental material).

For HCMV studies, cells were infected with wild-type Merlin HCMV strain for 1 h and then washed and incubated with fresh media. RNA was harvested at the times shown. Cells were confirmed to be permissive for HCMV by IE antigen staining, which demonstrated susceptibility to infection similar to that of the neuronal cell line U-373, an established permissive HCMV cell line.

Transcriptome analysis.

A transcriptome screen was conducted to identifiy genes that are potentially differentially expressed with infection. PC12 cells were cultured in poly-d-lysine-coated 6-well plates (Sigma). Following 24 h of incubation, 6 × 10⁴ cells were changed to medium with 1% horse serum, 0.5% FBS. After a further 24 h, 100 ng/ml of nerve growth factor (NGF; Sigma) was added. The addition of NGF was repeated once every 24 h throughout the length of the experiment. Control experiments found no effect of NGF on growth or bradyzoite conversion of T. gondii (data not shown). After 72 h from the initial addition of NGF, dendritic extensions were visible from differentiated cells. At this point, induced Prugniaud tachyzoites were transferred to each well, maintaining a parasite density of 2.5 × 10⁴ cells/ml. Cells were harvested immediately following infection (day 0) and after 3 and 6 days of infection for RNA extraction. The cultures were monitored daily by light microscopy. At day 6 of infection, the parasitemia level was 60% to 70%, with little observable cell lysis (data not shown).

Cells were detached from the surfaces by manual removal with a scraper, and several parallel biological repeats were pooled. The suspended cells were pelleted by centrifugation at 800 × g for 10 min and lysed with TRI Reagent solution (Invitrogen), followed by centrifugation at 12,000 × g for 10 min at 4°C. RNA was purified by following the manufacturer’s instructions. RNA samples were stored at −80°C. mRNA was enriched using a Poly(A)Purist MAG kit (Ambion), followed by further enrichment using RiboMinus (Ambion), by following the manufacturer’s instructions. After quality control analysis using a Bioanalyzer (Agilent), cDNA libraries were prepared from RNA using the Epicentre ScriptSeq v2 RNA-Seq library preparation kit and sequenced using the Illumina HiSeq 2000 at the University of Liverpool Centre for Genomic Research. Two libraries for each pool of biological repeats of infected and uninfected cells at the three time points were sequenced. RNA sequencing generated 353 million paired-end reads, with a total of 26,405 Rattus norvegicus genes identified.

The Illumina reads from the RNA sequencing were separately mapped to Rattus norvegicus and Toxoplasma gondii reference genomes using TopHat 2.0.8b (70). Differential expression analyses were performed using the edgeR package, version 3.0.4 (71), for the reads aligned to the rat genome. The reads that aligned with the T. gondii genome were analyzed for bradyzoite markers (Table S1). A gene was considered differentially expressed (DE) if the fold change was greater than two [−1 > log₂(fold change) > 1] and the false discovery rate was <0.01 (maximum false-positive genes are 1% of the genes). The resultant 488 genes form a set of DE genes that exhibit down- or upregulation. The enriched GO (biological process) and KEGG pathway terms for up- and downregulated gene sets were computed using DAVID and are tabulated in Table S2 (72).

Reverse transcriptase PCR and qPCR.

For RT-qPCR assays, cultures of 2.5 × 10⁴ PC12 or BE(2)-M17 cells in multiwell plates were infected with induced T. gondii tachyzoites. Cells were recovered by centrifugation, and the cell pellet was frozen (−80°C) for RNA extraction and high-performance liquid chromatography-electrochemical detection (HPLC-ED) analysis.

RNA was purified using Direct-Zol (Zymo) and reverse transcribed to cDNA using a Maxima first-strand cDNA synthesis kit (Thermo Fisher) by following the manufacturer’s instructions. RT-qPCR was performed on RNA, as described previously, using SYBR green real-time PCR master mix (Thermo Fisher) using rat GAPDH primers (Qiagen), DDC primers 5′-CGGAGAAGAGGGAAGGAGATGGT-3′ and 5′-GCCGTGGGGAAGTAAGCGAAG-3′, TH primers 5′-CCCAAAGTCTCCATCCCCTTC-3′ and 5′-GGTTGAGAAGCAGTGTTGGGA-3′, MoaA primers 5′-GTGTGGGAGGCAGGACTTAC-3′ and 5′-CTGGCGAATCACCCTTCC-3′, PAH primers 5′-CTGGGGAACGGTGTTCAGGA-3′ and 5′-TCTTCACGGAAACCGCAGTA-3′, DRD1 primers 5′-CAAGTCCCCGGAAGTGTG-3′ and 5′-CAGGTGTCGAAACCGGATG-3′, DBH primers 5′-CCACAATCCGGAATATA-3′ and 5′-GATGCCTGCCTCATTGGG-3′, and ESR1 primers 5′-CTACGCTGTACGCGACAC-3′ and 5′-CCATTCTGGCGTCGATTG-3′.

HPLC for monoamines.

The catecholamines DA and NE were measured by HPLC-ED, adapting a previously published method (19). Briefly, cultures were harvested by scraping cells and recovered by centrifugation, and an aliquot was taken for cell counting and normalization. The remaining cells were recovered again and resuspended in 350 µl of perchloric acid, followed by sonication. The mixture was centrifuged at 14,000 rpm for 15 min at 4°C to remove particulates, and an aliquot was taken for HPLC analysis. NE was detected at 4.5 min and DA at 8 min (flow rate, 0.4 ml/min) by HPLC-ED on a Dionex UltiMate 3000 system (Thermo Fisher).

Mouse behavioral testing.

After establishment of chronic infection (4 to 5 weeks), mice were tested in a battery of behavioral tests in the following order, with an interval of 2 days between each test: open field, marble burying, and social approach. Prior to testing, mice were habituated to handling for 5 min per day for 7 days. Ethanol (70%) was used to clean the arena between mice. The arena was left to dry for 3 to 4 min before commencing with the next subject.

Open field test.

The open field arena had an internal diameter of 40 by 40 cm with a semitransparent Perspex wall. The arena floor was white plastic. To prevent the mice from seeing the surrounding room, a cylinder of white card was placed around the arena 30 cm away from its walls. The ambulation of the mice was recorded using a tripod-mounted webcam above the center of the arena.

Mice were individually placed at the center of the arena facing the same wall. Readings began after the initial 60 s because of disturbances involved in the experimenter removing mice from their cages, placing them in the open field, and withdrawing to a computer to manually start the recording. Distance travelled was then recorded for 14 min, without interruptions or intervals, using AnyMaze tracking software (Stoelting Co.).

Social approach.

Sociability was assessed using a three-chambered arena (60 by 40 cm) that had two openings (7 by 8 cm) to allow the mouse access to the left and right chambers from the central chamber (each chamber measured 40 by 20 cm). The test involved using two unfamiliar mice that had been habituated to stainless steel cylinders (width, 10 cm; height, 10.5 cm) prior to the test. The cylinders were made of vertical metal bars separated by 9 mm, which allowed air exchange and increased the possibility of contact between the test and stranger mice.

Following a previously published protocol (41), a test mouse was placed into the central chamber of the three-chambered arena. The habituation stage was carried out for 15 min; at the end of this time, the openings to the side chambers were blocked by guillotine doors. A cylinder was placed in both the right and the left chamber. A stranger mouse (Stranger 1, a young male C57BL/6NCrl) was placed in the cylinder in either the left or right chamber (balanced between treatment groups). Following this, the doors were removed and phase 1 was initiated, lasting 10 min.

Social approach was scored when the test mouse’s nose poked through the bars of either the cylinder containing Stranger 1 or the empty cylinder. At the end of phase 1, the test mouse was placed in the central chamber and the doors were shut. A new, unfamiliar mouse (Stranger 2) was placed in the formerly empty cylinder. At this point, phase 2 was initiated, again lasting for 10 min. Social approach was scored when the test mouse’s nose poked through the bars of either the cylinder containing stranger 1 or the cylinder containing stranger 2. The cylinders and floor were then wiped clean with 70% ethanol. The experimenter wore nitrile gloves throughout the procedure.

Statistical analysis.

GraphPad Prism (version 7) was used for statistical analyses. Unless otherwise stated, data sets were compared using Student’s t test with P values calculated. All data are plotted as means ± standard errors of the means (SEM).
