Abstract
Allergic asthma is one of the most common allergic diseases; however, the mechanisms underlying its development have yet to be fully elucidated. Although allergic diseases are inheritable, genetic variance alone cannot explain the notable increase in the prevalence of allergic diseases over a short period of time in recent decades. Recently, research focus has been shifting to epigenetic factors, such as non-coding RNAs. Circular RNAs (circRNAs) are involved in the pathogenesis of various diseases. The aim of the present study was to further elucidate the etiology of allergic asthma by analyzing aberrantly expressed circRNAs in a murine asthma model. A mouse model of house dust mite allergen-induced asthma was established, and the qualified libraries were sequenced using next-generation sequencing. The expression levels of circRNAs were validated by reverse transcription-quantitative PCR (RT-qPCR) analysis. Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses were performed for biological pathway classification and enrichment analysis of the aberrantly expressed circRNAs. In addition, the interaction network of the differentially expressed circRNAs and microRNAs (miRNAs) was constructed using Cytoscape. By next-generation sequencing, a total of 150 circRNAs were revealed to be upregulated and 130 were downregulated in the murine asthma model group compared with in the control group. GO and KEGG analyses demonstrated that the differentially expressed circRNAs were mainly involved in processes such as ‘autoimmune disease’, ‘cell adhesion molecules (CAMs)’ and ‘endocytosis’, among others. The expression levels of six circRNAs, namely three upregulated (circ_0000909, circ_0000629 and circ_0000455) and three downregulated (circ_0001454, circ_0000723 and circ_0001389) circRNAs, were validated by RT-qPCR. In conclusion, the analyses suggested that circRNAs performed critical functions via endocytosis (such as macrophage endocytosis), cell adhesion molecules and lipid metabolism in allergic asthma. The interaction network revealed that certain miRNAs that may serve a role in asthma could be regulated by the differentially expressed circRNAs.
Keywords: asthma, allergy, house dust mites, circular RNAs, expression profile
Introduction
Allergic diseases, including asthma, affect 30–40% of the global population (1). The symptoms of allergic diseases range from local mild reactions to severe anaphylaxis. A polarized T helper type 2 (Th2) immune response and degranulation of mast cells are characteristic in allergic diseases (2,3). Despite the fact that the exact mechanisms underlying these diseases have been extensively investigated, they remain to be fully elucidated. Although allergic diseases, such as asthma, are inheritable (4), accumulating evidence has indicated that epigenetic factors, such as non-coding RNAs [e.g., microRNAs (miRNAs/miRs), long non-coding RNAs (lncRNAs) or circular RNAs (circRNAs)] may have a role in these diseases (5,6). Alterations in the expression of several miRNAs have been reported to be associated with the development of allergic diseases. In allergic inflammation, miR-155 was revealed to be significantly upregulated (7,8); it targeted the cytotoxic T-lymphocyte-associated protein 4 mRNA in patients with atopic dermatitis and protected group 2 innate lymphoid cells from apoptosis, thereby promoting type 2 immunity. Furthermore, inhibition of miR-155 resulted in dampened expression of the Th2 cytokines, interleukin (IL)-5 and IL-13 (9). Abnormal lncRNA expression has also been observed in allergies. Zhang et al (10) profiled human CD4+ T-cell subsets and identified a Th2-specific lncRNA, GATA3-AS1. Notably, peripheral blood mononuclear cells and CD4+ T-cell clones stimulated by an allergic challenge displayed increased expression levels of GATA3-AS1.
circRNAs are single-stranded, highly conserved RNAs that take the form of a covalently closed continuous loop (11). circRNAs are involved in the pathogenesis of various diseases (12). Notably, circRNAs have been reported to act as miRNA sponges through multiple miRNA response elements, modulating the expression of parental genes (13). For example, circHIPK3 has been shown to bind to miR-558, resulting in upregulation of its target protein heparanase, thus suppressing metastasis and angiogenesis of bladder cancer (14). Recently, certain circRNAs have been demonstrated to encode peptides (15). However, the functions of circRNAs in allergic diseases remain unclear. In the present study, the expression levels of aberrantly expressed circRNAs were profiled in a murine asthma model and their possible contributions were investigated, with the aim of providing novel insights into the etiology and pathogenesis of asthma.
Materials and methods
Mice
A total of six female BALB/c mice (age, 6–8 weeks; weight, 33±0.2 g) were purchased from Guangdong Medical Laboratory Animal Center and maintained under specific pathogen-free conditions in the animal facility of Shenzhen University (Shenzhen, China). A total of five mice were housed per cage in a laminar air flow cabinet, maintained at 23±2°C at a relative humidity of 55±5% with a 12 h dark/light cycle. All mice received a standard diet and water ad libitum. The experimental protocols of the present study were reviewed and approved by the Animal Care and Use Committee of Shenzhen University. The mice were divided into control (n=3, namely N1, N2 and N3) and asthma model groups (n=3, namely M1, M2 and M3).
Development of a murine asthma model
A house dust mite (HDM) allergen-induced asthma mouse model was established, as previously described (16), the method of mouse nose drops was changed to subcutaneous injection for the consistency of the sensitization process. Female BALB/c mice were sensitized subcutaneously with 20 µg crude Dermatophagoides farinae (HDM) extract (Greer Laboratories, Inc.) in 100 µl saline on days 0, 7 and 14, and were challenged intranasally with 20 µg HDM in 50 µl saline for 5 consecutive days from day 20 onwards. The control group only received treatment with PBS. Airway hyperresponsiveness (AHR) to inhaled methacholine was analyzed to evaluate changes in airway resistance in response to allergen exposure and challenge. On day 26, the mice were sacrificed using CO2 at flow rate of 20% volume/min (17), and murine lung tissues were dissected and analyzed for inflammation. Mice lung tissues were dissected and RNA was isolated for circRNA profiling. Bronchoalveolar lavage fluid (BALF) was harvested via lung tissue lavage with ice-cold PBS. The methods for differentiating BALF cells were previously described in detail (18). Sections from mouse lungs were fixed at room temperature for 12 min with 4% neutral buffered formalin, and were then stained with hematoxylin and eosin and periodic acid-Schiff. Blood was collected to screen for serum antibodies against HDM allergens.
Histopathological examination of lung tissue
The right middle lung of mice was harvested and fixed in 4% paraformaldehyde at room temperature for 24 h. After dehydration and paraffin embedding, glass slides were coated with 4-µm sections. Subsequently, the sections were stained with hematoxylin and eosin (cat. no. G1005; Servicebio, Inc.) for 5 min at room temperature and with periodic acid-Schiff reagent (cat. no. G1008; Servicebio, Inc.) for 10 min at room temperature. The lung tissue sections were examined at ×200 magnification using an optical microscope (DS-Ri2; Nikon Corporation).
Measurement of serum levels of HDM-specific IgE and IgG1
Blood samples (100 µl per mouse) from the retro orbital venous plexus were collected using a heparinized capillary after the mice were anesthetized by isoflurane (RWD Life Science), and stored at room temperature for 2 h. The samples were centrifuged (3,000 × g, 10 min, 4°C) to isolate the serum and stored at −80°C until further analysis. The serum levels of HDM-specific IgE and IgG1 were assayed using an ELISA kit (cat. no. DY008; R&D Systems, Inc.) according to the manufacturer's protocol. The 96-well ELISA plates were coated overnight at 4°C with 100 µl of a 4 µg/ml solution of HDM in carbonate-bicarbonate buffer (pH 9.6; Sigma-Aldrich; Merck KGaA). ELISA was performed using the dilutions of each serum samples, and the dilutions used were 1/4 for sIgE and 1/500 for sIgG1. ELISA was prepared using the Reagent diluent (cat. no. DY995; R&D Systems, Inc.) and Goat Anti-Mouse IgG1-horseradish peroxidase (HRP; 1:2,000; cat. no. 1071-05; Southern Biotech) or Goat Anti-Mouse IgE-HRP (1:2,000; cat. no. 1110-05; Southern Biotech). The other steps were performed following the manufacturer's instructions.
Flow cytometry
For detection of eosinophils, red blood cells were lysed using ammonium chloride lysis buffer (Sigma-Aldrich; Merck KGaA). Absolute counting beads (cat. no. C36950; Invitrogen; Thermo Fisher Scientific) were mixed with the BALF cells and assessed via flow cytometry. The numbers of BALF cells were calculated by comparing the ratio of beads events to cell events according to the manufacturer's protocol. The BALF cells were stained with antibodies against CD3-FITC (cat. no. 100203; Biolegend, Inc.), B220-FITC (cat. no. 103205, Biolegend, Inc.), CCR3-PE (cat. no. 144505; Biolegend, Inc.), CD11c-PerCP/Cyanine5.5 (cat. no. 117327; Biolegend, Inc.) and MHCII-APC (cat. no. 116417; BD Biosciences) for 30 min at 4°C. The cells were stained for neutrophils, mononuclear cells and lymphocytes (data not shown), and eosinophils using a CytoFLEX flow cytometer (Beckman Coulter, Inc.), and data collected were analyzed with FlowJo V10 software (FlowJo, LLC). Granulocytes were recognized as non-autofluorescent highly granular (SSChi) cells, and within this gate, eosinophils were defined as cells expressing the eotaxin receptor CCR3 and with low expression of MHCII, B220 and CD3. Neutrophils had a similar scatter profile as eosinophils but lacked CCR3 expression. Lymphocytes were identified as FSClo/SSClo and expressing CD3 or B220. Mononuclear cells expressed high levels of MHCII and CD11c.
Non-invasive measurement of airway function
Airway responsiveness was measured 24 h after the final exposure to HDM extract by recording respiratory pressure curves using barometric unrestrained whole-body plethysmography (Buxco; emka TECHNOLOGIES S.A.S) in response to inhaled methacholine (acetyl-β-methylcholine chloride; Sigma-Aldrich; Merck KGaA) in conscious unrestrained mice. Airway responsiveness was expressed as enhanced pause (Penh), as described previously (19). Briefly, mice were placed in a whole-body chamber and basal readings were obtained and averaged for a 3-min period. Subsequently, increasing doses of methacholine (0–100 mg/ml) were aerosolized for 3 min, and readings were taken and averaged for 3 min after each nebulization.
RNA extraction and library construction
Total RNA was extracted from the tissues using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's instructions. Total RNA was qualified and quantified using a NanoDrop (NanoDrop; Thermo Fisher Scientific, Inc.) and Agilent 2100 bioanalyzer (Agilent Technologies, Inc.). Subsequently, total RNA was treated with DNase I, which degraded double-stranded and single-stranded DNA. Ribosomal RNA was removed using the Ribo-off rRNA Depletion kit (Vazyme Biotech Co., Ltd.) and linear RNA was removed using RNase R (Epicentre; Illumina, Inc.). Purification was performed using Agencourt RNAClean XP magnetic beads (Invitrogen; Thermo Fisher Scientific, Inc.). All steps were performed according to the manufacturer's protocols. The distribution of the fragment sizes was determined using the Agilent 2100 bioanalyzer and quantitated using a BMG microplate reader (Omega Bio-Tek, Inc.). Finally, the libraries were sequenced on the BGISEQ-500 (BGI Group). Raw reads were filtered out for low quality, linker contamination and excessively high levels of unknown base N (SOAPnuke software v1.5.2; http://github.com/BGI-flexlab/SOAPnuke), and then clean reads were aligned to the reference genome (Mus_musculus, UCSC_mm9; ftp://hgdownload.soe.ucsc.edu/goldenPath/mm9/).
Differentially expressed circRNAs
circRNAs were detected and identified using CIRI (20,21) and Find_circ (22,23), and the results of the two types of software were integrated based on the circRNA start and stop positions (combining circRNAs with start and stop positions within the first and last 10 bases into one class). The expression of circRNAs was calculated based on the number of junction reads aligned to the two ends of the circRNA. Since two softwares, CIRI (BWA-MEM genome alignment algorithm) and Find_circ (Bowtie2 genome alignment algorithm), were used in the profiling, the final numbers of junction reads were the mean of the two results. Junction reads per billion mapped reads was used to homogenize each sample, and the EBseq (24) algorithm was used to detect differentially expressed circRNAs between control and model groups. The circRNAs included in circBase (25) were provided with corresponding ID numbers in the present study. circRNAs exhibiting fold changes ≥2.0 with P-values ≤0.05 were classified as significantly differentially expressed circRNAs. The differentially expressed genes (DEGs) obtained from all groups were analyzed by bidirectional clustering using the Pheatmap package (v1.0.12; rdocumentation.org/packages/pheatmap/versions/1.0.12) and presented as heatmaps.
Validation of differentially expressed circRNAs and mRNAs
Total RNA from lung tissues was extracted using TRIzol® reagent. Total RNA (1 µg) was treated with RNase R for circRNA RT-qPCR, or without RNase R for mRNA RT-qPCR, and first-strand cDNA was synthesized using the First Strand cDNA Synthesis kit for reverse transcription-quantitative PCR (RT-qPCR) analysis (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's instructions. First-strand cDNA was synthesized using 8 µl First Strand Synthesis Act D Mix and SuperScript II Reverse Transcriptase at 40°C for 1 h, 90°C for 5 min and 0°C for 5 min. qPCR was performed on an ABI ViiA7 real-time PCR detection system (Applied Biosystems; Thermo Fisher Scientific, Inc.) using QuantiFast SYBR Green PCR kit (Qiagen, Inc.). The PCR mixture was incubated under the following conditions: One cycle at 95°C for 2 min, followed by 40 cycles at 94°C for 10 sec, 60°C for 10 sec and 72°C for 40 sec, and a final extension step of 72°C for 5 min. Data were analyzed using the 2−ΔΔCq method (26) and expressed as fold change relative to untreated controls. The circRNA levels were normalized to the internal control gene GAPDH. Differentially expressed circRNAs were identified by unpaired two-tailed Student's t-test between two groups and fold change between two samples. All the reactions were assessed with three biological replicates. The primers were designed by ABI Primer Express Software v2.0 (Applied Biosystems; Thermo Fisher Scientific, Inc.) and synthesized by BGI Group. The primer sequences used in the present study are listed in Table I.
Table I.
Primers used in reverse transcription-quantitative PCR analysis.
Primer | Sequence (5′ to 3′) |
---|---|
mmu_circ_0000909 | Forward, GCTGAGGAAGTGGTGGATGA |
Reverse, TGTGATGAGTACGCGCATGT | |
mmu_circ_0000629 | Forward, TCTGTGGCAGGCTCTATGGC |
Reverse, GCTTTGCTCCCGAAACGACT | |
mmu_circ_0000455 | Forward, TAAGAAAATGCCTCGCACGA |
Reverse, GCAGGTTACAAAAGGCTGGC | |
mmu_circ_0001454 | Forward, GGCAACCACCGAAGCAGTAA |
Reverse, CAAGGCAGAGAGGTGGCAGA | |
mmu_circ_0000723 | Forward, CACCTCGAGTCACTGTCGCA |
Reverse, TCCCGGTTAATTCAGGAGCC | |
mmu_circ_0001389 | Forward, GGCATTGCAGAGGACCTCAA |
Reverse, AGGAGGACGCACTGCTTGTG | |
mmu_IL4 | Forward, GGTCTCAACCCCCAGCTAGT |
Reverse, GCCGATGATCTCTCTCAAGTGAT | |
mmu_IL5 | Forward, CTCTGTTGACAAGCAATGAGACG |
Reverse, TCTTCAGTATGTCTAGCCCCTG | |
mmu_IL13 | Forward, CCTGGCTCTTGCTTGCCTT |
Reverse, GGTCTTGTGTGATGTTGCTCA | |
mmu_GAPDH | Forward, AGGTCGGTGTGAACGGATTTG |
Reverse, TGTAGACCATGTAGTTGAGGTCA |
circ, circular RNA.
Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses
GO was divided into three major functional categories: Molecular function, cellular component and biological process. According to the results of the DEGs, the clusterProfiler package (version 3.5.0; bioconductor.org/packages/release/bioc/html/clusterProfiler.html) in R software (version 3.6.0; cran.r-project.org) was used for GO and KEGG pathway enrichment analysis Subsequently, the P-value underwent false discovery rate (FDR) correction for q-value, and the pathways with q≤0.01 were considered as being significantly enriched. The directed acyclic graph (DAG) was a graphical display of the GO enrichment analysis results of genes from different circRNA sources.
Construction of a circRNA regulatory network
The targeted associations between mouse miRNAs and circRNAs were predicted using the miRanda (27) algorithm. The circRNA-miRNA interaction network was visualized using Cytoscape 3.7.1 software (28).
Statistical analysis
Data are expressed as mean ± SEM. Statistical significance for normally distributed samples was assessed using an independent two-tailed Student's t-test or one-way ANOVA followed by the Bonferroni correction for multiple comparisons. All analyses were performed with GraphPad Prism 7 software (GraphPad Software, Inc.). P≤0.05 was considered to indicate a statistically significant difference.
Results
Establishment of an asthma model
A mouse model of asthma was established as aforementioned (Fig. 1A). Crude HDM challenge induced AHR (Fig. 1B), and increased titers of HDM-specific IgE and IgG1 (Fig. 1C). In addition, recruitment of inflammatory cells to the lungs was observed in response to HDM challenge, with dense bronchial cell infiltrates (Fig. 1D). Total and differential cell counts of BALF samples indicated an increased number of total inflammatory cells, with significant eosinophil recruitment to the lungs compared with that in the normal group (Fig. 1E). Lung tissue exposed to HDM also exhibited higher mRNA expression levels of IL-4, IL5 and IL-13 (Fig. 1F). These results indicated that HDM induced evident Th2 type pulmonary inflammation.
Figure 1.
Establishment of a mouse model of HDM allergen-induced asthma. (A) Protocol for the generation of a murine asthma model. (B) AHR to inhaled methacholine (6.25–100 mg/ml). (C) ELISA of HDM-specific IgE and IgG1 in mouse serum. (D) Lung tissue histopathology (magnification, ×200). Paraffin-embedded tissue sections of the lung tissue were stained with H&E (left panel) and PAS (right panel). (E) Gating strategies for the flow cytometric analysis of BALF cells of mice challenged with PBS (control, upper panel) and HDM (asthma, lower panel). Quantitation of BALF eosinophils counts as indicated by lower panel histogram. (F) Reverse transcription-quantitative PCR for mRNA expression levels of Th2 cytokines. Data are presented as mean ± SEM (n=3-5/group). *P<0.05, **P<0.01, ***P<0.001. HDM, house dust mite; AHR, airway hyperresponsiveness; H&E, hematoxylin and eosin; PAS, periodic acid-Schiff; BALF, bronchoalveolar lavage fluid.
circRNA expression profile
As aforementioned, circRNA sequencing libraries were constructed and sequenced. The total number of circRNAs annotated or unannotated in circBase identified in each sample is shown in Fig. 2A. The circRNA types (exonic, intronic and intergenic) of each sample are shown in Fig. 2B, and the types of circRNAs at each chromosome position in the two groups are shown in Fig. 2C. In total, 10,924 circRNAs were identified in the control group, whereas 9,412 circRNAs were detected in the asthma model group, among which 6,402 circRNAs were expressed in both groups (Fig. 2E). The box plot in Fig. 2F shows the distribution and dispersion of circRNA expression levels in each sample. Furthermore, the number of circRNAs distributed on each chromosome was examined and it was observed that the majority of circRNAs (82%) were derived from exons (Fig. 2D).
Figure 2.
Abundance and characteristics of circRNAs in mouse lung tissue. (A) Annotated and non-annotated histograms of circRNA numbers in circBase. N1, N2 and N3, control mice; M1, M2 and M3, asthmatic mice. Different colors indicate different types of circRNAs, and the numbers represent the number of circRNAs. (B) Histogram of circRNA types. (C) Distribution of the types of circRNAs according to chromosome position. (D) Percentage of circRNA types. (E) Venn diagram of circRNAs. (F) Box plot of circRNA expression. The samples are shown in different colors. The abundance of circRNAs (ranging from maximum, upper quartile, median, lower quartile to minimum) is shown from top to bottom. circRNA, circularRNA.
Analysis and validation of differentially expressed circRNAs
A total of 282 circRNAs that were significantly differentially expressed in the lung tissue between the control and asthma model groups were identified, among which 152 were upregulated (red spots) and 130 were downregulated (blue spots), as shown in the heatmap (Fig. 3A) and the volcano plot (Fig. 3B). To verify sequencing expression data, six differentially expressed circRNAs (according to the results of miRanda and the fold change of circRNAs expression), including three upregulated (circ_0000909, circ_0000629 and circ_0000455) and three downregulated (circ_0001454, circ_0000723 and circ_0001389) circRNAs were selected for RT-qPCR validation (Fig. 4A). The results revealed that the relative expression levels of circ_0000629 and circ_0000455 in the asthma group were significantly increased compared with those in the control group, whereas the expression levels of circ_0000454 and circ_0000723 were significantly decreased (Fig. 4B). These results confirmed that the four circRNAs were differentially expressed.

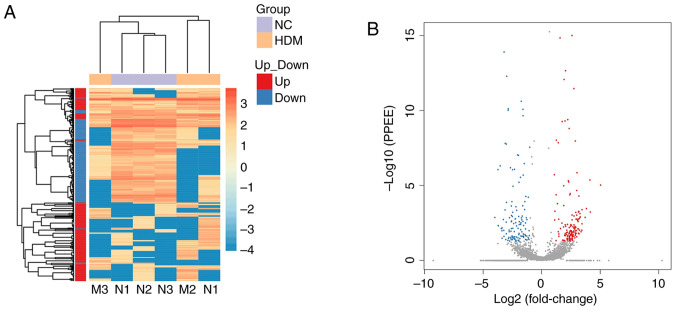

Figure 3.
Analysis and validation of differentially expressed circRNAs. (A) Heat map and (B) volcano plot of the circRNAs differentially expressed between the control and asthma model groups. Blue, decreased expression; red, increased expression (P<0.05). circRNA, circular RNA.
Figure 4.
Validation of differentially expressed circRNAs. (A) Expression of differentially expressed circRNAs was determined by circRNA sequencing. (B) Expression of differentially expressed circRNAs was determined using quantitative PCR (n=3/group). Data are presented as mean ± SEM (n=3-5/group). *P<0.05, **P<0.01. circRNA, circular RNA.
GO and KEGG pathway analyses of differentially expressed circRNAs
GO functional classification and enrichment analysis was conducted on genes derived from circRNAs. Deeper classification and enrichment analysis of the three major functions, namely biological process, cellular component and molecular function, was performed. The results of GO functional classification were shown in Fig. 5A. GO was a classification system of function of gene, whereas DAG was a graphical display of GO enrichment data. The DAG of biological processed was shown in Fig. S1A. The DAGs of cellular components and molecular functions were shown in Fig. S1B and C. The results of KEGG pathway enrichment analysis were shown in Fig. S1D demonstrating all the functions, and the results of some specific pathway enrichments were shown in Fig. 5B. The enriched GO terms were mainly associated with ‘cellular process’, ‘biological regulation’, ‘metabolic process’, ‘regulation of biological process’, and ‘cellular component organization or biogenesis’ (Fig. 5A). Genes associated with differentially expressed circRNAs were mainly enriched in ‘autoimmune disease’, ‘cell adhesion molecules (CAMs)’, ‘endocytosis’ and ‘lipid metabolism’ pathways, among others (Figs. 5B and S1D).
Figure 5.
GO and KEGG pathway potential molecule function analyses of differentially expressed circRNAs and the regulatory network. (A) GO functional classification map of the predicted genes regulated by differentially expressed circRNAs. (B) Scatter plot of enriched KEGG pathways. GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes.
circRNA-miRNA regulatory network construction
circRNAs comprise a large class of post-transcriptional regulators that have been proven to act like sponges for miRNAs, thereby indirectly regulating mRNA expression (13,14). Based on the calculations of miRanda, the results of differentially expressed circRNAs in circBase combined with miRNAs in miRBase were provided. In the constructed potential circRNA-miRNA network, 491 miRNAs interacted with 63 differentially expressed circRNAs (23 upregulated and 40 downregulated) (Fig. 6). The circRNA-miRNA regulatory network indicated that two of the downregulated circRNAs (circ_0001454 and circ_0000723) targeted miR-146b and miR-214, and two of these upregulated circRNAs (circ_0000455 and circ_0000629) could target miR-29b and miR-15a.
Figure 6.
Regulatory network of circRNAs and miRNAs in the control and asthma model groups. Diamond nodes represent circRNAs, and round nodes represent miRNAs. Red nodes, upregulated circRNAs; blue nodes, downregulated circRNAs.
Discussion
In order to construct a reliable animal model for circRNA profiling in allergic diseases, HDM, the most common and causative allergen source, was selected (29). Notably, the model group developed apparent hypersensitivities upon challenge with methacholine. A typical Th2 type immune response was observed, with elevated expression of type 2 cytokines, including IL-4, IL-5 and IL-13, as well as IgE and IgG1 antibody titers. Pathology analysis demonstrated that the lung tissues were extensively infiltrated by inflammatory cells, such as eosinophils, which are considered indicators of allergic inflammation (30). These findings confirmed that a murine model of HDM-induced asthma was successfully established. AHR was measured by Penh, the validity of which as an index of airflow limitation was once considered controversial. Kirschvink et al (31) argued that although Penh was able to detect changes induced by pulmonary cholinergic stimulation, it poorly detected tracheal calibre modifications in rats. However, Nakaya et al (32) demonstrated that Penh could be a useful noninvasive indicator for studying nasal hypersensitivity in murine allergic rhinitis. In addition, a recent study indicated that the non-invasive Penh system was more accurate compared with the invasive ventilated lung resistance method, as ventilation induced an additional cell influx into the airways (33). It was therefore suggested that Penh could be used to evaluate hypersensitivity in asthma models.
In the present study, the majority of circRNAs (82%) were derived from exons of protein-coding genes, whereas the others originated from intronic or intergenic genomic regions. A total of 282 circRNAs (152 upregulated and 130 downregulated) were differentially expressed in the murine allergy model group compared with in the control group. KEGG pathway analysis revealed that the differentially expressed circRNAs were strongly associated with ‘cellular process’ and ‘biological regulation’. The analyses indicated that circRNAs performed critical functions in asthma, and may act through endocytosis, or signaling pathways that involve cell adhesion or lipid metabolism. Cell adhesion molecules have been closely implicated in various immunological disorders, including asthma, and may serve a key role in their pathogenesis by upregulating the function of eosinophils (30,34). Several clinical studies have established that macrophage phagocytosis is disrupted in asthma (35,36), and this disruption is more pronounced in more severe forms of asthma (37). In addition, altered sphingolipid metabolism has been reported to be associated with asthma phenotype in patients allergic to HDMs (38).
Previous studies demonstrated that circRNAs are highly evolutionarily conserved between humans and mice (39,40), and some may function as miRNA sponges. In the present study, four differentially expressed circRNAs were validated by qPCR, of which two were significantly upregulated and two were significantly downregulated. The regulatory network of circRNA and miRNA indicated that two of these upregulated circRNAs (circ_0000455 and circ_0000629) could target miR-29b and miR-15a, respectively, which were previously reported to be negatively correlated with the occurrence of allergic reactions (41,42). The expression levels of inducible co-stimulator, a target gene of miR-29b, were also previously shown to be elevated in the lungs of asthmatic mice, and promoted Th2 cytokine production and eosinophilic inflammation (43). Furthermore, vascular endothelial growth factor, which is a target gene of mir-15a, was shown to be overexpressed in cases of Th2-mediated lung inflammation, such as asthma, and induced an asthma-like phenotype (44). By contrast, two of the downregulated circRNAs (circ_0001454 and circ_0000723) targeted miR-146b and miR-214, respectively, which were previously shown to be positively associated with asthma (45,46). In a previous study, miR-146b could further propagate or help maintain the Th2 response by suppressing Th1 activation (47). Runx transcription factor, a target gene of miR-214, has been identified as a molecular link in TGF-β-induced Foxp3 expression in T regulatory cell differentiation and function, and suppressed IL-4 to affect the balance of Th1/Th2 (48). Therefore, these four circRNAs appear to be ideal circRNA candidates and future studies could be performed to investigate their association with asthma.
In conclusion, the present study identified circRNAs that were differentially expressed between the asthma model and control groups. The findings suggested that there may be a positive association between the expression of circRNAs and asthma, and provided novel insights into the etiology and pathogenesis of asthma. Future studies may employ gain- or loss-of-function assays to verify the functions of circRNAs as miRNA sponges and their involvement in the development and pathogenesis of asthma, in mice as well as in humans.
Supplementary Material
Acknowledgements
The authors would like to thank Professor Liu (Research Center of Allergy and Immunology, Shenzhen University School of Medicine) for technical assistance, as well as his critical editing of the manuscript.
Funding
The present study was supported by the Shenzhen Fundamental Research Plan (grant no. JCYJ 20170818094217688), the Science and Technology Foundation of Guangdong Province (grant no. 2014A020212422), the National Natural Science Foundations of China (grant no. 81273275 and 31671766) and the Discipline Construction Project of Biochemistry and Molecular Biology from National Development and Reform Commission (grant no. 1452).
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Author's contributions
HB and LX designed experiments and performed the statistical analysis. HB interpreted the data. HB, QZ, QL and MN were involved in performing the experiments. ZL, PY and SC aided in the experimental design. HB and LX prepared the manuscript. LX given final approval of the version to be published. LX planned and coordinated the overall research efforts. All authors read and approved the final manuscript.
Ethics approval and consent to participate
The experimental protocols of the present study were reviewed and approved by the Animal Care and Use Committee of Shenzhen University.
Patient consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
