Retromer dysfunction at the nexus of tauopathies

Abstract

Tauopathies define a broad range of neurodegenerative diseases that encompass pathological aggregation of the microtubule-associated protein tau. Although tau aggregation is a central feature of these diseases, their underlying pathobiology is remarkably heterogeneous at the molecular level. In this review, we summarize critical differences that account for this heterogeneity and contrast the physiological and pathological functions of tau. We focus on the recent understanding of its prion-like behavior that accounts for its spread in the brain. Moreover, we acknowledge the limited appreciation about how upstream cellular changes influence tauopathy. Dysfunction of the highly conserved endosomal trafficking complex retromer is found in numerous tauopathies such as Alzheimer’s disease, Pick’s disease, and progressive supranuclear palsy, and we discuss how this has emerged as a major contributor to various aspects of neurodegenerative diseases. In particular, we highlight recent investigations that have elucidated the contribution of retromer dysfunction to distinct measures of tauopathy such as tau hyperphosphorylation, aggregation, and impaired cognition and behavior. Finally, we discuss the potential benefit of targeting retromer for modifying disease burden and identify important considerations with such an approach moving toward clinical translation.

Facts

• Tau aggregation in the brain is a common feature of numerous neurodegenerative diseases termed “tauopathies.”

• Retromer is an evolutionarily conserved complex consisting of VPS26, VPS35, and VPS29.

• Retromer abundance is inversely correlated with tau aggregation in the brain of people with tauopathies, including Alzheimer’s disease, Pick’s disease, and progressive supranuclear palsy.

• Depletion of retromer subunit VPS35 enhances pathological tau hyperphosphorylation, aggregation, and cognitive/behavioral phenotypes in various preclinical models of tauopathy.

• Pharmacological stabilization of retromer with small-molecule chaperones suppresses tau-mediated pathologies.

Open questions

• In human tauopathies, does retromer depletion in the brain precede tau aggregation? Or vice versa?

• Does reduced synthesis, increased turnover, or both account for retromer depletion in the brain of people with tauopathies?

• What downstream function(s) of retromer account for its neuroprotective effects against tauopathies in vivo?

• Will retromer chaperones enhance lifespan (or healthspan) in mouse models of tauopathy?

• Will retromer chaperones be effective after the onset of disease hallmarks in mouse models of tauopathy?

Despite clear similarities tauopathies are heterogeneous

Pathological aggregation of the microtubule-associated protein tau is a common feature of several age-related neurodegenerative diseases, collectively termed “tauopathies” [1]. The tau aggregates found in these diseases are heterogeneous and differ considerably across several parameters such as location in the brain, pattern of spread, isoform composition, residing cell type, histological morphology, recognition by amyloid-binding dyes, posttranslational modifications, and structural conformation/strain [2]. It is therefore not surprising that with such marked heterogeneity, tauopathies are present as clinically distinct syndromes. Examples of tauopathies include Alzheimer’s disease (AD, the most common tauopathy), Pick’s disease, progressive supranuclear palsy, corticobasal degeneration, frontotemporal dementia and parkinsonism linked to chromosome 17 (FTDP-17), chronic traumatic encephalopathy, argyrophilic grain disease, globular glial tauopathy, and primary age-related tauopathy [1]. Although there is no relationship between MAPT variation and AD, more than 40 MAPT mutations are known to cause FTDP-17 [3–7]. In addition, MAPT mutations also cause corticobasal degeneration [8]. These mutations typically affect the microtubule-binding capacity of tau, increase its aggregation propensity, or alter its splicing pattern [3–5, 9, 10]. In addition, the H1 haplotype of MAPT is associated with increased risk of progressive supranuclear palsy and primary age-related tauopathy [11, 12].

Tau in physiology and pathophysiology

Topologically, tau is divided into two sections: its C-terminal microtubule-binding repeat domain (RD) and an N-terminal projection domain that extends away from microtubules to regulate microtubule spacing [13, 14]. In the adult human brain, tau is expressed as six isoforms that vary by alternative slicing of exons that encode the two N-terminal inserts (N1 and N2) in its projection domain and the second (R2), out of four repeats (4R) that make up the RD, to generate 3R- and 4R-containing isoforms [15–18]. Under physiological conditions, isoforms with and without R2 are equally abundant despite 4R isoforms having a greater microtubule-binding affinity/avidity [16, 19]. Tau regulates microtubule stability by binding to the interface of α–β tubulin heterodimers [20, 21]. Additionally, tau regulates axonal transport and the actin cytoskeleton [22–25]. In the central nervous system, tau is localized predominantly along axons, and to a lesser extent, within dendrites [14, 26]. In disease, tau is redistributed to other locations within the neuron where it forms hyperphosphorylated inclusions, such as neurofibrillary tangles in the soma, neuropil threads within neurites, and neuritic plaques in the vicinity of amyloid plaques [27–30]. Tau hyperphosphorylation is marked in the AD brain to the extent that paired-helical filaments of tau, that comprise larger aggregates, contain ~7 moles of phosphate per mole of protein, which is ~3.5 times more than control brains [31]. Tau is natively unfolded owing to its high composition of hydrophilic amino acids, and this lack of complexity in its structure makes it an ideal substrate for posttranslational modifications such as phosphorylation, methylation, acetylation, glycosylation, SUMOylation, O-linked N-acetylglucosamination, and cleavage [13, 32]. Because tau can be so heavily modified, with >40 amino acid residues identified by mass spectrometry as being phosphorylated, it is difficult to fully understand the contribution of individual site-specific phosphorylations [33]. However, the functional significance of several phosphorylation events is well-characterized. For example, phosphorylation of residues within or flanking the RD negatively affects the tau–microtubule interaction [34, 35]. Moreover, phosphorylated tau accumulates in the AD brain before the emergence of neurofibrillary tangles [36]. Tau hyperphosphorylation enhances its aggregation via self-assembly into paired-helical and straight filaments, which constitute neurofibrillary tangles [37–39]. While tau hyperphosphorylation promotes tau aggregation, tau aggregation may also enhance subsequent hyperphosphorylation. During embryonic development, tau is hyperphosphorylated but not aggregated, indicating that phosphorylation alone does not accurately predict aggregation [40]. Moreover, not all tau phosphorylation events are pathological. Indeed, phosphorylation at T205 by p38γ prevents amyloid-β-mediated toxicity in APP23 transgenic mice (human APP [isoform 751] with K670M and N671L [Swedish] mutations) [41]. Whether tau aggregation represents a loss- or a toxic gain-of-function phenotype is still heavily debated [42–50]. However, genetic deletion of endogenous tau in mouse and fruit fly models does not recapitulate key phenotypes observed in transgenic mouse models of tauopathy, which mirror hallmarks of human disease, arguing strongly against pathology being driven by a loss of function [51, 52].

Pathogenic tau displays prion-like spread in the brain

The spread of tau aggregation throughout the brain is tightly linked to disease severity [53]. In AD, neurofibrillary tangles composed of hyperphosphorylated and aggregated tau first appear in the locus coeruleus and the trans-entorhinal and entorhinal regions (Braak stages I and II) [53]. Following this, tau aggregation spreads to the hippocampal formation and parts of the neocortex (Braak stages III and IV) before eventually reaching more peripheral parts of the neocortex (Braak stages V and VI) [53]. Intriguingly, tau spread in the neocortex occurs in the opposite direction to cortical myelogenesis [54]. Tau spread throughout the brain correlates strongly with cognitive decline, whereas the accumulation of amyloid-β plaques, another proteinaceous hallmark of AD, does not [55]. Tau pathology does not spread stochastically but rather in a predictable, trans-neuronal manner [56–60]. This explains how tau aggregation can spread trans-synaptically to distant but anatomically connected parts of the brain [61].

The initial corrupting event(s) that converts natively folded tau into a pathological, aggregation-prone state in neurons remains poorly understood. Heparan sulfate polyanions and RNA are potent inducers of tau aggregation in vitro, although their in vivo contributions remain unclear [62, 63]. In contrast, injection of amyloid-β₄₂ fibrils into the brain of pR5 transgenic mice (MAPT [isoform 2N4R] with P301L mutation) expressing P301L tau enhances tau aggregation in vivo [64]. Once this conversion occurs, small oligomers of misfolded tau can be trafficked to and internalized by connected neurons. Here, these misfolded species can gain access to natively folded—or naive—tau in the cytoplasm and promote their misfolding and aggregation by a process often called “seeding” (Fig. 1) [65]. Biochemical studies show that a tau trimer is the smallest assembly with the ability to seed aggregation and induce toxicity [66, 67]. Tau seeds can be shared between connected neurons through distinct routes, such as via extracellular vesicles, tunneling nanotubules, or unconventionally by direct penetration of the plasma membrane [68, 69]. In addition, microglia are involved in spreading tau throughout the brain [68, 70]. Following this, tau seeds can be internalized by neighboring neurons via macropinocytosis or endocytosis [71]. Recently, low-density lipoprotein receptor-related protein 1 was found to regulate tau internalization by neurons, whereas other studies indicate that heparan sulfate proteoglycans mediate this process [72, 73]. After internalization, tau seeds are physically separated from the cytoplasm in the endocytic compartment. Eventually, tau seeds escape this confine and can seed the aggregation of naive tau in the cytoplasm, propagating the spread of tau aggregation [74]. Presently, it is unclear how this escape mechanism is executed. Whilst it is conceivable that this may be a stochastic event, tau fibrils prepared in vitro can elicit endomembrane injury after cellular uptake [75, 76]. Although cells have evolved distinct mechanisms for repairing, removing and replacing damaged vesicles, these mechanisms presumably fail to completely abolish tau seeding, likely owing to the rapid kinetics of tau aggregation [74, 76, 77].

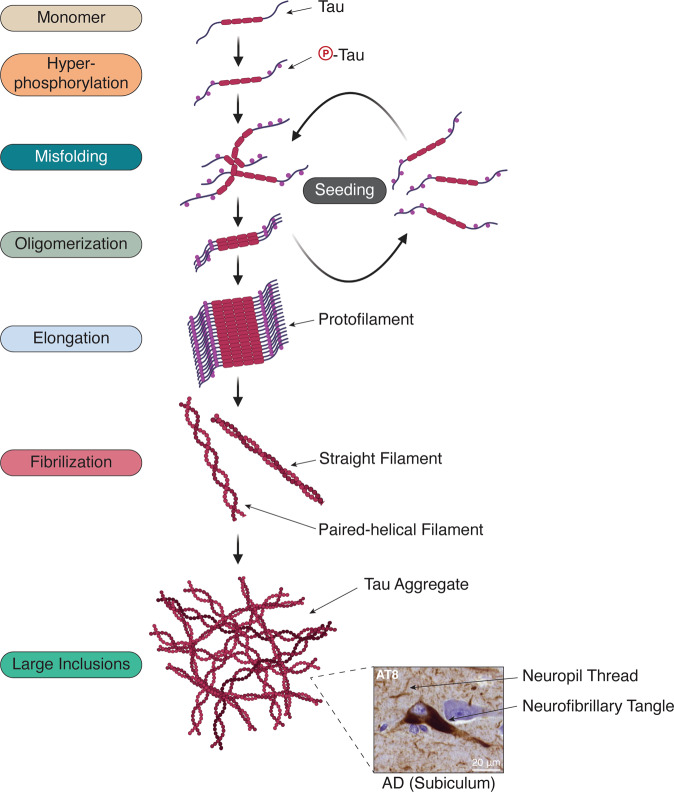

Fig. 1. Prion-like seeding of tau amplifies tau aggregation.

Natively folded tau is hyperphosphorylated and undergoes sporadic misfolding that initiates the assembly of oligomeric species of tau. These can then seed the misfolding and aggregation of natively folded tau monomers in the cytoplasm. Meanwhile, phosphorylation of monomeric tau increases the amount of cytoplasmic tau available for incorporation, and in addition, phosphorylation of tau aggregates may also occur. Assemblies of oligomeric tau can continue to grow into repeating filamentous structures (e.g., paired-helical and straight filaments) that eventually coalesce into large intraneuronal inclusions (e.g., neurofibrillary tangles and neuropil threads). An example of neurofibrillary tangles and neuropil threads stained for phospho-tau (S202/T205, AT8) from an AD brain is shown.

Seeding as a mode of inheriting protein conformations has been extensively studied in the context of mammalian prion diseases [78]. In these diseases, pathological conformers of the prion protein PrP^Sc (Sc denotes Scrapie) induce the misfolding and aggregation of the naive form PrP^C (C denotes cellular form) [78]. Despite the majority of prion diseases being sporadic, their initial corrupting event(s) are more well-established than in tauopathies and can occur through direct contact with PrP^Sc-contaminated materials (i.e., grafts, surgical equipment, and consumption of contaminated meat) and by rare mutations to the gene that encodes PrP^C (PRNP) [78, 79]. Prions and aggregated tau can both exist in distinct conformational states, which are referred to as “strains” [59, 60, 78]. Indeed, tau strains are remarkably stable and can be propagated in and between transgenic mice and cell cultures, whilst maintaining their structural identity [59, 60]. However, despite these similarities, tauopathies are not considered a bone fide prion disease for the following reasons: (1) tau is not infectious and (2) naive endogenous tau is not a strict requirement for tau inclusions to propagate between neurons, but rather (3) is a requirement for toxicity [80, 81]. Instead, tau is referred to as being “prion-like.” Advances in cryoelectron microscopy have detailed distinct strains of tau fibrils purified from the brains of people with AD, Pick’s disease, and corticobasal degeneration [82–84]. Moreover, even aggregated tau from people with AD displays remarkable patient-to-patient heterogeneity across several parameters, including seeding capacity and posttranslational modifications [85]. Importantly, tau seeding correlates strongly with symptomatic severity in AD, a feature that covaries with phosphorylation of tau at T231, S235, and S262 [85].

Tau aggregation and neurotoxicity

Are neurofibrillary tangles themselves neurotoxic? In AD, loss of neurons in the temporal sulcus correlates with, but exceeds the deposition of neurofibrillary tangles, indicating that the majority of neurons die without neurofibrillary tangles [86]. Further, neurons in the human brain can survive for two decades with neurofibrillary tangles, arguing strongly against a mode of acute neurotoxicity [87]. Remarkably, in rTg4510-inducible transgenic mice, “switching off” P301L tau expression improves cognition and memory, even though neurofibrillary tangles still persist [88]. A caveat to this model is that some neurodegenerative phenotypes are nonspecific and due to insertional mutagenesis from the transgene [89]. In Drosophila, neuronal overexpression of human tau increases neurodegeneration and reduces lifespan in the absence of neurofibrillary tangles [90]. Cognitive function is unchanged in transgenic mice that express tau RD (ΔK280/I227P/I308P), a mutant incapable of aggregation, suggesting that aggregation, but not necessarily neurofibrillary tangles, may be required for neurotoxicity [91]. Intriguingly, injection of oligomeric, but not monomeric or fibrillar tau into the brain of wild-type mice leads to cognitive decline and synaptic dysfunction [92]. Cognitive decline is apparent immediately after injection of oligomeric tau into the hippocampus of wild-type mice [92]. Indeed, soluble tau aggregates but not large fibrils reduce cell viability following delivery to SH-SY5Y neuroblastoma cells [93]. Cell culture-based reporters detect seeding from PS19 mouse brain lysates before the emergence or NFTs and cognitive decline [94]. Further, dorsal root ganglion neurons containing aggregated tau P301S only die following coculture with phagocytes [95]. Together, these data support the idea that oligomeric species of tau, rather than neurofibrillary tangles per se mediate tau-induced neurotoxicity through crosstalk with immune cells.

Retromer dysfunction is associated with various neurodegenerative phenotypes

The consequences of tau hyperphosphorylation and aggregation on measures of neurodegeneration have been well-documented, whereas factors that modify these pathological changes remain poorly understood. Understanding how neurons and other cell types in “healthy” brains cope with insults from deleterious factors (e.g., aggregated tau) to curb pathological changes will be an important step forward for the field. In this regard, over the past 15 years, dysfunction of the retromer complex has emerged as an interesting trait of neurodegenerative diseases, especially AD, Parkinson’s disease, and more recently amyotrophic lateral sclerosis [96–100]. Importantly, retromer dysfunction recapitulates numerous disease-related phenotypes such as amyloid-β deposition, cell death, gliosis, synapse loss, impaired neurotransmission, and cognitive impairment [100–104]. More recently, retromer deficiency was found to exacerbate several measures of tauopathy, including hyperphosphorylation, aggregation, and cognitive decline [104–106]. Apart from enhancing tau aggregation, retromer dysfunction also enhances the accumulation of aggregated amyloid-β, α-synuclein, and huntingtin [96, 104, 106–115] (Table 1). Together, these findings suggest that retromer dysfunction is important for a broad range of proteopathies.

Table 1.

Protein aggregation following retromer loss of function.

Aggregated protein	Refs.
α-synuclein	[111–115]
Amyloid β	[96, 107–110]
Huntingtin	[112]
Tau	[104, 106]

Retromer is a highly conserved endosomal receptor trafficking complex

A phenomenon observed across several tauopathies is a reduction of retromer complex components in the brain [96, 104]. Retromer is a highly conserved assembly of vacuolar protein sorting 35, −26, and −29 (VPS35, VPS26, and VPS29) that is recruited to the maturing endosome to orchestrate receptor sorting and transport to the trans-Golgi network or plasma membrane [116]. These trafficking itineraries are critical for the maintenance of receptor homeostasis and therefore downstream functions, otherwise these receptors are defaulted to the lysosome for destruction [117]. Selection of receptors at the endosomal membrane is a tightly regulated process with different receptors selected by distinct surfaces of the retromer complex [118–120]. Engagement with specific receptors can also be facilitated by subcomplexes of retromer with itinerary-specific adapters [118]. The trans-Golgi network trafficking function is achieved by a subcomplex of retromer with sorting nexin (SNX) 1 or -2 and SNX5 or -6 (SNX–BAR retromer), which mediates the generation of tubular endosomal carriers through the BAR (Bin-Amphiphysin-Rvs) domain of these SNX proteins [121–123]. Alternatively, a subcomplex of retromer with SNX3 (SNX3 retromer) achieves a similar effect, albeit through vesicular endosomal carriers [124]. On the other hand, plasma membrane trafficking is achieved by a subcomplex of retromer with SNX27 (SNX27 retromer) [125].

At the endosomal surface, retromer engages with the Wiskott–Aldrich syndrome protein and scar homolog (WASH) complex to facilitate local F-actin nucleation while also engaging with microtubules, albeit indirectly, through an interaction between SNX5/6 and the p150 subunit of the dynactin/dynein microtubule motor complex [126, 127]. Moreover, the SNX1-interactor DNAJ homolog subfamily C member 13 (RME8/DNAJC13) binds to the WASH complex subunit 2C (FAM21/WASHC2C) to support endosomal tubulation [128]. RME8 also segregates these endosomal domains away from degradative domains that are decorated with the hepatocyte growth factor-regulated tyrosine kinase substrate component of endosomal sorting complexes required for transport complex [128, 129]. Collectively, this enables outward protrusion of endosomal domains that are concentrated with cargo-engaged retromer complexes and long-range trafficking of these carriers following scission [126, 127]. Aided by tension from the protruding endosomal tubule, carrier scission is thought to be performed by Eps15 homology domain-containing protein 1, whereas capture and fusion of these carriers to target membranes appears to occur through distinct mechanisms [130, 131]. For example, endosomal carriers containing retromer cargo, the cation-independent mannose 6-phosphate receptor, are tethered to the trans-Golgi network by golgin 245 in an SNX1/2-dependent manner, or by GCC88 in an SNX3-dependent manner [132]. On the other hand, the plasma membrane-localized tethers for SNX27-retromer carriers are poorly defined. An inhibitory interaction between the retromer complex and TBC1 domain family member 5 (TBC1D5), a GTPase-activating protein for Rab7, controls the uncoating of retromer from endosomes [133]. Other additional but notable retromer cargoes include the amyloid-β precursor protein (APP), sortilin precursor (SORT1), sortilin-related receptor precursor (SORL1), divalent metal ion transporter 1-II, parathyroid hormone-related protein, glucose transporter 1 (GLUT1/SLC2A1), and the β₂-adrenergic receptor (ADRB2) [130].

Retromer dysfunction is a common feature of several neurodegenerative diseases

The first link between retromer dysfunction and neurodegenerative disease was uncovered from a gene expression microarray that showed increased expression of VPS35 in the entorhinal cortex of postmortem human AD brains compared with controls [96]. However, closer inspection revealed depletion of VPS35 and VPS26 proteins [96]. Because the entorhinal cortex is particularly susceptible to the deposition of plaques and tangles in AD, it was posited that retromer dysfunction may contribute to AD pathogenesis [53, 96]. Indeed, numerous studies have demonstrated that retromer suppresses amyloid-β generation and plaque deposition through proper trafficking of its precursor APP and cleaving enzymes b-secretase 1 (BACE1) and γ-secretase [108, 109, 134]. Notably, pathogenic mutations in APP and PSEN1 (encodes a component of γ-secretase) cause familial early onset AD [135, 136]. In addition, genetic variants of retromer interactors KIAA1033, RAB7A, SNX1, and SNX3 are associated with increased risk of sporadic late-onset AD, whereas VPS26 is not [137, 138]. Albeit, these hits were not replicated in genome-wide association studies (GWAS) [139]. Additionally, SORL1 variation is genetically linked to AD in several GWAS and is a retromer cargo [140–143]. Further, a collection of 891 genes that are connected to the endolysosomal and autophagy network as a whole are diffusely associated with AD [144]. This is important given that the retromer complex functions at multiple stages throughout this network. In addition, a rare L625P variant of VPS35 was identified in a single patient with early onset sporadic AD from exome sequencing [145]. In cultured cells, overexpression of this mutant impairs its interaction with VPS29 and TBC1D5, while reducing the endosomal localization of retromer, indicating that this person with sporadic early onset AD had perturbed retromer function [145].

Other tauopathies, including Pick’s disease and progressive supranuclear palsy, also show depletion of all retromer components in the hippocampus and cortex of postmortem human brains [104]. Apart from tauopathies, retromer dysfunction is also implicated in other neurodegenerative diseases. The D620N mutation of VPS35 causes a highly penetrant autosomal dominant form Parkinson’s disease [97, 98]. In contrast, SNX27 expression is downregulated in Down’s syndrome, and mutations in RAB7, a protein involved in endosomal recruitment of retromer, cause the sensory neuropathy Charcot–Marie–Tooth 2B disease [146, 147]. In addition, mutations in KIAA0196, which encodes the WASH complex subunit 5 (WASHC5/strumpellin), cause hereditary spastic paraplegia [148]. Intriguingly, in the cortex of the Tg2576 transgenic mouse model of AD (human APP [isoform 695] with K670M and N671L [Swedish] mutations), retromer components become depleted in an age-dependent manner, as does, in this case Vps35 mRNA [149]. Further, primary neurons from hAPPJ20 transgenic mice (human APP with K670M, N671L [Swedish], and V717F [Indiana] mutations) show dysregulation of Vps35-positive endosomes, with a reduction of these endosomes in the soma and enrichment along axons hinting at perturbed retrograde trafficking [150]. Because amyloid plaques precede tau aggregation in AD, this may trigger retromer dysfunction to exacerbate or even initiate a tauopathy cascade [151]. There is a bidirectional relationship between retromer expression and tau, that is, reduced retromer enhances tau hyperphosphorylation and aggregation, and there is reduced expression of retromer components in tauopathies [96, 104, 106]. Everything considered, we are yet to know which is the cause, and which is the effect in human disease. Preclinical studies indicate it is likely that retromer lies upstream of tauopathy [104, 106].

Retromer dysfunction promotes tauopathy

Recent studies have investigated the relationship between the retromer component VPS35 and tauopathy. Cortex-specific delivery of shRNA against Vps35 in PS19 mice (human MAPT [isoform 1N4R] with P301S mutation), which are prone to developing tangle pathology in the absence of amyloid plaques, exacerbated cognitive/behavioral outcomes in Y-maze and Morris water maze tests [104]. Biochemical assessment of the cortex revealed gross enhancements of tau hyperphosphorylation at several sites (Table 2) [104]. Although tangle pathology/tau aggregation in these mice was not assessed, given that PS19 mice develop tangle pathology at 6 months, such pathology was likely present [104, 152].

Table 2.

Tau modifications following retromer loss of function.

Intervention	Model system	Type of tau	∆ tau (detection antibody/fluorophore)	Detection method	Tau aggregation?	Refs.
shVps35	Human IPSC-neurons	Endogenous	↑ p-T231 (AT180)	ELISA	No	[105]
siVps35	Mouse N2a cells	Endogenous	↑ conformational change (MC1)	WB/IF	No	[104]
			↑ p-T181 (AT270)	WB
			↑ p-S396 (PHF13)	WB/IF
			↑ “endosomal” p-T181 (AT270)	WB
			↑ “endosomal” p-S396 (PHF13)	WB
shVps35	PS19 mice	Transgenic; human tau P301S (1N4R)	↑ soluble tau (HT7) in cortex	WB	Likely (n.d.)	[104]
			↑ insoluble tau (HT7) in cortex	WB
			↑ p-S202/T205 (AT8) in cortex	WB
			↑ p-T231 (AT180) in cortex	WB
			↑ p-T181 (AT270) in cortex	WB
			↑ p-S396/S404 (PHF1) in cortex	WB
			↑ p-S396 (PHF13) in cortex	WB
Vps35 D620N	C57BL/6 mice	Endogenous	↑ tau (Tau5) in substantia nigra	IF	No	[153]
			↑ conformational change (MC1) in hippocampus, cortex, cerebellum, brainstem, ventral midbrain, substantia nigra, and striatum	IF/IHC
			↑ p-S202/T205 (AT8) in hippocampus, cortex, cerebellum, brainstem, ventral midbrain, substantia nigra, and striatum	IF/IHC
			↑ p-S396/S404 (PHF1) in hippocampus	IHC
			↑ p-S202 (CP13) in hippocampus	IHC
siVPS35	HEK293 cells	Transgenic; tau RD (P301L/V337M)-GFP	↑ tau aggregation (GFP)	IF	Yes	[106]
shVPS35	hESC-derived cortical neurons	Transgenic; tau RD (P301L/V337M)-GFP	↑ tau aggregation (GFP)	IF	Yes	[106]

ELISA enzyme-linked immunosorbent assay, IF immunofluorescence, IHC immunohistochemistry, n.d. not detected, WB western blot.

Remarkably, a Vps35 D620N knock-in mouse model of Parkinson’s disease showed clear evidence of endogenous mouse tau pathology in the brain [153]. Both hetero- and homozygous mutant mice showed elevated tau hyperphosphorylation and conformational change in various regions of the brain such as the hippocampus and cortex (Table 2) [153]. The magnitude of several pathological changes was more pronounced in the heterozygous mutant mice [153]. These effects appeared specific to the Vps35 D620N mutation, as mice harboring a heterozygous Vps35-null allele were resistant to such changes, suggesting that a loss-of-function phenotype does not account for these effects, or alternatively, that these mice were haplosufficient [153]. Importantly, Vps35 D620N-expressing mice did not present with neurofibrillary tangles or neuritic pathology after histological assessment, nor did they show increased tau insolubility [153]. Rather, these mice displayed higher levels of total soluble tau, which corroborated elevations in pathological modifications such as phosphorylation and conformational change (Table 2) [153].

How does retromer dysfunction contribute to tauopathy? A recent mechanistic study attempted to answer this question. Taking advantage of seeding approaches, our laboratory used brain lysate from the rTg4510 transgenic mouse model (human MAPT [isoform 0N4R] with P301L mutation) to induce aggregation of tau RD (V337M/P301L) expressed in HEK293 cells [106]. The aggregates generated in this system conformed to several parameters observed in human tauopathies, i.e., the aggregates were hyperphosphorylated, detergent-insoluble, detectable with an amyloid-binding dye, recapitulated tangle-like morphology, and were capable of prion-like seeding/propagation [106]. In this model, depletion of VPS35 led to a block in the resolution of autophagy that was attributed to a reduction in autophagosome–lysosome fusion and lysosomal degradation [106]. This defect was not found in SNX27-null cells, ruling out defective endosome-to-plasma membrane trafficking as the cause. Consequently, VPS35 depletion led to marked accumulation of tau aggregates, whereas its overexpression had the opposite effect (Table 2) [106]. These observations were replicated in human embryonic stem cell (hESC)-derived cortical neurons seeded with tau aggregates following VPS35 depletion (Table 2) [106]. Pharmacological and genetic approaches revealed that the autophagy–lysosome axis, not the proteasome, was critical for suppressing tau aggregation [106]. Closer inspection revealed that tau aggregates colocalized with the autophagy cargo receptor sequestosome 1 (SQSTM1/p62) independently of ubiquitin, suggesting that they are turned over through a ubiquitin-independent form of selective autophagy [74, 106]. Accordingly, VPS35 depletion led to a reduction in the fraction of SQSTM1-decorated tau aggregates, indicating that their selection for autophagic degradation was impaired [106]. In addition, retromer dysfunction may also affect the early stages of autophagy including autophagosome formation. Indeed, the Parkinson’s disease-linked D620N VPS35 mutation reduces the targeting of ATG9A to autophagosomes and inhibits autophagy [112].

Retromer enhancement stages off tauopathy

Gene therapy directed at the cortex of 3 × Tg mice (human APP [isoform 695] with K670M and N671L [Swedish], human PSEN1 with M146V, and MAPT [isoform 0N4R] with P301L mutations), which are prone to developing both plaque and tangle pathology, was used to overexpress Vps35 [154]. This intervention boosted Vps26 levels, indicating enhanced retromer complex formation and reduced cognitive/behavioral deficits in the Morris water maze test [154]. Importantly, apart from reducing amyloid-β production and deposition in the cortex, Vps35 overexpression reduced insoluble tau and tau hyperphosphorylation at several sites (Table 3) [154]. However, it remains unclear whether Vps35-dependent reductions in amyloid-β deposition or tau phosphorylation were more potent in eliciting rescue of cognitive/behavioral phenotypes. Accordingly, rescue of similar cognitive/behavioral phenotypes in hAPPJ9 mice (human APP [isoforms 695, 751, and 770] with K670M and N671L [Swedish] and V717F [Indiana] mutations) can be achieved through depletion of endogenous tau, highlighting a more dominant and downstream role for tau in eliciting neurodegeneration [155].

Table 3.

Tau modifications following retromer gain-of-function.

Intervention	Model system	Type of tau	∆ tau (detection antibody/fluorophore)	Detection method	Tau aggregation?	Refs.
Vps35 overexpression	3 × Tg mice	Transgenic; human tau P301L (0N4R)	↓ soluble tau (HT7) in cortex	WB	Likely (n.d.)	[154]
			↓ insoluble tau (HT7) in cortex	WB
			↓ p-S202/T205 (AT8) in cortex	WB
			↓ p-T181 (AT270) in cortex	WB
			↓ p-S396/S404 (PHF1) in cortex	WB
			↓ p-S396 (PHF13) in cortex	WB
Vps35 overexpression	Mouse N2a cells	Endogenous	↓ tau (HT7)	WB	No	[104]
			↓ conformational change (MC1)	WB
			↓ p-T181 (AT270)	WB
VPS35 overexpression	HEK293 cells	Transgenic; tau RD (P301L/V337M)-GFP	↓ tau aggregation (GFP)	IF	Yes	[106]
R33	Human IPSC-neurons	Endogenous	↓ p-T231 (AT180)	ELISA	No	[105]
R33	Mouse N2a cells	Endogenous	↓ conformational change (MC1)	WB	No	[104]
			↓ p-T181 (AT270)	WB
			↓ p-S396 (PHF13)	WB
R33	3 × Tg mouse	Transgenic; human tau P301L (0N4R)	↓ p-S202/T205 (AT8)	WB	Likely (n.d.)	[101]
			↓ p-T231 (AT180)	WB
			↓ p-T181 (AT270)	WB
			↓ p-S396 (PHF13)	WB

ELISA enzyme-linked immunosorbent assay, IF immunofluorescence, n.d. not detected, WB western blot.

Overexpression of Vps35 in the mouse neuroblastoma N2a cell line reduced tau phosphorylation in a manner that was abolished by the aspartyl protease inhibitor pepstatin A (Table 3) [104]. This suggests that lysosomal function is required for Vps35-mediated suppression of tau phosphorylation. Consistent with this, the lysosomal inhibitor chloroquine failed to further enhance tau aggregation in HEK293 cells lacking VPS35 [106]. The important difference between these studies was that Carosi et al. employed seeded aggregation of human tau RD (V337M/P301L), whereas Vagnozzi et al. analyzed soluble endogenous murine tau [104, 106]. However, the former study demonstrated that aggregated, not soluble tau RD (V337M/P301L) is highly dependent on turnover through the autophagy–lysosome axis [106]. Moreover, lysates from Vps35 overexpressing cells showed elevated cathepsin D/E (CTSD/E) activity in vitro, which are lysosomal proteases known to be inhibited by pepstatin A [104]. Conversely, VPS35-null cells show impaired intralysosomal proteolytic maturation of CTSD [106, 132].

Retromer chaperones stage off tauopathy

Pharmacological stabilization of retromer with the chemically related small-molecule chaperones R55 and R33 has emerged as a promising avenue for suppressing amyloid-β pathology [101, 156]. Induced pluripotent stem cell (IPSC)-derived neuronal cultures from people with sporadic AD found that the retromer chaperone R55 reduces tau phosphorylation at T231, whereas shRNA-mediated depletion of VPS35 had the opposite effect (Table 3) [105]. Despite retromer dysfunction promoting pathological tau phosphorylation, it also enhances amyloid-β generation and deposition that can in turn promote tau phosphorylation and aggregation [64, 105]. Using a combination of genetic (i.e., APP gene duplication and CRISPR/Cas9-mediated APP knockout) and pharmacological (i.e., γ-secretase inhibitor compound E) approaches to modulate amyloid-β production in IPSC-derived neurons, it was revealed that the suppressive effect of retromer on tau phosphorylation occurred in an amyloid-β-independent manner (Table 3) [105]. The related retromer chaperone R33 also reduced tau phosphorylation at numerous sites in N2a cells (Table 3) [104]. When R33 was administered to 3 × Tg mice, it was similarly effective in reducing tau phosphorylation and amyloid-β generation and deposition [101]. In addition, pharmacological stabilization of retromer led to improvements across several cognitive/behavioral tests such as Y-maze, Morris water maze, and fear conditioning tests [101]. The R33 treatment and Vps35 overexpression in the 3 × Tg mouse model showed the opposite effects on tau phosphorylation to PS19 mice with cortex-specific depletion of Vps35, suggesting that tau phosphorylation is sensitive to retromer levels (Table 3) [101, 104, 154]. Further, R33 did not alter the levels of phosphatases and kinases that modify tau phosphorylation, including serine/threonine-protein phosphatase 2A catalytic subunit-α, glycogen synthase kinase-3β, and cyclin-dependent-like kinase 5 (Cdk5), as well as Cdk5 activators p35/25 in the cortex of 3 × Tg mice [101]. It remains unclear whether the activities of other tau kinases or phosphatases are altered by this intervention. Retromer promotes growth factor signaling and amino acid sensing for the mechanistic target of rapamycin kinase complex 1 (mTORC1) pathway [157, 158]. Both mTORC1 and its downstream effector S6K1 can phosphorylate tau [159, 160]. The generation of amino acids through lysosomal protein catabolism is critical for mTORC1 activation [161]. This may explain why VPS35-dependent reductions in tau phosphorylation are sensitive to lysosomal inhibition.

A proposed model for retromer dysfunction in tauopathies

While the mechanisms of retromer-mediated control of tauopathy are slowly emerging, most studies addressing this question are complementary. The consensus is that enhancement or reduction of retromer function suppresses or exacerbates various measures of tauopathy, respectively. From these data, we propose a model whereby tau hyperphosphorylation and aggregation are suppressed through the autophagy–lysosome axis (Fig. 2a). In tauopathies, where retromer function is known to be compromised, we posit that perturbed selection, trafficking, and degradation of newly formed tau aggregates (or their precursors) enhance the hyperphosphorylation and aggregation of tau (Fig. 2b).

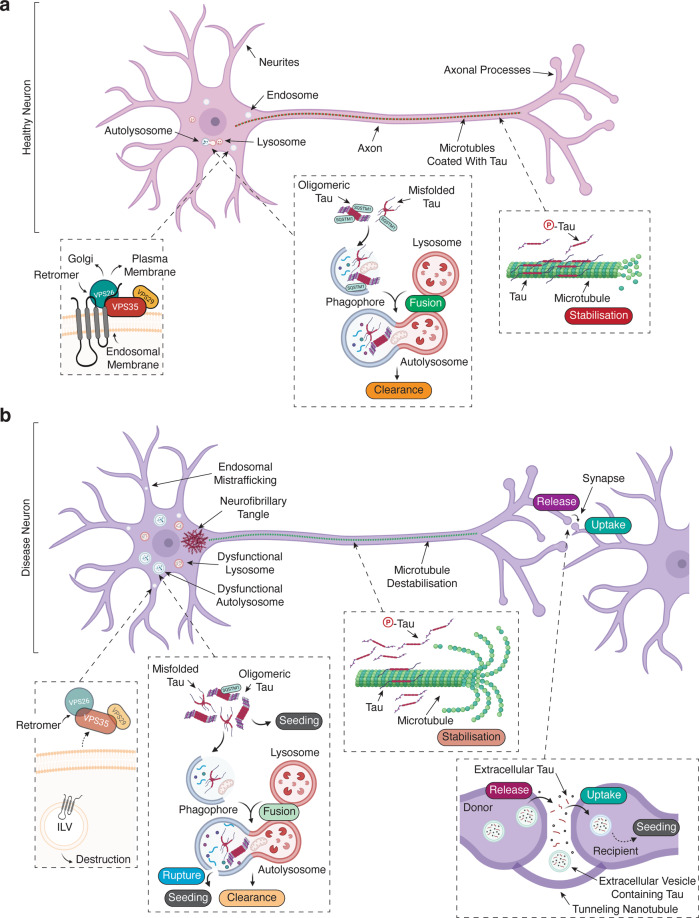

Fig. 2. A model of retromer dysfunction in tauopathies.

a In a healthy neuron, (i) the retromer complex is functional and regulates endosomal trafficking of receptors to the trans-Golgi network and plasma membrane. In addition, (ii) the majority of tau is unphosphorylated and stabilizes microtubules along the axon. (iii) Sporadically formed tau aggregates are efficiently labeled with autophagy cargo receptors (e.g., SQSTM1) and targeted to the phagophore that fuses with lysosomes to facilitate their degradation and clearance, limiting further seeding and aggregation. b In a pathological neuron, (i) there is a reduction of retromer complex components, which results in the degradation of retromer cargo receptors. ILV intraluminal vesicle. Meanwhile, (ii) retromer dysfunction enhances tau phosphorylation, reducing its affinity for microtubules resulting in microtubule destabilization, and increases its local cytoplasmic concentration. (iii) Sporadically formed tau aggregates can seed the aggregation of tau, which is enhanced by defective selection of aggregates by autophagy cargo receptors (e.g., SQSTM1) and perturbs their targeting to the phagophore. Moreover, retromer deficiency results in impaired autophagosome–lysosome fusion and destruction. This increases the likelihood of lysosomal injury to release tau aggregates and enable subsequent seeding. Eventually, tau aggregates coalesce into large inclusions in the soma (e.g., neurofibrillary tangles). In addition, (iv) smaller misfolded/aggregate species of tau can be passed on to anatomically connected neurons, where they can propagate tau seeding and aggregation.

Moving forward with retromer

The retromer complex is a promising therapeutic target for ameliorating numerous aspects of pathology associated with neurological diseases such as amyloid β-deposition, microglial dysfunction, α-synuclein aggregation, and more recently tau hyperphosphorylation and aggregation [101, 104–106, 111, 154, 162, 163]. Future efforts should be directed toward a deeper mechanistic insight of how retromer dysfunction contributes to tau phosphorylation, altered autophagy/lysosomal function, and clearance of tau aggregates. This will improve understanding of the etiology of tauopathies. Although retromer chaperones are a promising therapeutic avenue, only a few studies have used these therapies in vivo [101, 154]. A recent study detailed the synthesis of a novel retromer chaperone called 2a, which was derived from R55 and has enhanced affinity for the VPS35–VPS29 interface over its precursor [99]. In the G1H transgenic mouse model of amyotrophic lateral sclerosis (human SOD1 with G93A mutation), 2a was found to stabilize the retromer complex and increased motor neuron survival and locomotor function [99]. With that said, several important questions about the safety/tolerance and efficacy of retromer chaperones remain unanswered. Given that retromer chaperones modify numerous disease-related phenotypes, it will be important to understand if single or combined functions of retromer chaperones account for its benefits. In addition, side-by-side comparisons between current retromer chaperones must be carried out to establish superiority in vivo. Moreover, it is imperative that future studies assess lifespan/survival with retromer chaperones in preclinical models. This is important as VPS35 has an apparent oncogenic function in hepatocellular carcinoma [157]. Further, understanding the contribution of retromer in cell and tissue metabolism is still in its infancy, and may have translational implications given that a high proportion of people with dementia have metabolic comorbidities including type 2 diabetes [164]. Significantly, VPS26A has been identified as a susceptibility locus for type 2 diabetes in people of South Asian ancestry [165]. Toward clinical translation, it remains unclear whether retromer chaperones can demonstrate benefits after the onset of disease-related features in preclinical models, otherwise their utility may be limited to prevention, akin to drugs such as rapamycin [166, 167]. With that said, cognitive/behavioral benefits must be the primary endpoint of future studies, rather than distinct biochemical or histological readouts to avoid yet another failed clinical trial.

Moving forward, critical differences between preclinical models of age-related dementias must be considered and carefully understood. For example, the 3 × Tg transgenic mouse line that showed positive outcomes for retromer chaperone therapy presents with cognitive impairments before the appearance of plaques and tangles [101]. This directly conflicts with clinical observations in people with AD, where such hallmarks emerge years or even decades before the clinical onset of dementia [168–170]. With that said, it has been reported that soluble oligomers of amyloid-β are more neurotoxic than plaques, and mild cognitive impairments appear with the onset of amyloid plaques [171, 172]. The other transgenic mouse line used to interrogate the utility of a retromer chaperone therapy was the PS19 model, which shows tangle pathology around the same time that cognitive decline is first apparent [104, 173]. However, seeding activity from PS19 mouse brains occurs prior to the emergence of tangles and cognitive decline in this model [94, 173]. This indicates that smaller, likely oligomeric, species of tau that are not detected by conventional histological approaches may be primary neurodegenerative effectors [94]. Indeed, tau oligomers are observed in the early stages of AD, and small tau aggregates (<200 nm²) are overrepresented in VPS35-deficient hESC-derived cortical neurons [106, 174]. Also, it is important to consider that preclinical models of tauopathies (i.e., animal and cell models) mimic features of such diseases, but are not complete models of the disease itself. The factors that make each tauopathy distinct are not accounted for in these systems. For example, most mouse models of “Alzheimer’s disease” employ mutants of tau that cause FTDP-17 [173]. Moreover, most transgenic mice overexpress a single isoform of tau, which limits their relevance to AD (all isoforms present in aggregates) or Pick’s disease (3R-containing isoforms present in aggregates), for example. These factors must be considered when attributing disease relevance to experimental findings, even in the case of retromer. To better understand the utility of retromer chaperones, the fact that tau aggregates can exist as distinct strains must also be considered. Modeling this heterogeneity in vivo, likely through injection of structurally distinct tau “seeds” into the brains of mice, will be an important step forward.

Author contributions

JMC conceived, wrote, drafted, and approved the final paper, and created figures. DD, SK, and TJS discussed content, critiqued the draft paper and figures for intellectual content, and approved the final paper.

Compliance with ethical standards

Conflict of interest

The authors declare that they have no conflict of interest.

Ethical approval

Work with human brain was approved by the WCHN Human Research Ethics Committee (HREC/15/WCHN/198, SSA30/2016).
