. 2021 Apr 6;3(3):e629–e638. doi: 10.1016/j.asmr.2020.10.006

Microdrilling Demonstrates Superior Patient-Reported Outcomes and Lower Revision Rates Than Traditional Microfracture: A Matched Cohort Analysis

Alexander Beletsky 1, Neal B Naveen 1, Tracy Tauro 1, Taylor M Southworth 1, Jorge Chahla 1, Nikhil N Verma 1,∗, Adam B Yanke 1, Brian J Cole 1
PMCID: PMC8220563  PMID: 34195625

Abstract

Purpose

The purpose of this study was to compare patient-reported outcomes and revision rates between the standard microfracture awl versus the microdrilling technique.

Methods

Microfracture patients were queried from a single-institution database between 2001 and 2016. Patient-reported outcome measure data were collected at preoperative and 6- and 12-month time points, inclusive of the International Knee Documentation Committee (IKDC) score, Short Form 12 (SF12) Physical Component Score (PCS) and Mental Component Score, and all Knee Injury and Osteoarthritis Outcome Score (KOOS) subscales. A matching algorithm based on previous procedures, lesion size, and demographic factors created 2 technique-based cohorts. Outcomes including revision rates and both statistically and clinically significant differences (i.e., the minimally clinically important difference [MCID]) between awl and microdrill cohorts were compared using univariate statistics.

Results

A total of 68 patients (aged 32.0 ± 13.1 years, 48.5% female, body mass index 26.7 ± 5.3 kg/m2), with 34 patients in each group, were included after the match. At 6 months, the microdrilling group demonstrated significantly greater levels of improvement than the awl group on the IKDC, SF12 PCS, and KOOS Pain, Symptom, Sport, and Quality of Life (P < .04), although differences at 1 year were only maintained on the SF12 PCS instrument (P < .001). With respect to MCID achievement, the microdrilling group demonstrated greater achievement rates at 6 months on the IKDC, KOOS Pain, and KOOS Sport (P < .04). The awl group demonstrated a higher rate of revision surgery (P = .02) within 3 years of follow-up and a greater likelihood to require multiple subsequent procedures (41.1% vs 17.6%, P = .03).

Conclusions

Microdrilling demonstrated superior outcomes relative to traditional microfracture awl techniques with respect to patient-reported outcomes at 6 months and revision rates within 3 years of follow-up. In addition, clinically meaningful differences were evident at 6 months in the microdrilling group.

Level of Evidence

Level III, retrospective comparative study.

Full-thickness lesions of the articular cartilage present unique challenges for the orthopedic surgeon to address. As a material, articular cartilage is relatively hypodense with limited vascular supply, together limiting the self-healing capacity of cartilage.1,2 Surgical intervention represents a fairly common treatment option, with an estimated incidence of 90 cartilage surgeries per 10,000 patients.3,4 Surgical options include restorative techniques (i.e., osteochondral grafts, autologous chondrocyte implantation), allowing for cells or tissue to re-create a normal chondral surface, or reparative measures (i.e., microfracture), in which the a natural healing response is induced to promote healing of smaller cartilaginous defects. Treatment algorithms have significantly evolved in the past decade, such that reparative techniques are generally considered in lower physical demand settings and restorative techniques are favored for larger chondral or osteochondral lesions (i.e., >2-3 cm) and in most high-demand patients depending on the timing of the surgical intervention.5

The microfracture technique has been historically one of the most common procedures in the cartilage literature.6,7 Marrow elements are released through the creation of small perforations in subchondral bone, resulting in the formation of a fibrocartilage layer that aids in defect repair.8,9 More recently, a microdrill (PowerPick; Arthrex, Naples, FL) has been introduced as a technical alternative to more traditional awl and hammer techniques.10,11 Histologic examinations of bone after treatment with a microdrill demonstrate decreased bony compaction and preservation of “bony channels” to marrow stroma relative to a traditional mallet and awl.12 However, the impact of technique variations on outcomes has yet to be determined,13, 14, 15 although based on histologic changes, improved outcomes may be expected.

The purpose of this study was to compare patient-reported outcomes and revision rates between the standard microfracture awl versus the microdrilling technique. Our hypothesis was 2-fold: (1) no significant differences in outcome scores or the achievement of clinically significant outcomes scores and (2) revision rates at 1, 2, and 3 years would not differ between cohorts.

Methods

Study Design and Cohort Establishment

Our study cohort was constructed using a prospectively maintained institutional registry (Outcome Based Electronic Research Database; Universal Research Solutions, Columbia, MO). Patients undergoing microfracture surgery between September 2001 and March 2016 were screened using Concurrent Procedure Terminology codes for case identification. Inclusion criteria included receipt of microfracture cartilage surgery using either a standard microfracture awl versus microdrilling and completion of patient-reported outcome measures (PROMs) at preoperative, 6-month, and 12-month time points. Exclusion criteria included concomitant meniscal pathology that required treatment (i.e., more than one-third of meniscal resection, meniscal repair or transplant), ligamentous (i.e., ligament reconstruction) and bony (i.e., osteotomy) procedures, and biological augmentation procedures (i.e., platelet-rich plasma, bone marrow aspirate concentrate injection). With respect to revision procedures, our definition of revision was a repeat surgery for the same lesion location as the primary procedure. A matching algorithm was run to match the demographic, preoperative, and intraoperative characteristics of the awl group to the PowerPick group (Fig 1).

Fig 1.

Fig 1

Open in a new tab

CONSORT diagram. Biologics include PRP, BMAC, and biocartilage. (ACLR, anterior cruciate ligament reconstruction; OAT, osteochondral autograft reconstruction; MAT, meniscal allograft transplantation; MFx, microfracture; OCA, osteochondral allograft reconstruction; PRP, platelet rich plasma; BMAC, bone marrow aspirate concentrate.)

Surgical Technique

Microfracture was performed according to previously described techniques.6 In short, the surgical technique involved debridement of the chondral defect, establishment of stable and vertical shoulders around the perimeter of the defect, removal of the calcified cartilage layer, and penetration of the subchondral bone with a microfracture awl or a 1.5-mm drill (PowerPick; Arthrex). The microfractured or microdrilled holes were evenly spaced 3 to 4 mm apart to preserve the structure and function of the subchondral bone plate. Marrow product egression (blood and fat droplets) was confirmed before the conclusion of each surgical procedure.

Rehabilitation

Postoperatively, the patients with tibiofemoral lesions were restricted to toe-touch weightbearing on the operative limb for the first 6 weeks, followed by gradual progression to full weightbearing after 6 weeks. Patients with patellofemoral lesions only were allowed to bear weight as tolerated immediately in a hinged knee brace locked in full extension. Patients were encouraged to use a continuous passive motion machine for 6 to 8 hours per day for 6 weeks. This protocol promoted adhesion and maturation of the fibrocartilage clot to the subchondral bone and has demonstrated clinical efficacy.16 Closed kinetic chain exercises were started at 2 weeks, and open kinetic chain exercises were started at 8 weeks. Impact exercises resumed at 4 to 6 months depending on patient symptoms, plyometric training at 5 months, and sport-specific drills (cutting, pivoting, twisting) at 6 months. The postoperative rehabilitation course was tailored to each individual patient based on symptoms, demand level, associated procedures, and the tempo of recovery.

PROMs and Statistical Analysis

Legacy PROMs of interest examined in this study include the International Knee Documentation Committee (IKDC) score; Knee Injury and Osteoarthritis Outcome Score (KOOS) subscales, including KOOS Pain, KOOS Symptoms (Sx), KOOS Activity of Daily Living (ADL), KOOS Sport and Recreational Activities, and KOOS Quality of Life (QOL); and Short Form 12 (SF12) Physical Component Score (PCS) and Mental Component Score (MCS). PROMs were administered at preoperative, 6-month, and 12-month time points. Statistical analysis examined differences in demographics using univariate statistical tests, including χ2 testing to examine the distribution of sex, laterality, and 3 location groups (femoral, patellar, or tibial). Student t tests were performed to examine the distributions of age and body mass index (BMI) between the awl and microdrilling group. All statistical tests were performed at an α = .05.

Clinically Significant Outcomes

Clinically significant outcome thresholds used in this study were adopted from previous literature for a variety of cartilaginous procedures.17 The minimally clinically important difference (MCID) was used in this study, which represents the change in outcome score that results in the smallest, appreciable clinical improvement after surgery.18 When possible, thresholds for the MCID were derived from microfracture-specific cohorts (IKDC: 6.30). However, if threshold values for microfracture were unavailable, values from cartilage restoration procedures were used (i.e., KOOS Pain: 16.7, KOOS Sx: 3.6, KOOS ADL: 12.5, KOOS Sport: 12.8, KOOS QOL: 10.8, SF12 PCS: 6.5).17 Each of these values represented calculations using anchor-based methods with area under the curve values surpassing 0.7, except in the case of KOOS Sx, for which a distribution-based threshold was used.17 An anchor-based method employs a tiered questioning structure to determine levels of improvement,18 whereas a distribution-based method examines the distribution of patient-reported outcome scores to calculate an estimated MCID threshold value.19 Values from Ogura et al.17 were prioritized over other reports on MCID in microfracture due to no loss to follow-up in consecutive patient series.20 A χ2 analysis was used to examine differences in percentage of patients reaching MCID at 6-month and 1-year time points between the awl and microdrilling groups.

Results

A total of 68 patients were included in our study population after the matching algorithm, without any significant differences observed between cohorts with respect to age, BMI, sex, laterality, number of previous surgeries, lesion size, or location (P = .09-.82) (Table 1). When examining mean preoperative scores between the awl and microdrilling groups, no significant differences in preoperative IKDC (P = .76), KOOS subscales (P = .33-.94), or SF12 PCS (P = .09) or SF12 MCS (P = .09) scores were observed (Table 2).

Table 1.

Cohort Demographics and Patient-Reported Outcome Scores∗

Characteristic Awl Microdrill P Value
Age, y 34.1 (30.7-37.5) 28.5 (23.8-33.2) .09
BMI 27.5 (25.6-29.4) 25.9 (24.3-27.5) .29
Sex .63
 Male 18 (52.9) 16 (47.1)
 Female 16 (47.1) 18 (52.9)
Laterality .82
 Right 19 (55.9) 17 (50.0)
 Left 15 (44.1) 17 (50.0)
Previous surgeries 1.74 (1.1-2.4) 2.08 (1.5-2.7) .57
Lesion size 2.65 (2.0-3.3) 1.93 (1.6-2.3) .11
Lesion location .49
 LFC 7 (20.6) 7 (19.4)
 MFC 8 (23.5) 13 (36.1)
 Trochlea 11 (32.4) 10 (27.8)
 Patella 4 (11.8) 2 (5.6)
 MTC 3 (8.8) 1 (2.8)
 LTC 3 (8.8) 2 (5.6)
 CTC 1 (2.6) 1 (2.8)
 Bipolar lesions 3 (7.7) 2 (5.6)
Open in a new tab

BMI, body mass index; CTC, central tibial condyle; LFC, lateral femoral condyle; LTC, lateral tibial condyle; MFC, medial femoral condyle; MTC, medial tibial condyle.

∗

Data reported as mean (95% CI) or as number (percentage). Fisher exact tests were performed for distribution of sex, laterality, and 3 location groups (femoral, patellar, or tibial), and Student t tests were performed for age and BMI; all α = .05.

Table 2.

Preoperative PROM Scores Between Awl and Microdrilling Group

Characteristic Awl, Mean (95% CI) Microdrill, Mean (95% CI) P Value
IKDC 42.9 (37.4-48.4) 44.4 (39.0-49.8) .76
KOOS Pain 59.3 (53.5-65.1) 59.9 (55.0-64.8) .89
KOOS Sx 62.0 (57.6-66.4) 62.3 (57.1-67.5) .94
KOOS ADL 73.3 (67.4-79.2) 69.8 (62.9-76.7) .50
KOOS Sport 31.5 (23.9-39.1) 37.7 (29.8-45.6) .16
KOOS QOL 27.4 (21.4-33.5) 27.5 (20.5-34.5) .49
SF12 PCS 40.9 (38.5-43.3) 37.2 (33.5-40.9) .09
SF12 MCS 47.5 (42.5-52.5) 53.3 (49.2-57.4) .09
Open in a new tab

KOOS, Knee Injury and Osteoarthritis Outcome Score; IKDC, International Knee Documentation Committee; MCS, Mental Component Score; PCS, Physical Component Score; QOL, quality of life; SF12, Short Form 12; Sx, Symptom.

At 6 months, the microdrilling group demonstrated significantly greater levels of improvement than the awl group on the IKDC (64.6, 95% CI 56.9-72.3 vs 47.7, 95% CI 41.9-52.0, P = .002), KOOS Pain (76.1, 95% CI 70.3-81.9 vs 67.9, 95% CI 63.16-72.6, P = .04), KOOS Sx (75.6, 95% CI 69.0-82.2 vs 65.8, 95% CI 60.2-71.4, P = .04), KOOS Sport (55.2, 95% CI 43.5-66.9 vs 35, 95% CI 26.6-43.4, P = .01), KOOS QOL (53.5, 95% CI 42.4-64.6 vs 33.1, 95% CI 25.4-40.8, P = .01), and the SF12 PCS (46.2, 95% CI 43.1-49.3 vs 37.4, 95% CI 34.8-40.0, P = .002). No significant differences between groups were observed at 6 months with respect to KOOS ADL (86.0, 95% CI 80.8-91.2 vs 79.2, 95% CI 72.9-85.5, P = .10) or SF12 MCS (54.0, 95% CI 50.8-57.2 vs 56.1, 95% CI 53.2-59.0, P = .49). At 1 year, no significant differences between the microdrill and awl groups were maintained with respect to IKDC (62.3, 95% CI 57.0-67.6 vs 56.8, 95% CI 48.7-64.9, P = .44), KOOS Pain (74.22, 95% CI 68.7-78.7 vs 75.7, 95% CI 68.5-82.9 , P = .79), KOOS Sx (72.6, 95% CI 66.4-78.8 vs 72.6, 95% CI 67.1-78.1, P = .98), KOOS ADL (86.1, 95% CI 82.9-89.3 vs 83.6, 95% CI 77.0-90.2, P = .60), KOOS Sport (51.9, 95% CI 44.1-59.7 vs 51.6, 95% CI 40.7-62.5, P = .49), KOOS QOL (54.2, 95% CI 46.3-62.1 vs 48.4, 95% CI 38.2-58.6, P = .25), or SF12 MCS (55.9, 95% CI 53.4-58.4 vs 54.9, 95% CI 51.2-58.6, P = .15). Significant differences were maintained out until 1-year follow-up between groups for the SF12 PCS (50.3, 95% CI 48.6-52.0 vs 38.4, 95% CI 36.7-40.1, P < .001) (Fig 2).

Fig 2.

Fig 2

Open in a new tab

Patient-reported outcome scores across time points between groups. ∗Significant differences between groups with respect to score distributions at a specific time point on Student t test at α = .05. Significant improvements in postoperative PROM scores on one-way analysis of variance with α = .05 were observed for all measures except SF12 MCS (P = .12) and SF12 PCS (P = .36). (IKDC, International Knee Documentation Committee; KOOS, Knee Injury and Osteoarthritis Outcome Score; MCS, Mental Component Score; PCS, Physical Component Score; QOL, quality of life; SF12, Short Form 12; Sx, Symptom.)

Rates of Reaching the MCID

The rate of reaching the MCID for the awl group ranged from 6.7% to 50% at 6 months and 40% to 67.9% at 1 year by PROM. The range of percent reaching the MCID for the microdrilling group at 6 months was 11.8% to 72.0%, with particularly high rates demonstrated on the IKDC instrument (72%-91.7%). At 1 year, rates for the microdrilling group were 52.9% to 91.7%. The microdrilling group demonstrated significant greater rates of reaching the MCID than the awl group at 6 months for the IKDC (72% vs 33.3%, P = .002), KOOS Pain (42.9% vs 11.1%, P = .02), and KOOS Sport (55.6% vs 18.2%, P = .04). At 1 year, the microdrilling group also demonstrated significantly greater rates of reaching the MCID on the KOOS QOL (83.3% vs 56.5%, P = .03) and SF12 PCS (90.9% vs 60.0%, P < .01). No significant differences were observed between the microdrilling and awl group at 6 months for KOOS QOL (P = .17) or at 1 year for KOOS Sport (P = .18), KOOS Pain (P = .09), or IKDC (P = .11). No significant differences between groups were found for KOOS Sx or KOOS ADL at 6 months or 1 year (P = .11-.33) (Fig 3, Fig 4).

Fig 3.

Fig 3

Open in a new tab

Achievement of minimally clinically important difference at 6 months. ∗Significant differences between groups with respect to score distributions at a specific time point on χ2 testing at α = .05. Significant differences at 6 months were observed between groups for the IKDC, KOOS Pain, and KOOS Sport. (IKDC, International Knee Documentation Committee; KOOS, Knee Injury and Osteoarthritis Outcome Score; MCS, Mental Component Score; PCS, Physical Component Score; QOL, quality of life; SF12, Short Form 12; Sx, Symptom.)

Fig 4.

Fig 4

Open in a new tab

Achievement of minimally clinically important difference at 1 year. ∗Significant differences between groups with respect to score distributions at a specific time point on χ2 testing at α = .05. Significant differences at 1 year were observed between groups for KOOS QOL and SF12 PCS. (IKDC, International Knee Documentation Committee; KOOS, Knee Injury and Osteoarthritis Outcome Score; MCS, Mental Component Score; PCS, Physical Component Score; QOL, quality of life; SF12, Short Form 12; Sx, Symptom.)

Rates of Revision Surgery

Within a 3-year period of follow-up, the awl group demonstrated a higher rate of revision surgery than the microdrilling group (41.1% vs 17.6%, P = .02). Patients in the awl group were also more likely to require multiple subsequent procedures in the 3-year follow-up period than those in the microdrilling group (17.6% vs 0%, P = .025). On subgroup analysis, there was a large difference in the percentage of reoperations within the first postoperative year between groups, although this failed to reach significance (P = .16). There were no significant differences in the rate of subsequent surgery between groups in the first year (P = .18), second year (P = .82), or third postoperative year (P = .63) (Fig 5).

Fig 5.

Fig 5

Open in a new tab

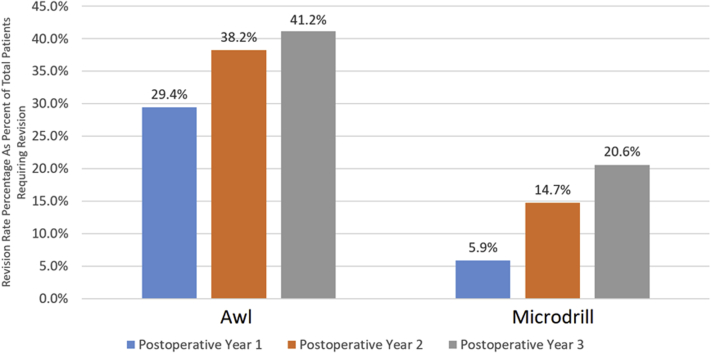

Awl versus microdrilling: rates of revision surgery.

With respect to the microdrilling cohort, the most common revision procedure was chondral debridement (n = 4) follow by osteochondral allograft of either the trochlea or femoral condyles (n = 3). Overall, 20.6% (n = 6) of patients required subsequent surgery in the microdrilling group. Five patients in the awl cohort received a subsequent osteochondral allograft, with 6 requiring cartilage debridement and 2 requiring lateral release procedures. In addition, 3 patients received autologous chondrocyte implantation, 2 of which were performed with concomitant anteromedialization procedures. A single patient required patellofemoral arthroplasty, and another single patient in this cohort required an osteochondral autograft transplant. The overall revision rate at 3 years in this cohort is 47.1% (n = 14).

Discussion

The main findings of this study demonstrated distinct short-term clinical advantages with respect to microdrilling relative to traditional mallet and awl impaction techniques used for microfracture surgery. Patients receiving microdrilling demonstrated significantly improved patient-reported outcome scores at 6 months on the IKDC, SF12 PCS, KOOS Pain, KOOS Sx, and KOOS QOL and at 1 year on the SF12 PCS instrument. This corresponded with increased rates of reaching the MCID at 6 months on the IKDC, KOOS Pain, and KOOS Sport PROMs. The traditional awl technique was associated with greater revision rates within 3 years of surgery and associated with the need for multiple revision surgeries. These findings suggest superior short-term outcomes for microdrilling with respect to traditional fracture techniques. Possible explanations include bony channels to marrow stroma, decreased bony compaction, and differences in osteonecrosis.

With respect to statistically significant differences in PROM scores between groups at specific time points, significant differences between the microdrilling and microfracture group were observed for the IKDC, KOOS Pain, KOOS Sx, KOOS Sport, KOOS QOL, and SF12 PCS. However, it is important to note that there were overlaps in the 95% confidence interval between groups for the KOOS Sx and KOOS Pain, calling into question the clinical relevance of these findings. Together, the IKDC, KOOS Sport, KOOS QOL, and SF12 PCS represent the instruments for which there were significant differences between groups, whereas no statistically significant or clinically relevant differences were observed for KOOS Pain, KOOS Sx, KOOS ADL, and SF12 MCS. These findings suggest that microdrilling may demonstrate superior functional outcomes for patients relative to microfracture, specifically with respect to sporting activities (i.e., stair climbing, running, jumping, twisting, kneeling)21,22 due to an overlapping of domains of assessment between IKDC, KOOS Sport, and SF12 PCS. No differences between were found in KOOS Sx or KOOS ADL, suggesting both microdrilling and microfracture relieve symptoms to similar degrees and return patients to similar levels of daily activity. Both statistically and clinically significant outcomes after microfracture surgery using the traditional awl technique16 were demonstrated on the IKDC, SF12 PCS, and KOOS subscales (i.e., KOOS Pain, Sport, QOL) in this study. The results align well with previous studies that have demonstrated statistically significant improvements in similar instruments (i.e., IKDC, KOOS subscales). Randomized control trials examining longitudinal outcomes after microfracture have also demonstrated statistically significant improvements on various PROMs (i.e., IKDC, Lysholm, KOOS subscales) at postoperative time points.23, 24, 25, 26, 27 In addition, Weber et al.13 recently demonstrated both clinically and statistically significant improvements on Western Ontario and McMaster Universities Arthritis Index and KOOS instruments in microfracture patients after an average of 5.66 years of follow-up. However, Weber et al.13 only reported that mean differences in PROM scores surpassed MCID thresholds, whereas our study applied MCID thresholds to show superior clinically significant outcome achievement at 6 months on the IKDC, KOOS Pain, and KOOS Sport for the microdrilling cohort. This finding is particularly important given that outcomes after microdrilling have yet to be defined. Instead, most research on microdrilling in microfracture surgery has focused on defining histologic differences with respect to drill depth, thermal osteonecrosis,28,29 and bony architecture.12,30, 31, 32, 33 The comparative analysis of outcome achievement across domains in this study suggests that function, pain, and sporting activities represent 3 clinical outcome domains for which microdrilling may provide an improved timeline of improvement relative to traditional awl microfracture.33

With respect to subsequent surgery, the microdrilling group in this study demonstrated significantly decreased rates of revision surgery at 3 years (41.1% vs 17.6%) and decreased likelihood of requiring multiple surgeries (17.6% vs 0%) relative to the awl cohort, respectively. Rates of subsequent surgery after microfracture using an awl and hammer technique have demonstrated increasing revision rates over time.13,34, 35, 36 Revision rates within the first postoperative year have been reported to range between 3% and 9%,36 and 5-year revision rates have been reported to increase to 22% to 42%.13,34,35 Weber et al.13 retrospectively reviewed outcomes in a cohort of patients receiving microfracture with an awl from the same institution. Longitudinal revision rates from that study are nearly identical to those in the awl cohort of the current study (42.1% vs 41.2%).13 Although a handful of studies have compared revision rates between microfracture and autologous chondrocyte implantation,23,24 the impact of microdrilling on revision rates after microfracture surgery has not been previously established.

Microfracture using the traditional awl technique is widely preferred over microdrilling due largely to low cost, technical ease, and concerns of thermal osteonecrosis.29,31,37,38 However, recent studies have demonstrated no increased propensity toward osteophyte necrosis when microdrilling is performed with irrigation. Although both the traditional awl and microdrilling techniques effectively perforate subchondral bone to allow migration of mesenchymal stem cells,39 studies examining outcomes after the awl technique have demonstrated subsequent osteophyte formation, bone plate thickening, and subchondral cyst formation in up to one-third of patients.27,40,41 Other important limitations associated with the awl technique include bony overgrowth,41 bony compaction limiting access to marrow stroma,12 and subchondral sclerosis.41 These limitations align well with the results of our study because the awl technique demonstrated twice the rate of revision cartilage debridement as the microdrilling group (17.6% vs 8.8%). In contrast, microdrilling has important advantages, including standardized drill depth (i.e., 4 to 6 mm depending on instrument), increased subchondral hematoma formation, and improved access to marrow stroma.12,31 Access to the marrow stroma is particularly important given evidence that microdrilling removes necrotic debris that has been demonstrated to block marrow stroma access in the case of awl microfracture.12 All in all, basic science studies exploring microdrilling in cartilage surgery suggest a mechanistic framework for the differences in clinical outcomes and revision rates observed in our study.

Limitations

The current study is not without limitations. First, MCID threshold values from cohorts of patients receiving cartilage reparative and/or restorative procedures were used given that microfracture-specific thresholds have not been established for most PROMs used in this study. Furthermore, this study did not report on survivorship to total knee arthroplasty or determine advancement of osteoarthritis by either clinical or radiographic parameters. Third, although we report revision rates between cohorts out to 3 years, we are only able to provide complete patient-reported outcome data out until 1 year. With respect to rehabilitation, the rehabilitation protocol in this study encouraged use of a continuous passive motion (CPM) machine for 6 to 8 hours a day for a period of 6 weeks. Variability in the use of CPM may contribute to the differences in clinical outcomes and revision rates observed between cohorts, particularly if the microdrilling cohort used the CPM significantly more or if the microfracture cohort used CPM significantly less. There may also be further variability with respect to rehabilitative status at the 6-month time point, depending on the patient’s preexisting functional status. Our study design used a prospectively maintained database to retrospectively construct matched cohorts and examine outcomes. Historical control groups are problematic and could result in a type I error inflation. Consequently, a prospective design would be superior in terms of tracking outcomes and establishing rates of revision. Moreover, our matched cohort design yielded a P value of .11 when attempting to control for lesion size between cohorts, raising concern for type II error. These lesion sizes represent an important limitation in our match cohort design because the mean size of the microfracture group differed from that of the microdrilling group by 27%. This difference may be partly responsible for the group difference observed between cohorts in our analysis. Lesion location presents another limitation to our data set, as the microfracture group had 6 more patients with patellar, tibial, and trochlear defects, and these types of cartilage defects have been demonstrated to have inferior outcomes compared with femoral condyle lesions.42 It is also possible that in certain cases, there was new trauma in the same compartment or that the originally treated lesions propagated further. All in all, the concern of selection bias secondary to cohort differences in age, BMI, lesion size, lesion location, and rehabilitation remain.

In addition, a total of 3 surgeons performed microfracture surgeries across databases, creating potential variability with respect to rehabilitation and clinical decision-making protocols. However, when examining the distribution of surgeons as a proxy for clinical decision making and rehabilitation protocol variability, distributions were without significant differences between groups, suggesting limited provider bias (P = .71). Last, although differences in bony morphology have been established between awl and microdrilling techniques, we were unable to examine differences in bony morphology at follow-up time points between groups. Important strengths to consider include revision surgery data in the subsequent 3 years of postoperative follow-up, analysis of both statistically and clinically significant outcomes, and the use of a matched cohort analysis to minimize preoperative variability with respect to demographic variables, lesion character (i.e., size, location, previous surgeries), and preoperative outcome scores that would possibly bias the study.

Conclusions

Microdrilling demonstrated superior outcomes relative to traditional microfracture awl techniques with respect to patient-reported outcomes at 6 months and revision rates within 3 years of follow-up. In addition, clinically meaningful differences were evident at 6 months in the microdrilling group.
