Glycine-induced NMDA receptor internalization provides neuroprotection and preserves vasculature following ischemic stroke

Summary

Ischemic stroke is the second leading cause of death worldwide. Following an ischemic event, neuronal death is triggered by uncontrolled glutamate release leading to overactivation of glutamate sensitive N-methyl-d-aspartate receptor (NMDAR). For gating, NMDARs require not only the binding of glutamate, but also of glycine or a glycine-like compound as a co-agonist. Low glycine doses enhance NMDAR function, whereas high doses trigger glycine-induced NMDAR internalization (GINI) in vitro. Here, we report that following an ischemic event, in vivo, GINI also occurs and provides neuroprotection in the presence of a GlyT1 antagonist (GlyT1-A). Mice pretreated with a GlyT1-A, which increases synaptic glycine levels, exhibited smaller stroke volume, reduced cell death, and minimized behavioral deficits following stroke induction by either photothrombosis or endothelin-1. Moreover, we show evidence that in ischemic conditions, GlyT1-As preserve the vasculature in the peri-infarct area. Therefore, GlyT1 could be a new target for the treatment of ischemic stroke.

Graphical abstract

Highlights

• •GINI is a dynamic phenomenon which dampens NMDAR-mediated excitotoxicity during stroke
• •GlyT1-antagonists (GlyT1-As) trigger GINI during stroke in vivo
• •GlyT1-As mitigate post-stroke behavioral deficits and preserve peri-infarct vasculature
• •GlyT1 could be a novel and viable therapeutic target for ischemic stroke

Neuroscience; Molecular neuroscience; Cellular neuroscience

Introduction

Ischemic stroke is a devastating health concern that often leaves victims with long-lasting disabilities, and induces substantial socioeconomic costs for the individual, their loved ones and society as a whole. Limited effective interventions are available to the at-risk population, highlighting the need to identify novel therapeutic targets that can prevent neuronal death following ischemic insults.

Activity-dependent changes in N-methyl-d-aspartate receptor (NMDAR)-mediated synaptic strength are of great importance, because they serve as the molecular trigger for synaptic responses in many physiological and pathological processes such as ischemic stroke. Neuronal death following an ischemic event is triggered by uncontrolled glutamate release leading to the NMDAR overactivation on surrounding neurons, inducing excessive Ca²⁺-influx primarily through NMDARs (Wu and Tymianski, 2018). In physiological conditions, NMDARs require glutamate binding on the GluN2 subunit and glycine binding on the glycine binding site (GBS) on the GluN1 subunit (Rosenmund et al., 1998). Ascher's group showed that glycine (Johnson and Ascher, 1987), or a glycine-like substance (Kleckner and Dingledine, 1988), is a required co-agonist for NMDAR activation. Moreover, Salter and co-workers reported that high doses of glycine trigger GINI, in vitro, by promoting endocytosis of NMDAR through clathrin/dynamin-dependent machinery (Nong et al., 2003). Unlike constitutive internalization, which requires no channel activation (Nong et al., 2003; Nong et al., 2004), NMDAR internalization following glycine “priming” requires both glutamate and glycine present in the synaptic cleft⁵.

Using a multidisciplinary approach, we found that during an oxygen-glucose deprivation paradigm (OGD), in vitro, not only glutamate but also an excess of glycine is released in the extracellular space. However, this is not sufficient to trigger GINI because the level of extracellular glycine is buffered by the glycine transporter type 1 (GlyT1) (Aragon et al., 1987; Guastella et al., 1992; Smith et al., 1992; Bergeron et al., 1998). Only when GlyT1s are antagonized, can glycine accumulate in the synaptic cleft and lead to robust NMDAR internalization. Photothrombosis (PT) and endothelin-1 (ET-1) are paradigms that mimic ischemic events, in vivo. We report that both PT and ET-1 induced a significantly smaller stroke volume, less cell death and less behavioral deficits in mice in the presence of a GlyT1 antagonist (GlyT1-A), which increases glycine concentrations, and hence the occupancy of the GBS. Moreover, the neuroprotective effect induced by high occupancy of the GBS was further supported by preservation of the vascularization tree.

Overall, these data suggest that increased levels of synaptic glycine before an ischemic event may be a means of minimizing neuronal death. We report that GlyT1-A administration before or shortly after an ischemic event, in vivo, triggers GINI and provides neuroprotection.

Results

High concentrations of glycine induce NMDAR internalization

We first determined the effects of bath application of increasing glycine concentrations on stimulation-evoked NMDAR excitatory postsynaptic currents (NMDAR-EPSCs) recorded from CA1 pyramidal neurons from acute hippocampal brain slices (Figure 1A). At glycine concentrations below 250 μM, NMDAR-ESPC amplitudes were potentiated in a dose-dependent fashion (Johnson and Ascher, 1987; Bergeron et al., 1998; Forsythe et al., 1988; Paoletti et al., 1995). However, increasing the glycine concentration to 1 mM resulted in a significant decrease in NMDAR-EPSC amplitude (Nong et al., 2003; Han et al., 2013) and this effect was reversible (Figure 1B). To verify that this decrease in amplitude was because of GINI, we applied 1 mM glycine in the presence of 100 μM dynasore, a cell-permeable inhibitor of both dynamin-1 and dynamin-2, which blocks internalization (Nong et al., 2004; Kirchhausen et al., 2008). We found that the decrease in NMDAR-EPSC amplitudes by 1 mM glycine was abolished in the presence of dynasore (Figure 1C).

Figure 1.

Increasing exogenous glycine and d-serine concentrations results in NMDAR internalization, which is dependent on Ca²⁺ influx

(A) Normalized raw traces showing the effect of increasing concentrations of exogenous glycine on Schaffer Collateral NMDAR-EPSCs and mean time course data showing the effect of a 15 mins application of various glycine concentrations.

(B) A dose-response curve of glycine and NMDAR-EPSC amplitudes.

(C) The effect of 250 μM and 1 mM glycine on NMDAR-EPSC amplitudes in the presence of a dynasore.

(D) The role of various concentrations of extracellular Ca²⁺ on NMDAR-EPSC amplitudes in the presence of 1 mM glycine, as well as changing intracellular Ca²⁺ levels using BAPTA, nimodipine, or CPA.

(E) The effect of various concentrations of glycine on NMDAR-EPSC amplitudes in GlyT1+/− mice, compared to WT.

(F) The dose-response curve of the effects of glycine on NMDAR amplitudes in GlyT1+/− mice.

(G) The effect of 250 μM glycine on NMDAR-EPSC amplitudes in GlyT1+/− mice in the presence of dynasore.

(H) The effect of low (10 μM) and high (1 mM) concentrations of glycine or d-serine concentrations on NMDAR-EPSC amplitudes.

(I) The dose-response curve of NMDAR-EPSC amplitudes to d-serine compared to glycine.

(J) The effect of 1 mM d-serine in the presence of dynasore.

(K) The effect of 10 μM d-serine while elevating endogenous glycine levels with NFPS.

(L) A dose-response curve showing the effect of exogenous d-serine levels on SR−/− mice.

(M) The effect of a higher dose of d-serine (1 mM vs. 2 mM) on NMDAR-EPSC amplitudes in SR−/− mice compared to their WT littermates. Data is mean ± SEM; statistical significance p < 0.05 ∗.

Calcium influx is required for GINI to occur

Previous studies have reported that the activity of dynamin is regulated by the Ca²⁺-sensitive phosphatase calcineurin (Lai et al., 1999; Traynelis et al., 2010). Therefore, we explored the role of extracellular and intracellular Ca²⁺ on NMDAR-EPSC amplitudes in the presence of 1 mM glycine. We examined the effects of various external Ca²⁺ concentrations on the NMDAR response to 1 mM glycine application. When 1 mM glycine was applied with low Ca²⁺ (1 mM), an increase in NMDAR-EPSC amplitude was observed, in contrast to what occurred with normal Ca²⁺ concentrations (3.5 mM). To further confirm the role of Ca²⁺ in GINI, we included a Ca²⁺chelator BAPTA (10 mM), in the recording electrode. Here, we observed a significant attenuation in the decrease in NMDAR-EPSC amplitude induced by 1 mM exogenous glycine. Moreover, extracellular application of 20 μM nimodipine, a L-type Ca²⁺ channel blocker, also attenuated GINI compared to control, further corroborating the data acquired with BAPTA. In contrast, depleting intracellular Ca²⁺ stores by incubating hippocampal slices for 1hr in 30 μM cyclopiazonic acid (CPA), an inhibitor of intracellular Ca²⁺ pumps, had no effect on the glycine-induced decrease in NMDAR-EPSC amplitude (Figure 1D). Together these data suggest that external Ca²⁺ influx across the plasma membrane is required for GINI to occur.

Genetic elevation of extracellular glycine facilitates GINI

Heterozygous glycine transporter type 1 (GlyT1^+/−) mice exhibit a higher level of endogenous extracellular glycine (Gomeza et al., 2003; Tsai et al., 2004). Therefore, we hypothesized that in these mice GINI could be triggered by lower doses of glycine. As illustrated in Figure 1E, although there was no significant effect in the NMDAR-EPSC amplitude following bath application of 10 μM or 1 mM glycine between wild type (WT) and GlyT1^+/mice, bath application of 250 μM glycine, which potentiated the NMDAR-EPSC amplitude in WT mice, significantly inhibited the NMDAR-EPSC amplitude in GlyT1^+/− mice (Figure 1F). The decrease of the NMDAR-EPSC amplitude induced by 250 μM glycine in GlyT1^+/− mice was abolished in the presence of dynasore (Figure 1G). Therefore, the high levels of endogenous glycine in the GlyT1^+/− mice trigger GINI at lower exogenous glycine concentrations.

Role of glycine binding site occupancy

In addition to glycine, d-serine also activates the GBS (Kleckner and Dingledine, 1988; Papouin et al., 2012). As illustrated in Figure 1H, the effects of increasing d-serine concentrations on NMDAR-EPSC amplitudes in acute slices from WT mice was also dose-dependent. Moreover, the dose-response curve of NMDAR-EPSC amplitudes to d-serine was left-shifted relative to that of glycine because of its higher affinity to the GBS (Wolosker et al., 1999) (Figure 1I). The decrease in NMDAR-EPSC amplitude evoked following bath application of 1 mM d-serine was also abolished in the presence of dynasore (Figure 1J).

We next investigated whether GINI could be modulated by increasing levels of either glycine or d-serine in WT mice. Glycine levels were increased via bath application of the selective GlyT1-A, N-[3-(4′-fluorophenyl)-3-(4′-phenylphenoxy)propyl]sarcosine (NFPS; 300 nM) (Aubrey and Vandenberg, 2001; Herdon et al., 2001; Mallorga et al., 2003; Liu et al., 2005; Pinto et al., 2015). As expected, there was a significant increase in evoked NMDAR-EPSC amplitude in the presence of NFPS alone (Bergeron et al., 1998). However, when NFPS was applied together with a potentiating concentration of d-serine (10 μM), a significant decrease in NMDAR-EPSC amplitude was observed (Figure 1K). Interestingly, when NMDARs were first primed with high doses of glycine or d-serine, a subsequent application of a low dose of glycine or d-serine, also induced GINI (Figure S1).

Next, we used a transgenic mouse model in which the serine racemase gene was knocked out (SR^−/- mice) (Basu et al., 2009; Balu et al., 2012; Benneyworth and Coyle, 2012), as these mice exhibit low levels of d-serine. In both WT and SR^−/- mice, a low dose of d-serine (10 μM) potentiated the evoked NMDAR-EPSC amplitude. However, SR^−/- mice required a higher dose of d-serine (2 mM) than WT mice (1 mM) to induce a decrease in NMDAR-EPSC amplitude (Figures 1L and 1M). These findings suggest that there is a common mechanism of action for glycine or d-serine to trigger GINI. In addition, we found that GINI was neither subunit-specific (Figures S2A–S2E) nor attributed to AMPA receptor activity (Figure S2F), and not limited to the hippocampal region (Figure S2G).

Glycine is released during oxygen-glucose deprivation

Immunohistochemical data suggests that glycine may be co-localized in glutamatergic neurons (Cubelos et al., 2005); therefore, we hypothesized that depolarization of glutamatergic CA1 pyramidal neurons during the oxygen-glucose deprivation (OGD) paradigm could result in detectable local glycine release (Rossi et al., 2007). To ensure glycine was released during an OGD paradigm, we used the sniffer-patch technique, wherein activation of glycine receptor α2 subunit indicated glycine release (Muller et al., 2013). When the OGD perfusate was applied to the slice, there was a marked increase in the frequency of channel opening in the patch (Figure S3A) and a significant increase in open probability (P_open) compared to control (Figure S3B). Overall, these results strongly suggest that during OGD conditions, glycine is released into the CA1 extracellular space. Given that multiple studies have demonstrated that glycine receptors (GlyRs) are only weakly expressed at CA1 hippocampal synapses (Muller et al., 2013; Hu et al., 2016; Chen et al., 2015), we speculated that the target for the glycine release following OGD could be NMDARs.

OGD paradigm on acute slices, in vitro, decreases NMDAR current amplitude

In brief, we found that an OGD paradigm applied to acute slices during train stimulation induced NMDAR internalization (Figures S3C–S3G). To further confirm that glycine is responsible, we purified glycine oxidase (GO), an enzyme that catalyzes the breakdown of glycine. After demonstrating the effectiveness of purified GO on exogenous glycine levels (Figure S3H), NMDAR-EPSC trains (20 Hz) were recorded with GO and the decrease of the NMDAR-EPSC amplitude was abolished following OGD (Figures S3I and S3J). Altogether, these in vitro data demonstrate that glycine levels increase during ischemia; however, GINI is only triggered when we further elevate glycine using the train stimulation paradigm. Therefore, we speculated that GINI could also be triggered in vivo during stroke in mice with elevated glycine levels.

Genetic elevation of brain glycine reduces infarct size following photothrombosis

Glycine has been shown to be neuroprotective in both in vitro (Hu et al., 2016) and in vivo models of stroke (Chen et al., 2015, 2017; Zhao et al., 2018; Qin et al., 2019); yet, proposed mechanisms have never been expanded into feasible pharmacotherapies. To determine if high glycine levels could result in a decrease in neuronal death following ischemia, we used a well-established focal ischemic paradigm, photothrombosis (PT). Because our in vitro data demonstrate that high glycine/d-serine levels are required to trigger GINI, one would expect that the stroke volume in GlyT1^+/− mice should be smaller than that observed in WT mice. Indeed, there was a statistically significant decrease in stroke volume in the GlyT1^+/− mice compared to WT. In contrast, stroke volumes were larger in SR^−/- mice, compared to WT (Figure 2A).

Figure 2.

Elevation of extracellular glycine results in a smaller infarct volume and decreased motor behavioral deficits following photothrombotic and endothelin-1 stroke

(A) Representative serial coronal sections of TTC-stained mouse forebrain (slice thickness 500 μM) and their corresponding box and whisker plots showing the infarct volume when assessed 48hrs after the induction of a unilateral photothrombotic stroke in GlyT1+/− and SR−/− mice relative to WT mice.

(B) Representative TTC-stained (top) or magnetic resonance imaging (bottom) sections showing representative stroke regions observed 48hrs following the induction of photothrombotic (PT) stroke, and a box and whisker plot showing stroke volume in saline-treated or NFPS-treated mice 24hrs before stroke induction.

(C) The effect of 24hrs pre-stroke NFPS administration on post-stroke time to contact and time to remove in the adhesive removal task compared with saline treatment, when evaluated 48hrs following PT stroke.

(D) Effect of various post-stroke administration time-points of NFPS treatment on stroke volume with their corresponding box and whisker plots following PT stroke.

(E) Representative cresyl violet sections (25 μm thick) 48hrs following endothelin-1 (ET-1) stroke obtained from saline-treated and NFPS-treated mice 24hrs prior, in which the extent of the infarct is shown within the yellow border and box and whisker plot depicting infarct volume.

(F) The effect of 24hrs pre-stroke NFPS administration on post-stroke time to contact and time to remove in the adhesive removal task compared with saline treatment following ET-1 stroke. Data is mean ± SEM; statistical significance p < 0.05 ∗, p < 0.01 ∗∗, p < 0.001 ∗∗∗, and p < 0.0001 ∗∗∗∗

Pharmacological elevation of brain glycine reduces infarct size following photothrombosis

To acutely increase the levels of endogenous glycine, WT mice were treated with NFPS 24hrs pre-stroke (Aubrey and Vandenberg, 2001; Herdon et al., 2001; Mallorga et al., 2003; Liu et al., 2005). Forty-eight hours following PT stroke in both the saline- and NFPS-treated cohorts, stroke volume was quantified using 2,3,5-triphenyltetrazolium chloride (TTC) or via magnetic resonance imaging (MRI). The box-and-whisker plot shows a statistically significant decrease in median stroke volume in the NFPS-treated mice compared to the saline-treated mice (Figure 2B). This decrease in infarct volume following NFPS treatment is consistent with what has been previously observed in the transient middle cerebral artery occlusion (tMCAO) model of ischemic stroke (Huang et al., 2016; Dojo Soeandy et al., 2019). In addition, FluoroJade C (FJC) staining demonstrated that the NFPS-treated mice also have significantly decreased levels of cell death compared with the saline-treated mice (Figure S4A). Therefore, these data demonstrate that the blockade of GlyT1 is required for the reduction of stroke volume. Interestingly, this decrease in stroke volume was maintained when NFPS was administered up to 10mins post-stroke (Figure 2D).

Pharmacological elevation of brain glycine minimizes motor behavioral deficits following photothrombosis

Although encouraging, a decrease in stroke volume does not necessarily correlate with a decrease in post-stroke behavioral deficits (Pineiro et al., 2000). To determine if pre-treatment with NFPS could minimize post-stroke behavioral deficits, we used a well-established behavioral test of motor function, the adhesive removal test (Bouet et al., 2009). Following PT, a significant attenuation of post-stroke motor behavioral deficits was observed in the cohort of mice treated with NFPS in both time to contact and time to remove, with no significant stroke or drug effect on the unimpaired paw (Figure 2C).

Pre-stroke administration of NFPS decreases stroke volume and improves motor behavioral deficits following endothelin-1 stroke

The PT stroke model does not recapitulate all of the clinical aspects of ischemia, particularly with respect to reperfusion of the infarct (Sommer, 2017). Therefore, to ensure that the observed decrease in stroke volume and attenuation of behavioral deficits was not an artifact of the PT stroke model, we repeated the experiments using a second known model of focal stroke, the endothelin-1 (ET-1) model (Dojo Soeandy et al., 2019). Mice pre-treated with NFPS had significantly smaller ET-1 stroke volumes compared with their saline-treated counterparts (Figure 2E).

In the adhesive removal task, NFPS-treated mice showed significantly less post-stroke impairments in the impaired paw than the saline-treated mice, in both time to contact and time to remove (Figure 2F). There was no significant stroke or drug effect on the unimpaired paw (Supplementary adhesive and cylinder task (Schallert et al., 2000) data for both stroke models in Figures S4B–S4E and validation of ET-1 model in Figures S5A–S5C). The horizontal ladder test was an additional assessment of motor function (Metz and Whishaw, 2009). Following ET-1 stroke, there was a significant increase in impaired paw misses in the saline-treated group; however, in the NFPS-treated group, no significant increase in misses was observed (Figures S4F and S4G). These data demonstrate that the blockade of GlyT1 ameliorated post-stroke outcomes in two models of stroke. Furthermore, this effect was not because of hypothermia (Figure S5E). Therefore, these data emphasize the crucial role of GlyT1-A in the observed neuroprotection, and this is likely occurring because of GINI.

Blocking NMDAR internalization abolishes the neuroprotective effect of NFPS on stroke volume and behavior

GINI is driven by the recruitment of AP-2 and is mediated by A714 on the C-terminal domain of GluN1. Glycine priming for internalization is specific to A714; therefore, this residue is necessary for priming of NMDARs containing either GluN2A or GluN2B in recombinant systems (Han et al., 2013). To confirm that our in vivo observations are because of GINI, we introduced a point mutation into the NMDAR GluN1 subunit (A714L), which abolishes glycine-mediated NMDAR internalization in vitro (Han et al., 2013). We first assessed the functionality of the mutation via transient transfection of GluN1-WT or GluN1-A714L together with WT GluN2A subunit into HEK293 cells resulting in a functional NMDAR. Application of 1 mM glycine in cells expressing GluN1-WT induced a significant decrease in the amplitude of the NMDAR-EPSC, whereas in cells expressing GluN1-A714L this concentration significantly increased the NMDAR amplitude (Figures S6A and S6B. To visually confirm that GINI was occurring, the movements of NMDARs were tracked over time by live-cell imaging following application of 1 mM glycine (Figures 3A and S6C; Videos S1 and S2).

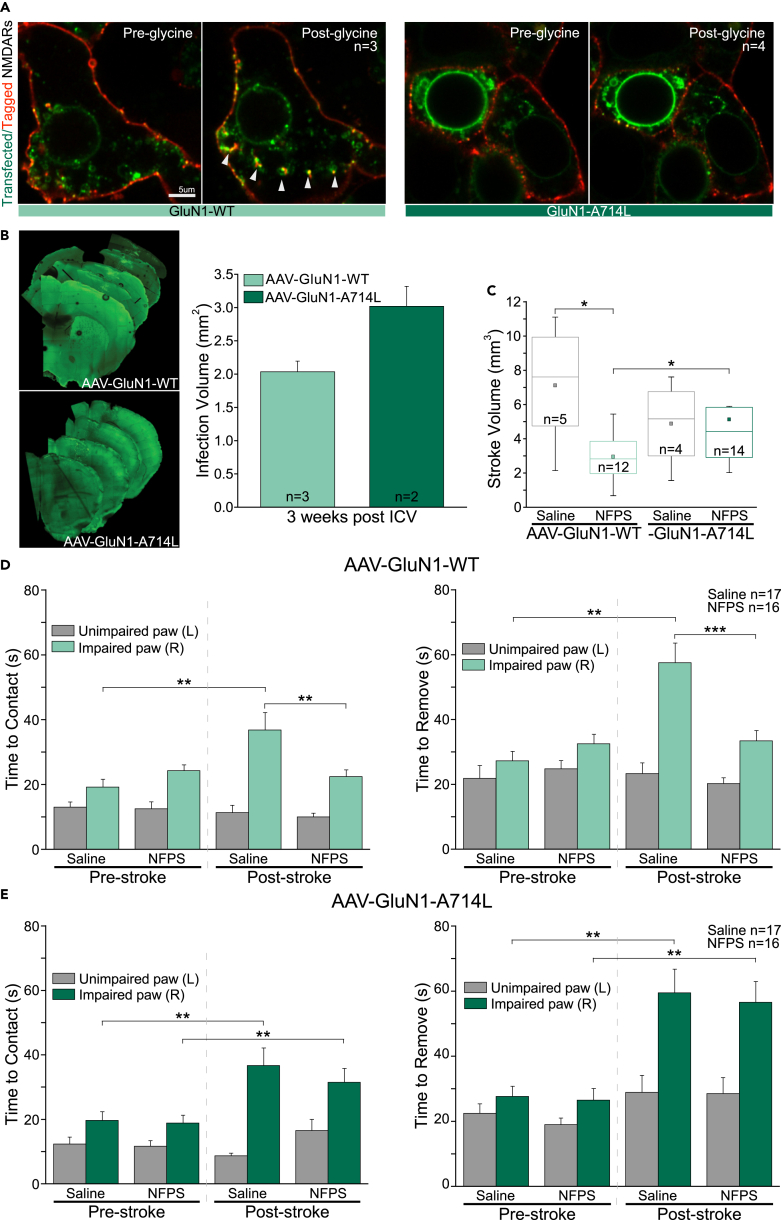

Figure 3.

Infection of the stroke site with the non-internalizing GluN1-A714L mutation abolishes the protective effect of elevating extracellular glycine on stroke volume and during a behavioral task

(A) Visual representation of NMDAR internalization in GluN1-WT or GluN1-A714L transfected HEK293 cells following application of 1 mM glycine. Transfected NMDARs are labeled in green, whereas extracellular NMDARs are additionally labeled with red cell impermeable nanobody staining.

(B) Representative images showing the extent of viral spread in the mouse forebrain following infection between mice infected with AAV-GluN1-WT or AAV-GluN1-A714L.

(C) Box and whisker plot showing the effect of NFPS administration 24hrs before PT stroke induction in mice infected with AAV-GluN1-WT or AAV-GluN1-A714L.

(D and E) The effect of NFPS on post-stroke time to contact and time to remove in the adhesive removal task compared with saline treatment, in mice infected with AAV-GluN1-WT (D), and in mice infected with AAV-GluN1-A714L (E) 48hrs following PT stroke. Data is mean ± SEM; statistical significance p < 0.05 ∗, p < 0.01 ∗∗, and p < 0.001 ∗∗∗.

This GluN1 viral construct was then packaged into an adeno-associated virus (AAV) 2/9 and injected into the sensory-motor cortex of mice. The overall function of the NMDARs was reassessed in acute slices. A dose of 1 mM glycine did not decrease NMDAR-EPSC amplitudes in cells infected with the AAV-GluN1-A714L constructs (Figure S6D). The spread of the virus occupied a volume that was comparable to the PT stroke (Figures 3B and S7A), and there were no significant differences in the PT-induced stroke volume between the mice infected with either the AAV-GluN1-WT or the AAV-GluN1-A714L constructs (Figure 3C). However, there was a significant decrease in stroke volume following pre-treatment with NFPS in mice infected with AAV-GluN1-WT. NFPS administration had no effect on stroke volume in the mice infected with AAV-GluN1-A714L.

The adhesive removal test was repeated on mice infected with either the AAV-GluN1-A714L mutation or the AAV-GluN1-WT. Administration of NFPS to the mice infected with AAV-GluN1-WT resulted in a significant decrease in post-stroke time to contact and time to remove in the impaired paw (Figure 3D). Interestingly, in mice infected with the AAV-GluN1-A714L (Figure 3E), there was no significant change in time to contact and time to remove following stroke in the NFPS-treated mice. Data illustrated in Figure S5D confirm that the injections of the AAV-GluN1-WT or -GluN1-A714L alone had no effect on behavior. Taken together, these data confirm that GlyT1-A administration induces neuroprotection in vivo, via GINI.

Pre-stroke administration of NFPS attenuates vascular dysfunction

Stroke is primarily characterized as a vascular disease; therefore, we evaluated the impact of NFPS on vascular function and morphology following PT stroke. Using Laser Doppler flowmetry (LDF), we found that PT stroke induced a significant decrease in blood flow and this effect was rescued with NFPS pre-treatment (Figure 4A). In GlyT1^+/− mice, there was no significant change in blood flow following stroke. Interestingly, in SR^−/- mice, PT stroke induced a highly significant decrease in blood flow (Figure 4B).

Figure 4.

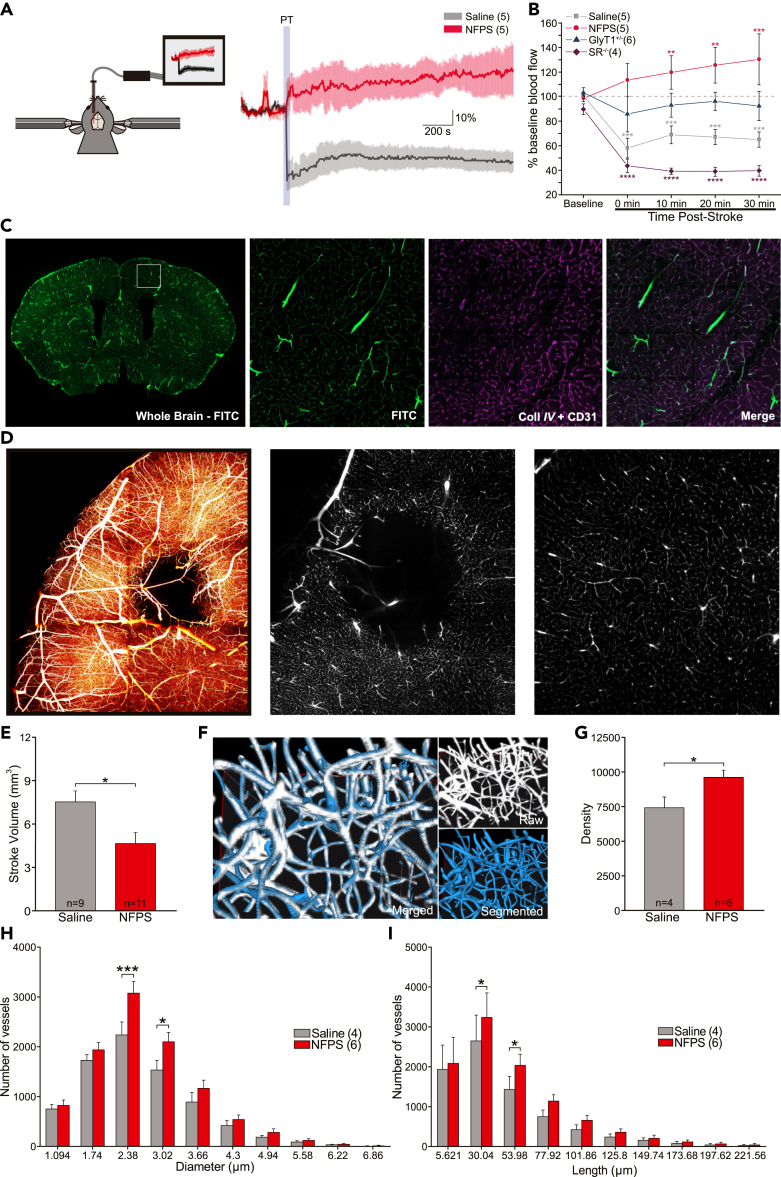

Laser doppler flowmetry blood flow and automatic segmentation of vascular data with AIVIA 9

(A) Diagram depicting laser doppler flowmetry set-up and the measured effect of NFPS on cerebral blood flow following photothrombotic (PT) stroke.

(B) Time course of post-stroke cerebral blood flow following PT in mice with varying levels of glycine or d-serine.

(C) 50 μm coronal section of brain perfused with FITC-BSA. Magnified images from the sensorimotor cortex demonstrating exact colocalization of FITC-BSA perfusion (green) with CD31 and CollIV vascular immunostaining (purple).

(D) Colorized max projection of stroked hemisphere, and single section of raw images depicting vasculature at the stroke and below the stroke, acquired with a light sheet microscope 48hrs following PT stroke.

(E) Stroke volume bar graph in saline- or NFPS-treated mice, calculated by an automated deep learning prediction model.

(F) Merged image demonstrating exact colocalization of AIVIA's automatic segmentation to raw data.

(G) Density of vessels in peri-infarct region in saline- or NFPS-treated mice.

(H and I) Number of vessels in the stroke area according to diameter and to length. Data is mean ± SEM; statistical significance p < 0.05 ∗, p < 0.01 ∗∗, p < 0.001 ∗∗∗, and p < 0.0001 ∗∗∗∗.

We next assessed if NFPS could modify vascular morphology by pairing transcardial perfusions of a fluorescent dye with tissue clearing and light sheet fluorescence microscopy (LSFM). This strategy allowed for complete labeling of the cerebral vasculature (Figure 4C; Videos S3 and S4). We first used a deep learning segmentation model to automatically calculate stroke volume from our cleared tissue (Figures 4D, 4E, and S7B; Video S5). We observed a decrease in stroke volume in NFPS-treated mice compared to saline-treated mice (Figure 4E). These results are consistent with data illustrated in Figure 2B. We further explored the effect of NFPS following PT on vascular density. The PT-induced decrease in vascular density was attenuated with NFPS treatment compared to saline-treated mice, in the peri-infarct region (Figures 4F and 4G). Furthermore, NFPS pre-treatment decreased the PT-induced loss in vessels of smaller diameter and length (Figures 4H and 4I) compared to saline-treated mice, in the peri-infarct region. Taken together, treatment with NFPS before an ischemic event protects the function and morphology of the cerebral vasculature.

Discussion

Our results demonstrate that during an ischemic event, not only glutamate but also glycine is released in the extracellular space. In such ischemic conditions, when GlyT1s are antagonized, glycine accumulates in the synaptic cleft, reaches the “set point,” and triggers GINI. This is the first report demonstrating that GINI occurs in vivo, provides neuroprotection, and preserves brain vasculature.

Using whole-cell patch-clamp recordings, we generated dose-response curves and we measured the effects of glycine on NMDAR current amplitudes. We observed that application of low concentrations of glycine (≤250 μM) increased the NMDAR-EPSC amplitudes (Johnson and Ascher, 1987, 1992). Paradoxically, we found that application of high concentrations of glycine (>1 mM) significantly reduced the NMDAR-EPSC amplitudes. This internalization of NMDARs has been reported to be triggered by an increase in NMDAR binding to intracellular clathrin/dynamin-dependent endocytic machinery (Nong et al., 2003; Han et al., 2013). Because the role of GlyT1s is to keep glycine concentrations below the saturating level of the GBS on NMDARs (Furukawa and Gouaux, 2003) the relevance of the pivotal work from Salter and co-workers was questioned by several groups. This low synaptic concentration of endogenous glycine is far from the concentration required to trigger GINI (Aragon et al., 1987; Guastella et al., 1992; Smith et al., 1992; Bergeron et al., 1998). As the effect of different doses of glycine on NMDAR-EPSCs appears to match that of the “inverted-U” shaped curve, we investigated the relationship between glycine levels and NMDAR internalization using in vitro ischemic paradigms. We report evidence that synaptic NMDARs internalize following elevation of glycine during a train of stimuli during OGD, an in vitro model of ischemia (Rossi et al., 2000). Moreover, we show that application of a high concentration of glycine or d-serine not only triggers GINI but also primes NMDARs for GINI. When a high dose is applied and washed off before application of a low dose of one of the co-agonists, GINI is induced.

Interestingly, we demonstrate, in vivo, that elevation of extracellular glycine by pharmacological blockade or genetic deletion of GlyT1 resulted in a decreased stroke volume and an attenuation of motor deficits in mice following ischemic stroke induced by PT or ET-1. This was observed when NFPS was administered 24 h pre-stroke, or up to 10 min post-stroke. We also show evidence that GINI, in vivo, is directly modulating the GluN1 subunit of NMDAR channel function during ischemic stroke as the effect of NFPS on both stroke volume and behavior is completely abolished when mice are focally infected with a viral vector expressing a non-internalizing GluN1 receptor subunit (AAV-GluN1-A714L) (Han et al., 2013).

The NMDAR co-agonist, glycine, has been previously shown to be neuroprotective in both in vitro (Hu et al., 2016) and in vivo models of stroke (Chen et al., 2015, 2017, 2020; Zhao et al., 2018; Qin et al., 2019). However, the mechanism by which glycine affords neuroprotection during stroke in vivo remains elusive. Recent work suggests that it is via modulation of intracellular pathways, including the Phosphatase and tensin homolog (PTEN)/protein kinase B (AKT) signaling pathway (Qin et al., 2019; Zhao et al., 2018), or vascular endothelial growth factor receptor 2 (Chen et al., 2020). Glycine is also thought to exert its neuroprotective effects via mediation of non-ionotropic NMDAR function (Chen et al., 2015, 2017; Hu et al., 2016), or by promoting microglial polarization (Liu et al., 2019). Partial agonists at the GBS on NMDARs also afford neuroprotection following an OGD challenge (Stanton et al., 2009) and during MCAO paradigm (Zheng et al., 2017). Pharmacological elevation of brain glycine following NFPS administration potentiates ischemic preconditioning (Pinto et al., 2015) and confers neuroprotection via global activation of ionotropic GlyRs during transient MCAO (Huang et al., 2016). Overall, there are many ways in which glycine has been shown to be neuroprotective, all of which may be occurring in conjunction with GINI. However, here we report for the first time the important role of GlyTs as the blockade of these transporters minimized cell death following an ischemic stroke in an in vivo model.

A recent review suggests that glycine and d-serine may be therapeutically beneficial by down regulating NMDARs, such as rodent models of traumatic brain injury and lipopolysaccharide-induced neuroinflammation (Biegon et al., 2018). There is also a growing body of evidence to suggest that extracellular glycine is neuroprotective in several rodent ischemic stroke models (Huang et al., 2016; Zheng et al., 2017; Zhao et al., 2018; Liu et al., 2019; Chen et al., 2020; Yamamoto et al., 2016). Moreover, the level of extracellular glycine appears to be important in stroke outcome. A low level of glycine, corresponding to increased NMDAR activation, appears to be deleterious. In contrast, an elevated level of glycine appears to be neuroprotective (Yao et al., 2012). These latest findings are in agreement with our data. Indeed, the transgenic GlyT1^+/− mice, which have high endogenous levels of glycine and consequently a high occupancy of the GBS, are more resistant to PT, whereas the SR^−/- mice, which have a low occupancy of the GBS, are more sensitive to PT challenge.

Despite an overwhelming body of evidence from animal studies that implicate NMDARs in neuronal loss (Gotti et al., 1988; Park et al., 1989; Scatton, 1994; Prass and Dirnagl, 1998), all clinical trials of drugs targeting one of the numerous binding sites on NMDARs have failed because of poor tolerance or lack of efficacy (Ikonomidou and Turski, 2002; Lipton, 2004; Kalia et al., 2008). One reason for this may be the difficulty in obtaining a therapeutic degree of NMDAR-blockade that does not interfere with critical NMDAR-dependent functions in neuronal circuits (Kostandy, 2012). The widespread inhibition of NMDAR function is not compatible with baseline synaptic transmission. As such, our data suggest that attention should turn to modulation of NMDAR function during stroke. In this study, we show that GINI is not a direct antagonism of NMDARs but rather a dynamic and reversible phenomenon which dampens NMDAR-mediated excitotoxicity during ischemia while maintaining basal synaptic activity of NMDARs.

The complex vascular network of the brain and its integrity are essential for normal brain function. Following an ischemic event, the delivery of oxygen and nutrients to neurons and glial cells are impaired. Because the brain is highly vulnerable to compromises in blood supply, we investigated the potential impact of NFPS in preserving brain vasculature. It has been previously reported that changes in microvasculature, such as density and diameter, correlate with disease states (Bennett et al., 2017). PT stroke induced a decrease in vascular density in the peri-infarct region. We found that this decrease was attenuated by a pre-treatment with NFPS. Our histogram analysis shows that vessels of 2-3 μm in diameter were the most affected post-stroke. Application of NFPS decreased the size of vessels occluded, suggesting that the peri-infarct region could undergo enhanced vascular remodeling during the recovery period. We cannot conclude that the mechanism underlying this observation is directly linked to GINI. However, increasing the level of endogenous glycine with NFPS protects the vascular network following stroke, and ultimately leads to improved behavior outcomes.

Overall, our data demonstrate that elevation of glycine via blockade of GlyT1s before or shortly after an ischemic event may provide a rationale for the repurposing of currently approved pharmaceuticals with a similar mechanism of action as potential stroke treatments. For example, the glycine reuptake blocker sarcosine is authorized for clinical use in the treatment of schizophrenia at daily doses of 1-2 g per day and is well tolerated in these patients (Gibert-Rahola and Villena-Rodriguez, 2014; Strzelecki et al., 2014, 2015; Amiaz et al., 2015; Lin et al., 2017). Because the chronic administration of GlyT1-As have been proven to be safe, and we observe the most robust neuroprotective effect when GlyT1-As are administered pre-stroke, we can envisage GlyT1-As to potentially be utilized as a preventative strategy for stroke. As our in vivo data demonstrate the pre-clinical efficacy of this class of drugs in minimizing the deficits induced by PT and ET-1 paradigms, and considering that several GlyT1-As have been tested and proven to be safe and well tolerated in human clinical trials (Harvey and Yee, 2013; Shahsavar et al., 2021), GlyT1 should be tested for a new therapeutic for ischemic stroke.

Limitations of the study

There were limitations to the present study. Although we focused on GINI and concluded that it occurs in vivo, we did not investigate how this finding integrated with other known mechanisms of glycine in neuroprotection, such as GlyRa activation. However, we have no reason to believe that GINI could not take place in addition to other mechanisms. Furthermore, although we did not present imaging of GINI occurring in vivo, we inferred it occurred based on electrophysiological recordings in acute slices and behavioral experiments. Imaging this phenomenon in vivo would be interesting to investigate in future studies. Finally, we did not investigate the mechanism by which NFPS ameliorated post-stroke vasculature as it will be the focus of future work.

Abbreviations

• AAV Adeno associated virus;

• ACSF Artificial cerebrospinal fluid;

• CHO Chinese Hamster Ovary;

• CPA Cyclopiazonic acid;

• CV Cresyl violet;

• DBP Dynamin blocking peptide;

• ddH₂O Double distilled water;

• EPSCs Excitatory postsynaptic currents;

• ET-1 Endothelin-1;

• FJC FluoroJade C;

• GBS Glycine binding site;

• GINI Glycine-induced NMDAR internalization;

• GluN2A^−/- NMDAR GluN2A subunit knockout;

• GlyR Glycine receptor;

• GlyT1 Glycine transporter type 1;

• GlyT1^+/− Heterozygous glycine transporter type 1;

• GlyT1-A Glycine transporter type 1 antagonist;

• GO Glycine oxidase;

• i.p. Intraperitoneal;

• LDF Laser Doppler flowmetry;

• LSFM Light sheet fluorescence microscopy;

• tMCAO Transient middle cerebral artery occlusion;

• MRI Magnetic resonance imaging;

• NFPS N-[3-(4′-fluorophenyl)-3-(4′-phenylphenoxy)propyl]sarcosine;

• NMDAR N-methyl-d-aspartate receptor;

• NMDG N-methyl-d-glucamine;

• OGD Oxygen-glucose deprivation paradigm;

• PBSG 0.25% (w/v) gelatin in PBS;

• PBSGT 0.25% (w/v) gelatin and 0.2% Triton X-100 (v/v) in PBS;

• PFA Paraformaldehyde;

• P_open Open probability;

• PT Photothrombosis;

• RT Room temperature;

• SR^−/- Serine racemase knockout;

• TTC 2,3,5-triphenyltetrazolium chloride;

• VGAT Vesicular GABA transporter;

• VGlut Vesicular glutamate transporter;

• WT Wild type.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
Rabbit polyclonal anti-CD31	Abcam	Cat#: ab28364; RRID: AB_726362
Rabbit polyclonal anti-Collagen IV	Abcam	Cat#: ab19808; RRID: AB_445160
FluoTag®-X4 anti-GFP, conjugated with Alexa Fluor 647	NanoTag Biotechnologies	Cat#: N0304-AF647-L
Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647)	Abcam	Cat#: ab150079; RRID: AB_2722623
Bacterial and virus strains
AAV2/9 GluN1 WT and A714L	University of Laval	This paper
NEB stable	NEB	Cat # C3040I
Chemicals, peptides, and recombinant proteins
Albumin-fluorescein isothiocyanate conjugate, protein bovine (FITC-BSA)	Millipore Sigma	A9771
BAPTA	Thermo Fisher Scientific	B1204
Cyclopiazonic acid (CPA)	Tocris Biosciences	Cat. No. 1235
Cresyl Violet Acetate Working Solution	Electron Microscopy Sciences	26671-1A
D-APV	Tocris Biosciences	Cat. No. 0106
D-Serine	Millipore Sigma	S4250
Dynamin Blocking Peptide	Tocris Biosciences	Cat. No. 1774
Dyngo4a	Abcam	ab120689
Dynasore Hydrate	Millipore Sigma	D7693
Endothelin-1 (human, porcine)	Abcam	ab120471
Fluoro-Jade –C	EMD Millipore	AG325-30MG
Glycine	Millipore Sigma	G7126
HIVAC-F4	Shin-Etsu Chemical	HIVAC-F4
Rose Bengal	Tocris Biosciences	Cat. No. 5168
NBQX	Tocris Biosciences	Cat. No. 0373
N-Butyldiethanolamine, ≥98.6%	Sigma-Aldrich	471240
N-Methylnicotinamide	Fisher Scientific	M037425G
N-[3-([1,1-Biphenyl]-4-yloxy)-3-(4-fluorophenyl)propyl]-N-methylglycine	Tocris Biosciences	Cat. No. 2789
Nimodipine	Millipore Sigma	N149
Picrotoxin	Tocris Biosciences	Cat. No. 1128
Triphenyltetrazolium chloride (TTC)	Sigma-Aldrich	T8877
Deposited data
Analyzed data	This paper	N/A
Experimental models: Cell lines
Hamster: Chinese Hamster Ovary (CHO) cells	N/A	CRL-11268
Human: Human Embryonic Kidney (HEK) cells	N/A	CVCL_0045
Experimental models: Organisms/strains
Mouse: GlyT1+/-: C57Bl/6;S129	Dr. Joseph T. Coyle Laboratory (Tsai et al., 2004)	N/A
Mouse: SR-/-: C57Bl/6;S129	Dr. Joseph T. Coyle Laboratory (Benneyworth and Coyle, 2012)	N/A
Mouse: WT: C57Bl/6	Charles River	CR: 027
Mouse: GluN2A-/-: C57Bl/6	Sakimura et al., 1995	N/A
Oligonucleotides
NheIGluNI F AGCTAGCATGAGCACCATGCACCTGCT	This paper	N/A
EcoRVGluNI R GATATCTCAGCTCTCCCTATGACGGG	This paper	N/A
GluN1A714L F – 5′P ACAATTACGAGAGCCTGGCT GAGGCCATCCA	This paper	N/A
GluN1A714LR – 5′P GCTCTCGTAATTGTGTTTTTCCATGTGCCG	This paper	N/A
GluN1shres2 F 5′P CCGCAAATTCGCTAATTACAG CATCATGAACCTGCAGAACCGCAAGCTGG 3′	This paper	N/A
GluN1shres2 R 5′PTCCCCATCCTCATTGAATTCCACACGGC 3′	This paper	N/A
Recombinant DNA
SuperEcliptic Phlourin (SEP)-tagged GluN1	Addgene	#23999
GluN2A in pCDNA3.1	This paper	pRB133
pAAV construct GluN1WT shRNA resistant	This paper	pRB 112
pAAV construct GluN1 A714 shRNA resistant	This paper	pRB 131
pCDNA3.1 Construct GluN1 A714L	This paper	pRB 144
His-tagged glycine oxidase (GO)	Cornell University, NY, USA	Dr. Steven Ealick
Software and algorithms
AIVIA	DRVISION	Version 9
Automated Stroke Volume Analysis	This paper	GitHub Repository: https://github.com/JulianPitney/Glycine_Transporter-1_Antagonist_Provides_Neuroprotection_in_Vivo_Lightsheet_Analysis.git
ImageJ	https://imagej.nih.gov/ij/	v1.52m
IMARIS	Bitplane	v9.2
Lightsheet Acquisition Software	This paper	GitHub Repository: https://github.com/JulianPitney/Lightsheet
OriginPro	OriginLab	v8.5
Prism	GraphPad	v9.1.0
Terastitcher	GitHub Repository: https://abria.github.io/TeraStitcher/	V1.11.10

Resource availability

Lead contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contact, Julia Cappelli (jcapp082@uottawa.ca).

Materials availability

Plasmids generated in this study have been deposited to Addgene and will be publicly available as of the date of publication.

Experimental model and subject details

Animals

All procedures in this study were carried out on female and/or male 8–10-week-old mice in accordance with the guidelines of the Canadian Council on Animal Care and approved by the University of Ottawa Animal Care Committee. The following transgenic mouse lines were utilized: heterozygous glycine transporter type 1 (GlyT1^+/−), serine racemase knockout (SR^-/-), and N-methyl-d-aspartate receptor (NMDAR) GluN2A subunit knockout (GluN2A^-/-) mice (Kannangara et al., 2015), along with their wild type (WT) litter mates (on C57Bl/6;S129, C57Bl/6;S129 and C57Bl/6 backgrounds respectively). In vivo behavioural experiments were performed on C57Bl/6 WT mice from Charles River ®. The animals were housed under standard conditions and had access to chow and water ad libitum.

Cell lines

Cell culture, imaging, and electrophysiological experiments were carried out on Human Embryonic Kidney (HEK293) cells. Sniffer-patch experiments were performed on Chinese Hamster Ovary (CHO) cells. Please see the following sections for more information on maintenance and experimental methods.

Method details

Electrophysiology

Whole-cell electrophysiology on hippocampal slices and HEK293 cells

Whole-cell voltage-clamp recordings were obtained from visually identified CA1 pyramidal cells from acute hippocampal brain slices (300 μm thick) in oxygenated artificial cerebrospinal fluid (ACSF) as previously described (Martina et al., 2004, 2005). The cells were voltage-clamped at −65 mV using cesium methane sulfonate based internal solution and postsynaptic currents were evoked by electrical stimulation of the Schaffer collaterals with a bipolar stimulating electrode positioned in the stratum radiatum. The intensity of the stimulation was adjusted to obtain evoked excitatory postsynaptic currents (EPSCs). The stimulation protocol consisted of a single 100 μs current pulse (10–200 μA) evoked every 12s. For the train stimulation protocol, 10 current pulses (100 μs long) were evoked at 50 Hz for 200 ms and then repeated once every 20s. To isolate the NMDAR-EPSC, a low concentration of MgCl₂ (0.13 mM) ACSF was used wherein the CaCl₂ concentration was increased to 3.5 mM to maintain cation balance.

HEK293 cells were used for electrophysiology recordings 48–72hrs following transfection with either the pHluorin-GluN1-WT or pHluorin-GluN1-A714L cDNA along with an equimolar ratio of the GluN2A. NMDAR currents were evoked using pressure ejection (10psi) from a picospritzer micropipette filled with 10 μM glycine and 1 mM glutamate (Sigma-Aldrich) for a duration of 25–50 ms every 20s at a membrane potential of −60 mV. HEK293 cells were recorded in HEPES-buffered saline external solution with low MgCl₂ using a potassium gluconate recording solution.

When required, additional drugs were applied including various concentrations of d-serine and glycine (Millipore Sigma), as well as 300 nM N-[3-(4′-fluorophenyl)-3-(4′-phenylphenoxy)propyl]sarcosine (NFPS; Tocris Bioscience), 10 mM BAPTA (Thermo Fisher), 30 μM cyclopiazonic acid (CPA) (Tocris Bioscience), and 20 μM nimodipine (Millipore Sigma). The inhibitors of clathrin-mediated endocytosis, 100 μM dynasore (Millipore Sigma), 100 μM dynamin blocking peptide (DBP; Tocris Bioscience), and 30 μM Dyngo4a (Abcam) were included in the internal solution.

Sniffer-patch technique and OGD paradigm

Sniffer-patch technique

To detect glycine release, we used the “sniffer patch” technique (Allen, 1997; Lee et al., 2007a; Aubrey et al., 2007; Scain et al., 2010). A Chinese Hamster Ovary (CHO) cell line stably transfected with the1 alpha 2 subunit of glycine receptor (GlyR) was generated (Mangin et al., 2003). Outside-out membrane patches were excised from the CHO cells using thick-walled borosilicate glass pipettes filled with a cesium chloride internal solution. Following patch excision, the electrode was placed in the stratum radiatum of the CA1 region of the hippocampus to detect glycine release and allow channel activation. Channel open probability (P_open) was derived by measuring the mean open time of all the single channel events during the recording window, then dividing by the sum of the mean open and shut times. Multiple channel openings were set as a P_open = 1 for that particular time period.

Oxygen-glucose deprivation paradigm

To mimic ischemia, the acute slices were challenged by an oxygen-glucose deprivation paradigm (OGD) modified from Rossi et al. (Rossi et al., 2000). In this paradigm, external glucose was replaced with 7 mM sucrose, and the external solution was saturated with 95% N₂ / 5% CO₂ instead of 95% O₂ / 5% CO₂. Iodoacetate and cyanide were also added to the OGD external solution to block glycolysis and oxidative phosphorylation.

Purification of glycine oxidase

The plasmid containing His-tagged glycine oxidase (GO) was generated from Bacillus subtilis. This plasmid was a gift from Dr. Steven Ealick (Cornell University, NY, USA). The protein was expressed in E. coli and purified as previously described (Job et al., 2002; Settembre et al., 2003; Molla et al., 2003; Pedotti et al., 2009; Caldinelli et al., 2009).

Surgical procedures

Photothrombosis and endothelin-1 stroke

NFPS or a vehicle control solution was injected intraperitoneally (i.p.) into C57Bl/6 mice either 24hrs prior to stroke or 10mins/60mins/120mins post-stroke, at a dose of 5 mg/kg. Photothrombotic (PT) (Lee et al., 2007b) or cortical endothelin-1 (ET-1) (Wang et al., 2007) strokes were induced as previously described. Mice were anesthetized with 2.5% isoflurane in O₂ and mounted onto a stereotaxic frame. For PT strokes, a dose of 10 mg/mL of Rose Bengal (Tocris) was injected i.p.. Immediately following the injection of the dye, the skull was exposed to visualize bregma. Using the stereotaxic device, a 520 nm laser (∼20 mW; Beta Electronics) was positioned above the sensorimotor cortex (AP+0.7, ML+2.0) and turned on for 10mins to induce a permanent occlusion. For ET-1 strokes, once the skull was exposed and a craniotomy performed for each injection site (1. AP +0.0, ML +2.0, DV -1.6; 2. AP +0.2, ML +2.0, DV -1.4; 3. AP +0.4, ML +2.0, DV-1.3), 1μL of 2 μg/μL human, porcine ET-1 (Abcam), dissolved in 2.7 μg/μL L-NAME (Abcam), was injected over 5mins with a 28G 10μL Hamilton syringe to induce a transient ischemic stroke.

Cortical infection with AAVs

Mice were anesthetized with 2.5% isoflurane in O₂ and mounted onto a stereotaxic apparatus. The intact skull was exposed to visualize bregma. The following injection sites were measured from bregma: 1. AP +1.2, ML +2.0, DV -0.5; 2. AP +0.2, ML +2.0, DV -0.5. A craniotomy was performed at each site prior to injecting 0.5μL of 10⁻¹² PFU/mL (plaque forming units) of either a AAV-WT-GluN1 or the mutant AAV-GluN1-A714L construct, over 5mins with a 28G 10μL Hamilton syringe. Please refer to section entitled “Generation of WT and A714L viral constructs”, below, for more information.

Laser Doppler Flowmetry

Laser Doppler Flowmetry (LDF) recordings following PT were performed as previously described (Toussay et al., 2019). Mice were anesthetized with an i.p. injection of a 0.01 ml/g cocktail consisting of 120 mg/kg ketamine and 10 mg/kg xylazine, and then mounted onto a stereotaxic apparatus. Following exposure and thinning of the skull, the laser probe (Transonic Systems) was positioned over the sensory motor cortex (AP +0.7, ML +2.0) and baseline activity was recorded for 5 mins. The laser probe was replaced with a 520 nm laser (∼20 mW; Beta Electronics) to induce PT stroke, as described above. Following PT, LDF recordings were performed for an additional 30 mins.

A714L generation, imaging, and in vivo spread quantification

Generation of WT and A714L viral constructs

The GluN1 constructs were made by cloning the GluN1 coding region of a SuperEcliptic Phluorin (SEP)-tagged GluN1 construct (Addgene #23999) (Choi et al., 2014) into pDrive cloning vector (pDrive cloning vector, Qiagen). We then used this as a template to create the A714L mutant clone by site-directed mutagenesis. These cDNAs were used for transfection of HEK293 cells. For generation of GluN1-WT and GluN1-A714L adeno-associated virus (AAV), the coding fragments of these constructs were sub-cloned into an adeno-associated viral vector, and viral constructs were then packaged with plasmid AAV2/9 at the University of Laval.

NMDAR internalization imaging in HEK293 cells

HEK293 cells were transiently transfected with either pHluorin-GluN1-WT or pHluorin-GluN1-A714L cDNAs together with GluN2A cDNA. HEK293 cells were then grown for 24-48hrs in the presence of d-APV (Tocris Bioscience). Images were acquired with an LSM880 Confocal Microscope (Zeiss), with cells in a modified HEPES buffer (add 1 mM Glutamate, omit 0.13 mM MgCl₂). A 647 nm-tagged FluoTag®-X4 anti-GFP (1:250-1:500; NanoTag Biotechnologies) was added to tag extracellular NMDARs prior to the acute application of an internalizing dose of glycine. The nanotags (anti-GFP nanobody) are cell impermeable and tag NMDARs on the cell surface. Therefore, the nanotags were observed within the cell only when NMDARS had been internalized. Images were acquired every 3mins over 10-12mins to visualize internalization. Internalization was deemed to have occurred when the cell-impermeable NanoTag (647) was observed within the cell.

Viral spread quantification

Three weeks following cortical infection, mice were transcardially perfused with 1X PBS, followed by 4% PFA. Brains were sliced into 0.5 mm coronal slices and cleared following the SeeDB tissue clearing protocol described by Ke et al. (Ke et al., 2013). Following tissue clearing, brains were imaged with the Zeiss LSM800 confocal microscope. All viral spread analysis was performed manually using Fiji.

Immunofluorescence, stroke volume quantification and cell death assay

Immunohistochemistry

Antigen retrieval was performed on slices before being washed then permeabilized with 0.25% (w/v) gelatin and 0.2% Triton X-100 (v/v) in PBS (PBS-GT). Slices were incubated in primary antibodies in PBS-GT, then washed three times with PBS-GT before the addition of fluorescent secondary antibodies at room temperature (RT). Slices were rinsed, air-dried, and mounted onto slides (Table S1) (Muller et al., 2013). Platelet endothelial cell adhesion molecule-1 (CD-31; 647 nm) and Collagen IV (CollIV;647 nm) were depicted in purple and visually colocalized to filled, perfused vessels (488 nm).

Quantification of stroke volume — magnetic resonance imaging

Magnetic resonance imaging (MRI) was performed at the University of Ottawa pre-clinical imaging core using a 7 Tesla GE/Agilent MR 901. Mice were anaesthetized for the MRI procedure using isoflurane in O₂: induction at 3%, maintenance at 1.5%. A 2D fast spin echo sequence (FSE) pulse sequence was used for the imaging, with the following parameters: slice thickness = 0.5 mm, spacing = 0 mm, field of view = 2.5 cm, matrix = 256 x 256, echo time = 41 ms, repetition time = 7000 ms, echo train length = 8, bandwidth = 16 kHz, fat saturation. Stroke lesions demonstrated hyperintensity.

Quantification of stroke volume — triphenyltetrazolium chloride

Stroke volume quantification was performed using 2,3,5-triphenyltetrazolium chloride (TTC; Sigma) (Hatfield et al., 1991; Benedek et al., 2006). Forty-eight hours post-stroke, mice were deeply anesthetized with 5% isoflurane in O₂ before decapitation for slicing on a vibratome (Leica) in cold ACSF at 0.5 mm. Slices were incubated in 2% TTC at 37°C for 10mins, then transferred to 4% paraformaldehyde (PFA) at 4°C. Brain slices were imaged from both sides and the surface area of the infarct regions were measured on Fiji (ImageJ.com) and multiplied by the thickness of the slice to obtain a final volume.

Quantification of stroke volume — cresyl violet

Forty-eight hours post-stroke, mice were transcardially perfused with 1X PBS, followed by 4% PFA. Brains were collected and post-fixed in 4% PFA overnight and then incubated in sucrose until saturation. Serial 25 μm thick coronal sections were cut on a cryostat (Microm HM500), and collected onto positively charged Superfrost Plus Microscope Slides (Fisher Scientific). The slides were immersed in xylene and then rehydrated in decreasing concentrations of ethanol before being placed in double distilled water (ddH₂O). Once rehydrated, slides were stained with cresyl violet (CV) (Electron Microscopy Sciences) and placed in ddH₂O. Slides were then dehydrated in increasing concentrations of ethanol before being immersed in xylene. Once removed, the slides were mounted with DPX mounting media (Sigma). Images of CV-stained slices were acquired with the EVOS FLAuto2 inverted epifluorescence microscope under brightfield. The surface area of the infarct regions was multiplied by the distance between each collected slice (500 μm) to obtain a volume. The sum of all slices was used to obtain a final stroke volume per brain.

Quantification of neuronal loss — FluoroJade C

The brain tissue preparation for FluoroJade C (FJC; EMD Millipore) was treated exactly as that of the CV brain tissue. Slides were first immersed in 1% sodium hydroxide in 80% ethanol, 70% ethanol and finally in ddH₂O before being incubated in a 0.06% potassium permanganate (Sigma-Aldrich) solution. This was followed by an incubation in a 0.0001% FJC solution dissolved in 0.1% aqueous acetic acid and combined with 0.0001% DAPI (Santa Cruz Biotechnology), and slides were once again rinsed with ddH₂O and left to air dry. Slides were then immersed in xylene and mounted with FluoroMountG (Sigma-Aldrich) (Ehara and Ueda, 2009). Imaging was completed with the Zeiss AxioObserver Z1 inverted epifluorescence microscope using GFP (488/509 nm) and DAPI (359/461 nm) filters. Analysis of the total number of degenerating neurons was performed using IMARIS 9.2 (Bitplane). IMARIS 9.2 was set to detect and count all green (representing degenerating neurons) and blue (representing nuclear DNA) spots on each image and then calculate colocalization. The cells having been tagged by both DAPI and FJC were counted as FJC positive neurons.

Tissue clearing light sheet microscopy

Tissue clearing

CUBIC tissue clearing was completed as previously described (Matsumoto et al., 2019). Following perfusion, the tissue was post-fixed overnight in 4% PFA, then washed in 1X PBS the following day. Following washes, tissue was submerged in half diluted CUBIC-L (1:1, CUBIC-L:Water) at 37°C overnight. Tissue was submerged in CUBIC-L at 37°C with gentle shaking over 10 days, changing the solution every 48hrs. Tissue was then washed in 1X PBS before being submerged in half diluted CUBIC-R⁺(M) (1:1, CUBIC-R⁺(M):Water) overnight at RT with gentle shaking. Tissue was submerged in CUBIC-R⁺(M) the following day, then replaced with fresh CUBIC-R⁺(M) 24hrs later. Tissue was imaged with a light sheet microscope in a refractive index matched imaging solution consisting of a mixture of HIVAC-4 with mineral oil.

Imaging and segmentation

Imaging was performed using our custom-built light sheet microscope. CUBIC-cleared brains were imaged using a 2.5X objective (NA0.07), 488 nm excitation laser line and 5 μm steps. Each sample was scanned as a series of tiles, then stitched into a single image using TeraStitcher. The stitched scans were then run through AIVIA 9 to segment and create 3D reconstructions of the vascular network. Properties of each vessel (diameter and length) were automatically calculated by AIVIA 9, and then exported for analysis.

Automated quantification of stroke volume (stroke volume prediction)

Stroke volume in cleared tissue was calculated as follows: the areas representing stroke in each slice were identified, multiplied by their z-depth (thickness), then summed to obtain a total volume. The stroke regions were identified in each slice using a deep convolutional neural network (Kermany et al., 2018; Biswas and Barma, 2020; Yu et al., 2018) which was deemed 98% accurate. The network was first pre-trained on a large data-set (Deng et al., 2009), then further trained using 906 experimental scans.

Post-stroke vascular morphology quantification

For analysis of vascular morphology in the peri-infarct region, transcardial FITC-BSA staining was paired with CUBIC brain clearing to allow for LSFM imaging. Forty-eight hours post PT stroke, mice were transcardially perfused with 20 mL 1X PBS, then 20 mL 4% PFA. Mice were then submerged in a 37°C water bath, facing down at an angle of 30° before being perfused with 10 mL of 0.5% FITC-BSA (Sigma-Aldrich), in 2% gelatin (Sigma-Aldrich). Subsequently, mice were submerged in an ice bath for 30mins before the brain was dissected out(Tsai et al., 2009). Brains were collected and post-fixed in 4% PFA overnight, then cleared following the CUBIC tissue clearing protocol. Following tissue clearing, brains were imaged by LSFM. A 1.125 mm³ region of interest lateral to the stroke site was manually selected, then analyzed using AIVIA 9 (DRVISION Technologies).

Behavioural tests

Adhesive removal test

The adhesive removal test was performed as described (Bouet et al., 2009). Mice were trained pre-stroke daily over 5 days and tested post-stroke over 2 days. Trials began with 1 min of habituation to an empty home cage, before strips of adhesive were placed onto both forepaws. The mouse was then placed back into the cage and the times to contact and remove the adhesive strips were recorded by two experimenters. Mice were allotted a maximum of 2mins to complete the task. The times to contact and remove the pieces of adhesive tapes were compared per paw as well as pre- and post-stroke.

Horizontal ladder test

The horizontal ladder test was performed based on protocols described previously (Farr et al., 2006; Metz and Whishaw, 2009) with slight modifications. Mice underwent one day of training prior to stroke. In the pre-stroke trials, mice crossed the ladder up to seven times or until they had performed two acceptable runs. In turn, during the post-stroke trials, mice had three attempts to cross the ladder, two of which were scored. Each trial was recorded with a video camera. Scoring and analysis were performed by an experimenter blind to the conditions. The video recordings of the best two trials from each mouse were analyzed frame-by-frame with Noldus Observer XT program. Each limb’s step was scored as either “correct”, “partial” or “miss”. The percentage of missed steps pre- and post-stroke were compared.

Cylinder test

The cylinder test was performed based on protocols described (Schallert et al., 2000; Balkaya et al., 2013), with slight modifications. Mice were placed in a transparent cylinder and filmed with an overhead camera until they reared 22 times. With each rear, three types of behaviours were recorded: (A) right paw is exclusively weight bearing; (B) left paw is exclusively weight bearing; (C) both paws are weight bearing at the same time. The video recordings of each trial were analyzed frame-by-frame with Noldus Observer XT program by a single experimenter blind to the conditions. The length and frequency of forelimb contacts to the wall of the cylinder were scored. The behaviours were expressed per paw as an average time in relation to the sum of the independent left and right weight bearing. The average time spent on the impaired paw (right) was compared in pre-stroke and post-stroke trials.

Quantification and statistical analysis

Quantification and statistical analysis

All data are presented as means ± S.E.M.; n represents the number of mice or cells in each group, as indicated in each figure. In most cases, statistical significance was determined by a paired, two-tailed Student’s t-test or a two-way repeated measure ANOVA followed by Bonferroni post hoc comparisons, for multiple group comparisons. In cases in which datasets had multiple missing values, a mixed-model (ANOVA) was implemented by GraphPad Prism. For analyses of groups across multiple time points, a one-way ANOVA was utilized. Statistical analyses and data presentation were completed using both OriginPro 8.5 (OriginLab Software) and GraphPad Prism 8 (GraphPad Software).

For electrophysiological data, decay kinetic and amplitude analysis were performed on averaged traces. Decay time constants were best fit with a double exponential function and expressed as a weighted mean. Due to summation, EPSC amplitudes in the train were measured from the end of the previous EPSC rather than from the initial baseline.

Please refer to Supplementary methods for more detailed description of all methods.

Published: January 21, 2022

Data and code availability

All data reported in this paper will be shared by the lead contact upon request. All original code has been deposited at GitHub and will be publicly available as of the date of publication. DOIs are listed in the key resources table. Any additional information required to reanalyze the data reported in this paper is available from the lead contact upon request.
