Proteomic analysis of arylamine N-acetyltransferase 1 knockout breast cancer cells: Implications in immune evasion and mitochondrial biogenesis

Abstract

Previous studies have shown that inhibition or depletion of N-acetyltransferase 1 (NAT1) in breast cancer cell lines leads to growth retardation both in vitro and in vivo, suggesting that NAT1 contributes to rapid growth of breast cancer cells. To understand molecular and cellular processes that NAT1 contributes to and generate novel hypotheses in regard to NAT1′s role in breast cancer, we performed an unbiased analysis of proteomes of parental MDA-MB-231 breast cancer cells and two separate NAT1 knockout (KO) cell lines. Among 4890 proteins identified, 737 proteins were found significantly (p < 0.01) upregulated, and 651 proteins were significantly (p < 0.01) downregulated in both NAT1 KO cell lines. We performed enrichment analyses to identify Gene Ontology biological processes, molecular functions, and cellular components that were enriched in each data set. Among the proteins upregulated in NAT1 KO cells, pathways associated with MHC (major histocompatibility complex) I-mediated antigen presentation were significantly enriched. This raises an interesting and new hypothesis that upregulation of NAT1 in breast cancer cells may aid them evade immune detection. Multiple pathways involved in mitochondrial functions were collectively downregulated in NAT1 KO cells, including multiple subunits of mitochondrial ATP synthase (Complex V of the electron transport chain). This was accompanied by a reduction in cell cycle-associated proteins and an increase in pro-apoptotic pathways in NAT1 KO cells, consistent with reported observations that NAT1 KO cells exhibit a slower growth rate both in vitro and in vivo. Thus, mitochondrial dysfunction in NAT1 KO cells likely contributes to growth retardation.

Graphical Abstract

Highlights

• •NAT1 is frequently upregulated in breast cancer. Its inhibition leads to a decrease in breast cancer cell growth.
• •We performed an unbiased proteomics analysis of parental MDA-MB-231 breast cancer cells vs. NAT1 KO lines.
• •Proteins involved in antigen presentation were up in NAT1 KO cells, indicating they may become prone to immune detection.
• •Proteins involved in oxidative phosphorylation and mitochondrial biogenesis were collectively down in NAT1 KO.
• •Mitochondrial dysfunction, in part, can explain the growth retardation observed in NAT1 KO MDA-MB-231 breast cancer cells.

1. Introduction

Arylamine N-acetyltransferase 1 (NAT1) is a phase II metabolic enzyme that catalyzes acetyl coenzyme A-dependent biotransformation of aromatic amines and hydrazines [1], [2], [3]. In addition to its role in xenobiotic metabolism, recent studies have suggested that NAT1 has physiological roles. For instance, NAT1 is frequently upregulated in estrogen receptor-positive breast cancers as well as triple-negative breast cancers [4], [5], [6], [7]. These findings have led to further investigations of the role of NAT1 in cancer cell growth, morphology and metastasis [8], [9], [10], [11], [12], [13], [14], [15].

Small molecule-mediated inhibition and siRNA-induced silencing of NAT1, as well as CRISPR/Cas9 knockout (KO) technology, have been utilized to interrogate this novel link in various cancer cell lines, including those originating from breast cancers. Although discrepancies have been reported, studies from independent laboratories have shown that inhibition or depletion of NAT1 in cultured breast cancer cells results in a reduced cell growth and migration/invasion [12], [13], [14], [15], [16], [17]. In addition, inhibition or depletion of NAT1 leads to a marked decline in the ability of the cells grow in an anchorage-independent manner (i.e., in soft agar) [14], [17]. These results suggested that NAT1 promotes growth and metastasis of breast cancers. Our recent in vivo study [18], in which parental and NAT1 KO MDA-MB-231 cells were xenografted in immunocompromised mice, showed that both primary and secondary tumors of NAT1 KO cells grow significantly more slowly in vivo. However, their metastatic potential (indicated by lung metastasis) was not reduced in the absence of NAT1 [18]. These discrepancies highlight the fact that the role of NAT1 in breast cancer growth and development remains unclear, and novel hypotheses are needed to fill the gap in our knowledge.

In the current study, we conducted an unbiased analysis and comparison of proteomes of parental and NAT1 KO MDA-MB-231 cells in order to understand molecular and cellular processes that NAT1 contributes to and generate novel hypotheses in regard to its role in breast cancer.

2. Materials and methods

2.1. Cell culture

Generation and characterization of NAT1 KO MDA-MB-231 cell lines have been previously described [14]. NAT1 “KO2” and “KO5” cells represent two different KO cell lines generated using two unique guide RNAs and CRISPR/Cas9 technology. Parental and NAT1 KO MDA-MB-231 cells were cultured in DMEM media containing high glucose (4.5 g/L), fetal bovine serum (10 %), L-glutamine (4 mM), pyruvate (1 mM) and pen/strep (1 %). Cells were grown in a humidified incubator set at 37 °C with 5 % CO₂.

2.2. Proteome analysis

Proteomic studies were conducted using a TMT-labeling approach as previously described [19] to compare wild-type and two NAT1 KO MDA-MB-231 cell lines (n = 3 technical replicates per condition). Cells were lysed in 2% SDS dissolved in 100 mM Tris HCl, pH 8.5 and supplemented with 10 mM sodium butyrate and 1 × HALT™ (Thermo Fisher) protease inhibitors. Protein concentrations were estimated using a detergent compatible assay (BioRad, Cat. #500-0116) against a bovine serum albumin standard curve. Protein lysates (200 μg) were reduced with tris(2-carboxyethyl)phosphine (TCEP) (Thermo Fisher), denatured with 8 M urea and alkylated with iodoacetamide followed by centrifugation through a high molecular weight cutoff centrifugal filter (MilliporeSigma; 10k MWCO) [20]. After digestion with recombinant LysC and then sequencing grade Trypsin (Promega, Madison, WI), the digested proteins were collected and quantified by Nanodrop (Thermo Fisher) at A205 nm prior to concentration adjustment to 0.5 μg/µL using 100 mM triethylammonium bicarbonate. Protein digested samples (50 μg) were labeled with tandem mass tag (TMT) using TMT10plex™ Isobaric Label Reagent Set (Thermo Fisher); samples were then concentrated and desalted with Oasis HLB Extraction cartridges (Waters Corporation) using a modified protocol for extraction of the digested peptides [21], [22]. Samples were then subjected to high pH reversed phase separation with fraction concatenation on a Beckman System Gold LC system supplemented with 126 solvent module and 166 detector in tandem with a BioRad Model 2110 Fraction Collector. A total of 18 concatenated fractions were collected and analyzed by liquid chromatography-mass spectrometry (LC-MS) to detect and quantify TMT-labeled peptides. Briefly, every high pH reversed phase fraction was dissolved in 50 µL solution of 2 % v/v acetonitrile/0.1 % v/v formic acid and 2 µL of each fraction was analyzed on EASY-nLC 1000 UHPLC system (Thermo Fisher) and an Orbitrap Elite – ETD mass spectrometer (Thermo Fisher). Peptides were loaded onto an Acclaim PepMap 100 75 µm × 2 cm, nanoViper (C18, 3 µm, 100 Å) trap prior to separation at 250 nl/min on an Acclaim PepMap RSLC 50 µm × 15 cm, nanoViper (C18, 2 µm, 100 Å) separating column (Thermo Fisher) with a 2–40 % acetonitrile/0.1 % formic acid gradient using an EASY n-LC UHPLC system (Thermo Fisher). Eluted peptides were introduced into the Orbitrap ELITE mass spectrometer using a Nanospray Flex source (Thermo Fisher) with an ion transfer capillary temperature of 225 °C and 1.6 kV spray voltage. An Nth Order Double Play was created in Xcalibur v2.2. Scan event one of the method obtained an FTMS MS1 scan (normal mass range; 60,000 resolution, full scan type, positive polarity, centroid data type) for the range 300–2000 m/z. Scan event two obtained FTMS MS2 scans (HCD activation, 1.0 m/z isolation width, normalized collision energy of 40.0, default charge state of 2, 0.1 ms activation time, normal mass range, 60,000 resolution, centroid data type) on up to 10 peaks that had a minimum signal threshold of 5000 counts from scan event one. The lock mass option was enabled (0 % lock mass abundance) using the 371.101236 m/z polysiloxane peak as an internal calibrant. Proteome Discoverer v1.4.1.14 was used to direct the Mascot v2.5.1 (Matrix Science Ltd, London, UK) and SequestHT (Thermo Fisher) searches of the raw data using the 5/12/2017 version of the UniprotKB Homo sapiens reference proteome reviewed canonical and isoform sequences. The search criteria were the following: enzyme specified was trypsin (maximum two missed cleavages; inhibition by P) with Carbamidomethyl(C) and TMT10plex (K, N-term) set as a static modifications and Oxidation(M) as dynamic. Fragment tolerance was 0.05 Da (monoisotopic) and parent tolerance was 50 ppm (monoisotopic). A Target Decoy PSM Validator node was included in the Proteome Discoverer workflow. The result files from Proteome Discoverer were loaded into Scaffold Q + S v4.4.5. Scaffold was used to calculate the false discovery rate using the Scaffold Local FDR and Protein Prophet algorithms. Peptides were accepted if the identification had probability greater than 99.9 % and parent mass error within 2 ppm. Proteins were accepted if they had a probability greater than 99.9 % and at least one peptide. Proteins were grouped into clusters to satisfy the parsimony principle. TMT purity correction factors were obtained from Thermo. Intensity based normalization of reporter ions was done using the median calculation type, unique peptides blocking level, individual spectrum references, and normalization between samples. The reference value was required for use in the Scaffold Q module, and the minimum dynamic range of reporter ions was set to 1 %. The results were annotated with human gene ontology information from the Gene Ontology Annotations Database (ftp.ebi.ac.uk). This yielded 4890 proteins with a false discovery rate of 0.389 %.

Data Sharing- Acquired MS data (.RAW) files for 18 high pH reversed phase LC fractions, Uniprot Human (reviewed dates May 12, 2017) sequence database, metadata for proteomic sample handling and data acquisition protocols including sample key, Scaffold Q+S v4.5.sf3 file and comparative Scaffold search results exported as an excel file (.xlsx) files have been deposited as a study entitled as “Proteomic Analysis of Arylamine N-Acetyltransferase 1 Knockout Breast Cancer Cells” in the MassIVE (http://massive.ucsd.edu/) data repository (MassIVE ID: 000089446) with the Center for Computational Mass Spectrometry at the University of California, San Diego. Uploaded data maybe be accessed by reviewers using the following link (ftp://MSV000089446@massive.ucsd.edu). Shared data will be released from private embargo for public access upon acceptance for publication.

2.3. Data analysis

Levels of protein species in NAT1 KOs were transformed to log₂ fold change relative to those in parental cells. MetaCore™ (https://clarivate.com/products/metacore/) software were used to analyze protein fold changes between cell lines and predict probable cellular pathways affected by NAT1 deletion. In addition to MetaCore™, we analyzed our data through PANTHER Classification System (www.pantherdb.org) [23], GOnet (tools.dice-database.org/GOnet/) [24], and reactome (ver 65) [25], [26]. These algorithms provide gene function, ontology, pathways and statistical analysis tools. Comparisons of select proteins were done using GraphPad Prism v6.0c (GraphPad Software). One-way ANOVA and a Bonferroni multiple comparison post-test were performed to calculate statistical significance in select proteins between parental (P) vs. KO2 or KO5 cell lines. The following symbols are used to indicate respective levels of significance: *, p < 0.05; **, p < 0.01; ***, p < 0.001.

3. Results

In order to identify proteins that are differentially expressed in the absence of NAT1, we performed an unbiased proteomics analysis of parental vs. NAT1 KO MDA-MB-231 cells. The parental MDA-MB-231 cells (parental) were compared to two NAT1 KO cell lines (KO2 and KO5) which had been previously generated using two separate guide RNAs [9], [14]. A total of 4890 proteins were identified via quantitative proteomic analysis. Among these, protein species whose levels were concomitantly and significantly changed in both KO cell lines with the same direction of change were selected for further analysis. A total of 737 proteins were significantly upregulated (p < 0.01), and a total of 651 proteins were found significantly downregulated (p < 0.01) in both NAT1 KO2 and KO5 cell lines, compared to the parental cell line (Supplementary Tables S1 and S6). We analyzed the lists of differentially upregulated and downregulated proteins separately, using multiple algorithms, including MetaCore, PANTHER [23], Reactome [25], and GOnet [24], to identify biological processes or components that were significantly enriched in each set. These systems allowed combined analysis of gene function, ontology, and pathways, as well as statistical analysis.

3.1. Biological processes enriched among upregulated proteins in NAT1 KO cells

3.1.1. Immune response and antigen presentation

The enrichment analysis of proteins upregulated in NAT1 KO cells identified ‘antigen processing and presentation’ (GO:001988) and multiple, similar pathways involved in this category (Table 1; Supplementary Table S2). These included ‘antigen processing and presentation of exogenous antigen’ (GO:0019884), and ‘antigen processing and presentation of peptide antigen’ (GO:0048002). The enrichment of biological processes belonging to ‘antigen processing and presentation’ was largely contributed by collective upregulation of accessory proteins, such as TAP1, TAP2, tapasin (TAPBP), and calreticulin (CALR) (Fig. 1A; Supplementary Table S2). To confirm this finding, we performed Western blot analysis of parental and KO cell lines for tapasin and TAP1. The protein levels of both tapasin and TAP1 were relatively higher in both NAT1 KO cell lines, compared to the parental cells (Fig. 1B). Accordingly, GO Cellular Component terms, ‘TAP complex’ (GO:0042825) and ‘MHC class I peptide loading complex’ (GO:0042824) were the two of the most highly enriched terms (Supplementary Table S4). Consistent with these findings, GO Molecular Function terms, such as ‘ABC-type peptide transporter activity (GO:0015440)’ and ‘MHC class I protein binding (GO:0042288)’ (Supplementary Table S3) were also overrepresented. Similarly, Reactome (ver 65) pathway analysis identified ‘Antigen Presentation: folding, assembly and peptide loading of class I MHC (R-HSA-983170)’ and ‘MHC class II antigen presentation (R-HSA-2132295)’ (Supplementary Table S5). The latter was contributed by upregulation of HLA-DRA (major histocompatibility complex, class II, DR alpha) and HLA-DRB1 (major histocompatibility complex, class II, DR beta 1) in NAT1 KO cells.

Table 1.

Selected GO biological processes enriched among upregulated proteins in NAT1 KO cells.^a

Category	GO term ID	GO term	P value	P FDR adj.
Antigen Presentation	GO:0019882	antigen processing and presentation	0.00E + 00	1.00E-09
	GO:0042590	antigen processing and presentation of exogenous peptide antigen via MHC class I	2.79E-08	2.56E-06
	GO:0002479	antigen processing and presentation of exogenous peptide antigen via MHC class I, TAP-dependent	1.27E-08	1.24E-06
	GO:0048002	antigen processing and presentation of peptide antigen	0.00E + 00	1.00E-10
	GO:0050851	antigen receptor-mediated signaling pathway	2.85E-04	7.08E-03
Innate Immune Response; Inflammation	GO:0006955	immune response	5.42E-05	1.79E-03
	GO:0002218	activation of innate immune response	8.24E-05	2.56E-03
	GO:0045088	regulation of innate immune response	5.27E-06	2.56E-04
	GO:0002758	innate immune response-activating signal transduction	1.57E-04	4.23E-03
	GO:0070498	interleukin-1-mediated signaling pathway	4.96E-05	1.67E-03
	GO:0002366	leukocyte activation involved in immune response	0.00E + 00	4.20E-09
	GO:0002443	leukocyte mediated immunity	8.00E-10	9.86E-08
	GO:0042098	T cell proliferation	4.43E-04	9.93E-03
Unfolded Protein Response; ERAD; Autophagy	GO:0034620	cellular response to unfolded protein	1.81E-05	7.32E-04
	GO:0006986	response to unfolded protein	9.89E-06	4.43E-04
	GO:0036498	IRE1-mediated unfolded protein response	3.08E-05	1.14E-03
	GO:0034975	protein folding in endoplasmic reticulum	3.00E-04	7.36E-03
	GO:0030433	ubiquitin-dependent ERAD pathway	5.89E-05	1.93E-03
	GO:0036503	ERAD pathway	1.11E-04	3.22E-03
	GO:0006914	autophagy	4.55E-05	1.55E-03
	GO:0010506	regulation of autophagy	1.80E-05	7.32E-04
Proteolysis	GO:0045862	positive regulation of proteolysis	1.43E-04	3.90E-03
	GO:0010498	proteasomal protein catabolic process	3.10E-09	3.43E-07
	GO:0043248	proteasome assembly	6.06E-06	2.89E-04
	GO:0043161	proteasome-mediated ubiquitin-dependent protein catabolic process	4.00E-10	4.77E-08
	GO:0051603	proteolysis involved in cellular protein catabolic process	0.00E + 00	1.00E-10
Vesicular Transport	GO:0016192	vesicle-mediated transport	9.78E-24	2.16E-20
	GO:0032527	protein exit from endoplasmic reticulum	2.18E-06	1.19E-04
	GO:0051648	vesicle localization	1.68E-05	6.90E-04
	GO:0048207	vesicle targeting, rough ER to cis-Golgi	4.44E-07	2.93E-05
	GO:0048199	vesicle targeting, to, from or within Golgi	2.42E-07	1.74E-05
	GO:0048208	COPII vesicle coating	4.44E-07	2.93E-05
	GO:0090114	COPII-coated vesicle budding	2.00E-07	1.49E-05
	GO:1903513	endoplasmic reticulum to cytosol transport	3.29E-05	1.21E-03
	GO:0048193	Golgi vesicle transport	0.00E + 00	0.00E + 00
	GO:0030970	retrograde protein transport, ER to cytosol	3.29E-05	1.21E-03

^aExtended version of this table is available as Supplementary Table S2.

Fig. 1.

The antigen presentation by MHC class I pathway is upregulated inNAT1KO cells. A, proteomics analysis showed the levels of the indicated accessory proteins in the pathway (i.e., tapasin/TAPBP, TAP1, TAP2, and CALR) were significantly elevated in both KO cell lines (i.e., KO2 and KO5), compared to parental (P) MDA-MB-231 cells. The y-axis shows the relative fold change in log base 2 (Log2). One-way ANOVA and a Bonferroni multiple comparison post-test were performed to calculate statistical significance of the difference in the indicated proteins between parental (P) vs. KO2 or KO5 cell line. ***, p < 0.001. B, representative Western blots for tapasin and TAP1 in the indicated cell lines. GAPDH is shown as an internal control.

In addition, the proteins upregulated NAT1 KO cells were enriched in ‘immune response’ (GO:0006955) and related pathways, including ‘activation of innate immune response’ (GO:0002218), ‘regulation of innate immune response’ (GO:0045088), ‘leukocyte activation involved in immune response’ (GO:0002366), and ‘leukocyte mediated immunity’ (GO:0002443) (Table 1; Supplementary Table S2). This was, in part, due to upregulation of proteins, such as BCL10, MALT1 (mucosa-associated lymphoid tissue lymphoma translocation protein 1; paracaspase), NFKB1 (nuclear factor NF-kappa-b p105 subunit), PYCARD (a.k.a., apoptosis-associated speck-like protein containing a CARD), TOLLIP (toll interacting protein), and UBE2N. MALT1 is a caspase-like protease (‘paracaspase’) that binds to BCL10, and synergizes with BCL10 in promoting canonical NF-κB activation [27].

3.1.2. Membrane vesicle assembly and trafficking

Among the proteins upregulated in NAT1 KO cells, GO Biological Process terms pertaining to membrane vesicle assembly and trafficking were enriched. These included 'vesicle-mediated transport' (GO:0016192), 'vesicle localization' (GO:0051648), 'vesicle targeting, rough ER to cis-Golgi' (GO:0048207), 'Golgi vesicle transport' (GO:0048193), and 'COPII-coated vesicle budding' (GO:0090114) (Table 1; Supplementary Table S2). Accordingly, GO Cellular Component terms, including 'clathrin-coated vesicle' (GO:0030136), 'vesicle coat' (GO:0030120) and 'coated vesicle membrane' (GO:0030662), and GO Molecular Function terms, 'syntaxin binding' (GO:0019905), 'SNARE binding' (GO:0000149), and 'clathrin binding' (GO:0030276) were found enriched (Supplementary Tables S3 and S4).

3.1.3. Proteolysis

Another group of biological processes that was overrepresented among upregulated proteins belonged to protein catabolic process, and it included 'proteolysis' (GO:0006508), 'cellular protein catabolic process' (GO:0044257), 'proteasome-mediated ubiquitin-dependent protein catabolic process' (GO:0043161), and 'proteasome assembly' (GO:0043248) (Table 1; Supplementary Table S2). This was largely due to upregulation of multiple subunits of 20S and 26S proteasome complexes, such as PSMA5, PSMD10, PSMD9, PSMD4, RPN2, PSMC1, PSMD2, PSME4, PSMB10, and PSMB8 (Supplementary Table S2). This suggested that NAT1 KO cells have increased protein catabolic process. Of note, these upregulated proteasome subunits contributed simultaneously to the enrichment of GO terms related to antigen processing and presentation (see above) as the proteasome mediates proteolytic cleavage of antigens [28], and thus, upregulation of proteasomal subunits may reflect the requirement for antigen processing.

3.1.4. Cell death and apoptosis

GO terms related to cell death and apoptotic pathways were also enriched in NAT1 KO cells. These included 'positive regulation of extrinsic apoptotic signaling pathway' (GO:2001238), 'neuron apoptotic process' (GO:0051402), 'neuron death' (GO:0070997), and 'regulation of oxidative stress-induced intrinsic apoptotic signaling pathway' (GO:1902175) (Table 1; Supplementary Table S2). Enrichment of apoptosis processes in NAT1 KO cells were contributed by upregulation of DR6(TNFRSF21), FAF1, DAP3, Apaf-1, Par-4 (PAWR), PEA15, CARD5 (PYCARD), DIABLO (SMAC), Caspase-7, Bcl-10, PARP-1, TAX1BP1, TIMP3, and TRAF3 (CAP1) (Supplementary Table S2). Reactome [26] pathway analysis also showed that 'DIABLO-mediated apoptotic process' (R-HSA-111469; R-HSA-111464; R-HSA-111463), as well as 'formation and regulation of apoptosome' (R-HSA-9627069; R-HSA-111458), were enriched more than 10-fold among proteins upregulated in NAT1 KO cells, and these apoptotic pathways belonged to top 10 Reactome pathways with respect to the fold enrichment (Supplementary Table S5). This indicates that NAT1 KO cells may exhibit a higher rate of apoptotic cell death, compared to the parental cells. The findings of our recently published study support this notion. When parental and NAT1 KO MDA-MB-231 cells were xenografted in immunocompromised mice, primary tumors of NAT1 KO expressed an increased level of activated/cleaved caspase 3 (pro-apoptotic) and a decreased level of an anti-apoptotic protein, BCL-B, suggesting that the decreased in vivo growth observed in NAT1 KO tumors is, in part, contributed by an increased rate of apoptotic cell death [18].

4. Biological processes enriched among downregulated proteins in NAT1 KO cells

4.1. Mitochondrial ATP synthase and mitochondrial biogenesis

One of biological processes or pathways that were enriched among the downregulated proteins was subunits of mitochondrial ATP synthase, also known as F₁/F_o ATPase or Complex V (EC 3.6.3.14) (Table 2; Supplementary Table S7). Multiple subunits of ATP synthase, including ATP5A1, ATP5B, ATP5C1, ATP5D, ATP5E, ATP5F1, ATP5H, ATP5J2, ATP5L, and ATP5O, were collectively downregulated in both NAT1 KO cell lines (Fig. 2; Supplementary Table S7). As a result, GO terms related to mitochondrial ATP synthesis were significantly enriched among the downregulated proteins. These included ‘ATP synthesis coupled proton transport’ (GO:0015986), ‘purine nucleoside triphosphate biosynthetic process’ (GO:0009145), and ‘oxidative phosphorylation’ (GO:0006119) (Table 2). Additionally, several subunits of Complex III of the electron transport chain were also downregulated in NAT1 KO cells. These included UQCRB, UQCRC1, UQCRC2, UQCRFS1, and UQCRQ, all of which belong to the ubiquinol-cytochrome-c reductase complex (cytochrome bc₁ complex; Complex III), and accordingly, several GO terms falling under the biological process, ‘ubiquinol-cytochrome-c reductase complex,’ such as ‘mitochondrial electron transport, ubiquinol to cytochrome c' (GO:0006122), were enriched (Table 2; Supplementary Table S7). Collective downregulation of subunits of Complex III and V suggests that the electron transport chain and ATP synthesis via oxidative phosphorylation may be compromised in NAT1 KO cells.

Table 2.

Selected GO biological processes enriched among downregulated proteins in NAT1 KO cells.^a

Category	Sub-category	GO term ID	GO term	P value	P FDR adj.
Mitochondria	Electron Transport Chain (Complex V and III)	GO:0046034	ATP metabolic process	1.11E-06	6.78E-05
		GO:0006754	ATP biosynthetic process	6.00E-10	7.09E-08
		GO:0042776	mitochondrial ATP synthesis coupled proton transport	0.00E + 00	1.90E-09
		GO:0006122	mitochondrial electron transport, ubiquinol to cytochrome c	8.69E-05	3.89E-03
		GO:0022900	electron transport chain	9.31E-04	2.64E-02
	Protein Synthesis (Mitochondrial Ribosome)	GO:0032543	mitochondrial translation	1.49E-07	1.07E-05
		GO:0070126	mitochondrial translational termination	6.68E-06	3.64E-04
		GO:0070125	mitochondrial translational elongation	1.97E-07	1.36E-05
		GO:0070129	regulation of mitochondrial translation	1.17E-03	3.19E-02
	Membrane Organization	GO:0006839	mitochondrial transport	0.00E + 00	2.00E-10
		GO:0007005	mitochondrion organization	2.00E-10	2.25E-08
		GO:0007006	mitochondrial membrane organization	0.00E + 00	4.20E-09
		GO:0070585	protein localization to mitochondrion	2.60E-04	9.48E-03
		GO:1990542	mitochondrial transmembrane transport	2.00E-10	2.32E-08
		GO:0070584	mitochondrion morphogenesis	5.00E-04	1.62E-02
Ribosome & Ribonucleoprotein Complex	Ribosome Assembly	GO:0042254	ribosome biogenesis	3.32E-31	2.28E-28
		GO:0042273	ribosomal large subunit biogenesis	9.07E-16	0.00E + 00
		GO:0042255	ribosome assembly	9.36E-06	4.96E-04
		GO:0000054	ribosomal subunit export from nucleus	8.95E-04	2.56E-02
	rRNA Processing & Maturation	GO:0016072	rRNA metabolic process	7.78E-27	4.29E-24
		GO:0006364	rRNA processing	6.13E-27	3.55E-24
		GO:0009303	rRNA transcription	1.84E-07	1.28E-05
		GO:0000469	cleavage involved in rRNA processing	5.91E-05	2.74E-03
	Ribonucleoprotein Complex	GO:0098781	ncRNA transcription	5.94E-05	2.74E-03
		GO:0034470	ncRNA processing	1.24E-17	0.00E + 00
		GO:0071826	ribonucleoprotein complex subunit organization	0.00E + 00	3.60E-09
		GO:0022618	ribonucleoprotein complex assembly	0.00E + 00	3.60E-09
		GO:0022613	ribonucleoprotein complex biogenesis	5.08E-35	4.00E-32
		GO:0071426	ribonucleoprotein complex export from nucleus	0.00E + 00	1.00E-10
Cell Cycle		GO:0007049	cell cycle	2.44E-08	2.05E-06
		GO:0008283	cell population proliferation	1.50E-04	5.99E-03
		GO:0000075	cell cycle checkpoint	6.38E-04	1.93E-02
		GO:0044770	cell cycle phase transition	1.22E-04	5.25E-03
		GO:0044843	cell cycle G1/S phase transition	1.64E-04	6.43E-03
		GO:0006260	DNA replication	0.00E + 00	0.00E + 00
DNA Damage Response	Checkpoints	GO:0031570	DNA integrity checkpoint	9.01E-04	2.57E-02
		GO:0044773	mitotic DNA damage checkpoint	2.62E-04	9.52E-03
		GO:0031571	mitotic G1 DNA damage checkpoint	1.04E-03	2.90E-02
		GO:0030330	DNA damage response, signal transduction by p53 class mediator	2.60E-04	9.48E-03
		GO:0072422	signal transduction involved in DNA damage checkpoint	5.18E-04	1.66E-02
	DNA Repair	GO:0006281	DNA repair	0.00E + 00	0.00E + 00
		GO:0006302	double-strand break repair	1.26E-07	9.10E-06
		GO:0000724	double-strand break repair via homologous recombination	7.16E-07	4.55E-05
		GO:0006974	cellular response to DNA damage stimulus	0.00E + 00	0.00E + 00
		GO:0006303	double-strand break repair via nonhomologous end joining	1.08E-04	4.73E-03

^aExtended version of this table is available as Supplementary Table S7.

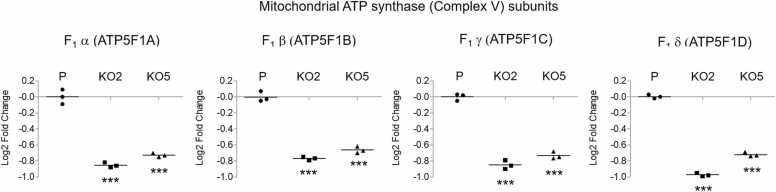

Fig. 2.

The process involving mitochondrial oxidative phosphorylation is downregulated in NAT1 KO cells. Multiple subunits of the ATP synthase (Complex V) of the electron transport chain, including every subunit of its F₁ domain (i.e., α, β, γ, δ, and ε subunits), were significantly downregulated in NAT1 KO cells. The graphs show the relative protein levels of α (ATP5F1A), β (ATP5F1B), γ (ATP5F1C), and δ (ATP5F1D) in parental (P) and NAT1 KO cell lines (KO2 and KO5). The y-axis shows relative fold change in log base 2 (Log2). ***, p < 0.001.

A number of mitochondrial ribosomal proteins (MRPL1, MRPL11, MRPL12, MRPL23, MRPL40, MRPL41, MRPL47, MRPL53, MRPL9, MRPS2, MRPS23, and MRPS27) were also downregulated collectively, and the biological processes such as, ‘mitochondrial translation’ (GO:0032543) and ‘mitochondrial translational elongation’ (GO:0070125) were enriched as a result (Table 2). Moreover, GO terms related to organization of mitochondrial membrane and mitochondrial protein localizations (e.g., GO:0007006 and GO:0070585) were also enriched among downregulated proteins in NAT1 KO cells (Table 2). For instance, TIMM50 (translocase of inner mitochondrial membrane 50; a.k.a., TIM50) and GRPEL1, which modulates mitochondrial heat shock protein 70, [29] were significantly downregulated in NAT1 KO cells.

4.2. Ribosome biogenesis

Another group of GO terms that stood out belonged to ribosome biogenesis. Downregulation of a set of proteins involved in ribosome and rRNA processing resulted in enrichment of the following GO terms: 'ribosome biogenesis' (GO:0042254 and GO:0042274), 'ncRNA and rRNA metabolic processing' (GO:0034660, GO:0034470, GO:0016072, and GO:0006364) (Table 2; Supplementary Table S7). In addition, GO terms related to both transcription and maturation of rRNA were also significantly enriched among downregulated proteins in NAT1 KO cells. These included as ‘rRNA transcription’ (GO:0009303), ‘maturation of LSU-rRNA’ (GO:0000470), and ‘maturation of 5.8S rRNA’ (GO:0000460) (Table 2; Supplementary Table S7). For example, the following factors involved in rRNA transcription were collectively downregulated in NAT1 KO cell lines: GTF3C4, GTF3C5, MARS, NIFK, POLR1E, SPIN1, and TCOF1 (Supplementary Table S7). Moreover, proteins involved in export of ribosome subunits and rRNA-containing ribonucleoprotein complexes, such as NPM, NUP88, RRS1, and SDAD1, were also found downregulated, and consequently, the following GO terms were enriched: ‘ribosomal subunit export from nucleus’ (GO:0000055 and GO:0000054) and ‘rRNA-containing ribonucleoprotein complex export from nucleus’ (GO:0071428) (Table 2; Supplementary Table S7). Taken together, collective downregulation of ribosomal subunits and rRNA, as well as factors involved in the export and assembly of ribosome suggests that NAT1 KO cells likely experience deficits in de novo synthesis of cellular (and mitochondrial) proteins necessary for their growth.

4.3. Cell cycle

Many proteins involved in cell cycle and DNA replication, such as CDK1, CCNH, KIF20A, NUMA1, PCNA, MKI67, MCM2, MCM3, MCM4, MCM5, MCM6, and MCM7, were downregulated in NAT1 KO cells. As a result, a number of GO terms (e.g., GO:0000278, GO:0007049, GO:0022402, GO:0044786) related to the processes of cell cycle were enriched (Table 2; Supplementary Table S7).

5. Discussion

One of the interesting findings of the present study was the upregulation of the components of the major histocompatibility complex (MHC) class I (MHC-I) synthesis and antigen processing in NAT1 KO cells, including TAP1, TAP2, tapasin (TAPBP), and calreticulin (CALR) (see Fig. 1). These accessory proteins play essential roles in synthesis of and antigen presentation by MHC-I. For instance, tapasin and calreticulin function as chaperones and are required to stabilize the MHC-I complex in endoplasmic reticulum (ER) [30]. TAP (transporter associated with antigen processing) proteins (e.g., TAP1 and TAP2) transport antigenic peptides into ER, and the interaction between tapasin and TAP proteins allows loading of peptides into the MHC-I binding groove [30]. One way by which cancer cells avoid immune detection is downregulation of tumor-associated antigen presentation via MHC-I [31]. MHC-I plays an essential role in the initiation of the adaptive immune response, and cancer cells with downregulated MHC-I potentially evade immune system, for they are less likely to be recognized and targeted by CD8+ T-cells [31]. Accordingly, downregulation of MHC-I has been described in multiple types of human cancer, including breast cancer [32], [33], [34], and often correlates with poor prognosis [35], [36], [37]. Although the mechanism remains unknown, our results show that MDA-MB-231 breast cancer cells that are devoid of NAT1 exhibit increased expression of MHC-I and its accessory proteins, which would facilitate presentation of tumor-associated antigens and thereby become subject to cytotoxic T cell-mediated ablation. The present finding raises an interesting possibility that the breast cancer cells may become more prone to immune detection and ablation upon inhibition or silencing of NAT1.

According to this study’s proteomic data, NAT1 KO MDA-MB-231 cells appear to have mitochondrial dysfunction in multiple aspects. Proteins that play essential roles in 1) mitochondrial biogenesis, 2) mitochondrial membrane organization, 3) mitochondrial protein transport/localization, 4) electron transport chain complexes, and 5) mitochondrial ribosome biogenesis were collectively downregulated in both NAT1 KO cell lines. One of the cellular components that are heavily affected by the absence of NAT1 in MDA-MB-231 breast cancer cells was the mitochondrial ATP synthase and the electron transport chain. The human mitochondrial ATP synthase, also known as F₁/F_o ATPase or complex V (EC 3.6.3.14), is composed of 29 subunits with a combined molecular weight of approximately 592 kDa [38]. The human mitochondrial ATP synthase complex is the fifth (and last) component of oxidative phosphorylation chain that harnesses the electrochemical energy to power ATP synthesis [12]. ATP synthase is comprised of two main functional domains, F₁ and F_o. The F₁ domain, which is located in the mitochondrial matrix, serves as the catalytic core, while the F_o domain contains the membrane proton channel, linked together by central and peripheral stalks [38]. According to our results, every subunit of F₁ domain (i.e., α, β, γ, δ, and ε subunits) of the ATP synthase was significantly downregulated in both NAT1 KO cell lines at the protein level (see Fig. 2 and Table 2). Also, multiple subunits that comprise F_o domain, including subunits b, f, d, g, F6 and O (OSCP), were concomitantly downregulated in both NAT1 KO cell lines (see Supplementary Tables S6 and S7). Quantitatively, there was approximately 40–45 % reduction in the ATPase subunits in NAT1 KO cells, compared to the parental cells. According to our previous transcriptomics study on the same cell lines, the aforementioned subunits of the ATP synthases are also downregulated at the mRNA level in both NAT1 KO cell lines [39]. This further corroborates our current finding and suggests that the decreased protein levels of ATP synthase subunits are contributed by a decrease in transcription of the corresponding genes. NAT1 KO cell lines also showed reduced levels of some of the subunits of Complex III of the electron transport chain, also known as coenzyme Q:cytochrome c–oxidoreductase or cytochrome bc1 complex (EC 1.10.2.2). Specifically, cytochrome b-c1 complex subunit 1 (UQCRC1), 2 (UQCRC2), 7 (UQCRB), and Rieske (UQCRFS1) levels were significantly decreased in both NAT1 KO cell lines. Although it could not be confirmed by this current proteomic study, our previous transcriptomic study also found that some subunits of Complex I (e.g., NDUFA6, NDUFAB1, NDUFB1, NDUFB4, and NDUFS4) and Complex IV (e.g., COX7C) are also downregulated at the mRNA level in NAT1 KO cells [39].

GO terms related to organization of mitochondrial membrane and mitochondrial protein localizations were also enriched among downregulated proteins in NAT1 KO cells (see Table 2 and Supplementary Table S7). For instance, TIMM50 (translocase of inner mitochondrial membrane 50; a.k.a., TIM50) was significantly downregulated in NAT1 KO cells. TIMM50 functions as a subunit of the TIM23 inner mitochondrial membrane translocase complex which recognizes the mitochondrial targeting signal on protein cargos and translocates them to the mitochondrial inner membrane and matrix [40]. A recent study showed that TIMM50 deficiency results in a severe mitochondrial dysfunction and is essential for several aspects of mitochondrial physiology, including mitochondrial morphology, electron transport chain assembly, and mitochondrial respiratory capacity [41]. Similarly, a nucleotide exchange factor, GRPEL1, which plays a crucial role in modulating mitochondrial heat shock protein 70 (mtHsp70; HSPA9) [29], was also downregulated in both NAT1 KO cell lines. Notably, mtHsp70 facilitates the translocation of nuclear-encoded mitochondrial proteins across the mitochondrial membrane system into the matrix [42].

Collective downregulation of the electron transport chain complexes and mitochondrial proteome suggests that the oxidative phosphorylation process and ATP production in mitochondria is likely perturbed in NAT1 KO cells. In support of this notion, our previous metabolomics study on the same cell lines [10] suggested that the process of mitochondrial β‐oxidation of fatty acids is compromised in NAT1 KO cells. The NAT1 KO cells exhibit significant accumulation of β‐oxidation intermediates and a decrease in acyl carnitine species [10], which can be attributed to mitochondrial dysfunction. The mitochondrial dysfunction in NAT1 KO cancer cells have been also reported by others. A group examined the effects of NAT1 deletion on mitochondrial function in two human cell lines, MDA-MB-231 and HT-29 (colorectal adenocarcinoma) [15], [43], [44]. They found that NAT1 deletion resulted in decreased oxidative phosphorylation with a significant loss in respiratory reserve capacity in both cell lines [15]. There also was a decrease in glycolysis without a change in glucose uptake. These changes in mitochondrial function were attributed to a decrease in pyruvate dehydrogenase activity [15]. Taken together, these previous reports and our current findings suggest that the mitochondrial function is compromised at multiple levels in NAT1 KO cells. Although discrepancies exist in the NAT1-breast cancer literature, one of the most reproducible findings is that silencing or inhibition of NAT1 via multiple approaches results in a reduced growth of cancer cells, both in vitro and in vivo [13], [14], [16], [17], [18], [45]. We speculate that, in combination with increased pro-apoptotic mediators, the apparent mitochondrial dysfunction observed in NAT1 KO cells, at least in part, can contribute to the growth retardation.

Factors involved in various phases of the cell cycle were collectively downregulated in NAT1 KO MDA-MB-231 cells (see Table 2). This is also supported by our previous transcriptomics study of the same cell lines [39]. Reactome (ver 65) analysis of the transcripts that are significantly downregulated (p < 0.01) in both NAT1 KO cell lines shows overrepresentation of several reactome pathways for the mitotic cell cycle, especially the G1/S transition (i.e., R-HSA-69205, R-HSA-453279, and R-HSA-1640170; p < 0.001, FDR < 0.01) (see Supplementary Table S10). This suggests that the cell cycle entry (i.e., cell proliferation) is decreased or delayed in the absence of NAT1 in MDA-MB-231 cells. Our recently published study showed that when the cells are grown in vivo as a xenograft, both NAT1 KO cell lines exhibit slower tumor growth, and the relative level of PCNA protein (a commonly used histological marker of cell proliferation) is decreased, compared to the parental cells [18]. This is consistent with our current proteomics data which shows downregulation of numerous cell cycle proteins, including PCNA (see Supplementary Table S7). However, the levels of other cell cycle markers we examined in our previous study (i.e., cyclin D1, cyclin B1, and Ki67) were not consistently downregulated, which led us to conclude that the rate of cell proliferation in vivo is not significantly altered in NAT1 KO primary tumors [18]. Our current proteomics data suggest that the cell cycle entry is delayed in the absence of NAT1 in MDA-MB-231 cells in culture. Such discrepancy may reflect the difference in growth conditions between in vitro culture and in vivo. Regardless, the retarded growth of NAT1 KO MDA-MB-231 cells observed in both in vitro [14] and in vivo [18] appears to be contributed by reduced cell proliferation and/or increased cell death (apoptosis) (see under Section 3.1.4 above). These findings highlight that NAT1 is required for rapid growth of MDA-MB-231 breast cancer cells.

Additional studies are required to further corroborate and test the findings and hypotheses generated from the present study. It would be of interest to co-culture parental and NAT1 KO MDA-MB-231 cells with cytotoxic T cells or NK cells to test the role of NAT1 in antigen presentation and tumoral immunity. We and others have previously reported on changes in the mitochondrial respiration in NAT1 KO cells [9], [15]. However, the findings from these studies contrasted with each other, and thus, additional endpoints of mitochondrial function and structure would need to be investigated further to corroborate downregulation of multiple mitochondrial components observed in NAT1 KO cells.

CRediT authorship contribution statement

Kyung Hong: Writing – original draft, Formal analysis, Validation, Visualization. Jonathan Q. Gardner, Marcus W. Stepp and Mark A. Doll: Investigation, Data curation, Formal analysis, Validation, Visualization, Project administration, Writing – review & editing. Danny Wilkey, Frederick W. Benz, and Jian Cai: Investigation, Data curation, Formal analysis. Michael L. Merchant: Conceptualization, Supervision, Project administration, Writing – review & editing. David Hein: Conceptualization, Supervision, Project administration, Funding acquisition, Writing – review & editing.

Declaration of Competing Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Handling Editor: Dr. Lawrence Lash
