Network Science and Group Fusion Similarity-Based Searching to Explore the Chemical Space of Antiparasitic Peptides

Abstract

Antimicrobial peptides (AMPs) have appeared as promising compounds to treat a wide range of diseases. Their clinical potentialities reside in the wide range of mechanisms they can use for both killing microbes and modulating immune responses. However, the hugeness of the AMPs’ chemical space (AMPCS), represented by more than 10⁶⁵ unique sequences, has represented a big challenge for the discovery of new promising therapeutic peptides and for the identification of common structural motifs. Here, we introduce network science and a similarity searching approach to discover new promising AMPs, specifically antiparasitic peptides (APPs). We exploited the network-based representation of APPs’ chemical space (APPCS) to retrieve valuable information by using three network types: chemical space (CSN), half-space proximal (HSPN), and metadata (METN). Some centrality measures were applied to identify in each network the most important and nonredundant peptides. Then, these central peptides were considered as queries (Qs) in group fusion similarity-based searches against a comprehensive collection of known AMPs, stored in the graph database StarPepDB, to propose new potential APPs. The performance of the resulting multiquery similarity-based search models (mQSSMs) was evaluated in five benchmarking data sets of APP/non-APPs. The predictions performed by the best mQSSM showed a strong-to-very-strong performance since their external Matthews correlation coefficient (MCC) values ranged from 0.834 to 0.965. Outstanding MCC values (>0.85) were attained by the mQSSM with 219 Qs from both networks CSN and HSPN with 0.5 as similarity threshold in external data sets. Then, the performance of our best mQSSM was compared with the APPs prediction servers AMPDiscover and AMPFun. The proposed model showed its relevance by outperforming state-of-the-art machine learning models to predict APPs. After applying the best mQSSM and additional filters on the non-APP space from StarPepDB, 95 AMPs were repurposed as potential APP hits. Due to the high sequence diversity of these peptides, different computational approaches were applied to identify relevant motifs for searching and designing new APPs. Lastly, we identified 11 promising APP lead candidates by using our best mQSSMs together with diversity-based network analyses, and 24 web servers for activity/toxicity and drug-like properties. These results support that network-based similarity searches can be an effective and reliable strategy to identify APPs. The proposed models and pipeline are freely available through the StarPep toolbox software at http://mobiosd-hub.com/starpep.

1. Introduction

In the last several decades, antimicrobials have contributed to preventing and treating infectious diseases caused by bacteria, viruses, fungi, and parasites.¹ Nonetheless, several causes have created conditions for the emergence of multidrug-resistant (MDR) pathogens that are not treatable with the available drugs.² According to the World Health Organization, antimicrobial resistance (AMR) is one of the top ten global public health threats facing humanity in this century, so this is a worrying issue with potential consequences for human, animal, and environmental health.³

In this scenario, it is mandatory to search for new antimicrobials that are less susceptible to evolutionary resistance mechanisms and that decrease damaging inflammation. Antimicrobial peptides (AMPs) or cationic host defense peptides (CHDPs) have appeared as promising compounds to control infectious diseases avoiding AMR, due to their exceptional microbicidal properties and/or by immunomodulating host responses.⁴ AMPs are small compounds, commonly with fewer than 50 amino acids, amphipathic properties, and a net positive charge between 2 and 9 at physiological pH.⁵ These molecules are part of the primary immune responses, the first defense barrier against microbial pathogens of different living organisms, including bacteria, plants, fungi, invertebrates, amphibians, and mammals.⁶

Some advantages of AMPs over traditional antimicrobials are slower emergence of resistance, antibiofilm activity, modes of action that do not rely on specific targets, and capacity to modulate host immune responses.⁷ Therefore, the effectiveness of CHDPs resides on the wide range of mechanisms they can use for both killing microbes and modulating immune responses, which depend on their concentration and dose, external stimuli, target cell or tissue, administration mechanism, host microbiota, and so forth.⁵ AMPs can kill microbes affecting their extracellular dynamics, mainly by the membrane perturbation of pathogens, using different mechanisms. Moreover, these compounds can interrupt transcription, replication, cell wall synthesis, and other important processes by binding to intracellular molecular targets.⁴ Some of the CHDPs’ immunomodulatory actions are the recruitment of leukocytes to the site of infection.⁸

It has also been proven that AMPs have potential uses to treat a wide range of diseases, including infections caused by MDR bacteria,^4,9 chronic inflammatory diseases like asthma,¹⁰ arthritis,¹¹ and colitis,¹² and some types of cancers.¹³ Some CHDPs’ antimicrobial activities such as antiparasitic, antiviral, and antifungal have been less explored but have a great potential to combat infectious diseases caused by nonbacterial pathogens.¹⁴ Considering this prospect, in this report, we have focused on the AMPs’ antiparasitic activity, which could help to treat malaria and neglected tropical diseases such as Leishmaniases, and Chagas disease, among others.¹⁵

Parasitic organisms are the causative agents of some of the world’s most devastating and prevalent infections.¹⁶ This group of pathogens includes members such as the protozoans Trypanosoma, Leishmania, Plasmodium, and helminths such as Schistosoma, Wuchereria, and Echinococcus. Parasitic diseases remain a major public health problem worldwide. Among the billions of people suffering from these diseases, more than a million die annually, and one person in every four persons harbors parasitic worms. Therefore, there is an urgent need to develop tools, as well as new drug candidates and strategies, to overcome the upcoming burden of parasitic diseases.¹⁷ Although poorly explored, antiparasitic peptides (APPs) demonstrate high potential for future application in therapeutics of infectious diseases, especially parasitic neglected ones.^18,17,19 That is, peptide drugs for neglected diseases are still at early stages compared to other drugs developed for chronic and noninfectious diseases. But even at a slow pace, studies and research on APPs are being demonstrated to be a reality for the treatment of parasitic neglected diseases.^20,21

There are multiple sources to retrieve AMPs, such as natural peptides produced as part of the immune system of different organisms,⁶ synthetic peptides derived from natural CHDPs,²² cryptic peptides obtained from proteomes or microbiomes using bioinformatics,^23,24 mass spectrometry-based proteomics experiments with fragmentation techniques,²⁵ and so forth. Therefore, AMPs’ chemical space (AMPCS) is huge; it is estimated that there are more than 10⁶⁵ unique sequences of peptides with 50 residues or fewer,¹⁴ which represent a big challenge for the discovery of new promising bioactive peptides and the identification of common features (e.g., sequence and structural motifs determining their relevant biological functions).⁷ In this context, computational-aided pipelines have been proposed as efficient alternatives to do high-throughput screening (HTS) of CHDPs.²⁶

Traditionally, strategies applied for the discovery of AMPs have relied on bioinformatics methods such as sequence and structure-based alignment searches; pattern-matching approaches like profile Hidden Markov Models and regular expressions; evolutionary algorithms; molecular fingerprint comparisons; and quantitative structure–activity relationship (QSAR) models.²⁷⁻²⁹ More recently, machine learning (ML) algorithms, sometimes in combination with the aforementioned methods, have been extensively used to predict and discover new potential AMPs.³⁰ Most of the ML methods to predict AMPs have focused on supervised strategies, requiring labeled data sets to train these models. These supervised algorithms have shown some issues regarding the size, quality, diversity, application domain, and representativeness of data sets required to train the models, which can produce inappropriate predictions and wrong results.³¹

Considering the limitations and drawbacks of the available methods to discover AMPs, we present a novel approach based on network science tools and multiquery similarity searching models (mQSSMs) to discover new potential AMPs, specifically APPs. Network science is a discipline that studies complex systems, large collections of components that are characterized by having a lot of interactions, emergence, self-organization, and adaptation, among other properties.^32,33 Similarity searching is a virtual screening strategy that compares a molecular query, characterized by molecular features, against the set of features of other molecules from a database, obtaining a ranked list that possesses the most similar molecules to the query at the top of the list. That is, similarity searching involves the use of a similarity measure (coefficient) to score the degree of similarity between a query structure (or several queries) and each target compound in a database, and the similar property principle means that the highest-ranked query structures by a similarity measure are likely to have similar properties to those of the template(s).^34,35

We have taken advantage of network-based representation of APPs’ chemical space (APPCS) to retrieve valuable information by using chemical space networks (CSNs), half-space proximal networks (HSPNs), and metadata networks (METNs). Some centrality measures were applied to identify the most important nodes, and these APPs were taken as queries to perform similarity-based searches by group fusion (MAX-SIM rule) models against the graph database StarPepDB(36) (http://mobiosd-hub.com/starpep). These mQSSMs allowed us to repurpose new potential APPs. It is worth mentioning that this is the first time we are exploring the chemical space from StarPepDB to retrieve valuable information on certain known AMPs. To validate the worth of this strategy, we evaluated the mQSSMs performance in five benchmarking data sets of APP/non-APPs (retrospective studies), and classification results were contrasted with the performance metrics of ML APPs prediction servers AMPDiscover (https://biocom-ampdiscover.cicese.mx)³⁷ and AMPFun (http://fdblab.csie.ncu.edu.tw/AMPfun/index.html).³⁸

2. Data Sets and Methods

Our workflow was divided into four stages: (i) network analysis, (ii) multiquery similarity searching models, (iii) APPs prediction, and (iv) discovery of sequence motifs. The first stage consisted of data extraction, networks building, similarity cutoff analysis, the study of global networks properties, calculation of centrality measures, and retrieval of the most central APPs sets by each metric. The second stage included the design of network-based similarity searching models, selection of the best ones, and comparison of our models with ML approaches to predict APPs. The third stage was the prediction of new potential APPs by applying the best mQSSMs to screen the entire StarPepDB and subsequently some filters of toxicity and hemolytic activities; the resulting APPs were confirmed with the annotation of external Web servers. The last stage was the discovery of sequence motifs shared by the potential antiparasitic leads, using multiple sequence alignments, alignment-free methods, and the PROSITE server. The Abstract graphic summarizes all of these stages.

2.1. Networks Analysis

2.1.1. Data Collection

The APPs were obtained from StarPepDB, a graph database that contains 45 120 nodes representing AMPs and additional nodes for metadata, obtained from about 40 data sources.³⁹ As far as we know, this is one of the largest integrated AMPs databases until now. The StarPepDB is embedded in the StarPep toolbox, a software designed to perform network analysis of data contained in this resource.³⁶ Thus, we filtered the database by metadata function using the “Antiparasitic” search term and retrieved 550 APPs (see SI1-A in the Supporting Information, a FASTA file).

2.1.2. Creation of Networks

The StarPep toolbox allowed us to create three types of networks: CSNs, HSPNs, and METNs. CSNs and HSPNs are similarity or correlation networks,³⁶ defined as G = (V, E) where V is a set of nodes and E is a set of edges. In these networks, nodes in V represent AMPs, characterized by multidimensional molecular descriptor (sequences-based features) vectors, and edges linking nodes in E are pairwise similarity relationships between sequence-based descriptors of the peptides. Thus, nodes of CSNs and HSPNs are connected because they are similar to each other, instead of the existence of physical interactions among these compounds.³⁶ In addition, METNs are multilayer networks, defined as G = (V, E, L), where V and E are the sets of nodes and edges, the same as in CSNs and HSPNs, and L is the set of layers representing different edge types or labels.⁴⁰ METNs have two layers: metadata and AMPs. Metadata consist of additional information on AMPs such as origin, database, function, target pathogen, crossref, N-terminus, C-terminus, and unusual amino acids. Note that CSNs and HSPNs are networks where there is only one kind of node and relationship. However, a more interconnected system has been considered for further analysis, by connecting the nodes representing AMPs with their different types of metadata such as origin, database, function, target pathogen, and so on.⁴¹ Among these nodes, peptides, and metadata, the edges depict multitype links and hierarchical connections for a better organization and network navigation. Hierarchy relationships between nodes are established by the edges in both layers of METNs.

In CSNs and HSPNs, the set of molecular descriptors that codifies an AMP can be derived from sequence-based descriptors by applying statistical and aggregation operators on amino acid property vectors (see SI1-2 in ref (36)). The cross-out sequence’s descriptors were calculated using StarPep software by selecting all the available amino acid properties (e.g., the heat of formation, side-chain mass, among others), all groups of amino acid types (e.g., aliphatic, aromatic, unfolding, and so forth), and traditional aggregation operators, but those based on GOWAWA and the Choquet integral. The neighborhood (k neighbors up to 6) was included as one of the aggregation operators.³⁶

The selection of suitable sequence descriptors to map the chemical space of AMPs is a key parameter to create CSNs and HSPNs, which was widely explored in ref (36). From the defined chemical space, the similarity relationships between AMPs form a symmetric similarity matrix M of size |V| × |V|, with |V| being the number of AMPs. The symmetric property of M means that ∀_u,vM_u,v = M_v,u, where u and v are any two nodes from V. Each entry M_u,v corresponds to the similarity score between nodes u and v in M. Then, a similarity threshold t is applied on M to filter the most prominent similarity relations, and if the similarity scores are greater than or equal to t they remain on M; otherwise, they are assigned to zero.^42,43 The new matrix is known as threshold matrix T, and both CSN and HSPN were constructed from T (see eq 1 in SI2-A1).³⁶

Therefore, CSN and HSPN are weighted and undirected networks, with similarity values between AMPs as weights, and there exists an edge between two nodes if this value is greater than or equal to a given cutoff t.³⁶ The criteria applied to choose this similarity threshold are explained in the next section.

The main difference between CSNs and HSPNs is the way they are constructed. CSNs create a similarity matrix of all pairwise relationships between nodes and establish an edge only if the pairwise similarity value is equal to or greater than a given threshold.⁴⁴ On the other hand, HSPNs do not consider all the possible pairwise relationships between nodes; instead, these networks apply the half-space proximal test over the set of nodes,⁴⁵ obtaining a connected network with a small fraction of the maximum number of edges.³⁶ HSPNs have been applied to create a vector representation of residue contacts in protein 3D structures,⁴⁶ but this is the first time we are using them to represent the AMPCS.

In this report, we created CSN, HSPN, and METNs of the 550 APPs available in StarPepDB. METNs of origin, database, function, and target pathogen were constructed using the Metadata Network option from the StarPep toolbox. For CSN and HSPN, we first chose the default sequence identity value to remove redundant APPs. Thus, 415 APPs sharing a maximum of 98% of identity were used to generate the networks (see SI1-A_I), applying the local alignment algorithm Smith-Waterman⁴⁷ and BLOSUM-62 substitution matrix. Second, an optimized set of alignment-free sequence descriptors and methods were used to represent them as recommended in ref (36). Next, the Euclidean distance metric with MIN–MAX normalization to establish the pairwise similarity relationships among nodes was applied. The similarity threshold of both networks was set up considering different parameters, as is explained in the next section. Then, we retrieved CSN and HSPN giant components (405 APPs comprised the giant component of both networks, see SI1-A_II), defined as the largest connected component of a network, using the Central Informative Nodes in Network Analysis (CINNA) R package.⁴⁸ The giant components of both networks were used onward for all calculations. To visualize these networks in a meaningful way, we examined a family of force-directed layout algorithms that can be used to spatialize the network and rearrange nodes. These algorithms change the position of nodes by considering that they repulse each other, whereas similarity relationships may attract their attached nodes like springs.⁴⁹ Particularly, the Fruchterman-Reingold algorithm⁵⁰ was the most suitable for drawing CSN and HSPN of APPs.

In addition, we created two null network models with the same number of nodes and edges of CSN and HSPN giant components by applying the Gilbert method, a variation of the well-known Erdős-Rényi model. In this random network model, the edges are chosen uniformly and randomly from the set of all possible edges of the network.⁵¹ We created these random networks using the sample_gnm function from the igraph R package,⁵² applying a random seed of 100 with the seed function. All network visualizations were customized with Gephi(53) and Inkscape.⁵⁴

2.1.3. Networks Similarity Threshold Analysis

We constructed CSNs and HSPNs of APPs according to specifications explained in the previous section but by changing the similarity threshold in the range of 0.05 and 0.90 with a step of 0.05 (36 networks in total, 18 for each network type). As long as the cutoff increases, some edges were removed from networks, becoming increasingly sparser graphs. Then, we retrieved some metrics of these networks at different similarity cutoffs using the StarPep toolbox. The first metric was the network density, which is the actual number of edges over the maximum number of edges in a network⁵⁵ (see eq 2 in SI2-A2).

We also removed singletons, nodes without edges connected to it, or the ones with zero-degree,³³ filtering the 550 APPs by Network measure with attribute Weighted Degree to be greater than zero.

The modularity of the networks was also analyzed at each similarity cutoff. This is a network measure that compares the density in a community with the expected density for the same group of nodes on a random network.⁴⁰ We calculated modularity and the number of communities using the modularity optimization clustering algorithm (based on the Louvain method)⁵⁶ (see eq 3 in SI2-A3).

According to a previous report, the average clustering coefficient (ACC), a global measure of nodes neighborhood connectivity,³³ is a good indicator to set up the proper similarity threshold to create similarity networks,⁴² so we calculated the ACC for all networks using the transitivity function from the igraph R package,⁵² which applies the definition of ACC for weighted networks proposed in ref (57). Therefore, we decided the best similarity threshold for CSNs and HSPNs evaluating all the aforementioned network measures. Plots of this parameter were created with the ggplot2(58) R package.

2.1.4. Study of Global Network Properties

The global characterization of networks is useful for identifying general topological and structural patterns, and, thus, understanding the phenomena we are modeling, in this case the representation of the APPCS. These calculations were applied only to CSN and HSPN with the best similarity thresholds. In the last section, we obtained some of these features such as density, number of communities, modularity, singletons, and ACC for CSNs and HSPNs and their respective null network models. These properties are related to the number of edges, connectivity, and community structure of networks.

Moreover, we measured some properties associated with component structure and reachability of networks, including the number of connected components, diameter, and average shortest path (ASP). A connected component is a subnetwork whose nodes can be reached from one another by traversing edges.⁴⁰ Diameter is defined as the largest shortest path of a network, and ASP corresponds to the expected length of the shortest path between two nodes chosen at random (see eq 4 in SI2-A4).⁵⁵

We also plotted the degree distributions of networks. All of these metrics were calculated with the StarPep toolbox and igraph R package.

2.1.5. Centrality Analysis

Centrality is a key concept in network science; it provides an intuition for the importance of nodes in networks, which may play critical roles in the system that is being modeled.⁵⁹ In this study, the most influential nodes can provide useful information from the APPCS, and also these peptides can be used to retrieve new potential APPs by similarity searches. Therefore, we calculated the four centrality measures available in the StarPep toolbox (weighted degree (WD), betweenness (BE), harmonic (HC), and hub-bridge (HB)) for both CSN and HSPN, and all of these values were normalized with the min–max method. Also, we explored possible correlations between these measures with the Spearman coefficient, using the corrmorant R package.⁶⁰ To corroborate the correlation analysis, common APPs were identified within the top-50 most central nodes retrieved by different centrality measures, using in-house R scripts.

To retrieve the most central and unique APP sets by each metric, first, we decreased the redundancy among them by applying the Scaffold extraction plugin from the StarPep toolbox. These peptides were ranked in decreasing order by each centrality measure, and redundant sequences were removed at a given percentage of sequence identity. We chose a sequence identity value of 50% to consider that a particular peptide is related to an already selected central peptide and, as a consequence, removed from the network. For these sequence comparisons, we applied the Smith-Waterman local alignment algorithm⁴⁷ and BLOSUM-62 substitution matrix. Then, we retrieved APPs whose centrality scores were at least 10% of the most central APP value by each metric. We applied this process for both CSN and HSPN.

2.2. Similarity Searching Models

2.2.1. Description of Models

Our models consisted of multiquery searches against some databases, and the combination of similarity scores by group fusion applying various similarity thresholds. All the components of our models are explained below:

• Query data sets: The queries of our model were the most central and nonredundant APP sets by the four centrality measures considered in this study for CSN, HSPN, and the consensus sets of both networks. In addition, we considered the set of 13 singletons (see SI1-B, a FASTA file), which was the same for both networks, and some combinations of the most promising sets. Finally, we had twenty-one query data sets, seven for each network, six for the combination of both networks, and the set of singletons.

• Target or calibration databases: We considered five databases of APPs and non-APPs reported in ref (37). There were different balanced and unbalanced data sets stored in five FASTA files with thousands of labeled APPs and non-APPs (see SI1C-G).

• Similarity coefficient: The Smith-Waterman local alignment algorithm,⁴⁷ implemented in BioJava,⁶¹ with BLOSUM-62 substitution matrix allowed us to calculate the similarity scores, which were numbers between 0 and 1.

• Group fusion: In this fusion model, the reference peptide can be presented by any one of the extracted peptidic scaffolds (reduced chemical space); however, the similarity measure (defined below) was kept constant. Some studies have demonstrated that fusion by similarity scores and the maximum fusion rule are the best parameters for these models,^35,62 so we implemented these standards in our pipeline. Therefore, given a reference peptide Q and a peptide D from the target database, the algorithm of group fusion measures similarity scores S(Q, D) between Q and all the molecules of the database, and retrieves the single fused score by the maximum fusion rule. Thus, the fused score is the largest of all similarity scores.

• Similarity threshold: After applying the group fusion model for all queries of a data set, we ranked the results in decreasing order of the fused scores. Then, we tested seven similarity thresholds in the range of 0.3 and 0.9 with a step of 0.1. Therefore, all of the peptides with fused scores greater than or equal to the specific cutoff were predicted as APPs.

We performed these models with the StarPep toolbox, using the Multiple query sequences option of the Peptides search by menu. In this software, group fusion by similarity scores and the maximum fusion rule are implemented by default, and users can change the query set, target/calibration data set, similarity coefficient, and similarity threshold. Thus, we imported each of the five target databases to the StarPep toolbox in different workspaces, and we applied multiquery sequence searches with each of the twenty-one queries sets against each of the target databases. The query data sets were composed of central and singleton peptides, previously selected by scaffold extraction protocol with the starPep toolbox. As we had twenty-one query data sets and seven similarity thresholds, we evaluated 147 different mQSSMs. The best models were identified using several classification performance measures, which are explained in the next section. We presented a graphical summary of the pipeline used in our mQSSMs in Scheme 1A.

Scheme 1. (A) Workflow Corresponding to the Similarity Searching Modeling Process (Retrospective Study) and (B) APPs Selection Process (Prospective Virtual Screening Study).

This scheme was created with Inkscape.⁵⁴

2.2.2. Selection of the Best Models and Comparisons with ML APPs Prediction Servers

To assess the relative performance of the mQSSMs, we used the five data sets of APPs and non-APPs recently provided in ref (37). These data sets were obtained from StarPepDB, whose description can be found in https://biocom-ampdiscover.cicese.mx/dataset. Each set of queries and similarity thresholds was wrapped into a calibration algorithm, comprising a modified virtual screening simulation technique.³⁷ In these models, we used just the queries’ subset of APPs as the multiquery calibration group, while the active and inactive subsets were the target data sets. The prediction ensemble, composed of similarity scores of each peptide D in the target data set with each query Q, was ordered with the MAX-SIM multiclassifier.^63,64 The ordered list was scanned for every active and inactive APP-labeled peptide of the target database, and these results were used to calculate performance metrics, obtained from the confusion matrix⁶⁵ (Scheme 1A). The performance metrics were used to evaluate the quality of the early retrieval.

In ref (66) the authors reported a unified overview of methods that are currently used for evaluating classification tasks, as well as the advantages and downsides of each approach. Here, we used the several performance metrics derived from the confusion matrix of the actual versus predicted class (see eq 5 in SI2-A5): (i) sensitivity (SN, also called true positive rate, hit rate, and recall), (ii) precision (PR), (iii) specificity (SP, also called true negative rate), (iv) accuracy (Q%—global good classification), (v) kappa, and (vi) Matthews correlation coefficient (MCC).

Finally, the performance metrics for the five calibration data sets were used to carry out comparisons among models by using the statistics of Iman and Davenport.⁶⁷ These statistical tests showed that Friedman’s value was undesirably conservative. Whenever significant differences were detected, the post hoc tests^63,68,69 were used to compare the Friedman best-ranked models or reference measure with the remaining ones. This step-up procedure works in the opposite direction to Holm’s test and allows the control of the so-called familywise type I error arising from multiple pairwise comparisons.⁶⁸ After applying these statistical tests, we obtained the best mQSSM. A second comparison was carried out to compare our best similarity searching models with ML-based models reported in the literature for APP prediction^37,38 by using the same five calibration data sets.

2.3. New APPs Predictions

We used the StarPepDB as a space of search to discover new potential APPs and the StarPep toolbox for exploring the APPCS. First, we removed the toxic peptides and known APPs from StarPepDB, applying the not operator and filtering the database by metadata Function with Antiparasitic, Toxic, and Toxic/Venom queries. Then, we reduced the redundancy of these sequences with the nonredundant plugin, applying a similarity identity value of 0.95 with the local alignment algorithm Smith-Waterman,⁴⁷ and BLOSUM-62 substitution matrix. These nontoxic, non-APP, and nonredundant peptides were the chemical space to search for new potential APPs. Hence, we used the best mQSSM, obtained in the previous section, as a prediction tool to detect new APPs in the previously mentioned chemical space.

We removed from the space of unknown and nontoxic APPs those virtual hits with sequence length greater than or equal to 30, sharing a similarity score of one, and that contain nonstandard amino acids. To avoid toxic peptides in our list of APPs candidates, we uploaded the FASTA file of these sequences to the ToxinPred server (https://webs.iiitd.edu.in/raghava/toxinpred/),⁷⁰ applying the SVM (Swiss-Prot) + Motif based model with an SVM threshold of zero. The APPs predicted as toxic by ToxinPred were discarded. We also used the HemoPI server (https://webs.iiitd.edu.in/raghava/hemopi/)⁷¹ to remove potential hemolytic peptides, applying SVM + Motif (HemoPI-1) and SVM + Motif (HemoPI-2) models, and removing peptides with a PROB score greater than or equal to 0.7 in both models. Then, the remaining virtual hits were further reduced by developing mQSSM aimed at detecting similarities with the most central toxic peptides available in StarPepDB. The centrality analysis was performed as explained above.

In addition, we used AMPDiscover(37) and AMPFun(38) servers to confirm our APP predictions. Therefore, Random Forest and Deep Learning models of AMPDiscover and AMPFun were evaluated on the virtual hits. Then, we created a CSN and an HSPN with the remaining virtual hits and applied nonredundant scaffold reduction based on harmonic centrality with a 0.7 identity threshold on each network. Thus, we obtained the consensus set of sequences between both networks. Ultimately, a CSN was constructed with the remaining set of virtual hits. We selected the singletons and communities with two nodes, applied the Modularity optimization clustering algorithm, and extracted the nonredundant set for each community applying a similarity threshold of 0.5, the Harmonic centrality, and the other parameters established by default. Therefore, singletons, communities of two nodes, and representatives for each cluster were the lead peptides proposed as potential APPs in this study. A graphical summary of this section is depicted in Scheme 2.

Scheme 2. Filtering Workflow to Obtain the New Potential APPs.

This scheme was created with Inkscape.⁵⁴

2.4. Discovery of Sequence Motifs

2.4.1. Multiple Sequence Alignments

We created a CSN with lead compounds and obtained its communities using the Modularity optimization clustering algorithm. Then, these resulting clusters were aligned independently by using multiple sequence alignment (MSA), publicly available at: https://www.ebi.ac.uk/Tools/msa/. To determine consensus motifs within each cluster, three different MSA algorithms were applied with their default parameters: Multiple Alignment using Fast Fourier Transform (MAFFT) v7 with the iterative refinement FFT-NS-i option,⁷² Multiple Sequence Comparison by Log-Expectation (MUSCLE),⁷³ and Tree-based Consistency Objective Function for Alignment Evaluation (T-Coffee).⁷⁴

The resulting MSAs were employed to extract the consensus sequences by considering the frequency of each residue at every column of the alignment. The residues with a higher score than a certain threshold estimated for each column will conform to the positions (putative motifs) in the consensus. Both the Jalview software v2.11.1.4⁷⁵ and the EMBOSS Cons web server⁷⁶ (https://www.ebi.ac.uk/Tools/msa/emboss_cons/) were used for this aim.

2.4.2. Alignment-Free Method

Lead compounds were analyzed with the Sensitive, Thorough, Rapid, Enriched Motif Elicitation (STREME) software⁷⁷ to discover fixed-length patterns (ungapped motifs) that were enriched in each cluster. The predictions were performed via its web server (https://meme-suite.org/meme/tools/streme), fully integrated within the widely used MEME Suite of sequence analysis tools (https://meme-suite.org/meme/).⁷⁸ Control sets were generated by shuffling input peptides. The motif width was set between 3 and 5 amino acids in length. STREME evaluated motifs using a statistical test of the enrichment of matches for the target motif in the query set of sequences compared to a set of control sequences.⁷⁷

2.4.3. Motif Search in PROSITE

Potential APPs were queried by the Motif Search tool (https://www.genome.jp/tools/motif/), integrated into the GenomeNet Suite (https://www.genome.jp/).⁷⁹PROSITE Pattern and PROSITE Profile libraries⁸⁰ were only considered for the motif search within each cluster.

3. Results and Discussion

3.1. Navigating and Mining the APPCS

3.1.1. Networks of APPs

Before creating CSN and HSPN, we conducted some analyses to decide the proper similarity threshold for both networks. The similarity cutoff to define edges is a mandatory parameter to create CSNs, and it is optional for HSPNs. The selection of this threshold is not trivial because it modifies network topology and some properties like density, modularity, among others.⁴² There is a lack of predefined standard values for this task because it depends on the input data, similarity relationships between nodes, and other aspects. Therefore, it is recommended to define this threshold case by case,³⁶ so we studied what would be the best cutoff values for both networks taking into account some network metrics.

Some previous articles have found similarity networks have an inversely proportional relationship between their similarity threshold and density values,^36,42 which means that networks with high cutoffs have fewer edges and are sparser. Both CSNs and HSPNs showed the mentioned behavior between similarity thresholds and density (Figure 1A, Tables SI2-1 and SI2-2). HSPN density values were much lower than the corresponding values of CSN, as we expected because of the differences between methods building these networks, as explained in the Data Sets and Methods section. In addition, density values were the same on HSPNs with a cutoff between 0.05 and 0.45 because the number of edges almost did not change (Table SI2-2). If the density is too high, it would be complicated to interpret network topological features, while at low values it is likely to lose information, so an equilibrium between both extremes is a must.⁴⁰

Figure 1.

Network measures to determine the proper similarity threshold for CSN and HSPN. (A) Density, (B) average clustering coefficient (ACC), (C) modularity, (D) communities, and (E) singletons. This figure was created with ggplot2 R package⁵⁸ and edited with Inkscape.⁵⁴

The ACC had a particular behavior, it increased at low and high similarity thresholds in the CSNs, and the HSPNs with high cutoffs even had larger ACC than networks with lower values (Figure 1B, Tables SI2-1 and SI2-2). These results were counterintuitive because the logic output would be that dense networks increase their connectedness, while the sparser ones decrease this parameter. Nonetheless, adding edges to some nodes does not guarantee that their neighbors are connected, which is measured by ACC; instead, the opposite could occur,⁴² as is shown in the HSPN results (Figure 1B and Table SI2-2).

In ref (42), the authors studied the relationship between ACC and similarity threshold in networks of small molecules, obtained from the World of Molecular Bioactivity database and the PubChem Molecular Libraries Small Molecule Repository. They found that the ACC versus similarity threshold function of networks reconstructed from different data sets had a local maximum in a cutoff value associated with the best clustering outcome, and it would be the best option to choose.⁴² Our results showed that the local maximum similarity thresholds for CSN and HSPN were 0.90 and 0.65, respectively (Figure 1B, Tables SI2-1 and SI2-2). Moreover, additional parameters were analyzed to confirm if these values were the best cutoffs, as explained below.

The modularity of both types of networks did not change too much at initial similarity cutoffs, but then these values increased until a global maximum of 0.94 and 0.96 for CSNs and HSPNs respectively (Figure 1C, Tables SI2-1 and SI2-2). Higher values of this network measure indicate if a community structure exists,⁸¹ and it is associated with the number of communities (Figure 1D). An excessive number of communities is not desirable because it is likely that some of these clusters would be artifacts.⁴⁰ In both CSN and HSPN, the number of communities at high similarity thresholds increased too much compared to their low counterparts (Figure 1D, Tables SI2-1 and SI2-2), so these aspects were considered to choose the similarity cutoff for both types of networks.

The last parameter was the number of singletons (also well-known as outliers or atypical sequences), unique APPs not similar to other nodes from our networks. These peptides are worth exploring because they could have new properties that enhance their antiparasitic activity. This network measure had a behavior as modularity, with no change at initial similarity thresholds, but increasing their values at higher cutoffs (Figure 1E, Tables SI2-1 and SI2-2), and it is not desirable to have an excessive number of singletons nor very few.

Considering all metrics from the 36 networks with different similarity cutoffs (18 cutoff values for both CSNs and HSPNs), the best similarity threshold for both types of networks was 0.65. The HSPN with this similarity cutoff was the local maximum point of ACC, and it presented intermediate values of density, modularity, communities, and singletons. Although CSN with a similarity threshold of 0.65 was not the local maximum of ACC, the other parameters were the most appropriate (Figure 1, Tables SI2-1 and SI2-2).

Therefore, we created CSN and HSPN applying the 0.65 similarity threshold. We obtained the giant components of both networks, and we constructed null models with the same number of nodes and edges of the giant components. Figure 2 shows visualizations of both CSN and HSPN giant components and their null models, with nodes colored by their community and sized by their weighted degree or strength, calculated by summing up edge weights of the adjacent edges for each node.⁵⁵ The graphml files of all networks are available as SI3.

Figure 2.

Network of APPs. (A) CSN and (B) HSPN giant components. (C) CSN and (D) HSPN random models with the same number of nodes and edges as panels A and B. In all networks, nodes are colored by their community and sized by their weighted degree. All the visualizations were created with Gephi,(53) applying the Fruchterman-Reingold layout algorithm,⁵⁰ and edited with Inkscape.⁵⁴

The size of all nodes from null networks was the same (Figure 2C,D) because we created these graphs using a random model that did not have APPs as nodes, so there were no weights to calculate strength. Another noticeable feature from Figure 2 was that the real networks had an apparent community structure, absent in the random models.

We calculated some networks metrics to measure in a formal way the differences between CSN and HSPN, as well as between real and random networks, in terms of their community structures and other aspects. The number of vertices, singletons, and connected components of CSN and HSPN were the same, which was shown in complete networks, giant components, and random models (Table 1). Indeed, the singletons of both networks were the same 13 APPs (see SI1-B), so we had only one set of these unique nodes for further analysis.

Table 1. Global Networks Properties of the Complete Graphs, Giant Components, and Random Models.

Networka	CSN	HSPN	CSN GC	HSPN GC	CSN RM	HSPN RM
Vertices	415	415	405	405	405	405
Edges	19,302	1,564	19,294	1,557	19,294	1,557
Connected components	5	5	1	1	1	1
Density	0.2247	0.0182	0.2358	0.0190	0.2358	0.0190
ACC	0.6988	0.0551	0.6943	0.0480	0.2361	0.0226
Modularity	0.234	0.455	0.233	0.452	0.071	0.335
Communities	11	15	7	9	10	12
Singletons	13	13	0	0	0	0
Diameter	∞	∞	9	12	2	6
ASP	∞	∞	2.254	3.732	1.764	3.166

^aAll the measures were calculated with igraph.⁵² GC: giant component, RM: random model, ACC: average cluster coefficient, ASP: average shortest path.

Density and ACC of HSPN tended to have lower values than CSN, while the opposite occurred with modularity, communities, diameter, and ASP. This behavior is related to the way each network model is constructed and the number of edges obtained by each process, as we explained in Data Sets and Methods. If a network has many links, as is the case of CSNs, the network’s fraction of the possible number of edges and its connectivity would increase, which are the aspects measured by density and ACC, respectively.

On the other hand, community detection in dense networks would be difficult due to their interconnectedness between nodes, so assigning a node to a specific cluster would be fuzzy.⁵⁵ This fact was observed in the lower modularity and number of communities values in CSNs compared to HSPNs. The same pattern appeared in the two measures related to reachability, diameter, and ASP (Table 1), a logical result because dense networks like CSN have more possible paths to reach a node from another one, so the diameter and ASP from CSN were lower than the corresponding values in HSPN. The diameter and ASP for both complete networks were assigned to be infinite because these models had more than one component, so it is not possible to link some of their nodes, and for convenience these values are infinite.

Comparing the giant components with their random model counterparts, the numbers of vertices, edges, connected components, density, and singletons were the same. However, modularity, number of communities, and ACC values of giant components were greater than the random models (Table 1). Hence, the real networks showed a better community structure and neighbor connectivity, as is shown visually in Figure 2. In CSN and HSPN, communities could be APP families that share certain chemical and structural properties. The diameter and ASP values were also greater in real networks, so the reachability of these graphs was lower compared to the null models.

In addition, we plotted the degree distributions of giant components and random models from CSN and HSPN to explore some properties and if these networks behave as general models.⁵⁵

The degree of the HSPN giant component and their random models are distributed normally, as is shown with their bell-shaped distribution (Figure 3A), revealing the random behavior of HSPN. The randomness in HSPN was expected due to the way this network is constructed, following the half-space proximal test, as was explained in Data Sets and Methods. By contrast, the CSN giant component pattern distribution was not as evident as the other networks in Figure 3A, so we visualized its degree distribution with the complementary cumulative distribution function (CCDF) because it reflects these patterns in a better way.⁴⁰ The cumulative degree distribution showed that in CSN the probabilities for finding a node with degree x or higher were similar across different degree values (Figure 3B), so there was no power-law behavior due to the lack of scale invariance between degree and CCDF.⁸² Therefore, the CSN was more related to a random model, as well as HSPN.

Figure 3.

(A) Degree distributions in a log–log scale of the giant components and random models from both CSN and HSPN. The horizontal axis is vertex degree k, and the vertical axis is the probability of a node to have a degree of k. (B) Complementary cumulative distribution function of the CSN giant component degree. The horizontal axis is vertex degree x, and the vertical axis is the probability for finding a node of degree k greater than or equal to x. This figure was created with ggplot2 R package⁵⁸ and edited with Inkscape.⁵⁴

Moreover, the METNs showed valuable information about the APPCS. We observed that most of the APPs come from synthetic constructs, which are observed as the largest node or hub in the network, and a few of them are derived from parasites, bacteria, and animals (Figure 4A). As we expected, the most prevalent functions were antiparasitic and antimicrobial, but some of the APPs have been associated with antibacterial (Gram-positive and Gram-negative), antifungal, and anticancer properties, among other activities (Figure 4B). The most predominant pathogen targets were some bacteria such as Escherichia coli and Staphylococcus aureus, although we also found parasites such as Plasmodium, Leishmania, and Trypanosoma (Figure 4C). The results of pathogen targets can be biased because there are many more antimicrobial essays made in bacteria than in parasites.¹³ Regarding databases, most of the APPs come from DBAASP,⁸³ SATPdb,⁸⁴ ParaPep,¹⁷ and APD⁸⁵ (Figure 4D). ParaPep is one of the biggest databases of validated APPs,¹⁷ so including its information in starPepDB helped us to map the known APPCS.

Figure 4.

METNs with metadata of (A) origin, (B) function, (C) target pathogen, and (D) database. In all networks, red nodes are APPs, and the blue ones are metadata, and all of them are sized by their degree. All the visualizations were created with Gephi,⁵³ applying the Fruchterman-Reingold layout algorithm,⁵⁰ and edited with Inkscape.⁵⁴

3.1.2. Centrality Analysis and Influential but Nonredundant APPs

The results of normalized centrality measures for all nodes from both CSN and HSPN can be found as SI4-A and SI4-B, respectively. These centrality measures consider different network properties to identify influential nodes, but some metrics might have similar results. Hence, we studied possible correlations between these variables with the Spearman coefficient. We applied this correlation measure because the distributions of some of these metrics were skewed (see main diagonal at Figure 5A,B), so the assumption of normality was not satisfied, and other correlation coefficients like Pearson would not be a good choice.^86,87

Figure 5.

Spearman correlation analysis of centrality measures from (A) CSN and (B) HSPN. In panels A and B, the distribution of each variable, the pairwise scatter plots with a fitted line, and the values of the Spearman correlation are shown in the main diagonal, bottom diagonal, and upper diagonal, respectively. On the right side of each correlogram, the legend color shows the scale of the correlation coefficients. This figure was created with corrmorant R package⁶⁰ and edited with Inkscape.⁵⁴

In both kinds of networks, the centrality measures of harmonic, hub-bridge, and weighted degree had a high positive correlation between them, greater than 0.80 in all cases, which is also shown graphically in the pairwise scatter plots between these variables (Figure 5). These results showed that the notion of the importance of these three centrality measures is highly related. Betweenness centrality had intermediate correlations values with the rest of the metrics, so it was also associated with the other measures, but at a lower level compared to the relationships among the others. Correlation analysis was supported by the common APPs in the top 50 most central nodes retrieved by different centrality measures, showing similar associations between the centrality measures (Tables SI2-3 and SI2-4). Considering these outcomes, the centrality sets from correlated measures were merged and tested together as queries against the validated data sets, as is explained in the next section.

An important aspect to consider with the obtention of central nodes was their representativeness by different communities, which was achieved with the chosen criteria, as is shown in Table SI2-5. Thus, our central nodes for each network and centrality measure belonged to different communities, which in these networks could be APPs families. In this way, the central nodes represented the APPCS and most of its potential APPs families. However, these influential nodes could be redundant in their communities because they would be highly similar to one another.

As a proof of concept for the redundancy of peptides inside communities of our networks, we extracted the APPs from CSN’s community 3 and obtained subcommunities of this cluster using the modularity optimization algorithm, as is shown in Figure 6.

Figure 6.

(A) APPs CSN and (B) subnetwork of 57 APPs from CSN’s community 3 and its subcommunities. In both networks, nodes are colored by their community and sized by their weighted degree. All the visualizations were created with Gephi,⁵³ applying the Fruchterman-Reingold layout algorithm,⁵⁰ and edited with Inkscape.⁵⁴

Then, we obtained the sequences and other physicochemical properties of some representative APPs from each subcommunity (Table 2). We observed that several from CSN’s community 3 had the same sequence length of 29, 10, 5, and 16 amino acids in 1, 2, 3, and 5 subcommunities, respectively. In addition, the same (or rather similar) amino acid residues composed those peptides, and their physicochemical properties had similar values (Table 2). Hence, in general, it is expected that inside the most central nodes we could obtain highly similar APPs, so it may be better to extract some nonredundant sequences from the networks instead of just selecting the highest-ranked ones by each centrality measure. To remove this potential redundancy in APPs, and obtain central but nonredundant peptides, we applied the Scaffold extraction plugin from the starPep toolbox, as was explained in the centrality analysis section of Data Sets and Methods. Thus, we obtained the most central and nonredundant APPs by each centrality measure and network, and we exported them as FASTA files, which are available as SI5. These sets of influential and unique APPs were used in the next section to retrieve new potential APPs by similarity searching.

Table 2. Sequences and Some Physicochemical Properties of Representative APPs from Subcommunities of CSN’s Community 3.

Community	Namea	Sequence	Length	Chargeb	Mol wtb	Hydrophobicityb
1	starPep_09852	GKGLXXGKXXGLXXGKXXGLXXGKXXGKR	29	6	1611.25	–0.26
	starPep_09855	GKGLXXGRXXGFXXGRXXGFXXGRXXGKR	29	6	1763.30	–0.37
2	starPep_20193	FPFFNQYVKL	10	1	1302.68	0.04
	starPep_20234	FPWFNQYVKL	10	1	1341.72	0.02
3	starPep_09474	FHPHE	5	0	665.77	–0.18
	starPep_11159	LHPHE	5	0	631.76	–0.19
4	starPep_04155	IASASCTTCICTCSCSS	17	0	1641.10	0.02
	starPep_02009	SCTTCVCTCSCCTT	14	0	1415.83	–0.05
5	starPep_13642	WIQXITXLXXQXXXPF	16	0	1145.51	0.15
	starPep_13916	YIQXITXLXXQXXXPF	16	0	1122.47	0.11

^aID of the peptides in starPepDB.

^bThe physicochemical properties of APPs were calculated with ToxinPred server.⁷⁰ Mol wt: molecular weight.

The numbers of central nodes obtained from CSN with hub-bridge, weighted degree, and betweenness centrality measures were lower compared to the values derived from HSPN, while for harmonic centrality these values were almost the same for CSN and HSPN (Table SI2-5). Moreover, the numbers of central APPs from both CSN and HSPN with harmonic, hub-bridge, and weighted degree centrality measures were greater than one hundred APPs, which was not the case for betweenness centrality (Table SI2-5).

3.2. Multiquery Similarity Searching Models for APPs

3.2.1. Performance of the Best mQSSMs

In our mQSSMs, the constant parameters were the similarity coefficient and group fusion model, while we varied the query set, target database, and similarity threshold (Scheme 1A). Five target databases (SI1C-G, five FASTA files) were provided in ref (37), namely D1–D5, and were used to calibrate and evaluate the novel mQSSMs. These databases included balanced data sets (D1, D2, D4) with a similar proportion of positive and negative classes, and unbalanced data sets (D3, D5), which have much more negative instances than positive ones (Table 3). D1–D3 databases contain sequences of lengths between 5 and 100 amino acids, while sequences from D4–D5 have lengths between 5 and 30 amino acids.³⁷ The D1–D3 data sets were recently used as training, test, and external validation data sets, respectively, to generate ML models by using genetic algorithm metaheuristics and random forest (RF), where the default configurations in the Weka tool v3.8 were applied.³⁷ On the other hand, D4–D5 databases were previously used as external validation data sets to carry out a comparative study of the best RF-based classification models obtained for APPs discrimination. Here, we used these five benchmarking data sets of APP/non-APPs (Table 3) to compare the performance between our mQSSMs and the algorithms reported in the literature for predicting APPs.

Table 3. Antiparasitic Data Sets to Calibrate/Evaluate and Compare the mQSSMs Proposed in This Report with Several Methods Reported in the Literature^a.

ID/Fasta file	Name	Number of sequences	Positive (APPs)	Negative (non-APPs)
D1/SI1-C	TR_starPep_AP	198	99	99
D2/SI1-D	TS_starPep_AP	62	31	31
D3/SI1-F	EX_starPep_AP	11,182	411	10,771
D4/SI1-F	B-TS_starPep_AP	57	26	31
D5/SI1-G	B-EX_starPep_AP	11,080	309	10,771

^aThis table was adapted from Table 1 of ref (37). SI: Supporting Information, TR: training, TS: test, EX: external, B_TS: benchmarking test, B_EX: benchmarking external.

As we had twenty-one query sets, and seven similarity thresholds (0.3 to 0.9 with 0.1 step), we generated 147 different mQSSMs, which were evaluated with the five target databases (D1–D5), and their results were summarized in SI6 as four excel files containing output predictions (active or inactive for APPs and non-APPs, respectively) for all models. We had ninety-eight mQSSMs for CSN (SI6-A) and HSPN (SI6-B), forty-nine for each network, forty-two models for the combination of both networks (SI6-C), and seven mQSSMs for the set of singletons (SI6-D). The query sets and number of queries for all the models are presented in Table SI2-6.

Table 4 shows the performance metrics of the best nine models to predict APPs, evaluated with the D1–D5 validation data sets, whereas SI7-A contains the corresponding statistical parameters for all 147 mQSSMs. As can be noted, the number of Qs included in the best 3 models for each network ranged from 165 to 219 sequences. It can also be observed that all these best mQSSMs had good results according to their performance metrics, showing values of average recall, average precision, kappa statistic, and accuracy greater than 0.8.

Table 4. Performance of the Best Nine mQSSMs to Identify APPs, Evaluated on the Benchmarking D1–D5 Databases.

Performance metrics (target database)a	186Q_0.5 (HB-HC-Singletons)	178Q_0.5 (HC-Singletons)	165Q_0.5 HC
Best 3 mQSSMs from CSN
Accuracy (D1)	0.934	0.914	0.894
KappaStatistic (D1)	0.869	0.828	0.788
AverageRecall (D1)	0.934	0.914	0.894
AveragePrecision (D1)	0.94	0.924	0.913
Accuracy (D2)	0.952	0.952	0.935
KappaStatistic (D2)	0.903	0.903	0.871
AverageRecall (D2)	0.952	0.952	0.935
AveragePrecision (D2)	0.952	0.952	0.937
Accuracy (D3)	0.991	0.991	0.991
KappaStatistic (D3)	0.86	0.86	0.863
AverageRecall (D3)	0.904	0.904	0.898
AveragePrecision (D3)	0.96	0.96	0.972
Accuracy (D4)	0.947	0.965	0.965
KappaStatistic (D4)	0.894	0.929	0.929
AverageRecall (D4)	0.945	0.965	0.965
AveragePrecision (D4)	0.949	0.965	0.965
Accuracy (D5)	0.991	0.991	0.992
KappaStatistic (D5)	0.832	0.832	0.842
AverageRecall (D5)	0.89	0.89	0.886
AveragePrecision (D5)	0.945	0.945	0.964

Performance metrics (target database)a	200Q_0.5 HB-HC-Singletons	187Q_0.5 HB-HC	173Q_0.5 HC-Singletons
Best 3 mQSSMs from HSPN
Accuracy (D1)	0.939	0.904	0.929
KappaStatistic (D1)	0.879	0.808	0.859
AverageRecall (D1)	0.939	0.904	0.929
AveragePrecision (D1)	0.946	0.919	0.936
Accuracy (D2)	0.968	0.935	0.935
KappaStatistic (D2)	0.935	0.871	0.871
AverageRecall (D2)	0.968	0.935	0.935
AveragePrecision (D2)	0.968	0.937	0.937
Accuracy (D3)	0.991	0.992	0.99
KappaStatistic (D3)	0.874	0.881	0.85
AverageRecall (D3)	0.921	0.915	0.898
AveragePrecision (D3)	0.955	0.969	0.957
y (D4)	0.982	0.965	0.965
KappaStatistic (D4)	0.965	0.929	0.929
AverageRecall (D4)	0.984	0.965	0.965
AveragePrecision (D4)	0.981	0.965	0.965
Accuracy (D5)	0.992	0.993	0.991
KappaStatistic (D5)	0.838	0.854	0.817
AverageRecall (D5)	0.904	0.9	0.882
AveragePrecision (D5)	0.935	0.958	0.939

Performance metrics (target database)a	178Q_0.5 HC	206Q_0.5 HB-HC	219Q_0.5 HB-HC-Singletons
Best 3 mQSSMs from Both HSPN-CSN
Accuracy (D1)	0.919	0.909	0.944
KappaStatistic (D1)	0.838	0.818	0.889
AverageRecall (D1)	0.919	0.909	0.944
AveragePrecision (D1)	0.93	0.923	0.95
Accuracy (D2)	0.935	0.952	0.984
KappaStatistic (D2)	0.871	0.903	0.968
AverageRecall (D2)	0.935	0.952	0.984
AveragePrecision (D2)	0.937	0.952	0.984
Accuracy (D3)	0.991	0.993	0.992
KappaStatistic (D3)	0.868	0.89	0.885
AverageRecall (D3)	0.904	0.922	0.928
AveragePrecision (D3)	0.969	0.97	0.958
Accuracy (D4)	0.965	0.965	0.982
KappaStatistic (D4)	0.929	0.929	0.965
AverageRecall (D4)	0.965	0.965	0.984
AveragePrecision (D4)	0.965	0.965	0.981
Accuracy (D5)	0.992	0.993	0.992
KappaStatistic (D5)	0.845	0.866	0.856
AverageRecall (D5)	0.891	0.91	0.914
AveragePrecision (D5)	0.961	0.959	0.942

^aModels performance on five D1–D5 benchmarking data sets of APP/non-APPs, which are described in Table 3. Q: query, CSN: Chemical space network, HSPN: half-space proximal network, HB: hub-bridge centrality, HC: harmonic centrality, mQSSMs: multiquery similarity searching models.

We observed that the best similarity threshold was 0.5 in all mQSSMs (SI7-A). The best reference query sets were HC > WD > HB ≫ BE > singletons in both networks (see SI7-A and SI7-C for more details). However, the combination of query sets obtained with different centrality measures (in the same network and from both networks) was always better than any query set derived from a single centrality measure. Combinations of query data sets such as HB-HC-singletons in CSN, HSPN, and mixing both networks at the same time (CSN-HSPN) were the best mQSSMs (Tables 4 and 5). Similarly, the fusion of the 13 singletons to any central query data sets enhanced the recovery of models, which is a logical result due to atypical nodes, and central query sets represent the complete space of known APPs.

Table 5. Comparison between the Best mQSSMs to Predict APPs Proposed in This Study and Those Reported in the Literature on the Antiparasitic Benchmarking Test and External Data Sets^a.

Parameters	ProtDCal-AP_RF	ProtDCal-AP_RF_Hierarchical	AMPfun	178Q_0.5 (HC-Singletons) CSN	200Q_0.5 HB-HC-Singletons HSPN	219Q_0.5 HB-HC-Singletons HSPN-CSN
D4 Data Set
SNB-TS	0.885	0.769	0.538	0.962	0.963	0.963
SPB-TS	0.903	0.936	0.71	0.962	1	1
Q%B-TS	0.895	0.86	0.632	0.965	0.983	0.983
MCCB-TS	0.788	0.721	0.252	0.929	0.965	0.965
D5 Data Set
SNB-EX	0.799	0.783	0.45	0.896	0.875	0.8893
SPB-EX	0.867	0.944	0.883	0.783	0.8123	0.832
Q%B-EX	0.865	0.939	0.871	0.9914	0.992	0.993
MCCB-EX	0.306	0.45	0.165	0.834	0.839	0.856

^aAP: antiparasitic, RF: random forest, Q: query, CSN: chemical space network, HSPN: half-space proximal network, HB: hub-bridge centrality, HC: harmonic centrality, mQSSMs: multiquery similarity searching models, SN: sensitivity, SP: specificity, Q%: accuracy, MCC: Matthew’s correlation coefficient, B-TS: benchmarking test, B-EX: benchmarking external.

All the best 21 mQSSMs had successful predictive ability according to the average recall, average precision, kappa statistic, and accuracy performance metrics (see SI7-A and SI7-C for more details). Outstanding outcomes were attained by the mQSSM with 219 Qs from both networks (HB-HC-Singletons CSN-HSPN) and by using 0.5 as similarity threshold, with the previous performance metrics being greater than or approximately equal to 0.83 in D4–D5 external validation data sets (Table 5, SI7-B, and SI7-C). Moreover, it can be stated that the predictions performed by the best mQSSMs were not random (MCC ≫ 0). It is important to remark that these antiparasitic mQSSMs had a strong-to-very-strong predictive agreement since their test/external MCC values ranged from 0.834 to 0.965.

The best mQSSMs developed in this report for each network were used to perform a comparative study with state-of-the-art ML-based methods reported in the literature for predicting APPs: the AMPfun server,³⁸ and alignment-free quantitative sequence–activity models (AF-QSAMs) implemented in AMP-Discover.³⁷

Regarding the outcomes achieved in the antiparasitic classification, the superiority of the three proposed models was remarkable, since the AMPfun model³⁸ and AMP-Discover AF-QSAMs³⁷ presented a weak predictive ability y (MCC < 0.26 and MCC < 0.45, respectively) on both benchmarking data sets (Table 5).

3.2.2. Statistical Comparison

A sole accepted and established test does not exist for multiple comparison tests (MCT, for more detail, see http://sci2s.ugr.es/sicidm). In fact, model comparison and the selection of the best one is a staple among scientific investigations.⁸⁸ We selected the best mQSSMs by evaluating our models with various criteria (Q%, SE, SP, and MCC) on the five target databases, and applied a paired-parametric post hoc test (see SI7-C and SI7-D for more details). We determined the differences between our models by using several nonparametric statistical tests.^63,68,69 In the first place, we applied an Iman–Davenport test⁶⁷ to check whether all the results obtained by the algorithms present any inequality, and in the case of finding some, then we can know, by using a Holm test,^63,68,69 what algorithm partners’ average results are dissimilar, that is to say, a Friedman’s test, which rejected the null hypothesis that all predictors performed comparably on average. The same can be concluded from the results of an Iman and Davenport’s test.

The MCTs showed according to the rankings’ method that 219Q_0.5 HB-HC-Singletons HSPN-CSN was the best algorithm, while 200Q_0.5 HB-HC-Singletons HSPN and 178Q_0.5 HC-Singletons CSN had the second and third best average value of ranking in the five validation data sets, in concordance with the results depicted by Tables 4 and 5 (see SI7-C and SI7-D for more details).

Besides, a second Iman–Davenport test⁶⁷ was carried out to detect if significant differences existed between our models and state-of-the-art algorithms to predict APPs (Table 5). In this sense, the null hypothesis (no-differences) was rejected for the case where the test values were higher than the critical value. Then, we performed the Holm test,^63,68,69 and for the case of the benchmark data sets, we found statistically significant differences between our mQSSMs and literature methods, but no significant differences were found between our best mQSSM and the second and third best mQSSMs (SI7-D). Namely, in these five validation databases significant differences were observed by our best mQSSMs, at α = 0.05. Figure 7 is a graphical representation of the average ranks (ranking scores) obtained by the best mQSSMs and literature methods in the Friedman Test, showing the relative position in the ranking of each of the six models and their differences with the best-ranked one (219Q_0.5 HB-HC-Singletons HSPN-CSN, see also SI7-D for more details). For example, 200Q_0.5 HB-HC-Singletons HSPN performed similarly to the first ranked method, and slightly better than 178Q_0.5 HC-Singletons CSN. Somewhat larger differences were detected between our mQSSMs and the literature models, including ProtDCal-AP_RF_Hierarchical, ProtDCal-AP_RF,³⁷ and AMPfun.³⁸

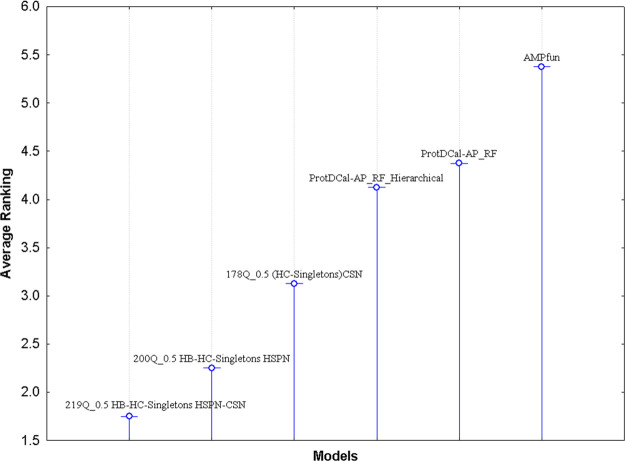

Figure 7.

Average ranks obtained by each method in the Friedman Test. Friedman statistic (distributed according to chi-square with 5 degrees of freedom): 21.571. P-value computed by Friedman Test: 0.000631. Iman and Davenport statistic (distributed according to F-distribution with 5 and 35 degrees of freedom): 8.194. P-value computed by Iman and Davenport Test: 0.00003336.

3.3. Virtual Screening for Discovery of Putative APPs

Our starting search space was the entire StarPepDB, which contains about 45 120 peptides. After applying a series of filters with the StarPep toolbox and some external web servers, as well as the best mQSSM, we retrieved ninety-five leads that have never been associated with the antiparasitic activity, available in SI8-1 as a FASTA file. Scheme 2 summarizes the filtering process applied to retrieve the set of new potential APPs. In addition, Scheme 1B depicts the prospective virtual screening process to reduce most of the peptides from the initial search space, applying our best mQSSM.Figure 8A shows the CSN of the 95 potential APPs with its communities, which exhibit the diversity that these peptides still have (SI3-11 has the graphml file of this network).

Figure 8.

(A) CSN of 95 potential AMPs, in which nodes are colored by their community and sized by harmonic centrality. METNs with metadata of (B) origin, (C) function, (D) target pathogen, and (E) database. In all METNs, red nodes are APPs, and the blue ones are metadata, and all of them are sized by their degree. All the visualizations were created with Gephi,⁵³ applying the Fruchterman-Reingold layout algorithm,⁵⁰ and edited with Inkscape.⁵⁴

The chemical space of the 45 120 peptides in StarPepDB was reduced to the 47.62% (21 488 peptides) when the nontoxic and nonantiparasitic active peptides as well as sequence redundance (lower than 90% sequence similarity) were filtered in StarPep software. Next, the mQSSMs were used for discrimination of APP/non-APPs, and only 2854 hits were selected (see second step in Scheme 2). From these putative peptides, 1939 sequences were prioritized, all with less than 30 classic amino acids. When toxic and hemolytic end points were filtered by the ToxinPred2⁸⁹ and the HemoPI⁹⁰ servers, respectively, 1823 nontoxic and nonhemolytic putative APPs were kept in the pipeline. In the next step, 1782 sequences were recovered after removal of peptides like the toxic peptides set in StarPep software. Next, the AMPDiscover(37) and AMPFun(38) servers were used to confirm our APP predictions, obtaining a total of 1525 hits. Lastly, the removal of sequence redundancy by scaffold extraction in StarPep software was another critical filter, where the number of sequences was reduced to 95 APP hits.

To measure such similarity among the 95 leads, we calculated pairwise sequence identity among all of them. We found that most of the sequences share pairwise identity values below 30%, represented by the blue points in the heatmap depicted in SI2-7A. SI2-7B also shows the structural singularity of lead peptides because most pairwise identity values belong to 0–0.1, 0.1–0.2, and 0.2–0.3 bins of the histogram.

In addition, METNs of these peptides revealed some common characteristics shared by them. The origin of the leads was mainly from synthetic constructs (Figure 8B), as the METN showed for the APPs (Figure 3A). Regarding their annotated function, most of these peptides have antimicrobial and antibacterial (Gram-positive and Gram-negative) activities (Figure 8C), so their main pathogen targets are also bacteria such as Escherichia coli and Staphylococcus aureus (Figure 8D). Moreover, these potential APPs were mainly obtained from DRAMP,⁹¹ DBAASP,⁸³ and SATPdb,⁸⁴ among other databases (Figure 8E).

As far as we know, none of the lead 95 compounds reported in this study have been associated with the antiparasitic activity. However, some of them have been reported to have other activities. For instance, starPep_00322 or caerin 1.19 is a peptide derived from the skin secretion of the frog Litoria gracilenta, identified as a wide-spectrum antibiotic,⁹² and as antiviral agent against HIV.⁹³ There are other peptides associated with general antimicrobial activity such as starPep_15171 or N-Mag-C,⁹⁴ while others have antiviral activity like starPep_09816 or MG2d, antifungal activity such as starPep_17290 or Cap-LFampH-K,⁹⁵ and antibacterial activity like starPep_01732 or Phylloseptin-2.1TR.⁹⁶ Consequently, our method can be considered as a drug repurposing strategy addressed to detect the antiparasitic activity on peptides with other previously reported activities.

3.4. Discovery of APPs Sequence Motifs

To perform a wide exploration of motifs that could be determining a repurposed antiparasitic activity in peptides not labeled as APPs, the resulting ninety-five lead peptides identified after applying the above-mentioned filtering steps (Scheme 2) were clustered by mapping them onto the CSN space (Figure 8A). Thus, we identified five clusters; four out of the five contained members share some network regularities/properties, but the fifth cluster was selected to store singletons (peptides identified as atypical in the CSN). The five clusters were made up of twenty-six, nine, thirty-five, eighteen, and seven members, respectively (SI8-2–6 are FASTA files with sequences of the five clusters). The sequence diversity within each cluster was evaluated against all global alignments, reaching an overall identity lower than 30% in all clusters, which means that is very unlikely to find homologous sequences within each cluster.⁹⁷ This analysis confirmed the structural singularity of the ninety-five APPs considered as new sequence scaffolds.

In this sense, the five clusters were screened for discovering sequence patterns/motifs among these peptides that have been identified as potential APPs. As they represent new structural and singular scaffolds, new motifs accounting for the antiparasitic activity should be found. The motif search was performed by using different motif identification algorithms, including MSA, STREME,⁷⁷ and PROSITE.⁸⁰ We applied MSA algorithms developed after the classical ClustalW,⁹⁸ so that they can deal with the sequence diversity shown in each cluster and, thus, detect more accurately any conserved signature or motif.

In this sense, MAFFT,⁷² MUSCLE,⁷³ and T-Coffee⁷⁴ were applied to carry out MSAs in each cluster. The philosophy behind each MSA algorithm is different to improve alignment quality. MAFFT uses a Fourier transform (FFT) to optimize protein alignments based on the amino acid sequence properties and have included iterative steps to refine the alignments,⁷² while MUSCLE combines alignment-free (k-mers counting) and alignment-based (Kimura) distances to perform the progressive alignment, which is controlled by a log-expectation score function, and also includes iterative refinement alignment steps.⁷³ On the other hand, T-Coffee constructs progressive MSA by combining information derived from global and local alignment.⁷⁴

Each MSA algorithm provided a consensus sequence that was estimated by the Jalview⁷⁵ and the EMBOSS Cons.⁷⁶ As EMBOSS Cons gives a more legible output, only displaying high scored amino acids/positions (capital letters), less scored but positive residues (lower-case letters), and nonconsensus positions (X) that are under the threshold score, we identified the motifs using this software. Nonconsensus positions were complemented by the visual inspection of the corresponding positions in the Jalview software and the Seq2Logo (available at http://www.cbs.dtu.dk/biotools/Seq2Logo)⁹⁹ by using default parameters. Table 6 depicts the consensus motifs, unraveled by each MSA algorithm, as well as the frequency of these motifs in the 550 APPs from StarPepDB and the 95 lead compounds reported in this study. In general, most of the motifs had a low frequency of occurrence on both 550 APPs and 95 lead compounds, being the most frequent motif KxxG (x being any amino acid) with 120 occurrences in the 550 APPs and 20 in the 95 lead chemicals (Table 6). The low frequency from most of the motifs obtained by MSA could suggest they are novel signatures for characterizing APPs, so these motifs can be considered as scaffolds to search for new APPs.

Table 6. Discovered Motifs by Multiple Sequence Alignment.

No.	Motif	Frequency of occurrence 550 APPs/95 potential APPs	EMBOSS Consensus	Frequency of occurrence 550 APPs/95 potential APPs	Cluster	Cluster size	MSA Method
1	K[fl]GK	22/4	KxGk	31/6	1	26	MAFFT
2	kK[fl][ga]K	15/3	kKxxK	57/14			MUSCLE
3	K[fy][fl]G	0/2	KxxG	117/20			T-Coffee
4	RK[vi]AL	0/0	RKxAL	0/0	2	9a	MAFFT
5	aLLAL	0/0	axLAL	8/3			MUSCLE
6	K[l]K[pa]RPa	0/0	KKxRPa	0/0			T-Coffee/MUSCLE
7	L[kl]I[la]RK	0/0	LxIxRK	0/0	3	35a	MAFFT
8	IL[kr]K	2/1	ILxK	6/2			MUSCLE
9	r[ilv]I[il]K	0/0	rxIxK	6/2			T-Coffee
10	RWR[rw]r[mrs]RR	0/0	RWRxrxRR	0/0	4	18	MAFFT
							MUSCLE
							T-Coffee
11	L[ap]L[lp]L	0/0	LxLxL	14/5	5 (singletons)	7	MUSCLE

^aThe MSA quality of clusters 2 and 3 was improved by removing noised peptides, so we removed starPep_36552 from cluster 2, and starPep_16010-starPep_16459 from cluster 3.

Moreover, alignments and sequence logos by each of the clusters are available at SI9. To perform a wide motif search, unaligned patterns in the peptides should be also discovered. In this sense, the alignment-free approach STREME was used to find enriched patterns ranging from three to five amino acids length within the peptide clusters. STREME has been reported as the most accurate and sensitive algorithm among its competing state-of-art partners⁷⁷ (e.g., DREME,¹⁰⁰ HOMER,¹⁰¹ MEME⁷⁸). Unlike previously algorithms, STREME efficiently counts position matches by using a position weight matrix (PWM) representing the motif candidate and also creates a Markov Model of a user-specified order from the control sequences. Both elements are considered when counting motif matches, keeping the search away from those that are mere artifacts of lower-order statistics of the input sequences.⁷⁷Table 7 displays enriched motifs found within each cluster with respect to the control sequences. Motifs appearing in more than 30% of the query sequences were listed according to their statistical significance or score. We observed that motifs obtained with STREME also had a low frequency of occurrence in the 550 APPs and the 95 lead compounds, so these motifs can be new patterns to search novel APPs (Table 7).

Table 7. Discovered Motifs by STREME^a.

No.	Motif	Cluster	Cluster size	Matches in positive sequences	Matches in control sequences	Score	Frequency of occurrence 550 APPs/95 potential APPs
1	GAI	1	26	15	1	2.0 × 10–5	6/2
2	LHS			11	0	1.3 × 10–4	7/5
3	GKF			12	2	1.9 × 10–3	7/5
4	PRPY	2	9	4	0	4.1 × 10–2	0/1
5	ALKKA			3	0	1.0 × 10–1	2/2
6	KKALL			3	0	1.0 × 10–1	4/2
7	RLGI	3	35	8	0	2.5 × 10–3	0/1
8	L[IA]KKF			7	0	5.6 × 10–3	0/0
9	GLL			9	1	6.7 × 10–3	15/1
10	WQWR	4	18	8	0	1.4 × 10–3	8/2
11	MRR			7	1	2.0 × 10–2	3/4
12	RRF			5	0	2.3 × 10–2	2/2
13	LLLRL	5	7	2	0	2.3 × 10–1	0/0

^aAPPs: antiparasitic peptides.

Lastly, we also queried the peptide clusters against PROSITE Pattern and PROSITE Profile databases⁸⁰ by using the search engine Motif Search of the GenomeNet suite.⁷⁹ Significant hits were only found among a few members of clusters one and four (Table 8). Matching patterns and profiles can be straightforwardly associated with AMP-related signatures such as the histone 2A, cyclotides, mammalian defensins, and myotoxins. Although transferrin-like domains are found in many proteins with diverse functions, some of them like the mammalian blood serotransferrin may have an antibacterial effect by removing toxic free iron from the blood, as well as the lactoferrin, found in the mammalian milk, which showed antimicrobial activity.⁹⁵

Table 8. Discovered Motifs Found in PROSITE^a.

No.	Motif	Cluster	Hit Peptide	PROSITE Database	Match with	Signature	Frequency of occurrence 550 APPs/95 potential APPs
1	AGLQFPV	1	starPep_36218	Pattern	[AC]GLxFPV	Histone H2A	0/1
2	CGETCVLGTC		starPep_10020		C[GA]E[ST]C[FTV][GLTI]G[TSK]C	Cyclotides Moebius	0/1
3	CYCRIPACLAGERRYGTCFYRRRVWAFCC		starPep_01640		CxCx(3,5)Cx(7)GxCx(9)CC	Mammalian defensins	0/1
4	DAIWNLLRQAQEKFG		starPep_17290	Profile	ECIWHLLQRMQQLFGHGGKDP	Transferrin-like domain	0/1
5	GSAFCGETCVLGTCYTPDCSCTALVCLKN		starPep_10020		GLPVCGETCVWGPCNTPGCTCKWPVCYRN	Cyclotides	0/1
6	KMDSRWRWKSCKK	4	starPep_27296	Profile	KMDCRWRWKCCKK	Myotoxins_2	0/1

^aAPPs: antiparasitic peptides.

As we mentioned before, motifs listed in Tables 6 and 7 were searched against the APPs registered in StarPepDB and the 95 lead candidates to discriminate the possible new signatures from the existing ones. We need to consider that new motifs should not appear in any of the registered APPs or should be at a very low frequency, which was the case for most of the motifs obtained by MSA and STREME methods.

3.5. From 95 APP Hits to 11 Drug-like Lead Candidates

The 95 peptides from the prospective virtual screening show antiparasitic activity and sequence singularity, but only a few computational tools have been used so far for their other properties/toxicity characterization. Therefore, the set of 95 APP virtual hits was further screened by several activity prediction tools listed in Table 9, relevant for enhancing their plausible therapeutic utility.

Table 9. List of Tool Used to Predict Several End Points of the Promising APP Leads.

no.	Web server	Predicted End point	Link
Activity
1	AMPfun	Various (anticancer, antiparasitic, etc.)	http://fdblab.csie.ncu.edu.tw/AMPfun/
2	AMPDiscovery	Various (anticancer, antiparasitic, etc.)	https://biocom-ampdiscover.cicese.mx
3	AMAP	Various (anticancer, antiparasitic, etc.)	http://amap.pythonanywhere.com/home
4	AxPEP	Antimicrobial	https://app.cbbio.online/ampep/method
5	dPABBs	Biofilm	https://ab-openlab.csir.res.in/abp/antibiofilm
Toxicity
6	ToxinPred	Toxic	https://webs.iiitd.edu.in/raghava/toxinpred
7	HemoPI	Hemolytic	https://webs.iiitd.edu.in/raghava/hemopi
8	HemoPred	Hemolytic	http://codes.bio/hemopred/
9	Happenn	Hemolytic	https://research.timmons.eu/happenn
10	Macrel	Antimicrobial and hemolytic	https://www.big-data-biology.org/software/macrel/
Properties and Pharmacokinetics
11	SolupHred	pH-dependent Solubility	https://ppmclab.pythonanywhere.com/SolupHred
12	GRAVY	Solubility related feature	http://www.gravy-calculator.de/index.php
13	CellPPD	Cell penetrating	https://webs.iiitd.edu.in/raghava/cellppd/multi_pep.php
14	C2Pred	Cell penetrating	http://lin-group.cn/server/C2Pred
15	MLCPP	Cell penetrating	http://www.thegleelab.org/cgi-bin/MLCPP/MLCPP.py
16	PlifePred	Half-life in blood	https://webs.iiitd.edu.in/raghava/plifepred
17	HLP	Half-life in intestine like environment	https://webs.iiitd.edu.in/cgibin/hlp
Immunological Actions
18	AlgPred2	Allergens	https://webs.iiitd.edu.in/raghava/algpred2
19	MILAMP	Amyloid	http://milamp.pythonanywhere.com/home
20	MetAmyl	Amylogenicity	http://metamyl.genouest.org/e107_plugins/metamyl_aggregation/db_prediction_meta.php
21	ANuPP	Aggregation Nucleation Prediction	https://web.iitm.ac.in/bioinfo2/ANuPP
22	ProInflam	Inflammatory	http://metagenomics.iiserb.ac.in/proinflam
23	VaxinPAD	Immunomodulatory	https://webs.iiitd.edu.in/raghava/vaxinpad/
24	PRRpred	Pattern recognition receptor	https://webs.iiitd.edu.in/raghava/prrpred/aac.predict.php

Thus, the 95 potential virtual APPs (see SI8-1 and SI8-7) were evaluated by 24 in silico tools (see Table 9) to select the best drug-like peptides. We jointly analyze several antiparasitic activity predictions according to AMPDiscover,³⁷AMPFun,³⁸AMAP,¹⁰² and AxPEP(103) web servers, toxic/hemolytic effects by all ML models in ToxinPred2⁸⁹ and by HemoPI,⁹⁰HemoPred,¹⁰⁴ Happenn,¹⁰⁵ and Macrel,¹⁰⁶ respectively. Other relevant end points such as cell permeability and half-life were screened by (CellPPD,¹⁰⁷C2Pred¹⁰⁸ and MLCPP(109)) and (pLifePred¹¹⁰ and HLP(111)), respectively, while the most popular immune-toxicity end points (see Table 9), like allergenic reactions and aggregation/amylogenicity, were predicted by AlgPred2,¹¹²MILAMP,¹¹³MetAmyl,¹¹⁴ and others, see Table 9. Table 10 and SI8-7 summarize the physicochemical properties of the 11 best APP lead candidates as well as end point predictions for all 95 virtual hits.

Table 10. Physico-chemical Properties of 11 Best APP Lead Candidates.

Peptide ID	Length	Peptide Sequence	Hydrophobicity	Steric hindrance	Hydropathicity (GRAVY)	Amphipathicity	Net Hydrogen	Charge	Solubility pH7a	pI pH7a
starPep_43351	9	WQWKVRIWR	–0.33	0.62	–1.16	1.09	1.67	3.00	1.56	14.5
starPep_38012	9	RRRKIAHKM	–0.74	0.60	–1.81	1.79	1.89	5.50	195.0	13.9
starPep_37962	9	RRMKKLRRK	–1.06	0.67	–2.67	2.31	2.44	7.00	244.19	13.9
starPep_26368	9	SRFWRRWRK	–0.78	0.63	–2.41	1.50	2.33	5.00	111.58	14.5
starPep_25927	10	ISKRILTGKK	–0.34	0.64	–0.53	1.35	1.20	4.00	93.36	13.8
starPep_20524	10	FWQRRIRKWR	–0.67	0.65	–1.99	1.47	2.20	5.00	108.56	14.5
starPep_27296	13	KMDSRWRWKSCKK	–0.62	0.64	–2.08	1.51	1.62	5.00	127.3	11.4
starPep_38063	15	RRRRRRRVSRRFMRR	–1.21	0.68	–2.76	1.80	3.00	11.00	278.52	14.5
starPep_26368	17	KEFKRIVKRIKKFLRKL	–0.48	0.67	–0.82	1.80	1.47	8.00	101.37	12.7
starPep_15029	18	ALYKKIIKKLLESAKKLG	–0.18	0.62	–0.09	1.29	0.83	5.00	60.81	10.4
starPep_27030	19	KKWKMRRGAGRRRRRRRRR	–1.13	0.67	–3.12	2.00	2.68	14.00	270.71	14.5

^aProperties were calculated with SolupHred server (https://ppmclab.pythonanywhere.com/SolupHred). The rest of physico-chemical properties were calculated with ToxinPrep (https://webs.iiitd.edu.in/raghava/toxinpred).

Finally, a set of 11 positively charged potential APP lead candidates was retained. Ten of them range between 9 and 19 aa in length. In general, their physicochemical properties show low scores for hydropathicity meaning that they are more hydrophilic, positively influencing solubility. They all were positively predicted as APPs by all in silico methods used. Additionally, they are nontoxic and nonhemolytic, and showed high solubility and low immunogenicity according to all tools listed in Table 9.

4. Conclusions

A novel approach based on network science methods and similarity searches was introduced to explore the APPCS. We explored the chemical space of StarPepDB with three types of networks (CSNs, HSPNs, METNs) and mQSSMs to retrieve valuable information from this database. We demonstrated that the pipeline developed in this research outperformed state-of-the-art ML models available for APP prediction by far statistically significant differences. The novel mQSSMs were comparatively tested with the largest experimentally validated nonredundant peptide set reported to date and largely outperformed several methods from the literature. Thus, we have arrived at a novel computational strategy regardless of ML algorithms that recognizes APPs at high effectivity and reliability. This promising strategy may support research aimed at repurposing bioactive peptides as potential (virtual) hits. In fact, as a result of our method and other filters, we initially proposed 95 repurposed hits as potential APPs that have not been associated with this activity until now. Moreover, we explored sequence similarities and motifs shared by these leads and discovered some promising common motifs that can serve as templates for searching novel APPs. Finally, a multiobjective selection was applied to select 11 potential peptides with antiparasitic activity and several end points’ abilities using 24 freely available web servers. It represents an easy and reliable methodology to discover putative therapeutic APPs for posterior experimental validation.

Glossary

Abbreviations

AMPs

antimicrobial peptides

AMPCS

AMPs’ chemical space

APPs

antiparasitic peptides

APPCS

APPs’ chemical space

CSN

chemical space network

HSPN

half-space proximal network

METN

metadata network

mQSSM

the multiquery similarity searching model

MCC

Matthews correlation coefficient

MDR

multidrug-resistant

AMR

antimicrobial resistance

CHDPs

host defense peptides

ML

machine learning

ACC

average clustering coefficient

ASP

average shortest path

WD

weighted degree

BE

betweenness

HC

harmonic

HB

hub-bridge

Qs

queries

ref

reference

SN

sensitivity

PR

precision

SP

specificity

Q%

accuracy

MSA

multiple sequence alignment

MAFFT

Multiple Alignment using Fast Fourier Transform

MUSCLE

Multiple Sequence Comparison by Log-Expectation

T-Coffee

Tree-based Consistency Objective Function for Alignment Evaluation

STREME

Sensitive, Thorough, Rapid, Enriched Motif Elicitation

CCDF

complementary cumulative distribution function

RF

random forest

AF-QSAMs

alignment-free quantitative sequence-activity models

MCT

multiple comparison tests

Data Availability Statement

The starPep toolbox software and the respective user manual, as well as mQSSMs, are freely available online at http://mobiosd-hub.com/starpep. The Supporting Information is also available at Zenodo: 10.5281/zenodo.5650160.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.2c03398.

• Fasta files, tables of parameters, graphml files of the networks created here, Excel files with normalized centrality measures and multiquery similarity searching models, additional results, PDFs showing comparison with the literatature, and a Powerpoint file with information about 95 lead comounds (ZIP)

The authors declare no competing financial interest.
