Fabrication of Multifunctional Electronic Textiles Using Oxidative Restructuring of Copper into a Cu-Based Metal–Organic Framework

Abstract

This paper describes a novel synthetic approach for the conversion of zero-valent copper metal into a conductive two-dimensional layered metal–organic framework (MOF) based on 2,3,6,7,10,11-hexahydroxytriphenylene (HHTP) to form Cu₃(HHTP)₂. This process enables patterning of Cu₃(HHTP)₂ onto a variety of flexible and porous woven (cotton, silk, nylon, nylon/cotton blend, and polyester) and non-woven (weighing paper and filter paper) substrates with microscale spatial resolution. The method produces conductive textiles with sheet resistances of 0.1–10.1 MΩ/cm², depending on the substrate, and uniform conformal coatings of MOFs on textile swatches with strong interfacial contact capable of withstanding chemical and physical stresses, such as detergent washes and abrasion. These conductive textiles enable simultaneous detection and detoxification of nitric oxide and hydrogen sulfide, achieving part per million limits of detection in dry and humid conditions. The Cu₃(HHTP)₂ MOF also demonstrated filtration capabilities of H₂S, with uptake capacity up to 4.6 mol/kg_MOF. X-ray photoelectron spectroscopy and diffuse reflectance infrared spectroscopy show that the detection of NO and H₂S with Cu₃(HHTP)₂ is accompanied by the transformation of these species to less toxic forms, such as nitrite and/or nitrate and copper sulfide and S_x species, respectively. These results pave the way for using conductive MOFs to construct extremely robust electronic textiles with multifunctional performance characteristics.

Introduction

Multifunctional electronic textiles that sense and adapt to environmental stimuli hold promise for enhancing healthcare,¹⁻⁴ protecting against environmental pollution^5,6 and safeguarding from exposure to toxic chemicals and threat agents.^7,8 The recent drive to advance the “Moore’s Law of fibers” posits that progress in textile electronics necessitates increasing the functional utility of fabrics at the fiber level.⁹⁻¹¹ While recent innovations have produced textiles capable of physical and chemical detection or detoxification,¹²⁻¹⁵ with few exceptions,^8,16−18 these functions typically remain disparate, with limited multifunctional performance that includes real-time assessment of the chemical environment accompanied by a tunable response (e.g., filtration, detoxification, or therapeutic delivery) to the chemical threat.¹⁹⁻²⁴ Despite these advances, three key challenges currently limit the functional performance of textile-integrated chemically responsive materials. First, chemically reactive interfaces are often insufficiently stable once they are integrated onto textiles.²⁵⁻²⁷ Second, textile-integrated chemical sensing materials are typically sensitive to and have difficulty withstanding physical changes, such as heat, abrasion, and detergent-based laundering.²⁸ Third, there is a general dearth of materials capable of sensitive chemical detection with a broad dynamic range and simultaneous adaptive function applicable to personal protection, environmental application, or healthcare.^29,30 Overcoming these challenges requires conceptual advances and technological approaches that merge the development of exceedingly stable multifunctional sensing materials—capable of maintaining their performance in wearable devices—with robust device integration strategies.¹²

We reasoned that combining water-stable two-dimensional (2D) metal–organic framework (MOF) materials with a proven capacity for multifaceted function in the context of chemical detection,^12,31−34 filtration,¹² electronic transduction,^35,36 energy conversion,³⁷⁻³⁹ and storage⁴⁰ with an exceptionally robust and scalable methodology for textile integration can pave the way toward mechanically robust multifunctional conductive textiles with adaptive function.^12,35,41,42 We and others have employed templated self-assembly to install MOFs on textile substrates such as cellulose,^{12,13,43−49} polyester,^12,42,50,51 linen,¹³ polyacrylonitrile,²¹ silk,^47,52 polypropylene,^16,53,54 and nylon.⁵⁵ Despite the rich progress in general methodology for MOF–textile integration, the development of MOF-based electronic textiles has remained extremely limited. While the current examples of conductive MOF e-textiles have demonstrated their potential in chemical sensing,^12,21 energy storage,^42,43 and filtration,^12,21 at least three major limitations currently hinder their applicability. First, the reliance on the in situ growth method has been found to be applicable only to a limited set of substrates (cellulose, polyester, and polyacrylonitrile).^12,21,42,43 This limitation may pose a challenge to broad applicability of this method on a variety of substrates. Second, the demonstrations of MOF-based electronic textiles are currently limited to only two conductive MOFs: Ni₃(2,3,6,7,10,11-hexahydroxytriphenylene)₂ and Ni₃(2,3,6,7,10,11-hexaiminotriphenylene)₂ (Ni₃(HHTP)₂ and Ni₃(HITP)₂).^12,21,42,43 This limitation in composition of conductive MOF materials severely restricts the functional utility of MOF-based e-textiles. Third, current processes for generating conductive MOF-based textiles lack simplicity, scalability, efficiency, and atom economy. All of the existing methods require heating for in situ growth and suffer from inefficient surface attachment, and some methods require chemical pretreatment of the fabrics for promoting MOF adhesion, thus limiting the scalability and efficiency of the synthetic process.^12,21,42,43 Developing a novel strategy with features of efficiency and scalability that allows for the integration of a diverse set of conductive MOFs onto a variety of textile surfaces with strategic control over their patterning on a broad range of substrates has the potential to advance the “Moore’s law of fibers” through the development of MOFs as active components in smart fabric sensors, wearable electronics, and personal protective equipment.

This paper describes a new synthetic method—termed oxidative restructuring—that offers at least five unique attributes for the integration of conductive framework materials into textiles (Figure 1). First, this method demonstrates a new chemical process to install and pattern Cu₃(2,3,6,7,10,11-hexahydroxytriphenylene)₂ Cu₃(HHTP)₂ MOF on textile substrates using patterns of Cu⁰ as a starting material. Restructuring pre-patterned regions of copper metal into MOF generates multifunctional electronic textiles with control over patterns on areas of square centimeters with μm-scale resolution. Second, the method is extremely versatile in substrate scope. This method leads to conductive coatings of MOFs with sheet resistances of 0.1–10.1 MΩ/cm² on cotton, paper, nylon, polyester, silk, and nylon/cotton blend over areas exceeding 100 cm² with control over the pattern, morphology, and orientation of MOFs on these substrates. Third, the MOF/textile composites generated using this approach are extremely robust and are capable of withstanding a variety of physical (abrasion, heat, and laundering) and chemical washes with detergent and bleach, while maintaining their chemical sensing performance. Fourth, oxidative restructuring proceeds under mild aqueous conditions that are consistent with several requirements for green chemical processes. Fifth, this method is rapid. The rate of oxidative restructuring can be tuned by adjusting the oxidant, with transformation reaching completion within 15 min (in the presence of H₂O₂ oxidant) or within 12 h under ambient conditions. The chemical transformation in the presence of the H₂O₂ is the most rapid technique for MOF formation reported to date.^{12−15,45,46} Taken together, these unique attributes of oxidative restructuring enable rapid, efficient, and scalable fabrication of extremely robust electronic textiles that detect NO and H₂S with experimentally determined detection limits of 1 ppm, while additionally demonstrating the capability for decontaminating these gases into less toxic products (NO₂^– or NO₃^– and S⁰ or copper sulfide, respectively). The oxidative restructuring method enables the development of multifunctional devices with synergistic effects, afforded by the strategic combination of MOFs and textiles, and has the potential to advance wearable electronic applications by harnessing the capability for simultaneous chemical detection and detoxification.

Figure 1.

(A) Synthetic scheme for the formation of Cu₃(HHTP)₂ MOF using oxidative restructuring. (B) Conversion of patterned Cu⁰ on cotton into patterns of textile-integrated MOF. The Dartmouth logo is reproduced with permission from the university. (C) Scanning electron micrographs showing Cu₃(HHTP)₂ MOF on cotton at 10,000× and 60,000× magnification.

Results and Discussion

Oxidative Restructuring of Cu⁰ into Cu₃(HHTP)₂

In traditional solvothermal synthesis of Cu₃(HHTP)₂ MOF, the metal salt, organic ligand, solvent, temperature, and oxidant are all important factors in achieving the formation of the framework material.^41,56,57 Compared to the solvothermal method, oxidative restructuring has two important distinctions: (i) the source of metallic nodes comes from a zero-valent metal pre-patterned on a porous substrate and (ii) this method forms MOF at room temperature with the oxidant influencing the rate of MOF formation (within 12 h with O₂ as the oxidant or within 15 min using H₂O₂ as the oxidant) (Figure 1A).

Oxidative restructuring capitalizes on the ability to deposit and pattern zero-valent metallic features on substrates and convert these features into MOFs in the presence of the appropriately chosen organic linkers and oxidants. The metal-coated substrate, when added to a solution containing an oxidizing agent and ligand, can generate metal cations that can coordinate to the deprotonated organic ligands. While restructuring Cu⁰ to form three-dimensional MOFs has been previously applied to generate Cu-BTC MOFs (BTC = benzene-1,3,5-tricarboxylic acid) on solid copper clad plates,⁵⁸ copper wires,⁵⁹ glass,⁶⁰ and polyethylene terephthalate surfaces,⁶¹ this strategy has remained entirely unexplored for 2D conductive MOFs and has not been previously adapted to textiles. Although Bradshaw and coworkers demonstrated the first example of anodic electrosynthesis of Cu₃(HHTP)₂ from electrodeposited Cu on conductive substrates (fluorine tin oxide and Au/SiO₂ glass),⁶² this electrosynthetic strategy is not extendable to non-conductive substrates. Inspired by the initial feasibility of restructuring Cu⁰ features on solid substrates into Cu-containing MOFs, this study expands this concept for the first time to the integration of the conductive Cu₃(HHTP)₂ MOF on a variety of textile substrates. The mild and rapid approach described herein is capable of producing extremely robust patterned multifunctional electronic textiles on diverse substrates for simultaneous detection, filtration, and detoxification of toxic reactive gases.

Conversion of Cu⁰ Particles into MOFs

In our initial studies, we employed Cu⁰ nanoparticles (d = 25 nm) and microparticles (d = 45 μm) to demonstrate the feasibility of conversion of zero-valent Cu into Cu₃(HHTP)₂ MOF (Figures S1 and S2). While the Cu⁰ microparticles in the presence of oxidant (O₂ or H₂O₂) in H₂O:EtOH (1:1 volume) solution containing HHTP reacted to produce Cu₃(HHTP)₂ MOF, they also contained residual Cu⁰, as evidenced by the Cu⁰ diffraction peak in powder X-ray diffraction (PXRD) located at 43 and 50° 2θ (Figure S1). In contrast, the use of Cu⁰ nanoparticles under indistinguishable conditions led to their complete conversion to Cu₃(HHTP)₂ MOF, as evidenced by the lack of detectable Cu⁰ diffraction peaks by PXRD. The size of the Cu⁰ particles not only influenced the extent of conversion of Cu⁰ into MOF, but also the overall morphology of the MOF crystallites. Scanning electron microscopy (SEM) showed that Cu⁰ microparticles led to irregular crystallite formation, whereas the Cu⁰ nanoparticles yielded uniform and regular rod-like morphology of the MOF (Figure S2). We attributed the complete conversion of the copper nanoparticles to Cu₃(HHTP)₂ to the higher surface to volume ratio of the smaller nanoparticles when compared to the microparticles. The initial formation of MOF crystallites on the Cu microparticle surface could have precluded access of the solvent and dissolved ligand to the metal source due to the larger particle size, inhibiting further MOF formation.⁶⁰ After confirming the feasibility of forming layered 2D MOF through the conversion of Cu⁰ nanoparticles using oxidative restructuring, we proceeded to expand this concept by restructuring patterns of Cu⁰ films having nanoscale thickness, pre-deposited on porous and flexible substrates into MOF coatings.

Integration of Cu₃(HHTP)₂ MOF onto Cotton Using Oxidative Restructuring

To achieve the growth of Cu₃(HHTP)₂ on porous and flexible substrates using oxidative restructuring, we first thermally evaporated a thin layer of Cu metal (120 nm) onto the cotton surface (4.0 cm × 2.5 cm) to form a template for MOF synthesis (Figure 1B). Subsequent placement of the Cu-coated cotton into a solution of 10 mg of HHTP dissolved in 10 mL of H₂O:EtOH (1:1 volume) open to ambient air for 12 h led to the formation of MOF directly on the cotton [5–7% Cu₃(HHTP)₂ mass loading for 0.75 cm² and 0.49 ± 0.1 mg of Cu₃(HHTP)₂/cm²] (Figure 1B and Table S1). SEM analysis demonstrated conformal coating of cotton fibers by radially oriented MOF crystallites (Figures 1C and S3) and uniform coating on the microscale (Figure S4).

Characterization of Restructuring Cu⁰ into MOF on Cotton

PXRD analysis showed complete conversion of Cu⁰ to Cu₃(HHTP)₂ within 12 h, as evidenced by the disappearance of the Cu (111) and Cu (200) planes located at 43 and 50° 2θ and increasing intensity of the (100) plane of Cu₃(HHTP)₂ at 4.7° 2θ (Figure 2).^41,56,63 Before the 12 h time mark, PXRD showed the presence of residual Cu⁰ (Figure S5). No copper oxide intermediate was observed by PXRD.

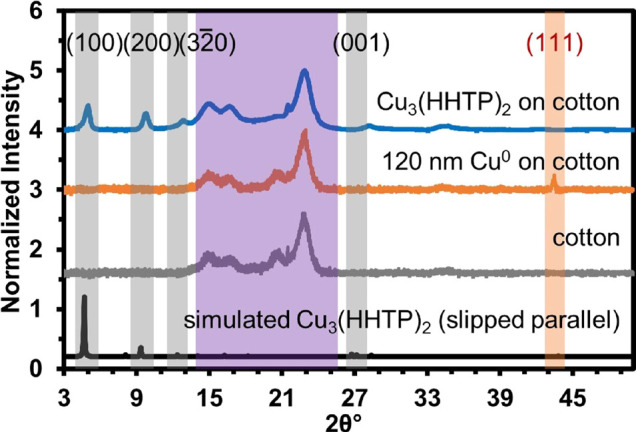

Figure 2.

Characterization of Cu₃(HHTP)₂ on cotton using PXRD. Gray shading denotes MOF diffraction peaks, purple shading represents cotton diffraction peaks, and orange shading shows the Cu⁰ diffraction peak at 43° 2θ. The simulated powder pattern of Cu₃(HHTP)₂ calculated using Materials Studio is presented for comparison. The structure of the simulated MOF has been optimized for the geometry and lowest energy state.

Bubbling pure O₂ resulted in the onset of MOF conversion at 5 min (Figure S6). Hydrogen peroxide (H₂O₂) also worked to increase the rate of MOF formation, which was confirmed by PXRD analysis to be complete within 15 min (Figure S7). However, the use of H₂O₂ as an oxidant diminished the morphological uniformity of the MOF on textile (Figure S8). All oxidant conditions examined produced conductive MOF coatings on textiles with sheet resistances in the range of 2.4–6.0 MΩ/cm²; see Section S2.2. for more details (Tables S2–S4). The resistance of Cu₃(HHTP)₂ on cotton, obtained under ambient conditions, O₂ bubbling, or addition of H₂O₂, was measured using a two-point probe method at time points throughout the formation process (Tables S2–S4 and Section S4.6). The resistance measurements for the formation of Cu₃(HHTP)₂ on cotton after the reaction period under ambient conditions, bubbling O₂, and H₂O₂ were all in the low MΩ/cm² range (Tables S2–S4).

Surface analysis of MOF on cotton using X-ray photoelectron spectroscopy (XPS) confirmed the elemental composition of Cu₃(HHTP)₂, matching reported literature with the elements O, C, and Cu; XPS also confirmed mixed valency of Cu (Cu²⁺ = 68.6%, Cu⁺ = 31.4%) within the framework (Figure S9).⁶⁴ The surface area of Cu₃(HHTP)₂ MOF coated on cotton and Cu₃(HHTP)₂ restructured from Cu⁰ nanoparticles (d = 25 nm) was measured using N₂ gas adsorption isotherms and calculated using Brunauer–Emmett–Teller (BET) theory. The isotherm for the Cu₃(HHTP)₂ on cotton was a type IV adsorption–desorption curve, indicating that the MOF cotton composite is a mesoporous material and the calculated surface area for the composite was 9.03 ± 0.02 m²/g⁶⁵⁻⁶⁷ and has an enhanced surface area over bare cotton (Figure S10A).¹² The calculated surface area from the BET analysis of Cu₃(HHTP)₂ restructured from Cu⁰ nanoparticles (Section S4.8.) was 191.65 ± 0.01 m²/g (Figure S10B), which is in congruence with the calculated surface area of Cu₃(HHTP)₂ formed from the standard solvothermal synthesis.⁶⁸

Thermogravimetric analysis of Cu₃(HHTP)₂ on cotton displayed one distinct mass loss step (Figure S11). The mass loss step with an onset temperature of ∼319 °C with a mass change of 4.3 mg was attributed to the thermal decomposition of the Cu₃(HHTP)₂ framework and cotton (Figure S11).⁶² Cotton and Cu₃(HHTP)₂ bulk powder both showed one major mass loss step with onset temperatures of 330 and 258 °C, respectively (Figure S11). Cu₃(HHTP)₂ in composite with the cotton has an onset temperature that is between cotton and bulk MOF and a large change in mass that is comparable to cotton.

Substrate Scope

The versatility of oxidative restructuring lies in the ability to deposit the metal precursor onto a variety of substrates. To demonstrate the general applicability of the method, we thermally evaporated Cu⁰ (thickness = 120 nm) and investigated its restructuring into MOF on seven substrates with different chemical compositions and surface chemistries ranging from natural to synthetic polymers and woven (cotton, silk, nylon, nylon/cotton blend, and polyester) to non-woven (weighing paper and filter paper) fiber structures (Figure S12). Reaction conditions (Section S2.2) were kept constant for all substrates. The lateral features of Cu patterns with mm- to cm-scale dimensions generated by thermal evaporation were effectively converted to Cu₃(HHTP)₂ MOF to generate patterns with dimensions indistinguishable from the initially patterned Cu at the sub-mm scale (Figure S12). The oxidative restructuring method was also tested on glass, mica, and polymethyl methacrylate (PMMA) plastic. While the chemical transformation was successful, the MOF did not adhere strongly to the glass, mica, or PMMA. This test demonstrated that the MOF adhesion on porous substrates was more robust than on non-porous surfaces (Figure S12). We attribute the robust adhesion of Cu₃(HHTP)₂ MOF to porous polymeric substrates to the combination of mechanical interlocking of MOF crystallites on fibrous substrates and to the molecular level adhesion that can be promoted by the copper–polymer interphase that can form during thermal evaporation of metal on polymeric surfaces.⁶⁹

SEM analysis after deposition of the Cu⁰ layer on various textile substrates showed a smooth coating of copper film that subsequently converted into Cu₃(HHTP)₂ MOF (Figure S13). The MOF exhibited nanowire morphology on all substrates examined. The sheet resistance readings for MOF patterned on cotton ranged from 1.0 to 10.1 MΩ/cm² across 1.5 cm on swatches (1.5 cm × 0.5 cm) (n = 31). All woven textiles with a layer of 120 nm of Cu⁰ were not conductive on the macroscopic scale (R > 50 MΩ over 0.75 cm) due to the discontinuity of the Cu⁰ coating evaporated on a woven substrate, whereas smooth and non-woven Cu-coated surfaces, such as weigh paper and filter paper, showed low resistances (<100 Ω over 0.75 cm) (Table S5) commensurate with a continuous film of Cu⁰.⁷⁰ For further analysis of the characterization and performance of MOF-patterned surfaces, we chose cotton—which is ubiquitously used in the textile industry—as a model system to demonstrate the capabilities of oxidative restructuring for integration of MOFs on textiles.⁷¹

Controlled Patterning of MOF on Cotton

Oxidative restructuring allowed for intricate patterns of Cu⁰ to be restructured into Cu₃(HHTP)₂ MOF with microscale fidelity (Figures 1B and S14). Cu₃(HHTP)₂ selectively grew only on pre-deposited patterns of Cu⁰ (Figure S14). We observed no MOF formation on bare cotton regions (Figure S14C) via PXRD. Energy-dispersive X-ray spectroscopy (EDS) mapping supported the precise growth of Cu₃(HHTP)₂ within regions of pre-deposited Cu⁰ (Figure S15). The precise location for Cu⁰ deposition and conversion to Cu₃(HHTP)₂ was confirmed through the spatial mapping of Cu, C, and O emission lines by EDS. To quantify the fidelity of pattern conversion from Cu⁰ to Cu₃(HHTP)₂ MOF, we evaporated a set of Cu⁰ interdigitated electrodes (IDEs) on cotton and observed the transformation after oxidative restructuring using a digital microscope and EDS mapping (Figures S16 and S17). The average lateral area of the Cu₃(HHTP)₂ pattern was ∼0.1 and 0.2 mm² greater than the average lateral area of the Cu⁰ IDE for the analyzed optical and EDS mapped image, respectively (Figure S17C and Section S4.15). Thus, while the overall pattern of IDEs was preserved, some blurring of features occurred on the microscale.

Proposed Mechanism of Oxidative Restructuring of Cu₃(HHTP)₂ MOF on Porous Substrates

Oxidative restructuring is conceptually analogous to electrochemical reactions that restructure Cu⁰ metal to Cu oxides and other Cu species.⁷² The proposed mechanism, detailed in Figure 3, features three key steps: (1) the transformation of zero-valent copper to divalent copper; (2) the reduction of O₂ to H₂O₂ that is coupled to the oxidation of copper; (3) the oxidation of the tri-catechol linker to the tris-semiquinone, followed by the coordination to the divalent copper to form the Cu₃(HHTP)₂ MOF.⁷³⁻⁷⁵ Based on this proposed transformation, oxidative restructuring is contingent on at least three key experimental parameters: (1) the thermodynamic favorability of Cu⁰ corrosion to cationic copper species under aerated ambient conditions at an acidic pH;⁷⁶ (2) the reduction potential of oxygen (the oxidizing agent), which is more favorable in acidic conditions;⁷⁷ and (3) a high ratio of ligand to metal (∼12:1) because the deprotonation of ligand contributes to the acidity of the solution and maintains a highly effective concentration of ligand near the metal surface to ensure the formation of Cu₃(HHTP)₂ on textiles, rather than aggregation and precipitation of MOF crystallites.

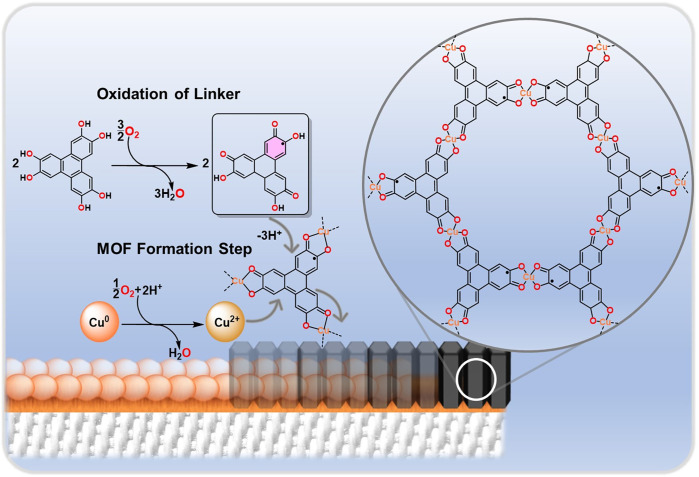

Figure 3.

Proposed mechanism of oxidative restructuring of Cu⁰ metal into Cu₃(HHTP)₂ MOF. The presence of oxygen promotes the oxidation of copper metal, while the HHTP linker is transformed from a tris-catechol to a tris-semiquinone monoradical.

O₂ plays a critical role in oxidizing Cu⁰ to Cu²⁺ (E_r = 0.337 V), which is possible in acidic solution,⁷⁸ or copper oxide intermediates (E_r = 0.26 V for Cu₂O and E_r = 0.06 V for CuO/Cu(OH)₂), which is possible in alkaline conditions.⁷² The standard reduction potential of O₂ is drastically different in acidic conditions (E_r = 1.229 V, pH = 0) compared to basic conditions (E_r = 0.401 V, pH = 14).^72,78 The crucial function of oxygen in the oxidative restructuring mechanism was confirmed by excluding oxygen from the reaction; air-free conditions led to no observable MOF formation and complete retention of Cu⁰ on cotton (Figure S18). Expanding this method to restructure thermally evaporated patterns of Ni⁰ into Ni₃(HHTP)₂ under conditions developed in this study were unsuccessful, leading to retention of Ni⁰ on cotton upon exposure to O₂(g) and HHTP (Figure S19). We, therefore, conclude that the conditions presented herein are optimized for Cu₃(HHTP)₂ and are not optimized for the formation of Ni₃(HHTP)₂, possibly due to the passivation of Ni⁰ through the formation of a nickel oxide layer that could be inert to MOF formation.⁷⁹

The choice of solvent is critical for promoting the process of oxidative restructuring of Cu metal into MOF. The deprotonation of the HHTP ligand under reaction conditions can contribute to the decrease in the pH range to 5.0–5.7 pH, which can increase the reduction potential of O₂.⁵⁶ The ability to deprotonate the linker also promotes proton coupled electron transfer (PCET) during the reduction of oxygen (Figure 3). To determine the role of protic and aprotic solvents in promoting the conversion process, we performed oxidative restructuring in different solvents. We corroborated that Cu₃(HHTP)₂ on cotton forms favorably in ethanol, water, and H₂O:EtOH (1:1 volume) (Figure S20). However, the MOF on cotton did not form in acetone, H₂O:acetone (1:1 volume), or DMSO (Figure S20). We attribute this observation to the favorable role of ethanol and water in promoting PCET and encouraging the deprotonation of the HHTP ligand.

In oxidative restructuring, the in situ generated cationic Cu⁺/Cu²⁺ species can react with the oxidized deprotonated ligand to form Cu₃(HHTP)₂ MOF. In a traditional solvothermal system, the metal-to-ligand ratio conditions typically employ a 2:1 ratio to ensure that all of the ligand is consumed by Cu²⁺ to form the Cu₃(HHTP)₂ MOF.⁴¹ However, a successful reaction utilizing oxidative restructuring resulting in full coverage of the textile swatch required a metal-to-ligand ratio of 1:12; a higher ratio of metal to linker results in MOF precipitation instead of deposition on the textile.

We considered at least three pathways that can lead to oxidative restructuring: (i) oxidation of copper metal to the cationic Cu species that can then react with the oxidized linker to form MOFs or (ii) formation of MOFs from a copper oxide intermediate, and (iii) the possibility of oxidation of HHTP by dissolved oxygen and its subsequent contribution to the corrosion of Cu. While we did not observe any copper oxide intermediate during our investigation of oxidative restructuring under optimized conditions, we decided to probe the feasibility of restructuring copper oxide and copper hydroxide powder precursors into Cu₃(HHTP)₂ (Figure S21). Restructuring of copper hydroxide, Cu(OH)₂, resulted in favorable MOF formation (Figure S21A,D), as confirmed by SEM and PXRD (Figure S21E). In contrast, we did not observe MOF formation from Cu₂O. This result may be due to poor solubility of Cu₂O and kinetic inhibition of the oxidative restructuring with monovalent copper (Figure S21B,E). While MOF formation did occur from CuO, the transformation into Cu₃(HHTP)₂ was incomplete, as evidenced by residual peaks in PXRD corresponding to (111) and (202) of CuO (Figure S21C,E). To corroborate the formation of Cu oxides on cotton during oxidative restructuring, a control reaction was conducted with H₂O:EtOH (1:1 volume) in the absence of a HHTP linker under ambient conditions. After a 12 h period, there was no evidence of copper oxide formation, based on PXRD and XPS analysis (Figure S22). In summary, while the possibility of a copper oxide intermediate during oxidative restructuring cannot be excluded, this intermediate was not directly detected in the optimized reaction conditions.

To confirm the formation of Cu ions in solution during the oxidative restructuring process, we used inductively coupled plasma mass spectrometry (ICP-MS) to quantify the amount of Cu ions in solution during the course of the reaction (Figure S23). We performed ICP-MS analysis of copper in solution under three conditions: (1) under optimized reaction conditions that included evaporated Cu on cotton, HHTP linker, and O₂ gas, (2) in the absence of a HHTP linker, and (3) in the absence of oxygen. Under optimized reaction conditions, ∼130 μM of copper ions was present in solution, confirming that in situ generated Cu ions play a critical role in the oxidative restructuring process. This concentration of Cu ions accounts for 50% of all Cu species in the reaction vessel, which suggests that the remainder of the copper metal is maintained at a high effective concentration near the surface of the cotton contributing to the templation of the MOF on the surface and retention of the original Cu pattern as it restructures into MOF. The concentration of in situ generated copper ions in the solution remained at ∼110 to 160 μM for standard reaction conditions and conditions without HHTP, suggesting that the presence of the linker likely does not compete with oxygen to promote extraction of copper metal into solution (Figure S23). The absence of oxygen reduced the concentration of in situ generated Cu ions in solution to 59 μM on average (Figure S23), such that only 25% of the copper that was originally on the cotton partitioned into solution during the reaction time (12 h). Taken together, these findings confirm that oxygen plays a key role in the transformation of Cu⁰ into in situ generated cationic copper species during the oxidative restructuring process.

Device Yields

Oxidative restructuring is capable of generating electrically conductive swatch-based devices across large surface areas of textiles. This synthetic method afforded high yields of Cu₃(HHTP)₂ MOF-coated cotton devices with >96% (n = 50). These devices were considered functional when two-point resistance readings had an average of approximately 2 MΩ across 1.5 cm devices and PXRD showed evidence for MOF growth. Cu₃(HHTP)₂ devices with resistances five times greater than the average of 2 MΩ were discarded (around 10 MΩ) in the calculation of the yield. The selected devices were assessed by chemiresistive sensing and detoxification of gases.

Chemical Detection of Gases

To demonstrate the synergistic effects of multifunctional 2D MOFs on porous textiles, we measured the performance of these materials in the context of chemiresistive detection. We focused on the detection of two representative gases NO and H₂S that play multifunctional roles as toxic gases^80,81 as well as gasotransmitters.^82,83 While Cu₃(HHTP)₂ MOFs in the composite with graphite either in a ball-milled blend⁶³ or on a shrinkable polymer film⁵⁶ have also been reported by our group for the detection of H₂S and NO, the responses in normalized conductance were approximately 10 times lower than the sensing response reported in this paper for both analytes (Figure 4). This paper provides the first report of a comprehensive investigation of the sensing response to H₂S and NO through spectroscopic analysis of the interactions between Cu₃(HHTP)₂ with these analytes.

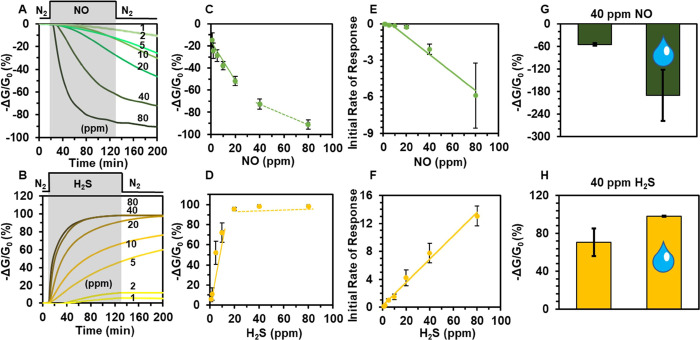

Figure 4.

Sensing performance of Cu₃(HHTP)₂ on cotton devices exposed to gaseous analytes. Representative sensing traces showing the change in conductance −ΔG/G₀(%) over time (min) upon exposure of devices to (A) NO and (B) H₂S ranging from 1 to 80 ppm diluted with N₂ at room temperature. The gray region represents the duration of exposure to the analyte, and the white region represents baseline and recovery in N₂. (C) Concentration dependence plot of sensing response of the Cu₃(HHTP)₂ MOF on cotton to NO (1–80 ppm) reveals a linear response from 1 to 40 ppm for NO (solid line y = −1.75x + 18.16 R² = 0.98) with saturation occurring after 40 ppm. (D) Concentration dependence plot of sensing response of the Cu₃(HHTP)₂ MOF on cotton to H₂S (1–80 ppm) reveals a linear response from 1 to 20 ppm for H₂S (solid line y = 7.65x + 0.899, R² = 0.93) with saturation occurring after 20 ppm. The initial rates of response −ΔG/G₀(%)/s, measured in first 2 min of exposure, as a function of concentration toward (E) NO 5–20 ppm (y = −0.0096x – 0.0693, R² = 0.99), NO 20–80 ppm (y = −0.0941x + 1.638, R² = 0.99), and (F) H₂S (y = 0.17x + 0.19, R² = 0.99). (G) Saturation sensor response at 40 ppm of NO in dry nitrogen (solid bar) and in the presence of 5000 ppm water (with water droplet). (H) Saturation sensor response at 40 ppm of H₂S in dry nitrogen (solid bar) and in the presence of 5000 ppm water (with a water droplet).

To achieve chemical detection, conductive textile swatches coated with the Cu₃(HHTP)₂ MOF (1.5 cm × 0.5 cm) were placed into an airtight custom Teflon enclosure equipped with gold-coated pins that formed electrical contacts to the flexible devices (Figure S24). Sensing was performed under a constant applied potential of 1.0 V across each device and through the measurement of the resulting current with a potentiostat in chronoamperometric mode. We delivered controlled doses of desired analytes to the enclosure using mass flow controllers by diluting the gaseous analytes (H₂S and NO) with N₂. Each gas at a specific concentration (80 ppm, 40 ppm, 20 ppm, 10 ppm, 5 ppm, 2 ppm, or 1 ppm) was delivered for 2 hours, followed by a recovery period of 2 hours with a N₂ stream. The devices with Cu₃(HHTP)₂ MOF exhibited a concentration-dependent response to H₂S and NO, as illustrated in Figure 4, with the normalized response (−ΔG/G₀).

Quantitative Assessment of Chemical Detection

NO and H₂S delivered at a concentration of 80 ppm exhibited dosimetric responses of −87 and 98% −ΔG/G₀, respectively (Figures 4A,B and S25). The dosimetric response revealed that the interaction of Cu₃(HHTP)₂ with NO irreversibly decreased the resistance of the devices, whereas exposure to H₂S irreversibly increased the resistance of the devices. The directionality of response to NO and H₂S at 80 ppm was consistent with previous studies of Cu₃(HHTP)₂ by our group,⁶³ but showed an increase by 2 orders of magnitude, potentially arising from favorable dispersion of Cu₃(HHTP)₂ on cotton. Concentration-dependent studies of analytes between 1 and 80 ppm showed linearity of −ΔG/G₀ response at 1–20 ppm NO and 1–10 ppm H₂S after ∼110 min exposure, with higher concentrations leading to saturation of devices (Figures 4C,D and S25). The overall percent response of the devices to H₂S and NO gave an experimentally determined limit of detection of 1 ppm (Figure S25). Compared to Ni₃(HHTP)₂ on cotton, the only other reported MOF-based textile device for chemiresistive detection of H₂S and NO, the overall % response was similar for both gases.¹²

While reaching the saturation point in a chemiresistive device may be time-consuming, the analysis of the initial rates of response (initial rate of response within 2 min) can offer a rapid method of analysis.⁸⁴⁻⁸⁶Figure 4E,F shows the initial rates of response (−ΔG/G₀/s) of Cu₃(HHTP)₂ fabric devices upon 2 min exposure to H₂S and NO. This approach provides a rapid strategy for concentration-dependent detection of gases. The plot in Figure 4E shows two distinct linear regions from 5–20 to 20–80 ppm, indicating two different processes; at lower concentrations, there is a low rate indicating an induction period in which an autocatalytic process is taking place. The slope of the linear regression line in Figure 4F represents the rates of response in the concentration range of 1–80 ppm H₂S, showing a linear correlation with concentration. The analysis of initial rates of response in the detection of H₂S occurs more rapidly compared to NO; the slope (−(ΔG/G₀)/[analyte]Δt) in Figure 4F is an order of magnitude higher than the rate of response to NO (Figure 4E). This observation indicated that the initial rate of response was dependent on the type of interaction of the analyte with the MOF (vide infra). The rate constants for chemiresistive gas sensing of NO and H₂S were determined to be 7.82 × 10^–5 and 1.25 × 10^–4 s^–1, respectively (Figure S26). Studies of user-to-user reproducibility showed that the saturation of two different Cu₃(HHTP)₂ on cotton devices with 40 ppm H₂S between two different users was indistinguishable (Figure S27). Cu⁰ on weigh paper did not respond to 80 ppm NO and H₂S in N₂, whereas Cu₃(HHTP)₂ on weigh paper did respond; this result confirmed that the Cu₃(HHTP)₂ MOF has an enhanced sensing response over Cu⁰ (Figure S28).

Chemiresistive Sensing of Gases in Humid Conditions and in Air

Encouraged by the sensing responses to NO and H₂S in N₂, we evaluated the ability of the devices to detect NO and H₂S in a humid environment (18% relative humidity, 5000 ppm H₂O) (Figure S29). The detection of NO in 18% relative humidity surpassed the detection of this analyte in dry conditions: an increase of response by 136% for 40 ppm (Figure 4G) and by 92% for 80 ppm. (Figure S30A). We attributed the increase in response to NO and H₂S in humid conditions to the stabilizing effects of Brønsted acid site interactions upon adsorption of these target analytes.^87,88 BET analysis of Cu₃(HHTP)₂ MOF bulk powder confirmed its excellent capacity for water uptake (0.35 g H₂O/g MOF) and a high specific surface area for water adsorption (881.31 ± 55.6 m²/g) (Figure S30C). These results for water uptake were comparable to a water harvesting COF material reported by Yaghi and coworkers.⁸⁹ To simulate NO detection in the presence of oxygen, we tested the sensing performance of Cu₃(HHTP)₂ on cotton to NO₂ in air at 40 ppm. The sensing performance of NO₂ at 40 ppm in air was 38% lower than the sensing performance of NO in N₂ conditions (Figure S31).

The detection of H₂S at 40 and 80 ppm in humid conditions (18% relative humidity, 5000 ppm H₂O) had a ∼30 to 40% increase in sensing performance when compared to sensing in a N₂ environment (Figures 4H and S30B). Taken together, these results indicate that Cu₃(HHTP)₂ on cotton exhibits excellent stability and retains its sensing performance in realistic environments (in the presence of humidity and air). However, the differences between the sensing response in N₂ and under ambient conditions suggest that chemiresistive devices made from this MOF will likely require appropriate calibration in the testing environment.

Stability and Regenerability of Chemiresistive Cu₃(HHTP)₂ on Cotton Devices

Retaining the function of chemical sensing is important for robust and re-usable wearable e-textiles. Maintaining full functionality in wearable devices after severe stresses such as extended wear, rigorous use, and washing of textiles is crucial for practical applicability. However, these performance features often remain difficult to achieve in wearable materials due to poor interfacial contact between the material and the textile or the inherent stability of the material. Thus, developing and testing materials that can retain full functionality such as sensing and detoxification is critical. Since the chemiresistive devices saturated their response after the exposure to H₂S and NO, we investigated conditions to restore the sensing function after previous exposure. We first assessed the regenerability of the Cu₃(HHTP)₂ on cotton by running a stream of dry nitrogen over the devices or washing the devices with water. After exposure to H₂S or NO at 80 ppm, the devices exhibited full saturation and limited recovery under a continuous stream of nitrogen. A washing step in water restored the normalized sensing response of the devices to NO and H₂S, within error compared to the fresh devices (Figure S32). This recovery of the devices upon washing with water was comparable to the previous observation by our group for textile sensors employing Ni₃(HHTP)₂ and Ni₃(HITP)₂ for the detection of H₂S and NO.¹² The recoverability after washing H₂S saturated MOF on cotton devices in water could be occurring because hydrogen sulfide and reduced sulfur species can undergo ionization in water to form soluble bisulfide or polysulfide anions.⁹⁰ ICP-MS analysis confirmed that sulfide species washed off of Cu₃(HHTP)₂ on cotton exposed to H₂S (Table S7). A possible explanation for the recovery of the MOF on cotton after NO exposure is the possibility of adsorbed NO or NO_x species reacting with oxygen in water to form nitrite or nitrate species, which would promote desorption.⁹¹ Colorimetric test strips revealed nitrate, in the concentration range of 10–25 ppm, washed off of NO-exposed Cu₃(HHTP)₂ on cotton in water (Figure S33).

After establishing the recovery of the sensing response by washing, we proceeded to challenge the MOF-based textile sensors using several physical and chemical tests to demonstrate the robust functional utility of the electronic textiles (Figure 5A). We chose harsh physical and chemical tests, such as heating at 120 °C for 10 min in air, heating at 120 °C for 96 h in N₂, abrading with a metal edge, laundering in detergent at 50 °C, ironing with steam for 60 s, and washing in 30% H₂O₂ for 1 min and diluted bleach for 30 min (Figures 5A and S34). Remarkably, all the devices maintained their resistance (Figure S35) and retained excellent normalized chemiresistive response to H₂S at 80 ppm, indistinguishable from fresh devices (Figures 5A and S34). Analysis by PXRD confirmed that the crystallinity on Cu₃(HHTP)₂ MOF of cotton was largely unaffected even after the harshest physical and chemical tests (Figure S36).

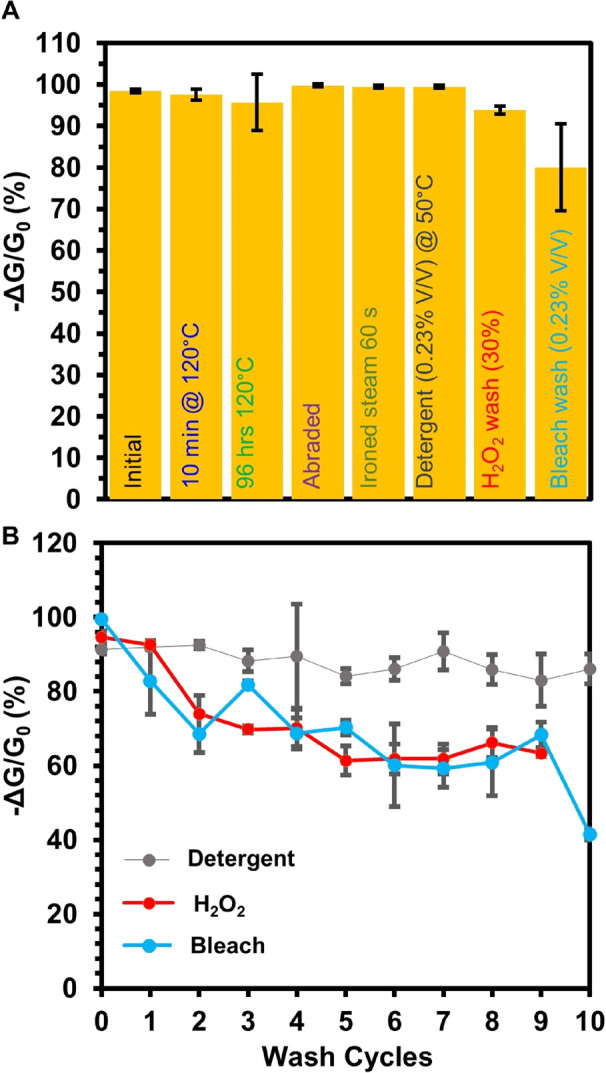

Figure 5.

(A) Bar graph representing normalized chemiresistive response of Cu₃(HHTP)₂ on cotton for the detection of H₂S at 80 ppm. The designated physical or chemical stresses were applied before the Cu₃(HHTP)₂ on cotton devices were exposed to 80 ppm H₂S. Each bar represents the normalized average sensing response after each respective physical or chemical stability test (n ≥ 3). The error bars represent the standard deviation from the mean based on three or more independent measurements. (B) Sensing performance of Cu₃(HHTP)₂ on cotton as chemiresistors when exposed to H₂S over 10 washing cycles in detergent (washing cycle = 30 min), hydrogen peroxide (H₂O₂) (washing cycle = 1 min), or 1% bleach in H₂O (washing cycle = 30 min). Error bars represent the standard deviation from the mean based on three or more independent measurements.

We further assessed the stability of this material by analyzing the potential for copper leaching from this material in various laundering conditions via ICP-MS analysis. Under typical laundering conditions of 1 h using DI water, detergent, 1% bleach, or 30% H₂O₂, we observed minimal to no leaching of copper ions from the MOF/textile composite (Figure S37A); the structure of the MOF on cotton retained structural integrity, except in 30% H₂O₂ (Figure S37B). While soaking in water and 1% bleach for up to 24 h still did not lead to observable leaching of copper ions, soaking in detergent and 30% H₂O₂ led to considerable loss of copper into solution after 6 h, followed by complete MOF degradation after 24 h in concentrated hydrogen peroxide (Figure S37A,C). We rationalize the difference in leaching by the fact that highly concentrated 30% H₂O₂ is a known leaching agent for copper in acidic conditions,⁹² while the low concentration of the bleach solution is insufficient to induce copper leaching. The detergent we used contained chelating agents, which could have contributed to the observed copper leaching.⁹³ Taken together, these results demonstrate exceptional stability of Cu₃(HHTP)₂ MOF on cotton under typical wear and laundering conditions, showing that this material degrades only under the most extreme harsh and prolonged chemical tests that should not be typically encountered in wearable devices.

Since the devices maintained their excellent sensing response to H₂S after exposure to chemical tests, we proceeded to investigate device stability over multiple washing cycles of repeated tests involving submerging the devices in 30% H₂O₂ for 1 min, diluted bleach for 30 min (0.23% v/v), or diluted detergent for 30 min (0.23% v/v). After completion of each washing step, we activated the textile sensors in H₂O for 1 h followed by acetone for 1 h. The chemiresistive devices maintained their function after multiple washing cycles (Figures 5B and S38–S40). Additional studies of analyte-specific reusability will be needed for practical implementation of MOF/textile composites in repeated chemical sensing.

Formation of Cu₃(HHTP)₂ on Cotton via Oxidative Restructuring Was more Robust and Uniform Compared to the Solvothermal Method

Comparison of the oxidative restructuring method with the previously reported solvothermal or SOFT method of forming Cu₃(HHTP)₂ on cotton with PXRD, SEM, and other analyses (Figure S41) revealed two distinct differences between the two methods. First, the deposition of Cu₃(HHTP)₂ on cotton led to the formation of conductive textiles (Table S8), while the growth of the same MOF on cotton using the solvothermal method did not impart measurable conductivity on the textile substrates (resistance > 40 MΩ). We attribute this difference to the dense packing, uniformity, and preferential orientation of crystallites of this MOF on cotton promoted by the oxidative restructuring method, in contrast to the solvothermal method (Figure S41). This result demonstrates that the oxidative restructuring method was advantageous for producing electronic textiles of Cu₃(HHTP)₂ MOF that could be employed for chemiresistive sensing. Second, oxidative restructuring produced more robust and uniform coatings compared to the solvothermal method. The optical image of Cu₃(HHTP)₂ MOF on cotton formed using the SOFT method displayed fraying at the edges of the swatch, possibly due to the acidity of the reaction (pH = 4.50), whereas Cu₃(HHTP)₂ MOF on cotton using the oxidative restructuring method did not display fraying possibly because the reaction conditions were not as acidic (pH = 5.7) (Figure S41B).

Micro-Breakthrough Experiments for the Filtration of H₂S Using Cu₃(HHTP)₂ MOFs

Micro-breakthrough experiments were conducted using the apparatus previously demonstrated by Yaghi and coworkers, which uses a rapid nanoporous adsorbent breakthrough testing apparatus.⁹⁴ In the apparatus, H₂S was mixed in a carrier gas stream and passed over a temperature-controlled sorbent bed composed of the bulk synthesized Cu₃(HHTP)₂. In all the breakthrough studies, the effluent stream of gas passed through a Fourier transform infrared detector to determine the drop in concentration of the adsorbent target.⁹⁴ The adsorption of H₂S using Cu₃(HHTP)₂ was classified through micro-breakthrough analysis (Figure S48). The uptake capacity of H₂S with Cu₃(HHTP)₂ bulk powder in dry conditions (RH < 1%), determined by dynamic loading calculation, was 4.6 mol/kg_MOF. The uptake capacity of H₂S in humid conditions (RH = 80%) decreased to 2.7 mol/kg_MOF. The uptake capacity of H₂S using other MOFs ranges from 0.05 to 5.0 mol/kg_MOF.^88,95,96 The uptake capacity of H₂S with Cu₃(HHTP)₂ is comparable to some benchmark MOF materials, MIL-53(Cr, Al, Fe) (3.02 mol kg^–1), Mg-CUK-1 MOF (3.10 mol/kg_MOF), and MOF-74(Ni) (4.98 mol/kg_MOF).^88,95,96 In contrast to previous results, this report constitutes the first characterization of a conductive MOF for H₂S uptake.

Spectroscopic Identification of Chemical Sensing and Detoxification Mechanisms of NO and H₂S on Cu₃(HHTP)₂ MOF Powder

Chemical sensing performed as part of this study indicated that the Cu₃(HHTP)₂ MOF has promise in removing toxic gases NO and H₂S from airstreams. In order to investigate the processes of chemical detection and potential for detoxification further, we used a suite of spectroscopic techniques including diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS), XPS, electron paramagnetic resonance (EPR), and PXRD to assess chemical and structural changes induced by material–analyte interactions with NO and H₂S.

Spectroscopic Assessment of the Interaction between NO_x and Cu₃(HHTP)₂

The first method we used to investigate the interaction between NO and Cu₃(HHTP)₂ was DRIFTS (Figure 6A). Difference spectra revealed three key spectroscopic features upon exposure to NO and subsequent purging. First, a broad band at 1651 cm^–1 was observed after NO exposure and was irreversible after purging with N₂.⁹⁷ This band was assigned to NO binding to Cu centers or NO reacting with organic protons of the framework to form R-NO nitroso compounds. Second, a series of bands (1585, 1261, 1039, 917, and 833 cm^–1) (Figure S54) indicated the presence of more oxidized nitrate species most likely adsorbed in a variety of bidentate configurations to Cu centers (Figure 6G).⁹⁸ Third, the background absorbance increased during exposure to NO and increased further when the sample was purged with N₂. Overlaid with the positive-going background absorbance was a series of negative going bands that aligned with bands observed for pristine Cu₃(HHTP)₂.⁶⁴ This background absorbance probably originated from electronic features of the material.⁶⁴

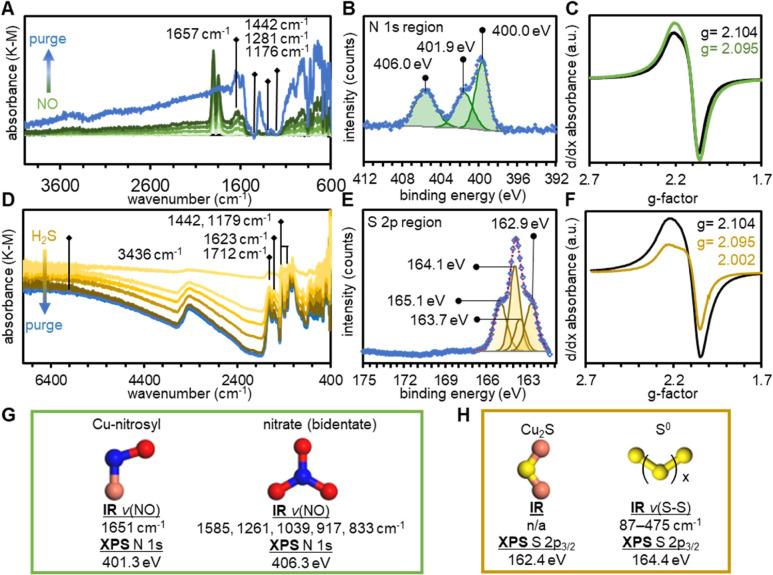

Figure 6.

Cu₃(HHTP)₂ exposed to 1% NO (balance N₂) at 25 °C for 9 min observed by (A) DRIFTS, (B) XPS, and (C) EPR (77 K) spectroscopies. Cu₃(HHTP)₂ exposed to 1% H₂S (balance N₂) at 25 °C for 20 min observed by (D) DRIFTS, (E) XPS, and (F) EPR (77 K) spectroscopies. (G) Expected FTIR and XPS spectral features of species resulting from the detoxification by adsorption or oxidation of NO over Cu₃(HHTP)₂. (H) Expected spectral features for FTIR and XPS of species resulting from the detoxification by adsorption or oxidation of H₂S over Cu₃(HHTP)₂.

XPS spectroscopy of Cu₃(HHTP)₂ after exposure to NO showed the presence of new N-containing oxides of nitrogen (NO_x), which was consistent with results obtained by DRIFTS. The presence of a low binding energy component (400.0 eV) could originate from Cu-NO species, as indicated from DRIFTS data (Figure 6B,G). However, the location of this component of the N 1s emission line was lower than those typically associated with M-NO and may therefore also originate from organic nitroso compounds such as HHTP-NO. In addition to new emission lines from captured or converted analyte, analysis of the Cu 2p_3/2 emission line showed that NO caused a redox shift of Cu within the framework from 69% Cu²⁺ in the pristine state (Figure S9) to 95 Cu²⁺ after exposure to NO (Figure S49E). X-band EPR spectroscopy agreed with the shift in redox balance within the framework observed by XPS (Figure 6C). Upon exposure to NO, the absorbance feature attributed to Cu²⁺ (d:⁹ S = 1/2) increased in intensity, suggesting an increase in the prevalence of Cu²⁺ species.

The large change in redox balance within the framework prompted us to investigate structural changes that may result from analyte exposure. PXRD diffractograms were gathered for bulk Cu₃(HHTP)₂ powder and for Cu₃(HHTP)₂ oxidatively restructured onto cotton (Figures S56 and S57). For Cu₃(HHTP)₂ in the bulk form, NO yielded minimal changes in the diffractogram (Figures S56 and S57). Exposure to NO₂ as the analyte caused large changes in diffraction peak intensity, with all diffraction peaks appearing to increase in intensity in comparison to the (100) peak. On cotton substrates, Cu₃(HHTP)₂ was more susceptible to changes in crystallinity due to analyte exposure. Exposure to 10,000 ppm of NO or NO₂ caused significant reduction in crystallinity for Cu₃(HHTP)₂, while also changing the diffraction peaks associated with cotton. At 40 ppm, neither analyte caused significant changes in the PXRD of Cu₃(HHTP)₂ on cotton (Figures S56 and S57).

Transformation and Capture of NO within Cu₃(HHTP)₂

DRIFTS and XPS identified the oxidation of NO to NO_x as the primary fate of NO interacting with Cu₃(HHTP)₂. Both methods also identified NO bound to Cu centers. We proposed that the formation of NO_x, such as NO₃^–, in our system proceeded according to a mechanism reminiscent of the biologically relevant pathway

1

The electrons consumed in the process of eq 1 could be delivered by the Cu⁺ to Cu²⁺ transformation evidenced by XPS and EPR spectroscopy, or by the oxidation of HHTP ligands within the framework. Oxidation of the framework that we observed spectroscopically was paired with a chemiresistive decrease in resistance of the MOF device. This response matches with the putative p-type semi-conductivity of polycrystalline powders of Cu₃(HHTP)₂ observed by us and others.^56,63,99,100

The oxidative or reductive transformation of NO to more easily captured or less toxic products has been deeply studied on supported catalysts, such as noble metals, metal oxides, and carbon-based surfaces. These reactions, such as the NO_x storage reduction using Pt-Pd catalysts, are typically carried out at temperatures of 250–300 °C to access NO conversion to NO₂ at more than 95% in flow.^101,102 Recently, mechanisms for the disproportionation of NO on Fe and Cu centers within insulating MOFs have been discovered by Dincă and coworkers.^103,104 This report demonstrated the disproportionation of NO at room temperature over a Cu center with the ability to thermally cycle the MOF-based system to complete the catalytic cycle.¹⁰⁴ Our report identifies an alternative reaction pathway for NO interactions with a MOF and is the first report on NO reactions at the surface of a conductive MOF. We identify products and reaction pathways that govern the ability of Cu₃(HHTP)₂ to detect and decontaminate NO in air. The distinct differences in reaction pathways observed for Cu₃(HHTP)₂ compared to other MOFs with isolated metal sites are most likely due to the ability of the studied system to participate in redox reactions (donate electrons to the reduction of O₂, eq 1) and adsorb O₂ needed for the NO → NO_x^– transformation.

Spectroscopic Features of the Interaction between H₂S and Cu₃(HHTP)₂

The irreversibility of the chemiresistive sensing experiments and the ability of Cu₃(HHTP)₂ to purify H₂S demonstrated by breakthrough studies lead us to hypothesize that strong and irreversible interactions were occurring between the probe gas and MOF substrate. To test this hypothesis, we used a series of in situ and ex situ spectroscopic techniques to investigate the interaction of Cu₃(HHTP)₂ powder samples with 1% H₂S (balance N₂). In situ DRIFTS spectra during a 30 min exposure to H₂S and subsequent purging with N₂ revealed three new spectral features (Figure 6D and Section 11.5.). First, the background absorbance of the material decreased across the broad range 6000–500 cm^–1 (Figure 6D). Second, a new broad and strong absorbance band was observed at 3436 cm^–1 (Figure 6D). The strong band at 3436 cm^–1 and the weaker band at 1623 cm^–1 were assigned to the stretching and bending modes of surface-adsorbed H₂O, respectively.⁶⁴ Third, a complex set of new absorbance bands was observed between 1800 and 800 cm^–1 with prominent features at 1712, 1623, 1442, 1176, and 994 cm^–1 (Figure 6D). The new band at 1712 cm^–1 was in the region typically assigned to carbonyl stretching vibrations. The similarity in energy and shape of this band to a band observed in pristine HHTP prompted us to assign this band to v(C=O) of HHTP in an oxidized state.⁶⁴ The absorbance band at 1442 cm^–1 and the less prominent features between 1400–1100 cm^–1 were similar to those we observed in our previous report of the host–guest interactions between NH₃ and Cu₃(HHTP)₂ and coincided well with bands observed for HHTP.⁶⁴ Their appearance in the difference spectra indicated that non-coordinated ligand vibrational modes were becoming more prominent with the introduction of H₂S. No definitive bands associated with S-containing species (e.g., H₂S, SO₂, SO₄^2–, etc.) could be identified from these spectra. The spectral features that were observed continued to increase in intensity over the course of the 28 min experiment. The changes in the difference spectra we observed after addition of H₂S were irreversible after H₂S was removed, indicating an irreversible transformation of the analyte and/or material.

Investigations of a similar exposure process by XPS showed that exposure to H₂S induced two prominent chemical changes to Cu₃(HHTP)₂. First, we observed the loss of the satellite shakeup lines in the Cu 2p region, compared to the spectra of pristine Cu₃(HHTP)₂. We attributed this change to the quantitative reduction of spectroscopically observable Cu²⁺ to either Cu⁺ or Cu⁰ or to the formation of CuS, which does not typically exhibit a satellite emission line.⁶⁴ Second, we observed a new emission line having four components and corresponding to two distinct chemical environments of S 2p (Figure S50).³² Based on their binding energies, we assigned the S 2p_3/2 emission line at 164.1 eV to elemental sulfur.¹⁰⁵ The line at 162.9 eV is 1.2 eV higher than expected for Cu₂S or CuS and has been assigned to a highly Cu-deficient nonstoichiometric sulfide (Figure 6H).^106−108 The expected S 2p_1/2 lines of the S_x and Cu_2-xS species accounted for the two remaining components (Figure 6E,H). EPR spectroscopy confirmed that H₂S caused the conversion of EPR-active Cu²⁺ to the EPR-silent species, presumably Cu⁺ (Figure 6F).^32,41 A new organic radical was also observed in the EPR spectrum after addition of H₂S. This new feature correlated well with the appearance of HHTP vibrational modes observed in DRIFTS experiments after exposure to H₂S.

PXRD analysis of bulk Cu₃(HHTP)₂ after exposure to 10,000 ppm H₂S revealed significant structural changes to the MOF. The structural changes to Cu₃(HHTP)₂ MOF were indicated by an increase in intensity of the (200) and (002) peaks relative to the intensity of the (100) diffraction peak. New diffraction peaks were observed at 33 and 48° 2θ, which could correspond to the (103) plane and (110) planes of copper sulfide, respectively (Figure S58A).¹⁰⁹ Cu₃(HHTP)₂ on cotton upon exposure to 10,000 ppm H₂S showed a reduction in crystallinity based on the significant broadening of peaks in the (100) and (200) diffraction peaks (Figure S58B) and a sharp peak at 22° 2θ similar to elemental sulfur. Analysis of the MOF on cotton by PXRD after saturation with H₂S at 40 ppm showed minimal structural changes (Figure S58C), indicating that the copper sulfide particles observed in XPS are too small or too poorly ordered to be observed in PXRD.

Transformation and Capture of H₂S within Cu₃(HHTP)₂

Spectroscopic investigations confirmed the strong and irreversible interaction between H₂S and Cu₃(HHTP)₂ inferred from chemiresistive sensing and breakthrough studies. The results of our DRIFTS investigations identify the generation of water as a byproduct of the reaction between H₂S and Cu₃(HHTP)₂. DRIFTS also revealed a set of vibrational modes that correlated well with the spectrum of pristine HHTP, suggesting that interactions between the analyte and substrate resulted in weaker metal bis(dioxolene) bonding and vibrational contributions increasingly representative of the individual components, namely, HHTP, compared to an extended framework.⁶⁴ This perturbation was consistent with EPR studies, which showed a new organic radical, presumably from HHTP. From DRIFTS evidence, we considered possible pathways of H₂S detoxification. First, we considered the surface chemistry of metal edge sites within Cu₃(HHTP)₂, which could include copper hydroxide capping units. A well-known reaction of copper hydroxides with H₂S yields water and copper sulfide,¹¹⁰ which could explain both the evolution of water and the liberation of HHTP from Cu bis(dioxolene) linkages

2

However, the presence of elemental sulfur species and sulfides of copper (Cu_yS_x) would not be observable by IR spectroscopy.¹¹¹ We, therefore, relied on XPS to reveal the oxidation state of captured sulfur species.¹¹⁰ The identification of S_x and lack of observed H₂S species in the S 2p region of the XPS spectra confirmed the capture and oxidation of H₂S on the MOF surface. Analysis also showed formation of Cu_yS_x species, which we further identified as Cu₂S using the Cu 2p region¹¹² and the magnitude of the observed Cu²⁺ (S = 1/2) absorbance by EPR.³² Although Cu_yS_x compounds typically do not exhibit shakeup emissions, instead behaving more like a metallic structure, the reduction of Cu²⁺ observed by EPR³² and the location of the S 2p_3/2 emission line both indicated the presence of Cu₂S¹¹³ rather than CuS.¹¹⁴ We propose that the active edges ({100} family of planes) of the MOF nanorods, which dominate the exposed surface area, decorated with terminal (HHTP)Cu(OH_x)_y edge sites can undergo a reaction with H₂S along the following pathway (eq 3)

3

Our proposed modes of interaction between H₂S and Cu₃(HHTP)₂ provide a context that accounts for the spectroscopic evidence for the observation of the formation of Cu₂S, H₂O, and S_x as byproducts of detoxification. The exact pathway for how the formation of these products leads to the dramatic loss of conductivity observed in chemiresistive experiments was difficult to pinpoint. We propose three possible mechanisms. First, the oxidation of H₂S and the reduction of Cu in the framework would reduce the concentration of charge carriers in the p-type semiconductor by adding electrons to the valence band of the MOF.⁶³ Second, the formation of Cu₂S would cause degradation of the Cu bis(dioxolene) linkages reducing covalency and electronic conductivity. Related to this mechanism, the loss of mixed valency (Cu²⁺/Cu⁺) in the framework when Cu is fully reduced could negatively impact the conductivity of the material. Third, S_x species (x = 2–8) are known to be electrically insulating and their formation on the surface of the MOFs could insulate crystallites from one another and reduce their ability to transfer charge.^115,116

MOFs have shown great promise for H₂S capture. Their high surface area and ability to provide well-dispersed metal sites are beneficial properties for adsorption-driven capture of H₂S.^88,117 However, rigorous spectroscopic methods have rarely been employed in the identification of adsorbed states of H₂S or examination of possible chemical reactions of H₂S. The high reactivity of H₂S and its propensity to be oxidized or disproportionate on surface^118,119 and its alacrity for formation of metal-sulfides necessitate a comprehensive set of spectroscopic tools to identify host–guest interactions and mechanisms of separation.¹²⁰ Our report presents a systematic investigation of the ability of Cu₃(HHTP)₂ to detect, detoxify, and filter H₂S.

Conclusions

This paper demonstrates a new mild, robust, and rapid method for integration of Cu₃(HHTP)₂ MOF onto flexible porous substrates by restructuring Cu⁰ features directly into MOFs capable of multifunctional performance as an e-textile sensor. This method possesses at least three innovative characteristics in the context of multifunctional e-textiles. First, oxidative restructuring advances the development of new integration strategies of MOFs (Cu₃(HHTP)₂) onto flexible substrates with synthetic ease and remarkable robustness. To date, there are few examples for the integration of 2D conductive MOFs to generate e-textiles, where the conductivity of the textile is imparted by the use of MOFs without conductive additives.^12,21,53 These existing examples possess limitations in terms of substrate choice and diversity of MOFs that our method overcomes. Second, e-textiles patterned with Cu₃(HHTP)₂ not only detect NO and H₂S down to 1 ppm, but also maintain their sensing response after washing as well as harsh physical and chemical stresses. This study is the first to report a comprehensive stability test that demonstrates the promising advantage of the Cu₃(HHTP)₂ MOF as an exceptionally robust chemical sensor, especially when integrated with textiles. Third, we detail the first example of a spectroscopic study that provides insight into the interactions between Cu₃(HHTP)₂ and NO, as well as H₂S, indicating that chemical transformations of both gases are promoted by the presence of MOF. Taken together, these innovative characteristics illustrate that the new method of textile integration of the Cu₃(HHTP)₂ MOF reported herein has unprecedented robustness and multifunctional performance characteristics in the context of e-textile sensors. This study focused on the sensing and uptake of H₂S and NO; however, the Cu₃(HHTP)₂ MOF has potential for the adsorption and detection of other gaseous threat agents due to the presence of undercoordinated copper sites.^121,122 Practical implementation of Cu₃(HHTP)₂ on textiles in simultaneous sensing and detoxification will require additional understanding of the selectivity and sensitivity of Cu₃(HHTP)₂ MOF with other toxic gases.

While oxidative restructuring enables facile, robust, and functional integration of Cu₃(HHTP)₂ MOF onto textiles under ambient conditions, this method currently has at least three limitations. First, the demonstration of oxidative restructuring of metals into MOF is currently limited to Cu⁰. However, this limitation may be overcome with further development by tailoring conditions for the controlled oxidation of other transition metals through the introduction of specific oxidants and solvent systems. Second, this method relies on the use of a thermal evaporator, which restricted the patterning of Cu metal to planar processing and may be limited in scalability. The use of electroless plating of copper metal in future applications could eliminate the need for specialized equipment, enhance scalability, and overcome limitations of planar processing.¹²³ Third, the demonstration in this study is currently limited to the HHTP ligand. Strategic optimization of reaction conditions to make them amenable to other ligands will be required for developing broad applicability of this method.

The systematic study of conductive MOFs on porous textiles in the context of chemical detection and spectroscopic assessment illustrates the multifunctional capabilities of this class of 2D conductive MOFs, especially when coupled with robust integration onto textiles. Our fundamental insight and mechanistic details on sensing properties, surface interactions, and demonstration of the exceptional chemical stability of the Cu₃(HHTP)₂ MOF pave the way for the design of next-generation personal protective systems, with MOFs providing not only filtration and detoxification, but also real-time chemical detection. Oxidative restructuring as a means of installing conductive MOF materials at the fiber level could become a platform technology for producing scalable multifunctional e-textiles, which will expand the scope of Moore’s Law for fibers.¹⁰

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/jacs.2c05510.

• Experimental details, scanning electron microscopy, energy-dispersive X-ray spectroscopy, X-ray photoelectron spectra, powder X-ray diffraction, chemiresistive sensing data, and diffuse reflectance infrared Fourier transform spectroscopy (PDF)
