Integrative single-cell analysis of cardiogenesis identifies developmental trajectories and non-coding mutations in congenital heart disease

Summary

To define the multi-cellular epigenomic and transcriptional landscape of cardiac cellular development, we generated single-cell chromatin accessibility maps of human fetal heart tissues. We identified eight major differentiation trajectories involving primary cardiac cell types, each associated with dynamic transcription factor (TF) activity signatures. We contrasted regulatory landscapes of iPSC-derived cardiac cell types and their in vivo counterparts, which enabled optimization of in vitro differentiation of epicardial cells. Further, we interpreted deep learning sequence models of cell-type resolved chromatin accessibility profiles to decipher underlying TF motif lexicons. De novo mutations predicted to affect chromatin accessibility in arterial endothelium were enriched in congenital heart disease (CHD) cases vs controls. In vitro studies in iPSCs validated the functional impact of identified variation on the predicted developmental cell types. This work thus defines the cell-type resolved cis-regulatory sequence determinants of heart development and identifies disruption of cell type-specific regulatory elements in CHD.

In Brief

Cell-type resolved regulatory atlas of the developing human heart reveals cellular differentiation trajectories in cardiogenesis and an involvement of non-coding genetic variantsin congenital heart diseases.

Graphical Abstract

Introduction

Organogenesis of the heart begins from two distinct mesodermal cellular progenitors that originate from the primary heart field (PHF) and secondary heart field (SHF). These two mesodermal lineages give rise to three subtypes of heart cells: myocardial, epicardial, and endocardial cells that later integrate with cells from the neural crest to form a functional human heart ^1–3. Prior studies that have profiled the single-cell transcriptome of the developing human heart have greatly enhanced our understanding of cell types and genes important for cardiogenesis ^4–6. However, a comprehensive resource of cell-type resolved cis and trans regulators of gene expression programs across differentiation trajectories in human cardiac development is lacking.

Congenital heart disease (CHD) is the most common form of developmental birth defect, affecting 1% of live childbirths every year ⁷. Approximately one-third of children with CHD have a linked genetic etiology accounting for the disorder. Only 8% of such cases are attributed to mutations in protein-coding gene regions ^8–11, suggesting that other causes, including disruption of gene regulation, substantially contribute to the etiology of CHD. The gaps in our understanding of transcriptional regulation of cardiogenesis and its dysregulation by non-coding CHD mutations raise several unresolved questions: 1) What are the dynamic cis-regulatory elements (cREs) and target genes that define cell types and cell state transitions in cardiogenesis? 2) What is the combinatorial lexicon of transcription factor (TF) motifs encoded in these dynamic cREs? 3) Are de novo non-coding CHD mutations enriched in cRE landscapes of specific fetal heart cell types? 4) What are the TF binding sites, cREs, and target genes impacted by putative causal non-coding CHD mutations? 5) Which in vitro differentiated cellular model systems demonstrably reproduce both the chromatin landscape of the in vivo developing human heart, thereby enabling functional validation of the regulatory impact of mutations?

To address these questions, we derived a joint atlas of integrated single-cell data by generating and combining single-cell assay of transposase accessible chromatin sequencing (scATAC-seq) experiments. These studies profiled the chromatin landscape of three primary human fetal heart samples spanning post-conception weeks (PCW) 6, 8 and 19 and deconvolved 20 distinct cell types spanning three progenitor lineages and neural crest cells. We trained convolutional neural networks (CNN) that predict cell-type resolved chromatin accessibility profiles from DNA sequence to decipher the dynamic motif lexicon of combinatorial TF binding at all cREs in each cell context ^12,13. We used the optimal transport algorithm to identify 8 major differentiation trajectories, defining the continuous progression of TF activities that promote the formation of primary cell types of the heart ¹⁴. Using this atlas of cell states representing in vivo cardiac development, we compared accessible chromatin landscapes of common in vitro cellular model systems comprising major cardiac cell types derived from iPSCs. Based on insights from the comparison of in vitro and in vivo epicardial cells, we optimized the differentiation protocol for iPSC-derived epicardial cells which produced in vitro differentiated epicardial cells with substantially greater epigenomic similarity to in vivo counterparts. Finally, we used our deep learning models to prioritize, non-coding mutations in CHD trios from the Pediatric Cardiac Genomics Consortium (PCGC) ¹⁵ based on their predicted impact on cell-type specific chromatin accessibility of putative cREs via disruption of TF binding sites. We used CRISPR-based enhancer knockout experiments with in vitro differentiated endothelial cells to validate the regulatory impact of a putative cell-type specific enhancer predicted to harbor a deleterious CHD mutation altering expression of JARID2, an important CHD gene. Together, these datasets and predictive models define the cis- and trans- regulatory landscape of the developing human heart across mid-gestation developmental trajectories, elucidate the fidelity of diverse iPSC-to-lineage in vitro differentiations, and provide a deep learning framework capable of specifically nominating non-coding de novo mutations in candidate cREs predicted to disrupt TF binding, chromatin state in CHD.

Results

Integrating single-cell ATAC and RNA sequencing data into a unified cell-type resolved regulatory atlas of the developing human heart

To capture chromatin dynamics in different cell populations throughout fetal heart development, we used the Chromium 10X platform to generate scATAC-seq data ¹⁶ from three primary human fetal heart samples at 6-, 8-, and 19-weeks post-conception (PCW) (Figure 1a). We obtained 30,426 high quality scATAC-seq cell barcodes post filtering and quality control (Figure S1, Table S1, Methods). We applied iterative latent semantic indexing (LSI) on accessible chromatin regions to map the cells from all three time points into a multidimensional principal component (PC) space ^17–19 and used the Leiden clustering algorithm to discover and optimize clusters of cells that potentially correspond to distinct cell-types ²⁰ (Figure 1b, 1c, Figure S1, Table S1, Methods). We deciphered each cluster’s likely cell-type identity based on chromatin-derived gene accessibility scores (GA-scores) of reference marker genes known to exhibit cell-type specific gene expression and identified 215,163 putative cREs as scATAC-seq peak regions over all cell types (Figure 1d,e,Figure S1, Table S1, Methods) ¹⁷.

Figure 1. A single-cell epigenomic atlas of the developing human heart.

(a) Schematic of gestational sample time (post-conception week, PCW) and genome-wide profiling methods represented in this study.

(b) Uniform Manifold Approximation and Projection (UMAP) of cells based on accessible chromatin regions (scATAC-seq). Cells are colored according to sample gestational time.

(c) UMAP of cells based on accessible chromatin regions (scATAC-seq). Cells are colored according to cell types identified.

(d) Single-cell gene accessibility scores (based on scATAC-seq) of TNNT2, PECAM1, MYH11, and DCN.

(e) Heatmap of z-scores of log₂(scATAC-seq read counts) in 215,163 cis-regulatory elements (cREs) across scATAC-seq cell-type clusters derived from (b). Representative genes with cluster-specific differential gene accessibility scores are shown to the right. Gene ontology enrichments indicate the statistically significant (adjusted p-value < 0.005, Gprofiler Fisher’s exact test) cellular processes for genes with differential gene accessibility scores associated with the clusters of cell-type specific cREs.

(f) UMAPs of scRNA-seq and scATAC-seq cells colored by cluster assignment in their respective data modality, and UMAP of scATAC-seq cells highlighted by complementary scRNA-seq clusters.

(g) Single-cell gene expression (scRNA-seq) of TNNT2, PECAM1, MYH11, and DCN.

(h) Genome tracks of cell-type resolved aggregate scATAC-seq data around the TNNT2, MYL2, TCF21, DCN/LUM and PECAM1 gene loci (left to right). The scale of the tracks (from left to right) range from 0–0.28, 0–0.31, 0–0.18, 0–0.14 and 0–0.2 respectively, in units of fold-enrichment relative to the total number of reads in TSSs per 10k. Highlights indicate the relevant cell type-specific putative enhancers in each gene locus.

To understand the correspondence between the chromatin and gene expression landscapes of these cell-types, we analyzed previously published scRNA-seq data from developmental time points that closely match those sampled in our scATAC-seq atlas ^4–6,21 (Figure 1f, Figure S2, Table S1). Cells from our annotated scATAC-seq atlas were then matched with their nearest neighbor cells in the scRNA-seq atlas using canonical correlation analysis (CCA) ²² and we observed highly concordant imputed gene expression of marker genes (Figure 1f,g & Figure S2d,e).

Next, we used our integrated atlas to examine the relationship between the expression of well-known lineage-specific marker genes and the chromatin dynamics of their putative cREs. For example, TNNT2, a well-known cardiomyocyte marker, exhibited the strongest accessibility at its promoter and putative distal enhancers, specifically in the three cardiomyocyte clusters (Figure 1h). The patterns of accessibility matched the specificity and relative levels of expression of TNNT2 in the same clusters (Figure S2c). In contrast, MYL2, a specific marker of vCMs, exhibited similar distal chromatin accessibility in the three myocardial lineage clusters, while the promoter was not accessible, and the gene was not expressed, in aCMs (Figure 1h, Figure S2c), indicating that accessibility of these distal elements may not be sufficient to drive its expression. In the epicardial cell lineage, we observed increasing chromatin accessibility around the DCN marker gene through the cardiac fibroblast cell lineage specification (Figure 1h) concordant with its gene expression dynamics (Figure 1g). We observed analogous dynamics for PECAM1 and TCF21 in the endocardial and epicardial lineages, respectively.

Deciphering cell-type resolved cis-regulatory sequence lexicons with deep learning models of base-resolution chromatin accessibility profiles

To decipher the cis-regulatory sequence lexicon of TF binding sites in accessible cREs in each cell-type, we trained BPNet convolutional neural networks to learn a mapping from 1 Kb DNA sequence windows around scATAC-seq peaks and background regions to the corresponding base-resolution, pseudo-bulk chromatin accessibility profiles ^12,13 (Figure 2a). We obtained high, stable Spearman correlation between total observed and predicted Tn5 insertion coverage as well as high concordance between observed and predicted profile shapes at base-resolution in heldout test chromosomes over five folds of a chromosome hold-out cross-validation scheme in all cell types (Figure 2b, Table S2) ¹³.

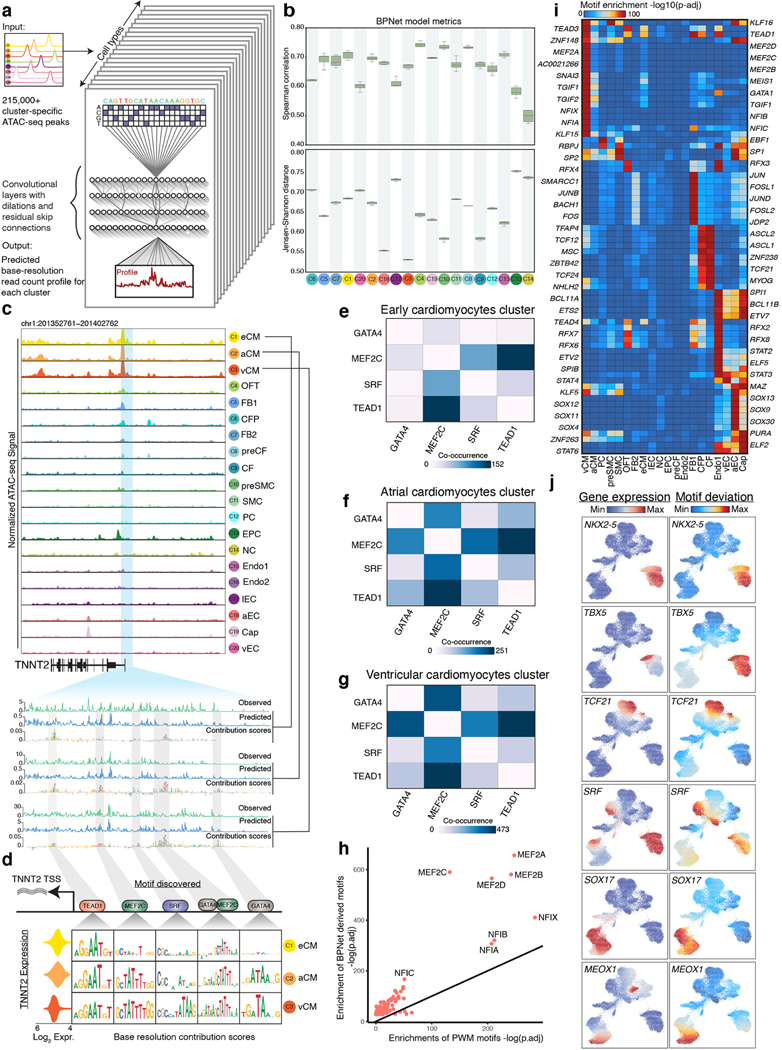

Figure 2. Cell-type resolved predictive transcription factor motif syntax derived from deep learning models of base-resolution scATAC-seq profiles.

(a) Schematic of the convolutional neural network (BPNet) trained to simultaneously predict base-resolution probability distribution of reads and total read counts of cell-type resolved pseudobulk scATAC-seq profiles over each 1-kb accessible peak region from 2-kb underlying DNA sequences.

(b) Performance evaluation of BPNet cluster-specific models, computed as the Spearman correlation between observed and predicted total counts (higher is better) across all peaks in each cluster (top) and mean Jenson-Shannon distance (lower is better) between the base-resolution observed and predicted profiles across all peaks in each cluster (bottom). Results are reported on test sets from a 5-fold cross-validation setup.

(c) Top panel shows the genome tracks of aggregate pseudobulk scATAC-seq around the TNNT2 locus for each of the cell-type clusters. The scale ranges from 0–0.34 in units of fold-enrichment relative to the total number of reads in TSSs per 10k. Bottom panel zooms into an accessible peak around the TNNT2 transcription start site and shows the observed (Obs) base-resolution scATAC-seq read count profiles from the early (eCM), atrial (aCM) and ventricular cardiomyocytes (vCM) clusters, the predicted (Pred) profiles from the BPNet models of each of the three cell types and the corresponding DeepLIFT contribution score profiles (height of each base in the sequence is proportional to its contribution score).

(d) Per-base DeepLIFT contribution scores of TEAD1, MEF2C, SRF, and GATA4 motif locations in the TNNT2 promoter from eCM, aCM and vCM (rows from top to bottom). Left-most column shows the distribution of scRNA-seq expression (in units of log₂(transcripts per 10K)) of TNNT2 across cells from each of the three clusters.

(e,f,g) Pairwise motif co-occurrence counts for TEAD1, MEF2C, SRF, and GATA4 motifs based on predicted active motifs across all accessible cREs in eCM, aCM and vCM respectively.

(h) Comparison of statistical significance of overlap enrichment (-log p-value, Wilcoxon rank-sum test) of BPNet model-derived predictive motif instances (y-axis) vs. position weight matrix (PWM) based motif instances (x-axis) in vCM accessible peaks regions. Predictive motif instances show higher significance of enrichments.

(i) Differential enrichments of BPNET model derived predictive motif instances of transcription factors (rows) in accessible peaks of different cell types (columns).

(j) (left column) scRNA-seq gene expression (in units of log₂(transcripts per 10K)) and (right column) scATAC-seq based ChromVAR motif deviation scores (in units of z-scores) for NKX2–5, TBX5, TCF21, SRF, SOX17 and MEOX1 shown in the scATAC-seq UMAP representations of all cells.

Next, we interrogated each cell-type specific BPNet model with the DeepLIFT algorithm to derive the quantitative contribution of every base-pair in each accessible cRE sequence to its predicted accessibility ^23,24. DeepLIFT scores from the eCM BPNet model highlighted short, contiguous stretches of bases with high contribution scores, reminiscent of TF binding motifs, in the accessible promoter of TNNT2, a gene critical for sarcomere contractile function of the heart ²⁵ (Figure 2c). Hence, to annotate predictive, active motif instances in all accessible cREs of each cell type we scanned their sequences for matches to a non-redundant compendium of known TF sequence motifs ²⁶ and restricting to matched instances with high DeepLIFT contribution scores or motif mutagenesis scores derived from each cell-type specific BPNet model. Although the sequence of a cRE is the same in all cell-types, its DeepLIFT contribution score profile can vary across cell types, reflecting cell-type specific prediction of motif activity by BPNet models of different cell types. For example, the TNNT2 promoter is highly and equally accessible in all 3 types of cardiomyocytes and drives expression of TNNT2 in all 3 cell types (Figure 2c). However, the DeepLIFT profiles derived from the eCM, aCM and vCM models for the same promoter sequence highlight distinct combinations of active TF motif instances predicted to regulate accessibility in the three cell types (Figure 2c,d). A TEAD1 motif is predicted to regulate promoter accessibility in all three cell-types. A nearby MEF2C motif is predicted to be uniquely active in aCM and vCM, while another upstream MEF2C motif active in eCM is predicted to be part of a GATA-MEF composite motif that is specifically active in aCM and vCM. A GATA motif, further upstream, is predicted to be active specifically in aCM and vCM. An SRF motif is predicted to be active only in vCM. The higher density of predicted active motifs in the TNNT2 promoter in aCM and vCM compared to eCM is concordant with the higher expression of TNNT2 in the former two cell types (Figure 2d). This combinatorial, cell-type specific motif syntax of these 4 TFs at the TNNT2 promoter is consistent with the genome-wide co-occurrence statistics of their active motifs across all cREs in eCM, aCM and vCM (Figure 2e,f,g, Table S2).

We also found that most TFs that are expected to be active in vCMs, including those belonging to the MEF2 family and NFI family showed significantly stronger enrichment (Benjamini-Hochberg (BH) adjusted hypergeometric test p-value < 1e-500 for MEF2 and < 1e-150 for NFI) of active motif instances relative to PWM motif instances in differential, cell-type specific vCM peaks (Figure 2h). Next, we estimated the enrichment of active motif instances of TFs in accessible cREs of each cell-type to identify the TF regulators of cell-type resolved chromatin accessibility landscapes (Figure 2i, Figure S3a). The cell type specificity of globally predictive TFs identified by the BPNet models was further corroborated by high concordance (Table S2) between TF activity scores (chromVAR ²⁷) and the expression of the TFs in the scRNA-seq data across developmental timepoints (Figure 2j). Our analyses thus provide a comprehensive resource of cell-type resolved TF lexicons and annotations of predictive TF sequence motifs in cRE landscapes of human fetal heart development.

Inferring dynamic regulatory control across major cellular differentiation trajectories in human cardiogenesis

Next, we sought to identify major developmental trajectories involving cell state transitions across fetal heart development based on single-cell chromatin dynamics. We used the optimal transport algorithm ¹⁴, previously developed to derive trajectories from scRNA-seq data, to identify the most parsimonious transitions in global chromatin accessibility between cells from PCW6 to PCW19 of fetal heart development (Figure 3a,b,c, Figure S3b,c,d, Table S3, Methods). Overall, we characterized 8 dominant trajectories for all the major cell types at PCW19 (Figure 3b,c, Figure S4). We then characterized genome-wide and locus-specific regulatory dynamics associated with cell state transitions across these trajectories. Below, we present representative case studies contrasting regulation of the development trajectories leading to SMC cell fate.

Figure 3. Identifying developmental trajectories in human fetal heart development.

(a) Schematic of the optimal transport method used to determine trajectories of cell state transitions using scATAC-seq gene scores of all the cell-types identified in Figure 1c.

(b) Cell state transition table of cell lineages identified in the major trajectories obtained through optimal transport. Rows correspond to the parent cell-types and columns correspond to the derivative cell types. The heatmap is colored by the fraction of parent cells identified to be ancestors of the derivative cells. (scale for transition table.: 0.01 to 0.30)

(c) UMAP of scATAC-seq cells highlighting the dominant trajectories identified using optimal transport. The cell-types correspond to those in Figure 1c.

(d) UMAPs of scATAC-seq cells in the smooth muscle cell (SMC) trajectory colored by the gestational sample time.

(e) Heatmap of scATAC-seq signal (z-score of log₂(reads per 10K)) of variable peaks identified in the SMC pseudotime trajectory. The gene ontology enrichments are calculated using the variable gene scores in the trajectory.

(f) Heatmaps showing z-score of ChromVAR motif deviation scores (left) and gene expression log₂(transcripts per 10K), also applicable for all gene expression values plotted in this figure) (right) of TFs with correlated variable activity in cells identified to be in the SMC trajectory, as ordered by pseudotime.

(g) Gene expression, promoter chromatin accessibility log₂(reads per 10K) +/− 500bp TSS and chromatin-derived gene accessibility score ((log₂(reads per 10K), applicable for all gene activity values in this figure) dynamics of the PDGFRB gene across pseudotime.

(h) Genome tracks of aggregate scATAC-seq data around the PDGFRB locus in OFT, preSMC and SMC clusters. cRE1, cRE2 and cRE3 are three representative cREs with dynamic motif activity further explored in (i) and (j). The ATAC signal range is 0–0.64 in units of fold-enrichment relative to the total number of reads in TSSs.

(i) Per-base contribution scores of motifs of HAND2, KLF6 and MEF2C in the 3 highlighted cREs in (h). Rows (top to bottom) are per-base contribution scores computed using BPNet models of OFT, preSMC, and SMC respectively. The columns (left to right) are the highlighted cREs from (h) that are active in OFT, preSMC, and SMC respectively.

(j) Distribution of scRNA-seq gene expression of HAND2, KLF6 and MEF2C TFs (columns) across cells from OFT, preSMC, and SMC clusters (rows).

(k) UMAPs of scATAC-seq cells in the venous endothelial cell (vEC) trajectory colored by the gestational sample time.

(l) Heatmap of z-scores of variable peaks identified in the vEC pseudotime trajectory, similar to (e)

(m) Heatmaps showing z-score motif activity (left) and expression (right) of TFs in the vEC trajectory, similar to (f).

(n) Gene expression, promoter chromatin accessibility and chromatin-derived gene accessibility score dynamics of the APLNR gene across pseudotime.

(o) Genome tracks of aggregate scATAC-seq data around the APLNR locus in Endo1, Cap and vEC clusters. cRE1, cRE2 and cRE3 similar to (h)

(p) Per-base contribution scores of motifs of GATA3, SOX17 and SP1 in the 3 highlighted cREs in (o), similar to (i)

(q) Distribution of scRNA-seq gene expression of GATA3, SOX17 and SP1 TFs (columns) across cells from Endo1, Cap, and vEC clusters (rows).

The SMC trajectory begins with the OFT cells at PCW6 that transition through an intermediate preSMC population in PCW8 to the SMCs at PCW19 ²⁸ (Figure 3d). A continuous cascade of dynamically accessible cREs defines cell state transitions across the trajectory (Figure 3e). These dynamic cREs are proximal to genes enriched for temporally relevant vascular developmental processes including cell migration, angiogenesis, and muscle contraction at early, intermediate, and late time points, respectively (Figure 3e). Expression dynamics of several key lineage specifying TFs including HAND2, SNAI2, KLF6 and MEF2C were strongly correlated with their chromatin-based motif activity (chromVAR deviation scores) across this trajectory (Figure 3f). Tracking the chromatin accessibility and gene expression of PDGFRB, one of the primary marker genes for the SMC population, we observed that initially, the promoter of PDGFRB accounts for the majority of accessibility at this locus while gene expression is low (Figure 3g) ^29,30. The increase in expression of PDGFRB at later time points is associated with increased accessibility of putative intronic enhancers. We then used predictive motif instances derived from cell-type specific BPNet models to associate inferred TF binding dynamics at specific cREs in the PDGFRB locus with TF expression changes across the three timepoints (Figure 3h,i).

BPNet models of OFT cells at the PCW6 time point revealed a predictive HAND2 binding motif (Figure 3i) in a downstream putative enhancer (cRE1 in Figure 3h) that is highly accessible at this early time point. The predicted TF motif dynamics of HAND2 at this enhancer was correlated with the expression dynamics of HAND2, which also peaks in PCW6 and decreases thereafter (Figure 3j). Another cRE (cRE2 in Figure 3h) proximal to the promoter of PDGFRB, which showed the highest accessibility in preSMC at the intermediate PCW8 time point, was predicted to be regulated by KLF6 whose motif showed high contribution scores specifically in the preSMC model (Figure 3i) and whose expression also peaked in preSMCs (Figure 3j). A distal cRE upstream of PDGFRB (cRE3 in Figure 3h) with highest accessibility in SMC in PCW19 was predicted to be regulated by MEF2C whose motif was specifically predictive in SMC BPNet model (Figure 3i) and whose expression peaked in SMC (Figure 3j). We observed similar dynamics for the vEC and other differentiation trajectories as well (Figure 3k–q, Figure S4). Our analysis framework thus provides a lens into the dynamic cis-regulatory code of developmental cellular trajectories in human cardiogenesis at basepair resolution.

A systematic comparison of regulatory landscapes of in vitro differentiated cardiac cell types and their in vivo counterparts in human fetal heart development

Several human induced pluripotent stem cell (iPSC) based in vitro cellular models have been developed, including cardiomyocyte (i-CM), endothelial (i-EC), epicardial (i-EPC), cardiac fibroblast (i-CF), and smooth muscle (i-SMC) cells ^31–34. Our comprehensive, integrated single-cell atlas of in vivo cardiac cell types from developing fetal hearts provides an opportunity to investigate the authenticity of these in vitro cellular models.

To address this question, we generated iPSC-derived i-CM, i-EC, i-EPC, i-CF, and i-SMC cells through directed differentiation employing established protocols ^31–34 (Figure 4a). We generated scATAC-seq data from all these in vitro differentiated iPSC lines at multiple time points using the Chromium (10X Genomics) platform (Figure S5a, Figure 4b, Table S4). Integration and clustering of cells from these scATAC-seq datasets broadly identified nine different cell types, including day 0 iPSC, day 2 mesodermal cells (i-Mes), day 5 i-CP, day 15 i-pCM, and day 30 i-CM, i-EPC, i-SMC, i-CF and i-EC. Once again, the scATAC-seq derived GA-scores of marker genes were found to be highly specific for the relevant cell types, confirming our cell type annotations ^35–37 (Figure 4c, Figure S5b, Table S4).

Figure 4: Characterization of in vitro iPSC-derived cardiac cell types.

(a) Schematic for derivation of human iPS cells, followed by their differentiation to major cardiac cell types and genome-wide scATAC-seq profiling.

(b) scATAC-seq UMAP of all in vitro iPSC-derived cells colored according to cell-types identified during differentiation (iPSC: induced pluripotent stem cells, iPSC-Mes: partially differentiated mesoderm-like cells, i-Mes: cardiac mesoderm cells, i-CP: cardiac progenitors, i-Mes-CP: partially differentiated cardiac progenitor-like cells, i-Mes-End: partially differentiated endoderm-like cells, i-MyoF-like: Myofibroblast-like cells, i-pCM: Day 15 iPSC-derived primitive cardiomyocytes, i-CM: Day 30 iPSC-derived mature cardiomyocytes, i-EC: iPSC-derived endothelial cells, i-EPC: iPSC-derived epicardial cells, i-SMC: iPSC-derived smooth muscle cells & i-CF: iPSC-derived cardiac fibroblast cells).

(c) Gene accessibility scores of marker genes NANOG, MESP1, ISL1, MYL2, MYL7, PECAM1, WT1, MYH11 and LUM projected on the scATAC-seq fetal heart UMAP.

(d) Projection of cells from scATAC-seq experiments profiling in vitro iPSC-derived cardiac cell types into the scATAC-seq fetal heart UMAP. Central panel in the 3×3 grid shows the scATAC-seq UMAP of all in vitro cardiac cell types. The other panels in the grid are projections of the i-CF (row 1, col 1), i-SMC (row 2, col 1), i-EPC (row 3, col 1), i-EC (row 3, col 2), i-CM (row 3, col 3) and i-pCM (row 2, col 3) cells into the scATAC-seq fetal heart UMAP. Panel in row 1, col 2 shows an scATAC-seq UMAP of 5 subclusters of cells from in vitro cardiac progenitors (i-CP1, i-CP2, i-CP3, i-CP4 and i-CP5) which are projected into the scATAC-seq fetal heart UMAP (row 1, col 3).

To evaluate the similarity between chromatin landscapes of the in vitro differentiated cell types and their in vivo counterparts, we first used the LSI method to project in vitro differentiated cells onto the scATAC-seq LSI subspace of all cells from the fetal heart samples ³⁸ (Figure 4d). Majority of Day-15 i-pCMs projected into the PCW6 in vivo myocardium-derived eCMs. At day-30, i-CMs projected primarily into the PCW8 in vivo vCMs and in vivo eCMs, while i-ECs projected across the in vivo Endo1, Endo2 and the PCW8 Cap cells. In contrast, in vitro epicardium-derived cells, including i-EPC, i-SMC and i-CF, were distributed across epicardial cell types of the fetal heart without a strong correspondence to their specific in vivo counterparts (EPC, SMC and CF). The day-5 in vitro i-CP cells were found to consist of five sub clusters that projected across all three distinct lineages of the fetal heart, the myocardium, epicardium and endocardium, supporting the likely origin of all major differentiated in vivo cardiac cell types from a precursor state similar to i-CPs (Figure 4d).

Looking at the differential accessible sites between the in vitro cells and their nearest neighbors, we observed that i-pCMs, i-CMs, and i-ECs had the least number of differential peaks relative to their matched in vivo cell types (Figure 5a). Consistent with the co-projection analysis, comparison of matched in vitro epicardial cell types (i-EPC, i-SMC and i-CF) and their in vivo counterparts revealed more differential peaks relative to corresponding comparisons of cardiomyocytes and endothelial cells. We next identified TF motifs enriched in the differentially accessible scATAC-seq peaks. AP-1 (JUN-FOS, JDP2) motifs were strongly enriched in peaks upregulated in most in vitro cell types, except cardiomyocytes (Figure 5b). In contrast, downregulated peaks in in vitro cell types were most enriched for SP, KLF and WT1 motifs (Figure 5c). Differentially upregulated peaks in i-pCMs and i-CMs were enriched for motifs of classical cardiac TFs including MEF2 and NKX, consistent with their role in cardiomyocyte differentiation ³⁹. Motifs of FOX and CEBP TF families, which are involved in epithelial-to-mesenchymal transition (EMT), were enriched in peaks upregulated in in vitro epicardium-derived cell types compared to their post-EMT in vivo counterparts ^40–43, suggesting that the in vitro epicardial cells may not represent a terminally differentiated state.

Figure 5: Characterization of in vitro iPSC-derived cardiac cell types.

(a) Comparison of number of significantly (log₂ fold-change > 1, FDR < 0.05 using two-sided t-test) upregulated (in blue) and downregulated (in grey) scATAC-seq peaks in in vitro cardiac cell types relative to nearest in vivo fetal heart cell types. An analogous differential comparison between in vivo ventricular cardiomyocytes from fetal heart and in vivo glutamatergic neurons from fetal brain is shown as a reference (right-most bar).

(b,c) Statistical significance (-log₁₀(adjusted p-value), BH-adjusted hypergeometric test) of overlap enrichment of TF motifs in upregulated (b) and downregulated (c) scATAC-seq peaks in in vitro cardiac types relative to nearest in vivo fetal heart cell types from panel (a).

(d) Immunofluorescence staining of WT1 in iPSC-derived epicardial cells (i-EPC) from the new epicardial differentiation protocol.

(e,f) Projection of i-EPC cells from scATAC-seq experiments profiling in vitro iPSC-derived cardiac cell types onto the scATAC-seq fetal heart UMAP. i-EPC cells from old differentiation protocol (e) and i-EPC cells from the new differentiation protocol (f).

(g) Comparison of cell type annotations of nearest neighbor in vivo cells to the old and new i-EPC differentiated cells.

(h,i) Comparison of the number of upregulated differential enhancers (h) and down regulated differential enhancers (i) in old and new i-EPC cells compared to the nearest neighbor in vivo cells. Reduction of differential enhancer number is consistent with greater fidelity of representation of epigenetic state, for in vitro versus in vivo cells. Decreased differential enhancer number suggests more faithful recapitulation of in vivo cellular phenotype.

Based on these observations, we sought to modulate the EMT pathways active in the Ipsc-derived epicardial cells, to improve the development of epicardial-derived cellular lineages. We generated a new differentiation protocol for iPSC-derived epicardial cell lineages to inhibit the EMT activity and promote more faithful recapitulation of in vivo differentiation processes. Primarily, this was accomplished by developing a new chemically defined medium that removed the unnecessary components in the commercial medium that might be responsible for the EMT signal (Methods). We observed robust immunofluorescence-based staining for the WT1 marker gene for the new i-EPC cells, confirming the cellular phenotype of these cells and validating our new medium (Figure 5d). We profiled single-cell chromatin accessibility of the new i-EPCs using the 10X Chromium platform. The new i-EPC cells projected more specifically into the in vivo epicardial cells of the fetal atlas compared to the original i-EPC cells (Figure 5e,f). The in vivo EPCs constituted 45% of the nearest in vivo cell neighbors of the new i-EPCs compared to only 13% for the original i-EPCs (Figure 5g). Spurious differentially accessible peaks upregulated in the new i-EPCs relative to the in vivo EPCs were 35% lower than those between the original i-EPCs and in vivo EPCs (Figure 5h,i). Downregulated differential peaks also showed a 45% reduction. These observations suggest that the new differentiation protocol produced i-EPCs whose chromatin landscapes are substantially more similar to those of in vivo epicardial cells in the fetal heart than those derived from the original protocol.

Prioritizing putative causal non-coding genetic variants, TFs, target genes and cell types in cardiovascular disorders and congenital heart diseases

Next, we investigated the utility of our regulatory atlas to decipher single nucleotide, de novo, non-coding mutations in congenital heart disease (CHD) patients. We compiled a set of 54,126 de novo, non-coding mutations from 763 CHD patients from the Pediatric Cardiac Genomics Consortium ¹⁵ (PCGC) (Table S5) and a control set of 110,055 de novo, non-coding mutations from healthy controls from the Simons Simplex Collection (n=1902 trios) (Table S5). We tested the accessible cRE landscapes of each of the in vivo fetal heart cell types for the enrichment of case versus control mutations. Surprisingly, all cell types lacked enrichment (Figure S6a), suggesting that overlapping mutations with cell-type resolved cREs is insufficient to prioritize potentially causal CHD mutations.

We next used the corresponding cell type specific BPNet models to estimate mutation impact scores of candidate case and control point mutations in accessible cREs as the log₂ fold-change in the cumulative predicted scATAC-seq profile probabilities for both alleles over a 100 bp window centered at each mutation (Figure 6a). We observed striking variation of the enrichment of mutations with high predicted mutation impact scores (> 95th percentile of the distribution of cell-type specific impact scores for CHD mutations in peaks) in cases versus controls across cell types (Figure 6b, Methods). Mutations prioritized in several cell types showed weak to moderate enrichments, including NC (OR = 1.016), lEC (OR = 1.033), EPC (OR = 1.042), Endo1/2 (OR = 1.106), vEC (OR = 1.092), vCM (OR = 1.119), Cap (OR = 1.205), OFT (OR = 1.22) and preSMC (OR = 1.307) (Figure 6b, Table S5). The strongest enrichment (Cases n = 47; Control n = 56; OR = 1.707; p-value = 0.008, Fisher’s Exact test) was obtained for mutations prioritized in arterial endothelial cells (aECs) (Figure 6b,c,Table S5), which is consistent with the contribution of the endothelial cellular lineage to multiple cardiac structures. These patterns of cell-type specific enrichment were robust to different measures of mutation impact scores and thresholds for defining high-impact mutations (Figure S6b–h).

Figure 6: Prioritizing non-coding CHD mutations using deep learning models of scATAC-seq profiles from fetal heart cell types.

(a) Schematic of mutation prioritization pipeline that uses cell-type specific BPNet models to predict scATAC-seq profiles of CHD mutation analysis.

(b) Enrichment (log2(OR), Fisher’s Exact Test) of prioritized mutations from each cell-type specific BPNet model in CHD cases vs. controls plotted on the scATAC-seq UMAP of all fetal heart cells.

(c) Enrichment of mutations in CHD cases vs. controls prioritized using different methods. Mutations prioritized by BPNet models trained on arterial endothelial (aEC) scATAC-seq profiles are enriched in cases vs. controls (OR = 1.707, p-value = 0.008, Fisher’s exact test).

(d) Enrichment of mutations prioritized by aEC BPNet model in cases vs. controls (grey bar) compared to enrichment of mutations prioritized by aEC BPNet model proximal to CHD associated genes (blue bar) in cases vs. controls.

(e,f,g) Case studies of three prioritized de novo CHD mutations in endothelial cREs in the (e) FOLH1, (f) PIP5K1C, and (g) JARID2 gene loci respectively. Top-most panel shows contribution scores derived from cell-type specific BPNet models (aEC for (e,f) and Cap for (g)) of each nucleotide in a 100 bp sequence window containing each allele of the mutation. The changes in contribution scores highlight disruption of active TF motifs (ELK/ETV motifs for (e,f) and SOX motif for (g)). The panel below shows corresponding predicted base-resolution scATAC-seq count profiles in a 1 Kb window containing reference (blue) and alternate (red) allele of the mutation (the red tracks for the alternate alleles are inverted along the x-axis). These tracks highlight local disruption of predicted scATAC-seq profiles by the mutations. The last panel shows observed cell-type resolved pseudobulk scATAC-seq coverage profiles for all cell types at each locus. Scale of tracks is 2.0–6.0 (FOLH1), 2.0–20 (PIP5K1C) and 2.0–10.0 (JARID2) in units of Tn5 insertion counts observed in each cell type.

In contrast, mutation impact scores derived from BPNet models trained on pseudobulk scATAC-seq profiles agglomerated over all fetal heart cell types (OR = 1.01) and HeartENN ¹⁵ trained on a large compendium of bulk chromatin data, did not enrich for CHD mutations, indicating that cell-type specificity of mutation impact scores is critical for prioritizing de novo CHD mutations (Figure 6c, Figure S6i). We further examined whether high-impact mutations prioritized by BPNet in aECs occurred near genes previously associated with CHD based on genetic studies in human cohorts or mouse models obtained from Richter, et al. ¹⁵ (744 total CHD-associated genes). We observed a 3-fold enrichment (p-value = 0.0486, Fisher’s Exact test) of predicted high-impact aEC mutations proximal to previously implicated CHD genes in cases (n = 7) compared to controls (n = 4) (Figure 6d).

Next, we performed deeper investigations of the causal chain of TF binding sites, cREs and target genes potentially affected by a subset of high-impact CHD mutations prioritized in aECs that are in close proximity (< 200 bp) to summits of high coverage aEC scATAC-seq peaks (Table S5). We used the active motif annotations derived from the cell-type specific BPNet models and the corresponding allele-specific base-resolution contribution scores of cRE sequences harboring these mutations to infer potentially disrupted TF binding sites (Figure 6e,f,g). A prioritized G-to-A de novo mutation was predicted to ablate an ELK/ETV TF motif in a cRE that is exclusively accessible in endothelial cells (aEC, Cap, vEC and lEC) and ~25 Kb upstream of a folate hydrolase gene FOLH1. FOLH1 is expressed in endothelial cells (Figure S6j) and has been associated with loss of normal structural endothelial cell integrity ^44,45 (Figure 6e). Another G-to-A mutation was predicted to disrupt an ELK/ETV TF motif in an endothelial cRE in the intron of the PIP5K1C gene, an important developmental TF strongly expressed in endothelial cells (Figure S6k) and implicated in cardinal vein and right ventricular development and CHD ^15,44,46 (Figure 6f). Interestingly, several other prioritized mutations were also predicted to disrupt ELK/ETV binding sites in accessible aEC cREs proximal to the MGAT1, TIMP3, TBX3 and NEK3 genes (Table S5), all of which have been previously associated with CHD or cardiovascular defects in human genetic studies or mouse models ^{15,44,47–50}. We also found a G-to-C mutation in an accessible cRE distal to the JARID2 gene predicted to disrupt a SOX TF motif in aEC and Cap cells (Figure 6g). JARID2 is an important endothelial TF (Figure S6l) during early heart development, and coding mutations in JARID2 have been implicated in CHD by previous studies, especially for tetralogy of Fallot ^51–54.

We used CRISPR/Cas9 to delete 352 bp around the JARID2 mutation in iPSCs, selected single clones with bi-allelic deletions of the targeted locus, differentiated these clones into endothelial cells and measured expression of JARID2 (Figure 7a, Figure S6m). We observed a significant decrease (1.3-fold, p-value < 0.001, two-sided t-test) of JARID2 expression (Figure 7b) in edited iPSC-derived ECs compared to isogenic controls, thereby verifying transcriptional regulation of JARID2 by this cRE in the nominated cell type. To further characterize the phenotypic impact of knocking out of this JARID2 cRE, we compared wild type (Figure 7c) and JARID2 cRE KO (Figure 7d) iPSC-derived endothelial cells (i-ECs) for their ability to undergo angiogenesis (tube formation) in an in vitro assay. We observed a significant depletion of tubes in the cRE KO cells compared to the wild-type isogenic cells (Figure 7e). We also assayed the allelic impact of the prioritized G->C point mutation on transcriptional activity in a luciferase reporter plasmid in i-ECs by cloning the mutated and wildtype 500-bp sequence of the JARID2 cRE and measuring their luciferase signal. We observed a significant (1.3-fold, p-value < 0.004, two-sided t-test) decrease in the mutant transcriptional reporter activity compared to the isogenic control promoter, further confirming transcriptional disruption by the point mutation (Figure 7f). In principle, the impact of such non-coding mutations on the expression of critical transcription factors could cause significant downstream cascades of transcriptional dysregulation that in turn affect cellular phenotypes leading to CHD. Our analysis framework thus provides a promising avenue to prioritize putative causal, de novo non-coding CHD mutations, their putative target TF binding sites and genes as well as the relevant cell types within the developmental window.

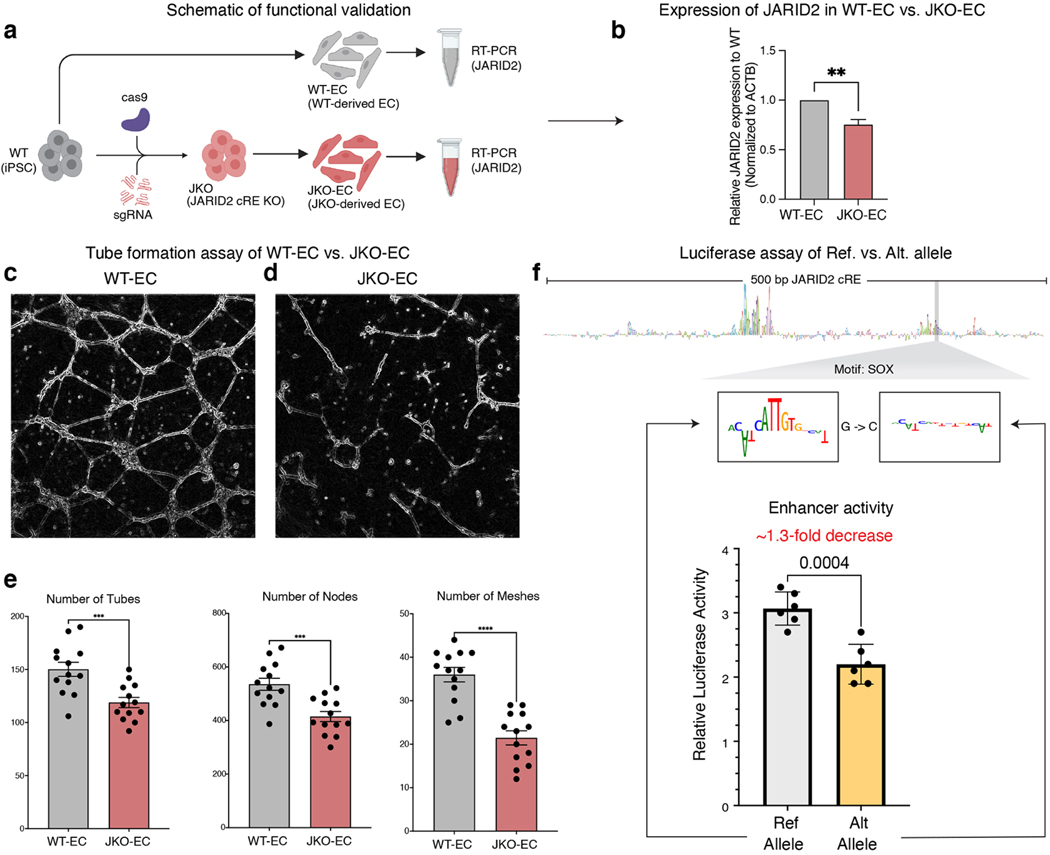

Figure 7: Functional validation of the prioritized mutation in JARID2 cRE.

(a) Schematic of in vitro differentiation of iPSCs to EC lineage, and comparison of JARID2 expression in iPSC-derived EC with and without CRISPR-Cas9 deletion of cRE containing prioritized CHD mutation shown in Figure 6g.

(b) CRISPR-Cas9 deletion of cRE containing the prioritized CHD mutation from Figure 6g shows significant decrease (**p < 0.001, two-sided t test) in expression of JARID2 gene expression in knockout vs. wild-type iPSC-derived ECs.

(c) Tube formation assay of wild type EC.

(d) Tube formation assay of JARID2 enhancer knockout cells. KO EC have severe depletion of tubes in the angiogenesis assay, as assessed by quantification of number of tubes, nodes, and meshes.

(e) (left to right). Comparison of number of tubes, nodes and meshes of tube formation between WT-EC (grey) and enhancer knockout (red).

(f) Luciferase reporter activity of wild type and mutant variants for JARID2 cRE (G->C) mutation in iPSC derived endothelial cells. The mutant construct shows a significant decrease (**p < 0.004, two-sided t test) in luciferase activity of the construct with the prioritized mutation vs. wild-type sequence in iPSC-derived ECs.

Discussion

In this study, we present a resource elucidating regulatory dynamics of human cardiogenesis at single-cell resolution. By generating scATAC-seq experiments in fetal hearts at early and mid-gestational developmental timepoints, we reveal the coordinated landscapes of dynamic cREs and genes that define major cell types, lineages and differentiation trajectories in the developing human heart. By training and interpreting deep learning models, we were able to decipher the cell-type specific sequence syntax of active TF binding sites. By coupling these dynamic TF motif activity maps with TF expression across the cell types, we defined putative trans-factors that bind to TF motifs encoded in specific cREs and orchestrate dynamic gene regulatory programs that define differentiation trajectories of the major cardiac cell types.

We identify several previously characterized TFs in mice that are important for cell fate determination of the terminally differentiated cell types. For example, we identified Sox17 to be a TF with predicted dynamic binding in the late capillary (Figure S4k) and mid venous (Figure 3m) differentiation trajectory in open chromatin peaks near APLNR (Figure 3p). Consistent with these findings, Sox17 knockout in mice have been shown to retard the differentiation of endocardial cells due to the downregulation of the NOTCH signaling pathway and promote defective heart development ⁵⁵. We also nominate putative regulatory TFs. For example, we observe SOX18 expression and chromatin activity in the mid to late temporal regulation of arterial endothelial cells. This activity pattern is consistent with other data implicating this factor, along with SOX17, in regulating vascular endothelium development in mouse retina ⁵⁶ (Figure S4n) and controlling the expression of MEOX2 ⁵⁷ and CLDN5 -- downstream master regulators of arterial development ⁵⁸ (Figure S4k). We also identify other TFs that exhibit strong chromatin activity changes along developmental lineage trajectories (Figure 3f,m, Figure S4), implicating these factors as potentially important for lineage specification.

We observed that the EMT program drives substantial differences in vitro compared to in vivo epicardial-derived lineages. Based on this observation, we successfully optimized the differentiation protocol for iPSC-derived epicardial cells to diminish EMT, which resulted in in vitro differentiated epicardial cells with substantially greater epigenomic similarity to their in vivo counterparts. This case study serves as proof of principle that single cell molecular “benchmarking” against in vivo derived data can serve as a useful computational tool for optimizing in vitro differentiation protocols.

Finally, by using the deep learning models, we predict the impact of de novo non-coding mutations on cell-type specific chromatin accessibility profiles and infer the active TF binding sites disrupted by high impact mutations. We also identify ranking of cell types whose cREs are enriched for prioritized CHD mutations. Our CRISPR/Cas9 luciferase and angiogenesis experiments in iECs showed the impact of ablating an endothelial lineage-specific enhancer harboring a predicted high impact de novo CHD mutation related to JARID2, a key CHD gene. These data provide evidence that prioritized cRE mutations likely impact enhancers with critical developmental functions that are relevant for CHD. Importantly, we show that overlapping mutations with cell-type resolved cRE maps of fetal heart cell types is not sufficient to enrich CHD mutations over controls unless augmented by mutation impact scores from our cell-type specific deep learning models, highlighting the utility of the single cell atlas and basepair neural network models.

Limitations of the Study

While most developmental trajectories exhibited no substantial “gaps” in cell density, obtaining samples both earlier and later in development might allow us to more fully populate the extremes of these trajectories, extending our understanding of these developmental paradigms. Second, our analysis of regulatory landscapes has largely focused on activators, and not on repressors that are more challenging to nominate using correlation-based analysis. Third, we restrict our prioritization of de novo CHD mutations to those that fall in the immediate vicinity of observed scATAC-seq peaks in our fetal heart atlas and are likely to disrupt and decrease accessibility. While this strategy reduces the likelihood of false positives, it does bias our prioritization against mutations that might result in gain of accessibility. The reduced sensitivity of peak identification from scATAC-seq profiles in some rare cell types (e.g. neural crest cells) with sparse coverage may also result in a greater false negative rate and reduced enrichments for these cell types. Our study is restricted to point mutations and our chromatin-centric approach cannot predict functional impact of non-coding mutations via other key regulatory mechanisms (e.g. splicing, structural variants). Finally, while we have directly validated the impact of one candidate enhancer harboring a specific de novo CHD mutation toward expression of its predicted target gene and on downstream angiogenesis-related phenotypes, more extensive computational and experimental validation of the gene expression and phenotypic impact of prioritized mutations would further dissect the validation rate of the model.

STAR METHODS

RESOURCE AVAILABILITY

Lead contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contact, Thomas Quertermous (tomq1@stanford.edu).

Materials availability

This study did not generate unique reagents.

Data and code availability

• Aligned fragment files from single-cell chromatin assays are deposited in the Gene Expression Omnibus database with the SuperSeries reference number GSE181346. The cell by gene accessibility scores matrices, along with cluster 5’ insertion bigWig tracks for the human heart samples are deposited to UCSC cell browser portal under reference url https://cardiogenesis-atac.cells.ucsc.edu to enable visualization of cell markers and genes. Reanalyzed scRNA Seurat objects are deposited to https://doi.org/10.5281/zenodo.7063224. The trained BPNet model weights are deposited to https://doi.org/10.5281/zenodo.6789181. Interactive HiGlass browser sessions with cell-type resolved tracks for measured base-resolution scATAC-seq coverage profiles and predicted base-resolution scATAC-seq coverage profiles from BPNet models as well as model-derived nucleotide-resolution contribution scores in peak regions could be found at: https://resgen.io/kundaje-lab/sundaram-2022/views/cardiogenesis.

• Code used for single cell analysis, training BPNet models and results for all figures can be found at: https://github.com/kundajelab/Cardiogenesis_Repo.

• Any additional information required to reanalyze the data reported in this paper is available from the Lead Contact upon request.

EXPERIMENTAL MODEL AND SUBJECT DETAILS

Patient recruitment

Human subjects were enrolled in the study with informed consent approved by the Stanford Institutional Review Board and Stem Cell Research Oversight Committee. Human fetal heart tissues (day-42, day-56, and day-133 post-conception) were obtained from de-identified aborted fetuses in collaboration with the Stanford Family Planning Research Team, Department of Obstetrics and Gynecology, Division of Family Planning Services and Research, Stanford University School of Medicine. Human iPSCs were obtained from the Stanford CVI iPSC Biobank.

METHOD DETAILS

Experimental methods

Generation and culture of human induced pluripotent stem cells

Peripheral blood mononuclear cells (PBMCs) were reprogrammed to hiPSCs using the CytoTune^™-iPS 2.0 Sendai Reprogramming Kit (Thermo Fisher Scientific) according to the manufacturer’s instructions with modifications as previously described ⁵⁹. Stem cell-like colonies were manually picked about two weeks post-transduction and expanded in E8 stem cell media (Life Technologies). All iPSCs used for the subsequent studies were within passages 22 to 30. The genome integrity was assessed by a single nucleotide polymorphism-based karyotyping assay (Illumina, HumanOmniExpress-24 v1.1). The iPSCs were maintained in a defined E8 medium (Life Technologies) on cell culture plates coated with ESC-qualified Matrigel (BD Biosciences) in a hypoxic environment (8% O₂, 5% CO₂) at 37^oC. For routine passaging, iPSCs were dissociated with Gentle Cell Dissociation Reagent (StemCell Technologies) and cultured on with E8 medium supplemented with 5 μM Y-27632 (SelleckChem). The iPSCs were tested to be mycoplasma negative using the Mycoalert Mycoplasma testing kits (LT07–318, Lonza).

Cardiomyocyte differentiation

Cardiomyocytes were differentiated using a monolayer method as previously described ⁵⁹. The iPSCs were seeded in 6-wells at a density of 1.2 × 10⁵ cells per well and grown for four days prior to differentiation. Differentiation was initiated by replacing the E8 media with RPMI supplemented with B27 without insulin (A1895601, Life Technologies) and 6 μM CHIR-99021 (CT99021, Selleckchem). Two days later the media was replaced with RPMI supplemented with B27 without insulin. Cultures were then treated with 3 μM IWR-1 (I0161, Sigma) in RPMI supplemented with B27 without insulin for two days. The cultures were then maintained in RPMI with B27 with insulin (17504–044, Life Technologies) and glucose starved for three days (using RPMI minus glucose). After glucose starvation, iPSC-CMs were maintained in RPMI with B27. Cells were collected at specific time points during differentiation, day 0 (i-PSC), day 2 (i-Mes), day 5 (i-CP), day 15 (ipCM), and day 30 (i-CM), The cells from three independent differentiation batches for each time point were collected and pooled for scATAC analysis.

Endothelial cell differentiation

The iPSCs were cultured as described above until reaching 80% confluence. The medium was switched to RPMI-B27 without insulin (Life Technologies) with 6 μM CHIR99021 for 2 days and then changed to 2 μM CHIR99021 for another 2 days. During differentiation, from days 4 to 12, the medium was changed to EGM2 (Lonza) supplemented with vascular endothelial growth factor (VEGF) (50 ng/ml) (PeproTech), bone morphogenetic protein 4 (BMP4) (20 ng/ml), and fibroblast growth factor 2 (FGF2) (20 ng/ml) (PeproTech). On day 12, cells were dissociated using TrypLE for 5 min and sorted using CD144-conjugated magnetic microbeads (Miltenyi Biotec) according to the manufacturer’s instructions. CD144-positive cells were seeded on 0.2% gelatin-coated plates and maintained in EGM2 medium supplemented with 10 μM transforming growth factor β (TGFβ) inhibitor (SB431542). (Selleckchem). After passage 2, iPSC-ECs were cultured in EGM2. The iPSC-ECs were analyzed at passage 3 post differentiation.

Epicardial cell differentiation (old protocol)

EPCs were differentiated using a method as previously described (Bao et al. 2017). The iPSCs were seeded in 6-wells at a density of 1.2 × 10⁵ cells per well and grown for four days prior to differentiation. Differentiation was initiated by replacing the E8 media with RPMI supplemented with B27 without insulin (A1895601, Life Technologies) and 6 μM CHIR-99021 (CT99021, Selleckchem). Two days later the media was replaced with RPMI supplemented with B27 without insulin. Cultures were then treated with 5 μM IWR-1 (I0161, Sigma) in RPMI supplemented with B27 without insulin for two days. On day 5, human induced pluripotent stem cell-derived cardiac progenitor cells (iPSC-CPCs) were re-plated at a density of 20,000 cells/cm2 in advanced DMEM medium (12634028, Gibco^®, Life Technologies). On day 5 to day 8, cells were treated with 5 μM of CHIR99021 and 2 μM of retinoic acid (R2625, Sigma-Aldrich) for 3 days, and recovered in advanced DMEM for 4 days.

Epicardial cell differentiation (new protocol)

The iPSC-derived epicardial cells were differentiated in a chemically defined medium (CDM), which is composed of 50% IMDM, 50% Ham’s F-12 Nutrient Mix, 1% chemically defined lipid concentrate, 2 mM Glutamax, 1 mg/ml PVA, 15 μg/ml transferrin, and 450 μM monothioglycerol. When hiPSCs reached ~80% confluency they were dissociated with 1 ml of Accutase (Sigma) and replated a density of 1.5 ×10⁴ cells/cm² in 6-well plates and cultured in iPS-Brew medium (Miltenyi Biotech) supplemented with 10 μM Y27632. The next day (day 1), each well was washed with D-PBS, and epicardial cells differentiation was initiated by adding the mid-primitive streak induction medium (consisting of 10 ng/ml Activin A, 6 μM CHIR99021, 50 ng/ml BMP4, 20 ng/ml FGF2, and 2 μM LY294002 in CDM). On day 2, each well was refreshed with the lateral plate mesoderm induction medium (consisting of 1 μM A83–01, 30 ng/ml BMP4, and 1 μM C59 in CDM). On days 3–4, each well was refreshed with the splanchnic mesoderm induction medium (consisting of 1 μM A83–01, 30 ng/ml BMP4, 1 μM C59, 20 ng/ml FGF2, and 2 μM retinoic acid in CDM). On days 5–8, the media was refreshed with the septum transversum induction medium (consisting of 2 μM retinoic acid and 40 ng/ml BMP4 in CDM). On day 9, cells were dissociated using Accutase and sparsely seeded (10⁴ cells/cm²) on gelatin-coated 6-well plates in the proepicardium induction medium (consisting of 100 μg/ml ascorbic acid, 2 μM of retinoic acid, and 0.7 μg/ml insulin in CDM) for 2 days without medium change. Starting at day 11, each well was refreshed every other day with the epicardial cell induction/maintenance medium (consisting of 100 μg/ml ascorbic acid, 10 μM SB431542, and 0.7 μg/ml insulin in CDM). The iPSC-derived epicardial cells can preserve their cell type-specific markers (e.g., TBX18, WT1, and TCF21) for at least 18 passages in the epicardial cell induction/maintenance medium.

Cardiac fibroblast differentiation

To generate cardiac-specific fibroblasts, hiPSC-derived epicardial cells were dissociated with Accutase and plated at a density of 10⁴ cells/cm² in 6-well plates and cultured in fibroblast growth medium (Lonza) supplemented with 20 ng/ml FGF2 and 10 μM SB431542. The medium was refreshed every other day for 6 days. When the fibroblasts reached ~90% confluency, they were dissociated and split at a 1:3 ratio in fibroblast growth medium supplemented with 10 μM SB431542 for long-term maintenance. The differentiated fibroblasts exhibit a quiescent phenotype with negligible (< 5%) α-SMA expression for at least five passages.

Smooth muscle cell differentiation

To generate cardiac-specific smooth muscle cells (SMCs), iPSC-derived epicardial cells were dissociated with Accutase and seeded at a density of 3×10⁴ cells/cm² were seeded in the nascent SMC induction medium (consisting of 100 μg/ml ascorbic acid, 0.7 μg/ml insulin, 10 ng/ml Activin A, and 10 ng/ml PDGF-BB in CDM) for 2 days. The medium was refreshed every other day with Medium 231 supplemented with SMGS (ThermoFisher) for at least 14 days to allow the expression of SMC-specific markers (e.g., TAGLN, CNN1, SMTNB, and MYH11).

Single-cell ATAC-seq on iPSC-derived cardiac cells and human fetal heart

The iPSC-derived cardiac cells were dissociated using Tryple Express and resuspended in the RPMI medium. The human fetal hearts were minced and digested using Liberase (Sigma) for 10 min at 37°C, and resuspended in RPMI+B27 medium to stop the enzymatic reaction. The digested tissue was passed through a 70 μm filter before proceeding to single-nuclei sample preparation. Cells with viability > 90% were washed in ice-cold ATAC-seq resuspension buffer (RSB, 10 mM Tris pH 7.4, 10 mM NaCl, 3 mM MgCl2), spun down, and resuspended in 100 μL ATAC-seq lysis buffer (RSB plus 0.1% NP-40 and 0.1% Tween-20). Lysis was allowed to proceed on ice for 5 minutes, then 900 μL RSB was added before spinning down again and resuspending in 50 μL 1X Nuclei Resuspension Buffer (10x Genomics). A sample of the nuclei was stained with Trypan Blue and inspected to confirm complete lysis. Nuclei were processed using a 10X chromium single-cell ATAC-seq kit (V1 version, 10X Genomics) at the Stanford Functional Genomics Facility (SFGF). All samples were sequenced using the Illumina HiSeq 4000 (150 bp paired-end).

CRISPR–Cas9-mediated genome editing of iPSCs

The genomic region (300–400bp) corresponding to JARID2 cRE was deleted using CRISPR-Cas9 genome editing. Two guide RNAs (gRNAs) flanking the cRE upstream of JARID2 were designed using a web-based tool (Benchling) and chosen based on a high score for on-target binding and the lowest off-target score. For cRE deletion, iPSCs (3.5×10⁵) were nucleofected (1200 V, 20 ms, 1 pulse) with 60 pmoles sgRNA (Synthego) and 20 pmoles SpCas9 nuclease (Synthego) using the Neon Transfection System (ThermoFisher Scientific) and the 10 μl tip per the manufacturer’s instructions.). After electroporation, iPSCs were plated in E8 medium supplemented with 5 μM Y-27632 into a 12-well plate coated with Matrigel. After recovering (3 days post electroporation), the cells were dissociated with TrypLE Express and were plated in 6-well plates at a density of 2,000 cells per well. About 10 days after transfection, colonies were picked into 96-well plates and a small proportion of cells from each colony were used for DNA extraction using Quick Extract solution (Epicenter) and direct PCR with Prime STAR^® GXL DNA Polymerase (Clontech). PCR amplicons were sequenced by Sanger to verify the deletion (Figure S6m).

Tubular network formation assay

Tubular network formation was conducted in a 24-well plate format. Prior to experiments, 24-well plates were pre-chilled in −20 °C. Then plates were coated with 250 μl growth factor-reduced Matrigel (Corning) per well and incubated at 37 °C with 5% CO2 for 30 min. iPSC-derived ECs at passage 2 were dissociated into single cells using accutase and resuspended in EMG-2 medium containing 5 ng/mL VEGF. A total of 100, 000 cells were seeded in each well and incubated at 37 °C with 5% CO2. Bright-field images were taken 12 hours after cell seeding with an inverted phase contrast SONY microscope using a 4 × objective. Experiments were carried out in triplicates and repeated twice. Images were analyzed using a customized version of the “Angiogenesis Analyzer” developed for ImageJ (http/image.bio.methods.free.fr/ImageJ?Angiogenesis-Analyser-forImageJ,G.Carpentier, Image J News, 20 October 2012).

Luciferase reporter vector construction

The luciferase reporter vectors pGL3-Promoter (E1761) and pGL3-Control (E1741) were purchased from Promega. JARID2 cRE with 500 bp in length harboring reference and variant alleles were synthesized by Twist. The cRE was cloned into the linearized pGL3-Promoter vector (cut by Xhol). The fusion product (pGL3-cRE) was subsequently transformed into Mix & Go Competent Cells Strain Zymo 5-α (Zymo Research, T3007). Clones were selected by Ampicillin and plasmids were prepared using the QIAprep Spin Miniprep Kit (Qiagen, 27106).

Transfection and luciferase assays

i-ECs were transfected in a 24-well plate using the Lipofectamine Stem Transfection Reagent (Invitrogen, STEM00001) and Opti-MEM Reduced Serum medium (Invitrogen, 31985– 070). On the day of transfection, cell density was 60–80% confluent. For each well, 500 ng of pGL3-enhancer, pGL3-control, or pGL3-promoter was co-transfected with 10 ng of pRL-CMV (Promega, E2261) as an internal control for the normalization of luciferase activity. Cells were incubated with DNA-lipid complex overnight and media was changed for another 2 days. The firefly and renilla luciferase activity were measured respectively using a Dual-Glo Luciferase Assay System (Promega, E2920). The ratio of firefly versus renilla luminescence was calculated and normalized to the control samples in each cell type.

Computational methods

Fetal tissue - scATAC processing

Raw sequencing data were converted to FASTQ format using ‘cellranger-atac mkfastq’ (10x Genomics, v.1.2.0). 150 bp paired-end (PE) scATAC-seq reads were aligned to the GRCh38 (hg38) reference genome and quantified using ‘cellranger-atac count’ (10x Genomics, v.1.2.0).

Fetal tissue - scATAC-seq quality control, dimensionality reduction, filtering and identification of cell types

Mapped Tn5 insertion sites (fragments.tsv files) from cellranger were read into the ArchR (v0.9.4) R package ¹⁷. To ensure that each cell was both adequately sequenced and had a high signal-to-background ratio, we filtered cells with fewer than 1,000 unique fragments and enrichment at TSSs below 6. To calculate TSS enrichment, genome-wide Tn5-corrected insertions were aggregated ±2,000 bp relative (TSS-strand-corrected) to each unique TSS. This profile was normalized to the mean accessibility ±1,900–2,000 bp from the TSS, smoothed every 51 bp and the maximum smoothed value was reported as TSS enrichment in R (Figure S1a–f ). Latent Semantic Indexing (LSI) dimensionality reduction was computed (iterations = 4, res = c(0.2,0.2,0.6,0.8), variable features = 25000, dim = 30) by appending fragment files from all three timepoints together (Figure S1g,h). We did not observe any significant batch effects after the fourth iteration of iterative LSI. We computed chromatin-derived gene accessibility scores by aggregating scATAC-seq reads in each cell weighted by distance from each gene within its cisregulatory domain ¹⁷. A preliminary cell-type annotation was performed using these gene accessibility scores of known cell type markers (Figure 1c,d, Figure S1i,j, Table S1).

We observed two populations of cell types identified to be macrophages and immune cells (Figure S1h,i). Even though these sets of cell types are of interest from a biological standpoint, they do not directly contribute to the cardiogenesis process and hence were dropped from subsequent analysis. The final UMAP used in all subsequent analyses was generated by repeating the above mentioned iterative LSI with the same parameters as above after removing barcodes corresponding to the macrophage and immune cell clusters (Figure 1c). Final cell-type annotations for each cluster were assigned based on gene accessibility scores of marker genes of known cardiac cell types (Figure 1c,d, Figure S1j, Table S1).

Briefly, we identified cell types of the three major lineages and neural crest. Within the myocardial lineage, we found that TNNT2, ACTN2, and NKX2–5 had high GA-scores across the early cardiomyocytes (eCM), ventricular cardiomyocytes (vCM), and atrial cardiomyocyte (aCM) clusters ^4–6,21. TTN and HAND1 specifically marked the eCM and vCM cluster while TXB10 and NPPA marked the aCM cluster (Figure 1d, Figure S1j).

We observed diverse lineages within the epicardial derived cells. We discovered four cell types at PCW6: cardiac fibroblast progenitors (CFP) with high WT1, TBX18, and TCF21 GA-scores, another set of similar cells with both TBX18 and TCF21 signal but lacking WT1 which we called fibroblast-like cells (FB1), and the outflow tract (OFT)-like cells with high PRDM6 ²⁸ and HOXA3 GA-scores (Figure S1j). We also found an undifferentiated epicardial cell cluster (EPC) with high TBX18 and WT1 GA-scores but lacking TCF21 ^60,61 (Figure S1j). We found different cardiac fibroblast cell populations (preCF and CF) that have high TCF21 GA-scores but varying, low to high respectively, DCN and LUM GA-scores ⁶². Another cluster of fibroblast like cells (FB2) with high CNN1 and COL9A2 GA-scores were also identified. We hypothesize that this cell type, along with FB1, may be related to valvular fibroblasts, but further studies are required to establish this potential relationship. Finally, we defined a cluster of pre-smooth muscle cells (preSMC) with high MYH11, PDGFRB, and TAGLN GA-scores but lacking TCF21 activity ⁶³, a cluster of smooth muscle cells (SMC) exhibiting stronger GA-scores for MYH11 and PDGFRB with major contributions from PCW19 and minor contributions from PCW8, and a cluster of pericytes (PC) with high GA-scores of PDGFRB and ABCC9 (Figure S1j) ⁶⁴. We also defined a cluster of neural crest (NC) cells with high TFAP2A GA-score (Figure S1j) ⁶⁵.

The endocardial cell populations exhibited two distinct phenotypes: one with high CDH11 GA-scores (Endo1) and a smaller population that resembled endocardial-like transitioning cell types (Endo2) ⁶⁶. Arterial endothelial cells (aEC) exhibited high UNC5B and GJA5 GA-scores. Capillary cells (Cap) were marked by high CA4, APLNR, and CD36 GA-scores (Figure S1j). Venous endothelial cells (vEC) were marked by high SELE and SELP GA-scores, amongst other markers ^67,68. In addition to these major endothelial cell types, we also found a sub-population of lymphatic endothelial cells (lEC) exhibiting high LYVE GA-score (Figure S1j) ⁶⁹.

We also observed chromatin state changes consistent with promoter priming for genes in specific cell-types that do not express the associated gene. For instance, the promoter of the developmental gene TCF21 was accessible in cardiac fibroblast and SMC cell lineages but the gene was expressed only in cardiac fibroblasts and not in SMC ^70,71 (Figure 1h, Figure S2c). Interestingly, TCF21 expression is known to be activated in SMC in adults in response to vascular stress ⁷², promoting cell state changes such as proliferation and migration, consistent with a return to an embryonic-like phenotype for the SMC ⁷¹. Thus, accessibility of the TSS at the TCF21 gene may represent adaptive promoter priming ⁷³ that allows the gene to rapidly respond to disease-related stress or cellular activation.

Fetal tissue - Peak calling in scATAC-seq datasets

Single-cell chromatin accessibility data were used to generate pseudobulk group coverages based on high-resolution cluster identities of scATAC-seq datasets before peak calling with MACS2 v2.1.1.20160309 ⁷⁴ using the addReproduciblePeakSet() in ArchR ¹⁷. A background peak set controlling for total accessibility and GC-content was generated using addBgdPeaks(). Overlapping peaks were handled using an iterative removal procedure as previously described in ⁷⁵. First, the most significant (MACS2 q-value) extended peak summit is kept and any peak that directly overlaps with that significant peak is removed. This process reiterates to the next most significant peak until all peaks have either been kept or removed owing to direct overlap with a more significant peak. The most significant extended peak summits for each cluster were then merged and the previous iterative removal procedure was used. Lastly, we removed any peaks whose nucleotide content had any ‘N’ nucleotides and any peaks mapping to chrY.

Using the previously annotated clusters, we identified 215,163 putative cREs as scATAC-seq peak regions over all cell types and timepoints (Figure 1e). The clusters were enriched for expected gene ontology (GO) terms associated with cardiac development and cell-type specific attributes ⁷⁶ (Figure 1e, Table S1).

Fetal tissue - scRNA processing

Raw sequencing data from two previous studies ^6,21 corresponding to post-conception week (PCW) 6, 8 and 12, were converted to FASTQ format using the command ‘cellranger mkfastq’ (10x Genomics, v.3.1.0). scRNA-seq reads were aligned to the GRCh38 (hg38) reference transcriptome (Ensembl 93) and quantified using ‘cellranger count’ (10x Genomics, v.3.1.0). The filtered matrices from cell ranger count were combined with the filtered matrices of other datasets from Asp, et al. ⁵ and Suryawanshi, et al. ⁴ corresponding to PCW6 and 19 to create the scRNA object.

Count data were further processed using the ‘Seurat’ R package (v.3.1.4) ⁷⁷, using GENCODE v.27 for gene identification. We removed cells with less than 500 expressed genes, cells with less than 500 reads, and cells with more than 40% read count corresponding to mitochondrial genes. Genes not contained in the GENCODE annotation were excluded from further analysis. Gene level read count data was scaled to 10,000 (TP/10k) and log₂ transformed. We performed Principal Component Analysis (PCA) restricting to the 2,000 most variable genes as defined by Seurat. The top 50 principal components (PCs) were used for downstream clustering. Clusters were identified using Leiden clustering implemented in Seurat’s ‘FindClusters()’ function (‘resolution=1’). 2-dimensional representations were generated using uniform manifold approximation and projection (UMAP) (McInnes et al., 2020) as implemented in Seurat and the ‘uwot’ R packages (v.0.1.8; parameter settings: ‘min.dist=0.8’, ‘n.neighbors=50’, ‘cosine’ distance metric). We observed that the clustering was strongly influenced by sample of origin indicating significant batch effects (Figure S2a). To correct these batch effects, we used Harmony ⁷⁸ with max_iters=5 and other parameters set to their default values. We then reran Leiden clustering with the top 30 components from Harmony and generated a 2D UMAP for the corrected data with the same functions listed above. Post harmonization, clusters did not appear to be affected by the sample of origin (Figure S2a). Cell-type annotations for each cluster were assigned based on the expression of known marker genes of cardiac cell types (Figure S2b,c, Table S1).

Fetal tissue - Matching cells from scRNA-seq and scATAC-seq data

Canonical correlation analysis (CCA) as implemented in Seurat ⁷⁷ was used to align and match cells from the scRNA-seq and scATAC-seq experiments. For this purpose, we computed log₂-transformed gene accessibility scores as surrogates for gene expression in the cells profiled by scATAC-seq. As integration features, we used the union of the 2,000 most variable genes in each modality as input to Seurat’s ‘FindTransferAnchors()’ function with reduction method ‘cca’ and parameter ‘k.anchor=10’. For each cell profiled by scRNA-seq, we identified the nearest neighbor cell in scATAC-seq by applying nearest-neighbor search in the joint CCA L2 space. Nearest neighbors were determined using the ‘FNN’ R package (https://rdrr.io/cran/FNN/) employing the ‘kd_tree’ algorithm with Euclidean distance. These nearest-neighbor-based cell matches from all gestational time points were concatenated to obtain dataset-wide cell matches across both modalities (Figure S2d,e).

We found high concordance (accuracy = 74.76%) between the cluster assignments for cells from the scATAC-seq and scRNA-seq data, further supporting our cell type annotations based on chromatin accessibility derived gene accessibility scores (Figure S2e). Examining a subset of cell-type specific marker genes, we found TNNT2 marking the vECs, PECAM1 identifying endothelial cells, CDH11 identifying endocardium, MYH11 identifying SMC, and DCN identifying fibroblasts ^79,80 (Figure 1d,g). We also observed a strong correlation (Table S1) between gene expression from the scRNA-seq data and the GA-scores from the scATAC-seq data across matched nearest-neighbor cells from the two complementary atlases (Figure 1d,g), further supporting our annotations.

BPNet deep learning models to predict base-resolution, cell-type resolved pseudo-bulk scATAC-seq profiles from DNA sequence

BPNet is a sequence-to-profile convolutional neural network that uses one-hot-encoded DNA sequence (A=[1,0,0,0], C=[0,1,0,0], G=[0,0,1,0], T=[0,0,0,1]) as input to predict single nucleotide-resolution read count profiles from assays of regulatory activity ^12,13. The models take in a sequence context of 2,114 bp around the summit of each ATAC-seq peak and predict cluster-specific scATAC-seq pseudo-bulk Tn5 insertion counts at each base pair for the central 1,000 bp. The BPNet model also uses an input Tn5 bias track which is concatenated to the pre-final layer as explained below. Our BPNet model is a higher capacity version of the architecture introduced in ¹². The model architecture consists of 8 dilated residual convolution layers, with 500 filters in each layer. At each layer, the Keras Cropping 1D layer is used to clip out the two edges of the sequence, to match the inputs concatenated to the output of each convolution, which naturally trims the 2,114 bp sequence to a final 1,000 bp profile. Each dilated convolutional layer has a kernel width of 21 and the dilation rate is doubled for every convolutional layer starting at 1. The model predicts the base-resolution 1,000 bp length Tn5 insertion count profile using two complementary outputs: (1) the total Tn5 insertion counts over the 1,000 bp region, and (2) a multinomial probability of Tn5 insertion counts at each position in the 1,000 bp sequence. The predicted (expected) count at a specific position is a multiplication of the predicted total counts and the multinomial probability at that position. To predict the total counts in the 1,000 bp window, the output from the last dilated convolutional layer is passed through a GlobalAveragePooling1D layer in Keras. We estimate the “tn5 bias” for the input sequence using the TOBIAS method ⁸¹. This total bias is concatenated with the output of the pooling layer and passed through a Dense layer with 1 neuron to predict total counts. To predict the per-base logits of the multinomial probability profile output, the output from the last dilated residual convolution is appended with per base TOBIAS “tn5 bias” and passed through a final convolution layer with a single kernel and a kernel width of 1 to predict the per-base logits. BPNet uses a composite loss function consisting of a linear combination of a mean squared error (MSE) loss on the log of the total counts and a multinomial negative log-likelihood loss (MNLL) for the profile probability output. We use a weight of [4.9, 4.3, 18.5, 9.8, 8.9, 4.8, 4.6, 4.9, 12.4, 15.4, 4.3, 6.3, 1.4, 2.6, 7.6, 2.3, 16.3, 7.1 & 3.7] for the MSE loss for clusters c0–c20 (c15-c16 combined as one model), and a weight of 1 for the MNLL loss in the linear combination. The MSE loss weight is derived as the median of total counts across all peak regions for each cluster divided by a factor of 10 ¹². We used the ADAM optimizer with early stopping patience of 3 epochs.

A separate BPNet model was trained on pseudobulk scATAC-seq profiles from each scATAC-seq cluster. We used a 5-fold chromosome hold-out cross-validation framework for training, tuning, and test set performance evaluation. The training, evaluation, and test chromosomes used for each fold are as follows. Test chromosomes: fold 0: [chr1], fold 1: [chr19, chr2], fold 2: [chr3, chr20], fold 3: [chr13, chr6, chr22] & fold 4: [chr5, chr16]. Validation chromosomes: fold 0: [chr10, chr8], fold 1: [chr1], fold 2: [chr19, chr2], fold 3: [chr3, chr20] & fold 4: [chr13, chr6, chr22]. The model’s performance was evaluated using two different metrics for the two output tasks separately. For the total counts predicted for the 1,000 bp region, the model’s performance is computed with the Spearman correlation of predicted counts to actual counts. The profile prediction performance is evaluated using the Jensen-Shannon Distance, which computes the divergence between two probability distributions; in this case, the observed and predicted base-resolution probability profile over each 1,000 bp region.

For each cell type, BPNet models were trained, tuned, and evaluated on genomic windows consisting of 1 kb scATAC-seq profiles from (1) signal windows centered at summits of scATAC-seq peaks from the cell type and (2) background windows randomly sampled across the genome such that the number of background windows was 10% of the number of signal windows. The selected signal and background windows were further augmented with upto 10 random. Code for training BPNet models is available at https://github.com/kundajelab/Cardiogenesis_Repo.

BPNet model-derived DeepLIFT/DeepSHAP nucleotide contribution scores of accessible cRE sequences

We used the DeepLIFT algorithm ²³ to interrogate BPNet models and estimate the predictive contribution of each base in any query input sequence to the predicted total counts from the model. DeepLIFT backpropagates a score, analogous to gradients, which is based on comparing the activations of all the neurons in the network for the input sequence to those obtained from neutral ‘reference’ sequences. We use 20 dinucleotide-shuffled versions of each input sequence as reference sequences. We used the DeepSHAP implementation of DeepLIFT (https://github.com/slundberg/shap/blob/0.28.5/shap/explainers/deep/deep_tf.py) to obtain contribution scores for all observed bases in each sequence ⁸². For each cell type, we obtained consolidated DeepLIFT/DeepSHAP contribution scores for each sequence from each of 5 folds of cross-validation and then averaged the scores per position from the 5 folds.

Annotation of PWM-based transcription factor motif instances in accessible cREs

We obtained position weight matrix (PWM) models of transcription factor (TF) sequence motifs from the ChromVAR motif catalog called ‘human_pwms_v1’ ²⁷, which is collated from the Catalog of Inferred Sequence Binding Preferences (CIS-BP) ²⁶.

We then annotated PWM-based motif instances in all cRE sequences from all cell types by scanning, scoring, and thresholding (p-value < 5e-5) matches from all PWMs using the motifmatchr tool (https://github.com/GreenleafLab/motifmatchr) which uses the MOODSv.1.9.3 library ⁸³.

Annotation of cell-type specific active TF motif instances in accessible CREs with high contribution scores and motif mutagenesis scores

For each accessible cRE in each cell type, we defined active motif instances as a subset of PWM-based motif instances that have high DeepLIFT contribution scores or high motif mutagenesis scores from the corresponding cell-type specific BPNet models relative to a null background distribution of corresponding scores.

Motif instance contribution scores:

We computed the contribution score of each PWM motif instance to accessibility in a specific cell type as the average of the consolidated DeepLIFT contribution scores from the cell-type specific BPNet models over all bases overlapping the motif instance.

Motif instance mutagenesis scores:

We also inferred mutagenesis scores (motif-ISM) for each PWM-motif instance in a cRE sequence with respect to accessibility in each cell type. To generate the motif-ISM scores for a PWM motif instance in a specific cell type,

1. We first used the fold-0 BPNet model of the specific cell type to predict the total scATAC-seq counts over a 1000 bp window (using a 2114 bp input sequence) centered at the motif instance.

2. We then generated 3 shuffled versions of the input sequence containing the motif instance such that we maintain di-nucleotide frequencies (dinucleotide shuffling).

3. We obtained 3 subsequences overlapping the positions of the original motif instance from the 3 shuffled dinucleotide shuffled sequences.

4. We replaced the subsequence of the motif instance in the original reference sequence with each of the 3 shuffled subsequences.

5. We then use the fold-0 BPNet model to once again predict the total scATAC-seq counts for each of these 3 disrupted sequences containing the shuffled versions of the motif instance.

6. We then computed the log₂ ratio of the total predicted counts between the reference sequence from step 1. and each of the 3 disrupted sequences from step 5.

7. The motif-ISM score of the instance was computed as the average of the log₂ ratio score from step 6. over all 3 disrupted sequences.

Empirical null distributions:

We generated empirical null distributions of motif-instance contribution scores as follows.

1. We constructed dinucleotide frequency preserving shuffled versions of all cREs from from chr4 and chr7.

2. We used the cell-type specific BPNet models from each of the 5 folds to compute DeepLIFT contribution scores over all randomized sequences from step 1. For each sequence, the contribution scores at each base were averaged over all 5 folds.

3. The contribution scores from all bases in all sequences from step 2. were used to derive an empirical null distribution of contribution scores.

We generated empirical null distributions of motif-instance ISM scores as follows.

1. We reused the predicted total scATAC-seq counts for each of these 3 disrupted sequences containing the shuffled versions of the motif instance from step 5. of the motif-ISM estimation process above. We computed the log₂ ratio of the total predicted counts between each of the 3 pairs of disrupted sequences.

2. The empirical null distribution for motif-ISM scores was derived from the above computed scores over all motif instances in all cRE sequences in chr4 and chr7.

Active motif instances:

Finally, to identify active motif instances in each cell type, we select PWM-based motif instances that have motif-instance contribution scores or motif-ISM scores that are above the 95th percentile or below the 5th percentile of corresponding empirical null distribution scores of that cell type. All other PWM-based instances were labeled as “inactive”.

Enrichment of active motif instances and all PWM-motif instances in differential, cell-type specific scATAC-seq peaks

We identified differentially accessible, cell-type specific “marker peaks” for the ventricular cardiomyocyte cluster (vCM) relative to all other clusters using the getMarkerFeatures() function in ArchR ¹⁷, which uses the Wilcoxon Ranksum test to identify marker peaks while controlling for the TSS enrichment and log₁₀(unique fragments) of cells when sampling the background set of cells. We then calculated the Fisher’s Exact test implemented in the peakAnnoEnrichment() function in ArchR to compute the enrichment of active motif instances of all TFs expressed in vCMs in vCM marker peaks relative to all vCM peaks. We compute analogous enrichments of all PWM-based motif instances. We compare the statistical significance of enrichments of active and all PWM instances in Figure 2h,i and Figure S3a.

We observed a diverse set of TFs enriched across different cell types in our fetal atlas. Briefly, we found that MEF2, TGIF1, NFI motif families were highly enriched in vCMs and TGIF and KLF families in aCMs. The eCMs had similar TF motifs as the vCMs and aCMs, albeit with weaker enrichments, suggesting this cluster is the progenitor population for later cardiomyocyte subtypes. The CFPs and CFs had similar motif enrichment for TCF21/TCF, MYOG, MSC, with CF gaining enrichment for TEAD and NFI families and implicating a second set of TFs that become active during CF maturation. The other fibroblast-like clusters (FB1 and FB2) had lower TCF21 enrichments than the cardiac fibroblast clusters, but stronger enrichment for JUN, FOS and JDP motif families. The OFT cells exhibited strong RFX and TEAD motif enrichments, while preSMC exhibited weaker enrichments for the RFX and KLF families and stronger enrichment for motifs associated with proliferation like SP and RBPJ. These enrichments became substantially stronger in the SMCs at PCW19, and with the gain of new TF enrichments such as the MEF2 family, indicating a continuum of TF motif activity promoting the SMC cell fate trajectory. The PCW6 endocardial cells (Endo1) had stronger TF activity for ETV and STAT families and weaker enrichments for the SOX family. The capillary (Cap) cells, which are thought to derive from the endocardium, were strongly enriched for SOX family motifs. The aEC and Cap clusters, exhibited enrichments for SOX, FOS and JUN motifs and also retained endocardium TF motifs like ELF and ETV. vECs also had a motif landscape similar to the capillaries, with the addition of a few motifs, such as STAT.

ChromVAR motif deviation scores

To compute ChromVAR motif deviation scores for any peak set, a background peak set controlling for total accessibility and GC-content was generated using addBgdPeaks() for each cluster in ArchR. Chromvar ²⁷ was run with addDeviationsMatrix() using active TF motif instances in both peak sets to calculate enrichment of chromatin accessibility over all active motif instances of each TF at single-cell resolution. We then computed the GC-bias-corrected deviation scores using the chromVAR ‘deviationScores’ function used in the addDeviationsMatrix() function in ArchR.

Defining cell transitions and trajectories from scATAC-seq data using optimal transport

Computing gene signatures:

We created a cell by gene score matrix that was used for computing the gene signatures associated with cell cycle and apoptosis for optimal transport analysis. We used the list of curated genes for cell cycle and apoptosis as suggested in the original optimal transport paper ¹⁴. We scored cells based on the chromatin derived gene accessibility scores ¹⁷ of genes in the curated gene signatures. We used the same procedure as in the original manuscript. For each cell, we compute the z-score of the gene accessibility scores for each gene in the set. We then clip these z-scores in the range of −5 to 5. We define the signature score of the cell to be the mean z-score over all genes in the gene set (Figure S3b and c). We estimated the initial growth rate with the same calculations as performed in the original method ¹⁴ with the cell cycle and apoptosis signal computed from the gene score matrix (Figure S3d).

Using gene score matrix for Optimal transport calculation:

We performed optimal transport-based trajectory analysis by following the original codebase (https://broadinstitute.github.io/wot/tutorial/) ¹⁴. The two changes between the original method and our implementation are the use of gene accessibility scores to compute the gene signatures and the use of the cell by gene-accessibility score matrix for inferring the optimal transport maps as compared to the cell by gene expression used in the original method. The cell by gene accessibility score matrix was scaled to read per 10K and log₂-transformed. The top 2000 variable genes based on Seurat (FindVariableGenes() method=”vst”) were retained for further analysis.

The coupling inference was obtained using parameters e = 0.05; l1 = 1; l2 = 50; growth_iters = 3 ¹⁴. We first computed the transport matrices between successive timepoints, inferred long-range temporal couplings and then computed the fate matrices to obtain the transition table (Figure 3b).

We observed 8 major differentiation trajectories within our single-cell atlas. Briefly, within the endocardium lineage, the endocardium-like cell clusters (Endo1/2) were predicted to give rise to the Cap cells, which in turn were predicted to transition into the vECs in PCW19. The aEC cluster was derived from Endo1/2 clusters as well as the PCW8 Cap cluster, suggesting that some terminal cell states can originate from different developmental origins (Figure 3b). We also identified cells that appeared to have already committed to their developmental fates based on their expression of lineage specific genes. For example, at PCW6, cells from the epicardial lineage (EPC, OFT, CFP and FB1) that expressed TCF21 were predicted to transition into the cardiac fibroblasts at PCW8 (preCF) and PCW19 (CF) (Figure 3b). The OFT cluster which lacks TCF21 expression was predicted to transition into SMC and PC clusters through the preSMC cluster. These observations are highly concordant with results from studies with lineage tracing in TCF21 recombinase knock-in mice ⁷⁰. Finally, the FB1 cluster was predicted to transition into the FB2 cluster. For the myocardium cells, the eCM cluster was predicted to differentiate into vCM and aCM clusters.

Chromatin and gene expression dynamics across trajectories:

For all the major trajectories identified using optimal transport, we identified the clusters that are predicted to be in the trajectory using the transition table (Figure 3e,f,l,m, Figure S4). We provided these sets of cell clusters to ArchR’s ¹⁷ addTrajectory() function and assigned cells pseudotime values. We then used the plotTrajectory() function to plot the chromatin peak dynamics associated with the identified trajectory. We estimated correlation between TF gene expression from scRNA-seq projected into the scATAC-seq subspace and TF ChromVAR deviation scores using correlateMatrices() in ArchR ¹⁷. We defined correlated TFs for each trajectory as those who had correlation values > 0.5.

In addition to the SMC trajectory, we would like to elaborate on one more main differentiation trajectory. The vEC differentiation trajectory captured cell state transitions from the Endo1/2 progenitor cells at PCW6 to vECs at PCW19 through the Cap cells in PCW8 (Figure 3k). Waves of TFs including GATA2/3/4/6, NFATC2, SOX4, SOX17 and MEOX1 with correlated expression and motif activity dynamics are predicted to regulate concordant cascades of dynamically accessible cREs targeting genes involved in different stages of angiogenesis (Figure 3l,m). We once again used cell-type specific BPNet models to decipher TFs that regulate dynamic cREs in the cis-regulatory domain of the APLNR gene, a primary marker of vECs ^84–86, which exhibited a coordinated and monotonic increase in gene expression, promoter accessibility and cumulative distal chromatin accessibility (gene accessibility scores) across the trajectory (Figure 3n). BPNet models trained on Endo1/2, Cap and vEC cells revealed GATA3, SOX17 and SP1 to specifically regulate three representative cREs in the APLNR locus with distinct temporal dynamics of chromatin accessibility based on cell-type specific predictive motif instances and concordant TF expression (Figure 3o,p,q).

iPSC derived in vitro cardiac cell types - scATAC-seq data processing, quality control, dimensionality reduction and motif annotations

Raw sequencing data were converted to FASTQ format using ‘cellranger-atac mkfastq’ (10x Genomics, v.1.2.0). 150 bp paired-end (PE) scATAC-seq reads were aligned to the GRCh38 (hg38) reference genome and quantified using ‘cellranger-atac count’ (10x Genomics, v.1.2.0). To ensure that each cell was both adequately sequenced and had a high signal-to-background ratio, we filtered cells with enrichment at TSSs below 6 and unique fragments (1,000–1,500) depending on the individual library (Figure S5).

Projecting iPSC derived in vitro cardiac cells based on scATAC-seq into the fetal heart scATAC-seq manifold

We projected the iPSC derived in vitro cardiac cells based on the scATAC-seq profiles into the scATAC-seq LSI subspace of fetal heart cells following the procedure described previously ³⁸. Briefly, when computing the TF-IDF transformation on the fetal samples, we stored the colSums, rowSums, and SVD. To project cells from additional samples into this subspace, we first zeroed out rows based on the initial TF-IDF rowSums. We next calculated the term frequency by dividing by the column sums and computed the inverse document frequency from the previous TF-IDF transformation. These were then used to compute the new TF-IDF. The resulting TF-IDF matrix was projected into the previously defined SVD of the fetal heart LSI.

Identifying scATAC-seq peaks across all in vivo and in vitro cardiac cells

To enable the comparison of epigenomic features between the in vivo and in vitro cells, we built a combined ArchR object of all post filtered cells from the three fetal heart samples and all the samples from the iPSC differentiation to major cardiac cell types. We performed peak calling on the combined data using ArchR frameworks, as described above. We used these peak calls from the combined object for all the downstream differential analyses between the in vivo and in vitro nearest cells identified by the projection analysis. PWM-based motif instances ²⁶ were used to compute TF motif annotations and ChromVar deviations as described above.

Identifying differential scATAC-seq peaks and TF motif enrichments between matched in vivo and in vitro cardiac cell types

Differential peaks between in vivo and in vitro cell types were identified within the integrated peak set described in the above section. For each pair of match cell types, we obtained the integrated cell x peak matrix. We then computed row-wise two-sided t-tests for each peak and estimated the FDR using p.adjust(method = “fdr”). Peaks with absolute log₂(fold changes) > 1 and FDR < 0.05 were labeled as differential.

To calibrate the magnitude of these differences, we also estimated differential peaks between two distant in vivo cell types, namely vCMs and excitatory neurons ¹³. Reassuringly, the differences between in vitro and in vivo cardiac cells were substantially smaller than differences between vCMs and neurons (Figure 5a). We next identified the TF motifs enriched in up or down regulated differential peaks relative to all peaks for each pairwise comparison using peakAnnoEnrichment() in ArchR.

Predicting mutation impact scores of de novo non coding mutations from CHD cases and controls on cell-type resolved scATAC-seq profiles using neural network models

We obtained de novo, non coding mutations from CHD patients from the Pediatric Cardiac Genomics Consortium (PCGC) and from healthy controls (unaffected siblings) from the Simons simplex collection (SSC) from Richter, et al.¹⁵. We restricted our analysis to single-nucleotide (point) mutations within these cohorts.

For each cell type, we used cell-type specific BPNet models to predict the allelic impact of all mutations that were found within 1000 bp windows around summits of scATAC-seq peaks in that cell type. For each mutation, we used the BPNet model to predict the base-resolution read count profile corresponding to the input sequence (2,114 bp) containing the reference allele of the mutation at its center. We then used the model to predict the 1 kb base-resolution read count profile (which is decomposed into total predicted counts over 1 kb and base-resolution read probability profile) corresponding to the input sequence (2,114 bp) containing the alternate allele of the mutation at its center. Using these predicted read probability profiles from the two alleles, we computed the impact score of the mutation as the log₂ fold change in cumulative probability between the reference allele and the alternate allele, over a 100 bp window around the mutation using the formula:

$$lo{g}_2\left(\sum _{j=i-50}^{i+50}\left({P^{ref}}_j\right)/\sum _{j=i-50}^{i+50}\left({P^{alt}}_j\right)\right)$$

where

$i$= position of mutation

${P^{ref}}_j$ = predicted profile probability at position $j$ for sequence containing reference allele

${P^{alt}}_j$ = predicted profile probability at position $j$ for sequence containing alternate allele

For each mutation, the cell-type specific impact scores were computed and averaged over cluster-specific BPNet models trained on each of 5 folds.

We also computed an alternate mutation impact score based on the predicted cumulative read counts over the 100 bp window around the mutation, instead of the predicted cumulative read probability.

$$lo{g}_2\left(\sum _{j=i-50}^{i+50}\left({Y^{ref}}_j\right)/\sum _{j=i-50}^{i+50}\left({Y^{alt}}_j\right)\right)$$

where

$i$= position of mutation

${Y^{ref}}_j$ = predicted counts at position $j$ for sequence containing reference allele

${Y^{alt}}_j$ = predicted counts at position $j$ for sequence containing alternate allele

We found high concordance of cell type specific enrichments of high impact mutations in cases vs. controls for both scores (Figure S6b).

Thresholding mutation impact scores to define high impact prioritized mutations

Because we are investigating a cohort of children with CHD born to parents without CHD, our expectation is that the majority of these cases will be caused by de novo mutations. On average, each individual has approximately 70 such mutations ¹⁵, and because we assume mutations that lead to CHD are generally rare, we would expect just one would be a causal presentation and we would expect only a fraction of the cohort to have such causal mutations. Based on the expectation that a small proportion of mutations from CHD cases in cell type resolved scATACseq peaks will have a causal role, we prioritized high-impact mutations in each cell type, as those that have an impact score > 95^th percentile of the distribution of cell-type specific impact scores of all mutations from the CHD cohort that fall in 1kb scATAC-seq peak regions in that cell type. The same thresholds were used for mutation impact scores of control mutations as well to obtain enrichments as specified below.

Selection of prioritized mutations in arteries for deeper investigation

We further restricted deeper investigation into a subset of higher confidence CHD mutations prioritized by the arterial endothelial cells (aEC) BPNet model to those that were within 200 bp (+/− 100 bp) of summits of aEC scATAC-seq peaks that had > 75 reads in a +/− 250 bp window around mutation. For each of these selected mutations, we obtained predicted profiles for sequences centered at the mutation for both alleles as well as the corresponding DeepLIFT scores and active motif instances. The gene closest to the mutation in linear genomic sequence was assigned as the putative target gene of the mutation.

Cell-type specific enrichment analysis of prioritized mutations in cases relative to controls

To compute the enrichment of case vs. control mutations in scATAC-seq peaks (cREs) of each cell type in the fetal heart, we computed a 2 × 2 contingency table. The first axis splits all de novo mutations based on whether they were found in cases versus controls. The second axis splits all de novo mutations based on whether they overlap a cluster-specific peak. The enrichment p-value and odds-ratio (OR) was computed using the Fisher’s Exact Test implemented in the SciPy package in Python.

We used a similar procedure to estimate enrichment of de novo mutations prioritized by cell-type specific models from cases versus control. In this case, the first axis of the 2 × 2 contingency table splits all de novo mutations based on whether they were found in cases versus controls. The second axis splits all de novo mutations based on whether they are predicted to have a high impact score (> 95^th percentile) or not using a cell-type specific BPNet model. High impact score mutations are pre-filtered to those in peak regions in the cell type. This analysis was performed for each cell type separately and for the pseudobulk of all cell types separately.

Enrichments of case and control mutations using mutation impact scores from the HeartENN model

We obtained mutation impact scores as computed by the authors of the HeartENN model for all non-coding de novo mutations in the PCGC case and SSC unaffected controls ¹⁵. We retained the de novo mutations that overlap 1 kb scATAC-seq peak regions in any of the fetal heart cell types. Finally, we performed Fisher’s exact test for enrichment of high impact (scores >= 0.1 as recommended in Richter et al. ¹⁵) mutations in peaks in cases vs controls.

Quantification and statistical analysis

All statistical analyses were performed in R v4.0.5 or Python v3.8. Statistical tests are described in the relevant methods sections above.

Additional resources

https://resgen.io/kundaje-lab/sundaram-2022/views/cardiogenesis.

https://cardiogenesis-atac.cells.ucsc.edu

Supplementary Material

1

Figure S1: Quality control, clustering of cells and gene score of representative cell type markers for scATAC-seq data from fetal hearts at PCW 6 (left), PCW 8 (middle) & PCW19 (right), related to Figure 1.

(a,b,c) Shown are the number of unique ATAC-seq nuclear fragments in each single cell (each dot) compared to TSS enrichment of all fragments in that cell. Dashed lines represent the thresholds for filtering cells (1,000 unique nuclear fragments and TSS score >= 6).

(d, e & f) The fragment length distribution for PCW 6 (left), PCW 8 (middle) & PCW19 (right).

(g & h) UMAP of cells from three timepoints combined. Cells are colored according to (g) sample gestational time and (h) cluster membership.

(i) scATAC-seq gene activity profiling of immune marker gene CD19.

(j)Units: log₂(normalized ATAC gene-score). Scale: MYL6 (min=0.6,max=1), MYL7 (min=0.25,max=1.4), ACTN2 (min=0.2,max=1.2), HAND1 (min=0.4,max=1.2),TTN (min=0.4,max=2.2),GATA4 (min=0.5,max=1.6), HAND2 (min=0.5,max=1.75),TBX10 (min=0.2,max=0.8),HEY1 (min=0.8,max=1.4), SRF (min=1,max=1.3), NKX2–5 (min=0.5,max=2),TBX5 (min=0.2,max=1), ABCC9 (min=0.15,max=0.7), WT1 (min=0.4,max=1),LUM (min=0.05,max=0.3), COL9A2 (min=0.2,max=0.6), TCF21 (min=0.2,max=1),TBX18 (min=0.2,max=0.9), CNN1 (min=0.2,max=0.6), PDGFRB (min=0.4,max=1.4),HOXA3 (min=0.2,max=0.8), PRDM6 (min=0.2,max=1), TAGLN (min=0.2,max=0.9),TFAP2 (min=0.25,max=0.7), UNC5B (min=0.9,max=1.4), CD36 (min=0.4,max=1.2),PECAM1 (min=0.25,max=1.25), CDH5 (min=0.3,max=1.5), CDH11 (min=0.3,max=1.5),GJA5 (min=0.2,max=1), APLNR (min=0.4,max=1.5), CAV1 (min=0.2,max=0.8),SELE (min=0,max=0.45), CA4 (min=0.3,max=1.1), SELP (min=0,max=0.25),LYVE1 (min=0.1,max=0.6)

2

Figure S2: Integration of scRNA-seq & scATAC-seq data using canonical correlation analysis (CCA), related to Figure 1.

(a) UMAP of cells from 5 scRNA-seq studies without (left) and with (right) batch effect correction and harmonization using Harmony (right). Cells are colored by the scRNA study of origin.

(b) Harmonized UMAP of scRNA-seq analysis used for downstream analysis. Cells are colored by clusters.

(c) Gene expression (Units: TP10K) of cell type specific and cluster specific markers in harmonized scRNA-seq UMAP.

(d) UMAPs of matched cells from scATAC-seq and scRNA-seq data modalities using the CCA subspace. On the left, cells are colored by their assay type and on the right, cells are colored by clusters from scRNA-seq.

(e) Heatmap showing the cluster–cluster mapping between scRNA-seq and scATAC-seq clusters after CCA matching.

3

Figure S3: Overlap motif enrichment from fetal hearts and optimal transport cell signatures, related to Figure 2 and 3.

(a) Overlap enrichment of position-weight matrix based motif instances in cell-type specific marker scATAC-seq peaks of each cell type cluster from Figure 1e.

(b, c, d) UMAP of cells from scATAC-seq data showing (a) cell cycle signature z-scores, (b) apoptosis signature z-scores, and (c) growth rate estimates for optimal transport

4

Figure S4: Optimal transport based developmental trajectories for vCM, aCM, CF, Cap, aEC and FB2 cells using scATAC-seq, related to Figure 3.

(a) UMAPs of scATAC-seq cells in the ventricular cardiomyocyte (vCM) trajectory colored by the gestational sample time.

(b) Heatmaps showing z-score of ChromVAR motif deviation scores (left) and gene expression in units of log₂(TP10K) (right) of TFs with correlated variable activity in cells identified to be in the vCM trajectory, as ordered by pseudotime.

(c) Expression dynamics of MYL2, an important marker gene for the vCM cell type.

(d, e, f) Trajectory analysis for atrial cardiomyocyte cluster (aCM), analysis as above.

(g, h, i) Trajectory analysis for cardiac fibroblast cluster (CF), as above.

(j, k, l) Trajectory analysis for capillary cells (Cap), as above.

(m, n, o) Trajectory analysis for arterial endothelial cell cluster (aEC), analysis as above.

(p, q, r) Trajectory analysis for Fibroblast like cells 2 (FB2), as above.

5

Figure S5: Quality control data and gene score of cell type markers for iPS derived cardiac cell types, related to Figure 4 & 5.

(a) (Left to Right, Top to Bottom) Representative scATAC-seq data quality control filters for Day 0, Day 2, Day 5, Day 15, Day 30 cardiomyocytes, Day 30 endothelial cells, Day 30 epicardial cells, Day 30 cardiac fibroblast cells & Day 30 smooth muscle cells (top to bottom, left to right). Shown are the number of unique ATAC-seq nuclear fragments in each single cell (each dot) compared to TSS enrichment of all fragments in that cell. Dashed lines represent the filters for high-quality single-cell data.

(b) UMAP plots showing gene scores of cell type specific and cluster specific markers.Units: log₂(normalized ATAC gene-score). Scale: POU5F1 (min=0,max=0.7), MESP1 (min=0.25,max=1.25), HAND1 (min=0.4,max=1.6), HAND2 (min=0.8,max=1.4), TNNT2 (min=0.25,max=1.4), TTN (min=0,max=2), CDH5 (min=0.3,max=1.5), CDH11 (min=0.4,max=1.2), TCF21 (min=0.2,max=0.9), TBX18 (min=0.4,max=1), PDGFRB (min=0.4,max=1.2) & PDGFRA (min=1.4,max=2.2).

6

Figure S6: Prioritizing disease-associated non-coding variants using the cell-type resolved scATAC-seq and predictive sequence models, related to Figure 6 & 7.

(a) Enrichment of cases versus control mutations using naïve overlap with cluster-specific ATAC-seq peaks, showing relevance of the deep learning model to capture pathogenic disruptions.

(b) Enrichment (log₂(OR) counts within +/− 50 bp, Fisher’s Exact Test) of prioritized mutations from each cell-type specific BPNet model in CHD cases vs. controls plotted on the scATAC-seq UMAP of all fetal heart cells.

(c, d & e) Evaluation of robustness in disease prioritization of aEC model across different threshold values. (d) the log (Fisher’s exact test p-value), (e) the Fisher’s exact test odds ratio and (e) excess number of causal mutations observed in cases compared to controls are plotted across all threshold values.

(f, g, h) Similar metrics as (d,e,f) for a classification model with the same parameters as the BPNet model in aEC cluster.

(i) Barplot indicating the Fisher’s exact test odds ratio of the HeartENN model (Richter et al.¹⁵) subsetted to the denovo mutations in cases and controls overlapping cell type resolved peaksets (blue) scoring above 0.01 as recommended by (Richter et al.¹⁵) vs classification model in aEC cluster (light green) and BPNet model in aEC cluster (dark green). Stars indicate pvalues. (*** =0.008).

(j, k, l) Gene expression of FOLH1(a), PIP5K1C(b) & JARID2(c) genes in UMAP of cells based on scATAC-seq data. Units: log₂(TP10K).

(m) Sanger sequencing confirms CRISPR/Cas9 targeted homozygous deletion in iPSC at the JARID2 cRE (red line).

7

Table S1 Quality Control, barcode metadata, and cell type annotations in fetal heart samples, related to Figure 1 (A) Barcode metadata for scATAC-seq experiments in fetal heart samples (post-filtering), (B) Cell type annotations for all clusters identified in scATAC-seq experiments in fetal heart samples, (C) Marker genes (gene score) for fetal heart scATAC-seq clusters using differential test, (D) Gene Ontology enrichments for all scATAC-seq clusters, (E) Barcode metadata for scRNA-seq fetal heart samples (post filtering), (F) Mapping of scRNA-seq and scATAC-seq fetal heart barcodes using CCA, (G) Gene expression and gene activity score correlation

8

Table S2 BPNet model performance, pairwise co-occurrence statistics, and TF activity score, related to Figure 2. (A) BPNet model total count prediction performance metrics, (B) BPNet model profile prediction performance metrics, (C) Pairwise co-occurence statistics of active motifs of 4 TFs highlighted in Figure 2 e,f & g panels, (D) TF gene expression and TF ChromVAR deviation score correlation

9

Table S3 Optimal transport derived attributes for each barcode, related to Figure 3. (A) Optimal transport derived attributes for each barcode

10

Table S4 Quality Control, barcode metadata, and cell type annotations in iPSC-derived samples, inferred peak-gene links, related to Figure 4 and 5. (A) Barcode metadata for scATAC-seq iPSC-derived cardiac cell types, (B) Cell type annotations for all clusters identified in scATAC-seq experiments in iPSC-derived cardiac cell types. (C) Marker genes (gene score) for iPSC-derived scATAC-seq clusters using differential test.

11

Table S5 CHD mutations, BPNet prioritized de novo mutations in CHD, and CHD mutations prioritized in aEC, related to Figure 6. (A) De novo, non-coding point mutations in congenital heart disease (CHD) cases from Richter et al. (B) De novo, non-coding point mutations in healthy controls from Simon Simplex Collection from Richter et al. (C) Prioritized CHD mutations using fetal heart cell-type specific BPNet models. (D) Prioritized control mutations using fetal heart cell-type specific BPNet models. </p/>(E) High confidence CHD mutations priortized in aEC

KEY RESOURCES TABLE

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
CD144 (VE-Cadherin) MicroBeads	MiltenyiBiotec	130–097-857
Anti-WT1	Abcam	ab89901/RRID:AB_2043201
Anti-ZO1	Thermo Fisher Scientific	33–9100/RRID:AB_2533147
Bacterial and Virus Strains
Escherichia coli DH5a competent cells	Zymo Research	T3007
Biological Samples
Human fetal heart samples	Stanford University	N/A
Chemicals, Peptides, and Recombinant Proteins
Essential 8 Medium	Gibco	A1517001
RPMI 1640 Medium	Gibco	11875093
RPMI 1640 Medium, minus glucose	Gibco	11879020
DMEM, high glucose	Gibco	11965118
HBSS, calcium, magnesium, no phenol red	Gibco	14025092
TrypLE Select Enzyme (10X)	Gibco	A1217703
KnockOut Serum Replacement	Gibco	10828028
Advanced DMEM/F-12	Gibco	12634028
Ham’s F-12 Nutrient Mix	Gibco	11765–054
IMDM	Gibco	12440–053
Opti-MEM I Reduced Serum Media	Gibco	11058021
DPBS without calcium and magnesium	Gibco	14190250
Chemically defined lipid concentrate	Gibco	11905–031
Glutamax	Gibco	35050–061
UltraPure 0.5M EDTA, pH 8.0	Invitrogen	15575–020
Retinoic acid	Sigma-Aldrich	R2625
L-Ascorbic acid 2-phosphate sesquimagnesi um salt hydrate	MilliporeSigma	A8960
Accutase solution	MilliporeSigma	A6964
Gelatin solution, Type B	Sigma-Aldrich	G1393
Liberase TM	Sigma-Aldrich	5401127001
DNase I	Worthington	LK003172
Matrigel Basement Membrane Matrix	Corning	354234
Y-27632 2HCl (ROCK Inhibitor)	Selleck Chemicals	S1049
CHIR-99021 (CT99021) HCl 5mg	Selleck Chemicals	S2924
IWR-1	Selleck Chemicals	S7086
C59	Selleck Chemicals	S7037
LY294002	Selleck Chemicals	S1105
SB431542	Selleck Chemicals	S1067
B-27 Supplement, minus insulin	Thermo Fisher Scientific	A1895601
B-27 Supplement, serum free	Thermo Fisher Scientific	17504044
Recombinant Human FGF-2	PeproTech	100–18B
Human BMP4	PeproTech	120–05ET
Recombinant Human VEGF	R&D Systems	293-VE-010/CF
EGM-2 Endothelial Cell Growth Medium-2 Bullet Kit	Lonza	CC-3162
FGM-2 Fibroblast Growth Medium-2 Bullet Kit	Lonza	CC-3132
TRIzol Reagent	Thermo Fisher Scientific	15596026
MACS BSA Stock Solution	Miltenyi Biotec	130–091-376
Digitonin	Thermo Fisher Scientific	BN2006
Tris-HCl	Invitrogen	15568025
NaCl	Invitrogen	AM9759G
MgCl2	Invitrogen	AM9530G
Tween-20	Sigma-Aldrich	11332465001
NP40	Sigma-Aldrich	11332473001
Activin A	PeproTech	120–14E
PrimeSTAR GXL DNA Polymerase	Takara	R050B
Lipofectamine ™ Stem Transfection	Thermo Fisher Scientific	STEM00001
Polyvinyl alcohol	MilliporeSigma	P8136
Transferrin	MilliporeSigma	T8158
Monothioglycer ol	MilliporeSigma	M6145
Dimethyl sulfoxide	MilliporeSigma	D2650
SpCas9 2NLS Nuclease	Synthego	N/A
Gelatin solution	Sigma-Aldrich	G1393
Critical Commercial Assays
Chromium Next GEM Single Cell ATAC Reagent Kits v1.1	10X Genomics	1000175
CytoTuneTM-iPS 2.0 Sendai Reprogrammin g Kit	Thermo Fisher Scientific	A16517
Direct-zol RNA MicroPrep	Zymo Research	R2053
iQ SYBR Green Supermix	Bio-Rad	1708882
iScript cDNA Synthesis Kit	Bio-Rad	170–8891
Dual-Glo® Luciferase Assay System	Promega	E2920
Deposited Data
Data files for scATAC-seq	NCBI GEO	GEO: GSE181346
Experimental Models: Cell Lines
Human iPSC	SCVI Biobank	SCVI274
Oligonucleotides
Human ACTB Primers	IDT	Hs.PT.39a.22214847
Human JARID2 Primers	IDT	Hs.PT.58.20087641
Recombinant DNA
pGL3-Promoter	Promega	E1761
pGL3-Control	Promega	E1741
pRL-CMV	Promega	E2261
Software and Algorithms
ImageJ	NIH	https://imagej-nih-gov.stanford.idm.oclc.org/ij/
Genome assembly	https://www.ncbi.nlm.nih.gov/grc/human	hg38 / GRCh38
Cell Ranger	10x Genomics	CellRanger v3.1.0
Cell Ranger-ATAC	10x Genomics	Cell Ranger-ATAC v1.2.0
Seurat	https://satijalab.org/seurat/	Seurat v.3.1.4
MACS2	Zhang et al., 2008	MACS2 v2.1.1
ChromVAR	Schep et al., 2017	ChromVAR v.1.6
GraphPad Prism	GraphPad Software Inc	https://www.graphpad.com/scientificsoftware/prism/
ArchR	https://www.archrproject.com/	ArchR v0.9.4
KerasAC (BPNet code framework for ATAC-seq profiles)	https://zenodo.org/record/4248179#.Y1CRjHbMJmN	KerasAC v.2.5.1.
DeepLIFT	https://github.com/kundajelab/deeplift	DeepLIFT v0.6.13.0-alpha
Code repository for all analyses	https://github.com/kundajelab/Cardiogenesis_Repo	https://github.com/kundajelab/Cardiogenesis_Repo

Highlights.

Single-cell chromatin data dissect distinct TF cardiogenesis regulatory programs.

Dynamic transcription factor activity defines major differentiation trajectories.

Molecular benchmarking with in vivo cells enables the optimization of in vitro protocols.

Neural networks prioritize noncoding de novo mutations in congenital heart disorders.
