Abstract

The concept of cell signaling in the context of non-enzyme-assisted protein modifications by reactive electrophilic and oxidative species—broadly known as redox signaling—is a uniquely complex topic that has been approached from numerous different and multidisciplinary angles. Our Review reflects on 5 aspects critical for understanding how Nature harnesses these non-canonical post-translational modifications to coordinate distinct cellular activities: (1) specific players and their generation; (2) physicochemical properties; (3) mechanisms of action; (4) methods of interrogation; and (5) functional roles in health and disease. Emphasis is primarily placed on the latest progress in the field, but several aspects of classical work likely forgotten/lost are also recollected. For researchers with interests in getting into the field, our Review is anticipated to function as a primer. For the expert, we aim to stimulate thought and discussion about fundamentals of redox signaling mechanisms, and nuances of specificity/selectivity and timing in this sophisticated yet fascinating arena at the crossroads of chemistry and biology.

Graphical Abstract

1. INTRODUCTION

The cell is a microcosm of the global compartmentalized multimedia information superhighway. Signals constantly flow hither and thither mediating information interchange between proteins/pathways/organelles as well as translating coded extracellular information to chemical signals that form the language of the cell. Unsurprisingly, a complex series of signaling mechanisms have evolved: these are big business for the cell in terms of the resources they use and the benefits they can bring. Since these signaling processes control specific decision making, they are intrinsically linked to both etiology and treatment of disease. They have thus also become cornerstones of drug discovery and design.

Chemical signals are typically considered to be relayed by specific enzymes. The two principal enzyme-orchestrated signaling codes are phosphate and ubiquitin/ubiquitin-like modifiers. Enzymes catalyzing these information interchanges/relays account for around 10 % of the genome [roughly 1000 genes for each pathway; a number similar to the number of genes required by mitochondria(1)]. This conjugation machinery faithfully and efficiently identifies specific upstream signals, writes appropriate coded information that downstream proteins can interpret and hence ultimately ensures a specific response occurs to a particular stimulus at a specific time. This guild of writers, readers, and erasers is required because a single chemical signal, depending on context can usher a huge number of different downstream signaling processes. Thus, the key to these pathways is the specificity and precision ensured by the enzymes that orchestrate them and the regulation that these processes impart.

However, there is a second signaling mode lacking the polished syntax and structure of enzymatic signaling cascades. This vernacular is conveyed through inherently reactive chemical signals that modify their specific target proteins largely without enzyme mediation. This is the focus of our review. We focus specifically on reactive oxidants and electrophiles. Reactive chemical signals are similar to classical methyl/acetyl/malonyl/phosphate/ubiquitin signals in that they modulate signaling pathways in a context specific manner. However, their chemical AND functional promiscuity renders them a potential source of misinformation rather than a means to precisely coordinate responses to promote fitness. Thus, at first glance, signaling by reactive chemicals is distinct from traditional ordered, logical signaling pathways. It seems the cell would have no need for chemically inefficient and promiscuous modifications. Nonetheless, there is growing evidence that many reactive oxidative and electrophilic species (ROS/RES) possess the ability to act as cellular signals. Consistent with this argument, many proteins have evolved to be sensitive to specific forms of these signals, and to further resist overreaction once a specific signaling pathway has been modified. Moreover, such protein-specific non-enzymatic modifications at low occupancy elicit specific signaling outputs just like in enzyme-orchestrated signaling pathways.

In this review, we will introduce the main players in ROS/RES signaling in eukaryotic cells. We will then set out the physicochemical properties of biological signals and sensor proteins that allow them to act as specific sensor/signal pairs in the backdrop of the cellular milieu. Because these signals must find their target in the cell ostensibly unaided, we will discuss important dimensions and varied local/regional concentrations of reactive species within the cell and organelles. Based on these properties, we will then critically review and evaluate specific examples of these signal sensors and the pathways they modulate in the context of physiologically-relevant biological signaling processes. We will next discuss methods to interrogate redox signaling and evaluate relevance of redox signaling as a new paradigm in therapeutic interventions through the discussions of key druggable proteins and how these proteins can be harvested for therapies. Our two-pronged goal is to provide a new lens to understand both redox signaling as a physiological signaling prototype, and its emerging translational impacts on human medicine.

2. KEY PLAYERS IN NON-ENZYME-MEDIATED CELL SIGNALING

A large number of reactive intermediates are generated during normal physiological and pathological conditions;(2) for instance there are ~70,000 DNA lesions formed by chemical modification of DNA per cell per day in humans.(3) However, recent research indicates the nuanced ability of biological systems to harness ROS/RES—once considered only to play damaging roles—as small-molecule signaling mediators essential for fitness.

ROS and RES are two major categories of reactive redox-linked signals. Other reactive species exist in the cell, including reactive nitrogen and sulfur species (RNS/RSS). Many of the conditions that generate ROS/RES can also generate RNS/RSS, so these species are often present together. However, physical properties of individual subtypes, identity of specific sensor protein targets, and/or downstream signaling elicited by these species are likely different. Accordingly, reactive species can be reasonably subcategorized and considered separately. We will only discuss RES and ROS; we direct readers to complementary reviews on RNS(4–6) and RSS.(5,7–9)

Most ROS are generated as a result of reduction of molecular oxygen.(10) ROS react with various proteins and other small molecules, resulting in the generation of a wide variety of secondary redox signals including RES. RES are also generated by the action of enzymatic pathways such as cyclooxygenases (COXs)(11,12) and lipoxygenases (LOXs)(13–15) and as byproducts of some metabolic processes.(16) This section describes the biogenesis of ROS and RES and highlights the key cellular compartments and processes responsible for their generation.

2.1 Reactive oxygen species (ROS)-mediated signal transduction

2.1.1 Physiologically-relevant oxidants

E⁰ is the most common parameter to characterize the “power” of an oxidant (ΔG = –nFE⁰, where n and F are number of electrons transferred and the Faraday constant, respectively). Thus, for a molecule that is prone to behave as an oxidant, reduction potential is positive. However, it is worth noting that redox exchange requires two players, and so long as there is a significant difference between redox potentials, redox exchange can occur [regardless of the sign(s) of the respective E⁰’s]. It is worth remembering that E⁰ defines thermodynamic behavior. Thus, the effective reduction potential has to be scaled to account for the relative concentrations of each component of the equilibrium: $E=E^0-\frac{RT}{nF}ln[\frac{\mathit{reduced}}{\mathit{oxidized}}]$. Furthermore, in the absence of enzymatic assistance, chemoselectivity may be dictated more by kinetics/frontier-molecular-orbital (FMO) interactions than thermodynamics. One interesting example of this phenomenon is nucleophilic vs. electrophilic oxidants. Substrates bearing both thioether and sulfoxide functional groups, such as thianthrene-5-oxide, are regioselectively oxidized by electrophilic oxidants like m-CPBA at the thioether, the more electron-rich moiety. On the other hand, thianthrene-5-oxide is oxidized by anionic oxidants, such as m-CPBA/NaOH, at the sulfoxide, the more electron-deficient moiety, to give the sulfone (Figure S1). Regiodivergence can be explained by the fact that the higher HOMO (S lone pair of thioether) is best matched to overlap with the σ*(O–O) orbital in the protonated peracid. However, once the peracid is deprotonated, the thiol lone pair is repelled suppressing nucleophilic attack at the σ*(O–O). However, the negatively-charged peracid O lone pairs are raised in energy due to electron pair repulsion, allowing good overlap with the sulfoxide π* orbital. Instances where these phenomena may impact biology are discussed below.

Principal cellular ROS include radicals [e.g., superoxide (O₂ ^•−) and hydroxyl radical (^•OH)], and non-radical species [e.g., hydrogen peroxide (H₂O₂) and singlet oxygen (¹O₂)].(17) O₂ ^•−[E⁰(O₂ ^•−/H₂O₂) = 0.9 V(18)] is produced by the single electron reduction of molecular oxygen with reductants such as NADPH and FADH₂ acting as the electron donors (see section 2.1.2). O₂ ^•−is the primary oxidant generated within many organelles. Enzymes responsible for this process include NADPH oxidases (NOX) that are located at the plasma membrane and the electron transport chain (ETC) in the mitochondria. Nevertheless, O₂ ^•−steady-state concentration is maintained at picomolar levels due to its enzyme-catalyzed dismutation [by superoxide dismutase (SOD)] to H₂O₂ and oxygen.(19) In addition to SOD, an emerging class of membrane-bound enzymes termed superoxide oxidases (SOOs) oxidize O₂ ^•−to oxygen at diffusion-limited rates.(20) Despite its low abundance in mammalian cells, O₂ ^•−is important in the regulation of various cell signaling pathways. For instance, Angiotensin II-induced O₂ ^•−generation activates the p38-MAPK pathway resulting in altered gene expression in endothelial cells.(21) Generation of O₂ ^•−is also required for Angiotensin II-mediated regulation of vasopressin secretion in the central nervous system, thirst and salt appetite, and modulation of the sympathetic nervous system.(22) Mitochondrial O₂ ^•−signal is critical in lifespan regulation in C. elegans, although the exact molecular mechanisms are unclear.(23)

H₂O₂ [E⁰(H₂O₂/H₂O) = 1.35 V(18)] is the most abundant ROS in eukaryotes.(24) Dismutation of O₂ ^•−is a significant source of intracellular H₂O₂. Direct production of H₂O₂ by oxidases such as NOX4 [for which 90% of ROS produced is H₂O₂ and O₂ ^•−accounts for only 10%(25,26)], xanthine(27) and monoamine oxidases has also been reported.(27,28) The steady-state concentration of H₂O₂ ranges between 1–10 nM in cells (Table 1).(24) Deviations from this steady-state concentration trigger biological responses.(29) Typically, small and controlled changes are associated with signaling responses. The signaling role of H₂O₂ came to light with the discovery that treatment of human T cells with H₂O₂ activated NF-κB transcription factor.(30) N-acetyl cysteine (NAC) and other thiol compounds mitigated the effect of H₂O₂ induced NF-κB activation. NAC also blocked the activation of NF-κB upon stimulation with a diverse range of different stimuli including TNF-α, phorbol esters, lipopolysaccharides, calcium ionophores, and double-stranded RNA, suggesting that NF-κB activation is mediated by a common reactive signaling species.(30) Endogenously-generated H₂O₂ modulates a wide-range of signaling pathways mainly by oxidizing cysteine residues on protein targets such as kinases and phosphatases.(31,32) On the other hand, large perturbations in H₂O₂ concentrations induce stress response. Concentrations >100 nM can cause oxidative damage of biomolecules resulting in cell cycle arrest and eventual apoptosis.(24)

Table 1.

Comparison of various endogenously-generated ROS and RES: their estimated cellular concentrations, half-lives, diffusion distances in plasma or aqueous buffers, and second-order reaction rate constants (with pH and temperature at which the rates were determined given when possible) with biological molecules such as GSH. [For reported second-order reaction rate constants between a representative RES, 4-hydroxynonenal (HNE), and proteins, see Table S1].

Species	Cellular concentration	Half-lives*	Diffusion distance**	Second-order rate constants with biological molecules M−1s−1
O2•−	10−9–10−12 M (58)	10−6 s (24,59,60)	Maximally 0.5 μm (59)	Variable (see text) ~200 M−1s−1with GSH at pH 7.0, 37°C (61,62) <103 M−1s−1with NAC at pH 7.4, 25°C (63)
H2O2	10−8–10−9 M(24) 10−7M (stimulated)(24)	10−3 –10−5 s (24); possibly longer in some cells/under some conditions (64)	1 μm (65); possibly longer in some cells	~1 M−1s−1with GSH at pH 7.4, 37°C (66)
•OH	10−9–10−15 M (58)	10−9 s (67)	0.001–0.005 μm (67)	109–1010 M−1s−1with GSH at pH 7.0, 22°C and NAC at pH 7.4, 25°C (68,69)
ONOO−	10−9 M (70)	10−3 s (71–73)	5–20 μm(72,73)	>103 M−1s−1 with cysteine at pH 7.4, 37 °C (72)
1O2	Not determined	4×10−6 s in water (74–76) 1.4×10−5 s in lipids (77) 3×10−6 s in nuclei/cells(77,78) Possibly as short as 0.2×10−6s in cells (79)	Between 0.01 and 0.25 μm (76,80); up to 0.4 μm in lipids. (81)	107 M−1s−1 with cysteine/Methionine at pH 7.4, 37°C (82)
HOCl		ca. 60 s in cells (see text) (47)	~ 0.03 μm in presence of millimolar concentration of thiols (83)	~108 M−1s−1 with cysteine/GSH/Methionine at pH 7.4, 22°C (47,49)
HNE	8×10−6 M (84) (0.3–1)×10−6 M (85–87) 1.5 × 10−5 M 5 × 10−3 M (stressed) (85)	< 4 s in rat heart (85) 30 s in hepatocyte suspension (88)	0.010–0.100 μm in lipid prior to movement to cytosol; (89) likely several μm (longer than H2O2)	0.0021 M−1s−1 with N-acetyl histidine; 0.0013 M−1s−1 with N-acetyl lysine; 1.33 M−1s−1 with GSH; 1.21 M−1s−1 with cysteine, all at pH 7.4, 23°C (90)
Nitro-Fatty acids	~10−9 M (nitro-conjugated linoleic acid) in human plasma and <10−8 M in human urine (91–93) ~1.7×10−8 M of nitro-conjugated linoleic acid in heart tissue under stress (94) ~9.5×10−9 M of free nitro-oleic acid in heart tissue under stress (91) ~6×10−7 M of free nitro-oleic acid in plasma (91)	Nitro-linoleic acid ~1.8×103 s in phosphate buffer at pH 7.4, 37 °C (91) Nitro-oleic acid ~7.2×103 s in phosphate buffer at pH 7.4, 37 °C (91)	Not determined	~350 M−1s−1 for GSH with nitro-linoleic acid at pH 7.4, 37°C (95) ~180 M−1s−1 for GSH with nitro-oleic acid at pH 7.4, 37 °C (95)
Prostaglandins (15d-PGJ2)	~2×10−12 M of 15d-PGJ2 in 3T3-LT1 preadipocyte culture medium (96) 10−9 M 15d-PGJ2 intracellular (96)	>1.8×105 s in aqueous media at 37 °C for 15d-PGJ2 (96)	Not determined	PGJ2 ~0.7 M−1s−1 for GSH with 15d-PGJ2 at pH 7.4, 37 °C (95)

^*Half-life: The time taken for the initial concentration of a reactive species to be reduced by 50%.

^**Diffusion distance: The distance travelled by a reactive species before 90% is consumed by a chemical process. The half-life and diffusion distance of a reactive species are interrelated (see section 3.3). The half-life (and thus the diffusion distance) is also dependent on the identity and concentration of substrates that lie in the path of the reactive species. Where applicable, we have specified the medium (buffer/plasma/in cell) in which the half-lives and the diffusion distances were calculated. See section 3.3 and cited references therein for more detailed discussion.

¹O₂ {formally, O₂(¹Δ_g); [E⁰(¹O₂/O₂ ^•−) = 0.65 V(18)], excitation energy from ground state 95 kJ mol⁻¹(33)}is generated by the electronic excitation of triplet oxygen {³O₂, more formally O₂(³Σ_g ⁻); [E⁰(³O₂/2H₂O) = 0.82 V(34)]}. In biological systems, ¹O₂ can be generated by (1) a light-induced excitation called the ‘light reaction’ and (2) a chemical excitation termed the ‘dark reaction’.(35,36) In the light reaction, aromatic cellular constituents such as cytochromes and flavins as well as FAs(37) absorb light generating an excited triplet state [T1(ππ*)] of the photosensitizer by intersystem crossing. The excited sensitizer forms an encounter complex with ³O₂, allowing the sensitizer to relax to a singlet state, generating reactive ¹O₂ at the same time, in an overall spin-conserved process.(38) The dark reaction involves a chemical reaction, such as thermal decomposition of peroxynitrite [ONOO⁻; E⁰(ONOO⁻/NO₂, H₂O) = 1.4V(39)] in the presence of peroxide(40) and enzymatic reactions catalyzed by myeloperoxidase, LOXs, and prostaglandin synthetases to generate ¹O₂.(36) O₂ formed in these processes is in the singlet state, due to spin conservation, since the starting materials are also singlet states (e.g., HONO₂).(41) Because of the unique chemistry of ¹O₂, it is able to perform two-electron oxidation chemistry— typically via ene and Diels–Alder reactions—and it is thus an effective oxidant of unsaturated lipids. In biological systems, generation of ¹O₂ needs to be controlled because ¹O₂ can oxidize several amino acid residues including cysteine, histidine, tyrosine, methionine and tryptophan.(42) Unsurprisingly, biology typically employs enzymes to generate highly localized bursts of ¹O₂ at source that ultimately form less reactive signaling molecules, such as prostaglandins.(43) Uncontrolled release of ¹O₂ induces oxidative damage. Oxidative damage to the eye and skin of animals has been attributed to UV-mediated generation of ¹O₂.(44) In fact, the ability of ¹O₂ to cause excessive oxidative damage and apoptosis has led to its use as a photodynamic therapy for treating cancer.(42)

Another common biological oxidant is HOCl (E⁰ = 1.6 V), a molecule with a short (approx. 1 min, although it is likely closer to seconds) half-life in cells.(45,46) This molecule is involved in immune response as it is formed by the “myeloperoxidase-H₂O₂-Cl⁻” system in phagocytes (principally neutrophils and monocytes). The importance of HOCl formation is perhaps best illustrated by the fact that 5% of total neutrophil protein is myeloperoxidase.(47) Although not fully understood, HOCl has interesting biological properties that are distinct from peroxide.(48) HOCl reacts rapidly with glutathione (GSH) (10⁷ M⁻¹s⁻¹)(47) and NAC (10⁸ M⁻¹s⁻¹).(49) Intriguingly, the rate of reaction of HOCl with methionine is similar to the rate of HOCl oxidation of thiols (10⁷–10⁸ M⁻¹s⁻¹).(49)This observation likely reflects the fact that HOCl is appreciably deprotonated at neutral pH (pK_a HOCl: 7.5;(50) pK_a H₂O₂: 11.7 in water), meaning that thiolate formation does not accelerate the reaction as efficiently as for the analogous oxidation by H₂O₂ (that is greatly accelerated by thiolate formation).(51)

HOCl affects cellular glutathione pools differently to treatment with standard oxidants that form glutathione disulfide. The product of human vascular epithelial cells (HUVEC) treated with HOCl is glutathione sulfonamide (GSA), a molecule that is rapidly excreted from cells.(52) (Figure S2) One explanation for this discrepancy is that a sulfenyl chloride is the initial product of the reaction between RSH and HOCl. This intermediate may support an alternative reaction trajectory to the pathway that occurs when the sulfenic acid is formed. GSA formation may also reflect the fact that ⁻OCl can behave as a nucleophilic oxidant,(53) meaning it has a higher propensity to oxidize electron-deficient sulfur than peroxide (whose rate of oxidation of sulfur decreases as sulfur oxidation state increases).

HOCl can react with amines to form chloramines. This process is around 100-fold slower than with thiols. Chloramines can also oxidize sulfur-containing amino acids, although the rates are relatively slow (GSH = 115 M⁻¹s⁻¹; methionine 39 M⁻¹s⁻¹).(51) In addition to amine chlorination, HOCl is also believed to chlorinate tyrosine,(54) likely through chloramine intermediates. The latter transfer chlorine in a fold-specific manner.(55) Chlorinated tyrosine modification is believed to be indicative of myeloperoxidase activity.(56) Although approximately 7-fold less potent than extracellular H₂O₂ treatment, extracellular HOCl treatment can also initiate tyrosine phosphorylation and TNF-α production, meaning that HOCl can elicit biologically relevant signaling.(57)

2.1.2 ROS generation in mammalian cells: location, location, location?

An important feature of signaling networks is the high level of protein target specificity demonstrated by cellular messengers. This is most readily exemplified by canonical, enzyme-assisted signaling processes, wherein a relatively unreactive precursor is activated and shepherded to a target protein by (an) enzymes(s). Many of these pathways—such as ubiquitination, SUMOylation, acetylation, methylation, phosphorylation and farnesylation—use inert precursors (Ub/SUMO/acetylCoA/S-adenosyl methionine or folate/ATP/farnesylCoA) that are widely [although not necessarily uniformly(113,114)] distributed within the cell, with mediator enzyme’s localization/expression/activity controlling signaling dynamics. Unlike these canonical systems, ROS (and RES) are highly reactive, short-lived and can modify many targets, largely in the absence of enzyme assistance.(17,115–117) It is thus likely that ROS/RES signals will not distribute evenly through the cell, meaning that location of generation will be a significant factor determining which signaling pathways are triggered. It must further be stressed that reactive molecules can have different fates due to context/location-specific regulation even within specific organelles.(118) We thus first focus on synthesis pathways (Figure 1).

Figure 1.

The compartmentalized/subcellular generation of various chemotypes of ROS and RES. Some of the most important sources of ROS in biological systems include NOX enzymes localized on plasma membrane and membranes of cellular organelles, mitochondrial ETC, and metabolic enzymes in the ER and peroxisomes. Enzymatic and non-enzymatic oxidation of fatty acids are the primary sources of RES in mammalian cells.

2.1.2.1 Superoxide generation at biological membranes by NADPH oxidase

ROS generation by NOX is highly regulated, making NOX enzymes uniquely suited for redox signaling.(119) NOX proteins transfer electrons across biological membranes (Figure 2A) to reduce O₂ to either O₂ ^•−, or as discussed above H₂O₂ in the case of NOX4. ROS generation by NOX is initiated by NADPH as the 2-electron donor, and its subsequent transfer through FAD and heme cofactors to O₂.(119)

Figure 2.

Sites of ROS generation in eukaryotic cells (A) NOX enzymes generate O₂ ^•−by a single electron reduction of ³O₂.(144,145) NOX enzymes (NOX2 shown here), consist of multi-subunit complexes comprising transmembrane subunits (gp91^phox/NOX2 and p22^phox) and various cytosolic regulatory domains. Stimulation with cytokines or microorganisms results in phosphorylation and subsequent recruitment of the cytosolic components p67^phox, p47^phox, and p40^phox and a Rac1 GTP to the transmembrane subunits. The p67^phox initiates electron transfer by accepting two electrons from NADPH. The electrons are relayed through FAD and then sequentially to two heme cofactors (depicted as orange circles) housed in the transmembrane gp91^phox domain. O₂ acts as the terminal electron acceptor generating two molecules of O₂ ^•−per molecule of NADPH used. GDI: guanosine nucleotide dissociation inhibitor. (B) Complex I and Complex III are the two important sites of O₂ ^•−generation in the mitochondrial electron transport chain (mETC). At Complex I, O₂ ^•−is generated by the reaction of ³O₂ with reduced FMN. O₂ ^•−generation at Complex I is favored under conditions of high proton motive force and when CoQ is reduced, resulting in a reverse electron transfer from reduced CoQ to FMN site at Complex I. ³O₂ reduction at Complex III is mediated by ubisemiquinone housed in this subunit. Complex I releases O₂ ^•−primarily in the mitochondrial matrix whereas Complex III generated O₂ ^•−is released in both the mitochondrial matrix and the intermembrane space. (C) The catalytic cycle of microsomal monooxygenase (MMOs) CYP450. CYP450 is a heme-iron-containing protein. In the resting state, iron is in a hexa-coordinated ferric form (Fe³⁺)–equatorial sites are taken up by the heme cofactor (denoted by rhombus); a cysteine thiol from the protein, and a water molecule occupy the apical sites (i). Substrate binding displaces the water molecule, and a subsequent one-electron reduction by NAD(P)H via FAD/FMN-containing CYP450 reductase (CPR) generates the penta-coordinated ferrous complex (Fe²⁺) (iii). Addition of O₂ to (iii) generates a hexa-coordinated Fe³⁺⁻O₂ oxycomplex (iv). MMOs in the eukaryotic ER generate ROS because of inefficient utilization of activated O₂ for substrate oxidation. Two uncoupling reactions that result in the generation of ROS are shown. The first route generates O₂ ^•−due to the decay of one-electron reduced oxycomplex (iv). A possible route of H₂O₂ generation includes protonation and subsequent uncoupling of the peroxycomplex (v). Adapted with permission from ref. (146). Copyright 2004 Elsevier.

NOX were first identified in phagocytic cells such as macrophages and neutrophils. These cells generate a ‘respiratory burst’, a sudden generation of ROS that is used to combat invading microorganisms. The respiratory burst was attributed to the presence of gp91^phox (also known as NOX2), the transmembrane catalytic subunit of phagocytic NADPH oxidase, located on the cell membrane.(120) The discovery of other components of the phagocytic NOX enzyme system including the transmembrane protein p22^phox, and cytosolic subunits p40^phox, p47^phox and p67^phox followed.(119) The amino terminal region of NOX2 forms six transmembrane helices.(121) The region also contains five histidine residues, four of which are required for coordinating two hemes. The cytoplasmic C-terminus of the enzyme houses the binding sites for NADPH and FAD. Activation of NOX by exposure to microorganisms and inflammatory stimuli requires the recruitment of various cytosolic regulatory elements p40^phox, p47^phox, p67^phox, and Rac1 to the membrane where they form a complex with cytochrome b₅₅₈ (gp91^phox and p22^phox) (Figure 2A). The activation domain of p67^phox initiates the rate-limiting electron transfer step from NADPH to FAD. The electrons are subsequently passed through two heme cofactors in the transmembrane domain to O₂ that acts as the terminal electron acceptor, generating two O₂ ^•−per NADPH used.

NOX enzymes are present in other cell types including fibroblasts, and vascular smooth muscle cells.(121) NOX1—a homolog of phagocytic gp91^phox—was isolated from colon epithelial cells.(122) Subsequently, NOX3(123) and NOX4(124) were identified in fetal tissues as well as in kidney, placenta, and glioblastoma cells. NOX5—expressed in the spleen, testis, and the lymph nodes—has an additional cytosolic calmodulin-like domain containing four calcium binding sites.(125) Unsurprisingly, NOX5 is stimulated by the calcium ionophore, ionomycin. In addition, a number of external signals such as growth factors, cytokines, and mechanical and elastic stress of epithelial cells trigger O₂ ^•−generation by NOX enzymes. Two other NOX homologs—DUOX1 and DUOX2(126)—contain an additional extracellular peroxidase-homology domain at the N-terminus.(121) This functional coupling of ROS generation with its breakdown by the peroxidase-homology domain on a single gene underscores the importance of regulated ROS homeostasis.

In addition to plasma membrane-bound isoforms, NOX isoforms localize to subcellular organelles such as the endoplasmic reticulum (ER),(127) the nucleus,(128,129) and the mitochondria.(130) NOX isoforms adopt different localizations in different cell types, indicating a complex context-dependent network controlling redox signal origin in cells.(131) NOX4, for example, was identified in the nucleus of HUVECs.(128) Nuclear fraction of HUVECs showed NADPH-dependent O₂ ^•−generation upon stimulation with phorbol ester, a positive regulator of protein kinase C that stimulates NOX activity. Nuclear NOX4 stimulation facilitates transactivation of the antioxidant response element (ARE) and siRNA knockdown of NOX4 abrogates this response. Certain isoforms of NOX, such as NOX5, also show variable localization. In the case of NOX5, PI(4,5)P₂ stimulates recruitment of the enzyme to the cell membrane via an N-terminal polybasic region, leading to upregulation in extracellular ROS generation upon ionomycin stimulation of cells co-expressing NOX5 and PI4P kinase α.(132)

2.1.2.2 Mitochondrial generation of O₂ ^•−and H₂O₂

Mitochondria are an important source of O₂ ^•− and H₂O₂ (generated from O₂ ^•−dismutation) in eukaryotic cells.(133) Mitochondrial O₂ ^•−production is estimated to be up to 2% of total O₂ consumed by the isolated organelle.(134) In vivo O₂ ^•−flux under physiological conditions, however, is estimated to be significantly less (< 0.2% of total O₂ consumed by the organelle).(135) The steady-state O₂ ^•−concentration in mitochondrial matrix is estimated to be 10–200 pM (Table 1).(24,134) These low levels are maintained by the action of manganese superoxide dismutase (Mn-SOD)—an important O₂ ^•−scavenger in mitochondria—present in micromolar concentrations in the matrix (Table 2).(101,133) Mitochondria-specific peroxiredoxins (Prx3 and Prx5) and glutathione peroxidase 1 (Gpx1) can further reduce the H₂O₂ generated to keep ROS levels in check.(136,137) The significance of O₂ ^•−generation and clearance is perhaps best demonstrated by the fact that mice lacking mitochondrial Mn-SOD display postnatal lethality.(138) Heterozygotes are apparently normal, although mild elevation of some oxidative markers has been reported.(139) On the other hand, mice lacking extracellular SOD are normal.(140)

Table 2.

A selection of cellular ROS and RES scavengers, their intracellular concentrations, and reaction kinetics (with pH and temperature at which the rates were determined given when possible) with various RES/ROS.

RES/ROS scavengers	Concentration range	Reaction rates with RES/ROS
GSH	1–10 mM (97,98)	See Table 1
Carnosine	150 mM (99)	HNE (0.0021 M−1s−1) ONE (0.022 M−1s−1) both at pH 7.4, 37°C (100)
SOD	24 μM Cu-Zn SOD in rat liver cytosol;(101) 11 μM Mn-SOD in rat liver mitochondria;(101) 20–90 U/mg in most cell lines of total SOD activity(102)	Diffusion controlled reaction with superoxide (109 M−1s−1) at pH 7.8 (103) Also possesses peroxidase activity (1600 M−1s−1for HO2CO2− at pH7.4, 25°C)(104)
peroxiredoxins	Peroxiredoxin1 and 2 (Cytosol; 65 μM);(105) Peroxiredoxin3 (mitochondria; 125 μM)(105)	React with ONOO− at 106–108 M−1s−1 at pH 7.4, 25°C (106,107) React with H2O2 at 105–108 M−1s−1 at pH 7.4, 20°C (108–111)
Catalase	~105 U/mg of protein(102)	Reacts with H2O2 at 107 M−1s−1 at pH 7.4, 20°C (108,112)
Glutathione peroxidase	14–30 U/mg of protein(102) ~2 μM in cells (112)	Reacts with H2O2 at 107–108 M−1s−1 at pH 7.4, 20°C (108,112)

The production of O₂ ^•−primarily occurs at two points in the ETC, Complex I (NADH dehydrogenase) and Complex III (ubiquinone-cytochrome c reductase). Complex II also generates O₂ ^•−under certain conditions.(133,141,142) (Figure 2B) Complex I and Complex II funnel electrons from reduced metabolites such as NADH and FADH₂ to the coenzyme Q (CoQ) reduction site through a chain of iron-sulfur (FeS) centers. The electrons are then further transported to Cytochrome C (Cyt C) via Complex III that consists of 11 polypeptides, three hemes, and one FeS. From Cyt C, ultimately, the electrons are transferred to Complex IV where they reduce ³O₂ to water. Flux through the ETC is also coupled with an ATP synthase that harnesses the energy of a transmembrane proton gradient to generate ATP.(143)

O₂ ^•−is produced in the mitochondria when electrons passing through ETC leak into the intermembrane region (Complex III) or the matrix of the mitochondria (Complex I and Complex III) (Figure 2B).(135) Experiments using isolated mitochondria show that Complex I generates superoxide in the mitochondrial matrix mainly by two mechanisms.(147,148) In the first mechanism, O₂ ^•−is generated by the reaction of O₂ with reduced FMN.(148,149) Since the fraction of reduced FMN is determined by the NADH/NAD⁺ ratio, high NADH/NAD⁺ favors O₂ ^•−generation. The second mechanism involves reverse electron transfer (RET).(133) RET occurs when CoQ is reduced. Under high proton motive force, an electron is shuttled back from reduced CoQ (CoQH₂) to Complex I, resulting in O₂ ^•−generation.(150,151) Complex III generates O₂ ^•−by the reaction of O₂ with ubisemiquinone bound to the complex.(152) The superoxide generated at Complex III is released both in the mitochondrial matrix and the inner mitochondrial membrane space.(153) In principle, O₂ ^•−formed at either site can have signaling roles. However, considering the short half-life of O₂ ^•−, generation at Complex III—requiring traversing the membrane just once for cytosolic entry—may be more likely to elicit ROS signaling.(154)

Other O₂ ^•−generation sites in mitochondria include α-ketoglutarate and pyruvate dehydrogenase complexes.(155) Both enzymes house a flavin cofactor, the reduced form of which can reduce ³O₂ to O₂ ^•−. Similar to Complex I, this reaction is enhanced when the mitochondrial electron acceptor NAD⁺ is in short supply.(151) Additionally, p66shc, a mitochondrial intermembrane protein, enhances O₂ ^•−production in response to apoptotic signals such as UV-irradiation and growth-signal deprivation in mammalian cells.(156) An inactive dimer, p66shc, upon stimulation with pro-apoptotic signals, converts to an active tetramer, which interacts with complex III to channel electrons away from cytochrome C. The oxidation of cytochrome C is coupled with the reduction of ³O₂ to generate O₂ ^•−. H₂O₂ resulting from O₂ ^•−dismutation induces swelling of the mitochondria and opening of the permeability transition pore, key events in apoptosis.(156)

2.1.2.3 ER-mediated O₂ ^•−and H₂O₂ generation

The ER lumen is one of the most oxidizing environments in the cell. The ER redox potential is estimated to be −189 mV, considerably higher than mitochondria (−280 mV) and cytosol (−220 mV).(157) The oxidative environment of ER facilitates oxidative folding of proteins and disulfide bond formation.(158,159) Protein disulfide bond formation is a redox process and in eukaryotic cells is catalyzed by several oxidoreductases including protein disulfide isomerase (PDI),(160) ERp61,(161) and ERp72.(161,162) Around 20 distinct oxidoreductases are found in the ER, each with unique redox potential and substrate specificity.(163) In PDI-catalyzed protein disulfide bond formation, cysteine residues in PDI serve as the acceptors of 2 electrons from cysteine residues of the substrate protein.(164) The reduced PDI is regenerated via multiple pathways.(159,165) The flavoenzyme ER oxidoreductase (Ero1) acts an important re-oxidizing protein for PDI.(166) This reoxidation step must be coupled to concomitant reduction of another substrate. In the ER lumen, ³O₂ serves as the ultimate oxidant, which is reduced to H₂O₂ in the process.(167,168) ~25% of all H₂O₂ produced in yeast cells is generated by the action of Ero1p-mediated disulfide bond formation.(158,168,169) Additionally, ER-resident Prx4 and Gpx7/8 also reoxidize PDI, consuming H₂O₂ in the process. Furthermore, non-enzymatic routes of PDI re-oxidation including those mediated by GSSG, dehydroascorbate, and H₂O₂ have also been described.(165) Finally, members of the quiescin-sulfhydryl oxidase (QSOX) family of flavoenzymes can directly catalyze the oxidation of peptide/protein thiols into disulfides with the accompanying reduction of molecular oxygen to H₂O₂. (170)

Microsomal monooxygenases (MMOs) are another important source of O₂^{• −} and H₂O₂ in the ER. MMOs are a multi-enzyme system comprising of a terminal cytochrome P450 (CYP450), which receives electrons from a FAD/FMN-containing NADPH cytochrome P450 reductase (CPR).(171,172) The primary function of MMO is the oxidation of external xenobiotics, small-molecule inhibitors/drugs, and endogenous metabolites. During monooxygenase reaction, a two-electron transfer is initiated by CPR using NADPH.(172) The electrons are relayed through CPR via FAD/FMN. One electron is accepted by the ferric iron (III) of the heme cofactor in CYP450 resulting in the ferrous (II) intermediate(172) (Figure 2C). This intermediate then binds to oxygen generating an oxycomplex, followed by a peroxy intermediate eventually forming a Compound I [Fe(IV)=O; iron(IV)oxo] species that catalyzes the oxidation of substrates. In eukaryotes, a significant fraction of the activated oxygen in oxy- and peroxy-complex is released via multiple mechanisms without being used for substrate oxidation. One such mechanism involves the decay of the oxycomplex to generate O₂^{• −}. Another mechanism involves protonation and subsequent uncoupling of the peroxy intermediate to generate H₂O₂ (Figure 2C).(149,172) MMOs have relatively poor second-order oxidation kinetics. For instance, Flavin-containing monooxygenase 3 has k_cat/K_m = 6700 M⁻¹s⁻¹for the Aurora kinase inhibitor, Tozasertib,(173) and 3200 M⁻¹s⁻¹for Danusertib,(174) another Aurora kinase inhibitor. There is also a low coupling efficiency (substrate turnover per molecule of NADPH used) of ~60%.(172) For many substrates, the coupling efficiencies are <10% suggesting that a large fraction of activated oxygen leaks out as ROS.(175) Cytochrome b5, another membrane hemoprotein, was found to protect against ROS generation by increasing MMO activity and coupling efficiency.(175)

ER-localized NOX enzymes are yet another source of ROS. NOX4 generates O₂^{• −} and H₂O₂ in the ER lumen thus maintaining the oxidative environment.(25,26,168) Unfolded protein response (UPR) activation in peripheral vasculature cells is a means to activate NOX4 that results in increased ER ROS generation.(176)

2.1.2.4 Redox regulation of GSH in the ER versus the mitochondrion

Like other cellular compartments such as the mitochondria, redox status of the ER is also kept in check by various reducing agents.(177) GSH transported from the cytosol acts as the major reducing agent both in the ER and the mitochondria. Selective transport of GSH across the ER, a process that in yeast occurs through the ER channel Sec 61,(178) has been demonstrated in rat liver microsomal vesicles.(179) GSH transport into the sarcoplasmic reticulum of skeletal muscles occurs via ryanodine receptor calcium channel type1.(180) Additionally, the ER membrane is also permeable to small molecules,(181) perhaps allowing passive diffusion of GSH across the gradient from cytosol to the ER.(178) Despite the report of both active and passive diffusion into the ER, GSH concentration in the ER is kept low by multiple mechanisms. GSH is actively consumed in the ER to reduce incorrectly oxidized proteins.(182) Unsurprisingly, a significant amount of GSH forms mixed disulfides with ER proteins.(183) Additionally, H₂O₂ generated during oxidative folding of proteins mediated by PDI/Ero1 oxidizes GSH.(167) The high concentration of H₂O₂ generated in the ER may help offset the low reactivity of GSH with H₂O₂ (second order rate constant of ~1 M⁻¹s⁻¹ at pH 7.5 and at 37 °C).(66) Additionally, ER-localized glutathione peroxidases such as Gpx7 and Gpx8 may accelerate the reaction(184) although recent reports suggest that neither have significant Gpx activity, instead preferring oxidized PDI as a substrate.(185)

GSH cannot cross the inner mitochondrial membrane due to its anionic nature at physiological pH and the negative membrane potential of the mitochondrial matrix.(186) Despite the physical barrier to GSH entry, mitochondria maintain a more reductive environment compared to the ER. For example, the GSH:GSSG ratio in ER is maintained around 3:1–1:1.(187) The ratio in cytosol and mitochonrdia ranges from 30:1–100:1.(187) The GSH concentration in mitochondria is around 10–14 mM.(188) Dicarboxylate and the α-ketoglutarate carrier proteins were suggested to mediate this transport; however, recent studies have disputed these findings(189) suggesting the existence of a yet unknown transport mechanism. Additionally, mitochondrial GSSG is reduced in the matrix by glutathione reductases using NADPH as the reductant thus maintaining high levels of mitochondrial GSH.(186)

2.1.2.5 Peroxisomal generation of ROS

Peroxisomes are multi-purpose organelles important for processes such as oxidation of fatty acids, catabolism of purines, and biosynthesis of glycerol-lipids and bile acids.(190) The central role of peroxisomes in the maintenance of redox homeostasis is exemplified by the fact that peroxisomes consume as much as 20% of cellular oxygen taken up by a cell and as they release 20–60% of the peroxide they generate(191) (likely through a specific porin-like channel).(192) Ultimately, this organelle generates approximately 35% of cellular peroxide.(190,191) Peroxisome and mitochondria share the ability for cooperative β-oxidation of long chain fatty acids. These two organelles coordinate the generation and/or scavenging of ROS based on cellular needs. Peroxisomes house a battery of antioxidant enzymes including catalase, SODs, etc. to maintain redox balance.(193) Peroxisomes also contain various oxidases including D-amino acid oxidase, D-aspartate oxidase, urate oxidase, palmityl-CoA oxidase, etc., for the oxidation of various metabolites. Many of these oxidases are FAD/FMN-dependent oxidases that generate O₂^{• −} and H₂O₂ as byproducts.(118,149) Additionally, xanthine oxidase and nitric oxide synthase generate O₂^{• −} and nitric oxide (^•NO), respectively.(193) Unsurprisingly, peroxisomes likely play important roles in redox signaling, although the ins and outs of these processes still need to be clarified.(194) Indeed, overexpression of fatty acyl CoA oxidase (a protein that generates peroxide in the peroxisome) in the presence of an H₂O₂-generating substrate stimulates NF-κB (a redox-controlled transcription factor) signaling.(195) Conversely, compromised activity of catalase, an antioxidant enzyme localized in peroxisomes, is associated with a number of human pathologies including hypertension, type 2-diabetes, and neurodegenerative diseases.(193)

2.1.2.6 Other sources of ROS

In addition to endogenous sources, a variety of exogenous stimuli also generate ROS in cells. Environmental sources such as UV light,(196) ionizing radiation,(59) and xenobiotics(172) can generate a variety of ROS. 1,2 and 1,4-benzenediols (such as catechol, resorcinol, and hydroquinone) and endogenously-generated catecholamines (dopamine, adrenaline, etc.) that are metabolized to quinone and semiquinone derivatives in cells also enable ROS generation in presence of trace metals.(197–199) Quinones and similar species can also behave as RES (see section 2.2.1.4). Whether the ROS modulating properties of RES are linked to disease and signaling is an ongoing area of debate.(200)

2.1.2.7 Interconversion of ROS

O₂^{• −} generated by NOX enzymes can undergo chemical reactions to generate secondary oxidative species (Figure 3). O₂^{• −} can rapidly dismutate, either spontaneously or enzymatically, to H₂O₂ and O₂. The rate constant for the spontaneous dismutation of O₂^{• −} is ~10⁵ M⁻¹s⁻¹ at neutral pH in aqueous solution.(201) However, this reaction is bimolecular, and accordingly, the half-life of O₂^{• −} depends on the O₂^{• −} concentration. SODs are highly abundant in eukaryotic cells (e.g. [Cu/Zn-SOD] in the cytosol of rat hepatocytes ~1.36 mg/mL, 24 μM), and thus help maintain a low steady-state concentration of O₂^{• −}.(19,202) SODs increase the O₂^{• −} dismutation rate by four orders of magnitude to the diffusion limit (~10⁹ M⁻¹s⁻¹). Unlike spontaneous dismutation, the reaction between O₂^{• −} and SOD is of first order, rendering half-life independent of O₂^{• −} concentration.(202)

Figure 3.

ROS interconversion in eukaryotic cells. ROS generated in cells are highly dynamic and rapidly interconvert. O₂^{• −} generated by enzymatic pathways such as NOX enzymes and mETC by reduction of ground-state ³O₂, rapidly dismutates to yield H₂O_2. SODs also catalyze this conversion. O₂^{• −} also reacts with ^•NO yielding ONOO⁻, which can further decompose to generate ^•OH. H₂O₂ generates ^•OH in presence of trace metals such as reduced iron. Reactive radicals such as ^•OH initiate lipid peroxidation by abstracting a bis-allylic hydrogen from PUFAs (see Figure 5a). Myeloperoxidase enzyme (MPO) in neutrophils and macrophages(203) utilize H₂O₂ to generate HOCl that can react with ⁻OOH to generate singlet oxygen (¹O₂) in phagocytic cells. ¹O₂ is also directly generated by the excitation of ³O₂ by UV radiation.

O₂^{• −}, although not very reactive with amino acids,(204) reacts with ^•NO at diffusion-controlled rates (approximately 10¹⁰ M⁻¹s⁻¹) to generate ONOO⁻.(205) Indeed in some cases this reaction may proceed faster than SOD-catalyzed dismutation.(72) ONOO⁻ intrinsically decays to ^•OH and ^•NO₂ (k approximately 1 s⁻¹) around neutral pH.(73,206) ONOO⁻ can also modify proteins, oxidize thiols, and react with fatty acids to generate RES (see Section 2.2.1.3).(207) These modification processes occur with rate constants on the order of 10² to 10⁶ M⁻¹s⁻¹ and are believed to dominate over the intrinsic decomposition reaction (at least at neutral pH, although this is not necessarily true in acidic vesicles).(208–210). The most favored reaction for ONOO⁻ is the one-electron reaction with CO₂ to generate carbonate radical [(CO₃^{• −}, E⁰ = 1.8V; diffusion distance 152 nm) and ^•NO₂ (E⁰ = 1.0V; diffusion distance 188 nm);(116,211,212) (a process that occurs through a transient species that forms with a rate constant of 3×10⁴ M⁻¹s⁻¹)]. CO₃^{• −}, although less oxidizing than ^•OH (E⁰ = 2.3V), (211) reacts with various amino acids with high second-order rate constants [10⁶–10⁸ M⁻¹s⁻¹,(213) Cf. 10⁹–10¹⁰ M⁻¹s⁻¹ for ^•OH(214)]. CO₃^{• −} shows some kinetic selectivity for tryptophan oxidation, a process that produces proteins linked through tryptophan dimers.(215) This may be a means to identify carbonate radical chemistry in cells, although this idea has not been fully expanded,(216) and likely is not fully diagnostic as multiple oxidative processes can lead to this product.

^•OH is also generated from O₂^{• −} and H₂O₂ in the presence of trace metals through the Fenton/Haber-Weiss reactions. H₂O₂ can oxidize Fe²⁺ to generate ^•OH and the hydroxide anion.(217,218) The rate constant for this reaction carried out by the iron hexa-aquo complex is reported to be ~100 M⁻¹s⁻¹ at room temperature.(219,220) The reaction rate varies significantly depending on the nature of ligands bound to iron (and their relative concentrations), the presence of reducing agents(221) and pH.(220) The rate constants quoted for different liganded iron species range at least between 10⁴ and 10⁻⁴ M⁻¹s⁻¹.(221) For instance, ATP and pyrophosphate [hard, anionic donor ligands that stabilize the (hard) Fe(III) form] suppress the Fenton reaction,(222) although this relationship is likely concentration dependent. Given the uncertain nature of the cellular labile iron pool,(223) it is thus hard to predict the rate of Fenton reaction in cells and hence the contribution of Fenton chemistry to ROS generation is likely to be context dependent.

The diverse chemistry undertaken by iron highlights the complexity of the interplay of ROS. For instance, SOD catalyzes the formation of 0.5 equivalents of H₂O₂ from each O₂^{• −}. Thus, one could propose that SOD promotes peroxide formation in cells. Evidence has been provided that agrees with this hypothesis.(224) However, this argument ignores that O₂^{• −} has pleotropic effects on cells; it can disrupt many 4Fe—4S centers, affecting the concentration of reduced iron in cells. The free iron generated can ultimately generate peroxide catalytically, and may actually upregulate peroxide generation over that in the presence of SOD. Indeed, overexpression of SOD leads to lower peroxide levels in Chinese hamster cells than parental cells.(225)

HOCl, generated by myeloperoxidase, can react with peroxide anion to yield ¹O_2.(199) Using diphenyl anthracene, a ¹O₂ trap, it was estimated that ~20% of the O₂ consumed by neutrophils is used to generate ¹O₂,(226) although subsequent studies have downplayed the importance of this process.(83,227,228)

Ultimately, the rapid interconversions of ROS, which often occur in a context-dependent manner, make it difficult to parse the most biologically-relevant ROS in cells. H₂O₂—because of its relatively long half-life and resulting diffusion distance (see section 3.1) compared to O₂^{• −}, ^•OH and ¹O₂—is thought to be the most important ROS in signaling. However, this notion could perhaps be a consequence of lack of tools to measure short-lived and more reactive ROS such as ^•OH and ¹O₂. Indeed, the high reactivity of species like ^•OH and ONOO⁻can be harnessed to engender specificity in target modification. A two-step hypothesis has been proposed for the signaling roles of highly reactive radicals.(229) The first step involves a diffusion-controlled reaction of proteins with reactive radicals such as ^•OH to generate a stable protein radical. In the second step, the stable protein radical can react with ROS of relatively longer half-life such as O₂^{• −}. This mechanism is exemplified in the oxidation/nitration of tyrosine residues where a more stable phenoxy-radical is generated by the reaction of tyrosine with ^•OH. This stable radical then reacts with other less-reactive radicals including O₂^{• −} and ^•NO, yielding oxidized/nitrated tyrosine.(229)

2.1.3 Inter-organelle and inter-cellular redox information exchange

Organelles frequently crosstalk. As was discussed in 2.1.2.4, mitochondria and peroxisomes share numerous common pathways and can crosstalk.(230) Additionally, peroxisomal tethering to the ER may enable transport of lipids from the ER to peroxisome and plasminogen and cholesterol precursors from peroxisome to the ER.(231) The de novo synthesis of peroxisomes was recently shown to require fusion of pre-peroxisomes derived from both ER and mitochondria, thus establishing a functional coupling between these organelles.(232) Accumulating evidence demonstrates that deregulation in lipid metabolism and ROS generation in peroxisomes perturbs mitochondrial redox balance.(233) For example, inhibition of peroxisomal catalase activity in human fibroblast Hs27 cells treated with aminotriazole (an irreversible inhibitor of catalase), upregulates mROS generation and inhibits mitochondrial aconitase [a protein known to be highly ROS sensitive(234)].(235) Additionally, knockdown of ABCD1—a peroxisomal very long chain fatty acid transporter—causes oxidative damage to mitochondrial proteins and plays a causative role in X-linked adrenoleukodystrophy, a metabolic disorder of the spinal cord. Spinal cords of abcd1^{−/ −} mice feature increased ROS generation in the mitochondria upon treatment with very long chain fatty acids resulting in oxidation of mitochondrial proteins, including proteins in the mitochondrial ETC and those involved in the TCA cycle.(236) The exact mechanisms of how treatment with very long chain fatty acids generate mitochondrial ROS in cells deficient for abcd1 is still unclear.

ER and mitochondrial ROS generation are also interconnected. Menadione-induced ER stress resulting in Ca²⁺ release in the cytosol of pancreatic acinar cells increases mitochondrial ROS generation leading to apoptosis by induction of the mitochondrial permeability transition pore complex.(237) Additionally, mitochondrial dysfunction elicits increased ROS generation in the ER. During glucose starvation in yeast (which activates oxidative phosphorylation that occurs in the mitochondria), inactivation or loss of cytochrome-C oxidase (CCO) of the mitochondrial ETC results in upregulation of ROS generation from the surface of the ER.(238) CCO-deficient mitochondria recruit and activate Ras upon their outer membrane by an unknown mechanism. Activated Ras suppresses ER-associated protein degradation (ERAD), stabilizing ER-localized NOX, Ynop1, enabling the generation of O₂^{• −}.(238,239)

There are also examples in which ROS mediates intercellular communication. This is most notably demonstrated in the case of H₂O₂. The low reactivity of H₂O₂ and its long half-life enable large diffusion-distances (~0.5 μm) (Table 1)(59) more-suited for intercellular communication. It is worth noting that plasma membrane-bound NOX-dependent H₂O₂ is generated in the extracellular matrix, which is then transported into the cell. There is evidence that some of the H₂O₂ generated extracellularly may act as intercellular redox signals.(240) ROS generated in the mitochondria and activated myofibroblasts can act as signaling molecules inducing apoptosis in bystander cells.(241) Additionally, DUOX-generated H₂O₂ is indispensable for rapid recruitment of leukocytes and efficient wound healing in zebrafish.(242) Lyn, a Src family kinase, functions as a H₂O₂ sensor mediating neutrophil recruitment to wound site in zebrafish larvae. Specific mutation of C466 from seven total cysteines on the neutrophilic Lyn abolishes its redox sensing ability and consequent recruitment of neutrophils.(243)

2.2 Reactive electrophilic species (RES)-mediated signal transduction

RES are now acknowledged to be important cellular signals.(115) A wide range of electrophiles have been shown to modulate several critical signaling pathways including antioxidant response (AR), apoptosis, DNA damage response, and cell growth. Biological electrophiles come in a variety of shapes and sizes ranging from formaldehyde to 12-nitro-arachidonic acid (12-NO₂-AA), and epoxides to steroidal α,β-unsaturated carbonyls that are found in prostaglandins (Figure 4).(115) Given the broad range of functionality but overlapping chemical reactivity within RES, study of biological RES is a challenge.

Figure 4.

A selection of endogenously-generated carbonyl-containing reactive electrophilic species (RES) in biological systems.

Considerable effort has been made to understand the chemical principles underlying the reaction between electrophiles and nucleophiles. One of the more widely-used models is the hard/soft acid-base model (HSAB).(244,245) HSAB depicts two extremes of nucleophiles/electrophiles. Hard nucleophiles/electrophiles are often charged and non-polarizable. Soft nucleophiles/electrophiles typically have a delocalized charge density and are polarizable. According to HSAB, hard electrophiles prefer to react with hard bases and soft electrophiles with soft bases. The basis for this observation is typically ascribed to domination of charge/charge interactions for “hard” and domination of HOMO–LUMO overlap for “soft” interactions.(244) One consequence of these differences is that Hard interactions tend to proceed through an early transition state, whereas soft interactions tend to go through later transition states.(246) Thus, there is a significant difference in charge distribution and bond formation in the different adduction transition states. The most signaling-relevant electrophiles are typically ‘soft’ Michael acceptors that react with ‘soft’ nucleophiles, principally thiols. There is evidence that amine-based nucleophiles [from proteins or other small molecules(247,248)] may be able to adduct to soft electrophiles, especially if exposure time is increased. Most adducts to RES are stable under mild conditions (neutral pH, and ambient temperatures) regardless of the nature of the bond formed between the electrophile and the nucleophile. However, most adducts are detected either by SDS-PAGE gel, or through direct mass spectrometry (MS). There is good evidence to show that many amine adducts are more stable than adducts to thiols, possibly explaining why histidine/lysine adducts have been reported by many researchers.

2.2.1 Lipid peroxidation products and RES generation

Lipid-derived electrophiles (LDEs) are made endogenously via both enzymatic and non-enzymatic pathways.(115,249) Polyunsaturated fatty acids (PUFAs) are an important source of endogenous LDEs. Peroxidation of PUFAs, either through enzymatic(250) or non-enzymatic pathways,(115) results in the generation of a variety of electrophilic compounds capable of signaling roles.(251) α,β-unsaturated carbonyls are present in micromolar quantities in the resting state in cells(84) but can rise much higher during stress.(85) (Table 1) These electrophiles modulate numerous processes in human biology—from development(252,253) and aging(254) to cellular homeostasis events such as apoptosis,(255) immune response,(115,256) and heat shock response.(115) For instance, 15d-PGJ₂ is a potent immune-modulator that downregulates NF-κB pathway.(256) HNE inhibits 12-O-tetradecanoylphorbol-13-acetate (TPA)-induced Jurkat T-cell activation by regulating NF-κB signaling. (257) HNE also activates the Keap1–Nrf2 antioxidant signaling response.(258,259)

2.2.1.1 Enzymatic lipid peroxidation pathways

Three classes of enzymes, working in concert or alone generate RES.(250) These enzymes consist of LOXs,(13,249,260) COXs,(11,261,262) and CYP450.(263) LDEs are primarily generated from two substrates: ω-3 and ω-6 fatty acid. An important substrate in the ω-6 fatty acid pathway is arachidonic acid (AA). COX-and LOX-mediated oxidation of AA generates numerous secondary metabolites [only a fraction of which are electrophilic(264,265)] with diverse biological activities/roles including regulating inflammation,(266) vasodilation,(265,266) and platelet aggregation.(265,266)

COXs are non-heme-iron-containing proteins that catalyze AA oxidation. Among the two mammalian COX isoforms, COX-1 is expressed in all tissues whereas COX-2 is limited to several tissues including kidney and brain (267,268) and only induced in other tissues during inflammation.(269) Both COX-1 and COX-2 generate prostaglandin H₂ (PGH₂) from AA-oxidation (Figure 5).(265) PGH₂ is then further oxidized to other prostaglandins mediated by CYP450 prostaglandin synthetases.(265) Several prostaglandins (15d-PGJ₂, PGA₂ and PGJ₂) contain α,β-unsaturated carbonyls making them electrophilic. In the case of 15d-PGJ₂, PGH₂ is first oxidized by the action of prostaglandin D (PGD) synthetase into an unstable intermediate (PGD₂), which readily dehydrates to yield PGJ₂.(270) PGJ₂ can undergo spontaneous isomerization to generate ¹²-PGJ₂, which dehydrates to yield 15d-PGJ₂ (Figure 5). In addition to AA, COX-2 also uses ω-3 PUFA as a substrate to generate electrophilic lipid signals. COX-2 in activated macrophages stimulates the production of electrophilic oxo-derivatives from the ω-3 fatty acids docosahexenoic acid (DHA) and eicosapentenoic acid. The process involves COX-2-catalyzed hydroxylation followed by dehydrogenases-assisted oxidation.(249)

Figure 5.

Enzymatic generation of lipid-derived RES.(250) COX-1/COX-2-catalyzes the formation of PGH₂ using arachidonic acid (AA) as the substrate. PGH₂ acts as an intermediate for the generation of PGD₂ and PGE₂ by the action of PGD synthase and PGE synthase, respectively. PGH₂ is also an intermediate for the generation of a number of other bioactive non-electrophilic molecules (not shown). PGD₂ and PGE₂ undergo spontaneous dehydration at C₍₉₎ and C₍₁₁₎ to yield PGJ₂ and PGA₂, respectively. PGJ₂ can then isomerize at C₍₁₂₎–C₍₁₃₎–C₍₁₄₎ to generate Δ¹²-PGJ₂ and further dehydrate at C₍₁₅₎ to 15d-PGJ₂.

2.2.1.2 Non-enzymatic lipid peroxidation

Non-enzymatic generation of LDEs is mediated by reactive intermediates, many of which can be formed by the interaction of redox active metals with more stable oxidants, such as peroxide.(115,271–274) ROS such as ^•OH(69) and RNS like ^•NO₂(205) react rapidly with immediately-accessible biological molecules. One of the key sites of reactive species generation is at the plasma membrane and membranes of other organelles (see section 2.1.2.1). PUFA-rich cell membranes undergo rapid hydrogen abstraction by radical oxidants. PUFA oxidation is favored due to the formation of stabilized carbon radicals and because O₂ can concentrate in biological membranes.(275) Lipid oxidation is typically triggered by the kinetically-favored abstraction of the activated bisallylic hydrogen(276) by a radical oxidant such as O₂^{• −} or ^•OH (Figure 6).(277) The resulting doubly-allylic radical reacts with ³O₂ to generate a lipid peroxide radical which abstracts hydrogen from another PUFA, forming a lipid hydroperoxide and a new lipid radical in a propagation step.(278) Lipid hydroperoxides generated during the reaction may undergo Hock cleavage (a process of 1,2-carbon migration in a peroxide to form a carbonyl and an alcohol) to generate LDEs such as HNE and 4-hydroxyhexenal (HHE), from ω-6 and ω-3 PUFAs, respectively (Figure 6).(277,279) LDEs may also undergo further oxidation to form the corresponding epoxy adducts either chemically or enzymatically.(280) Little is known about their specific chemistry in vivo. However, it is likely that their metabolic stability is different from canonical LDEs.(281) Aside from Hock cleavage, the lipid peroxide generated by ROS can cyclize, react with an additional ³O₂, and further rearrange to form various prostaglandin-like signaling molecules called isoprostanes (Figure 6). AA-derived E₂-and D₂-isoprostanes dehydrate to generate electrophilic A₂- and J₂-isoprostanes.

Figure 6.

Non-enzymatic generation of reactive lipid-derived electrophiles (LDEs): The generation of HNE (xiii) and A₂-(xvi) and J₂-isoprostanes (xvii) from ω-6-FAs such as AA (i) is shown here. Reactive radicals such as ^•OH initiate lipid peroxidation by abstracting a bis-allylic hydrogen from AA (i). O₂ addition at either C₍₁₅₎ or C₍₁₁₎ generates the corresponding peroxy radical (ii and viii), which abstracts an H radical (possibly from another AA molecule thus propagating the radical chain reaction) to generate the hydroperoxy intermediates 15-HpETE (iii) and 11-HpETE (ix), respectively. The abstraction of hydrogen at C₍₁₀₎ of 15-HpETE forms a radical intermediate which migrates to C₍₁₂₎, reacts with O₂, yielding the dihydroperoxide intermediate (iv). This intermediate then undergoes Hock cleavage to yield HNE as one possible product. 11-HpETE is shown to first undergo a Hock cleavage to generate the nonenal (x), which undergoes oxygenation to yield the hydroperoxide (xii) and its further reduction to generate HNE (xiii). AA peroxidation also generates isoprostanes. The peroxy radical intermediate (viii) at C₍₁₁₎ can undergo cyclization, further oxygenation, and rearrangement to yield E₂-(xiv) and D₂-isoprostanes (xv). Dehydration of the E₂- and D₂-isoprostanes result in J₂ (xvi) and A₂-isoprostanes (xvii), respectively. Analogous peroxidation pathway from ω-3-FA such as DHA generates HHE.

2.2.1.3 Nitro-fatty acids (NO₂-FA) generation

Nitroalkenes are relatively abundant in organisms. There is ~1 nM of nitro-conjugated linoleic acid in human plasma,(91) and 10’s of nM in heart tissue under stress.(94) Biosynthesis of nitroalkenes is complex. ^•NO is mainly enzymatically generated by nitric oxide synthetases.(282) Although ^•NO is unreactive towards proteins,(5) it rapidly reacts with O₂^{• −} to generate ONOO⁻ (Figure 3). These peroxynitrites generate ^•NO₂ through processes discussed in 2.2.1.6.(283,284) ^•NO₂ can abstract bisallylic hydrogen from PUFAs at diffusion controlled limits to initiate lipid peroxidation. This process forms a mesomerically stabilized carbon-centered radical (Figure 7).(115) When ³O₂ levels are high, this radical can be trapped by ³O₂ to form a peroxide. In low ³O₂ conditions, ^•NO₂ reacts with PUFAs to generate NO₂-FA.(285) The reaction can occur through direct addition to an olefin by ^•NO₂ or with abstraction of a hydrogen radical from the doubly allylic methylene group within the PUFA by ^•NO₂ radical. The latter proceeds through a similar doubly allylic radical. Under low ³O₂, another ^•NO₂ reacts with the carbon-centered radical generating a short-lived intermediate nitroso ester that either hydrolyses or loses NO₂H via E1_CB to form an α,β-unsaturated nitro-FA. NO₂-FA are important for cellular maintenance and act as ligands to receptors such as PPARγ.(286) NO₂-FA also inhibit tumor necrosis factor α (TNFα)-induced macrophage activation by regulating NF-κB signaling.(287) These molecules also activate the Keap1–Nrf2 antioxidant signaling response.(258,259) Exogenous addition of nitro-oleic acid to mice was protected against myocardial ischemia reperfusion injury.(94) This was in part mediated through the downregulation of NF-κB pathway by inactivating the p65 subunit.(94)

Figure 7.

Generation of NO₂-FA from the alkyl portion of unsaturated FAs. Under low ³O₂, ^•NO₂ undergoes radical adduction with unsaturated FAs (i) (such as linoleic acid) to generate a nitroalkyl radical intermediate (ii). This intermediate can either abstract a hydrogen to generate nitroalkane (iii) or further react with ^•NO₂ to generate a nitro/nitrite intermediate (iv). Subsequent loss of nitrous acids (HONO) yields a nitroalkene (v) whereas hydrolysis of the intermediate generates a hydroxy-nitro FA (vi). Under high ³O₂, a lipid hydroperoxide (vii) is formed.

In addition to nitrating lipids, ONOO⁻ can also generate other electrophilic species, such as nitrated nucleotides. 8-nitro-cGMP is formed by the addition of ONOO⁻ to cGMP.(288) 8-nitro-cGMP can guanylate protein thiols.(289) For example, S-guanylation of Keap1 results in loss of its ability to bind Nrf2 and subsequently upregulates of a battery of AR genes.(289,290) S-guanylation of proteins also releases nitrite (NO₂⁻), which can act as signaling molecule.(291,292)

2.2.1.4 Other metabolic processes that produce RES

Other RES can be formed by metabolic processes in cells, or are part of critical metabolic pathways. Fumarate is part of the citric acid cycle and is also a postulated oncometabolite(293) that can deplete glutathione and NADPH in cells.(294) Fumarate can also adduct to protein thiols(295) and amines.(295) Mutations in fumarate hydratase, a protein that is immediately downstream of fumarate in the citric acid cycle, can cause hereditary leiomyomatosis and renal cell cancer.(296) Protein succinylation (products of protein lysine adduction to fumaric acid) is elevated in cells from these patients. Fumarate is also believed to activate Keap1–Nrf2 pathway.(297) Another reactive electrophile derived from the citric acid cycle that has signaling roles(298) is itaconate, an enone synthesized in activated macrophages.(299,300) Methylglyoxal, a reactive dicarbonyl compound, can be formed from sugar oxidation. Interestingly, this compound builds ups in plant chloroplasts during photosynthesis.(301) In mammals, this species is formed both enzymatically and non-enzymatically through spontaneous hydrolysis of glyceraldehyde-3-phosphate or dihydroxyacetone phosphate (intermediates of glycolysis).(302–304).

Acrolein is also generated endogenously by the myeloperoxidase-mediated degradation of threonine(305) as well as various other metabolic processes.(306) While small concentrations may be beneficial,(306) acrolein can covalently conjugate with proteins and DNA resulting in electrophilic stress and cell death at higher concentrations.(307) Quinones can also be formed through normal metabolic processes. Two regioisomers of quinones can be made: 1,4-quinones (p-quinones, e.g., ubiquinone) are typically more stable than their 1,2-quinone regioisomers (o-quinones), although this difference is functional group dependent. Tyrosinase is an enzyme that catalyzes the two-step oxidation of tyrosine to the corresponding o-quinone, a process that is important in the production of melanin. Tyrosinase generates o-quinones from L-DOPA and dopamine both of which can deplete glutathione and inhibit reverse transcriptase.(308) The action of tyrosinase on skin-whitening agents may also be responsible for leukoderma (vitiligo). (309) Critically, some tyrosinases can oxidize protein tyrosines leading to protein fragmentation, cross linking, or functionalization of tyrosine, depending on conditions.(310) Phenols, such as tyrosine, require enzymatic oxidation to form the o-quinone. However, 1,2-benzene diols are inherently prone to oxidation or can be oxidized enzymatically (by tyrosinase, CYP450, or peroxidases) to generate o-quinones. Various endogenous 1,2-benzene diols spontaneously generate o-quinones that can adduct to various biological molecules, including DNA. For instance, oxidized estrogen metabolites are linked to breast cancer(311,312) by upregulating DNA damage through direct modification of DNA.(313)

Unlike most RES that are formed following ROS-initiated lipid-peroxidation events and carry messages downstream through protein modification, o-quinone-derived RES can additionally assist interconversion between different ROS forms. How the ROS-modulating properties of both o- and p-quinones and their alkylating properties are linked to cancer is an ongoing area of debate.(200)

2.2.2 Regulation of RES generation

Non-enzymatic generation of RES by ROS acting on lipids (see section 2.2.1.2) can be considered as a means to preserve ROS signals, as RES tend to have longer diffusion distances than ROS (Table 1). The basal levels of various RES are maintained at low concentrations (Table 1). Oxidative stress as well as a number of pathological conditions promote RES generation.(91) Interestingly, HNE elevation can be caused by several stimuli, including cholesterol consumption.(314) Myocardial ischemia/reperfusion (I/R) injury significantly upregulates ROS generation. Analysis of myocardial tissue from mice following 30 min of ischemia and 30 min of reperfusion showed a >15-fold increase in levels of nitro-linoleic acid compared to sham-operated mice or mice that underwent only ischemia.(94) Pathological conditions associated with Alzheimer’s and Parkinson’s diseases (AD and PD) are also linked to increase in generation/accumulation of RES and RES-conjugated proteins. Brain tissues from patients with mild cognitive impairment and early AD show an increase (~3-fold) in HNE and acrolein levels.(315) Furthermore, proteomic analysis of brain tissue reveals significant increase in carbonylated protein in AD and PD patients compared to age-matched controls.(316,317)

2.2.3 External sources of electrophiles

In addition to endogenous sources, cells are also continually exposed to non-native electrophiles. Exogenous sources include dietary electrophiles(318,319) and environmental pollutants. Isothiocyanates are a family of dietary electrophiles produced by cruciferous vegetables such as broccoli and cabbage. Isothiocyanates like sulforaphane and PEITC are activators of cytoprotective pathways(320) and have anticancer properties.(321,322) α,β-unsaturated carbonyls like curcumin from turmeric(323) and cinnamaldehyde from cinnamon (324) also have protective effects on cells. Cells are also exposed to electrophiles from pollutants.(325) Acrolein is generated by heating oils at high temperature(306) and is also a major constituent of smoke from cigarettes(325) and exhaust fumes.(326)

3. PHYSICOCHEMICAL PROPERTIES OF BIOLOGICAL RES AND ROS AND THEIR SENSORS IN TERMS OF INTRINSIC PROPERTIES AND REACTIVITIES

In enzyme-assisted signaling/metabolic processes, enzyme participation can lead to reactions that are not expected based upon simple chemical principles. This can extend to exquisite and/or totally unexpected stereoselectivity, regioselectivity, and chemoselectivity (chemical-functional-group selectivity). Accordingly, the outcomes of these enzyme-mediated signaling processes are determined to a significant extent by enzymes. In enzyme-independent signaling modes, one may expect the stereoselection, regioselection, and chemoselection to be determined by the physiochemical properties of the signaling messengers. Consistent with this line of thought, cysteine is the primary target of both RES and ROS (high level of expected chemoselectivity), meaning that kinetic reactivity is certainly an important factor in this equation. However, we will also present several lines of evidence that shows that unexpected regio-/stereospecificity can be achieved by RES/ROS signaling, indicating that physicochemical properties of both the signaling small molecules AND target protein are important in redox signaling. The following sections will thus discuss the key physical characteristics of redox signals and what we know about the proteins that sense these reactive small molecules. In terms of the RES/ROS signal, we will discuss various physiochemical aspects that can favor reactivity. Although less is known about parameters/elements that render proteins susceptible to RES/ROS signals, we will address this key component at the end of the section.

The cell is unique because it is a strongly-reducing environment and hence finely tuned to respond to redox signals. Plasma is generally more oxidizing than the cell [redox couple is 60–90 mV more oxidizing than the cytosol; couple for cysteine/cysteine–cysteine—the major redox couple in plasma(157)—is −80 mV(327)]. This redox couple becomes increasingly oxidative (0.2 mV per year) as organisms age or upon disease.(328) Unsurprisingly, oxidative damage to proteins has been reported to occur in plasma. For instance, oxidative modification of serum albumin (around 50–60% total plasma protein content) occurs upon stroke in humans and rats.(329) However, the downstream ramifications of plasma oxidation are not as well-established as intracellular or direct contact cell-to-cell communications.

It is commonly assumed that a compound administered to the outside of a cell will quickly yield the same concentration within cells. This is not necessarily the case and even if equal distribution does eventually occur, establishment of equilibrium could take some time. Clearly, for reactive small molecules, equilibrium may be established particularly slowly because the cell will metabolize/react at a defined rate that may be similar to, or exceed, rate of import, leading to a lower intracellular concentration than the extracellular concentration. For oxidants that are actively metabolized by the cell, it is acknowledged that there is a gradient across the membrane. This was initially estimated to be 7–10 fold;(330) i.e., administration of 0.1 mM H₂O₂ will lead to a concentration of around 0.01 mM in cells. More recent revisions have estimated that this value is closer to 700 fold.(331,332) Clearly, care must be taken to define the range over which the specific gradient across the membrane is measured, as compensation factors may be saturated if extracellular H₂O₂ exceeds the detoxification capability of the cell, or apoptosis occurs. Finally, for reactive small molecules, especially RES and ROS, it is possible that reaction with serum proteins/buffers/exogenous reactive molecules, such as thiols can occur prior to entry. This lowers the effective concentration of the small molecule, possibly in a time dependent manner.

Conversely, several reactive small signaling mediators, such as RES, can form long-lived (irreversible) adducts to various proteins, rendering diffusion across the membrane quasi-irreversible. Thus, cellular “concentrative effects” have been established for numerous electrophiles, such as ITCs.(333) Thus: assume intracellular concentration of reactive small molecules or xenobiotics is the same as that in the media at your peril.

3.1 Universal yardsticks with which to gauge concentrations, stabilities, and diffusion distances

3.1.1 Concentrations and stabilities of canonical signaling particles in cells vary significantly and bear little relationship to intrinsic thermodynamic stability or concentration

ATP—the cellular energy storage device that is present at 1–10 mM in cells— has a half-life of less than 60 minutes in the extracellular space(334) and this can drop to 0.2 s in the lung vasculature.(335) In cells, the half-life of ATP is on the order of seconds.(336) dATP on the other hand—a molecule with similar thermodynamic stability to ATP present in the cell at around one tenth of ATP concentration(337)—has a half-life of minutes in asynchronous cells.(338) Acyl phosphates (molecules that release similar energy to ATP upon hydrolysis) of murine prothymosin have a half-life of around 1 h.(339) Thioesters also have similar enthalpies of hydrolysis to ATP. However, half-lives of thioesters vary in cells significantly. For instance, the Ubc9-SUMO-1 thioester has a half-life of 3.6 h (k_hydrolysis 5.33×10⁻⁵ M⁻¹s⁻¹). On the other hand, S-palmitoylated Ras has a half-life between 20 min and 2 h. (340)

Proteins also exhibit varied concentrations and half-lives, both of which are only weakly affected by protein size.(341) Most short-lived proteins in eukaryotes are degraded by the 26S proteasome, a complex molecular machine consisting of a protease complex (20S) and a quality control/unfolding complex (19S). Ornithine decarboxylase is a classic short-lived protein with a half-life of around 20 min that is involved in various signaling pathways.(342) Ribonucleotide reductase (RNR) small subunit, a cell cycle regulated 45 kDa protein important in DNA synthesis, has a half-life of ~3 h in cells.(343) Ubiquitin—the small signaling polypeptide (8 kDa) that ushers protein degradation through the ubiquitin proteasome pathway—has a half-life of approximately 10 h.(344) Longer-lived proteins [that are often degraded by autophagy(345)], such as RNR large subunit (90 kDa), purine biosynthesis enzyme, IMPDH (55 kDa), and Bcr-Abl (300 kDa; the oncogenic fusion protein responsible for various leukemias) have half-lives on the order of a cell cycle (20 h).(346) Stabilities of proteins with post-translationally-modified residues can also vary widely. Phosphorylation has been recorded on histidine, serine/threonine and tyrosine. Phosphohistidine has a half-life on proteins between seconds(347) and 12 days.(348) Phosphate monoesters on the other hand have half-lives of 10¹² years at room temperature.(349) Phosphatases can shorten the half-life of phosphorylated enzymes considerably.(350)

3.1.2 Half-lives are critical components determining RES and ROS signaling properties

Thus, half-lives vary significantly in the cell in a context-dependent manner. Half-lives do not particularly depend on the thermodynamic stability of the molecules in question, indicating that enzymatic regulation is the key determining factor. To some extent, the half-life of a molecule controls that molecule’s ability to change concentration rapidly and dynamic range of response. This means that both magnitude of response as well as latency can be controlled by the ratio of synthesis: degradation rates. Rapidly-synthesized and rapidly-degraded particles can elevate concentration much more significantly for a given fold change in synthesis than a particle that is maintained at a similar concentration but is made and degraded slowly.(351) Similarly, a faster degradation rate will lead to a more rapid relaxation to basal levels once stimulation of production has decreased. Thus ultimately, rapid-response signaling particles tend to have rapid synthesis and turnovers. As we will see below, redox signals certainly fit into such a category.

3.1.3 Enzyme-assisted reaction rates

Standard Michaelis-Menten enzyme kinetics affords a second order rate constant (k_cat/K_m) for reaction of enzyme with substrate. This value can be compared to the uncatalyzed second-order rate constant to show rate enhancements. For enzymes that have two substrates, such as glutathione-S-transferase (GST), we will use k_cat/K_m for the limiting reagent (such as HNE in the case of GST), provided the other substrate is close to saturation. GST has K_m(GSH) much lower than cellular glutathione concentration,(352) meaning that the conditions for calculation of k_cat/K_m(HNE) (i.e., saturating GSH) is similar to conditions in a cell, at least in this respect. In general, for an average enzyme k_cat/K_m is on the order of 10⁵ M⁻¹s⁻¹. Approximately 60% of all enzymes known fall within 2 orders of magnitude of this value.(353) k_cat/K_m’s on the order of 100 M⁻¹s⁻¹ have been reported, although these are relatively rare.(354) Many enzymes with “low” k_cat/K_m (<1000 M⁻¹s⁻¹) are secondary metabolic enzymes from plants, making relevance/identification of precise substrate somewhat questionable. Furthermore, low stability/misfolding of enzymes and potentially loss of positive regulators—parameters that are hard to assess experimentally—can reduce k_cat, rendering these values prone to underestimation; K_m tends to be a more reliable figure, as it is more or less independent of enzyme concentration, unless very high concentrations of enzyme are used, or the K_m is very low. The maximum theoretical k_cat/K_m is 10⁸–10⁹ M⁻¹s⁻¹ although in practice this may not always be obtainable.

3.1.4 Diffusion distances

The diffusion distance for most redox signals is far below the length of the cell. However, since canonical signaling pathways can propagate the length of the whole cell and beyond, ultimately these “short range” signals can exert influence over a much longer range than their intrinsic diffusability suggests. However, for signaling to occur, the signal and primary sensor must lie within a suitably accessible distance, and so this section is concerned with signaling processes that occur when a native RES or ROS interacts with a specific sensor protein (first response signaling). The root mean square distance travelled by a diffusive reactive signal in 1D space is linked to half-life by the Einstein equation(355): x_RMS = (2Dt)^0.5, wherein D and t designate diffusion coefficient (also see section 3.3.2) and time, respectively. Thus, as one would intuitively expect, longer-lived or faster-moving reactive signals can cover more distance than shorter-lived, slower moving species. To promote “on-target” signaling, it is likely that the “choice” of signaling molecule in a specific pathway will be influenced by diffusion coefficient/stability. It is worth stressing that the values we discuss represent a threshold, i.e., a molecule of half-life 0.5 s, with diffusion coefficient D = 0.00001 cm⁻²s⁻¹, will travel 30 em in one half-life. Thus “sphere of influence” is a function of size of the burst of signal produced, the threshold labeling required for signaling, and duration of the signal (i.e., length of time over which the signal remains in its intended location, a function of diffusability, stability, and time/duration of generation).

3.1.5 Dimensions of small molecules, proteins, and organelles

All diffusion distances must be evaluated in terms of the size of the cell and its components, so we describe some important distances below. Herein we compare linear dimensions (e.g., radius). However, in 3D space, differences scale with the cube of the radius, such that even small changes in radius correspond to large differences in volume. We start with the biological solvent, water, which has a diameter of 0.2 nm. Single proteins range in size from around 5–8 kDa (e.g., SUMO and insulin) to over 300 kDa (e.g., USP9x, approximately 300 kDa; and titin, 3000 kDa and 1000 nm long).(356) Proteins can also form large self-assembled structures such as the 26S proteasome in eukaryotes (a 2000 kDa conglomerate made up of >30 individual subunits). A rough rule of thumb states that a 100 kDa globular protein will have a diameter of around 5–10 nm. This dimension is close to the width of a lipid bilayer (10 nm). The ribosome has a diameter of 25–30 nm and mitochondria have diameters of 500 nm. Aside from the nucleolus (1000–3000 nm), the nucleus (10000 nm) is typically the only intracellular structure large enough to be clearly resolvable by traditional light microscopy in cells. The typical nucleus:cytosol ratio for a cell is around 0.3–0.5, although this can vary. The cell itself is usually 30,000 nm in diameter. However, some cells such as neurons can be considerably longer than this. How these size differences between cells and organelles affect redox signaling and its impact has not been systematically studied, but size differences may contribute to how impactful redox signaling is (as we discuss in section 3.7).

3.2 Thiols are key players in RES/ROS communication and sensing

3.2.1 Cysteine is the most reactive of the canonical amino acid side chains; other residues may be reactive

N-acetyl cysteine and glutathione are around 1000 times more nucleophilic than N-acetyl histidine and N-acetyl lysine (second-order rate constants for addition to HNE 0.0021 and 0.0013 M⁻¹s⁻¹, respectively). Alkylation of N-acetyl arginine by HNE is very slow, but its rate of alkylation by the more reactive electrophile ONE (0.0006 M⁻¹s⁻¹) is around 10–100 fold slower than that of N-acetyl histidine and N-acetyl lysine reacting with ONE.(90) Unsurprisingly, histidine, lysine, and to a lesser extent, arginine, have also been implicated as nucleophilic residues within proteins, although the rate data indicate that a significant rate enhancement or very high concentration will be required to outcompete cysteine (Figure 8).(357)

Figure 8.

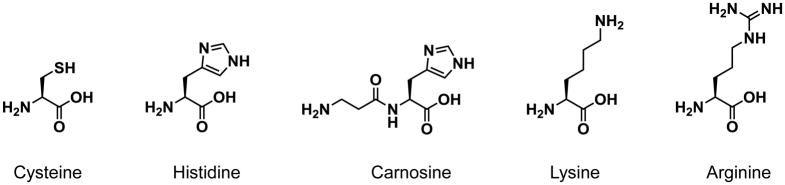

Nucleophilic amino acid and amino-acid derived molecules (in order of decreasing nucleophilicity)

3.2.2 How cellular thiol pools regulate RES/ROS signaling

Cellular thiols are a nebulous “species” that are often discussed as a whole gamut. Separation between small molecule and protein thiols is also common in the literature. There is a tacit assumption that small-molecule thiols are “in abundance” in the cell. Indeed glutathione (the cell’s principal small molecule reductant) is at “high concentrations”, typically 1–10 mM in whole cells. Reduced glutathione makes up around 98% of this value.(358) Some organelles such as mitochondria (which contribute 10–30% of cellular glutathione) have similar concentration of glutathione (5–10 mM) to the whole cell whereas the ER has a low content of reduced glutathione (25–50% oxidized) but has higher total glutathione content (>15 mM).(98) What is often missed from the equation is the protein thiol content. Free protein thiol (as opposed to metal-bound, buried, or non-labile thiol, etc.) content is difficult to assess accurately. However, it is known that the concentration of total protein in a cell is around 0.2 g/ml.(359) Indeed, the total macromolecule content in a cell can be up to 30% total volume,(360) and this can be even higher in certain organelles/regions, such as the mitochondrial matrix (60%). Assuming an average molecular weight of a protein is 50 kDa, the cellular concentration of total “protein” is at least 1 mM (a reasonable figure since abundant proteins, such as ubiquitin and GST, can reach 50 μM in cells).(359,361,362) With an average amino acid weighing 110 Da, and cysteines occurring in 2.26% of all amino acids within the human proteome, protein thiol concentration is approximately 10 mM. Protein thiols are thus equal to or exceed glutathione concentration.(363) There is reasonable experimental backing to this analysis. Using a thiol reactive dye, monobromobimane (Figure S3), Moldéus et al. showed that the cytosol contained 87 nmol protein-thiol per mg protein [i.e., 20 nmol of an average-size (50-kDa) protein].(364) Thus, on average, there are 4 monobromobimane-reactive thiol equivalents per protein (leading to minimally 4 mM total reaction protein thiol content). Perhaps most interestingly, this value dropped to 3 equivalents in the nucleus. Assuming that the average molecular weight of a protein is similar between the nucleus and the cytosol and that the dye is equally distributed between the nucleus and the cytosol, this result hints at that there is unequal nucleus:cytosol partitioning of thiol reactivity, either in terms of number or reactivity of thiols, or possibly reducing equivalents. There is certainly evidence that some small molecules do not readily exchange between nucleus and cytosol.(365)

It has been estimated that 80% of cysteines possess some functional importance.(366) This estimate is corroborated by the fact that cysteine shows an unusual conservation pattern in which it is either highly conserved or poorly conserved.(367) The term “functional importance” includes metal-coordinating cysteines. However some studies have shown that metal-binding cysteines can also be susceptible to reaction with electrophiles (likely when not bound to a metal).(368) It is thus at first glance surprising that less than 8% of reactive electrophile species administered to cells labels proteins.(369) This discrepancy can be explained by the fact that GSH conjugation to many xenobiotic electrophiles is enzyme-catalyzed. Redox processes deactivating xenobiotics are also enzymatic. The enzymes that catalyze GSH-conjugation and redox processes can significantly increase rates of reaction over the uncatalyzed bimolecular rate constants. For instance, k_cat/K_m for numerous GST isoforms indicates a 100–100000(352,370,371) fold increase in rate with respect to the uncatalyzed second order reaction between GSH and a Michael acceptor. Overexpression of GST reduces free HNE in cells(372) and extends lifespan in C. elegans,(373) whereas GST-knockout MEFs have elevated HNE levels.(374) However, how knockout of a particular GST isoform, GSTα4-4, affects HNE levels in mice depends on the strain used. In some strains, HNE elevation is observed,(375) whereas in others it is not and in these unaffected strains lifespan is also extended.(376) The uncatalyzed rate for GSH adduction to HNE is close to 1 M⁻¹s⁻¹. By means of comparison, carnosine (a histidine-containing dipeptide present in cells up to 150 mM)(99) can trap HNE in cells and protects cells against oxidative damage (Figure 8).(377,378) Based on the relative rate for adduction of histidine to HNE (0.001 with respect to GSH) and the concentration difference [1–10 mM (GSH) vs. up to 150 mM (carnosine, providing histidine)], carnosine would not be expected to contribute much more than a tenth of the electrophiles trapped by cellular small-molecule thiols, even ignoring the action of GSTs.

There is considerable experimental evidence for protein labeling by endogenous oxidants and electrophiles; there is evidence that such sensing residues perform conserved functions; and there is also evidence that ROS may have shaped evolution of several genes, including Nrf2. It is also possible that “ROS processing” may have shaped organelle evolution.(379–381) There are five principal mitigating factors that enable labeling of target proteins in the presence of the arsenal of cellular small-molecule nucleophiles: (1) high levels of ROS may cause depletion of GSH/inhibition of detoxification enzymes(382) [either local(383) or global;(384) likely a significant component of protein labeling under bolus RES/ROS dosing conditions]; (2) the cell can suppress its ability to process reactive species, allowing buildup;(385) (3) the cell can cause local release of high concentrations of a RES/ROS molecule;(386–388) (4) some specific proteins are endowed with kinetically “privileged” cysteines that can compete with detoxification processes to gain sufficient occupancy to elicit downstream signaling;(389) and (5) modification of such sensor proteins elicits phenotypically-dominant signaling outputs which would ensure coordinated responses “specific” to the target protein.(251) Although it is not known how all these mechanisms fit together, nor how important each one is, it is our opinion that biology has likely harnessed all means at its disposal to bias target-protein-specific signaling (note: since thresholds of occupancy may differ between “intended target” and off target proteins, this is not necessarily the same as target-specific labeling).(251)

Gradients of H₂O₂ across the cell help to promote intended protein labeling and possibly help trigger specific signaling factors(382). However, whether such gradients are sufficient to allow specific signaling events is a much harder question to answer. It is likely that privileged sensors have enzyme-like reaction efficiencies with RES/ROS signals they sense and respond to.(390) For instance, Keap1, a multipurpose sensor of redox signals has a second-order rate constant with peroxide of approximately 140 M⁻¹s⁻¹; for the same reaction, GAPDH has a second-order rate constant of 500 M⁻¹s⁻¹. These rates are of orders of magnitude higher than cysteine adducting to peroxide.(66) Nevertheless, assuming 50% occupancy is required for downstream signaling, it has been calculated that 170 μM H₂O₂ for 30 s would be required to usher downstream signaling by Keap1.(66) Clearly, phenotypic dominance lowers the threshold for activation, shortening the required exposure time or concentration required to elicit signaling.

3.2.3 Protein targets are most likely the key determinant of RES/ROS bioactivity

From the discussion above, based on total concentrations as well as the efficiency of GSTs, glutathione pool depletion is one of the first casualties following bulk exposure to exogenous RES/ROS. Thus, significant effort has been invested to understand whether depletion of the GSH-pool or modification of proteins is the primary source of bioactivity of reactive small molecules. Although it is very difficult to parse these events in most systems, the general consensus is that proteins are the principal biologically-relevant target of electrophiles in cells especially under signaling conditions as opposed to oxidative damage,(391,392) although there remains some debate.(393,394) Several lines of evidence exist for proteins being the principal signaling targets of ROS/RES. Accumulating evidence suggests that RES trigger specific response by direct modification of specific proteins.(251,252,259) Using mutagenesis, it has been shown that sulfenic acid formation is required for several signaling events in cells and whole organisms. For instance, IRE-1-mediated stimulation of SKN-1 signaling in C. elegans is governed by oxidation of a single cysteine.(395) Depletion of GSH by butathione sulfoximine (an inhibitor of GSH synthesis) is more significant than PEITC treatment and further induces ROS to a higher level than PEITC. However, PEITC is a much better inducer of apoptosis than butathione sulfoximine.(396) Consistent with proteins being the target of PEITC, knockdown of putative target proteins sensitizes cells to PEITC.(333) Modification of specific thiols by HNE has also been linked to synaptotoxicity,(397) AR,(398) and kinase inhibition(399) amongst others. In the last example, signaling was ascribed to a specific cysteine, loss of which ablated signaling, proving that signaling was protein specific. We will discuss more about this in section 5.2, but we focus in this present section mainly on how ROS and RES interact with proteins.

3.3 Diffusion distances and half-lives

3.3.1 Caveats with calculating half-lives/diffusion distances

Most researchers have used model systems and in vitro analyses to understand diffusion distances. These analyses are informative and can provide a basis/foundation for a theoretical understanding of redox signaling/signal transduction, but the data must always be viewed with caution. In the past 15 years, more efforts have been made to understand ROS/RES in cells. Although cellular data are more informative about distances traveled etc., differences in stability between the specific ROS in question in water, or an approximation of the cytoplasm and the cell, can give an indication of how significantly ROS interacts with cellular components. Unfortunately, many of the values quoted differ over almost ten-fold between different reports, different cell types, and/or experimental conditions. This margin of error can be the difference between concluding that the specific ROS mainly reacts with solvent and mainly interacts with the cellular milieu. Most estimates of diffusion distance rely upon the Einstein equation shown above (section 3.1.4).(355)

3.3.2 Diffusion coefficients are hard to calculate in cells

One of the key parameters in the Einstein equation is the diffusion coefficient, D. This constant is dependent upon several parameters including viscosity (D α 1/η). The relative viscosity of water compared to the cytoplasm has been measured to be between 1.6 and 1.1 using various methods including rotational diffusion coefficient of GFP and fluorescence correlation spectroscopy.(400,401) However, some experiments have suggested that the relative viscosity of cells is 4 fold higher than water, depending on the size of protein measured.(402)

3.3.2.1 There is no good model for the cellular milieu in vitro

The high concentrations of total protein found in cells are only obtainable in vitro under specific conditions, such as protein crystals (where 50% of the crystal is usually protein).(403) Thus, it is hard to convert in vitro data to numerically relevant data in a cell. In addition to protein concentration, the predominance of lipid membranes within a cell sets up a series of complex, non-classical environments. For instance, the surface area of ER and mitochondrial membranes alone in 1 mL of liver tissue covers an area close to 20 m².(404) On the other hand, an increasingly well-appreciated part of the oncogenic program is elevation of the overall intercellular pH. Redox modifications are pH sensitive,(405) indicating that redox signaling itself may differ between healthy and diseased cells.

3.3.2.2 The cell is compartmentalized

Compartmentalization is a fundamental property of living systems: even in E. coli, some proteins localize to specific regions/loci/poles.(406) In eukaryotes, this is even more complex due to membrane compartmentalization. Different membrane vesicles can have widely different pH, metal-ion content, or reducing capacity with respect to the cytosol. Such variables intrinsically affect the stabilities/spontaneous generation rates/interconversion rates of RES/ROS. For instance, pH rate profiles for reaction of cysteine and peroxide indicate two important points of inflection at pH = 8.5 and 11.5. These values correspond to the pK_a’s of cysteine sulfur and hydrogen peroxide. Thus, one would expect cysteine oxidation by peroxide to be considerably slower in a lysosome(407) [a small organelle, less than 1 μm in size, with pH 4.5–5.0, known to contain free cysteines(408)] than the cytoplasm (pH 7.2). However, proteins can perturb pK_a, allowing access to protonation states of residues typically inaccessible at neutral pH. For instance, the nucleophilic thiol of human Prx5 has a pK_a of 5.5;(409) pK_a of the catalytic lysine within acetoacetate decarboxylase was measured by Westheimer to be around 6.(410)

3.3.2.3 Enzymatic clearance can determine cellular half-life

Enzymes can accelerate rates of reaction by up to 17 orders of magnitude,(411) although such high accelerations are reserved for particularly difficult transformations. Cells express proteins at widely-different levels, and different isoforms of a specific enzyme (that can have widely different specific activities and/or functions) can be expressed in a cell type-dependent manner. Since enzyme-catalyzed metabolism is the predominant clearance mechanism for many small molecules in cells, it stands to reason that diffusion distance of reactive signals through cells is a function of metabolic protein expression. Thus, diffusion distances are highly cell type- and locale-dependent. For instance, some cell types, such as the human breast cancer line, MCF7, display very little GST activity,(412) possibly increasing diffusion distances of redox signals in this line, although this has not been investigated.

3.3.2.4 Which ROS?

Many half-life measurements of various chemotypes of ROS have been carried out using a sensor that changes properties upon reaction with a type of ROS. These sensors will be discussed in section 5. Of course, these sensors may not be absolutely faithful in their ability to report on the specific ROS in question. Such intricacies are particularly important in a cell where even a single ROS can subsequently generate numerous secondary ROS and there are numerous compartments with different properties that can affect signaling. Similarly, many of the methods used to estimate ROS half-lives involve generation of ROS in situ. It may not always be known how the generation methods affect the cell or produce side products (especially in cells).

3.3.3 Diffusion distances

3.3.3.1 ROS are relatively short-lived

In general, ROS are shorter-lived than RES (Table 1). The most common ROS are (in order of increasing cellular half-life) ^•OH, O₂^•−, ¹O₂, and H₂O₂. Nitrated forms of ROS, such as ONOO⁻ may also contribute to redox signaling. Interestingly, biological ROS species are physicochemically divergent, conferring a wide range of possible protein modifications. ¹O₂ is unique in the sense that it is a metastable excited electronic state of ³O₂. Thus, ¹O₂ decays (via phosphorescence, the so called monomol emission)(413) to ³O₂ at a defined rate in the absence of a reactive residue/enzyme/quencher. This process sets an intrinsic upper limit on the lifetime of ¹O₂ and has been used to monitor ¹O₂ in cells (see section 5).

3.3.3.2 Diffusion distance of hydroxyl radical

^•OH is the most reactive of common ROS. Unsurprisingly, this has the most favorable reduction potential of all common forms of ROS (2.3 V). It is believed to react at close to diffusion-limited rates with numerous substrates (10⁹–10¹⁰ M⁻¹s⁻¹;(68,69) e.g., second-order rate constant with GSH = 2.3×10¹⁰ M⁻¹s⁻¹). The diffusion distance is around 1–5 nm (i.e. less than the width of a 100 kDa protein).(67,414) This radical can be formed from several more stable ROS (including H₂O₂, O₂^•− and ONOO⁻), and thus may have a larger effective diffusion distance than suggested in most tables. ^•OH can initiate fragmentation of several amino acids that can initiate other signaling cascades. One interesting case is ^•OH-oxidation of methionine,(415) which releases methanethiol,(416) a molecule with possible signaling roles. The byproduct of these fragmentation processes is typically a carbon-centered radical. These product radicals can trap ³O₂ to form ^•OOH/O₂^•−. Thus ^•OH can attack protein targets, modify their primary structure, and create in the process subsequent radicals that can usher secondary signaling processes. Owing to dative stabilization from the appended oxygen, ^•OOH and ^•OOR have lower reduction potentials than ^•OH, (^•OR, E⁰=1.6 V; ^•OOH, E⁰= 1.1 V; ^•OOR, E⁰=1.0 V).(417) These oxygen radicals likely have signaling roles, although how much they differ from ^•OH is unknown.

3.3.3.3 Diffusion distance of superoxide

O₂^•− can spontaneously decay through dismutation. However, this reaction is complex. The spontaneous rate for dismutation of two O₂^•− (anionic) molecules is very slow,(418,419) meaning one or more of the molecules must be protonated for dismutation to occur, rendering the rate pH dependent. At pH 7, with micromolar O₂^•−, the half-life of dismutation is approximately 10 s (indicating that HO₂^• is accessible at this pH).(418) Additionally, as spontaneous dismutation is a homo-bimolecular process, at low concentrations, half-life of O₂^•− can extend to hours. O₂^•− reacts with thiols in a complex reaction. The reported second-order rate constants for thiol reaction vary by 4 orders of magnitude (15 to 10⁵ M⁻¹s⁻¹).(420,421) Although different small-molecule thiols can likely adduct superoxide at different rates, even for a specific thiol such as GSH, the literature rates for adduction to superoxide range over several orders of magnitude (200–10⁵ M⁻¹s⁻¹).(204,422) Overall, it is likely thiol adduction to superoxide is not much more efficient than dismutation. As we discussed above, SOD is principally responsible for metabolism of O₂^•−. The diffusion distance of O₂^•− in the presence of SOD is around 0.5 μm.(59) Unsurprisingly, basal levels of O₂^•− in cells are low (10⁻⁹–10⁻¹² M).(58) It is important to note that different organelles have different steady state ratios of O₂^•−:H₂O₂. For instance, in the cytosol this ratio is 1:1000; it is 1:100 in mitochondria.(423)

3.3.3.4 Diffusion distance of ¹O₂

With the onset of photodynamic therapy, ¹O₂ in cells has grown in importance.(77) As outlined above, ¹O₂ can spontaneously decay to ³O₂, in the process emitting energy (1270 nm).(424) Using this unique trait, and taking advantage of the fact that the lifetime of ¹O₂ can be extended in D₂O, the cellular lifetime of ¹O₂ was calculated to be 3 μs. This is close to the inherent upper lifetime of 4 μs in water(74) (compare 46 μs in D₂O treated cells, versus 68 μs in D₂O).(76,78) This result indicates that the root mean square displacement of ¹O₂ in water is 270 nm. Given that these data are similar to quenching in water, it is likely that solvent quenching dominates ¹O₂ half-life/diffusion in bulk cells. Importantly, however, half-life of ¹O₂ can be extended up to 14 μs in inert lipids,(77,425) meaning that ¹O₂ has more time to interact with cellular components when it is in membranes. Consistent with ¹O₂ interacting strongly with cellular milieu, other estimates of stability of ¹O₂ have indicated that this molecule has about 100 to 10- fold lower stability than expected based upon solvent reaction in cells.(426,427) Trivial explanations for these discrepancies are differences in cell lines and detection methods.(428) Additionally, second-order rate constants for reaction of ¹O₂ with methionine or cysteine/GSH are sizeable (approximately 10⁷ M⁻¹s⁻¹)(82) meaning that stability could be affected by cellular reductants and competing nucleophiles that could be cell type/region specific. It is also noteworthy that ¹O₂ cannot be added directly to a cell. It is typically generated in situ by photosensitization and often read out indirectly. In this respect, phosphorescence may serve as the most direct measurement of ¹O₂.

Endogenous ¹O₂ is most likely formed in light-exposed areas, such as the skin. Sensitizing of ³O₂ by a range of excited biomolecules to generate ¹O₂(44) may have a role in skin cancer etiology and aging.(429) Consistent with this notion, direct observation of ¹O₂ formed by action of UVA-light on pig and human skin has been detected using phosphorescence (1270 nm).(430)

3.3.3.5 Diffusion distance of peroxide

Peroxides, including organic peroxides, have the longest diffusion range of all ROS. Hydrogen peroxide is stable in water and is commercially available. Disulfide formation via the reaction of cysteine with peroxide in water is formally a two-step process: the first step is nucleophilic attack of free cysteine on peroxide to form a sulfenic acid and water, the second step involves displacement of the product sulfenic acid by another cysteine. The first step occurs with a second order rate constant around 1 M⁻¹s⁻¹ around neutral pH.(111,431) The second step is over one order of magnitude faster and likely does not contribute to the kinetics in vitro.(432) Assuming a cellular thiol content of 5 mM, and given the 1 M⁻¹s⁻¹second order rate constant for thiol adduction to peroxide, one would expect a half-life of around 2 min in cells. However, the half-life of peroxide in a cell has been calculated to be between 10⁻³ and 10⁻⁵ s.(24) Thus, enzyme catalyzed pathways dominate peroxide metabolism. Indeed, assuming that peroxiredoxin [that has a second-order rate constant of 10⁸ M⁻¹s⁻¹with peroxide(109,111)] is the dominant peroxide quencher in the cell (and that this enzyme is maintained in the reduced state) the longest diffusion distance for peroxide in a cell is 1 μm.(65) Thus, peroxide metabolism contrasts with the decay mechanisms of ¹O₂ and ^•OH, which are (likely) dominated by solvent quenching, at least in aqueous environments. This line of reasoning further suggests that peroxide stability and diffusion distances may be cell-type/context dependent.

3.4 ROS-metal complexes can alter physicochemical properties

Many ROS can interact with numerous metals and metalloproteins. In addition to low molecular weight complexes, reaction of peroxide with metalloproteins can also alter ROS properties. For example, reaction of H₂O₂ with heme peroxidases, such as MPO and lactoperoxidase, generates a two-electron oxidized Compound I species (similar to Compound I species in CYP450 discussed in section 2.1.2.3). Compound I oxidizes various substrates to generate oxidants such as HOCl and free radicals.(112,433) It is likely that reaction with free iron dominates in cells (434) because the labile iron pool [concentration 0.6 μM in lymphocytes(435) and 0.2–1.5 μM(436) in resting erythroid and myeloid cells] dwarfs other redox-active metal species. However, this is probably cell-type/organism/condition/organelle-dependent.(437) The reaction of peroxide with ferrous iron [Fe(II)] to create the ^•OH is called the Fenton reaction. This process generates ^•OH with a rate constant on the order of 100 M⁻¹s⁻¹.(438) ^•OH also reacts with Fe(II) (rate constant 3.2×10⁸ M⁻¹s⁻¹), but since ^•OH is inherently unstable, this process is believed to contribute little to the stability of ^•OH. The iron–^•OH reaction is only an order of magnitude faster than the reaction of ^•OH with peroxide (3.3×10⁷ M⁻¹s⁻¹), for example. Protein-bound iron can also catalyze Fenton-type processes. However, as the Fenton reaction proceeds via an Fe(II) state, not all iron-containing metalloproteins can catalyze this sort of chemistry.(439,440) Redox-active metals can also catalyze dismutation of O₂^•−, but this is overall a similar process to the enzyme-catalyzed reaction we have previously discussed (section 3.3.3.3) and likely is less impactful than the effect on H₂O₂.

3.5 RES are long lived and have long diffusion distances

Many RES are formed by lipid peroxidation or oxidative metabolic pathways and so they are intrinsically linked to ROS. Several metabolic byproduct RES [e.g. 30 μM formaldehyde (441)] are prevalent in the blood. It has recently been shown that a major source of formaldehyde is folate, and it has been delineated how formaldehyde can be diverted to one carbon metabolism.(442) Methylglyoxal, another metabolic side product and arguably the second least chemically complex RES after formaldehyde, is also relatively abundant. In cells this molecule can reach up to 300 μM, although much of this is bound in cells (for instance 0.1–2% of arginine residues in cells are modified by methylglyoxal).(443,444)

Arguably, the more chemically diverse and signaling relevant class of RES is RES derived from lipid peroxidation. The simplest unsaturated aldehyde electrophile is acrolein. This reacts with GSH with a rate constant of 120 M⁻¹s⁻¹.(445) 3-Substitution on the enal typically decreases electrophilicity and such electrophiles undergo conjugation to GSH with second-order rate constants between 0.3 and 3 M⁻¹s⁻¹.(446) The presence of a γ-hydroxyl group on the Michael acceptor HNE promotes nucleophilic addition by 1.5–10 fold(85,447) relative to the dehydroxy congener, nonenal, likely through a combination of increase in positive charge and anti-periplanarity of the C–O bond and nucleophile in the transition state.(448) Oxidation of the hydroxyl group to a ketone hugely increases electrophilicity,(85) possibly through a “dual attraction” mechanism.(449) 4-Oxononenal (ONE) (k_GSH = 145 M⁻¹s⁻¹) is significantly more reactive than HNE, although this molecule is likely at significantly lower concentrations than HNE.(450) HNE and malondialdehyde each account for 20% of lipid peroxidation products.(451) HNE has been estimated (after subtraction of malondialdehyde) to be present in K562 cells at a concentration of approximately 100 pmol/mg protein, corresponding to a concentration of around 8 μM.(84) High-energy UV-light doubled this value. However, other estimates indicate a lower basal level of HNE (0.3–1 μM), but a much larger response upon stress, up to 5 mM.(85)

HNE is estimated to have a half-life of around 2.5 min given the known concentration of GSH (5 mM) in liver cells,(85) the known rate of adduction of GSH to HNE and assuming there are no additional factors promoting adduction, like catalysis. Interestingly, HNE has a half-life of less than 4 s in rat heart(85) and around 30 s in hepatocytes suspensions.(88) The discrepancy between calculated stability and actual stability can be ascribed to enzymatic catalysis.(452) Consistent with this analysis, perturbation to principal detoxifying enzymes like mitochondrial aldehyde dehydrogenase increases cardiac HNE levels.(453) The percentage of HNE incorporated into protein is dependent upon the concentration of HNE added in hepatocytes. 100 μM led to 3% incorporation; 1 μM led to 0.62 % incorporation.(88) Overall this agrees with other reports showing that 1–8% of HNE labels proteins in cells. Of the remaining 99–92% HNE, oxidation/reduction and GSH conjugation accounts for around 50% each, although estimates for this partitioning vary.(454) In spite of the reliance on glutathione to detoxify HNE, even upon treatment with 250 μM HNE, 30% of reduced glutathione (i.e. unreacted) is retained in hepatocytes.(455) Where the data are known, nitro-olefin metabolism seems to be similar to LDE metabolism: nitro-olefins have a short half-life (minutes) in plasma.(456) Importantly, however, nitro-olefins can remain bound to protein, and be released depending on the environment (e.g. pH change). It is thus generally true that RES are longer lived than any ROS in cells, meaning that these signals have different latencies and can diffuse much further.

3.6 Both ROS and RES are membrane diffusible

Most uncharged species can permeate through the cell membrane.(255) For this reason, O₂^•− is the least permeable common ROS/RES. This argument assumes that O₂^•− is considerably deprotonated at neutral pH, which may not entirely counterbalance the reactivity of the protonated state.(457) For instance, protonation of O₂^•− can increase the spontaneous dismutation rate by at least 5 orders of magnitude. Furthermore, although the ratio of unprotonated to protonated species is around 1000:1 at pH 7.8,(458) the equilibrium lies close to unity around pH 4.5 (a value obtainable in acidic organelles). In some cases, there is evidence that O₂^•− can pass through membrane channels,(459) most notably anion channels(460), although there seems to be some other mechanism(s) that enable superoxide to pass through membranes.(461) H₂O₂, a product of dismutation, is accepted to be membrane permeable.(387,462) Indeed, peroxide can behave as a secondary messenger for O₂^•− ferrying extracellular O₂^•− signals to the cytosol. The abundance of extracellular SOD also assists in this process by localizing peroxide to the point of origin.(59) H₂O₂ likely enters the cell through aquaporins.(463) Because the membrane is a different environment to the cellular milieu, it can also affect stability of some ROS. Diffusion distance of ^•OH is less than the width of the cell membrane; thus, it is unlikely to be able to cross this barrier. Nonetheless ^•OH can certainly cause damage to membranes.(271) ¹O₂ and ³O₂ appear to have different permeabilities to the membrane, even though the lower limit of ¹O₂ diffusion rate through a membrane is similar to ³O₂ (2 cm/s).(464) It has thus been postulated that ¹O₂ is more affected by molecules that can quench or react with it in the membrane than ³O₂. This discrepancy is not unexpected as ¹O₂ can undergo several pericyclic reactions with unsaturated lipids. As they share characteristics of lipids, RES are usually considered to be highly membrane permeable.

3.6.1 ROS diffuse rapidly, compared with macromolecule diffusion, especially in cells

Diffusion is more difficult in the cell than in water.(465) This has been shown for small molecules using a range of techniques from pulsed field NMR(466,467) to photobleaching.(468) Reduced diffusion rates in cells can be attributed to a number of factors including, interaction with proteins, various aspects of surface chemistry and crowding.(469)

Macromolecules diffuse slower than small molecules in water: this effect is dependent on size with larger macromolecules diffusing slower than smaller ones.(416) Although there have been disagreements,(470) the differences in diffusivity likely apply to proteins in cells too. For instance, across five proteins spanning 21–540 kDa, the diffusion coefficients decreased 5-fold.(467) Interestingly, the same study showed that the difference between diffusivity in water and the cytosol increases as the size of the protein increases. Recent work using fluorescence cross-correlation spectroscopy(402) agreed that larger proteins show severely slowed diffusion and stressed the heterogeneity of cells as a causative factor.(471) The cell thus appears to present a “random obstacle network” to species diffusing through it. Interestingly, this study also concluded that the nucleus and cytosol were similarly permissive to diffusion.

Unlike many small molecules (including redox signals), macromolecules cannot diffuse across membranes, meaning that movement from one organelle to another is regulated. For instance, nuclear pores are believed to allow molecules below a specific size to cross from cytoplasm to nucleus unhindered (see section 3.2.2 for some possible exceptions). It is often said that proteins above 60 kDa require import. However, reports also claim that molecules larger than this can enter the nucleus freely.(472) Above the cut-off (whatever the criteria be), recognition is required for nuclear entry. Entry of “large” molecules is facilitated by a series of protein chaperones called importins. These proteins recognize specific sequences allowing import into the nucleus. Exportin, on the other hand, mediates nuclear export. Similar complex sorting processes happen in other organelles. Since proteins diffuse slowly and require chaperoning across membranes, papers discussing redox “communication” between organelles have grown in abundance over the recent years and were originally discussed in section 2.1.3.

3.7 Manifestation of diffusion distance differences as a function of cell size

The need for rapid information transfer under stressed circumstances may have spurred biology to harness small-molecule messenger systems such as redox signaling. Depending on the cell type (E. coli, epithelial, axon), it can take a protein between 10 ms to 20 days to diffuse from one side of the cell to another. Furthermore, from prokaryotes to eukaryotes the average length of a protein in amino acids increases 50%, possibly indicating that diffusivity of proteins decreases as genome complexity increases.(473) Based on this logic, the rapid diffusion properties associated with redox signals likely become more desirable relative to macromolecular systems as the cell increases in size/complexity and diffusion times for macromolecules increase.(474) Thus, eukaryotic cells may be more dependent on redox signaling than prokaryotic cells. There is certainly evidence that E. coli peroxiredoxin and mammalian peroxiredoxin (a principal mediator of ROS levels and hence ROS signaling) are regulated differently by ROS, indicating that responsivities to redox signaling are not the same in mammals and prokaryotes.(383)

Indeed, gram-positive prokaryotes and eukaryotes use different redox couples: intracellular redox buffer in mammalian cells is GSH, whereas bacteria can use a range of different reductants aside from GSH,(475) including acetyl CoA,(476) mycothiol,(477) and bacillithiol.(478) Thus, how proteins are modified under oxidative stress and resulting conformation changes and re-reduction dynamics are likely very different between these two domains of life.

3.8 Organelle-specific exposure by RES/ROS under bolus dosing

HNE and H₂O₂ permeate cells differently under bolus dosing: external HNE treatment of cells labels both cytoplasm and nucleus whereas external treatment of cells with H₂O₂ affects only the cytoplasm.(479,480) Analogous experiments using a ROS sensing fluorescent protein called “HyPer” have reached a similar conclusion that the nucleus is relatively more protected than many organelles to ROS. Although there could be many explanations for this result (see also section 3.2.2), there is a clear indication that external RES and ROS can affect organelles differently.(481)

3.9 (Ir)Reversibility of RES/ROS-derived protein modifications

Reversibility of signaling processes, and the lifetimes of specific modifications are of critical importance. Taking analogy from the drug discovery community, it is clear that the longer a drug (or redox signal) resides on its target, the more impact the signal can have. For a drug, long residency will typically be ideal. However, (as discussed above) for signaling, flexibility—i.e., the ability to turn on and off (with minimum energy expenditure)—is likely most desirable. Moreover, for reversible signals, relatively little effort is required to turn on and off the signal, whereas degradation is required to suppress the signal if the protein is irreversibly modified (requiring more of the cell resources). Regardless of reversibility, some oxidation events spawn further downstream signaling processes, often through involvement of enzymatic or glutathione-mediated reduction, or through trapping of ³O₂. We discuss these nuanced points in this section.

3.9.1 Sulfur oxidation states show differing reversibility in cells

Cysteine oxidation to sulfenic acid/disulfides is freely reversible. Sulfenic acid reduction can be either enzymatic [glutaredoxin and thioredoxin systems are particularly efficient and allow rapid enzymatic re-reduction(482)] or through collision with free thiols such as glutathione. There is also evidence that reduction of some enzyme disulfides by free GSH may be considerably faster than the reduction of generic disulfides, while free GSH-mediated reduction of other enzyme disulfides is much slower than expected.(483) Experimentally, protein sulfenylation has been reported to peak 5 min post EGF stimulation followed by a decay over 30–60 minutes.(484) This relaxation time implies oxidation is faster than re-reduction and that “sulfenylated protein” has a global half-live on the order of 5–10 min in cells. Several factors could contribute to this result: the oxidized sulfurs may be privileged, and the sulfenic acid products could be stabilized or sterically shielded from reductants. Recently it has also been reported that some sulfenic acids can form sulfenamides (adduction to an amine) or the analogous sulfenylamides (adduction to the amino function within an amide). These structures may be more stable to reduction than sulfenic acids, potentially offering a means to stabilize oxidized proteins and prolong signals or regulate re-reduction more tightly.

Reduction of sulfenic acids or disulfides can generate secondary disulfides and beyond. This opportunity enables redox signaling cascades to function through “changing of hands”, after the initial redox-signal modification of the first responder. In this scenario, an energy-neutral process (such as disulfide exchange) transfers the redox signal from one protein to another, while simultaneously transferring information.

Further oxidation of the sulfenic acid is not as easy as the first oxidation step, at least for electrophilic oxidants. Reduction of sulfinic acid is only achieved by a few enzymes and so the reversibility of this modification is context dependent. Sulfiredoxin is an ATP dependent enzyme that reduces sulfinic acids of 2-cysteine peroxiredoxins to the corresponding sulfenic acids. This enzyme appears to be the principal means to reduce peroxiredoxin sulfinic acids in A549 cells.(485) Interestingly, compared to the prokaryotic counterpart, eukaryotic 2-cysteine Prx are almost 100-fold more susceptible to overoxidation. This has led to the ‘floodgate model’ for 2-cysteine Prx regulation.(486) In this model, eukaryotic 2-cysteine Prx acts as a “redox buffer” preventing peroxide-mediated oxidation of other redox-sensitive proteins until the floodgate is opened by overoxidation of the Prx enzyme. Sulfiredoxin, on the other hand, is a relatively slow enzyme (k_cat = 0.003 s⁻¹), yet it shows significant resistance to oxidation.(485) This protein also removes other oxidative modifications from peroxiredoxin in an ATP-dependent manner.(487) Sulfonic acid formation is very slow, and there are no known cellular reduction mechanisms for this product. This signal is also a degron in some cases,(488) rendering reversibility a moot point.(489)

3.9.2 Carbon oxidation is irreversible, but requires high-energy oxidants and can proceed with unusual regioselection

High-reactivity ROS (e.g., ^•OH) target labile C–H and O/N–H bonds. These reactions are irreversible. The reaction of ^•OH with C–H has a rate constant of 10⁸ M⁻¹s⁻¹.(490) There is known to be some residue and protein dependence to this rate constant(491) and indeed hydrogen abstraction second-order rate constants from amino acids range from 10⁷ (Gly) to 10¹⁰ (Trp, His) M⁻¹s⁻¹.(490) This is unsurprising since radical reactions are strongly dominated by stabilities of product radicals and bond dissociation enthalpies, and so attack at weak bonds to give more stable radicals will always be favored. Dative stabilization confers significant longevity to radicals so abstraction of hydrogen atoms α-to heteroatoms where a lone pair is free to stabilize the product radical is one of the most common mechanisms. This process is further favored because ^•OH, and similar biological radicals (such as ^•OR), are electrophilic by nature, so favor formation of a positive charge on the carbon bearing the abstracted hydrogen in the transition state.(492) Indeed, glutamic semi-aldehyde, the product of hydrogen abstraction from arginine, is a common process,(493) although products that proceed through formation of secondary aliphatic radicals (e.g., hydroxyglutamine) have been reported.(494) By extension, serine and threonine are also susceptible to hydrogen abstraction.

There is also evidence that polar residues surrounding the site of hydrogen abstraction increases the rate of oxidation.(495) Capto-stabilization is also a significant stabilizing element for radicals and so H-abstraction α-to side chain carboxylic acids and amides is also facile(491) (although this is less favored on charge distribution grounds than abstraction α-to a donating group). Finally, captodative stabilization affords the most stabilized radical,(496) and thus it may be expected that abstraction at the α-hydrogen would dominate radical reactions with peptides. Unlike other sites of radical abstraction, reaction at the α-position leads to fragmentation of the polypeptide backbone and this is likely significantly damaging to the protein and by extension the cell.(497) Although such α-hydrogen abstractions do occur, peptides are on the whole refractory to this process [abstraction at non-captodative stabilized sites occurs 10–1000 times faster(498)]. This unexpected regioselection may explain the stability of peptides in oxidizing environments.(499) This problem has been addressed computationally by several authors, with hydrogen bonding being suggested as a means to suppress attack at the α-position.(500) Regardless of the position of abstraction, the carbon-based radical product of hydrogen abstraction by ^•OH is typically trapped by ³O₂ (likely a diffusion controlled process in water). The resulting organic radical peroxide can liberate a molecule of ¹O₂ during hydrolysis. As discussed above, ^•OH reactions can thus constitute a bifurcating signal exchange and consequentially in the vicinity of ^•OH, there will be a local increase of several ROS species, including ¹O₂ (and oxidized proteins).

3.9.3 RES modifications can be reversible or irreversible

Many RES modifications are irreversible, rendering changing of hands unlikely. Thus, most RES-modified proteins must be privileged in order to function as sensors. Although there are some counter-examples,(501–503) HNE and similar protein-enone adducts have been resolved by SDS PAGE and detected by mass spectrometry indicating that many HNE adducts are at least reasonably stable. Nitroolefins on the other hand can form reversible adducts to cysteines(504)(Figure 9). The dissociation constant of nitro-oleic acid from cysteine thiolate is around 10 μM.(92,505) Interestingly, the apparent second order adduction rate constant (which is pH dependent) is 355 M⁻¹s⁻¹(at pH 7.4).(95) Accordingly, nitroolefins likely have very different signaling properties to most other endogenous RES. The difference in adduct stabilities between enals and nitroolefins may be due to: (1) the 13 unit difference between the pK_a of the protons α-to the carbonyl [30; methyl acetate(506)] and nitro groups [17; nitromethane(507)]. In fact, several drug enone-derived discovery efforts have found increased pK_a of protons α-to the enone (or similar mesomerically stabilizing group) leads to better reversibility;(508) and (2) the ability of enal-adducts to undergo further reaction post cysteine conjugation (a process not possible for adducts to nitroolefins; Figure 9).(509) Furthermore, although it is unclear whether this process occurs in cells or during handling post-lysis, we and others have characterized the aldehyde-reduced version of cysteine-Michael adduct of HNE conjugated to Keap1 enriched from cells, following bulk HNE challenge of live cells or controlled targeted delivery of HNE in situ in live cells. This product is unable to enolize, and hence is irreversible. It is likely that this unexpected reduction process contributes to enal adduct stabilities. Reversibility can also be dependent upon which functional group is modified. For instance, 2-pentylpyrrole lysine is believed to be an end product of lysine adduction to HNE.(510) Formation of this product is likely irreversible.

Figure 9.

Reversible and irreversible RES conjugates: pK_a of the C-H proton(s) α-to the carbonyl or nitro group affects the reversibility of the thiol conjugates. In the case of the reduced HNE–thiol adduct, the source of the reductant is currently unknown, but this modification has been reported by independent laboratories for the RES-sensor Keap1 following global treatment of cells with HNE.(259,511) This modification was also detected following T-REX-mediated HNE-delivery to another RES-sensor, Akt3.(512) See also Figure 13.

Cysteine also forms adducts to isothiocyanates (ITCs). These cysteine adducts are in principal freely reversible and can show varying stability. In some instances, the ITC can migrate from the initial point of contact at cysteine to adjacent amine adducts forming thioureas that are essentially irreversible. Critically, such transfer is possible for sp²-hybridized carbon adducts that occur through addition/elimination. On the other hand, direct transfer of RES is not possible for sp³-hybridized adducts, like those formed to nitroolefins and enones because this process must proceed through direct S_N2 at the carbon sulfur bond (Figure S4). Thus, for RES, the possibility of change of hands (i.e., direct transfer of chemical information from one protein to another) is dependent on hybridization of the carbon to which the cysteine adduct occurs. It should be noted that most RES adducts are in principle reversible, even if the reverse reaction is often very slow or requires harsh conditions.

It is believed that for HNE, adducts on residues other than cysteine dominate thermodynamically. For instance, histidine adducts to HNE may be more stable than cysteine adducts and as we pointed out above, this difference in stability may explain the preponderance of amine-HNE adducts identified especially in the early literature.(513) However, it is likely that cysteine is always the first residue modified due to its better efficiency in Michael addition. In practice translocation to histidine may not occur at a rate that competes with other processes such as degradation or signal transduction for many adducts, although this has not been systematically studied.

3.10 Implications for tracking signaling pathways

Irreversible modifications make tracking redox signaling relatively simple: assuming ideal detection methods and little decay/transfer, the whole gamut of proteins modified irreversibly can be obtained through MS analysis or profiling. Unfortunately, detection methods are not ideal (see section 5.2) and covalent bond formation is not mandatory for biological activity so one cannot assume that profiling/enrichment analysis is all encompassing. However, the irreversibility of modifications like HNEylation has been used to the advantage of many researchers trying to establish protein targets. On the other hand, it can be quite difficult to trace the “initial point of origin” for reversible/exchangeable modifications.

3.10.1 Implications for regulation of RES/ROS signaling

Signaling pathways likely need spatial/temporal and chemical regulation to ensure high fidelity of information transfer. A simple discussion of diffusion distance and reactivity as presented in the opening paragraphs of this section (section 3.1) makes a case that “sphere of influence” (localization due to inherent practical limits to diffusion distance) and chemical constraints (kinetic privilege) can orchestrate selective redox signaling in cells.(514) This argument is bolstered when it is considered that macromolecules are essentially stationary amongst the hustle and bustle of small molecule diffusion in the cell. Thus, a local burst of reactive molecule in proximity to a privileged (immobile) sensor protein can lead to high local concentrations of a “modified” protein state, even if the bulk protein (that exists elsewhere in the cell) is unmodified.(515) But, given the crowded environment of the cell, the huge number of adventitious thiols and the efficiency of detoxifying processes, it is likely that intended signaling targets have attributes of privileged sensors. For such a mechanism to function adequately, sensor proteins either have to be enriched in a particular area of the cell primed for reaction, or else ubiquitously expressed. If the signal is released but the protein is not present to accept it, there is likely not sufficient time for the sensor to arrive before the signal is lost or misdirected, meaning the required response is not triggered and potentially causing damage by modifying the wrong protein.

Even assuming that a sensor is present, the chances of modifying the incorrect protein increase if intrinsically hyper-reactive molecules such as ^•OH carry the signal. For reagents that react at the diffusion limit even in the absence of catalysis, conferring enzyme-like sensing capacity to a sensor would unlikely confer a huge amount of selection. For this reason, privileged ^•OH sensors are unlikely attainable and selective signaling modes likely occur purely through proximity enhancement if indeed molecules like ^•OH do behave as signals at all. It is thus likely privileged ROS/RES sensors only act on relatively low-reactivity signals, where kinetics and regioselection can be carefully controlled through selective rate amplification.

3.11 Unusual conditions and chronic or excessive exposure to ROS/RES may lead to modification of residues other than cysteine

3.11.1 Reaction of residues other than cysteine with ROS

3.11.1.1 Reaction of methionine with ROS

Methionine can be oxidized relatively efficiently.(516) Unlike cysteine and acetyl cysteine, the oxidation of methionine (although slow) by peroxide is pH independent (10⁻² M⁻¹s⁻¹) and can in fact dominate glutathione and acetyl cysteine oxidation (by >10 fold) below pH 4. However, by pH 6, glutathione is 4–5 fold faster in terms of peroxide reaction than methionine, likely due to partial formation of the GSH thiolate. This indicates that in acidic organelles, methionine could be the most relevant signaling target, if signaling occurs in such regions. Interestingly, peroxymonocarbonate [formed from reaction of bicarbonate with peroxide, a process that occurs with a rate constant of 10⁻² M⁻¹s⁻¹(517)] oxidizes methionine much faster than peroxide oxidizes methionine (0.5 M⁻¹s⁻¹).(518) Of course, peroxymonocarbonate is a better oxidant of cysteine, although the rate acceleration may be less significant than for methionine (around about 20-fold for protein tyrosine phosphatase and only two-fold for papain).(519) Reduction of sulfoxides is much more difficult than sulfenic acids; for instance, the second-order rate constant for the reaction of glutathione with DMSO is 0.00005 M⁻¹s⁻¹.(520) Thus methionine-S-oxide requires enzymatic reduction. Methionine S-oxide is chiral due to the increasing difference in s-p orbital energies as one proceeds down a group of the periodic table,(521) shutting down of the “umbrella inversion” effect in Period-3 elements. Reduction of the R and S forms of methionine-S-oxide is carried out by two separate enzymes.(522) Given the differences in rates of chemical oxidation of cysteine and methionine as well as the shorter half-lives of sulfenic acids relative to methionine-S-oxides, it is very likely that these two modifications fulfill very different roles in cells. As was noted above, HOCl can oxidize methionine with similar efficiency to cysteine. It is believed that HOCl generated from myeloperoxidase may be involved in modification of several proteins,(523) including inhibition of cholesterol export by ABCA1.(524)

Methionine oxidation can also occur through enzyme catalysis. The NADPH/flavin dependent monooxygenase MICAL is the best example.(525)

3.11.1.2 Reaction of histidine with ROS

Oxo-histidine on proteins has also been observed. This is most commonly formed from treatment of proteins with copper/³O₂/ascorbate. Growing evidence indicates that this may be a signaling residue. For instance, Bacillus subtilis PerR forms oxo-histidine in response to reaction with H₂O₂.(526) This modification decreases PerR’s ability to bind DNA. Other regulatory roles of oxo-histidine have been proposed, but these likely proceed through enzyme-catalyzed processes.(527)

3.11.2 Reaction of residues other than cysteine with RES

As discussed above, enzymes can confer unusual properties to amino acid residues. Depression in pK_a (and other factors, such as those described above) can endow the residues of interest with higher-than-expected nucleophilicity. In the case of lysine, deprotonation is required for nucleophilic addition, whereas histidine is only partially protonated at pH 7, so the nucleophilically-active form is accessible. For instance, some electrophilic suicide inhibitors, like vigabatrin, target active site lysines that function as catalytic bases in the target enzyme. Inactivation of glucose-6-phsophate dehydrogenase by HNE in vitro has been proposed to proceed by adduction to lysine. It is noteworthy that the pH rate profile for this lysine adduction process showed that the target lysine had a pK_a of 10, indicating that it may even be deactivated(528) relative to the “free” lysine. Lysine-rich enzymes, such as ubiquitin form HNE adducts in vitro.(529)

In similar experiments, GAPDH was shown to form adducts to HNE via cysteine, lysine, and histidine with the distribution in part being dependent upon presence of a substrate (NAD),(530) indicating that at “physiological conditions” ligands can influence the site and residues modified by RES. It should, however, be noted that these experiments were conducted with millimolar HNE. Subsequent experiments showed that for GAPDH, adduction at cysteine and histidine are more rapid than lysine.(531) Interestingly, the same paper showed that the active-site cysteine was not modified by HNE, with surface residues being preferred. HNE adducts to both cysteine and histidine are implicated in the inhibition of cathepsin B.(532) Enzymes that metabolize HNE may show some robustness to HNE modification. For instance, GST-A4-4 (a protein principally responsible for HNE metabolism through glutathione conjugation in the liver)(533) is significantly less susceptible to HNE adduction and inhibition than other GST isoforms.(534)

One important modification is 4-ONE-ylation of lysine. This modification occurs through amine adduction to the aldehyde function to form a hemiaminal. This function then undergoes tautomerization to form the γ-keto amide.(535) Intriguingly there is evidence that SIRT2, a histone deacetylase, can remove this modification, at albeit at a rather sluggish rate (500 M⁻¹s⁻¹).(536) Thus, this is possibly an example of a removable (not strictly reversible) protein RES modification.

Although interesting, the above experiments have not commuted well to real world situations. Bolus treatment of cells with HNE showed that cysteine adducts dominated over histidine adducts by around 40:1.(537) Furthermore, no HNE–lysine adducts were observed in lens protein extracts from patients aged 1–74 years old,(538) indicating that even for long-lived proteins (crystalline, a major component of the eye lens that is not degraded through life) HNE lysine adduction is slow. However, increase in histidine bound to HNE metabolites in urine has been proposed as a biomarker for carbonyl stress.(539) Histidinyl HNE is also elevated in patients with Alzheimer’s disease.(540) Thus, although histidine adducts to HNE are uncommon in healthy cells, these adducts may accumulate in (some) diseased states. Interestingly 1,4-quinones are reportedly targets of lysine-rich motifs (541) although they can also be attacked by glutathione. Reoxidation of adduction products can allow multiple adduction events to take place.(542) The reaction of 1,2-quinones with amine functions is 10⁵-fold slower than adduction to thiols.(543)

Selenocysteine [Sec, pK_a 5.2(544)] is a genetically encoded analog of cysteine that is present in around 25 proteins in humans.(545) Although the precise reasons for incorporation of Sec into proteins is debated,(546,547) it is clear that Sec is intrinsically more nucleophilic than cysteine.(548) Unsurprisingly, Sec is a target of both ROS and RES. Glutathione peroxidase, a selenoprotein, was shown to be oxidized at selenium to form a selenylamide that can be reactivated by addition of glutathione.(549) The selenoprotein, thioredoxin reductase, was shown to be inhibited by HNE (IC₅₀=4 μM, 2h treatment). HNE adduction was observed at C496/Sec-497, which are located in the active site. Acrolein also alkylates thioredoxin reductase at Sec.(550) The half-life of this adduct was 4–8 h, and reversal required both GSH and thioredoxin 1.(551) Given that selenocysteine-carbon bonds are weaker than carbon-sulfur bonds, the carbon selenium bond is likely a better acceptor of electrons through negative hyperconjugation,(552) and that SeH is more acidic than SH,(553) it is likely that Michael adducts to protein-selenocysteine are shorter lived than protein-cysteine, assuming there are no cross links/additional protein interactions.

3.11.3 Reaction with other macromolecules

The tacit assumption of this section has so far been that protein is the sole macromolecular target of ROS and RES (although these are formed by action of RES on lipids). The assumption that proteins are the principal target is mostly justified because proteins are both abundant and rich in deprotonatable sp³-hybridized sulfur. The RNA:protein mass ratio in cells ranges from 0.1–0.5.(554) DNA is less abundant than RNA.(555) Furthermore, although RNA can contain thiol groups,(556) these are sp²-hybridized and hence have low nucleophilicity/acidity compared to thiol/thiolate pairs. Thus, by both mass action and second-order rate constants, oxidation and electrophilic adduction to nucleic acid through nucleophilic attack is likely to be much slower than to protein.

Cofactors/prosthetic groups can also be the target of ROS. Iron–sulfur proteins are among the most ROS-sensitive architectures in the cell.(557) For instance, PP1 is inhibited by peroxide (IC₅₀=70 μM), via attack on the catalytically-essential Mn/Fe(II) prosthetic group. In addition, some iron–sulfur clusters sense ROS and coordinate responses to changes in ³O₂.(558) Other essential Fe–S proteins, such as Rli1p(ABCE1) are highly susceptible to ROS.(559) Furthermore, ROS functions synergistically with cofactors. A mixture of acetoacetyl-CoA and H₂O₂ is able to initiate oxidation of NADH.(560)

Nucleic acids are sensitive to attack by radical-based ROS. ^•OH attacks DNA in a diffusion-limited process.(561) Indeed, the mechanism of action of the DNA-damage inducer, bleomycin, is believed to proceed by oxidative modification of DNA(562) and more than 20 separate types of nucleic acid damage have been reported to be caused by ^•OH alone. RNA is the most ROS-susceptible nucleic acid in the cell.(563) HNE [and other endogenous electrophiles(564)] can modify DNA, principally through adduction to deoxyguanosine.(565) This adduct can be repaired (probably by nucleotide excision repair), however the HNE adduct is estimated to be more mutagenic than 8-oxoguanosine,(566) possibly due to formation of crosslinks.(567) HNE-DNA adduction is elevated 4-fold relative to controls upon glutathione depletion in rats(568) and elevated HNE–DNA adducts have been observed in human patients with nonalcoholic fatty liver disease.(569,570) The most reactive of the common LDEs, ONE,(571) reacts with tRNA in rat intestinal epithelial cells,(572) in addition to other nucleic acids.(573) HNE may also react with aminophospholipids.(248) This process (in addition to adduction to protein thiols) affects the activity of adenine nucleotide exchange factor in liposomes.(574)

3.12 What makes a privileged sensor?

Combining the above discussions, the definition of privileged sensor is currently functional (beyond initial considerations in section 3.10.1): a protein that is able to engage with (a redox) signal preferentially over other species in the cellular milieu leading to a downstream signaling response. It is unlikely that redox signaling can ever be 100% intended protein selective, so privileged sensors likely have mechanisms to promote “on-target” downstream signaling. These mechanisms may involve (1) increased reactivity to the signal in question; (2) proximity of release and target protein; and (3) coupling redox-signal modification event to a phenotypically-dominant effect (such as gain of function or dominant loss of function). It is often assumed that enhancement arises from increased thermodynamic acidity of privileged sensor. However, to be privileged, additional factors that give an extra boost to reactivity are required. Pre-binding of the electrophile prior to covalent bond formation may increase reactivity for HNE. Interestingly, glutathione reductase is inhibited by HNE but is refractory to inhibition by 2-oxoaldehydes,(575) suggesting that intrinsic reactivity of the electrophile is not a key determinant in this process. This example highlights that one should not assume just because a molecule is more electrophilic it will by default react faster with a specific protein thiol. Abundant examples of such selectivity exist in the literature, including the reactivity of linear enals with tubulin.(576) Similar to Pfeifer’s rule in medicinal chemistry that defines a positive correlation between enantioselectivity and inhibitor potency,(577) as the protein thiol becomes more matched with a specific electrophile, it is likely that its reactivity with other electrophiles, even those with similar structure, will decrease. Interestingly, different enantiomers of HNE elicit widely different phenotypic effects in mouse hepatocytes.(578) This observation could be due to differential metabolic/excretion processes and/or different target profiles. However, certain enzymes are known to react preferentially with specific enantiomers of HNE. One of the best examples is human thioredoxin that contains two HNE-reactive thiols. The more exposed reactive cysteine (C73) does not react enantiospecifically, whereas the more buried reactive cysteine (C32) shows 3:1 preference for (R)-HNE.(579)

3.12.1 pK_a is believed to determine kinetic modification site, but the situation is complex

Thiolate is believed to be the active nucleophile in most addition or direct thiol oxidation reactions. Cysteine has a pK_a of 8.5 in water. Thus, in the cellular milieu, cysteine is mostly in its neutral form and not ideal for reactivity. Although some theoretical work indicates that the difference in nucleophilicity between the anion and conjugate acid can be decreased by solvent effects in enzyme active sites, most nucleophilic thiols have anomalously low pK_a values.(580) However, relative to the equilibrated thiol/conjugate base mixture at pH 7.4, complete deprotonation of DTT, GSH and N-acetyl cysteine can only maximally confer 20–150-fold increase in reaction rates. For simple enones (acrolein and methylvinyl ketone) reacting with cysteine, the rate enhancements are no more than 10-fold upon full deprotonation.(581) For peroxide reaction with thiols, it has been concluded (albeit by comparing thiols with relatively small pK_a differences, <2 units) that a maximum rate constant of around 20 M⁻¹s⁻¹ is achievable through pK_a perturbation (a 20-fold increase in reactivity relative to the thiol/thiolate at neutral pH).(431) Furthermore, for reactions involving disulfide bond cleavage by thiol nucleophiles, thiolate nucleophiles formed from thiols with high pK_a are more nucleophilic than thiolates formed from low pK_a (by approximately 10-fold over a 3-unit pK_a range). Thus, lowering pK_a of a thiol alone (i.e., stabilizing the anionic form) may countermand nucleophilicity of the thiolate in the absence of other factors.(483)

This effect can be readily rationalized by considering HOMO–LUMO overlap. As the pK_a of the thiol decreases, the HOMO of the thiolate anion lowers, leading to decreased overlap between the nucleophile and the electrophile LUMO. A linear free energy relationship between log(rate thiolate oxidation) and pK_a(thiol) was maintained across 4 pK_a units. The gradient (β) of this relationship, a measure of charge loss in the transition state, was 0.4. This result indicates that raising of the energy of the thiolate (higher pK_a) quite considerably promotes reaction. Many peroxidases and other peroxide reacting protein bucked this trend, i.e., maintained high reactivity even though the pK_a of the anion was low. This gives strong evidence that “reaction privilege” is a function of numerous factors and that they must act to maintain thiolate reactivity.(409)

To achieve enzyme-like rates (for instance, peroxiredoxin has k_cat/K_m >10⁶ M⁻¹s⁻¹ for H₂O₂)(107,111) other factors than thiolate formation are certainly at play.(582–584) A similar conclusion can also be derived from considering GST.(585,586) Ground state destabilization by desolvation, a common “trick” employed by enzymes to raise the HOMO and hence increase rates that provides many orders of magnitude increase over second order uncatalyzed rates.(587) Interestingly, the rates of reaction of thiol with peroxide and hypochlorite differ by 10⁷-fold. This comparison clearly shows that leaving group potential can have a much larger impact on reactivity than thiol deprotonation.(116) Additionally, transition-state stabilization(588)and binding prequilibria may also be used. These aspects are believed to be used by peroxiredoxin to enhance reaction rates.(588)

3.12.2 Structural motifs

Since the above discussion implies that structure will determine redox-sensitivity of proteins, there has been considerable effort invested into understanding what makes a specific cysteine kinetically privileged. Although it is not the only important aspect, these studies have largely centered on thiolates within enzymes (i.e., active-site, catalytically-essential cysteines) and as such may or may not be applicable to all privileged sensors. For instance, three key parameters have been suggested to confer high propensity to form reversible (signaling) disulfides in proteins: distance to nearest cysteine sulfur, solvent accessibility, and pK_a.(589) Intriguingly, proximity to cysteine appears to be a reasonably important parameter promoting propensity for oxidation, although the reasons for this are unclear.(590) As we have seen, pK_a modulation can confer a reasonable win in terms of reactivity; thus, it makes sense that this calculable factor should be considered first. Many arguments appear to use variants of the Westheimer hypothesis,(591,592) i.e., a charge-centric view: positive charges adjacent to reactive cysteines will stabilize the thiolate and promote nucleophilicity.(593) For instance, cysteine proteases contain a catalytic dyad consisting of a reactive cysteine within hydrogen bonding distance of an imidazole ring. Since proton transfer from the thiol to the imidazole ring is likely significant, this can be considered as a case of proximal charge–charge stabilization. Model cysteine-containing peptides are 5-times more nucleophilic to HNE if they contain an arginine.(450) Studies with tubulin concluded that proximal positive charges promote cysteine alkylation, whereas negative charges suppress alkylation;(594) adjacent positive charges also seem to promote thiol exchange in several proteins (by around 2 orders of magnitude).(595,596) Both the effects on alkylation and disulfide exchange have been ascribed to pK_a changes. Model thiol exchange kinetics measurements back up that rate enhancements on the order observed may be possible. On the other side of the spectrum, proximal glutamic acids endow a specific cysteine with low pK_a in human DJ-1.(597) Proximity to a helix dipole can also stabilize thiolate anions,(598) for instance in E. coli thioredoxin.(599)

However, this view has not always held up across multiple enzymes. For instance, a lysine proximal to C22 of human Grx1 has little effect on pK_a.(600) Proximal negative charges also exert little effect on cysteine pK_a in DsbA.(601) Indeed, hydrogen bonding may be the most decisive factor in determining thiol pK_a at least in some enzyme active sites, such as yeast DJ-1 (602) and mouse methionine sulfoxide reductase A. (603) Interestingly, it is quite well established that cysteine is much more particular about its hydrogen bond donor partners than its acceptor partners. However, how this may affect reactivity is unknown, although it does mean that a general base can activate cysteine from many more positions than a general acid can stabilize a thiolate.(604) More information especially pertaining to privileged sensors and what rate enhancements they can obtain is required to be able to understand the intricacies of what makes a sensor. Nevertheless, since 500-fold rate enhancements (like those above) have been reported, it is likely that pK_a alone is not the only (or likely not the operative) factor.

3.12.3 Implications for specificity

It stands to reason that if privileged sensors do not just accelerate reaction by deprotonation of sensor cysteines, then the sensor protein may recognize specific aspects of the reactive signal. In other words, the sensor protein may be tuned to react with specific ROS or RES. As we mentioned above, as a sensor is tuned to a specific signal, there will be more discrimination between different electrophiles/oxidants. None-the-less, many enzymes can achieve sizeable rate enhancements while maintaining moderate-to-high promiscuity. These enzymes include GST-A1-1 that metabolizes androstenedione, HNE, hydroxydecenal, chloro-dinitrobenzene and epoxy pyrenes with k_cat/K_m around 10⁵ M⁻¹s⁻¹.(605) Interestingly, the chemical reaction catalyzed by GST is not dissimilar to the sensing function carried out by many privileged RES sensors.(605,606) Several lines of reasoning are consistent with a picture in which privileged sensors interact with their substrates/stabilize transition states as well as promote bond formation. (1) We have uncovered isoform-divergent electrophile/oxidant sensors, indicating that some aspect of specific isoforms renders ROS- or RES-specific sensitivity/responsivity.(512) (2) Keap1 is a multipurpose ROS/RES sensor is equipped with 27 cysteines many of which have been implicated in redox sensing/signaling.(607,608) Comparison of delivery of HNE and various other electrophiles to Keap1 shows that Keap1 can sense both cyclic and linear electrophiles similarly.(609) However, we have shown that under electrophile-limited conditions wherein RES signals are delivered under controlled conditions in situ, different residues are targeted for cyclic RES (C613)(389) and for acyclic RES (C513/C518).(259)

3.12.4 Model systems

Decoding evolutionary information from model redox sensors is difficult: cysteine is in general a conserved amino acid. It has further been found that conservation of cysteine is favored by clustering and when it is buried within the protein structure.(367) These “character traits” make conservational analysis of putative redox sensors (typically surface exposed and isolated) fairer and less likely to be influenced by the inherent conservation preference of cysteine. We can thus cautiously use phylogeny to analyze privileged sensors. We have identified Akt3 as a sensor of RES. Another laboratory has independently identified Akt2 as a ROS sensor. Interestingly, these two enzymes share different local topographies around their specific sensor cysteines. Since Akt2 and Akt3 are highly homologous except in the linker region where the sensor cysteines lie, this may suggest that ROS and RES sensing are at least to some level favored by different local environments around the sensor cysteine. For instance, Akt3 has two anion-rich sites and Akt2 has none. Consistent with the linker sequence being important for sensing, for a specific isoenzyme, there is little divergence in the linker region across mammals, reptiles, fish and birds and the anion sites are fully retained (Figure 10). Interestingly, Akt2 has the ability to sense RES weakly, although this sensing appears to not be coupled to function. Obviously, it is possible that Akt2 cannot be labeled sufficiently to elicit a phenotypic downstream output. However, it is also possible that RES sensing by Akt2 is unable to drive phenotypically-dominant loss of function effects that are manifested in Akt3 RES-sensing. We are now investigating these mechanisms to begin to understand correlations between dominant responses and increased cysteine nucleophilicity. It is likely that the Akt2/3 system will serve as a paradigm for ROS/RES sensing in the future and may hold some answers to unresolved questions.

Figure 10.

Properties of a privileged redox sensor. (A) Although lowering of pK_a is widely credited with increasing nucleophilicity of the sensing cysteine residues, other factors must be responsible for privileged redox sensing ability. Indeed, thiolate nucleophiles formed from thiols with higher pK_a are more nucleophilic compared to those formed from low pK_a thiols. Thiolate formed from higher pK_a thiols have a higher HOMO resulting in a better overlap with the LUMO of the electrophile making them more nucleophilic. Other factors such as the extent of solvent exposure and the microenvironment of a sensor cysteine also affect privileged redox sensing (B). In Akt3, a privileged RES sensor, C119 located in the flexible linker region of the enzyme and surrounded by charged amino acids is a privileged HNE sensing residue. PH: Pleckstrin homology domain. Inset: Logo demonstrates the high sequence conservation of C119 and the surrounding charged residue reflecting their functional importance. Sequence alignment of 35 vertebrate Akt3 sequences was performed using Mega7.0. Logo was created using WebLogo (Berkeley).

The field, especially for ROS signaling, seems to have reached a consensus that specific protein redox modifications are important. However, disagreement remains over how cells achieve specificity through redox signaling. This is unsurprising as it is a very complex problem and, biology is pragmatic at finding solutions to problems and so it is unlikely one single solution will apply to all scenarios. Thus, the current debates about local ROS elevation versus channeling versus privileged sensing—for instance, primary sensing by peroxiredoxins vs. other direct/indirect ROS-sensors—are similar to classic debates in science about diversity in the immune response and factors leading to enzymatic rate accelerations. We hope that in the future years there will be a compromise allowing us to parse these variables, clearly define terms, and understand signaling contributions for specific proteins and specific ROS/RES.

4. MECHANISMS OF RES/ROS SIGNALING

Here we discuss specific ways in which initial RES/ROS insults cause signaling using specific examples. We stress that we have only scratched the surface of what constitutes a physiologically-relevant redox sensor and so the examples currently available may not be generalizable or even describe the best sensors. For instance, many “protein redox sensors” studied using isolated proteins in vitro have slow second-order rate constants of association with their putative signals. Unsurprisingly, in vitro experiments—especially in the study of non-enzyme-assisted RES/ROS modifications—do not transpose well to conditions in cells or whole organisms. Several reasonable explanations have been postulated to reconcile what is seemingly a dichotomy between in vitro and cell-based data, including: (1) high localized concentration/compartmentalization of small molecules in vivo may circumvent low second-order rates of reaction for specific proteins, forcing a reaction to occur by mass action; (2) compartmentalized changes in environment (e.g., pH/associations) may also promote/assist protein modification; (3) there may be competition with other thiols within specific cellular microenvironments (small-molecule such as GSH or proteins); (4) locale/context-specific (and likely dynamic) protein redox states—that can alter protein conformation, specific cysteine reactivity, etc.—is not easily recapitulated in vitro. However, many reinforcing factors are required to convert intrinsically low second-order reaction rates (1–100 M⁻¹s⁻¹) and requirements of unusually high pH to observe a reaction in vitro, into a physiologically-relevant signaling axis. Thus, it is our opinion that much of the current experimental data do not instill the highest confidence that the observed modifications are relevant.(509) After all, free amino acids perform chemistry associated with many of the proposed signaling functions similarly to proposed sensors, meaning mass action alone is unlikely to lead to (semi-) selective labeling.

Hopefully in the future more in-cell relevant sensors will be discovered that can sense redox signals in unstressed cells with low levels of signal used, ideally with endogenous levels (or below) of the sensor. Nevertheless, redox signaling by both RES and ROS are now clearly implicated in a wealth of different specific signaling processes in cells including AR, growth signaling, apoptosis, and DNA damage. We discuss methods and toolsets to try to assist in the quest for bona fide sensors later in section 5. In this section, we critically review some of the data linking redox signaling to specific modifications and models as to how those modifications are maintained in cells.

4.1 Oxidation of cysteines to –SOH

Sulfenic acid is the foundational, common chemical step in production of disulfides, sulfinic acids, and the panoply of other oxidized cysteine modifications. These species exist as an equilibrium of sulfenyl and sulfinyl tautomers,(610) although the sulfenyl form is most commonly drawn and is likely the more stable. As discussed in section 3, sulfenic acid can be created from interaction of thiols with a host of ROS (Figure 11)(611) and nucleophilic attack by hydroxide(612,613) or a carboxylate on a disulfide. The latter proceeds via a mixed sulfenic/carboxylic acid anhydride(614) that is likely not favored in the absence of an enzyme active site.(615) Sulfenic acid may also arise from hydrolysis of nitrosocysteine.(616) In some special cases, sulfenyl iodide has also been isolated,(617) although the relevance of this functional group in vivo is unknown. Sulfenic iodide appears to be readily and reversibly displaced by chloride ions and can also be hydrolyzed under the correct conditions.(618)

Figure 11.

Oxidation of cysteine by various oxidants generates sulfenic acid. Sulfenic acid can also act as an intermediate to other cysteine modifications including glutathionylation, disulfide bond formation, and sulfenamide species.

4.1.1 Several enzymes have evolved to form stable sulfenic acids that resist further oxidation

As we discussed above, most sulfenic acids are short lived, due to kinetically fast reaction with other thiols to form disulfides. However, some proteins are susceptible to sulfenic acid formation. One key class of proteins susceptible to sulfenic acid formation is cysteine proteases. Some of the key cysteine proteases in eukaryotic cells include deubiquitinating (DUBS) enzymes, deSUMOylating enzymes, and cathepsins. Many of the 5 classes of thiol protease DUBS are redox active.(619,620) The crystal structures of A20 OTU with and without the active site cysteine (C103) converted to the sulfenic acid have been disclosed. Based on the crystal structure of the sulfenic acid, it was concluded that the ability of the active site to accommodate and stabilize the sulfenic acid protects against hyper-oxidation that would likely render oxidation irreversible.(621) This protection is hypothesized to arise because the hydroxyl group within the sulfenic acid can hydrogen bond effectively with the loop on which the oxidized active nucleophile, C103, resides. Interestingly, available crystal structures(621) indicate that similar stabilization is possible for the sulfenic acid in other OTU DUBs and evidence provided indicates that many OTU DUBs are sensitive to physiological (1 μM) H₂O₂ on relatively short (15 min) time scales. Thus, redox sensing appears to be a conserved trait in this enzyme class. Furthermore, in the case of USP1, a DUB involved in DNA damage response/regulation, reversible inhibition of protease activity was observed upon H₂O₂ treatment. Similar inhibition of USP7 has also been observed.(622) Indeed, elevation in polyubiquitination species upon redox stress in yeast was ascribed to inhibition of a specific DUB, Ubp2 (a USP family member).(623)

Recently it has been shown that sulfenic acids in active sites can behave as active-site nucleophiles.(624,625) Sulfenic acids have also been implicated in several catalytic cycles including methionine sulfoxide reductase.(626) Thus, the possibility that the sulfenic acid is involved in catalysis should not be dismissed out of hand.

4.1.2 Formation of stable sulfenamide and sulfenylamide

Sulfenamides and sulfenylamides are relatively new players in protein regulation. It has been known for at least 40 years that sulfenic acids within proteins can be trapped by exogenous amine nucleophiles. Oxidized GAPDH was intercepted by benzylamine to form what was proposed to be a sulfenamide, although precise identification was not possible at that time. Subsequent studies showed that treatment of the model peptide PFVCG with HOCl formed intermolecular sulfenamide crosslinks.(627) Sulfonamides of GSH have also been reported.(627,628)

In later work, intramolecular sulfenylamides were reported to form in response to oxidative stress.(629) In most models, such sulfenylamides protect against sulfur hyperoxidation. In the case of PTP-1B, oxidation of the active-site cysteine is configured to promote formation of a sulfenylamide (Figure 12A). This unusual bond formation elicits a change in structure that renders the active-site cysteine resistant to further oxidation. However, upon addition of reducing agents, the oxidized active site cysteine is reactivated, a process that may also be assisted by the unusual conformation caused by the sulfenylamide.(630) Convincing mechanistic evidence for this pathway in cells has been provided, linking PTP activity in B lymphocytes to ROS in cell through the use of (among other experiments) ROS scavengers.(631)

Figure 12.

(A) Schematic of sulfenylamide formation in enzyme catalytic pocket. Sulfenylamide formation at the catalytic sites of enzymes such as PTP1B prevents them from irreversible hyperoxidation. (B) A sulfenamide intermediate is also formed by the drug omeprazole.

The related protein, PTP-σ, is also regulated through formation of a sulfenylamide. Similar modes of protection against hyperoxidation have been observed in Bacillus subtilis OhrR and PTPα. Based on the above examples and unifying structural features between them, structural requirements for this specific bond formation have now been proposed.(632,633) A lysine-cysteine sulfenamide has also been reported in the crystal structure of sublactam bound thiol-β-lactamase.(634) It has also recently been proposed that a sulfenamide linkage is formed between a sulfur and an adjacent lysine in NemR.(635) This mechanism is believed to be how this transcription factor senses ⁻OCl.

An interesting comparative study between mouse and human methionine sulfoxide reductase A (Msr-A) was recently published.(636) The human version of Msr-A is much more resistant to hyperoxidation by micromolar peroxide than the mouse analog, although the proteins share almost 88% amino acid sequence identity. The authors trace this difference to a single residue located 5 amino acids from the C-terminus, M229 (a valine in the human enzyme). Mutation of mouse M229 to valine, or truncation of the last 5 residues of the C-terminus of the mouse enzyme (containing Met229) renders the mouse enzyme resistant to oxidation with no significant change in specific activity. The difference in oxidative stabilities is proposed to occur because M229 prevents formation of a sulfenylamide by altering the conformation of the backbone N–H required to attack to sulfoxide.(637) This result indicates that redox regulation may vary between similar organisms, and further strengthens the notion that redox regulation is context dependent.

4.1.2.1 Sulfenamide formation in drug mechanisms

Sulfenamide formation is a critical step in the mechanism of the drug omeprazole (Figure 12B). This clinically approved drug is an inhibitor of the H⁺/K⁺-ATPase that suppresses stomach acid secretion. Omeprazole is a sulfoxide prodrug that rearranges in acid first to a sulfenic acid and then to a sulfenamide. The sulfenamide can bind to an ATPase and forms a disulfide cross-link to a specific sulfur, inhibiting the protein.(638)

4.1.3 Disulfide formation

The majority of disulfides in cells are formed in the ER. The ER is optimized for formation and exchange of disulfide bonds.(639) From a study of 4000 proteins, half of disulfide bonds were found in membrane proteins, and most others had a secretory sequence.(640) However, 5% of disulfides were localized in the nucleus or cytoplasm.(641) Disulfide bond formation in the cytosol is probably elevated upon oxidative stress.(642) These disulfides are formed reversibly, distinguishing them from “structural” or inert disulfides.(643) This distinction has been addressed computationally.(643,644)

We have discussed PTP-1B sulfenylamide formation above. Some analogs of PTP-1B, such as PTEN,(645,646) SHP1/2(647) and Cdc25(648) do not form stable sulfenic acids upon oxidation, but rather have evolved a vicinal cysteine that forms a disulfide with the oxidized active-site cysteine. This bond formation also prevents further oxidation and facilitates reactivation.(649) Although this is an ideal system to evaluate “why” sulfenylamide vs. disulfide formation occurs, it seems there has been little progress.

One possible explanation for the different hyperoxidation mechanisms is control of kinetics of re-reduction. Interestingly, thioredoxin-1 (Trx1) can reduce both oxidized PTP-1B and PTEN at similar rates [14 M⁻¹s⁻¹(650)]. Such a low second-order rate is worrisome as it seems not physiologically useful and is also close to the rate at which PTP-1B is oxidized (20 M⁻¹s⁻¹) and over an order of magnitude slower than the rate of oxidation of TrxR1 (600 M⁻¹s⁻¹).(651) However, it cannot be ruled out that slow, controlled reduction is one possible reason for sulfenylamide formation in the first place. As mentioned in section 3, the “average enzyme’s” k_cat/K_m is 10⁵ M⁻¹s⁻¹ (60% of enzymes fall within an order of magnitude of this value), making PTP1-B and PTEN reduction by Trx1 an unusually inefficient process, despite being putatively linked to a signaling (i.e., a dynamic response) pathway.(353) Nevertheless, the re-reduction rate is much faster than the corresponding rates of reduction of PTP-1B and PTEN by small molecule thiols (0.036 M⁻¹s⁻¹for GSH), possibly hinting that re-reduction is overall slow for these proteins by design. Unfortunately, no clear in vivo evidence using endogenous levels of the protein players has been offered thus far for enzymatic re-reduction of PTP-1B and PTEN by Trx1 under oxidative stress either. There is evidence that Trx1 could be involved in basal recycling of oxidized PTP-1B, because in Trx1 knockout MEFs, PTP-1B oxidation levels are increased.(651) One way to reconcile these data could be that TrxR1 or a TrxR1-regulated protein could rapidly intercept intermediate oxidation products (e.g. the sulfenic acid) under low stress conditions, but this mechanism may fail during oxidative stress, allowing/necessitating formation of the sulfenylamide. Recent work using affinity capture/digest MS has indicated a modest increase in binding of Trx1 (a protein known to bind oxidized proteins with higher affinity than reduced congeners) and Prx1 upon oxidation of PTEN,(652) giving some extra credence to the idea that Trx1 or Prx1 may re-reduce oxidized PTEN in cells, although a clear thread of logic from kinetics to in vivo evidence has yet to be fully established.(653) One general conclusion from the study is that the interactomes of reduced and oxidized PTEN are different, possibly indicating that oxidized PTEN has specific downstream signaling roles. Thus, the different conformations and subsequent interactome changes, ushered by sulfenic acid and disulfide formation, may explain the differential redox regulation of PTEN and PTP-1B.

Recently, apoptosis-inducing factor (AIF), a protein that translocates from the mitochondria to the cytosol/nucleus upon apoptosis(654), was also shown to re-reduce PTEN (a peripheral membrane/cytosol-localized protein).(655) Although this study did not provide kinetic constants for the reduction, the authors used knockdown of AIF to probe in vivo relevance of this interaction. It would be very interesting to compare second-order rate constants for Trx1 reduction of PTEN and PTP-1B with that of AIF1-catalyzed PTEN reduction to examine the relative impacts of these two pathways on PTEN reduction.

4.2 Glutathionylation and other mixed disulfide modifications

This modification is found in most kingdoms of life from bacteria (mainly Gram-negative species that contain GSH) to humans.(656) S-glutathionylation can occur either as a consequence of nucleophilic attack by GSH on an oxidized protein or by the reverse process.(657) This can be uncatalyzed or enzyme catalyzed.(658) This process is most commonly associated with reversible inactivation of enzymatic activity,(659) however other interesting effects have been reported.(659)

The yeast ER chaperone Kar2 (analog of human Bip) was recently shown to be affected by glutathionylation.(660) In the absence of glutathionylation, Kar2 functions as an ATP-dependent chaperone. Upon glutathionylation, ATP activity is inhibited, converting the enzyme to a holdase (an enzyme that binds unfolded proteins, maintaining solubility, but not actively refolding them). It was speculated that glutathionylation allows Kar2 to maintain client protein solubility until stress has subsided and active refolding can restart. Interestingly, a similar effect was found for sulfenylation of BiP, indicating that these modifications may have overlapping phenotypic effects.(661) Such degeneracy/convergence may be one way to ensure sufficient upregulation of the desired phenotype/activity occurs.

Glutathionylation is also implicated in recovery from injury. HIF-1α is a proangiogenic transcriptional factor that is stabilized upon glutathionylation at C520. Upon knockdown of the deglutathionylating enzyme, glutaredoxin (Glrx or Grx), GSH adducts to HIF-1α increased in ischemic muscles and promoted regain of blood flow. These data ultimately may indicate that Glrx inhibition may promote revascularization.(662)

Finally, an interesting redox relay ultimately producing glutathionylated sarco/endoplasmic reticulum calcium (Ca²⁺) ATPase (SERCA) was reported by Adachi et al. The endpoint of this pathway is decrease in intracellular Ca²⁺, relaxing muscle cells.(663) In this model, glutathionylation of SERCA was mediated by ONOO⁻ oxidation of a specific sensing residue, C674. Importantly, signaling occurred in the presence of low micromolar ONOO⁻, required GSH, was reversed by DTT, and did not occur in the C674S mutant in vivo. Furthermore, the SERCA inhibitor thapsigargin suppressed the effect of peroxynitrite on muscle relaxation, thus peroxynitrite likely (directly or indirectly) downregulates SERCA activity. Suppression of relaxation in atherosclerotic tissue was similar to that observed in thapsigargin-treated native tissue and thapsigargin had little effect on atherosclerotic tissue. These data indicate that atherosclerotic tissues (known to have high levels of oxidative stress) have lost the ability to regulate SERCA through peroxynitrite formation. The authors proposed that a hyperoxidized SERCA state was formed in these tissues that was unable to form a mixed disulfide. These data as a whole offer quite compelling evidence for a glutathionylated SERCA intermediate. Recently, numerous other types of small-molecule thiol adduct have been reported. These include protein CoA adducts.(664) Since CoA is localized preferentially in the mitochondria vs. the cytosol [2–5 mM versus 0.02–0.14 mM(665)], this could constitute an organelle-specific redox modification. Perhaps the simplest disulfide is persulfide. This modification, although formally a disulfide, retains nucleophilicity and acidity (both likely enhanced relative to cysteine).(666)

4.3 Changing of hands of sulfenic acids

Many of the above sulfur species (e.g., disulfide, sulfenic acid, sulfenamide, sulfenylamide) can functionally interconvert, either inter or intramolecularly. We have referred to this process as changing of hands of information. There are several reasons why changing of hands may be beneficial: (1) the rate of enzyme reactions can be many orders of magnitude faster than non-catalyzed rates; (2) the involvement of enzymes allows for greater specificity both in terms of target protein and specific disulfides exchanged; (3) there is also greater scope for contextual regulation; (4) the process can be of higher fidelity (i.e., less interception/signal leakage and collateral damage); (5) signals from numerous first responders can potentially converge at the same downstream point, leading to further amplification. Obviously, there is also a penalty in terms of loss of diffusability and reduction in immediacy of signal transfer. In some organelles and specific regions of the cytoplasm, crowding can facilitate direct transfer of substrates from one protein directly to the next protein in the pathway without the need for free diffusion.(667) Thus, diffusion could be removed from the equation, depending on the locale where information relay occurs. Disulfide exchange has been implicated in signaling pathways involving the yeast peroxide sensor Orp1 whose oxidation triggers a disulfide exchange with the transcription factor Yap1 (change of hands), thus activating Yap1. (668) Other examples include Pap1(669) and STAT3.(670) As we touched on above, some authors have also proposed that Keap1—the master redox sensor of the cell—does not sense oxidants fast enough to account for downstream signaling that occurs upon oxidative stress.(66) An intermediary has thus been postulated.(671)

4.4 Oxidation of methionine

There appears to be a rich functional biochemistry of methionine oxidation that is slowly being elucidated.(525) MICAL-mediated oxidation of F-actin occurs at two specific residues, M44 and M47. This overall process leads to disassembly of actin filaments.(672) Methionine sulfoxide reductase B1 can specifically reduce oxidized actin, restoring actin polymerization.(523) By far the most common method to study methionine oxidation involves direct oxidation of proteins, although mutation to glutamine, that is believed to mimic oxidized methionine, has also been used. There is some indication that methionine oxidation may be promoted by near-by phosphorylation sites.(673) This could indicate that phosphorylation and methionine oxidation crosstalk, although much more work needs to be done in this area. Methionine oxidation has been implicated in protection of sensitive residues from oxidation: in α-2-macroglobulin exposure to an oxidative environment leads to methionine oxidation, which does not change activity.(674) Upon over exposure to oxidants, tryptophan oxidation occurs leading to inactivation. A similar conclusion was reached for glutamine synthetase.(675) Consistent with methionine serving an antioxidant role, substituting norleucine (a methionine isostere) for methionine in E. coli led to hypersensitization to oxidative stress.(676) Similarly, oxidation of Calcium/calmodulin (Ca²⁺/CaM)-dependent protein kinase II at methionine can lead to protein activation.(677,678) Other proteins implicated in regulation through methionine oxidation include, apolipoprotein A-1(679) and calcineurin.(680)

4.5 Oxidation of cysteines to –SO₂H

Sulfinic acid is formally a reversible modification (see section 3.9.1), although reversal does not occur without catalysis and there are very few enzymes that catalyze this process.(681) Sulfinic acids have varied roles in cell signaling, although they are usually grouped together with sulfonic acids as differentiation between the two forms is not trivial.

We have already discussed the role of sulfinic acids in peroxiredoxin chemistry. Another interesting example is DJ-1, an atypical peroxiredoxin-like peroxidase.(682) DJ-1 is a protein strongly linked with neuroprotection. For instance, loss of function mutations to DJ-1 can cause early onset Parkinson’s disease.(683) Sulfinic acid formation at C106 promotes mitochondrial translocation and suppresses neuron-protective effects of DJ-1.(684) The C106 sulfinic acid has been characterized structurally.(683) Sulfinic acid modification is also known to regulate nitrile hydratase (heme or cobalt containing enzymes that catalyze hydrolysis of nitriles), (685) and matrilysin (a matrix metalloprotease).(686)

4.6 Oxidation of cysteines to –SO₃H

Consistent with a trend to a more oxidizing environment as organisms age (discussed in section 3) and the fact that sulfonic acid is an irreversible modification, it is likely that protein SO₃H accrues with age.(687) Clearly, cysteine sulfonic acid formation at numerous active-site cysteines elicits loss of function, but, we focus on oxidation-induced gain of function in this section.

Since sulfonic acid formation is irreversible, perhaps unsurprisingly, one of the first examples of sulfonic acid signaling was as a gain of function co-degron in the N-end rule. The N-end rule is a fascinating example of protein regulation that describes how the half-life of a protein is determined by its N-terminus.(688) Some residues are considered destabilizing, whereas others are stabilizing, although this is highly context dependent.(689) Because of the requirements of the Kozak sequence, proteins are translated with an N-terminal methionine.(690) However, this residue is often(691) [80% of the time in yeast(692)] removed by methionine amino peptidase, exposing proteins with a diverse array of N-termini.(693) Arginine is the prototypical N-terminal degron; a subset of destabilizing residues (aspartate and glutamate) require conjugation to arginine prior to degradation. It is also known that NO-catalyzed oxidation of cysteine (a stabilizing amino acid) can form the sulfinic or sulfonic acid forms that appear to mimic aspartate or glutamate as they usher N-terminal arginine conjugation, stimulating degradation through the N-end rule.(694)

Other examples of cysteine sulfonic acid performing a signaling role include yeast peroxiredoxin, where sulfonic acid formation at the active-site cysteine leads to loss of peroxidase activity but stimulates chaperone activity 4-fold.(695) Some cysteine oxidation events are linked to disease etiologies. Sulfoxide formation on C111 of human SOD is linked to toxic gain of function through enhanced proclivity to form aggregates.(696,697) C111-SO₃H has been identified in Lewy-body-like structures in a mouse model of familial amyotrophic lateral sclerosis.

4.7 Protein alkylation by monofunctional RES

Monofunctional RES are alkylating agents bearing one electrophilic moiety, such as nitroolefins (Figure 13A). Nitroolefins affect activities of several proteins including xanthine reductase [nitro-oleic acid, non-competitive, IC₅₀=0.5 μM(698)] and GAPDH (nitrolinoleate, IC₅₀=10 μM).(504) As stated in section 3.9.3, these modifications are typically reversible. This reversal usually requires addition of excess reducing agent. 12-NO₂-AA—a compound with many ascribed health promoting roles(699)— inhibits protein disulfide isomerase (PDI) reversibly.(700) This effect was time dependent, consistent with (slow) covalent-bond formation. Interestingly, PDI has two activities, disulfide isomerism and chaperone activity, and they are both inhibited at a similar rate. Nitroolefins are also crucial signaling molecules in insects.(701)

Figure 13.

Protein alkylation by (A) monofunctional RES, 9-nitroleic acid, versus (B) modifications by the multifunctional RES, HNE. See also Figure 9.

8-nitro cyclic (c)GMP, a product of RNS reaction with cGMP, can modify cGMP-dependent protein kinase PKG, causing irreversible enzyme activation.(702) This report is similar to earlier reports saying that 8-NO₂-cGMP can alkylate and stimulate Keap1.(289,290) In the case of PKG, alkylation appeared to occur at two cysteine residues within the high-affinity cGMP binding domain. These experiments were carried out in lysates using 1–200 μM of 8-NO₂-cGMP.(702) Cellular concentration of 8-NO₂-cGMP can range within 0.01–10 μM(703) and the authors were able to show weak labeling of the protein under these conditions that was not prevented by DTT.

1,2-quinones label protein thiols with a rate constant of around 10³ M⁻¹s⁻¹. The second order rate constant for 1,2-benzoquinone adduction to protein (BSA) is on the order of 10⁴ M⁻¹s⁻¹and is believed to proceed through thiol adduction.(699) The reaction with amine functions is 10⁵-fold slower.(699) One region where 1,2-quinone may be in abundance is the brain. There is in fact a correlation between protein quinone adduction and dopamine (Figure S3) induced cytotoxicity (dopamine oxidation can produce o-quinones).(704) Several proteins involved in energy production/distribution were identified as quinone reactive in aged rat brain. Several of these targets (lactate and malate dehydrogenase) were inhibited by quinone modification.(705) In a separate study, SOD2 was also labeled and inhibited by quinones.(706)

Finally, dietary ITCs affect a host of enzymes. Although many different activities have been ascribed to these important reactive units, they inhibit deubiquitinating enzymes likely through direct interaction with the catalytic thiol to form an acyl-enzyme intermediate.(333)

4.7.1 Toxic activity of RES induced by xenobiotic metabolism

The action of CYP450s on aromatic species can create several toxic metabolites. This activity can be the principal cause of cytotoxicity of some drugs/xenobiotics. For instance, paracetamol’s toxicity has been traced to formation of a reactive quinone imine through metabolic oxidation.(707,708) Benzene toxicity is also likely the result of metabolic processes forming benzene oxide and also quinones.(709) Tobacco smoke contains many polyaromatic hydrocarbons that can upregulate CYP450 (including CYP1A1 and CYP1A2 isoforms)(710) and promote their toxicity (this is principally catalyzed by CYP2A6 and −13).(709,711) It is possible that this metabolic toxicity is aggravated in HIV patients who are smokers.(712) Indeed, CYP450 inhibitors reduce toxic/carcinogenic compounds formed from tobacco smoke. For instance, it has been proposed that PEITC, a time-dependent inhibitor of several CYP450 isoforms, including CYP1A2 (K_i = 10 μM) and CYP2A6 (K_i = 19 μM), may elicit some of its anticancer properties by targeting this enzyme and reducing toxic by-products formed, especially in smokers.(713)

4.8 Protein alkylation by multifunctional RES

Multifunctional RES have wider scope to affect protein activity/stability. This is because they can bind to two separate sites (cross-linking) and potentially induce unexpected protein conformations, for example. (Figure 13B). Unsurprisingly, early work linked protein HNEylation to decreased protein stability. This was attributed to 20S proteasome activity, independent of the 19S chaperone, at low HNE concentrations.(714) At higher concentrations, HNE can inhibit the proteasome, possibly through direct interaction(715) and/or because some HNEylated proteins may inhibit the proteasome directly.(716) Several studies have highlighted the link between bifunctional RES and several diseases.(271)

Consistent with its ability to engender severe negative effects on protein structure/behavior, HNE is associated with aggregation of numerous proteins in vitro and in cells.(717,718) However, other work shows that HNE can form defined adducts with specific proteins; such adducts may be reversible/reactivatable. Na⁺-K⁺ ATPase was inhibited by HNE with an IC₅₀=120 μM irreversibly under the assay conditions. Importantly, activity was restored upon incubation with both hydroxylamine and a reducing agent; reducing agent alone had no effect.(502) Glutathione peroxidase is inhibited by HNE with an IC₅₀=0.12 mM. Inhibition can be prevented, or reversed by addition of glutathione, but not DTT or β-mercaptoethanol.(719) Interestingly, HNE adduction can also occur on cysteines that are apparently buried in the static crystal structure.(720) Adipocyte FA binding protein, a protein that regulates adipocyte FA uptake, is a specific target of HNE. Binding of either enantiomer of HNE to a specific cysteine (C117) inhibited FA binding to this protein by 10-fold.(721) This HNE-protein complex was later analyzed by x-ray crystallography, showing that HNE bound in the oleic acid binding pocket.(722) Interestingly, the overall fold and structure of the protein is remarkably similar to that of the apoprotein, proving that HNE can bind proteins without eliciting severe perturbations in structure.

Bifunctional RES can also perform signaling roles.(723) Indeed, HNE signaling has now been linked to a host of signaling responses (often via modification of specific proteins) including stress signaling,(724) apoptosis,(725) and regulation of mitochondrial uncoupling.(726) HNE is also linked to numerous diseases(255) and also numerous eustress pathways.(727,728) For instance, preconditioning with low (15 μM) HNE prior to treatment with lethal doses of different cytotoxic compounds (e.g., H₂O₂) is cytoprotective to PC12 cells.(727) Thioredoxin reductase 1 (TrxR1) was implicated in this pathway.

4.9 RES-containing drugs and compounds in clinical trials

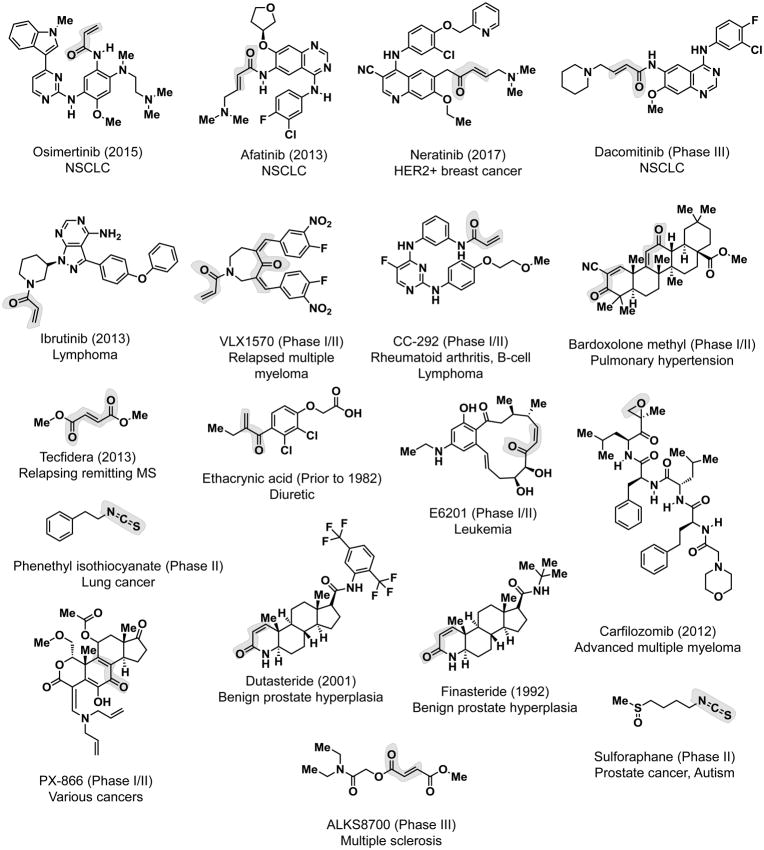

There is a rich and diverse array of drugs in clinical trials and clinical use that take advantage of reactive carbonyl functions, such as acrylamide. We will define such drugs as RES-containing drugs (“RES drugs”). Although this is not the forum for an extensive thesis, we point out a few aspects of note. RES drugs fall into three main classes: (I) active-site targeting RES drugs; (II) non-active-site targeting RES; (III) RES formed upon mechanism-based inactivation.(390) Clinical examples of each class are: carfilzomib, the epoxide-based proteasome inhibitor [k_inact/K_i 34,000 M⁻¹s⁻¹(729)]; Dacomitinib, an epidermal growth factor receptor (EGFR) kinase inhibitor bearing an acrylamide function [k_inact/K_i 10⁶ M⁻¹s⁻¹(730)]; and Gemzar, a suicide inactivator of ribonucleotide reductase, that forms a cross link to the enzyme.(731,732) Critically, for inherently-reactive irreversible binders that are not generated in situ, i.e., Class I and II, these must (ideally) react slowly with background thiols but fast with the intended substrates, to enable pharmacologically-relevant occupancy of the target prior to degradation/excretion. Rapid labeling kinetics is engendered through binding to a specific pocket on the target enzyme, facilitating an otherwise slow bond-forming step [second-order rate of thiol addition to epoxide is 0.001 M⁻¹s⁻¹ and the same rate is 0.021 M⁻¹s⁻¹ to acrylamide, for instance(733,734)]. Thus, very high rate accelerations are required to engender the second-order rate constants of inhibition for carfilzomib and Dacomitinib mentioned above. Moreover, these drugs show rate enhancements on the order of 10⁷ for reaction with their target relative to the reaction with GSH, indicating that in spite of the high GSH content in cells, the reaction with the enzyme may be many orders of magnitude faster.

Histidine is also a possible target of drugs. Fumagillin (735) and its analog Beloranib [a compound withdrawn from clinical trials (736)] alkylate methionine aminopeptidease at an essential histidine. Interestingly, numerous chloroketones alkylate serine proteases at histidine, despite the active site residue being serine.(737) This regioselectivity can be explained because the catalytic serine rapidly attacks the carbonyl group within the inhibitor, leaving only the histidine (part of the catalytic triad) to react with the chloride.(738)

Some ligands target reactive nucleophiles on threonine/serine. In this instance, a clever way to side-step competing cellular thiols and provide selectivity is to use ligands that bind reversibly to thiols but will form more stable bonds to target oxygen nucleophiles. Boronates (structural analogs of carboxylic acid/amides) fit this bill perfectly, and indeed bortezomib, a boronate-based peptide drug, has emerged to be a highly selective proteasome inhibitor used clinically.(739)

Ironically, one of the limiting factors of bortezomib is its low volume of distribution due to rapid adsorption by blood proteasomes. This limits bortezomib’s tissue penetration. Millennium designed a second-generation boronate proteasome inhibitor drug that has a faster off-rate, allowing dissociation from blood proteasomes, and affording much more tissue penetration.(740) Clearly, these examples illustrate the importance of pharmacokinetics in drug efficacy and design. Indeed, irreversible binding is one way to sustain drug action long after clearance, a trait that to some extent can uncouple pharmacokinetics from pharmacodynamics. However, there is a dark side of covalent drug design: off-target labeling accrues with time, in a similar way to HNE reacting with first responders vs. non-activated proteins. The Cravatt laboratory has disclosed a method to minimize off-target effects by designing an electrophilic appendage that is deactivated faster than off-target binding events can occur.(741) Finally, mechanism-based inhibitors do not really conform to these rules because a very reactive electrophile is generated only within the active site, meaning trapping is quite efficient. Given that there are no HT screens for mechanism-based inhibition, most screening has focused on ligandable cysteines (Classes I and II).

Redox biology and covalent drug discovery have a lot to learn from one another. In effect, redox signaling at privileged sensors is not so distinct from the way a Class I or II covalent drug functions, especially with the growing use of encapsulation using polymer carriers,(742) dendrimers and fullerenes(743) as well as antibody conjugation.(744) Clearly, the discussion of covalent drug mechanisms does show that binding can lead to elevated second-order rates, and that even seemingly reactive warheads can give sufficient efficacy for pharmaceutical benefit (see Section 6). Thus, given sufficient evolutionary pressure, it is certainly possible that enzyme-like redox sensors have arisen. Of course, pharmacologic efficacy does not necessarily mandate high selectivity, just that there be a beneficial output. Thus, a drug’s efficacy is an amalgam of effects due to all beneficial and detrimental binding events.(745)

However, the average number of known (and hence possibly an underestimate of total binders) targets per approved drug on average is relatively low (<5), arguing that too promiscuous interactors may be deleterious. In fact, comparative analysis of approved and withdrawn drugs indicates that it is number of off-target proteins that are essential genes that may cut the line between success and failure of a drug.(746) Such an analysis has not been applied to redox signaling, but one could postulate that a similar trend may be observed (i.e. that endogenous electrophiles would have a low number of essential gene hits under “signaling conditions”).

5. METHODS TO INTERROGATE RES/ROS SIGNALING

5.1 Detecting RES/ROS generation in cells and organisms

The generation of RES/ROS signals is tightly controlled both spatially and temporally. One of the key challenges in deconstructing RES/ROS signaling has been in defining where and when these signals are generated.(747) For this reason, many techniques we will discuss rely on whole cell or organism imaging. Regardless of the readout, an ideal probe to detect each signal chemotype must be able to measure the dynamics of signal generation in real time and must meet at minimum the following criteria:

1. Chemoselectivity: the probe should react only with the specific RES/ROS signal. Obviously, less specific probes can provide a “general” idea of “redox changes” in a cell and have their uses, but ultimately low chemoselectivity is less useful for mechanistic studies. Importantly, chemically-similar molecules can be present in cells at widely-different concentrations and the selectivities must reflect not only intrinsic rate differences, but also concentration bias: it is useless to have a sensor with 10-fold selectively for metabolite A over B if concentration of B is 1000-fold in excess of A.

2. Sensitivity: some reactive species, such as peroxynitrite, are present in cells in low (nanomolar/picomolar) quantities (Table 1),(70,73) so sensing power must be significant. In addition, a broad linear range, capable of detecting a wide range of RES/ROS concentrations encountered in both cells and organisms is also desirable.

3. Signal-to-noise-ratio: native/unreacted probe must have low background signal.

4. Membrane permeability: should be permeable to cellular membrane(s) if measuring intracellular or in vivo generated signals

5. Biorthogonality: the probe should be (as) non-intrusive (as possible).

6. Reversibility: a reversible probe will allow real-time monitoring of RES/ROS flux, rendering it ideal for ultimately relating these measurements to specific signaling events. Conversely, an irreversible probe may be able to cumulatively detect signals, allowing a weaker signal to be detected, but this comes at the expense of losing dynamic information.

7. Ratiometric: a ratiometric probe enables measurement of small changes in signal concentrations and eliminates artifacts due to variations in loading/retention of the probe.

8. Probe must not be affected by the unique cellular environments, i.e., stable/unaffected across the desired pH range(s), ionic strength(s), hydrophobicity(ies).

Many of the modern methods to monitor the generation of ROS address most of the points above. Although most methods still have caveats, the techniques themselves are powerful when used/controlled appropriately. However, equivalent methods to detect RES are underdeveloped. This is partly because LDEs classes can contain many different chemical structures but have very similar reactive chemical groups, rendering chemo selectivity a huge issue. These traits are in stark contrast with oxidative ROS-based signals that differ in terms of charge, and type of chemistry (e.g., single vs two electron; nucleophilic addition vs [4+2] cycloaddition/ene) they can undertake. LDEs also react with multiple different amino acids including cysteine, histidine, and lysine generating an increasing diversity of protein adducts, most of which probably retain RES-like properties. Thus, it is challenging even to design a probe for a specific RES that will not also intercept protein RES adducts. As we will see, ROS sensors have been developed that take advantage of the many enzymes that interact with biological oxidants (semi)-selectively. Many of these ROS-sensitive proteins have been harnessed in sensor development. However, relatively few proteins are known to react with RES selectively, and hence enzymatic RES sensing is very poorly developed, although we will discuss an example in subsequent sections. In the following subsections, we will discuss and compare various methods that allow measurement of RES and ROS generation. We will evaluate each probe using the eight-point criteria above.

5.1.1 Small-molecule fluorescent probes to detect ROS

Small molecule fluorescent probes are commonly deployed for redox signal detection.(748–750) A list of commonly used probes to detect endogenously-generated ROS is provided in Table 3. Fluorescent probes utilize the redox reaction between ROS and a dye to monitor changes in ROS (or several similar ROS). Such readouts are possible because oxidation of the dye increases fluorescence. Because the probe is irreversibly oxidized, fluorescent probes do not typically permit measuring dynamic changes of redox signals in cells. Additionally, this feature of fluorescent-based probes also implies that these sensors alter the redox state/equilibria of the cell by acting as ROS scavengers.

Table 3.

A selection of fluorescent small molecule for detecting various ROS chemotypes.

Probe (see structures in Figure 14A and 15A)	Chemoselectivity	Sensitivity (limit of detection)	Dynamic range (fold)	Membrane permeability	Reversibility	Ratiometric measurement capability
DCFH2/DCFH2-DA (751)	Broad reactivity; reacts with both single-electron and two-electron donors	Measures ROS changes during oxidative burst in macrophages		DA analog exhibits greater permeability	No	No
HK-Green4 (762)	ONOO−	~10 nM	~300	Yes	No	No
Dihydrorhodamine(748)	Broad reactivity; ONOO−, with its decomposition products, HOCl	Measures ROS changes during oxidative burst in macrophages			No	No
Hydroxyethidine(771)	O2•− reaction generates 2-OH-E+ (106 M−1s−1); reacts with other oxidants to generate E+	Chromatography techniques to separate the two oxidation products coupled with MS or fluorescence detection (0.15 attomole)		Yes	No	No
Amplex Red(779)	H2O2	50 nM	>3000	measures extracellular H2O2 but requires peroxidase treatment	No	No
Redoxfluor-1(786)	Measures global redox changes	Detect H2O2 changes in cells after exogenous H2O2 stimulation	50	Yes	Yes	No
APF/HPF and mitochondrial variants (MitoAR/MitoHR)(765,766)	Highly reactive oxidants such as •OH, HOCl and ONOO−	APF detects HOCl generation in neutrophils after exogenous PMA stimulation	~5–10 fold for MitoAR/M itoHR in cells	Yes	No	No
MMSiR(783)	HOCl	Detects HOCl generation in neutrophils during phagocytosis; Detects HOCl in a mouse peritonitis model		Yes	No	No
HCSe(784)	HOCl	~8 nM; detects HOCl generation in RAW264.7 macrophages after exogenous PMA stimulation		Yes	No	No
Boronate probes(787)
PF-1(788)	H2O2, ONOO−, HOCl React with ONOO− (106 M−1s−1); HOCl (103 M−1s−1); H2O2 (2 M−1s−1) at RT pH 7.4 buffer (789)	100 nM	>1000	Yes	No	No
PG-1(790)/PO-1(791)/PY-1(791)	H2O2, ONOO−, HOCl	Detect endogenous H2O2 changes in cells after growth-factor stimulation (~25–50 nM)	8–12	Yes	No	No
RPF1(792)	H2O2, ONOO−, HOCl	In vitro detection of > 200 nM	8	No	No	Yes
PL1(793)	H2O2, ONOO−, HOCl	Detect endogenous H2O2 changes in macrophages after phorbol ester stimulation	12	Yes	No	Yes
NucPE1(794)	H2O2, ONOO−, HOCl	Detect H2O2 changes in cells and in vivo after exogenous H2O2 stimulation	3	Yes	No	No

One of the earliest and most commonly used probes in detection of oxidants is dichlorodihydrofluorescein (DCFH₂) and its ester, dichlorodihydrofluorescein diester (DCFH₂-DA) (Figure 14A).(751) The diester is more readily cell-permeable and gets cleaved by intracellular esterases to generate DCFH₂. DCFH₂ reacts with intracellular oxidants to generate the fluorescent molecule DCF. Both 2 electron and stepwise single electron oxidation have been proposed for DCFH₂ activation and it is likely that both single-electron acceptors (such as radicals) and two-electron acceptors can oxidize this probe.(751,752) Thus, DCFH₂ is best used to quantify general oxidative stress, and it does not report on changes to a specific oxidant. DCFH₂ has been widely used in cell-based experiments to measure what was typically assumed to be “H₂O₂” generation. DCFH₂ has been used to measure the respiratory burst of oxidants, referred to as “peroxide”, in neutrophils,(753,754) and macrophages.(755) In fact, it is now established that the probe is not particularly reactive with H₂O_2.(751,752) Rather, the reaction of H₂O₂ with DCFH₂ is enabled by the presence of trace metals and enzyme catalysts, including peroxidases,(756) that generates other ROS such as ^•OH. ^•OH reacts with DCFH₂ with a rate constant of 1.3×10¹⁰ M⁻¹s⁻¹.(757) ^•OH scavengers such as DMSO and mannitol partially inhibit oxidation of the probe, further validating the role of ^•OH as the oxidant responsible for DCFH₂ oxidation.(758) In a comparative study, millimolar peroxide was around 100 times less potent at stimulating DCFH₂ fluorescence than alkyl peroxides, even though the alkyl peroxides were present in the micromolar range.(759) DCFH₂ is also oxidized by ¹O₂(760) and ONOO⁻(761) although the mechanism of oxidation by the latter is not well understood. The lack of specificity makes DCFH₂ a useful tool for measuring broad increases in intracellular ROS such as those under oxidative stress conditions. However, its use in detecting specific ROS chemotypes under redox signaling conditions is limited and therefore caution must be exercised when interpreting data obtained using DCFH₂.

Figure 14.

(A) A selection of fluorescent probes for measuring ROS in cells. (B) Mechanism of Hydroxyethidine (HE) oxidation. Oxidation by superoxide generates 2-OH-E⁺ with distinct spectral properties compared to Ethidium (E⁺) generated by a two-electron oxidation step by hydride acceptors. (C) Oxidation of Amplex Red (an H₂O₂ sensor) or reduction of resazurin (a cell viability reagent) leads to the fluorescent product resorufin.

New derivatives of DCFH₂ such as HK-Green possess enhanced selectivity towards ONOO⁻ over ^•NO, ¹O₂, O₂^•−, and ^•OH and ^•OR in cell-free systems (Figure 14A).(762) First-generation HK-Green1 showed a marginal(763) (and likely not biologically significant) 2–3 fold selectivity towards ONOO⁻ over its secondary metabolites nitrogen dioxide radical (^•NO₂), carbonate radical (CO₃^•−8 ), and ^•OH. HK-Green1 was used for the detection of ONOO⁻ in neuronal cells. Fluorescence signal intensity was only observed in neuronal cells treated with the ONOO⁻ donor, 5-amino-3-(4-morpholinyl)-1,2,3-oxadiazolium chloride (also called SIN-1), but not with the NO donor, S-Nitroso-N-Acetyl-D, L-Penicillamine (also called SNAP) or the O₂^•−-inducer xanthine/xanthine oxidase.(763) Next generation HK-Green probes (HK-Green4) have significantly enhanced the selectivity of the probe (~300 fold) towards ONOO⁻ over its secondary metabolites. The limit of detection for HK-Green4 is estimated to be ~10 nM.(762) However, this limit may actually be an order of magnitude too high to measure endogenous peroxynitrite in some cells.(70,73,764) Nevertheless, HK-Green4 was recently used to measure ONOO⁻ generation upon stimulation of macrophages RAW264.7 cells and primary mouse macrophages demonstrating its use in measuring physiologically accessible concentrations.(762) Additionally, HK-Green4 could be used for two-photon imaging of ONOO⁻ in macrophages (λ_ex = 730 nm, λ_em = 500–550 nm) making it a potentially useful tool for in vivo experimentation. Another useful probe for the detection of highly reactive ROS was developed by the Nagano lab.(765,766) 2-[6-(4′-amino)phenoxy-3H-xanthen-3-on-9-yl]benzoic acid (APF) and 2-[6-(4′-hydroxy)phenoxy-3H-xanthen-3-on-9-yl]benzoic acid (HPF) selectively detect highly reactive oxygen species such as ^•OH, ONOO⁻, and HOCl (>50-fold selectivity) compared to ¹O₂, O₂^•− and H₂O₂.(766)

Dihydrorhodamine (DHR) and Hydroethidine (HE) possess similar properties to that of DCFH₂ and have also been used to measure ROS fluxes in cells (Figure 14A). Like DCFH₂, DHR does not react directly with O₂^•− and H₂O_2.(767) However, it readily reacts with ^•OH with rate constants close to the diffusion-controlled limit.(757) DHR is also oxidized by HOCl(768) and by ONOO⁻ indirectly through the radical decomposition products, ^•NO₂, and CO₃^•−7.(757) The rate constants for the reaction of CO₃^•− and ^•NO₂ with DHR are both on the order of 6×10⁸ M⁻¹s⁻¹.(757) HE, on the other hand, is more selective towards O₂^•− (over CO₃^•− and ^•NO₂) and reacts with a rate constant of ~10⁶ M⁻¹s⁻¹.(769) HE generates 2-OH-E⁺ upon oxidation with O₂^•− (Figure 14B). Recent reports, however, have cautioned regarding the absolute selectivity of HE towards O₂^•−, demonstrating that HE can react with other oxidants such as ^•OH and HOCl.(770) Nonetheless, the rates of oxidation with these oxidants in comparison to O₂^•− have not been well characterized. Interestingly, none of the other biologically-relevant oxidants form the fluorescent 2-OH-E⁺ upon reaction with HE. Instead, these non-specific oxidations generate ethidium (E⁺). The fluorescence spectra of E+ and 2-OH-E⁺ overlap which may confound data interpretation(770) by confocal microscopy or flow cytometry methods.(769,771) Careful use of selective excitation wavelengths to distinguish the O₂^•−-dependent 2-OH-E⁺ generation (385–405 nm) from E⁺ (480–520 nm) mitigates this issue.(772) Alternatively, high-pressure liquid chromatography (HPLC) can be used to separate and quantify 2-OH-E⁺ as a means to faithfully report on the generation of O₂^•−in biological systems.(771) HE and its mitochondria-targeted analog (Mito HE or Mito-SOX) have been widely used for O₂^•− detection in cells.(773–775) One point of concern underlying the use of HE (or any probe for O₂^•− detection) is that the probe must compete with SODs that are present at micromolar concentrations in a cell.(19) The second-order rate constant for reaction of O₂^•− with SODs is ~10⁹ M⁻¹s⁻¹,(103) suggesting that around 1 mM intracellular concentration of the probe will be required for efficient detection of O₂^•− generation in cells.(771)

Amplex Red is yet another small-molecule-based reporter widely used for H₂O₂ detection (Figure 14C). Amplex Red is colorless, but upon oxidization generates brightly fluorescent Resorufin. This oxidation of Amplex Red by H₂O₂ requires the activity of a peroxidase enzyme to form a dye-based radical thus limiting its use in detection of intracellular H₂O₂ generation, although radical generation occurs at a rate greater than 1.9×10⁶ M⁻¹s⁻¹ (with HRP as the catalyst).(776) Amplex Red has been used to detect generation of extracellular H₂O₂. The H₂O₂ detected is formed by spontaneous dismutation of O₂^•−, generated by NOX and DUOX. The sensitivity threshold for Amplex Red in H₂O₂ detection is reportedly 50 nM.(777) However, at high concentrations of H₂O₂ and when the concentration of Amplex Red is limiting, the product, Resorufin, becomes further oxidized by peroxidase to generate non-fluorescent products.(778) Care must also be taken when deconvoluting data from Amplex Red since various endogenous metabolites such as GSH and NADH interfere with the signal generated from Amplex Red.(779) Additionally, O₂^•− directly oxidizes Amplex Red, thereby further complicating the readout. Addition of SODs has been suggested as a strategy to circumvent these issues, although this will perturb normal cellular redox regulation and may cause additional artifacts.(779,780) Interestingly, reduction of resazurin [alamarBlue (781)] to resorufin (the same fluorescent product of Amplex Red oxidation; Figure 14C) has been a popular cell viability assay for many years, although the mechanism of intracellular resazurin reduction to resorufin remains poorly understood.

Small molecule HOCl sensors have been known for some years. These are all turn-on fluorescence probes. Early examples of nanoparticle-based sensors showed utility in mouse splenocytes and tissues.(782) However, these probes were unable to distinguish HOCl from ONOO⁻. Another small-molecule probe (MMSiR) was more selective, showing many fold selectivity for HOCl over ^•OH, ONOO⁻, and peroxide amongst others.(783) This probe was able to show elevation of HOCl in neutrophils upon phagocytosis. A subsequent BODIPY-based sensor, HCSe, was developed.(784) HCSe is not fluorescent in the reduced state due to photoinduced electron transfer (PET) from a pendant diphenyl selenium moiety to the BODIPY ring. Upon Se oxidation, PET is suppressed and a large increase in fluorescence is observed. Oxidation is highly selective for HOCl over numerous other biological oxidants. As selenium oxidation is reversible, HCSe was shown to be a reversible HOCl sensor in cells.(784) Recent years have seen two-photon probes developed with sensitivity thresholds as low as 20 nM.(785)

5.1.2 Small-molecule boronate probes to detect H₂O₂

Aryl boronates take advantage of chemistry known since the late 1950’s(795): H₂O₂ can act as a two-electron donor to the boron within the aryl boronate probe while simultaneously behaving as an oxidant (electron sink) for (migration of) boron aryl or alkyl groups (Figure 15). Nucleophilic attack of H₂O₂ to the electrophilic aryl boronate forms a transient tetrahedral boron “ate” complex, capable of undergoing a 1,2 shift of the C-B bond and forming a C-O bond, and re-establishing planarity of the boron atom. Hydrolysis of the boronate generates boric acid and liberates the fluorophore(796) (Figure 15B). This process converts the boronate functional group, which is not fluorescent, to the fluorescent phenol.

Figure 15.

(A) A selection of boron “:ate”-based fluorescent-probes for measuring H₂O₂ in cells. (B) Mechanism of boron “ate” probe oxidation by H₂O_2.

Aryl boronate probes are selective towards H₂O₂ over other endogenous ROS such as ^•OH, ^•NO, O₂ ^•− and ^•OR (797) as these reagents are 1 electron donors and cannot form the active boron “ate” species, nor do they have a good leaving group to promote translocation. However, recent studies show aryl boron probes can react with ONOO⁻ and HOCl.(789) Unsurprisingly, both these products are ideal for 1,2-migration chemistry and can engage productively to form boron “ate” complexes isolobal with peroxide boron “ate” complexes. By analogy, any similar (isolobal) chemical function, e.g. alkyl peroxides, will also be detected by the probe.(798) In fact, the second-order rate constant for the reaction of 4-acetylphenylboronic acid with ONOO⁻ is a million times [k = 1.6×10⁶ M⁻¹s⁻¹; typical concentration 1 nM(71,73)] faster than that with H₂O₂ [k = 2.2 M⁻¹s⁻¹; 1 nM–700 nM in cells(24)] and almost 200 times faster with HOCl (k = 6.2×10³ M⁻¹s⁻¹).(789) However, the fact that both ONOO⁻ and HOCl have shorter intrinsic half-lives and are present in lower quantities in most cells than H₂O₂ (especially when ROS signaling occurs) may be sufficient to offset the kinetic differences for semi-compartmentalized processes. But as with any chemical probe, caution must be exercised to obtain the most meaningful results.

The first-generation probe Peroxyfluor-1 (PF-1) used two protecting aryl boronate groups (Figure 15A). The setup provides a high signal-to-noise ratio.(788) However, PF-1 suffers from slow turn-on kinetics since it requires two equivalents of H₂O₂ per molecule of PF-1 to elicit maximal response. Recently, a number of monoboronate-based probes including Peroxy Green-1 (PG1), PF-2, 3, and 6, Peroxy Yellow 1, and Peroxy Orange 1 (PO1) have been developed for application in intracellular detection of H₂O₂.(796) Although these probes are very useful, it should be stated that typically exogenous application of the oxidant or stimulation is required to detect the specific ROS. PG1 has been used to detect endogenous H₂O₂ generated upon EGF stimulation in A431 as well as neuronal cells.(790) The availability of these probes in a color palette also allows concurrent detection of H₂O₂ and other ROS using orthogonal fluorescent probes by dual color imaging. An example includes the use of PO1 (λ_ex 507 nm; λ_em 574 nm) and APF (λ_ex 490 nm; λ_em 515 nm) in RAW264.7 cells to simultaneously detect the generation of H₂O₂ and other ROS upon stimulation with phorbol myristate acetate (PMA), an inducer of phagocytosis-associated peroxide generation.(799) Further modification of boronate probes to engender enhanced retention in cells has enabled fluorescence intensity detection in HeLa cells upon stimulation with as low as 10 μM H₂O₂.(797) Nevertheless, exogenous stimulation is still required to detect robust signals. PF-6 was also able to detect H₂O₂ generation by hippocampal stem/progenitor cells upon FGF-2 stimulation.(797)

It must be stressed that although there are exceptions, a general limitation with chemical probes is that they are not sensitive enough to measure basal changes in peroxide, and are most commonly used to measure peroxide levels in cells treated with exogenous peroxide.

5.1.3 Ratiometric small-molecule boronate probes to detect H₂O₂

Although aryl boronate probes are semi-selective toward H₂O₂, these molecules have proven not well suited to provide a quantitative assessment of H₂O₂ in whole organisms. Variations in local probe concentration, probe diffusability, thickness of the sample, as well as changes in cellular microenvironment can significantly influence quantitation of signal generated by the probe. To obviate these issues, a number of studies have reported the development of ratiometric probes. Ratiometric sensors have the advantage of not being influenced by concentration of the sensor, meaning that small changes in redox environment can be measured accurately, with fewer numbers of cells. Ratio-Peroxyfluor 1 (RPF1) uses FRET between a coumarin donor and a boronate-caged fluorescein acceptor to quantitatively report on the generation of H₂O₂ in intact isolated mitochondria (Figure 15A).(792) Yet another ratiometric probe, Peroxy Lucifer 1 (PL1), uses a boronate-based switch to detect H₂O₂ by controlling internal charge transfer within 1,8-naphthalimide dye.(793) Upon reaction with H₂O₂, the emission maxima changes from blue to green. PL1 was able to detect H₂O₂ generation in phagocytic vesicles upon PMA treatment of RAW264.7 cells using two-photon illumination (820 nm). Recent advances have furthered the use of organelle-localized H₂O₂ sensors. A nuclear-localized aryl boronate probe, NucPE1, was used to show that overexpression of Sir-2.1 in C. elegans results in a concomitant decrease in H₂O₂ flux in the nucleus (Figure 15A).(794) Additionally, several mitochondria-targeted probes including Mitochondrial Peroxy Yellow 1 (MitoPY1),(800) SHP-Mito,(801) and MitoBoronic acid (MitoB)(802) have also been generated mainly by utilizing a triphenyl phosphonium moiety for mitochondrial targeting.(803) Recently, the use of SNAP labeling technology has enabled localization of boronate-based probes to the plasma membrane, mitochondria, nucleus, and the ER.(804)

Another problem with boronate-based probes (as with other fluorescent-based probes mentioned above) is that they undergo irreversible oxidation with H₂O₂. Some work has tried to mitigate this problem by developing reversible fluorescence-based redox sensors. Redox Fluor 1 (RF1) and its acetoxymethyl ester derivative RF1-AM, use a disulfide switch coupled to a fluorescein reporter to report on dynamic changes in redox environment (Figure 14A).(786) HEK293T cells loaded with RF1 (5 μM, 30 min) showed increased fluorescence upon H₂O₂ stimulation (100 μM, 9 min). The signal decreases after a further 6 min presumably due to restoration of cellular redox homeostasis. Addition of more H₂O₂ (100 μM, 9 min) can restore fluorescence signal. Despite significant progress, the use of fluorescent probes to report on reversible reduction-oxidation events in cells has been relatively limited compared to genetically-encoded sensors, the subject of the next section.

5.1.4 Genetically-encoded protein-based ROS sensors

One of the earliest examples of genetically-encoded sensors used a mutated form of YFP, rxYFP^149,202, in which redox-sensitive cysteines are introduced at the indicated positions.(805) Later, a circularly-permuted YFP (cpYFP) was discovered to respond to redox changes in the cell and was selective to O₂^•− over other cellular oxidants.(806) Specifically, the study claimed to observe ‘superoxide flashes’ in mitochondria of live cells. The superoxide flashes were coupled to transient opening and closing of the mitochondrial permeability transition pore (mPTP), indicating that this process may be responsible for the superoxide burst. Subsequent studies by independent groups demonstrated that these “O₂^•− bursts” are actually not caused by superoxide changes, but by transient changes in pH in the mitochondrial matrix.(807) The resting mitochondrial pH is ~7.9.(808) However, changes in mitochondrial proton gradient during oxidative phosphorylation result in brief fluctuations in mitochondrial pH. cpYFP has a pK_a of ~8.7 and the fluorescent properties are acutely sensitive to changes in pH, especially when the pH is within 1 pK_a unit of the sensor. The sensitivity of cpYFP towards pH is credited to structural changes introduced by the circular permutation, which exposes a pH-sensitive phenoxy group of the chromophore.(809)

Similar to rxYFP, another method of detecting redox changes in cells utilizes the idea of introducing redox-active cysteines into GFP. roGFP1 contains two cysteines introduced in place of S147 and Q204, and a C48S mutation to wt-GFP.(810) An additional S65T mutation of roGFP1 has yielded roGFP2 with brighter fluorescence and higher dynamic range compared to its parent sensor (9.2 fold for roGFP2 vs. 2.6 fold for roGFP1 at excitation wavelength of 488 nm).(811) roGFP1, however, has a higher dynamic range in 405 excitation.(812) Hence, roGFP1 (E° −291 mV) may be more useful than roGFP2 (E° −280 mV) in measuring redox changes in cellular compartment with higher reduction potential such as the cytosol and mitochondria.(812) Unlike cpYFP, the chromophore in roGFP is concealed.(813) Hence roGFP is relatively resistant to fluxes in pH. roGFP, however, equilibrates with the 2GSH/GSSG redox couple in cells and subcellular compartments and thus has limited utility in detecting specific ROS chemotypes. Instead roGFP-based reporters are ideal for measuring steady state glutathione redox potential in distinct subcellular compartments and overall redox changes induced by glutathione depletion.(812) More recently, a chimeric fusion of roGFP with Grx1 has been developed that shows faster equilibration kinetics with cellular glutathione redox couple compared to roGFP probes.(812)

Recent advances have used clever techniques to make roGFP sense specific ROS chemotypes (Table 4). Genetic fusion of Orp1, a peroxidase from yeast, to roGFP2 has generated a sensor specific to H₂O₂ (Figure 16A).(814) The peroxidase Orp1 acts as the sensor for H₂O₂ and gets oxidized upon H₂O₂ encounter. This redox relay is then passed onto roGFP2 which results in the formation of a disulfide bridge between C147 and C204 and a consequent change in fluorescence of the sensor protein. Another recent method used Tsa2, a 2-cysteine peroxiredoxin from yeast, fused to a roGFP2 to generate an ultrasensitive (low micromolar detection limit) H₂O₂ sensor.(815) Peroxiredoxins are the most efficient thiol peroxidases with a near-diffusion-limited second-order rate constant for reaction with peroxide, 10⁸ M⁻¹s⁻¹,(111) a value almost two orders of magnitude higher than that with Orp1. Additionally, under non-stimulated conditions, ro-GFP2-Tsa2ΔC_R is ~50% oxidized thereby enabling measurement of H₂O₂ increase and decrease in cells.

Table 4.

A selection of genetically-encoded probes for detecting peroxides.

Probe	Chemoselectivity (second order reaction rate)	Sensitivity (limit of detection)	Dynamic range (fold)	Membrane permeability	Bioorthogonality	Reversibility	Ratiometric measurement capability	Affected by changes in pH of cellular microenvironment?
Orp1-roGFP2(814)	H2O2 (105–107 M−1s−1)	< 50 nM	8	Genetically encoded	Yes	Yes	Yes	No
Tsa2-roGFP2(815)	H2O2 (107–108 M−1s−1)	Low nanomolar	2	Genetically encoded	Yes	Yes	Yes	No
HyPer(816)	H2O2 (105–107 M−1s−1)	25 nM in vitro	3	Genetically encoded	Yes	Yes	Yes	Yes, pH
HyPerRed (829)	H2O2 (105–107 M−1s−1)	20 nM in vitro	2	Genetically encoded	Yes	Yes	No	Yes, pH
OHSer(828)/rOHSer(830)	Organic hydroperoxides	> 20 μM	2	Genetically encoded	Yes	No/(rOHSer is reversible)	No/rOHSer is ratiometric)	Yes, pH

Figure 16.

(A) Examples of genetically-encoded H₂O₂ sensors. The reversibility of genetically-encoded sensors makes them an excellent tool to measure intracellular flux of H₂O₂. Top panel: Orp1-roGFP2 consists of a Orp1, a member of the yeast glutathione peroxidase, fused the redox-sensitive roGFP2. The peroxidatic cysteine on Orp (C36) forms a sulfenic acid in presence of H₂O₂, which is rapidly condensed by the resolving C82 of Orp1. This redox relay is transferred to the conjugated roGFP2 through a thiol-disulfide exchange. Disulfide bond formation of roGFP2 results in conformational change and a gain in fluorescence. Oxidized Orp1 is reversible by Trx. Oxidized roGFP2 can be reversed by Grx. Bottom panel: HyPer uses a circularly permutated YFP protein fused in between the regulatory domain of OxyR, a bacterial H₂O₂ -sensing transcription factor. The peroxidatic cysteine of OxyR (C199) is oxidized by H₂O₂ and resolved by C208 forming a disulfide bond. The consequent change in conformation of the conjugated cpYFP results in increase in fluorescence. Trx: Thioredoxin; Grx: Glutaredoxin. (B) A selection of EPR probes used for detecting radical RES and ROS generation in cells. Inset: Mechanism of radical trapping by cyclic nitrone spin traps to generate a stable nitroxide radical (C) Examples of fluorescent probes for the detection of free RES in cells. Inset: Top: Mechanism of 2-aza-cope reaction based fluorescent probes for detecting formaldehyde. Bottom: Mechanism of Mbo, a ‘turn-on’ fluorescent probe for methylglyoxal. Other hydrazine-based probes for detecting malondialdehyde and formaldehyde work on a similar principle.

A more recent addition to the arsenal of genetically-encoded sensors, called “HyPer”, consists of a cpYFP inserted between residues 205 and 206 of a H₂O₂-sensitive OxyR regulatory domain (OxyR RD) from E. coli (816) (Figure 16A). Two cysteine residues, C199 and C208, in the OxyR RD are critical for its ability to sense H₂O₂. The peroxidatic C199, once oxidized to a sulfenic acid, forms a disulfide bond with the resolving C208 within OxyR RD. This disulfide bond formation is coupled to a large conformational change and an increase in fluorescence of the cpYFP. C199 has a low pK_a in part because this residue is positioned next to a positively charged residue (arginine) which significantly enhances the cysteine’s ability to react with H₂O₂. The rate constant for this reaction is in the order of 10⁵–10⁷ M⁻¹s⁻¹.(817) In vitro, HyPer can detect as low as 25 nM H₂O₂.(817) Additionally, the topology around C199 is hydrophobic, likely favoring access of uncharged molecules to this critical residue. Thus, HyPer successfully discriminates H₂O₂ from O₂^•−, oxidized glutathione, ONOO⁻ and ^•NO.(818) Successive upgrades to HyPer have resulted in HyPer2(819) and HyPer3.(820) HyPer2 and HyPer3 show 3-fold higher dynamic range than HyPer. All probes show excellent kinetics of reaction with H₂O₂ (>10⁵ M⁻¹s⁻¹). HyPer3 has a modestly improved dynamic range compared to HyPer (2.5 fold vs 1.7 fold) and was used for in vivo imaging of H₂O₂ gradient in larval zebrafish.(820) Since HyPer uses a circularly-permuted YFP, it is sensitive to fluctuations in pH. Hence, pH-specific probes must be used to monitor changes in pH. The H₂O₂-insensitive C199S mutant of the sensor (SypHer) can serve this purpose.

One major advantage of HyPer and roGFP2-based H₂O₂ sensors is that they are ratiometric sensors. HyPer has two excitation maxima at 420 nm and 500 nm corresponding to the protonated and anionic form of YFP respectively, and one emission peak at 516 nm.(817) Oxidation of HyPer by H₂O₂ results in a decrease in 420 nm excitation peak and a proportional increase in the 500 nm excitation peak, permitting a ratiometric readout.(818) roGFP2-based sensors also have similar spectroscopic properties to HyPer (excitation maxima at 405 nm (reduced) and 488 nm (oxidized) and emission maximum at 510 nm).(814) Both methods have several additional benefits over most small molecule probes. Firstly, they are reversible sensors and allow real time measurements of ROS changes in cells. A second benefit is that they can be directed to specific subcellular compartments simply by encoding protein-targeting sequences in the gene.(386,481) HyPer has been used extensively both in cells(818,821,822) and in whole organisms(242,820,823) to measure H₂O₂ flux in real time.(817) A HyPer-EGFR fusion has allowed imaging of localized H₂O₂ generation at plasma membrane upon stimulation of platelet derived growth factor receptor (PDGFR) and endosomal H₂O₂ generation upon EGFR stimulation.(386) In vivo, the use of HyPer has shown the importance of H₂O₂ signaling in wound recognition,(824) neutrophil migration,(243) and wound healing in zebrafish embryos.(242) Similar experiments in Xenopus have elucidated the significance of H₂O₂ in tail fin regeneration after wounding.(823) A recently developed red fluorescent sensor of H₂O₂ that uses a circularly permuted mApple (cpApple) fused to OxyR-RD, termed HyPerRed,(825) is a welcome addition to obviate the naturally high background green fluorescence of biological systems (from flavins, NAD, FAs, etc.).(826,827) One interesting application of the varying palette of redox sensors is simultaneous sensing. The use of HyPerRed-mito (an intensity based ROS sensor that functions in the mitochondria) and Grx1-roGFP2-mito (a sensor of reduced glutathione, functioning in the mitochondria) showed that thapsigargin (an inhibitor of the sarco/endoplasmic reticulum calcium ATPase) only increases ROS levels in the mitochondria, while glutathione levels appear normal.(825)

Despite their advantages, the development of genetically-encoded sensors has been mainly limited to detecting H₂O₂. A similar approach to the aforementioned genetically-encoded sensors was undertaken to develop probes for visualization of organic hydroperoxides (OHP) in living cells.(828) OhSer, utilizes a circularly-permutated yellow fluorescent protein (cpVenus) fused to X_c-OhrR, an OHP sensor and a transcriptional regulator of bacterial OHP detoxification genes. OhSer exhibited a 2–8-fold higher sensitivity to various OHPs over other ROS such as O₂^•−, H₂O₂ and HOCl in vitro and showed a selective increase in fluorescence intensity following treatment of cells with OHPs. However, given the limited level of discrimination across varied ROS and OHPs, OhSer is unlikely to prove useful in detection of endogenously generated levels of OHPs.

5.1.5 Electron paramagnetic resonance (EPR) methods to detect radical generation in cells/organelles

EPR has been widely used to detect endogenously-generated radical species of relevance in redox signaling.(831,832) The underlying principle of EPR is similar to nuclear magnetic resonance (NMR): an externally-applied magnetic field is applied to unpaired electrons (contrasting NMR where nuclei are excited) and energy emitted upon relaxation to the ground state is measured. Thus, molecules with paired electrons (the bulk of biological samples) are not detected by EPR, rendering EPR very sensitive for radical species and paramagnetic metal complexes, amongst other paramagnetic biological molecules. Furthermore, EPR can discriminate between different radical species. This is because each element provides a specific local environment to an electron that affects how energy levels differentiate in a specific magnetic field. Numerically this value is defined by the Lande g-factor (g_e). Additionally, “EPR hyperfine coupling” analogous to J-coupling in NMR and resulting from interaction of the magnetic moment of the nuclei of the radical species and that of the unpaired electron provides characteristic spectra for individual radical species. EPR techniques are also highly sensitive and quantitative. Detection of O₂^•− by EPR spin trap method was shown to be 40 times more sensitive than a commonly used spectrophotometric technique involving reduction of ferricytochrome C.(833) Also, the direct quantitation of the amount of redox-active radical present in the sample is facile through the evaluation of EPR signal intensity against appropriate control samples of known concentrations.

A point of consideration is that many of the endogenously-relevant redox signals are highly reactive and short-lived (Table 1). In fact, the concentration of free radicals can be several to hundreds of fold below the EPR detection limit. Hence EPR techniques for successful detection of these species almost always require a method to trap the radicals using EPR ‘silent’ probes. These so called “spin traps” claim sensitivity down to nanomolar levels in some cases.(834) The most common of such probes are cyclic nitrones such as 5,5-Dimethyl-1-Pyrroline-N-Oxide (DMPO), 5-Boc-5-methyl-1-Pyrroline-N-Oxide (BMPO), and 5-(Diethoxy phosphoryl)-5-methyl-1-pyrroline-N-oxide (DEPMPO) (Figure 16B).(831,835,836) To detect a short-lived radical species, an EPR-silent trap is first introduced into the system. The trap reacts with the transient redox radical through adduction to the C–N bond. The resultant dative stabilized radical, ^•N–O, is then detected by EPR (Figure 16B, Inset). Therefore, this method is not particularly dynamic, and also quenches the biological radical, likely inhibiting signaling pathways. Importantly, some spin traps affect signaling pathways, including Erk,(837) AR and apoptosis.(838) Another major problem with the use of EPR to detect radical generation in vivo is that the commonly used spin-traps are non-discriminatory against endogenously-derived radicals. For example, DMPO and DEPMPO react with O₂^•− and ^•OH to generate ⁻OOH and ⁻OH adducts respectively. The rate constant for the reaction of DMPO with O₂^•− is in the order of 50–60 M⁻¹s⁻¹; this reaction generates a stable intermediate ^•N–O radical containing a metastable peroxide which has a relatively short half-life pH 7. Comparatively, ^•OH reacts with DMPO at the diffusion limit to generate an intermediate alcohol bearing a ^•N–O with a half-life of 50 min at pH 7.(836)

One drawback of using spin traps is that the EPR spectrum of the trapped radical is independent of the radical detected. Significant effort has been expended to develop spin traps that are specific to a particular ROS. For instance, a series of superoxide selective spin traps have been developed: the mitochondria-targetable spin trap, Mito-DIPPMPO (bearing a triphenyl phosphonium motif)(839) and the extracellular-targeted trap, CD-DMPO [housing a permethylated β-cyclodextrin(840,841)]. These probes show 3-fold reactivity enhancement for superoxide over DEPMPO and BMPO.(841) Mito-DIPPMPO and CD-DMPO both detect O₂^•− generated in PMA-stimulated RAW246.7 cells, with no background signal arising from ^•OH.(839,842) The probes are sensitive enough to also detect basal O₂^•− generation in unstimulated macrophages.(843) The ability of these probes to selectively detect O₂^•− has been ascribed to the fact that the hydroxyl radical reacts with these probes with low chemoselectivity [reaction between tetraphenylphosphonium ion and hydroxyl radical for instance is close to diffusion control(844)] and thus does not give an appreciable amount of the dative stabilized ^•N–O that is the more favored product of reaction with O₂^•−.

α-(4-Pyridyl N-oxide)-N-tert-butylnitrone, POBN, another nitrone-based spin trap, and DMPO have been used to study lipid-derived radical generation by oxidation of PUFAs (Figure 16B).(845,846) POBN is ideal for detection of carbon-based radical such as those generated during lipid peroxidation because of the long half-life of the trapped radical. Carbon-centered radical adducts with POBN have a lifetime of a few hours thus enabling efficient detection.(845) A major disadvantage of using POBN as a spin-trap, however, is that all carbon-based radical adducts with POBN have similar spectra making discrimination of individual carbon-based radical species from PUFA oxidation impossible. Additionally, POBN adducts resulting from reaction with oxygen-based radicals, such as lipid peroxy radical intermediates in PUFA oxidation, have very short half-lives (t_1/2<10s), thereby limiting their use for detecting oxygen-based radicals.(845) DMPO and EMPO, on the other hand, have proven useful in extending utility to trapping oxygen radicals. The half-life of peroxy and alkoxy adducts of EMPO are on the order of 10 minutes or >1 h, respectively.(847) Recently, an assortment of spin traps has emerged which detects a larger repertoire of redox-signal chemotyopes, including sulfur-based and nitrogen-based radicals.(848)

Spin-traps can be expensive and have other downsides when used for biological studies such as permeability and cytotoxicity. Additionally, real life biological systems are very complex, so deconvolution of spectra, a common practice in in vitro experiments, is much harder. Finally, in the case of pyrroline-N-oxide probes numerous processes can lead to ^•N–O products that are EPR active, but are not actually derived through radical attack on the C–N bond.(849) Two principal off pathway processes leading to EPR-active products are inverted spin trapping(850) and Forrester-Hepburn reaction(851) (considered to be the most common off pathway mechanism). Nevertheless, spin-trap EPR methods have been used for detecting radical generation in cells,(835,852) and have shown promise in multiple in vivo studies.(853) Novel methods have focused on generating subcellular domain-localized spin-traps which will allow measurement of localized redox signal generation. In this regard, although some success has been achieved as outlined above, the probes still have poor reaction kinetics.(854) Moreover, hydrophobic probes/traps that allow measurement of lipid peroxides in membrane are also underdeveloped. Steps to develop spin traps with different lipophilicities that can be used in the same samples to develop a multidimensional probe for specific free radicals have been disclosed.(848) However, it seems that significant work will be required to extend this regimen into a general approach for radical deconvolution. An additional problem with EPR-based approaches is their inability to detect and measure generation of non-radical redox species such as H₂O₂ and ONOO⁻. Recent methods have focused on finding novel EPR spin traps that convert these non-radical redox signals to EPR-active radical signal upon reaction. CP-H, for example, has been used to trap ONOO⁻ that generates a stable nitroxide radical upon reaction.(855) CP-H, however, can also react with O₂^•− thus complicating the analysis. An alternative to EPR studies is immuno-spin trapping wherein a stable spin trap reacts with protein radicals to form covalent protein strap adducts that can be detected immunologically.(856)

5.1.6 Small-molecule fluorescent probes to detect free RES

Formaldehyde is present in the brain at concentrations around 100–400 μM.(857,858) Because of its reactivity, ability to form Schiff bases readily and the fact that those Schiff bases undergo chemistry readily, chemoselective probes for formaldehyde have been developed. FAP-1 is an example of such a sensor (Figure 16C).(859) This molecule can form a Schiff base with formaldehyde and after an aza-Cope rearrangement and hydrolysis give a fluorescent dye (a process leading to an 8-fold increase in fluorescence). Using this probe, exogenous formaldehyde in the 100 μM range was detected in cells. This probe was chemoselective for formaldehyde over various aldehydes (including acetaldehyde and HNE), although it is likely that the probe is selective for formaldehyde over many different aldehydes and ketones as imine formation for acetals and ketones is slower than for formaldehyde, and the cyclohexane-like Cope transition state is severely crowded. Similar formaldehyde-selective probes have also been reported by other labs (Figure 16C).(860)

Coupling a promiscuous sensing reaction (e.g. Schiff base formation) to a secondary reaction that only one type of reagent can do efficiently (e.g. 3,3 shift) is a good general mechanism to design a specific probe. A similar strategy developed by the Spiegel lab is their “turn-on” fluorescence sensor of methylglyoxal (Figure 16C).(861) Using a 1,2-diamino functionalized BODIPY probe, allowed fluorescence turn-on only by 1,2-dicarbonyl compounds [of which by far the most abundant in cells is methylglyoxal(443)].

Other detection methods of formaldehyde have used a hydrazine conjugated to a fluorophore.(862,863) In the native state, the free amine on the hydrazine quenches fluorescence of the conjugated fluorophore through PET. Upon reaction with the aldehyde, the hydrazine forms a formimine, which blocks PET, thus ‘turning-on’ fluorescence.

Similar methods using hydrazine conjugated fluorophores have also been used to detect other reactive aldehydes. Probes have been developed wherein a molecule containing a dye and a quencher in tandem is split to a free dye upon exposure to a generic carbonyl-containing compounds.(864) This strategy can give good signal to noise (again when cells treated with the molecules are exposed to exogenous carbonyl compound). One drawback of this method is that a catalyst is required to drive fragmentation of the self-quenching molecule. In general, such two-component systems make it particularly difficult to design good controls, and hence can affect confidence in the results. Finally, a similar sensor of malondialdehyde has been reported. In this set up, a pendant hydrazine moiety quenches a dye to which it is attached through PET transfer (Figure 16C).(865) When hydrazine reacts with malondialdehyde, PET is reduced, and fluorescence is activated.

5.2 Identifying targets of RES/ROS modification

Redox signaling selectivity is almost exclusively controlled by kinetic adduction rates. Of the canonical protein side-chains, cysteine is the most nucleophilic and hence the more sensitive amino acid residue to ROS/RES-mediated modification. Not surprisingly, there have been considerable efforts to develop methods to detect oxidative and electrophilic modifications of cysteine. Recently, proteomics approaches have gained wide-spread usage because of their versatility and generality. Mass Spectrometry approaches can identify redox-sensitive targets in lysate, cells, tissues and whole organisms. MS approaches can be either direct or indirect.

5.2.1 Indirect approaches to detect oxidative modifications

Indirect approaches to detect cysteine modification rely on the loss of reactivity of the modified cysteine residues with thio-alkylating probes (Figure 17A) or the regain of reactivity of the modified cysteine after treatment with reducing agents (Figure 17B). Probes can be functionalized with a fluorophore for gel-based fluorescence analysis. Biotinylated or alkyne-functionalized probes are the probes-of-choice for enrichment for western blot or MS analyses. For many RES, such as HNE, alkyne modification is an almost ideal modification as it is sterically non-intrusive and biorthogonal. Under click conditions, the alkyne can be converted to the appropriate fluorophore/affinity handle, post conjugation.

Figure 17.

Indirect methods to detect oxidative and electrophilic modifications of proteins (A) Oxidative and electrophilic modification of proteins renders them unreactive to a biotin/fluorophore conjugated alkylating agent such as N-ethyl maleimide (NEM)-Fluorescein. Modified proteins are detected from the loss in signal intensity using SDS-PAGE analysis (B) Similar to (A) except unmodified proteins are first capped using a broadly-reactive alkylating agent such as iodoacetamide (IAM, denoted by black cap). The oxidative modification (X) on proteins is then reduced using a strong reducing agent such as DTT. A fluorophore/biotin-conjugated probe is used to label the reduced proteins. An increase in signal intensity is detected using SDS-PAGE/western blot corresponding to the increase in modification of protein with increasing oxidant concentration. (C) Isotope-labeling methods coupled with mass spectrometric approaches allow quantitative determination of protein modification. In methods such as competitive-isoTOP ABPP, the experimental sample is treated with the desired RES (red/orange circle) and the control sample is treated with the vehicle. The unreacted cysteines in the protein lysate are then capped with an alkylating agent with an alkyne handle (IA alkyne; IAA which caps most but not necessarily all remaining cysteines) which enables click-coupling with isotope-labeled and TEV-protease-cleavable-biotin azide. The samples are then mixed 1:1, enriched using streptavidin beads, the bound proteins are eluted using TEV protease, and a MS analysis performed subsequent to trypsin digestion. Proteins labeled with RES won’t react with alkyne-tagged alkylating agents resulting in a loss in signal intensity in MS spectrum.

5.2.1.1 Detecting sulfenic acid modification

With growing evidence of cysteine sulfenylation modulating biological processes,(5,484,866–868) there is an increasing interest in identification of proteins prone to sulfenic acid modification in cellular and organismal context. This modification can be detected using a tagged alkylating agent such as a biotin-conjugated iodoacetamide (BIAM) to label “all nascent thiols” in the proteome. Oxidized cysteines show reduced reactivity toward the probe and thus reduced signal intensity on a biotin(avidin) blot. The loss of labeling corresponds to an increase in oxidation of cysteine thiols (Figure 17A). A modified version of this approach allows detection of oxidized proteins as increase in signal intensity rather than a decrease (Figure 17B). This method is based on biotin switch technology (BST) initially developed to detect –SNO modification of cysteine residues.(869) This indirect method involves (1) treatment with an alkylating agent such as N-ethyl maleimide (NEM) or iodoacetamide (IAM) to ‘cap’ “all” free cysteines; (2) reduction of oxidized cysteines by treatment with a reducing agent; and (3) labeling of nascent thiols with BIAM and subsequent gel-based analysis or MS approach to detect oxidized proteins. Oxidized proteins show enhanced signal in biotin(avidin) blot or through in-gel fluorescence (Figure 17B). However, these methods are qualitative and in addition do not provide any information on the nature of oxidized cysteine. In fact, any kind of cysteine modification results in a decrease in signal, which may amplify the number of ‘false-positives’. Some selectivity in detecting these signals has been achieved using different reducing agents. Arsenite, for example, selectively reduces S4 sulfenylated proteins.(870) DTT, on the other hand, reverses all oxidative modifications on cysteines except sufinic and sulfonic acid modifications.

Additional variations using isotope labeled reagents have enabled quantitative assessment of protein thiol oxidation. A BIAM-based technique uses acid-cleavable isotope-coded affinity tags [ICAT; a molecule consisting of biotin, an isotope (typically ¹³C)-labeled 9-carbon linker region, and an iodoacetamide function] to detect and simultaneously quantify redox-sensitive protein thiols.(871) In this method, free thiols of an untreated/control sample are labeled with a light ICAT reagent (¹²C-ICAT) by treating the soluble proteome. Lysate from a parallel sample subjected to an oxidant is treated with a 9-Da heavier ICAT reagent (¹³C-ICAT). The heavy and light ICAT reagent labeled lysates are then mixed, trypsinized, and enriched using streptavidin. Eluted peptides are analyzed using LC-MS and the ratio of heavy-to-light peptide is quantitated. Because oxidized cysteines display lower reactivity towards the BIAM-based probe, peptides prone to oxidation have reduced signal intensity in the heavy ¹³C-ICAT reagent-treated sample. Importantly, because the heavy and light ICAT reagents only differ by a molecular weight of 9 Da, MS fragments show two peaks separated by 9 Da that can be quantitatively analyzed.(872,873) A variation of BST using ICAT reagents has enabled quantitative detection of reversibly-modified thiols. In this method, free thiols in soluble lysate are first alkylated. Next, reversibly-modified thiols are reduced and labeled with either light or heavy ICAT reagents and the samples are analyzed as described above.(874,875) ICAT-based BST has also been used to differentially label oxidized and reduced cysteines within the same sample, in a method termed oxICAT.(876) In this method, the soluble proteome from cells is first treated with a light ¹²C2 ICAT to label any free cysteines. The reversibly-oxidized cysteines in the same sample are then reduced and subsequently modified with heavy ¹³C-ICAT reagent. This method avoids problems associated with differences in protein expression between two samples. oxICAT method has been used to quantitatively assess cysteine oxidation upon oxidative stress in cells.(876,877)

5.2.1.2 Profiling cysteine modification by LDEs using ABPP

Activity-based protein profiling (ABPP) has emerged as a powerful tool to rank the activities of selected proteins in complex proteomes. Early examples of ABPP focused on the use of active-site directed chemical probes to profile cysteine proteases(878) and serine hydrolases.(879) MS coupled with ABPP—dubbed tandem orthogonal proteolysis (TOP)-ABPP—has allowed for simultaneous detection (albeit indirect using proxy probes similar to those used above) of protein targets and (with several assumptions) the sites modified by chemical probes.(880,881) Using TOP-ABPP it was shown that different classes of electrophiles exhibit distinct labeling profiles in a “soluble mouse proteome” (lysate). Chloroacetamide and α, β-unsaturated ketone probes showed selectivity towards cysteine, whereas phenylsulfonate esters also targeted aspartate, glutamate, tyrosine and histidine residues in addition to cysteines.(880) More importantly, all electrophiles showed reactivity toward functional residues in enzymes despite the large excess of non-functional residues in the proteome, suggesting that functional residues display enhanced nucleophilicity. ABPP using isotope-labeled tags, called isoTOP-ABPP, was recently used to quantitatively profile ‘hyper reactive’ cysteines in the proteome.(881) isoTOP-ABPP uses a broadly reactive probe such as iodoacetamide that covalently modifies (some) reactive cysteines.(882,883) Typically, a soluble lysate is first treated with different concentrations of the iodoacetamide probe. An alkyne handle on the probe allows for click coupling with either heavy or light isotope-labeled cleavable tags. Subsequent enrichment of probe-modified reactive cysteines and mass spectrometry allows quantitative comparison of the reactivities of the cysteine residue towards the electrophilic probe. Modification of the ABPP method using a competitive electrophilic probe, called competitive isoTOP-ABPP, has allowed identification of LDE6 sensitive sites in the proteomes.(884) In this method, a cell/soluble proteome is first treated with a competitive LDEs. The control set is treated with the vehicle (e.g. DMSO) (Figure 17C). Subsequently, both sets of cells are lysed independently and each lysate is labeled with alkyne-functionalized iodoacetamide. Click coupling of isotope-labeled tags and subsequent MS analysis allows for the quantitation of cysteines that are sensitive to LDE modification. A decrease in ratio of cysteine-containing peptide in the LDE-treated cells compared to untreated samples identifies modified cysteine residues. Competitive isoTOP-ABPP was used to quantitatively profile the reactivities of >1000 proteins to three representative electrophiles HNE, 2-trans-hexadecenal (2-HD) and 15d-PGJ₂.(884) In addition to profile the reactivities of electrophiles, the isoTOP-ABPP method has been used to monitor S-nitrosation of proteins upon treatment with S-nitrosoglutathione,(885) and cysteine oxidation upon exogenous treatment of pathogenic bacteria to H₂O₂(886) and EGF stimulation of mammalian cells.(887)

5.2.1.3 ReACT strategy to profile methionine oxidation

A new method to identify reactive methionines (dubbed ReACT) was recently disclosed.(888) ReACT uses an oxaziridine-based small-molecule probe that was optimized to afford products of methionine nucleophilic addition to nitrogen as opposed to oxygen. By functionalizing the amine within the oxaziridine with an alkyne (or an azide motif), modified proteins were identified by biotin Click/streptavidin pulldown followed by digest MS. By varying the amount of oxaziridine added to the lysate, and choosing proteins that react only with low concentrations of oxaziridine, a hyper-reactive methionine (Met169) was identified in human enolase. The corresponding methionine was subsequently implicated in the response of yeast to hypochlorite.

This work represents a pioneering first step in methionine reactivity profiling, adding to the growing suite of reactive electrophilic probes for proteome reactivity mapping. To this end, further considerations worth addressing include the extent to which the synthetic electrophile mimics native electrophiles targeting the protein residue (in this case, oxaziridine in driving bond forming events with protein-methionine), compatibility/permeability of the probe with living cells/intact specimens (beyond lysates), and selectivity/non-invasiveness of the probe to modifications via oxaziridine oxygen (beyond nucleophilic addition to oxaziridine nitrogen as analyzed in this key inaugural example with methionine) since oxaziridine oxygen may be a chemically more favored route in the case of amine and thiolate nucleophiles.

5.2.1.4 General limitations of indirect methods

Indirect approaches to profile redox-modified proteins are invaluable tools. However, they suffer from several important drawbacks that mean data must be interpreted with caution. Most importantly, indirect methods are limited by the scope of residues covered by the proxy. For instance, in cysteine ABPP, a fraction (around 1%) of all cellular cysteines are detected. Thus, a high-resolution picture of a fraction of the cysteome is painted, while the bulk of cysteines are ignored. Additional issues include: as these systems are typically assayed in lysates (soluble proteome) exposed to a bolus of reagents, they are unable to capture spatiotemporal nuances of redox signaling. Secondly, there is no precise information provided on what mechanism leads to loss of the proxy: the profiled residue could possibly be modified in several ways other than by the compound of interest including oxidation, degradation, change in secondary associations and disulfide bond formation. Additionally, using a proxy such as IAM or NEM has its intrinsic limitations. Any protein that does not react with the proxy probe, regardless of whether it reacts with the compound of interest, cannot be scored as a hit. Additionally, even though these proxies are thiol-reactive, they have different reaction chemistries, transition state addition geometries and give different products, all of which influence the product spectrum.(889,890) For instance, IAM reacts with thiols using S_N2 chemistry whereas NEM reacts through Michael addition. NEM and IAM also have different reaction kinetics with NEM being at least 2 times more reactive than IAM to thiols under physiological conditions.(889) The rate of reaction between NEM and cysteine is also much less pH dependent than reaction of cysteine with IAM. NEM also reacts with lysine and histidine side chains in addition to cysteine which may influence profiling results (either through direct addition, or indirectly through influencing reactivity of other residues/associations/stabilities) and should be considered when choosing the right proxy.(889,891) Both NEM and IAM react with sulfenic acids, which may affect quantitative analysis by underestimating sulfenic acid content,(892) although with careful analysis such adducts can be differentiated from adducts to thiols by mass spectrometry. Finally, across the iterations of general profiling reagents developed (IAM to oxaziridine), the complexity of the probes has increased. It has not been systematically addressed how the specific residues labeled by the probes is biased by the “ligandable” interaction of the probes. However, such considerations should really be addressed (possibly by adding an inert analog to the mixture and measuring which residues show reduced labeling) prior to declaring that a general probe has been developed for profiling a specific residue.

In addition, as indirect methods measure loss of labeling, they are prone to false positives: if modification of a functionally-coupled residue to a cysteine hinders its ability to label the probe and therefore its detection, it may show up as a positive hit. Independent secondary validation can mitigate such problems, although reduces the overall utility of the method. Additionally, some indirect approaches such as competitive-isoTOP ABPP require treatment with the probe in lysate because of probe impermeability and/or toxicity.(881,884,893) This strategy is ultimately flawed since different cellular components are at different redox states(187) and the oxidation state of the cysteine residues may be affected giving confounding results. Moreover, uncontrolled bulk exposure of cells and organisms to reactive small-molecule signals may result in global modification of proteins that may not be physiologically relevant. Recently developed caged electrophilic proxy probes, which are cell-permeable and release the reactive probe upon UV light illumination, mitigate the issue of high toxicity and cell permeability encountered with proxies such as IAM.(887,894) Additionally, performing isoTOP ABPP on isolated intact organelles such as mitochondria may help preserve organelle redox environment,(895) although such protocols are complex and the benefit relative to performing experiments in live cells/organisms is likely marginal. Finally, this method will also likely not be able to identify residues that are endogenously modified as they may not be detected by the probe.

5.2.2 Direct methods to detect cysteine modifications

5.2.2.1 Nucleophilic probes for detecting sulfenic acid modification

Small-molecule probes for direct detection of sulfenic acid modification exploit the ambiphilic nature of the modification. Most recent advances in detecting sulfenic acid modification are based on the use of 5,5-dimethyl-1,3-cyclohexanedione (dimedone).(5,395,896–899) The earliest reaction between protein sulfenic acid and dimedone was used to characterize oxidized GAPDH. Covalent modification of GAPDH-SOH with dimedone inactivated the acyl phosphatase activity of oxidized enzyme.(900) Since then, many fluorescence-,(896,901) biotin-,(901,902) azido-,(903,904) and alkyne(905)-tagged dimedone-based probes have been developed to detect sulfenic acid in vitro and in cells. Although dimedone is reactive towards aldehydes and amines at very basic pH or in organic solvents, no such reactivity was observed in aqueous conditions.(896,906) Additionally, dimedone is also reported to be selective towards sulfenic acid as other cysteine oxoforms such as S-nitrosothiol, sulfoxides, sulfinic and sulfonic acids, and disulfide are unreactive with the probe in aqueous conditions. However, sulfenylamides have been recently shown to react with dimedone.(907)

The first dimedone-based probe consisted of the fluorophores isatoic acid (DCP-MAB) or 7-methoxycoumarin (DCP-MCC) conjugated to dimedone (Figure 18A).(896) The reactivity of the probes to sulfenic acid was tested using a mutant AhpC, a 2-cysteine peroxidase enzyme, that forms a stable sulfenic acid because it lacks the resolving cysteine. The stabilized sulfenic acid was efficiently labeled with DCP-MAB and DCP-MCC. The flurry of second and later generation probes has now found widespread use. For example, DCP-Bio1 was used to detect sulfenylation of the protein tyrosine phosphatases SHP-1 and SHP-2 as well as actin upon T-cell activation.(908) Sulfenylation of the protein targets was critical for the downstream signaling responses in these cells. DCP-Bio1 was used to show that a specific kinase isoform is susceptible to sulfenylation. Akt2 was identified as sulfenylated upon growth factor stimulation of fibroblast cells.(868) Recent work using DCP-Bio1 has shown increased protein sulfenic acid modification upon VEGF stimulation of endothelial cells.(909) The authors demonstrated that in actively migrating HUVECs, VEGF-induced protein sulfenic acid colocalized with the cytosolic subunit of NOX and IQGAP1, an actin- and Rac1-binding scaffolding protein, at the leading edge of the lamellipodia. Although the authors cede that this is certainly not direct evidence that IQGAP1-SOH is involved in migration, suppression of global S-OH using N-acetyl cysteine or dimedone, reduced migration of cells.

Figure 18.

(A) A selection of dimedone-based nucleophilic probes and (B) electrophilic probes for detecting sulfenic acid formation. (C) Aryl nitroso compounds enable detection of sulfinic acid although their reactivity with reduced thiol may limit their ability to detect sulfinic acid in biological systems. Capping reduced thiols with alkylating agents prior to probe treatment may mitigate this problem. A biotinylated aryl nitroso probe has recently been used for detection of sulfinic acid modified proteins in biological samples.

More recent additions to the arsenal of functionalized probes include alkyne and azido-tagged dimedone (Figure 18A).(903,905,910) Compared to probes with bulky tags such as biotin and fluorescent molecules, azido and alkyne-functionalized probes manifest better cell permeability. Another important consideration is that bulky tags may compromise protein labeling efficiency. DAz-1 and DAz-2, two azido-functionalized dimedone probes, and DYn-1 and DYn-2, two alkyne-functionalized probes, were recently developed. DAz-1 shows reduced reactivity with sulfenic acid compared to dimedone;(903) this issue was solved by development of DAz-2.(910) DAz-1 has been used to detect the global increase in sulfenic acid modification upon treatment of Jurkat cells with hydroperoxides.(904) Interestingly but perhaps unsurprisingly, distinct protein labeling patterns were observed when the probe was treated in lysate or in cells, underscoring the importance of probing these transient modifications in vivo (provided the probe has not biased localization, this would imply some locales respond stronger/ to a greater extent of sulfenic acid protein modifications following bolus exposure to OOH). DAz-2 has also been used to profile sulfenic acid modification in cells.(910) HeLa cells in suspension were treated with DAz-2 for 2 h in low serum media; modified proteins were enriched using Staudinger ligation with phosphine-labeled biotin and subsequently purified using Neutravidin beads. Enriched proteins were analyzed using mass spectrometry following gel electrophoresis and in-gel trypsin digest. Using this protocol, the authors identified 193 proteins sulfenylated in HeLa cells. 14 of these proteins were previously characterized to be prone to sulfenic acid modification. The identified proteins have been implicated in several physiological processes including redox homeostasis, DNA damage repair, metabolism, etc.(910) Recently, using the alkyne-functionalized probe, DYn-2 (Figure 18A) increase in protein sulfenylation was observed upon treatment of A431 cells with EGF.(905) The authors also identified EGFR as a novel sulfenylated protein. Interestingly, sulfenic acid modification resulted in a 1.5-fold increase in kinase activity of the enzyme. ESI-LC-MS/MS identified C797 within the ATP binding site of the enzyme as the sensing residue. A follow-up study demonstrated that C797 on EGFR is solvent-exposed, has a pK_a of ~5.5, and reacts with H₂O₂ with a second-order rate constant of >110 M⁻¹s⁻¹, distinguishing this residue from the remaining five other cysteines.(911) Importantly, mutation of this sulfenic acid-sensitive cysteine residue to a serine or alanine residue showed diminished response to EGF- or H₂O₂-mediated activation of the enzyme. However, it is important to note that the C797 mutant kinases had 4–7-fold lower kinase activity than the WT protein. Nevertheless, computational modeling identified an arginine residue, R841, which can interact with sulfenylated C797 and stabilize the catalytic loop, thus enhancing the kinase activity of the sulfenylated enzyme.(911)

Dimedone-based probes have also been used for quantitative determination of redox-dependent changes in sulfenic acid in purified proteins and in cells. One method used either native DAz-2 ([D0]-DAz-2) or deuterium-labeled DAz-2 ([D6]-DAz-2), to compare the relative oxidation of purified Gpx3 (a C64S/C82S mutant where two non-catalytic cysteines had been mutated was used) upon treatment with either low (0.1 equivalent) or high concentrations (1.5 equivalent) of H₂O₂ for 2 h in vitro.(912) Gpx3 stimulated with low concentration of H₂O₂ was conjugated with [D0]-DAz-2 and Gpx3 stimulated with high H₂O₂ concentration was conjugated with [D6]-DAz-2. The samples were then mixed 1:1, ‘clicked’ with alkyne-functionalized biotin with an acid cleavable linker, enriched and subsequently analyzed using mass spectrometry. The method successfully measured a 2-fold increase in oxidation of Gpx3 at the catalytic C36 upon treatment with higher concentration of H₂O₂. A similar method used an isotope-labeled [D6]-dimedone to first covalently modify sulfenic acid.(897) Subsequently, excess reagent was removed, and the sample was treated with iododimedone to modify any free thiols. The fraction of sulfenic acid modified protein could be determined by dividing the heavy-isotope labeled peak by the sum of the heavy and light peaks.(897) Another study using a light and heavy isotope9 labeled DYn-2 (DYn-2[D0] versus DYn-2-[D6]) recently identified ~1000 S-sulfenylation sites from >700 proteins in RKO cells treated with 500 μM H₂O₂ for 5 min.(898) Additionally, the method was used to quantify the changes in global sulfenylation upon EGF stimulation of A431 cells.(913)

Despite the widespread use of dimedone-based probes, one of the major concerns has been its slow reactivity with sulfenic acid.(906,914) Linear β-ketoesters, and derivatives of 1,3-cyclopentadione(915) have modestly higher reactivity with sulfenic acid than dimedone.(916) For example, the pseudo-first-order rate for reaction of sulfenic acid with 1,3-cyclopentadione is 0.0036 min⁻¹ compared to 0.0024 min⁻¹ for dimedone at pH 5.5 at room temperature. A thorough screen of a library of cyclic carbon nucleophiles recently identified several classes of “C19 nucleophiles” that feature 100- to 200-fold enhanced reactivity to sulfenic acid compared to dimedone.(917) A follow-up screening of possible targets of these different classes of carbon-nucleophiles identified >1280 sulfenylated proteins in non-stimulated RKO soluble proteome.(918) Surprisingly, only nine proteins were labeled by all the nucleophiles, demonstrating differential reactivity preferences. An important consideration is that treatment with different probes may alter the redox state of cells differently, thereby yielding non-identical labeling. Trapping cysteine-SOH, particularly for long incubation times, may significantly alter redox dynamics of the cell. Additionally, even with the fastest dimedone-derived probes that attempt to quantitatively trap cysteine-SOH at sufficiently rapid rates, the desired sulfenic acid trapping may not be possible if the reaction kinetics favors formation of mixed disulfides with GSH or other proteins.

5.2.2.2 Electrophilic probes for detecting sulfenic acid modification

Relatively fewer electrophilic probes for cysteine-SOH exist. 7-Chloro-4-nitrobenzo-2-oxa-1,3-dizole (NBD-Cl) (Figure 18B) has been used to demonstrate sulfenylation of the peroxidatic cysteine in alkyl hydroperoxide reductase C (AhpC) during the catalytic cycle of the enzymes.(919) A mutant AhpC where the resolving cysteine was mutated to a serine was used to trap the sulfenic acid intermediate. Although NBD-Cl can react with thiols, amines, and phenols under physiological pH, only thiol reactivity has been observed in vitro. NBD-Cl has also been used to characterize protein sulfenic acid formation in PTP,(920) human serum albumin,(921) and human α1-antitrypsin(922) in vitro. Recently, strained cycloalkynes have been developed as probes for sulfenic acid with 100 times faster reaction kinetics than dimedone (Figure 18B).(914) However, caution must be exercised as strained cycloalkynes react spontaneously with numerous nucleophiles, including thiols.

5.2.2.3 Detecting sulfinic and sulfonic acid modifications

Despite the growing evidence of sulfinic/sulfonic acid modifications in redox regulation of proteins,(683,684,696,697) there are only a few methods to detect such modifications. Sulfinic acid and sulfonic acid modifications on cysteines can be detected using mass spectrometry by a shift of 32 Da and 48 Da, respectively in the molecular weight of the cysteine residue.(923,924) However, this approach may be biased by adventitious oxidation during processing (especially in test samples that are already under oxidative stress) and it may also not have the resolution to distinguish constitutional isomers, e.g. hydropersulfides versus sulfinic acids. Coupling this approach with 2-D gel electrophoresis relying on the acidic shift caused by sulfinic and sulfonic modifications has also been used.(925,926) However, these methods are low throughput and have limited applications in profiling novel targets of cysteine sulfinic/sulfonic acid modifications. Enrichment of modified proteins followed by digest mass spectrometry is an appealing option. Enrichment methods have focused on the use of the additional negative charge on SO₃H at acidic pH. The pK_a of SO₂H and SO₃H are ~2 and ~ −3 respectively.(927) Selection of SO₃H-modified peptides can be performed using either positively- or negatively-charged resins.(924,928) Polyarginine-coated nanodiamonds can selectively enrich sulfonylated BSA and oxidized insulin chains A and B from a complex mixture of tryptic peptides.(924) The enrichment method showed excellent selectivity toward sulfonylated peptide such that oxidized insulin chain could be detected even in the presence of 5000-fold excess of contaminating peptides. Importantly, enrichment using polyarginine-coated nanodiamonds coupled with MALDI-TOF/TOF MS was also selective for sulfonylated peptides over poly-phosphorylated peptides, even though the two groups are chemically very similar. Recently, a tandem negative selection using strong cation exchange followed by a positive selection by Hydrophilic Interaction Liquid Chromatography (HILIC) identified ~180 SO₂H / SO₃H modified cysteine sites in rat myocardial tissue extracts treated with H₂O₂.(929) Importantly, IR injury via Langerdorff perfusion, a method to study the heart as an isolated system,(930) significantly increased SO₂H-/SO₃H-modified peptides from proteins involved in oxidative stress response and metabolic processes.

Detection of highly charged species using mass spectrometry has its own set of complications. The high negative charge of the sulfonylated peptide can inhibit ionization by MALDI. Moreover, the sulfonic acid group can experience a neutral loss of 80 Da by collisio-induced dissociation (CID) making the determination of specific modified cysteine residue challenging.(931) A recent alternative approach has used aryl nitroso compounds to trap sulfinic acid modification (Figure 18C).(932) A sulfinic group can form a sulfonyl-hydroxylamine adduct upon nucleophilic attack with an aryl nitroso compound. An electrophilic center such as an ester at the ortho-position of the aryl nitroso compound can then trap the oxyanion by intramolecular reaction thus generating a stable cyclic product (Figure 18C). The aryl nitroso compounds were shown to be stable in aqueous conditions (t_1/2 > 8 h) and react with sulfinic acid groups at a first-order reaction rate of 0.31 s⁻¹. Importantly, no cross reactivity was observed with other nucleophilic functional groups such as lysine, serine, threonine, or other oxidized thiol species such as sulfenic acid, sulfonic acid, or sulfonamide in vitro.(932) Cysteine thiols, however, do react with the probe resulting in the formation of cystine and reduced nitroso products (Figure 18C). This problem can perhaps be mitigated by first capping reduced thiols with alkylating agents such as NEM.(933) Recently, a biotinylated aryl-nitroso probe was used to detect protein sulfinylation in soluble proteome of H₂O₂-stimulated HeLa cells after capping all free cysteines with NEM.(933)

5.2.3 Genetically encoded probe to detect methionine oxidation

As we have alluded to above (section 3.11.1), methionine sulfoxide is a biologically relevant oxidation product.(934) Recently, the Gladyshev lab disclosed a ratiometric cpYFP-based method to measure stereospecifically the (R) and (S) forms of methionine sulfoxide.(934) The key insight in this method development was to fuse a stereospecific methionine sulfoxide reductase from yeast AND thioredoxin to the YFP, which become linked by a sulfide when they encounter methionine sulfoxides.

5.2.4 Identifying protein carbonylation by carbonyl capture

The reaction of hydrazine/hydrazides to aldehydes/ketones is a widely used chemical strategy to capture targets of LDE modification (Figure 19A).(935–937) Carbonyl groups on LDE-modified protein react with hydrazine to form a hydrazone adduct that requires reduction with sodium borohydride prior to downstream analysis. Hydrazine conjugated to fluorophores,(938) biotin(935) or dinitrobenzene have also been developed for determination of protein carbonylation by imaging,(938) streptavidin enrichment(939) or western blot(935) respectively. Hydrazide-biotin probe coupled with LC-MS/MS identified oxidatively-induced protein carbonylation in brains of aged mice(940) and profile targets of various LDEs including HNE,(941) acrolein,(550) MDA and ONE (942) (Figure 19A). Global analysis of LDE-sensitive proteins upon treatment of human RKO cells with HNE, derivatization of the modified proteins using biotin hydrazide in lysate, and subsequent enrichment coupled with MS identified >1500 HNE-modified targets of which ~400 targets showed increase in HNE adduction upon increasing HNE concentration.(941) In line with the results from the isoTOP-ABPP method,(881) protein interaction network analysis has indicated several functional cellular networks as hotspots of HNE modification including those involved in protein folding, degradation, and protein translation.(880,881,941) Surprisingly, only 25% of proteins identified using competitive isoTOP-ABPP were identified using carbonyl capture method. A possible reason could be the use of MDAMB-231 in the former study and RKO cells in the latter. Nonetheless, the small overlap in the HNE-sensitive proteins identified using two different approaches exemplifies the need to exercise caution when choosing the right profiling method for an experiment.

Figure 19.

(A) A selection of nucleophilic probes used for aldehyde capture of proteins-modified with endogenous electrophilic signals. Biotinylated and fluorescently-labeled hydrazide can be used for aldehyde capture for detection by WB/mass spectrometry and in-gel fluorescence, respectively. (B) Biotinylated and fluorescently-labeled LDEs can also be used to directly enrich or detect protein targets. Alternatively, alkyne and azide functional groups provide largely non-intrusive handles to assess protein targets of electrophiles. (C) Schematic of direct methods for profiling LDE sensitive cysteines in the proteome. Cells/lysates are treated with an excess of alkyne-functionalized RES (red diamond). Modified proteins are either observed using in-gel fluorescence after click-coupling with fluorophore-azide or enriched using streptavidin beads post click coupling with biotin-azide. Subsequent tandem-MS reveals the modified peptides, and depending on the experimental context, the site(s) of modification.

Another proteomics method based on carbonyl capture was recently described which combines an ABPP approach with either an aminooxy probe (943) or a aniline-derived probe (944) to capture carbonylated proteins modified by LDEs. This method addresses a limitation of traditional ABPP by offering a direct readout of modified proteins (by LC-MS/MS), as it does not rely on signal loss (of iodoacetamide labeling, for example) for scoring hits. Still, these latest studies further underscore the need to carefully choose a profiling probe: under identical HNE5 treatment conditions, the aniline probe captured >1000 carbonylated cysteines, while the aminooxy probe only captured about 300.(944)

A general limitation of carbonyl capture-based methods is that the detection of protein modification is not specific to any particular LDE. Additionally, the reactivity of the probe should also be taken into consideration. For example, dinitrophenylhydrazine (DNPH) can also react with sulfenic acid thus complicating the interpretation of results.(945) Finally, the carbonyl of the LDE may not be present post-target adduction if it is reduced or otherwise rendered non-reactive to nucleophilic carbonyl capture probes (see Section 3.9.3 and Figure 9).

5.2.5 Profiling electrophile-responsive proteins using specific LDE-analogs

LDE-specific analogs mitigate some of the problems of DNPH-based carbonyl capture methods (Figure 19B). They allow for profiling direct interaction of a specific LDE to proteins in the proteome. Of course, modification of the lipid can drastically change the lipid’s properties. However, provided the probe is modified in a position likely to not perturb associations/reactivity too significantly and a good secondary downstream assay is available, this method can be useful. BODIPY conjugated with the electrophilic lipid 15d-PGJ₂ has been used to monitor the subcellular localization of the lipid.(946–948) Additionally, biotin-conjugated 15d-PGJ₂ has enabled enrichment and identification of protein targets of the electrophile in cells and isolated cellular organelles.(949) 15d-PGJ₂ was shown to promote calcium-induce swelling of isolated rat liver mitochondria and subsequent cytochrome-C release.(949) This induction was believed to be triggered as a result of covalent modification of various mitochondrial protein targets. Yet another group used a biotinylated probe called PLPBSO, an analog of glycerolphosphotidylcholine, an abundant phospholipid in biological membranes, supplemented to isolated human plasma to identify targets of lipid peroxidation products upon treatment with a free radical initiator. (950,951) Free radical oxidation of PLPBSO results in oxidative cleavage to generate aldehydes which can modify proteins. LC-MS/MS coupled analysis subsequent to enrichment of protein targets by biotin affinity pulldown revealed apolipoproteinA1 (ApoA1), the principal component of high density lipoprotein, as the most highly lipid-derived aldehyde modified protein.(951) Similarly, biotinylated AA has been used to detect targets of various LDEs generated upon co-treatment of cells with oxidants such as hemin.(948) AA generates a number of LDEs upon non-enzymatic lipid peroxidation including HNE, isoketals and isoprostanes all of which are highly reactive and can modify proteins (see section 2.2.1.2). Before using such derivatives, one must ensure that introduction of the tag does not significantly alter its physicochemical and biological properties. It is essential to have appropriate controls to delineate any artifacts associated with the tagged probes. For instance, recently a probe mimicking reactive enals was described. The probe consists of an acrylamide moiety directly conjugated to BODIPY.(952) Importantly, in the absence of conjugate addition to the enone moiety the BODIPY is dark, but once conjugation between the dye and enone systems is broken by Michael adduction, BODIPY fluorescence increases (350 fold). It is proposed that these sorts of reagents can report on endogenous reactive thiols in cells. However, to date no systematic analysis of the reactivity spectrum of these sorts of reagents has been described, and it remains unknown how even transient interactions between dyes and proteins can lead to “ligandable cysteine” type interactions. Thus, these sorts of probes must be viewed with caution.

As we stated above, biorthogonal tags such as alkyne/azido and cyclooctyne are suitable alternatives to bulky fluorescent and biotin tags (Figure 19B). The minor modification minimizes artifacts that can be observed due to even remote functionalization with bulky tags. Proteins modified with alkyne and cyclooctyne functionalized LDEs can be analyzed using in-gel fluorescence or enriched for LC-MS by conjugating with fluorophore or biotin tags using click chemistry and Staudinger ligation, respectively. Alkyne-functionalized LDEs such as HNE and ONE are now routinely used for MS profiling experiments. (537,953–955) One of the earliest examples is the use of HNE-alkyne/azide to profile HNE-sensitive targets in RKO cells.(953) Cells treated with the appropriate probe were lysed and conjugated with biotin-azide/alkyne using Click chemistry. Subsequent enrichment using streptavidin beads and proteomic analysis identified several heat shock proteins and proteins involved in stress response pathways to be targets of alkyne/Azido-HNE in RKO cell lysates. A recent modification of the method used a photo-releasable streptavidin linker to conjugate to HNE alkyne-modified human plasma proteins in vitro, thus minimizing elution of non-specific proteins bound to streptavidin beads.(955) Recently, a similar approach was used to profile protein targets of HNE and ONE added to RKO and THP-1 cells.(954) >1000 proteins were identified in each cell type to be sensitive to the electrophiles HNE and ONE. Comparison of the protein targets revealed a list of 447 proteins that are susceptible to modification with both electrophiles in both cell types. Not surprisingly, these targets comprised proteins important in various biological processes including protein translation, DNA replication, protein folding and metabolism.(954) Additionally, treatment with a range of electrophile concentrations and subsequent analyses showed that electrophile protein targets display distinct reactivity profiles in line with results obtained using competitive isoTOP-ABPP profiling methods.(884) However, only ~90 of the 800 targets identified using isoTOP-ABPP were also identified in THP1 cells to be modified with HNE or ONE alkyne at any concentration. The number of overlapping targets was even lower in RKO cells (64 targets) demonstrating that the individual method chosen for MS profiling can have significant influence on the protein targets identified. A recent advancement of the method to capture protein targets of electrophiles using LDE-analogs incorporated isotopically-labeled and photocleavable azido-biotin reagent to capture and quantitatively assess protein targets of HNE alkyne in cells.(537)

5.2.6 Targetable methods for LDE-sensitive protein screening and functional validation

A major drawback of currently available methods to profile LDE-sensitive proteins in cells is that the methods require bolus treatment with an excess of the LDE under study from outside the cells/animals. These conditions most likely alter the redox state of the cell/organism, and trigger apoptosis. Nuances of temporal and compartmentalized signaling dynamics are also lost under bulk LDE exposure. It is thus challenging to recapitulate true spatial/temporal sensing under controlled settings using these methods. Another important consideration is that bolus dosing-dependent methods yield a high background of proteins that are likely not important sensors in a cellular context. Thus, distinguishing the true ‘privileged sensors’ from the noise generated by other contaminating proteins in the backdrop of general redox perturbation caused by excess electrophiles becomes a challenging task. Profiling experiments done by titrating a range of LDE concentrations may alleviate some of the problems associated with bolus dosing methods.(954) However, additional factors such as cellular abundance of the protein, cell permeability of the LDE, reaction of the LDE with the plasma membrane and membrane-bound proteins, cellular metabolism/excretion, etc. complicate the analysis of results obtained.

5.2.6.1 G-REX profiling of privileged LDE sensors

Recognizing these limitations, a high throughput (HT)-profiling method, termed G-REX, was recently disclosed that uses an alkyl chloride-functionalized photocaged RES precursor that binds selectively to HaloTag, a protein engineered from a bacterial dehalogenase enzyme. HaloTag shows excellent orthogonality and specificity and conjugates with the chloroalkane ligand with a second-order rate constant of 3 × 10⁶ M⁻¹s⁻¹,(956) resulting in 1:1 Halo-POI:photocaged LDE complex.(957) Using this strategy, a maximum of 5 eM of HNE-alkyne was released within the cell over 5 min.(720) This concentration is tunable by controlling either the expression level of HaloTag and/or the extent of light illumination. Thus, under electrophile-limited conditions, the nascent HNE liberated at a concentration substoichiometric to that of HaloTag is competitively captured by the privileged sensors within the vicinity of Halo. As such, issues associated with metabolism/permeability are sidestepped while gaining absolute control on locale, time, dose, and chemotype of LDE released in cells. Following cell lysis, HNEylated proteins were identified using streptavidin click/biotin affinity enrichment and LC-MS/MS. Initial work involving ubiquitous HaloTag expression in HEK293T cells, namely global HNE release in situ, identified two novel HNE-sensitive proteins, Ube2V2 and Ube2V1. These proteins were responsive to HNE both in vitro and in cells and zebrafish.(720) Time will only tell how much of an advantage G-REX offers over conventional methods, and how much the presence of HaloTag and photouncaging biases targets. What is relatively clear is that G-REX and ABPP do not show huge overlap in their profiled targets, indicating the complementary nature of the two technologies.

5.2.6.2 T-REX delivery of LDEs

While existing profiling methods including G-REX altogether offer multiple unique ways to identify sensors, a method to directly link precision modifications of these sensors to functional response in living systems was non-existent until recently. To bridge this gap, ‘Targetable reactive electrophiles and oxidants (T-REX)’ was invented as a means to directly monitor single-POI-specific non-enzymatic modification events and downstream signaling ramifications in cells, fish and worms (Figure 20).(251,252,259,390,512,957-960) T-REX uses a proximity-driven approach (961) to release a maximally-stoichiometric amount of LDE within the microenvironment of a protein of interest (POI). Like G-REX, a genetically-encoded HaloTag is employed but it is fused to a protein-of-interest (POI).

Figure 20.

Workflow of G/T-REX. (A) G-REX employs expression of HaloTag in live cells to bind a non-invasive photocaged precursor to HNE (Ht-PreHNE; see inset) and release maximally 5 μM HNE in situ upon photoactivation. This method can be coupled to proteomics to globally profile privileged RES sensors. (B) T-REX is built on a proximity-targeting concept of a freely-diffusible RES (demonstrated thus far for various native bioactive LDEs such as HNE) to a specific sensor protein-of-interest (POI). As such, T-REX enables low-occupancy on-target RES-modifications at a user-defined time and space in living systems which can be directly linked to functional redox responses (thus far proven compatible with live cells, fish, and worms). Under these native electrophile-limited settings, competition is set up between innate diffusivity of RES and reactivity (kinetic privilege) of the sensor protein/cysteine. T-REX involves incubating the live cells/animals expressing functional HaloTagged-POI with sub-micromolar bioinert bifunctional photocaged precursors to an LDE such as HNE (see Inset) non-invasively, followed by rinsing out the excess probe unbound to Halo, and subsequent light exposure. The latter rapidly liberates the LDE in the amount at maximum stoichiometric to in vivo concentration of Halo-POI within the coordination shell of the Halo-POI. Built-in controls ensure/account for no off-target labeling/responses.(252,259,389,512,609,957,958) Signaling consequences resulting from the on-target LDE modification of a privileged LDE-sensor POI have been shown to be evaluated using various downstream readouts.

Inset: One terminus of the bifunctional photocaged probe (exemplified for HNE) consists of a hexyl chloride linker (brown) that can covalently conjugate with high specificity and affinity to a HaloTag (gray) genetically fused to a POI (blue). The other terminus consists of photocaged-LDE which upon photouncaging using a low-power UV lamp generates LDE such as HNE.

As an initial proof of concept, two known redox-sensitive proteins, Keap1 and PTEN, were selectively modified with HNE in mammalian cells with minimal labeling of other proteins in the proteome.(957) Importantly, the labeling efficiency on each redox-sensor protein can be calculated using Click chemistry to conjugate a fluorescent azide molecule to the alkyne handle within the photocaged HNE conjugated to Halo and that on the HNEylated POI. The targeting efficiency on Keap1 for instance was calculated to be ~30–55%.(512,609,957,959,962) As delivery efficiency is formally the partitioning between two unimolecular rates [pseudo-intramolecular LDE conjugation in the solvent cage (dependent on the nucleophilicity of the POI) and diffusion of LDE away from the POI (reflecting the binding capacity of the POI for the LDE)] the lower labeling efficiency typically reflects the lower electrophile sensitivity of the POI.

T-REX has also been used to unequivocally demonstrate the significance of a target-specific modification at low stoichiometry in regulating redox signaling pathways.(259,512,958) Selective HNE-modification of Keap1, an adaptor protein that aids in the ubiquitination and the subsequent degradation of the transcription factor Nrf2, increased the global pool of Nrf2 in HEK293T cells.(259) Increase of Nrf2 levels led to a concomitant increase in its transcriptional activity measured using a reporter assay and using qRT-PCR to quantify the increase in transcript levels of Nrf2-driven genes. Performing T-REX in a ‘non-fused’ system, where the HaloTag and Keap1 were expressed as two separate proteins, did not result in any labeling of Keap1 and no resulting activation of the Nrf2 transcriptional activity. The ‘non-fused’ system clearly demonstrated the importance of selective modification of Keap1 using proximity enhancement (961) in Keap1 modification under T-REX conditions and subsequent Nrf2-driven AR in mammalian cells. MS analysis indicated C513 and C518 as the residues modified on Halo-Keap1 in cells. Interestingly, performing T-REX in vitro modified a different set of cysteines, C226 and C368, showing that cellular environment can have drastic impact on LDE-sensitivity of different cysteine residues. Mutation of the redox-sensing cysteine residues to serine did not ablate the LDE-sensing capability of Keap1 nor upregulation in Nrf2 transcriptional activity. These data suggested Keap1 is a promiscuous LDE-sensor.(259) Indeed, earlier reports have characterized each of the 27 cysteine residues on Keap1 to be modified in vitro by at least one LDE.(607,963)

Beyond showing that redox signaling may regulate multiple POIs/pathways including Keap1/Nrf2/AR,(259,389,609,957) PTEN,(957) HSPB7,(964) and so on, T-REX has been expanded to include a repertoire of caged LDEs including endogenous and non-endogenously-derived electrophiles as well as simple structural mimics of 15d-PGJ₂ and the electrophilic drug bardoxolone methyl (CDDO-Me).(259) Many of these compounds modified Keap1 to similar extents with very similar downstream targeting responses in mammalian cells. In vitro kinetic studies demonstrated a two-step model of electrophile-adduct formation to the target: (1) formation of an initial signal-target complex, and (2) subsequent covalent conjugation of the electrophile to the POI. The labeling efficiency of POI by a specific LDE is a function of the rate of covalent adduct formation offset by the rate of diffusion of the LDE away from the initial signal-target encounter complex.

Because T-REX enables the generation of a stoichiometric amount of a given LDE in close proximity to the POI, it is an ideal tool to quantitatively assess electrophile sensitivities of putative POIs and link individual specific modifications directly to function. HaloTag human ORFeome is also commercially available facilitating such discovery efforts (Kazusa collection, Promega). Akt3, an isoform of the oncogenic serine-threonine kinase Akt, was recently identified as a novel sensor of HNE from a screen of a library of functionally-validated Halo- fused kinases.(512) Neither of the other two Akt isoforms showed comparable HNE-labeling efficiencies to Akt3. HNE modification of C119, a residue in the highly divergent flexible linker region of the enzyme (Figure 10), downregulated the kinase activity of the enzyme in mammalian cells and in zebrafish.

Importantly, the overexpression levels of Halo-Akt3 in mammalian cells was around 20- fold greater compared to basal levels whereas in zebrafish the expression levels were comparable to endogenous Akt levels. Nonetheless, similar HNEylation efficiencies and extent of downstream signal modulation were observed in both cases. These results underscore that T-REX-assisted POI modification is entirely proximity directed quasi-intramolecular process, independent of POI expression levels. Furthermore, selective modification of only a fraction of the total POI was sufficient to trigger downstream signaling responses, suggesting a dominant-negative regulatory role of Akt3. Downregulation of the kinase activity by Akt3 HNEylation led to a consequent increase in the transcriptional activities of FOXO and p53, bona fide targets of the Akt signaling axis. Additionally, replicating T-REX on Halo-Akt2 did not yield these results. More importantly, Akt3(C119S)—sensing defective but otherwise functional kinase—was hypomorphic for all downstream phenotypes, ruling out the possibilities of off-target effects.(512)

An important advantage of T-REX over other profiling methods is that the discovery efforts can be streamlined with a unique means to validate the identified sensor robustly.(512,959) Despite the powerful capabilities of chemoproteomic platforms to identify redox sensors and pin-point sites of modification on these targets, these methods do not allow modification selectively of the identified targets for functional validation. Downstream validation typically involves replicating bolus dosing treatment of knockdown cells or cells expressing LDE-insensitive mutants and subsequently measuring phenotypic response. However, such methods overlook the contribution from a number of other redox-sensitive proteins/pathways, which are also modified using bolus dosing, to the measured response. T-REX provides a means to engender temporal and spatial control in triggering individual redox events. Additionally, T-REX is amongst only a handful of methods(958) transposable to study redox signaling in a spatiotemporally-controlled manner in various model organisms including E. coli,(959) mammalian cells,(259,957,959) C. elegans,(512) and zebrafish.(512) Together with G-REX, the dual REX technologies enable both systems-level profiling of low-occupancy privileged sensors under biologically-relevant settings as well as mechanistic interrogations into their signaling consequences at high biological resolution and target precision.

5.2.6.3 Limitations of REX technologies

On the surface, T-REX appears to be a bona fide way of identifying privileged sensor cysteines.(390,512,959) Proteins that can undergo successful modification via T-REX are relatively few; those that do sense LDEs under T-REX typically undergo change of function that have phenotypically-dominant outputs. The main issue of T-REX is low throughput. This significant issue was solved by the introduction and validation of G-REX. Coupling of G-REX and T-REX makes a relatively compelling combination, although T-REX can in principle be used to validate any potential sensor of LDE derived from any screen.

The physicochemical basis behind T-REX/G-REX appears to be sound, as several builtin controls have shown [namely, the split construct,(259,609) hypomorphic mutants,(512) no-light vs. no-photocaged probe,(389) and varied transgene-expression levels in various models (512)]. However, T-REX/G-REX delivery is limited to photochemical uncaging. So far, this has proven to be a minor inconvenience as T-REX/G-REX has worked well with transparent model organisms. (Thus far, G-REX has not been tested in anything other than cell culture, although it was shown to be noninvasive in that manifold).(512) Obviously, the requirement for photouncaging will be much more of an issue for application of REX-technologies to mice and similar organisms. Furthermore, while little evidence has arisen to show signs of UV-damage during T-REX/G-REX,(252,259,389,512,609,720,957,960,962,964) it is likely that some cell types/mutants will be adversely affected by such conditions. Two-photon uncaging could be one means to avoid these issues.

For T-REX to be carried out to a specific POI, the POI must be fused to Halo. There has been extensive characterization of Halo-fused proteins, including Promega Kasuza library,(956,965,966). In most instances, such chimeric proteins have proven to be functional. However, this does not mean that Halo is inert/does not exert any impact on POIs fused to it. Promisingly, where applicable, C and N terminal Halo fusions give similar delivery efficiency, allowing some flexibility.(389) Since T-REX uses ectopic expression of a Halo-tagged protein, there are several other potential issues: (1) the endogenous protein that cannot accept the HNE signal may suppress downstream signaling; this has proven to be a minor issue as T-REX is designed to assess phenotypically dominant (i.e., low stoichiometry) downstream signaling, events and in cell culture, at least, the target POI is overexpressed (rendering the contribution from the endogenous copy minimal; and nonetheless be easily validated using built-in controls discussed above); (2) the target POI is typically overexpressed. Requirements for overexpression, of course are their own limitation. However, T-REX works in zebrafish and C. elegans where Halo-POI-transgene expression is typically close to endogenous levels. Expected downstream signaling phenotypes were still observed.

Finally, it is possible that T-REX could “force” HNEylation of target POIs. In recent papers, it has been shown [in the case of HSPB7 (964) and Ube2V2 (720)] that proteins that are identified as HNE-sensitive show much faster association kinetics with HNE in vitro than known HNE-responsive proteins and proteins with known nucleophilic thiols.(720,964) These data are consistent with T-REX identifying proteins that react rapidly with HNE, although more detailed assessment of reaction kinetics can help bolster this claim.

5.3 Immunological approaches to identify RES/ROS modifications of target proteins

Immunological methods have the potential of enhancing the selectivity and sensitivity for the detection of targets of redox signals. However, the small size of redox modification as well the large number of targets that redox signals modify has made the use of immunological methods for their detection challenging. Recent advances have allowed trapping of redox modifications with various chemical probes which can then be probed by antibodies as a secondary detection strategy. For example, DNPH has been used to capture carbonyl modification on proteins, which can be detected using anti-DNP antibodies in a method broadly known as OxyBlot^TM.(967–970) Moreover, antibodies can be used for enrichment prior to LC-MS identification of protein targets.(971) Recently this method was coupled with 2D SDS-PAGE analysis to identify proteins that are carbonylated upon premature senescence in WI-38 fibroblasts.(972)

5.3.1 Immunological methods to detect sulfenic/sulfinic/sulfonic acid modifications

Sulfenic acid can be trapped using dimedone based probes. An antibody to dimedone-conjugated sulfenic acid modification has recently been developed and used to profile differential thiol oxidation in various tumor cells.(973) The antibody was also used to show that EGF signaling results in sulfenylation of catalytic cysteine of EGFR.(974) This modification is NOX2-dependent and results in the activation of the kinase. A similar antibody against SOH-derivatized with dimedone was developed and used to study whether oxidation of GAPDH and its subsequent inactivation can cause secondary protein sulfenylation in isolated rat myocytes.(975) Antibodies to specific sulfenylated proteins such as PTPs and Prx have also been generated and/or are available commercially.(976,977) Additionally, antibodies to sulfinic or sulfonic acid modifications on specific peptides have also been developed.(696,978)

5.3.2 Antibodies to lipid aldehyde-modified proteins

Antibodies to various lipid peroxidation products have been generated. An anti-4-HNE conjugated to cysteine antibody has been used to detect lipid peroxidation product as markers of oxidative stress in cells and tissues.(979) The earliest use of immunology was to detect 4-HNE modified proteins in crude homogenates from rat liver hepatocytes treated with HNE or under oxidative stress by treating with t-BHQ.(979) The detection was abolished if the antibody was preincubated with HNE-N-acetyl lysine, HNE-N-acetyl histidine or HNE-glutathione, demonstrating the specificity of the antibody to HNE modified structures. Antibodies have been used to demonstrate HNE modification of I B kinase(257) and tubulin(980) with functional consequences in cells. Antibodies for a number of lipid peroxidation products such as HHE-histidine(981) and MDA-lysine(982,983) have also been developed. One interesting approach has been to develop antibodies to stable cyclic adducts of lysine. For instance, acrolein adducts to lysine form N-(3-formyl-3,4-dehydropiperidino) lysine, likely through sequential Michael adduction followed by aldol condensation. Antibodies to this product have detected acrolein adducts in cell extracts.(984,985) The 2-pentylpyrrole function is formed upon reaction of HNE with lysine.(986,987) This antibody was able to detect HNE-labeled human serum albumen. Similar pyrroles derived from reaction of lysine with LDEs were shown to be elevated in plasma of patients suffering from macular degeneration using a specific antibody.(988) Additionally, antibodies to 15-d-PGJ₂ have been used to detect this prostaglandin in cells using IHC and show proteins modified by 15-d-PGJ₂ using ELISA.(266,989)

Antibodies are useful to detect specific protein modifications, yet they often face problems of cross-reactivity. For instance, anti-HNE antibodies cross-react with 4-hydroxy-2-decenal, 4-hydroxy-2-octenals well as lysine-ONE modifications.(571,990) Additionally, antibodies may be limited to detecting only one form of modification to a particular LDE. HNE, for example, has two reactive groups. It can form a direct cysteine adduct at C3 and/or react with another lysine at the carbonyl moiety of the free aldehyde group resulting in a Schiff base. Additionally, HNE adducts can also lead to intramolecular cyclization forming a cyclic product (Figure 13B). An antibody specific to a particular form may not detect other forms thus introducing significant bias and limiting results. Additionally, antibodies do not provide information on the site selectivity of these redox modifications. Antibody-based enrichment coupled with digest mass spectrometry can mitigate this issue.(971)

6. RES/ROS SIGNALING IN DISEASE AND THERAPEUTIC INTERVENTIONS

We will lay out below a case for RES/ROS signaling being important in health and disease. Data hinting at correlations between RES/ROS signaling and (un)wellness have been around for many years. However, as we describe most of these reports are circumstantial and require significant leaps of faith to ascribe any specific phenotype to any specific (or even general) RES/ROS chemotype.(509) In general, in this field, RES are often used as a proxy for ROS. However, the situation is often complicated, and there is significant evidence indicating that RES contribute directly to disease states. In this specific context, our discussion is centered on HNE as the best-studied endogenous RES. In line with an overall focus on RES/ROS-based therapeutics, we devote this section to broad-specificity small-molecule electrophilic drugs either approved or currently/previously in clinical trials (Figure 21). Many of these pharmacophores tap into redox-modulated pathways. We first examine the broader pathological roles of these native and synthetic reactive small molecules in various disease states, with emphasis on cancer, diabetes, neurodegeneration, and multiple sclerosis. It is ultimately likely that the pleotropic nature of RES and ROS, and the fact that they occur typically in tandem mean that healthy and disease phenotypes are attributable to multiple RES/ROS acting in concert. We finally analyze, using Nrf2, FOXO, and Wnt/β-catenin signaling as case examples, the role of crosstalk between RES/ROS-responsive proteins regulating various signal transduction pathways. Building on these latest findings, we discuss how RES/ROS-signal wiring may be altered to accommodate a specific pathological state, and how this emerging knowledge about context-specific alterations in pathway intersections may be exploitable for novel interventions. One of the key motivations of this chapter is to illustrate how redox signaling in general is a complex process that regulates numerous pathways and exerts its influence on many signaling nodes above and beyond the Nrf2/AR pathway.

Figure 21.

Small molecules bearing electrophilic pharmacophores approved by the FDA (year approved in parenthesis) or currently in clinical trials in the treatment of indicated disease. HER2⁺: human EGFR-2-positive. MS: Multiple sclerosis. NSCLC: Non-small cell lung carcinoma.

6.1 Diabetes

Several studies have implicated high ROS levels in diabetes etiology. Type II diabetes, for instance, is exacerbated by elevated ROS levels(991) that are caused by hyperglycemia, increased non-enzymatic glycosylation, and activation of the ETC.(992) ROS elevation in turn causes several responses including, decreased insulin expression and upregulation of stress-activated protein kinase/c-Jun amino-terminal kinase (JNK).(993,994)

Unsurprisingly, the extent of RES-adducted proteins also increases in obesity and diabetes.(995) 4-HNE levels are also elevated in the non-diabetic obese population.(996) This may be partly caused by a decrease in GST-α4(997) and concomitant decrease in HNE metabolism.(998) HNE upregulation has several effects associated with diabetes including promoting adiposeness and insulin resistance.(999) Consistent with this argument, uncontrolled lipid oxidation products are associated with uncontrolled diabetes.(1000)

One of the best studied pathways of stress relevance in disease including diabetic models is AR. CDDO-Me and some analogs, which are all potent steroid-derived AR stimulators, have shown potency in animal models of diabetes (Figure 22).(1001) CDDO-Me reached clinical trials for its ability to suppress end-stage renal disease, the most advanced stage of kidney disease where diabetes mellitus is a key risk factor. Unfortunately, little therapeutic effect was found. In addition, deleterious off-target effects(1002–1004) were also reported. Optimization of CDDO-Me, or possibly, use of alternative Nrf2-stabilizing motifs(1005) may improve efficacy while alleviating off-target effects, although more work is required in this area.(1006)

Figure 22.

Elevated ROS and RES levels are markers of various diseases including diabetes, multiple sclerosis, and neurodegenerative disorders. Activation of ROS/RES detoxification pathways such as the Nrf2/AR has shown promise in ameliorating these diseases. However, pathways other than Nrf2/AR may play important role in mediating the beneficial effects of broad-specificity electrophilic drugs/drug candidates such as Tecfidera.

6.2 Neurodegeneration

Neurodegeneration is linked to elevated RES/ROS in neuronal cells.(1007,1008) Elevated oxidative stress markers have been detected in brains of patients with Alzheimer’s disease,(315) Parkinson’s disease,(1009) in amyloid-beta plaques,(1010) in cerebrospinal fluid of patients with amyotrophic lateral sclerosis (ALS; Lou Gehrig’s disease),(1011) and in Huntington’s disease.(1012) However, there is significant debate as to whether ROS is a cause or a consequence of these diseases. As we will see below, recent work has tried to use modern chemical biology techniques to understand ROS signaling and develop a quantitative understanding, although there is still a long way to go in this area. On the other hand, genetics experiments have shown that Nrf2 knockout significantly increases learning and memory defects in Alzheimer’s disease model mice.(1013) Subsequent work has shown that Nrf2 knockout mimics mRNA changes that occur during Alzheimer’s disease.(1014) These outcomes could also be due to non-ROS/RES-related functions of Nrf2. However, it is hard to ignore the strong relationship between Nrf2-driven AR and suppression of RES/ROS elevation. Unfortunately, neurons are extremely complex and transposition of model systems to humans has proven challenging. But numerous model systems for neurodegenerative diseases exist, including yeast,(1015) mice, fruit fly, worms(1016) and organoids,(1017) so there is much scope for experimentation and developing understanding.

ROS elevation appears to be an early step in many neurodegenerative diseases (Figure 22). However, exactly how ROS is elevated is less obvious. For instance, in Alzheimer’s disease, amyloid-β plaques contribute to elevated ROS. However, in vitro, the opposite is the case, i.e., plaques have low ROS-forming potential.(1018) In addition to amyloid-β, ROS may be activated through: metal chelation,(1019) mitochondrial defects,(1020) ER stress,(168) and microglia priming.(1021) Furthermore, downstream targets of ROS are also somewhat unclear. ROS has been postulated to: activate c-Abl,(1022) decrease/inhibit autophagy,(1023) stimulate inflammation,(1024) and modulate ubiquitin pathways (including proteolysis).(1025)

Regardless of the mechanism of generation/action, numerous models of neurodegenerative diseases have indicated that reduction in ROS levels can improve cognitive function and survival. Unfortunately, the effects of antioxidants supplements/drugs are often less impactful on humans than in model systems. In Huntington’s disease, for instance, numerous model systems are improved by treatment with antioxidants,(1026,1027) including α-lipoic acid,(1028) cystamine,(1029) coenzyme Q10,(1030) and plant-derived antioxidants.(1031) However, this strategy is not particularly effective in human patients,(1032–1034) although some unexpected long-term benefits may occur. Furthermore, new data using a C. elegans model suggest that oxidative stress is not a significant causative factor in Huntington’s disease.(1035) That being said, Edaravone (Figure S3) was recently approved to treat ALS. Edaravone is believed to have antioxidant properties,(1036) although these have not yet been directly tied to its mechanism.(1037)

Nrf2 activation may protect from neurodegeneration (Figure 22). In a Drosophila melanogaster model of Parkinson’s disease, for instance, elevation of Nrf2 (cncC, in D. melanogaster) signaling suppressed neurodegenerative changes. In this instance, cncC was upregulated either through treatment with CDDO-Me or through dopaminergic neuron-specific expression of cncC. Importantly, using a roGFP2-based probe (see section 5.1.4) the authors correlated severity of behavioral disorder with ROS levels.(1038) Similar protective effects of synthetic triterpinoids such as CDDO-ethyl amide and CDDO-trifluorethyl amide were found in mice.(1039) Some authors have proposed Nrf2 activation as a global means to treat all neurological damage.(1040)

HNE levels are increased in brain and body fluids of patients with various neurodegenerative disorders. High HNE levels can increase brain damage.(1041) The mechanisms of HNE causing brain damage are manifold: HNE is implicated in increasing aggregation of α-synuclein and export of aggregated α-synuclein to healthy neurons; lysosome dysfunction;(1042) and GSH depletion.(1043) Interestingly, quercetin, a polyphenolic plant-derived compound that is able to elevate GSH levels(1044) in the brain can alleviate Alzheimer’s disease symptoms in mice.(1045) These studies may translate to human patients: for instance, recent investigations indicate that the well-known neurological protective properties of coffee can be traced to quercetin(1046) (Figure S3); and quercetin can reduce HNEylation of proteins in neuronal culture.(1047)

Of course, these studies all assume a single cause and effect model of disease. In many instances this is more or less true and has led to many successful therapies: imatinib, an inhibitor of Bcr-Abl, an oncogenic fusion kinase responsible for chronic myeloid leukemia is a classic example.(1048) However, it is likely that many factors are responsible for neurodegeneration etiology, and hence, ROS suppression and/or electrophile detoxification are not sufficient to provide a large therapeutic effect.(1049) It is also possible that many of the model systems where these putative therapies are effective are not as complex as the actual disease in humans. This short-coming is starting to be addressed by development of multi-targeting molecules, such as BN82451 (Figure S3).(1050) This phenolic compound is anti-inflammatory, antioxidant and blocks sodium channels. Of course, combination therapies are another strategy to combat multifaceted diseases, and such regimens are being investigated for numerous brain diseases.(1051,1052)

6.3 Multiple sclerosis

ROS detoxification appears to be impaired in multiple sclerosis (MS) patients.(1053) ROS-induced damage and protein RES modification(1054) occur in the brains of MS patients.(1055) Modulation of ROS signaling is postulated to be an effective therapy against MS.(1056) However, as we commented above, antioxidants have not been particularly successful in treating MS, although they have fared better in mouse models.(1057)

One of the latest promising developments in MS treatment is the FDA approval (in 2015) and subsequent accelerating sales of the electrophilic Nrf2 agonist Tecfidera (dimethyl fumarate) (Figure 22).(1058) The mechanism of action of this drug continues to be debated. However, its ability to stimulate Nrf2 is likely not the only reason behind its clinical activity.(1059,1060) Recent investigations into the effect of Tecfidera on mice showed that Nrf2 was not required for the pharmacological effects of Tecfidera. Independent studies have further confirmed that Tecfidera’s T-cell stimulation activity is independent of Nrf2.(1060,1061) There is one caveat to this analysis: Nrf1 can at least partially compensate for Nrf2 function in these cells,(1062) meaning AR regulation may not be fully compromised in these models. ABPP indicated several targets of Tecfidera, one of which is protein kinase C θ. It is noteworthy that protein kinase C interacts with HIF-1α, a protein that is destabilized by Tecfidera.(1063) It is not known how loss of HIF-1α affects nucleophilicity/activity of protein kinase C. Another recent study showed succination of GAPDH by Tecfidera to be important in mediating its therapeutic effect in mice model of MS.(1060) Clearly, the promiscuity of reactive electrophilic drugs, like Tecfidera, renders it difficult to understand specific targets and delineate a precise molecular mechanism.

6.4 Context-specific shifts in RES/ROS signaling crosstalk

RES/ROS regulation permeates every physiological process/pathway known (metabolism, protein quality control, epigenetics, and transcriptional regulation, and so on). Indeed, innumerable proteins of diverse function and cellular roles are now implicated as RES/ROS sensors. Recent evidence on balance indicates that RES/ROS sensing/signaling is best regarded as a protein moon-lighting function.(251,390,509) These activities are some of the most interesting carried out by enzymes. Unfortunately, they are particularly difficult to predict and understand. The diverse repertoire of individual redox-influenced pathways has been documented and we refer the readers to these excellent reviews.(5,31,115,505,866,1064–1067)

However, cell signaling networks operate non-autonomously. These connective mechanisms are also often altered in specific disease states. Given that (i) cysteine mutations occur most frequently among coding residue mutations within disease database,(390,1068) and (ii) there is a growing body of data connecting specific cysteines to specific disease-relevant states, altered RES/ROS sensing/signaling likely plays an important role in numerous disease etiologies. In this sub-section, we explore functional redox crosstalk, with the focus on two key evolutionarily-conserved pathways/intersections: Nrf2/AR crosstalk with (i) Wnt signaling; and (ii) EGF signaling. These examples make a strong case that gleaning precise understanding of RES/ROS signaling mechanisms can help us to gain new knowledge of basal signaling patterns, pathway intersections, and disease etiology. The EGF system additionally represents the first establishment of physiological H₂O₂ signaling and both RES/ROS and several approved drugs uniquely tap into specific kinase sensors/isoforms that regulate this signaling subsystem.

Having described the dichotomous relationship between on- and off-target effects in natural and non-natural reactive species in disease, these specific examples provide a more focused lens into disease-relevant shifts in pathway interconnections. We stress that these insights arose from studying protein specific RES signaling.(252,512,720) We conclude that such surgical interrogations hold promise toward improved targeted intervention of druggable pathways as well as novel covalent ligand discovery targeting the hitherto undruggable proteome.

6.5 Cancer

Deregulated redox homeostasis has been described as a hallmark of cancer cells.(1069) These changes in RES/ROS levels are typically driven by genetic modifications that promote stress. However, cancer is a complex disease encompassing multiple stages of “development”(1070) and it was for some time unclear whether ROS elevation was an end product of oncogenesis or whether it is active in the transformation program. We therefore discuss the role of RES/ROS in the various stages of oncogenesis sequentially.(1071)

6.5.1 Moderate ROS elevation promotes oncogenic transformation through multiple pathways

As we have noted, moderate levels of ROS elevation are commonly associated with promotion of cell growth. Many proliferative stem cells show elevated ROS levels(1072) and various oxygenase enzymes are critical for correct development.(1073) Indeed, ROS have complex effects on mammalian development,(1074,1075) with both upregulated and down-regulated ROS levels occurring in a coordinated fashion. Intriguingly, many of the processes that occur during embryonic development are similar to those that occur during cancer development,(1076,1077) further implying that ROS levels will be important in cancer development and progress.

ROS function in early stages of oncogenesis to help create an environment conducive for growth and transformation, i.e., overall leads to a mutator phenotype.(1078) ROS elevation has been observed upon overexpression of single oncogenes in both cell culture(1079) and model organisms.(1080) ROS elevation can speed transformation by promoting genome instability(1081) that can help to drive mutations essential for cancer progression(1082) in what is typically, but not always, a gradual process.(1083,1084) Furthermore, ROS may serve to modulate DNA damage repair pathways, further promoting mutation. In addition, ROS also directly and indirectly regulate tumor suppressor genes, such as p53. It has recently been shown that impairment of the ETC or decrease in mitochondrial DNA can promote ROS generation that leads to a genetic inactivation of p53.(1085) As a result, cells show much higher proliferative ability and greater susceptibility to neoplastic transformation. Unsurprisingly, several tumor suppressors have an antioxidant function.(1086,1087) Furthermore, some labs have reported that oncogenic transformation of mesenchymal stem cells involves a decrease in Nrf2 levels and decrease in antioxidant genes.(1088) Although such changes are likely to affect manifold pathways, ROS levels would likely increase.

However, ROS levels must not be too high.(1089) Hyper-elevated ROS levels may contribute to oncogene-induced senescence. Certain cancer stem cells, for instance, require Nrf2 to retain their self-renewal properties.(1090,1091) Unsurprisingly, many oncogenes stimulate Nrf2 upregulation.(1091–1093) Furthermore, careful experiments looking at the effect of antioxidants on oncogenic RAS transformation showed that acetyl cysteine suppressed RAS oncogene-induced senescence, partly through slowing down ROS-promoted growth elevation, allowing continued sustained growth.(1080) Thus, ROS levels likely need fine tuning and must to able to accommodate competition for space, resources, etc. that occur during tumor growth.(1094)

6.5.2 RES may serve a natural tumor-suppressor function

Early studies on tumor formation potential of HNE and a more reactive analog 2,3-epoxy-4-hydroxynonanal showed that both species have little detectable carcinogenic potential in mice.(1095) However, these electrophiles have been linked to DNA damage behavior including sister chromatid exchange, and mutagenesis.(1095,1096) There is also evidence that HNE can selectively cause mutation of the tumor-suppressor p53 through directly modifying genomic DNA.(1097) RES levels are strongly correlated with ROS levels, and hence RES should also increase in cancer. Indeed, some studies have found elevation of RES in blood of cancer patients, indicating that redox signaling can be impacted in whole organisms by cancer.(1098) However, this observation does not seem to be recapitulated on a cancer cell-specific level: few studies have been performed on how RES affect oncogenesis, but, there appears to be a general, although not universal,(1099,1100) decrease in lipid peroxidation products during cancer development.(1101–1104) Although how RES affects cancer cells in model organisms and humans is still not fully clear, it is quite well established that HNE exerts a negative effect on many, but not all,(1105) mature cancer cell growth [including K562(1106), various colon cancer cells(1107) and HL-60;(1108) with IC₅₀’s in the mid- to low-micromolar range)] while being less impactful on non-transformed cells, implying that HNE would overall countermand oncogenesis. Indeed, far from being toxic to non-transformed cells, HNE stimulates growth of vascular and aortic smooth muscle cells in the mid to low micromolar range.(1109,1110)

Indeed, HNE reduces cachexia (weight loss/tissue wastage) in a lung cancer model,(1111) principally by exerting a selective growth inhibition effect on cancerous cells. Interestingly, it has been reported that overexpression of the HNE-detoxifying enzyme, GST-α, is sufficient to transform at least some cell types (e.g., human lens epithelial cells). Importantly, the transformation potential of GST is correlated with its ability to metabolize HNE and can be affected by heterologous expression of non-human proteins. Transformed GST-α-overexpressing cells showed reduced HNE levels, which led the authors to postulate that HNE reduction is sufficient to promote transformation.(1112) Other authors have postulated that sulforaphane, a well-known cancer preventing (prophylactic) agent (Figure 21) may function partially through upregulation of cellular HNE(1113) (although it is indisputable that other mechanisms also contribute to lowering cancer incidences). Glutathione depletion, which would raise HNE levels, also suppresses growth of cancer cells. Broadly speaking, most cancer cells upregulate GST expression,(1114) which may also indicate a drive to suppress RES signaling. However, the need to protect from elevated ROS/RNS, etc. cannot be ruled out and the potential roles of ROS/RNS are also difficult to parse from RES-specific effects in these experimental models. Thus, ultimately, little or no direct evidence for the specific involvement of HNE in these processes has been provided. Given that effects of endogenous RES such as HNE show a complex dose response(1115) and enzymes responsible for HNE maintenance also regulate ROS metabolism, it may indeed ultimately transpire to be very difficult to obtain direct evidence for the pathological effects of HNE. Furthermore, some cancer cells, such as MCF7, appear to express very little of the canonical GST isoforms (α, μ and π).

It has been known for 20 or more years that several physiological changes that may be expected to suppress lipid signaling occur during oncogenic progression.(1116) Briefly, cell membranes of cancer cells switch to a more saturated [less fluid and less readily oxidizable(1117)] state.(1118) Lipid pathways are some of the most altered metabolic systems in for instance pancreatic tumors.(1119) That being said, it is widely appreciated that membranes are important for numerous cellular processes, including signaling and permeation of small molecules. It thus remains very difficult to tie lipid changes specifically to suppression of RES signaling along the oncogenic pathway.(1120)

6.5.3 Mature cancer cells also rely on ROS, but are susceptible to elevated ROS

Mature cancer cells continue to be subject to high levels of oxidative stress. A recent study, for instance, found a correlation between metastatic spread and basal ROS levels.(1121) Indeed, ROS elevation assists several steps within the advanced oncogenic program, including angiogenesis [in part through stabilizing hypoxia inducible factor (HIF), (1122) avoidance of apoptosis,(1123) and metastasis(1124,1125)]. Several studies link elevated ROS levels to increased disease progression and poor clinical outcomes.(996) However, several emerging strategies are geared to take advantage of high ROS levels in cancer to selectively push diseased cells over the edge.(1126) Piperlongumine (Figure S3), a reactive electrophilic molecule studied by the Schreiber lab, was shown to inhibit GST-p and cause increase in ROS levels and cell death selectively in cancer cells. (1079) The authors conclude from this study that GST-p is an example of non-oncogene addictive behavior: i.e., cancers rely on GST-p much more than normal cells, although (by this definition) GST is not sufficient to cause transformation. These data are in broad/general agreement with studies above on GST-α-promoted transformation, although the data indicate a more passive role in oncogenesis. Similarly, it has been postulated that phenethyl-ITC (Figure 21) can kill cancer cells through a ROS-dependent mechanism.(1127) Some pharmaceuticals modulate RES/ROS in a locale/organelle-specific manner. One such drug is doxorubicin (Figure S3) (approved to treat breast and bladder cancer amongst other). This drug elevates cellular HNE levels, and increases in mitochondrial HNE-modified proteins have been detected in cells treated with doxorubicin.(1128)

6.5.4 RES have complex and diverse effects on mature cancer cells, but are principally anticancer

Interestingly, HNE is postulated to promote angiogenesis through a similar mechanism to ROS (i.e., increase in HIF).(1129) In the case of HNE, however, angiogenesis is promoted through inhibition of Sirt3, mitochondrial sirtuin deacetylase in mammals. Consistent with this proposal, HNE could not promote angiogenesis in Sirt3-knockdown cells. An analogous compound, 4-hydroxy-7-oxo-5-heptenoic acid lactone (Figure S3), also promotes angiogenesis.(1130) In spite of angiogenesis activity, RES would be predicted to be a particularly potent weapon against cancer, given that some studies implicate RES as a natural anticancer prophylactic (see also Section 6.5.2). Sulforaphane and other dietary ITCs are in clinical trials to treat several cancers. However, it seems likely that the therapeutic window of reactive lipids like HNE is too small to be used directly. To this end, inhibition of HNE-metabolizing enzymes has been proposed as a means to upregulate HNE and kill cancer cells.(1131) Several broadly-reactive carbon-based electrophiles are currently used in clinic or are in clinical trials for cancer treatment. Compounds used in the clinic include nitrogen mustards (mechlorethamine, or carmustine), disulfonate cross-linkers (Busulfan) and dacarbazine (Figure S3). Several of these electrophiles stimulate ROS production and this has been proposed to contribute to their pharmaceutical program.(1132) Clinically-trialed electrophiles include VLX1570 (Figure 21) and melflufen (Figure S3). VLX1570 and other analogs stimulate Nrf2 activity and upregulate heme oxygenase 1 (HMOX-1),(1133) although the mechanism is unknown, as is how this function contributes to efficacy. Furthermore, some authors have proposed that the potent Nrf2 agonist, Tecfidera, can be repurposed to treat cancer,(1134) and the drug has shown efficacy in xenograft tumor models.(1135)

As discussed above, several drugs in clinic now have weakly-reactive electrophilic appendages (commonly acrylamide) (Figure 21). These appendages, in contrast to the enones, sulfonates, and chloramines discussed above, are of relatively low promiscuity and (ideally) engage with target cysteine(s) only when pre-bound to target enzyme(s). The irreversible binding mode brings several pharmacological advantages relative to non-covalent equivalents. Although unlikely a trait selected during oncogenesis, it has been shown that high ROS levels can oxidize these cysteines, reducing potency of the inhibitors. We recently proposed that modification of this strategy could be used to direct HNE to a specific protein of interest to tap into endogenous lipid signaling pathways that could confer benefits over “normal” drug targeting pathways.(390) No such drugs have yet been reported.

6.5.5 Nrf2 crosstalk with Wnt signaling

As alluded to earlier in this chapter, Nrf2/AR upregulation is a critical component of numerous diseases. It is known that modulations in Nrf2 leads to significant pathway rewiring that may expose an Achilles heels that can be exploited for therapy.(893) However, Nrf2 regulation and pathway intersections are synergistically developed during disease progression, so it is very likely that a personalized approach to Nrf2/AR signaling should be taken. Here we discuss recent identification of redox-dependent crosstalk between Nrf2 and Wnt, another pathway commonly upregulated in cancer.(1136)

β-catenin (a transcription factor driving canonical Wnt signaling) and Nrf2 are both substrates of β-TrCP, an E3 ubiquitin ligase responsible for K48-linked ubiquitination, leading to proteasomal degradation of client proteins. Thus, β-catenin and Nrf2 share a common regulator, indicating that Wnt and AR may crosstalk. Indeed, similarly to Nrf2, Wnt signaling upregulation commonly occurs in cancers. However, upregulation of Wnt occurs by loss of the ability of β-TrCP to bind to β-catenin. Numerous reports indicate that Wnt signaling can stimulate Nrf2 and hence upregulate AR.(1137) However, it was less clear how Nrf2 affects Wnt. Using T-REX-assisted HNEylation of Keap1, it was found that β-TrCP knockdown led to a suppression of AR.(252) This suppression was not observed following bulk HNE exposure of cells, likely because of off-target effects. Subsequent experimentation showed that the inhibition of Wnt signaling by Nrf2 was increased when β-TrCP could not bind β-catenin: in β-catenin knockdown cells, the elevation of Nrf2 induced by selective HNEylation of Keap1 alone is significantly offset by the fact that Wnt signaling is highly susceptible to Nrf2 inhibition, and Wnt inhibition leads to decrease in AR. Thus, there is shift in the interplay of Nrf2 and Wnt during cancer progression and mature cancer cells could be sensitive to AR upregulation, provided they upregulate Wnt through β-catenin N-terminal deletion/mutation. Although no systematic study has been performed, it is possible that this relationship could help guide the usage of Nrf2 stimulating drugs in anticancer therapy. Several studies are in concordance with this hypothesis (Figure 23).(1138)

Figure 23.

Nrf2/AR signaling is at the crossroads of Wnt and Akt/FOXO signaling pathways. Nrf2, the master transcriptional regulator of the AR, is controlled by multiple redox-sensitive proteins. Keap1 negatively regulates AR signaling by targeting Nrf2 for degradation under non-stress conditions. Nrf2 is also regulated by the Akt signaling axis: activation of the Akt pathway triggers GSK3β-mediated phosphorylation of Nrf2, resulting in the degradation of Nrf2 mediated by β-TrCP. Recent studies have identified the role of β-catenin, another substrate of β-TrCP, in regulating Nrf2/AR. Nrf2 inhibits β-catenin-mediated Wnt signaling, and β-catenin stimulates Nrf2-dependent AR.

6.5.6 Nrf2 crosstalk with EGF signaling along PI3K/Akt/FOXO axis

An interesting positive feedback loop between Nrf2 and EGFR is slowly coming into focus (Figure 23). It is established that EGFR upregulation either upon endogenous stimulation or by constitutive activation leads to Nrf2 upregulation.(1093) This pathway could occur through modification of Keap1(1139) although the more likely cause is that EGFR stimulates Akt3,(1140,1141) which can in turn inhibit GSK3β, a negative regulator of Nrf2. It was also found that Nrf2 can also positively regulate Notch,(1142) a factor that positively regulates transcription of EGFR.(1143)

As we have discussed, ROS levels are elevated in cancer yet balanced to promote cell growth, without triggering senescence. There is evidence that ROS elevated stimulation of EGFR can directly stimulate Nrf2 and ARE genes. In fact, EGFR inhibition can prevent Nrf2 activation during hyperoxia.(1144) Similarly, inhibition of PI3K, a protein downstream of EGFR, also decreases Nrf2 levels.(1145) Indeed, ROS also inactivates PTEN, a negative regulator of the PI3K pathway. Thus, it is likely that ROS elevation has a pleotropic effect on multiple pathways, probably in a reinforcing manner. It may be critical that such reinforcing pathways exist, as ROS elevation in cancers can originate from numerous sources(1146) and it is likely that the origin of ROS generation can affect the order of pathway stimulation. For instance, NOX2-mediated stimulation/inhibition of signaling pathways through ROS modification of specific kinases follows the distance from the point of H₂O₂ generation: EGFR is closest to NOX2 and is preferentially modified by ROS, whereas PTEN and PTPB1 are further away from the source, so oxidation is less likely. Although this analysis assumes that proximity to ROS rather than second-order kinetics or reaction of peroxide with a specific protein determines modification selectivity, it is certainly interesting to consider that context will control which pathway is modified.(1147) Clearly expression levels of the specific proteins involved, and detoxification mechanisms will also play a big role in determining how ROS influence cell growth and through which pathways.

7. OUTLOOK

The literature abounds with preclinical and clinical studies on antioxidant/RES-related drugs/regimens.(1148) However, ultimately, few ever make it to the clinic or show efficacy in trials. Furthermore, for many years, electrophilic drugs were almost considered anathema in drug development.(1149) However, with the new-found appreciation for covalent inhibitors in clinical trials and front-line drugs, as well as the appreciation of multiple-target drugs,(1150) there has at least been a renaissance of electrophilic elements in drug design.(390,1149,1151–1154) Clearly the unresolved issue with antioxidants, and notion that cysteines have now become druggable, reaffirms the importance of identifying privileged sensor cysteines, and ligandable cysteines that are primed for drug development. We believe that study of redox signaling pathways can help illuminate and guide both discovery of electrophilic drugs and hone our efforts on the most beneficial drug targets. It is thus of paramount importance to gain a comprehensive overview of the precision cysteome dynamics and its overarching influence on cellular processes. Developing such a “redox signaling atlas” is one of the key scientific challenges of this century.

Biographies

Saba Parvez

Saba Parvez was born and raised in India. He received his undergraduate training in biochemistry at Bates College, USA where he worked with Prof. Rachel Austin. He then moved to Ithaca to undertake his doctoral studies under the guidance of Professor Yimon Aye as an HHMI international predoctoral fellow. He is interested in studying cell signaling pathways, and understand how the deregulation of these pathways cause disease.

Marcus Long:

Marcus Long was born and raised in England. He read chemistry at Oxford University, UK. Having completed his Ph.D. in biochemistry in Brandeis University, USA, as an HHMI international predoctoral fellow under the guidance of Professor Lizbeth Hedstrom, he now focuses on understanding the small-molecule regulation of cell signaling pathways, including redox signaling in the Aye laboratory.

Jesse Poganik:

Jesse Poganik was born and raised in Queens, New York. He received his B.S. in Chemistry from the State University of New York at Stony Brook where he worked in the lab of Prof. Dale Drueckhammer. He then went on to pursue doctoral studies in chemical biology in the lab of Prof. Yimon Aye at Cornell University in Ithaca, New York. His ongoing thesis research as an American Heart Association predoctoral fellow focuses on understanding novel regulatory pathways controlled by precision signaling activities of reactive electrophiles.

Yimon Aye:

Yimon Aye was born and raised in Burma. She read chemistry at Oxford University, UK, and subsequently completed her graduate training in organic chemistry with Professor David Evans at Harvard University, USA, in 2009. She then pursued her postdoctoral training with Professor JoAnne Stubbe at Massachusetts Institute of Technology, researching the cellular and biochemical regulatory mechanisms of the enzyme ribonucleotide reductase. In her independent career at Cornell University that began in mid-2012, she set out to understand the detailed mechanisms of precision electrophile signaling. This impetus culminated in the development of REX technologies, T-REX^™ delivery and G-REX^™ profiling.
